The choice for 12 gauge AA duplicate handloads and standard velocity handgun loads. Ideal for use in 45 Auto match applications. Consistent, clean, low flash and smoke are benefits to the shooter.

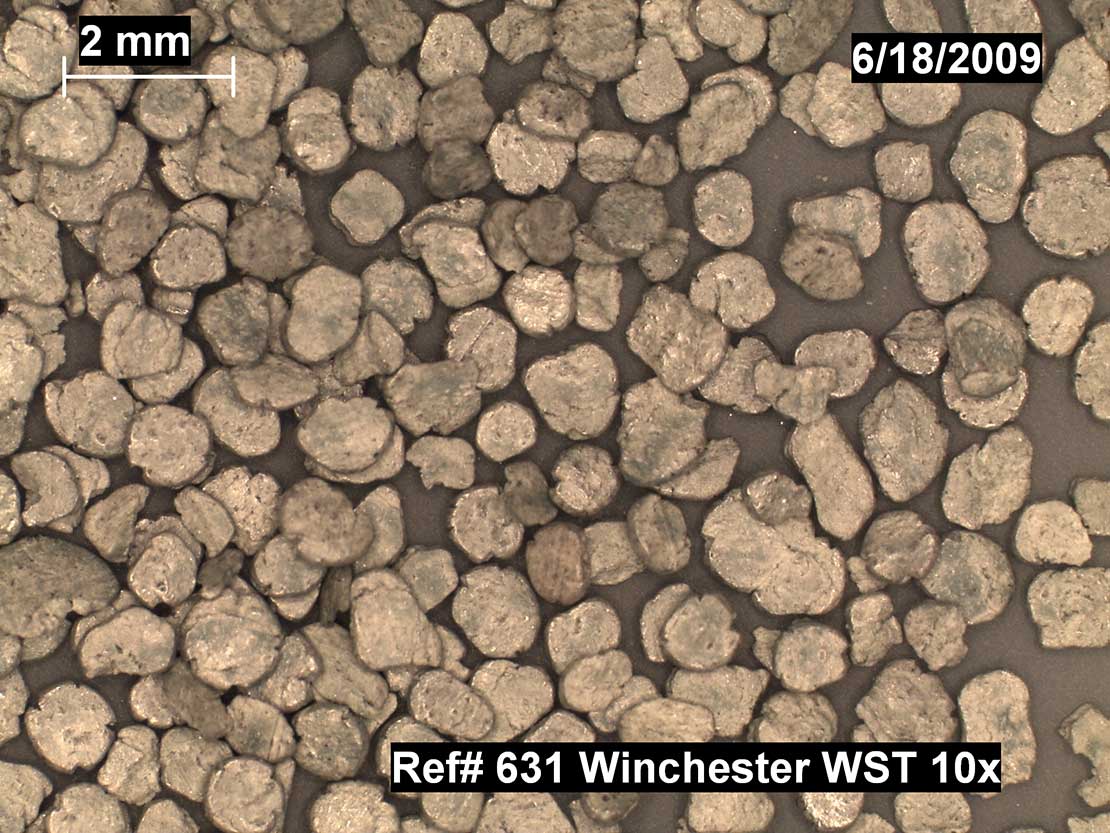

Shape | Color | Perforation | Diameter min | Diameter max | Length/thick. min | Length/thick. max | Manufacturer |
---|---|---|---|---|---|---|---|
flattened ball with irregular flattened ball | Gray | No | 0.66 mm | 1.33 mm | 0.2 mm | 0.2 mm | Olin / Primex Technologies |
Ladedata som finnes på hjemmesidene til Evje PK er KUN ment som en veiledning! Ladedata skal alltid verifiseres mot kjente kilder (kruttprodusenter, ladebøker o.l.)
Data funnet på våre hjemmesider brukes på eget ansvar, og Evje Pistolklubb fratar seg alt ansvar for feil bruk av, eller skrivefeil i oppgitte data.
Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
---|---|---|---|---|---|
![]() | 140 | Hornady Cowboy | 3.5 | 825 | start load; bullet diam.: .358"; COL: 1.450"; 12,600 psi |
![]() | 140 | Hornady Cowboy | 3.9 | 903 | max load; bullet diam.: .358"; COL: 1.450"; 15,900 psi |
![]() | 148 | Hornady LHBWC | 2.5 | 680 | start load; bullet diam.: .358"; COL: 1.160"; 13,000 psi |
![]() | 148 | Hornady LHBWC | 2.8 | 735 | max load; bullet diam.: .358"; COL: 1.160"; 16,000 psi |
![]() | 158 | Cast LSWC | 3.3 | 705 | start load; bullet diam.: .358"; COL: 1.475"; 12,800 psi |
![]() | 158 | Cast LSWC | 3.7 | 770 | max load; bullet diam.: .358"; COL: 1.475"; 15,700 psi |
Hodgdon Pistol Data Case: Winchester; twist: 1:18.75"; primer: Winchester SP, Small Pistol; barrel length: 7.7"; trim length: 1.145". | |||||
Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
![]() | 158 | Nosler Sporting Handgun Jacketed Hollow Point | 3.6 | 692 | maximum load; most accurate load tested |
![]() | 158 | Nosler Sporting Handgun Jacketed Hollow Point | 3.1 | 577 | |
![]() | 158 | Nosler Sporting Handgun Jacketed Hollow Point | 2.6 | 462 | |
Using Nosler Bullets Handgun; Case: Federal; primer: WSP; barrel length/make: 7.75" H-S Precision; twist: 1-16"; bullets: 158 GR Sporting Handgun Revolver JHP; OACL: 1.440"; maximum OACL: 1.550". Use Maximum Loads with Caution | |||||
Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
![]() | 148 | Lead HBWC | 2.5 | 680 | starting load; 13,000 psi |
![]() | 148 | Lead HBWC | 2.8 | 735 | maximum load; 16,000 psi |
![]() | 148 | Lead BBWC | 2.5 | 665 | starting load; 13,100 psi |
![]() | 148 | Lead BBWC | 2.7 | 700 | maximum load; 16,300 psi |
![]() | 158 | SWC | 3.3 | 705 | starting load; 12,800 psi |
![]() | 158 | SWC | 3.7 | 770 | maximum load; 15,700 psi |
Winchester Handgun Data trim to length: 1.149"; max. overall length with bullet seated: 1.550"; nominal bullet diameter (jacketed): .358"; barrel length: 4" | |||||
Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
![]() | 158 | Lead | 3.7 | 756 | start load; min OAL: 1.481 |
![]() | 158 | Lead | 3.9 | 800 | never exceed; min OAL: 1.481; 17,300 psi |
+P Lee Precision Data These hot loads may wear guns prematurely. Do not use in small frame, or aluminum frame revolvers, or in semi auto pistols. Small pistol primer. CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. | |||||
Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
![]() | 158 | LSWC | 3.9 | 800 | maximum load; 17,300 psi |
+P (Winchester Handgun Data) trim to length: 1.149"; max. overall length with bullet seated: .984"; nominal bullet diameter (jacketed): .358"; barrel length: 4" | |||||
Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
![]() | 148 | Wad Cutter | 2.5 | 649 | start load; min. OAL: 1.180 |
![]() | 148 | Wad Cutter | 2.7 | 700 | NEVER EXCEED; 16,300 psi; min. OAL: 1.180 |
![]() | 158 | Lead | 3.3 | 693 | start load; min. OAL: 1.550 |
![]() | 158 | Lead | 3.7 | 770 | NEVER EXCEED; 15,700 psi; min. OAL: 1.550 |
Lee Precision Data With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Pistol Primer. |
Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
---|---|---|---|---|---|
![]() | 135 | Nosler JHP | 5.5 | 1089 | start load; COL: 1.125"; 27,900 psi |
![]() | 135 | Nosler JHP | 5.9 | 1143 | max load; COL: 1.125"; 31,200 psi |
![]() | 140 | Barnes TAC-XP | 3.6 | 819 | start load; COL: 1.135"; 28,200 psi |
![]() | 140 | Barnes TAC-XP | 4.0 | 863 | max load; COL: 1.135"; 31,200 psi |
![]() | 150 | Nosler JHP | 5.5 | 1047 | start load; COL: 1.125"; 29,400 psi |
![]() | 150 | Nosler JHP | 5.8 | 1088 | max load; COL: 1.125"; 32,300 psi |
![]() | 155 | Hornady XTP | 4.6 | 957 | start load; COL: 1.125"; 25,400 psi |
![]() | 155 | Hornady XTP | 5.3 | 1039 | max load; COL: 1.125"; 32,500 psi |
![]() | 155 | Berry's Bullets FP | 5.1 | 996 | start load; COL: 1.125"; 27,400 psi |
![]() | 155 | Berry's Bullets FP | 5.9 | 1091 | max load; COL: 1.125"; 33,400 psi |
![]() | 165 | Sierra JHP | 4.5 | 916 | start load; COL: 1.125"; 26,400 psi |
![]() | 165 | Sierra JHP | 5.1 | 995 | max load; COL: 1.125"; 33,300 psi |
![]() | 165 | Berry's Bullets FP | 4.8 | 944 | start load; COL: 1.125"; 27,600 psi |
![]() | 165 | Berry's Bullets FP | 5.5 | 1003 | max load; COL: 1.125"; 30,700 psi |
![]() | 180 | Berry's Bullets FP | 4.4 | 868 | start load; COL: 1.125"; 26,900 psi |
![]() | 180 | Berry's Bullets FP | 4.9 | 932 | max load; COL: 1.125"; 32,000 psi |
![]() | 180 | Hornady XTP | 3.9 | 830 | start load; COL: 1.125"; 28,300 psi |
![]() | 180 | Hornady XTP | 4.3 | 888 | max load; COL: 1.125"; 32,400 psi |
![]() | 200 | Hornady XTP | 3.0 | 654 | start load; COL: 1.125"; 25,300 psi |
![]() | 200 | Hornady XTP | 3.4 | 733 | max load; COL: 1.125"; 31,100 psi |
Hodgdon Data Case: Hornady; twist: 1:16"; primer: Winchester SP, Small Pistol; barrel length: 4"; trim length: .845"; bullet diam.: .400". This data is intended for use in firearms with barrels which fully support the cartridge in the chamber. Use of this data in firearms which do not fully support the cartridge, such as Glock, may result in bulged cases, ruptured cases, case head separation, or other conditions which may result in damage to the firearm and/or result in injury or death of the shooter and/or bystanders. | |||||
Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
![]() | 150 | Jacketed | 5.5 | 927 | start load; min. OAL: 1.135 |
![]() | 150 | Jacketed | 6.3 | 1050 | NEVER EXCEED; min. OAL: 1.135; 27,100 psi |
Lee Precision 150 GR Data Do not use reloads in Glock or similar guns with chambers that do not fully support the cartridge due to the intrusion of the feed ramp. CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Pistol Primer. | |||||
Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
![]() | 155 | Jacketed | 5.5 | 963 | start load; min. OAL: 1.100 |
![]() | 155 | Jacketed | 6.0 | 1040 | NEVER EXCEED; compressed load; min. OAL: 1.100; 27,900 psi |
Lee Precision 155 GR Data Do not use reloads in Glock or similar guns with chambers that do not fully support the cartridge due to the intrusion of the feed ramp. CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Pistol Primer. | |||||
Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
![]() | 170 | Jacketed | 4.2 | 771 | start load; min. OAL: 1.115 |
![]() | 170 | Jacketed | 5.5 | 970 | NEVER EXCEED; min. OAL: 1.115; 30,100 psi |
![]() | 170 | Lead | 4.0 | 801 | start load; min. OAL: 1.135 |
![]() | 170 | Lead | 5.0 | 970 | NEVER EXCEED; min. OAL: 1.135; 30,000 psi |
Lee Precision 170 GR Data Do not use reloads in Glock or similar guns with chambers that do not fully support the cartridge due to the intrusion of the feed ramp. CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Pistol Primer. | |||||
Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
![]() | 200 | Lead | 3.5 | 760 | start load; min. OAL: 1.100 |
![]() | 200 | Lead | 3.5 | 760 | NEVER EXCEED; min. OAL: 1.100; 25,200 psi |
Lee Precision 200 GR Data Do not use reloads in Glock or similar guns with chambers that do not fully support the cartridge due to the intrusion of the feed ramp. CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Pistol Primer. | |||||
Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
![]() | 150 | Sierra JHP | 5.5 | 968 | start load; 19,100 cup; 1.100" OAL |
![]() | 150 | Sierra JHP | 6.4 | 1096 | max load; 23,400 cup; 1.100" OAL |
![]() | 175 | Winchester Jacketed Silvertip | 5.1 | 880 | start load; 19,800 cup; 1.125" OAL |
![]() | 175 | Winchester Jacketed Silvertip | 5.7 | 991 | max load; 22,800 cup; 1.125" OAL; potentially most accurate load |
Lyman Reloading Handbook 48th Edition cases: Winchester; trim-to length: .845"; primers: Winchester WSP; primer size: Small Pistol; Lyman shell holder: No. 15; firearm used: Universal Receiver; barrel length: 4"; twist: 1-16"; groove dia.: .401"; do not reduce cases below the trim-to length; additionally do not roll crimp bullets; it is important not to seat bullets to a shorter length than listed in any handgun cartridge; but especially so in this one; pressures can be raised dramatically with deep seating (Lyman 48th Edition Reloading Handbook) | |||||
Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
![]() | 155 | Round Nose Semi Wad Cutter | 5.0 | 970 | starting load; minimum OAL: 1.126 |
![]() | 155 | Round Nose Semi Wad Cutter | 5.6 | 1,034 | maximum load; minimum OAL: 1.126 |
![]() | 180 | Truncated Cone | 4.5 | 886 | starting load; minimum OAL: 1.130 |
![]() | 180 | Truncated Cone | 5.0 | 941 | maximum load; minimum OAL: 1.130 |
![]() | 180 | Round Nose Flat Point | 4.5 | 886 | starting load; minimum OAL: 1.122 |
![]() | 180 | Round Nose Flat Point | 5.0 | 941 | maximum load; minimum OAL: 1.122 |
Oregon Trail Standard Handgun Loads test gun: Entreprise 5", WSP; CAUTION: All Glock .40 S&W pistols as of this writing have large unsupported chambers, as do other makes. Examine your barrel and know what you're dealing with before you proceed! These loads are intended for use in pistols with fully supported chambers ONLY! Do not exceed maximum loads; never reduce stated overall lengths | |||||
Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
![]() | 135 | Nosler Sporting Handgun Jacketed Hollow Point | 6.8 | 1,108 | maximum load; compressed load; most accurate load tested |
![]() | 135 | Nosler Sporting Handgun Jacketed Hollow Point | 6.3 | 1,027 | |
![]() | 135 | Nosler Sporting Handgun Jacketed Hollow Point | 5.8 | 945 | |
![]() | 180 | Nosler Sporting Handgun Jacketed Hollow Point | 4.8 | 860 | maximum load; most accurate load tested |
![]() | 180 | Nosler Sporting Handgun Jacketed Hollow Point | 4.3 | 768 | |
![]() | 180 | Nosler Sporting Handgun Jacketed Hollow Point | 3.8 | 675 | |
Handgun Data (Using Nosler Bullets) Handgun; case: Winchester; primer: WSP; barrel length/make: 4" S&W; twist: 1-16"; bullets: 135 GR, 150 GR, 180 GR & 200 GR Nosler Sporting Handgun Pistol JHP; OACL: 1.125"; maximum OACL: 1.135". Use Maximum Loads with Caution | |||||
Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
![]() | 175 | Lyman 401043 | 4.3 | 900 | lube: Thompson's Red Angel; 6 lb wheelweights: 4 lb Linotype: 2 1/2 oz pure tin; energy (ft-lbs): 313; very accurate |
![]() | 175 | Lyman 401043 | 4.6 | 910 | lube: Thompson's Red Angel; 6 lb wheelweights: 4 lb Linotype: 2 1/2 oz pure tin; energy (ft-lbs): 320; very accurate |
![]() | 175 | Bull-X SWC | 4.3 | 880 | lube: Thompson's Bear Lube; 92 parts lead: 6 parts antimony: 2 parts tin; energy (ft-lbs): 301; accurate |
![]() | 175 | Bull-X SWC | 4.6 | 910 | lube: Thompson's Bear Lube; 92 parts lead: 6 parts antimony: 2 parts tin; energy (ft-lbs): 320; accurate |
![]() | 175 | Bull-X | 4.8 | 930 | lube: Thompson's Bear Lube; 92 parts lead: 6 parts antimony: 2 parts tin; energy (ft-lbs): 336; super accurate |
![]() | 140 | Bull-X | 5.5 | 1,050 | lube: Thompson's Bear Lube; 92 parts lead: 6 parts antimony: 2 parts tin; energy (ft-lbs): 343; super accurate |
![]() | 140 | Bull-X | 5.9 | 1,110 | lube: Thompson's Bear Lube; 92 parts lead: 6 parts antimony: 2 parts tin; energy (ft-lbs): 382; accurate |
![]() | 140 | Bull-X | 6.2 | 1,140 | lube: Thompson's Bear Lube; 92 parts lead: 6 parts antimony: 2 parts tin; energy (ft-lbs): 403; accurate |
![]() | 140 | Bull-X | 6.5 | 1,180 | lube: Thompson's Bear Lube; 92 parts lead: 6 parts antimony: 2 parts tin; energy (ft-lbs): 432; very accurate |
Model 4006 (Cast Bullet Loads) Except where noted, all loads used Winchester cases, and CCI 500 primers with taper (very mild) crimp. |
Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
---|---|---|---|---|---|
![]() | 155 | Cast LSWC | 4.9 | 919 | start load; COL: 1.230"; 13,100 cup |
![]() | 155 | Cast LSWC | 5.4 | 1017 | max load; COL: 1.230"; 16,700 cup |
![]() | 160 | Barnes TAC-XP | 4.2 | 895 | start load; COL: 1.200"; 17,200 psi |
![]() | 160 | Barnes TAC-XP | 4.6 | 946 | max load; COL: 1.200"; 19,700 psi |
![]() | 180 | LFP | 4.4 | 846 | start load; bullet diam.: .452"; COL: 1.140"; 13,300 cup |
![]() | 180 | LFP | 4.9 | 912 | max load; bullet diam.: .452"; COL: 1.140"; 16,100 cup |
![]() | 185 | Hornady JSWC | 4.4 | 794 | start load; COL: 1.135"; 14,100 cup |
![]() | 185 | Hornady JSWC | 4.9 | 866 | max load COL: 1.135"; 16,500 cup |
![]() | 200 | Speer JHP | 4.6 | 789 | start load; COL: 1.155"; 15,900 cup |
![]() | 200 | Speer JHP | 5.1 | 898 | max load; COL: 1.155"; 17,500 cup |
![]() | 200 | Cast LSWC | 4.4 | 830 | start load; COL: 1.225"; 15,400 psi |
![]() | 200 | Cast LSWC | 5.1 | 910 | max load; COL: 1.225"; 19,900 psi |
![]() | 230 | LRN | 4.0 | 776 | start load; bullet diam.: .452"; COL: 1.200"; 14,300 cup |
![]() | 230 | LRN | 4.3 | 812 | max load; bullet diam.: .452"; COL: 1.200"; 16,400 cup |
![]() | 230 | Hornady FMJ FP | 4.1 | 733 | start load; COL: 1.200"; 13,900 cup |
![]() | 230 | Hornady FMJ FP | 4.9 | 848 | max load; COL: 1.200"; 16,100 cup |
Hodgdon Data Case: Winchester; twist: 1:16"; primer: Federal 150, Large Pistol; barrel length: 5"; trim length: .893"; bullet diam.: .451" (except where otherwise specified in remarks) | |||||
Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
![]() | 180 | Lead | 4.6 | 880 | start load; min OAL: 1.190 |
![]() | 180 | Lead | 5.4 | 1000 | never exceed; min OAL: 1.190; 20,000 psi |
![]() | 185 | Jacketed | 4.3 | 745 | start load; min OAL: 1.190 |
![]() | 185 | Jacketed | 5.3 | 890 | never exceed; min OAL: 1.190; 19,000 psi |
![]() | 200 | Jacketed | 4.7 | 820 | start load; min OAL: 1.190 |
![]() | 200 | Jacketed | 5.2 | 885 | never exceed; min OAL: 1.190; 19,900 psi |
![]() | 200 | Lead | 4.4 | 830 | start load; min OAL: 1.190 |
![]() | 200 | Lead | 5.1 | 910 | never exceed; min OAL: 1.190; 19,900 psi |
![]() | 230 | Jacketed | 4.1 | 686 | start load; min OAL: 1.190 |
![]() | 230 | Jacketed | 4.9 | 800 | never exceed; min OAL: 1.190; 19,900 psi |
![]() | 230 | Lead | 4.0 | 726 | start load; min OAL: 1.190 |
![]() | 230 | Lead | 4.5 | 805 | never exceed; min OAL: 1.190; 20,100 psi |
Lee Precision Data Large Pistol primer; with NEVER EXCEED LOADS maintain Minimum Over All Length or longer | |||||
Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
![]() | 230 | Nosler Sporting Handgun Pistol FMJ or JHP | 4.8 | 769 | max; most accurate load tested |
![]() | 230 | Nosler Sporting Handgun Pistol FMJ or JHP | 4.3 | 723 | |
![]() | 230 | Nosler Sporting Handgun Pistol FMJ or JHP | 3.8 | 678 | |
Using Nosler Bullets Handgun; case: Winchester; primer: Fed. 150; barrel length/make: 5" Douglas; twist: 1-16"; bullets: 185 GR Nosler Custom Competition JHP or 230 GR Nosler Sporting Handgun Pistol FMJ or JHP; OACL: 1.200"; maximum OACL: 1.275". Use Maximum Loads with Caution | |||||
Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
![]() | 200 | Lyman #452460 | 4.2 | 750 | sugg. start load; 13,300 cup; primer: CCI 300 |
![]() | 200 | Lyman #452460 | 4.7 | 804 | max load; 15,300 cup; primer: CCI 300 |
![]() | 200 | Lyman #452630 | 4.4 | 735 | sugg. start load; 11,100 cup; primer: CCI 300 |
![]() | 200 | Lyman #452630 | 4.9 | 840 | max load; 16,300 cup; primer: CCI 300 |
200 GR (Lyman Cast Bullet Data) cases: Remington (except where otherwise specified in remarks); trim-to length: .888"; primers: Remington 2 1/2 (except where otherwise specified in remarks); primer size: Large Pistol; Lyman shell holder: No. 2; cast bullets used sized to .451" dia.; firearm used; Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .450"; Lyman #452460 OAL: 1.161"; Lyman #452630 OAL: 1.235" (Lyman Cast Bullet Manual 4th Edition) | |||||
Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
![]() | 225 | Lyman #452374 | 4.2 | 707 | sugg. start load; 11,500 cup; primer: CCI 300 |
![]() | 225 | Lyman #452374 | 4.7 | 794 | max load; 17,100 cup; primer: CCI 300 |
225 GR (Lyman Cast Bullet Data) cases: Remington (except where otherwise specified in remarks); trim-to length: .888"; primers: Remington 2 1/2 (except where otherwise specified in remarks); primer size: Large Pistol; Lyman shell holder: No. 2; cast bullets used sized to .451" dia.; firearm used; Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .450"; OAL: 1.272" (Lyman Cast Bullet Manual 4th Edition) | |||||
Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
![]() | 180 | Semi Wad Cutter | 4.0 | 856 | starting load |
![]() | 180 | Semi Wad Cutter | 4.7 | 965 | maximum load |
![]() | 200 | Semi Wad Cutter | 4.1 | 849 | starting load |
![]() | 200 | Semi Wad Cutter | 4.7 | 920 | maximum load |
![]() | 225 | Flat Point | 3.9 | 785 | starting load |
![]() | 225 | Flat Point | 4.3 | 829 | maximum load |
![]() | 230 | Round Nose | 3.9 | 800 | starting load |
![]() | 230 | Round Nose | 4.3 | 845 | maximum load |
Standard Loads (Oregon Trail Handgun Data) test gun: Entreprise 1911 frame, 5" Bar-Sto barrel, WLP; 180 and 200 gr Semi Wad Cutter OAL: 1.250; 225 Flat Point OAL: 1.205; 230 Round Nose OAL: 1.260; do not exceed maximum loads; never reduce stated overall lengths | |||||
Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
![]() | 200 | Rim Rock cast SWC | 4.6 | 812 | sandbag rest group (inches): 3.14 |
![]() | 185 | Speer Match TMJ SWC | 4.6 | 663 | sandbag rest group (inches): 2.82 |
Automatic in a Colt Gold Cup National Match All loads used Remington cases and Federal Large Pistol Match primers. Group size is the average of five shots at 25 yards. Velocity measured at 10 feet. | |||||
Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
![]() | 200 | Cast #452460 | 4.2 | 750 | sugg. start load; 1.161" OAL; primer: CCI 300; 13,300 cup |
![]() | 200 | Cast #452460 | 4.7 | 804 | max load; 1.161" OAL; primer: CCI 300; 15,300 cup |
![]() | 200 | Cast #452630 | 4.4 | 735 | sugg. start load; 1.235" OAL; primer: CCI 300; 11,100 cup |
![]() | 200 | Cast #452630 | 4.9 | 840 | max load; 1.235" OAL; primer: CCI 300; 16,300 cup |
![]() | 225 | Cast #452374 | 4.2 | 707 | sugg. start load; 1.272" OAL; primer: CCI 300; 11,500 cup |
![]() | 225 | Cast #452374 | 4.7 | 794 | max load; 1.272" OAL; primer: CCI 300; 17,100 cup |
Cast Bullet Data Lyman Reloading Handbook 49th Edition cases: Remington (except where otherwise specified in remarks); trim-to length: .888"; primers: Remington 2 1/2 (except where otherwise specified in remarks); primer size: Large Pistol; Lyman shell holder: No. 2; cast bullets used sized to .451" dia.; firearm used: Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .450" |
Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
---|---|---|---|---|---|
![]() | 155 | Jacketed | 5.0 | 1000 | start load; miin OAL: 1.240 |
![]() | 155 | Jacketed | 8.0 | 1220 | never exceed; compressed; min OAL: 1.240; 31,900 psi |
![]() | 200 | Lead | 3.8 | 830 | start load; min OAL: 1.240 |
![]() | 200 | Lead | 5.0 | 940 | never exceed; min OAL: 1.240; 32,400 psi |
Lee Precision Data Large Pistol Primer. CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. |
