Super-Field propellant is the propellant of choice for Winchester 20 gauge AA Target loads. WSF is an ideal choice to maximize velocities in 12 gauge 1-1/8 ounce and 1-1/4 ounce loads. Super-Field also performs well in 38 Super, 9mm, and 40 S&W pistol loads. Excellent propellant for action pistol applications.

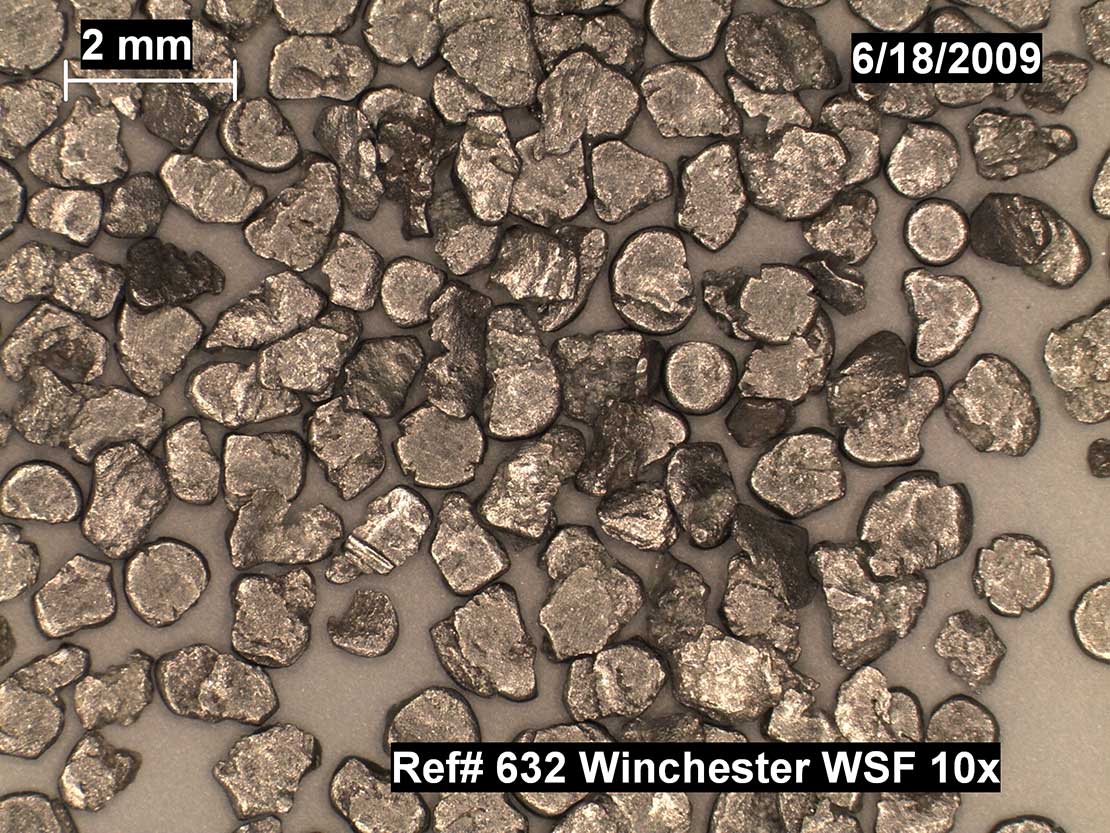

| Shape | Color | Perforation | Diameter min | Diameter max | Length/thick. min | Length/thick. max | Manufacturer |
|---|---|---|---|---|---|---|---|
| Irregular flattened ball | Gray | No | 0.66 mm | 1.2 mm | 0.18 mm | 0.18 mm | Olin / Primex Technologies |
Ladedata som finnes på hjemmesidene til Evje PK er KUN ment som en veiledning! Ladedata skal alltid verifiseres mot kjente kilder (kruttprodusenter, ladebøker o.l.)
Data funnet på våre hjemmesider brukes på eget ansvar, og Evje Pistolklubb fratar seg alt ansvar for feil bruk av, eller skrivefeil i oppgitte data.
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
 | 77 | Cast LFP | 3.4 | 831 | start load; COL: 1.335"; 8,800 cup; bullet diam.: .314" |
| 77 | Cast LFP | 3.8 | 926 | max load; COL: 1.335"; 11,100 cup; bullet diam.: .314" |
| 83 | Berry's Bullets HBWC | 3.3 | 879 | start load; COL: 1.095"; 14,000 cup; bullet diam.: .314" |
| 83 | Berry's Bullets HBWC | 4.2 | 1091 | max load; COL: 1.095"; 20,200 cup; bullet diam.: .314" |
| 85 | Hornady HP | 4.2 | 1030 | start load; COL: 1.290"; 15,900 cup; bullet diam.: .312" |
| 85 | Hornady HP | 4.8 | 1147 | max load; COL: 1.290"; 20,400 cup; bullet diam.: .312" |
| 90 | Sierra JHP | 4.0 | 966 | start load; COL: 1.340"; 15,900 cup; bullet diam.: .312" |
| 90 | Sierra JHP | 4.5 | 1065 | max load; COL: 1.340"; 19,500 cup; bullet diam.: .312" |
| 90 | Hornady LSWC | 3.2 | 821 | start load; COL: 1.350"; 10,500 cup; bullet diam.: .314" |
| 90 | Hornady LSWC | 3.8 | 967 | max load; COL: 1.350"; 15,000 cup; bullet diam.: .314" |
| 100 | Speer JHP | 3.8 | 858 | start load; COL: 1.345"; 15,100 cup; bullet diam.: .312" |
| 100 | Speer JHP | 4.3 | 1000 | max load; COL: 1.345"; 20,300 cup; bullet diam.: .312" |
| Hodgdon Pistol Data Case: Federal; twist: 1:16"; primer: Federal 100, Small Pistol; barrel length: 5"; trim length: 1.070". | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 100 | Speer JHP | 4.0 | 940 | starting charge; COAL tested: 1.345" |
| 100 | Speer JHP | 4.5 | 1,045 | MAXIMUM charge; COAL tested: 1.345" |
| Speer Reloading Manual #14 max. case length: 1.075"; trim-to length: 1.065"; max cart. OAL: 1.350"; RCBS shell holder: #23; cart. case: Federal; primer: CCI 500; test firearm: Ruger Single Six; barrel length: 5.5"; maximum loads should be used with CAUTION | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 98 | Speer SWC | 2.5 | 671 | start charge; bullets cast in RCBS moulds; test firearm: S&W M31 3" |
| 98 | Speer SWC | 2.8 | 761 | max charge; bullets cast in RCBS moulds; test firearm: S&W M31 3" |
| 100 | Speer JHP | 3.0 | 715 | max charge; DO NOT REDUCE; test firearm: S&W K32 6" |
| Speer Reloading Manual #14 This is for the 32 S&W Long and 32 Colt New Police cartridges only. max. case length: 0.920"; trim-to length: 0.910"; max cart. OAL: 1.280"; RCBS shell holder: #23; cart. case: Remington; primer: CCI 500; maximum loads should be used with CAUTION | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 85 | Hornady XTP | 6.4 | 1359 | start load; COL: 1.450"; 31,900 psi |
| 85 | Hornady XTP | 7.0 | 1475 | max load; COL: 1.450"; 38,200 psi |
| 90 | Sierra JHC | 6.0 | 1320 | start load; COL: 1.460"; 29,300 psi |
| 90 | Sierra JHC | 6.6 | 1426 | max load; COL: 1.460"; 41,900 psi |
| Hodgdon Data Case: Federal; barrel length: 5"; twist: 1:16"; trim length: 1.200"; primer: Federal 200; bullet diam.: .312 (except where otherwise specified in remarks). NEVER EXCEED MAXIMUM LOADS | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 125 | Full Metal Case-Flat Nose | 7.1 | 1,260 | 33,800 psi |
| Winchester Pistol Data case: Winchester; BBL: 4"; PR: Winchester SP; COL: 1.140"; NEVER exceed loads listed | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 125 | Bushwacker SWC | 5.9 | 1,141 | group: 2.40 inches; muzzle energy: 143 ft-lbs |
| 125 | Bushwacker SWC | 6.2 | 1,205 | group: 2.80 inches; muzzle energy: 151 ft-lbs |
| in a Springfield XD Starline cases and Winchester Small Pistol primers were used for all handloads. Springfield Armory XD pistol with a 4-inch barrel and fixed open sights was used for testing. Velocities were taken 12 feet from the muzzle with an Oehler Model 33 or Model 35P chronograph. Accuracy is the average of three, five-shot groups at 15 yards from a sandbag rest. Range temperatures were 62 to 76 degrees Fahrenheit. .355-inch jacketed bullets and .356-inch cast bullets. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 147 | Cast FN | 4.2 | 836 | maximum load |
| 147 | Cast FN | 3.8 | 753 | |
| 158 | L-SWC, L-HP, L-RN | 4.3 | 830 | maximum load |
| 158 | L-SWC, L-HP, L-RN | 3.8 | 738 | |
| 110 | JHP | 5.3 | 978 | maximum load |
| 125 | JSP, GD-HP, JHP, TMJ | 5.3 | 934 | maximum load; DO NOT REDUCE |
| Speer Reloading Manual #13 max. case length: 1.155"; trim-to length: 1.145"; max. cart. length: 1.550"; RCBS shellholder: #6; barrel length: 6"; twist: 1-18.75"; test firearm: Smith & Wesson Model 14; case: Speer; primers: CCI 500, 550; for the 147 grain cast bullets: seat to and roll-crimp into the front lube groove; use maximum loads with caution | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 147 | Speer FN | 3.8 | 753 | start charge; bullets cast in RCBS moulds |
| 147 | Speer FN | 4.2 | 836 | maximum charge; bullets cast in RCBS moulds |
| 158 | Speer LSWC, LSWC HP or LRN | 3.8 | 738 | start charge |
| 158 | Speer LSWC, LSWC HP or LRN | 4.3 | 830 | maximum charge |
| Speer Reloading Manual #14 max. case length: 1.155"; trim-to length: 1.145"; max cart. OAL: 1.550"; RCBS shell holder: #6; cart. case: Speer; primer: CCI 500; 550; test firearm: S&W Model 14; barrel length: 6"; use maximum loads with CAUTION | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 158 | Speer LSWC, LSWC HP or LRN | 4.3 | 830 | start charge |
| 158 | Speer LSWC, LSWC HP or LRN | 4.7 | 892 | maximum charge |
| 125 | Speer UCSP, GDHP, UCHP or TMJ FN | 5.3 | 934 | start charge |
| 125 | Speer UCSP, GDHP, UCHP or TMJ FN | 5.8 | 1021 | maximum charge |
| 140 | Speer UCHP | 5.3 | 930 | start charge |
| 140 | Speer UCHP | 5.5 | 974 | maximum charge |
| +P Speer Reloading Manual #14 max. case length: 1.155"; trim-to length: 1.145"; max cart. OAL: 1.550"; RCBS shell holder: #6; cart. case: Speer; primer: CCI 500; test firearm: S&W Model 14; barrel length: 6"; maximum loads should be used with CAUTION | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 125 | Speer UCSP, GDHP, UCHP or TMJ FN | 5.3 | 934 | maximum charge; DO NOT REDUCE |
| Short Barrel Velocities Speer Reloading Manual #14 test firearm: S&W M15 2"; use maximum loads with CAUTION | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 115 | Jacketed | 6.0 | 1185 | start load; min OAL: 1.220 |
| 115 | Jacketed | 7.1 | 1320 | never exceed; min OAL: 1.220; 34,400 psi |
| 124 | Jacketed | 5.2 | 1060 | start load; min OAL: 1.220 |
| 124 | Jacketed | 6.6 | 1245 | never exceed; min OAL: 1.220; 34,600 psi |
| 130 | Jacketed | 5.4 | 1065 | start load; min OAL: 1.240 |
| 130 | Jacketed | 6.3 | 1200 | never exceed; min OAL: 1.240; 34,400 psi |
| 147 | Jacketed | 4.8 | 960 | start load; min OAL: 1.250 |
| 147 | Jacketed | 5.6 | 1070 | never exceed; min OAL: 1.250; 34,400 psi |
| 160 | Lead | 3.8 | 875 | start load; min OAL: 1.250 |
| 160 | Lead | 4.9 | 1010 | never exceed; min OAL: 1.250; 34,600 psi |
| Lee Precision Data Small Pistol Primer. DO NOT USE THESE LOADS IN 38 AUTOMATIC OR 38 ACP. CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 122 | Flat Point | 5.2 | 1,102 | starting load; OAL: 1.2 |
| 122 | Flat Point | 6.3 | 1,259 | maximum load; OAL: 1.2 |
| 124 | Round Nose | 5.2 | 1,091 | starting load; OAL: 1.250 |
| 124 | Round Nose | 6.5 | 1,276 | maximum load; OAL: 1.250 |
| 135 | Round Nose | 5.0 | 1,073 | starting load; OAL: 1.255 |
| 135 | Round Nose | 5.7 | 1,168 | maximum load; OAL: 1.255 |
| +P Oregon Trail Data test gun: STI 5 1/2", WSP; all maximum 38 Super loads are for fully supported chambers only! do not exceed maximum loads; never reduce stated overall lengths | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 115 | Speer GDHP or TMJ RN | 6.2 | 1164 | start charge |
| 115 | Speer GDHP or TMJ RN | 6.8 | 1282 | maximum charge |
| 124 | Speer TMJ RN , UCSP or GDHP | 5.6 | 1057 | start charge |
| 124 | Speer TMJ RN , UCSP or GDHP | 6.1 | 1184 | maximum charge |
| 147 | Speer GDHP or TMJ FP | 4.8 | 938 | start charge |
| 147 | Speer GDHP or TMJ FP | 5.3 | 1029 | maximum charge |
| +P Speer Reloading Manual #14 max. case length: 0.900"; trim-to length: 0.890"; max cart. OAL: 1.280"; RCBS shell holder: #39; cart. case: Winchester; primer: CCI 500; test firearm: Colt 38 Super; barrel length: 5"; NOTE: 125-grain Speer SIG GDHP or SIG TMJ FN may also be used in the 124-grain loads; maximum loads should be used with CAUTION | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 115 | JHP | 6.0 | 1185 | starting load; 28,100 psi |
| 115 | JHP | 7.1 | 1320 | maximum load; 34,400 psi |
| 124 | FMJ | 5.2 | 1060 | starting load; 25,800 psi |
| 124 | FMJ | 6.6 | 1245 | maximum load; 34,600 psi |
| 130 | FMJ | 5.4 | 1065 | starting load; 26,100 psi |
| 130 | FMJ | 6.3 | 1200 | maximum load; 34,400 psi |
| 147 | JHP | 4.8 | 960 | starting load; 27,300 psi |
| 147 | JHP | 5.6 | 1070 | maximum load; 34,400 psi |
| 160 | Lead | 3.8 | 875 | starting load; 25,300 psi |
| 160 | Lead | 4.9 | 1010 | maximum load; 34,600 psi |
| +P Winchester Pistol Data case: Winchester; barrel length: 5"; twist: 1:16"; trim length: .895"; primer: Winchester SP; bullet diam.: .355"; COL: 1.280"; NEVER EXCEED MAXIMUM LOADS | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 115 | Hornady Jacketed HP | 6.3 | 1002 | sugg. start load; 19,400 cup; 1.265" OAL |
| 115 | Hornady Jacketed HP | 7.1 | 1296 | max load; 31,300 cup; 1.265" OAL |
| 124 | Hornady FMJ/FP | 5.5 | 961 | sugg. start load; 23,100 cup; 1.165" OAL |
| 124 | Hornady FMJ/FP | 6.2 | 1148 | max load; 32,500 cup; 1.165" OAL |
| 147 | Speer TMJ | 5.2 | 771 | sugg. start load; 24,100 cup; 1.280" OAL; potentially most accurate load |
| 147 | Speer TMJ | 5.8 | 939 | max load; 30,500 cup; 1.280" OAL |
| Handgun Data Lyman Reloading Handbook 49th Edition cases: Remington; trim-to length: .895"; primers: CCI 500; primer size: Small Pistol; Lyman shell holder: No. 12; firearm used: Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .355" | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 122 | Bushwacker flatnose | 5.4 | 1,169 | case: R-P; primer: Federal 100; coefficient of variation (percent): 1.11; group (inches): 1.79; power factor: 143 |
| 125 | Bushwacker roundnose | 5.2 | 1,095 | case: R-P; primer: Federal 100; coefficient of variation (percent): 0.73; group (inches): 1.10; power factor: 137; good load |
| 125 | Bushwacker semiwadcutter | 6.0 | 1,237 | case: R-P; primer: Federal 100; coefficient of variation (percent): 0.49; group (inches): 1.50; power factor: 155 |
| 145 | Bushwacker roundnose | 5.0 | 1,070 | case: R-P; primer: Federal 100; coefficient of variation (percent): 0.84; group (inches): 0.79; power factor: 155; good load |
| 147 | Bushwacker flatnose | 5.2 | 1,076 | case: R-P; primer: Federal 100; coefficient of variation (percent): 1.12; group (inches): 1.30; power factor: 158 |
| 158 | Rock Hill roundnose | 5.0 | 1,063 | case: R-P; primer: Federal 100; coefficient of variation (percent): 0.94; group (inches): 1.61; power factor: 168; major power factor |
| in a S&W Model 627PC A Smith & Wesson Model 627PC with a 5.5-inch barrel and a Tasco PDP3 sight was used for testing. Velocities were taken 12 feet from the muzzle with an Oehler Model 35P chronograph. Accuracy is based on the average of three, five-shot groups at 25 yards from a sandbag rest. Range temperatures were 62 to 77 degrees Fahrenheit. S-L, Starline; S-V, Super Vel; R-P, Remington-Peters; WSP, Winchester Small Pistol. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 155 | Speer TMJ FN or GDHP | 6.7 | 981 | start charge |
| 155 | Speer TMJ FN or GDHP | 7.5 | 1090 | maximum charge |
| 165 | Speer TMJ FN or GDHP | 6.2 | 1007 | start charge |
| 165 | Speer TMJ FN or GDHP | 6.8 | 1082 | maximum charge |
| (Handgun) Speer Reloading Manual #14 max. case length: 0.850"; trim-to length: 0.840"; max cart. OAL: 1.135"; RCBS shell holder: #27; cart. case: Speer; primer: CCI 500; test firearm: Smith & Wesson M4006; barrel length: 4"; IMPORTANT SAFETY NOTE: These loads were developed and tested for safe use in HANDGUNS. Not all loads may be suitable for use in a carbine or rifle chambered for this cartridge. If loading for a carbine or rifle, choose from among the loads developing the highest handgun velocities and load just a few rounds. Thoroughly test this small sample in your firearm in slow-fire mode, insuring that you achieve proper feeding and ejection. Be certain that all bullets exit the barrel; watching the target for each bullet strike is the best way to know that the load produces sufficient gas volume for a longer barrel. Use maximum loads with CAUTION. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 135 | Nosler JHP | 7.1 | 1166 | start load; COL: 1.125"; 26,000 psi |
| 135 | Nosler JHP | 7.8 | 1273 | max load; COL: 1.125"; 32,200 psi |
| 140 | Barnes TAC-XP | 5.3 | 995 | start load; COL: 1.135"; 26,700 psi |
| 140 | Barnes TAC-XP | 6.2 | 1109 | max load; COL: 1.135"; 34,000 psi |
| 150 | Nosler JHP | 6.6 | 1137 | start load; COL: 1.125"; 29,800 psi |
| 150 | Nosler JHP | 6.8 | 1185 | max load; COL: 1.125"; 33,300 psi |
| 155 | Hornady XTP | 6.2 | 1070 | start load; COL: 1.125"; 26,100 psi |
| 155 | Hornady XTP | 6.8 | 1159 | max load; COL: 1.125"; 32,500 psi |
| 155 | Berry's Bullets FP | 6.2 | 1030 | start load; COL: 1.125"; 23,500 psi |
| 155 | Berry's Bullets FP | 7.1 | 1164 | max load; COL: 1.125"; 32,300 psi |
| 165 | Sierra JHP | 6.3 | 1055 | start load; COL: 1.125"; 28,100 psi |
| 165 | Sierra JHP | 6.7 | 1115 | max load; COL: 1.125"; 32,700 psi |
| 165 | Berry's Bullets FP | 6.1 | 1034 | start load; COL: 1.125"; 27,600 psi |
| 165 | Berry's Bullets FP | 6.5 | 1081 | max load; COL: 1.125"; 31,000 psi |
| 180 | Berry's Bullets FP | 5.5 | 952 | start load; COL: 1.125"; 27,600 psi |
| 180 | Berry's Bullets FP | 6.0 | 1020 | max load; COL: 1.125"; 33,500 psi |
| 180 | Hornady XTP | 5.4 | 946 | start load; COL: 1.125"; 28,000 psi |
| 180 | Hornady XTP | 5.8 | 1013 | max load; COL: 1.125"; 32,900 psi |
| 200 | Hornady XTP | 4.4 | 786 | start load; COL: 1.125"; 27,300 psi |
| 200 | Hornady XTP | 4.8 | 867 | max load; COL: 1.125"; 33,100 psi |
| Hodgdon Data Case: Hornady; twist: 1:16"; primer: Winchester SP, Small Pistol; barrel length: 4"; trim length: .845"; bullet diam.: .400". This data is intended for use in firearms with barrels which fully support the cartridge in the chamber. Use of this data in firearms which do not fully support the cartridge, such as Glock, may result in bulged cases, ruptured cases, case head separation, or other conditions which may result in damage to the firearm and/or result in injury or death of the shooter and/or bystanders. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 150 | Jacketed | 6.7 | 1061 | start load; min. OAL: 1.135 |
| 150 | Jacketed | 7.7 | 1200 | NEVER EXCEED; min. OAL: 1.135; 33,200 psi |
| Lee Precision 150 GR Data Do not use reloads in Glock or similar guns with chambers that do not fully support the cartridge due to the intrusion of the feed ramp. CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Pistol Primer. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 155 | Jacketed | 6.0 | 993 | start load; min. OAL: 1.135 |
| 155 | Jacketed | 7.3 | 1180 | NEVER EXCEED; min. OAL: 1.135; 33,200 psi |
| Lee Precision 155 GR Data Do not use reloads in Glock or similar guns with chambers that do not fully support the cartridge due to the intrusion of the feed ramp. CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Pistol Primer. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 170 | Jacketed | 5.5 | 936 | start load; min. OAL: 1.115 |
| 170 | Jacketed | 6.5 | 1080 | NEVER EXCEED; min. OAL: 1.115; 33,200 psi |
| 170 | Lead | 5.2 | 936 | start load; min. OAL: 1.135 |
| 170 | Lead | 6.2 | 1090 | NEVER EXCEED; min. OAL: 1.135; 33,200 psi |
| Lee Precision 170 GR Data Do not use reloads in Glock or similar guns with chambers that do not fully support the cartridge due to the intrusion of the feed ramp. CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Pistol Primer. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 180 | Jacketed Bullet | 5.6 | 945 | start load; min. OAL: 1.135 |
| 180 | Jacketed Bullet | 6.2 | 1040 | NEVER EXCEED; min. OAL: 1.135; 33,200 psi |
| Lee Precision 180 GR Data Do not use reloads in Glock or similar guns with chambers that do not fully support the cartridge due to the intrusion of the feed ramp. CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Pistol Primer. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 200 | Jacketed | 4.9 | 814 | start load; min. OAL: 1.130 |
| 200 | Jacketed | 5.7 | 930 | NEVER EXCEED; min OAL: 1.130; 33,200 psi |
| 200 | Lead | 3.9 | 747 | start load; min. OAL: 1.135 |
| 200 | Lead | 5.0 | 920 | NEVER EXCEED; min. OAL: 1.135; 33,200 psi |
| Lee Precision 200 GR Data Do not use reloads in Glock or similar guns with chambers that do not fully support the cartridge due to the intrusion of the feed ramp. CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Pistol Primer. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 175 | Winchester Jacketed Silvertip | 5.8 | 930 | start load; 20,700 cup; 1.125" OAL |
| 175 | Winchester Jacketed Silvertip | 6.5 | 1001 | max load; 22,500 cup; 1.125" OAL |
| 180 | Sierra JHP | 5.0 | 853 | start load; 17,700 cup; 1.115" OAL |
| 180 | Sierra JHP | 6.2 | 993 | max load; 23,400 cup; 1.115" OAL |
| 190 | Sierra JFP | 4.9 | 530 | start load; 16,100 cup; 1.135" OAL |
| 190 | Sierra JFP | 5.8 | 702 | max load; 22,700 cup; 1.135" OAL |
| Lyman Reloading Handbook 48th Edition cases: Winchester; trim-to length: .845"; primers: Winchester WSP; primer size: Small Pistol; Lyman shell holder: No. 15; firearm used: Universal Receiver; barrel length: 4"; twist: 1-16"; groove dia.: .401"; do not reduce cases below the trim-to length; additionally do not roll crimp bullets; it is important not to seat bullets to a shorter length than listed in any handgun cartridge; but especially so in this one; pressures can be raised dramatically with deep seating | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 155 | Speer Gold Dot TMJ or GD-HP | 7.5 | 1090 | maximum load |
| 155 | Speer Gold Dot TMJ or GD-HP | 6.7 | 981 | |
| 165 | Speer Gold Dot TMJ or GD-HP | 6.8 | 1082 | maximum load |
| 165 | Speer Gold Dot TMJ or GD-HP | 6.2 | 1007 | |
| Speer Reloading Manual #13 max. case length: 0.850"; trim-to length: 0.840"; max. cart. length: 1.135"; RCBS shellholder: #27; barrel length: 4"; twist: 1-16"; test firearm: Smith & Wesson Model 4006; case: Speer; primers: CCI 500; bullet diam.: .400"; use maximum loads with caution; SAFETY NOTICE Some pistols chambered for the 40 S&W cartridge may not provide complete support of the case head. If this condition exists, normal pressure loads such as those shown here can cause the case wall to bulge or rupture at the unsupported point. Contact your firearm manufacturer to determine if your pistol completely supports the case head, or ask a gunsmith to inspect your pistol before using it with ANY ammunition. It is the gun owner's responsibility to know his firearm and its capabilities and limitations. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 150 | Jacketed Flat Point | 7.7 | 1,200 | col: 1.135"; 33,200 psi |
| 155 | Jacketed Hollow Point | 7.3 | 1,180 | col: 1.135"; 33,200 psi |
| 170 | Jacketed Hollow Point | 6.5 | 1,080 | col: 1.135"; 33,200 psi |
| 170 | Lead | 6.2 | 1,090 | col: 1.135"; 33,200 psi |
| 180 | Jacketed Hollow Point | 6.2 | 1,040 | col: 1.135"; 33,200 psi |
| 200 | Full Metal Jacket | 5.7 | 930 | col: 1.135"; 33,200 psi |
| 200 | Lead | 5.0 | 920 | col: 1.135"; 33,200 psi |
| Winchester Pistol Data case: Hornady; BBL: 4"; PR: Winchester SP; WARNING: This data is intended for use in firearms with barrels which fully support the cartridge in the chamber. Use of this data in firearms which do not fully support the cartridge may result in bulged cases, ruptured cases, case head separation, or other conditions which may result in damage to the firearm and/or result in injury or death of the shooter and/or bystanders. NEVER exceed loads listed | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 135 | Nosler Sporting Handgun Jacketed Hollow Point | 7.8 | 1,242 | maximum load; most accurate load tested |
| 135 | Nosler Sporting Handgun Jacketed Hollow Point | 7.3 | 1,157 | |
| 135 | Nosler Sporting Handgun Jacketed Hollow Point | 6.8 | 1,072 | |
| 180 | Nosler Sporting Handgun Jacketed Hollow Point | 5.9 | 981 | maximum load; most accurate load tested; most accurate powder tested |
| 180 | Nosler Sporting Handgun Jacketed Hollow Point | 5.4 | 897 | most accurate powder tested |
| 180 | Nosler Sporting Handgun Jacketed Hollow Point | 4.9 | 813 | most accurate powder tested |
| Handgun Data Using Nosler Bullets Handgun; case: Winchester; primer: WSP; barrel length/make: 4" S&W; twist: 1-16"; bullets: 135 GR, 150 GR, 180 GR & 200 GR Nosler Sporting Handgun Pistol JHP; OACL: 1.125"; maximum OACL: 1.135". Use Maximum Loads with Caution | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 190 | H&G 324 | 4.6 | 870 | lube: Javelina; 6 lb wheelweights: 4 lb Linotype: 2 1/2 oz pure tin; energy (ft-lbs): 319; accurate |
| 190 | H&G 324 | 4.9 | 930 | lube: Javelina; 6 lb wheelweights: 4 lb Linotype: 2 1/2 oz pure tin; energy (ft-lbs): 364; accurate |
| 190 | H&G 324 | 5.5 | 1,010 | lube: Javelina; 6 lb wheelweights: 4 lb Linotype: 2 1/2 oz pure tin; energy (ft-lbs): 429; accurate |
| 175 | Bull-X | 5.5 | 960 | lube: Thompson's Bear Lube; 92 parts lead: 6 parts antimony: 2 parts tin; energy (ft-lbs): 357; accurate |
| 175 | Bull-X | 5.9 | 1,020 | lube: Thompson's Bear Lube; 92 parts lead: 6 parts antimony: 2 parts tin; energy (ft-lbs): 404; accurate |
| 175 | Bull-X | 6.2 | 1,050 | lube: Thompson's Bear Lube; 92 parts lead: 6 parts antimony: 2 parts tin; energy (ft-lbs): 428; super accurate |
| 140 | Bull-X | 7.1 | 1,130 | lube: Thompson's Bear Lube; 92 parts lead: 6 parts antimony: 2 parts tin; energy (ft-lbs): 396; super accurate |
| 140 | Bull-X | 7.8 | 1,220 | lube: Thompson's Bear Lube; 92 parts lead: 6 parts antimony: 2 parts tin; energy (ft-lbs): 462; accurate |
| 140 | Bull-X | 8.2 | 1,270 | lube: Thompson's Bear Lube; 92 parts lead: 6 parts antimony: 2 parts tin; energy (ft-lbs): 501; very accurate |
| S&W Model 4006 (Cast Bullet Loads) Except where noted, all loads used Winchester cases, and CCI 500 primers with taper (very mild) crimp. (Cast Bullet Special Edition 1992) | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 135 | jacketed hollowpoint (JHP) | 8.5 | 1,200 | starting load |
| 135 | jacketed hollowpoint (JHP) | 9.8 | 1,325 | maximum load |
| 150-155 | JHP | 7.8 | 1,150 | starting load |
| 150-155 | JHP | 8.2 | 1,250 | maximum load |
| 165 | JHP | 7.6 | 1,050 | starting load |
| 165 | JHP | 8.2 | 1,150 | maximum load |
Accuracy measurements are 10-shot groups fired from a Ransom Rest at 25 yards. Test firearm was a Les Baer Premier II pistol. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 200 | Hornady HP-XTP | 8.5 | 708 | |
| 200 | Hornady HP-XTP | 9.5 | 794 | |
| 200 | Hornady HP-XTP | 10.0 | 879 | maximum load |
| Revolver Using Hornady Bullets Gun: Colt Frontier Six-Shooter; barrel length: 4 3/4-inches; case: Starline; primer: Federal #150; bullet diameter for the 205 GR FP Cowboy: .427" bullet diameter for the 200 GR HP-XTP: .430"; HP-XTP COAL: 1.600"; FP Cowboy COAL: 1.570"; maximum COAL: 1.592"; maximum case length: 1.305"; trim to length: 1.295". | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 155 | Cast LSWC | 7.1 | 934 | start load; COL: 1.230"; 11,600 cup |
| 155 | Cast LSWC | 7.9 | 1064 | max load; COL: 1.230"; 15,900 cup |
| 160 | Barnes TAC-XP | 6.2 | 972 | start load; COL: 1.200"; 17,400 psi |
| 160 | Barnes TAC-XP | 6.8 | 1043 | max load; COL: 1.200"; 20,100 psi |
| 180 | LFP | 6.6 | 887 | start load; bullet diam.: .452"; COL: 1.140"; 12,200 cup |
| 180 | LFP | 7.3 | 1003 | max load; bullet diam.: .452"; COL: 1.140"; 16,500 cup |
| 185 | Hornady JSWC | 6.8 | 886 | start load; COL: 1.135"; 13,400 cup |
| 185 | Hornady JSWC | 7.5 | 981 | max load COL: 1.135"; 17,400 cup |
| 200 | Speer JHP | 6.1 | 807 | start load; COL: 1.155"; 12,500 cup |
| 200 | Speer JHP | 6.8 | 929 | max load; COL: 1.155"; 16,700 cup |
| 200 | Cast LSWC | 6.0 | 870 | start load; COL: 1.225"; 15,200 psi |
| 200 | Cast LSWC | 6.7 | 970 | max load; COL: 1.225"; 19,400 psi |
| 230 | LRN | 5.8 | 832 | start load; bullet diam.: .452"; COL: 1.200"; 14,500 cup |
| 230 | LRN | 6.3 | 892 | max load; bullet diam.: .452"; COL: 1.200"; 16,800 cup |
| 230 | Hornady FMJ FP | 5.7 | 766 | start load; COL: 1.200"; 12,100 cup |
| 230 | Hornady FMJ FP | 6.4 | 851 | max load; COL: 1.200"; 15,700 cup |
| Hodgdon Data Case: Winchester; twist: 1:16"; primer: Federal 150, Large Pistol; barrel length: 5"; trim length: .893"; bullet diam.: .451" (except where otherwise specified in remarks) | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 180 | Lead | 6.6 | 960 | start load; min OAL: 1.190 |
| 180 | Lead | 7.4 | 1060 | never exceed; min OAL: 1.190; 20,000 psi |
| 185 | Jacketed | 6.0 | 831 | start load; min OAL: 1.190 |
| 185 | Jacketed | 7.0 | 950 | never exceed; min OAL: 1.190; 17,600 psi |
| 200 | Jacketed | 6.6 | 907 | start load; min OAL: 1.190 |
| 200 | Jacketed | 7.1 | 970 | never exceed; min OAL: 1.190; 19,500 psi |
| 200 | Lead | 6.0 | 870 | start load; min OAL: 1.190 |
| 200 | Lead | 6.7 | 970 | never exceed; min OAL: 1.190; 19,400 psi |
| 230 | Jacketed | 5.7 | 780 | start load; min OAL: 1.190 |
| 230 | Jacketed | 6.1 | 850 | never exceed; min OAL: 1.190; 19,600 psi |
| 230 | Lead | 5.5 | 820 | start load; min OAL: 1.190 |
| 230 | Lead | 6.2 | 910 | never exceed; min OAL: 1.190; 19,600 psi |
| Lee Precision Data Large Pistol primer; with NEVER EXCEED LOADS maintain Minimum Over All Length or longer | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 185 | Hornady Jacketed HP/XTP | 7.2 | 881 | sugg. start load; 1.175" OAL; 12,300 cup |
| 185 | Hornady Jacketed HP/XTP | 8.0 | 1047 | max load; 1.175" OAL; 17,500 cup |
| 200 | Speer Gold Dot Jacketed HP | 6.5 | 832 | sugg. start load; 1.178" OAL; 13,600 cup |
| 200 | Speer Gold Dot Jacketed HP | 7.3 | 955 | max load; 1.178" OAL; 17,900 cup |
| 225 | Speer Jacketed HP | 6.0 | 717 | sugg. start load; 1.243" OAL; 14,100 cup |
| 225 | Speer Jacketed HP | 6.7 | 807 | max load; 1.243" OAL; 16,500 cup |
| 230 | Speer TMJ | 6.0 | 775 | sugg. start load; 1.275" OAL; 12,200 cup |
| 230 | Speer TMJ | 6.7 | 864 | max load; 1.275" OAL; 15,500 cup |
| Lyman Reloading Handbook 49th Edition cases: Remington, Federal; trim-to length: .888"; primers: Remington 2 1/2; primer size: Large Pistol; Lyman shell holder: No. 2; firearm used: Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .450" | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 185 | Speer GDHP or TMJ FN | 6.9 | 814 | start charge |
| 185 | Speer GDHP or TMJ FN | 7.7 | 885 | maximum charge |
| 200 | Speer TMJ FN, TMJ Match SWC or GDHP | 6.4 | 824 | start charge |
| 200 | Speer TMJ FN, TMJ Match SWC or GDHP | 7.2 | 934 | maximum charge |
| 225 | Speer Colt JHP | 6.3 | 774 | start charge |
| 225 | Speer Colt JHP | 7.0 | 860 | maximum charge |
| Speer Reloading Manual #14 max. case length: 0.898"; trim-to length: 0.888"; max cart. OAL: 1.275"; RCBS shell holder: #3; cart. case: Speer; primer: CCI 300; test firearm: SIG P220; barrel length: 4.4"; IMPORTANT SAFETY NOTE: These loads were developed and tested for safe use in HANDGUNS. Not all loads may be suitable for use in a carbine or rifle chambered for this cartridge. If loading for a carbine or rifle, choose from among the loads developing the highest handgun velocities and load just a few rounds. Thoroughly test this small sample in your firearm in slow-fire mode, insuring that you achieve proper feeding and ejection. Be certain that all bullets exit the barrel; watching the target for each bullet strike is the best way to know that the load produces sufficient gas volume for a longer barrel. NOTE: Do not use the 230-GR TMJ RN loads with Gold Dot HP; maximum loads should be used with CAUTION | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 180 | Cast Lead Semi-Wadcutter | 7.4 | 1,060 | col: 1.275"; 20,000 psi |
| 185 | Jacketed Hollow Point | 7.9 | 1,035 | col: 1.275"; 19,700 psi |
| 185 | Jacketed Semi-Wadcutter | 7.0 | 950 | col: 1.275"; 17,600 psi |
| 200 | Cast Lead Semi-Wadcutter | 6.7 | 970 | col: 1.275"; 19,400 psi |
| 200 | Full Plated Jacket | 7.3 | 980 | col: 1.275"; 19,400 psi |
| 200 | Jacketed Hollow Point | 7.1 | 970 | col: 1.275"; 19,500 psi |
| 230 | Full Metal Jacket | 6.6 | 885 | col: 1.275; 19,200 psi |
| 230 | Jacketed Hollow Point | 6.1 | 850 | col: 1.275"; 19,600 psi |
| 230 | Lead Round Nose | 6.2 | 910 | col: 1.275"; 19,600 psi |
| Winchester Pistol Data case: Winchester; BBL: 5"; PR: Federal 150; NEVER exceed loads listed | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 200 | Lyman #452630 | 6.3 | 815 | sugg. start load; 12,200 cup; primer: CCI 300 |
| 200 | Lyman #452630 | 7.0 | 904 | max load; 16,600 cup; primer: CCI 300 |
| 200 GR (Lyman Cast Bullet Data) cases: Remington (except where otherwise specified in remarks); trim-to length: .888"; primers: Remington 2 1/2 (except where otherwise specified in remarks); primer size: Large Pistol; Lyman shell holder: No. 2; cast bullets used sized to .451" dia.; firearm used; Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .450"; Lyman #452460 OAL: 1.161"; Lyman #452630 OAL: 1.235" (Lyman Cast Bullet Manual 4th Edition) | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 225 | Lyman #452374 | 6.0 | 749 | sugg. start load; 12,300 cup; primer: CCI-300 |
| 225 | Lyman #452374 | 6.7 | 839 | max load; 15,100 cup; primer: CCI 300 |
| 225 GR (Lyman Cast Bullet Data) cases: Remington (except where otherwise specified in remarks); trim-to length: .888"; primers: Remington 2 1/2 (except where otherwise specified in remarks); primer size: Large Pistol; Lyman shell holder: No. 2; cast bullets used sized to .451" dia.; firearm used; Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .450"; OAL: 1.272" (Lyman Cast Bullet Manual 4th Edition) | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 200 | Speer Gold Dot hollowpoint | 7.0 | 883 | sandbag rest group (inches): 2.10; HAMMR rest group (inches): 2.02 |
| Automatic in a Colt Gold Cup National Match All loads used Remington cases and Federal Large Pistol Match primers. Group size is the average of five shots at 25 yards. Velocity measured at 10 feet. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 200 | Cast #452630 | 6.3 | 815 | sugg. start load; 1.235" OAL; primer: CCI 300; 12,200 cup |
| 200 | Cast #452630 | 7.0 | 904 | max load; 1.235" OAL; 16,600 cup; primer: CCI 300 |
| 225 | Cast #452374 | 6.0 | 749 | sugg. start load; 1.272" OAL; primer: CCI 300; 12,300 cup |
| 225 | Cast #452374 | 6.7 | 839 | max load; 1.272" OAL; primer: CCI 300; 15,100 cup |
| Cast Bullet Data Lyman Reloading Handbook 49th Edition cases: Remington (except where otherwise specified in remarks); trim-to length: .888"; primers: Remington 2 1/2 (except where otherwise specified in remarks); primer size: Large Pistol; Lyman shell holder: No. 2; cast bullets used sized to .451" dia.; firearm used: Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .450" | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 185 | Sierra JHP or FPJ Match | 7.1 | 604 | Sierra JHP COAL: 1.212 inches; Sierra FPJ Match COAL: 1.155 inches |
| 185 | Sierra JHP or FPJ Match | 7.5 | 683 | Sierra JHP COAL: 1.212 inches; Sierra FPJ Match COAL: 1.155 inches |
| 185 | Sierra JHP or FPJ Match | 7.8 | 766 | Sierra JHP COAL: 1.212 inches; Sierra FPJ Match COAL: 1.155 inches |
| 185 | Sierra JHP or FPJ Match | 8.2 | 853 | Sierra JHP COAL: 1.212 inches; Sierra FPJ Match COAL: 1.155 inches |
| 185 | Sierra JHP or FPJ Match | 8.6 | 940 | Sierra JHP COAL: 1.212 inches; Sierra FPJ Match COAL: 1.155 inches |
| 185 | Sierra JHP or FPJ Match | 8.9 | 1024 | Sierra JHP COAL: 1.212 inches; Sierra FPJ Match COAL: 1.155 inches |
| 185 | Sierra JHP or FPJ Match | 9.3 | 1103 | Sierra JHP COAL: 1.212 inches; Sierra FPJ Match COAL: 1.155 inches; maximum load |
| 200 | Sierra FPJ Match | 6.8 | 708 | COAL: 1.155 inches |
| 200 | Sierra FPJ Match | 7.2 | 759 | COAL: 1.155 inches |
| 200 | Sierra FPJ Match | 7.5 | 811 | COAL: 1.155 inches |
| 200 | Sierra FPJ Match | 7.9 | 867 | COAL: 1.155 inches |
| 200 | Sierra FPJ Match | 8.2 | 925 | COAL: 1.155 inches |
| 200 | Sierra FPJ Match | 8.6 | 974 | COAL: 1.155 inches; maximum load |
| 230 | Sierra FMJ Match or JHP | 6.5 | 772 | Sierra FMJ Match COAL: 1.270 inches; Sierra JHP COAL: 1.210 inches |
| 230 | Sierra FMJ Match or JHP | 6.9 | 816 | Sierra FMJ Match COAL: 1.270 inches; Sierra JHP COAL: 1.210 inches |
| 230 | Sierra FMJ Match or JHP | 7.3 | 870 | Sierra FMJ Match COAL: 1.270 inches; Sierra JHP COAL: 1.210 inches |
| 230 | Sierra FMJ Match or JHP | 7.6 | 924 | Sierra FMJ Match COAL: 1.270 inches; Sierra JHP COAL: 1.210 inches |
| 230 | Sierra FMJ Match or JHP | 8.0 | 966 | Sierra FMJ Match COAL: 1.270 inches; Sierra JHP COAL: 1.210 inches; maximum load |
| 240 | Sierra JHC | 6.4 | 764 | COAL: 1.200 inches |
| 240 | Sierra JHC | 6.8 | 821 | COAL: 1.200 inches |
| 240 | Sierra JHC | 7.2 | 892 | COAL: 1.200 inches |
| 240 | Sierra JHC | 7.6 | 963 | COAL: 1.200 inches |
| 240 | Sierra JHC | 8.0 | 1021 | COAL: 1.200 inches; maximum load |
| Revolver Handloading Data +P+ using Sierra bullets Warning! Gun: Ruger New Model Blackhawk; Barrel Length: 5.5 inches; Case: Starline; Primer: Federal 150; Bullet Diameter: .451 inch and .452 inch (Sierra bullets: .4515 inch); Maximum COAL: 1.275 inches; Maximum Case Length: .898 inch; Trim to Length: .888 inch. WARNING: Many of the maximum loads in the accompanying data (developed in the Sierra lab) exceed both of these pressure guidelines. They were developed for large frame revolvers ONLY, such as the Ruger Blackhawk and Freedom Arms Model 83, or revolvers with similar strength. As a result, these loads are rated as +P+. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 210 | Sierra JHP | 7.0 | 958 | barrel length: 5 inches |
| Standard Loads case: Rem. primer: 300; barrel length (inches): 5 | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 200 | Hornady XTP | 7.1 | 952 | group (inches): 1.76; muzzle energy (ft-lb): 403; best 200-grain load |
| 230 | Hornady XTP | 6.1 | 856 | group (inches): 2.48; muzzle energy (ft-lb): 374 |
| Taurus Stellar Tracker Taurus Stellar Tracker with a 4-inch barrel and open sights was used for testing. Accuracy is based on the average of three, five-shot groups at 15 yards from a benchrest. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 185 | Jacketed | 5.4 | 765 | start load; min OAL: 1.190 |
| 185 | Jacketed | 6.3 | 874 | never exceed; min OAL: 1.190; 14,960 cup |
| Lee Precision Data CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 185 | Hornady Jacketed HP | 6.3 | 923 | start load; 19,400 psii; 1.060" OAL |
| 185 | Hornady Jacketed HP | 7.0 | 990 | max load; 22,300 psii; 1.060" OAL |
| 200 | Speer Jacketed HP | 5.9 | 844 | start load; 18,100 psi; 1.080" OAL |
| 200 | Speer Jacketed HP | 6.6 | 959 | max load; 22,000 psi; 1.080" OAL |
| 230 | Speer TMJ | 5.2 | 772 | start load; 17,700 psi; 1.135" OAL |
| 230 | Speer TMJ | 5.9 | 890 | max load; 22,200 psi; 1.135" OAL |
| 200 | Lyman Cast #452630 | 5.3 | 903 | start load; 18,200 psi; 1.080" OAL |
| 200 | Lyman Cast #452630 | 6.0 | 1010 | max load; 22,000 psi; 1.080" OAL |
| 225 | Lyman Cast #452374 | 5.2 | 831 | start load; 18,700 psi; 1.135" OAL |
| 225 | Lyman Cast #452374 | 5.8 | 922 | max load; 22,200 psi; 1.135" OAL |
| 200 | Lyman Cast #452460 | 5.4 | 901 | start load; 18,800 psi; 1.030" OAL |
| 200 | Lyman Cast #452460 | 6.1 | 1032 | max load; 22,500 psi; 1.030" OAL |
| Lyman Reloading Handbook 49th Edition cases: Winchester; trim-to length: .755"; primers: Winchester WSP; primer size: Small Pistol; Lyman Shell Holder: No. 2; cast bullets sized to .451" dia.; firearm used: Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .450" | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 150 | Jacketed | 6.5 | 1083 | start load; min OAL: 1.240 |
| 150 | Jacketed | 8.1 | 1310 | never exceed; min OAL: 1.240; 35,600 psi |
| 155 | Jacketed | 6.8 | 1100 | start load; min OAL: 1.240 |
| 155 | Jacketed | 8.4 | 1320 | never exceed; min OAL: 1.240; 35,600 psi |
| 170 | Jacketed | 6.0 | 1000 | start load; min OAL: 1.240 |
| 170 | Jacketed | 7.5 | 1210 | never exceed; min OAL: 1.240; 35,600 psi |
| 170 | Lead | 5.5 | 1020 | start load; min OAL: 1.240 |
| 170 | Lead | 6.6 | 1170 | never exceed; min OAL: 1.240; 35,600 psi |
| 180 | Jacketed | 5.7 | 950 | start load; min OAL: 1.240 |
| 180 | Jacketed | 7.1 | 1150 | never exceed; min OAL: 1.240; 35,600 psi |
| 190 | Jacketed | 5.5 | 880 | start load; min OAL: 1.240 |
| 190 | Jacketed | 7.1 | 1120 | never exceed; min OAL: 1.240; 35,600 psi |
| 200 | Jacketed | 5.2 | 875 | start load; min OAL: 1.240 |
| 200 | Jacketed | 6.2 | 1020 | never exceed; min OAL: 1.240; 35,600 psi |
| 200 | Lead | 5.0 | 920 | start load; min OAL: 1.240 |
| 200 | Lead | 6.3 | 1080 | never exceed; min OAL: 1.240; 35,600 psi |
| Lee Precision Data Large Pistol Primer. CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 155 | Speer TMJ FN or GDHP | 7.6 | 1017 | start charge |
| 155 | Speer TMJ FN or GDHP | 8.4 | 1162 | maximum charge |
| 165 | Speer GDHP or TMJ FN | 7.2 | 1065 | start charge |
| 165 | Speer GDHP or TMJ FN | 8.0 | 1177 | maximum charge |
| 180 | Speer TMJ FN or GDHP | 6.8 | 1001 | start charge |
| 180 | Speer TMJ FN or GDHP | 7.5 | 1120 | maximum charge |
| Speer Reloading Manual #14 max. case length: 0.992"; trim-to length: 0.982"; max cart. OAL: 1.260"; RCBS shell holder: #27; cart. case: Hornady; primer: CCI 300 (except where otherwise specified in remarks); test firearm: Smith & Wesson M1006; barrel length: 5"; maximum loads should be used with CAUTION | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 150 | JHP | 6.5 | 1,090 | starting load; 24,700 psi |
| 150 | JHP | 8.1 | 1,310 | maximum load; 35,600 psi |
| 155 | JHP | 6.8 | 1,100 | starting load; 23,000 psi |
| 155 | JHP | 8.4 | 1,320 | maximum load; 35,600 psi |
| 170 | JHP | 6.0 | 1,020 | starting load; 24,000 psi |
| 170 | JHP | 7.5 | 1,210 | maximum load; 35,600 psi |
| 170 | Lead | 5.5 | 1,020 | starting load; 25,700 psi |
| 170 | Lead | 6.6 | 1,170 | maximum load; 35,600 psi |
| 180 | JHP | 5.7 | 950 | starting load; 25,000 psi |
| 180 | JHP | 7.1 | 1,150 | maximum load; 35,600 psi |
| 190 | FMJ | 5.5 | 880 | starting load; 22,000 psi |
| 190 | FMJ | 7.1 | 1,120 | maximum load; 35,600 psi |
| 200 | FMJ | 5.2 | 880 | starting load; 26,200 psi |
| 200 | FMJ | 6.2 | 1,020 | maximum load; 35,600 psi |
| 200 | Lead | 5.0 | 920 | starting load; 23,500 psi |
| 200 | Lead | 6.3 | 1,080 | maximum load; 35,600 psi |
| Winchester Data case: Winchester; barrel length: 5"; twist: 1:16"; trim length: .987"; primer: Winchester LP; bullet diam.: .400"; COL: 1.260" (except where otherwise specified in remarks); NEVER EXCEED MAXIMUM LOADS | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 150 | Jacketed Hollow Point | 8.1 | 1,310 | 35,600 psi |
| 155 | Jacketed Hollow Point | 8.4 | 1,320 | 35,600 psi |
| 170 | Jacketed Hollow Point | 7.5 | 1,210 | 35,600 psi |
| 170 | Lead | 6.6 | 1,170 | 35,600 psi |
| 180 | Jacketed Hollow Point | 7.1 | 1,150 | 35,600 psi |
| 190 | Full Metal Jacket | 7.1 | 1,120 | 35,600 psi |
| 200 | Full Metal Jacket | 6.2 | 1,020 | 35,600 psi |
| 200 | Lead | 6.3 | 1,080 | 35,600 psi |
| Winchester Pistol Data case: Winchester; BBL: 5"; PR: Winchester LP; COL: 1.260"; NEVER exceed loads listed | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 175 | Cast #401638 | 6.2 | 1094 | sugg. start load; 1.253" OAL; 22,800 cup |
| 175 | Cast #401638 | 7.0 | 1176 | max load; 1.253" OAL; 28,600 cup |
| Cast Bullets Lyman Reloading Manual 49th Edition cases: Norma; trim-to length: .982"; primers: CCI 300; primer size: Large Pistol; Lyman shell holder: No. 15; cast bullets used sized to .401" dia.; firearm used: Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .400" | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 155 | Hornady XTP | 7.4 | 1,200 | energy (ft-lbs): 494; OAL: 1.260 inches; average group size: 1.125 inches |
| 155 | Hornady XTP | 7.9 | 1,260 | energy (ft-lbs): 545; OAL: 1.260 inches; average group size: .251 inch |
| 155 | Hornady XTP | 8.4 | 1,310 | energy (ft-lbs): 590; OAL: 1.260 inches; average group size: .906 inch |
| 180 | Sierra JHP | 5.8 | 950 | energy (ft-lbs): 360; OAL: 1.255 inches; average group size: .700 inch |
| 180 | Sierra JHP | 6.3 | 1,030 | energy (ft-lbs): 423; OAL: 1.255 inches; average group size: .498 inch |
| 180 | Sierra JHP | 6.7 | 1,080 | energy (ft-lbs): 466; OAL: 1.255 inches; average group size: .905 inch |
| 180 | Sierra JHP | 7.1 | 1,140 | energy (ft-lbs): 518; OAL: 1.255 inches; average group size: .707 inch |
| 180 | Speer TMJ | 7.1 | 1,130 | energy (ft-lbs): 509; OAL: 1.250 inches; average group size: 1.497 inches |
| 190 | Sierra FJP | 5.8 | 920 | energy (ft-lbs): 355; OAL: 1.255 inches; average group size: .702 inch |
| 190 | Sierra FJP | 6.3 | 1,010 | energy (ft-lbs): 429; OAL: 1.255 inches; average group size: .710 inch |
| 190 | Sierra FJP | 6.7 | 1,070 | energy (ft-lbs): 482; OAL: 1.255 inches; average group size: .690 inch |
| 190 | Sierra FJP | 7.1 | 1,110 | energy (ft-lbs): 518; OAL: 1.255 inches; average group size: .665 inch |
| 200 | Speer TMJ | 5.7 | 910 | energy (ft-lbs): 366; OAL: 1.250 inches; average group size: .910 inch |
| 200 | Speer TMJ | 6.2 | 980 | energy (ft-lbs): 426; OAL: 1.250 inches; average group size: 1.007 inches |
| for the S&W Model 610 All loads used PMC cases and CCI 300 primers with a moderate crimp. Tests included five, 10-shot groups at 25 yards. Instrumental velocities taken at 15 feet with chronograph. Reduce all loads by 10 percent and approach all maximum loads with caution! | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 155 | Winchester Jacketed Silvertip | 7.2 | 1061 | sugg. start load; case: Winchester; 20,100 cup |
| 155 | Winchester Jacketed Silvertip | 8.0 | 1197 | max load; case: Winchester; 28,000 cup |
| 165 | Speer TMJ | 6.9 | 1057 | sugg. start load; case: Winchester; 21,700 cup |
| 165 | Speer TMJ | 7.7 | 1182 | max load; case: Winchester; 26,200 cup |
| 175 | Winchester Jacketed Silvertip | 6.4 | 984 | sugg. start load; case: Winchester; 22,900 cup |
| 175 | Winchester Jacketed Silvertip | 7.2 | 1129 | max load; case: Winchester; 28,800 cup |
| Handgun Lyman Reloading Handbook 49th Edition cases: Norma (except where otherwise specified in remarks); trim-to length: .982"; primers: CCI 300; primer size: Large Pistol; Lyman shell holder: No. 15; firearm used: Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .400"; 1.250" OAL (except where otherwise specified in remarks) | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 115 | JHP | 5.2 | 1095 | start load; COL: 1.169"; 28,700 psi |
| 115 | JHP | 5.7 | 1165 | max load; COL: 1.169"; 32,100 psi |
| 115 | Full Metal Jacket | 4.9 | 1060 | start load; COL: 1.169"; 24,200 psi |
| 115 | Full Metal Jacket | 5.7 | 1195 | max load; COL: 1.169"; 31,900 psi |
| 124 | Full Metal Jacket | 4.7 | 1015 | start load; COL: 1.169"; 27,700 psi |
| 124 | Full Metal Jacket | 5.3 | 1115 | max load; COL: 1.169"; 32,700 psi |
| 124 | Lead RN | 4.0 | 945 | start load; COL: 1.169"; 22,200 psi |
| 124 | Lead RN | 4.7 | 1055 | max load; COL: 1.169"; 27,300 psi |
| 147 | JHP | 4.0 | 900 | start load; COL: 1.169"; 30,100 psi |
| 147 | JHP | 4.3 | 935 | max load; COL: 1.169"; 32,300 psi |
| 147 | Full Metal Jacket | 3.9 | 895 | start load; COL: 1.169"; 28,400 psi |
| 147 | Full Metal Jacket | 4.3 | 950 | max load; COL: 1.169"; 32,300 psi |
| 147 | Lead CFP | 3.7 | 905 | start load; COL: 1.169"; 28,500 psi |
| 147 | Lead CFP | 4.1 | 965 | max load; COL: 1.169"; 32,800 psi |
| Hodgdon Data Using Winchester Powder Case: Winchester; twist: 1:10"; primer: CCI 500, Small Pistol; barrel length: 4"; trim length: .750"; bullet diam.: .355" (except where otherwise specified in remarks). | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 115 | Jacketed | 4.9 | 1060 | start load; min OAL: 1.095 |
| 115 | Jacketed | 5.7 | 1195 | never exceed; min OAL: 1.095; 31,900 psi |
| 124 | Jacketed | 4.7 | 1015 | start load; min OAL: 1.095 |
| 124 | Jacketed | 5.3 | 1115 | never exceed; min OAL: 1.095; 32,700 psi |
| 124 | Lead | 4.0 | 945 | start load; min OAL: 1.095 |
| 124 | Lead | 4.7 | 1055 | never exceed; min OAL: 1.095; 27,300 psi |
| 147 | Jacketed | 3.9 | 895 | start load; min OAL: 1.095 |
| 147 | Jacketed | 4.3 | 950 | never exceed; min OAL: 1.095; 32,300 psi |
| 147 | Lead | 3.7 | 905 | start load; min OAL: 1.095 |
| 147 | Lead | 4.1 | 965 | never exceed; min OAL: 1.095; 32,800 psi |
| Lee Precision Data Small pistol primer. CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 115 | Speer GDHP or TMJ RN | 5.0 | 1041 | start charge |
| 115 | Speer GDHP or TMJ RN | 5.6 | 1156 | maximum charge |
| 147 | Speer GDHP or TMJ FN | 3.6 | 840 | start charge |
| 147 | Speer GDHP or TMJ FN | 4.1 | 931 | maximum charge |
| Speer Reloading Manual #14 max. case length: 0.754"; trim-to length: 0.744"; max cart. OAL: 1.169"; RCBS shell holder: #16; cart. case: Speer; primer: CCI 500; test firearm: S&W M5906; barrel length: 4"; 147-grain bullets not recommended for barrels longer than 10 inches; IMPORTANT SAFETY NOTE: These loads were developed and tested for safe use in HANDGUNS. Not all loads may be suitable for use in a carbine or rifle chambered for this cartridge. If loading for a carbine or rifle, choose from among the loads developing the highest handgun velocities and load just a few rounds. Thoroughly test this small sample in your firearm in slow-fire mode, insuring that you achieve proper feeding and ejection. Be certain that all bullets exit the barrel; watching the target for each bullet strike is the best way to know that the load produces sufficient gas volume for a longer barrel. Use maximum loads with CAUTION | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 115 | Full Metal Jacket | 5.7 | 1,195 | col: 1.169"; 31,900 psi |
| 115 | Jacketed Hollow Point | 5.7 | 1,165 | col: 1.169"; 32,100 psi |
| 124 | Full Metal Jacket | 5.3 | 1,115 | col: 1.169"; 32,700 psi |
| 124 | Lead Round Nose | 4.7 | 1,055 | col: 1.169"; 27,300 psi |
| 147 | Full Metal Jacket | 4.3 | 950 | col: 1.169"; 32,300 psi |
| 147 | Jacketed Hollow Point | 4.3 | 935 | col: 1.169"; 32,300 psi |
| 147 | Lead CFP | 4.1 | 965 | col: 1.169"; 32,800 psi |
| Winchester Pistol Data case: Winchester; BBL: 4"; PR: CCI 500; NEVER exceed loads listed | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 147 | Cast #356637 | 3.4 | 867 | sugg. start load; 26,900 cup; 1.058" OAL |
| 147 | Cast #356637 | 3.9 | 961 | max load; 32,100 cup; 1.058" OAL |
| Cast Bullet Handgun Data Lyman Reloading Handbook 49th Edition cases: Federal; trim-to length: .751"; primers: CCI 500; primer size; Small Pistol; Lyman shell holder: No. 12; cast bullets used sized to .356" dia.and all #2 Alloy; firearm used: Universal Receiver; barrel length: 4"; groove dia.: .355" | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 147 | Speer TMJ | 3.5 | 790 | sugg. start load; 21,500 cup; 1.115" OAL |
| 147 | Speer TMJ | 4.4 | 983 | max load; 30,800 cup; 1.115" OAL |
| Handgun Data Lyman Reloading Handbook 49th Edition cases: Federal; trim-to length: .751"; primers: CCI 500; primer size; Small Pistol; Lyman shell holder: No. 12; firearm used: Universal Receiver; barrel length: 4"; groove dia.: .355" | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 115 | Sierra JHP | 4.8 | 1075 | overall length (inches): 1.100; group (inches): 2.00 |
| 124 | Hornady XTP | 4.6 | 1109 | overall length (inches): 1.096; group (inches): 2.00 |
| in a Browning Hi-Power Accuracy is for five-shot groups at 25 yards from a solid benchrest. The group was measured from the inside of the most widely spaced bullet holes | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 147 | Speer TMJ | 5.1 | 856 | sugg. start load; 24,700 cup; 1.169" OAL |
| 147 | Speer TMJ | 6.2 | 1144 | max load; 33,000 cup; 1.169" OAL |
| Lyman Reloading Handbook 49th Edition cases: Geco; trim-to length: .830"; primers: Winchester WSP; primer size: Small Pistol; Lyman shell holder: No. 12; cast bullets used sized to .355" dia.; firearm used: Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .355" | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 125 | Bushwacker .356-inch SWC | 4.7 | 1,105 | SD: 9 fps; CV: 0.81%; group: 1.42 inches; power factor: 138 |
| 125 | Bushwacker .356-inch SWC | 4.9 | 1,109 | SD: 11 fps; CV: 0.99%; group: 1.67 inches; power factor: 139 |
| in a CZ 75 Test gun was a custom CZ 75 converted to 9x21mm with a 5.25-inch barrel and three-port compensator. Accuracy is the average of three (or more) five-shot groups at 25 yards. Overall loaded length of all loads was 1.160 inches. Starline nickel-plated cases and Winchester Small Pistol primers were used throughout. Temperatures at time of testing were 65 to 89 degrees Fahrenheit. Average accuracy of all loads tested: 1.36 inches. CV is coefficients of variation and is the standard deviation expressed as a percent of the average velocity. | |||||
