Winchester 296

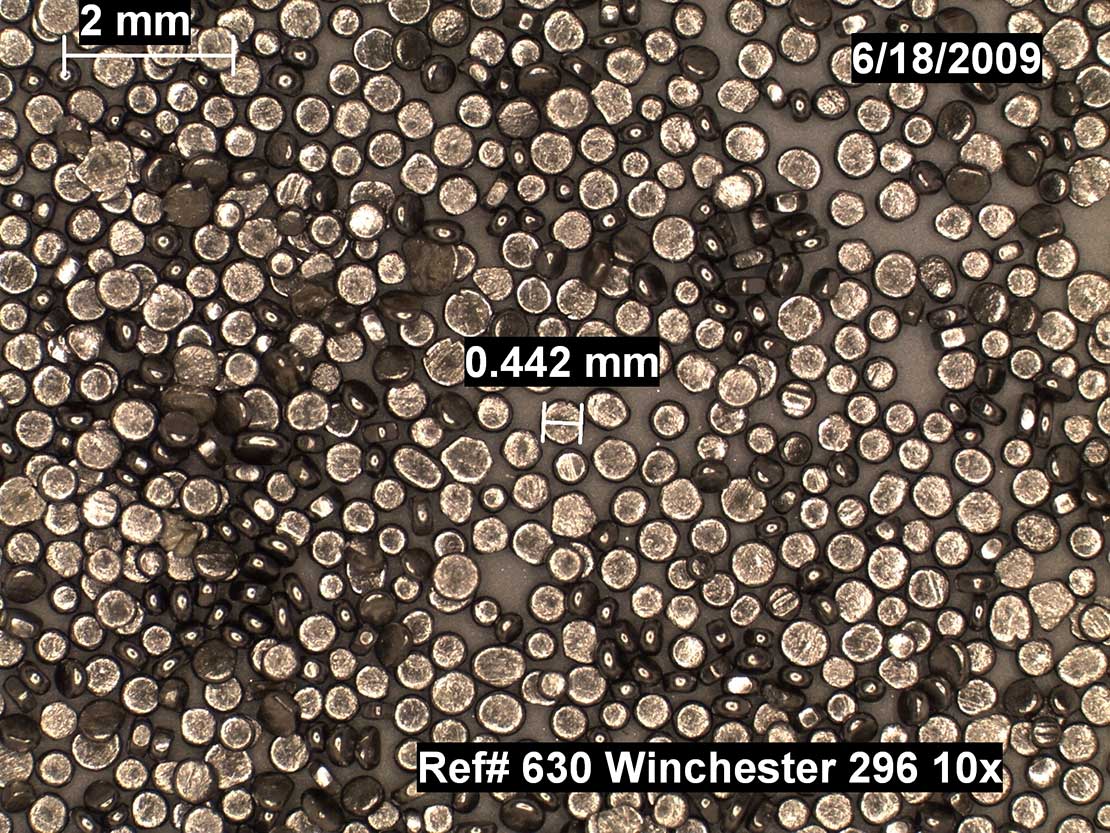

This propellant was developed for Winchester factory-loaded ammunition for 357 Magnum, 44 Magnum, and 410 Bore. Its high loading density provides optimal velocity. 296 is recommended by Winchester for 410 Bore AA loads.

Shape	Color	Perforation	Diameter min	Diameter max	Length/thick. min	Length/thick. max	Manufacturer
Flattened ball	Gray	No	0.33 mm	0.6 mm	0.18 mm	0.18 mm	Olin / Primex Technologies

ADVARSEL!

Ladedata som finnes på hjemmesidene til Evje PK er KUN ment som en veiledning! Ladedata skal alltid verifiseres mot kjente kilder (kruttprodusenter, ladebøker o.l.)

Data funnet på våre hjemmesider brukes på eget ansvar, og Evje Pistolklubb fratar seg alt ansvar for feil bruk av, eller skrivefeil i oppgitte data.

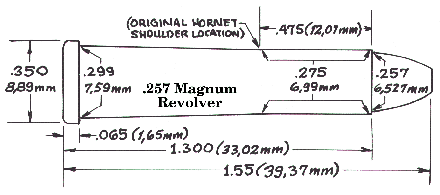

.257 Magnum

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
67	cast	11.9	1,603	3 inches at 50 yards; ten grains gave consistent 2-1/2-inch groups
60	Hornady	12.0	1,583	2-1/2 to 3 inches at 50 yards; slightly compressed load
revolver Velocities represent five-shot averages taken fifteen feet from the muzzle of the converted S&W Model 15 revolver with an Oehler Model 10 chronograph. Temperature averaged fifty degrees. Group size represents distance between centers of the widest-spaced shots.

.30 Carbine

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
110	Hornady roundnose	15.0	1,433	primer: WSR
110	Speer hollowpoint	15.0	1,369	primer: WSR
in a Black Hawk Test firearm was a Ruger Blackhawk with a 7 1/2-inch barrel. All cases werre Remington. Maximum case length, 1.290 inches. Temperature during testing was 75 degrees Fahrenheit.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
100	Speer RN SP	14.5	1415	start charge; primer: CCI 450 Magnum
100	Speer RN SP	15.5	1527	max charge; primer: CCI 450 Magnum
110	Speer HP or RN SP	14.0	1259	start charge; primer: CCI 450 Magnum
110	Speer HP or RN SP	15.0	1363	max charge; primer: CCI 450 Magnum
Speer Reloading Manual #14 max. case length: 1.290"; trim-to length: 1.280"; max cart. OAL: 1.690"; RCBS shell holder: #17; cart. case: IMI Commercial; primer: CCI 400 (except where otherwise specified in remarks); test firearm: Ruger Blackhawk; barrel length: 7.5"; maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
120	Cast #311359 gas check	13.5	1415	max load; reduced loads not recommended by Winchester
123	Cast #311576 gas check	13.5	1431	max load; reduced loads not recommended by Winchester
130	Cast #311410	12.5	1356	max load; reduced loads not recommended by Winchester
Revolver Lyman Cast Bullet Handbook cases: Federal; trim-to length: 1.286"; primers: Remington 6 1/2; primer size: Small Rifle Magnum and Small Rifle; Lyman shell holder: No. 19; cast bullets used size to .308" dia.; firearm used: Ruger Blackhawk; barrel length: 7 1/2"; twist: 1-20"; groove diameter: .308"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Hornady HP-XTP	11.9	1274
90	Hornady HP-XTP	13.0	1341
90	Hornady HP-XTP	14.1	1430
90	Hornady HP-XTP	15.3	1529	maximum load
T/C & Ruger Using Hornady Bullets Gun: Ruger Blackhawk; barrel length: 7 1/2 inches; case: Hornady Frontier; primer: Winchester Small Rifle; bullet diameter: .308"; 90 GR Hornady HP-XTP COAL: 1.510"; 110 GR RN & FMJ COAL: 1.680"; maximum COAL: 1.680"; maximum case length: 1.290"; trim to length: 1.280".

.32 H&R Magnum

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Sierra Jacketed JHC	9.9	1177	max load; 19,400 cup; 1.315" OAL
Lyman Reloading Manual 49th Edition cases: Federal; trim-to length: 1.065"; primers: Federal 100; primer size: Small Pistol; Lyman shell holder: No. 9; cast bullets used sized to .313" dia.; firearm used: Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .312"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
100	Speer JHP	9.0	1,020	starting charge; COAL tested: 1.345"
100	Speer JHP	9.9	1,059	MAXIMUM charge; COAL tested: 1.345"
Speer Reloading Manual #14 max. case length: 1.075"; trim-to length: 1.065"; max cart. OAL: 1.350"; RCBS shell holder: #23; cart. case: Federal; primer: CCI 500; test firearm: Ruger Single Six; barrel length: 5.5"; maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Sierra HC	12.0	1,679	primer: FC 100; group (50 yds): 1.25 inches; maximum load for Contender
110	Sierra HC	10.0	1,393	primer: FC 100; group (50 yds): 1.3 inches; maximum load for Contender
in a 10-inch Contender For Contender with 10-inch barrel, .308 bore diameter, using .308 bullets. The Hornady 85-grain HC and Sierra 90-grain HC are .312-inch diameter, but loads listed for them were OK in the author's .308-inch Contender. All other jacketed bullets were .308 and cast bullets were sized .308. Consult reloading manuals for data for .32 H&R Magnums in revolvers. Federal cases used for all loads.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
100	Hornady XTP	11.5	1,142	Extreme Spread: 8; 1.35 (25-yard group)
Ruger Single-Six Loads

.32 Smith & Wesson Long / .32 S&W Long

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
100	Speer JHP	6.0	635	start charge; test firearm: S&W K32 6"
100	Speer JHP	6.6	742	max charge; test firearm: S&W K32 6"
Speer Reloading Manual #14 This is for the 32 S&W Long and 32 Colt New Police cartridges only. max. case length: 0.920"; trim-to length: 0.910"; max cart. OAL: 1.280"; RCBS shell holder: #23; cart. case: Remington; primer: CCI 500; maximum loads should be used with CAUTION

.32-20 Winchester / .32 WCF

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
110	JHP	15.5	1,800	OAL (inches): 1.70
T/C Contender Only Loads 10-inch barrel
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
100	Speer JHP	13.5	1,418	extreme spread: 41; 25-yard group: 2.0 inches
Colt Single Action Army (30,000 CUP)
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
100	Speer RNSP	15.5	1646	start charge
100	Speer RNSP	16.5	1897	max charge
110	Speer HP, RNSP or Spire SP	14.5	1610	start charge
110	Speer HP, RNSP or Spire SP	15.5	1765	max charge
130	Speer HP or FN SP	13.5	1443	start charge
130	Speer HP or FN SP	14.5	1602	max charge
Contender Only Speer Reloading Manual #14 max. case length: 1.315"; trim-to length: 1.305"; RCBS shell holder: #1; cart. case: Winchester; primer: CCI 500; test firearm: T/C Contender; barrel length: 10"; NOTE: Do not substitute the .312" 100-grain JHP (#3981) for the 100-grain RNSP; maximum loads should be used with CAUTION

.327 Federal Magnum

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
100	Hornady XTP	12.2	1419	start load; COL: 1.450"; 31,400 psi
100	Hornady XTP	13.2	1525	max load; COL: 1.450"; 38,500 psi
Hodgdon Data Case: Federal; barrel length: 5"; twist: 1:16"; trim length: 1.200"; primer: Federal 200; bullet diam.: .312 (except where otherwise specified in remarks). NEVER EXCEED MAXIMUM LOADS
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
115	Speer Gold Dot Hollow-Point	12.5	1269	start charge
115	Speer Gold Dot Hollow-Point	13.5	1383	max charge; compressed load
100	Speer Gold Dot Hollow-Point	13.5	1412	start charge
100	Speer Gold Dot Hollow-Point	14.5	1524	max charge; compressed load
Magnum Speer Gold Dot Data max. case length: 1.200"; trim-to length: 1.190"; COAL tested: 1.465"; max cart. OAL: 1.475"; RCBS shell holder: #23; cart. case: Federal; primer: Federal 205; test firearm: Ruger SP-101; barrel length: 3". SPECIAL NOTE REGARDING PRIMERS: Due to the high operating pressures, factory ammo for the 327 Federal uses small rifle primers to prevent primer flowback. These handloads were developed with Federal #205 small rifle primers. However, small rifle MAGNUM primers are neither required nor recommended. Maximum loads should be used with CAUTION.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
100	Speer JHP	12.0	1197	primer: CCI 550; case: Speer; OAL (inches): 1.4575
100	Speer JHP	13.2	1287	primer: CCI 550; case: Speer; OAL (inches): 1.4575
Data Firearm used was a Ruger SP101 with a 3 1/16-inch barrel. Federal Cartridge and Speer cases used as noted. Maximum case length: 1.200 inches.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
100	Speer JHP	12.0	1197	primer: CCI 550; case: Speer; overall loaded length (inches): 1.4575
100	Speer JHP	13.2	1287	primer: CCI 550; case: Speer; overall loaded length (inches): 1.4575
Loads Firearms used for testing these loads was a Ruger SP101 with a 3 1/16-inch barrel. Federal and Speer cases and CCI 500 and CCI 550 primers were used throughout. Case length: 1.200 inches; throat: .313 inch; barrel cylinder gap: .006 inch; groove diameter: .3123 inch.

.357 Auto Mag

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
137	JSP	22.0	1,675	load 8; primer: CCI 350; 35,000 c.u.p.
137	JSP	26.0	1,902	load 9; primer: CCI 350; 49,000 c.u.p.
These loads were developed with cases formed from .44 AMP brass; cases formed from rifle brass may have less capacity, requiring a reduction in charges to maintain equal pressures. Loads 5, 7, 8 and 11 will not produce reliable gun cycling and may be increased from .5 to one grain to do so. They are included to show the relatively high pressure and velocity levels which are essential with the AMP pistol; it doesn't like light loads. Loads two and three are the most versatile of the lot, and are the standard loads adopted by many owners of .357 AMP pistols. Zeroed at 100 yards, these loads drop roughly 8 inches at 200 yards, with standard open sights.

.357 Magnum

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
146	Speer JHP	14.5	1,016	case: S-X; primer: S-V; case expansion moderate; most accurate 146-grain load; 6" barrel
146	Speer JHP	15.5	1,090	case: S-X; primer: S-V; case expansion moderate; 6" barrel
150	Sierra JHC	16.0	1,177	case: Nor.; primer: CCI 550; case expansion moderate; 6" barrel
158	Speer JSP	16.6	1,207	case: W-W; primer: CCI 550;case expansion normal; fine load; 6" barrel
158	Hornady JHP	15.0	1,122	case: W-W; primer: CCI 550; case expansion moderate; very accurate; 6" barrel
158	Hornady JHP	16.0	1,191	case: W-W; primer: CCI 550; case expansion normal; 6" barrel
158	Speer jacketed hollowpoint	16.6	1,295	39,500 CUP
Colt "357" Revolver with six-inch barrel used for all accuracy and velocity testing. Velocities are Instrumental (IV) taken at ten feet from muzzle. Temperature 60 degrees F. Chronograph set-up: Oehler Model 31 Chronotach with Oehler Model 51 electronic screens; screen spacing ten feet. Update: Alliant Powder Company does not recommend Blue Dot in the .357 magnum using 125-grain bullets. Recipes for heavier bullet weights are acceptable. Their new tests on recent powder samples have shown high pressure spikes that can damage personal property or injure you. For this reason we removed all 125-grain Blue Dot data from .357 magnum tables.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
155	Lyman 358439 HP	14.0	1,247
Cast Bullet - Lyman Mould Revolver used: Colt Python, 6-inch barrel; overall loaded length (inches): 1.53; Lyman 358439 HP (sized to .358 inch); water-quenched wheelweight alloy; Velocity figures are the average of at least six rounds fired approximately 10 feet from the muzzle using an Oehler Model 35P chronograph. Ambient temperature during testing averaged 58 degrees Fahrenheit. CCI standard velocity primers used. Loads were assembled using Winchester cases. All loads should be reduced 5 percent for initial load development. This data is intended only for use by persons experienced in the proper and safe practice of handloading ammunition.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
135	Speer GDHP SB	17.5	1105	start charge; primer: CCI 550 Magnum
135	Speer GDHP SB	18.5	1130	maximum charge; primer: CCI 550 Magnum
(Handgun Short Barrel Velocities) Speer Reloading Manual #14 max. case length: 1.290"; trim-to length: 1.280"; max cart. OAL: 1.590"; RCBS shell holder: #6; cart. case: Speer; primer: CCI 500 (except where otherwise specified in remarks); test firearm: S&W Model 19; barrel length: 2.5"; maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
125	Speer UCSP, GDHP, UCHP or TMJ FN	18.3	1188	start charge; primer: CCI 550 Magnum
125	Speer UCSP, GDHP, UCHP or TMJ FN	20.3	1336	maximum charge; primer: CCI 550 Magnum
135	Speer GDHP SB	17.5	1264	start charge; primer: CCI 550 Magnum
135	Speer GDHP SB	18.5	1377	maximum charge; primer: CCI 550 Magnum
140	Speer UCHP	17.0	1327	start charge; primer: CCI 550 Magnum
140	Speer UCHP	18.0	1367	maximum charge; primer: CCI 550 Magnum
158	Speer TMJ FN, UCHP, GDHP or UCSP	13.2	1089	start charge; primer: CCI 550 Magnum
158	Speer TMJ FN, UCHP, GDHP or UCSP	14.7	1185	maximum charge; primer: CCI 550 Magnum
(Handgun) Speer Reloading Manual #14 max. case length: 1.290"; trim-to length: 1.280"; max cart. OAL: 1.590"; RCBS shell holder: #6; cart. case: Speer; primer: CCI 500 (except where otherwise specified in remarks); test firearm: S&W model 19; barrel length: 6"; NOTE: Do not use the 110-grain Gold Dot SB HP (#4009) in the 357 Magnum; maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
125	Jacketed	18.5	1800	never exceed; compressed; min OAL: 1.540; 32,500 cup
150	Lead	14.0	1510	never exceed; min OAL: 1.540; 32,000 cup
158	Jacketed	16.6	1610	never exceed; compressed; min OAL: 1.590; 39,500 cup
158	Lead	14.5	1560	never exceed; min OAL: 1.540; 38,000 cup
170	Jacketed	14.3	1390	never exceed; min OAL: 1.540; 42,000 cup
200	Lead	12.4	1335	never exceed; compressed; min OAL: 1.540; 35,000 cup
Lee Precision Data Small Pistol Primer. With NEVER EXCEED LOADS maintain Minimum Over All Length or longer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
160	Speer JSP	16.5	1,790	Marlin
160	Speer JSP	16.5	1,340	Dan Wesson
158	Speer JHP	16.5	1,770	Marlin
158	Speer JHP	16.5	1,320	Dan Wesson
(Marlin Carbine and Dan Wesson Revolver) All velocity readings are instrumental at fifteen feet from muzzle. Barrel lengths: Marlin 18-1/2 inches, Dan Wesson six inches.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
158	Nosler Sporting Handgun Jacketed Hollow Point	14.8	1,540	maximum load; most accurate load tested
158	Nosler Sporting Handgun Jacketed Hollow Point	14.3	1,530
158	Nosler Sporting Handgun Jacketed Hollow Point	13.8	1,520
(Using 158 GR Nosler Bullets) Handgun; Case: Federal; primer: WSPM; barrel length/make: 8.3" H-S Precision; twist: 1-16"; bullets: 158 GR Sporting Handgun Revolver JHP; OACL: 1.585"; maximum OACL: 1.590". Use Maximum Loads with Caution
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
125	JHP	18.5	1,800	32,500 cup
145	STHP	17.5	1,640	31,600 cup
150	Lead	14.0	1,510	32,000 cup
158	Lead	14.5	1,560	38,000 cup
158	JHP	16.6	1,610	39,500 cup
170	FMJ	14.3	1,390	42,000 cup
200	Lead	12.4	1,335	35,000 cup
Winchester Handgun Data trim to length: 1.285"; max. overall length with bullet seated: 1.590"; nominal bullet diameter (jacketed): .358"; barrel length: 8.375"; WARNING FOR 296 POWDER: loads using 296 powder require heavy bullet pull (heavy crimp); using 296 powder with light bullet pull (light crimp) may result in squib loads and cause damage to the firearm, shooter and/or bystanders; all loads shown are maximum charge wt. (grs.)
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
110	Hornady XTP	23.0	2,078	col: 1.590"; 37,200 cup
125	Hornady XTP	22.0	1,966	col: 1.590"; 41,400 cup
140	Hornady XTP	19.0	1,762	col: 1.590"; 40,900 cup
146	Speer Jacketed Hollow Point	17.2	1,691	col: 1.535"; 42,600 cup
150	Nosler Jacketed Flat Point	17.0	1,606	col: 1.590"; 28,900 cup
158	Hornady XTP	16.7	1,591	col: 1.580"; 40,700 cup
170	Sierra Jacketed Hollow Cavity	15.5	1,497	col: 1.580"; 40,800 cup
180	Nosler Partition	13.5	1,396	col: 1.575"; 39,100 cup
Winchester Pistol Data case: Winchester; BBL: 10"; PR: Winchester SPM; NEVER exceed loads listed
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
140	Speer JHP	19.7	1,867	case: W-W; primer: CCI 550; 50-yard group: accurate; maximum
140	Speer JHP	19.7	1,881	case: W-W; primer: WSP; 50-yard group: accurate; maximum
180	Speer FN	15.0	1,435	case: W-W; primer: CCI 550; 50-yard group: 2.2 inches; maximum; .358-inch rifle bullets
10-inch Contender Barrel All loads crimped in crimping groove or cannelure provided. All data the result of a single representative 10-round group, fired from a sandbag rest. Velocities were measured 10 feet from the muzzle with an Oehler Model 33 chronograph. All cases .357 unless otherwise noted. Update: Alliant Powder Company does not recommend Blue Dot in the .357 magnum using 125-grain bullets. Recipes for heavier bullet weights are acceptable. Their new tests on recent powder samples have shown high pressure spikes that can damage personal property or injure you. For this reason we removed all 125-grain Blue Dot data from .357 magnum tables.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
140	Sierra JHC	17.2	1,810
140	Speer JHP	15.0	1,644
140	Speer JHP	17.0	1,768
158	Speer JSP	15.5	1,652
158	Sierra JSP	14.0	1,570	fourth most accurate
158	Sierra JSP	16.0	1,705	most accurate load
Carbine Update: Alliant Powder Company does not recommend Blue Dot in the .357 magnum using 125-grain bullets. Recipes for heavier bullet weights are acceptable. Their new tests on recent powder samples have shown high pressure spikes that can damage personal property or injure you. For this reason we removed all 125-grain Blue Dot data from .357 magnum tables. Taken from Handloader Issue 100
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
158	Ideal 358156	15.5	1139	group (inches): 3.11; Hornady gas check
158	Ideal 358156	15.5	1139	group (inches): 2.45
158	Ideal 358156	15.5	1139	group (inches): 2.99; milk carton gas check
158	Ideal 358156	15.5	1139	group (inches): 2.75; aluminum can gas check
158	Ideal 358156	15.5	1139	group (inches): 3.13; .040-inch plastic gas check
Cast Bullet Data A Smith & Wesson Model 19 with a 4-inch barrel was used to fire these loads at 25 yards.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
151	SWC RCBS 38-150KT	17.5	1,414	group (inches): 1.8
Cast In An S&W Model 19 All groups fired at 25 yards with revolver mounted in a machine rest. Five shots per group. All handloads used Browning brass and Winchester Small Pistol primers. All bullets crimped heavily. These 14 groups represent only those of 28 tested that grouped five shots into 1.75 inches or less. Six-inch barrel.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
150	Cast #358477	17.8	1452	max load; 41,900 cup; reduced loads not recommended by Winchester
155	Cast #358156 gas check	15.6	1334	max load; 39,700 cup; reduced loads not recommended by Winchester
158	Cast #358311	18.0	1461	max load; 41,400 cup; reduced loads not recommended by Winchester
168	Cast #358429	15.2	1307	max load; 39,900 cup; reduced loads not recommended by Winchester
Handgun Lyman Cast Bullet Handbook cases: Federal; trim-to length: 1.285"; primers: CCI 550; primer size: Small Pistol Magnum; Lyman shell holder: No. 1; cast bullets used size to .357" dia.; firearm used: Universal Receiver and Special Vented Barrel; barrel length: 4"; twist: 1-18 3/4"; groove diameter: .356"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
180	Hornady Jacketed HP	14.9	1096	max load; 1.585" OAL; 42,000 cup
Handgun Lyman Reloading Manual 49th Edition cases: Federal; trim-to length: 1.280"; primers: CCI 550; primer size: Small Pistol, Magnum; Lyman shell holder: No. 1; firearm used: Universal Receiver; barrel length: 4"; twist: 1-18 3/4"; groove dia.: .356"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
125	Hornady HP-XTP or FP-XTP	16.9	1373	COAL: 1.590"
125	Hornady HP-XTP or FP-XTP	17.6	1399	COAL: 1.590"
125	Hornady HP-XTP or FP-XTP	18.2	1436	COAL: 1.590"
125	Hornady HP-XTP or FP-XTP	18.9	1466	COAL: 1.590"
125	Hornady HP-XTP or FP-XTP	19.6	1494	COAL: 1.590"
125	Hornady HP-XTP or FP-XTP	20.3	1529	maximum load; COAL: 1.590"
140	Hornady HP-XTP	15.8	1266	COAL: 1.590"
140	Hornady HP-XTP	16.4	1280	COAL: 1.590"
140	Hornady HP-XTP	17.0	1294	COAL: 1.590"
140	Hornady HP-XTP	17.6	1309	COAL: 1.590"
140	Hornady HP-XTP	18.2	1320	maximum load; COAL; 1.590"
158	Hornady HP-XTP or FP-XTP	12.4	1001	COAL: 1.590"
158	Hornady HP-XTP or FP-XTP	13.1	1044	COAL: 1.590"
158	Hornady HP-XTP or FP-XTP	13.8	1086	COAL: 1.590"
158	Hornady HP-XTP or FP-XTP	14.5	1124	COAL: 1.590"
158	Hornady HP-XTP or FP-XTP	15.2	1174	COAL: 1.590"
158	Hornady HP-XTP or FP-XTP	16.0	1218	maximum load; COAL; 1.590"
180	Hornady HP-XTP	11.1	820	COAL: 1.590"
180	Hornady HP-XTP	11.8	888	COAL: 1.590"
180	Hornady HP-XTP	12.4	959	COAL: 1.590"
180	Hornady HP-XTP	13.1	1025	COAL: 1.590"
180	Hornady HP-XTP	13.7	1092	maximum load; COAL; 1.590"
Handgun Using Hornady Bullets Gun: Ruger GP100; barrel length: 6"; case: Starline; primer: Winchester Small Pistol Magnum; bullet diameter: .357"; maximum COAL: 1.590"; maximum case length: 1.290"; trim to length: 1.280".
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
140	Speer JHP	18.0	1,403	1.65 inch group (25 yards)
158	Hornady XTP	16.6	1,311	1.55 inch group (25 yards)
in a 7 1/2 inch Ruger Bisley
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
125	Hornady XTP/HP	20.0	1,411	primer: Winchester SPM; 6-inch barrel velocity: 1,444
158	Speer Gold Dot hollowpoint	16.6	1,303	primer: CCI 550; 6-inch barrel velocity: 1,329
in a Ruger GP100 - 4-inch Barrel
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
170	Sierra JHC	17.0	1,748	100-yard group size (inches): 3-3/16; OAL (inches): 1.715
160	Speer JSP	17.5	1,878	100-yard group size (inches): 2-5/8; OAL (inches): 1.750
158	Hornady JSP	17.5	1,739	100-yard group size (inches): 2-1/2; OAL (inches): 1.735
158	Speer JHP	17.5	1,758	100-yard group size (inches): 2-5/8; OAL (inches): 1.695
196	NEI 195-358GC	16.0	1,633	100-yard group size (inches): 3-7/8; OAL (inches): 1.735
in a Ruger No. 1 Warning! All loads used Remington No. 7 1/2 Small Rifle primers. Velocities taken with an Oehler Model 33 with start screen at five feet.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
158	Speer Gold Dot HP	16.6	1,329	firearm: Ruger GP-100; barrel length: 6"
Load Data
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
110	Hornady XTP	20.0	1,573
125	Hornady XTP	17.5	1,418
140	Hornady XTP	16.0	1,341
Loads (revolver) 4 3/4-inch revolver. Overall length for all cartridges: 1.590 inches. Federal 205 rifle primers used with all jacketed bullets. CCI 500 pistol primers used with all cast bullets. Velocities instrumental at 8 feet using Oehler M35P. All data average of five, five-shot strings.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
140	Speer JHP	18.0	1,331	primer: CCI 550
158	Hornady XTP-HP	16.6	1,255	primer: CCI 550
New Ruger Model Blackhawk Flat Top Starline cases used throughout.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
110	Hornady XTP	22.0	1992	start load; COL: 1.590"; 32,400 cup
110	Hornady XTP	23.0	2078	max load; COL: 1.590"; 37,200 cup
125	Hornady XTP	21.0	1881	start load; COL: 1.590"; 38,400 cup
125	Hornady XTP	22.0	1966	max load; COL: 1.590"; 41,400 cup
140	Hornady XTP	17.1	1597	start load; COL: 1.590"; 28,400 cup
140	Hornady XTP	19.0	1762	max load; COL: 1.590"; 40,900 cup
146	Speer JHP	15.5	1512	start load; COL: 1.535"; 29,200 cup
146	Speer JHP	17.2	1691	max load; COL: 1.535"; 42,600 cup
158	Hornady XTP	15.0	1418	start load; COL: 1.580"; 28,600 cup
158	Hornady XTP	16.7	1591	max load; COL: 1.580"; 40,700 cup
170	Sierra JHC	14.0	1328	start load; COL: 1.580"; 25,900 cup
170	Sierra JHC	15.5	1497	max load; COL: 1.580"; 40,800 cup
180	Nosler Part	13.0	1352	start load; COL: 1.575"; 36,800 cup
180	Nosler Part	13.5	1396	max load; COL: 1.575"; 39,100 cup
Pistol Hodgdon Data Case: Winchester; barrel length: 10"; twist: 1:18.75"; trim length: 1.285"; primer: Winchester SPM; bullet diam.: .357" (except where otherwise specified in remarks). NEVER EXCEED MAXIMUM LOADS
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
180	Flat Point	12.5	1,035	starting load; requires magnum pistol primers; do not reduce load below start charge shown
180	Flat Point	13.7	1,158	maximum load; requires magnum pistol primers; do not reduce load below start charge shown
Pistol (Oregon Trail Handgun/Metallic Silhouette Loads) test gun: Smith & Wesson M-686 6", WSP; do not exceed maximum loads; minimum OAL: 1.580; never reduce stated overall lengths
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
158	Hornady XTP	16.6	1,826	rifle load; primer: Win SPM; extreme spread (fps): 31
158	Hornady XTP	16.6	1,298	revolver load; primer: Win SPM; extreme spread (fps): 31
Rifle & Revolver Handloads The .357 Magnum rifle loads were shot using a Marlin 1894CS with an 18 1/2-inch barrel. Revolver loads were from a Smith & Wesson 586 with a 6-inch barrel.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
180	Speer Mag Match TMJ Sil	14.3	1430	start charge; primer: CCI 550 Magnum
180	Speer Mag Match TMJ Sil	15.9	1573	maximum charge; primer: CCI 550 Magnum
Silhouette Speer Reloading Manual #14 max. case length: 1.290"; trim-to length: 1.275"; RCBS shell holder: #6; cart. case: Speer; primer: CCI 500 (except where otherwise specified in remarks); test firearm: T/C Contender; barrel length: 10"; NOTE: A revolver must have a total cylinder length of at least 1.625 inches (not counting rim recesses, if present) to benefit from this specialty bullet. All cases must be trimmed to 1.275 inches and bullets seated so that the case mouth covers almost all the crimping groove. Apply a very firm crimp to prevent bullet jump during recoil. Make a dummy round (no powder or primer) using the above technique and try it in your cylinder. For proper and safe function the bullet tip must be below - not flush with - the face of the cylinder. Use these loads only in single-shot pistols and heavy-frame revolvers. Maximum loads should be used with CAUTION

.357 Maximum

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
180	FMJ	19.0	1670	maximum load; bullet diam.: .358"; COL: 1.990"; 46,900 cup
Hodgdon Pistol Data case: Remington; barrel length: 10"; twist: 1:18.75"; trim length: 1.600"; primer: Remington 7 1/2; bullet diam.: .357" (except where otherwise specified in remarks); NEVER EXCEED MAXIMUM LOADS
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
180	Jacketed	19.0	1670	never exceed; min OAL: 1.940; 46,900 cup
Lee Precision Data With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Pistol primer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
125	Speer UCSP, GDHP or TMJ RN	26.0	2223	start charge
125	Speer UCSP, GDHP or TMJ RN	28.0	2381	maximum charge; compressed load
140	Speer UCHP	24.5	2093	start charge
140	Speer UCHP	26.5	2261	maximum charge; compressed load
158	Speer TMJ FN or UCHP	21.5	1883	start charge
158	Speer TMJ FN or UCHP	23.5	2046	maximum charge
170	Speer Mag GDSP or 180-gr FNSP	21.0	1708	start charge
170	Speer Mag GDSP or 180-gr FNSP	23.0	1881	maximum charge
180	Speer Mag Match TMJ Sil	18.5	1572	start charge
180	Speer Mag Match TMJ Sil	20.5	1716	maximum charge
220	Speer FN SP	16.0	1314	start charge
220	Speer FN SP	18.0	1500	maximum charge
Speer Reloading Manual #14 max. case length: 1.605"; trim-to length: 1.595"; max cart. OAL: 1.990"; RCBS shell holder: #6; cart. case: Remington; primer: CCI 400; test firearm: T/C Contender; barrel length: 14"; NOTE: the 180-gr FN SP and 220-gr bullet is for single-shot firearms only; maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
180	FMJ	19.0	1,670	46,900 cup
(Winchester Pistol Data) case: Remington; BBL: 10"; PR: Remington 7 1/2; COL: 1.990"; NEVER exceed loads listed
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Hornady RNSP	22.5	1,429	average group: 2 1/2 inches; heavy game
215	Lyman 358627	18.0	1,352	average group: 1 1/4 inches; accurate
Dan Wesson Super Mag 8-Inch Barrel
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
180	Hornady full-metal-jacket	21	1,552	compressed charge
158	Hornady jacketed hollow-point	23	1,540	compressed charge
140	Sierra jacketed hollow-cavity	25	1,717	compressed charge
125	Speer jacketed hollow-point	28	1,856	compressed charge
110	Speer jacketed hollow-point	29	1,889	compressed charge
160	Lyman 358429 linotype metal	21	1,509
in Ruger Blackhawk 7 1/2 inch barrel All loads were maximum in the 7 1/2-inch-barreled Ruger Blackhawk, and should not be used unless charges one and two grains lighter produce no sign of excessive pressure. R-P cases, CCI BR-4 primers.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
180	Speer	23.4	1,646	expansion ring diameter (inch): .3809
180	Speer	24.0	1,674	expansion ring diameter (inch): .3810
180	Speer	24.4	1,713	expansion ring diameter (inch): .3814
180	Speer	25.0	1,744	expansion ring diameter (inch): .3810
180	Speer	25.4	1,791	expansion ring diameter (inch): .3808; fired cases ejected easily
180	Speer	26.0	1,821	expansion ring diameter (inch): .3811; maximum
in the T/C Contender 180 Speer .358-inch diameter rifle bullet No. 2435. Overall length: 2.26 inches, seating depth: .19 inch.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
158	Sierra JSP	24.5	1,473	accuracy: 2 5/8 inches
158	Sierra JSP	25.0	1,521	accuracy: 3 3/4 inches
158	Sierra JSP	25.5	1,294	accuracy: 5 3/4 inches; because of the erratic velocity readings, no further testing was done with W-296 and this bullet
158	Sierra JSP	26.0	1,381	accuracy: 4 inches
180	Hornady JTCSIL	22.5	1,534	accuracy: 3 3/8 inches
180	Hornady JTCSIL	23.0	1,593	accuracy: 3 1/8 inches
180	Hornady JTCSIL	23.5	1,622	accuracy: 4 inches
180	Sierra FPJ	23.0	1,480	accuracy: 2 inches
180	Sierra FPJ	23.5	1,520	accuracy: 1 1/2 inches
190	Cast FN	22.5	1,537	accuracy: 3 inches
190	Cast FN	23.0	1,579	accuracy: 4 3/4 inches
190	Cast FN	23.5	1,543	accuracy: 2 1/8 inches
190	Cast FN	24.0	1,637	accuracy: 3 1/8 inches
in USA Seville
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
180	Speer FNFMJ	20.5	1,371	accuracy: 3 1/4 inches. (A very heavy crimp must be used with this bullet. If the bullet is allowed to "walk," even to the end of the cannelure, it will jam the gun.)
180	Speer FNFMJ	21.0	1,404	accuracy: 3 inches. (A very heavy crimp must be used with this bullet. If the bullet is allowed to "walk," even to the end of the cannelure, it will jam the gun.)
180	Speer FNFMJ	21.5	1,406	accuracy: 3 7/8 inches. (A very heavy crimp must be used with this bullet. If the bullet is allowed to "walk," even to the end of the cannelure, it will jam the gun.)
180	Speer FNFMJ	22.0	1,423	accuracy: 4 1/2 inches. (A very heavy crimp must be used with this bullet. If the bullet is allowed to "walk," even to the end of the cannelure, it will jam the gun.)
180	Speer FNFMJ	22.5	1,512	accuracy: 2 1/2 inches. (A very heavy crimp must be used with this bullet. If the bullet is allowed to "walk," even to the end of the cannelure, it will jam the gun.)
180	Speer FNFMJ	23.0	1,543	accuracy: 4 1/4 inches. (A very heavy crimp must be used with this bullet. If the bullet is allowed to "walk," even to the end of the cannelure, it will jam the gun.)
180	Speer FNFMJ	23.5		accuracy: 2 1/8 inches. (A very heavy crimp must be used with this bullet. If the bullet is allowed to "walk," even to the end of the cannelure, it will jam the gun.)
180	Speer FNFMJ	24.0	1,640	accuracy: 3 1/4 inches. (A very heavy crimp must be used with this bullet. If the bullet is allowed to "walk," even to the end of the cannelure, it will jam the gun.)
180	Speer FNFMJ	24.5	1,580	accuracy: 5 inches; near maximum. (A very heavy crimp must be used with this bullet. If the bullet is allowed to "walk," even to the end of the cannelure, it will jam the gun.)
180	Hornady JTCSIL	21.0	1,463	accuracy: 3 1/2 inches; mild. (This bullet fits well in the Ruger cylinder due to the cannelure being farther forward. However, it takes up more powder space than the Speer 180-grain.)
Loads in Ruger
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
140	Hornady JHP	24.0	2,154	primer: CCI 450; pressure (CUP): 27,170; group: 2 15/16 inches; excessive muzzle flash
158	Lyman 358156	24.5	2,030	primer: CCI 400; pressure (CUP):36,920; group: 3 1/2 inches; fastest test load
158	Hornady JHP	23.5	1,941	primer: CCI 450; pressure (CUP):39,020; group: 1 5/8 inches; accurate
180	Sierra FPJ	22.3	1,809	primer: CCI 400; pressure (CUP): 41,940; group: 2 1/2 inches
180	Hornady FMJ	21.5	1,782	primer: CCI 400; pressure (CUP): 41,560; group: 3 1/4 inches
200	Hornady RNSP	23.0	1,675	primer: CCI 400; pressure (CUP): 30,970; group: 7/8 inch; accurate
200	Hornady RNSP	24.0	1,774	primer: CCI 450; pressure (CUP): 38,670; group: 7/8 inch
215	Lyman 358627	18.0	1,537	primer: CCI 400; pressure (CUP): 32,760; group: 1 3/4 inches
215	Lyman 358627	19.0	1,607	primer: CCI 400; pressure (CUP): 37,480; group: 1 5/8 inches
250	Hornady RNSP	21.0	1,544	primer: CCI 400; pressure (CUP): 44,620; group: 3 1/4 inches; bullet yawing
250	Hornady RNSP	17.0	1,412	primer: Fed 200; pressure (CUP): 41,760; group: 1 1/2 inches; accurate in Dan Wesson
250	Hornady RNSP	17.0	1,294	primer: CCI 400; pressure (CUP): 24,780; group: 7/8 inch; mild load
250	Hornady RNSP	19.0	1,450	primer: CCI 400; pressure (CUP): 35,780; group: 2 inches
250	Hornady RNSP	20.0	1,500	primer: CCI 400; pressure (CUP): 39,730; group: 3/4 inch; very accurate
Pressure Barrel Data 14-inch pressure test barrel; groups fired at 50 yards. Manufacturers of arms chambered for the .357 Maximum caution against firing loads exceeding 45,000 CUP. Loads listed here giving pressures over 40,000 CUP are for reference only and are not recommended.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
158	Lyman 358156	25.0	1,773	average group: 3 inches
168	Lyman 358429	24.4	1,845	average group: 3 inches; highest velocity tested
180	Sierra FMJ	21.0	1,451	average group: 2 1/4 inches
180	Speer FMJ	21.0	1,531	average group: 1 1/8 inches; high velocity
215	Lyman 358627	19.0	1,429	average group: 1 7/8 inches; good hunting load
Ruger 7 1/2-Inch Barrel
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
180	Hornady full-metal-jacket	21	1,574	compressed charge
158	Hornady jacketed hollow-point	23	1,644	compressed charge
140	Sierra jacketed hollow-cavity	25	1,764	compressed charge
125	Speer jacketed hollow-point	28	1,870	compressed charge
110	Speer jacketed hollow-point	29	1,920	compressed charge
Ruger Blackhawk 10 1/2 inch barrel All loads were near maximum in the 10 1/2-inch-barreled Blackhawk, and should not be used unless charges one and two grains lighter produce no sign of excessive pressure. R-P cases, CCI BR-4 primers.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
158	Lyman 358156	24.4	1,951	average group: 1 1/2 inches; accurate, fast
168	Lyman 358429	24.4	1,976	average group: 3 inches
180	Speer FMJ	21.0	1,660	average group: 2 inches
180	Sierra FMJ	21.0	1,659	average group: 1 1/4 inches; accurate
200	Hornady Spire Point	22.5	1,721	average group: 1 1/4 inches; very accurate
215	Lyman 358627	18.0	1,500	average group: 1 1/2 inches; accurate
255	Lyman 358318	20.0	1,605	average group: 1 7/8 inches; big game load
T/C Contender 10-Inch Barrel
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
158	Hornady JHP	23.0	1,961	average group: 4 1/2 inches
180	Speer FP	24.5	1,966
180	Speer FNSP	24.0	1,903	average group: 4 inches; hunting
180	Speer FNSP	25.0	2,007	average group: 2 1/2 inches; very flat shooting
200	Hornady RNSP	24.5	1,853
200	Hornady RNSP	24.5	1,875	average group: 2 inches; most accurate
200	Hornady RNSP	25.0	1,896average group: 1 7/8 inches; most accurate
200	Hornady Spire Point	22.0	1,749	average group: 4 inches
200	Hornady Spire Point	23.0	1,855	average group: 3 3/4 inches
215	Lyman 358627	19.0	1,677
215	Lyman 358627	19.0	1,742	average group: 2 1/4 inches; hunting load
250	Hornady softpoint	21.0	1,522	average group: 3 1/4 inches; silhouette load
255	Lyman 358318	20.0	1,614
255	Lyman 358318	20.5	1,650	big game load
T/C Contender in 14-Inch Barrel
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
146	Speer hollowpoint	24.5	2,081	3-inch groups; .357 inch diameter bullet
150	Sierra softpoint	24.0	2,220	much better; .357 inch diameter bullet
220	Speer flatnose softpoint	17.0	1,365	slowest handload; .358 inch diameter bullet
T/C Encore in a 15-inch barrel All loads fired in the Encore pistol with a 15-inch Muzzle Tamer Custom Shop barrel.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
110	Hornady HP-XTP	26.9	1871
110	Hornady HP-XTP	27.3	1911
110	Hornady HP-XTP	27.8	1956
110	Hornady HP-XTP	28.2	1990
110	Hornady HP-XTP	28.6	2017
110	Hornady HP-XTP	29.0	2061	maximum load
125	Hornady FP-XTP or HP-XTP	22.9	1751
125	Hornady FP-XTP or HP-XTP	23.5	1760
125	Hornady FP-XTP or HP-XTP	24.0	1765
125	Hornady FP-XTP or HP-XTP	24.6	1795
125	Hornady FP-XTP or HP-XTP	25.1	1801
125	Hornady FP-XTP or HP-XTP	25.7	1811	maximum load
140	Hornady HP-XTP	21.3	1635
140	Hornady HP-XTP	21.8	1651
140	Hornady HP-XTP	22.4	1665
140	Hornady HP-XTP	23.0	1673
140	Hornady HP-XTP	23.6	1699	maximum load
158	Hornady FP-XTP or HP-XTP	18.6	1295
158	Hornady FP-XTP or HP-XTP	19.2	1326
158	Hornady FP-XTP or HP-XTP	19.8	1371
158	Hornady FP-XTP or HP-XTP	20.4	1399
158	Hornady FP-XTP or HP-XTP	21.0	1412
158	Hornady FP-XTP or HP-XTP	21.5	1422	maximum load
180	Hornady HP-XTP	16.2	1312
180	Hornady HP-XTP	17.4	1351
180	Hornady HP-XTP	17.8	1365
180	Hornady HP-XTP	18.2	1370
180	Hornady HP-XTP	18.5	1391	maximum load
Using Hornady Bullets Gun: Ruger New Model Super Blackhawk; barrel length: 7 1/2 inches; case: Federal; primer: Remington 7 1/2 Small Rifle; bullet diameter: .357"; COAL: 1.890"; maximum COAL: 1.990"; maximum case length: 1.605"; trim to length: 1.595".
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
180	Hornady HP XTP or InterLock SP, SSP	17.1	1386
180	Hornady HP XTP or InterLock SP, SSP	17.9	1458
180	Hornady HP XTP or InterLock SP, SSP	18.6	1533
180	Hornady HP XTP or InterLock SP, SSP	19.4	1614
180	Hornady HP XTP or InterLock SP, SSP	20.2	1697
180	Hornady HP XTP or InterLock SP, SSP	21.0	1766	maximum load
200	Hornady FTX, InterLock RN, InterLock SP	17.5	1255
200	Hornady FTX, InterLock RN, InterLock SP	18.3	1336
200	Hornady FTX, InterLock RN, InterLock SP	19.1	1444
200	Hornady FTX, InterLock RN, InterLock SP	19.9	1525	maximum load
(T/C) Data Using Hornady Bullets Gun: Thompson/Center Contender; barrel length: 14 inches; case: Federal; primer: Remington 7 1/2; bullet diameter: .357" and .358"; maximum COAL: 2.250" (1.990" for Revolvers); maximum case length: 1.605"; trim to length: 1.595"; 180 GR Hornady HP XTP COAL: 1.890", InterLock SP, SSP COAL: 2.250"; 200 GR FTX or InterLock SP COAL: 2.250", InterLock RN COAL: 2.200".

.38 Special (.38-44 High Velocity)

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
158	Lyman 358156	12.0	1,060
158	Lyman 358156	13.0	1,179
150	Bull-X 150	12.0	1,000
150	Bull-X 150	13.0	1,187
Colt Peacemaker Loads Winchester +P cases used throughout with CCI 450 primers. (Loading the Peacemaker - Dave Scovill)
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
158	Nosler JHP	10.0	833	case expansion maximum
Jacketed Bullet Loads in 8 3/8-inchBarrel Loads labeled "maximum" should not be exceeded! Reduce maximum loads 10% for light and alloy-framed guns.

.41 Magnum / .41 Remington Magnum

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
210	Hornady SIL	22.0	1,350	5.5-inch barrel length Federal cases and CCI Large Pistol primers.
Update: Alliant Powder Company does not recommend Blue Dot in the .41 Magnum for any bullet weights. Their new tests on recent powder samples have shown high pressure spikes that can damage personal property or injure you. For this reason we removed all Blue Dot data from .41 magnum tables.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Speer JHP-SWC	20.0	1302	start charge; primer: CCI 350 Magnum
200	Speer JHP-SWC	22.0	1428	maximum charge; primer: CCI 350 Magnum
210	Speer GDHP	20.5	1251	start charge; primer: CCI 350 Magnum
210	Speer GDHP	21.5	1295	maximum charge; primer: CCI 350 Magnum
220	Speer JSP-SWC	18.5	1247	start charge; primer: CCI 350 Magnum
220	Speer JSP-SWC	20.5	1360	maximum charge; primer: CCI 350 Magnum
Speer Reloading Manual #14 max. case length: 1.290"; trim-to length: 1.280"; max cart. OAL: 1.590"; RCBS shell holder: #30; cart. case: Winchester; primer: CCI 300 (except where otherwise specified in remarks); test firearm: S&W Model 57; barrel length: 6"; maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
170	Sierra JHC	23.5	1669	start load; COL: 1.575"; 21,400 cup
170	Sierra JHC	26.5	1887	max load; COL: 1.575"; 37,400 cup
210	Hornady XTP	19.8	1465	start load; COL: 1.580"; 25,600 cup
210	Hornady XTP	22.0	1631	max load; COL: 1.580"; 36,400 cup
220	Speer JSP	18.0	1352	start load; COL: 1.580"; 23,000 cup
220	Speer JSP	20.0	1529	max load; COL: 1.580"; 34,000 cup
245	Cast LSWC	18.5	1372	start load; COL: 1.630"; 22,800 cup
245	Cast LSWC	21.0	1563	max load; COL: 1.630"; 37,400 cup
250	WFNGC	17.4	1391	start load; COL: 1.540"; 29,400 cup
250	WFNGC	18.5	1479	max load; COL: 1.540"; 38,700 cup
255	WFNGC	18.0	1327	start load; COL: 1.660"; 21,000 cup
255	WFNGC	19.5	1491	max load; COL: 1.660"; 37,200 cup
265	WLNGC	19.5	1410	start load; COL: 1.710"; 24,400 cup
265	WLNGC	20.8	1540	max load; COL: 1.710"; 37,600 cup
Hodgdon Pistol Data Case: Remington; twist: 1:18.75"; primer: Winchester LP; barrel length: 10.125"; trim length: 1.280"; BULLET DIAM.: .410". NEVER EXCEED MAXIMUM LOADS
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
210	Jacketed	20.4	1460	never exceed; compressed; min OAL: 1.540; 24,000 cup
Lee Precision Data CAUTION: With NEVER EXCEED LOADS; maintain Minimum Over All Length or longer. (Modern Reloading, Second Edition - Richard Lee)
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Speer Jacketed HP	18.9	1309	sugg. start load; 1.590" OAL; 24,100 cup
200	Speer Jacketed HP	21.0	1447	max load; 1.590" OAL; 36,400 cup
Lyman Reloading Handbook 49th Edition cases: Winchester; trim-to length: 1.280"; primers: Winchester WLP; primer size: Large Pistol; Lyman shell holder: No. 30; firearm used: Universal Receiver; barrel length: 4"; twist: 1-18 3/4"; groove dia.: .409"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
210	R-P JSP	18.5	1,271	case: R-P; primer: CCI 350; O.A. Ctg. Lgt.: 1.58; case expansion: normal; accurate
210	W-W JSP	18.5	1,247	case: R-P; primer: CCI 350; O.A. Ctg. Lgt.: 1.58; case expansion: moderate
210	Hornady JHP	18.5	1,270	case: W-W; primer: CCI 350; O.A. Ctg. Lgt.: 1.58; case expansion: normal; compare to 19-grain load with 210-Sierra
210	Sierra JHC	19.0	1,269	case: R-P; primer: CCI 350; O.A. Ctg. Lgt.: 1.575; case expansion: moderate; note effect of larger capacity case on velocity
200	Harvey J-J	19.0	1,346	case: R-P; primer: CCI 350; O.A. Ctg. Lgt.: 1.62; case expansion: normal; heavy recoil and flash
Pet Loads All loads chronographed from 6 1/2-inch barrel Ruger Blackhawk. Oehler Model 31 Chronotach, Oehler Model 51 Electronic screens, spaced 10 feet apart; I.V. = Instrumental Velocity at 10 feet from muzzle. Update: Alliant Powder Company does not recommend Blue Dot in the .41 Magnum for any bullet weights. Their new tests on recent powder samples have shown high pressure spikes that can damage personal property or injure you. For this reason we removed all Blue Dot data from .41 magnum tables.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Speer JHP-SWC	20.0	1,302	CCI Magnum Primer used with this powder
200	Speer JHP-SWC	22.0	1,428	maximum load; CCI Magnum Primer used with this powder
210	Speer JSP-SWC	18.5	1,247	can also be used with 220 gr bullet; CCI Magnum Primer used with this powder
210	Speer JSP-SWC	20.5	1,360	maximum load; can also be used with 220 gr bullet; CCI Magnum Primer used with this powder
Speer Reloading Manual #13 Max. Case Length: 1.290"; Trim-to Length: 1.280"; Max. Cart. Length: 1.590"; RCBS Shellholder: #30; Barrel Length: 6"; Twist: 1-18.75"; Test Firearm: Smith & Wesson Model 57; Case: W-W; Primers: CCI 350; Update: Alliant Powder Company does not recommend Blue Dot in the .41 Magnum for any bullet weights. Their new tests on recent powder samples have shown high pressure spikes that can damage personal property or injure you. For this reason we removed all Blue Dot data from .41 magnum tables.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
170	Sierra JHC	23.5	1,338	avg. group: 1.71"; no. of 5-shot groups: 3; most accurate, highest velocity, not sensitive to charge var.
200	Speer JHP	20.5	1,242	avg. group: 1.93"; no. of 5-shot groups: 3; most consistent velocity, average sensitivity
210	Hornady JHP	20.0	1,173	avg. group: 1.83"; no. of 5-shot groups: 3; second most accurate load, extremely sensitive to charge var.
220	Speer JSP	19.8	1,258	avg. group: 1.90"; no. of 5-shot groups: 4; most powerful load, extremely sensitive to charge var.
W-296 powder in a 4 5/8-inch barrel All loads with CCI 350 primers and RP cases. Test gun was a 4 5/8-inch barrel Ruger Blackhawk.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
170	Sierra Jacketed Hollow Cavity	26.5	1,887	col: 1.575"; 37,400 cup
210	Hornady XTP	22.0	1,631	col: 1.580"; 36,400 cup
220	Speer Jacketed Soft Point	20.0	1,529	col: 1.580"; 34,000 cup
245	Cast Lead Semi-Wadcutter	21.0	1,563	col: 1.630"; 37,400 cup
250	WFNGC	18.5	1,479	col: 1.540"; 38,700 cup
255	WFNGC	19.5	1,491	col: 1.660"; 37,200 cup
265	WLNGC	20.8	1,540	col: 1.710"; 37,600 cup
Winchester Pistol Data case: Remington; BBL: 10.125"; PR: Winchester LP; NEVER exceed loads listed
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
210	Nosler Sporting Handgun Jacketed Hollow Point	20.5	1,599	maximum load; compressed load; most accurate powder tested
210	Nosler Sporting Handgun Jacketed Hollow Point	20.0	1,563	compressed load; most accurate powder tested
210	Nosler Sporting Handgun Jacketed Hollow Point	19.5	1,528	most accurate load tested; most accurate powder tested
Handgun Using Nosler Bullets Handgun; case: Federal; primer: Fed 150; barrel length/make: 10" Douglas; twist: 1-14"; bullets: 210 GR Sporting Handgun Revolver JHP; OACL: 1.585"; maximum OACL: 1.590". Use Maximum Loads with Caution
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
170	Sierra JHC	23.1	1,831	group size (inches): 1
190	Lee SWC	22.4	1,764	unacceptable performance
210	Hornady JHP	21.5	1,743	group size (inches): 2 9/16
215	Lyman SWC-GC	19.6	1,614	needs fine tuning
220	Speer JSP	20.4	1,565	needs fine tuning
240	Lee SWC	18.3	1,534	needs fine tuning
275	SSK FNL	16.2	1,382	group size (inches): 2 1/16
Carbine Alliant 2400 works best with lighter bullets. Hodgdon H-110 was the best powder choice overall. Winchester W-296 was second best powder choice.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Speer JHP	19.0	1,104	primer: CCI 350; very bad muzzle blast
Data Instrumental velocities measured at a point 12 feet from the muzzle using an Oehler Model 11 chronograph and Skyscreens. Temperatures ranged from 68 to 75 degrees F. while chronographing. Cases were R-P, the only ones available. Update: Alliant Powder Company does not recommend Blue Dot in the .41 Magnum for any bullet weights. Their new tests on recent powder samples have shown high pressure spikes that can damage personal property or injure you. For this reason we removed all Blue Dot data from .41 magnum tables.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
170	Sierra JHC	23.0	1302
210	Sierra JHC	21.0	1225
210	RCBS 41-210-SWC	21.0	1382
Handloads
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
215	Semi Wad Cutter	19.1	1,227	magnum load; start grains; OAL: 1.595
215	Semi Wad Cutter	20.6	1,325	magnum load; never exceed; OAL: 1.595
Oregon Trail Bullet Co Data test gun: S&W M-57 6 1/2" except where otherwise noted in remarks; primer: WLP except where otherwise noted in remarks; do not exceed maximum loads; never reduce stated overall lengths
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
210	Hornady HP-XTP	18.5	1131
210	Hornady HP-XTP	19.3	1171
210	Hornady HP-XTP	20.1	1230
210	Hornady HP-XTP	20.9	1288
210	Hornady HP-XTP	21.7	1348
210	Hornady HP-XTP	22.6	1398	maximum load
Revolver Using Hornady Bullets Gun: Smith & Wesson Model 57-1; barrel length: 6 inches; case: Starline; primer: Fed 150; bullet diameter: .410"; COAL: 1.580"; maximum COAL: 1.590"; maximum case length: 1.290"; trim to length: 1.280".

.44 AMP / .44 Auto Mag

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
180	SV/JHP	25.0	1,370
180	SV/JHP	27.0	1,520
180	SV/JHP	29.0	1,620
180	SV/JHP	31.0	1,750
180	SV/JHP	33.0	1,890
200	Speer/JSP	28.0	1,510
200	Speer/JSP	30.0	1,590
200	Speer/JSP	32.0	1,730
240	Sierra/JSP	21.0	1,120
240	Sierra/JSP	23.0	1,290
240	Sierra/JSP	25.0	1,490
240	Sierra/JSP	27.0	1,590
265	Hornady/JSP	20.0	1,140
265	Hornady/JSP	22.0	1,300
265	Hornady/JSP	24.0	1,420
265	Hornady/JSP	25.0	1,490
6 1/2-Inch Barrel All loads in CDM cases. Reduce powder charge at least 10 percent when using formed cases.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
180	SV	33.0	1,880	Pressure (CUP): 47,000
240	Sp	25.0	1,515	Pressure (CUP): 43,000
all loads were assembled with CDM cases and CCI 350 primers. All loads are full-charge and have produced proper cycling in a large number of guns. Loads four and five may be increased slightly, by perhaps one full grain without exceeding safe pressures, but the velocity gain will be relatively small. * Caution: Load three is only for current-production H-110 powder, H-110 lots of several years ago are hotter and will produce excessive pressures with this charge weight. If in doubt, cut back five grains to start.

.44 Remington Magnum / .44 Magnum

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
225	Hornady FTX	22.0	1281
225	Hornady FTX	23.0	1351
225	Hornady FTX	24.0	1427	maximum
225	Hornady FTX	24.5	1451	Exceeds MAP/Redhawk ONLY
Revolver using 225 GR Hornady FTX Bullets Caliber: .44 Magnum; gun: Ruger New Model Blackhawk (Bisley); barrel: 5 1/2-inches; case: Starline; case length: 1.275 to 1.285 inches; cartridge overall length (except where noted otherwise): 1.670 inches; primer: Winchester Large Pistol.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
240	Speer jacketed softpoint	24.0	1,319	38,000 CUP
This load data has been compiled over many years of testing and experimenting in no fewer than four guns. For a load to be included, it had to produce accuracy of 2 inches or less at 25 yards.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
240	Barnes Solid	21.0	1388	start load
240	Barnes Solid	23.0	1503	maximum load
250	Barnes Original	21.0	1365	start load
250	Barnes Original	23.0	1495	maximum load
265	Barnes Solid	19.0	1303	start load
265	Barnes Solid	21.5	1469	maximum load
275	Barnes Original	19.5	1321	start load
275	Barnes Original	20.5	1431	maximum load
300	Barnes Original	18.0	1273	start load
300	Barnes Original	20.0	1403	maximum load
Contender - Barnes Reloading Manual #1 COAL: 1.604"; primers: WLP; brass: Midway USA
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
237	Lyman 429421 HP	21.0	1,167
237	Lyman 429421 HP	22.0	1,192
Cast Bullet - Lyman Mould Revolver used: Smith & Wesson Model 29, 6-inch barrel; overall loaded length (inches): 1.69; Lyman 429421 HP (water-quenched wheelweight alloy); Velocity figures are the average of at least six rounds fired approximately 10 feet from the muzzle using an Oehler Model 35P chronograph. Ambient temperature during testing averaged 58 degrees Fahrenheit. CCI standard velocity primers used. Loads were assembled using Winchester cases. All loads should be reduced 5 percent for initial load development except the loads with W-296. Do not reduce below 21 grains. This data is intended only for use by persons experienced in the proper and safe practice of handloading ammunition.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
25	Speer SWC GC	22.0	1399	start charge; primer: CCI 350 Magnum
225	Speer SWC GC	24.0	1471	maximum charge; primer: CCI 350 Magnum
250	Speer K	21.0	1343	start charge; primer: CCI 350 Magnum
250	Speer K	23.0	1439	maximum charge; primer: CCI 350 Magnum
200	Speer Mag JHP	26.0	1521	start charge; primer: CCI 350 Magnum
200	Speer Mag JHP	28.0	1639	maximum charge; primer: CCI 350 Magnum
210	Speer Mag GDHP	25.5	1562	start charge; primer: CCI 350 Magnum
210	Speer Mag GDHP	27.5	1664	maximum charge; primer: CCI 350 Magnum
225	Speer JHP-SWC	22.0	1398	start charge; primer: CCI 350 Magnum
225	Speer JHP-SWC	24.0	1512	maximum charge; primer: CCI 350 Magnum
240	Speer Mag JHP, Mag GDHP, Mag GDSP or Mag JSP	22.0	1344	start charge; primer: CCI 350 Magnum
240	Speer Mag JHP, Mag GDHP, Mag GDSP or Mag JSP	24.0	1420	maximum charge; primer: CCI 350 Magnum
270	Speer Mag GDSP	18.5	1198	start charge; primer: CCI 350 Magnum
270	Speer Mag GDSP	20.5	1283	maximum charge; primer: CCI 350 Magnum
300	Speer Mag UCSP	20.2	1038	start charge; primer: CCI 350 Magnum; for revolvers only; crimp in rear cannelure
300	Speer Mag UCSP	22.5	1187	maximum charge; primer: CCI 350 Magnum; for revolvers only; crimp in rear cannelure
(Handgun) Speer Reloading Manual #14 max. case length: 1.285"; trim-to length: 1.275"; max cart. OAL: 1.610"; RCBS shell holder: #18; cart. case: Speer; primer: CCI 300 (except where otherwise specified in remarks); test firearm: Ruger Redhawk; barrel length: 7.5"; NOTE: The 225-grain SWC GC and 250-grain K bullets were cast in RCBS moulds; maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
270	H&G 326	23.8	1,430	primer: CCI 350 Mag.; energy (ft-lbs): 1,225
270	H&G 326	24.2	1,445	primer: CCI 350 Mag.; energy (ft-lbs): 1,250
300	H&G 328	20.9	1,330	primer: CCI 350 Mag.; energy (ft-lbs): 1,176
300	H&G 328	21.7	1,360	primer: CCI 350 Mag.; energy (ft-lbs): 1,230
Heavy Cast Bullets
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
180	Hornady XTP	29.0	1714	start load; COL: 1.600"; 21,800 cup
180	Hornady XTP	31.5	1896	max load; COL: 1.600"; 29,900 cup
200	Nosler JHP	27.5	1708	start load; bullet diam.: .429"; COL: 1.600"; 29,000 cup
200	Nosler JHP	28.5	1806	max load; bullet diam.: .429"; COL: 1.600"; 37,800 cup
210	Sierra JHC	26.0	1615	start load; COL: 1.600"; 29,900 cup
210	Sierra JHC	27.0	1665	max load; COL: 1.600"; 31,100 cup
225	Speer JHP	23.0	1468	start load; bullet diam.: .429"; COL: 1.575"; 25,600 cup
225	Speer JHP	25.0	1617	max load; bullet diam.: .429"; COL: 1.575"; 36,300 cup
240	Nosler JHP	23.0	1413	start load; bullet diam.: .429"; COL: 1.600"; 25,200 cup
240	Nosler JHP	24.0	1522	max load; bullet diam.: .429"; COL: 1.600"; 36,200 cup
240	Speer GDSP	19.5	1295	start load; bullet diam.: .429"; COL: 1.600"; 29,300 cup
240	Speer GDSP	21.5	1421	max load; bullet diam.: .429"; COL: 1.600"; 37,700 cup
280	Swift JHP	18.5	1214	start load; COL: 1.700"; 27,000 cup
280	Swift JHP	20.5	1342	max load; COL: 1.700"; 36,100 cup
300	Hornady XTP	18.0	1266	start load; COL: 1.600"; 35,100 cup
300	Hornady XTP	19.0	1325	max load; COL: 1.600"; 38,800 cup
325	Beartooth Bullets LFN GC	20.0	1264	start load; COL: 1.730"; 30,800 cup
325	Beartooth Bullets LFN GC	22.0	1368	max load; COL: 1.730"; 38,100 cup
330	Beartooth Bullets LFN GC	19.0	1239	start load; COL: 1.730"; 30,200 cup
330	Beartooth Bullets LFN GC	20.8	1350	max load; COL: 1.730"; 38,800 cup
355	Beartooth Bullets LFN GC	17.5	1168	start load; COL: 1.710"; 29,300 cup
355	Beartooth Bullets LFN GC	18.8	1245	max load; COL: 1.710"; 38,000 cup
Hodgdon Pistol Data - Winchester Powder Case: Winchester; barrel length: 8.275"; twist: 1:20"; trim length: 1.280"; primer: Remington 2 1/2; bullet diam.: .430" (except where otherwise specified in remarks). NEVER EXCEED MAXIMUM LOADS
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
240	Jacketed	24.0	1430	never exceed; compressed; min OAL: 1.535; 38,000 cup
240	Lead	25.0	1560	never exceed; compressed; min OAL: 1.535; 37,500 cup
Lee Precision Data Large pistol primer. CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Barnes XPB	23.0	1,394
200	Barnes XPB	24.0	1,585	maximum load
225	Barnes XPB	21.0	1,276	not for use in 1:38 twist barrels
225	Barnes XPB	22.0	1,468	not for use in 1:38 twist barrels; maximum load
(Pistol) Barnes Reloading Manual #3 case: Remington; parent case: none; primer: Win Large Pistol; trim to: 1.275"; barrel: 10"; XLC Coated X-Bullet data cannot be used with other bullets, including non-coated X-Bullets; maximum loads should be used with caution - Always Start With Minimum Loads
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
240	Barnes Solid	21.0	1252	start load
240	Barnes Solid	23.0	1365	maximum load
250	Barnes Original	21.0	1223	start load
250	Barnes Original	23.0	1351	maximum load
265	Barnes Solid	19.0	1260	start load
265	Barnes Solid	21.5	1336	maximum load
275	Barnes Original	19.5	1247	start load
275	Barnes Original	20.5	1322	maximum load
300	Barnes Original	18.0	1161	start load
300	Barnes Original	20.0	1294	maximum load
Revolver - Barnes Reloading Manual #1 COAL: 1.604"; primers: WLP; brass: Midway USA
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
240	Hornady XTP/HP	24.0	1,344	primer: WLP
Ruger Blackhawk Flattop Barrel length in firearm used was 6 1/2 inches. Temperature during field tests was 88 degrees Fahrenheit.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Speer JHP	26.0	1888	start charge; primer: CCI 350 Magnum
200	Speer JHP	28.0	2028	maximum charge; primer: CCI 350 Magnum
210	Speer GDHP	25.5	1893	start charge; primer: CCI 350 Magnum
210	Speer GDHP	27.5	2009	maximum charge; primer: CCI 350 Magnum
240	Speer JHP, GDHP, GDSP or JSP	22.0	1625	start charge; primer: CCI 350 Magnum
240	Speer JHP, GDHP, GDSP or JSP	24.0	1734	maximum charge; primer: CCI 350 Magnum
270	Speer GDSP	18.5	1418	start charge; primer: CCI 350 Magnum
270	Speer GDSP	20.5	1551	maximum charge; primer: CCI 350 Magnum
300	Speer UCSP	18.9	1337	start charge; primer: CCI 350 Magnum; seat to front cannelure for rifles
300	Speer UCSP	21.0	1499	maximum charge; primer: CCI 350 Magnum; seat to front cannelure for rifles
Speer Reloading Manual #14 max. case length: 1.285"; trim-to length: 1.275"; max cart. OAL: 1.610"; RCBS shell holder: #18; cart. case: Winchester; primer: CCI 300 (except where otherwise specified in remarks); test firearm: Marlin M1894; barrel length: 20"; maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
180	Sierra JHC	30.0	1,439	S&W M-29, 4-inch barrel; case: SV; consistent and accurate
180	Sierra JHC	30.0	1,638	Ruger Super Blackhawk, 7 1/2-inch barrel; case: SV; consistent and accurate
200	Hornady HP	26.7	1,327	S&W M-29, 4-inch barrel; case: WW; most accurate, powder little too slow
200	Hornady HP	26.7	1,481	Ruger Super Blackhawk, 7 1/2-inch barrel; case: WW; most accurate, powder little too slow
225	Speer HP	24.0	1,244	S&W M-29, 4-inch barrel; case: SV; extremely sensitive to charge var.
225	Speer HP	24.0	1,509	Ruger Super Blackhawk, 7 1/2-inch barrel; case:SV; extremely sensitive to charge var.
236	Norma HP	23.0	1,242	S&W M-29, 4-inch barrel; case: WW; extremely accurate, average sensitivity
236	Norma HP	23.0	1,351	Ruger Super Blackhawk, 7 1/2-inch barrel; case: WW; extremely accurate, average sensitivity
240	Speer Mag. SP	23.5	1,212	S&W M-29, 4-inch barrel; case: RP; inconsistent
240	Speer Mag. SP	23.5	1,340	Ruger Super Blackhawk, 7 1/2-inch barrel; case: RP; inconsistent
240	Sierra JHC	24.0	1,274	S&W M-29, 4-inch barrel; case: RP; best all-around load, average sensitivity
240	Sierra JHC	24.0	1,451	Ruger Super Blackhawk, 7 1/2-inch barrel; case: RP; best all-around load, average sensitivity
255	Lead SWC 429244GC	23.0	1,195	S&W M-29, 4-inch barrel; case: WW; consistent
255	Lead SWC 429244GC	23.0	1,325	Ruger Super Blackhawk, 7 1/2-inch barrel; case: WW; consistent
W-296 Powder All loads with CCI 350 primers. Velocities taken on an Oehler M10 Chronograph; 7 1/2 feet instrumental converted to muzzle velocity; average temperature 63 degrees.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
180	Hornady XTP	31.5	1,896	col: 1.600"; 29,900 cup
200	Nosler Jacketed Hollow Point	28.5	1,806	col: 1.600"; 37,800 cup
210	Sierra Jacketed Hollow Cavity	27.0	1,665	col: 1.600"; 31,100 cup
225	Speer Jacketed Hollow Point	25.0	1,617	col: 1.575"; 36,300 cup
240	Nosler Jacketed Hollow Point	24.0	1,522	col: 1.600"; 36,200 cup
270	Speer Gold Dot Soft Point	21.5	1,421	col: 1.600"; 37,700 cup
280	Swift Jacketed Hollow Point	20.5	1,342	col: 1.700"; 36,100 cup
300	Hornady XTP	19.0	1,325	col: 1.600"; 38,800 cup
325	BTB Lead Flat Nose Gas Check	22.0	1,368	col: 1.730"; 38,100 cup
330	BTB Lead Flat Nose Gas Check	20.8	1,350	col: 1.730"; 38,800 cup
355	BTB Lead Flat Nose Gas Check	18.8	1,245	col: 1.710"; 38,000 cup
Winchester Pistol Data case: Winchester; BBL: 8.275"; PR: Remington 2 1/2; NEVER exceed loads listed
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
240	Nosler Sporting Handgun Revolver JHP or JSP	23.8	1450	max; compressed load
240	Nosler Sporting Handgun Revolver JHP or JSP	23.3	1410	compressed load
240	Nosler Sporting Handgun Revolver JHP or JSP	22.8	1370	compressed load; most accurate load tested
Handgun Using 240 GR Nosler Bullets Handgun; case: Winchester; primer: WLP; barrel length/make: 8.25" Douglas; twist: 1-20"; bullets: 240 GR Nosler Sporting Handgun Revolver JHP or JSP; OACL: 1.580"; maximum OACL: 1.610". Use Maximum Loads with Caution
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
300	Nosler Sporting Handgun Revolver JHP	21.0	1344	max compressed load
300	Nosler Sporting Handgun Revolver JHP	20.5	1311	compressed load
300	Nosler Sporting Handgun Revolver JHP	20.0	1278	compressed load; most accurate load tested
Handgun Using 300 GR Nosler Bullets Handgun; case: Winchester; primer: WLP; barrel length/make: 8.25" Douglas; twist: 1-20"; bullets: 300 GR Nosler Sporting Handgun Revolver JHP; OACL: 1.580"; maximum OACL: 1.610". Use Maximum Loads with Caution
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
240	Nosler	23.8	1,450	maximum load; compressed load
240	Nosler	23.3	1,410	compressed load
240	Nosler	22.8	1,370	compressed load; most accurate load tested
240 Grain - Handgun Using Nosler Bullets handgun: barrel: Douglas, length: 8.25", twist: 1-20"; case: Winchester; primer: Win. WLP; maximum SAAMI overall cartridge length: 1.610"; bullets: Nosler Sporting Handgun Jacketed Hollow Point or Sporting Handgun Jacketed Soft Point; use maximum loads with caution
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
210	Cast #429215 gas check	25.5	1340	sugg. start load; 1.645" OAL; primer: CCI 350 Magnum; 29,500 cup
210	Cast #429215 gas check	27.0	1508	max load; compressed powder charge; primer: CCI 350 Magnum; 36,400 cup; 1.645 OAL
255	Cast #429244 gas check	22.5	1150	sugg. start load; 1.680" OAL; primer: CCI 350 Magnum; 33,400 cup
255	Cast #429244 gas check	23.5	1223	max load; 1.680" OAL; primer: CCI 350 Magnum 37,800 cup
300	Cast #429650 gas check	18.2	982	sugg. start load; 1.700" OAL; primer: CCI 350 Magnum; 34,500 cup
300	Cast #429650 gas check	19.0	1064	max load; 1.700" OAL; primer: CCI 350 Magnum; 38,300 cup
Cast Bullet Handgun Data (Lyman Reloading Handbook 49th Edition) cases: Remington; trim-to length: 1.275"; primers: CCI 300 (except where otherwise specified in remarks); primer size: Large Pistol, Std. & Magnum; Lyman shell holder: No. 7; cast bullets used sized to .429" dia.; firearm used: Universal Receiver; barrel length: 4"; twist: 1-20"; groove dia.: .429"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
240	Hornady XTP	24.0	1,344	primer: Federal 155
Full-Power Loads All Smith & Wesson Models 29, 629 and 329PD. A Smith & Wesson (pre-29) .44 Magnum revolver with a 6 1/2-inch barrel used to test loads. Winchester and Starline cases used throughout. These loads DO NOT exceed SAAMI recommended pressure limits of 36,000 psi, but they should be used sparingly in guns produced before 1988 and avoid using jacketed bullet loads in the early four-and five-screw guns.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
180	Sierra Jacketed HC	29.0	1498	sugg. start load; primer: CCI 350 Magnum; 32,400 cup
180	Sierra Jacketed HC	30.0	1563	max load; primer: CCI 350 Magnum; 36,700 cup
200	Hornady Jacketed HP	27.0	1432	sugg. start load; primer: CCI 350 Magnum; 31,700 cup
200	Hornady Jacketed HP	28.3	1493	max load; primer: CCI 350 Magnum; 37,000 cup
210	Winchester Jacketed Silvertip	26.6	1279	sugg. start load; 1.590" OAL; primer: CCI 350 Magnum; 31,400 cup
210	Winchester Jacketed Silvertip	27.5	1344	max load; 1.590" OAL; primer: CCI 350 Magnum; 36,400 cup
225	Speer Jacketed HP	24.0	1112	sugg. start load; primer: CCI 350 Magnum; 27,600 cup
225	Speer Jacketed HP	25.0	1235	max load; primer: CCI 350 Magnum; 33,100 cup
240	Sierra Jacketed HC	22.5	1168	sugg. start load; primer: CCI 350 Magnum; 34,700 cup
240	Sierra Jacketed HC	23.5	1264	max load; primer: CCI 350 Magnum; 39,200 cup
240	Speer Jacketed HP	23.0	1193	sugg. start load; primer: CCI 350 Magnum; 34,000 cup
240	Speer Jacketed HP	24.0	1292	max load; primer: CCI 350 Magnum; 38,500 cup
265	Hornady Jacketed FP	21.1	1092	sugg. start load; primer: CCI 350 Magnum; 35,000 cup
265	Hornady Jacketed FP	22.0	1150	max load; primer: CCI 350 Magnum; 38,700 cup
270	Speer Jacketed GDSP	20.9	1053	sugg. start load; 1.585" OAL; primer: CCI 350 Magnum; 31,400 cup
270	Speer Jacketed GDSP	21.6	1108	max load; 1.585" OAL; primer: CCI 350 Magnum; 36,100 cup
300	Sierra Jacketed SP	19.8	892	sugg. start load; 1.720" OAL; primer: CCI 350 Magnum; 32,400 cup
300	Sierra Jacketed SP	20.7	966	max load; 1.720" OAL; primer: CCI 350 Magnum; 36,800 cup
Lyman Reloading Handbook 49th Edition cases: Remington; trim-to length: 1.275"; primers: CCI 300 (except where otherwise specified in remarks); primer size: Large Pistol, Std. & Magnum; Lyman shell holder: No. 7; firearm used: Universal Receiver; barrel length: 4"; twist: 1-20"; groove dia.: .429"; 1.610" OAL (except where otherwise specified in remarks)
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
180	Hornady HP	28.0	1545	overall loaded length (inches): 1.610; group (inches): 1.25
240	Sierra JHC	24.0	1442	overall loaded length (inches): 1.610; group (inches): 1.50
250	Sierra FPJ	24.0	1445	overall loaded length (inches): 1.600; group (inches): 1.25
Handloads CCI 350 primers. All ammunition was tested in five-shot groups at 25 yards with the handgun in a Ransom Rest. Loads used Remington cases. Velocities tracked with an Oehler Model 35P chronograph with an air temperature of approximately 50 degrees.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
180	Sierra JHC	28.0	1,601	case expansion maximum; tie for second-best accuracy in revolver
200	Speer JHP	27.0	1,504	case expansion near maximum; accurate
210	Sierra JHC	26.0	1,525	case expansion near maximum; most accurate in carbine; best all-around load
220	Sierra FN (silhouette)	26.0	1,486	case expansion maximum; third most accurate in revolver
240	Hornady JHP	24.0	1,399	case expansion near maximum; fourth most accurate in carbine
240	Speer Magnum HP	24.5	1,414	case expansion maximum; accurate
in 7 1/2 inch Revolver
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
180	Sierra	31.0	1,988
200	Speer	28.5	1,857
225	Speer	27.0	1,749
240	Hornady	26.0	1,621
240	Lyman 429421	26.0	1,652
252	Lee 429255	25.5	1,697
265	Hornady	24.0	1,594
in a 10-inch Barrel Contender, 10-inch barrel; Norma cases; CCI 250 primers; temperature ninety-two degrees Fahrenheit; humidity eighty-seven percent; Oehler Model 33 Chronotach; velocity instrumental at fifteen feet, converted to muzzle velocity.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
180	Sierra	31.0	1,520
200	Speer	28.5	1,357
225	Speer	27.0	1,442
240	Hornady	26.0	1,301
240	Lyman 429421	26.0	1,310
252	Lee 429255	25.5	1,283
265	Hornady	24.0	1,281
in a 4-inch Barrel Smith & Wesson Model 29 4-inch barrel; Norma cases; CCI 250 primers; temperature ninety-two degrees Fahrenheit; humidity eighty-seven percent; Oehler Model 33 Chronotach; velocity instrumental at fifteen feet, converted to muzzle velocity.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Speer JHP	28.0	1,313	primer: CCI 350; group avg.: 2.46; mediocre accuracy; some unburned powder - highest velocity of loads tested
240	Sierra JHC	24.0	1,254	primer: Winchester 7M-111; group avg.: 1.62; most accurate load; highest velocity of heavy-bullet handloads
in a 5-Inch Super Blackhawk All loads in Remington brass. Velocities taken on an Oehler Model 32 Chronotach with Model 61 Skyscreens; 10 feet instrumental converted to muzzle velocity. Average temperature, 44 degrees. Test gun was a Mag-na-port Mark V (modified Super Blackhawk) with 5-inch barrel. Group Avg. = average of three 5-shot groups, 25 yards, arm rest.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Nosler hollowpoint	26.5	1302
200	Speer Gold Dot hollowpoint	26.5	1217	group (inches): 1.80
240	Hornady HP-XTP	24.0	1255	group (inches): 1.86
250	Lyman 429244 GC	20.0	1084	group (inches): 2.32; primer: Winchester Large Pistol
250	Lyman 429244 GC	22.0	1205	group (inches): 2.15; primer: Winchester Large Pistol
250	Nosler Partition	20.5	1062	group (inches): 2.14
300	Speer softpoint	21.0	1086	group (inches): 1.12
Load Data CCI 350 Magnum Pistol primers used except where otherwise specified in remarks; all loads used Federal cases and were fired through a Ruger Super Blackhawk with a 5.5-inch barrel; all groups were five shots fired at 25 yards
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
240	Semi Wad Cutter	22.6	1,357	starting load; OAL: 1.605
240	Semi Wad Cutter	24.3	1,515	maximum load; OAL: 1.605
300		20.2	1,308	maximum load; OAL: 1.610
Silhouette Loads (Oregon Trail Bullet Handgun Data) test gun: Ruger Super Red Hawk, 9 1/2", WLP; do not reduce H110 or 296 maximum loads more than 3% to start; use WLP for all 44 Magnum pistol loads; do not exceed maximum loads; never reduce stated overall lengths
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
240	Hornady HP-XTP or CL-SIL	20.7	1131
240	Hornady HP-XTP or CL-SIL	22.0	1170
240	Hornady HP-XTP or CL-SIL	23.3	1240
240	Hornady HP-XTP or CL-SIL	23.9	1300
240	Hornady HP-XTP or CL-SIL	24.5	1351	maximum load
Revolver Using 240 GR Hornady Bullets Gun: Ruger New Model Blackhawk (Bisley); barrel length: 5 1/2-inches; case: Starline; primer: Winchester Large Pistol; bullet diameter: .430"; Hornady HP-XTP and CL-SIL COAL: 1.600"; SWC-HP and SWC COAL: 1.610"; maximum COAL: 1.610"; maximum case length: 1.285"; trim to length: 1.275".
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
265	Hornady FP	19.7	1098
265	Hornady FP	20.9	1161
265	Hornady FP	22.2	1212
265	Hornady FP	22.9	1279
265	Hornady FP	23.5	1340	maximum load
Revolver (Using 265 GR Hornady Bullets) Gun: Ruger New Model Blackhawk (Bisley); barrel length: 5 1/2-inches; case: Starline; primer: Winchester Large Pistol; bullet diameter: .430"; maximum COAL: 1.610"; maximum case length: 1.285"; trim to length: 1.275"; COAL: 1.610".
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
300	Hornady HP-XTP	16.8	997	Do Not Reduce
300	Hornady HP-XTP	17.6	1045
300	Hornady HP-XTP	18.3	1077
300	Hornady HP-XTP	19.1	1120
300	Hornady HP-XTP	19.9	1149	maximum load
Revolver Using 300 GR Hornady Bullets Gun: Ruger New Model Blackhawk (Bisley); barrel length: 5 1/2-inches; case: Starline; primer: Winchester Large Pistol; bullet diameter: .430"; maximum COAL: 1.600"; maximum case length: 1.285"; trim to length: 1.275"; COAL: 1.610".
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
225	Hornady FTX	20.4	1169
225	Hornady FTX	21.2	1217	maximum load
Revolver using 225 GR Hornady FTX Bullets Gun: Ruger New Model Blackhawk (Bisley); barrel length: 5 1/2-inches; case: Starline; primer: Winchester Large Pistol; bullet diameter: .430"; COAL: 1.645"; case trim to length: 1.255".
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
240	Hornady XTP	24.0	1,805	rifle load; primer: CCI 350; extreme spread (fps): 33
240	Hornady XTP	24.0	1,421	revolver load; primer: CCI 350; extreme spread (fps): 29
Rifle & Revolver Handloads The .44 Magnum loads were shot from a Marlin 1894 with a 20-inch barrel and a 5 1/2-inch barreled Ruger Super Blackhawk.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
240	Sierra FPJ	24.0	1,444	group (inches): 1 1/8
240	Speer MHP	24.5	1,436	group (inches): 1 1/4
Ruger Super Redhawk Loads All groups fired from a Ransom Rest at 25 yards. Velocities clocked on a Shooting Chrony chronograph.Handloads were tested with temperatures around 70 degrees.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Hornady HP-XTP	26.0	1489
200	Hornady HP-XTP	26.7	1530
200	Hornady HP-XTP	27.4	1588
200	Hornady HP-XTP	28.1	1651
200	Hornady HP-XTP	28.8	1698	maximum load
240	Hornady HP-XTP or CL-SIL	24.0	1438
240	Hornady HP-XTP or CL-SIL	24.5	1476
240	Hornady HP-XTP or CL-SIL	25.0	1529
240	Hornady HP-XTP or CL-SIL	25.5	1566	maximum load
265	Hornady FP	21.0	1281
265	Hornady FP	21.5	1313
265	Hornady FP	22.1	1361
265	Hornady FP	22.6	1399
265	Hornady FP	23.2	1444	maximum load
300	Hornady HP-XTP	17.7	1081
300	Hornady HP-XTP	18.2	1118
300	Hornady HP-XTP	18.8	1170
300	Hornady HP-XTP	19.3	1221
300	Hornady HP-XTP	19.9	1266	maximum load
TC Using Hornady Bullets Gun: Thompson/Center G-2 Contender; barrel length: 10 inches; case: Starline; primer: Winchester Large Pistol; bullet diameter: .430"; 200, 240 & 300 GR Hornady HP-XTP and 240 GR CL-SIL COAL: 1.600"; 265 Hornady FP COAL: 1.610"; maximum COAL: 1.610"; maximum case length: 1.285"; trim to length: 1.275".
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
260	JDJ	23.0	1,482	10-inch Ruger
310	JDJ	21.2	1,472	10-inch Ruger
with JDJ Bullets

.445 Super Mag / .445 Super Magnum

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
240	Barnes Solid	31.0	1,494
240	Barnes Solid	33.0	1,590	maximum load
250	Barnes	29.0	1,397
250	Barnes	32.0	1,542	maximum load
265	Barnes Solid	29.0	1,398
265	Barnes Solid	31.0	1,498	maximum load
275	Barnes	27.5	1,341
275	Barnes	30.5	1,470	maximum load
300	Barnes	26.0	1,253
300	Barnes	29.0	1,397	maximum load
Barnes Reloading Manual #1 Source: Barnes Bullets Reloading Manual #1

.45 Colt

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
250	Speer Colt GDHP	19.0	1118	start charge; primer: CCI 350 Magnum
250	Speer Colt GDHP	21.0	1203	maximum charge; primer: CCI Magnum
260	Speer JHP	19.0	1096	start charge; primer: CCI 350 Magnum
260	Speer JHP	20.5	1183	maximum charge; primer: CCI 350 Magnum
300	Speer UCSP	20.7	1084	start charge; primer: CCI 350 Magnum; seat bullet to REAR cannelure and use a neckdown crimp
300	Speer UCSP	23.0	1193	maximum charge; primer: CCI 350 Magnum; seat bullet to REAR cannelure and use a neckdown crimp
(Ruger & Contender Only ) Speer Reloading Manual #14 max. case length: 1.285"; trim-to length: 1.275"; max cart. OAL: 1.600"; RCBS shell holder: #20; cart. case: Winchester; primer: CCI 300 (except where otherwise specified in remarks); test firearm: Ruger Blackhawk; barrel length: 7.5"; maximum loads should be used with CAUTION; NOTE: Do not use in any other make or model firearm. IMPORTANT SAFETY NOTE: Since Speer #14 Manual was published, Ruger has replaced the original Vaquero revolver with a smaller version called the New Vaquero. Ruger has advised the industry that the New Vaquero must not be fired with loads exceeding industry pressure standards (14,000 psi). If loading for a New Vaquero, use the standard pressure data in the .45 Colt Handgun Speer Data.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
250	Hornady XTP	27.5	1,448	velocity spread: 39 fps; 25-yard group: 1.3 inches
300	Speer PSP	23.0	1,211	velocity spread: 30 fps; 25-yard group: 1.8 inches
+P Handloads The .45 Colt +P handloads are for Ruger, Freedom Arms and Colt Anaconda only! Test gun was a Ruger Blackhawk with a 6-inch barrel.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
250	Hornady JHP/XTP	27.5	1,902	rifle load; primer: Federal 155; extreme spread (fps): 31
250	Hornady JHP/XTP	27.5	1,459	revolver load; primer: Federal 155; extreme spread (fps): 33
+P Rifle & Revolver Handloads The .45 Colt +P loads were shot in a Winchester Model 94 with a 20-inch barrel and a Ruger Blackhawk with a 6-inch barrel. For modern Marlin, Winchester and Browning leverguns and Ruger and Freedom Arms revolvers only!
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
250	Nosler Sporting Handgun Jacketed Hollow Point	25.0	1420	maximum load
250	Nosler Sporting Handgun Jacketed Hollow Point	24.5	1382	most accurate load tested
250	Nosler Sporting Handgun Jacketed Hollow Point	24.0	1346
Ruger & TC Contender Using Nosler Bullets Case: Winchester; primer: WLP; barrel length/make: 12" Contender; twist: 1-16"; bullets: 250 GR Nosler Sporting Handgun Revolver JHP; OACL: 1.590"; maximum OACL: 1.600". Use Maximum Loads with Caution
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
225	Speer JHP	30.0	1,725	ES: 27; NT
240	Sierra JHP	28.0	1,667	ES: 39; 1 1/8
260	Speer JHP	26.5	1,530	ES: 20; 1 9/16
240	Sierra JHP in Federal cases	28.0	1,695	ES: 9; 1 1/2
240	Sierra JHP in Federal cases	29.0	1,750	ES: 10; 1 5/16
260	Speer JHP in Federal cases	26.5	1,592	ES: 8; NT
Contender loads Warning! Under NO CIRCUMSTANCES should these loads be used in any gun other than the Contender. Notes: .45 Colt, Contender 10-in. barrel; W-W cases; CCI 350 magnum primers; Oehler 34/50 chronograph system; velocity instrumental at 15 ft converted to muzzle velocity; temperature - 70 degrees. None of the loads with W-W cases shows as much pressure as the .45 WM loads, and the heaviest loads with Federal cases are about at same level as the .45 WM loads. NT - not tried for accuracy. All groups fired at 22 yards.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
250	Hornady XTP	26.5	1,280	old .458-inch cylinder; group (inches): 2.7
250	Hornady XTP	26.5	1,321	new .452-inch cylinder; group (inches): .85
Data for Colt Anaconda barrel length: 4 inches, Starline brass used throughout. CCI 300 primers used, except CCI 350s used with H-110 and W-296.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
255	Semi Wad Cutter	18.9	831	starting load; OAL: 1.595
255	Semi Wad Cutter	19.8	907	maximum load; OAL: 1.595
300	Flat Point	17.0	855	maximum load; OAL: 1.570
For Ruger (Oregon Trail Handgun Data) silhouette loads; test gun: Vaquero 4 3/4", WLP; Do not exceed maximum loads. Never reduce stated overall lengths. All 300 Flat Point are maximum loads; reduce 300 charges 3% to start; CAUTION The 300 grain loads are intended for Ruger revolvers and T/C pistols only!; These loads will produce higher velocities when fired in long-barreled revolvers and pistols for which they are intended.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
315	NEI SWC	21.0	1,116	primer: F155
in a Dan Wesson Model 45 (hunting and silhouette loads) Dan Wesson Model 45 eight-inch barrel. All loads chronographed with an Oehler Model 33 Chronotach. Instrumental velocities corrected to muzzle velocities, fired at 30 to 50 degrees Fahrenheit. All groups fired in five-shot strings at 25 yards converted to minutes of angle. Federal cases used in all loads. None of the loads listed showed any signs of excessive pressures in the test revolver. The Hunting and Silhouette loads should not be fired in weaker revolvers like the Colt or Smith & Wesson. Use them only in the Thompson/Center Contender, the Ruger Blackhawk or the Dan Wesson Model 45.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
315	NEI SWC	22.0	1,003	primer: F155; extreme spread (fps): 26; 9 MOA
in a Ruger Blackhawk Ruger Blackhawk with 4 5/8-inch barrel. All loads chronographed on an Oehler Model 33 Chronotach with Skyscreens III. Instrumental velocities corrected to muzzle velocities at 20 to 40 degrees Fahrenheit. All groups fired in five-shot strings at 25 yards and converted to minutes of angle (one inch equals approximately one MOA at 100 yards). Federal cases used in all loads.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
225	Speer Mag HP	24.0	1,158	Maximum - Large muzzle flash - do not exceed
250	Speer SWC	21.0	1,088	Maximum - Accurate H.V. lead bullet load
in Thompson/Center Pistol Ruger Blackhawk Revolvers & Thompson/Center Pistols
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
300	Hornady XTP-MAG or HP-XTP	17.9	1060
300	Hornady XTP-MAG or HP-XTP	18.7	1103
300	Hornady XTP-MAG or HP-XTP	19.4	1176
300	Hornady XTP-MAG or HP-XTP	20.2	1219
300	Hornady XTP-MAG or HP-XTP	21.0	1272
300	Hornady XTP-MAG or HP-XTP	21.7	1324	maximum load
T/C & Ruger Using Hornady Bullets Gun: Thompson/Center Encore; barrel length: 12 inches; case: Starline; primer: Winchester WLP; bullet diameter: .452"; 240 and 300 GR Hornady XTP-MAG COAL: 1.655"; 250 HP-XTP COAL: 1.595"; 300 HP-XTP COAL: 1.580"; maximum COAL: 1.600"; maximum case length: 1.285"; trim to length: 1.275".

.45 Winchester Magnum

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
260	JHP	25.0	1,500	energy: 1,300
Cartridges of the World All loads were developed in a Thompson/Center Contender pistol with a 10-inch barrel. These loads are not recommended for any other handgun. The 45 Winchester Magnum develops 72 percent higher velocity and 200 percent greater muzzle energy than the standard 45 Automatic and is in the same class as the 44 Magnum revolver cartridge. With its rimless case, it is a natural for use in a semi-automatic rifle. Having made this suggestion, if this ever happens, this author can claim that it was all his idea. The Wildey 45 Magnum, along with the 44 Auto Mag, the Desert Eagle and the LAR Grizzly are the only automatic pistols that truly qualify as big game handguns. The potential is there for a fine combination silhouette and hunting pistol. The price is high, and for strictly silhouette shooting, the much lower-priced Thompson/Center Contender in the same chambering might appeal to many potential buyers. The availability of commercial ammunition with hunting-type bullets would also be a factor, although there is a good variety of such bullets available to the handloader. (Cartridges of the World 9th Edition)
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Hornady FMJ-C/T or HP-XTP	25.5	1553
200	Hornady FMJ-C/T or HP-XTP	26.2	1607
200	Hornady FMJ-C/T or HP-XTP	26.9	1661
200	Hornady FMJ-C/T or HP-XTP	27.6	1714	maximum load
250	Hornady HP-XTP	21.4	1344
250	Hornady HP-XTP	22.1	1380
250	Hornady HP-XTP	22.9	1430
250	Hornady HP-XTP	23.6	1475
250	Hornady HP-XTP	24.4	1530
250	Hornady HP-XTP	25.1	1571	maximum load
300	Hornady HP-XTP	16.7	1072
300	Hornady HP-XTP	17.4	1113
300	Hornady HP-XTP	18.1	1160
300	Hornady HP-XTP	18.8	1211
300	Hornady HP-XTP	19.5	1255	maximum load
Using Hornady Bullets Gun: Thompson/Center Contender; barrel length: 10 inches; case: Starline; primer: Winchester Large Pistol; bullet diameter: .451"; 200 GR FMJ-C/T COAL: 1.500"; 200 GR HP-XTP COAL: 1.495"; 250 & 300 GR HP-XTP COAL: 1.480"; maximum COAL: 1.575"; maximum case length: 1.198"; trim to length: 1.193".
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
225	RCBS 45-225-RN	26.5	1,857	consistently grouped 1 1/2 inches at 50 yd
250	Speer	24	1,700	3 to 4 inches at 100 yd
cast-bullet loads Velocities represent five-shot averages, measured 10 feet from the muzzle by an Oehler Model 33 chronograph. All handloads were assembled with Winchester cases and CCI Large Pistol primers. All powder charges were weighed. Temperature 50 degrees F.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Speer JSP	30	1,878	1/2
225	Speer JHP	28	1,763
240	Sierra JHP	26	1,699
250	Speer swaged	25	1,629
260	Speer JHP	24.5	1,597	11/16
Contender loads THESE LOADS ARE NOT FOR USE IN ANY OTHER GUN EXCEPT THE CONTENDER. None was maximum in the test barrel, but are based on pressure used in W-W factory ammunition. All groups in three-shot strings with scope from bench over sandbag rest. .45 Winchester Magnum, Contender 10-in. barrel; W-W cases; CCI 350 magnum primers; Oehler 34/50 chronograph system; velocity instrumental at 15 ft converted to muzzle velocity; temperature 70 degrees.

.454 Casull

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
300	Hornady XTP	31.5	1,565	50,000 psi
. .
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
250	Barnes XPB	28.0	1,719
250	Barnes XPB	30.0	1,832	maximum load
(Barnes Reloading Manual #3) case: Freedom Arms; parent case: .45 Colt; primer: CCI 500; trim to: 1.380"; barrel: 15"; XLC Coated X-Bullet data cannot be used with other bullets, including non-coated X-Bullets; maximum loads should be used with caution - Always Start With Minimum Loads
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
240	Freedom Arms JHP	36.0	1923	start load; bullet diam.: .452"; COL: 1.765"; 38,800 cup
240	Freedom Arms JHP	38.2	2065	max load; bullet diam.: .452"; COL: 1.765"; 51,300 cup
250	Barnes X	27.5	1725	start load; bullet diam.: .451"; COL: 1.780"; 45,100 cup
250	Barnes X	28.5	1785	max load; bullet diam.: .451"; COL: 1.780"; 52,300 cup
260	Freedom Arms JFP	34.0	1817	start load; bullet diam.: .452"; COL: 1.765"; 37,100 cup
260	Freedom Arms JFP	36.0	1954	max load; bullet diam.: .452"; COL: 1.765"; 51,600 cup
300	Freedom Arms JFP	28.5	1618	start load; bullet diam.: .452"; COL: 1.775"; 44,200 cup
300	Freedom Arms JFP	30.0	1716	max load; bullet diam.: .452"; COL: 1.775"; 53,700 cup
325	Cast Performance LFN PB	25.2	1345	start load; bullet diam.: .452"; COL: 1.760"; 19,700 cup
325	Cast Performance LFN PB	26.0	1511	max load; bullet diam.: .452"; COL: 1.760"; 34,300 cup
325	Swift HP	23.0	1379	start load; bullet diam.: .451"; COL: 1.750"; 36,800 cup
325	Swift HP	26.0	1545	max load; bullet diam.: .451"; COL: 1.750"; 52,600 cup
335	Cast Performance LFN GC	23.0	1321	start load; bullet diam.: .452"; COL: 1.770"; 22,200 cup
335	Cast Performance LFN GC	26.0	1531	max load; bullet diam.: .452"; COL: 1.770"; 41,600 cup
360	Cast Performance LFN GC	21.0	1265	start load; bullet diam.: .452"; COL: 1.760"; 24,000 cup
360	Cast Performance LFN GC	24.0	1447	max load; bullet diam.: .452"; COL: 1.760"; 43,400 cup
395	Cast Performance LFN GC	18.5	1169	start load; bullet diam.: .452"; COL: 1.770"; 27,200 cup
395	Cast Performance LFN GC	21.0	1309	max load; bullet diam.: .452"; COL: 1.770"; 43,200 cup
Hodgdon Pistol Data Case: Freedom Arms; twist: 1:24"; primer: Winchester SR; barrel length: 9.375"; trim length: 1.380". NEVER EXCEED MAXIMUM LOADS
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
260	Jacketed	36.0	1965	never exceed; compressed charge; min OAL: 1.765; 50,000 psi
300	Jacketed	31.5	1750	never exceed; compressed charge; min OAL: 1.765; 50,000 psi
Lee Precision Data With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Rifle primer. NOTE: Industry standard cup pressure is 53,000. Some of the hard core bullet loads exceed this value. Use maximum loads with caution.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
240	Hornady Jacketed HP Mag-XTP	36.1	1695	sugg. start load; 1.745" OAL; 45,300 cup
240	Hornady Jacketed HP Mag-XTP	38.0	1788	max load; compressed powder charge; 1.745" OAL; 50,900 cup
250	Barnes XPB HP	31.0	1606	sugg. start load; 1.770" OAL; 49,900 cup
250	Barnes XPB HP	32.0	1654	max load; compressed powder charge; 1.770" OAL; 53,000 cup
300	Hornady Jacketed HP Mag-XTP	27.1	1392	sugg. start load; 1.745" OAL; 42,800 cup
300	Hornady Jacketed HP Mag-XTP	28.0	1432	max load; 1.745" OAL; 46,300 cup
225	Cast #452490 gas check	33.4	1611	sugg. start load; 1.760" OAL; 41,600 cup
225	Cast #452490 gas check	34.5	1660	max load; compressed powder charge; 1.760" OAL; 46,200 cup
325	Cast #452651 gas check	23.7	1277	sugg. start load; 1.755" OAL; 38,800 cup
325	Cast #452651 gas check	24.5	1338	max load; 1.755" OAL; 40,400 cup
(Lyman Reloading Handbook 49th Edition) cases: Winchester; trim-to length: 1.378"; primers: CCI 450; primer size: Small Rifle, Magnum; Lyman shell holder: No. 11; firearm used: Universal Receiver; barrel length: 6"; twist: 1-24"; groove dia.: .451"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
240	Hornady XTP-MAG	33.9	1644
240	Hornady XTP-MAG	34.6	1682
240	Hornady XTP-MAG	35.3	1718
240	Hornady XTP-MAG	36.0	1773
240	Hornady XTP-MAG	36.7	1811	maximum load
300	Hornady XTP-MAG	28.3	1444
300	Hornady XTP-MAG	29.1	1485
300	Hornady XTP-MAG	29.9	1517
300	Hornady XTP-MAG	30.7	1565
300	Hornady XTP-MAG	31.5	1593
300	Hornady XTP-MAG	32.3	1638	maximum load
Using Hornady Bullets Gun: Freedom Arms Model 83; barrel length: 7 1/2 inches; case: Starline; primer: Fed. #205; bullet diameter: .452"; COAL: 1.745"; maximum COAL: 1.765"; maximum case length: 1.383"; trim to length: 1.373".
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
240	Freedom Arms Jacketed Hollow Point	38.2	2,065	col: 1.765"; 51,300 cup
250	Barnes X Bullet	28.5	1,785	col: 1.780"; 52,300 cup
260	Freedom Arms Jacketed Flat Point	36.0	1,954	col: 1.765"; 51,600 cup
300	Freedom Arms Jacketed Flat Point	30.0	1,716	col: 1.775"; 53,700 cup
325	CPB Lead Flat Nose PB	26.0	1,511	col: 1.760"; 34,300 cup
325	Swift Hollow Point	26.0	1,545	col: 1.750"; 52,600 cup
335	CPB Lead Flat Nose PB	26.0	1,531	col: 1.770"; 41,600 cup
360	CPB Lead Flat Nose PB	24.0	1,447	col: 1.760"; 43,400 cup
395	CPB Lead Flat Nose PB	21.0	1,309	col: 1.770"; 43,200 cup
Winchester Pistol Data case: Freedom Arms; BBL: 9.375"; PR: Winchester SR; NEVER exceed loads listed
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
300	Speer GDHP	29.0	1475	start charge
300	Speer GDHP	31.0	1587	maximum charge; compressed load
Full Power Loads Speer Reloading Manual #14 max. case length: 1.383"; trim-to length: 1.373"; max cart. OAL: 1.765"; RCBS shell holder: #20; cart. case: Winchester; primer: CCI 400; test firearm: Freedom Arms; barrel length: 7.5"; maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
260	Nosler Partition-HG Hollow Point	33.5	1,983	maximum load; compressed load
260	Nosler Partition-HG Hollow Point	32.5	1,933	compressed load
260	Nosler Partition-HG Hollow Point	31.5	1,882	compressed load; most accurate load tested
300	Nosler Partition-HG Protected Point	27.5	1,686	maximum load
300	Nosler Partition-HG Protected Point	26.5	1,606	most accurate load tested
300	Nosler Partition-HG Protected Point	25.5	1,529
Handgun Using Nosler Bullets handgun: barrel: T/C Encore, length: 12", twist: 1-16"; case: Winchester; primer: WSR; maximum SAAMI overall cartridge length: 1.765"; use maximum loads with caution
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
300	Speer UCSP	26.0	1298	start charge; case: Winchester
300	Speer UCSP	28.0	1426	maximum charge; case: Winchester
Reduced Recoil Loads Speer Reloading Manual #14 max. case length: 1.383"; trim-to length: 1.373"; max cart. OAL: 1.765"; RCBS shell holder: #20; cart. case: Winchester and Starline; primer: CCI 400; test firearm: Freedom Arms; barrel length: 7.5"; NOTE: The 270 grain SAA bullets were cast in RCBS moulds; use maximum loads with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
260	Nosler Partition	36.0	1,739
300	Hornady XTP-HP	31.5	1,565
300	Swift A-Frame hollowpoint	31.5	1,587
335	Cast Performance WLN GC	27.0	1,491
in a Freedom Arms Model 83 (4 3/4-inch barrel) Freedom Arms Model 83 with barrel length of 4 3/4 inches. Remington 7 1/2 and Federal 205 (Small Rifle Magnum) primers and Starline cases used throughout. Maximum case length is 1.383 inches and trim-to length is 1.373 inches.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
260	Nosler Partition	36.0	1,811
300	Hornady XTP-HP	31.5	1,631
300	Swift A-Frame hollowpoint	31.5	1,641
335	Cast Performance WLN GC	27.0	1,559
in a Freedom Arms Model 83 (7 1/2-inch barrel) Freedom Arms Model 83 with barrel length of 7 1/2 inches. Remington 7 1/2 and Federal 205 (Small Rifle Magnum) primers and Starline cases used throughout. Maximum case length is 1.383 inches and trim-to length is 1.373 inches.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
250	Barnes XPB	31.0	1767	sugg. start load; 1.770" OAL
250	Barnes XPB	32.0	1829	max load; compressed powder charge; 1.770" OAL
300	Hornady Mag Jacketed XTP/HP	27.1	1563	sugg. start load; 1.745" OAL
300	Hornady Mag Jacketed XTP/HP	28.0	1589	max load; 1.745" OAL
in a T/C Contender & Encore Lyman Reloading Manual 49th Edition This data was developed for use in the T/C Contender and Encore handguns. It can also be used in other single shot or bolt-action handguns such as the Remington XP-100 and Savage Striker. Do not use these loads in any other type of handgun. Cases: Winchester; trim-to length: 1.380"; primers: CCI 450; primer size: Small Rifle, Magnum; Lyman shell holder: No. 11; cast bullets used sized to .451" dia.; firearm used: Thompson/Center Encore; barrel length: 12"; twist: 1-16"; groove dia.: .451"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
335	Cast Performance WLNGC	27.0	1,789	accurate, no leading issues
in an LSI Puma Model 92 All loads fired from the LSI Puma Model 92 .454 Casull with a 20-inch barrel. Handloads were made up in Winchester cases with Remington 7 1/2 primers.

.460 Smith & Wesson Magnum / .460 S&W Magnum

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
300	Speer 454 GDHP	41.0	1,632
firearm: Smith & Wesson .460 XVR; SAAMI maximum average pressure: 65,000 psi; barrel length: 7 1/2-inches; case: Starline; primer: CCI #200; trim to case length: 1.790"; temperature: 15 degrees
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Hornady FTX	43.3	1900
200	Hornady FTX	46.0	2000
200	Hornady FTX	48.7	2100
200	Hornady FTX	51.4	2200	maximum load
Hornady FTX Data rifle: S&W 460 XVR; barrel: Factory; length: 8 3/8"; twist: Gain twist 1 in 20"; primer: WLR; case: Hornady; C.O.L.: 2.275"; approach maximum loads with extreme caution
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
300	Speer UCSP	32.0	1504	start charge; reduced recoil load
300	Speer UCSP	34.0	1469	max charge; reduced recoil load
300	Speer Casull GDHP	36.0	1539	start charge; full pressure load
300	Speer Casull GDHP	38.0	1597	max charge; full pressure load
Speer Handgun Data Reloading Manual #14 max. case length: 1.800"; trim-to length: 1.790"; max cart. OAL: 2.290"; RCBS shell holder: #14; cart. case: Hornady; primer: Federal 210; test firearm Smith & Wesson X-Frame; barrel length: 8.375"; maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Hornady FTX (460 S&W)	43.3	1787
200	Hornady FTX (460 S&W)	46.0	1876
200	Hornady FTX (460 S&W)	48.7	1960
200	Hornady FTX (460 S&W)	51.4	2050	maximum load
240	Hornady XTP Mag	39.5	1442
240	Hornady XTP Mag	41.9	1539
240	Hornady XTP Mag	44.2	1629
240	Hornady XTP Mag	46.5	1720
240	Hornady XTP Mag	48.8	1802	maximum load
300	Hornady XTP Mag	31.1	1181
300	Hornady XTP Mag	35.2	1321
300	Hornady XTP Mag	37.3	1384
300	Hornady XTP Mag	39.3	1495	maximum load
Using Hornady Bullets Gun: Smith & Wesson Model 460 XVR; barrel length: 8 3/8 inches; case: Starline; primer: Winchester Large Rifle; bullet diameter: .452"; bullets: 200 GR Hornady FTX (460 S&W) COAL: 2.275", 240 GR Hornady XTP Mag COAL: 2.160", 300 GR Hornady XTP Mag COAL: 2.165"; maximum COAL: 2.275"; maximum case length: 1.800"; trim to length: 1.790".
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
225	Barnes X	42.0	2,243	col: 2.110"; 51,800 psi
240	Hornady XTP Mag	48.5	2,254	col: 2.160"; 52,100 psi
250	Barnes X	41.5	2,133	col: 2.200"; 56,800 psi
260	Nosler Partition	46.0	2,178	col: 2.175"; 54,000 psi
265	Swift Hollow Point	46.5	2,183	col: 2.180"; 56,400 psi
300	Hornady XTP Mag	42.5	2,034	col: 2.160"; 56,100 psi
325	CPB LFN PB	42.0	1,953	col: 2.200"; 54,900 psi
325	Swift Hollow Point	39.0	1,907	col: 2.175"; 56,800 psi
335	CPB WLN GC	41.0	1,917	col: 2.180"; 55,800 psi
360	CPB WLN GC	38.0	1,836	col: 2.190"; 56,900 psi
395	CPB WLN GC	34.0	1,693	col: 2.185"; 55,700 psi
Winchester Pistol Data case: Starline; bbl: 10.743"; pr: Winchester LRM; NEVER exceed loads listed

.475 Linebaugh

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
380	NEI #390.477	25.0	1119
380	NEI #390.477	27.0	1232
380	NEI #390.477	29.0	1324
380	NEI #390.477	31.0	1408
410	LBT #476.420LFN	25.0	1204
410	LBT #476.420LFN	27.0	1302
410	LBT #476.420LFN	29.0	1394
440	LBT #476.440LFN	25.0	1201
440	LBT #476.440LFN	27.0	1302
350	LBT #476.370LFN	29.0	1343
350	LBT #476.370LFN	31.0	1427
350	LBT #476.370LFN	33.0	1534
firearm: Custom Bisley Ruger 5-1/2"; brass: .45-70 trimmed to 1.410"; primer: CCI #350; chronograph: Oehler Model 35P; temperature: 35-45 degrees (John Taffin Tests)
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
275	Barnes XPB HP	32.0	1697	sugg. start load; 1.810" OAL; 47,900 psi
275	Barnes XPB HP	33.0	1711	max load; compressed powder charge; 1.810" OAL; 48,500 psi
325	Hornady Jacketed XTP/HP	31.2	1592	sugg. start load; 41,600 psi
325	Hornady Jacketed XTP/HP	32.2	1643	max load; 48,600 psi
400	Hornady Jacketed XTP/HP	24.0	1315	sugg. start load; 44,000 psi
400	Hornady Jacketed XTP/HP	24.8	1349	max load; 46,400 psi
Lyman Reloading Handbook 49th Edition cases: Hornady; trim-to length: 1.395"; primers: CCI 350; primer size: Large Pistol, Magnum; Lyman shell holder: No. 17; 1.740" OAL (except where otherwise specified in remarks); firearm used: Universal Receiver; barrel length: 7 1/2"; twist: 1-18"; groove dia.: .475"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
400	Speer GDSP	23.5	1161	start charge; primer: CCI 350 Magnum
400	Speer GDSP	25.5	1226	max charge; primer: CCI 350 Magnum
Speer Handgun Data Reloading Manual #14 max. case length: 1.400"; trim-to length: 1.390"; max cart. OAL: 1.765"; RCBS shell holder: #40; cart. case: Buffalo Bore; primer: CCI 300 (except where otherwise specified in remarks); test firearm: Freedom Arms M767; barrel length: 6"; Important Safety Note: Older developed in cut-down 45-70 cases must not be used in new Buffalo Bore or Hornady cases, as high pressures will result; maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
325	Hornady XTP Mag	27.2	1189
325	Hornady XTP Mag	29.7	1277
325	Hornady XTP Mag	31.0	1365
325	Hornady XTP Mag	32.3	1454	maximum load
400	Hornady XTP Mag	21.1	933
400	Hornady XTP Mag	22.1	985
400	Hornady XTP Mag	23.1	1045
400	Hornady XTP Mag	24.0	1107
400	Hornady XTP Mag	25.0	1168
400	Hornady XTP Mag	26.0	1221	maximum load
Using Hornady Bullets Gun: Freedom Arms Model 757; barrel length: 6 inches; case: BBA/Starline; primer: Winchester Large Pistol; bullet diameter: .475"; COAL: 1.740"; maximum COAL: 1.765"; maximum case length: 1.400"; trim to length: 1.390".

.480 Ruger

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
325	Hornady XTP	25.0	1416	start load; COL: 1.620"; 37,300 psi
325	Hornady XTP	27.0	1518	max load; COL: 1.620"; 44,900 psi
355	Beartooth Bullets LFN GC	26.0	1415	start load; bullet diam.: .476"; COL: 1.630"; 34,700 psi
355	Beartooth Bullets LFN GC	27.0	1464	max load; bullet diam.: .476"; COL: 1.630"; 38,400 psi
370	Cast Performance Bullets LFP	24.0	1348	start load; COL: 1.640"; 33,400 psi
370	Cast Performance Bullets LFP	26.0	1454	max load; COL: 1.640"; 41,500 psi
400	Hornady XTP	18.0	1115	start load; COL: 1.620"; 34,400 psi
400	Hornady XTP	20.5	1258	max load; COL: 1.620"; 46,600 psi
405	Cast Performance Bullets (w/GCK)	20.0	1213	start load; COL: 1.620"; 35,500 psi
405	Cast Performance Bullets (w/GCK)	22.3	1328	max load; COL: 1.620"; 45,200 psi
420	Beartooth Bullets LFN GC	19.0	1145	start load; bullet diam.: .476"; COL: 1.640"; 34,200 psi
420	Beartooth Bullets LFN GC	20.0	1203	max load; bullet diam.: .476"; COL: 1.640"; 38,700 psi
Hodgdon Data Case: Hornady; twist: 1:18"; primer: Winchester LP; barrel length: 7 1/2"; trim length: 1.275"; bullet diam.: .475" (except where otherwise specified in remarks). NEVER EXCEED MAXIMUM LOADS
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
275	Speer Jacketed HP	30.5	1645	sugg. start load; 1.650" OAL; 40,200 psi
275	Speer Jacketed HP	31.5	1699	max load; compressed powder charge; 1.650" OAL; 43,200 psi
325	Hornady Jacketed HP/XTP	27.1	1503	sugg. start load; 43,900 psi
325	Hornady Jacketed HP/XTP	28.0	1550	max load; 46,800 psi
400	Hornady Jacketed HP/XTP	20.8	1211	sugg. start load; 40,500 psi
400	Hornady Jacketed HP/XTP	21.5	1261	max load; 45,700 psi
Lyman Reloading Handbook 49th Edition cases: Hornady; trim-to length: 1.275"; primers: Winchester WLP; primer size: Large Pistol; Lyman shell holder: No. 17; 1.620" OAL (except where otherwise specified in remarks); firearm used: Universal Receiver; barrel length: 7 1/2"; twist: 1-18"; groove dia.: .475"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
275	Speer Gold Dot HP	32.0	1,590	starting load; CCI Magnum primer used with this propellant
275	Speer Gold Dot HP	34.0	1,695	MAXIMUM load; CCI Magnum primer used with this propellant
325	Speer Gold Dot SP	26.0	1,366	starting load; CCI Magnum primer used with this propellant
325	Speer Gold Dot SP	28.0	1,464	MAXIMUM load; CCI Magnum primer used with this propellant
400	Speer Gold Dot SP	19.0	1,067	starting load; CCI Magnum primer used with this propellant
400	Speer Gold Dot SP	21.0	1,165	MAXIMUM load; CCI Magnum primer used with this propellant
Speer Data case: Hornady; primer: CCI 300/350; test firearm: Ruger Redhawk; barrel: 9 1/2"; COAL tested 1.650"; use MAXIMUM loads with caution
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
275	Speer GDHP	32.0	1590	start charge; primer: CCI 350 Magnum;
275	Speer GDHP	34.0	1695	max charge; primer: CCI 350 Magnum
325	Speer GDSP	26.0	1366	start charge; primer: CCI 350 Magnum
325	Speer GDSP	28.0	1464	max charge; primer: CCI 350 Magnum
400	Speer GDSP	19.0	1067	start charge; primer: CCI 350 Magnum
400	Speer GDSP	21.0	1165	max charge; primer: CCI 350 Magnum
Speer Handgun Data Reloading Manual #14 max. case length: 1.285"; trim-to length: 1.275"; max cart. OAL: 1.650"; RCBS shell holder: #40; cart. case: Hornady; primer: CCI 300 (except where otherwise noted in remarks); test firearm: Ruger Redhawk; barrel length: 9.5"; maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
325	Hornady XTP Mag	20.1	891
325	Hornady XTP Mag	22.3	987
325	Hornady XTP Mag	24.4	1098
325	Hornady XTP Mag	26.6	1209
325	Hornady XTP Mag	27.7	1313	maximum load
400	Hornady XTP Mag	17.9	892
400	Hornady XTP Mag	19.7	956
400	Hornady XTP Mag	20.6	1020
400	Hornady XTP Mag	21.5	1084	maximum load
Using Hornady Bullets Gun: Freedom Arms Model 757; barrel length: 6 inches; case: Hornady; primer: Winchester Large Pistol for Standard and Magnum loads; bullet diameter: .475"; 325 GR COAL: 1.620"; 400 GR COAL: 1.630"; maximum COAL: 1.650"; maximum case length: 1.285"; trim to length: 1.275".
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
325	Hornady XTP	27.0	1,518	col: 1.620"; 44,900 psi
355	BTB Lead Flat Nose Gas Check	27.0	1,464	col; 1.630"; 38,400 psi
370	CPB Lead Flat Point	26.0	1,454	col: 1.640"; 41,500 psi
400	Hornady XTP	20.5	1,258	col: 1.620"; 46,600 psi
405	CPB (W/GCK)	22.3	1,328	col: 1.620"; 45,200 psi
420	BTB Lead Flat Nose Gas Check	20.0	1,203	col: 1.640"; 38,700 psi
Winchester Pistol Data case: Hornady; BBL: 7.5"; PR: Winchester LP; NEVER exceed loads listed
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
325	Speer Gold Dot	28.0	1,397	primer: CCI 350
400	Speer Gold Dot SP	21.5	1,095	primer: CCI 350
410	Cast Performance LBT	22.0	1,209	primer: CCI 350
in an FA Model 757 Test gun was a Freedom Arms Model 757 with a 6-inch barrel. Maximum pressure was 48,000 psi. Hornady cases used throughout. Temperature during testing was 85 degrees Fahrenheit.

.50 Action Express / .50 A.E.

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
325	Speer UCHP	30.0	1299
325	Speer UCHP	30.5	1323
325	Speer UCHP	31.0	1348
325	Speer UCHP	31.5	1374
325	Speer UCHP	32.0	1400
325	Speer UCHP	32.5	1425
325	Speer UCHP	33.0	1451	maximum load
Gun: Magnum Research BFR; barrel length: 8 1/8 inches; case: IMI; primer: Winchester Large Pistol; bullet diameter: 500"/.501"; 300 GR Speer GDHP COAL: 1.580", 325 GR UCHP COAL: 1.575"; 325 Hunters Supply Cast FP COAL: 1.625" (1.580" for Auto Loading Pistols); maximum COAL: 1.575"; maximum case length: 1.285"; trim to length: 1.280".
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
300	Hornady XTP-MAG	32.7	1395
300	Hornady XTP-MAG	33.9	1477	maximum load
Using Hornady Bullets This data was specifically developed for LoadData.com. Gun: Magnum Research BFR; barrel length: 8 1/8 inches; case: IMI; primer: Winchester Large Pistol; bullet diameter: 500"/.501"; 300 gr Hornady XTP-MAG COAL: 1.580"; maximum COAL: 1.575"; maximum case length: 1.285"; trim to length: 1.280".
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
275	Barnes XPB	32.0	1,738	SINGLESHOT AND REVOLVERS ONLY; NOT FOR USE IN SEMI-AUTOMATICS
275	Barnes XPB	33.0	1,802	SINGLESHOT AND REVOLVERS ONLY; NOT FOR USE IN SEMI-AUTOMATICS; maximum load
Barnes Reloading Manual #3 case: Speer; parent case: none; primer: Win Large Pistol; trim to: 1.275"; barrel: 15"; Coated X-Bullet data cannot be used with other bullets, including non-coated X-Bullets; maximum loads should be used with caution - Always Start With Minimum Loads
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
300	Speer TMJ FN or GDHP	33.5	1466	start charge; primer: CCI 350 Magnum
300	Speer TMJ FN or GDHP	34.5	1567	maximum charge; primer: CCI 350 Magnum
325	Speer UCHP	29.5	1279	start charge; primer: CCI 350 Magnum
325	Speer UCHP	32.7	1409	maximum charge; primer: CCI 350 Magnum
300	Speer TMJ FN or GDHP	33.5	1465	start charge; primer: CCI 350 Magnum; revolver Freedom Arms M555 7.5"
300	Speer TMJ FN or GDHP	34.5	1526	maximum charge; primer: CCI 350 Magnum; revolver Freedom Arms M555 7.5"
325	Speer UCHP	29.5	1321	start charge; primer: CCI 350 Magnum; revolver Freedom Arms M555 7.5"
325	Speer UCHP	32.7	1461	maximum charge; primer: CCI 350 Magnum; revolver Freedom Arms M555 7.5"
340	Speer SWC	29.0	1412	start charge; primer: CCI 350 Magnum; revolver Freedom Arms M555 7.5"
340	Speer SWC	31.0	1498	maximum charge; compressed load; primer: CCI 350 Magnum; revolver Freedom Arms M555 7.5"
Speer Reloading Manual #14 max. case length: 1.286"; trim-to length: 1.276"; max cart. OAL: 1.595"; RCBS shell holder: #33; cart. case: Speer; the 340 grain SWC bullets were cast in RCBS moulds; NOTE: primer, test firearm and barrel length are as follows except where otherwise noted in remarks - primer: CCI 300; test firearm: Magnum Research Desert Eagle; barrel length: 6"; maximum loads should be used with CAUTION

.500 Linebaugh Loads

Wt.	Bullet	Charge	Velocity (FPS)
404	LBT #512.400LFN	29.0	1030
404	LBT #512.400LFN	31.0	1201
445	LBT #512.440 LFN	27.0	1072
445	LBT #512.440 LFN	29.0	1171
444	NEI #420.511	27.0	1167
444	NEI #420.511	29.0	1256
firearm: Custom Bisley Ruger 5 1/2"; brass: .500 Linebaugh; primer: CCI #350; chronograph: Oehler Model 35P (John Taffin Tests)

.500 Smith & Wesson

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
275	Barnes XPB	42.0	1965	minimum; COAL: 2.085"
275	Barnes XPB	45.0	2082	maximum; COAL: 2.085"
325	Barnes XPB	42.0	1813	minimum; COAL: 2.290"
325	Barnes XPB	45.3	1951	maximum; COAL: 2.290"
Barnes Reloading Manual #4 case: Starline; case trim length: 1.615"; twist rate: 1:15"; primer: Federal GM210M; barrel length: 10"; maximum loads should be used with caution; NOTE: Roll crimp the case mouth into the cannelure. Brass for this cartridge has been made with both Large Pistol and Large Rifle primer pockets. Our data was developed using Large Rifle primers. The primer pockets for Large Rifle primers are the same diameter, but slightly deeper than the primer pockets designed for Large Pistol primers. Cases with the shallower primer pocket can be reamed deeper to accept Large Rifle primers.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
350	Sierra JHP	39.2	1489	COAL: 2.050 inches
350	Sierra JHP	41.6	1684	Maximum Load; COAL: 2.050 inches
using Sierra bullets Gun: Smith & Wesson Model 500; Barrel Length: 8 3/8 inches; Case: Starline "R"; Primer: Winchester Large Rifle; Bullet Diameter: .500 inches; Maximum COAL: 2.250 inches; Maximum Case Length: 1.620 inches; Trim to Length: 1.615 inches.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
370	Cast Performance WFN GC	47.5	1,875	maximum, very accurate
Starline cases and Winchester Large Rifle primers used throughout. Temperature during testing was 80 degrees Fahrenheit.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
350	Hornady XTP-MAG	34.9	1,400	primer: WLPM or WLR; C.O.L.: 2.000"
350	Hornady XTP-MAG	37.4	1,500	primer: WLPM or WLR; C.O.L.: 2.000"
350	Hornady XTP-MAG	39.9	1,600	primer: WLPM or WLR; C.O.L.: 2.000"
350	Hornady XTP-MAG	41.2	1,650	primer: WLPM or WLR; C.O.L.: 2.000"
350	Hornady XTP-MAG	42.4	1,700	maximum load; primer: WLPM or WLR; C.O.L.: 2.000"
500	Hornady JFP	24.9	1,000	primer: WLP; C.O.L.: 2.040"
500	Hornady JFP	27.4	1,100	primer: WLP; C.O.L.: 2.040"
500	Hornady JFP	29.9	1,200	primer: WLP; C.O.L.: 2.040"
500	Hornady JFP	32.4	1,300	maximum load; primer: WLP; C.O.L.: 2.040"
Hornady Data rifle: S&W Model 500; barrel length: 8 3/8"; case: Hornady; use maximum loads with extreme caution
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
300	Hornady FTX	43.0	1700
300	Hornady FTX	45.7	1800
300	Hornady FTX	48.4	1900
300	Hornady FTX	49.8	1950	maximum load
FTX Data rifle: S&W Model 500; barrel: Factory; length: 8 3/8"; primer: WLR; case: Hornady; C.O.L.: 2.195"; approach maximum loads with extreme caution
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
275	Barnes XPB	42.0	1965	start load; COL: 2.085"; 43,900 psi
275	Barnes XPB	45.0	2082	max load; COL: 2.085"; 49,300 psi
325	Barnes XPB	42.0	1813	start load; COL: 2.290"; 40,000 psi
325	Barnes XPB	45.3	1951	max load; COL: 2.290"; 48,900 psi
350	Hornady XTP	39.0	1712	start load; COL: 1.985"; 41,500 psi
350	Hornady XTP	43.0	1877	max load; COL: 1.985"; 50,600 psi
370	Cast Performance Bullets LGC	44.5	1801	start load; COL: 2.020"; 42,800 psi
370	Cast Performance Bullets LGC	47.0	1909	max load; COL: 2.020"; 49,900 psi
385	Rem. HP	39.0	1648	start load; COL: 2.150"; 38,700 psi
385	Rem. HP	42.5	1794	max load; COL: 2.150"; 47,300 psi
400	Sierra JSP	34.0	1514	start load; COL: 2.050"; 38,000 psi
400	Sierra JSP	40.0	1721	max load; COL: 2.050"; 49,700 psi
440	Cast Performance Bullet LGC	34.0	1509	start load; COL: 2.025"; 40,700 psi
440	Cast Performance Bullet LGC	38.0	1654	max load; COL: 2.025"; 49,900 psi
500	Hornady SP	31.0	1400	start load; COL: 2.065"; 34,400 psi
500	Hornady SP	33.0	1482	max load; COL: 2.065"; 51,900 psi
Hodgdon Pistol Data case: Starline; twist: 1:18"; barrel: 10"; trim: 1.615"; primer: Winchester LR; dia: .500"; NEVER EXCEED MAXIMUM LOADS
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
370	Cast Performance WFN-GC	47.5	2160
In a Big Horn Armory Model 89 All loads were fired from an 18-inch barreled Big Horn Armory Model 89 carbine. Starline R (for large rifle primers) cases and Winchester Large Rifle primers were used throughout. Maximum overall loaded length: 2.040 inches; maximum case length: 1.620 inches; case trim-to length: 1.615 inches.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
350	S&W UCSP	44.0	1585	start charge
350	S&W UCSP	46.0	1639	max charge
Speer Handgun Data Reloading Manual #14 max. case length: 1.625"; trim-to length: 1.615"; max cart. OAL: 2.250"; RCBS shell holder: #44; cart. case: Starline; primer: Federal 215 (Magnum); test firearm: Smith & Wesson X-Frame; barrel length: 8.875"; maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
300	Hornady FTX	43.0	1560
300	Hornady FTX	45.7	1654
300	Hornady FTX	48.4	1720
300	Hornady FTX	49.8	1844	maximum load
350	Hornady XTP Mag	34.9	1210
350	Hornady XTP Mag	37.4	1310
350	Hornady XTP Mag	39.9	1421
350	Hornady XTP Mag	41.2	1520
350	Hornady XTP Mag	42.4	1605	maximum load
500	Hornady FP-XTP	24.9	860
500	Hornady FP-XTP	27.4	1010
500	Hornady FP-XTP	29.9	1098
500	Hornady FP-XTP	32.4	1161	maximum load
Using Hornady Bullets & Winchester Large Pistol Primer Gun: Smith & Wesson Model 500; barrel length: 8 3/8 inches; case: Starline; primer: Winchester Large Pistol for standard or magnum; bullet diameter: .500"; 300 GR FTX COAL: 2.195"; 350 GR XTP Mag COAL: 2.000"; 500 GR FP-XTP COAL: 2.080"; maximum COAL: 2.250"; maximum case length: 1.620"; trim to length: 1.615".
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
300	Hornady FTX	43.0	1589
300	Hornady FTX	45.7	1678
300	Hornady FTX	48.4	1743
300	Hornady FTX	49.8	1868	maximum load
350	Hornady XTP Mag	34.9	1301
350	Hornady XTP Mag	37.4	1322
350	Hornady XTP Mag	39.9	1461
350	Hornady XTP Mag	41.2	1563
350	Hornady XTP Mag	42.4	1636	maximum load
500	Hornady FP-XTP	24.9	955
500	Hornady FP-XTP	27.4	1121
500	Hornady FP-XTP	29.9	1203
500	Hornady FP-XTP	32.4	1254	maximum load
Using Hornady Bullets & Winchester Large Rifle Primer Gun: Smith & Wesson Model 500; barrel length: 8 3/8 inches; case: Starline "R"; primer: Winchester Large Rifle; bullet diameter: .500"; 300 GR FTX COAL: 2.195"; 350 GR XTP Mag COAL: 2.000"; 500 FP-XTP COAL: 2.080"; maximum COAL: 2.250"; maximum case length: 1.620"; trim to length: 1.615".
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
275	Barnes XPB	45.0	2,082	col: 2.085"; 49,300 psi
325	Barnes XPB	45.3	1,951	col: 2.290"; 48,900 psi
350	Hornady XTP	43.0	1,877	col: 1.985"; 50,600 psi
370	CPB LGC	47.0	1,909	col: 2.020"; 49,900 psi
385	Remington Hollow Point	42.5	1,794	col: 2.150"; 47,300 psi
400	Sierra Jacketed Soft Point	40.0	1,721	col: 2.050"; 49,700 psi
440	CPB LGC	38.0	1,654	col: 2.025"; 49,900 psi
500	Hornady SP	33.0	1,482	col: 2.065"; 51,900 psi
Winchester Pistol Data case: Starline; BBL: 10"; PR: Winchester LR; NEVER exceed loads listed

7.62x25mm Tokarev

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Hornady HP-XTP	10.2	942
90	Hornady HP-XTP	11.3	1060
90	Hornady HP-XTP	12.3	1201
90	Hornady HP-XTP	13.3	1377
90	Hornady HP-XTP	14.4	1533	maximum load
Using Hornady Bullets Gun: CZ Model 52; barrel length: 4 3/4 inches; case: Starline; primer: Winchester Small Pistol; bullet diameter: .308" and .309" (.309" used throughout test); COAL: 1.320"; maximum COAL: 1.385"; maximum case length: .984"; trim to length: .974". NOTES FROM THE LAB - The 7.62mm Tokarev (aka 7.62x25mm Russian Tokarev) was adopted as the official Soviet military pistol cartridge around 1930 in the Models TT-30 and TT-33 auto-loading pistols. Surplus guns (made in several different countries) eventually began finding their way to the US in the late 1980's. Quality varied significantly; however, both guns and ammunition were inexpensive and many are currently in circulation. The test pistol used here was a CZ Model 52, one of the better quality guns offered in the chambering. Most surplus ammunition is Berdan primed and is usually corrosive. Barrel groove diameter has a rather large variance, with many pistols utilizing .311 to .312 inch bullets. To develop handload data Starline cases were used (available direct at 800-280-6660). These are intended to house .308-inch bullets and will require neck reaming if .311- to .312-inch bullets are used. The Hornady 90-grain HP-XTP currently has a .309-inch diameter, which seated correctly and functioned properly in the CZ 52. Bullets had a tendency to tilt during seating; however, with care they could be straight in the rather short case neck. A crimp was applied as a separate step using a Lee Factory Crimp Die. Some "start" loads did not produce enough pressure to reliably operate the action on the test pistol, but all maximum loads functioned flawlessly.

9x25mm Dillon

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
100	FMJ RN	17.2	1,769	energy: 690
115	JHP	15.0	1,566	energy: 625
124	FMJ FP	14.4	1,529	energy: 640
130	Cast	13.5	1,479	energy: 630
8-inch barrel. The 9x25 Dillon is formed by necking the 10mm Automatic case to 9mm with a sharp shoulder and a short neck. This creates a relatively high-capacity pistol cartridge, which is based on a high-pressure case. (Cartridges of the World 10th Edition)
