Winchester 231

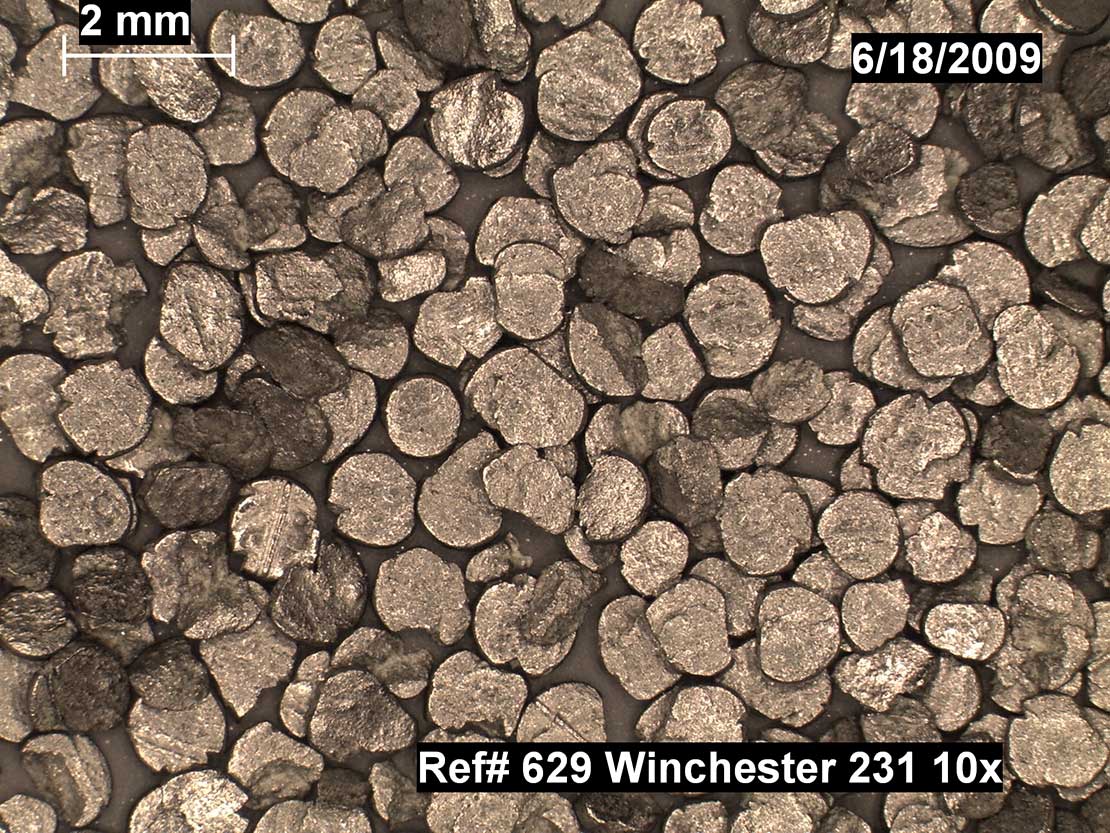

One of the most popular reload propellants, 231 is a pistol powder ideally suited to the 38 special, 45 Auto, and 9mm standard loads. Consistency, clean burning, low flash, and a broad range of applications make this powder a choice for any pistol cartridge reloader.

Shape	Color	Perforation	Diameter min	Diameter max	Length/thick. min	Length/thick. max	Manufacturer
irregular flattened ball	Gray	No	0.73 mm	1.2 mm	0.2 mm	0.2 mm	Olin / Primex Technologies

ADVARSEL!

Ladedata som finnes på hjemmesidene til Evje PK er KUN ment som en veiledning! Ladedata skal alltid verifiseres mot kjente kilder (kruttprodusenter, ladebøker o.l.)

Data funnet på våre hjemmesider brukes på eget ansvar, og Evje Pistolklubb fratar seg alt ansvar for feil bruk av, eller skrivefeil i oppgitte data.

.25 Automatic / .25 ACP

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
35	Speer Gold Dot HP	1.7	937	COAL tested: .870"; MAXIMUM load
50	Speer TMJ	1.4	797	COAL tested: .890"; MAXIMUM load
Speer Reloading Manual #14 case: SPEER; primer: CCI 500; test firearm: Beretta M950; barrel: 2.4"; use MAXIMUM loads with caution; DO NOT REDUCE
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
35	Hornady HP-XTP	1.3	669
35	Hornady HP-XTP	1.4	713
35	Hornady HP-XTP	1.5	772
35	Hornady HP-XTP	1.6	818	maximum load; factory load duplication
50	Hornady FMJ-RN	1.2	722
50	Hornady FMJ-RN	1.3	752
50	Hornady FMJ-RN	1.4	788
50	Hornady FMJ-RN	1.5	824
50	Hornady FMJ-RN	1.6	856	maximum load
Using Hornady Bullets Gun: Browning/FN "Baby" Model; barrel length: 2 inches; case: Winchester; primer: Federal 100 Small Pistol; bullet diameter: .251"; 35 GR Hornady HP-XTP COAL: 0.860"; 50 GR Hornady FMJ-RN COAL: 0.900"; maximum COAL: .910"; maximum case length: .615"; trim to length: .605".
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
35	Hornady Jacketed HP	1.3	768	sugg. start load
35	Hornady Jacketed HP	1.5	807	max load
50	Hornady Jacketed FMJ	1.0	563	sugg. start load; 11,800 cup
50	Hornady Jacketed FMJ	1.4	752	max load; 17,800 cup
Lyman Reloading Handbook 49th Edition cases: Remington; trim-to length: .610"; primers: Winchester WSP; primer size: Small Pistol; Lyman shell holder: No. 32; firearm used: Universal Receiver; barrel length: 2"; twist: 1-16"; groove dia.: .251"

7.65 Parabellum / .30 Luger

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
83	RCBS 32-84-RN	4.4	1221	best load
Model 1920 Export (Autoloading Pistol Loads) 3 3/4-inch barrel. Group shooting was done from a sandbag rest at 25 yards in five-shot strings. Chronographing done with an Oehler Model 35P with start screen at approximately 6 feet. All brass was Starline. All primers were CCI Small or Large Pistol as proper. All bullets cast were poured of Linotype and lubed with SPG. Sizing diameter: .313 inch
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
93	Full Metal Jacket	4.2	1,085	25,500 cup
Winchester Pistol Data case: Winchester; BBL: 4.5"; PR: Winchester SP; COL: 1.175"; NEVER exceed loads listed
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
93	Jacketed	4.1	1055	start load; min OAL: 1.170
93	Jacketed	4.2	1085	NEVER EXCEED; min OAL: 1.170; 25,500 cup
Lee Precision Data With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Pistol Primer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
84	Cast #313249	3.9	1054	sugg. start load
84	Cast #313249	4.4	1144	max load
Lyman Cast Bullet Handbook cases: Remington; trim-to length: .845"; primers: Remington 1 1/2; primer size: Small Pistol; Lyman shell holder: No. 12; cast bullets used size to .309" dia.; firearm used: Walther P-38; barrel length: 4 15/16"; twist: 1-9.85"; groove diameter: .3085"; NOTE: More Lyman cast bullet data available under .30 Luger Handgun Lyman Reloading Handbook 49th Edition
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
93	Hornady Jacketed FMJ	3.7	935	sugg. start load
93	Hornady Jacketed FMJ	4.2	1046	max load
75	Cast #311252	4.2	1070	sugg. start load
75	Cast #311252	4.7	1311	max load
85	Cast #313249	3.9	1054	sugg. start load
85	Cast #313249	4.4	1144	max load; potentially most accurate load
Lyman Reloading Handbook 49th Edition cases: Remington; trim-to length: .845"; primers: Remington 1 1/2; primer size Small Pistol; Lyman shell holder: No. 12; jacketed bullets used: Hornady FMJ #1419, 93 gr.; cast bullets used sized to .309" dia.; firearm used: Walther P-38; barrel length: 4 15/16"; twist: 1-9.85"; groove dia.: .3085"

.32 Auto / .32 ACP (7.65mm Browning)

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
60	Hornady HP-XTP	2.7	790
60	Hornady HP-XTP	2.9	847
60	Hornady HP-XTP	3.0	877	maximum load
Using Hornady Bullets Gun: Kel Tec P-32; barrel length: 2.5 inches; case: Remington; primer: Winchester Small Pistol; bullet diameter: .311 to .312 inch (.311 used herein); COAL: .925 inch; maximum COAL: .984 inch; maximum case length: .680 inch; trim to length: .670 inch; NOTE: All loads functioned (extracted, ejected and fed) reliably in two pistols: a Kel Tec P-32 and a Walther PP.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
71	Sierra FMJ	2.1	805	starting load; 12,400 cup
71	Sierra FMJ	2.3	871	maximum load; 14,400 cup
Hodgdon Pistol Data case: Winchester; barrel length: 4"; twist: 1:16"; trim length: .675"; primer: Federal 100M; bullet diam.: .312"; COL: .978"; NEVER EXCEED MAXIMUM LOADS
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
71	Jacketed	2.4	817	start load; OAL: 0.940
71	Jacketed	2.5	865	never exceed; OAL: 0.940; 14,000 cup
Lee Precision Data With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Pistol primer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
60	Hornady Jacketed HP	2.2	711	sugg. start load; .925" OAL
60	Hornady Jacketed HP	2.5	836	max load; .925" OAL
71	Sierra FMJ	2.1	700	sugg. start load; .984" OAL
71	Sierra FMJ	2.4	803	max load; .984" OAL
75	Cast #311252	1.5	620	sugg. start load; primer: Winchester WSP; cases: Winchester; 7,200 cup; .975" OAL
75	Cast #311252	2.5	888	max load; primer: Winchester WSP; cases: Winchester; 15,000 cup; .975" OAL; potentiallly most accurate load
Lyman Reloading Handbook 49th Edition cases: Remington (except where otherwise specified in remarks); trim-to length: .672"; primers: Remington 1 1/2 (except where otherwise specified in remarks); primer size Small Pistol; Lyman shell holder: No. 23; cast bullets used sized to .309 dia.; firearm used: Mauser HSc and Universal Receiver; barrel length: Mauser; 3", Universal Receiver; 3 1/4"; twist: 1-16"; groove dia.: .309"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
60	Speer GDHP	2.8	1007	maximum charge
Speer Reloading Manual #14 max. case length: 0.680"; trim-to length: 0.675"; max cart. OAL: 0.984"; RCBS shell holder: #17; cart. case: Speer; primer: CCI 500; test firearm: Walter PP; barrel length: 3.80" maximum loads should be used with CAUTION; DO NOT REDUCE
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
71	Full Metal Jacket	2.5	865	14,000 cup
Winchester Pistol Data case: Winchester; BBL: 4"; PR: Winchester SP; COL: .984"; NEVER exceed loads listed
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
75	Lyman 313249 cast roundnose (sized .310 inch)	2.2	970	poor group, vertical
76	Oregon Trail cast roundnose (sized .313 inch)	2.2	960	poor group, vertical
7.65mm Browning Automatic Very good group is approximately 1.0 inch; good group is approximately 1.5 inches; mediocre group is between 1.5 and 2.0 inches; poor group is over approximately 2.0 inches. Velocities are for five shots taken at approximately 6 feet from the pistol muzzle using an Oehler Model 35P. All groups fired at 20 feet in five-shot strings. All loads were taper crimped. All cast bullet loads were poured of straight Linotype alloy and lubed with SPG. The .32 Auto/.32 ACP/7.65mm Browning Auto loads were fired from a Browning Model 1922 with a 4 1/2-inch barrel and used Winchester brass with Winchester Small Pistol primers.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
71	Hornady FMJ	2.2	746	accuracy class: C; case expansion: moderate; Unreliable function
71	Hornady FMJ	2.4	809	accuracy class: C; case expansion: normal; Uniform load
71	Sierra FMJ	2.5	830	accuracy class: A+; case expansion: normal; 2nd best accuracy; equals Federal factory
in a Mauser 1914 Warning! Test pistol was Mauser Model 1914 with 3 1/2" barrel. CCI 500 small pistol primers used with all loads shown. Those loads shown as giving unreliable function or poor accuracy have been included to show velocities and provide an indication of those areas of loading which should not be attempted. Accuracy class (for five shots at 20 yards): A. 1 1/2 inch or less; B. 1 1/2 to 2 1/4 inches; C. 2 1/4 to 3 inches; D. over 3 inches. Plus-sign added indicates the top of that class.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
91	Lyman 313249	2.3	821	accuracy class: A+; case expansion: near max; Excellent accuracy
91	Lyman 313249	2.4	841	accuracy class: A; case expansion: maximum; Accurate, but not as good as 2.3-grain load
in a Mauser 1914 (cast bullets) Warning! Test pistol was a Mauser Model 1914 with 3 1/2" barrel. CCI 500 small pistol primers used with all loads shown. Those loads shown as giving unreliable function or poor accuracy have been included to show velocities and provide an indication of those areas of loading which should not be attempted. Accuracy class (for five shots at 20 yards): A. 1 1/2 inch or less; B. 1 1/2 to 2 1/4 inches; C. 2 1/4 to 3 inches; D. over 3 inches. Plus-sign added indicates the top of that class.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
71	Hornady FMJ	2.2	757	accuracy class: C; case expansion: moderate; Unreliable function
71	Hornady FMJ	2.5	841	accuracy class: A; case expansion: near max; Good load
71	Hornady FMJ	2.6	901	accuracy class: C; case expansion: maximum; Do NOT exceed!
71	Sierra FMJ	2.5	835	accuracy class: A+; case expansion: normal; 2nd best accuracy; equals Federal factory
71	Sierra FMJ	2.6	901	accuracy class: B; case expansion: maximum
100	Rem. Lead	2.3	822	accuracy class: C; case expansion: maximum; Leaded bore but fair accuracy
in a Walther Warning! Test pistol was a Walther Model "PP" with 3 3/4" barrel. CCI 500 small pistol primers used with all loads shown. Those loads shown as giving unreliable function or poor accuracy have been included to show velocities and provide an indication of those areas of loading which should not be attempted. Accuracy class (for five shots at 20 yards): A. 1 1/2 inch or less; B. 1 1/2 to 2 1/4 inches; C. 2 1/4 to 3 inches; D. over 3 inches. Plus-sign added indicates the top of that class.

.32 H&R Magnum

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
85	Hornady XTP-HP	4.0	1101	rounds per pound: 1,750
Economical Midrange Loads firearm used: Ruger Single Six; primer: CCI 500; case: Starline; barrel length: 4 5/8"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
77	Cast LFP	2.4	797	start load; COL: 1.335"; 6,700 cup; bullet diam.: .314"
77	Cast LFP	3.4	998	max load; COL: 1.335"; 12,300 cup; bullet diam.: .314"
83	Berry's Bullets HBWC	2.9	870	start load; COL: 1.095"; 13,500 cup; bullet diam.: .314"
83	Berry's Bullets HBWC	3.8	1120	max load; COL: 1.095"; 20,000 cup; bullet diam.: .314"
85	Hornady HP	3.2	785	start load; COL: 1.290"; 15,200 cup; bullet diam.: .312"
85	Hornady HP	3.8	1003	max load; COL: 1.290"; 20,700 cup; bullet diam.:.312"
90	Sierra JHP	3.5	930	start load; COL: 1.340"; 16,200 cup; bullet diam.: .312"
90	Sierra JHP	4.0	1033	max load; COL: 1.340"; 20,300 cup; bullet diam.: .312"
90	Hornady LSWC	2.8	828	start load; COL: 1.350"; 9,600 cup; bullet diam.: .314"
90	Hornady LSWC	3.2	919	max load; COL: 1.350"; 12,500 cup; bullet diam.: .314"
100	Speer JHP	3.3	860	start load; COL: 1.345"; 15,600 cup; bullet diam.: .312"
100	Speer JHP	3.7	947	max load; COL: 1.345"; 19,400 cup; bullet diam.: .312"
Hodgdon Pistol Data Case: Federal; twist: 1:16"; primer: Federal 100, Small Pistol; barrel length: 5"; trim length: 1.070".
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
71	Sierra FMJ	3.5	817	sugg. start load; 13,400 cup; 1.350" OAL
71	Sierra FMJ	4.5	1132	max load; 20,000 cup; 1.350" OAL
85	Hornady Jacketed HP/XTP	2.8	773	sugg. start load; 13,300 cup; 1.310" OAL
85	Hornady Jacketed HP/XTP	4.0	1054	max load; 20,800 cup; 1.310" OAL
90	Sierra Jacketed JHC	2.5	679	sugg. start load; 12,500 cup; 1.315" OAL
90	Sierra Jacketed JHC	3.8	980	max load; 20,600 cup; 1.315" OAL; potentially most accurate load
100	Hornady Jacketed HP/XTP	3.2	706	sugg. start load; 15,000 cup; 1.315" OAL
100	Hornady Jacketed HP/XTP	3.6	841	max load; 19,500 cup; 1.315" OAL
75	Cast #311252	3.7	1077	sugg. start load; 15,800 cup; 1.350" OAL
75	Cast #311252	4.2	1205	max load; 20,600 cup; 1.350" OAL
85	Cast #313249	2.5	777	sugg. start load; 12,500 cup; 1.350" OAL
85	Cast #313249	4.1	1101	max load; 20,400 cup; 1.350" OAL; potentially most accurate load
90	Hornady Swaged Lead HBWC	3.1	942	sugg. start load; 17,100 cup; 1.100" OAL
90	Hornady Swaged Lead HBWC	3.5	1042	max load; 20,600 cup; 1.100" OAL
Lyman Reloading Manual 49th Edition cases: Federal; trim-to length: 1.065"; primers: Federal 100; primer size: Small Pistol; Lyman shell holder: No. 9; cast bullets used sized to .313" dia.; firearm used: Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .312"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
85	Speer JHP	3.7	1,064	starting charge; COAL tested: 1.340"
85	Speer JHP	4.2	1,149	MAXIMUM charge; COAL tested: 1.340"
98	Speer HB-WC	2.2	742	starting charge; COAL tested: 1.075"
98	Speer HB-WC	2.4	778	MAXIMUM charge; COAL tested: 1.075"
Speer Reloading Manual #14 max. case length: 1.075"; trim-to length: 1.065"; max cart. OAL: 1.350"; RCBS shell holder: #23; cart. case: Federal; primer: CCI 500; test firearm: Ruger Single Six; barrel length: 5.5"; maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Sierra JHC	3.1	738
90	Sierra JHC	3.3	792
90	Sierra JHC	3.4	846
90	Sierra JHC	3.6	900
using Sierra bullets Warning! Gun: Ruger Single-Six Custom; Barrel Length: 6 1/2 inches; Case: Starline; Primer: Winchester Small Pistol; Bullet Diameter: .312 inch; COAL: 1.350 inches; Maximum COAL: 1.350 inches; Maximum Case Length: 1.075 inches; Trim to Length: 1.070 inches.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
77	Cast Lead Flat Point	3.4	998	col: 1.335"; 12,300 cup
85	Hornady HP	3.8	1,003	col: 1.290"; 20,700 cup
90	Hornady Lead Semi-Wadcutter	3.2	919	col: 1.350"; 12,500 cup
90	Sierra Jacketed Hollow Point	4.0	1,033	col: 1.340"; 20,300 cup
100	Speer Jacketed Hollow Point	3.7	947	col: 1.345"; 19,400 cup
Winchester Pistol Data case: Federal; BBL: 5"; PR: Federal 100; NEVER exceed loads listed
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
85	Hornady JHP	4.2	770	case expansion: maximum; accurate
in a 3 Inch Barrel H&R Model 504. Federal cases and Federal 100 primers used in all loads. All loads chronographed 10 feet from the muzzle with an Oehler Model 33 chronotach. Overall cartridge length refers to seating for Ruger; all loads for H&R had 1.33-inch OAL.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Hornady SWC (swaged alloy)	3.6	907	case expansion: normal; accuracy class (Ruger): B
90	Hornady SWC (swaged alloy)	4.0	1,007	case expansion: near max; accuracy class (Ruger): C
85	Hornady JHP	4.2	995	case expansion: maximum; accuracy class (Ruger): A; accurate
in a 6 1/2 Inch Barrel Ruger Bisley. Federal cases and Federal 100 primers used in all loads. All loads chronographed 10 feet from the muzzle with an Oehler Model 33 chronotach. Overall cartridge length refers to seating for Ruger; all loads for H&R had 1.33-inch OAL. Accuracy rating schedule: A+ = under 1-inch (at 20 yards); A = 1 to 1 1/4 inches; B = 1 1/4 + to 1 1/2 inches; C = 1 1/2 + to 2 inches; D = over 2 inches
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
98	Speer LHBWC	3.0	1,113	CFVentures soft gas checks used
in a Charter Arms Police Undercover
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
98	Speer LHBWC	3.0	1,073	CFVentures soft gas checks used
in a Colt Detective
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
85	Hornady HP XTP	3.0	794
85	Hornady HP XTP	3.6	897
85	Hornady HP XTP	4.2	1000
85	Hornady HP XTP	4.5	1104	maximum load
90	Hornady HBWC	2.5	800
90	Hornady HBWC	2.8	872
90	Hornady HBWC	3.1	956
90	Hornady HBWC	3.3	1040
90	Hornady HBWC	3.6	1120	maximum load
90	Hornady SWC	2.5	739
90	Hornady SWC	2.8	800
90	Hornady SWC	3.1	872
90	Hornady SWC	3.3	943
90	Hornady SWC	3.6	1011	maximum load
100	Hornady HP XTP	3.2	742	Do Not Reduce
100	Hornady HP XTP	3.4	858	maximum load
Revolver Using Hornady Bullets Gun: Ruger Single Six; barrel length: 6 1/2 inches; case: Starline; primer: Winchester Small Pistol; bullet diameter: .312"; 85 GR Hornady HP XTP & 90 GR SWC COAL: 1.350"; 90 GR HBWC COAL: 1.100"; 100 GR HP XTP COAL: 1.315"; maximum COAL: 1.350"; maximum case length: 1.075"; trim to length: 1.065".

.32 Smith & Wesson Short / .32 S&W Short

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Lyman 313249	1.4	413	bullet: sized .311 inch; OAL: .940 inch; case expansion: normal
for Class I Guns Principal test gun, S&W Model 31 Regulation Police with 3-inch barrel. Winchester-Western cases used in all loads. CCI 500 Small Pistol primers used in all loads. Oehler Model 35P Chronograph recorded velocities at 8 feet.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Lyman 313249	2.0	546	bullet: sized .311 inch; OAL: .940 inch; case expansion: normal
100	Lyman 313226	2.0	700	bullet: sized .312 inch; OAL: .950 inch; case expansion: near maximum; good load
for Class II Guns Principal test gun, S&W Model 31 Regulation Police with 3-inch barrel. Winchester-Western cases used in all loads. CCI 500 Small Pistol primers used in all loads. Oehler Model 35P Chronograph recorded velocities at 8 feet.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
85	Lead	1.4	595	start load
85	Lead	1.4	595	never exceed; 9,500 CUP
Lee Precision Data With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Min. OAL: 0.880. Small Pistol primer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
77	Cast #311252	1.9	641	sugg. start load; Remington cases and primers used
77	Cast #311252	2.5	800	max load; Remington cases and primers used; potentially most accurate load
Lyman Cast Bullet Handbook cases: Remington; Norma; trim-to length: .600"; primers: Winchester 1 1/2-108; primer size: Small Pistol; Lyman shell holder: No. 9; cast bullets used size to .310" dia.; firearm used: Smith & Wesson Model 31; barrel length: 4"; twist: 1-18 3/4"; groove diameter: .312"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
85	Lead	1.4	595	9,500 cup
Winchester Pistol Data case: Winchester; Barrel: 3"; Primer: Winchester SP; Twist: 1:18.75"; Trim: .600"; Dia: .314"; COL: .930"; NEVER exceed loads listed

.32 Smith & Wesson Long / .32 S&W Long

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
91	Lyman 313249	2.7	814	Case: Norma
91	Lyman 313249	3.0	905	Case: Norma, Good load, accurate.
112	Lyman 3118	2.5	721	Case: R-P
112	Lyman 3118	2.8	819	Case: R-P
in a 6-inch barrel Test gun for all loads was a Colt Officer's Model Heavy Barrel six inch length.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
98	Lead	2.3	737	start load; OAL: 1.230
98	Lead	2.4	765	never exceed; OAL: 1.230; 11,000 cup
Lee Precision Data With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Pistol primer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
93	Cast #313226	2.0	639	sugg. start load
93	Cast #313226	3.7	1064	max load
Lyman Cast Bullet Handbook cases: Remington; trim-to length: .915"; primers: Remington 1 1/2; primer size: Small Pistol; Lyman shell holder: No. 9; cast bullets used size to .312" dia.; firearm used: Smith & Wesson Model 31; barrel length: 4"; twist: 1-18 3/4"; groove diameter: .312"; NOTE: More Lyman cast bullet data available under .32 Smith & Wesson Long / .32 S&W Long Lyman Reloading Handbook 49th Edition
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
85	Hornady Jacketed HP	2.6	752	sugg. start load; 1.160" OAL; potentially most accurate load
85	Hornady Jacketed HP	2.9	835	max load; 1.160" OAL
75	Cast #311252	2.0	677	sugg. start load; 1.115" OAL
75	Cast #311252	3.5	1043	max load; 1.115" OAL
85	Cast #313249	2.5	779	sugg. start load; 1.210" OAL
85	Cast #313249	3.0	851	max load; 1.210" OAL
90	Hornady Swaged Lead HBWC	2.0	689	sugg. start load; .920" OAL; potentially most accurate load
90	Hornady Swaged Lead HBWC	2.3	771	max load; .920" OAL
Lyman Reloading Handbook 49th Edition cases: Remington; trim-to length: .910"; primers: Remington 1 1/2; primer size: Small Pistol; Lyman shell holder: No. 9; cast bullets used sized to .312" dia.; firearm used: Smith & Wesson Model 31; barrel length: 4"; twist: 1-18 3/4"; groove dia.: .312"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Speer CM	2.4	712	start charge; bullets cast in RCBS moulds; test firearm: S&W M31 3"
90	Speer CM	2.7	805	max charge; bullets cast in RCBS moulds; test firearm: S&W M31 3"
98	Speer SWC	2.4	722	start charge; bullets cast in RCBS moulds; test firearm: S&W M31 3"
98	Speer SWC	2.7	797	max charge; bullets cast in RCBS moulds; test firearm: S&W M31 3"
98	Speer HBWC	1.7	672	start charge; test firearm: Walther GSP 4"
98	Speer HBWC	1.9	739	max charge; test firearm: Walther GSP 4"
60	Speer GDHP	2.7	839	start charge; test firearm: S&W M31 3"
60	Speer GDHP	3.4	1014	max charge; test firearm: S&W M31 3"
100	Speer JHP	2.6	676	max charge; DO NOT REDUCE; test firearm: S&W K32 6"
Speer Reloading Manual #14 This is for the 32 S&W Long and 32 Colt New Police cartridges only. max. case length: 0.920"; trim-to length: 0.910"; max cart. OAL: 1.280"; RCBS shell holder: #23; cart. case: Remington; primer: CCI 500; maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
85	Hornady HP-XTP	2.0	594
85	Hornady HP-XTP	2.2	650
85	Hornady HP-XTP	2.4	717
85	Hornady HP-XTP	2.6	783
85	Hornady HP-XTP	2.8	845	maximum load
90	Hornady HBWC	1.8	677
90	Hornady HBWC	2.1	754
90	Hornady HBWC	2.3	831
90	Hornady HBWC	2.5	908	maximum load
90	Hornady SWC	1.8	591
90	Hornady SWC	2.1	661
90	Hornady SWC	2.3	731
90	Hornady SWC	2.5	802	maximum load
Using Hornady Bullets Gun: Ruger Single-Six; barrel length: 6 1/2-inch (Custom PAC-NOR); case: Starline; primer: Winchester Small Pistol; bullet diameter: .312"; 85 GR HP-XTP COAL: 1.160"; 90 GR HBWC COAL: .920"; 90 GR SWC COAL: 1.185"; maximum COAL: 1.280"; maximum case length: .920"; trim to length: .910".
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
77	RCBS 32-77RN	2.7	960	157 energy (ft-lb); group (in): 1.50
77	RCBS 32-77RN	3.0	1,053	189 energy (ft-lb); group (in): 1.80
84	RCBS 32-84WC	2.6	926	160 energy (ft-lb); group (in): 1.40; four shots
84	RCBS 32-84RN	2.6	884	143 energy (ft-lb); group (in): 1.00
115	RCBS 115-FN	2.6	838	178 energy (ft-lb); group (in): 1.91
in the Contender (Cast Bullets)
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
100	Speer Plinker	2.6	754	126 :energy (ft-lb); group (in):2.3
in the Contender (Jacketed Bullets)

.32-20 Winchester / .32 WCF

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
115	Flat Point	3.5	735	start load
115	Flat Point	4.0	840	max load
Oregon Trail Handgun Data test gun: Colt 5 1/2", WSP; OAL: 1.545; never reduce stated overall lengths; do not exceed maximum loads
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
77	LFP	3.4	957	starting load; COL: 1.555"; 11,000 cup
77	LFP	3.8	1031	maximum load; COL: 1.555"; 12,700 cup
90	Cast LRNFP	3.2	833	starting load; COL: 1.490"; 11,900 cup
90	Cast LRNFP	3.5	969	maximum load; COL: 1.490"; 16,000 cup
115	Cast LRNFP	3.2	839	starting load; COL: 1.580"; 11,100 cup
115	Cast LRNFP	3.5	915	maximum load; COL: 1.580"; 15,600 cup
Hodgdon Pistol Data case: Remington; barrel length: 5.5"; twist: 1:20"; trim length: 1.305"; primer: Winchester SP; bullet diam.: .314" (except where otherwise specified in remarks); NEVER EXCEED MAXIMUM LOADS
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
95	RCBS SWC	3.5	1,050	OAL (inches): 1.59
T/C Contender Only Loads 10-inch barrel
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
77	Lead Flat Point	3.8	1,031	col: 1.555"; 12,700 cup
90	Cast Lead Round Nose Flat Point	3.5	969	col: 1.490"; 16,000 cup
115	Cast Lead Round Nose Flat Point	3.5	915	col: 1.580"; 15,600 cup
Winchester Pistol Data case: Remington; BBL: 5.5"; PR: Winchester SP; NEVER exceed loads listed
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
100	NEI Keith SWC	3.5	1,208	extreme spread: 10; 75-yard group: 1.4 inches
Browning Model 53 (16,000 CUP)
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
100	NEI Keith SWC	3.5	876	extreme spread: 35; 25-yard group: 1.2 inches
Colt Single Action Army (16,000 CUP)
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
100	NEI Keith SWC	4.1	935	extreme spread: 32; 25-yard group: 1.0 inch
Colt Single Action Army (30,000 CUP)
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
85	Hornady Jacketed HP/XTP	3.2	745	sugg. start load; 1.535" OAL
85	Hornady Jacketed HP/XTP	4.7	1022	max load; 1.535" OAL
90	Sierra Jacketed HC	3.4	679	sugg. start load; 1.535" OAL
90	Sierra Jacketed HC	4.5	937	max load; 1.535" OAL
100	Speer Jacketed HP	3.6	657	sugg. start load; 11,000 cup; 1.560" OAL
100	Speer Jacketed HP	4.0	765	max load; 13,700 cup; 1.560" OAL
115	Cast #311008	3.1	782	sugg. start load; 1.530" OAL
115	Cast #311008	3.8	905	max load; 1.530" OAL; potentially most accurate load
Lyman Reloading Handbook 49th Edition cases: Winchester; trim-to length: 1.305"; primers: Winchester WSP; primer size: Small Pistol; Lyman shell holder: No. 10; cast bullets used sized to .313" dia.; firearm used: Ruger Blackhawk and Universal Receiver; barrel length: 6 1/2"; twist: 1-16"; groove dia.: .312"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
100	Remington lead	4.5	836	case: R-P; primer: R 1 1/2; expansion: normal; poor accuracy
113	Lyman 3118	4.3	808	case: Win.; primer: R 1 1/2; expansion: near max; accurate
115	Markell .30 Carbine	3.7	741	case: R-P; primer: F 100; expansion: moderate; accurate
115	Markell .30 Carbine	4.2	867	case: R-P; primer: F 100; expansion: normal
Revolver Velocities instrumental at nine feet from muzzle of Smith & Wesson Model 1905 with six-inch barrel.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
98	Speer SWC	2.9	816	start charge
98	Speer SWC	3.3	941	maximum charge
Speer Reloading Manual #14 max. case length: 1.315"; trim-to length: 1.305"; max cart. OAL: 1.592"; RCBS shell holder: #1; cart. case: Starline; primer: CCI 500; test firearm: Bowen Classic Arms Custom Ruger; barrel length: 7.5"; these bullets were cast in RCBS moulds; maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
100	Alberts HBWC	2.5	720	OAL (inches): 1.4
95	RCBS 95 SWC	3.5	820	OAL (inches): 1.59
95	JHP	3.5	800	OAL (inches): 1.59
Revolver Load Data Velocities from 4-inch barrel.

.327 Federal Magnum

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
85	Hornady XTP-HP	5.8	1202	rounds per pound: 1,207
95	Cast Performance SWC	4.0	970	rounds per pound: 1,750
116	Lyman 311008	3.5	872	rounds per pound: 2,000
Economical Midrange Loads firearm used: Ruger SP101; primer: CCI 500; case: Federal; barrel length: 3 1/16"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
77	Cast LFP	5.1	1273	start load; bullet diam.: .314"; COL: 1.460"; 20,700 psi
77	Cast LFP	5.8	1380	max load; bullet diam.: .314"; COL: 1.460"; 25,000 psi
85	Hornady XTP	5.5	1299	start load; COL: 1.450"; 34,000 psi
85	Hornady XTP	6.0	1416	max load; COL: 1.450"; 39,800 psi
90	LHBWC	2.3	781	start load; bullet diam.: .314"; COL: 1.200"; 14,600 psi
90	LHBWC	2.7	878	max load; bullet diam.: .314"; COL: 1.200"; 15,000 psi
90	Sierra JHC	5.4	1279	start load; COL: 1.460"; 32,100 psi
90	Sierra JHC	6.1	1415	max load; COL: 1.460"; 43,000 psi
115	MEI LRNFP	4.3	1053	start load; COL: 1.460"; 27,400 psi
115	MEI LRNFP	5.3	1218	max load; COL: 1.460"; 41,200 psi
Hodgdon Data Case: Federal; barrel length: 5"; twist: 1:16"; trim length: 1.200"; primer: Federal 200; bullet diam.: .312 (except where otherwise specified in remarks). NEVER EXCEED MAXIMUM LOADS
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
85	Hornady HP XTP	5.7	1347
85	Hornady HP XTP	6.1	1403	maximum load
100	Hornady HP XTP	5.3	1212
100	Hornady HP XTP	5.8	1304	maximum load
Using Hornady Bullets Gun: USFA Sparrow Hawk; barrel length: 7 1/2 inches; case: Federal Cartridge; primer: Federal #205; bullet diameter: .312"; COAL: 1.450"; maximum COAL: 1.475"; maximum case length: 1.200"; trim to length: 1.190".
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
78	Oregon Trail cast roundnose	4.0	840	primer: CCI 500; case: Federal; OAL (inches): 1.4570; load gave notable accuracy
78	Oregon Trail cast roundnose	4.5	944	primer: CCI 500; case: Federal; OAL (inches): 1.4570
83	Lyman 313249 (Linotype)	5.0	1069	primer: CCI 500; case: Federal; OAL (inches): 1.4570
83	Lyman 313249 (Linotype)	6.0	1358	primer: CCI 500; case: Federal; OAL (inches): 1.4570
85	Hornady XTP-HP	5.3	1137	primer: CCI 550; case: Speer; OAL (inches): 1.4475
85	Hornady XTP-HP	5.8	1202	primer: CCI 550; case: Speer; OAL (inches): 1.4475; load gave notable accuracy
85	Hornady XTP-HP	6.3	1296	primer: CCI 550; case: Speer; OAL (inches): 1.4475
95	Cast Performance Keith-style	4.0	970	primer: CCI 500; case: Federal; OAL (inches): 1.4355; load gave notable accuracy
95	Cast Performance Keith-style	4.5	1047	primer: CCI 500; case: Federal; OAL (inches): 1.4355
95	Cast Performance Keith-style	5.0	1139	primer: CCI 500; case: Federal; OAL (inches): 1.4355
95	Cast Performance Keith-style	5.5	1235	primer: CCI 500; case: Federal; OAL (inches): 1.4355
98	Speer hollow-base WC	2.5	632	primer: CCI 500; case: Federal; OAL (inches): 1.3100; don't reduce
98	Speer hollow-base WC	3.0	701	primer: CCI 500; case: Federal; OAL (inches): 1.3100
116	Lyman 311008	3.5	872	primer: CCI 500; case: Federal; OAL (inches): 1.5100load gave notable accuracy
116	Lyman 311008	4.5	1077	primer: CCI 500; case: Federal; OAL (inches): 1.5100
116	Lyman 311008	5.0	1159	primer: CCI 500; case: Federal; OAL (inches): 1.5100
Firearm used was a Ruger SP101 with a 3 1/16-inch barrel. Federal Cartridge and Speer cases used as noted. Maximum case length: 1.200 inches.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
95	Redding 325 cast SWC	4.0	988	primer: CCI 500
in a USFA Sparrow Hawk Loads were fired from a 7 1/2-inch barreled USFA Sparrow Hawk in Federal cases. Case length: 1.200 inches.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
78	Oregon Trail cast roundnose	4.0	840	primer: CCI 500; case: Federal; overall loaded length (inches): 1.4570
78	Oregon Trail cast roundnose	4.5	944	primer: CCI 500; case: Federal; overall loaded length (inches): 1.4570
85	Hornady XTP-HP	5.3	1137	primer: CCI 550; case: Speer; overall loaded length (inches): 1.4475
85	Hornady XTP-HP	5.8	1202	primer: CCI 550; case: Speer; overall loaded length (inches): 1.4475
85	Hornady XTP-HP	6.3	1296	primer: CCI 550; case: Speer; overall loaded length (inches): 1.4475
95	Cast Performance Keith-style	4.0	970	primer: CCI 500; case: Federal; overall loaded length (inches): 1.4355
95	Cast Performance Keith-style	4.5	1047	primer: CCI 500; case: Federal; overall loaded length (inches): 1.4355
95	Cast Performance Keith-style	5.0	1139	primer: CCI 500; case: Federal; overall loaded length (inches): 1.4355
95	Cast Performance Keith-style	5.5	1235	primer: CCI 500; case: Federal; overall loaded length (inches): 1.4355
98	Speer hollowbase wadcutter	2.5	632	don't reduce; primer: CCI 500; case: Federal; overall loaded length (inches): 1.3100
98	Speer hollowbase wadcutter	3.0	701	primer: CCI 500; case: Federal; overall loaded length (inches): 1.3100
116	Lyman 311008 cast FP	3.5	872	primer: CCI 500; case: Federal; overall loaded length (inches): 1.5100
116	Lyman 311008 cast FP	4.5	1077	primer: CCI 500; case: Federal; overall loaded length (inches): 1.5100
116	Lyman 311008 cast FP	5.0	1159	primer: CCI 500; case: Federal; overall loaded length (inches): 1.5100
Firearms used for testing these loads was a Ruger SP101 with a 3 1/16-inch barrel. Federal and Speer cases and CCI 500 and CCI 550 primers were used throughout. Case length: 1.200 inches; throat: .313 inch; barrel cylinder gap: .006 inch; groove diameter: .3123 inch.

.357 Magnum

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
158	RCBS 38-150-WC cast	5.5	996	barrel length: 4 5/8"; rounds per pound: 1,273
158	Oregon Trail cast SWC	5.5	996	barrel length: 7 1/2"; rounds per pound: 1,273
Economical Midrange Loads A variety of firearms were used. primer: CCI 500 (except where otherwise specified in remarks); case: Starline
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
158	Speer LSWC or LSWC HP	4.9	897	start charge; does not reach maximum pressure
158	Speer LSWC or LSWC HP	5.4	989	maximum charge; does not reach maximum pressure
110	Speer UCHP	8.5	1231	start charge
110	Speer UCHP	9.5	1319	maximum charge
125	Speer UCSP, GDHP, UCHP or TMJ FN	7.6	1129	start charge
125	Speer UCSP, GDHP, UCHP or TMJ FN	8.3	1168	maximum charge
140	Speer UCHP	7.1	1105	maximum charge; DO NOT REDUCE
Speer Reloading Manual #14 max. case length: 1.290"; trim-to length: 1.280"; max cart. OAL: 1.590"; RCBS shell holder: #6; cart. case: Speer; primer: CCI 500 (except where otherwise specified in remarks); test firearm: S&W model 19; barrel length: 6"; NOTE: Do not use the 110-grain Gold Dot SB HP (#4009) in the 357 Magnum; maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
110	Jacketed	8.2	1473	start load; min OAL: 1.540
110	Jacketed	8.8	1575	never exceed; min OAL: 1.540; 42,500 cup
125	Jacketed	7.5	1366	start load; min OAL: 1.540
125	Jacketed	8.1	1460	never exceed; min OAL: 1.540; 42,500 cup
148	Wadcutter	3.4	880	start load; min OAL: 1.330
148	Wadcutter	3.4	880	never exceed; min OAL: 1.330; 19,500 cup
150	Lead	6.5	1233	start load; min OAL: 1.540
150	Lead	6.9	1305	never exceed; min OAL: 1.540; 42,000 cup
158	Jacketed	6.5	1189	start load; min OAL: 1.590
158	Jacketed	6.9	1260	never exceed; min OAL: 1.590; 42,000 cup
158	Lead	6.2	1192	start load; min OAL: 1.540
158	Lead	6.7	1275	never exceed; min OAL: 1.540; 42,500 cup
200	Lead	5.1	990	start load; min OAL: 1.540
200	Lead	5.5	1060	never exceed; min OAL: 1.540; 42,500 cup
Lee Precision Data Small Pistol Primer. With NEVER EXCEED LOADS maintain Minimum Over All Length or longer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
110	JHP	8.8	1,575	42,500 cup
125	JHP	8.1	1,460	42,500 cup
148	WC	3.4	880	19,500 cup
150	Lead	6.9	1,305	42,000 cup
158	JHP	6.9	1,260	42,000 cup
158	Lead	6.7	1,275	42,500 cup
200	Lead	5.5	1,060	42,500 cup
Winchester Handgun Data trim to length: 1.285"; max. overall length with bullet seated: 1.590"; nominal bullet diameter (jacketed): .358"; barrel length: 8.375"; WARNING FOR 296 POWDER: loads using 296 powder require heavy bullet pull (heavy crimp); using 296 powder with light bullet pull (light crimp) may result in squib loads and cause damage to the firearm, shooter and/or bystanders; all loads shown are maximum charge wt. (grs.)
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
110	Hornady XTP	9.0	1,652	col: 1.590"; 42,500 cup
125	Cast LRNFP	5.5	1,185	col: 1.580"; 18,800 cup
125	Hornady XTP	8.5	1,514	col: 1.590"; 42,700 cup
135	Cast LRNFP	5.3	1,027	col: 1.580"; 19,400 cup
140	Hornady XTP	7.7	1,378	col: 1.590"; 41,900 cup
146	Speer Jacketed Hollow Point	7.1	1,330	col: 1.535"; 42,200 cup
148	Hornady LHBWC	3.4	908	col: 1.290"; 17,600 cup
150	Nosler Jacketed Flat Point	7.0	1,269	col: 1.590"; 39,700 cup
158	Cast LSWC	5.0	1,109	col: 1.610"; 23,900 cup
158	Hornady XTP	6.9	1,220	col: 1.580"; 40,000 cup
Winchester Pistol Data case: Winchester; BBL: 10"; PR: Winchester SPM; NEVER exceed loads listed
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
92	Cast #358242	8.1	1329	sugg. start load; 25,600 cup
92	Cast #358242	10.1	1629	max load; 41,200 cup
115	Cast #358345	6.4	1166	sugg. start load; 23,900 cup
115	Cast #358345	8.4	1442	max load; 40,600 cup
Lyman Cast Bullet Handbook cases: Federal; trim-to length: 1.285"; primers: CCI 550; primer size: Small Pistol Magnum; Lyman shell holder: No. 1; cast bullets used size to .357" dia.; firearm used: Universal Receiver and Special Vented Barrel; barrel length: 4"; twist: 1-18 3/4"; groove diameter: .356"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
110	Speer Jacketed HP	8.9	1142	sugg. start load; 29,300 cup; 1.590" OAL
110	Speer Jacketed HP	9.5	1328	max load; 37,500 cup; 1.590" OAL
Lyman Reloading Manual 49th Edition cases: Federal; trim-to length: 1.280"; primers: CCI 550; primer size: Small Pistol, Magnum; Lyman shell holder: No. 1; firearm used: Universal Receiver; barrel length: 4"; twist: 1-18 3/4"; groove dia.: .356"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Cast #356242	8.1	1329	sugg. start load; 1.585" OAL; 25,600 cup
90	Cast #356242	10.1	1629	max load; 1.585" OAL; 41,200 cup
Cast Bullet Data Lyman Reloading Manual 49th Edition cases: Federal; trim-to length: 1.280"; primers: CCI 550"; primer size: Small Pistol, Magnum; Lyman shell holder: No. 1; cast bullets used sized to .357" dia.; firearm used: Universal Receiver; barrel length: 4"; twist: 1-18 3/4"; groove dia.: .356"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
158	Bull-X SWCBB	5.5	991	2.12 inch group (25 yards)
in a 7 1/2 inch Ruger Bisley
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
156	RCBS 38-150-SWC cast	5.5	996	primer: CCI 500
New Ruger Model Blackhawk Flat Top Starline cases used throughout.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
110	Hornady XTP	8.0	1541	start load; COL: 1.590"; 36,200 cup
110	Hornady XTP	9.0	1652	max load; COL: 1.590"; 42,500 cup
125	Cast LRNFP	4.6	1052	start load; bullet diam.: .358"; COL: 1.580"; 13,800 cup
125	Cast LRNFP	5.5	1185	max load; bullet diam.: .358"; COL: 1.580"; 18,800 cup
125	Hornady XTP	7.3	1335	start load; COL: 1.590"; 33,800 cup
125	Hornady XTP	8.5	1514	max load; COL: 1.590"; 42,700 cup
135	Cast LRNFP	4.1	946	start load; bullet diam.: .358"; COL: 1.580"; 11,700 cup
135	Cast LRNFP	5.3	1027	max load; bullet diam.: .358"; COL: 1.580"; 19,400 cup
140	Hornady XTP	6.5	1219	start load; COL: 1.590"; 30,800 cup
140	Hornady XTP	7.7	1378	max load; COL: 1.590"; 41,900 cup
146	Speer JHP	6.0	1176	start load; COL: 1.535"; 32,100 cup
146	Speer JHP	7.1	1330	max load; COL: 1.535"; 42,200 cup
148	Hornady LHBWC	3.0	845	start load; bullet diam.: .358"; COL: 1.290"; 14,300 cup
148	Hornady LHBWC	3.4	908	max load; bullet diam.: .358"; COL: 1.290"; 17,600 cup
158	Cast LSWC	3.4	796	start load; bullet diam.: .358"; COL: 1.610"; 12,600 cup
158	Cast LSWC	5.0	1109	max load; bullet diam.: .358"; COL: 1.610"; 23,900 cup
158	Hornady XTP	6.2	1108	start load; COL: 1.580"; 33,700 cup
158	Hornady XTP	6.9	1220	max load; COL: 1.580"; 40,000 cup
Hodgdon Data Case: Winchester; barrel length: 10"; twist: 1:18.75"; trim length: 1.285"; primer: Winchester SPM; bullet diam.: .357" (except where otherwise specified in remarks). NEVER EXCEED MAXIMUM LOADS
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
180	Flat Point	4.0	760	maximum load; minimum OAL: 1.580
Oregon Trail Handgun/Cowboy Loads test gun: Smith & Wesson M-686 6", WSP; do not exceed maximum loads; never reduce stated overall lengths

.357 SIG

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
125	Bushwacker SWC	5.0	1,058	group: 1.39 inches; muzzle energy: 132 ft-lbs; limited class match load
125	Bushwacker SWC	5.5	1,121	group: 2.48 inches; muzzle energy: 140 ft-lbs
in a Springfield XD Starline cases and Winchester Small Pistol primers were used for all handloads. Springfield Armory XD pistol with a 4-inch barrel and fixed open sights was used for testing. Velocities were taken 12 feet from the muzzle with an Oehler Model 33 or Model 35P chronograph. Accuracy is the average of three, five-shot groups at 15 yards from a sandbag rest. Range temperatures were 62 to 76 degrees Fahrenheit. .355-inch jacketed bullets and .356-inch cast bullets.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
125	Bushwacker SWC	4.5	1,004	group: 4.65 inches
125	Bushwacker SWC	5.0	1,074	group: 1.71 inches; nice, mild load
in an S&W 4006 Smith & Wesson Model 4006 with a custom Bar-Sto 4-inch barrel and Millett adjustable open sights was used for testing. Starline cases and Winchester Small Pistol primers (WSP) were used for all handloads. Velocities were taken 12 feet from the gun's muzzle with an Oehler Model 33 or Model 35P chronograph. Accuracy is the average of three, five-shot groups at 15 yards from a sandbag rest. Range temperatures wer 58 to 74 degrees Fahrenheit. .355-inch jacketed and .356-inch cast bullets.

.38 Automatic / .38 ACP

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
124	Round Nose	4.6	1,078
Oregon Trail Handgun Data test gun: Caspian 1911, 5" Bar-Sto, WSP; OAL: 1.250; do not exceed maximum loads; never reduce stated overall lengths
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
130	Jacketed	4.4	875	start load; min OAL: 1.260
130	Jacketed	4.4	875	never exceed; min OAL: 1.260; 20,000 cup
Lee Precision Data CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Pistol primer.

.38 Smith & Wesson

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
145	Lead	2.6	669	start load; min OAL: 1.160
145	Lead	2.6	675	never exceed; min OAL: 1.160; 11,500 cup
Lee Precision Data With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Pistol primer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
145	Lead	2.6	675	maximum load; dia: .358"; COL: 1.180"; 11,500 cup
Hodgdon Pistol Data case: Winchester; barrel length: 4"; twist: 1:18.75"; trim length: .765"; primer: Winchester SP; bullet diam.: .359"; COL: 1.200" (except where otherwise specified in remarks); NEVER EXCEED MAXIMUM LOADS
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
158	Round Nose Flat Point (.358)	2.0	585	maximum load
Oregon Trail Handgun Data test gun: H&R 3 1/2", WSP; OAL: 1.080; do not exceed maximum loads; never reduce stated overall lengths; load exactly as stated; do not exceed these loads for top-break revolvers!
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
110	Speer GDHP SB	2.9	725	start charge
110	Speer GDHP SB	3.2	797	maximum charge
125	Speer UCSP or USHP	3.0	662	DO NOT REDUCE; maximum charge
158	Speer LSWC, LSWC HP or LRN	2.3	593	start charge
158	Speer LSWC, LSWC HP or LRN	2.6	671	maximum charge
Speer Reloading Manual #14 max. case length: 0.775"; trim-to length: 0.765"; max cart. OAL: 1.240"; RCBS shell holder: #6; cart. case: Winchester; primer: CCI 500; test firearm: S&W Model 33; barrel length: 4"; maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
145	Lead	2.6	675	11,500 cup
Winchester Pistol Data case: Winchester; BBL: 4"; PR: Winchester SP; COL: 1.180"; NEVER exceed loads listed
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
92	Cast #358242	2.7	719	sugg. start load; Special Pressure Test Barrel; 6,500 cup
92	Cast #358242	3.6	944	max load; Special Pressure Test Barrel; 12,100 cup
121	Cast #358242	2.0	610	sugg. start load; Special Pressure Test Barrel; 6,900 cup
121	Cast #358242	2.8	798	max load; Special Pressure Test Barrel; 12,400 cup
133	Cast #358480	1.9	568	sugg. start load; Special Pressure Test Barrel; 6,400 cup
133	Cast #358480	2.8	786	max load; Special Pressure Test Barrel; 12,300 cup
141	Cast #358495	1.7	537	sugg. start load; Special Pressure Test Barrel; 6,900 cup
141	Cast #358495	2.3	705	max load; Special Pressure Test Barrel; 11,700 cup; potentially most accurate load
158	Cast #358311	1.5	486	sugg. start load; Special Pressure Test Barrel; 4,600 cup
158	Cast #358311	2.5	727	max load; Special Pressure Test Barrel; 12,400 cup
Lyman Cast Bullet Handbook cases: Winchester; trim-to length: .765"; primers: Winchester 1 1/2-108; primer size: Small Pistol; Lyman shell holder: No. 21; cast bullets used size to .360" dia.; firearm used: Special Pressure test barrel; Smith & Wesson Model 33; barrel length: 4"; twist: 1-18 3/4"; groove diameter: .361"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
150	Cast #358477	2.1	588	sugg. start load; OAL: 1.070"; 8,600 cup
150	Cast #358477	2.4	692	max load; OAL: 1.070"; 11,800 cup
160	Cast #358311	2.1	632	sugg. start load; OAL: 1.150"; 9,800 cup
160	Cast #358311	2.4	700	max load; OAL: 1.150"; 12,300 cup
195	Cast #358430	1.6	489	sugg. start load; OAL: 1.175"; 9,100 cup
195	Cast #358430	1.8	550	max load; OAL: 1.175"; 11,200 cup
Cast Bullet Data Lyman Reloading Handbook 49th Edition cases: Remington; trim-to length: .765"; primers: CCI 500; primer size: Small Pistol; Lyman shell holder: No. 21; cast bullets used sized to .359" dia.; firearm used: Universal Receiver; barrel length: 5 1/2"; twist: 1-14"; groove dia.: .358"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
146		3.0	700
158		2.7	670
Commercial/Military Loads
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
158	Hornady swaged SWC (lead)	2.8	689	case: R-P; OAL: 1.18; case expansion: moderate; accurate load
158	Hornady JSP (jacketed)	3.4	741	case: P; OAL: 1.10; case expansion: near max.; good load
148	Lyman 358495 (lead)	2.4	700	case: R-P; OAL: 1.00; case expansion: normal
110	Hornady JHP (jacketed)	3.5	738	case: P; OAL: 1.04; case expansion: normal; accurate
High Power Loads Warning! The loads in this table are not, UNDER ANY CIRCUMSTANCES, suitable for older American "top-break" revolvers chambered for the .38 Smith & Wesson cartridge. British top-break Webleys and Enfields are safe; cartridge designations may be .38-200, .380 Rim, or .380 Mk 1. The Smith & Wesson "Victory" model, a Military & Police variant, is safe. Solid-frame U.S. guns suitable are Smith & Wesson Regulation Police and Terrier models, Colt Police Positive, Detective Special, and Bankers Special models. Caliber designation of these guns is generally .38 Smith & Wesson, but may be .38 S&W Super Police or .38 Colt New Police. Notes: Velocities shown are instrumental taken at ten feet from the muzzle. Test gun was Ruger Service-Six revolver with four-inch barrel, chambered for the .380 Rim cartridge. Cases used were new Remington-Peters and old Peters. Peters cases had greater powder capacity. Alcan Small Pistol primers used for all loads. Oehler Model 31 Chronotach and Model 51 electronic screens used to measure bullet velocities.

.38 S&W Special / .38 Smith & Wesson Special

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
158	Hornady lead SWC-HP	4.3	831	rounds per pound: 1,628
Economical Midrange Loads firearm used: Smith & Wesson Model 14; primer: Federal 100; case: Starline: barrel length: 6"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
147	Hensley & Gibbs #50 wadcutter	3.1	687	overall loaded length (inches): 1.275
160	Lyman 358156 SWC GC	4.5	871	overall loaded length (inches): 1.45
160	Lyman 358156 SWC GC	4.9 (+P)	946	good accuracy; overall loaded length (inches): 1.45
160	Lyman 358311 RN	4.3	850	good accuracy; overall loaded length (inches): 1.52
160	Lyman 358311 RN	5.0 (+P)	955	overall loaded length (inches): 1.52
166	Lyman 358429 SWC	4.3	840	overall loaded length (inches): 1.52
140	Hornady HP/XTP	5.0	704	overall loaded length (inches): 1.46
110	Sierra JHP	5.5	906	good accuracy; overall loaded length (inches): 1.45
110	Sierra JHP	6.0 (+P)	1001	good accuracy; overall loaded length (inches): 1.45
158	Sierra JHC	4.5	700	overall loaded length (inches): 1.45
125	Speer JSP	5.6	846	overall loaded length (inches): 1.46
Chronographed average velocities recorded with a range temperature that varied from approximately 70 to 80 degrees Fahrenheit. Accuracy testing performed from a benchrest at 25 yards. All data was safe in the test revolver. Load data is intended for use only by competent persons experienced in the proper and safe practice of handloading ammunition.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
155	Lyman 358439 HP	4.5	894
Cast Bullet - Lyman Mould Revolver used: Smith & Wesson Model 14, 6-inch barrel; overall loaded length (inches): 1.50; Lyman 358439 HP (wheelweight alloy) sized to .358 inch; Velocity figures are the average of at least six rounds fired approximately 10 feet from the muzzle using an Oehler Model 35P chronograph. Ambient temperature during testing averaged 58 degrees Fahrenheit. CCI standard velocity primers used. Loads were assembled using Winchester cases. All loads should be reduced 5 percent for initial load development. This data is intended only for use by persons experienced in the proper and safe practice of handloading ammunition.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Cast #356242 (Linotype)	3.5	689	sugg. start load; 1.456" OAL; 5,900 cup
90	Cast #356242 (Linotype)	5.7	1104	max load; 1.456" OAL; 16,300 cup
90	Cast #356242 (Linotype)	6.0 (+P)	1163	max load; 1.456" OAL; 17,800 cup
120	Cast #356242 (Linotype)	3.4	693	sugg. start load; 1.450" OAL; 8,800 cup
120	Cast #356242 (Linotype)	5.1	986	max load; 1.450" OAL; 16,600 cup
120	Cast #356242 (Linotype)	5.4 (+P)	1036	max load; 1.450" OAL; 17,900 cup
150	Cast #358091 (Linotype)	3.7	872	sugg. start load; 1.317" OAL; 14,400 cup
150	Cast #358091 (Linotype)	4.2	942	max load; 1.317" OAL; 16,200 cup
155	Cast gas check #358156 (Linotype)	3.5	680	sugg. start load; 1.460" OAL; 11,100 cup
155	Cast gas check #358156 (Linotype)	4.7	885	max load; 1.460" OAL; 16,800 cup
155	Cast gas check #358156 (Linotype)	5.0 (+P)	934	max load; 1.460" OAL; 18,000 cup
158	Cast #358665 (Linotype)	3.6	769	sugg. start load; 1.445" OAL; 13,100 cup
158	Cast #358665 (Linotype)	4.0	837	max load; 1.445" OAL; 15,900 cup; potentially most accurate load
160	Cast #358311 (Linotype)	3.5	675	sugg. start load; 1.550" OAL; 9,600 cup
160	Cast #358311 (Linotype)	4.9	906	max load; 1.550" OAL; 16,800 cup
160	Cast #358311 (Linotype)	5.2 (+P)	956	max load; 1.550" OAL; 18,500 cup
170	Cast #358429 (Linotype)	3.0	599	sugg. start load; 1.537" OAL; 9,300 cup
170	Cast #358429 (Linotype)	4.6	855	max load; 1.537" OAL; 16,900 cup
Cast Bullet Data Lyman Reloading Handbook 49th Edition cases: Federal; trim-to length: 1.149"; primers: CCI 500; primer size: Small Pistol; Lyman shell holder: No. 1; cast bullets used sized to .358" dia.; firearm used: Universal Receiver; barrel length: 4"; twist: 1-18 3/4"; groove dia.: .357"; (+P) designates higher pressure loads
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
110	Hornady XTP	4.6	948	start load; bullet diam.: .357"; COL: 1.455"; 12,600 cup
110	Hornady XTP	5.5	1096	max load; bullet diam.: .357"; COL: 1.455"; 16,300 cup
125	Hornady XTP	4.3	826	start load; bullet diam.: .357"; COL: 1.455"; 13,300 cup
125	Hornady XTP	4.9	934	max load; bullet diam.: .357"; COL: 1.455"; 16,300 cup
125	Cast LRNFP	3.8	876	start load; bullet diam.: .358"; COL: 1.445"; 10,300 cup
125	Cast LRNFP	4.8	1071	max load; bullet diam.: .358"; COL: 1.445"; 16,900 cup
135	Cast LRNFP	3.7	872	start load; bullet diam.: .358"; COL: 1.418"; 12,500 cup
135	Cast LRNFP	4.7	1024	max load; bullet diam.: .358"; COL: 1.418"; 17,000 cup
140	Hornady XTP	4.2	809	start load; bullet diam.: .357"; COL: 1.455"; 13,900 cup
140	Hornady XTP	4.6	861	max load; bullet diam.: .357"; COL: 1.455"; 15,800 cup
140	Hornady Cowboy	4.1	861	start load; bullet diam.: .358"; COL: 1.450"; 12,400 psi
140	Hornady Cowboy	4.6	980	max load; bullet diam.: .358"; COL: 1.450"; 16,100 psi
146	Speer JHP	4.0	773	start load; bullet diam.: .357"; COL: 1.370"; 12,700 cup
146	Speer JHP	4.5	876	max load; bullet diam.: .357"; COL: 1.370"; 15,500 cup
148	Hornady LHBWC	3.5	869	start load; bullet diam.: .358"; COL: 1.160"; 14,200 cup
148	Hornady LHBWC	4.0	956	max load; bullet diam.: .358"; COL: 1.160"; 15,900 cup
158	Hornady XTP	3.8	661	start load; bullet diam.: .357"; COL: 1.455"; 12,600 cup
158	Hornady XTP	4.3	779	max load; bullet diam.: .357"; COL: 1.455"; 15,900 cup
158	Cast LSWC	3.1	782	start load; bullet diam.: .358"; COL: 1.475"; 11,900 cup
158	Cast LSWC	3.7	834	max load; bullet diam.: .358"; COL: 1.475"; 14,600 cup
170	Sierra JHC	3.8	683	start load; bullet diam.: .357"; COL: 1.450"; 12,200 cup
170	Sierra JHC	4.1	752	max load; bullet diam.: .357"; COL: 1.450"; 15,800 cup
Hodgdon Pistol Data Case: Winchester; twist: 1:18.75"; primer: Winchester SP, Small Pistol; barrel length: 7.7"; trim length: 1.145".
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
92	Cast #358242	3.5	689	sugg. start load; 5,900 cup
92	Cast #358242	5.7	1104	max load; 16,300 cup
92	Cast #358242	6.0 (+P)	1163	max load; higher pressure load- see NOTES; 17,800 cup
121	Cast #358242	3.4	693	sugg. start load; 8,800 cup
121	Cast #358242	5.1	986	max load; 16,600 cup
121	Cast #356402	3.5	765	sugg. start load; 9,500 cup
121	Cast #356402	4.8	1008	max load; 16,100 cup
121	Cast #356402	5.2 (+P)	1054	max load; higher pressure load- see NOTES; 18,000 cup
141	Cast #358495	3.0	667	sugg. start load; 8,500 cup
141	Cast #358495	4.9	1001	max load; 16,800 cup; potentially most accurate load
146	Cast #358212	3.2	617	sugg. start load; 7,900 cup
146	Cast #358212	5.0	930	max load; 16,700 cup
148	Cast #35863	2.5	600	sugg. start load; 6,600 cup
148	Cast #35863	4.1	957	max load; 16,000 cup
148	Cast #35891	2.8	626	sugg. start load; 7,900 cup
148	Cast #35891	4.6	914	max load; 15,600 cup; potentially most accurate load
158	Cast #358156 gas check	3.5	680	sugg. start load; 11,100 cup
158	Cast #358156 gas check	4.7	885	max load; 16,800 cup
158	Cast #358156 gas check	5.0 (+P)	934	max load; higher pressure load- see NOTES; 18,000 cup
158	Cast #358311	3.5	675	sugg. start load; 9,600 cup
158	Cast #358311	4.9	906	max load; 16,800 cup; potentially most accurate load
158	Cast #358311	5.2 (+P)	956	max load; higher pressure load- see NOTES; 18,500 cup
162	Cast #357446	3.4	702	sugg. start load; 10,400 cup
162	Cast #357446	4.6	896	max load; 16,000 cup
168	Cast #358429	3.0	599	sugg. start load; 9,300 cup
168	Cast #358429	4.6	855	max load; 16,900 cup
Lyman Cast Bullet Handbook 3rd Edition cases: Federal; trim-to length: 1.149"; primers: CCI 500; primer size: Small Pistol; Lyman shell holder: No. 1; cast bullets used size to .357" dia.; firearm used: Universal Receiver and Special Vented Barrel; barrel length: 4"; twist: 1-18 3/4"; groove diameter: .357". NOTE: More Lyman cast bullet data available under .38 Special (Cast Bullet Data Lyman Reloading Manual 49th Edition) and .38 Special (Lyman Cast Bullet Handbook 4th Edition). NOTE: Loads designated with the symbol (+P) are higher pressure loads to give greater velocities. These loads should be used only in arms recommended for (+P) type cartridges by the gun manufacturer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
105	Lee #358-105-SWC	4.2	809	sugg. start load; 11,800 psi
105	Lee #358-105-SWC	5.3	1059	max load; 17,000 psi
105	Lee #358-105-SWC	5.6	1090	+P - higher pressure load; 17,800 psi
Lyman Cast Bullet Handbook 4th Edition cases: Federal; trim-to length: 1.149"; primer: CCI 500; primer size: Small Pistol; Lyman shell holder: No. 1; cast bullets used sized to .358" dia.; firearm used: Universal Receiver; barrel length: 4"; twist: 1-18 3/4"; groove dia.: .357"; 1.450" OAL. NOTE: Loads designated with a +P symbol are higher pressure loads and must not be used in standard 38 Special revolvers unless the manufacturer has specifically stated that the use of such ammunition is acceptable in the particular firearm.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
110	Speer Jacketed HP	5.1	844	sugg. start load; 1.430" OAL; 12,700 cup
110	Speer Jacketed HP	5.7	949	max load; 1.430" OAL; 15,100 cup
110	Speer Jacketed HP	6.3 (+P)	1062	max load; 1.430" OAL; 18,400 cup
140	Speer Jacketed HP	3.9	496	sugg. start load; 1.470" OAL; 12,100 cup
140	Speer Jacketed HP	4.7	684	max load; 1.470" OAL; 15,800 cup; potentially most accurate load
125	Hornady Jacketed HP	3.9	589	sugg. start load; 1.470" OAL; 10,600 cup
125	Hornady Jacketed HP	5.1	820	max load; 1.470" OAL; 15,600 cup
125	Hornady Jacketed HP	5.4 (+P)	882	max load; 1.470" OAL; 18,300 cup
Lyman Reloading Handbook 49th Edition Warning! cases: Federal; trim-to length: 1.149"; primers: CCI 500; primer size: Small Pistol; Lyman shell holder: No. 1; firearm used: Universal Receiver; barrel length: 4"; twist: 1-18 3/4"; groove dia.: .357"; (+P) designates higher pressure loads
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
148	BB-WC	4.7	926	maximum load
148	BB-WC	4.1	811
148	HB-WC	3.3	804	maximum load
148	HB-WC	3.0	749
158	L-SWC, L-HP, L-RN	4.3	863	maximum load
158	L-SWC, L-HP, L-RN	3.8	783
110	JHP	5.6	1,005	maximum load
125	JSP, GD-HP, JHP, TMJ	5.6	944	maximum load; DO NOT REDUCE
Speer Reloading Manual #13 max. case length: 1.155"; trim-to length: 1.145"; max. cart. length: 1.550"; RCBS shellholder: #6; barrel length: 6"; twist: 1-18.75"; test firearm: Smith & Wesson Model 14; case: Speer; primers: CCI 500, 550; for the 147 grain cast bullets: seat to and roll-crimp into the front lube groove; use maximum loads with caution
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
148	Speer HBWC	3.0	749	start charge; seat bullet flush with case mouth; use a light roll or taper crimp
148	Speer HBWC	3.3	804	maximum charge; seat bullet flush with case mouth; use a light roll or taper crimp
158	Speer LSWC, LSWC HP or LRN	3.8	783	start charge
158	Speer LSWC, LSWC HP or LRN	4.3	863	maximum charge
110	Speer UCHP or GDHP SB	4.6	871	start charge
110	Speer UCHP or GDHP SB	5.0	971	maximum charge
Speer Reloading Manual #14 max. case length: 1.155"; trim-to length: 1.145"; max cart. OAL: 1.550"; RCBS shell holder: #6; cart. case: Speer; primer: CCI 500; 550; test firearm: S&W Model 14; barrel length: 6"; use maximum loads with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
110	Hornady HP-XTP	4.6	741	COAL: 1.445"
110	Hornady HP-XTP	5.0	810	COAL: 1.445"
110	Hornady HP-XTP	5.3	921	COAL: 1.445"
110	Hornady HP-XTP	5.6	973	COAL: 1.445"
110	Hornady HP-XTP	5.9	1032	COAL: 1.445"
110	Hornady HP-XTP	6.3	1082	COAL: 1.445"; +P load; maximum load
125	Hornady HP-XTP or FP-XTP	4.8	902	COAL: 1.450"
125	Hornady HP-XTP or FP-XTP	5.1	940	COAL: 1.450"
125	Hornady HP-XTP or FP-XTP	5.4	989	COAL: 1.450"
125	Hornady HP-XTP or FP-XTP	5.7	1026	COAL: 1.450"; +P load; maximum load
140	Hornady HP-XTP	4.5	785	COAL: 1.450"
140	Hornady HP-XTP	4.8	830	COAL: 1.450"
140	Hornady HP-XTP	5.1	881	COAL: 1.450"
140	Hornady HP-XTP	5.5	928	COAL: 1.450"; +P load; maximum load
158	Hornady HP-XTP or FP-XTP	3.7	547	COAL: 1.450"
158	Hornady HP-XTP or FP-XTP	4.0	601	COAL: 1.450"
158	Hornady HP-XTP or FP-XTP	4.3	663	COAL: 1.450"
158	Hornady HP-XTP or FP-XTP	4.6	726	COAL: 1.450"
158	Hornady HP-XTP or FP-XTP	4.9	786	COAL: 1.450"; +P load; maximum load
140	Hornady FP-Cowboy	3.5	685	COAL: 1.450"
140	Hornady FP-Cowboy	3.9	740	COAL: 1.450"
140	Hornady FP-Cowboy	4.2	807	COAL: 1.450"
140	Hornady FP-Cowboy	4.6	842	COAL: 1.450"
140	Hornady FP-Cowboy	5.0	917	COAL: 1.450"
140	Hornady FP-Cowboy	5.3	988	COAL: 1.450"; maximum load
148	Hornady HBWC	2.2	542	COAL: 1.180"
148	Hornady HBWC	2.5	593	COAL: 1.180"
148	Hornady HBWC	2.8	649	COAL: 1.180"
148	Hornady HBWC	3.0	717	COAL: 1.180"
148	Hornady HBWC	3.3	766	COAL: 1.180"
148	Hornady HBWC	3.5	824	COAL: 1.180"; maximum load
158	Hornady SWC-HP, SWC or LRN	3.2	683	COAL: 1.455"
158	Hornady SWC-HP, SWC or LRN	3.5	720	COAL: 1.455"
158	Hornady SWC-HP, SWC or LRN	3.8	764	COAL: 1.455"
158	Hornady SWC-HP, SWC or LRN	4.1	820	COAL: 1.455"
158	Hornady SWC-HP, SWC or LRN	4.4	866	COAL: 1.455"; maximum load
Using Hornady Bullets Gun: Colt Trooper 38 Special; barrel length: 4-inches; case: Starline; primer: Winchester Small Pistol; bullet diameter: .357"; maximum COAL: 1.550"; maximum case length: 1.155"; trim to length: 1.145".
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
158	Nosler Sporting Handgun Jacketed Hollow Point	4.0	672	maximum load
158	Nosler Sporting Handgun Jacketed Hollow Point	3.6	567
158	Nosler Sporting Handgun Jacketed Hollow Point	3.0	462	most accurate load tested
Using Nosler Bullets Handgun; Case: Federal; primer: WSP; barrel length/make: 7.75" H-S Precision; twist: 1-16"; bullets: 158 GR Sporting Handgun Revolver JHP; OACL: 1.440"; maximum OACL: 1.550". Use Maximum Loads with Caution
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
148	Lead HBWC	2.9	690	starting load; 12,400 psi
148	Lead HBWC	3.3	770	maximum load; 16,100 psi
148	Lead BBWC	3.0	690	starting load; 13,600 psi
148	Lead BBWC	3.4	760	maximum load; 16,400 psi
158	Lead	4.1	900	maximum load; 16,000 psi; 6-1/8" barrel cowboy load
158	SWC	4.0	745	starting load; 12,600 psi
158	SWC	4.5	830	maximum load; 15,800 psi
Winchester Handgun Data trim to length: 1.149"; max. overall length with bullet seated: 1.550"; nominal bullet diameter (jacketed): .358"; barrel length: 4"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
110	Hornady XTP	5.5	1,096	col: 1.455"; 16,300 cup
125	Cast Lead Round Nose Flat Point	4.8	1,071	col: 1.445"; 16,900 cup
125	Hornady XTP	4.9	934	col: 1.455"; 16,300 cup
135	Cast Lead Round Nose Flat Point	4.7	1,024	col: 1.418"; 17,000 cup
140	Hornady XTP	4.6	861	col: 1.455"; 15,800 cup
146	Speer Jacketed Hollow Point	4.5	876	col: 1.370"; 15,500 cup
148	Hornady Lead Hollow Base Wadcutter	4.0	956	col: 1.160"; 15,900 cup
158	Cast Lead Semi-Wadcutter	3.7	834	col: 1.475"; 14,600 cup
158	Hornady XTP	4.3	779	col: 1.455"; 15,900 cup
170	Sierra Jacketed Hollow Cavity	4.1	752	col: 1.450"; 15,800 cup
Winchester Pistol Data case: Winchester; BBL: 7.7"; PR: Winchester SP; NEVER exceed loads listed
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
158	Hornady lead SWC-HP	4.7	911
+P (20,000 PSI) Loads fired in a 6-inch barreled Colt Officer's Model Heavy Barrel, King Short Action. Winchester +P cases and Federal 100 primers used throughout.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
110	Jacketed	5.3	935	start load; min OAL: 1.455
110	Jacketed	5.7	1015	never exceed; min OAL: 1.455; 17,600 psi
125	Jacketed	4.8	840	start load; min OAL: 1.437
125	Jacketed	5.3	935	never exceed; min OAL: 1.437; 17,200 psi
140	Jacketed	4.3	685	start load; min OAL: 1.437
140	Jacketed	4.8	785	never exceed; min OAL: 1.437; 17,200 psi
158	Jacketed	4.0	635	start load; min OAL: 1.481
158	Jacketed	4.4	720	never exceed; min OAL: 1.481; 17,200 psi
158	Lead	4.5	820	start load; min OAL: 1.481
158	Lead	4.7	860	never exceed; min OAL: 1.481; 17,100 psi
+P Lee Precision Data These hot loads may wear guns prematurely. Do not use in small frame, or aluminum frame revolvers, or in semi auto pistols. Small pistol primer. CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
158	Speer LSWC, LSWC HP or LRN	4.3	863	start charge
158	Speer LSWC, LSWC HP or LRN	4.7	935	maximum charge
110	Speer UCHP or GDHP SB	5.2	1008	start charge
110	Speer UCHP or GDHP SB	5.6	1059	maximum charge
140	Speer UCHP	4.8	870	start charge
140	Speer UCHP	5.1	931	maximum charge
+P Speer Reloading Manual #14 max. case length: 1.155"; trim-to length: 1.145"; max cart. OAL: 1.550"; RCBS shell holder: #6; cart. case: Speer; primer: CCI 500; test firearm: S&W Model 14; barrel length: 6"; maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
110	JHP	5.3	935	starting load; 14,700 psi
110	JHP	5.7	1,015	maximum load; 17,600 psi
125	JHP	4.8	840	starting load; 14,100 psi
125	JHP	5.3	935	maximum load; 17,200 psi
140	JHP	4.3	685	starting load; 13,900 psi
140	JHP	4.8	785	maximum load; 17,200 psi
158	JHP	4.0	635	starting load; 13,900 psi
158	JHP	4.4	720	maximum load; 17,200 psi
158	LSWC	4.7	860	maximum load; 17,100 psi
+P Winchester Handgun Data trim to length: 1.149"; max. overall length with bullet seated: .984"; nominal bullet diameter (jacketed): .358"; barrel length: 4"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
158	Speer lead HP-SWC	4.7	913
+P 20,000 Warning! Test gun was a Smith & Wesson Model 14 with a 6-inch barrel. Federal 100 primers used throughout. Temperature during testing was 28 degrees Fahrenheit.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
158	Speer Lead HP Semi-Wadcutter	4.7	902
+P Data (20,000 psi) Data is safe in any .38 S&W Special revolver that is recommended for +P loads and is in good mechanical condition. Handgun used was a Smith & Wesson .38-44 Outdoorsman with a 6 1/2-inch barrel. Federal 100 primers and Starline cases used throughout. Temperature during testing was 46 degrees Fahrenheit.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
110	Speer UCHP or GDHP SB	5.2	884	start charge
110	Speer UCHP or GDHP SB	5.6	944	maximum charge
+P Short Barrel Velocities Speer Reloading Manual #14 max. case length: 1.155"; trim-to length: 1.145"; max cart. OAL: 1.550"; RCBS shell holder: #6; cart. case: Speer; primer: CCI 500; test firearm: S&W Model 15; barrel length: 2"; maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
148	Wad Cutter	2.9	686	start load; min. OAL: 1.180
148	Wad Cutter	3.3	770	NEVER EXCEED; 16,100 psi; min. OAL: 1.180
158	Lead	4.0	747	start load; min. OAL: 1.550
158	Lead	4.5	830	NEVER EXCEED; 15,800 psi; min. OAL: 1.550
Lee Precision Data With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Pistol Primer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
158	Speer lead HP-SWC	4.3	820
158	RCBS cast SWC	4.3	895	very accurate
17,000 psi Test gun was a Smith & Wesson Model 14 with a 6 inch barrel. Federal 100 primers used throughout. Temperature during testing was 28 degrees Fahrenheit.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
148	SP 148 HBWC	2.7	723	muzzle energy (ft-lbs): 173
164	358439 SWCHP	4.5	908	muzzle energy (ft-lbs): 302
Alloy bullets in a 6-inch Barrel Cast bullets from wheelweight alloy: BHN 12.5. Swaged lead bullets from Speer: BHN 8.5.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
158	Montana Cast Bullets SWC	4.0	693	S&W Model 360
158	Montana Cast Bullets SWC	4.0	827	S&W pre-Model 23
160	Lyman 358311 RN	4.0	646	S&W Model 360
160	Lyman 358311 RN	4.0	827	S&W pre-Model 23
Cast Bullet Loads The S&W Model 360 has a 1 7/8-inch barrel, and the S&W pre-Model 23's is 6 1/2 inches. Chronograph figures are for five rounds taken with the start screen at approximately 6 feet. Bullets cast were poured of 1-20 (tin-to-lead) alloy, sized .357 inch and lubed with SPG. Montana Cast Bullets' 158-grain SWC tested 8 on a Redding/SAECO hardness tester, which is equal to Linotype. Author's bullets and Speer 148-grain wadcutters all tested 4 on the hardness tester. All handloads assembled in Starline brass with Winchester Small Pistol primers.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
150	RCBS .38-.357 Keith semiwadcutter	4.0	562	case expansion moderate; second best accuracy in two-inch S&W
158	Lyman 358156 semiwadcutter	4.5	628	case expansion near maximum
145	Hensley & Gibbs No. 73 semiwadcutter	4.0	581	case expansion moderate; excellent target load
145	Hensley & Gibbs No. 73 semiwadcutter	4.5	658	case expansion normal
Cast Bullet Loads in a 2-inch Barrel Loads labeled "maximum" should not be exceeded! Reduce maximum loads 10% for light and alloy-framed guns.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
150	RBCS .38-.357 Keith semiwadcutter	4.0	639	case expansion moderate; second best accuracy in two-inch S&W
158	Lyman 358156 semiwadcutter	4.5	779	case expansion near maximum
145	Hensley & Gibbs No. 73 semiwadcutter	4.0	662	case expansion moderate; excellent target load
Cast Bullet Loads in a 4-inch Barrel Loads labeled "maximum" should not be exceeded! Reduce maximum loads 10% for light and alloy-framed guns.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
150	RCBS .38-.357 Keith semiwadcutter	4.0	703	case expansion moderate; second best accuracy in two-inch S&W
158	Lyman 358156 semiwadcutter	4.0	728	case expansion normal
158	Lyman 358156 semiwadcutter	4.5	820	case expansion near maximum
145	Hensley & Gibbs No. 73 semiwadcutter	3.5	618	case expansion light
145	Hensley & Gibbs No. 73 semiwadcutter	4.0	705	case expansion moderate; excellent target load
145	Hensley & Gibbs No. 73 semiwadcutter	4.5	822	case expansion normal
Cast Bullet Loads in a 6-inch Barrel Loads labeled "maximum" should not be exceeded! Reduce maximum loads 10% for light and alloy-framed guns.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
150	RCBS .38-.357 Keith semiwadcutter	4.0	763	case expansion moderate; second best accuracy in two-inch S&W
158	Lyman 358156 semiwadcutter	4.5	836	case expansion near maximum
145	Hensley & Gibbs No. 73 semiwadcutter	4.0	781	case expansion moderate; excellent target load
Cast Bullet Loads in an 8 3/8-inch Barrel Loads labeled "maximum" should not be exceeded! Reduce maximum loads 10% for light and alloy-framed guns.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
148	Speer hollowbase wadcutter	3.5	824
148	Hornady hollowbase wadcutter	3.5	799
158	Speer lead SWC-HP	4.3	811
158	Hornady lead SWC-HP	4.3	819
158	RCBS cast 38-150-SWC	4.3	881
Colt-King Super Target Loads fired in a 6-inch barreled Colt Officer's Model Heavy Barrel, King Short Action. Winchester +P cases and Federal 100 primers used throughout. Standard Pressures 17,000 psi)
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
125	BBC roundnose	4.5	948	group (inches): 0.59; power factor: 119
125	BBC roundnose	4.8	980	group (inches): 0.79; power factor: 123
125	Laser Cast flatnose	4.5	946	group (inches): 2.01; power factor: 118
140	Laser Cast flatnose	4.0	883	group (inches): 0.97; power factor: 124; two groups only
148	BBC DEWC	3.4	800	group (inches): 0.81; power factor: 118; good load
158	BBC roundnose	3.4	740	group (inches): 0.85; power factor: 117
158	BBC roundnose	4.0	876	group (inches): 0.83; power factor: 138
in a Custom Taurus Model 80 A custom Taurus Model 80 with a 6-inch Jarvis barrel and a Tasco PDP3 five-minute dot sight were used for all testing. Winchester +P cases and Federal No. 100 primers were used for all handloads, except for the 2.7-grain Bullseye/148-grain DEWC load, which used WSP primers and mixed cases. Accuracy is the average of at least three, five-shot groups at 25 yards, unless otherwise noted. Velocities were measured with an Oehler M-35P chronograph with the front screen 12 feet from the gun's muzzle. All shooting was done double action from a rest. Range temperatures were 58 to 69 degrees Fahrenheit.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
158	Sierra JHC	5.0	840	case expansion maximum; reduce to 4.8 grains
140	Sierra JHC	5.0	817	case expansion maximum
125	Sierra JHC	5.5	940	case expansion maximum; very accurate
Jacketed Bullet Loads in 8 3/8-inchBarrel Loads labeled "maximum" should not be exceeded! Reduce maximum loads 10% for light and alloy-framed guns.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
158	Sierra JHC	5.0	667	case expansion maximum; reduce to 4.8 grains
140	Sierra JHC	5.0	642	case expansion maximum; best accuracy in 4-inch barrel
140	Speer JHP	5.2	663	case expansion maximum; reduce to 5.0 grains
125	Sierra JHC	5.5	726	case expansion maximum
110	Speer JHP	5.7	845	case expansion maximum
Jacketed Bullet Loads in a 2-inch Barrel Loads labeled "maximum" should not be exceeded! Reduce maximum loads 10% for light and alloy-framed guns.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
158	Hornady JHP	4.8	632	case expansion near maximum
140	Sierra JHC	5.0	735	case expansion maximum; best accuracy
140	Speer JHP	5.2	742	case expansion maximum; reduce to 5.0 grains
125	Sierra JHC	5.5	785	case expansion maximum
Jacketed Bullet Loads in a 4-inch Barrel Loads labeled "maximum" should not be exceeded! Reduce maximum loads 10% for light and alloy-framed guns.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
158	Hornady JHP	4.8	725	case expansion near maximum
158	Sierra JHC	5.0	810	case expansion maximum; reduce to 4.8 grains
140	Sierra JHC	5.0	771	case expansion maximum
140	Speer JHP	5.2	808	case expansion maximum; reduce to 5.0 grains
125	Sierra JHC	5.5	905	case expansion maximum
110	Speer JHP	5.7	1,001	case expansion maximum
Jacketed Bullet Loads in a 6-inch Barrel Loads labeled "maximum" should not be exceeded! Reduce maximum loads 10% for light and alloy-framed guns.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
95	Remington JHP	6.2	1,178	muzzle energy (ft-lbs): 293
Jacketed Bullets in a 6-inch Barrel
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
148	Double Base Wad Cutter	3.0	681	starting load
148	Double Base Wad Cutter	3.4	814	maximum load
Pistol (Oregon Trail Handgun/PPC Loads) test gun: Smith & Wesson 686 6", WSP; do not exceed maximum loads; minimum OAL: 1.175; never reduce stated overall lengths
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
125	Truncated Cone	4.3	873	starting load; minimum OAL: 1.450
125	Truncated Cone	4.8	974	maximum load; minimum OAL: 1.450
Pistol (Oregon Trail Handgun/Standard Loads) test gun: Smith & Wesson 686 6", WSP; do not exceed maximum loads; never reduce stated overall lengths
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
110	Speer UCHP or GDHP SB	4.6	817	start charge
110	Speer UCHP or GDHP SB	5.0	848	maximum charge
Short Barrel Velocities Speer Reloading Manual #14 test firearm: S&W M15 2"; use maximum loads with CAUTION

.38 Special Wadcutter

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
148	Precision	2.7	587	best group: 1.31
148	Speer HB	2.7	565	best group: 1.87
148	Precision	3.0	634	best group: .87
4-Inch Barrel Colt Diamondback Revolver. Precision, Speer H.B. and Hornady wadcutters were all of hollow-base design, while the Speer Standard and RCBS-Mould cast bullets were solid flat-base type.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
148	Precision	2.7	600	Best group: 1.62
148	Hornady	2.7	617	Best group: 1.37
148	Speer HB	2.7	629	Best group: 1.25
148	Speer Std	2.7	600	Best group: 1.12
148	Precision	3.0	638	Best group: 1.12
148	Speer HB	3.0	650	Best group: 1.69
148	RCBS-Mould	3.0	683	Best group: 1.25
5-Inch Barrel Colt National Match Mk. III Auto. Precision, Speer H.B. and Hornady wadcutters were all of hollow-base design, while the Speer Standard and RCBS-Mould cast bullets were solid flat-base type.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
148	Precision	2.7	552	Best group: .87
148	Hornady	2.7	555	Best group: 2.12
148	Speer HB	2.7	543	Best group: 1.87
148	Speer Std	2.7	504	Best group: 1.19
148	Precision	3.0	622	Best group: .56
148	Speer HB	3.0	597	Best group: .69
148	RBCS-Mould	3.0	602	Best group: .94
6-Inch Barrel Colt 357 Revolver. Precision, Speer H.B. and Hornady wadcutters were all of hollow-base design, while the Speer Standard and RCBS-Mould cast bullets were solid flat-base type.

.38 Super

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Sierra JHP	6.0	1253	start load; COL: 1.180"; 26,700 cup
90	Sierra JHP	6.7	1345	max load; COL: 1.180"; 32,000 cup
95	Barnes TAC-XP	5.0	1186	start load; COL: 1.255"; 25,700 cup
95	Barnes TAC-XP	5.6	1341	max load; COL: 1.255"; 32,500 cup
100	Speer JHP	5.7	1206	start load; COL: 1.215"; 26,300 cup
100	Speer JHP	6.4	1272	max load; COL: 1.215"; 31,500 cup
115	LRN	4.9	1059	start load; bullet diam.: .356"; COL: 1.250"; 19,700 cup
115	LRN	5.7	1191	max load; bullet diam.: .356"; COL: 1.250"; 30,700 cup
115	Hornady XTP	5.7	1198	start load; COL: 1.245"; 29,000 cup
115	Hornady XTP	6.1	1261	max load; COL: 1.245"; 32,700 cup
124	Berry's Bullets HBRN TP	4.7	1062	start load; bullet diam.: .356"; COL: 1.250"; 26,100 cup
124	Berry's Bullets HBRN TP	5.4	1200	max load; bullet diam.: .356"; COL: 1.250"; 32,400 cup
125	Hornady HAP	4.8	1113	start load; bullet diam.: .356"; COL: 1.210"; 27,100 cup
125	Hornady HAP	5.4	1237	max load; bullet diam.: .356"; COL: 1.210"; 31,900 cup
125	Sierra FMJ	5.1	1098	start load; COL: 1.275"; 26,500 cup
125	Sierra FMJ	5.7	1159	max load; COL: 1.275"; 31,200 cup
125	Cast LCN	5.1	1129	start load; bullet diam.: .356"; COL: 1.230"; 27,900 cup
125	Cast LCN	5.7	1214	max load; bullet diam.: .356"; COL: 1.230"; 32,600 cup
135	LRN	4.8	1045	start load; bullet diam.: .356"; COL: 1.275"; 27,600 cup
135	LRN	5.4	1120	max load; bullet diam.: .356"; COL: 1.275"; 31,900 cup
147	Hornady XTP	4.4	965	start load; COL: 1.260"; 24,300 cup
147	Hornady XTP	4.9	1032	max load; COL: 1.260"; 31,800 cup
150	Sierra JFP	4.5	968	start load; bullet diam.: .356"; COL: 1.265"; 26,000 cup
150	Sierra JFP	5.0	1066	max load; bullet diam.: .356"; COL: 1.265"; 32,100 cup
150	Cast LRN	4.5	1026	start load; bullet diam.: .356"; COL: 1.230"; 26,000 cup
150	Cast LRN	5.1	1135	max load; bullet diam.: .356"; COL: 1.230"; 31,400 cup
Hodgdon Data Case: Remington; twist: 1:16"; primer: Remington 1 1/2, Small Pistol; barrel length: 5"; trim length: .895"; bullet diam.: .355" (except where otherwise specified in remarks).
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
115	Jacketed	5.0	1080	start load; min OAL: 1.240
115	Jacketed	5.9	1230	never exceed; min OAL: 1.240; 34,200 psi
124	Jacketed	4.9	1060	start load; min OAL: 1.240
124	Jacketed	5.7	1185	never exceed; min OAL: 1.240; 34,600 psi
130	Jacketed	4.8	1020	start load; min OAL: 1.240
130	Jacketed	5.6	1145	never exceed; min OAL: 1.240; 34,800 psi
147	Jacketed	4.4	930	start load; min OAL: 1.240
147	Jacketed	4.9	1010	never exceed; min OAL: 1.240; 34,900 psi
160	Lead	3.5	860	start load; min OAL: 1.250
160	Lead	4.2	955	never exceed; min OAL: 1.250; 34,400 psi
Lee Precision Data Small Pistol Primer. DO NOT USE THESE LOADS IN 38 AUTOMATIC OR 38 ACP. CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
95	Cast #356404	5.2	1181	sugg. start load; 20,400 cup
95	Cast #356404	6.4	1433	max load; 30,100 cup
Lyman Cast Bullet Handbook cases: Remington; trim-to length: .895"; primers: Winchester 1 1/2-108; primer size: Small Pistol; Lyman shell holder: No. 12; cast bullets used size to .355" dia.; firearm used: Universal Receiver; barrel length: 5"; twist: 1-16"; groove diameter: .355". NOTE: More Lyman cast bullet data available under .38 Super Automatic Cast Bullet Handgun Data Lyman Reloading Handbook 49th Edition
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
100	Hornady FMJ-RN	4.6	917
100	Hornady FMJ-RN	5.0	1003
100	Hornady FMJ-RN	5.4	1092
100	Hornady FMJ-RN	5.8	1187
100	Hornady FMJ-RN	6.2	1286
100	Hornady FMJ-RN	6.6	1366	maximum load
Using 100 GR Hornady Bullets Gun: Kimber Model 1911; barrel length: 5 inches; case: Starline; primer: Winchester Small Pistol; bullet diameter: .355" and .357"; COAL: 1.210"; maximum COAL: 1.280"; maximum case length: .900"; trim to length: .895".
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Sierra Jacketed Hollow Point	6.7	1,345	col: 1.180"; 32,000 cup
100	Speer Jacketed Hollow Point	6.4	1,272	col: 1.215"; 31,500 cup
115	Hornady XTP	6.1	1,261	col: 1.245"; 32,700 cup
115	Lead Round Nose	5.7	1,191	col: 1.250"; 30,700 cup
125	Cast LCN	5.7	1,214	col: 1.230"; 32,600 cup
125	Sierra Full Metal Jacket	5.7	1,159	col: 1.275"; 31,200 cup
130	Sierra Full Metal Jacket	5.5	1,134	col: 1.275"; 31,200 cup
135	LRN	5.4	1,120	col: 1.275"; 31,900 cup
135	Nosler IPSC	5.3	1,063	col: 1.265"; 32,000 cup
147	Hornady XTP	4.9	1,032	col: 1.260"; 31,800 cup
150	Cast Lead Round Nose	5.1	1,135	col: 1.230"; 31,400 cup
150	Sierra Jacketed Flat Point	5.0	1,066	col: 1.265"; 32,100 cup
Winchester Pistol Data case: Remington; BBL: 5"; PR: Remington 1 1/2; NEVER exceed loads listed
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Hornady HP XTP	5.0	1055	overall loaded length (inches): 1.220
90	Hornady HP XTP	5.5	1150	overall loaded length (inches): 1.220
90	Hornady HP XTP	6.0	1302	overall loaded length (inches): 1.220
90	Hornady HP XTP	6.4	1398	overall loaded length (inches): 1.220
90	Hornady HP XTP	6.8	1472	overall loaded length (inches): 1.220
115	Hornady FMJ RN	5.2	1092	overall loaded length (inches): 1.245
115	Hornady FMJ RN	5.7	1166	overall loaded length (inches): 1.245
115	Hornady FMJ RN	6.2	1295	overall loaded length (inches): 1.245
+P A Kimber Stainless Target II with a 5-inch barrel was used to test fire these loads. Starline cases and Winchester Small Pistol primers were used throughout. Bullet diameter: .355 and .356 inch; maximum overall loaded length: 1.280 inches; maximum case length: .900 inch; and trim-to length; .895 inch.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
124	Round Nose	4.7	1,087	starting load; OAL: 1.250
124	Round Nose	5.3	1,151	maximum load; OAL: 1.250
+P Oregon Trail Data test gun: STI 5 1/2", WSP; all maximum 38 Super loads are for fully supported chambers only! do not exceed maximum loads; never reduce stated overall lengths
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
124	Speer TMJ RN , UCSP or GDHP	4.8	1021	start charge
124	Speer TMJ RN , UCSP or GDHP	5.3	1117	maximum charge
147	Speer GDHP or TMJ FP	4.3	899	start charge
147	Speer GDHP or TMJ FP	4.8	1008	maximum charge
+P Speer Reloading Manual #14 max. case length: 0.900"; trim-to length: 0.890"; max cart. OAL: 1.280"; RCBS shell holder: #39; cart. case: Winchester; primer: CCI 500; test firearm: Colt 38 Super; barrel length: 5"; NOTE: 125-grain Speer SIG GDHP or SIG TMJ FN may also be used in the 124-grain loads; maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
124	Round Nose	4.7	1,087	OAL: 1.250
+P Action Loads Oregon Trail Data test gun: Caspian 1911, 5", WSP; all maximum 38 Super loads are for fully supported chambers only! do not exceed maximum loads; never reduce stated overall lengths
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
115	Round Nose	4.7	1,058	OAL: 1.2
+P Steel Loads Oregon Trail Data test gun: Caspian 1911, 5", WSP; all maximum 38 Super loads are for fully supported chambers only! do not exceed maximum loads; never reduce stated overall lengths
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Cast #356242	4.7	1039	sugg. start load; 20,300 cup; 1.175" OAL
90	Cast #356242	6.3	1282	max load; 31,600 cup; 1.175" OAL; potentially most accurate load
120	Cast #356242	4.3	988	sugg. start load; 17,700 cup; 1.160" OAL
120	Cast #356242	5.8	1233	max load; 29,600 cup; 1.160" OAL
120	Cast #356402	5.0	1092	sugg. start load; 20,700 cup; 1.230" OAL
120	Cast #356402	6.5	1307	max load; 30,800 cup; 1.230" OAL; potentially most accurate load
Cast Bullet Handgun Data Lyman Reloading Handbook 49th Edition cases: Remington; trim-to length: .895"; primers: Winchester WSP; primer size: Small Pistol; Lyman shell holder: No. 12; cast bullets used sized to .355" dia.; firearm used: Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .355"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Sierra Jacketed HP	5.5	1198	sugg. start load; 20,500 cup; 1.125" OAL
90	Sierra Jacketed HP	6.9	1383	max load; 30,400 cup; 1.125" OAL; potentially most accurate load
95	Sierra FMJ	5.8	1162	sugg. start load; 16,300 psi; 1.175" OAL
95	Sierra FMJ	6.5	1331	max load; 31,400 psi; 1.175" OAL
115	Hornady Jacketed HP	5.4	933	sugg. start load; 20,500 cup; 1.265" OAL
115	Hornady Jacketed HP	6.1	1209	max load; 31,200 cup; 1.265" OAL
124	Hornady FMJ/FP	4.4	879	sugg. start load; 22,400 cup; 1.165" OAL
124	Hornady FMJ/FP	5.5	1132	max load; 31,300 cup; 1.165" OAL; potentially most accurate load
147	Speer TMJ	4.5	966	sugg. start load; 20,300 cup; 1.280" OAL
147	Speer TMJ	5.5	1098	max load; 30,200 cup; 1.280" OAL
Handgun Data Lyman Reloading Handbook 49th Edition cases: Remington; trim-to length: .895"; primers: CCI 500; primer size: Small Pistol; Lyman shell holder: No. 12; firearm used: Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .355"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
115	Nosler Sporting Handgun H.P. Practical Pistol	6.0	1,262	maximum load; most accurate powder tested
115	Nosler Sporting Handgun H.P. Practical Pistol	5.5	1,148	most accurate powder tested
115	Nosler Sporting Handgun H.P. Practical Pistol	5.0	1,034	most accurate load tested; most accurate powder tested
135	Nosler Sporting Handgun Practical Pistol	5.0	1,023	maximum load
135	Nosler Sporting Handgun Practical Pistol	4.5	915
135	Nosler Sporting Handgun Practical Pistol	4.0	807	most accurate load tested
Handgun Data Using Nosler Bullets handgun: barrel: Springfield 1911-A1; length: 5"; twist: 1-16"; case: Winchester; primer: Win. WSP; maximum SAAMI overall cartridge length: 1.220" min., 1.280" max.; use maximum loads with caution
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
122	Magnus	5.0	1,101	cast bullet loa; 25-yard group (inches): 2.75; fine practice load
125	Hunters Supply FP	4.9	1,099	cast bullet load; 25-yard group (inches): 2.5
160	Leadheads roundnose	3.6	907	cast bullet load; 25-yard group (inches): 2.0
Handloads All accuracy results obtained with Kimber pistol unless otherwise noted. A taper crimp was used on all loads.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
115	Hornady JHP	6.3	1,156	case: W-W; length (in.): 1.24; expansion: normal
in a 5-inch Barrel Test gun Colt .38 Super Automatic with five-inch Colt barrel; Winchester 108 Small Pistol primers; velocities chronographed ten feet from muzzle.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
115	Hornady JHP	5.8	1,142	case: W-W; length (in.): 1.24; expansion: moderate; accurate
in a 6-inch Barrel Test gun Colt .38 Super Automatic with six-inch SSK custom barrel; Winchester 108 Small Pistol primers; velocities chronographed ten feet from muzzle.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Sierra JHC	5.5	1,128	overall loaded length: 1.180 inches; group: 1 1/4 inches
90	Sierra JHC	6.9	1,399	overall loaded length: 1.180 inches; group: 2 1/2 inches
100	Hornady FMJ	5.5	1,127	overall loaded length: 1.210 inches; group: 3/4 inch
100	Hornady FMJ	6.3	1,317	overall loaded length: 1.210 inches; group: 1 1/2 inches
in a Kimber Distance was 20 yards with a Ransom Rest. Remington factory brass and CCI 500 primers used. Outside temperature was 55 degrees Fahrenheit, wind from the shooter
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
122	Bushwacker flatnose	5.1	1,195	case: R-P; primer: Federal 100; coefficient of variation (percent): 0.84; group (inches): 0.96; power factor: 146; good moving-target load
125	Bushwacker roundnose	5.1	1,116	case: R-P; primer: Federal 100; coefficient of variation (percent): 0.54; group (inches): 1.93; power factor: 140
125	Bushwacker semiwadcutter	4.5	1,057	case: S-V; primer: WSP; coefficient of variation (percent): 0.47; group (inches): 1.22; power factor: 132
125	Bushwacker semiwadcutter	5.0	1,108	case: S-V; primer: WSP; coefficient of variation (percent): 0.99; group (inches): 1.30; power factor: 139
125	Bushwacker semiwadcutter	5.1	1,150	case: R-P; primer: Federal 100; coefficient of variation (percent): 0.52; group (inches): 1.61; power factor: 144
125	Bushwacker semiwadcutter	5.2	1,173	case: R-P; primer: Federal 100; coefficient of variation (percent): 0.43; group (inches): 1.75; power factor: 147
145	Bushwacker roundnose	3.5	858	case: R-P; primer: Federal 100; coefficient of variation (percent): 1.17; group (inches): 1.34; power factor: 124
147	Bushwacker flatnose	3.5	878	case: R-P; primer: Federal 100; coefficient of variation (percent): 1.37; group (inches): 1.61; power factor: 129
158	Rock Hill roundnose	3.4	832	case: R-P; primer: Federal 100; coefficient of variation (percent): 0.48; group (inches): 0.92; power factor: 131; good light load
158	Rock Hill roundnose	3.6	874	case: R-P; primer: Federal 100; coefficient of variation (percent): 0.92; group (inches): 1.42; power factor: 138
158	Rock Hill roundnose	3.8	884	case: R-P; primer: Federal 100; coefficient of variation (percent): 0.45; group (inches): 1.16; power factor: 140
in a S&W Model 627PC A Smith & Wesson Model 627PC with a 5.5-inch barrel and a Tasco PDP3 sight was used for testing. Velocities were taken 12 feet from the muzzle with an Oehler Model 35P chronograph. Accuracy is based on the average of three, five-shot groups at 25 yards from a sandbag rest. Range temperatures were 62 to 77 degrees Fahrenheit. S-L, Starline; S-V, Super Vel; R-P, Remington-Peters; WSP, Winchester Small Pistol.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
124	Speer TMJ	4.8	1054	overall loaded length (inches): 1.250; group (inches): 1.230
124	Speer TMJ	5.3	1127	overall loaded length (inches): 1.250; group (inches): 1.120
Les Baer Loading Data All groups are five shots fired from a Ransom Rest with the targets at 25 yards. Wind was calm; temperature was 55 degrees Fahrenheit. Velocities were measured 10 feet from the muzzle with an Oehler Model 35P Chronograph. Remington nickel cases and CCI 500 primers were used throughout.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
124	Speer GDHP	4.6	968	Level I Load
147	Speer TMJ	4.0	859	Level I Load
150	Bull-X SWC/LD	3.7	915	Level I Load
150	Bull-X SWC/LD	4.0	964	Level I Load
115	Hornady FMJ	5.0	1,081	Level II Load
124	Hornady FMJ	5.0	1,012	Level II Load
124	Hornady FMJ	5.2	1,096	Level II Load
Load Data Warning: Level IV loads should be used only in guns with full-support barrels. They must not be fired in standard factory barrels made by Colt and others. These loads are for modern guns in excellent condition chambered for the .38 Super cartridge and should not be fired in guns originally chambered for the .38 Auto. All loads are safe in the author's guns but all powder charges listed for Levels III and IV loads should be reduced by 10 and 20 percent, respectively, for starting loads in other guns. Remington nickel-plated cases were used in all loads. Winchester WSP primers were used in Levels I, II and III loads; Winchester WSR primers were used in Level IV loads.

.38-40 Winchester / .38-40 WCF (Handgun)

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
180	Speer FN or CM	5.2	694	start charge
180	Speer FN or CM	6.0	781	maximum charge
Speer Reloading Manual #14 Cowboy Action Shooting Data; max. case length: 1.305"; trim-to length: 1.295"; max cart. OAL: 1.592"; RCBS shell holder: #35; cart. case: Winchester; primer: CCI 300; test firearm: Colt New Service; barrel length: 4.5"; NOTE: These bullets were cast in RCBS moulds. maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
155	Hornady HP-XTP	7.5	780	maximum load
180	RCBS 40-180-CM & Oregon Trail Laser Cast RNFP	5.5	604	Do Not Reduce
180	RCBS 40-180-CM & Oregon Trail Laser Cast RNFP	6.0	657
180	RCBS 40-180-CM & Oregon Trail Laser Cast RNFP	6.5	710
180	RCBS 40-180-CM & Oregon Trail Laser Cast RNFP	7.0	763	maximum load
155	Hornady HP-XTP	7.0	683	Do Not Reduce
Revolver Using Hornady Bullets Gun: USFA Single Action Army Pre-War; barrel length: 5 1/2 inches; case: Starline; primer: Winchester Large Pistol; bullet diameter: .400"; 155, 180 & 200 GR HP-XTP COAL: 1.590"; 180 GR Oregon Trail Laser Cast RNFP & RCBS 40-180-CM COAL: 1.575"; maximum COAL: 1.590"; maximum case length: 1.305"; trim to length: 1.295".
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
168	Lyman No. 401043	5.5	759	group (inches): 3.56
168	Lyman No. 401043	6.5	823	group (inches): 3.63
168	Lyman No. 401043	7.5	913	group (inches): 1.94
170	NEI No. 175-401	5.5	742	group (inches): 3.88
170	NEI No. 175-401	6.5	826	group (inches): 3.13
170	NEI No. 175-401	7.5	910	group (inches): 3.75
176	Old West No. 403-170	5.5	732	group (inches): 2.56
176	Old West No. 403-170	6.5	826	group (inches): 4.31
176	Old West No. 403-170	7.5	941	group (inches): 2.63
180	P&C 38-40SWC	5.5	728	group (inches): 2.56
180	P&C 38-40SWC	6.5	823	group (inches): 5.50
180	P&C 38-40SWC	7.5	922	group (inches): 5.19
185	Lyman No. 40188	5.5	742	group (inches): 2.00
185	Lyman No. 40188	6.5	823	group (inches): 2.38
185	Lyman No. 40188	7.5	956	group (inches): 2.38
in a Colt SAA 4 3/4-inch Loads with Bullseye, W-231, Green Dot or Unique used Federal 150 primers. Loads with 2400 or Accurate Arms No. 9 used Federal 155 primers. Chronograph averages are for five shots with start screen at four feet, and group shooting was done in strings of five at 25 yards from a Lee Machine Rest. All cast bullets lubed with "Half & Half" brand lube and sized to .403 inch. Bullet alloy consisted of a mixture of 20 pounds wheelweights mixed with one pound of 50/50 solder.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
168	Lyman No. 401043	5.5	763	group (inches): 2.00
168	Lyman No. 401043	6.5	888	group (inches): 3.50
168	Lyman No. 401043	7.5	999	group (inches): 2.13
170	NEI No. 175-401	5.5	754	group (inches): 2.88
170	NEI No. 175-401	6.5	873	group (inches): 3.19
170	NEI No. 175-401	7.5	982	group (inches): 2.75
176	Old West No. 403-170	5.5	770	group (inches): 1.94
176	Old West No. 403-170	6.5	893	group (inches): 2.00
176	Old West No. 403-170	7.5	1,007	group (inches): 2.81
180	P&C 38-40SWC	5.5	736	group (inches): 5.38
180	P&C 38-40SWC	6.5	845	group (inches): 2.50
180	P&C 38-40SWC	7.5	970	group (inches): 5.25
185	Lyman No. 40188	5.5	754	group (inches): 2.63
185	Lyman No. 40188	6.5	876	group (inches): 2.06
185	Lyman No. 40188	7.5	1,022	group (inches): 2.06
in an EMF Dakota 7 1/2-inch Loads with Bullseye, W-231, Green Dot or Unique used Federal 150 primers. Loads with 2400 or Accurate Arms No. 9 used Federal 155 primers. Chronograph averages are for five shots with start screen at four feet, and group shooting was done in strings of five at 25 yards from a Lee Machine Rest. All cast bullets lubed with "Half & Half" brand lube and sized to .403 inch. Bullet alloy consisted of a mixture of 20 pounds wheelweights mixed with one pound of 50/50 solder.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
180	Round Nose Flat Point	5.0	801	starting load
180	Round Nose Flat Point	5.8	910	maximum load
Oregon Trail Handgun Loads test gun: Ruger Blackhawk 6 1/2", WLP; minimum OAL: 1.575; never reduce stated overall lengths; do not exceed maximum loads

.380 Auto / .380 ACP (9mm Corto & 9mm Short)

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
92	Cast #358242	2.3	701	sugg. start load; case: Federal; 7,900 cup
92	Cast #358242	3.5	1000	max load; case: Federal; 15,600 cup
121	Cast #358242	2.1	718	sugg. start load; case: Federal; 9,200 cup
121	Cast #358242	3.2	946	max load; case: Federal; 15,800 cup
Lyman Cast Bullet Handbook 3rd Edition case: Super Vel (except where otherwise specified in remarks); trim-to length: .677"; primers; Winchester 1 1/2-108; primer size: Small Pistol; Lyman shell holder: No. 26; cast bullets used sized to .355" dia.; firearm used: Universal Receiver; barrel length: 3 3/4"; twist: 1-16"; groove diameter: .355"; bullets: cast #358242 (#2 Alloy) .980" OAL
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Sierra Jacketed HC	2.1	681	sugg start load; 8,100 cup; .925" OAL
90	Sierra Jacketed HC	3.2	992	max load; 16,000 cup; .925" OAL
95	Sierra FMJ	2.1	704	sugg start load; 9,700 cup; .900" OAL
95	Sierra FMJ	2.9	939	max load; 15,800 cup; .900" OAL; potentially most accurate load
115	Hornady Jacketed HP/XTP	2.0	664	sugg start load; 8,300 cup; .956" OAL
115	Hornady Jacketed HP/XTP	3.1	934	max load; 15,300 cup; .956" OAL
90	Cast Lyman #356242 (sized to .355" dia)	2.3	701	sugg start load; 7,900 cup; .980" OAL
90	Cast Lyman #356242 (sized to .355" dia)	3.5	1000	max load; 15,600 cup; .980" OAL; potentially most accurate load
120	Cast Lyman #356242 (sized to .355" dia)	2.1	718	sugg start load; 9,200 cup; .980" OAL
120	Cast Lyman #356242 (sized to .355" dia)	3.2	946	max load; 15,800 cup; .980" OAL; potentially most accurate load
Lyman Reloading Handbook 49th Edition cases: Federal; trim-to length: .677"; primers: Federal 100 and Winchester WSP; primer size: small pistol; Lyman shell holder: No. 26; firearm used: Universal Receiver; barrel length: 3 3/4"; twist: 1-16"; groove dia.: .355"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Hornady JHP	3.2	917	starting load; COL: .955"; 13,900 cup
90	Hornady JHP	3.5	957	maximum load; COL: .955"; 15,400 cup
95	Speer FMJ	2.9	802	starting load; COL: .970"; 13,100 cup
95	Speer FMJ	3.2	884	maximum load; COL: .970"; 15,400 cup
100	Hornady FMJ	2.9	819	starting load; COL: .980"; 13,800 cup
100	Hornady FMJ	3.1	843	maximum load; COL: .980"; 15,400 cup
Hodgdon Pistol Data case: Remington; barrel length: 3.75"; twist: 1:16"; trim length: .675"; primer: CCI 500; bullet diam.: .355"; NEVER EXCEED MAXIMUM LOADS
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Sierra JHP	3.5	911	overall loaded length (inch): .935
90	Sierra JHP	4.0	1016	overall loaded length (inch): .935
90	Speer Gold Dot hollowpoint	3.5	917	overall loaded length (inch): .960
90	Speer Gold Dot hollowpoint	4.0	1010	overall loaded length (inch): .960
90	Hornady HP-XTP	3.5	922	overall loaded length (inch): .965
90	Hornady HP-XTP	4.0	1021	overall loaded length (inch): .965
95	Sierra FMJ	3.5	913	overall loaded length (inch): .938
95	Sierra FMJ	4.0	1012	overall loaded length (inch): .938
95	Winchester FMJ	3.5	909	overall loaded length (inch): .944
95	Winchester FMJ	4.0	1001	overall loaded length (inch): .944
Ruger LCP Load Data A 2.75-inch barreled Ruger LCP .380 Auto used to test fire all loads. Starline cases and Winchester Small Pistol primers used throughout. Maximum cartridge length: .984 inch; maximum case length: .680 inch; case trim-to length: .670 inch. Industry pressure limit: 21,500 psi.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Speer AUTO GDHP	3.6	978	start charge
90	Speer AUTO GDHP	4.0	1031	maximum charge
95	Speer TMJ RN	3.6	945	start charge
95	Speer TMJ RN	4.0	1027	maximum charge
Speer Reloading Manual #14 max. case length: 0.680"; trim-to length: 0.670"; max cart. OAL: 0.984"; RCBS shell holder: #10; cart. case: Winchester; primer: CCI 500; test firearm: Walther PP; barrel length: 3.8"; maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Hornady HP-XTP	3.2	873
90	Hornady HP-XTP	3.4	922
90	Hornady HP-XTP	3.6	974	maximum load
Using Hornady Bullets Gun: Walther PPK/S; barrel length: 3 1/4 inches; case: Starline; primer: Winchester WSP; bullet diameter: .355"; maximum COAL: .980"; maximum case length: .680"; trim to length: .675"; COAL: .965".
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Hornady Jacketed Hollow Point	3.5	957	col: .955"; 15,400 cup
95	Speer Full Metal Jacket	3.2	884	col: .970"; 15,400 cup
100	Hornady Full Metal Jacket	3.1	843	col: .980"; 15,400 cup
Winchester Pistol Data case: Remington; BBL: 3.75"; PR: CCI 500; NEVER exceed loads listed
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
95	Jacketed	3.2	860	start load; min OAL: 0.975
95	Jacketed	3.2	860	never exceed; min OAL: 0.975; 15,000 cup
Lee Precision Data CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Pistol Primer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Lyman 356242 cast roundnose (sized .356 inch)	3.2	873	good group
95	Speer FMJ (.355 inch)	3.2	875	one flyer with 4 in ragged hole
Very good group is approximately 1.0 inch; good group is approximately 1.5 inches; mediocre group is between 1.5 and 2.0 inches; poor group is over approximately 2.0 inches. Velocities are for five shots taken at approximately 6 feet from the pistol muzzle using an Oehler Model 35P. All groups fired at 20 feet in five-shot strings. All loads were taper crimped. All cast bullet loads were poured of straight Linotype alloy and lubed with SPG. These loads were fired from a Walther Model PPK with a 3.35-inch barrel and used Winchester brass with Winchester Small Pistol primers.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
88	Speer HP	3.8	991	group: 1.4 inches; Winchester brass used
90	Sierra HP	3.8	952	group: 2.3 inches; Winchester brass used
90	Hornady HP	3.8	986	group: 2.4 inches; Winchester brass used
100	Hornady FMJ	3.0	780	group: 1.8 inches; Remington brass used
103	Lee Cast SWC	3.0	903	group: 1.9 inches; Remington brass used
CCI-500 primers used throughout. Velocities taken five feet from muzzle. All groups measured at 10 yards, fired from sandbag rest.

.40 Smith & Wesson / .40 S&W (Handgun)

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
155	Speer TMJ FN or GDHP	5.8	867	start charge
155	Speer TMJ FN or GDHP	6.5	1038	maximum charge
165	Speer TMJ FN or GDHP	5.8	955	start charge; approximate 165-gr law enforcement loads ("40 Lite")
165	Speer TMJ FN or GDHP	6.3	1031	maximum charge
Speer Reloading Manual #14 max. case length: 0.850"; trim-to length: 0.840"; max cart. OAL: 1.135"; RCBS shell holder: #27; cart. case: Speer; primer: CCI 500; test firearm: Smith & Wesson M4006; barrel length: 4"; IMPORTANT SAFETY NOTE: These loads were developed and tested for safe use in HANDGUNS. Not all loads may be suitable for use in a carbine or rifle chambered for this cartridge. If loading for a carbine or rifle, choose from among the loads developing the highest handgun velocities and load just a few rounds. Thoroughly test this small sample in your firearm in slow-fire mode, insuring that you achieve proper feeding and ejection. Be certain that all bullets exit the barrel; watching the target for each bullet strike is the best way to know that the load produces sufficient gas volume for a longer barrel. Use maximum loads with CAUTION.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
125	SinterFire	4.8	1060	start load; COL: 1.120"; 29,500 psi
125	SinterFire	5.4	1132	max load; COL: 1.120"; 31,500 psi
135	Nosler JHP	6.3	1152	start load; COL: 1.125"; 29,900 psi
135	Nosler JHP	7.0	1244	max load; COL: 1.125"; 33,100 psi
140	Barnes TAC-XP	4.4	965	start load; COL: 1.135"; 27,300 psi
140	Barnes TAC-XP	4.8	1016	max load; COL: 1.135"; 30,400 psi
150	Nosler JHP	5.2	1024	start load; COL: 1.125"; 26,900 psi
150	Nosler JHP	5.8	1116	max load; COL: 1.125"; 33,500 psi
155	Hornady XTP	5.0	937	start load; COL: 1.125"; 22,900 psi
155	Hornady XTP	6.0	1103	max load; COL: 1.125"; 33,000 psi
155	Berry's Bullets FP	5.1	979	start load; COL: 1.125"; 24,100 psi
155	Berry's Bullets FP	6.0	1130	max load; COL: 1.125"; 33,900 psi
165	Sierra JHP	4.8	946	start load; COL: 1.125"; 28,100 psi
165	Sierra JHP	5.3	1001	max load; COL: 1.125"; 32,500 psi
165	Berry's Bullets FP	4.7	933	start load; COL: 1.125"; 25,200 psi
165	Berry's Bullets FP	5.4	1049	max load; COL: 1.125"; 33,400 psi
180	Berry's Bullets FP	4.4	872	start load; COL: 1.125"; 26,400 psi
180	Berry's Bullets FP	5.1	984	max load; COL: 1.125"; 33,500 psi
180	Hornady XTP	4.1	797	start load; COL: 1.125"; 23,800 psi
180	Hornady XTP	5.0	947	max load; COL: 1.125"; 32,900 psi
200	Hornady XTP	3.9	737	start load; COL: 1.125"; 25,900 psi
200	Hornady XTP	4.7	857	max load; COL: 1.125"; 33,400 psi
Hodgdon Data Case: Hornady; twist: 1:16"; primer: Winchester SP, Small Pistol; barrel length: 4"; trim length: .845"; bullet diam.: .400". This data is intended for use in firearms with barrels which fully support the cartridge in the chamber. Use of this data in firearms which do not fully support the cartridge, such as Glock, may result in bulged cases, ruptured cases, case head separation, or other conditions which may result in damage to the firearm and/or result in injury or death of the shooter and/or bystanders.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
150	Jacketed	5.2	977	start load; min. OAL: 1.135
150	Jacketed	6.3	1150	NEVER EXCEED; min. OAL: 1.135; 33,200 psi
Lee Precision 150 GR Data Do not use reloads in Glock or similar guns with chambers that do not fully support the cartridge due to the intrusion of the feed ramp. CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Pistol Primer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
155	Jacketed	5.1	954	start load; min. OAL: 1.100
155	Jacketed	6.0	1100	NEVER EXCEED; min. OAL: 1.100; 33,200 psi
Lee Precision 155 GR Data Do not use reloads in Glock or similar guns with chambers that do not fully support the cartridge due to the intrusion of the feed ramp. CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Pistol Primer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
170	Jacketed	4.5	867	start load; min. OAL: 1.115
170	Jacketed	5.3	1000	NEVER EXCEED; min. OAL: 1.115; 33,200 psi
170	Lead	4.0	827	start load; min. OAL: 1.100
170	Lead	5.2	1030	NEVER EXCEED; min. OAL: 1.100; 33,200 psi
Lee Precision 170 GR Data Do not use reloads in Glock or similar guns with chambers that do not fully support the cartridge due to the intrusion of the feed ramp. CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Pistol Primer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
180	Jacketed Bullet	4.0	783	start load; min. OAL: 1.100
180	Jacketed Bullet	5.0	950	NEVER EXCEED; min. OAL: 1.100; 33,200 psi
Lee Precision 180 GR Data Do not use reloads in Glock or similar guns with chambers that do not fully support the cartridge due to the intrusion of the feed ramp. CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Pistol Primer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Lead	3.0	669	start load; min. OAL: 1.135
200	Lead	4.0	850	NEVER EXCEED; min. OAL: 1.135; 33,200 psi
Lee Precision 200 GR Data Do not use reloads in Glock or similar guns with chambers that do not fully support the cartridge due to the intrusion of the feed ramp. CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Pistol Primer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
135	Nosler JHP	5.5	1005	start load; 17,800 cup; 1.085" OAL
135	Nosler JHP	6.7	1185	max load; 23,300 cup; 1.085" OAL
150	Sierra JHP	5.0	799	start load; 17,900 cup; 1.100" OAL; potentially most accurate load
150	Sierra JHP	6.2	1054	max load; 22,800 cup; 1.100" OAL
155	Winchester Jacketed Silvertip	5.3	877	start load; 18,000 cup; 1.125" OAL
155	Winchester Jacketed Silvertip	5.9	1053	max load; 22,300 cup; 1.125" OAL
165	Speer TMJ	5.2	937	start load; 19,300 cup; 1.120" OAL
165	Speer TMJ	5.8	1050	max load; 22,100 cup; 1.120" OAL
175	Winchester Jacketed Silvertip	5.1	864	start load; 19,900 cup; 1.125" OAL
175	Winchester Jacketed Silvertip	5.7	983	max load; 22,500 cup; 1.125" OAL
180	Sierra JHP	5.0	927	start load; 20,400 cup; 1.115" OAL
180	Sierra JHP	5.6	1015	max load; 22,800 cup; 1.115" OAL
190	Sierra JFP	4.2	540	start load; 16,800 cup; 1.135" OAL
190	Sierra JFP	5.3	723	max load; 23,200 cup; 1.135" OAL
150	Lyman Cast #401654 (#2 Alloy)	5.5	1079	start load; 19,000 cup; 1.090" OAL
150	Lyman Cast #401654 (#2 Alloy)	6.5	1195	max load; 22,500 cup; 1.090" OAL
175	Lyman Cast #401043 (#2 Alloy)	4.3	863	start load; 15,400 cup; 1.125" OAL
175	Lyman Cast #401043 (#2 Alloy)	5.8	977	max load; 22,500 cup; 1.125" OAL
175	Lyman Cast #401638 (#2 Alloy)	4.3	796	start load; 16,000 cup; 1.100" OAL
175	Lyman Cast #401638 (#2 Alloy)	5.8	970	max load; 22,700 cup; 1.100" OAL
Lyman Reloading Handbook 48th Edition cases: Winchester; trim-to length: .845"; primers: Winchester WSP; primer size: Small Pistol; Lyman shell holder: No. 15; firearm used: Universal Receiver; barrel length: 4"; twist: 1-16"; groove dia.: .401"; do not reduce cases below the trim-to length; additionally do not roll crimp bullets; it is important not to seat bullets to a shorter length than listed in any handgun cartridge; but especially so in this one; pressures can be raised dramatically with deep seating
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
155	Round Nose Semi Wad Cutter	5.0	1,045	starting load; minimum OAL: 1.126
155	Round Nose Semi Wad Cutter	5.4	1,121	maximum load; minimum OAL: 1.126
170	Semi Wad Cutter	4.6	967	starting load; minimum OAL: 1.135
170	Semi Wad Cutter	5.0	1,043	maximum load; minimum OAL: 1.135
Oregon Trail Standard Handgun Loads test gun: Entreprise 5", WSP; CAUTION: All Glock .40 S&W pistols as of this writing have large unsupported chambers, as do other makes. Examine your barrel and know what you're dealing with before you proceed! These loads are intended for use in pistols with fully supported chambers ONLY! Do not exceed maximum loads; never reduce stated overall lengths
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
165	Rainier SWC	5.8	958	start charge
165	Rainier SWC	6.3	1030	max charge
Rainier Data COL: 1.120"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
155	Speer Gold Dot TMJ or GD-HP	6.5	1038	maximum load
155	Speer Gold Dot TMJ or GD-HP	5.8	867
165	Speer Gold Dot TMJ or GD-HP	6.3	1031	maximum load
165	Speer Gold Dot TMJ or GD-HP	5.8	955	approximate 40 S&W 165 grain law enforcement version ("40 Lite")
Speer Reloading Manual #13 max. case length: 0.850"; trim-to length: 0.840"; max. cart. length: 1.135"; RCBS shellholder: #27; barrel length: 4"; twist: 1-16"; test firearm: Smith & Wesson Model 4006; case: Speer; primers: CCI 500; bullet diam.: .400"; use maximum loads with caution; SAFETY NOTICE Some pistols chambered for the 40 S&W cartridge may not provide complete support of the case head. If this condition exists, normal pressure loads such as those shown here can cause the case wall to bulge or rupture at the unsupported point. Contact your firearm manufacturer to determine if your pistol completely supports the case head, or ask a gunsmith to inspect your pistol before using it with ANY ammunition. It is the gun owner's responsibility to know his firearm and its capabilities and limitations.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
135	Sierra JHP	5.2	969
135	Sierra JHP	5.5	1013
135	Sierra JHP	5.9	1064
135	Sierra JHP	6.2	1116
135	Sierra JHP	6.5	1167
135	Sierra JHP	6.9	1219
135	Sierra JHP	7.2	1261	maximum load
150	Sierra JHP	4.8	864
150	Sierra JHP	5.1	903
150	Sierra JHP	5.3	948
150	Sierra JHP	5.6	993
150	Sierra JHP	5.8	1038
150	Sierra JHP	6.1	1077	maximum load
165	Sierra JHP	4.6	845
165	Sierra JHP	5.0	899
165	Sierra JHP	5.3	953
165	Sierra JHP	5.7	1007	maximum load
180	Sierra JHP	4.4	835
180	Sierra JHP	4.7	866
180	Sierra JHP	5.0	902
180	Sierra JHP	5.3	937
180	Sierra JHP	5.6	969	maximum load
using Sierra bullets Notes: Gun: Glock Model 22; barrel length: 4.35"; case: Starline; primer: Winchester Small Pistol; bullet diameter: .400"; 135 GR Sierra JHP COAL: 1.125"; 150 GR Sierra JHP COAL: 1.125"; 165 GR Sierra JHP COAL: 1.125"; 180 GR Sierra JHP COAL: 1.125"; maximum COAL: 1.135"; maximum case length: .850"; trim to length: .845".
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
135	Nosler Jacketed Hollow Point	7.0	1,244	col: 1.125"; 33,100 psi
155	Hornady XTP	6.0	1,103	col: 1.125"; 33,000 psi
165	Sierra Jacketed Hollow Point	5.3	1,001	col: 1.125"; 32,500 psi
170	Hornady XTP	5.3	1,007	col: 1.125"; 33,000 psi
180	Hornady XTP	5.0	947	col: 1.125"; 32,900 psi
200	Hornady XTP	4.7	857	col: 1.125"; 33,400 psi
Pistol Data case: Hornady; BBL: 4"; PR: Winchester SP; WARNING: This data is intended for use in firearms with barrels which fully support the cartridge in the chamber. Use of this data in firearms which do not fully support the cartridge may result in bulged cases, ruptured cases, case head separation, or other conditions which may result in damage to the firearm and/or result in injury or death of the shooter and/or bystanders. NEVER exceed loads listed
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
150	Nosler Sporting Handgun Jacketed Hollow Point	6.5	1,143	maximum load; most accurate load tested
150	Nosler Sporting Handgun Jacketed Hollow Point	6.0	1,081
150	Nosler Sporting Handgun Jacketed Hollow Point	5.5	1,018
Handgun Data Using Nosler Bullets Handgun; case: Winchester; primer: WSP; barrel length/make: 4" S&W; twist: 1-16"; bullets: 135 GR, 150 GR, 180 GR & 200 GR Nosler Sporting Handgun Pistol JHP; OACL: 1.125"; maximum OACL: 1.135". Use Maximum Loads with Caution
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
177	Oregon Trail roundnose flatpoint	4.5	833	best load this bullet
175	RCBS 40-180-CM RN/FP	4.5	863	best load for this gun
Kimber Pro Compact (Autoloading Pistol Loads) 4 1/4-inch barrel. Group shooting was done from a sandbag rest at 25 yards in five-shot strings. Chronographing done with an Oehler Model 35P with start screen at approximately 6 feet. All brass was Starline. All primers were CCI Small or Large Pistol as proper. All bullets cast were poured of Linotype and lubed with SPG. Sizing diameter: .401 inch;
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
135	Nosler JHP	5.0	943	overall loaded length (inches): 1.125
135	Nosler JHP	5.5	1017	overall loaded length (inches): 1.125
135	Nosler JHP	6.0	1077	overall loaded length (inches): 1.125
135	Nosler JHP	6.5	1178	overall loaded length (inches): 1.125
135	Nosler JHP	7.0	1231	overall loaded length (inches): 1.125
135	Nosler JHP	7.3	1278	overall loaded length (inches): 1.125
180	Oregon Trail Cast TC	4.0	835	overall loaded length (inches): 1.120
180	Oregon Trail Cast TC	4.4	872	overall loaded length (inches): 1.120
180	Oregon Trail Cast TC	4.8	936	overall loaded length (inches): 1.120
Load Data A Glock Model 22 with a 4.35-inch barrel was used to test-fire all loads. Starline cases and Winchester Small Pistol primers were used throughout. Bullet diameter: .400 inch; maximum cartridge overall length: 1.135 inches; maximum case length: .850 inch; trim-to length: .845 inch.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
175	Lyman 401043	4.8	950	lube: Thompson's Red Angel; 6 lb wheelweights: 4 lb Linotype: 2 1/2 oz pure tin; energy (ft-lbs): 350; super accurate
140	Bull-X	5.5	1,070	lube: Thompson's Bear Lube; 92 parts lead: 6 parts antimony: 2 parts tin; energy (ft-lbs): 355; accurate
140	Bull-X	5.9	1,120	lube: Thompson's Bear Lube; 92 parts lead: 6 parts antimony: 2 parts tin; energy (ft-lbs): 389; super accurate
140	Bull-X	6.4	1,190	lube: Thompson's Bear Lube; 92 parts lead: 6 parts antimony: 2 parts tin; energy (ft-lbs): 439; very accurate
Model 4006 (Cast Bullet Loads) Except where noted, all loads used Winchester cases, and CCI 500 primers with taper (very mild) crimp. (Cast Bullet Special Edition 1992)

.41 Avenger

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
186	Cast TC	4.0	708	CCI No. 350s; too light to cycle gun
186	Cast TC	4.3	738	CCI No. 350s
186	Cast TC	4.6	770	CCI No. 350s
186	Cast TC	4.9	835	CCI No. 350s
186	Cast TC	5.2	866	CCI No. 350s
186	Cast TC	5.5	901	CCI No. 350s; best load in this W-231 set
186	Cast TC	5.8	969	CCI No. 350s
186	Cast TC	6.1	1033	CCI No. 350s; MAX., leading, primer cratering
186	Cast TC	6.4	1103	CCI No. 350s; too hot, bad leading, cratering, and primer shaving
186	Cast TC	4.5	816	.45 Win. Mag.-type brass; W-W 7M primers
186	Cast TC	5.0	876	.45 Win. Mag.-type brass; W-W 7M primers
186	Cast TC	5.5	896	.45 Win. Mag.-type brass; W-W 7M primers
186	Cast TC	6.0	948	.45 Win. Mag.-type brass; W-W 7M primers
186	Cast TC	6.5	1053	MAX.; .45 Win. Mag.-type brass; W-W 7M primers
186	Cast TC	7.0	1108	too hot, bad leading, cratering, shaving; .45 Win. Mag.-type brass; W-W 7M primers
.45 ACP-based brass used (except where otherwise specified in remarks); Lee machine rest.

.41 Magnum / .41 Remington Magnum

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
220	Lyman 410459 cast	6.0	858	primer: Federal 150; rounds per pound: 1,167
Economical Midrange Loads firearm used: Ruger Blackhawk; case: Starline; barrel length: 6 1/2"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
220	Lyman 410459	6.0	858	primer: Federal 150
in a Ruger Blackhawk Ruger Blackhawk has a barrel length of 6 1/2 inches. Starline brass used in all loads. Temperature during range tests was 28 degrees Fahrenheit.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
220	Lyman 410459 cast	6.0	828	primer: Federal 150
in an S&W Model 657 The Smith & Wesson Model 657 Mountain Gun has a barrel length of 4 inches. Starline brass used in all loads. Temperature during range tests was 28 degrees Fahrenheit.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
210	Jacketed	8.2	1142	start load; min OAL: 1.540
210	Jacketed	8.8	1220	never exceed; min OAL: 1.540; 38,000 cup
210	Lead	7.4	1125	start load; min OAL: 1.540
210	Lead	7.4	1125	never exceed; min OAL: 1.540; 28,000 cup
Lee Precision Data CAUTION: With NEVER EXCEED LOADS; maintain Minimum Over All Length or longer. (Modern Reloading, Second Edition - Richard Lee)
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
210	Nosler Sporting Handgun Jacketed Hollow Point	8.6	1,253	maximum load
210	Nosler Sporting Handgun Jacketed Hollow Point	8.1	1,198
210	Nosler Sporting Handgun Jacketed Hollow Point	7.6	1,143	most accurate load tested
Using Nosler Bullets Handgun; case: Federal; primer: Fed 150; barrel length/make: 10" Douglas; twist: 1-14"; bullets: 210 GR Sporting Handgun Revolver JHP; OACL: 1.585"; maximum OACL: 1.590". Use Maximum Loads with Caution
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
215	Semi Wad Cutter	6.5	895	reduced load; reduce by 10% for starting load; OAL: 1.595
Pistol (Oregon Trail Bullet Co Data) test gun: S&W M-57 6 1/2" except where otherwise noted in remarks; primer: WLP except where otherwise noted in remarks; do not exceed maximum loads; never reduce stated overall lengths

.44 Remington Magnum / .44 Magnum

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
220	Lyman 429215	9.0	1,015	7 /12-inch Ruger Super Blackhawk; .25-yard group: .74 inches
245	Lyman 429383	6.5	850	7 1/2-inch Ruger Super Blackhawk; 25-yard group: 1.11 inches
250	Lyman 429421	8.0	1,016	7 1/2-inch Ruger Super Blackhawk; 25-yard group: 1.17 inches
255	Lyman 429244	8.0	1,031	7 1/2-inch Ruger Super Blackhawk; 25-yard group: 1.41 inches
220	Lyman 429215	9.0	1,103	4-inch S&W Model 29; 25-yard group: 1.01 inches
245	Lyman 429383	6.5	771	4-inch S&W model 29; 25-yard group: 1.12 inches
250	Lyman 429421	8.0	983	4-inch S&W Model 29; 25-yard group: 1.17 inches
255	Lyman 429244	8.0	997	4-inch S&W Model 29; 25-yard group: 1.51 inches
240	Bull-X flatnose	8.0	1,037
This load data has been compiled over many years of testing and experimenting in no fewer than four guns. For a load to be included, it had to produce accuracy of 2 inches or less at 25 yards.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
220	Lyman 429215	9.0	1,058	barrel (inches): 4 3/4
Cast Bullets
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
220	Lyman 429215 cast SWC	9.0	1103	rounds per pound: 778
250	Lyman 429421 cast SWC	8.0	1016	rounds per pound: 875
Economical Midrange Loads firearm used: Ruger Super Blackhawk; primer: CCI 300 (except where otherwise specified in remarks); case: W-W; barrel length: 7 1/2"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
240	Speer LSWC	6.0	808	start charge
240	Speer LSWC	6.5	867	maximum charge
200	Speer Mag JHP	10.5	1219	start charge
200	Speer Mag JHP	11.5	1295	maximum charge
Speer Reloading Manual #14 max. case length: 1.285"; trim-to length: 1.275"; max cart. OAL: 1.610"; RCBS shell holder: #18; cart. case: Speer; primer: CCI 300 (except where otherwise specified in remarks); test firearm: Ruger Redhawk; barrel length: 7.5"; NOTE: The 225-grain SWC GC and 250-grain K bullets were cast in RCBS moulds; maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
165	LRNFP Cast	6.0	963	start load; COL: 1.500"; 10,100 cup
165	LRNFP Cast	7.0	1088	max load; COL: 1.500"; 13,900 cup
180	Hornady XTP	10.0	1327	start load; COL: 1.600"; 26,500 cup
180	Hornady XTP	12.0	1509	max load; COL: 1.600"; 37,300 cup
185	LRNFP Cast	5.9	906	start load; COL: 1.540"; 9,400 cup
185	LRNFP Cast	7.2	1058	max load; COL: 1.540"; 14,700 cup
200	LRNFP Cast	5.8	875	start load; COL: 1.570"; 10,800 cup
200	LRNFP Cast	7.4	1039	max load; COL: 1.570"; 16,700 cup
200	Nosler JHP	10.0	1277	start load; bullet diam.: .429"; COL: 1.600"; 28,000 cup
200	Nosler JHP	11.9	1444	max load; bullet diam.: .429"; COL: 1.600"; 37,400 cup
210	Sierra JHC	7.5	985	start load; COL: 1.600"; 17,300 cup
210	Sierra JHC	11.7	1398	max load; COL: 1.600"; 37,500 cup
220	Berrys Bullets FP	6.8	811	start load; COL: 1.610"; 12,600 psi
220	Berrys Bullets FP	9.4	1104	max load; COL: 1.610"; 20,700 psi
225	Speer JHP	8.4	1101	start load; bullet diam.: .429"; COL: 1.575"; 23,900 cup
225	Speer JHP	11.0	1344	max load; bullet diam.: .429"; COL: 1.575"; 38,200 cup
240	LSWC Cast	5.5	800	start load; COL: 1.620"; 12,000 cup
240	LSWC Cast	11.0	1334	max load; COL: 1.620"; 38,100 cup
240	Nosler JHP	8.0	1021	start load; bullet diam.: .429"; COL: 1.600"; 23,800 cup
240	Nosler JHP	11.0	1272	max load; bullet diam.: .429"; COL: 1.600"; 37,800 cup
240	Speer GDSP	8.0	992	start load; bullet diam.: .429"; COL: 1.600"; 26,000 cup
240	Speer GDSP	10.2	1194	max load; bullet diam.: .429"; COL: 1.600"; 37,400 cup
280	Swift JHP	8.0	918	start load; COL: 1.700"; 26,100 cup
280	Swift JHP	10.0	1115	max load; COL: 1.700"; 37,300 cup
300	Hornady XTP	8.0	966	start load; COL: 1.600"; 29,400 cup
300	Hornady XTP	10.0	1149	max load; COL: 1.600"; 38,100 cup
325	Beartooth Bullets LFN GC	9.0	1035	start load; COL: 1.730"; 32,100 cup
325	Beartooth Bullets LFN GC	10.3	1125	max load; COL: 1.730"; 38,700 cup
330	Beartooth Bullets LFN GC	8.5	992	start load; COL: 1.730"; 33,700 cup
330	Beartooth Bullets LFN GC	9.7	1081	max load; COL: 1.730"; 38,700 cup
355	Beartooth Bullets LFN GC	7.8	928	start load; COL: 1.710"; 31,000 cup
355	Beartooth Bullets LFN GC	8.8	1001	max load; COL: 1.710"; 38,700 cup
Hodgdon Pistol Data - Winchester Powder Case: Winchester; barrel length: 8.275"; twist: 1:20"; trim length: 1.280"; primer: Remington 2 1/2; bullet diam.: .430" (except where otherwise specified in remarks). NEVER EXCEED MAXIMUM LOADS
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
210	Jacketed	10.8	1295	start load; min OAL: 1.535
210	Jacketed	11.7	1385	never exceed; min OAL: 1.535; 38,000 cup
240	Jacketed	10.4	1197	start load; min OAL: 1.535
240	Jacketed	11.2	1280	never exceed; min OAL: 1.535; 38,000 cup
240	Lead	10.2	1201	start load; min OAL: 1.535
240	Lead	11.0	1285	never exceed; min OAL: 1.535; 38,000 cup
Lee Precision Data Large pistol primer. CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Lee Precision Data
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
250	Lyman cast 429421	7.5	954	primer: CCI 300
Ruger Blackhawk Flattop Barrel length in firearm used was 6 1/2 inches. Temperature during field tests was 88 degrees Fahrenheit.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
240	Lyman 429421	8.0	952	group: 1.75 inches
Ruger Super Blackhawk Handloads were fired from a 7 1/2-inch barreled Ruger Super Blackhawk.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Speer Special GDHP SB	8.9	989	start charge
200	Speer Special GDHP SB	10.0	1083	maximum charge
(Short Barrel Velocities) Speer Reloading Manual #14 max. case length: 1.285"; trim-to length: 1.275"; max cart. OAL: 1.610"; RCBS shell holder: #18; cart. case: Speer; primer: CCI 300; test firearm: S&W M29; barrel length: 4"; NOTE: these loads do not produce maximum pressure; maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
165	Lead Round Nose Flat Point Cast	7.0	1,088	col: 1.500"; 13,900 cup
180	Hornady XTP	12.0	1,509	col: 1.600"; 37,300 cup
185	Lead Round Nose Flat Point Cast	7.2	1,058	col: 1.540"; 14,700 cup
200	Lead Round Nose Flat Point Cast	7.4	1,039	col: 1.570"; 16,700 cup
200	Nosler Jacketed Hollow Point	11.9	1,444	col: 1.600"; 37,400 cup
210	Sierra Jacketed Hollow Cavity	11.7	1,398	col: 1.600"; 37,500 cup
225	Speer Jacketed Hollow Point	11.0	1,344	col: 1.575"; 38,200 cup
240	Lead Semi-Wadcutter Cast	11.0	1,334	col: 1.620"; 38,100 cup
240	Nosler Jacketed Hollow Point	11.0	1,272	col: 1.600"; 37,800 cup
270	Speer Gold Dot Soft Point	10.2	1,194	col: 1.600"; 37,400 cup
280	Swift Jacketed Hollow Point	10.0	1,115	col: 1.700"; 37,300 cup
300	Hornady XTP	10.0	1,149	col: 1.600"; 38,100 cup
325	BTB Lead Flat Nose Gas Check	10.3	1,125	col: 1.730"; 38,700 cup
330	BTB Lead Flat Nose Gas Check	9.7	1,081	col: 1.730"; 38,700 cup
355	BTB Lead Flat Nose Gas Check	8.8	1,001	col: 1.710"; 38,700 cup
Winchester Pistol Data case: Winchester; BBL: 8.275"; PR: Remington 2 1/2; NEVER exceed loads listed
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
210	Cast #429215 gas check	9.3	914	sugg. start load; 1.645" OAL; 21,000 cup; potentially most accurate load
210	Cast #429215 gas check	12.8	1191	max load; 1.645" OAL; 37,000 cup
Cast Bullet Handgun Data Lyman Reloading Handbook 49th Edition cases: Remington; trim-to length: 1.275"; primers: CCI 300 (except where otherwise specified in remarks); primer size: Large Pistol, Std. & Magnum; Lyman shell holder: No. 7; cast bullets used sized to .429" dia.; firearm used: Universal Receiver; barrel length: 4"; twist: 1-20"; groove dia.: .429"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
180	Sierra Jacketed HC	10.2	1077	sugg. start load; 22,100 cup
180	Sierra Jacketed HC	13.0	1267	max load; 36,300 cup
Lyman Reloading Handbook 49th Edition cases: Remington; trim-to length: 1.275"; primers: CCI 300 (except where otherwise specified in remarks); primer size: Large Pistol, Std. & Magnum; Lyman shell holder: No. 7; firearm used: Universal Receiver; barrel length: 4"; twist: 1-20"; groove dia.: .429"; 1.610" OAL (except where otherwise specified in remarks)
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
250	Lyman/Keith 429421 (original)	8.0	1002	overall loaded length (inches): 1.706
in a Ruger Blackhawk (Flattop) Ruger Blackhawk (Flattop), 7 1/2-inch barrel. Starline cases used for all loads. CCI 350 Magnum primers used only with H-110 powder. All other loads used CCI 300 primers.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
250	Lyman/Keith 429421 (original)	8.0	989	overall loaded length (inches): 1.706
in a Smith & Wesson Model 29-5 Smith & Wesson Model 29-5, 6-inch barrel. Starline cases used for all loads. CCI 350 Magnum primers used only with H-110 powder. All other loads used CCI 300 primers.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
249	RCBS cast 44-240-SWC	8.0	969	primer: CCI 300; brass: Winchester
250	Lyman cast 429421	7.5	931	primer: CCI 300; brass: Winchester
250	Lyman cast 429421	8.0	980	primer: CCI 300; brass: Winchester
in an S&W Model 329PD Loads fired from a Smith & Wesson Model 329PD with a 4-inch barrel.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
249	RCBS 44-240-SWC cast	8.0	988
250	Keith-style Lyman 429421 cast	8.0	1,001
255	Lyman 429244 cast gas check	8.0	986
Midrange Loads All Smith & Wesson Models 29, 629 and 329PD. A Smith & Wesson (pre-29) .44 Magnum revolver with a 6 1/2-inch barrel used to test loads. CCI 300 primers used throughout, along with Winchester and Starline cases. Maximum case length: 1.285 inches; trim-to length: 1.275 inches.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
210	Winchester Silvertip HP	10.0	1,175
220	Lyman 429215 cast	9.0	1,103
240	Hornady lead SWC-HP	6.5	849
245	Lyman 429383 cast	6.5	850
249	RCBS 44-240-SWC cast	8.0	982
250	Lyman 429421 Keith	7.5	960
250	Lyman 429421 Keith	8.0	1,016
255	Lyman 429244 cast	8.0	1,031
Midrange Loads in a Ruger Super The Ruger Super Blackhawk has a barrel length of 7 1/2 inches. Standard Large Pistol (CCI 300 and Federal 150) primers used throughout.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
210	Winchester Silvertip HP	10.0	1,059
220	Lyman 429215 cast	9.0	1,015
240	Hornady lead SWC-HP	6.5	775
245	Lyman 429383 cast	6.5	771
249	RCBS 44-240-SWC cast	8.0	958
250	Lyman 429421 Keith	7.5	942
250	Lyman 429421 Keith	8.0	983
255	Lyman 429244 cast	8.0	997
Midrange Loads in an S&W The Smith & Wesson Model 29-2 has a 4-inch barrel. Standard Large Pistol (CCI 300 and Federal 150) primers used throughout.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Round Nose Flat Point	6.5	878	starting load
200	Round Nose Flat Point	8.0	1,052	maximum load
225	Round Nose Flat Point	5.7	771	starting load
225	Round Nose Flat Point	6.9	950	maximum load
Cowboy Loads (Oregon Trail Bullet Handgun Data) test gun: Ruger 7 1/2", WLP; OAL: 1.560; do not exceed maximum loads; never reduce stated overall lengths
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
180	Cast #429348	9.0	1002	sugg. start load; 1.420" OAL; 22,000 cup
180	Cast #429348	12.6	1315	max load; 1.420" OAL; 36,700 cup
200	Cast #429303 gas check	9.1	913	sugg. start load; 1.692" OAL; 19,600 cup
200	Cast #429303 gas check	12.6	1231	max load; 1.692" OAL; 36,900 cup; potentially most accurate load
215	Cast #429215 gas check	9.3	914	sugg. start load; 1.645" OAL; 21,000 cup; potentially most accurate load
215	Cast #429215 gas check	12.8	1191	max load; 1.645" OAL; 37,000 cup
Lyman Cast Bullet Handbook cases: Remington; trim-to length: 1.280"; primers: CCI 300; primer size: Large Pistol; Lyman shell holder: No. 7; cast bullets used size to .429" dia.; firearm used: Universal Receiver and Special Vented Barrel; barrel length: 4"; twist: 1-20"; groove diameter: .429". Cast bullet #'s 429303, 429215, 429360, 429244, 429421 list overall lengths that exceed the maximum of 1.610" and are suitable only for the Thompson/Center Contender or similar firearms that will accept cartridges of these dimensions. The data listed for these bullets take this extra length into consideration.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
180	Hornady FP-Cowboy	6.8	558
180	Hornady FP-Cowboy	7.2	617
180	Hornady FP-Cowboy	7.7	676
180	Hornady FP-Cowboy	8.1	735
180	Hornady FP-Cowboy	8.6	785	maximum load
Revolver (Using 180 GR Hornady Bullets) Gun: Ruger New Model Blackhawk (Bisley); barrel length: 5 1/2-inches; case: Starline; primer: Winchester Large Pistol; bullet diameter: .430"; maximum COAL: 1.610"; maximum case length: 1.285"; trim to length: 1.275"; COAL: 1.600".
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
240	Hornady SWC-HP or SWC	5.5	667
240	Hornady SWC-HP or SWC	6.0	729
240	Hornady SWC-HP or SWC	6.6	802
240	Hornady SWC-HP or SWC	7.1	874
240	Hornady SWC-HP or SWC	7.7	943	maximum load
Revolver (Using 240 GR Hornady Bullets) Gun: Ruger New Model Blackhawk (Bisley); barrel length: 5 1/2-inches; case: Starline; primer: Winchester Large Pistol; bullet diameter: .430"; Hornady HP-XTP and CL-SIL COAL: 1.600"; SWC-HP and SWC COAL: 1.610"; maximum COAL: 1.610"; maximum case length: 1.285"; trim to length: 1.275".
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
220	cast gas check Lyman 429215	9.0	1,087
240	Hornady lead SWC-HP	6.5	801
245	Lyman 429383 cast roundnose	6.5	811
Target Loads All Smith & Wesson Models 29, 629 and 329PD. A Smith & Wesson (pre-29) .44 Magnum revolver with a 6 1/2-inch barrel used to test loads. CCI 300 primers used throughout, along with Winchester and Starline cases. Maximum case length: 1.285 inches; trim-to length: 1.275 inches.

.44 Russian

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
190	Bull-X SWC	5.0	710	OAL: 1.29 inches; moderate pressure
The test gun was a Colt Single Action Army .44 Special with a 7 1/2-inch barrel. All test loads used Remington cases and Remington 2 1/2 primers.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Speer FN or CM	3.9	698	start charge
200	Speer FN or CM	4.3	786	maximum charge
Speer Reloading Manual #14 Cowboy Action Shooting Data; max. case length: 0.970"; trim-to length: 0.960"; max cart. OAL: 1.430"; RCBS shell holder: #18; cart. case: Starline; primer: CCI 300; test firearm: Cimarron SAA; barrel length: 5.5"; NOTE: bullets were cast in RCBS moulds; maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
180	Hornady Swaged Lead FN #11058	4.4	729	sugg. start load; 1.185" OAL; 7,800 cup
180	Hornady Swaged Lead FN #11058	4.9	825	max load; 1.185" OAL; 11,100 cup
200	Cast #427666	3.7	695	sugg. start load; 1.255" OAL; 8,500 psi
200	Cast #427666	4.2	736	max load; 1.255" OAL; 10,000 psi
240	Cast #429667	3.7	617	sugg. start load; 1.335" OAL; 8,500 cup
240	Cast #429667	4.2	692	max load; 1.335" OAL; 10,900 cup
245	Cast #429383	3.7	628	sugg. start load; 1.400" OAL; 8,000 cup
245	Cast #429383	4.2	699	max load; 1.400" OAL; 11,400 cup
245	Cast #429421	3.7	631	sugg. start load; 1.390" OAL; 8,200 cup
245	Cast #429421	4.2	700	max load; 1.390" OAL; 10,900 cup
Handgun Lyman Reloading Handbook 49th Edition cases: Starline; trim-to length: .965"; primers: Winchester WLP; primer size: Large Pistol; Lyman shell holder: No. 7; firearm used: Universal Receiver; barrel length: 6 1/2"; twist: 1-20"; groove dia.: .429"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	roundnose Hoch custom mould	4.0	725	good load
250	roundnose Lyman 429383	4.0	699	accurate
Handloads All loads fired from a Navy Arms/Uberti 3rd Model .44 Russian with a 7-inch barrel. All chronograph figures are for five shots with start screen at approximately 6 feet. All handloads used Starline brass with Winchester Large Pistol primers. Bullets cast of 1-20 (tin-to lead) alloy, sized .430 inch and lubed with SPG.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Oregon Trail RNFP	4.3	700
200	Oregon Trail RNFP	4.8	765
200	Oregon Trail RNFP	5.2	813
240	Hornady SWC lead	4.6	752	some leading
Test gun was a Colt New Frontier with a 7 1/2-inch barrel. Starline cases and Federal 150 Large Pistol primers used throughout.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
204	custom Hoch roundnose	4.8	730	good plinker
250	Redding/SAECO 442 roundnose	4.6	754
Navy Arms 3rd Model 7-Inch Barrel All bullets cast of 1-20 (tin-to-lead) alloy and lubed with SPG. Bullets were sized .430 inch. Cases by Starline, and primers were Winchester Large Pistol except for the black-powder loads. They were primed with CCI 350 Large Pistol Magnum. All loads listed will group five shots into approximately 2 inches at 50 feet. Chronograph readings taken with an Oehler Model 35P with start screen at approximately 6 feet.

.44 Smith & Wesson / .44 S&W Schofield

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
220	NEI 323A conical	5.5	711	very accurate
233	RCBS 45-230-CM	6.0	740	favorite fun load
S&W Model No. 3 (new manufacture) 7-inch barrel. All bullets cast of 1-20 (tin-to-lead) alloy and lubed with SPG. Bullets were sized .454 inch. Cases by Starline, and primers were Winchester Large Pistol. All loads listed will group five shots into approximately 2 inches at 50 feet. Chronograph readings taken with an Oehler Model 35P with start screen at approximately 6 feet.

.44 Smith & Wesson / .44 S&W Special

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
240	Hornady SWC	5.5	651	case expansion moderate
Loads designated maximum or near maximum must not be used in old or light-frame revolvers!
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
250	cast semiwadcutter	5.4	769	12,500 CUP
Warning! Notes Loads fired from a 4 3/4-inch barrel.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
237	Lyman 429421 HP	6.0	794	accurate
Cast Bullet - Lyman Mould Revolver used: Smith & Wesson Model 24, 6 1/2-inch barrel; overall loaded length (inches): 1.56; Lyman 429421 HP (sized to .431 inch); wheelweight alloy; Velocity figures are the average of at least six rounds fired approximately 10 feet from the muzzle using an Oehler Model 35P chronograph. Ambient temperature during testing averaged 58 degrees Fahrenheit. CCI standard velocity primers used. Loads were assembled using Remington cases. All loads should be reduced 5 percent for initial load development. This data is intended only for use by persons experienced in the proper and safe practice of handloading ammunition.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
240	Hornady SWC-HP	5.5	804	rounds per pound: 1,273
250	Lyman 42942 cast SWC	6.0	829	rounds per pound: 1,167
Economical Midrange Loads firearm used: Smith & Wesson New Century (Triple Lock) Target; safe in all revolvers; primer: CCI 300; case: Winchester; barrel length: 6 1/2"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
220	Berry's Bullets FP	4.8	695	start load; COL: 1.460"; 8,200 cup
220	Berry's Bullets FP	5.8	845	max load; COL: 1.460"; 13,000 cup
Hodgdon Data Case: Starline; barrel length: 8"; twist: 1:20"; trim length: 1.155"; primer: Winchester LP; bullet diam. .430" (except where otherwise specified in remarks). NEVER EXCEED MAXIMUM LOADS
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
240	Hornady semiwadcutter	5.5	651	case: W-W; primer: R 2 1/2; expansion: moderate
Lead Bullets Loads designated maximum or near max must not be used in old or light-frame revolvers!
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
246	Lead	5.3	787	start load; min OAL: 1.560
246	Lead	5.4	795	never exceed; min OAL: 1.560; 12,500 cup
Lee Precision Data CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Large Pistol Primer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
180	Sierra Jacketed HC	6.5	689	sugg. start load; 1.470" OAL; 9,300 cup
180	Sierra Jacketed HC	7.5	832	max load; 1.470" OAL; 13,600 cup
200	Hornady Jacketed HP/XTP	6.4	707	sugg. start load; 1.495" OAL; 11,100 cup
200	Hornady Jacketed HP/XTP	7.1	797	max load; 1.495" OAL; 13,800 cup
225	Speer Jacketed HP	5.0	585	sugg. start load; 1.460" OAL; 11,300 cup
225	Speer Jacketed HP	5.8	729	max load; 1.460" OAL; 13,900 cup
240	Speer Jacketed SP	5.0	654	sugg. start load; 1.465" OAL; 8,300 cup
240	Speer Jacketed SP	5.6	759	max load; 1.465" OAL; 13,900 cup
Lyman Reloading Manual 49th Edition cases: Winchester; trim-to length: 1.150"; primers: CCI 300; primer size: Large Pistol; Lyman shell holder: No. 7; firearm used: Universal Receiver; barrel length: 4" & 7 1/2"; twist: 1-20"; groove dia.: .429"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
250	RCBS 250K	7.1	953	extreme spread (fps): 27.8; group (inches): 1.25
Skeeter Skelton .44 Special #5 Remington .44 Special cases and CCI 300 primers were used in all loads. Averages were taken from five, five-shot groups with chronograph set 15 feet in front of the muzzle. Accuracy was tested at 25 yards using a sandbag rest.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Speer FN or CM	6.0	888	start charge
200	Speer FN or CM	6.8	964	maximum charge
225	Speer SWC GC	5.4	775	start charge
225	Speer SWC GC	6.2	886	maximum charge
250	Speer K	5.4	732	start charge
250	Speer K	6.2	849	maximum charge
240	Speer LSWC	5.2	701	start charge; a Taurus revolver with 3" barrel used
240	Speer LSWC	5.7	796	maximum charge; a Taurus revolver with 3" barrel used
200	Speer GDHP SB	6.0	730	start charge
200	Speer GDHP SB	6.9	886	maximum charge
240	Speer Mag JHP or Mag JSP	6.3	717	maximum charge; DO NOT REDUCE
Speer Reloading Manual #14 max. case length: 1.160"; trim-to length: 1.150"; max cart. OAL: 1.615"; RCBS shell holder: #18; cart. case: Remington; primer: CCI 300 (except where otherwise specified in remarks); test firearm: Cimarron SAA; barrel length: 5.5"; NOTE: The 200-grain FN & CM, the 225-grain SWC GC and the 250-grain K bullets were cast in RCBS moulds. RCBS crimp-on gas checks used for the 225-grain SWC GC bullets. Maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
180	Hornady HP-XTP	5.9	624
180	Hornady HP-XTP	6.3	680
180	Hornady HP-XTP	6.7	736
180	Hornady HP-XTP	7.2	791	maximum load
180	Hornady FP-Cowboy	5.2	472
180	Hornady FP-Cowboy	5.7	554
180	Hornady FP-Cowboy	6.2	653
180	Hornady FP-Cowboy	6.7	751
180	Hornady FP-Cowboy	7.2	843	maximum load
200	Hornady HP-XTP	4.9	537	Do Not Reduce
200	Hornady HP-XTP	5.4	600
200	Hornady HP-XTP	5.9	678
200	Hornady HP-XTP	6.4	753
200	Hornady HP-XTP	6.9	824	maximum load
240	Hornady SWC-HP or SWC	4.9	629
240	Hornady SWC-HP or SWC	5.4	679
240	Hornady SWC-HP or SWC	5.8	729
240	Hornady SWC-HP or SWC	6.2	780	maximum load
Using Hornady Bullets Gun: Smith & Wesson 624; barrel length: 4 inches; case: Starline; primer: Winchester Large Pistol; bullet diameter: 0.430"; 180 GR Hornady HP-XTP COAL: 1.480"; FP-Cowboy COAL: 1.490"; 200 GR HP-XTP COAL: 1.470"; 240 GR HP-XTP & CL-SIL COAL: 1.480"; 240 GR SWC-HP & SWC COAL: 1.490"; maximum COAL: 1.500"; maximum length: 1.160"; trim to length: 1.150".
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
240	Hornady lead SWC-HP	6.0	844	extreme spread: 24; maximum or leading may occur
250	Lyman 429421 Keith	6.0	836	extreme spread: 23
+P and Standard for F A Model 1997 Warning! All data is also safe for postwar Smith & Wesson N-Frame revolvers. Barrel length of Freedom Arms Model 1997 is 4 1/2. Winchester brass was used in all loads as were CCI 300 primers, except Federal 155s were used with loads containing H-110, H-4227 and IMR-4227
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Nosler Sporting Handgun Jacketed Hollow Point	7.3	970	maximum load; most accurate powder tested
200	Nosler Sporting Handgun Jacketed Hollow Point	6.8	909	most accurate powder tested
200	Nosler Sporting Handgun Jacketed Hollow Point	6.3	849	most accurate load tested; most accurate powder tested
Handgun Using Nosler Bullets handgun: barrel: Douglas, length: 8.2", twist: 1-20"; case: Remington; primer: Rem. 2 1/2; bullets: 200 GR & 240 GR Sporting Handgun Revolver JHP; OACL: 1.455"; maximum SAAMI overall cartridge length: 1.615"; Use Maximum Loads with Caution
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
240	Cast #429667	5.2	719	sugg. start load; 1.500" OAL; 10,100 cup
240	Cast #429667	5.8	804	max load; 1.500" OAL; 13,500 cup
245	Cast #429383	4.6	703	sugg. start load; 1.570" OAL; 7 1/2" barrel; 9,200 cup; potentially most accurate load
245	Cast #429383	5.7	843	max load; 1.570" OAL; 7 1/2" barrel; 13,600 cup
245	Cast #429421	4.4	679	sugg. start load; 1.570" OAL; 7,700 cup
245	Cast #429421	5.5	821	max load; 1.570" OAL; 13,100 cup
Cast Bullet Data Lyman Reloading Handbook 49th Edition cases: Winchester; trim-to length: 1.150"; primers: CCI 300; primer size: Large Pistol; Lyman shell holder: No. 7; firearm used: Universal Receiver; barrel length: 4" (except where otherwise noted in remarks); twist: 1-20"; groove dia.: .429"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
240	Precision SWC	5.3	740
240	Precision SWC	7.1	953
in a 4-inch Ruger
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
240	Precision SWC	5.3	705
240	Precision SWC	7.1	914
in a 4-inch Taurus
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
240	Precision SWC	5.3	756
240	Precision SWC	7.1	979
in a 6-inch Smith & Wesson (S&W)
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
257	RCBS 44-250-K	6.0	822	overall loaded length (inches): 1.602
in a Colt New Frontier SAA Colt New Frontier SAA, 7 1/2-inch barrel. All the loads listed are within SAAMI pressure guidelines of 15,500 psi. Starline cases and CCI 300 primers were used throughout.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
240	Hornady lead SWC-HP	6.0	844	extreme spread (fps): 24; maximum or leading may occur
250	Lyman 429421 Keith	6.0	836	extreme spread (fps): 23
in a Freedom Arms 1997 (15,500 psi or less) A Freedom Arms Model 1997 with a 4 1/4-inch barrel was used in all these loads. Winchester cases and CCI 300 primers used throughout.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
257	RCBS 44-250-K	6.0	798	overall loaded length (inches): 1.602
in a Smith & Wesson Model 1950 Smith & Wesson Model 1950 Target (original), 4-inch barrel. All the loads listed are within SAAMI pressure guidelines of 15,500 psi. Starline cases and CCI 300 primers were used throughout.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
257	RCBS 44-250-K	6.0	815	overall loaded length (inches): 1.602
in a USFA Colt USFA Colt Pattern Custom Keith No. 5, 5 1/2-inch barrel. All the loads listed are within SAAMI pressure guidelines of 15,500 psi. Starline cases and CCI 300 primers were used throughout.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
240	Hornady lead SWC-HP	5.5	815
250	Lyman 429421 cast	6.0	821
in an S&W Model 24-6 (15,500 psi or less) A Smith & Wesson Model 24-6 with a 6 1/2-inch barrel was used to fire these loads. Winchester cases and CCI 300 Large Pistol primers were used throughout. Bullet diameter: .429 and .430 inch; maximum case length: 1.16 inches; trim-to length: 1.15 inches.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
240	Hornady lead SWC-HP	5.5	804	extreme spread (fps): 21
250	Lyman 429421 Keith	5.5	760	extreme spread (fps): 16
250	Lyman 429421 Keith	6.0	829	extreme spread (fps): 20
in an S&W New Century (15,500 psi or less) A Smith & Wesson New Century (Triple Lock) Target revolver with a 6 1/2-inch barrel was used to fire these loads. Winchester cases and CCI 300 primers used throughout.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
240	Hornady lead SWC-HP	5.5	815	primer: CCI 300; expands reliably
250	Keith Lyman 429421	6.0	844	primer: CCI 300; BHN 9; .90-inch group
in the Ruger New Model Blackhawk Loads fired from a 5 1/2-inch barreled Ruger New Model Blackhawk .44 Special. Starline cases used for all loads. Temperature during testing was 30 degrees Fahrenheit. WARNING: Some of these handloads develop up to 25,000 psi and are only suitable for the New Model Ruger Blackhawk .44 Special or revolvers of similar strength.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
240	Hornady lead semiwadcutter hollowpoint	5.5	804
250	Lyman 429421 semiwadcutter	5.5	760
250	Lyman 429421 semiwadcutter	6.0	829
New Century Test gun was a Smith & Wesson New Century Target with a 6 1/2-inch barrel. Winchester cases and CCI 300 primers used throughout. Temperature during testing was 55 degrees Fahrenheit. All data has been tested in laboratories and is within SAAMI maximum pressure limits of 15,500 psi.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
240	Semi Wad Cutter	4.5	661	starting load
240	Semi Wad Cutter	5.4	798	maximum load
Standard Loads (Oregon Trail Bullet Handgun Data) test gun: Smith & Wesson 6", WLP; OAL: 1.480; do not exceed maximum loads; never reduce stated overall lengths
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
240	flatpoint	5.5	740	group (inches): 4.00
Ruger Bisley for Plated Bullets All results were the average of five, five-shot strings at 25 yards with the handguns rested on sandbags. OAL: 1.495 inches.

.44 WCF / .44-40 Winchester

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	RCBS cast	6.7	1,079	12,000 CUP
. .
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	H&G 241 SWC	6.0	785	muzzle energy: 272 ft-lbs; good target load
200	H&G 241 SWC	7.0	896	muzzle energy : 357 ft-lbs; good 50-yard load
cast bullets Pistol: Colt New Frontier 7 1/2-inch barrel. Primer: CCI 300. Case: W-W.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Speer 200 HP	8.0	950	group (inches): 3.0
200	Remington 200 FN (427)	8.0	950	group (inches): 3.0
200	MG 44-200	8.0	994	group (inches): 3.0
Colt Peacemaker Loads SC = 3.5 inches or more (Loading the Peacemaker - Dave Scovill)
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Speer FN or CM	6.4	817	start charge
200	Speer FN or CM	7.1	892	maximum charge
Speer Reloading Manual #14 Cowboy Action Shooting Data; max. case length: 1.305"; trim-to length: 1.295"; max cart. OAL: 1.590"; RCBS shell holder: #35; cart. case: Remington; primer: CCI 300; test firearm: Colt New Service; barrel length: 5.5"; NOTE: Bullets were cast in RCBS moulds. Maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Lead RNFP	5.5	901	starting load; 9,800 psi
200	Lead RNFP	6.5	1020	maximum load; 12,400 psi
Hodgdon Data case: Winchester; barrel length: 20"; twist: 1:36"; trim length: 1.295"; primer: Winchester LP; bullet diam.: .428"; COL: 1.600"; NEVER EXCEED MAXIMUM LOADS
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Lead	6.4	1050	start load; min OAL: 1.580
200	Lead	6.7	1100	never exceed; min OAL: 1.580; 12,000 psi
Lee Precision Data CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Large Pistol primer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Round Nose Flat Point	5.5	726	starting load
200	Round Nose Flat Point	6.4	793	maximum load
225	Round Nose Flat Point	5.8	684	starting load
225	Round Nose Flat Point	7.0	838	maximum load
Oregon Trail Handgun Data test gun: Colt S.A.; 5 1/2"; CCI large pistol primers; OAL: 1.575; do not exceed maximum loads; never reduce stated overall lengths
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Speer FN or CM	6.4	1156	start charge
200	Speer FN or CM	7.1	1234	maximum charge
Speer Reloading Manual #14 max. case length: 1.305"; trim-to length: 1.295"; max cart. OAL: 1.592"; RCBS shell holder: #35; cart. case: Remington; primer: CCI 300; test firearm: Universal Receiver; barrel length: HS Precision 24"; bullets were cast in RCBS moulds; maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
205	Hornady Cowboy lead	7.1	829	extreme spread (fps): 55
200	Oregon Trail RNFP	7.1	825	extreme spread (fps): 42
214	RCBS cast 44-200-FN	7.1	829	extreme spread (fps): 55; 1 1/4-inch groups
13,000 CUP Sixgun Loads A Colt Frontier Six Shooter with a 7 1/2-inch barrel was used in developing the load data. Winchester Large Pistol primers and Starline cases were used throughout. Temperature during testing was 40 degrees Fahrenheit.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
205	Cast #427098	6.2	863	sugg. start load; 1.592" OAL; 10,800 cup
205	Cast #427098	6.9	944	max load; 1.592" OAL; 12,000 cup
Lyman Reloading Manual 49th Edition cases: Winchester; trim-to length: 1.295"; primers: Winchester WLP; primer size: Large Pistol; Lyman shell holder: No. 14B; cast bullets used sized to .429" dia.; firearm used: Universal Receiver; barrel length: 6"; twist: 1-20"; groove dia.: .428"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Desperado Bullet Co. RN/FP	7.0	852	firearm: USFA SA; barrel length (inches): 5 1/2; good all around load
214	RCBS 44-200FN RN/FP	6.8	888	firearm: Colt SAA; barrel length (inches): 7 1/2; good all-around load
214	RCBS 44-200FN RN/FP	6.8	1,080	firearm: Marlin 1894; barrel length (inches): 24; mild in rifles
Loads All cast bullets used 1-20 (tin-to-lead) alloy, SPG lube and were sized to .428 inch. Laser Cast 200-grain bullet sized to .427 and Desperado bullet sized to .428 inch. Hornady 205-grain swaged bullet was .426 inch. All smokeless powder loads used CCI 300 Large Pistol primers, and all black-powder loads used CCI 350 Large Pistol Magnum primers. All smokeless loads used Starline brass, and all black-powder loads used Winchester brass, except the black-powder load with Swiss FFFg, which used old balloonhead WRA brass.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
205	Hornady FP Cowboy	5.8	617
205	Hornady FP Cowboy	6.4	725	maximum load
Revolver Using Hornady Bullets Gun: Colt Frontier Six-Shooter; barrel length: 4 3/4-inches; case: Starline; primer: Federal #150; bullet diameter for the 205 GR FP Cowboy: .427" bullet diameter for the 200 GR HP-XTP: .430"; HP-XTP COAL: 1.600"; FP Cowboy COAL: 1.570"; maximum COAL: 1.592"; maximum case length: 1.305"; trim to length: 1.295".
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
210	Lyman 42798	6.0	653	OAL: 1.58 inches; group (inches): 2.25
210	Lyman 42798	6.5	715	OAL: 1.58 inches; group (inches): 3.19
210	Lyman 42798	7.0	753	OAL: 1.58 inches; group (inches): 1.88
210	NEI 205-429PB	6.0	647	OAL: 1.65 inches; group (inches): 4.13
210	NEI 205-429PB	6.5	711	OAL: 1.65 inches; group (inches): 2.00
210	NEI 205-429PB	7.0	774	OAL: 1.65 inches; group (inches): 3.75
216	P&C 44-215CP	6.0	696	OAL: 1.59 inches; group (inches): 1.88
216	P&C 44-215CP	6.5	755	OAL: 1.59 inches; group (inches): 3.25
216	P&C 44-215CP	7.0	792	OAL: 1.59 inches; group (inches): 2.38
216	P&C 44-215SWC	6.0	699	OAL: 1.63 inches; group (inches): 4.25
216	P&C 44-215SWC	6.5	743	OAL: 1.63 inches; group (inches): 4.00
216	P&C 44-215SWC	7.0	810	OAL: 1.63 inches; group (inches): 2.38
220	Lyman 429215	6.0	678	OAL: 1.65 inches; group (inches): 2.50
220	Lyman 429215	6.5	718	OAL: 1.65 inches; group (inches): 2.75
220	Lyman 429215	7.0	793	OAL: 1.65 inches; group (inches): 3.13
Revolver in a 4 3/4-inch Barrel All loads used Winchester brass and Winchester Large Pistol primers. All groups fired at 25 yards with gun mounted in Lee (now Mequon) Pistol Machine Rest. Average of 92 groups in Colt SAA 4 3/4-inch barrel - 3.10 inches.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
210	Lyman 42798	6.0	771	OAL: 1.58 inches; group (inches): 3.13
210	Lyman 42798	7.0	912	OAL: 1.58 inches; group (inches): 2.88
210	NEI 205-429PB	6.0	761	OAL: 1.65 inches; group (inches): 2.56
210	NEI 205-429PB	7.0	862	OAL: 1.65 inches; group (inches): 2.44
216	P&C 44-215CP	6.5	787	OAL: 1.59 inches; group (inches): 3.88
216	P&C 44-215CP	7.0	837	OAL: 1.59 inches; group (inches): 2.25
216	P&C 44-215SWC	6.0	784	OAL: 1.63 inches; group (inches): 2.13
216	P&C 44-215SWC	7.0	891	OAL: 1.63 inches; group (inches): 3.50
220	Lyman 429215	6.0	736	OAL: 1.65 inches; group (inches): 2.00
220	Lyman 429215	7.0	872	OAL: 1.65 inches; group (inches): 3.63
210	NEI 205-429PB	6.0	749	Remington No. 2 1/2 primer used; OAL: 1.65 inches; group (inches): 4.00 (all cavities - not weighed)
210	NEI 205-429PB	6.0	766	OAL: 1.65 inches; group (inches): 1.81 (weighed bullets - 1 cavity)
216	P&C 44-215SWC	6.0	771	OAL: 1.59 inches; group (inches): 1.06 (weighed bullets - 1 cavity)
Revolver in a 7 1/2-inch Barrel All loads used Winchester brass. All loads used Winchester Large Pistol primers unless otherwise noted. All groups fired at 25 yards with gun mounted in Lee (now Mequon) Pistol Machine Rest. Average of 52 groups in Colt SAA 7 1/2 barrel - 3.05 inches.

.45 ACP

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
185	Hornady JHP	7.0	936	primer: F 150; O.A. Ctg. Lgt.: 1.23; case expansion near maximum
200	Speer JHP	6.2	850	primer: F 150; O.A. Ctg. Lgt.: 1.18; case expansion normal
185	Speer SWC	5.0	753	primer: F 150; O.A. Ctg. Lgt.: 1.115; case expansion moderate; extremely accurate target load
190	Shur-X SWC	6.5	996	primer: F 150; O.A. Ctg. Lgt.: 1.25; case expansion normal
200	Hornady SWC	5.0	714	primer: F 150; O.A. Ctg. Lgt.: 1.225; case expansion light; too light charge; uncertain function
200	Hornady SWC	6.0	880	primer: F 150; O.A. Ctg. Lgt.: 1.225; case expansion normal; functions OK
215	Markell SWC	5.0	769	primer: F 150; O.A. Ctg. Lgt.: 1.21; case expansion moderate; accurate
230	Speer RNL	5.0	716	primer: F 150; O.A. Ctg. Lgt.: 1.272; case expansion moderate
JHP = jacketed hollowpoint; FMJ = full metal jacket; SWC = semiwadcutter; RNL = roundnose lead. Test Guns: Colt Gold Cup National Match and Colt service automatics. Ruger Convertible revolver with 4-5/8-inch barrel used for velocity comparisons. Federal cases used throughout tests. Velocities chronographed with Oehler Model 31 Chronotach and Model 51 electronic screens; velocities taken at ten feet; screen spacing, ten feet. Accuracy Goals: (five-shot groups - sandbag rest) - one inch at fifty feet; three to four inches at fifty yards.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
185	Barnes XPB	6.2	1,030	primer: CCI 300
Barnes X-Pistol Bullets A Kimber Classic Custom 1911 with a 5-inch barrel was used for testing these loads. Starline cases used throughout. Overall cartridge length was 1.230 inches, and temperature during testing was 92 degrees Fahrenheit.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Hornady XTP-HP	6.0	857	rounds per pound: 1,167
200	Hornady lead C/T	4.6	760	rounds per pound: 1,522
230	Oregon Trail cast RN	5.2	831	rounds per pound: 1,346
Economical Midrange Loads firearm used: Kimber Classic Custom; primer: Federal 150; case: Starline; barrel length: 5"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
155	Cast LSWC	6.0	998	start load; COL: 1.230"; 13,400 cup
155	Cast LSWC	6.7	1112	max load; COL: 1.230"; 17,100 cup
155	SinterFire	5.6	944	start load; COL: 1.220"; 13,800 cup
155	SinterFire	6.2	1057	max load; COL: 1.220"; 16,700 cup
160	Barnes TAC-XP	5.0	940	start load; COL: 1.200"; 17,900 psi
160	Barnes TAC-XP	5.4	992	max load; COL: 1.200"; 20,100 psi
180	LFP	5.0	778	start load; bullet diam.: .452"; COL: 1.140"; 11,300 cup
180	LFP	6.0	950	max load; bullet diam.: .452"; COL: 1.140"; 16,800 cup
185	Hornady JSWC	5.0	762	start load; COL: 1.135"; 12,000 cup
185	Hornady JSWC	5.9	906	max load COL: 1.135"; 15,800 cup
200	Speer JHP	5.2	794	start load; COL: 1.155"; 12,700 cup
200	Speer JHP	5.9	906	max load; COL: 1.155"; 16,700 cup
200	Cast LSWC	4.4	771	start load; COL: 1.225"; 11,000 cup
200	Cast LSWC	5.6	914	max load; COL: 1.225"; 16,900 cup
230	LRN	4.3	699	start load; bullet diam.: .452"; COL: 1.200"; 12,200 cup
230	LRN	5.3	834	max load; bullet diam.: .452"; COL: 1.200"; 16,900 cup
230	Hornady FMJ FP	4.2	751	start load; COL: 1.200"; 13,800 cup
230	Hornady FMJ FP	5.3	832	max load; COL: 1.200"; 16,800 cup
Hodgdon Data Case: Winchester; twist: 1:16"; primer: Federal 150, Large Pistol; barrel length: 5"; trim length: .893"; bullet diam.: .451" (except where otherwise specified in remarks)
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Hornady FMJ-CT	6.1	780	Ultra GDP II; group (inches): 3.5
200	Hornady FMJ-CT	6.1	896	Desert Warrior; group (inches): 2.0
200	Hornady FMJ-CT	6.1	898	Super Match II; group (inches): 2.0
in three Kimbers Kimber range results in an Ultra GDP II, a Desert Warrior and a Super Match II.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
180	Lead	5.3	885	start load; min OAL: 1.190
180	Lead	6.3	1020	never exceed; min OAL: 1.190; 20,000 psi
185	Jacketed	5.1	670	start load; min OAL: 1.190
185	Jacketed	6.1	920	never exceed; min OAL: 1.190; 18,600 psi
200	Jacketed	5.3	831	start load; min OAL: 1.190
200	Jacketed	5.8	905	never exceed; min OAL: 1.190; 19,500 psi
200	Lead	4.8	804	start load; min OAL: 1.190
200	Lead	5.5	910	never exceed; min OAL: 1.190; 19,600 psi
230	Jacketed	4.8	740	start load; min OAL: 1.190
230	Jacketed	5.1	785	never exceed; min OAL: 1.190; 20,000 psi
230	Lead	4.5	765	start load; min OAL: 1.190
230	Lead	5.1	870	never exceed; min OAL: 1.190; 19,800 psi
Lee Precision Data Large Pistol primer; with NEVER EXCEED LOADS maintain Minimum Over All Length or longer
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
185	Cast #452389	3.9	662	sugg. start load; 7,900 cup
185	Cast #452389	6.0	958	max load; 17,500 cup
195	Cast #452488	3.9	642	sugg. start load; 8,500 cup
195	Cast #452488	5.7	962	max load; 16,900 cup
Lyman Cast Bullet Handbook cases: Remington; trim-to length: .895"; primers: Remington 2 1/2; primer size: Large Pistol; Lyman shell holder: No. 2; cast bullets used size to .450" dia.; firearm used: Universal Receiver; barrel length: 5"; twist: 1-16"; groove diameter: .450". NOTE: More Lyman cast bullet data available under .45 ACP Cast Bullet Data Lyman Reloading Handbook 49th Edition
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
185	Remington Jacketed SWC/FMJ	4.1	680	sugg. start load; 1.135" OAL; 9,100 cup
185	Remington Jacketed SWC/FMJ	6.1	981	max load; 1.135" OAL; 16,600 cup
185	Hornady Jacketed HP/XTP	4.4	640	sugg. start load; 1.175" OAL; 7,500 cup
185	Hornady Jacketed HP/XTP	6.1	937	max load; 1.175" OAL; 15,700 cup
200	Speer Gold Dot Jacketed HP	5.5	772	sugg. start load; 1.178" OAL; 11,900 cup
200	Speer Gold Dot Jacketed HP	6.2	897	max load; 1.178" OAL; 16,700 cup
230	Speer TMJ	5.2	758	sugg. start load; 1.275" OAL; 12,900 cup
230	Speer TMJ	5.8	849	max load; 1.275" OAL; 16,200 cup
Lyman Reloading Handbook 49th Edition cases: Remington, Federal; trim-to length: .888"; primers: Remington 2 1/2; primer size: Large Pistol; Lyman shell holder: No. 2; firearm used: Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .450"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Speer Semi-wadcutter	5.0	803	maximum load
200	Speer Semi-wadcutter	4.6	739
230	Speer RN	5.6	831	maximum load
230	Speer RN	5.1	760
185	Speer TMJ Match	5.5	807	maximum load
185	Speer TMJ Match	5.0	717
200	Speer TMJ Combat	5.7	806	maximum load; developed for target velocity rather than at maximum pressure
200	Speer TMJ Combat	5.2	709	developed for target velocity rather than at maximum pressure
200	Speer Hollow Point	6.3	949	maximum load
200	Speer Hollow Point	5.7	868
225	Speer Hollow Point	6.1	885	maximum load
225	Speer Hollow Point	5.6	814
230	Speer TMJ	6.2	865	maximum load
230	Speer TMJ	5.6	792
260	Speer Hollow Point	5.9	824	maximum load
260	Speer Hollow Point	5.4	756
Speer Reloading Manual #11 gun: Colt Gov't. Model; barrel: 5"; twist: 1-16; cases: Speer; primers: CCI-300; maximum loads listed should be used with caution
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Speer LSWC	4.6	739	start charge
200	Speer LSWC	5.0	803	maximum charge
230	Speer LRN	5.1	760	start charge
230	Speer LRN	5.6	831	maximum charge
185	Speer TMJ Match SWC	5.0	717	start charge
185	Speer TMJ Match SWC	5.5	807	maximum charge
185	Speer GDHP or TMJ FN	6.6	837	start charge
185	Speer GDHP or TMJ FN	7.4	954	maximum charge
200	Speer TMJ FN, TMJ Match SWC or GDHP	5.6	769	start charge
200	Speer TMJ FN, TMJ Match SWC or GDHP	6.3	857	maximum charge
225	Speer Colt JHP	5.4	787	start charge
225	Speer Colt JHP	6.0	787	maximum charge
230	Speer TMJ RN	5.6	789	start charge
230	Speer TMJ RN	6.2	858	maximum charge
230	Speer GDHP SB or GDHP	5.0	683	start charge
230	Speer GDHP SB or GDHP	5.6	765	maximum charge
Speer Reloading Manual #14 max. case length: 0.898"; trim-to length: 0.888"; max cart. OAL: 1.275"; RCBS shell holder: #3; cart. case: Speer; primer: CCI 300; test firearm: SIG P220; barrel length: 4.4"; IMPORTANT SAFETY NOTE: These loads were developed and tested for safe use in HANDGUNS. Not all loads may be suitable for use in a carbine or rifle chambered for this cartridge. If loading for a carbine or rifle, choose from among the loads developing the highest handgun velocities and load just a few rounds. Thoroughly test this small sample in your firearm in slow-fire mode, insuring that you achieve proper feeding and ejection. Be certain that all bullets exit the barrel; watching the target for each bullet strike is the best way to know that the load produces sufficient gas volume for a longer barrel. NOTE: Do not use the 230-GR TMJ RN loads with Gold Dot HP; maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
185	Hornady HP-XTP or FMJ SWC	6.4	865
185	Hornady HP-XTP or FMJ SWC	6.8	917
185	Hornady HP-XTP or FMJ SWC	7.2	969	maximum load
Using 185 GR Hornady Bullets Gun: Ruger SR1911; barrel length: 5 inches; case: Starline; primer: Winchester Large Pistol; bullet diameter: .451"; HP-XTP COAL: 1.225"; FMJ SWC COAL: 1.135"; maximum COAL: 1.275"; maximum case length: .898"; trim to length: .888".
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Hornady HP-XTP	5.8	784
200	Hornady HP-XTP	6.1	823
200	Hornady HP-XTP	6.3	861	maximum load
200	Hornady SWC or L-C/T	5.4	776
200	Hornady SWC or L-C/T	5.8	842
200	Hornady SWC or L-C/T	6.2	908	maximum load
Using 200 GR Hornady Bullets Gun: Ruger SR1911; barrel length: 5 inches; case: Starline; primer: Winchester Large Pistol; bullet diameter: .451"; HP-XTP COAL: 1.230"; SWC COAL: 1.200"; L-C/T COAL: 1.225"; maximum COAL: 1.275"; maximum case length: .898"; trim to length: .888".
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
230	Hornady HP-XTP or HAP	5.0	705
230	Hornady HP-XTP or HAP	5.3	748
230	Hornady HP-XTP or HAP	5.7	790	maximum load
230	Hornady LRN	5.0	747
230	Hornady LRN	5.4	790
230	Hornady LRN	5.8	832	maximum load
Using 230 GR Hornady Bullets Gun: Ruger SR1911; barrel length: 5 inches; case: Starline; primer: Winchester Large Pistol; bullet diameter: .451"; HP-XTP and HAP COAL: 1.230"; LRN COAL: 1.245"; maximum COAL: 1.275"; maximum case length: .898"; trim to length: .888".
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
185	Nosler Custom Competition JHP	6.1	812	max; most accurate load tested
185	Nosler Custom Competition JHP	5.6	747
185	Nosler Custom Competition JHP	5.1	682
230	Nosler Sporting Handgun Pistol FMJ or JHP	5.8	790	max; most accurate load tested; most accurate powder tested
230	Nosler Sporting Handgun Pistol FMJ or JHP	5.3	730	most accurate powder tested
230	Nosler Sporting Handgun Pistol FMJ or JHP	4.8	670	most accurate powder tested
Using Nosler Bullets Handgun; case: Winchester; primer: Fed. 150; barrel length/make: 5" Douglas; twist: 1-16"; bullets: 185 GR Nosler Custom Competition JHP or 230 GR Nosler Sporting Handgun Pistol FMJ or JHP; OACL: 1.200"; maximum OACL: 1.275". Use Maximum Loads with Caution
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
155	Cast Lead Semi-Wadcutter	6.7	1,112	col: 1.230"; 17,100 cup
180	LFP	6.0	950	col: 1.140"; 16,800 cup
185	Hornady Jacketed Semi-Wadcutter	5.9	906	col: 1.195"; 15,800 cup
200	Cast Lead Semi-Wadcutter	5.6	914	col: 1.275"; 16,900 cup
200	SPSR Jacketed Hollow Point	5.9	906	col: 1.155"; 16,700 cup
230	Hornady Full Metal Jacket Flat Point	5.3	832	col: 1.200"; 16,800 cup
230	Lead Round Nose	5.3	834	col: 1.275"; 16,900 cup
Winchester Pistol Data case: Winchester; BBL: 5"; PR: Federal 150; NEVER exceed loads listed
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
160	Saeco (Redding) #063	6.4	946	sugg. start load; 13,500 cup
160	Saeco (Redding) #063	7.0	1045	max load; 16,400 cup
170	Saeco (Redding) #062	6.3	927	sugg. start load; 13,300 cup
170	Saeco (Redding) #062	7.0	1037	max load; 17,400 cup
160 & 170 GR (Lyman Cast Bullet Data) cases: Federal; trim-to length: .888"; primers: CCI 300; primer size: Large Pistol; Lyman shell holder: No. 2; cast bullets used sized to .451" dia.; firearm used: Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .450"; 160 grain OAL: 1.255"; 170 grain OAL: 1.250" (Lyman Cast Bullet Handbook 4th Edition)
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
180	Lyman #452374 HP	6.1	967	sugg. start load; 14,600 cup
180	Lyman #452374 HP	6.7	1043	max load; 17,700 cup
185	RCBS #45-185-SWC-BB	5.4	885	sugg. start load; 14,200 cup
185	RCBS #45-185-SWC-BB	6.0	963	max load; 17,600 cup
180 & 185 GR (Lyman Cast Bullet Data) cases: Federal; trim-to length: .888"; primers: CCI 300; primer size: Large Pistol; Lyman shell holder: No. 2; cast bullets used sized to .451" dia.; firearm used: Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .450"; 180 grain OAL: 1.190"; 185 grain OAL: 1.180" (Lyman Cast Bullet Handbook 4th Edition)
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Lyman #452460	4.0	694	sugg. start load; 9,200 cup; case: Federal
200	Lyman #452460	6.0	987	max load; 18,000 cup; case: Federal; potentially most accurate load
200	Lyman #452630	5.4	769	sugg. start load; 12,700 cup; primer: CCI 300
200	Lyman #452630	6.1	885	max load; 16,300 cup; primer: CCI 300
200 GR (Lyman Cast Bullet Data) cases: Remington (except where otherwise specified in remarks); trim-to length: .888"; primers: Remington 2 1/2 (except where otherwise specified in remarks); primer size: Large Pistol; Lyman shell holder: No. 2; cast bullets used sized to .451" dia.; firearm used; Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .450"; Lyman #452460 OAL: 1.161"; Lyman #452630 OAL: 1.235" (Lyman Cast Bullet Manual 4th Edition)
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
215	Saeco (Redding) #058	5.4	839	sugg. start load; 14,200 cup
215	Saeco (Redding) #058	6.0	928	max load; 17,900 cup
230	Lee #TL452-230-TC	5.0	799	sugg. start load; 13,800 cup
230	Lee #TL452-230-TC	5.5	873	max load; 17,900 cup
215 & 230 GR (Lyman Cast Bullet Data) cases: Federal; trim-to length: .888"; primers: CCI 300; primer size: Large Pistol; Lyman shell holder: No. 2; cast bullets used sized to .451" dia.; firearm used: Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .450"; 215 grain OAL: 1.185"; 230 grain OAL: 1.170" (Lyman Cast Bullet Handbook 4th Edition)
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
225	Lyman #452374	4.0	661	sugg. start load; 9,200 cup; case: Federal
225	Lyman #452374	5.8	902	max load; 17,500 cup; case: Federal; potentially most accurate load
225 GR (Lyman Cast Bullet Data) cases: Remington (except where otherwise specified in remarks); trim-to length: .888"; primers: Remington 2 1/2 (except where otherwise specified in remarks); primer size: Large Pistol; Lyman shell holder: No. 2; cast bullets used sized to .451" dia.; firearm used; Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .450"; OAL: 1.272" (Lyman Cast Bullet Manual 4th Edition)
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
185	Carroll SWC	5.0	745	case: W-W; primer: WLP; moderate; poor burning
185	Carroll SWC	6.0	898	case: W-W; primer: WLP; near max; poorest accuracy
200	Carroll SWC	5.8	838	case: W-W; primer: WLP; normal; poor accuracy this bullet
225	Carroll FN	5.7	829	case: Speer; primer: WLP; near max
230	Carroll RN	5.5	795	case: Speer; primer: WLP; near max
230	Carroll RN	5.8	878	case: Speer; primer: WLP; maximum
Cast Bullets 5" barrel. Test gun was Colt Double Eagle with five-inch barrel. All groups five shots each from sandbag rest; 20-yard indoor range.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Semi Wad Cutter	5.7	918
230	Round Nose	4.9	796
IPSC Major Loads Oregon Trail Handgun Data test gun: Entreprise 1911 frame, 5" Bar-Sto barrel, WLP; 200 gr Semi Wad Cutter OAL: 1.250; 230 gr Round Nose OAL: 1.260; do not exceed maximum loads; never reduce stated overall lengths
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Semi Wad Cutter	4.4	718	25 yard line
200	Semi Wad Cutter	4.8	796	50 yard line
NRA Bullseye Loads Oregon Trail Handgun Data test gun: Entreprise 1911 frame, 5" Bar-Sto barrel, WLP; OAL: 1.250; do not exceed maximum loads; never reduce stated overall lengths
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
180	Semi Wad Cutter	4.8	840	starting load
180	Semi Wad Cutter	5.7	950	maximum load
200	Semi Wad Cutter	4.8	796	starting load
200	Semi Wad Cutter	5.8	914	maximum load
225	Flat Point	4.5	728	starting load
225	Flat Point	5.1	830	maximum load
230	Round Nose	4.5	728	starting load
230	Round Nose	5.1	830	maximum load
Standard Loads Oregon Trail Handgun Data test gun: Entreprise 1911 frame, 5" Bar-Sto barrel, WLP; 180 and 200 gr Semi Wad Cutter OAL: 1.250; 225 Flat Point OAL: 1.205; 230 Round Nose OAL: 1.260; do not exceed maximum loads; never reduce stated overall lengths
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
223	RCBS 45-230-CM RN/FP	5.5	835
227	Oregon Trail RN	5.5	818
Ball Duplication Loads in a Colt Loads were fired in a Colt 1911A1 5-inch barrel. Handgun was a new reproduction of an original version and was manufactured in the first seven years of the twenty-first century. All chronograph readings are for five shots with the start screen at approximately 6 feet. Bullets cast were poured of straight Linotype, which is why their actual listed weights do not coincide with catalog weights, sized .451 inch and lubed with SPG. Oregon Trail commercially cast bullets were sized .452 inch and lubed with its proprietary lubricant. All primers were Winchester Large Pistol. Cases were not sorted by brand. Handloads fired in the Model 1911 autoloader were taper crimped.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
223	RCBS 45-230-CM RN/FP	5.5	811
227	Oregon Trail RN	5.5	838
Ball Duplication Loads in an S&W Loads were fired in an S&W M1917 5.5-inch barrel. Handgun was a new reproduction of an original version and was manufactured in the first seven years of the twenty-first century. All chronograph readings are for five shots with the start screen at approximately 6 feet. Bullets cast were poured of straight Linotype, which is why their actual listed weights do not coincide with catalog weights, sized .451 inch and lubed with SPG. Oregon Trail commercially cast bullets were sized .452 inch and lubed with its proprietary lubricant. All primers were Winchester Large Pistol. Cases were not sorted by brand. Handloads fired in the Model 1917 revolver were roll crimped. If velocities for the Oregon Trail bullets in the revolver seem slightly high, it is most likely because they had to be seated deeper than the same bullets when loaded for autoloaders in order to apply a roll crimp over the front edge of the driving band.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Cast #452460	4.0	694	sugg. start load; 1.161" OAL; case: Federal; 9,200 cup
200	Cast #452460	6.0	987	max load; 1.161" OAL; case: Federal; 18,000 cup; potentially most accurate load
200	Cast #452630	5.4	769	sugg. start load; 1.235" OAL; primer: CCI 300; 12,700 cup
200	Cast #452630	6.1	885	max load; 1.235" OAL; primer: CCI 300; 16,300 cup
225	Cast #452374	4.0	661	sugg. start load; 1.272" OAL; case: Federal; 9,200 cup
225	Cast #452374	5.8	902	max load; 1.272" OAL; case: Federal; 17,500 cup; potentially most accurate load
Cast Bullet Data Lyman Reloading Handbook 49th Edition cases: Remington (except where otherwise specified in remarks); trim-to length: .888"; primers: Remington 2 1/2 (except where otherwise specified in remarks); primer size: Large Pistol; Lyman shell holder: No. 2; cast bullets used sized to .451" dia.; firearm used: Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .450"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
223	RCBS 45-230-CM RN/FP	5.3	819	best load with this pistol
230	Oregon Trail roundnose	5.3	811	best load for this bullet
Colt Model 1911A1 (new) (Autoloading Pistol Loads) 5-inch barrel. Group shooting was done from a sandbag rest at 25 yards in five-shot strings. Chronographing done with an Oehler Model 35P with start screen at approximately 6 feet. All brass was Starline. All primers were CCI Small or Large Pistol as proper. All bullets cast were poured of Linotype and lubed with SPG. Sizing diameter: .452 inch;
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
210	Winchester Match (lead)	5.0	760	overall loaded length (inches): 1.29; 2 1/2-inch average
210	Winchester Match (lead)	6.0	874	overall loaded length (inches): 1.29; 2 1/2 inches consistently
Field Loads Groups were fired at 25 yards. All velocities were measured on an Oehler Model 35P chronograph 10 feet from the muzzle. Remington cases and Remington 2 1/2 primers used in all loads. Ambient temperature: 80 degrees Fahrenheit.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Hornady Lead C/T	5.0	766
200	Speer SWC TMJ	5.6	732
Handload Data Loads were fired from a 5-inch barreled Kimber Model 1911 Custom Classic. Starline cases and Federal Gold Medal Match 150 primers were used throughout.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Montana LBT-RFN	6.5	953
230	Oregon Trail cast roundnose	5.2	831
in a Kimber 1911 The .45 ACP Kimber Classic Model Custom's maximum case length is .898 inch; trim-to length is .888 inch. Starline cases used in all loads, and all handguns have barrel lengths of 5 inches. Primer: Federal 150 Gold Match.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Hornady HP/XTP	6.0	857	very accurate
200	Speer SWC-TMJ Match	6.0	831	most accurate Speer SWC
230	Hornady HP/XTP	5.7	834
200	Hornady lead C/T	4.6	760	very accurate
200	Hornady lead C/T	5.4	857	slight leading
200	Bull-X SWC	5.5	865	accurate
230	Lazer cast roundnose BB	5.2	831
230	Lazer cast roundnose BB	5.7	900
in a Kimber Custom Classic Warning! Barrel length: 5 inches. Starline brass and Federal Gold Medal 150 Match primers used throughout. Temperature during testing was 75 degrees.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Hornady HP-XTP	6.0	839	very accurate
200	Speer SWC-TMJ Match	6.0	805	most accurate Speer SWC
230	Hornady HP/XTP	5.7	846
200	Hornady lead C/T	4.6	745
200	Hornady lead C/T	5.4	814
200	Bull-X SWC	5.5	840
230	Lazer cast roundnose BB	5.2	802	accurate
230	Lazer cast roundnose BB	5.7	888
in an S&W Model 625-6 Warning! Barrel length: 4 inches. Starline brass and Federal Gold Medal 150 Match primers used throughout. Temperature during testing was 75 degrees.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
185	Bull-X SWC	4.1	760	case: Rem. primer: 300
200	Bull-X SWC	4.2	748	case: Rem. primer: 300
Light Target Loads Warning! Notes These loads were developed in a custom Colt Gold Cup with a Heinie 5-inch barrel. They usually require that a lighter than standard recoil spring be used for reliable functioning of various autoloading pistols.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Hornady lead C/T	4.6	714	overall loaded length (inches): 1.202
200	Hornady lead C/T	5.0	766	overall loaded length (inches): 1.202
200	Hornady lead C/T	5.4	821	overall loaded length (inches): 1.202
200	Laser Cast SWC	5.0	797	overall loaded length (inches): 1.240
200	Laser Cast SWC	5.5	865	overall loaded length (inches): 1.240
200	Laser Cast SWC	6.0	945	overall loaded length (inches): 1.240
200	Laser Cast SWC	6.5	1026	overall loaded length (inches): 1.240
200	Montana/RCBS 45-201-SWC	5.0	810	overall loaded length (inches): 1.239
200	Montana/RCBS 45-201-SWC	5.5	880	overall loaded length (inches): 1.239
200	Montana/RCBS 45-201-SWC	6.5	1035	overall loaded length (inches): 1.239
200	Montana/Lyman 452460	5.0	805	overall loaded length (inches): 1.161
200	Montana/Lyman 452460	6.5	1035	overall loaded length (inches): 1.161
200	Montana LBT-RFN	5.0	739	overall loaded length (inches): 1.241
200	Montana LBT-RFN	6.5	953	overall loaded length (inches): 1.241
200	Hornady FMJ-C/T	5.6	786	overall loaded length (inches): 1.245
200	Hornady FMJ-C/T	6.5	939	overall loaded length (inches): 1.245
200	Hornady HP/XTP	5.6	809	overall loaded length (inches): 1.230
200	Hornady HP/XTP	6.5	968	overall loaded length (inches): 1.230
200	Sierra FPJ Match	5.6	777	overall loaded length (inches): 1.155
200	Sierra FPJ Match	6.5	928	overall loaded length (inches): 1.155
200	Speer Gold Dot hollowpoint	5.6	802	overall loaded length (inches): 1.200
200	Speer Gold Dot hollowpoint	6.5	960	overall loaded length (inches): 1.200
200	Speer SWC TMJ	5.6	732	overall loaded length (inches): 1.270
200	Speer SWC TMJ	6.5	888	overall loaded length (inches): 1.270
200	Speer Jacketed HP	5.6	794	overall loaded length (inches): 1.155
200	Speer Jacketed HP	6.5	951	overall loaded length (inches): 1.155
Load Data A Kimber Model 1911 Classic Custom Target with a 5-inch barrel (1-in-16-inch twist) was used to fire all loads. Starline cases and Federal Gold Medal Match 150 primers were used throughout. Maximum case length: .898 inch; trim length: .888 inch. Maximum overall cartridge length: 1.275 inches; minimum overall cartridge length: 1.190 inches.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
230	Oregon Trail cast RN	5.2	827	overall loaded length (inches): 1.265
Remington Enhanced Model 1911 R1 All loads used Federal Gold Medal Match 150 primers and Starline cases. Minimum cartridge OAL: 1.190 inches; maximum cartridge OAL: 1.275 inches; maximum case length: .898 inch; and trim length: .888 inch. Temperature was 33 degrees Fahrenheit during testing.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
230	Hornady FMJ	5.2	812	barrel length: 5 inches
Standard Loads case: Rem. primer: 300; barrel length (inches): 5
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
230	roundnose	4.7	748	group (inches): 2.80; power factor: 172
Taurus Stellar Tracker Taurus Stellar Tracker with a 4-inch barrel and open sights was used for testing. Accuracy is based on the average of three, five-shot groups at 15 yards from a benchrest.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
185	Bull-X SWC	6.1	968	case: Rem.; primer: 2 1/2
200	Bull-X SWC	6.0	902	case: Rem. primer: WLP
230	Bull-X RN	5.4	803	case: Rem.; primer: 2 1/2
USPSA/IPSC Major-Power Match Loads Bullets in all are cast. Handgun used was a custom Para-Ordnance with a 5-inch Wilson barrel.

.45 Auto Rim

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
185	Cast #452389	4.0	735	sugg. start load; 7,200 cup; special test barrel used
185	Cast #452389	5.7	972	max load; 13,400 cup; special test barrel used
Lyman Cast Bullet Handbook cases: Remington; trim-to length: .894"; primers: Remington 2 1/2; primer size: Large Pistol; Lyman shell holder: No. 14A; cast bullets used size to .451" dia.; firearm used: Smith & Wesson Model 25 (except where otherwise specified in remarks); barrel length: 4 1/2 and 6 1/2"; twist: 1-16"; groove diameter: .451". NOTE: More Lyman cast bullet data available under .45 Auto Rim Lyman Reloading Handbook 49th Edition
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
185	Hornady Jacketed HP/XTP	4.4	618	sugg. start load; 1.236" OAL; 6,400 cup
185	Hornady Jacketed HP/XTP	6.1	889	max load; 1.236" OAL; 13,700 cup
200	Speer Jacketed GDHP	4.0	570	sugg. start load; 1.180" OAL; 7,800 cup
200	Speer Jacketed GDHP	5.7	852	max load; 1.180" OAL; 14,800 cup; potentially most accurate load
225	Speer Jacketed HP	3.7	496	sugg. start load; 1.255" OAL; 6,500 cup
225	Speer Jacketed HP	5.2	773	max load; 1.255" OAL; 13,800 cup; potentially most accurate load
200	Cast #452460	4.0	694	sugg. start load; 1.161" OAL; 7,200 cup
200	Cast #452460	5.5	936	max load; 1.161" OAL; 14,100 cup
225	Cast #452374	4.0	660	sugg. start load; 1.265" OAL; 6,900 cup
225	Cast #452374	5.5	873	max load; 1.265" OAL; 13,800 cup; potentially most accurate load
Lyman Reloading Handbook 49th Edition cases: Remington; trim-to length: .888"; primers: Remington 2 1/2; primer size: Large Pistol; Lyman shell holder: No. 14A; cast bullets used sized to .451" dia.; firearm used: Universal Receiver, Smith & Wesson Model 25; barrel length: Universal Receiver - 4 1/2", Model 25 - 6 1/2"; twist: 1-16"; groove dia.: .451"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Speer LSWC	4.5	671	start charge
200	Speer LSWC	5.0	749	maximum charge
230	Speer LRN	5.0	743	start charge
230	Speer LRN	5.5	813	maximum charge
200	Speer GDHP	5.5	819	start charge
200	Speer GDHP	6.0	899	maximum charge
230	Speer GDHP, GDHP SB or 225 GR Colt JHP	5.4	769	start charge
230	Speer GDHP, GDHP SB or 225 GR Colt JHP	5.9	836	maximum charge
Speer Reloading Manual #14 max. case length: 0.898"; trim-to length: 0.888"; max cart. OAL: 1.275"; RCBS shell holder: #8; cart. case: Remington; primer: CCI 300; test firearm: S&W Model 25-2; barrel length: 6.5"; maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
185	Barnes X-Pistol Bullet	6.2	1013
200	Hensley & Gibbs cast semiwadcutter	5.5	844
200	Speer SWC/TMJ Match	6.0	816
200	Speer SWC/TMJ Match	6.5	855
230	Oregon Trail cast roundnose	5.7	878
230	Speer Gold Dot hollowpoint	5.7	842
230	Hornady XTP/HP	5.7	860
All the velocities were obtained from a Model 625-6 with a 4-inch barrel, except where noted with a 6 1/2-inch barreled S&W Model 25-2. For reference, the 4-inch barrel was commonly producing around 10 to 30 fps less velocity than the 6 1/2-inch barrel. Starline cases and Federal 150 Gold Medal primers were used throughout. Maximum case length: .898 inch; trim-to length: .888 inch.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
208	RCBS 45-200	5.5	776	diameter: 0.452 in.; 2 1/2 inches at 25 yards, matched sights
in a Colt Velocities represent five-shot averages taken ten feet from the muzzles of the test revolvers and measured on an Oehler Model 33 Chronotach. Colt Model 17 barrel, 5 1/2 inches, Webley Mark VI barrel, 6 inches. Range temperature, 87 degrees F. No wind. CCI 300 primers used with all loads. Five of every type of cast bullet used in the range tests were checked on a Saeco hardness tester. Average hardness level of alloy, 6 1/2.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
223	RCBS 45-230CAS RN/FP	5.3	825	group (inches): 3.25
224	Redding/SAECO 453 WC	5.3	825	group (inches): 2.63
230	AA Limited RN/FP	5.3	875	group (inches): 2.75; nine in 2.00 inches
in a Colt 1917 All group figures are for 10 rounds fired with the revolvers mounted in a Ransom Pistol Machine Rest. The RCBS and Redding/SAECO bullets cast by Mike were poured of 1/20 (tin to lead) alloy, sized .452 inch and lubed with SPG. The AA Limited and Laser Cast bullets were sized .452 inch. The Speer 225-grain JHP was .451 inch, and the Remington 250-grain RN/FP was .453 inch. All loads used Remington brass and Winchester Large Pistol primers and were assembled with a set of Lyman .45 ACP dies.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
208	RCBS 45-200	5.5	733	diameter: 0.452 in.; 2 1/2 inches at 25 yards, matched sights
in a Webley Velocities represent five-shot averages taken ten feet from the muzzles of the test revolvers and measured on an Oehler Model 33 Chronotach. Colt Model 17 barrel, 5 1/2 inches, Webley Mark VI barrel, 6 inches. Range temperature, 87 degrees F. No wind. CCI 300 primers used with all loads. Five of every type of cast bullet used in the range tests were checked on a Saeco hardness tester. Average hardness level of alloy, 6 1/2.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
223	RCBS 45-230CAS RN/FP	5.3	790	group (inches): 2.50
224	Redding/SAECO 453 WC	5.3	823	group (inches): 3.00
230	AA Limited RN/FP	5.3	861	group (inches): 3.00; eight in 1.63 inches
in an S&W 1950 All group figures are for 10 rounds fired with the revolvers mounted in a Ransom Pistol Machine Rest. The RCBS and Redding/SAECO bullets cast by Mike were poured of 1/20 (tin to lead) alloy, sized .452 inch and lubed with SPG. The AA Limited and Laser Cast bullets were sized .452 inch. The Speer 225-grain JHP was .451 inch, and the Remington 250-grain RN/FP was .453 inch. All loads used Remington brass and Winchester Large Pistol primers and were assembled with a set of Lyman .45 ACP dies.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
223	RCBS 45-230CAS RN/FP	5.3	812	group (inches): 1.75
224	Redding/SAECO 453 WC	5.3	883	group (inches): 1.88
230	AA Limited RN/FP	5.3	866	group (inches): 3.38
in an S&W 1955 All group figures are for 10 rounds fired with the revolvers mounted in a Ransom Pistol Machine Rest. The RCBS and Redding/SAECO bullets cast by Mike were poured of 1/20 (tin to lead) alloy, sized .452 inch and lubed with SPG. The AA Limited and Laser Cast bullets were sized .452 inch. The Speer 225-grain JHP was .451 inch, and the Remington 250-grain RN/FP was .453 inch. All loads used Remington brass and Winchester Large Pistol primers and were assembled with a set of Lyman .45 ACP dies.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
185	Sierra JHC	6.3	927	Primer: Fed. 150; ME: 352; clean burning - not particularly accurate
210	Winchester SWC-L	4.8	684	Primer: Fed. 150; ME: 216
All loads in Remington brass. Velocities taken on an Oehler M-10 Chronograph; 7 1/2 feet instrumental converted to muzzle velocity. Average temperature, 66 degrees. Test gun was an S&W M1917 with 5 1/2-inch barrel.

.45 Colt

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
250	Cast Performance roundnose	7.1	841	13,000 CUP
. .
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
250	Oregon Trail RNFP	7.1	852	rounds per pound: 986
Economical Midrange Loads firearm used: Ruger Blackhawk; suitable for all smokeless-era revolvers; primer: CCI 300; case: Starline; barrel length: 6" (except where otherwise specified in remarks)
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
160	Cast LRNFP	6.5	917	start load; COL: 1.500"; 7,700 cup
160	Cast LRNFP	9.0	1177	max load; COL: 1.500"; 13,800 cup
180	Cast LRNFP	6.0	838	start load; COL: 1.540"; 6,500 cup
180	Cast LRNFP	8.2	1087	max load; COL: 1.540"; 13,900 cup
200	Cast LRNFP	5.9	761	start load; COL: 1.600"; 5,800 cup
200	Cast LRNFP	8.0	1002	max load; COL; 1.600"; 13,800 cup
200	Hornady XTP	7.8	956	start load; COL: 1.600"; 11,000 cup
200	Hornady XTP	8.7	1048	max load; COL: 1.600"; 14,000 cup
215	Cast LRNFP	5.9	758	start load; COL: 1.650"; 5,900 cup
215	Cast LRNFP	7.8	965	max load; COL: 1.650"; 13,500 cup
225	Hornady FTX	5.7	663	start load; COL: 1.600"; 9,000 psi
225	Hornady FTX	7.5	897	max load; COL: 1.600"; 13,200 psi
230	Cast LRNFP	5.8	738	start load; COL: 1.580"; 7,300 cup
230	Cast LRNFP	7.3	941	max load; COL: 1.580"; 13,700 cup
250	Cast LRNFP	5.8	785	start load; COL: 1.600"; 9,100 cup
250	Cast LRNFP	7.1	916	max load; COL: 1.600"; 13,900 cup
250	Hornady XTP	6.5	692	start load; COL: 1.595"; 10,500 cup
250	Hornady XTP	7.3	797	max load; COL: 1.595"; 14,000 cup
260	Speer JHP	6.5	722	start load; COL: 1.595"; 12,000 cup
260	Speer JHP	7.1	787	max load; COL: 1.595"; 14,000 cup
Hodgdon Pistol Data Case: Winchester; barrel length: 7.25"; twist: 1:16"; trim length: 1.280"; primer: Winchester LP; bullet diam.: .452". NEVER EXCEED MAXIMUM LOADS
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
255	Lead	6.7	835	start load; min. OAL: 1.550
255	Lead	7.1	875	never exceed; min. OAL: 1.550; 13,000 cup
Lee Precision Data Large Pistol primer; with NEVER EXCEED LOADS maintain Minimum Over All Length or longer
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Round Nose Flat Point	6.5	787	starting load
200	Round Nose Flat Point	7.9	913	maximum load
250	Round Nose Flat Point	6.3	693	starting load
250	Round Nose Flat Point	7.2	801	maximum load
Oregon Trail Handgun Data test gun: Vaquero 4 3/4", WLP; standard velocity/cowboy loads; these loads are safe for use in Colt SAA and clones; 200 grain OAL: 1.575; 250 grain OAL: 1.580; never reduce stated overall lengths; do not exceed maximum loads
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
225	Speer JHP	9.5	1011	start charge
225	Speer JHP	10.5	1127	maximum charge
260	Speer JHP	9.2	987	start charge
260	Speer JHP	10.2	1067	maximum charge
(Ruger & Contender Only ) Speer Reloading Manual #14 max. case length: 1.285"; trim-to length: 1.275"; max cart. OAL: 1.600"; RCBS shell holder: #20; cart. case: Winchester; primer: CCI 300 (except where otherwise specified in remarks); test firearm: Ruger Blackhawk; barrel length: 7.5"; maximum loads should be used with CAUTION; NOTE: Do not use in any other make or model firearm. IMPORTANT SAFETY NOTE: Since Speer #14 Manual was published, Ruger has replaced the original Vaquero revolver with a smaller version called the New Vaquero. Ruger has advised the industry that the New Vaquero must not be fired with loads exceeding industry pressure standards (14,000 psi). If loading for a New Vaquero, use the standard pressure data in the .45 Colt Handgun Speer Data.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
250	Nosler Sporting Handgun Jacketed Hollow Point	6.9	748	maximum load; most accurate load tested; most accurate powder tested
250	Nosler Sporting Handgun Jacketed Hollow Point	6.4	663	most accurate powder tested
250	Nosler Sporting Handgun Jacketed Hollow Point	5.9	578	most accurate powder tested
(Single Action Army and Replicas) - Handgun Using Nosler Bullets handgun: barrel: Douglas, length: 7.25", twist: 1-16"; case: Winchester; primer: Rem. 2 1/2; OACL: 1.590"; maximum SAAMI overall cartridge length: 1.600"; use maximum loads with caution
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
225	Speer CAV	6.5	942	start charge
225	Speer CAV	7.2	1029	maximum charge
Speer Reloading Manual #14 max. case length: 1.285"; trim-to length: 1.275"; max cart. OAL: 1.600"; RCBS shell holder: #20; cart. case: Winchester; primer: CCI 300; test firearm: Winchester Model 95 "Trapper"; barrel length: 16"; bullets: 225-grain Speer CAV or 230-grain Speer CM; bullets were cast in RCBS moulds; maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
233	Redding/SAECO 453 WC	7.2	807	sized .454 inch; group (inches): 2.13
233	RCBS 45-230-CM RN/FP	7.2	742	sized .454 inch; group (inches): 2.25; four shots in 1.13 inches
250	NEI 324 RN/FP	7.0	763	sized .454 inch; group (inches): 1.88
250	NEI 324 RN/FP	7.0	759	sized .452 inch; group (inches): 2.00
264	Redding/SAECO 955 RN/FP	6.5	719	sized .454 inch; group (inches): 1.63
264	Redding/SAECO 955 RN/FP	6.5	698	sized .452 inch; group (inches): 2.38
(United States Fire Arms - 4 3/4 Inch Barrel) total for all 29 five-shot groups, including all fliers: 1.85 inches. All group figures are for five rounds fired with handguns mounted in a Ransom Pistol Machine Rest. Range was 25 yards. Chronograph notes are for the same five rounds taken with an Oehler Model 35P with start screen at approximately 6 feet. All handloads used Starline brass with Winchester Large Pistol primers, and all bullets were cast and lubed with SPG. Sizing diameters are as noted.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
160	Cast Lead Round Nose Flat Point	9.0	1,177	col: 1.480"; 13,800 cup
180	Cast Lead Round Nose Flat Point	8.2	1,087	col: 1.540"; 13,900 cup
200	Cast Lead Round Nose Flat Point	8.0	1,002	col: 1.600"; 13,800 cup
200	Hornady XTP	8.7	1,048	col: 1.600"; 14,000 cup
215	Cast Lead Round Nose Flat Point	7.8	965	col: 1.650"; 13,500 cup
230	Cast Lead Round Nose Flat Point	7.3	941	col: 1.580"; 13,700 cup
250	Cast Lead Round Nose Flat Point	7.1	916	col: 1.600"; 13,900 cup
250	Hornady XTP	7.3	797	col: 1.595"; 14,000 cup
260	Speer Gold Dot Hollow Point	7.1	787	col: 1.595"; 14,000 cup
Winchester Pistol Data case: Winchester; BBL: 7.25"; PR: Winchester LP; NEVER exceed loads listed
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
255	Lyman 454190	7.1	1,030	rifle load; primer: CCI 300; extreme spread (fps): 11
255	Lyman 454190	7.1	855	revolver load; primer: CCI 300; extreme spread (fps): 18
+P Rifle & Revolver Handloads The .45 Colt +P loads were shot in a Winchester Model 94 with a 20-inch barrel and a Ruger Blackhawk with a 6-inch barrel. For modern Marlin, Winchester and Browning leverguns and Ruger and Freedom Arms revolvers only!
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
250	Nosler Sporting Handgun Jacketed Hollow Point	10.0	1,078	maximum load
250	Nosler Sporting Handgun Jacketed Hollow Point	9.5	1,030
250	Nosler Sporting Handgun Jacketed Hollow Point	9.0	981	most accurate load tested
Ruger & TC Contender Using Nosler Bullets Case: Winchester; primer: WLP; barrel length/make: 12" Contender; twist: 1-16"; bullets: 250 GR Nosler Sporting Handgun Revolver JHP; OACL: 1.590"; maximum OACL: 1.600". Use Maximum Loads with Caution
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Cast #452460	7.4	928	sugg. start load; 1.550" OAL; 10,200 cup
200	Cast #452460	8.3	1020	max load; 1.550" OAL; 13,000 cup
250	Cast #454190	6.5	789	sugg. start load; 1.600" OAL
250	Cast #454190	7.4	894	max load; 1.600" OAL
250	Cast #452664	6.5	796	sugg. start load; 1.570" OAL
250	Cast #452664	7.4	902	max load; 1.570" OAL
255	Cast #452424	6.5	797	sugg. start load; 1.575" OAL
255	Cast #452424	7.2	879	max load; 1.575" OAL
Cast Bullet Handgun Data Lyman Reloading Handbook 49th Edition cases: Winchester; trim-to length: 1.275"; primers: Winchester WLP; primer size: Large Pistol; Lyman shell holder: No. 11; cast bullets used sized to .452" dia.; firearm used: Universal Receiver & Ruger Blackhawk; barrel length: 7 1/2"; twist: 1-16"; groove dia.: .451"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
250	Bull-X	7.7	981.7	primer: Federal 150
250	Bull-X	7.7	901.7	preimer: Federal 150; 941.5 fps
250	MG	7.7	872.8	primer: Federal 150
250	MG	7.7	870.8	primer: Federal 150
250	MG	7.7	892.2	primer: Federal 150; 878.3 fps
250	Bull-X	7.8	884.8	primer: CCI 350
250	Bull-X	7.8	901.8	primer: CCI 350
250	Bull-X	7.8	884.8	primer: CCI 350
250	Bull-X	7.8	889.7	primer: CCI 350
250	Bull-X	7.8	895.0	primer: CCI 350; 891.1 fps
250	Bull-X	7.8	869.6	primer: WLP
250	Bull-X	7.8	871.5	primer: WLP
250	Bull-X	7.8	874.4	primer: WLP
250	Bull-X	7.8	875.1	primer: WLP; 877.75 fps
250	Bull-X	7.8	803.0	primer: WLP
250	Bull-X	7.8	850.8	primer: CCI 300
250	Bull-X	7.8	868.3	primer: CCI 300
250	Bull-X	7.8	869.4	primer: CCI 300
250	Bull-X	7.8	859.9	primer: CCI 300
250	Bull-X	7.8	852.0	primer: CCI 300
250	Bull-X	7.8	872.1	primer: CCI 300
250	Bull-X	7.8	824.0	primer: CCI 300; 856.6 fps
250	MG	7.7	914.1	primer: Federal 150
250	MG	7.7	896.7	primer: Federal 150
250	MG	7.7	881.7	primer: Federal 150
250	MG	7.7	880.0	primer: Federal 150
250	MG	7.7	898.3	primer: Federal 150; 894.2 fps
250	Bull-X	7.3	818.0	primer: Federal 150
250	Bull-X	7.3	816.0	primer: Federal 150
250	Bull-X	7.3	825.0	primer: Federal 150; 819.6 fps
250	Speer SWC	7.3	796.0	primer: Federal 150
250	Speer SWC	7.3	786.0	primer: Federal 150; 791.0 fps
Cimarron
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
250	Cast Performance roundnose flatpoint	7.1	839
Freedom Arms Model 1997 Warning! Many loads exceed SAAMI maximum pressures for the .45 Colt. They are ONLY safe in Ruger and Freedom Arms revolvers. Notes: Barrel length: 3 1/2 inches. Starline cases and CCI 300 and 350 primers used throughout. Temperature during testing was 85 degrees Fahrenheit.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Speer LSWC	7.3	854	start charge; firmly roll-crimp over the bullet shoulder for reliable performance
200	Speer LSWC	8.3	998	maximum charge; firmly roll-crimp over the bullet shoulder for reliable performance
250	Speer LSWC	7.2	780	start charge
250	Speer LSWC	8.0	852	maximum charge
225	Speer CAV or 230 CM	6.5	788	start charge
225	Speer CAV or 230 CM	7.2	852	maximum charge
255	Speer SWC	6.1	700	start charge
255	Speer SWC	7.0	784	maximum charge
230	Speer GDHP SB or GDHP or 225 JHP	7.5	804	start charge
230	Speer GDHP SB or GDHP or 225 JHP	8.3	870	maximum charge
260	Speer JHP	8.0	843	maximum charge; DO NOT REDUCE
Handgun Speer Reloading Manual #14 max. case length: 1.285"; trim-to length: 1.275"; max cart. OAL: 1.600"; RCBS shell holder: #20; cart. case: Winchester; primer: CCI 300 (except where otherwise specified in remarks); test firearm: Colt Single Action Army; barrel length: 5.5"; NOTE: the 255 SWC, 225 CAV & 230 CM bullets were cast in RCBS moulds; maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
185	Sierra Jacketed HP	7.6	866	sugg. start load; 1.520" OAL
185	Sierra Jacketed HP	8.5	1006	max load; 1.520" OAL
225	Speer Jacketed HP	7.4	780	sugg. start load; 1.575" OAL
225	Speer Jacketed HP	8.3	954	max load; 1.575" OAL
250	Hornady Jacketed HP/XTP	6.5	681	sugg. start load; 1.590" OAL
250	Hornady Jacketed HP/XTP	7.3	813	max load; 1.590" OAL
230	Speer Swaged Lead FN	7.6	853	sugg. start load; 1.590" OAL; 9,300 cup
230	Speer Swaged Lead FN	8.5	968	max load; 1.590" OAL; 12,000 cup
Handgun Data Lyman Reloading Handbook 49th Edition cases: Winchester; trim-to length: 1.275"; primers: Winchester WLP; primer size: Large Pistol; Lyman shell holder: No. 11; firearms used: Universal Receiver & Ruger Blackhawk; barrel length: 7 1/2"; twist: 1-16"; groove dia.: .451"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
260	Lyman 454424	7.1	851	velocity spread: 28 fps; 25-yard group: 2.5 inches
Handloads (14,000 psi) Starline brass used throughout with CCI 300 primers.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
187	Ohaus SWC	8.0	918	charge: plus one grain of Dacron filler; extreme spread (fps): 106; small-game load
in a 4-3/4 Ruger Blackhawk Velocities represent five-shot averages measured ten feet from the muzzle of a Ruger Blackhawk by an Oehler Model 33 Chronotach. Ruger barrel was 4-3/4 inches long. Temperature was 60 degrees F. All loads made up with Remington cases and CCI Large Pistol primers. All bullets sized 0.452 inch. Each of the above combinations grouped three inches or less, extreme spread, at twenty-five yards with the test revolvers handheld and supported by sandbags.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
252	Lee SWC	7.0	863
in a Dan Wesson Model 45 (low velocity loads) Dan Wesson Model 45 eight-inch barrel. Primer: F150. All loads chronographed with an Oehler Model 33 Chronotach. Instrumental velocities corrected to muzzle velocities, fired at 30 to 50 degrees Fahrenheit. All groups fired in five-shot strings at 25 yards converted to minutes of angle. Federal cases used in all loads. None of the loads listed showed any signs of excessive pressures in the test revolver.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
250	Oregon Trail RNFP	7.1	851	2.0-inch groups
in a Turnbull Cowboy Classic/USFA CCI 300 primers and Starline cases used throughout.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
285	RCBS 45-270-SAA cast	6.5	782
Load Data ( 14,000 psi) primer: CCI 300
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Hornady SWC or L-C/T	5.8	659
200	Hornady SWC or L-C/T	6.4	730
200	Hornady SWC or L-C/T	7.0	791
200	Hornady SWC or L-C/T	7.6	872
200	Hornady SWC or L-C/T	8.2	943
200	Hornady SWC or L-C/T	8.8	1014	maximum load
Revolver (Using 200 GR Hornady Bullets) Gun: Ruger New Model (Bisley) Blackhawk; barrel length: 5 1/2 inches; case: Starline; primer: Winchester WLP; bullet diameter: .452"; COAL: 1.595"; maximum COAL: 1.600"; maximum case length: 1.285"; trim to length: 1.275";
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
250	Hornady HP-XTP	6.1	599
250	Hornady HP-XTP	6.5	656
250	Hornady HP-XTP	6.9	713
250	Hornady HP-XTP	7.3	771	maximum load
Revolver (using 250 GR Hornady Bullets) Gun: Ruger New Model (Bisley) Blackhawk; barrel length: 5 1/2 inches; case: Starline; primer: Winchester WLP; bullet diameter: .452"; COAL: 1.595"; maximum COAL: 1.600"; maximum case length: 1.285"; trim to length: 1.275";
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
255	Hornady FP Cowboy	4.8	542
255	Hornady FP Cowboy	5.3	605
255	Hornady FP Cowboy	5.8	658
255	Hornady FP Cowboy	6.4	741
255	Hornady FP Cowboy	7.0	793	maximum load
Revolver (Using 255 GR Hornady Bullets) Gun: Ruger New Model (Bisley) Blackhawk; barrel length: 5 1/2 inches; case: Starline; primer: Winchester WLP; bullet diameter: .452"; COAL: 1.575"; maximum COAL: 1.600"; maximum case length: 1.285"; trim to length: 1.275";
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
250	Oregon Trail Cast RNFP	7.1	835
Ruger New Vaquero All loads fired from the 4 5/8-inch barrel of a Ruger New Vaquero .45 Colt. Winchester cases and Federal 150 primers used throughout. Temperature during testing was 30 degrees Fahrenheit.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
233	Redding/SAECO 453 WC	7.2	900	sized .454 inch; group (inches): 1.63
233	RCBS 45-230-CM RN/FP	7.2	846	sized .454 inch; group (inches): 2.63
250	NEI 324 RN/FP	7.0	845	sized .454 inch; group (inches): 1.13
250	NEI 324 RN/FP	7.0	828	sized .452 inch; group (inches): 1.88
264	Redding/SAECO 955 RN/FP	6.5	782	sized .454 inch; group (inches): 3.13
264	Redding/SAECO 955 RN/FP	6.5	759	sized .452 inch; group (inches): 2.38
Single Action Army (7 1/2-Inch Barrel) Colt Single Action Army (Peacemaker Centennial) - 7 1/2-inch barrel. Total for all 29 groups, including all fliers: 2.17 inches. All group figures are for five rounds fired with handguns mounted in a Ransom Pistol Machine Rest. Range was 25 yards. Chronograph notes are for the same five rounds taken with an Oehler Model 35P with start screen at approximately 6 feet. All handloads used Starline brass with Winchester Large Pistol primers, and all bullets were cast and lubed with SPG. Sizing diameters are as noted.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
250	Oregon Trail Laser-Cast RNFP	7.3	860
Traditional Handload Data All loads, fired from a 4 3/4-inch barreled USFA Pre-War SAA, produced between 850 and 870 fps average velocity and are thus listed at 860 fps to more or less duplicate traditional .45 Colt ballistics. Starline cases and CCI 300 Large Pistol primers were used throughout. Overall loaded length: 1.575 inches. Bullet diameter: .452 inch used herein (.454 inch suggested for guns with throats .454 or larger); maximum case length: 1.285 inches; trim-to case length: 1.275 inches.

.45 GAP / .45 G.A.P.

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
185	Hornady Jacketed HP	5.1	856	start load; 18,200 psi; 1.060" OAL
185	Hornady Jacketed HP	5.7	952	max load; 21,400 psi; 1.060" OAL
200	Speer Jacketed HP	4.6	790	start load; 17,400 psi; 1.080" OAL
200	Speer Jacketed HP	5.2	873	max load; 20,100 psi; 1.080" OAL
200	Lyman Cast #452630	4.7	918	start load; 19,500 psi; 1.080" OAL
200	Lyman Cast #452630	5.3	1001	max load; 21,100 psi; 1.080" OAL
225	Lyman Cast #452374	4.4	827	start load; 18,600 psi; 1.135" OAL
225	Lyman Cast #452374	5.0	918	max load; 22,200 psi; 1.135" OAL
200	Lyman Cast #452460	4.7	927	start load; 20,100 psi; 1.030" OAL
200	Lyman Cast #452460	5.3	1010	max load; 22,000 psi; 1.030" OAL
Lyman Reloading Handbook 49th Edition cases: Winchester; trim-to length: .755"; primers: Winchester WSP; primer size: Small Pistol; Lyman Shell Holder: No. 2; cast bullets sized to .451" dia.; firearm used: Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .450"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
185	Speer TMJ FN	5.7	912	start charge
185	Speer TMJ FN	6.3	1001	max charge
185	Speer GDHP	5.5	892	start charge
185	Speer GDHP	6.2	1000	max charge
200	Speer TMJ FN	5.3	860	start charge
200	Speer TMJ FN	5.7	921	max charge
200	Speer GDHP	5.0	840	start charge
200	Speer GDHP	5.5	900	max charge
Speer Handgun Data Reloading Manual #14 max. case length: 0.760"; trim-to length: 0.750"; max cart. OAL: 1.137"; RCBS Shell Holder: #3; cart. case: Speer; primer: CCI 500; test firearm: Glock Model 37; barrel length: 4.5"; maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
185	HDY XTP	4.8	841	starting charge; 18,200 psi
185	HDY XTP	5.5	951	max charge; 21,500 psi
200	SPR GDHP	4.5	796	starting charge; 18,400 psi
200	SPR GDHP	4.9	860	max charge; 20,700 psi
Winchester Pistol Data bbl: 5"; twist: 1:16"; case: Speer; pr: Winchester SP; trim: .750"; bullet diam.: .451"; NEVER exceed the loads listed here
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
185	Hornady XTP	4.8	841	starting load; psi: 18,200
185	Hornady XTP	5.5	951	maximum load; psi: 21,500
200	Speer GDHP	4.5	796	starting load; psi: 18,400
200	Speer GDHP	4.9	860	maximum load; psi: 20,700
Hodgdon Pistol Data Never exceed the loads listed here. case: Speer; BBL: 5 inches; PR: Winchester SP; twist: 1:16 inches; trim: .750 inch

.45 Smith & Wesson Schofield / .45 S&W Schofield

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	LRNFP	5.2	745	starting load; 8,800 cup
200	LRNFP	6.2	877	maximum load; 13,000 cup
230	LRNFP	5.0	719	starting load; 9,900 cup
230	LRNFP	5.7	816	maximum load; 12,700 cup
250	LRNFP	4.5	664	starting load; 10,100 cup
250	LRNFP	5.2	741	maximum load; 12,100 cup
Hodgdon Pistol Data case: Starline; barrel length: 5"; twist: 1:16"; trim length: 1.095"; primer: Winchester LP; bullet diam.: .452"; COL: 1.430"; NEVER EXCEED MAXIMUM LOADS
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
230	AA Limited conical	5.3	727	USFA
230	AA Limited conical	5.3	735	Colt SAA
233	RCBS 45-230-CM RN/FP	5.3	701	USFA
233	RCBS 45-230-CM RN/FP	5.3	707	Colt SAA
240	Redding/SAECO 954 FN/FP	5.0	688	USFA
240	Redding/SAECO 954 FN/FP	5.0	689	Colt SAA
250	Remington swaged hollowbase conical	4.7	608	USFA
250	Remington swaged hollowbase conical	4.7	614	Colt SAA
255	Hornady swaged flatbase RN/FP	4.7	645	USFA
255	Hornady swaged flatbase RN/FP	4.7	647	Colt SAA
In a USFA & a Colt SAA All chronographing done with start screen at approximately 6 feet. Chronograph figures are for five-round strings. All handloads used Starline brass and Winchester Large Pistol Primers. All bullets cast were poured of 1-20 (tin-to-lead) alloy, sized .454 inch and lubed with SPG. Commercial swaged bullets and AA Limited custom cast bullets were also .454 inch in diameter. Both handguns had 7 1/2-inch barrels
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Cast #452460	5.5	781	sugg. start load; 1.340" OAL; 7,600 cup
200	Cast #452460	6.2	890	max load; 1.340" OAL; 10,200 cup
250	Cast #454190	4.6	699	sugg. start load; 1.390" OAL; 8,400 cup
250	Cast #454190	5.2	779	max load; 1.390" OAL; 11,000 cup
250	Cast #452664	4.9	704	sugg. start load; 1.390" OAL; 8,600 cup
250	Cast #452664	5.5	785	max load; 1.390" OAL; 10,400 cup
255	Cast #452424	5.2	737	sugg. start load; 1.460" OAL; 8,900 cup
255	Cast #452424	5.8	816	max load; 1.460" OAL; 11,100 cup
Lyman Reloading Handbook 49th Edition cases: Starline; trim-to length: 1.095"; primers: Winchester WLP; primer size: Large Pistol; Lyman shell holder: No. 14B; cast bullets used sized to .452" dia.; firearm used: Universal Receiver; barrel length: 7 1/2"; twist: 1-16"; groove dia.: .451"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
225	Speer CAV	4.6	670	start charge
225	Speer CAV	5.1	726	maximum charge
Speer Reloading Manual #14 Cowboy Action Shooting Data; max. case length: 1.090"; trim-to length: 1.080"; max cart. OAL: 1.430"; RCBS shell holder: #35; cart. case: Starline; primer: CCI 300; test firearm: Colt Single Action Army; barrel length: 5.5"; a 230-GR Speer CM can also be used for these loads; NOTE: these bullets were cast in RCBS moulds; maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
230	Hornady LRN	4.6	537
230	Hornady LRN	4.9	576
230	Hornady LRN	5.2	625
230	Hornady LRN	5.4	675
230	Hornady LRN	5.7	721	maximum load
255	Hornady FP Cowboy	3.9	488
255	Hornady FP Cowboy	4.4	551
255	Hornady FP Cowboy	4.8	614
255	Hornady FP Cowboy	5.2	678	maximum load
Using Hornady Bullets Gun: Ruger New Model Blackhawk (Bisley); barrel length: 5 1/2 inches; case: Starline; primer: Winchester Large Pistol; bullet diameter: .452"; 230 GR Hornady LRN COAL: 1.410"; 255 FP Cowboy COAL: 1.380"; maximum COAL: 1.410"; maximum case length: 1.109"; trim to length: 1.099".
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Lead Round Nose Flat Point	6.2	877	13,000 cup
230	Lead Round Nose Flat Point	5.7	816	12,700 cup
250	Lead Round Nose Flat Point	5.2	741	12,100 cup
Winchester Pistol Data case: Starline; BBL: 5"; PR: Winchester LP; COL: 1.430"; NEVER exceed loads listed
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Round Nose Flat Point	5.5	890
Cowboy Loads Oregon Trail Handgun Data test gun: Smith & Wesson 6", WLP; OAL: 1.39; never reduce stated overall lengths; DO NOT EXCEED THESE LOADS! Use only in modern .45 Colt revolvers or S&W Schofield reproductions in excellent condition. Original S&W top break revolvers should never be fired with smokeless powder loads!

.454 Casull

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
270	Speer SAA	7.0	872	start charge; case: Starline
270	Speer SAA	9.0	1049	maximum charge; case: Starline
Reduced Recoil Loads Speer Reloading Manual #14 max. case length: 1.383"; trim-to length: 1.373"; max cart. OAL: 1.765"; RCBS shell holder: #20; cart. case: Winchester and Starline; primer: CCI 400; test firearm: Freedom Arms; barrel length: 7.5"; NOTE: The 270 grain SAA bullets were cast in RCBS moulds; use maximum loads with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
300	Oregon Trail cast FP	9.0	1,030	midrange .454 load (Federal 205 primer used)
in a Freedom Arms Model 83 (4 3/4-inch barrel) Freedom Arms Model 83 with barrel length of 4 3/4 inches. Remington 7 1/2 and Federal 205 (Small Rifle Magnum) primers and Starline cases used throughout. Maximum case length is 1.383 inches and trim-to length is 1.373 inches.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
300	Oregon Trail cast FP	9.0	1,065	midrange .454 load (Federal 205 primer used)
in a Freedom Arms Model 83 (7 1/2-inch barrel) Freedom Arms Model 83 with barrel length of 7 1/2 inches. Remington 7 1/2 and Federal 205 (Small Rifle Magnum) primers and Starline cases used throughout. Maximum case length is 1.383 inches and trim-to length is 1.373 inches.

.455 Colt-Eley

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
205	Hensley & Gibbs 68 SWC	5.7	657	case expansion: normal; accuracy class: A
205	Hensley & Gibbs 68 SWC	6.0	685	case expansion: near max; accuracy class: A+; most accurate load
250	Remington Lead RN	6.0	642	case expansion: near max; accuracy class: B
263	Ohaus 45-255K	5.5	605	case expansion: normal; accuracy class: C
263	Ohaus 45-255K	6.2	702	case expansion: maximum; accuracy class: A
225	Speer JHP	5.7	670	case expansion: normal; accuracy class: A
Test revolver was Colt New Service with 5 1/2-inch barrel. All loads employed Dominion (Canadian) .455 Colt cases. Federal No. 150 Large Pistol primers used in all handloads. Oehler Model 31 Chronograph and Model 51 screens used to measure velocities. Velocities are instrumental, measured 8 feet from muzzle (not corrected to muzzle velocity). Lyman 3-die reloading set used to resize cases and seat bullets. The following accuracy classification system was used in these tests: A+ = 1-inch or less at 20 yards; A = 1 1/16 - 1 1/2 inches; B = 1 9/16 - 2 inches; C = 2 1/16 - 2 1/2 inches; D = Over 2 1/2 inches.

.475 Linebaugh

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
410	LBT #476.420LFN	8.0	823
410	LBT #476.420LFN	9.0	894
440	LBT #476.440LFN	8.0	808
350	LBT #476.370LFN	9.0	922
350	LBT #476.370LFN	10.0	963
firearm: Custom Bisley Ruger 5-1/2"; brass: .45-70 trimmed to 1.410"; primer: CCI #350; chronograph: Oehler Model 35P; temperature: 35-45 degrees (John Taffin Tests)
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
401	Cast Performance LFN GC	9.0	915	accurate reduced load
Load Data A Freedom Arms Model 757 with a 6-inch barrel was used to test fire all loads. Buffalo Bore/Starline cases used throughout. Large Pistol primers used for reduced loads; all others used Large Pistol Magnum. Maximum case length: 1.400 inches; trim-to length: 1.395 inches; overall cartridge length: 1.750 to 1.765 inches maximum. Bullet diameter: .476 inch for cast bullets, .475 inch for jacketed. Industry maximum average pressure: 50,000 psi.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
370	NEI #390.477	10.0	928
380	LBT #476.370	10.0	915
410	LBT #476.420	10.0	911
430	LBT #476.440	10.0	882
firearm: Linebaugh Custom Bisley; caliber: .475 Linebaugh Long; brass: WW .45/70 @ 1.600"; primer: Federal #210; chronograph: Oehler Model 35P; temperature: 75 degrees (John Taffin Tests)

.480 Ruger

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
355	TrueShot WNFP-GC	7.5	848	primer: CCI 300
Oregon Trail Cast Bullet Loads Freedom Arms Model 757; 6-inch barrel; case: Hornady; overall loaded length (inches): 1.665; maximum case length: 1.285 inches; trim-to length: 1.275 inches.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
355	Oregon Trail True Shot	7.5	847	primer: CCI 300
405	RCBS cast SWC	7.5	848	primer: CCI 300
in an FA Model 757 Test gun was a Freedom Arms Model 757 with a 6-inch barrel. Maximum pressure was 48,000 psi. Hornady cases used throughout. Temperature during testing was 85 degrees Fahrenheit.

.500 Linebaugh

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
404	LBT #512.400LFN	10.0	863
445	LBT #512.440 LFN	9.0	820
444	NEI #420.511	9.0	805
firearm: Custom Bisley Ruger 5 1/2"; brass: .500 Linebaugh; primer: CCI #350; chronograph: Oehler Model 35P (John Taffin Tests)
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
407	LBT 512.400	12.0	957
420	LBT 512.440	12.0	888
425	NEI 440.512KT	12.0	931
Cast Bullet Loads firearm: Linebaugh custom Bisley; caliber: .500 Linebaugh Long; brass: WW .348 Winchester @1.600"; primer: Federal #210; chronograph: Oehler Model 35P; temperature: 65-80 degrees (John Taffin Tests)

.500 Smith & Wesson Magnum / .500 S&W Magnum

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
380	BRP GC	10.0	904	8 3/8" S&W M500
380	BRP GC	10.0	960	10 1/2" BFR
380	BRP GC	10.0	939	12" Encore
370	Cast Performance Bullet Co. GC	10.0	882	8 3/8" S&W M500
370	Cast Performance Bullet Co. GC	10.0	942	10 1/2" BFR
370	Cast Performance Bullet Co. GC	10.0	880	12" Encore
440	Cast Performance Bullet Co. GC	10.0	827	8 3/8" S&W M500
440	Cast Performance Bullet Co. GC	10.0	893	10 1/2" BFR
440	Cast Performance Bullet Co. GC	10.0	913	12" Encore
John Taffin Tests Tested in 8 3/8" S&W M500, 10 1/2" BFR and 12" Encore.

.500 Wyoming Express

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
370	Oregon Trail GC	11.0	946	3 shots/20 yds: 1"
370	Cast Performance Bullet Co. GC	11.0	935	3 shots/20 yds: 3/8"
400	Cast Performance Bullet Co. GC	10.0	869	3 shots/20 yds: 3/4"
440	Cast Performance Bullet Co. GC	9.0	816	3 shots/20 yds: 1 1/8"
in a Freedom Arms 83 4 3/4-Inch Freedom Arms Model 83 4 3/4" (John Taffin Tests)
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
370	Oregon Trail GC	11.0	996	3 shots/25 yds: 3/4"
370	Cast Performance Bullet Co. GC	11.0	989	3 shots/25 yds: 5/8"
400	Cast Performance Bullet Co. GC	10.0	919	3 shots/25 yds: 5/8"
440	Cast Performance Bullet Co. GC	9.0	855	3 shots/25 yds: 5/8"
in a Freedom Arms 83 7 1/2-Inch Freedom Arms Model 83 7 1/2"; 4X Leupold (John Taffin Tests)

10mm Auto

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
185	RCBS 40-180-FN cast	6.0	1090	rounds per pound: 1,167
Economical Midrange Loads firearm used: Kimber Model 1911 Stainless Target II; primer: CCI 300; case: Starline; barrel length: 5"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
150	Jacketed	6.0	1060	start load; min OAL: 1.240
150	Jacketed	7.0	1210	never exceed; min OAL: 1.240; 35,600 psi
155	Jacketed	5.8	1040	start load; min OAL: 1.240
155	Jacketed	7.3	1250	never exceed; min OAL: 1.240; 35,600 psi
170	Jacketed	4.7	882	start load; min OAL: 1.240
170	Jacketed	6.3	1120	never exceed; min OAL: 1.240; 35,600 psi
170	Lead	4.8	980	start load; min OAL: 1.240
170	Lead	5.6	1100	never exceed; min OAL: 1.240; 35,600 psi
200	Jacketed	4.6	843	start load; min OAL: 1.240
200	Jacketed	5.6	1000	never exceed; min OAL: 1.240; 35,600 psi
200	Lead	4.2	870	start load; min OAL: 1.240
200	Lead	5.5	1030	never exceed; min OAL: 1.240; 35,600 psi
Lee Precision Data Large Pistol Primer. CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
145	Lee #401-145-SWC	6.3	1195	sugg. start load; 24,200 cup
145	Lee #401-145-SWC	7.0	1259	max load; 28,200 cup
Lyman Cast Bullet Data Cases: Winchester; trim-to length: .982"; primers: CCI 300; primer size: Large Pistol; Lyman shell holder: No. 15; cast bullets used: (sized to .401" dia.) 145 GR Lee #401-145-SWC; firearm used: Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .400"; 1.225" OAL. (Lyman Cast Bullet Handbook 4th Edition)
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
170	Semi Wad Cutter	5.0	1,031	starting load; OAL: 1.250
170	Semi Wad Cutter	5.6	1,121	maximum load; OAL: 1.250
Oregon Trail Handgun Data - Standard Loads test gun: Entreprise 1911 frame, 5" Bar-Sto barrel, WLP; do not exceed maximum loads; never reduce stated overall lengths
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
155	Speer TMJ FN or GDHP	7.0	1062	start charge
155	Speer TMJ FN or GDHP	7.7	1183	maximum charge
165	Speer GDHP or TMJ FN	6.3	1043	start charge
165	Speer GDHP or TMJ FN	7.0	1143	maximum charge
Speer Reloading Manual #14 max. case length: 0.992"; trim-to length: 0.982"; max cart. OAL: 1.260"; RCBS shell holder: #27; cart. case: Hornady; primer: CCI 300 (except where otherwise specified in remarks); test firearm: Smith & Wesson M1006; barrel length: 5"; maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
155	Hornady HP-XTP	7.1	1185
155	Hornady HP-XTP	7.6	1248
155	Hornady HP-XTP	8.0	1304	maximum load
180	Hornady HAP, HP-XTP, FMJ-FP ENC	5.9	995
180	Hornady HAP, HP-XTP, FMJ-FP ENC	6.3	1054	maximum load
Using Hornady Bullets Gun: Kimber Stainless Target II; barrel length: 5"; case: Starline; primer: Win. Large Pistol; bullet diameter: .400"; COAL: 1.260"; maximum COAL: 1.260"; maximum case length: .992; trim to length: .982.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
135	Nosler Sporting Handgun Jacketed Hollow Point	7.5	1,289	maximum load
135	Nosler Sporting Handgun Jacketed Hollow Point	7.0	1,224
135	Nosler Sporting Handgun Jacketed Hollow Point	6.5	1,160	most accurate load tested
150	Nosler Sporting Handgun Jacketed Hollow Point	7.0	1,197	maximum load
150	Nosler Sporting Handgun Jacketed Hollow Point	6.5	1,132
150	Nosler Sporting Handgun Jacketed Hollow Point	6.0	1,068	most accurate load tested
180	Nosler Sporting Handgun Jacketed Hollow Point	5.8	1019	maximum load; most accurate powder tested
180	Nosler Sporting Handgun Jacketed Hollow Point	5.3	961	most accurate powder tested
180	Nosler Sporting Handgun Jacketed Hollow Point	4.8	904	most accurate load tested; most accurate powder tested
Using Nosler Bullets Handgun; case: Winchester; primer: WLP; barrel length/make: 6" Omega; twist: 1-16"; bullets: 135 GR, 150 GR, 180 GR & 200 GR Nosler Sporting Handgun Pistol JHP; OACL: 1.260"; maximum OACL: 1.260". Use Maximum Loads with Caution
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
150	JHP	6.0	1,090	starting load; 29,000 psi
150	JHP	7.0	1,210	maximum load; 35,600 psi
155	JHP	5.8	1,040	starting load; 23,300 psi
155	JHP	7.3	1,250	maximum load; 35,600 psi
170	JHP	4.7	880	starting load; 20,600 psi
170	JHP	6.3	1,120	maximum load; 35,600 psi
170	Lead	4.8	980	starting load; 26,400 psi
170	Lead	5.6	1,100	maximum load; 35,600 psi
180	JHP	5.2	950	starting load; 29,600 psi
180	JHP	5.8	1,050	maximum load; 35,600 psi
190	FMJ	4.6	800	starting load; 22,000 psi
190	FMJ	5.9	1,030	maximum load; 35,600 psi
200	FMJ	4.6	840	starting load; 24,600 psi
200	FMJ	5.6	1,000	maximum load; 35,600 psi
200	Lead	4.2	870	starting load; 24,200 psi
200	Lead	5.5	1,030	maximum load; 35,600 psi
Winchester Data case: Winchester; barrel length: 5"; twist: 1:16"; trim length: .987"; primer: Winchester LP; bullet diam.: .400"; COL: 1.260" (except where otherwise specified in remarks); NEVER EXCEED MAXIMUM LOADS
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
150	Jacketed Hollow Point	7.0	1,210	35,600 psi
155	Jacketed Hollow Point	7.3	1,250	35,600 psi
170	Jacketed Hollow Point	6.3	1,120	35,600 psi
170	Lead	5.6	1,100	35,600 psi
180	Jacketed Hollow Point	5.8	1,050	35,600 psi
190	Full Metal Jacket	5.9	1,030	35,600 psi
200	Full Metal Jacket	5.6	1,000	35,600 psi
200	Lead	5.5	1,030	35,600 psi
Winchester Pistol Data case: Winchester; BBL: 5"; PR: Winchester LP; COL: 1.260"; NEVER exceed loads listed
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
150	Cast #401654	6.5	1206	sugg. start load; 1.240" OAL; 23,800 cup
150	Cast #401654	7.4	1320	max load; 1.240" OAL; 28,500 cup; potentially most accurate load
175	Cast #401043	5.5	1023	sugg. start load; 1.260" OAL; 20,300 cup
175	Cast #401043	6.7	1189	max load; 1.260" OAL; 28,800 cup
175	Cast #401638	5.9	1115	sugg. start load; 1.253" OAL; 24,000 cup
175	Cast #401638	6.5	1181	max load; 1.253" OAL; 29,400 cup
Cast Bullets Lyman Reloading Manual 49th Edition cases: Norma; trim-to length: .982"; primers: CCI 300; primer size: Large Pistol; Lyman shell holder: No. 15; cast bullets used sized to .401" dia.; firearm used: Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .400"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
135	Nosler Jacketed HP	6.0	1097	sugg. start load; 1.225" OAL; 20,300 cup; potentially most accurate load
135	Nosler Jacketed HP	7.7	1327	max load; 1.225" OAL; 29,100 cup
150	Sierra Jacketed HP	5.7	1053	sugg. start load; 20,700 cup
150	Sierra Jacketed HP	7.5	1292	max load; 29,800 cup; potentially most accurate load
155	Winchester Jacketed Silvertip	6.5	1105	sugg. start load; case: Winchester; 25,500 cup
155	Winchester Jacketed Silvertip	7.3	1229	max load; case: Winchester; 28,900 cup
165	Speer TMJ	6.3	1045	sugg. start load; case: Winchester; 22,500 cup
165	Speer TMJ	7.1	1182	max load; case: Winchester; 28,600 cup
175	Winchester Jacketed Silvertip	5.9	1004	sugg. start load; case: Winchester; 23,500 cup
175	Winchester Jacketed Silvertip	6.6	1109	max load; case: Winchester; 28,900 cup
180	Sierra Jacketed HP	5.9	1037	sugg. start load; 26,300 cup
180	Sierra Jacketed HP	6.6	1125	max load; 28,700 cup
190	Sierra Jacketed FP	5.8	980	sugg. start load; 22,900 cup
190	Sierra Jacketed FP	6.5	1075	max load; 29,000 cup
200	Hornady Jacketed HP	5.6	984	sugg. start load; 24,600 cup
200	Hornady Jacketed HP	6.3	1067	max load; 28,400 cup
Handgun Lyman Reloading Handbook 49th Edition cases: Norma (except where otherwise specified in remarks); trim-to length: .982"; primers: CCI 300; primer size: Large Pistol; Lyman shell holder: No. 15; firearm used: Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .400"; 1.250" OAL (except where otherwise specified in remarks)
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
180	Hornady XTP/HP	6.0	1037
180	Hornady XTP/HP	6.5	1098
185	RCBS 40-180-FN	4.5	872
185	RCBS 40-180-FN	6.0	1090
Handloads A Kimber Model 1911 Stainless Target II with a one-in-16-inch twist, 5-inch barrel was used for testing loads. Starline brass and CCI 300 Large Pistol primers used throughout. Maximum overall cartridge length: 1.260 inches; maximum case length: 0.992 inch; trim-to length: 0.982 inch. Maximum SAAMI pressure: 37,500 psi.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
202	SAECO #40047	5.5	932	case expansion near maximum
Pistol (Cast Bullets) Test pistol was a Colt Delta Elite with a five-inch barrel. All loads used Federal F-150 primers. Special care should be exercised to differentiate between HS-7 and AAC-7 powders!
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
155	Hornady JHP	6.5	1,105	case expansion normal; accurate
150	Sierra JHP	7.0	1,129	case expansion near maximum
Pistol (Jacketed Bullets) Test pistol was a Colt Delta Elite with a five-inch barrel. All loads used Federal F-150 primers. Special care should be exercised to differentiate between HS-7 and AAC-7 powders!

7.62 Tokarev / .30 Mauser

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
86	Hornady FMJ	5.0	1177	sugg. start load; 1.290" OAL
86	Hornady FMJ	6.1	1374	max load; 1.290" OAL
93	Hornady FMJ	5.0	1132	sugg. start load; 1.310" OAL
93	Hornady FMJ	6.0	1283	max load; 1.310" OAL
75	Cast #311252	4.8	1238	sugg. start load; 1.280" OAL
75	Cast #311252	5.8	1417	max load; 1.280" OAL
85	Cast #313249	4.5	1203	sugg. start load; 1.290" OAL
85	Cast #313249	5.5	1379	max load; 1.290" OAL
Lyman Reloading Handbook 49th Edition The 7.62x25mm Tokarev and 30 Mauser are two different cartridges. However, their dimensions are so close that it has been common practice to use them interchangeably. Cases: Starline; trim-to length: .980"; primers: Remington 1 1/2; primer size: Small Pistol; Lyman shell holder: No. 12; cast bullets used sized to .311" dia.; firearm used: Cz52; barrel length: 4.7"; twist: 1-12 1/2"; groove dia.: .310"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
85	Hornady XTP	5.0	1,450	accurate
The 85-grain Hornady and the 100-grain Speer hollowpoint are .32 ACP bullets resized to .308 inch diameter. The 100-grain bullet charges can be used for any 100-grain bullet.

9mm Largo / 9mm Bergmann-Bayard

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
115	Speer GDHP or TMJ FN	4.8	990	start charge
115	Speer GDHP or TMJ FN	5.3	1082	maximum charge
124	Speer TMJ RN, UCSP or GDHP	4.3	951	start charge
124	Speer TMJ RN, UCSP or GDHP	4.7	1013	maximum charge
Speer Reloading Manual #14 max. case length: 0.905"; trim-to length: 0.900"; max cart. OAL: 1.300"; RCBS shell holder: #16; cart. case: Starline; primer: CCI 500; test firearm: Star "Super"; barrel length: 5.25"; maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Hornady XTP	5.4	1230	overall loaded length (inches): 1.19; 25-yard group (inches): 4.0
90	Hornady XTP	6.5	1394	overall loaded length (inches): 1.19; 25-yard group (inches): 3.0
90	Sierra JHP	5.5	1280	overall loaded length (inches): 1.18; 25-yard group (inches): 3.8
115	Zero JHP	5.4	1178	overall loaded length (inches): 1.250; 25-yard group (inches): 2.6
115	Zero JHP	5.8	1290	overall loaded length (inches): 1.250; 25-yard group (inches): 2.5
124	Speer JHP	5.5	1176	overall loaded length (inches): 1.225; 25-yard group (inches): 2.5
124	Speer JHP	5.6	1202	overall loaded length (inches): 1.225; 25-yard group (inches): 2.76
124	Hornady FMJ	5.0	1098	overall loaded length (inches): 1.300; 25-yard group (inches): 3.5
124	Hornady FMJ	5.5	1180	overall loaded length (inches): 1.300; 25-yard group (inches): 3.25
122	Magnus flatpoint lead bullet	5.2	1190	overall loaded length (inches): 1.200; 25-yard group (inches): 3.9
122	Magnus flatpoint lead bullet	5.5	1260	overall loaded length (inches): 1.200; 25-yard group (inches): 3.0
Winchester Small Pistol primers used throughout.

9mm Luger / 9mm Parabellum / 9x19mm

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
115	Speer Gold Dot	5.0	1,191	primer: WSP; standard deviation (fps): 11; coefficient of variation (percent): 0.92; group (inches): 2.32; muzzle energy (ft-lbs): 362
115	Hornady XTP	5.0	1,168	primer: R-P 1 1/2; standard deviation (fps): 7; coefficient of variation (percent): 0.60; group (inches): 1.48; muzzle energy (ft-lbs): 348; good all-around load
122	Bushwacker flatnose	4.2	1,033	primer: WSP; standard deviation (fps): 20; coefficient of variation (percent): 1.94; group (inches): 1.79; muzzle energy (ft-lbs): 126
125	Bushwacker roundnose	4.2	1,040	primer: WSP; standard deviation (fps): 14; coefficient of variation (percent); 1.35; group (inches): 2.28; muzzle energy (ft-lbs): 130
125	Bushwacker semiwadcutter	4.2	1,023	primer: WSP; standard deviation (fps): 14; coefficient of variation (percent): 1.37; group (inches): 1.80; muzzle energy: 128; good load
in a CZ Model 85 A CZ Model 85 Combat with a 4.7-inch barrel and open sights was used for testing. Velocities were taken 12 feet from the muzzle with an Oehler Model 35P chronograph. Accuracy is the average of (at least) three, five-shot groups at 20 yards from a sandbag rest. Range temperatures were 58 to 74 degrees Fahrenheit. R-P, Remington-Peters; WAP, Winchester Action Pistol; WSL, Sinchester Super Lite; WSP, Winchester Small Pistol.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
123	Redding/SAECO 377	4.0	999	overall loaded length (inches): 1.08; poor accuracy
126	Lee 356-125-2R	4.5	1052	overall loaded length (inches): 1.16; poor accuracy
138	LBT .359 140 FN	3.0	803	overall loaded length (inches): 1.04; accurate
140	H&G 12B	3.0	829	overall loaded length (inches): 1.05; accurate
145	Lyman 358212	3.5	869	overall loaded length (inches): 1.14
146	Redding/SAECO 929	3.5	893	overall loaded length (inches): 1.16
151	Redding/SAECO 910	3.5	874	overall loaded length (inches): 1.16
152	RCBS 9mm-147-FN	3.5	873	overall loaded length (inches): 1.13
Cast Bullet Loads Test gun was a SIG Sauer P226 9mm Luger with a 4.4-inch barrel. All velocities measured approximately 10 feet from muzzle using an Oehler Model 35P chronograph. Ambient temperatures varied from approximately 65 to 85 degrees Fahrenheit. Loads assembled using Winchester 9mm Luger brass and CCI 500 standard Small Pistol primers. No reduction in overall cartridge length (OAL) is recommended. Any change in components requires powder charge reduction. This data is intended for use only by persons experienced in the proper and safe practice of handloading ammunition.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Hornady HP-XTP	4.7	1168	overall loaded length (inches): 1.070
90	Hornady HP-XTP	5.6	1395	overall loaded length (inches): 1.070
115	Hornady HP-XTP	4.1	1017	overall loaded length (inches): 1.075
115	Hornady HP-XTP	4.7	1145	overall loaded length (inches): 1.075
(90 & 115 GR) Handload Data A 5-inch barreled Kimber Model 1911 Team Match II was used to shoot all loads in Starline cases with Winchester Small Pistol primers. SAAMI minimum cartridge overall length: 1.000 inch; maximum cartridge overall length: 1.169 inches; maximum case length: .754 inch; trim to length: .744 inch.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
88	Speer JHP	6.0	1,390	OAL (inches): 1.04; case expansion: maximum
100	Speer JHP	5.8	1,310	OAL (inches): 1.075; case expansion: near max
115	Nosler FMJ	5.6	1,231	OAL (inches): 1.10; case expansion: maximum
115	Sierra JHP	5.5	1,211	OAL (inches): 1.08; case expansion: near max
115	Hornady JHP	5.7	1,265	OAL (inches): 1.11; case expansion: maximum
115	Speer JHP	5.6	1,249	OAL (inches): 1.11; case expansion: maximum; accurate load
124	Hornady FMJ-FP	5.2	1,120	OAL (inches): 1.12; case expansion: maximum
130	Sierra FMJ-RN	5.0	1,080	OAL (inches): 1.12; case expansion: maximum
(Jacketed) in a Beretta Beretta 92-F, 5 inches.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
88	Speer JHP	6.0	1,400	OAL (inches): 1.04; case expansion: maximum
90	Sierra JHP	5.9	1,352	OAL (inches): 1.03; case expansion: near max
100	Speer JHP	5.8	1,326	OAL (inches): 1.075; case expansion: near max
115	Nosler FMJ	5.6	1,232	OAL (inches): 1.10; case expansion: maximum
115	Sierra JHP	5.5	1,262	OAL (inches): 1.08; case expansion: near max
115	Hornady JHP	5.7	1,269	OAL (inches): 1.11; case expansion: maximum
115	Speer JHP	5.6	1,258	OAL (inches): 1.11; case expansion: maximum; accurate
124	Hornady FMJ-FP	5.2	1,145	OAL (inches): 1.12; case expansion: maximum
130	Sierra FMJ-RN	5.0	1,117	OAL (inches): 1.12; case expansion: maximum
(Jacketed) in a Ruger Ruger P-85, 4 1/2 inches.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
126	Magma SKU-9-125 roundnose cast (sized .3560)	4.0	967	OAL (inches): 1.11; case expansion: moderate
126	Magma SKU-9-125 roundnose cast (sized .3560)	4.2	1,009	OAL (inches): 1.11; case expansion: normal; accurate
126	Magma SKU-9-125 roundnose cast (sized .3560)	4.5	1,076	OAL (inches): 1.11; case expansion: near max
130	Ohaus Cast (Sized .3565 inch)	4.2	1,028	OAL (inches): 1.13; case expansion: near max
125	Alberts Swaged (Sized .3565 inch)	4.0	905	OAL (inches): 1.11; case expansion: normal
in a Beretta Federal cases and Federal 100 Small Pistol primers used for all loads. Velocities are instrumental at 10 feet from the muzzle, using Oehler Model 31 chronotach and Oehler Model 51 electronic screens with 10-foot spacing. Barrel lengths of test gun: Beretta, 5-inch barrel.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
80	Barnes TAC-XP	3.3	1021	start load; COL: 1.025"; 26,300 psi
80	Barnes TAC-XP	3.8	1125	max load; COL: 1.025"; 32,000 psi
90	Speer GDHP	5.5	1312	start load; COL: 1.010"; 25,400 cup
90	Speer GDHP	5.8	1349	max load; COL: 1.010"; 30,100 cup
95	Sierra FMJ	4.8	1189	start load; COL: 1.020"; 26,300 cup
95	Sierra FMJ	5.3	1273	max load; COL: 1.020"; 31,400 cup
100	Speer FMJ	5.1	1218	start load; COL: 1.050"; 25,200 cup
100	Speer FMJ	5.5	1282	max load; COL: 1.050"; 28,400 cup
100	SinterFire	3.9	1062	start load; COL: 1.140"; 26,500 psi
100	SinterFire	4.4	1149	max load; COL: 1.140"; 31,000 psi
115	Speer GDHP	4.7	1075	start load; COL: 1.125"; 25,300 cup
115	Speer GDHP	5.1	1167	max load; COL: 1.125"; 28,100 cup
115	Lead Round Nose	4.3	1079	start load; bullet diam.: .356"; COL: 1.100"; 28,400 cup
115	Lead Round Nose	4.8	1135	max load; bullet diam.: .356"; COL: 1.100"; 32,000 cup
124	Berry's Bullets HBRN TP	3.9	920	start load; bullet diam.: .356"; COL: 1.150"; 27,400 psi
124	Berry's Bullets HBRN TP	4.4	1037	max load; bullet diam.: .356"; COL: 1.150"; 31,900 psi
125	Lead Conical Nose	3.9	1009	start load; bullet diam.: .356"; COL: 1.125"; 25,700 cup
125	Lead Conical Nose	4.4	1086	max load; bullet diam.: .356"; COL: 1.125"; 31,200 cup
125	Sierra FMJ	4.4	1009	start load; COL: 1.090"; 24,600 cup
125	Sierra FMJ	4.8	1088	max load; COL: 1.090"; 28,800 cup
125	Hornady HAP	2.8	753	start load; bullet diam.: .356"; COL: 1.069"; 25,300 psi
125	Hornady HAP	3.3	876	max load; bullet diam.: .356"; COL: 1.069"; 33,600 psi
130	Berry's Bullets RN	3.9	903	start load; bullet diam.: .356"; COL: 1.150"; 27,600 psi
130	Berry's Bullets RN	4.3	1005	max load; bullet diam.: .356"; COL: 1.150"; 33,000 psi
Hodgdon Data Using Winchester Powder Case: Winchester; twist: 1:10"; primer: CCI 500, Small Pistol; barrel length: 4"; trim length: .750"; bullet diam.: .355" (except where otherwise specified in remarks).
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
95	Jacketed	4.6	1145	start load; min OAL: 1.095
95	Jacketed	5.1	1235	never exceed; min OAL: 1.095; 32,600 psi
114	Lead	3.8	1010	start load; min OAL: 1.110
114	Lead	4.2	1115	never exceed; min OAL: 1.110; 32,500 psi
124	Jacketed	4.2	1005	start load; min OAL: 1.095
124	Jacketed	4.5	1060	never exceed; min OAL: 1.095; 32,700 psi
124	Lead	3.3	910	start load; min OAL: 1.095
124	Lead	4.0	1035	never exceed; min OAL: 1.095; 32,900 psi
147	Lead	3.3	865	start load; min OAL: 1.135
147	Lead	3.5	905	never exceed; min OAL: 1.135; 32,100 psi
115	Jacketed	4.3	1010	start load; min OAL: 1.095
115	Jacketed	4.8	1120	never exceed; min OAL: 1.095; 32,100 psi
Lee Precision Data Small pistol primer. CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
115	Speer GDHP or TMJ RN	4.4	1026	start charge
115	Speer GDHP or TMJ RN	4.9	1133	maximum charge
124	Speer TMJ RN, UCSP or GDHP	4.0	887	start charge
124	Speer TMJ RN, UCSP or GDHP	4.5	998	maximum charge
Speer Reloading Manual #14 max. case length: 0.754"; trim-to length: 0.744"; max cart. OAL: 1.169"; RCBS shell holder: #16; cart. case: Speer; primer: CCI 500; test firearm: S&W M5906; barrel length: 4"; 147-grain bullets not recommended for barrels longer than 10 inches; IMPORTANT SAFETY NOTE: These loads were developed and tested for safe use in HANDGUNS. Not all loads may be suitable for use in a carbine or rifle chambered for this cartridge. If loading for a carbine or rifle, choose from among the loads developing the highest handgun velocities and load just a few rounds. Thoroughly test this small sample in your firearm in slow-fire mode, insuring that you achieve proper feeding and ejection. Be certain that all bullets exit the barrel; watching the target for each bullet strike is the best way to know that the load produces sufficient gas volume for a longer barrel. Use maximum loads with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
115	Hornady HP-XTP or FMJ-RN	4.1	1017
115	Hornady HP-XTP or FMJ-RN	4.4	1081
115	Hornady HP-XTP or FMJ-RN	4.7	1145	maximum load
(Using 115 GR Hornady Bullets) Gun: Kimber 1911; barrel length: 5-inch; case: Starline; primer: Winchester Small Pistol; bullet diameter: .355"; HP-XTP COAL: 1.075"; FMJ-RN COAL: 1.100"; maximum COAL: 1.169"; maximum case length: .754"; trim to length: .749".
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Hornady HP-XTP	4.7	1168
90	Hornady HP-XTP	5.0	1244
90	Hornady HP-XTP	5.3	1320
90	Hornady HP-XTP	5.6	1395	maximum load
(Using 90 GR Hornady Bullets) Gun: Kimber 1911; barrel length: 5-inch; case: Starline; primer: Winchester Small Pistol; bullet diameter: .355"; COAL: 1.070"; maximum COAL: 1.169"; maximum case length: .754"; trim to length: .749".
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
115	Nosler Sporting Handgun Pistol JHP	5.0	1140	max; most accurate load tested
115	Nosler Sporting Handgun Pistol JHP	4.5	1033
115	Nosler Sporting Handgun Pistol JHP	4.0	932
124	Nosler Sporting Handgun Pistol JHP	4.6	1048	max; most accurate load tested
124	Nosler Sporting Handgun Pistol JHP	4.1	957
124	Nosler Sporting Handgun Pistol JHP	3.6	861
Using Nosler Bullets Case: Winchester; primer: Rem 1 1/2; barrel length/make: 4" Douglas; twist: 1-16"; bullets: 115 GR Nosler Sporting Handgun Pistol JHP - OACL: 1.100"; 124 GR Nosler Sporting Handgun Pistol JHP - OACL: 1.120"; maximum OACL: 1.169". Use Maximum Loads with Caution
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Speer Gold Dot Hollow Point	5.8	1,349	col: 1.010"; 30,100 cup
95	Sierra Full Metal Jacket	5.3	1,273	col: 1.020"; 31,400 cup
100	Speer Full Metal Jacket	5.5	1,282	col: 1.050"; 28,400 cup
115	Lead Round Nose	4.8	1,135	col: 1.100"; 32,000 cup
115	Speer Gold Dot Hollow Point	5.1	1,167	col: 1.125"; 28,100 cup
125	LCN	4.4	1,086	col: 1.125"; 31,200 cup
125	Sierra Full Metal Jacket	4.8	1,088	col: 1.090"; 28,800 cup
130	Sierra Full Metal Jacket	4.6	1,050	col: 1.120"; 28,300 cup
Winchester Pistol Data case: Winchester; BBL: 4"; PR: CCI 500; NEVER exceed loads listed
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
115	Round Nose	3.8	1,010	start load; OAL: 1.10
115	Round Nose	4.2	1,115	max load; OAL: 1.10
122	Flat Point	4.0	1,032	start load; OAL: 1.070
122	Flat Point	4.4	1,106	max load; OAL: 1.070
124	Round Nose	4.0	1,020	start load; OAL: 1.130
124	Round Nose	4.4	1,094	max load; OAL: 1.130
135	Round Nose	4.0	996	start load; OAL: 1.155
135	Round Nose	4.5	1,059	max load; OAL: 1.155
Oregon Trail Handgun Data test gun: P-35, 4.5" barrel, WSP; never reduce stated overall lengths; do not exceed maximum loads
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Cast #356242	3.8	1093	sugg. start load; 20,500 cup; 1.045" OAL
90	Cast #356242	5.1	1455	max load; 32,100 cup; 1.045" OAL
120	Cast #356242	3.0	1010	sugg. start load; 20,000 cup; 1.065" OAL
120	Cast #356242	4.1	1148	max load; 30,200 cup; 1.065" OAL
120	Cast #356402	2.9	963	sugg. start load; 17,000 cup; 1.110" OAL
120	Cast #356402	4.4	1264	max load; 29,600 cup; 1.110" OAL
Cast Bullet Handgun Data Lyman Reloading Handbook 49th Edition cases: Federal; trim-to length: .751"; primers: CCI 500; primer size; Small Pistol; Lyman shell holder: No. 12; cast bullets used sized to .356" dia.and all #2 Alloy; firearm used: Universal Receiver; barrel length: 4"; groove dia.: .355"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Sierra Jacketed HP	4.0	1156	sugg. start load; 20,600 cup; 1.010" OAL
90	Sierra Jacketed HP	5.2	1411	max load; 30,400 cup; 1.010" OAL
95	Sierra FMJ	3.7	1068	sugg. start load; 19,200 cup; 1.005" OAL
95	Sierra FMJ	5.1	1374	max load; 32,400 cup; 1.005" OAL
115	Hornady Jacketed HP/XTP	3.5	959	sugg. start load; 20,700 cup; 1.090" OAL
115	Hornady Jacketed HP/XTP	4.9	1253	max load; 32,100 cup; 1.090" OAL
125	Sierra Jacketed HP	3.9	960	sugg. start load; 27,000 cup; 1.075" OAL
125	Sierra Jacketed HP	4.4	1043	max load; 32,000 cup; 1.075" OAL
147	Speer TMJ	3.5	855	sugg. start load; 23,000 cup; 1.115" OAL
147	Speer TMJ	4.1	957	max load; 27,500 cup; 1.115" OAL
Handgun Data Lyman Reloading Handbook 49th Edition cases: Federal; trim-to length: .751"; primers: CCI 500; primer size; Small Pistol; Lyman shell holder: No. 12; firearm used: Universal Receiver; barrel length: 4"; groove dia.: .355"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
115	Montana Gold FMJ	4.4	1218	Luger P08 8-inch barrel
115	Montana Gold FMJ	4.4	1153	Browning 4.63-inch barrel
120	Lyman 356242 cast RN	4.5	1241	Luger P08 8-inch barrel
120	Lyman 356242 cast RN	4.5	1158	Browning 4.63-inch barrel
124	Oregon Trail cast RN	4.4	1262	Luger P08 8-inch barrel
124	Oregon Trail cast RN	4.4	1201	Browning 4.63-inch barrel
125	Zero Bullet Company FMJ	4.4	1200	Luger P08 8-inch barrel
125	Zero Bullet Company FMJ	4.4	1132	Browning 4.63-inch barrel
Ball-Type Handloads Chronograph figures are for five rounds taken with the start screen at approximately 6 feet. All loads used Winchester Small Pistol primers. Cases were mixed brands of commercial brass and not sorted by maker. All bullets were taper crimped as a separate step in the handloading process. Bullets cast were poured of Linotype alloy, sized .357 inch and lubed with SPG.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
141	H&G 12B semiwadcutter	4.0	1,000	OAL (inches): 1.13
147	Redding/SAECO 929 semiwadcutter	3.5	905	OAL (inches): 1.16; poor accuracy
147	Lyman 358212 roundnose	3.5		OAL (inches): 1.17
147	Lyman 358212 roundnose	4.0	990	OAL (inches): 1.17
153	Redding/SAECO 910 roundnose	3.5	895	OAL (inches): 1.16
153	Redding/SAECO 910 roundnose	4.0	990	OAL (inches): 1.16; maximum
157	Lyman 356637 flatnose	3.5	880	OAL (inches): 1.15
Cast Bullet Loads Reduce initial charge by 10% before working up. If the overall cartridge length is either increased or decreased, further reduce initial powder charges.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Hornady JHP	5.2	1,201	length (inches): 1.045; expansion: normal; accuracy class: B
115	Hornady JHP	5.5	1,169	length (inches): 1.110; expansion: maximum; accuracy class: C; do not increase
125	Sierra FMJ	5.0	1,069	length (inches): 1.150; expansion: normal; accuracy class: D; poor accuracy
125	Speer JSP	5.2	1,065	length (inches): 1.130; expansion: near max; accuracy class: B
in a 4-inch Barrel Test gun: S&W Model 39-2; R-P cases; Alcan SP primers.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Hornady XTP	5.6	1303	overall length (inches): 1.063; group (inches): 4.00
90	Sierra JHP	5.5	1340	overall length (inches): 1.065; group (inches): 2.75
115	Zero JHP	4.9	1166	overall length (inches): 1.240; group (inches): 2.90
130	Montana Gold FMJ	4.4	1129	overall length (inches): 1.142; group (inches): 1.90
130	Montana Gold FMJ	4.5	1145	overall length (inches): 1.142; group (inches): 2.00
122	Magnus flatnose	4.0	1096	overall length (inches): 1.142; group (inches): 3.50
122	Nat'l Bullet Company flatnose	4.0	1088	overall length (inches): 1.142; group (inches): 3.40
in a Browning Hi-Power Accuracy is for five-shot groups at 25 yards from a solid benchrest. The group was measured from the inside of the most widely spaced bullet holes
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
115	Bushwacker SWC	4.3	1,086	primer: Federal 100; group (inches): 0.87; best 115-grain SWC load
115	Bushwacker SWC	5.0	1,163	primer: Federal 100; group (inches): 1.18; great load
122	Bushwacker FP	4.2	1,068	primer: Federal 100; group (inches): 0.94; best 122-grain FP load
125	Bushwacker RN	4.2	1,062	primer: Federal 100; group (inches): 2.99
125	Bushwacker SWC	4.2	1,153	primer: Federal 100; group (inches): 1.02; best 125-grain SWC load
145	Bushwacker RN	3.8	956	primer: Federal 100; group (inches): 1.53; good load
in an S & W Model 952-2 (Cast Bullets) A Smith & Wesson Model 952-2 PC with a 5-inch barrel and open sights was used for testing. Once-fired Federal cases were used throughout. Velocities were taken 12 feet from the muzzle with an Oehler M-35P chronograph. Accuracy is the average of three, five-shot groups at 25 yards from a sandbag rest. WSL=Winchester Super Lite; WSP=Winchester Small Pistol primer. Range temperatures were 58 to 74 degrees Fahrenheit.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Speer HP	6.2	1486	group (inches): 3.25
90	Hornady HP	6.2	1468	group (inches): 3.50
90	Sierra JHP	6.2	1447	group (inches): 4.25
100	Hornady FMJ	5.2	1271	group (inches): 2.50
100	Speer JHP	5.2	1253	group (inches): 3.00
115	Hornady FMJ/RN	5.0	1158	group (inches): 4.00
115	Sierra JHP	5.0	1209	group (inches): 3.25
115	Speer TMJ	5.0	1176	group (inches): 5.00
115	Winchester ST	5.0	1185	group (inches): 3.25
124	Hornady FMJ/FP	4.8	1194	group (inches): 4.00
125	Speer softpoint	4.8	1177	group (inches): 4.50
125	Sierra JHP	5.4	1236	group (inches): 4.50
in an S&W Model 952 All testing done with the targets at 30 yards. S&W Model 952 was shot in a Ransom Rest, velocities measured at 10 feet from the muzzle. Outside temperature was around 70 degrees.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
115	Hornady XTP	5.0	1,137	primer: R-P 1 1/2; group (inches): 1.28; good load, W-W cases
115	Speer Gold Dot	5.0	1,081	primer: CCI 500; group (inches): 1.52; good, uniform load
115	Sierra JHP	5.0	1,139	primer: CCI 500; group (inches): 1.77; good uniformity
in an S&W Model 952-2 (Jacketed Bullets) A Smith & Wesson Model 952-2 PC with a 5-inch barrel and open sights was used for testing. Once-fired Federal cases were used throughout. Velocities were taken 12 feet from the muzzle with an Oehler M-35P chronograph. Accuracy is the average of three, five-shot groups at 25 yards from a sandbag rest. Range temperatures were 58 to 74 degrees Fahrenheit.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
123	RCBS 9mm-125-RN (gas check)	4.2	1034	best load, groups under 3 inches
Military Model (1938 vintage) (Autoloading Pistol Loads) 4-inch barrel. Group shooting was done from a sandbag rest at 25 yards in five-shot strings. Chronographing done with an Oehler Model 35P with start screen at approximately 6 feet. All brass was Starline. All primers were CCI Small or Large Pistol as proper. All bullets cast were poured of Linotype and lubed with SPG. Sizing diameter: .357 inch; Gas checks were Lyman.

9mm Makarov

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
99	RCBS 9mm-MAK cast roundnose (sized .365 inch)	3.5	1056	good group
95	FMJ	3.5	1004	poor group, vertical
Very good group is approximately 1.0 inch; good group is approximately 1.5 inches; mediocre group is between 1.5 and 2.0 inches; poor group is over approximately 2.0 inches. Velocities are for five shots taken at approximately 6 feet from the pistol muzzle using an Oehler Model 35P. All groups fired at 20 feet in five-shot strings. All loads were taper crimped. All cast bullet loads were poured of straight Linotype alloy and lubed with SPG. These loads were fired from an FEG PA63 (Hungarian made) with a 3.94-inch barrel and used Starline brass with Winchester Small Pistol primers.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Schroeder Jacketed HP	2.6	621	sugg. start load
90	Schroeder Jacketed HP	3.8	962	max load; potentially most accurate load
95	Schroeder FMJ	2.5	613	sugg. start load
95	Schroeder FMJ	3.7	900	max load
100	Schroeder Jacketed HP	2.3	542	sugg. start load
100	Schroeder Jacketed HP	3.5	820	max load
Lyman Reloading Handbook 49th Edition cases: Starline; trim-to length: .710"; primers: Remington 1 1/2; primer size: Small Pistol; Lyman shell holder: No. 12; firearm used: East German PM; barrel length: 3.6"; twist: 1-19"; groove dia.: .366"; .970" OAL
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
95	roundnose	3.4	885	group (inches): 3.00
Hungarian PA-63 for Plated Bullets All results were the average of five, five-shot strings at 25 yards with the handguns rested on sandbags. OAL: .933 inch.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Speer Mak GDHP	4.0	971	start charge
90	Speer Mak GDHP	4.5	1074	maximum charge
95	Speer Mak TMJ RN	3.9	911	start charge
95	Speer Mak TMJ RN	4.4	1029	maximum charge
Speer Reloading Manual #14 max. case length: 0.713"; trim-to length: 0.703"; max cart. OAL: 0.984"; RCBS shell holder: #16; cart. case: Starline; primer: CCI 500; test firearm: East German Makarov; barrel length: 3.625"; maximum loads should be used with CAUTION

9X21mm

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Sierra Jacketed HP	5.2	1234	sugg. start load; 24,000 cup; 1.063" OAL
90	Sierra Jacketed HP	6.5	1456	max load; 30,800 cup; 1.063" OAL; potentially most accurate load
115	Sierra Jacketed HP	5.0	1028	sugg. start load; 25,200 cup; 1.063" OAL
115	Sierra Jacketed HP	6.3	1266	max load; 31,500 cup; 1.063" OAL
124	Hornady FMJ/FP	4.5	930	sugg. start load; 20,000 cup; 1.090" OAL
124	Hornady FMJ/FP	6.1	1235	max load; 30,100 cup; 1.090" OAL; potentially most accurate load
147	Speer TMJ	4.2	762	sugg. start load; 20,000 cup; 1.169" OAL
147	Speer TMJ	5.4	1047	max load; 31,400 cup; 1.169" OAL
120	Cast #356402	4.1	870	sugg. start load; 20,000 cup; 1.169" OAL; potentially most accurate load
120	Cast #356402	5.7	1252	max load; 30,300 cup; 1.169" OAL
147	Cast #356637	3.0	756	sugg. start load; 22,000 cup; 1.119" OAL
147	Cast #356637	5.0	1065	max load; 31,300 cup; 1.119" OAL
Lyman Reloading Handbook 49th Edition cases: Geco; trim-to length: .830"; primers: Winchester WSP; primer size: Small Pistol; Lyman shell holder: No. 12; cast bullets used sized to .355" dia.; firearm used: Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .355"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
125	Bushwacker .356-inch SWC	4.4	1,076	SD: 10 fps; CV: 0.93%; group: 0.59 inch; power factor: 135
125	Bushwacker .356-inch SWC	4.6	1,095	SD: 2 fps; CV: 0.18%; group: 1.54 inches; power factor: 137
125	Bushwacker .356-inch SWC	4.8	1,109	SD: 10 fps; CV: 0.90%; group: 1.63 inches; power factor: 139
in a CZ 75 Test gun was a custom CZ 75 converted to 9x21mm with a 5.25-inch barrel and three-port compensator. Accuracy is the average of three (or more) five-shot groups at 25 yards. Overall loaded length of all loads was 1.160 inches. Starline nickel-plated cases and Winchester Small Pistol primers were used throughout. Temperatures at time of testing were 65 to 89 degrees Fahrenheit. Average accuracy of all loads tested: 1.36 inches. CV is coefficients of variation and is the standard deviation expressed as a percent of the average velocity.

9x23mm Winchester

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
125	JHP	5.3	1180	starting load; 38,000 psi
125	JHP	6.3	1300	maximum load; 46,000 psi
Pistol Data case: Winchester; barrel length: 4"; twist: 1:16"; trim length: .895"; primer: Winchester SP; bullet diam.: .355"; COL: 1.300"; NEVER EXCEED MAXIMUM LOADS
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
150	Bull-X lead SWC	3.5	914	energy: 279 (ft-lbs); accuracy: 1.08 inches
Light Target Loads The loads identified as "full-power" were developed for modern guns chambered for the 9x23mm Winchester and should not be fired in guns chambered for any other cartridge. Reduce those powder charges by 10 percent for starting loads. Loads identified as "light target" should be safe to use in guns chambered for the 9x23mm Largo as well, but only if they are tight and in excellent condition and only if Winchester 9x23mm cases are used.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
147	E&E .357 inch	5.6	1,165	group: 1.98 inches; good load
Model 1911 Colt 01923E All loads were fired in a Colt Model 01923E pistol with a 5-inch barrel and a groove diameter of .356 inch. All handloads used Starline 9mm Super Comp cases, Winchester Small Pistol primers, and overall loaded length was 1.206 inches. Group sizes are the average of at least three, five-shot groups at 25 yards (except where noted).
