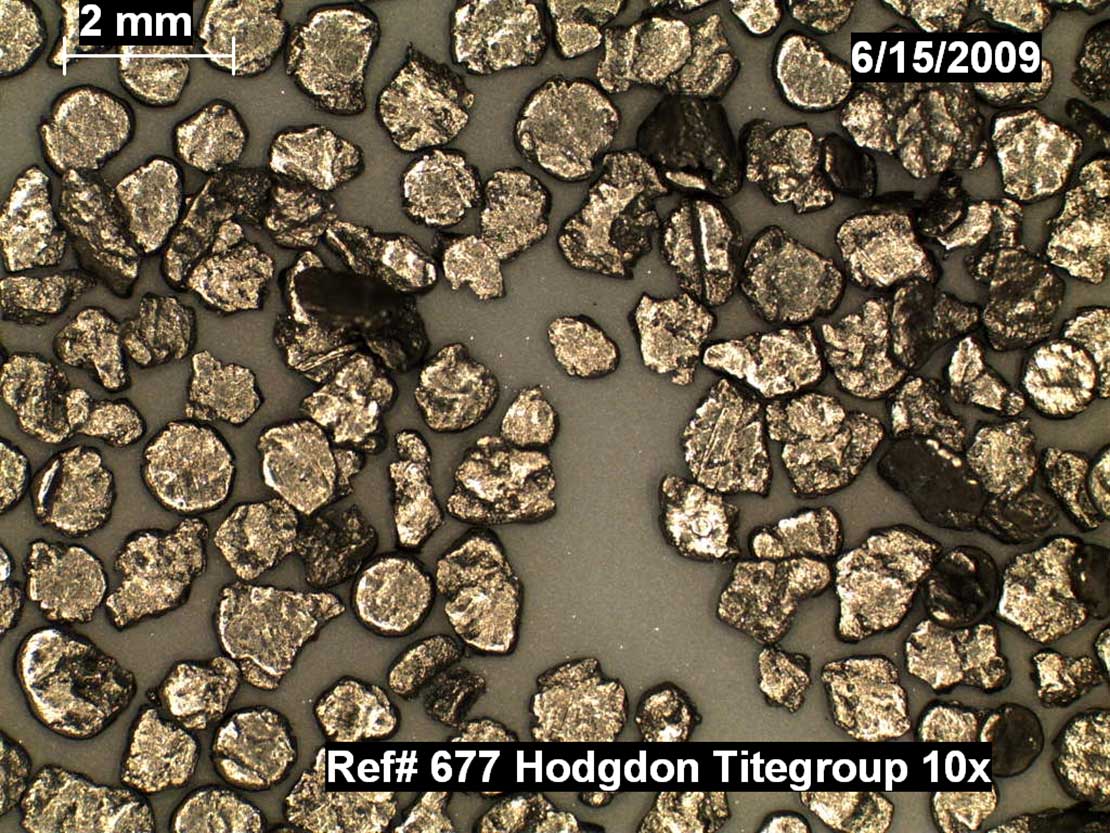

Hodgdon TITEGROUP

As the name implies, this spherical propellant was designed for accuracy. Because of the unique design, this powder provides flawless ignition with all types of primers including the lead-free versions. Unlike pistol powders of the past, powder position in large cases (45 Colt, 357 Magnum and others) has virtually no effect on velocity and performance. Cowboy Action, Bullseye and Combat Shooters should love this one! TITEGROUP has it all, low charge weight, clean burning, mild muzzle report and superb, uniform ballistics. Available in 1 lb., 4 lb. & 8 lb. containers.

Shape	Color	Perforation	Diameter min	Diameter max	Length/thick. min	Length/thick. max	Manufacturer
irregular flattened ball	Gray	No	0.66 mm	1.46 mm			Hodgdon Powder Company

ADVARSEL!

Ladedata som finnes på hjemmesidene til Evje PK er KUN ment som en veiledning! Ladedata skal alltid verifiseres mot kjente kilder (kruttprodusenter, ladebøker o.l.)

Data funnet på våre hjemmesider brukes på eget ansvar, og Evje Pistolklubb fratar seg alt ansvar for feil bruk av, eller skrivefeil i oppgitte data.

.25 Automatic / .25 ACP

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
35	Hornady XTP	1.5	888	start load; COL: .860"; 15,900 cup
35	Hornady XTP	1.7	970	max load; COL: .860" 17,300 cup
50	Sierra FMJ	1.1	657	start load; COL: .900"; 14,500 cup
50	Sierra FMJ	1.3	752	max load; COL: .900"; 17,200 cup
Hodgdon Pistol Data case: Winchester; barrel length: 2"; twist: 1:16"; trim length: .610"; primer: Federal 100M (except where otherwise specified in remarks); bullet diam.: .251"; never exceed maximum loads
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
35	XTP	1.7	970	NEVER EXCEED; min OAL: 0.860; 17,300 cup
50	Jacketed	1.1	652	starting load; min OAL: 0.900
50	Jacketed	1.3	752	NEVER EXCEED; min OAL: 0.900; 17,200 cup
35	XTP	1.5	865	starting load; min OAL: 0.860
Lee Precision Data CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Pistol Primer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
35	Speer Gold Dot HP	1.7	1,008	COAL tested: .870"; MAXIMUM load
50	Speer TMJ	1.4	822	COAL tested: .890"; MAXIMUM load
Speer Reloading Manual #14 case: SPEER; primer: CCI 500; test firearm: Beretta M950; barrel: 2.4"; use MAXIMUM loads with caution; DO NOT REDUCE

.32 Auto / .32 ACP (7.65mm Browning)

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
60	Hornady HP-XTP	2.5	864
60	Hornady HP-XTP	2.6	902
60	Hornady HP-XTP	2.7	945	maximum load
Using Hornady Bullets This data was shot by Brian Pearce, Wolfe Publishing Company. Gun: Kel Tec P-32; barrel length: 2.5 inches; case: Remington; primer: Winchester Small Pistol; bullet diameter: .311 to .312 inch (.311 used herein); COAL: .925 inch; maximum COAL: .984 inch; maximum case length: .680 inch; trim to length: .670 inch; NOTE: All loads functioned (extracted, ejected and fed) reliably in two pistols: a Kel Tec P-32 and a Walther PP.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
71	Sierra FMJ	2.0	824	starting load; 12,600 cup
71	Sierra FMJ	2.2	910	maximum load; 14,800 cup
Hodgdon Pistol Data case: Winchester; barrel length: 4"; twist: 1:16"; trim length: .675"; primer: Federal 100M; bullet diam.: .312"; COL: .978"; NEVER EXCEED MAXIMUM LOADS
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
71	Jacketed	2.0	836	start load; OAL: 0.978
71	Jacketed	2.2	910	never exceed; OAL: 0.978; 14,800 cup
Lee Precision Data With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Pistol primer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
60	Hornady Jacketed HP	2.0	796	sugg. start load; .925" OAL
60	Hornady Jacketed HP	2.3	895	max load; .925" OAL
71	Sierra FMJ	2.0	744	sugg. start load; .984" OAL
71	Sierra FMJ	2.3	849	max load; .984" OAL
75	Cast #311252	1.8	814	sugg. start load; .975" OAL
75	Cast #311252	2.0	861	max load; .975" OAL
Lyman Reloading Handbook 49th Edition cases: Remington (except where otherwise specified in remarks); trim-to length: .672"; primers: Remington 1 1/2 (except where otherwise specified in remarks); primer size Small Pistol; Lyman shell holder: No. 23; cast bullets used sized to .309 dia.; firearm used: Mauser HSc and Universal Receiver; barrel length: Mauser; 3", Universal Receiver; 3 1/4"; twist: 1-16"; groove dia.: .309"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
60	Speer GDHP	2.6	1058	maximum charge
Speer Reloading Manual #14 max. case length: 0.680"; trim-to length: 0.675"; max cart. OAL: 0.984"; RCBS shell holder: #17; cart. case: Speer; primer: CCI 500; test firearm: Walter PP; barrel length: 3.80" maximum loads should be used with CAUTION; DO NOT REDUCE
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
75	Lyman 313249 cast roundnose (sized .310 inch)	2.0	984	mediocre but usable
76	Oregon Trail cast roundnose (sized .313 inch)	2.0	977	poor group, vertical
7.65mm Browning Automatic Very good group is approximately 1.0 inch; good group is approximately 1.5 inches; mediocre group is between 1.5 and 2.0 inches; poor group is over approximately 2.0 inches. Velocities are for five shots taken at approximately 6 feet from the pistol muzzle using an Oehler Model 35P. All groups fired at 20 feet in five-shot strings. All loads were taper crimped. All cast bullet loads were poured of straight Linotype alloy and lubed with SPG. The .32 Auto/.32 ACP/7.65mm Browning Auto loads were fired from a Browning Model 1922 with a 4 1/2-inch barrel and used Winchester brass with Winchester Small Pistol primers.

.32 H&R Magnum

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
77	Cast LFP	2.0	745	start load; COL: 1.335"; 5,300 cup; bullet diam.: .314"
77	Cast LFP	3.0	993	max load; COL: 1.335"; 11,300 cup; bullet diam.: .314"
83	Berry's Bullets HBWC	2.6	917	start load; COL: 1.095"; 14,200 cup; bullet diam.: .314"
83	Berry's Bullets HBWC	3.3	1081	max load; COL: 1.095"; 20,100 cup; bullet diam.: .314"
85	Hornady HP	3.0	929	start load; COL: 1.290"; 14,000 cup; bullet diam.: .312"
85	Hornady HP	3.7	1110	max load; COL: 1.290"; 20,900 cup; bullet diam.: .312"
90	Sierra JHP	3.1	932	start load; COL: 1.340"; 15,300 cup; bullet diam.: .312"
90	Sierra JHP	3.6	1060	max load; COL: 1.340"; 20,600 cup; bullet diam.: .312"
90	Hornady LSWC	2.4	819	start load; COL: 1.350"; 10,500 cup; bullet diam.: .314"
90	Hornady LSWC	2.8	911	max load; COL: 1.350"; 13,300 cup; bullet diam.: .314"
100	Speer JHP	2.8	833	start load; COL: 1.345"; 15,000 cup; bullet diam.: .312"
100	Speer JHP	3.3	956	max load; COL: 1.345"; 19,900 cup; bullet diam.: .312"
Hodgdon Pistol Data Case: Federal; twist: 1:16"; primer: Federal 100, Small Pistol; barrel length: 5"; trim length: 1.070".
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
85	Jacketed	3.0	929	start load; OAL: 1.290
85	Jacketed	3.7	1110	never exceed; OAL: 1.290; 20,900 cup
90	Jacketed	3.1	932	start load; OAL: 1.340
90	Jacketed	3.6	1060	never exceed; OAL: 1.340; 20,600 cup
90	Lead	2.4	819	start load; OAL: 1.350
90	Lead	2.8	911	never exceed; OAL: 1.350; 13,300 cup
100	Jacketed	2.8	833	start load; OAL: 1.345
100	Jacketed	3.3	956	never exceed; OAL: 1.345; 19,900 cup
Lee Precision Data With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Pistol primer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
75	Cast #311252	3.2	1091	sugg. start load; 14,500 cup; 1.350" OAL
75	Cast #311252	3.6	1215	max load; 20,700 cup; 1.350" OAL
85	Cast #313249	3.1	992	sugg. start load; 15,900 cup; 1.350" OAL
85	Cast #313249	3.5	1089	max load; 17,200 cup; 1.350" OAL
90	Hornady Swaged Lead HBWC	2.7	937	sugg. start load; 16,900 cup; 1.100" OAL
90	Hornady Swaged Lead HBWC	3.1	1035	max load; 20,400 cup; 1.100" OAL
Lyman Reloading Manual 49th Edition cases: Federal; trim-to length: 1.065"; primers: Federal 100; primer size: Small Pistol; Lyman shell holder: No. 9; cast bullets used sized to .313" dia.; firearm used: Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .312"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
85	Speer JHP	3.4	1,030	starting charge; COAL tested: 1.340"
85	Speer JHP	3.9	1,157	MAXIMUM charge; COAL tested: 1.340"
Speer Reloading Manual #14 max. case length: 1.075"; trim-to length: 1.065"; max cart. OAL: 1.350"; RCBS shell holder: #23; cart. case: Federal; primer: CCI 500; test firearm: Ruger Single Six; barrel length: 5.5"; maximum loads should be used with CAUTION

.32 North American Arms

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
60	Gold Dot Hollow Point	3.4	1,093	starting load; 17,900 PSI
60	Gold Dot Hollow Point	3.7	1,173	maximum load; 21,800 PSI
71	Hornady FMJ/RN	3.0	982	starting load; 18,200 PSI
71	Hornady FMJ/RN	3.4	1,063	maximum load; 22,200 PSI
Hodgdon Pistol Data case: Corbon; barrel length: 2.5"; twist: 1:16"; trim length: .670"; primer: Winchester SP; 60 gr bullet diam.: .312"; COL: .930"; 71 gr bullet dia.: .311"; COL: .940"; NEVER EXCEED MAXIMUM LOADS

.32 Smith & Wesson Long / .32 S&W Long

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
85	Hornady JHP	2.1	723	starting load; COL: 1.160"; 7,800 cup
85	Hornady JHP	2.4	819	maximum load; COL: 1.160"; 11,300 cup
90	Hornady LSWC	1.9	765	starting load; bullet diam.: .314"; COL: 1.185"; 10,200 cup
90	Hornady LSWC	2.1	818	maximum load; bullet diam.: .314"; COL: 1.185"; 10,900 cup
90	Sierra JHC	2.0	665	starting load; COL: 1.170"; 8,200 cup
90	Sierra JHC	2.3	749	maximum load; COL: 1.170"; 10,000 cup
98	Speer LHBWC	1.8	780	starting load; bullet diam.: .314"; COL: .920"; 9,000 cup
98	Speer LHBWC	2.0	860	maximum load; bullet diam.: .314"; COL: .920"; 11,500 cup
83	Berry's Bullets HBWC	1.7	633	starting load; bullet diam.: .314"; COL: .920"; 6,800 cup
83	Berry's Bullets HBWC	2.0	754	maximum load; bullet diam.: .314"; COL: .920"; 10,000 cup
Hodgdon Pistol Data case: Remington; barrel length: 5.32"; twist: 1:18.75"; trim length: .915"; primer: CCI 500; bullet diam.: .312" (except where otherwise specified in remarks); NEVER EXCEED MAXIMUM LOADS
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
85	Jacketed	2.1	723	start load; OAL: 1.160
85	Jacketed	2.4	819	never exceed; OAL: 1.160; 11,300 cup
90	Jacketed	2.0	665	start load; OAL: 1.170
90	Jacketed	2.3	749	never exceed; OAL: 1.170; 10,000 cup
90	Lead	1.9	765	start load; OAL: 1.850
90	Lead	2.1	818	never exceed; OAL: 1.850; 10,900 cup
90	Wad Cutter	1.8	781	start load; OAL: 0.920
90	Wad Cutter	2.0	860	never exceed; OAL: 0.920; 11,500 cup
98	Wad Cutter	1.8	781	start load; OAL: 0.920
98	Wad Cutter	2.0	860	never exceed; OAL: 0.920; 11,500 cup
Lee Precision Data With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Pistol primer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
85	Hornady Jacketed HP	2.1	704	sugg. start load; 1.160" OAL
85	Hornady Jacketed HP	2.4	820	max load; 1.160" OAL
85	Cast #313249	2.2	798	sugg. start load; 1.210" OAL
85	Cast #313249	2.6	897	max load; 1.210" OAL
90	Hornady Swaged Lead HBWC	1.8	714	sugg. start load; .920" OAL
90	Hornady Swaged Lead HBWC	2.1	795	max load; .920" OAL
Lyman Reloading Handbook 49th Edition cases: Remington; trim-to length: .910"; primers: Remington 1 1/2; primer size: Small Pistol; Lyman shell holder: No. 9; cast bullets used sized to .312" dia.; firearm used: Smith & Wesson Model 31; barrel length: 4"; twist: 1-18 3/4"; groove dia.: .312"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Speer CM	2.1	727	start charge; bullets cast in RCBS moulds; test firearm: S&W M31 3"
90	Speer CM	2.5	844	max charge; bullets cast in RCBS moulds; test firearm: S&W M31 3"
60	Speer GDHP	2.5	834	start charge; test firearm: S&W M31 3"
60	Speer GDHP	3.0	975	max charge; test firearm: S&W M31 3"
Speer Reloading Manual #14 This is for the 32 S&W Long and 32 Colt New Police cartridges only. max. case length: 0.920"; trim-to length: 0.910"; max cart. OAL: 1.280"; RCBS shell holder: #23; cart. case: Remington; primer: CCI 500; maximum loads should be used with CAUTION

.327 Federal Magnum

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
97	NEI cast Keith SWC	3.5	982	rounds per pound: 2,000
Economical Midrange Loads firearm used: Ruger SP101; primer: CCI 500; case: Federal; barrel length: 3 1/16"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
77	Cast LFP	4.5	1225	start load; bullet diam.: .314"; COL: 1.460"; 17,200 psi
77	Cast LFP	5.3	1391	max load; bullet diam.: .314"; COL: 1.460"; 24,700 psi
85	Hornady XTP	5.0	1294	start load; COL: 1.450"; 27,000 psi
85	Hornady XTP	5.8	1438	max load; COL: 1.450"; 37,600 psi
90	Cast LRNFP	3.8	1066	start load; COL: 1.460"; 16,300 psi
90	Cast LRNFP	5.0	1283	max load; COL: 1.460"; 28,800 psi
90	LHBWC	2.0	773	start load; bullet diam.: .314"; COL: 1.200"; 13,200 psi
90	LHBWC	2.3	859	max load; bullet diam.: .314"; COL: 1.200"; 14,000 psi
90	Sierra JHC	5.0	1287	start load; COL: 1.460"; 28,200 psi
90	Sierra JHC	5.7	1402	max load; COL: 1.460"; 39,600 psi
100	Hornady XTP	4.3	1102	start load; COL: 1.450"; 33,300 psi
100	Hornady XTP	5.2	1261	max load; COL: 1.450"; 42,800 psi
115	MEI LRNFP	3.6	1012	start load; COL: 1.460"; 23,900 psi
115	MEI LRNFP	4.6	1173	max load; COL: 1.460"; 40,600 psi
Hodgdon Data Case: Federal; barrel length: 5"; twist: 1:16"; trim length: 1.200"; primer: Federal 200; bullet diam.: .312 (except where otherwise specified in remarks). NEVER EXCEED MAXIMUM LOADS
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
85	Hornady HP XTP	5.1	1280
85	Hornady HP XTP	5.4	1345
85	Hornady HP XTP	5.6	1409	maximum load
100	Hornady HP XTP	5.0	1279
100	Hornady HP XTP	5.3	1333	maximum load
Using Hornady Bullets These loads were shot by Brian Pearce, Wolfe Publishing Company. Gun: USFA Sparrow Hawk; barrel length: 7 1/2 inches; case: Federal Cartridge; primer: Federal #205; bullet diameter: .312"; COAL: 1.450"; maximum COAL: 1.475"; maximum case length: 1.200"; trim to length: 1.190".
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
78	Oregon Trail cast roundnose	4.0	1091	primer: CCI 500; case: Federal; OAL (inches): 1.4570
83	Lyman 313249 (Linotype)	4.5	1211	primer: CCI 500; case: Federal; OAL (inches): 1.4570
83	Lyman 313249 (Linotype)	6.0	1501	primer: CCI 500; case: Federal; OAL (inches): 1.4570
97	NEI cast Keith SWC	3.5	982	primer: CCI 500; case: Federal; OAL (inches): 1.4475; load gave notable accuracy
97	NEI cast Keith SWC	4.0	1066	primer: CCI 500; case: Federal; OAL (inches): 1.4475
97	NEI cast Keith SWC	4.5	1183	primer: CCI 500; case: Federal; OAL (inches): 1.4475
97	NEI cast Keith SWC	5.0	1274	primer: CCI 500; case: Federal; OAL (inches): 1.4475
98	Speer hollow-base WC	2.2	666	primer: CCI 500; case: Federal; OAL (inches): 1.3100; don't reduce
98	Speer hollow-base WC	2.5	759	primer: CCI 500; case: Federal; OAL (inches): 1.3100; load gave notable accuracy
Data Firearm used was a Ruger SP101 with a 3 1/16-inch barrel. Federal Cartridge and Speer cases used as noted. Maximum case length: 1.200 inches.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
98	Speer Hollow-Base WC	2.2	761	overall loaded length (inches): 1.226
98	Speer Hollow-Base WC	2.4	814	overall loaded length (inches): 1.226
98	Speer Hollow-Base WC	2.6	882	overall loaded length (inches): 1.226
115	Oregon Trail RNFP	3.0	937	overall loaded length (inches): 1.468
115	Oregon Trail RNFP	3.5	1034	overall loaded length (inches): 1.468
115	Oregon Trail RNFP	4.0	1130	overall loaded length (inches): 1.468
Handloads A Ruger Single-Seven with a 7 1/2-inch barrel was used to test fire these loads. Federal cases and CCI 500 primers were used throughout. Bullet diameter: .312 and .313 inch; maximum case length: 1.200 inches; trim to length: 1.195 inches.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
78	Oregon Trail cast roundnose	4.0	1091	primer: CCI 500; case: Federal; overall loaded length (inches): 1.4570
97	NEI cast SWC-Keith	3.5	982	primer: CCI 500; case: Federal; overall loaded length (inches): 1.4475
97	NEI cast SWC-Keith	4.0	1066	primer: CCI 500; case: Federal; overall loaded length (inches): 1.4475
97	NEI cast SWC-Keith	4.5	1183	primer: CCI 500; case: Federal; overall loaded length (inches): 1.4475
97	NEI cast SWC-Keith	5.0	1274	primer: CCI 500; case: Federal; overall loaded length (inches): 1.4475
98	Speer hollowbase wadcutter	2.2	666	don't reduce; primer: CCI 500; case: Federal; overall loaded length (inches): 1.3100
98	Speer hollowbase wadcutter	2.5	759	primer: CCI 500; case: Federal; overall loaded length (inches): 1.3100
Loads Firearms used for testing these loads was a Ruger SP101 with a 3 1/16-inch barrel. Federal and Speer cases and CCI 500 and CCI 550 primers were used throughout. Case length: 1.200 inches; throat: .313 inch; barrel cylinder gap: .006 inch; groove diameter: .3123 inch.

.357 Magnum

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
110	XTP	7.2	1587	start load; min OAL: 1.590
110	XTP	8.0	1746	never exceed; min OAL: 1.590; 41,500 cup
125	Lead	4.0	1055	start load; min OAL: 1.580
125	Lead	5.4	1274	never exceed; min OAL: 1.580; 22,800 cup
125	XTP	6.8	1456	start load; min OAL: 1.590
125	XTP	7.5	1586	never exceed; min OAL: 1.590; 41,200 cup
135	Lead	3.5	866	start load; min OAL: 1.580
135	Lead	5.2	1186	never exceed; min OAL: 1.580; 24,500 cup
140	XTP	6.3	1295	start load; min OAL: 1.590
140	XTP	7.0	1425	never exceed; min OAL: 1.590; 41,900 cup
146	Jacketed	5.9	1186	start load; min OAL: 1.535
146	Jacketed	6.6	1317	never exceed; min OAL: 1.535; 42,900 cup
148	Wadcutter	2.9	811	start load; min OAL: 1.290
148	Wadcutter	3.3	909	never exceed; min OAL: 1.290; 18,900 cup
150	Jacketed	6.1	1299	start load; min OAL: 1.590
150	Jacketed	6.8	1429	never exceed; min OAL: 1.590; 40,900 cup
158	Lead	4.5	1028	start load; min OAL: 1.610
158	Lead	5.0	1108	never exceed; min OAL: 1.610; 24,900 cup
158	XTP	5.4	1135	start load; min OAL: 1.580
158	XTP	6.1	1229	never exceed; min OAL: 1.580; 41,900 cup
170	Jacketed	5.4	1155	start load; min OAL: 1.580
170	Jacketed	6.0	1270	never exceed; min OAL: 1.580; 41,800 cup
180	Jacketed	5.0	936	start load; min OAL: 1.575
180	Jacketed	5.5	1020	never exceed; min OAL: 1.575; 40,300 cup
Lee Precision Data Small Pistol Primer. With NEVER EXCEED LOADS maintain Minimum Over All Length or longer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
158	Hornady SWC, RN, SWC-HP	2.9	680	COAL: 1.590"
158	Hornady SWC, RN, SWC-HP	3.2	730	COAL: 1.590"
158	Hornady SWC, RN, SWC-HP	3.5	770	COAL: 1.590"
158	Hornady SWC, RN, SWC-HP	3.8	826	COAL: 1.590"
158	Hornady SWC, RN, SWC-HP	4.1	866	maximum load; COAL: 1.590"
140	Hornady FP-Cowboy	3.1	706	COAL: 1.550"
140	Hornady FP-Cowboy	3.5	780	COAL: 1.550"
140	Hornady FP-Cowboy	4.0	860	COAL: 1.550"
140	Hornady FP-Cowboy	4.4	929	maximum load; COAL: 1.550"
Handgun Using Hornady Bullets This data was shot by Brian Pearce, Wolfe Publishing Company. Gun: Ruger GP100; barrel length: 6"; case: Starline; primer: Winchester Small Pistol Magnum; bullet diameter: .357"; maximum COAL: 1.590"; maximum case length: 1.290"; trim to length: 1.280".
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
158	Hornady lead SWC-HP	3.6	815	overall loaded length (inches): 1.580
in a Colt Python A Colt Python .357 with a 6-inch barrel was used to test-fire the loads. Starline cases and CCI 500 primers were used throughout. Bullet diameter: .357 inch; maximum case length: 1.290 inches; trim-to length: 1.280 inches.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
158	Hornady XTP-HP	5.9	1016
in a Ruger GP100 Warning! Barrel Length: 4 inches; Cases: Starline; Primer: CCI 500; Maximum Overall Loaded Length: 1.590 inches; Maximum Case Length: 1.290 inches; Trim-to Length: 1.280 inches; COAL: 1.580 inches. All loads have been pressure tested between 32,500 and 35,000 psi and are considered maximum. This table illustrates how faster-burning powders do not produce maximum velocities.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Cast LRNFP	3.0	850	start load; bullet diam.: .359"; COL: 1.560"; 6,300 cup
90	Cast LRNFP	4.0	1107	max load; bullet diam.: .359"; COL: 1.560"; 9,000 cup
110	Hornady XTP	7.2	1509	start load; COL: 1.590"; 35,000 cup
110	Hornady XTP	8.0	1614	max load; COL: 1.590"; 41,500 cup
125	Cast LRNFP	4.0	1055	start load; bullet diam.: .358"; COL: 1.580"; 13,800 cup
125	Cast LRNFP	5.4	1274	max load; bullet diam.: .358"; COL: 1.580"; 22,800 cup
125	Hornady XTP	6.8	1425	start load; COL: 1.590"; 36,500 cup
125	Hornady XTP	7.5	1497	max load; COL: 1.590"; 41,200 cup
135	Cast LRNFP	3.5	906	start load; bullet diam.: .358"; COL: 1.580"; 13,100 cup
135	Cast LRNFP	5.2	1186	max load; bullet diam.: .358"; COL: 1.580"; 24,500 cup
140	Hornady XTP	6.3	1262	start load; COL: 1.590"; 35,600 cup
140	Hornady XTP	7.0	1376	max load; COL: 1.590"; 41,900 cup
140	Hornady FTX	3.5	895	start load; COL: 1.600"; 20,700 psi
140	Hornady FTX	5.0	1213	max load; COL: 1.600"; 33,800 psi
146	Speer JHP	5.9	1223	start load; COL: 1.535"; 34,600 cup
146	Speer JHP	6.6	1317	max load; COL: 1.535"; 42,900 cup
148	Hornady LHBWC	2.9	830	start load; bullet diam.: .358"; COL: 1.290"; 14,700 cup
148	Hornady LHBWC	3.3	909	max load; bullet diam.: .358"; COL: 1.290"; 18,900 cup
158	Cast LSWC	4.5	1028	start load; bullet diam.: .358"; COL: 1.610"; 19,300 cup
158	Cast LSWC	5.0	1108	max load; bullet diam.: .358"; COL: 1.610"; 24,900 cup
158	Hornady XTP	5.4	1135	start load; COL: 1.580"; 32,600 cup
158	Hornady XTP	6.1	1229	max load; COL: 1.580"; 41,900 cup
170	Sierra JHC	5.4	1031	start load; COL: 1.580"; 34,700 cup
170	Sierra JHC	6.0	1156	max load; COL: 1.580"; 41,800 cup
180	Nosler Part	5.0	948	start load; COL: 1.575"; 38,100 cup
180	Nosler Part	5.5	1020	max load; COL: 1.575"; 40,300 cup
Pistol Hodgdon Data Case: Winchester; barrel length: 10"; twist: 1:18.75"; trim length: 1.285"; primer: Winchester SPM; bullet diam.: .357" (except where otherwise specified in remarks). NEVER EXCEED MAXIMUM LOADS
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
125	Truncated Cone	4.2	944	maximum load; minimum OAL: 1.585
158	Round Nose Flat Point	3.3	750	maximum load; minimum OAL: 1.570
Pistol Oregon Trail Handgun/Cowboy Loads test gun: Smith & Wesson M-686 6", WSP; do not exceed maximum loads; never reduce stated overall lengths
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
125	Truncated Cone	4.0	910	starting load; minimum OAL: 1.585
125	Truncated Cone	4.8	1,048	maximum load; minimum OAL: 1.585
158	Round Nose Flat Point/Semi Wad Cutter/Round Nose	3.8	838	starting load; minimum OAL: 1.570
158	Round Nose Flat Point/Semi Wad Cutter/Round Nose	4.4	943	maximum load; minimum OAL: 1.570
Pistol Oregon Trail Handgun/Standard Loads test gun: Smith & Wesson M-686 6", WSP; do not exceed maximum loads; never reduce stated overall lengths

.357 SIG

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
125	Bushwacker SWC	4.4	1,086	group: 2.01 inches; muzzle energy: 136 ft-lbs
125	Bushwacker SWC	4.7	1,129	group: 1.42 inches; muzzle energy: 141 ft-lbs; good load
in a Springfield XD Starline cases and Winchester Small Pistol primers were used for all handloads. Springfield Armory XD pistol with a 4-inch barrel and fixed open sights was used for testing. Velocities were taken 12 feet from the muzzle with an Oehler Model 33 or Model 35P chronograph. Accuracy is the average of three, five-shot groups at 15 yards from a sandbag rest. Range temperatures were 62 to 76 degrees Fahrenheit. .355-inch jacketed bullets and .356-inch cast bullets.

.38 Long Colt

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
125	LRN	2.3	657	starting load; COL: 1.400"
125	LRN	2.7	752	maximum load; COL: 1.400"
150	LRN	2.3	641	starting load; COL: 1.390"
150	LRN	2.8	755	maximum load; COL: 1.390"
Hodgdon Pistol Data case: Starline; barrel length: 7 1/2"; twist: 1:16"; trim length: 1.012"; primer: Federal 100M; bullet diam.: .358"; NEVER EXCEED MAXIMUM LOADS

.38 S&W / .38 Smith & Wesson

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Lyman 358430 RN	1.7	612	variation (fps): 22; standard load from now on
.38/200 Enfield No. 2, 5.0-inch barrel (Loads for World War II Handguns) all chronograph readings taken with an Oehler Model 35P chronograph with the start screen at approximately 6 feet; bullets cast of 1-20 (tin-to-lead) alloy; cast bullets lubed with SPG; sizing diameter: .360 inch; Winchester Small Pistol and Large Pistol primers used throughout; brass was .30 Mauser by Starline
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Lyman 358430 RN	1.7	627	variation (fps): 6; standard load from now on
.38/200 S&W Victory, 5.0-inch barrel (Loads for World War II Handguns) all chronograph readings taken with an Oehler Model 35P chronograph with the start screen at approximately 6 feet; bullets cast of 1-20 (tin-to-lead) alloy; cast bullets lubed with SPG; sizing diameter: .360 inch; Winchester Small Pistol and Large Pistol primers used throughout; brass was .30 Mauser by Starline
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
150	Cast #358477	2.0	684	sugg. start load; OAL: 1.070"; 9,900 cup
150	Cast #358477	2.2	717	max load; OAL: 1.070"; 11,600 cup
160	Cast #358311	1.9	616	sugg. start load; OAL: 1.150"; 8,200 cup
160	Cast #358311	2.2	704	max load; OAL: 1.150"; 12,100 cup
195	Cast #358430	1.5	534	sugg. start load; OAL: 1.175"; 9,400 cup
195	Cast #358430	1.7	602	max load; OAL: 1.175"; 12,400 cup
Cast Bullet Data Lyman Reloading Handbook 49th Edition cases: Remington; trim-to length: .765"; primers: CCI 500; primer size: Small Pistol; Lyman shell holder: No. 21; cast bullets used sized to .359" dia.; firearm used: Universal Receiver; barrel length: 5 1/2"; twist: 1-14"; groove dia.: .358"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
164	RCBS 38-158-CM RN/FP	2.0	673
200	Lyman 358430 RN	1.7	640
Enfield No. 2 with 4-Inch Barrel All chronographing done with an Oehler Model 35P with start screen at approximately 6 feet. All handloads used Starline brass and Winchester Small Pistol primers. All bullets cast of 1-20 (tin-to-lead) alloy, sized to .359 inch and lubed with SPG.

.38 Short Colt

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
93	AA206 LRN	2.3	639	starting load; bullet diam.: .359"; COL: 1.005"
93	AA206 LRN	2.7	791	maximum load; bullet diam.: .359"; COL: 1.005"
135	AA202 LFP	2.3	646	starting load; bullet diam.: .358"; COL: 1.135"
135	AA202 LFP	2.7	760	maximum load; bullet diam.: .358"; COL: 1.135"
Hodgdon Pistol Data case: Starline; barrel length: 7 1/2"; twist: 1:16"; trim length: 7.55"; primer: Federal 100M; NEVER EXCEED MAXIMUM LOADS

.38 Special

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
160	Lyman 358311 RN	3.5	812	good accuracy; overall loaded length (inches): 1.52
110	Speer JHP	4.5	847	overall loaded length (inches): 1.46
110	Speer JHP	5.0 +P)	961	overall loaded length (inches): 1.46
Chronographed average velocities recorded with a range temperature that varied from approximately 70 to 80 degrees Fahrenheit. Accuracy testing performed from a benchrest at 25 yards. All data was safe in the test revolver. Load data is intended for use only by competent persons experienced in the proper and safe practice of handloading ammunition.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
155	Lyman 358439 HP	3.5	829
Cast Bullet - Lyman Mould Revolver used: Smith & Wesson Model 14, 6-inch barrel; overall loaded length (inches): 1.50; Lyman 358439 HP (wheelweight alloy) sized to .358 inch; Velocity figures are the average of at least six rounds fired approximately 10 feet from the muzzle using an Oehler Model 35P chronograph. Ambient temperature during testing averaged 58 degrees Fahrenheit. CCI standard velocity primers used. Loads were assembled using Winchester cases. All loads should be reduced 5 percent for initial load development. This data is intended only for use by persons experienced in the proper and safe practice of handloading ammunition.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Cast #356242 (Linotype)	5.7	1006	sugg. start load; 1.456" OAL; 10,300 cup
90	Cast #356242 (Linotype)	6.4	1216	max load; 1.456" OAL; 15,700 cup
120	Cast #356242 (Linotype)	3.8	900	sugg. start load; 1.450" OAL; 12,700 cup
120	Cast #356242 (Linotype)	4.3	1014	max load; 1.450" OAL; 15,400 cup
150	Cast #358091 (Linotype)	3.1	854	sugg. start load; 1.317" OAL; 13,600 cup; potentially most accurate load
150	Cast #358091 (Linotype)	3.5	942	max load; 1.317" OAL; 16,000 cup
158	Cast #358665 (Linotype)	2.9	805	sugg. start load; 1.445" OAL; 12,800 cup
158	Cast #358665 (Linotype)	3.3	895	max load; 1.445" OAL; 16,100 cup
160	Cast #358311 (Linotype)	3.2	775	sugg. start load; 1.550" OAL; 11,100 cup
160	Cast #358311 (Linotype)	3.6	877	max load; 1.550" OAL; 16,200 cup
170	Cast #358429 (Linotype)	3.0	808	sugg. start load; 1.537" OAL; 14,100 cup
170	Cast #358429 (Linotype)	3.4	864	max load; 1.537" OAL; 16,500 cup; potentially most accurate load
Cast Bullet Data Lyman Reloading Handbook 49th Edition cases: Federal; trim-to length: 1.149"; primers: CCI 500; primer size: Small Pistol; Lyman shell holder: No. 1; cast bullets used sized to .358" dia.; firearm used: Universal Receiver; barrel length: 4"; twist: 1-18 3/4"; groove dia.: .357"; (+P) designates higher pressure loads
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
125	Hornady XTP	4.6	1,010	COL: 1.455"; CUP: 15,600
140	Hornady XTP	4.2	919	COL: 1.455"; CUP: 15,800
148	Hornady Lead Hollow Base Wadcutter	3.3	908	COL: 1.160"; CUP: 11,800
158	Hornady XTP	3.9	798	COL: 1.455"; CUP: 15,900
Hodgdon Data case: Winchester; BBL: 7.7"; PR: Winchester SP; NEVER exceed loads listed
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Cast LRNFP	3.0	755	start load; bullet diam.: .359"; COL: 1.325"; 7,700 psi
90	Cast LRNFP	3.5	969	max load; bullet diam.: .359"; COL: 1.325"; 11,300 psi
110	Hornady XTP	4.3	1011	start load; bullet diam.: .357"; COL: 1.455"; 12,100 cup
110	Hornady XTP	4.8	1109	max load; bullet diam.: .357"; COL: 1.455"; 16,000 cup
125	Hornady XTP	4.3	953	start load; bullet diam.: .357"; COL: 1.455"; 12,800 cup
125	Hornady XTP	4.6	1010	max load; bullet diam.: .357"; COL: 1.455"; 15,600 cup
125	Cast LRNFP	3.2	856	start load; bullet diam.: .358"; COL: 1.445"; 8,400 cup
125	Cast LRNFP	3.8	985	max load; bullet diam.: .358"; COL: 1.445"; 12,000 cup
130	MEI Cast LRNFP	3.6	922	start load; bullet diam.: .358"; COL: 1.460"; 14,000 psi
130	MEI Cast LRNFP	4.2	1018	max load; bullet diam.: .358"; COL: 1.460"; 15,900 psi
135	Cast LRNFP	3.1	824	start load; bullet diam.: .358"; COL: 1.418"; 9,600 cup
135	Cast LRNFP	3.6	927	max load; bullet diam.: .358"; COL: 1.418"; 12,900 cup
140	Hornady XTP	3.9	864	start load; bullet diam.: .357"; COL: 1.455"; 13,100 cup
140	Hornady XTP	4.2	919	max load; bullet diam.: .357"; COL: 1.455"; 15,800 cup
140	Hornady Cowboy	2.5	675	start load; bullet diam.: .358"; COL: 1.450"; 9,400 psi
140	Hornady Cowboy	4.4	1010	max load; bullet diam.: .358"; COL: 1.450"; 16,500 psi
146	Speer JHP	3.5	808	start load; bullet diam.: .357"; COL: 1.370"; 12,800 cup
146	Speer JHP	4.0	914	max load; bullet diam.: .357"; COL: 1.370"; 16,000 cup
148	Hornady LHBWC	2.7	771	start load; bullet diam.: .358"; COL: 1.160"; 7,700 cup
148	Hornady LHBWC	3.3	908	max load; bullet diam.: .358"; COL: 1.160"; 11,800 cup
158	Hornady XTP	3.5	704	start load; bullet diam.: .357"; COL: 1.455"; 12,400 cup
158	Hornady XTP	3.9	798	max load; bullet diam.: .357"; COL: 1.455"; 15,900 cup
158	Cast LSWC	3.2	815	start load; bullet diam.: .358"; COL: 1.475"; 11,500 cup
158	Cast LSWC	3.8	920	max load; bullet diam.: .358"; COL: 1.475"; 15,400 cup
170	Sierra JHC	3.0	635	start load; bullet diam.: .357"; COL: 1.450"; 11,100 cup
170	Sierra JHC	3.6	764	max load; bullet diam.: .357"; COL: 1.450"; 16,000 cup
Hodgdon Pistol Data Case: Winchester; twist: 1:18.75"; primer: Winchester SP, Small Pistol; barrel length: 7.7"; trim length: 1.145".
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
105	Lee #358-105-SWC	3.4	859	sugg. start load; 12,200 psi
105	Lee #358-105-SWC	4.3	1037	max load; 16,700 psi
Lyman Cast Bullet Handbook 4th Edition cases: Federal; trim-to length: 1.149"; primer: CCI 500; primer size: Small Pistol; Lyman shell holder: No. 1; cast bullets used sized to .358" dia.; firearm used: Universal Receiver; barrel length: 4"; twist: 1-18 3/4"; groove dia.: .357"; 1.450" OAL. NOTE: Loads designated with a +P symbol are higher pressure loads and must not be used in standard 38 Special revolvers unless the manufacturer has specifically stated that the use of such ammunition is acceptable in the particular firearm.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
110	Speer Jacketed HP	4.3	837	sugg. start load; 1.430" OAL; 11,500 cup
110	Speer Jacketed HP	4.8	970	max load; 1.430" OAL; 14,600 cup
110	Speer Jacketed HP	5.4 (+P)	1144	max load; 1.430" OAL; 19,800 cup
140	Speer Jacketed HP	3.4	634	sugg. start load; 1.470" OAL; 13,900 cup
140	Speer Jacketed HP	3.8	754	max load; 1.470" OAL; 15,900 cup
140	Speer Jacketed HP	4.1 (+P)	870	max load; 1.470" OAL; 19,100 cup
125	Hornady Jacketed HP	4.0	816	sugg. start load; 1.470" OAL; 12,500 cup
125	Hornady Jacketed HP	4.5	915	max load; 1.470" OAL; 15,200 cup
125	Hornady Jacketed HP	5.0 (+P)	1001	max load; 1.470" OAL; 18,200 cup
146	Speer Jacketed HP	3.3	609	sugg. start load; 1.408" OAL; 12,400 cup
146	Speer Jacketed HP	3.7	782	max load; 1.408" OAL; 15,800 cup
146	Speer Jacketed HP	4.0 (+P)	865	max load; 1.408" OAL; 18,900 cup
Lyman Reloading Handbook 49th Edition Warning! cases: Federal; trim-to length: 1.149"; primers: CCI 500; primer size: Small Pistol; Lyman shell holder: No. 1; firearm used: Universal Receiver; barrel length: 4"; twist: 1-18 3/4"; groove dia.: .357"; (+P) designates higher pressure loads
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
110	JHP	4.5	1,009	maximum load
125	JSP, GD-HP, JHP, TMJ	4.4	933	maximum load; DO NOT REDUCE
Speer Reloading Manual #13 max. case length: 1.155"; trim-to length: 1.145"; max. cart. length: 1.550"; RCBS shellholder: #6; barrel length: 6"; twist: 1-18.75"; test firearm: Smith & Wesson Model 14; case: Speer; primers: CCI 500, 550; for the 147 grain cast bullets: seat to and roll-crimp into the front lube groove; use maximum loads with caution
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
110	Speer UCHP or GDHP SB	4.1	890	start charge
110	Speer UCHP or GDHP SB	4.5	1002	maximum charge
Speer Reloading Manual #14 max. case length: 1.155"; trim-to length: 1.145"; max cart. OAL: 1.550"; RCBS shell holder: #6; cart. case: Speer; primer: CCI 500; 550; test firearm: S&W Model 14; barrel length: 6"; use maximum loads with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
110	Hornady HP-XTP	4.0	805	COAL: 1.445"
110	Hornady HP-XTP	4.4	869	COAL: 1.445"
110	Hornady HP-XTP	4.7	952	COAL: 1.445"
110	Hornady HP-XTP	5.0	1019	COAL: 1.445"
110	Hornady HP-XTP	5.4	1082	COAL: 1.445"; +P load; maximum load
140	Hornady FP-Cowboy	3.0	692	COAL: 1.450"
140	Hornady FP-Cowboy	3.3	740	COAL: 1.450"
140	Hornady FP-Cowboy	3.7	806	COAL: 1.450"
140	Hornady FP-Cowboy	4.0	873	COAL: 1.450"
140	Hornady FP-Cowboy	4.3	928	COAL: 1.450"
140	Hornady FP-Cowboy	4.7	984	COAL: 1.450"; maximum load
148	Hornady HBWC	1.9	565	COAL: 1.180"
148	Hornady HBWC	2.1	605	COAL: 1.180"
148	Hornady HBWC	2.3	660	COAL: 1.180"
148	Hornady HBWC	2.5	708	COAL: 1.180"
148	Hornady HBWC	2.8	768	COAL: 1.180"
148	Hornady HBWC	3.0	818	COAL: 1.180"; maximum load
Using Hornady Bullets This data was shot by Brian Pearce, Wolfe Publishing Company. Gun: Colt Trooper 38 Special; barrel length: 4-inches; case: Starline; primer: Winchester Small Pistol; bullet diameter: .357"; maximum COAL: 1.550"; maximum case length: 1.155"; trim to length: 1.145".
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
110	Hornady XTP	5.2	1185	18,800 cup
125	Hornady XTP	5.0	1069	18,700 cup
140	Hornady XTP	4.6	984	19,300 cup
146	Speer JHP	4.4	981	COL: 1.370"; 19,300 cup
158	Hornady XTP	4.3	905	19,300 cup
170	Sierra JHC	4.0	846	COL: 1.450"; 19,000 cup
+P (Hodgdon Pistol Data Maximum Loads) case: Winchester; barrel length: 7.7"; twist: 1:18.75"; trim length: 1.145"; primer: Winchester SP; bullet diam.: .357"; COL: 1.455" (except where otherwise specified in remarks); NEVER EXCEED MAXIMUM LOADS
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
110	XTP	4.9	1185	start load; min OAL: 1.455
110	XTP	5.2	1185	never exceed; min OAL: 1.455; 18,800 cup
125	XTP	4.7	1000	start load; min OAL: 1.455
125	XTP	5.0	1069	never exceed; min OAL: 1.455; 18,700 cup
140	XTP	4.2	975	start load; min OAL: 1.455
140	XTP	4.6	984	never exceed; min OAL: 1.455; 19,300 cup
146	Jacketed	4.0	972	start load; min OAL: 1.370
146	Jacketed	4.4	981	never exceed; min OAL: 1.370; 19,300 cup
158	XTP	3.9	896	start load; min OAL: 1.455
158	XTP	4.3	905	never exceed; min OAL: 1.455; 19,300 cup
170	Jacketed	3.7	846	start load; min OAL: 1.450
170	Jacketed	4.0	846	never exceed; min OAL: 1.450; 19,000 cup
+P Lee Precision Data These hot loads may wear guns prematurely. Do not use in small frame, or aluminum frame revolvers, or in semi auto pistols. Small pistol primer. CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
110	Speer UCHP or GDHP SB	4.7	1013	start charge
110	Speer UCHP or GDHP SB	5.1	1082	maximum charge
125	Speer UCSP, GDHP, UCHP or TMJ FN	4.4	933	start charge
125	Speer UCSP, GDHP, UCHP or TMJ FN	4.9	1012	maximum charge
140	Speer UCHP	3.7	819	start charge
140	Speer UCHP	4.2	883	maximum charge
+P Speer Reloading Manual #14 max. case length: 1.155"; trim-to length: 1.145"; max cart. OAL: 1.550"; RCBS shell holder: #6; cart. case: Speer; primer: CCI 500; test firearm: S&W Model 14; barrel length: 6"; maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
135	Speer Gold Dot HP	5.0	945	overall loaded length (inches): 1.455
158	Hornady lead SWC-HP	4.0	829	overall loaded length (inches): 1.433
+P Loads (Ruger LCR) The +P Special industry pressure limit is 20,000 psi. All loads fired from a Ruger LCR with a 1.875-inch barrel. Winchester +P cases and WSP primers were used throughout. Maximum cartridge length: 1.550 inches; maximum case length: 1.155 inches; case trim-to length: 1.145 inches.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
110	Speer UCHP or GDHP SB	4.7	875	start charge
110	Speer UCHP or GDHP SB	5.1	945	maximum charge
+P Short Barrel Velocities Speer Reloading Manual #14 max. case length: 1.155"; trim-to length: 1.145"; max cart. OAL: 1.550"; RCBS shell holder: #6; cart. case: Speer; primer: CCI 500; test firearm: S&W Model 15; barrel length: 2"; maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
110	XTP	4.3	1011	start load; min. OAL: 1.455
110	XTP	4.8	1109	NEVER EXCEED; 16,000 cup; min. OAL: 1.455
125	Lead	3.2	856	start load; min. OAL: 1.445
125	Lead	3.8	985	NEVER EXCEED; 12,000 cup; min. OAL: 1.445
125	XTP	4.3	953	start load; min. OAL: 1.455
125	XTP	4.6	1010	NEVER EXCEED; 15,600 cup; min. OAL: 1.455
135	Lead	3.1	824	start load; min. OAL: 1.418
135	Lead	3.6	927	NEVER EXCEED; 12,900 cup; min. OAL: 1.418
140	XTP	3.9	864	start load; min. OAL: 1.455
140	XTP	4.2	919	NEVER EXCEED; 15,800 cup; min. OAL: 1.455
146	Jacketed	3.5	808	start load; min. OAL: 1.370
146	Jacketed	4.0	914	NEVER EXCEED; 16,000 cup; min. OAL: 1.370
148	Wad Cutter	2.7	771	start load; min. OAL: 1.160
148	Wad Cutter	3.3	908	NEVER EXCEED; 11,800 cup; min. OAL: 1.160
158	Lead	3.2	815	start load; min. OAL: 1.475
158	Lead	3.8	920	NEVER EXCEED; 15,400 cup; min. OAL: 1.475
158	XTP	3.5	704	start load; min. OAL: 1.455
158	XTP	3.9	798	NEVER EXCEED; 15,900 cup; min. OAL: 1.455
170	Jacketed	3.0	635	start load; min. OAL: 1.450
170	Jacketed	3.6	764	NEVER EXCEED; 16,000 cup; min. OAL: 1.450
Lee Precision Data With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Pistol Primer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
148	Speer WC	2.7	698	S&W Model 360
148	Speer WC	2.7	828	S&W pre-Model 23
158	Montana Cast Bullets SWC	3.3	667	S&W Model 360
158	Montana Cast Bullets SWC	3.3	785	S&W pre-Model 23
Cast Bullet Loads The S&W Model 360 has a 1 7/8-inch barrel, and the S&W pre-Model 23's is 6 1/2 inches. Chronograph figures are for five rounds taken with the start screen at approximately 6 feet. Bullets cast were poured of 1-20 (tin-to-lead) alloy, sized .357 inch and lubed with SPG. Montana Cast Bullets' 158-grain SWC tested 8 on a Redding/SAECO hardness tester, which is equal to Linotype. Author's bullets and Speer 148-grain wadcutters all tested 4 on the hardness tester. All handloads assembled in Starline brass with Winchester Small Pistol primers.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
125	BBC roundnose	4.2	1,009	group (inches): 1.08; power factor: 126
125	BBC roundnose	4.4	1,011	group (inches): 0.79; power factor: 126; best 125-grain load
125	Laser Cast flatnose	4.2	983	group (inches): 1.22; power factor: 123
140	Laser Cast flatnose	3.9	956	group (inches): 1.24; power factor: 134; two groups only
158	BBC roundnose	3.1	770	group (inches): 1.30; power factor: 122
158	BBC roundnose	3.9	964	group (inches): 1.28; power factor: 152; maximum
in a Custom Taurus Model 80 A custom Taurus Model 80 with a 6-inch Jarvis barrel and a Tasco PDP3 five-minute dot sight were used for all testing. Winchester +P cases and Federal No. 100 primers were used for all handloads, except for the 2.7-grain Bullseye/148-grain DEWC load, which used WSP primers and mixed cases. Accuracy is the average of at least three, five-shot groups at 25 yards, unless otherwise noted. Velocities were measured with an Oehler M-35P chronograph with the front screen 12 feet from the gun's muzzle. All shooting was done double action from a rest. Range temperatures were 58 to 69 degrees Fahrenheit.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
148	Speer hollowbase wadcutter	2.7	728	overall loaded length (inches): 1.170
148	Speer hollowbase wadcutter	3.3	866	overall loaded length (inches): 1.170
158	Hornady lead SWC-HP	4.0	928	overall loaded length (inches): 1.420
158	Hornady lead SWC-HP	4.7	1005	overall loaded length (inches): 1.420
in a Smith & Wesson Model 627-5 Data includes +P pressures up to 20,000 psi. Cases were +P Starline. Maximum case length: 1.155 inches; trim to length: 1.145 inches; primer: CCI 500.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
158	Round Nose Flat Point	3.2	780
Pistol Oregon Trail Handgun/Cowboy Loads test gun: Ruger Blackhawk 6 1/2", WSP; do not exceed maximum loads; OAL: 1.435; never reduce stated overall lengths
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
148	Double Base Wad Cutter	3.0	814	starting load
148	Double Base Wad Cutter	3.3	862	maximum load
Pistol (Oregon Trail Handgun/PPC Loads) test gun: Smith & Wesson 686 6", WSP; do not exceed maximum loads; minimum OAL: 1.175; never reduce stated overall lengths
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
125	Truncated Cone	3.7	873	starting load; minimum OAL: 1.450
125	Truncated Cone	4.1	980	maximum load; minimum OAL: 1.450
158	Semi Wad Cutter/RN Flat Point/Round Nose	3.3	800	starting load; minimum OAL: 1.435
158	Semi Wad Cutter/RN Flat Point/Round Nose	3.8	891	maximum load; minimum OAL: 1.435
Pistol Oregon Trail Handgun/Standard Loads test gun: Smith & Wesson 686 6", WSP; do not exceed maximum loads; never reduce stated overall lengths
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
110	Hornady XTP	4.8	830	case: Hornady; primer: WSP
110	Hornady XTP (+P)	5.2	927	case: Hornady; primer: WSP
125	Hornady XTP	4.6	764	case: Hornady; primer: WSP
125	Hornady XTP (+P)	5.0	811	case: Hornady; primer: WSP
S&W Model 36 Chiefs Special Hodgdon Data S&W Model 36 Chiefs Special, 1.875-in. barrel.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
110	Speer UCHP or GDHP SB	4.1	782	start charge
110	Speer UCHP or GDHP SB	4.5	850	maximum charge
125	Speer UCSP, GDHP, UCHP or TMJ FN	4.4	933	maximum charge; DO NOT REDUCE
Short Barrel Velocities Speer Reloading Manual #14 test firearm: S&W M15 2"; use maximum loads with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
158	Oregon Trail cast SWC	4.0	852	overall loaded length (inches): 1.468
Standard Loads (Ruger LCR) All loads fired from a Ruger LCR with a 1.875-inch barrel. Winchester +P cases and WSP primers were used throughout. Maximum cartridge length: 1.550 inches; maximum case length: 1.155 inches; case trim-to length: 1.145 inches.

.38 Super

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Sierra JHP	5.3	1288	start load; COL: 1.180"; 23,200 cup
90	Sierra JHP	6.0	1384	max load; COL: 1.180"; 31,200 cup
95	Barnes TAC-XP	4.6	1334	start load; COL: 1.255"; 25,900 cup
95	Barnes TAC-XP	5.1	1334	max load; COL: 1.255"; 31,400 cup
100	Speer JHP	5.1	1204	start load; COL: 1.215"; 25,300 cup
100	Speer JHP	5.8	1292	max load; COL: 1.215"; 31,400 cup
115	LRN	4.8	1156	start load; bullet diam.: .356"; COL: 1.250"; 26,700 cup
115	LRN	5.4	1213	max load; bullet diam.: .356"; COL: 1.250"; 31,900 cup
115	Hornady XTP	4.7	1107	start load; COL: 1.245"; 25,000 cup
115	Hornady XTP	5.3	1208	max load; COL: 1.245"; 31,800 cup
124	Berry's Bullets HBRN TP	4.3	1086	start load; bullet diam.: .356"; COL: 1.250"; 25,100 cup
124	Berry's Bullets HBRN TP	4.9	1181	max load; bullet diam.: .356"; COL: 1.250"; 31,000 psi
125	Hornady HAP	4.2	1082	start load; bullet diam.: .356"; COL: 1.210"; 25,400 cup
125	Hornady HAP	4.8	1200	max load; bullet diam.: .356"; COL: 1.210"; 31,600 cup
125	Sierra FMJ	4.4	1020	start load; COL: 1.275"; 23,800 cup
125	Sierra FMJ	5.0	1124	max load; COL: 1.275"; 31,800 cup
125	Cast LCN	4.5	1114	start load; bullet diam.: .356"; COL: 1.230"; 23,400 cup
125	Cast LCN	5.1	1199	max load; bullet diam.: .356"; COL: 1.230"; 32,200 cup
135	LRN	4.1	1011	start load; bullet diam.: .356"; COL: 1.275"; 23,700 cup
135	LRN	4.9	1123	max load; bullet diam.: .356"; COL: 1.275"; 31,700 cup
147	Hornady XTP	3.9	976	start load; COL: 1.260"; 25,600 cup
147	Hornady XTP	4.4	1066	max load; COL: 1.260"; 31,700 cup
150	Sierra JFP	4.0	976	start load; bullet diam.: .356"; COL: 1.265"; 27,000 cup
150	Sierra JFP	4.6	1063	max load; bullet diam.: .356"; COL: 1.265"; 32,100 cup
150	Cast LRN	4.3	1066	start load; bullet diam.: .356"; COL: 1.230"; 27,400 cup
150	Cast LRN	4.8	1131	max load; bullet diam.: .356"; COL: 1.230"; 31,800 cup
Hodgdon Data Case: Remington; twist: 1:16"; primer: Remington 1 1/2, Small Pistol; barrel length: 5"; trim length: .895"; bullet diam.: .355" (except where otherwise specified in remarks).
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Jacketed	5.3	1288	start load; min OAL: 1.180
90	Jacketed	6.0	1384	never exceed; min OAL: 1.180; 31,200 cup
100	Jacketed	5.1	1204	start load; min OAL: 1.215
100	Jacketed	5.8	1292	never exceed; min OAL: 1.215; 31,400 cup
115	XTP	4.7	1104	start load; min OAL: 1.245
115	XTP	5.3	1208	never exceed; min OAL: 1.245; 31,800 cup
125	Jacketed	4.4	1020	start load; min OAL: 1.275
125	Jacketed	5.0	1124	never exceed; min OAL: 1.275; 31,800 cup
125	Lead	4.5	1114	start load; min OAL: 1.230
125	Lead	5.1	1199	never exceed; min OAL: 1.230; 32,200 cup
130	Jacketed	4.4	1022	start load; min OAL: 1.275
130	Jacketed	4.9	1116	never exceed; min OAL: 1.275; 31,000 cup
147	XTP	3.9	976	start load; min OAL: 1.260
147	XTP	4.4	1066	never exceed; min OAL: 1.260; 31,700 cup
150	Jacketed	4.0	976	start load; min OAL: 1.265
150	Jacketed	4.6	1063	never exceed; min OAL: 1.265; 32,100 cup
150	Lead	4.3	1066	start load; min OAL: 1.230
150	Lead	4.8	1131	never exceed; min OAL: 1.230; 31,800 cup
Lee Precision Data Small Pistol Primer. DO NOT USE THESE LOADS IN 38 AUTOMATIC OR 38 ACP. CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Hornady HP XTP	5.5	1355	overall loaded length (inches): 1.220
90	Hornady HP XTP	6.0	1438	overall loaded length (inches): 1.220
90	Hornady HP XTP	6.5	1531	overall loaded length (inches): 1.220
90	Hornady HP XTP	6.7	1565	overall loaded length (inches): 1.220
95	Barnes TAC-XP	5.0	1319	overall loaded length (inches): 1.255
95	Barnes TAC-XP	5.5	1407	overall loaded length (inches): 1.255
95	Barnes TAC-XP	6.0	1481	overall loaded length (inches): 1.255
125	Sierra JHP	4.5	1121	overall loaded length (inches): 1.215
125	Sierra JHP	5.0	1162	overall loaded length (inches): 1.215
125	Sierra JHP	5.3	1215	overall loaded length (inches): 1.215
124	Oregon Trail cast RN	3.8	964	overall loaded length (inches): 1.250
124	Oregon Trail cast RN	4.0	1018	overall loaded length (inches): 1.250
124	Oregon Trail cast RN	4.2	1076	overall loaded length (inches): 1.250
147	Oregon Trail FP	3.5	905	overall loaded length (inches): 1.250
147	Oregon Trail FP	4.0	1024	overall loaded length (inches): 1.250
+P A Kimber Stainless Target II with a 5-inch barrel was used to test fire these loads. Starline cases and Winchester Small Pistol primers were used throughout. Bullet diameter: .355 and .356 inch; maximum overall loaded length: 1.280 inches; maximum case length: .900 inch; and trim-to length; .895 inch. (Handloader Issue #295 - April, 2015)
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
120	Cast #356402	4.2	1111	sugg. start load; 27,100 cup; 1.230" OAL
120	Cast #356402	4.7	1240	max load; 31,000 cup; 1.230" OAL
147	Cast #356637	3.6	949	sugg. start load; 27,700 cup; 1.224" OAL
147	Cast #356637	4.0	1002	max load; 32,000 cup; 1.224" OAL
Cast Bullet Handgun Data Lyman Reloading Handbook 49th Edition cases: Remington; trim-to length: .895"; primers: Winchester WSP; primer size: Small Pistol; Lyman shell holder: No. 12; cast bullets used sized to .355" dia.; firearm used: Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .355"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Sierra Jacketed HP	5.3	1382	sugg. start load; 26,500 cup; 1.125" OAL
90	Sierra Jacketed HP	5.9	1518	max load; 32,500 cup; 1.125" OAL
95	Sierra FMJ	5.2	1257	sugg. start load; 20,300 psi; 1.175" OAL
95	Sierra FMJ	5.8	1417	max load; 30,700 psi; 1.175" OAL
Lyman Reloading Handbook 49th Edition cases: Remington; trim-to length: .895"; primers: CCI 500; primer size: Small Pistol; Lyman shell holder: No. 12; firearm used: Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .355"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
122	Magnus	4.3	1,199	cast bullet load; 25-yard group (inches): 2.25; fine practice load
125	Hunters Supply FP	4.2	1,110	cast bullet load; 25-yard group (inches): 2.4; good small game bullet
160	Leadheads roundnose	3.0	849	see note #1; cast bullet load; 25-yard group (inches): 2.5
160	Leadheads roundnose	3.3	940	see note #1; cast bullet load; 25-yard group (inches): 2.25
160	Leadheads roundnose	3.5	966	see note #1; cast bullet load; 25-yard group (inches): 2.0
115	Hornady XTP	5.2	1,199	see note #2; jacketed bullet load; 25-yard group (inches): 1.0; most accurate
115	Hornady XTP	5.3	1,215	see note #2; jacketed bullet load; 25-yard group (inches): 1.25
124	Hornady XTP	5.0	1,136	jacketed bullet load; 25-yard group (inches): 1.5; mild load
Notes: IMPORTANT, Click Here to bring up a pdf file with extensive notes for this table. All accuracy results obtained with Kimber pistol unless otherwise noted. A taper crimp was used on all loads.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
122	Bushwacker flatnose	4.3	1,160	case: R-P; primer: Federal 100; coefficient of variation (percent): 0.52; group (inches): 1.79; power factor: 142
125	Bushwacker roundnose	4.2	1,092	case: R-P; primer: Federal 100; coefficient of variation (percent): 0.64; group (inches): 1.06; power factor: 137; best 125-grain roundnose load
125	Bushwacker roundnose	4.4	1,125	case: R-P; primer: Federal 100; coefficient of variation (percent): 0.80; group (inches): 4.09; power factor: 141
125	Bushwacker semiwadcutter	4.0	1,104	case: R-P; primer: Federal 100; coefficient of variation (percent): 1.27; group (inches): 1.34; power factor: 138
125	Bushwacker semiwadcutter	4.2	1,112	case: R-P; primer: Federal 100; coefficient of variation (percent): 0.72; group (inches): 1.38; power factor: 139
125	Bushwacker semiwadcutter	4.4	1,152	case: R-P; primer: Federal 100; coefficient of variation (percent): 0.52; group (inches): 1.52; power factor: 144
145	Bushwacker roundnose	3.1	875	case: R-P; primer: Federal 100; coefficient of variation (percent): 1.03; group (inches): 1.65; power factor: 127
147	Bushwacker flatnose	3.3	937	case: R-P; primer: Federal 100; coefficient of variation (percent): 0.96; group (inches): 0.91; power factor: 138; best 147-grain flatnose load
147	Bushwacker flatnose	3.6	1,000	case: R-P; primer: Federal 100; coefficient of variation (percent): 0.50; group (inches): 1.34; power factor: 147
158	Rock Hill roundnose	3.3	912	case: S-V; primer: WSP; coefficient of variation (percent): 1.32; group (inches): 1.67; power factor: 144
158	Rock Hill roundnose	3.7	980	case: S-V; primer: WSP; coefficient of variation (percent): 1.12; group (inches): 1.93; power factor: 155
158	Rock Hill roundnose	4.0	1,040	case: R-P; primer: Federal 100; coefficient of variation (percent): 0.96; group (inches): 0.96; power factor: 164
in a S&W Model 627PC A Smith & Wesson Model 627PC with a 5.5-inch barrel and a Tasco PDP3 sight was used for testing. Velocities were taken 12 feet from the muzzle with an Oehler Model 35P chronograph. Accuracy is based on the average of three, five-shot groups at 25 yards from a sandbag rest. Range temperatures were 62 to 77 degrees Fahrenheit. S-L, Starline; S-V, Super Vel; R-P, Remington-Peters; WSP, Winchester Small Pistol.

.380 Auto / .380 ACP (9mm Kurz)

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Sierra Jacketed HC	2.4	828	sugg start load; 13,300 cup; .925" OAL
90	Sierra Jacketed HC	2.7	914	max load; 15,600 cup; .925" OAL
95	Sierra FMJ	2.4	861	sugg start load; 14,500 cup; .900" OAL
95	Sierra FMJ	2.7	938	max load; 16,400 cup; .900" OAL
90	Cast Lyman #356242 (sized to .355" dia)	2.4	755	sugg start load; 11,600 cup; .980" OAL
90	Cast Lyman #356242 (sized to .355" dia)	2.7	871	max load; 15,400 cup; .980" OAL
Lyman Reloading Handbook 49th Edition cases: Federal; trim-to length: .677"; primers: Federal 100 and Winchester WSP; primer size: small pistol; Lyman shell holder: No. 26; firearm used: Universal Receiver; barrel length: 3 3/4"; twist: 1-16"; groove dia.: .355"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Hornady JHP	2.7	826	starting load; COL: .955"; 10,800 cup
90	Hornady JHP	3.2	970	maximum load; COL: .955"; 15,600 cup
95	Speer FMJ	2.7	796	starting load; COL: .970"; 10,600 cup
95	Speer FMJ	3.2	953	maximum load; COL: .970"; 15,600 cup
100	Hornady FMJ	2.6	793	starting load; COL: .980"; 11,400 cup
100	Hornady FMJ	3.0	912	maximum load; COL: .980"; 14,700 cup
Hodgdon Pistol Data case: Remington; barrel length: 3.75"; twist: 1:16"; trim length: .675"; primer: CCI 500; bullet diam.: .355"; NEVER EXCEED MAXIMUM LOADS
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Sierra JHP	3.2	923	extreme spread (fps): 66
95	Sierra FMJ	3.1	885	extreme spread (fps): 33
95	Valiant cast LRNFP	3.1	900	extreme spread (fps): 54
100	Speer JHP	2.9	787	extreme spread (fps): 60
Selected Maximum Handloads All loads assembled in Starline brass with CCI Small Pistol primers.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Speer AUTO GDHP	2.8	885	start charge
90	Speer AUTO GDHP	3.2	976	maximum charge
95	Speer TMJ RN	2.7	851	start charge
95	Speer TMJ RN	3.1	930	maximum charge
Speer Reloading Manual #14 max. case length: 0.680"; trim-to length: 0.670"; max cart. OAL: 0.984"; RCBS shell holder: #10; cart. case: Winchester; primer: CCI 500; test firearm: Walther PP; barrel length: 3.8"; maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Hornady HP-XTP	2.2	706
90	Hornady HP-XTP	2.4	771
90	Hornady HP-XTP	2.6	841
90	Hornady HP-XTP	2.9	906
90	Hornady HP-XTP	3.1	985
90	Hornady HP-XTP	3.4	1063	maximum load
Using Hornady Bullets These loads were shot by Brian Pearce, Wolfe Publishing Company. Gun: Walther PPK/S; barrel length: 3 1/4 inches; case: Starline; primer: Winchester WSP; bullet diameter: .355"; maximum COAL: .980"; maximum case length: .680"; trim to length: .675"; COAL: .965".
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Jacketed	2.7	833	start load; min OAL: 0.955
90	Jacketed	3.2	970	never exceed; min OAL: 0.955; 15,600 cup
95	Jacketed	2.7	818	start load; min OAL: 0.970
95	Jacketed	3.2	953	never exceed; min OAL: 0.970; 15,600 cup
100	Jacketed	2.6	806	start load; min OAL: 0.980
100	Jacketed	3.0	912	never exceed; min OAL: 0.980; 14,700 cup
Lee Precision Data CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Pistol Primer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Lyman 356242 cast roundnose (sized .356 inch)	2.5	772	poor group, vertical
95	Speer FMJ (.355 inch)	2.8	732	mild but good group
9x17mm / 9mm Kurtz Very good group is approximately 1.0 inch; good group is approximately 1.5 inches; mediocre group is between 1.5 and 2.0 inches; poor group is over approximately 2.0 inches. Velocities are for five shots taken at approximately 6 feet from the pistol muzzle using an Oehler Model 35P. All groups fired at 20 feet in five-shot strings. All loads were taper crimped. All cast bullet loads were poured of straight Linotype alloy and lubed with SPG. These loads were fired from a Walther Model PPK with a 3.35-inch barrel and used Winchester brass with Winchester Small Pistol primers.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Hornady XTP	2.9	841
90	Hornady XTP	3.2	959
95	Speer TMJ	2.9	891
95	Speer TMJ	3.2	1009
95	Cast LRN	2.9	891
95	Cast LRN	3.2	1009
100	Hornady FMJ	2.7	809
100	Hornady FMJ	3.0	899
Hodgdon Data Case: Starline; primer: CCI 500.

.40 Smith & Wesson / .40 S&W

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
155	Speer TMJ FN or GDHP	5.4	1011	start charge
155	Speer TMJ FN or GDHP	6.2	1144	maximum charge
165	Speer TMJ FN or GDHP	5.0	957	start charge; approximate 165-gr law enforcement loads ("40 Lite")
165	Speer TMJ FN or GDHP	5.4	1035	maximum charge
180	Speer GDHP SB, TMJ FN or GDHP	4.0	793	start charge
180	Speer GDHP SB, TMJ FN or GDHP	4.7	917	maximum charge
Speer Reloading Manual #14 max. case length: 0.850"; trim-to length: 0.840"; max cart. OAL: 1.135"; RCBS shell holder: #27; cart. case: Speer; primer: CCI 500; test firearm: Smith & Wesson M4006; barrel length: 4"; IMPORTANT SAFETY NOTE: These loads were developed and tested for safe use in HANDGUNS. Not all loads may be suitable for use in a carbine or rifle chambered for this cartridge. If loading for a carbine or rifle, choose from among the loads developing the highest handgun velocities and load just a few rounds. Thoroughly test this small sample in your firearm in slow-fire mode, insuring that you achieve proper feeding and ejection. Be certain that all bullets exit the barrel; watching the target for each bullet strike is the best way to know that the load produces sufficient gas volume for a longer barrel. Use maximum loads with CAUTION.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
125	SinterFire	4.3	1041	start load; COL: 1.120"; 24,700 psi
125	SinterFire	4.8	1145	max load; COL: 1.120"; 31,300 psi
135	Nosler JHP	5.8	1155	start load; COL: 1.125"; 27,300 psi
135	Nosler JHP	6.4	1251	max load; COL: 1.125"; 33,200 psi
140	Barnes TAC-XP	3.5	848	start load; COL: 1.135"; 27,800 psi
140	Barnes TAC-XP	4.0	937	max load; COL: 1.135"; 32,900 psi
150	Nosler JHP	5.1	1079	start load; COL: 1.125"; 27,700 psi
150	Nosler JHP	5.5	1147	max load; COL: 1.125"; 32,600 psi
155	Hornady XTP	5.4	1058	start load; COL: 1.125"; 28,400 psi
155	Hornady XTP	5.9	1139	max load; COL: 1.125"; 31,700 psi
155	Berry's Bullets FP	5.1	1051	start load; COL: 1.125"; 26,200 psi
155	Berry's Bullets FP	5.7	1151	max load; COL: 1.125"; 33,600 psi
165	Sierra JHP	4.6	961	start load; COL: 1.125"; 27,000 psi
165	Sierra JHP	5.1	1047	max load; COL: 1.125"; 33,600 psi
165	Berry's Bullets FP	4.5	960	start load; COL: 1.125"; 24,300 psi
165	Berry's Bullets FP	5.1	1060	max load; COL: 1.125"; 31,800 psi
180	Berry's Bullets FP	4.2	901	start load; COL: 1.125"; 27,400 psi
180	Berry's Bullets FP	4.7	988	max load; COL: 1.125"; 31,900 psi
180	Hornady XTP	4.2	877	start load; COL: 1.125"; 26,500 psi
180	Hornady XTP	4.7	978	max load; COL: 1.125"; 33,300 psi
200	Hornady XTP	3.4	744	start load; COL: 1.125"; 27,200 psi
200	Hornady XTP	3.8	822	max load; COL: 1.125"; 31,700 psi
Hodgdon Data Case: Hornady; twist: 1:16"; primer: Winchester SP, Small Pistol; barrel length: 4"; trim length: .845"; bullet diam.: .400". This data is intended for use in firearms with barrels which fully support the cartridge in the chamber. Use of this data in firearms which do not fully support the cartridge, such as Glock, may result in bulged cases, ruptured cases, case head separation, or other conditions which may result in damage to the firearm and/or result in injury or death of the shooter and/or bystanders.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
135	Jacketed	5.8	1148	start load; min. OAL: 1.125
135	Jacketed	6.4	1251	NEVER EXCEED; min. OAL: 1.125; 33,200 psi
Lee Precision 135 GR Data Do not use reloads in Glock or similar guns with chambers that do not fully support the cartridge due to the intrusion of the feed ramp. CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Pistol Primer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
155	XTP	5.4	1055	start load; min. OAL: 1.125
155	XTP	5.9	1139	NEVER EXCEED; min. OAL: 1.125; 31,700 psi
Lee Precision 155 GR Data Do not use reloads in Glock or similar guns with chambers that do not fully support the cartridge due to the intrusion of the feed ramp. CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Pistol Primer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
170	XTP	4.6	950	start load; min. OAL: 1.125
170	XTP	5.0	1025	NEVER EXCEED; min. OAL: 1.125; 32,000 psi
Lee Precision 170 GR Data Do not use reloads in Glock or similar guns with chambers that do not fully support the cartridge due to the intrusion of the feed ramp. CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Pistol Primer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
180	XTP	4.2	880	start load; min. OAL: 1.125
180	XTP	4.7	978	NEVER EXCEED; min. OAL: 1.125; 33,300 psi
Lee Precision 180 GR Data Do not use reloads in Glock or similar guns with chambers that do not fully support the cartridge due to the intrusion of the feed ramp. CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Pistol Primer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	XTP	3.4	740	start load; min. OAL: 1.125
200	XTP	3.8	822	NEVER EXCEED; min. OAL: 1.125; 31,700 psi
Lee Precision 200 GR Data Do not use reloads in Glock or similar guns with chambers that do not fully support the cartridge due to the intrusion of the feed ramp. CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Pistol Primer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
155	Speer Gold Dot TMJ or GD-HP	6.2	1144	maximum load
155	Speer Gold Dot TMJ or GD-HP	5.4	1011
165	Speer Gold Dot TMJ or GD-HP	5.4	1035	maximum load
165	Speer Gold Dot TMJ or GD-HP	5.0	957	approximate 40 S&W 165 grain law enforcement version ("40 Lite")
180	Speer Gold Dot TMJ or GD-HP	4.7	917	maximum load
180	Speer Gold Dot TMJ or GD-HP	4.0	793
Speer Reloading Manual #13 max. case length: 0.850"; trim-to length: 0.840"; max. cart. length: 1.135"; RCBS shellholder: #27; barrel length: 4"; twist: 1-16"; test firearm: Smith & Wesson Model 4006; case: Speer; primers: CCI 500; bullet diam.: .400"; use maximum loads with caution; SAFETY NOTICE Some pistols chambered for the 40 S&W cartridge may not provide complete support of the case head. If this condition exists, normal pressure loads such as those shown here can cause the case wall to bulge or rupture at the unsupported point. Contact your firearm manufacturer to determine if your pistol completely supports the case head, or ask a gunsmith to inspect your pistol before using it with ANY ammunition. It is the gun owner's responsibility to know his firearm and its capabilities and limitations.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
135	Nosler JHP	5.8	1205	accuracy (inches): 3.06
135	Nosler JHP	6.1	1253	accuracy (inches): 1.68
135	Nosler JHP	6.4	1282	accuracy (inches): 2.09
155	Speer Gold Dot	5.4	1096	accuracy (inches): 1.72
155	Speer Gold Dot	5.6	1107	accuracy (inches): 1.66
155	Speer Gold Dot	5.9	1139	accuracy (inches): 2.67
165	Sierra JHP	4.6	978	accuracy (inches): 2.82
165	Sierra JHP	4.9	1152	accuracy (inches): 1.50
165	Sierra JHP	5.1	1184	accuracy (inches): 1.94
180	Sierra JHP	4.2	913	accuracy (inches): 1.65
180	Sierra JHP	4.5	962	accuracy (inches): 1.73
180	Sierra JHP	4.7	982	accuracy (inches): 1.77
Velocity data is the instrumental average of five rounds at 12 feet. Accuracy is a five-shot group at 25 yards from a Ransom Rest. Remington brass and CCI Small Pistol primers used throughout.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
177	Oregon Trail roundnose flatpoint	4.5	972	2-inch group average
175	RCBS 40-180-CM RN/FP	4.5	991	hottest load
Kimber Pro Compact (Autoloading Pistol Loads) 4 1/4-inch barrel. Group shooting was done from a sandbag rest at 25 yards in five-shot strings. Chronographing done with an Oehler Model 35P with start screen at approximately 6 feet. All brass was Starline. All primers were CCI Small or Large Pistol as proper. All bullets cast were poured of Linotype and lubed with SPG. Sizing diameter: .401 inch;
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
180	Flat Point	4.2	960	starting load; OAL: 1.190
180	Flat Point	4.6	1,016	maximum load; OAL: 1.190
200	Flat Point	3.5	828	starting load; OAL: 1.190
200	Flat Point	3.9	884	maximum load; OAL: 1.190
Oregon Trail Major Factor Handgun Loads test gun: Entreprise, 5" Bar-Sto, WSP; Major power factor IPSC loads. Do not exceed maximum loads; NEVER REDUCE STATED OVERALL LENGTHS. These loads should only be used in 1911-type pistols with fully supported chambers. Taper crimp at .420"

.41 Magnum / .41 Remington Magnum

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
170	Sierra JHC	8.2	1361	start load; COL: 1.575"; 29,800 cup
170	Sierra JHC	9.2	1470	max load; COL: 1.575"; 37,700 cup
200	Cast LFP	4.5	897	start load; COL: 1.550"; 11,400 cup
200	Cast LFP	5.5	1030	max load; COL: 1.550"; 15,300 cup
210	Hornady XTP	6.5	1053	start load; COL: 1.580"; 24,300 cup
210	Hornady XTP	7.4	1173	max load; COL: 1.580"; 33,200 cup
215	Cast LFP	4.5	882	start load; COL: 1.585"; 12,800 cup
215	Cast LFP	5.5	1004	max load; COL: 1.585"; 17,400 cup
220	Speer JSP	6.4	997	start load; COL: 1.580"; 25,300 cup
220	Speer JSP	7.3	1127	max load; COL: 1.580"; 33,700 cup
245	Cast LSWC	6.5	1075	start load; COL: 1.630"; 28,800 cup
245	Cast LSWC	7.8	1202	max load; COL: 1.630"; 39,500 cup
250	WFNGC	6.0	1018	start load; COL: 1.540"; 30,400 cup
250	WFNGC	6.7	1083	max load; COL: 1.540"; 38,600 cup
255	WFNGC	7.0	1062	start load; COL: 1.660"; 33,300 cup
255	WFNGC	7.6	1124	max load; COL: 1.660"; 38,600 cup
265	WLNGC	7.0	1064	start load; COL: 1.710"; 32,200 cup
265	WLNGC	7.6	1116	max load; COL: 1.710"; 37,900 cup
Hodgdon Pistol Data Case: Remington; twist: 1:18.75"; primer: Winchester LP; barrel length: 10.125"; trim length: 1.280"; BULLET DIAM.: .410". NEVER EXCEED MAXIMUM LOADS
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
216	Lyman 410459	5.0	801	primer: CCI 300; overall loaded length (inches): 1.700
216	Lyman 410459	5.5	866	primer: CCI 300; overall loaded length (inches): 1.700
216	Lyman 410459	6.0	915	primer: CCI 300; overall loaded length (inches): 1.700
in a Ruger Blackhawk, 6 1/2-inch barrel Ruger Blackhawk, 6 1/2-inch barrel. Starline brass used for all loads. SAAMI maximum overall loaded length is 1.590 inches. Maximum case length: 1.290 inches; trim-to length: 1.280 inches. Bullets cast from Lyman mould 410459 will vary in weight from 216 to 221 grains, depending on the individual mould, alloy and or lubricant used.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
223	Hensley & Gibbs 258 cast	5.5	866	primer: CCI 300; overall loaded length (inches): 1.698
223	Hensley & Gibbs 258 cast	6.0	920	primer: CCI 300; overall loaded length (inches): 1.698
in a Ruger New Model Blackhawk Bisley Ruger New Model Blackhawk Bisley (stainless), 5 1/2-inch barrel. Starline brass used for all loads. SAAMI maximum overall loaded length is 1.590 inches. Maximum case length: 1.290 inches; trim-to length: 1.280 inches. Bullets cast from Lyman mould 410459 will vary in weight from 216 to 221 grains, depending on the individual mould, alloy and or lubricant used.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
216	Lyman 410459	5.0	753	primer: CCI 300; overall loaded length (inches): 1.700
216	Lyman 410459	5.5	806	primer: CCI 300; overall loaded length (inches): 1.700
216	Lyman 410459	6.0	870	primer: CCI 300; overall loaded length (inches): 1.700
223	Hensley & Gibbs 258 cast	6.0	880	primer: CCI 300; overall loaded length (inches): 1.698
in a Smith & Wesson Model 57 Smith & Wesson Model 57, 4-inch barrel. Starline brass used for all loads. SAAMI maximum overall loaded length is 1.590 inches. Maximum case length: 1.290 inches; trim-to length: 1.280 inches. Bullets cast from Lyman mould 410459 will vary in weight from 216 to 221 grains, depending on the individual mould, alloy and or lubricant used.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
216	Lyman 410459	5.0	780	primer: CCI 300; overall loaded length (inches): 1.700
216	Lyman 410459	5.5	827	primer: CCI 300; overall loaded length (inches): 1.700
216	Lyman 410459	6.0	903	primer: CCI 300; overall loaded length (inches): 1.700
226	Redding 410 cast	5.5	835	primer: CCI 300; overall loaded length (inches): 1.674
226	Redding 410 cast	6.0	913	primer: CCI 300; overall loaded length (inches): 1.674
in a Smith & Wesson Model 657 Mountain Gun Smith & Wesson Model 657 Mountain Gun, 4-inch barrel. Starline brass used for all loads. SAAMI maximum overall loaded length is 1.590 inches. Maximum case length: 1.290 inches; trim-to length: 1.280 inches. Bullets cast from Lyman mould 410459 will vary in weight from 216 to 221 grains, depending on the individual mould, alloy and or lubricant used.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
170	Jacketed	8.2	1361	start load; min OAL: 1.575
170	Jacketed	9.2	1470	never exceed; min OAL: 1.575; 37,700 cup
210	XTP	6.5	1053	start load; min OAL: 1.580
210	XTP	7.4	1173	never exceed; min OAL: 1.580; 33,200 cup
220	Jacketed	6.4	997	start load; min OAL: 1.580
220	Jacketed	7.3	1127	never exceed; min OAL: 1.580; 33,700 cup
245	Lead	6.5	1075	start load; min OAL: 1.630
245	Lead	7.8	1202	never exceed; min OAL: 1.630; 39,500 cup
Lee Precision Data CAUTION: With NEVER EXCEED LOADS; maintain Minimum Over All Length or longer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
202	Montana Bullet Works WFN	5.0	728	group (inches): 4.00
202	Montana Bullet Works WFN	6.0	859	group (inches): 4.375
202	Montana Bullet Works WFN	7.0	984	group (inches): 3.00; 11 shots this group in 2.00 inches
210	Oregon Trail SWC	5.0	783	group (inches): 2.625; 11 shots this group in 1.75 inches
210	Oregon Trail SWC	6.0	903	group (inches): 2.75
210	Oregon Trail SWC	7.0	1,036	group (inches): 4.50
213	Redding/SAECO 417 SWC	5.0	660	group (inches): 2.625
213	Redding/SAECO 417 SWC	6.0	869	group (inches): 2.50
213	Redding/SAECO 417 SWC	7.0	979	group (inches): 2.375
218	Lyman 410459 SWC	5.0	617	group (inches): 3.25
218	Lyman 410459 SWC	6.0	846	group (inches): 2.375
218	Lyman 410459 SWC	7.0	949	group (inches): 2.625
228	Montana Bullet Works TRN GC	5.0	753	group (inches): 2.375; 11 shots this group in 1.75 inches
228	Montana Bullet Works TRN GC	6.0	858	group (inches): 3.125
228	Montana Bullet Works TRN GC	7.0	1,053	group (inches): 2.375
Nonmagnum Loads (S&W Model 57-1) S&W Model 57-1, 4-inch barrel. All group figures are for 12 shots fired with handguns mounted in a Ransom Machine Rest at 25 yards. All chronograph notes are for the same 12 shots taken with start screen at approximately 6 feet. All handloads put in Remington brass, using Winchester Large Pistol primers. Bullets cast in Lyman and Redding/SAECO moulds were poured of 1-20 (tin-to-lead) alloy, sized in .410-inch die but measured .409 inch. They were lubed with SPG. Oregon Trail bullets were .412 inch. Montana Bullets Works bullets were .410 inch for the 202-grain WFN and .411 inch for the 228-grain TRN. The commercially cast bullets carried each company's own hard lubricant.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
202	Montana Bullet Works WFN	5.0	741	group (inches): 5.50
202	Montana Bullet Works WFN	6.0	869	group (inches): 5.00
202	Montana Bullet Works WFN	7.0	1,008	group (inches): 2.375
210	Oregon Trail SWC	5.0	832	group (inches): 2.625
210	Oregon Trail SWC	6.0	897	group (inches): 4.00
210	Oregon Trail SWC	7.0	1,053	group (inches): 3.625
213	Redding/SAECO 417 SWC	5.0	731	group (inches): 2.25
213	Redding/SAECO 417 SWC	6.0	875	group (inches): 3.75
213	Redding/SAECO 417 SWC	7.0	997	group (inches): 3.75
218	Lyman 410459 SWC	5.0	731	group (inches): 2.75
218	Lyman 410459 SWC	6.0	856	group (inches): 2.00
218	Lyman 410459 SWC	7.0	945	group (inches): 3.375
228	Montana Bullet Works TRN	5.0	778	group (inches): 3.375
228	Montana Bullet Works TRN	6.0	913	group (inches): 4.75
228	Montana Bullet Works TRN	7.0	1,028	group (inches): 3.625
Nonmagnum Loads (S&W Model 58) S&W Model 58, 4-inch barrel. All group figures are for 12 shots fired with handguns mounted in a Ransom Machine Rest at 25 yards. All chronograph notes are for the same 12 shots taken with start screen at approximately 6 feet. All handloads put in Remington brass, using Winchester Large Pistol primers. Bullets cast in Lyman and Redding/SAECO moulds were poured of 1-20 (tin-to-lead) alloy, sized in .410-inch die but measured .409 inch. They were lubed with SPG. Oregon Trail bullets were .412 inch. Montana Bullets Works bullets were .410 inch for the 202-grain WFN and .411 inch for the 228-grain TRN. The commercially cast bullets carried each company's own hard lubricant.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
215	Semi Wad Cutter	6.5	973	reduced load; reduce by 10% for starting load; OAL: 1.595
Oregon Trail Bullet Co Data test gun: S&W M-57 6 1/2" except where otherwise noted in remarks; primer: WLP except where otherwise noted in remarks; do not exceed maximum loads; never reduce stated overall lengths

.44 Colt

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
165	Lead RNFP	4.0	864	starting load; COL: 1.310"; 6,300 cup
165	Lead RNFP	5.0	1020	max load; COL: 1.310"; 9,300 cup
185	Lead RNFP	3.8	806	starting load; COL: 1.350"; 6,200 cup
185	Lead RNFP	4.8	950	max load; COL: 1.350"; 9,500 cup
200	Lead RNFP	4.0	787	starting load; COL: 1.370"; 6,300 cup
200	Lead RNFP	4.8	912	max load; COL: 1.370"; 10,000 cup
240	Lead RNFP	3.5	717	starting load; COL: 1.380"; 6,300 cup
240	Lead RNFP	4.3	826	max load; COL: 1.380"; 10,000 cup
Hodgdon Pistol Data case: Starline; twist: 1:20"; barrel: 8"; trim: 1.09"; primer: Federal 150M; dia: .430"; NEVER EXCEED MAXIMUM LOADS

.44 Remington Magnum / .44 Magnum

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
165	LRNFP Cast	5.3	949	start load; COL: 1.500"; 11,800 cup
165	LRNFP Cast	6.5	1083	max load; COL: 1.500"; 16,400 cup
180	Hornady XTP	10.3	1459	start load; COL: 1.600"; 32,700 cup
180	Hornady XTP	11.5	1544	max load; COL: 1.600"; 38,400 cup
185	LRNFP Cast	5.3	902	start load; COL: 1.540"; 9,500 cup
185	LRNFP Cast	6.6	1082	max load; COL: 1.540"; 16,500 cup
200	LRNFP Cast	5.0	878	start load; COL: 1.570"; 11,000 cup
200	LRNFP Cast	6.6	1061	max load; COL: 1.570"; 17,300 cup
200	Nosler JHP	9.7	1331	start load; bullet diam.: .429"; COL: 1.600"; 31,300 cup
200	Nosler JHP	10.8	1433	max load; bullet diam.: .429"; COL: 1.600"; 38,400 cup
210	Sierra JHC	9.6	1309	start load; COL: 1.600"; 33,500 cup
210	Sierra JHC	10.7	1411	max load; COL: 1.600"; 38,500 cup
220	Berry's Bullets FP	5.8	807	start load; COL: 1.610"; 12,300 psi
220	Berry's Bullets FP	8.0	1066	max load; COL: 1.610"; 20,600 psi
225	Speer JHP	9.3	1262	start load; bullet diam.: .429"; COL: 1.575"; 31,900 cup
225	Speer JHP	10.4	1360	max load; bullet diam.: .429"; COL: 1.575"; 38,100 cup
240	LSWC Cast	4.7	801	start load; COL: 1.620"; 11,100 cup
240	LSWC Cast	10.0	1288	max load; COL: 1.620"; 38,400 cup
240	Nosler JHP	9.0	1219	start load; bullet diam.: .429"; COL: 1.600"; 33,500 cup
240	Nosler JHP	10.0	1292	max load; bullet diam.: .429"; COL: 1.600"; 37,700 cup
270	Speer GDSP	8.6	1100	start load; bullet diam.: .429"; COL: 1.600"; 33,100 cup
270	Speer GDSP	9.6	1175	max load; bullet diam.: .429"; COL: 1.600"; 37,700 cup
280	Swift JHP	8.6	1059	start load; COL: 1.700"; 32,100 cup
280	Swift JHP	9.6	1152	max load; COL: 1.700"; 37,000 cup
300	Hornady XTP	8.6	1079	start load; COL: 1.600"; 34,200 cup
300	Hornady XTP	9.6	1186	max load; COL: 1.600"; 38,400 cup
325	Beartooth Bullets LFN GC	8.0	1001	start load; COL: 1.730"; 28,700 cup
325	Beartooth Bullets LFN GC	9.2	1091	max load; COL: 1.730"; 38,300 cup
330	Beartooth Bullets LFN GC	7.5	952	start load; COL: 1.730"; 29,700 cup
330	Beartooth Bullets LFN GC	8.5	1035	max load; COL: 1.730"; 38,000 cup
355	Beartooth Bullets LFN GC	7.0	907	start load; COL: 1.710"; 29,900 cup
355	Beartooth Bullets LFN GC	8.2	994	max load; COL: 1.710"; 37,600 cup
Hodgdon Pistol Data Case: Winchester; barrel length: 8.275"; twist: 1:20"; trim length: 1.280"; primer: Remington 2 1/2; bullet diam.: .430" (except where otherwise specified in remarks). NEVER EXCEED MAXIMUM LOADS
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	SAECO RNFP	9.7	1126	bullet cast of wheelweights + 2% tin, BHN 10; group (inches): 2.89
Lead Cast Loads All loads were fired through the 5.5-inch barrel of a Ruger Super Blackhawk .44 Magnum clamped in a Caldwell Handgun Accurizing Mechanical Machine Rest. Velocities were recorded 10 feet in front of the muzzle with an RCBS AmmoMaster chronograph. Remington cases and Winchester Large Pistol primers were used throughout. Accuracy is the average of two, five-shot groups fired at 25 yards.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
165	Lead	5.3	949	start load; min OAL: 1.500
165	Lead	6.5	1083	never exceed; min OAL: 1.500; 16,400 cup
180	XTP	10.3	1459	start load; min OAL: 1.600
180	XTP	11.5	1544	never exceed; min OAL: 1.600; 38,400 cup
185	Lead	5.3	902	start load; min OAL: 1.540
185	Lead	6.6	1082	never exceed; min OAL: 1.540; 16,500 cup
200	Jacketed	9.7	1331	start load; min OAL: 1.600
200	Jacketed	10.8	1433	never exceed; min OAL: 1.600; 38,400 cup
200	Lead	5.0	878	start load; min OAL: 1.570
200	Lead	6.6	1061	never exceed; min OAL: 1.570; 17,300 cup
210	Jacketed	9.6	1309	start load; min OAL: 1.600
210	Jacketed	10.7	1411	never exceed; min OAL: 1.600; 38,500 cup
225	Jacketed	9.3	1262	start load; min OAL: 1.575
225	Jacketed	10.4	1360	never exceed; min OAL: 1.575; 38,100 cup
240	Jacketed	9.0	1219	start load; min OAL: 1.600
240	Jacketed	10.0	1292	never exceed; min OAL: 1.600; 37,700 cup
240	Lead	4.7	801	start load; min OAL: 1.620
240	Lead	10.0	1288	never exceed; min OAL: 1.620; 38,400 cup
270	Jacketed	8.6	1100	start load; min OAL: 1.600
270	Jacketed	9.6	1175	never exceed; min OAL: 1.600; 37,700 cup
280	Jacketed	8.6	1059	start load; min OAL: 1.700
280	Jacketed	9.6	1152	never exceed; min OAL: 1.700; 37,000 cup
300	XTP	8.6	1079	start load; min OAL: 1.600
300	XTP	9.6	1186	never exceed; min OAL: 1.600; 38,400 cup
Lee Precision Data Large pistol primer. CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Speer Special GDHP SB	7.9	989	start charge
200	Speer Special GDHP SB	9.0	1084	maximum charge
(Short Barrel Velocities) Speer Reloading Manual #14 max. case length: 1.285"; trim-to length: 1.275"; max cart. OAL: 1.610"; RCBS shell holder: #18; cart. case: Speer; primer: CCI 300; test firearm: S&W M29; barrel length: 4"; NOTE: these loads do not produce maximum pressure; maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
210	Cast #429215 gas check	9.0	1023	sugg. start load; 1.645" OAL; 30,700 cup
210	Cast #429215 gas check	10.0	1143	max load; 1.645" OAL; 37,400 cup
240	Cast #429667	9.0	1003	sugg. start load; 1.645" OAL; 33,900 cup
240	Cast #429667	10.0	1115	max load; 1.645" OAL; 39,300 cup
245	Cast #429421	8.5	915	sugg. start load; 1.710" OAL; 29,400 cup
245	Cast #429421	9.5	1028	max load; 1.710" OAL; 37,100 cup
255	Cast #429244 gas check	8.1	873	sugg. start load; 1.680" OAL; 31,800 cup
255	Cast #429244 gas check	9.0	945	max load; 1.680" OAL; 37,700 cup
Cast Bullet Handgun Data Lyman Reloading Handbook 49th Edition cases: Remington; trim-to length: 1.275"; primers: CCI 300 (except where otherwise specified in remarks); primer size: Large Pistol, Std. & Magnum; Lyman shell holder: No. 7; cast bullets used sized to .429" dia.; firearm used: Universal Receiver; barrel length: 4"; twist: 1-20"; groove dia.: .429"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
240	Oregon Trail SWC	5.0	745	overall loaded length (inches): 1.600
240	Oregon Trail SWC	5.5	793	overall loaded length (inches): 1.600
240	Oregon Trail SWC	6.0	849	overall loaded length (inches): 1.600
Handloading Data A Smith & Wesson Model 69 with a 4 1/4-inch barrel was used to test fire these loads. Starline cases were used throughout. Maximum case length: 1.285 inches; trim-to length: 1.275 inches; primer: CCI 300 (except where otherwise specified in remarks).
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
240	Oregon Trail RNFP	5.5	1015	primer: CCI 300
in a Ruger M77 18 1/2-inch barrel. Maximum overall cartridge length of 1.610 inches and a SAAMI maximum pressure of 36,000 psi. Starline cases were used throughout.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Rim Rock standard cast DEWC FB	5.0	816	case: Remington; overall loaded length (inches): 1.400; group (inches): 3.50; 4 shots in 2.20
240	Sierra Jacketed Hollow Cavity	9.0	993	case: Federal; overall loaded length (inches): 1.600; group (inches): 2.78
Lightweight Loads Velocities were recorded 10 feet in front of the muzzle of the 4-inch barrel of a Smith & Wesson 329PD revolver. CCI 300 primers were used with all loads.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Round Nose Flat Point	6.3	965	starting load
200	Round Nose Flat Point	7.1	1,055	maximum load
225	Round Nose Flat Point	5.7	861	starting load
225	Round Nose Flat Point	6.7	985	maximum load
Cowboy Loads (Oregon Trail Bullet Handgun Data) test gun: Ruger 7 1/2", WLP; OAL: 1.560; do not exceed maximum loads; never reduce stated overall lengths
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
240	Semi Wad Cutter	7.0	1,030	maximum load
Reduced Practice Loads (Oregon Trail Bullet Handgun Data) test gun: Ruger Super Redhawk, 9 1/2", WLP; OAL: 1.605; do not exceed maximum loads; never reduce stated overall lengths
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
180	Hornady FP-Cowboy	5.2	567
180	Hornady FP-Cowboy	5.7	641
180	Hornady FP-Cowboy	6.1	729
180	Hornady FP-Cowboy	6.6	816
180	Hornady FP-Cowboy	7.0	901
180	Hornady FP-Cowboy	7.5	980	maximum load
Using 180 GR Hornady Bullets This data was shot by Brian Pearce, Wolfe Publishing Company. Gun: Ruger New Model Blackhawk (Bisley); barrel length: 5 1/2-inches; case: Starline; primer: Winchester Large Pistol; bullet diameter: .430"; maximum COAL: 1.610"; maximum case length: 1.285"; trim to length: 1.275"; COAL: 1.600".
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
240	Hornady SWC-HP or SWC	4.8	702
240	Hornady SWC-HP or SWC	5.2	751
240	Hornady SWC-HP or SWC	5.7	809
240	Hornady SWC-HP or SWC	6.1	867
240	Hornady SWC-HP or SWC	6.6	920	maximum load
Using 240 GR Hornady Bullets This data was shot by Brian Pearce, Wolfe Publishing Company. Gun: Ruger New Model Blackhawk (Bisley); barrel length: 5 1/2-inches; case: Starline; primer: Winchester Large Pistol; bullet diameter: .430"; Hornady HP-XTP and CL-SIL COAL: 1.600"; SWC-HP and SWC COAL: 1.610"; maximum COAL: 1.610"; maximum case length: 1.285"; trim to length: 1.275".

.44 Russian

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
165	LRNFP	4.0	884	starting load; COL: 1.165"; 6,100 cup
165	LRNFP	5.3	1076	max load; COL: 1.165"; 12,000 cup
200	LRNFP	3.5	738	starting load; COL: 1.245"; 5,100 cup
200	LRNFP	4.8	963	max load; COL: 1.245"; 11,400 cup
240	LRNFP	3.5	732	starting load; COL: 1.275"; 7,300 cup
240	LRNFP	4.2	837	max load; COL: 1.275"; 11,500 cup
Hodgdon Pistol Data case: Starline; barrel: 5"; trim: .960"; twist: 1:20"; primer: Winchester LP; dia.: .430"; NEVER EXCEED MAXIMUM LOADS
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Round Nose Flat Point	3.9	754	starting load
200	Round Nose Flat Point	4.6	900	maximum load
225	Round Nose Flat Point	3.8	737	starting load
225	Round Nose Flat Point	4.3	839	maximum load
Oregon Trail Handgun Data test gun: Smith & Wesson 1950, 6 1/2"; WLP; minimum OAL: 1.230; never reduce stated overall lengths; DO NOT EXCEED THESE LOADS! Use only in modern 44 Special/Magnum revolvers or Smith & Wesson Schofield reproductions in excellent condition. Original Smith & Wesson Top-Break revolvers should never be fired with smokeless powder loads!
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Speer FN or CM	3.5	761	start charge
200	Speer FN or CM	3.9	814	maximum charge
Speer Reloading Manual #14 Cowboy Action Shooting Data; max. case length: 0.970"; trim-to length: 0.960"; max cart. OAL: 1.430"; RCBS shell holder: #18; cart. case: Starline; primer: CCI 300; test firearm: Cimarron SAA; barrel length: 5.5"; NOTE: bullets were cast in RCBS moulds; maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
180	Hornady Swaged Lead FN #11058	3.7	756	sugg. start load; 1.185" OAL; 8,700 cup
180	Hornady Swaged Lead FN #11058	4.2	834	max load; 1.185" OAL; 11,200 cup
200	Cast #427666	3.4	726	sugg. start load; 1.255" OAL; 9,200 psi
200	Cast #427666	3.8	786	max load; 1.255" OAL; 11,000 psi; potentially most accurate load
240	Cast #429667	3.4	634	sugg. start load; 1.335" OAL; 7,600 cup
240	Cast #429667	3.8	787	max load; 1.335" OAL; 11,700 cup
245	Cast #429383	3.2	658	sugg. start load; 1.400" OAL; 9,100 cup
245	Cast #429383	3.6	716	max load; 1.400" OAL; 11,200 cup
245	Cast #429421	3.2	647	sugg. start load; 1.390" OAL; 9,000 cup
245	Cast #429421	3.6	707	max load; 1.390" OAL; 10,700 cup; potentially most accurate load
Lyman Reloading Handbook 49th Edition cases: Starline; trim-to length: .965"; primers: Winchester WLP; primer size: Large Pistol; Lyman shell holder: No. 7; firearm used: Universal Receiver; barrel length: 6 1/2"; twist: 1-20"; groove dia.: .429"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	roundnose Hoch custom mould	3.7	740	best load so far
250	roundnose Lyman 429383	3.4	722	closest to factory
All loads fired from a Navy Arms/Uberti 3rd Model .44 Russian with a 7-inch barrel. All chronograph figures are for five shots with start screen at approximately 6 feet. All handloads used Starline brass with Winchester Large Pistol primers. Bullets cast of 1-20 (tin-to lead) alloy, sized .430 inch and lubed with SPG.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
220	Oregon Trail RNFP	3.5	707
220	Oregon Trail RNFP	4.0	765
Test gun was a Colt New Frontier with a 7 1/2-inch barrel. Starline cases and Federal 150 Large Pistol primers used throughout.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
204	custom Hoch roundnose	4.0	768	shoots to sights
250	Redding/SAECO 442 roundnose	3.8	752
Navy Arms 3rd Model 7-Inch Barrel All bullets cast of 1-20 (tin-to-lead) alloy and lubed with SPG. Bullets were sized .430 inch. Cases by Starline, and primers were Winchester Large Pistol except for the black-powder loads. They were primed with CCI 350 Large Pistol Magnum. All loads listed will group five shots into approximately 2 inches at 50 feet. Chronograph readings taken with an Oehler Model 35P with start screen at approximately 6 feet.

.44 Smith & Wesson / .44 S&W Schofield

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
220	NEI 323A conical	5.0	755	very accurate
233	RCBS 45-230-CM	5.0	731	duplicates early military ballistics
S&W Model No. 3 (new manufacture) 7-inch barrel. All bullets cast of 1-20 (tin-to-lead) alloy and lubed with SPG. Bullets were sized .454 inch. Cases by Starline, and primers were Winchester Large Pistol. All loads listed will group five shots into approximately 2 inches at 50 feet. Chronograph readings taken with an Oehler Model 35P with start screen at approximately 6 feet.

.44 Smith & Wesson Special / .44 S&W Special

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
250	RCBS 44-250-K	5.0	723	group (inches): 2.55
Load Data Remington cases and Winchester Large Pistol primers used. All groups were five shots fired at 25 yards.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
165	Cast LRNFP	4.5	865	start load; COL: 1.365"; 7,100 cup
165	Cast LRNFP	5.8	1035	max load; COL: 1.365"; 13,400 cup
185	Cast LRNFP	4.0	819	start load; COL: 1.400"; 6,600 cup
185	Cast LRNFP	5.5	1025	max load; COL: 1.400"; 11,600 cup
200	Cast LRNFP	4.5	846	start load; COL: 1.450"; 8,600 cup
200	Cast LRNFP	5.4	973	max load; COL: 1.450"; 13,100 cup
200	Nosler JHP	5.0	849	start load; COL: 1.460"; bullet diam.: .429"; 11,000 cup
200	Nosler JHP	5.4	904	max load; COL: 1.460"; bullet diam.: .429"; 12,700 cup
220	Berry's Bullets FP	4.7	772	start load; COL: 1.460"; 9,600 cup
220	Berry's Bullets FP	5.4	875	max load; COL: 1.460"; 13,300 cup
240	Cast LSWC	4.0	758	start load; COL: 1.450"; 9,400 cup
240	Cast LSWC	4.8	862	max load; COL: 1.450"; 13,100 cup
Hodgdon Data Case: Starline; barrel length: 8"; twist: 1:20"; trim length: 1.155"; primer: Winchester LP; bullet diam. .430" (except where otherwise specified in remarks). NEVER EXCEED MAXIMUM LOADS
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
165	Lead	4.5	839	start load; min OAL: 1.365
165	Lead	5.8	1035	never exceed; min OAL: 1.365; 13,400 cup
185	Lead	4.0	791	start load; min OAL: 1.400
185	Lead	5.5	1025	never exceed; min OAL: 1.400; 11,600 cup
200	Jacketed	5.0	849	start load; min OAL: 1.460
200	Jacketed	5.4	904	never exceed; min OAL: 1.460; 12,700 cup
200	Lead	4.5	828	start load; min OAL: 1.450
200	Lead	5.4	973	never exceed; min OAL: 1.450; 13,100 cup
240	Lead	4.0	733	start load; min OAL: 1.450
240	Lead	4.8	862	never exceed; min OAL: 1.450; 13,100 cup
Lee Precision Data CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Large Pistol Primer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Speer FN or CM	5.5	945	start charge
200	Speer FN or CM	6.2	1020	maximum charge
250	Speer K	4.5	772	start charge
250	Speer K	5.2	816	maximum charge
200	Speer GDHP SB	5.3	795	start charge
200	Speer GDHP SB	6.1	902	maximum charge
Speer Reloading Manual #14 max. case length: 1.160"; trim-to length: 1.150"; max cart. OAL: 1.615"; RCBS shell holder: #18; cart. case: Remington; primer: CCI 300 (except where otherwise specified in remarks); test firearm: Cimarron SAA; barrel length: 5.5"; NOTE: The 200-grain FN & CM, the 225-grain SWC GC and the 250-grain K bullets were cast in RCBS moulds. RCBS crimp-on gas checks used for the 225-grain SWC GC bullets. Maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
180	Hornady FP-Cowboy	4.9	637
180	Hornady FP-Cowboy	5.3	690
180	Hornady FP-Cowboy	5.6	752
180	Hornady FP-Cowboy	6.0	814
180	Hornady FP-Cowboy	6.3	872	maximum load
Using Hornady Bullets This data was shot by Brian Pearce, Wolfe Publishing Company. Gun: Smith & Wesson 624; barrel length: 4 inches; case: Starline; primer: Winchester Large Pistol; bullet diameter: 0.430"; 180 GR Hornady HP-XTP COAL: 1.480"; FP-Cowboy COAL: 1.490"; 200 GR HP-XTP COAL: 1.470"; 240 GR HP-XTP & CL-SIL COAL: 1.480"; 240 GR SWC-HP & SWC COAL: 1.490"; maximum COAL: 1.500"; maximum length: 1.160"; trim to length: 1.150".
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
205	Cast #427098	5.0	804	sugg. start load; 1.537" OAL; 8,600 cup
205	Cast #427098	5.6	877	max load; 1.537" OAL; 11,400 cup
210	Cast #429215 gas check	4.6	755	sugg. start load; 1.500" OAL; 9,900 cup
210	Cast #429215 gas check	5.2	822	max load; 1.500" OAL; 12,600 cup
240	Cast #429667	4.3	701	sugg. start load; 1.500" OAL; 9,800 cup
240	Cast #429667	4.8	765	max load; 1.500" OAL; 11,700 cup
245	Cast #429383	4.3	719	sugg. start load; 1.570" OAL; 7 1/2" barrel; 9,600 cup
245	Cast #429383	4.8	788	max load; 1.570" OAL; 7 1/2" barrel; 12,700 cup
245	Cast #429421	4.5	715	sugg. start load; 1.570" OAL; 8,800 cup
245	Cast #429421	5.0	777	max load; 1.570" OAL; 11,900 cup
255	Cast #429244 gas check	4.0	641	sugg. start load; 1.550" OAL; 8,600 cup
255	Cast #429244 gas check	4.5	708	max load; 1.550" OAL; 11,500 cup
Cast Bullet Data Lyman Reloading Handbook 49th Edition cases: Winchester; trim-to length: 1.150"; primers: CCI 300; primer size: Large Pistol; Lyman shell holder: No. 7; firearm used: Universal Receiver; barrel length: 4" (except where otherwise noted in remarks); twist: 1-20"; groove dia.: .429"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Rim Rock standard cast DEWC FB	4.0	680	case: Remington; overall loaded length (inches): 1.256; group (inches): 3.00
Lightweight Loads Velocities were recorded 10 feet in front of the muzzle of the 4-inch barrel of a Smith & Wesson 329PD revolver. CCI 300 primers were used with all loads.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Round Nose Flat Point	4.3	765	starting load
200	Round Nose Flat Point	5.1	915	maximum load
225	Round Nose Flat Point	4.1	723	starting load
225	Round Nose Flat Point	4.7	830	maximum load
Cowboy Loads (Oregon Trail Bullet Handgun Data) test gun: Smith & Wesson 6", WLP; OAL: 1.425; do not exceed maximum loads; never reduce stated overall lengths

.44 WCF / .44-40 Winchester

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Speer FN or CM	5.8	826	start charge
200	Speer FN or CM	6.3	905	maximum charge
Speer Reloading Manual #14 Cowboy Action Shooting Data; max. case length: 1.305"; trim-to length: 1.295"; max cart. OAL: 1.590"; RCBS shell holder: #35; cart. case: Remington; primer: CCI 300; test firearm: Colt New Service; barrel length: 5.5"; NOTE: Bullets were cast in RCBS moulds. Maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Lead RNFP	5.0	956	starting load; 8,400 psi
200	Lead RNFP	6.2	1,117	maximum load; 12,900 psi
Hodgdon Data case: Winchester; barrel length: 20"; twist: 1:36"; trim length: 1.295"; primer: Winchester LP; bullet diam.: .428"; COL: 1.600"; NEVER EXCEED MAXIMUM LOADS
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
160	Cast LFP	4.5	750	starting load; 7,700 psi
160	Cast LFP	6.2	983	maximum load; 12,200 psi
200	Cast LRNFP	5.0	758	starting load; 8,400 psi
200	Cast LRNFP	6.2	901	maximum load; 12,900 psi
Hodgdon Pistol Data case: Winchester; barrel length: 6"; twist: 1:36"; trim length: 1.295"; primer: Winchester LP; bullet diam.: .430"; COL: 1.600"; NEVER EXCEED MAXIMUM LOADS
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Lead	5.0	753	start load; min OAL: 1.600
200	Lead	6.2	901	never exceed; min OAL: 1.600; 12,900 psi
Lee Precision Data CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Large Pistol primer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Round Nose Flat Point	5.0	749	starting load
200	Round Nose Flat Point	6.2	897	maximum load
225	Round Nose Flat Point	4.6	655	starting load
225	Round Nose Flat Point	5.6	777	maximum load
Oregon Trail Handgun Data test gun: Colt S.A.; 5 1/2"; CCI large pistol primers; OAL: 1.575; do not exceed maximum loads; never reduce stated overall lengths
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
204	Lyman cast 427098	6.5	876	extreme spread (fps): 39; 1 1/4-inch group
13,000 CUP Sixgun Loads A Colt Frontier Six Shooter with a 7 1/2-inch barrel was used in developing the load data. Winchester Large Pistol primers and Starline cases were used throughout. Temperature during testing was 40 degrees Fahrenheit.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Speer Jacketed HP	5.4	713	sugg. start load; 1.592" OAL; 11,000 cup
200	Speer Jacketed HP	6.0	851	max load; 1.592" OAL; 12,500 cup
200	Cast #427666	5.7	873	sugg. start load; 1.580" OAL; 11,400 cup
200	Cast #427666	6.4	973	max load; 1.580" OAL; 12,700 cup
205	Cast #427098	5.2	902	sugg. start load; 1.592" OAL; 11,200 cup
205	Cast #427098	5.8	964	max load; 1.592" OAL; 12,200 cup
Lyman Reloading Manual 49th Edition cases: Winchester; trim-to length: 1.295"; primers: Winchester WLP; primer size: Large Pistol; Lyman shell holder: No. 14B; cast bullets used sized to .429" dia.; firearm used: Universal Receiver; barrel length: 6"; twist: 1-20"; groove dia.: .428"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	CMC Shooting Supplies, moly-coated RNFP .429	6.0	1012
in a Colt Lightning
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
205	Hornady FP Cowboy	4.3	596
205	Hornady FP Cowboy	4.6	629
205	Hornady FP Cowboy	4.9	662
205	Hornady FP Cowboy	5.2	695	maximum load
Revolver Using Hornady Bullets These loads were shot by Brian Pearce, Wolfe Publishing Company. Gun: Colt Frontier Six-Shooter; barrel length: 4 3/4-inches; case: Starline; primer: Federal #150; bullet diameter for the 205 GR FP Cowboy: .427" bullet diameter for the 200 GR HP-XTP: .430"; HP-XTP COAL: 1.600"; FP Cowboy COAL: 1.570"; maximum COAL: 1.592"; maximum case length: 1.305"; trim to length: 1.295".

.45 ACP

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
155	Cast LSWC	5.7	1039	start load; COL: 1.230"; 14,300 cup
155	Cast LSWC	6.2	1132	max load; COL: 1.230"; 17,000 cup
155	SinterFire	5.0	974	start load; COL: 1.220"; 13,600 cup
155	SinterFire	5.5	1036	max load; COL: 1.220"; 16,900 cup
160	Barnes TAC-XP	4.7	970	start load; COL: 1.200"; 17,100 psi
160	Barnes TAC-XP	5.1	1040	max load; COL: 1.200"; 19,900 psi
180	LFP	4.2	771	start load; bullet diam.: .452"; COL: 1.140"; 10,200 cup
180	LFP	5.2	946	max load; bullet diam.: .452"; COL: 1.140"; 16,600 cup
185	Hornady JSWC	5.0	892	start load; COL: 1.135"; 14,600 cup
185	Hornady JSWC	5.5	956	max load COL: 1.135"; 17,000 cup
200	Speer JHP	4.7	812	start load; COL: 1.155"; 13,700 cup
200	Speer JHP	5.2	884	max load; COL: 1.155"; 16,900 cup
200	Cast LSWC	4.8	877	start load; COL: 1.225"; 13,400 cup
200	Cast LSWC	5.4	957	max load; COL: 1.225"; 16,800 cup
230	LRN	4.0	751	start load; bullet diam.: .452"; COL: 1.200"; 12,500 cup
230	LRN	4.8	855	max load; bullet diam.: .452"; COL: 1.200"; 17,000 cup
230	Hornady FMJ FP	4.4	744	start load; COL: 1.200"; 15,000 cup
230	Hornady FMJ FP	4.8	818	max load; COL: 1.200"; 16,700 cup
Hodgdon Data Case: Winchester; twist: 1:16"; primer: Federal 150, Large Pistol; barrel length: 5"; trim length: .893"; bullet diam.: .451" (except where otherwise specified in remarks)
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	X-Treme Plated SWC	4.5	742
200	X-Treme Plated SWC	5.0	823
200	X-Treme Plated SWC	5.5	894
in a Ruger SR1911 Warning! Gun: Ruger SR1911; Barrel Length: 5 inches; Case: Starline; Primer: CCI 300; Bullet Diameter: .451 and .452 inch; Maximum Case Length: .898 inch; Trim-to Length: .893 inch; COAL for X-Treme Plated SWC: 1.240 inches; COAL for Rocky Mtn. Reloading FMJ-RN: 1.210 inches;
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
155	Lead	5.7	1049	start load; min OAL: 1.230
155	Lead	6.2	1132	never exceed; min OAL: 1.230; 17,000 cup
185	Jacketed	5.0	877	start load; min OAL: 1.195
185	Jacketed	5.5	956	never exceed; min OAL: 1.195; 17,000 cup
200	Jacketed	4.7	812	start load; min OAL: 1.155
200	Jacketed	5.2	884	never exceed; min OAL: 1.155; 16,900 cup
200	Lead	4.8	862	start load; min OAL: 1.225
200	Lead	5.4	957	never exceed; min OAL: 1.225; 16,800 cup
230	Jacketed	4.4	758	start load; min OAL: 1.200
230	Jacketed	4.8	818	never exceed; min OAL: 1.200; 16,700 cup
Lee Precision Data Large Pistol primer; with NEVER EXCEED LOADS maintain Minimum Over All Length or longer
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
185	Hornady Jacketed HP/XTP	4.9	881	sugg. start load; 1.175" OAL; 13,000 cup
185	Hornady Jacketed HP/XTP	5.5	953	max load; 1.175" OAL; 16,800 cup
200	Speer Gold Dot Jacketed HP	4.7	845	sugg. start load; 1.178" OAL; 13,700 cup
200	Speer Gold Dot Jacketed HP	5.3	925	max load; 1.178" OAL; 16,400 cup
Lyman Reloading Handbook 49th Edition cases: Remington, Federal; trim-to length: .888"; primers: Remington 2 1/2; primer size: Large Pistol; Lyman shell holder: No. 2; firearm used: Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .450"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
185	Hornady HP-XTP or FMJ SWC	5.5	853
185	Hornady HP-XTP or FMJ SWC	5.8	911
185	Hornady HP-XTP or FMJ SWC	6.1	969	maximum load
Using 185 GR Hornady Bullets This data was shot by Brian Pearce, Wolfe Publishing Company. Gun: Ruger SR1911; barrel length: 5 inches; case: Starline; primer: Winchester Large Pistol; bullet diameter: .451"; HP-XTP COAL: 1.225"; FMJ SWC COAL: 1.135"; maximum COAL: 1.275"; maximum case length: .898"; trim to length: .888".
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Hornady HP-XTP	5.0	820
200	Hornady HP-XTP	5.3	855
200	Hornady HP-XTP	5.6	890	maximum load
200	Hornady SWC or L-C/T	4.6	799
200	Hornady SWC or L-C/T	5.0	850
200	Hornady SWC or L-C/T	5.3	901
200	Hornady SWC or L-C/T	5.7	951	maximum load
Using 200 GR Hornady Bullets This data was shot by Brian Pearce, Wolfe Publishing Company. Gun: Ruger SR1911; barrel length: 5 inches; case: Starline; primer: Winchester Large Pistol; bullet diameter: .451"; HP-XTP COAL: 1.230"; SWC COAL: 1.200"; L-C/T COAL: 1.225"; maximum COAL: 1.275"; maximum case length: .898"; trim to length: .888".
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
230	Hornady HP-XTP or HAP	4.3	706
230	Hornady HP-XTP or HAP	4.5	746
230	Hornady HP-XTP or HAP	4.8	785	maximum load
230	Hornady LRN	4.2	724
230	Hornady LRN	4.6	789
230	Hornady LRN	5.1	854	maximum load
Using 230 GR Hornady Bullets This data was shot by Brian Pearce, Wolfe Publishing Company. Gun: Ruger SR1911; barrel length: 5 inches; case: Starline; primer: Winchester Large Pistol; bullet diameter: .451"; HP-XTP and HAP COAL: 1.230"; LRN COAL: 1.245"; maximum COAL: 1.275"; maximum case length: .898"; trim to length: .888".
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
185	Nosler Custom Competition JHP	5.7	980	max
185	Nosler Custom Competition JHP	5.2	916	most accurate load tested
185	Nosler Custom Competition JHP	4.7	852
230	Nosler Sporting Handgun Pistol FMJ or JHP	4.7	802	max
230	Nosler Sporting Handgun Pistol FMJ or JHP	4.2	708	most accurate load tested
230	Nosler Sporting Handgun Pistol FMJ or JHP	3.7	616
Using Nosler Bullets Handgun; case: Winchester; primer: Fed. 150; barrel length/make: 5" Douglas; twist: 1-16"; bullets: 185 GR Nosler Custom Competition JHP or 230 GR Nosler Sporting Handgun Pistol FMJ or JHP; OACL: 1.200"; maximum OACL: 1.275". Use Maximum Loads with Caution
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
160	Saeco (Redding) #063	5.3	922	sugg. start load; 12,000 cup
160	Saeco (Redding) #063	5.9	1041	max load; 15,800 cup
170	Saeco (Redding) #062	5.2	925	sugg. start load; 13,300 cup
170	Saeco (Redding) #062	5.8	1038	max load; 17,500 cup
160 & 170 GR (Lyman Cast Bullet Data) cases: Federal; trim-to length: .888"; primers: CCI 300; primer size: Large Pistol; Lyman shell holder: No. 2; cast bullets used sized to .451" dia.; firearm used: Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .450"; 160 grain OAL: 1.255"; 170 grain OAL: 1.250" Lyman Cast Bullet Handbook 4th Edition
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
180	Lyman #452374 HP	5.3	979	sugg. start load; 13,700 cup
180	Lyman #452374 HP	5.8	1053	max load; 17,900 cup
185	RCBS #45-185-SWC-BB	4.8	897	sugg. start load; 14,100 cup
185	RCBS #45-185-SWC-BB	5.3	944	max load; 17,100 cup
180 & 185 GR (Lyman Cast Bullet Data) cases: Federal; trim-to length: .888"; primers: CCI 300; primer size: Large Pistol; Lyman shell holder: No. 2; cast bullets used sized to .451" dia.; firearm used: Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .450"; 180 grain OAL: 1.190"; 185 grain OAL: 1.180" Lyman Cast Bullet Handbook 4th Edition
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Lyman #452460	4.5	813	sugg. start load; 13,800 cup; primer: CCI 300
200	Lyman #452460	5.1	895	max load; 17,300 cup; primer: CCI 300
200	Lyman #452630	4.8	801	sugg. start load; 12,200 cup; primer: CCI 300
200	Lyman #452630	5.4	920	max load; 17,100 cup; primer: CCI 300
200 GR (Lyman Cast Bullet Data) cases: Remington (except where otherwise specified in remarks); trim-to length: .888"; primers: Remington 2 1/2 (except where otherwise specified in remarks); primer size: Large Pistol; Lyman shell holder: No. 2; cast bullets used sized to .451" dia.; firearm used; Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .450"; Lyman #452460 OAL: 1.161"; Lyman #452630 OAL: 1.235" (Lyman Cast Bullet Manual 4th Edition)
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
215	Saeco (Redding) #058	4.8	859	sugg. start load; 14,000 cup
215	Saeco (Redding) #058	5.3	952	max load; 17,800 cup
230	Lee #TL452-230-TC	4.2	804	sugg. start load; 13,600 cup
230	Lee #TL452-230-TC	4.7	871	max load; 17,900 cup
215 & 230 GR (Lyman Cast Bullet Data) cases: Federal; trim-to length: .888"; primers: CCI 300; primer size: Large Pistol; Lyman shell holder: No. 2; cast bullets used sized to .451" dia.; firearm used: Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .450"; 215 grain OAL: 1.185"; 230 grain OAL: 1.170" Lyman Cast Bullet Handbook 4th Edition
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
225	Lyman #452374	4.5	735	sugg. start load; 11,200 cup; primer: CCI 300
225	Lyman #452374	5.1	841	max load; 16,100 cup; primer: CCI 300
225 GR (Lyman Cast Bullet Data) cases: Remington (except where otherwise specified in remarks); trim-to length: .888"; primers: Remington 2 1/2 (except where otherwise specified in remarks); primer size: Large Pistol; Lyman shell holder: No. 2; cast bullets used sized to .451" dia.; firearm used; Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .450"; OAL: 1.272" (Lyman Cast Bullet Manual 4th Edition)
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
250	Round Nose Flat Point	3.8	725
IPSC Heavy-Bullet Major Loads + P (Oregon Trail Handgun Data) test gun: Entreprise 1911 frame, 5" Bar-Sto barrel, WLP; OAL: 1.168; use these loads exactly as listed; these are MAXIMUM loads - do not exceed charges, or shorten overall lengths; do not fire these loads in pre-1950 revolvers; for use in pistols with fully supported chambers only
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Semi Wad Cutter	4.2	797	starting load
200	Semi Wad Cutter	4.7	856	maximum load
225	Flat Point	3.9	680	starting load
225	Flat Point	4.3	768	maximum load
230	Round Nose	3.9	701	starting load
230	Round Nose	4.3	783	maximum load
Standard Loads (Oregon Trail Handgun Data) test gun: Entreprise 1911 frame, 5" Bar-Sto barrel, WLP; 180 and 200 gr Semi Wad Cutter OAL: 1.250; 225 Flat Point OAL: 1.205; 230 Round Nose OAL: 1.260; do not exceed maximum loads; never reduce stated overall lengths
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
185	Sierra JHP	5.9	929	sandbag rest group (inches): 1.60; HAMMR rest group (inches): 1.91
230	Sierra JHP	5.2	847	sandbag rest group (inches): 1.97
Automatic in a Colt Gold Cup National Match All loads used Remington cases and Federal Large Pistol Match primers. Group size is the average of five shots at 25 yards. Velocity measured at 10 feet.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
220	Lyman 452374 RN	5.0	899
223	RCBS 45-230-CM RN/FP	5.0	860
227	Oregon Trail RN	5.0	844
230	Zero Bullet FMJ	5.0	821
Ball Duplication Loads in a Colt Loads were fired in a Colt 1911A1 5-inch barrel. Handgun was a new reproduction of an original version and was manufactured in the first seven years of the twenty-first century. All chronograph readings are for five shots with the start screen at approximately 6 feet. Bullets cast were poured of straight Linotype, which is why their actual listed weights do not coincide with catalog weights, sized .451 inch and lubed with SPG. Oregon Trail commercially cast bullets were sized .452 inch and lubed with its proprietary lubricant. All primers were Winchester Large Pistol. Cases were not sorted by brand. Handloads fired in the Model 1911 autoloader were taper crimped.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
223	RCBS 45-230-CM RN/FP	5.0	855
227	Oregon Trail RN	5.0	866
230	Zero Bullet FMJ	5.0	801
Ball Duplication Loads in an S&W Loads were fired in an S&W M1917 5.5-inch barrel. Handgun was a new reproduction of an original version and was manufactured in the first seven years of the twenty-first century. All chronograph readings are for five shots with the start screen at approximately 6 feet. Bullets cast were poured of straight Linotype, which is why their actual listed weights do not coincide with catalog weights, sized .451 inch and lubed with SPG. Oregon Trail commercially cast bullets were sized .452 inch and lubed with its proprietary lubricant. All primers were Winchester Large Pistol. Cases were not sorted by brand. Handloads fired in the Model 1917 revolver were roll crimped. If velocities for the Oregon Trail bullets in the revolver seem slightly high, it is most likely because they had to be seated deeper than the same bullets when loaded for autoloaders in order to apply a roll crimp over the front edge of the driving band.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Cast #452460	4.5	813	sugg. start load; 1.161" OAL; primer: CCI 300; 13,800 cup
200	Cast #452460	5.1	895	max load; 1.161" OAL; primer: CCI 300; 17,300 cup
200	Cast #452630	4.8	801	sugg. start load; 1.235" OAL; primer: CCI 300; 12,200 cup
200	Cast #452630	5.4	920	max load; 1.235" OAL; primer: CCI 300; 17,100 cup
225	Cast #452374	4.5	735	sugg. start load; 1.272" OAL; primer: CCI 300; 11,200 cup
225	Cast #452374	5.1	841	max load; 1.272" OAL; primer: CCI 300; 16,100 cup
Cast Bullet Data Lyman Reloading Handbook 49th Edition cases: Remington (except where otherwise specified in remarks); trim-to length: .888"; primers: Remington 2 1/2 (except where otherwise specified in remarks); primer size: Large Pistol; Lyman shell holder: No. 2; cast bullets used sized to .451" dia.; firearm used: Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .450"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
223	RCBS 45-230-CM RN/FP	5.0	884	powerful
230	Oregon Trail roundnose	5.0	870	hotter than factory
Colt Model 1911A1 (new) (Autoloading Pistol Loads) 5-inch barrel. Group shooting was done from a sandbag rest at 25 yards in five-shot strings. Chronographing done with an Oehler Model 35P with start screen at approximately 6 feet. All brass was Starline. All primers were CCI Small or Large Pistol as proper. All bullets cast were poured of Linotype and lubed with SPG. Sizing diameter: .452 inch;
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Speer Gold Dot HP	4.5	781
200	Speer Gold Dot HP	5.5	974	possible self-defense load
Handload Data Loads were fired from a 5-inch barreled Kimber Model 1911 Custom Classic. Starline cases and Federal Gold Medal Match 150 primers were used throughout.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Hornady FMJ-C/T	5.5	953
in a Kimber 1911 The .45 ACP Kimber Classic Model Custom's maximum case length is .898 inch; trim-to length is .888 inch. Starline cases used in all loads, and all handguns have barrel lengths of 5 inches. Primer: Federal 150 Gold Match.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Hornady lead C/T	4.4	830	very accurate
200	Hornady lead C/T	5.0	916	some leading
in a Kimber Custom Classic Warning! Barrel length: 5 inches. Starline brass and Federal Gold Medal 150 Match primers used throughout. Temperature during testing was 75 degrees.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Hornady lead C/T	4.4	811
200	Hornady lead C/T	5.0	884	some lead fouling
in an S&W Model 625-6 Warning! Barrel length: 4 inches. Starline brass and Federal Gold Medal 150 Match primers used throughout. Temperature during testing was 75 degrees.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Hornady lead C/T	4.4	827	overall loaded length (inches): 1.202
200	Hornady lead C/T	5.0	911	overall loaded length (inches): 1.202
200	Laser Cast SWC	4.5	874	overall loaded length (inches): 1.240
200	Laser Cast SWC	5.0	935	overall loaded length (inches): 1.240
200	Laser Cast SWC	5.5	994	overall loaded length (inches): 1.240
200	Montana/RCBS 45-201-SWC	4.5	880	overall loaded length (inches): 1.239
200	Montana/RCBS 45-201-SWC	5.0	959	overall loaded length (inches): 1.239
200	Montana/RCBS 45-201-SWC	5.5	997	overall loaded length (inches): 1.239
200	Montana/Lyman 452460	4.5	870	overall loaded length (inches): 1.161
200	Montana/Lyman 452460	5.5	989	overall loaded length (inches): 1.161
200	Montana LBT-RFN	4.5	808	overall loaded length (inches): 1.241
200	Montana LBT-RFN	5.5	957	overall loaded length (inches): 1.241
200	Hornady FMJ-C/T	4.5	772	overall loaded length (inches): 1.245
200	Hornady FMJ-C/T	5.5	953	overall loaded length (inches): 1.245
200	Hornady HP/XTP	4.5	777	overall loaded length (inches): 1.230
200	Hornady HP/XTP	5.5	977	overall loaded length (inches): 1.230
200	Sierra FPJ Match	4.5	766	overall loaded length (inches): 1.155
200	Sierra FPJ Match	5.5	941	overall loaded length (inches): 1.155
200	Speer Gold Dot hollowpoint	4.5	781	overall loaded length (inches): 1.200
200	Speer Gold Dot hollowpoint	5.5	974	overall loaded length (inches): 1.200
200	Speer SWC TMJ	4.5	751	overall loaded length (inches): 1.270
200	Speer SWC TMJ	5.5	920	overall loaded length (inches): 1.270
200	Speer Jacketed HP	4.5	785	overall loaded length (inches): 1.155
200	Speer Jacketed HP	5.5	959	overall loaded length (inches): 1.155
Load Data A Kimber Model 1911 Classic Custom Target with a 5-inch barrel (1-in-16-inch twist) was used to fire all loads. Starline cases and Federal Gold Medal Match 150 primers were used throughout. Maximum case length: .898 inch; trim length: .888 inch. Maximum overall cartridge length: 1.275 inches; minimum overall cartridge length: 1.190 inches.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Speer SWC/TMJ Match	5.5	958	overall loaded length (inches): 1.270
200	Hornady FMJ-C/T	5.0	902	overall loaded length (inches): 1.245
200	Oregon Trail cast SWC-BB	4.5	867	overall loaded length (inches): 1.240
Remington Enhanced Model 1911 R1 All loads used Federal Gold Medal Match 150 primers and Starline cases. Minimum cartridge OAL: 1.190 inches; maximum cartridge OAL: 1.275 inches; maximum case length: .898 inch; and trim length: .888 inch. Temperature was 33 degrees Fahrenheit during testing.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
185	Sierra JHP or FPJ Match	5.5	851	Sierra JHP COAL: 1.212 inches; Sierra FPJ Match COAL: 1.155 inches
185	Sierra JHP or FPJ Match	6.2	936	Sierra JHP COAL: 1.212 inches; Sierra FPJ Match COAL: 1.155 inches
185	Sierra JHP or FPJ Match	6.9	1025	Sierra JHP COAL: 1.212 inches; Sierra FPJ Match COAL: 1.155 inches
185	Sierra JHP or FPJ Match	7.6	1118	Sierra JHP COAL: 1.212 inches; Sierra FPJ Match COAL: 1.155 inches
185	Sierra JHP or FPJ Match	8.2	1211	Sierra JHP COAL: 1.212 inches; Sierra FPJ Match COAL: 1.155 inches
185	Sierra JHP or FPJ Match	8.9	1300	Sierra JHP COAL: 1.212 inches; Sierra FPJ Match COAL: 1.155 inches
185	Sierra JHP or FPJ Match	9.6	1385	Sierra JHP COAL: 1.212 inches; Sierra FPJ Match COAL: 1.155 inches; maximum load
200	Sierra FPJ Match	5.2	781	COAL: 1.155 inches
200	Sierra FPJ Match	5.6	837	COAL: 1.155 inches
200	Sierra FPJ Match	5.9	896	COAL: 1.155 inches
200	Sierra FPJ Match	6.3	958	COAL: 1.155 inches
200	Sierra FPJ Match	6.6	1022	COAL: 1.155 inches
200	Sierra FPJ Match	7.0	1075	COAL: 1.155 inches; maximum load
230	Sierra FMJ Match or JHP	5.2	829	Sierra FMJ Match COAL: 1.270 inches; Sierra JHP COAL: 1.210 inches
230	Sierra FMJ Match or JHP	5.5	868	Sierra FMJ Match COAL: 1.270 inches; Sierra JHP COAL: 1.210 inches
230	Sierra FMJ Match or JHP	5.8	915	Sierra FMJ Match COAL: 1.270 inches; Sierra JHP COAL: 1.210 inches
230	Sierra FMJ Match or JHP	6.1	962	Sierra FMJ Match COAL: 1.270 inches; Sierra JHP COAL: 1.210 inches
230	Sierra FMJ Match or JHP	6.4	1001	Sierra FMJ Match COAL: 1.270 inches; Sierra JHP COAL: 1.210 inches; maximum load
Revolver Handloading Data +P+ (using Sierra bullets) Warning! These loads were shot by Brian Pearce of Wolfe Publishing Co. Gun: Ruger New Model Blackhawk; Barrel Length: 5.5 inches; Case: Starline; Primer: Federal 150; Bullet Diameter: .451 inch and .452 inch (Sierra bullets: .4515 inch); Maximum COAL: 1.275 inches; Maximum Case Length: .898 inch; Trim to Length: .888 inch. WARNING: Many of the maximum loads in the accompanying data (developed in the Sierra lab) exceed both of these pressure guidelines. They were developed for large frame revolvers ONLY, such as the Ruger Blackhawk and Freedom Arms Model 83, or revolvers with similar strength. As a result, these loads are rated as +P+.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
230	roundnose	3.4	626	group (inches): 1.14; power factor: 144; great load
200	Hornady XTP	5.2	878	group (inches): 2.72; muzzle energy (ft-lb): 342
230	Hornady XTP	4.8	844	group (inches): 3.74; muzzle energy (ft-lb): 364
Taurus Stellar Tracker Taurus Stellar Tracker with a 4-inch barrel and open sights was used for testing. Accuracy is based on the average of three, five-shot groups at 15 yards from a benchrest.

.45 Auto Rim

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
155	Lead	5.1	965	start load; min OAL: 1.230
155	Lead	5.6	1041	never exceed; min OAL: 1.230; 14,450 cup
185	Jacketed	4.5	807	start load; min OAL: 1.195
185	Jacketed	4.9	880	never exceed; min OAL: 1.195; 14,450 cup
200	Jacketed	4.2	747	start load; min OAL: 1.155
200	Jacketed	4.7	813	never exceed; min OAL: 1.155; 14,365 cup
200	Lead	4.3	793	start load; min OAL: 1.225
200	Lead	4.9	880	never exceed; min OAL: 1.225; 14,280 cup
230	Jacketed	4.0	697	start load; min OAL: 1.200
230	Jacketed	4.3	753	never exceed; min OAL: 1.200; 14,195 cup
Lee Precision Data CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Hornady swaged lead C/T	4.4	816
All the velocities were obtained from a Model 625-6 with a 4-inch barrel, except where noted with a 6 1/2-inch barreled S&W Model 25-2. For reference, the 4-inch barrel was commonly producing around 10 to 30 fps less velocity than the 6 1/2-inch barrel. Starline cases and Federal 150 Gold Medal primers were used throughout. Maximum case length: .898 inch; trim-to length: .888 inch.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
223	RCBS 45-230CAS RN/FP	4.5	791	group (inches): 2.25
224	Redding/SAECO 453 WC	4.5	849	group (inches): 2.75
230	AA Limited RN/FP	4.5	829	group (inches): 2.38
in a Colt 1917 All group figures are for 10 rounds fired with the revolvers mounted in a Ransom Pistol Machine Rest. The RCBS and Redding/SAECO bullets cast by Mike were poured of 1/20 (tin to lead) alloy, sized .452 inch and lubed with SPG. The AA Limited and Laser Cast bullets were sized .452 inch. The Speer 225-grain JHP was .451 inch, and the Remington 250-grain RN/FP was .453 inch. All loads used Remington brass and Winchester Large Pistol primers and were assembled with a set of Lyman .45 ACP dies.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
223	RCBS 45-230CAS RN/FP	4.5	776	group (inches): 3.88
224	Redding/SAECO 453 WC	4.5	860	group (inches): 2.63; nine in 1.75 inches
230	AA Limited RN/FP	4.5	816	group (inches): 3.63; nine in 1.75 inches
in an S&W 1950 All group figures are for 10 rounds fired with the revolvers mounted in a Ransom Pistol Machine Rest. The RCBS and Redding/SAECO bullets cast by Mike were poured of 1/20 (tin to lead) alloy, sized .452 inch and lubed with SPG. The AA Limited and Laser Cast bullets were sized .452 inch. The Speer 225-grain JHP was .451 inch, and the Remington 250-grain RN/FP was .453 inch. All loads used Remington brass and Winchester Large Pistol primers and were assembled with a set of Lyman .45 ACP dies.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
223	RCBS 45-230CAS RN/FP	4.5	763	group (inches): 2.50
224	Redding/SAECO 453 WC	4.5	851	group (inches): 2.88
230	AA Limited RN/FP	4.5	828	group (inches): 3.00
in an S&W 1955 All group figures are for 10 rounds fired with the revolvers mounted in a Ransom Pistol Machine Rest. The RCBS and Redding/SAECO bullets cast by Mike were poured of 1/20 (tin to lead) alloy, sized .452 inch and lubed with SPG. The AA Limited and Laser Cast bullets were sized .452 inch. The Speer 225-grain JHP was .451 inch, and the Remington 250-grain RN/FP was .453 inch. All loads used Remington brass and Winchester Large Pistol primers and were assembled with a set of Lyman .45 ACP dies.

.45 Colt

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
160	Cast LRNFP	6.0	932	start load; COL: 1.500"; 6,000 cup
160	Cast LRNFP	7.0	1051	max load; COL: 1.500"; 9,100 cup
180	Cast LRNFP	6.0	918	start load; COL: 1.540"; 8,600 cup
180	Cast LRNFP	6.9	1020	max load; COL: 1.540"; 10,900 cup
200	Cast LRNFP	6.5	933	start load; COL: 1.600"; 9,300 cup
200	Cast LRNFP	7.7	1050	max load; COL: 1.600"; 12,700 cup
200	Hornady XTP	6.7	899	start load; COL: 1.600"; 9,600 cup
200	Hornady XTP	7.5	989	max load; COL: 1.600"; 12,700 cup
215	Cast LRNFP	6.2	881	start load; COL: 1.650"; 8,600 cup
215	Cast LRNFP	7.2	983	max load; COL: 1.650"; 12,100 cup
225	Hornady FTX	5.1	670	start load; COL: 1.600"; 9,700 psi
225	Hornady FTX	6.4	863	max load; COL: 1.600"; 13,200 psi
230	Cast LRNFP	5.8	857	start load; COL: 1.580"; 10,300 cup
230	Cast LRNFP	6.5	934	max load; COL: 1.580"; 13,000 cup
250	Cast LRNFP	5.0	716	start load; COL: 1.600"; 7,600 cup
250	Cast LRNFP	6.2	881	max load; COL: 1.600"; 13,000 cup
250	Hornady XTP	5.5	739	start load; COL: 1.595"; 9,700 cup
250	Hornady XTP	6.3	830	max load; COL: 1.595"; 12,700 cup
260	Speer JHP	5.5	661	start load; COL: 1.595"; 8,300 cup
260	Speer JHP	6.3	797	max load; COL: 1.595"; 12,500 cup
300	Sierra JFP	5.2	578	start load; COL: 1.670"; 11,300 cup
300	Sierra JFP	5.8	682	max load; COL: 1.670"; 12,900 cup
Hodgdon Pistol Data Case: Winchester; barrel length: 7.25"; twist: 1:16"; trim length: 1.280"; primer: Winchester LP; bullet diam.: .452". NEVER EXCEED MAXIMUM LOADS
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
160	Lead	6.0	919	start load; min. OAL: 1.480
160	Lead	7.0	1051	never exceed; OAL: 1.480; 9,100 cup
180	Lead	6.0	900	start load; min. OAL: 1.540
180	Lead	6.9	1020	never exceed; OAL: 1.540; 10,900 cup
200	Lead	6.5	900	start load; min. OAL: 1.600
200	Lead	7.7	1050	never exceed; min. OAL: 1.600; 12,700 cup
200	XTP	6.7	890	start load; min. OAL: 1.600
200	XTP	7.5	989	never exceed; min OAL: 1.600; 12,700 cup
215	Lead	6.2	861	start load; min. OAL: 1.650
215	Lead	7.2	983	never exceed; min. OAL: 1.650; 12,100 cup
230	Lead	5.8	841	start load; min. OAL: 1.580
230	Lead	6.5	934	never exceed; min. OAL: 1.580; 13,000 cup
250	Lead	5.5	793	start load; min. OAL: 1.600
250	Lead	6.2	881	never exceed; min. OAL: 1.600; 13,000 cup
250	XTP	5.5	733	start load; min. OAL: 1.595
250	XTP	6.3	830	never exceed; min. OAL: 1.595; 12,700 cup
260	XTP	5.5	705	start load; min. OAL: 1.595
260	XTP	6.3	797	never exceed; min. OAL: 1.595; 12,500 cup
300	Jacketed	5.2	622	start load; min. OAL: 1.670
300	Jacketed	5.8	682	never exceed; min. OAL: 1.670; 12,900 cup
Lee Precision Data Large Pistol primer; with NEVER EXCEED LOADS maintain Minimum Over All Length or longer
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Round Nose Flat Point	5.5	743	starting load
200	Round Nose Flat Point	7.4	966	maximum load
250	Round Nose Flat Point	5.2	722	starting load
250	Round Nose Flat Point	6.3	839	maximum load
Oregon Trail Handgun Data test gun: Vaquero 4 3/4", WLP; standard velocity/cowboy loads; these loads are safe for use in Colt SAA and clones; 200 grain OAL: 1.575; 250 grain OAL: 1.580; never reduce stated overall lengths; do not exceed maximum loads
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
240	Sierra JHC	8.0	1028	start load; COL: 1.600"; 19,000 cup
240	Sierra JHC	10.0	1157	max load; COL: 1.600"; 29,100 cup
250	Hornady XTP	8.0	983	start load; COL: 1.600"; 21,100 cup
250	Hornady XTP	9.5	1124	max load; COL: 1.600"; 29,100 cup
260	Nosler Part	8.0	945	start load; bullet diam.: .451"; COL: 1.650"; 21,900 cup
260	Nosler Part	9.3	1065	max load; bullet diam.: .451"; COL: 1.650"; 28,800 cup
300	Speer JFP	7.5	851	start load; bullet diam.: .451"; COL: 1.650"; 20,400 cup
300	Speer JFP	9.0	1004	max load; bullet diam.: .451"; COL: 1.650"; 28,500 cup
Ruger, Freedom Arms & T/C Only. Hodgdon Data The data is intended for 45 Colt Ruger Blackhawk, Freedom Arms, and Thompson Center Contender/Encore Handguns. Max pressure, 30,000 CUP. DO NOT USE THIS DATA IN ANY OTHER MAKE OR MODEL OF FIREARM. Case: Winchester; twist: 1:16"; primer: Winchester LP; barrel length: 7.25"; trim length: 1.280"; bullet diam.: .452" (except where otherwise specified in remarks). NEVER EXCEED MAXIMUM LOADS
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
225	Speer CAV	5.6	954	start charge
225	Speer CAV	6.2	1013	maximum charge
Speer Reloading Manual #14 max. case length: 1.285"; trim-to length: 1.275"; max cart. OAL: 1.600"; RCBS shell holder: #20; cart. case: Winchester; primer: CCI 300; test firearm: Winchester Model 95 "Trapper"; barrel length: 16"; bullets: 225-grain Speer CAV or 230-grain Speer CM; bullets were cast in RCBS moulds; maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
233	Redding/SAECO 453 WC	6.5	810	sized .454 inch; group (inches): 1.38
233	RCBS 45-230-CM RN/FP	6.5	753	sized .454 inch; group (inches): 1.88
250	NEI 324 RN/FP	6.0	769	sized .454 inch; group (inches): 1.00
250	NEI 324 RN/FP	6.0	765	sized .452 inch; group (inches): 1.63
264	Redding/SAECO 955 RN/FP	5.5	711	sized .454 inch; group (inches): 2.13
264	Redding/SAECO 955 RN/FP	5.5	692	sized .452 inch; group (inches): 2.00
United States Fire Arms - 4 3/4 Inch Barrel total for all 29 five-shot groups, including all fliers: 1.85 inches. All group figures are for five rounds fired with handguns mounted in a Ransom Pistol Machine Rest. Range was 25 yards. Chronograph notes are for the same five rounds taken with an Oehler Model 35P with start screen at approximately 6 feet. All handloads used Starline brass with Winchester Large Pistol primers, and all bullets were cast and lubed with SPG. Sizing diameters are as noted.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Cast #452460	6.1	928	sugg. start load; 1.550" OAL; 10,200 cup
200	Cast #452460	6.8	1021	max load; 1.550" OAL; 12,900 cup
250	Cast #454190	5.6	803	sugg. start load; 1.600" OAL
250	Cast #454190	6.2	876	max load; 1.600" OAL
250	Cast #452664	5.6	814	sugg. start load; 1.570" OAL; potentially most accurate load
250	Cast #452664	6.2	881	max load; 1.570" OAL
255	Cast #452424	5.6	816	sugg. start load; 1.575" OAL
255	Cast #452424	6.2	896	max load; 1.575" OAL
Cast Bullet Handgun Data Lyman Reloading Handbook 49th Edition cases: Winchester; trim-to length: 1.275"; primers: Winchester WLP; primer size: Large Pistol; Lyman shell holder: No. 11; cast bullets used sized to .452" dia.; firearm used: Universal Receiver & Ruger Blackhawk; barrel length: 7 1/2"; twist: 1-16"; groove dia.: .451"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
225	Speer CAV or 230 CM	5.6	775	start charge
225	Speer CAV or 230 CM	6.2	832	maximum charge
200	Speer GDHP	6.2	788	start charge
200	Speer GDHP	6.8	865	maximum charge
Handgun Speer Reloading Manual #14 max. case length: 1.285"; trim-to length: 1.275"; max cart. OAL: 1.600"; RCBS shell holder: #20; cart. case: Winchester; primer: CCI 300 (except where otherwise specified in remarks); test firearm: Colt Single Action Army; barrel length: 5.5"; NOTE: the 255 SWC, 225 CAV & 230 CM bullets were cast in RCBS moulds; maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
250	Hornady Jacketed HP/XTP	5.6	653	sugg. start load; 1.590" OAL
250	Hornady Jacketed HP/XTP	6.3	803	max load; 1.590" OAL
230	Speer Swaged Lead FN	6.3	895	sugg. start load; 1.590" OAL; 10,800 cup; potentially most accurate load
230	Speer Swaged Lead FN	7.0	971	max load; 1.590" OAL; 13,500 cup
Handgun Data Lyman Reloading Handbook 49th Edition cases: Winchester; trim-to length: 1.275"; primers: Winchester WLP; primer size: Large Pistol; Lyman shell holder: No. 11; firearms used: Universal Receiver & Ruger Blackhawk; barrel length: 7 1/2"; twist: 1-16"; groove dia.: .451"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
240	Sierra JHC	8.0	928	overall loaded length (inches): 1.5825
240	Sierra JHC	8.5	957	overall loaded length (inches): 1.5825
280	RCBS cast 45-270-SAA	7.5	988	overall loaded length (inches): 1.653
in a Ruger New Model Blackhawk (+P Pressure 23,000 psi) These loads exceed SAAMI pressure limits for the .45 Colt and should only be used in Ruger New Model Blackhawk revolvers, or firearms of similar strength. Barrel length: 5 1/2 inches; Starline cases used throughout. CCI 300 primers used in all loads except with H-110 powder, where Federal 155 primers were used. Temperature during testing was 70 to 85 degrees Fahrenheit.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Speer JHP	7.1	867	overall loaded length (inches): 1.555; potentially the most accurate powder with that bullet
200	Hornady HP-XTP	7.5	925	overall loaded length (inches): 1.550; taper crimp applied; potentially the most accurate powder with that bullet
225	Speer JHP	7.2	848	overall loaded length (inches): 1.587; potentially the most accurate powder with that bullet
250	Speer Gold Dot HP	6.7	820	overall loaded length (inches): 1.576
200	Oregon Trail cast RNFP	7.0	945	overall loaded length (inches): 1.5845
225	Rim Rock DE Wad-Cutter	5.0	785	overall loaded length (inches): 1.370
225	Rim Rock DE Wad-Cutter	6.0	910	overall loaded length (inches): 1.370
225	Rim Rock DE Wad-Cutter	6.5	967	overall loaded length (inches): 1.370; potentially the most accurate powder with that bullet
250	Speer lead SWC	5.7	710	overall loaded length (inches): 1.6155
250	Speer lead SWC	6.2	765	overall loaded length (inches): 1.6155
255	Hornady lead FP	5.2	708	overall loaded length (inches): 1.580
255	Hornady lead FP	5.7	765	overall loaded length (inches): 1.580
255	Hornady lead FP	6.2	826	overall loaded length (inches): 1.580; potentially the most accurate powder with that bullet
255	Rim Rock cast SWC GC	6.2	838
255	Rim Rock cast SWC GC	6.7	886	overall loaded length (inches): 1.580
280	RCBS cast 45-270-SAA	6.0	810	overall loaded length (inches): 1.653
280	RCBS cast 45-270-SAA	6.5	840	overall loaded length (inches): 1.653
280	RCBS cast 45-270-SAA	7.0	911	overall loaded length (inches): 1.653
in a Ruger New Model Blackhawk (Std. Pressure 14,000 psi) Loads fired in a 5 1/2-inch barrel. Starline cases and CCI 300 primers used throughout. Temperature during testing ranged from 70 to 92 degrees Fahrenheit.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
250	Oregon Trail RN/FP	6.0	1,012	group: 2.250
in an EMF Model 1892 (Venturino Lever Gun Data) test gun: EMF Model 1892 24"; Starline Brass; CCI-300 Standard Large Pistol Primers; group - 10 shots @ 25 yds. ("Shooting Lever Guns of the Old West")
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
285	RCBS 45-270-SAA cast	7.5	986	maximum, excellent accuracy
Load Data ( 14,000 psi) primer: CCI 300
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
280	RCBS 45-270-SAA cast	8.5	1,052
Load Data (20,000 psi) primer: CCI 300 except where specified otherwise in remarks
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
280	RCBS 45-270-SAA	10.5	1,182	primer: CCI 300
Load Data (32,000 cup)
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Speer JHP	7.1	853
250	Speer lead SWC	6.2	755
255	Hornady lead FP	6.0	809
New Frontier Handloads All loads fired from a 4 3/4-inch barreled Colt New Frontier. Starline cases and CCI 300 primers used throughout.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Hornady SWC or L-C/T	5.7	837
200	Hornady SWC or L-C/T	6.2	875
200	Hornady SWC or L-C/T	6.6	914
200	Hornady SWC or L-C/T	7.1	957
200	Hornady SWC or L-C/T	7.5	997	maximum load
Revolver (Using 200 GR Hornady Bullets) This data was shot by Brian Pearce, Wolfe Publishing Company. Gun: Ruger New Model (Bisley) Blackhawk; barrel length: 5 1/2 inches; case: Starline; primer: Winchester WLP; bullet diameter: .452"; COAL: 1.595"; maximum COAL: 1.600"; maximum case length: 1.285"; trim to length: 1.275";
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
250	Hornady HP-XTP	5.4	680
250	Hornady HP-XTP	5.7	703
250	Hornady HP-XTP	6.0	726
250	Hornady HP-XTP	6.3	750	maximum load
Revolver (using 250 GR Hornady Bullets) This data was shot by Brian Pearce, Wolfe Publishing Company. Gun: Ruger New Model (Bisley) Blackhawk; barrel length: 5 1/2 inches; case: Starline; primer: Winchester WLP; bullet diameter: .452"; COAL: 1.595"; maximum COAL: 1.600"; maximum case length: 1.285"; trim to length: 1.275";
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
255	Hornady FP Cowboy	4.5	641
255	Hornady FP Cowboy	4.9	683
255	Hornady FP Cowboy	5.2	725
255	Hornady FP Cowboy	5.6	768	maximum load
Revolver (Using 255 GR Hornady Bullets) This data was shot by Brian Pearce, Wolfe Publishing Company. Gun: Ruger New Model (Bisley) Blackhawk; barrel length: 5 1/2 inches; case: Starline; primer: Winchester WLP; bullet diameter: .452"; COAL: 1.575"; maximum COAL: 1.600"; maximum case length: 1.285"; trim to length: 1.275";
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
233	Redding/SAECO 453 WC	6.5	899	sized .454 inch; group (inches): 1.88
233	RCBS 45-230-CM RN/FP	6.5	852	sized .454 inch; group (inches): 2.00
250	NEI 324 RN/FP	6.0	847	sized .454 inch;(group (inches): 2.63
250	NEI 324 RN/FP	6.0	838	sized .452 inch; group (inches): 2.50; four shots in 1.5 inches
264	Redding/SAECO 955 RN/FP	5.5	778	sized .454 inch; group (inches): 2.38
264	Redding/SAECO 955 RN/FP	5.5	759	sized .452 inch; group (inches): 1.75
Single Action Army (7 1/2-Inch Barrel) Colt Single Action Army (Peacemaker Centennial) - 7 1/2-inch barrel. Total for all 29 groups, including all fliers: 2.17 inches. All group figures are for five rounds fired with handguns mounted in a Ransom Pistol Machine Rest. Range was 25 yards. Chronograph notes are for the same five rounds taken with an Oehler Model 35P with start screen at approximately 6 feet. All handloads used Starline brass with Winchester Large Pistol primers, and all bullets were cast and lubed with SPG. Sizing diameters are as noted.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
250	Oregon Trail Laser-Cast RNFP	6.2	860
Traditional Handload Data All loads, fired from a 4 3/4-inch barreled USFA Pre-War SAA, produced between 850 and 870 fps average velocity and are thus listed at 860 fps to more or less duplicate traditional .45 Colt ballistics. Starline cases and CCI 300 Large Pistol primers were used throughout. Overall loaded length: 1.575 inches. Bullet diameter: .452 inch used herein (.454 inch suggested for guns with throats .454 or larger); maximum case length: 1.285 inches; trim-to case length: 1.275 inches.

.45 GAP / .45 G.A.P.

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
185	Hornady Jacketed HP	4.4	874	start load; 18,900 psii; 1.060" OAL
185	Hornady Jacketed HP	5.0	982	max load; 22,400 psii; 1.060" OAL
200	Speer Jacketed HP	4.2	833	start load; 19,500 psi; 1.080" OAL
200	Speer Jacketed HP	4.7	920	max load; 22,500 psi; 1.080" OAL
200	Lyman Cast #452630	4.2	929	start load; 19,700 psi; 1.080" OAL
200	Lyman Cast #452630	4.7	1005	max load; 22,300 psi; 1.080" OAL
225	Lyman Cast #452374	4.0	876	start load; 19,700 psi; 1.135" OAL
225	Lyman Cast #452374	4.5	951	max load; 22,700 psi; 1.135" OAL
200	Lyman Cast #452460	4.2	929	start load; 20,700 psi; 1.030" OAL
200	Lyman Cast #452460	4.7	1004	max load; 22,300 psi; 1.030" OAL
Lyman Reloading Handbook 49th Edition cases: Winchester; trim-to length: .755"; primers: Winchester WSP; primer size: Small Pistol; Lyman Shell Holder: No. 2; cast bullets sized to .451" dia.; firearm used: Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .450"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
185	Speer TMJ FN	5.3	956	start charge
185	Speer TMJ FN	5.9	1041	max charge
185	Speer GDHP	5.1	934	start charge
185	Speer GDHP	5.6	994	max charge
200	Speer TMJ FN	4.9	891	start charge
200	Speer TMJ FN	5.4	965	max charge
200	Speer GDHP	4.6	865	start charge
200	Speer GDHP	5.1	940	max charge
Speer Handgun Data Reloading Manual #14 max. case length: 0.760"; trim-to length: 0.750"; max cart. OAL: 1.137"; RCBS Shell Holder: #3; cart. case: Speer; primer: CCI 500; test firearm: Glock Model 37; barrel length: 4.5"; maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
155	LSWC Cast	4.7	1,014	starting load; psi: 17,500
155	LSWC Cast	5.3	1,152	maximum load; psi: 21,300
185	Hornady XTP	4.3	875	starting load; psi: 18,200
185	Hornady XTP	4.9	974	maximum load; psi: 21,300
200	Speer GDHP	4.1	829	starting load; psi: 18,300
200	Speer GDHP	4.6	908	maximum load; psi: 21,700
Hodgdon Pistol Data Never exceed the loads listed here. case: Speer; BBL: 5 inches; PR: Winchester SP; twist: 1:16 inches; trim: .750 inch

.45 Smith & Wesson Schofield / .45 S&W Schofield

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	LRNFP	4.5	715	starting load; 6,700 cup
200	LRNFP	6.0	925	maximum load; 12,100 cup
230	LRNFP	4.5	702	starting load; 7,800 cup
230	LRNFP	5.8	866	maximum load; 12,300 cup
250	LRNFP	4.5	716	starting load; 7,900 cup
250	LRNFP	5.3	811	maximum load; 11,600 cup
Hodgdon Pistol Data case: Starline; barrel length: 5"; twist: 1:16"; trim length: 1.095"; primer: Winchester LP; bullet diam.: .452"; COL: 1.430"; NEVER EXCEED MAXIMUM LOADS
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Lead Round Nose Flat Point	5.0	812	starting load; 7,900 cup
200	Lead Round Nose Flat Point	6.0	925	maximum load; 12,100 cup
230	Lead Round Nose Flat Point	5.0	767	starting load; 8,900 cup
230	Lead Round Nose Flat Point	5.8	866	maximum load; 12,300 cup
250	Lead Round Nose Flat Point	4.5	716	starting load; 7,900 cup
250	Lead Round Nose Flat Point	5.3	811	maximum load; 11,600 cup
Hodgdon Cowboy Action Data NEVER exceed maximum loads
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
230	AA Limited conical	4.4	727	USFA
230	AA Limited conical	4.4	742	Colt SAA
233	RCBS 45-230-CM RN/FP	4.4	724	USFA
233	RCBS 45-230-CM RN/FP	4.4	731	Colt SAA
240	Redding/SAECO 954 FN/FP	4.4	692	USFA
240	Redding/SAECO 954 FN/FP	4.4	699	Colt SAA
250	Remington swaged hollowbase conical	4.4	616	USFA
250	Remington swaged hollowbase conical	4.4	651	Colt SAA
255	Hornady swaged flatbase RN/FP	4.4	657	USFA
255	Hornady swaged flatbase RN/FP	4.4	671	Colt SAA
In a USFA & a Colt SAA All chronographing done with start screen at approximately 6 feet. Chronograph figures are for five-round strings. All handloads used Starline brass and Winchester Large Pistol Primers. All bullets cast were poured of 1-20 (tin-to-lead) alloy, sized .454 inch and lubed with SPG. Commercial swaged bullets and AA Limited custom cast bullets were also .454 inch in diameter. Both handguns had 7 1/2-inch barrels
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Cast #452460	4.9	864	sugg. start load; 1.340" OAL; 8,600 cup
200	Cast #452460	5.5	936	max load; 1.340" OAL; 11,400 cup
250	Cast #454190	4.1	735	sugg. start load; 1.390" OAL; 9,200 cup
250	Cast #454190	4.6	794	max load; 1.390" OAL; 11,000 cup
250	Cast #452664	4.3	725	sugg. start load; 1.390" OAL; 8,400 cup
250	Cast #452664	4.8	797	max load; 1.390" OAL; 10,700 cup
255	Cast #452424	4.3	751	sugg. start load; 1.460" OAL; 8,600 cup
255	Cast #452424	4.9	817	max load; 1.460" OAL; 10,600 cup
Lyman Reloading Handbook 49th Edition cases: Starline; trim-to length: 1.095"; primers: Winchester WLP; primer size: Large Pistol; Lyman shell holder: No. 14B; cast bullets used sized to .452" dia.; firearm used: Universal Receiver; barrel length: 7 1/2"; twist: 1-16"; groove dia.: .451"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
225	Speer CAV	4.0	648	start charge
225	Speer CAV	4.4	713	maximum charge
Speer Reloading Manual #14 Cowboy Action Shooting Data; max. case length: 1.090"; trim-to length: 1.080"; max cart. OAL: 1.430"; RCBS shell holder: #35; cart. case: Starline; primer: CCI 300; test firearm: Colt Single Action Army; barrel length: 5.5"; a 230-GR Speer CM can also be used for these loads; NOTE: these bullets were cast in RCBS moulds; maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Round Nose Flat Point	6.0	873
Cowboy Loads (Oregon Trail Handgun Data) test gun: Smith & Wesson 6", WLP; OAL: 1.39; never reduce stated overall lengths; DO NOT EXCEED THESE LOADS! Use only in modern .45 Colt revolvers or S&W Schofield reproductions in excellent condition. Original S&W top break revolvers should never be fired with smokeless powder loads!

.45 Super

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
185	Hornady Jacketed Semi-Wadcutter	5.0	877	starting load; dia: .451"; COL: 1.195"; 13,400 cup
185	Hornady Jacketed Semi-Wadcutter	6.2	1,055	maximum load; dia: .451"; COL: 1.195"; 19,800 cup
200	Speer Jacketed Hollow Point	4.7	812	starting load; dia: .451"; COL: 1.155"; 13,700 cup
200	Speer Jacketed Hollow Point	5.8	986	maximum load; dia: .451"; COL: 1.155"; 19,600 cup
230	Hornady Full Metal Jacket Flat Point	4.4	670	starting load; dia: .451"; COL: 1.200"; 15,900 cup
230	Hornady Full Metal Jacket Flat Point	5.4	906	maximum load; dia: .451"; COL: 1.200"; 19,600 cup
Hodgdon Pistol Data case: Winchester; twist: 1:16"; barrel: 5"; trim: .893"; primer: Federal 150; NEVER EXCEED MAXIMUM LOADS

.450 Extreme Pistol

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
240	Hornady XTP-Mag.	12.0	1,417	starting load; bullet diam.: .452"; COL: 1.725"; 40,000 PSI
240	Hornady XTP-Mag.	13.2	1,495	maximum load; bullet diam.: .452"; COL: 1.725"; 45,000 PSI
260	Hornady XTP-Mag.	11.3	1,303	starting load; bullet diam.: .452"; COL: 1.725"; 38,700 PSI
260	Hornady XTP-Mag.	12.0	1,368	maximum load; bullet diam.: .452"; COL: 1.725"; 44,800 PSI
265	Cast Performance Bullet LFP/GC	11.5	1,351	starting load; bullet diam.: .453"; COL: 1.670"; 40,300 PSI
265	Cast Performance Bullet LFP/GC	12.2	1,409	maximum load; bullet diam.: .453"; COL: 1.670"; 45,100 PSI
300	Hornady XTP-Mag.	10.0	1,157	starting load; bullet diam.: .452"; COL: 1.725"; 39,400 PSI
300	Hornady XTP-Mag.	10.8	1,205	maximum load; bullet diam.: .452"; COL: 1.725"; 45,000 PSI
Hodgdon Pistol Data case: Starline; barrel length: 8"; twist: 1:24"; trim length: 1.340"; primer: CCI350; NEVER EXCEED MAXIMUM LOADS

.454 Casull

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
240	Sierra JHC	10.0	1214	start load; bullet diam.: .452"; COL: 1.680"; 24,500 cup
240	Sierra JHC	11.0	1309	max load; bullet diam.: .452"; COL: 1.680"; 34,700 cup
250	Nosler JHP	9.7	1193	start load; bullet diam.: .451"; COL: 1.700"; 24,600 cup
250	Nosler JHP	11.2	1298	max load; bullet diam.: .451"; COL: 1.700"; 36,000 cup
260	Speer JHP	9.5	1159	start load; bullet diam.: .451"; COL: 1.675"; 25,200 cup
260	Speer JHP	11.0	1270	max load; bullet diam.: .451"; COL: 1.675"; 35,900 cup
Hodgdon Pistol Data Case: Freedom Arms; twist: 1:24"; primer: Winchester SR; barrel length: 9.375"; trim length: 1.380". NEVER EXCEED MAXIMUM LOADS
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
240	Jacketed	10.0	1214	start load; min OAL: 1.680
240	Jacketed	11.0	1309	never exceed; min OAL: 1.680; 34,700 cup
250	Jacketed	9.7	1193	start load; min OAL: 1.700
250	Jacketed	11.2	1298	never exceed; min OAL: 1.700; 36,000 cup
260	Jacketed	9.5	1159	start load; min OAL: 1.675
260	Jacketed	11.0	1270	never exceed; min OAL: 1.675; 35,900 cup
Lee Precision Data With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Rifle primer. NOTE: Industry standard cup pressure is 53,000. Some of the hard core bullet loads exceed this value. Use maximum loads with caution.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
270	Speer SAA	7.0	960	start charge; case: Starline
270	Speer SAA	9.0	1135	maximum charge; case: Starline
Reduced Recoil Loads Speer Reloading Manual #14 max. case length: 1.383"; trim-to length: 1.373"; max cart. OAL: 1.765"; RCBS shell holder: #20; cart. case: Winchester and Starline; primer: CCI 400; test firearm: Freedom Arms; barrel length: 7.5"; NOTE: The 270 grain SAA bullets were cast in RCBS moulds; use maximum loads with CAUTION

.460 Smith & Wesson Magnum / .460 S&W Magnum

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
310	Mt. Baldy Cast Keith	14.0	1,226
335	Cast Perf WLN GC	13.5	1,175
360	Oregon Trail WNFP GC	12.0	1,090
395	Cast Perf WLN GC	10.0	936
395	Cast Perf WLN GC	12.0	1,047
firearm: Smith & Wesson .460 XVR; SAAMI maximum average pressure: 65,000 psi; barrel length: 7 1/2-inches; case: Starline; primer: CCI #200; trim to case length: 1.790"; temperature: 15 degrees
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
325	Cast Performance Bullets LFN PB	15.0	1,353	starting load; dia.: .452; COL: 2.200"; 48,200 psi
325	Cast Performance Bullets LFN PB	17.6	1,470	maximum load; dia.: .452; COL: 2.200"; 55,100 psi
335	Cast Performance Bullets WLN GC	15.0	1,333	starting load; dia.: .452; COL: 2.180"; 46,800 psi
335	Cast Performance Bullets WLN GC	17.5	1,446	maximum load; dia.: .452; COL: 2.180"; 55,800 psi
360	Cast Performance Bullets WLN GC	13.0	1,208	starting load; dia.: .452; COL: 2.190"; 40,300 psi
360	Cast Performance Bullets WLN GC	15.6	1,340	maximum load; dia.: .452; COL: 2.190"; 55,700 psi
395	Cast Performance Bullets WLN GC	12.0	1,138	starting load; dia.: .452; COL: 2.185"; 41,000 psi
395	Cast Performance Bullets WLN GC	14.6	1,255	maximum load; dia.: .452; COL: 2.185"; 55,200 psi
Hodgdon Pistol Data case: Starline; bbl: 10.743"; PR: Winchester LRM; twist: 1:20"; trim: 1.790" - This data was developed with Starline Brass which was designed for use with large rifle type primers. Some brands of brass were designed solely for use with large pistol primers. Check with the manufacturer of the brass for correct primer usage. Rifle primers used in a pistol primer pocket cannot be seated sufficiently deep to be below flush with the casehead, which could result in sympathetic ignition of other rounds in the cylinder during recoil. Such use may result in damage to the firearm and/or result in injury or death of the shooter and/or bystander. Never exceed loads listed.

.475 Linebaugh

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
325	Hornady XTP	8.0	844	start load; COL: 1.740"; 21,500 psi
325	Hornady XTP	12.0	1188	max load; COL: 1.740"; 48,500 psi
370	CPB LFP	8.0	925	start load; COL: 1.770"; 27,100 psi
370	CPB LFP	11.0	1130	max load; COL: 1.770"; 48,000 psi
400	Hornady XTP	8.0	807	start load; COL: 1.740"; 35,900 psi
400	Hornady XTP	9.6	961	max load; COL: 1.740"; 48,700 psi
405	CPB LFP GC	8.0	898	start load; COL: 1.745"; 36,600 psi
405	CPB LFP GC	9.8	1024	max load; COL: 1.745"; 48,900 psi
Hodgdon Pistol Data Case: Hornady; twist: 1:20"; primer: Winchester LP; barrel length: 8"; trim length: 1.390"; bullet diam.: .475"; NEVER EXCEED MAXIMUM LOADS
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
385	Lead	7.0	854	start load
385	Lead	11.0	1130	never exceed; 51,700 psi
Lee Precision Data CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Large Pistol primer. Min. OAL: 1.810
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
355	TrueShot WNFP-GC	7.0	816	primer: CCI 300
355	TrueShot WNFP-GC	8.0	877	primer: CCI 300
355	TrueShot WNFP-GC	9.0	963	primer: CCI 300
Oregon Trail Cast Bullet Loads Ruger Blackhawk Bisley Linebaugh Custom; 5 1/2-inch barrel; case: Buffalo Bore/Starline; overall loaded length (inches): 1.777; maximum case length: 1.400 inches; trim-to length: 1.390 inches.

.480 Ruger

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
325	Hornady XTP	9.0	1,016	starting load; C.O.L. = 1.620 inches; 34,900 psi
325	Hornady XTP	10.7	1,158	maximum load; C.O.L. = 1.620 inches; 46,200 psi
370	CPB LFP	9.0	1,047	starting load; C.O.L. = 1.640 inches; 36,300 psi
370	CPB LFP	10.3	1,137	maximum load; C.O.L. = 1.640 inches; 45,800 psi
400	Hornady XTP	7.0	816	starting load; C.O.L. = 1.620 inches; 35,000 psi
400	Hornady XTP	8.5	959	maximum load; C.O.L. = 1.620 inches; 46,800 psi
405	CPB (w/GCK)	7.5	927	starting load; C.O.L. = 1.620 inches; 36,100 psi
405	CPB (w/GCK)	8.8	1,019	maximum load; C.O.L. = 1.620 inches; 46,500 psi
All bullets measure .475 inch. Winchester Large Pistol primers used throughout in Hornady cases. Barrel length: 7.5 inches with one-in-18-inch twist. Trim cases to 1.275 inches.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
325	Hornady XTP	9.0	1016	start load; COL: 1.620"; 34,900 psi
325	Hornady XTP	10.7	1158	max load; COL: 1.620"; 46,200 psi
355	Beartooth Bullets LFN GC	9.7	1101	start load; bullet diam.: .476"; COL: 1.630"; 37,100 psi
355	Beartooth Bullets LFN GC	10.8	1172	max load; bullet diam.: .476"; COL: 1.630"; 45,000 psi
370	Cast Performance Bullets LFP	9.0	1047	start load; COL: 1.640"; 36,300 psi
370	Cast Performance Bullets LFP	10.3	1137	max load; COL: 1.640"; 45,800 psi
400	Hornady XTP	7.0	816	start load; COL: 1.620"; 35,000 psi
400	Hornady XTP	8.5	959	max load; COL: 1.620"; 46,800 psi
405	Cast Performance Bullets (w/GCK)	7.5	927	start load; COL: 1.620"; 36,100 psi
405	Cast Performance Bullets (w/GCK)	8.8	1019	max load; COL: 1.620"; 46,500 psi
420	Beartooth Bullets LFN GC	7.0	862	start load; bullet diam.: .476"; COL: 1.640"; 34,100 psi
420	Beartooth Bullets LFN GC	8.3	962	max load; bullet diam.: .476"; COL: 1.640"; 46,100 psi
Hodgdon Data Case: Hornady; twist: 1:18"; primer: Winchester LP; barrel length: 7 1/2"; trim length: 1.275"; bullet diam.: .475" (except where otherwise specified in remarks). NEVER EXCEED MAXIMUM LOADS
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
325	XTP	9.0	1016	start load; min OAL: 1.620
325	XTP	10.7	1158	never exceed; min OAL: 1.620; 46,200 psi
370	Lead	9.0	1047	start load; min OAL: 1.640
370	Lead	10.3	1137	never exceed; min OAL: 1.640; 45,800 psi
400	XTP	7.0	816	start load; min OAL: 1.620
400	XTP	8.5	959	never exceed; min OAL: 1.620; 46,800 psi
Lee Precision Data CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Large Pistol primer.

.500 Linebaugh

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
410	LFP	12.0	1041	start load; 29,900 psi
410	LFP	13.0	1132	max load; 34,600 psi
425	LFP (w/GCK)	11.0	993	start load; 29,000 psi
425	LFP (w/GCK)	12.0	1064	max load; 34,900 psi
468	LFP	10.0	933	start load; 27,400 psi
468	LFP	11.2	996	max load; 34,500 psi
Hodgdon Pistol Data Case: Starline; twist: 1:20"; primer: CCI 350; barrel length: 8"; trim length: 1.400"; bullet diam.: .511" (except where otherwise specified in remarks); COL: 1.800" (except where otherwise specified in remarks); NEVER EXCEED MAXIMUM LOADS

.500 Smith & Wesson / .500 S&W Magnum

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
275	Barnes XPB	11.0	1170	minimum; COAL: 2.085"
275	Barnes XPB	20.0	1707	maximum; COAL: 2.085"
325	Barnes XPB	12.0	1144	minimum; COAL: 2.290"
325	Barnes XPB	20.0	1575	maximum; COAL: 2.290"
375	Barnes XPB	14.0	1213	minimum; COAL: 2.290"
375	Barnes XPB	17.0	1375	maximum; COAL: 2.290"
Barnes Reloading Manual #4 case: Starline; case trim length: 1.615"; twist rate: 1:15"; primer: Federal GM210M; barrel length: 10"; maximum loads should be used with caution; NOTE: Roll crimp the case mouth into the cannelure. Brass for this cartridge has been made with both Large Pistol and Large Rifle primer pockets. Our data was developed using Large Rifle primers. The primer pockets for Large Rifle primers are the same diameter, but slightly deeper than the primer pockets designed for Large Pistol primers. Cases with the shallower primer pocket can be reamed deeper to accept Large Rifle primers.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
350	Hornady	11.0	986	mild target load; accurate
370	Cast Performance WFN GC	16.0	1,301	great reduced load
440	Cast Performance WFN GC	14.5	1,187	accurate reduced load
Starline cases and Winchester Large Rifle primers used throughout. Temperature during testing was 80 degrees Fahrenheit.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
275	Barnes XPB	11.0	1170	start load; COL: 2.085"; 22,800 psi
275	Barnes XPB	20.0	1707	max load; COL: 2.085"; 50,300 psi
325	Barnes XPB	12.0	1144	start load; COL: 2.290"; 25,600 psi
325	Barnes XPB	20.0	1575	max load; COL: 2.290"; 50,700 psi
350	Hornady XTP	11.0	1032	start load; COL: 1.985"; 23,100 psi
350	Hornady XTP	18.5	1461	max load; COL: 1.985"; 50,000 psi
370	Cast Performance Bullets LGC	16.0	1326	start load; COL: 2.020"; 40,600 psi
370	Cast Performance Bullets LGC	18.5	1431	max load; COL: 2.020"; 49,600 psi
375	Barnes XPB	14.0	1213	start load; COL: 2.290"; 37,000 psi
375	Barnes XPB	17.0	1375	max load; COL: 2.290"; 50,500 psi
385	Rem. HP	15.5	1250	start load; COL: 2.150"; 38,300 psi
385	Rem. HP	18.5	1396	max load; COL: 2.150"; 49,500 psi
400	Sierra JSP	15.0	1208	start load; COL: 2.050"; 39,700 psi
400	Sierra JSP	17.5	1335	max load; COL: 2.050"; 49,900 psi
440	Cast Performance Bullet LGC	14.5	1191	start load; COL: 2.025"; 42,700 psi
440	Cast Performance Bullet LGC	16.5	1278	max load; COL: 2.025"; 50,600 psi
500	Hornady SP	13.0	1020	start load; COL: 2.065"; 40,200 psi
500	Hornady SP	15.0	1111	max load; COL: 2.065"; 50,000 psi
Hodgdon Pistol Data case: Starline; twist: 1:18"; barrel: 10"; trim: 1.615"; primer: Winchester LR; dia: .500"; NEVER EXCEED MAXIMUM LOADS
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
370	TrueShot WNFP-GC	16.0	1289
Oregon Trail Cast Bullet Loads Smith & Wesson Model 500; 8 3/8-inch barrel; primer: Winchester Large Rifle; case: Starline R; overall loaded length (inches): 2.000; maximum case length: 1.625 inches; trim-to length: 1.615 inches.

.500 Wyoming Express

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
350	Hornady XTP	12.0	1,138	starting load; COL: 1.740"; 34,700 PSI
350	Hornady XTP	15.0	1,296	maximum load; COL: 1.740"; 48,300 PSI
370	Cast Performance Bullet LGC	12.0	1,133	starting load; COL: 1.740"; 34,800 PSI
370	Cast Performance Bullet LGC	14.7	1,261	maximum load; COL: 1.740"; 46,400 PSI
400	Cast Performance Bullet LGC	11.0	1,064	starting load; COL: 1.750"; 35,700 PSI
400	Cast Performance Bullet LGC	13.7	1,192	maximum load; COL: 1.750"; 48,100 PSI
440	Cast Performance Bullet LGC	10.0	977	starting load; COL: 1.740"; 34,300 PSI
440	Cast Performance Bullet LGC	12.5	1,097	maximum load; COL: 1.740"; 47,500 PSI
Hodgdon Pistol Data case: Freedom Arms; barrel length: 9"; twist: 1:20"; trim length: 1.360"; primer: Federal 210; bullet diam: .500"; NEVER EXCEED MAXIMUM LOADS
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
370	Oregon Trail GC	12.0	1038	3 shots/20 yds: 1 1/4"
370	Cast Performance Bullet Co. GC	12.0	1033	3 shots/20 yds: 7/8"
400	Cast Performance Bullet Co. GC	12.0	1015	3 shots/20 yds: 5/8"
440	Cast Performance Bullet Co. GC	11.0	1010	3 shots/20 yds: 1"
in a Freedom Arms 83 4 3/4-Inch Freedom Arms Model 83 4 3/4" (John Taffin Tests)
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
370	Oregon Trail GC	12.0	1088	3 shots/25 yds: 5/8"
370	Cast Performance Bullet Co. GC	12.0	1088	3 shots/25 yds: 1 1/8"
400	Cast Performance Bullet Co. GC	12.0	1064	3 shots/25 yds: 1/2"
440	Cast Performance Bullet Co. GC	11.0	1049	3 shots/25 yds: 1"
350	Sierra JHP	12.0	1065	3 shots/25 yds: 3/4"
400	Sierra JFN	12.0	1025	3 shots/25 yds: 7/8"
370	Oregon Trail GC	12.0	1088	3 shots/50 yds: 1 1/8"
350	Sierra JHP	12.0	1065	3 shots/50 yds: 1"
400	Sierra JFP	12.0	1025	3 shots/50 yds: 2"
370	Oregon Trail GC	12.0	1088	3 shots/100 yds: 2"
370	Cast Performance Bullet Co. GC	12.0	1088	3 shots/100 yds: 2 1/2"
400	Cast Performance Bullet Co. GC	12.0	1064	3 shots/100 yds: 2 1/2"
in a Freedom Arms 83 7 1/2-Inch Freedom Arms Model 83 7 1/2"; 4X Leupold (John Taffin Tests)

10mm Auto

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
135	Nosler JHP	7.2	1,362	starting load; COL: 1.250"; 28,300 psi
135	Nosler JHP	8.0	1,459	maximum load; COL: 1.250"; 35,800 psi
155	Hornady XTP	6.4	1,211	starting load; COL: 1.260"; 26,800 psi
155	Hornady XTP	7.2	1,315	maximum load; COL: 1.260"; 35,700 psi
170	Hornady XTP	6.0	1,148	starting load; COL: 1.260"; 28,200 psi
170	Hornady XTP	6.6	1,232	maximum load; COL: 1.260"; 36,200 psi
180	Sierra JHC	5.4	1,051	starting load; COL: 1.260"; 27,400 psi
180	Sierra JHC	6.0	1,141	maximum load; COL: 1.260"; 34,300 psi
200	Hornady FMJ	4.8	946	starting load; COL: 1.260"; 28,900 psi
200	Hornady FMJ	5.3	1,024	maximum load; COL: 1.260"; 36,100 psi
Hodgdon Data case: Winchester; barrel length: 5"; twist: 1:16"; trim length: .987"; primer: Winchester LP; bullet diam.: .400"; NEVER EXCEED MAXIMUM LOADS
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
135	Jacketed	7.2	1362	start load; min OAL: 1.250
135	Jacketed	8.0	1459	never exceed; min OAL: 1.250; 35,800 psi
155	XTP	6.4	1211	start load; min OAL: 1.260
155	XTP	7.2	1315	never exceed; min OAL: 1.260; 35,700 psi
170	XTP	6.0	1148	start load; min OAL: 1.260
170	XTP	6.6	1232	never exceed; min OAL: 1.260; 36,200 psi
180	Jacketed	5.4	1051	start load; min OAL: 1.260
180	Jacketed	6.0	1141	never exceed; min OAL: 1.260; 34,300 psi
200	Jacketed	4.8	946	start load; min OAL: 1.260
200	Jacketed	5.3	1024	never exceed; min OAL: 1.260; 36,100 psi
Lee Precision Data Large Pistol Primer. CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
145	Lee #401-145-SWC	5.6	1198	sugg. start load; 24,600 cup
145	Lee #401-145-SWC	6.3	1288	max load; 29,900 cup
Lyman Cast Bullet Data Cases: Winchester; trim-to length: .982"; primers: CCI 300; primer size: Large Pistol; Lyman shell holder: No. 15; cast bullets used: (sized to .401" dia.) 145 GR Lee #401-145-SWC; firearm used: Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .400"; 1.225" OAL. Lyman Cast Bullet Handbook 4th Edition
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
150	Cast #401654	5.7	1152	sugg. start load; 1.240" OAL; 25,200 cup
150	Cast #401654	6.4	1240	max load; 1.240" OAL; 28,600 cup
175	Cast #401043	5.3	1103	sugg. start load; 1.260" OAL; 24,200 cup
175	Cast #401043	5.9	1186	max load; 1.260" OAL; 28,300 cup
175	Cast #401638	5.1	1072	sugg. start load; 1.253" OAL; 25,400 cup
175	Cast #401638	5.7	1146	max load; 1.253" OAL; 28,700 cup
Cast Bullets Lyman Reloading Manual 49th Edition cases: Norma; trim-to length: .982"; primers: CCI 300; primer size: Large Pistol; Lyman shell holder: No. 15; cast bullets used sized to .401" dia.; firearm used: Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .400"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
135	Nosler Jacketed HP	6.2	1205	sugg. start load; 1.225" OAL; 23,900 cup
135	Nosler Jacketed HP	6.9	1319	max load; 1.225" OAL; 29,300 cup
150	Sierra Jacketed HP	5.6	1134	sugg. start load; 24,500 cup
150	Sierra Jacketed HP	6.3	1209	max load; 28,600 cup
155	Winchester Jacketed Silvertip	5.7	1081	sugg. start load; case: Winchester; 24,100 cup
155	Winchester Jacketed Silvertip	6.4	1199	max load; case: Winchester; 29,600 cup
165	Speer TMJ	5.6	1072	sugg. start load; case: Winchester; 24,000 cup
165	Speer TMJ	6.3	1160	max load; case: Winchester; 28,800 cup
175	Winchester Jacketed Silvertip	5.3	1033	sugg. start load; case: Winchester; 25,300 cup
175	Winchester Jacketed Silvertip	5.9	1130	max load; case: Winchester; 29,100 cup
Lyman Reloading Handbook 49th Edition cases: Norma (except where otherwise specified in remarks); trim-to length: .982"; primers: CCI 300; primer size: Large Pistol; Lyman shell holder: No. 15; firearm used: Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .400"; 1.250" OAL (except where otherwise specified in remarks)

7.62 Tokarev / .30 Mauser

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
75	Cast #311252	4.3	1286	sugg. start load; 1.280" OAL
75	Cast #311252	5.3	1464	max load; 1.280" OAL
85	Cast #313249	4.0	1222	sugg. start load; 1.290" OAL
85	Cast #313249	5.0	1418	max load; 1.290" OAL
Lyman Reloading Handbook 49th Edition The 7.62x25mm Tokarev and 30 Mauser are two different cartridges. However, their dimensions are so close that it has been common practice to use them interchangeably. Cases: Starline; trim-to length: .980"; primers: Remington 1 1/2; primer size: Small Pistol; Lyman shell holder: No. 12; cast bullets used sized to .311" dia.; firearm used: Cz52; barrel length: 4.7"; twist: 1-12 1/2"; groove dia.: .310"

7.65mm / 7.65 French MAS Long / .32 French Long Data

	Wt.	Bullet	Charge	Velocity (FPS)	Remarks
	81	RCBS 32-84-RN roundnose	3.0	1095	diameter (inch): .311; good function and accuracy
	7.65mm Long French Model 1935A, 4.33-inch barrel. Brass was formed from .32 S&W Long by Buffalo Arms Company. Primers were Winchester. Bullets cast were of straight Linotype alloy and lubed with SPG. Bullets were taper crimped. Velocities taken with an Oehler Model 35P with start screen at approximately 6 feet.

7.65mm Parabellum / 7.65 Parabellum / .30 Luger

	Wt.	Bullet	Charge	Velocity (FPS)	Remarks
	83	RCBS 32-84-RN	4.5	1315	very hot but safe in this gun
	Model 1920 Export (Autoloading Pistol Loads) 3 3/4-inch barrel. Group shooting was done from a sandbag rest at 25 yards in five-shot strings. Chronographing done with an Oehler Model 35P with start screen at approximately 6 feet. All brass was Starline. All primers were CCI Small or Large Pistol as proper. All bullets cast were poured of Linotype and lubed with SPG. Sizing diameter: .313 inch

8mm Nambu

	Wt.	Bullet	Charge	Velocity (FPS)	Remarks
	106	RCBS 08-110-NAMBU roundnose	3.5	991	diameter (inch): .323; perfect functioning and hits to sights
	Japanese Type 14 Japanese Type 14 8mm Nambu, 4.61-inch barrel. Brass was made by Starline exclusively for Huntington Die Specialties. Primers were Winchester. Bullets cast were of straight Linotype alloy and lubed with SPG. Bullets were roll crimped. All velocities taken with an Oehler Model 35P with start screen at approximately 6 feet.

9mm Luger / 9mm Parabellum / 9x19mm

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
104	Lyman 356632	3.8	1115	overall loaded length (inches): 1.03
123	Redding/SAECO 377	3.8	1074	overall loaded length (inches): 1.08
126	Lee 356-125-2R	3.5	977	overall loaded length (inches): 1.16
126	Lee 356-125-2R	4.0	1044	overall loaded length (inches): 1.16; accurate
138	LBT .359 140 FN	2.5	798	overall loaded length (inches): 1.04; accurate
138	LBT .359 140 FN	2.8	861	overall loaded length (inches): 1.04; poor accuracy
140	H&G 12B	2.5	821	overall loaded length (inches): 1.05; poor accuracy
145	Lyman 358212	3.0	868	overall loaded length (inches): 1.14; poor accuracy
160	Lyman 358311	2.5	835	overall loaded length (inches): 1.105
Cast Bullet Loads Test gun was a SIG Sauer P226 9mm Luger with a 4.4-inch barrel. All velocities measured approximately 10 feet from muzzle using an Oehler Model 35P chronograph. Ambient temperatures varied from approximately 65 to 85 degrees Fahrenheit. Loads assembled using Winchester 9mm Luger brass and CCI 500 standard Small Pistol primers. No reduction in overall cartridge length (OAL) is recommended. Any change in components requires powder charge reduction. This data is intended for use only by persons experienced in the proper and safe practice of handloading ammunition.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
100	Speer JHP	4.5	1,246	primer: Federal 100; standard deviation (fps): 14; coefficient of variation (percent): 1.12; group (inches): 2.20; muzzle energy (ft-lbs): 345; second highest velocity
115	Speer Gold Dot	4.5	1,215	primer: WSP; standard deviation (fps): 6; coefficient of variation (percent): 0.49; group (inches): 1.50; muzzle energy (ft-lbs): 377
124	Hornady XTP	4.2	1,150	primer: WSP; standard deviation (fps): 12; coefficient of variation (percent); 1.04; group (inches): 2.89; muzzle energy (ft-lbs): 364
147	Hornady XTP	3.4	949	primer: WSP: standard deviation (fps): 4; coefficient of variation (percent): 0.42; group (inches): 2.22; muzzle energy (ft-lbs): 294; good load
122	Bushwacker flatnose	3.4	1,043	primer: WSP; standard deviation (fps): 4; coefficient of variation (percent): 0.38; group (inches): 2.48; muzzle energy (ft-lbs): 127
122	Bushwacker flatnose	3.7	1,094	primer: WSP; standard deviation (fps): 6; coefficient of variation (percent): 0.55; group (inches): 0.89; muzzle energy (ft-lbs): 133; best cast bullet load
122	Bushwacker flatnose	4.0	1,140	primer: WSP; standard deviation (fps): 7; coefficient of variation (percent): 0.61; group (inches): 2.76; muzzle energy (ft-lbs): 139
125	Bushwacker roundnose	3.4	1,032	primer: WSP; standard deviation (fps): 14; coefficient of variation (percent): 1.36; group (inches): 3.54; muzzle energy (ft-lbs): 129
125	Bushwacker roundnose	3.7	1,076	primer: WSP; standard deviation (fps): 4; coefficient of variation (percent): 0.37; group (inches): 2.34; muzzle energy (ft-lbs): 135
125	Bushwacker roundnose	4.0	1,136	primer: WSP; standard deviation (fps): 11; coefficient of variation (percent): 0.97; group (inches): 1.71; muzzle energy (ft-lbs): 142; good load
125	Bushwacker semiwadcutter	4.0	1,116	primer: WSP; standard deviation (fps): 10; coefficient of variation (percent): 0.90; group (inches): 3.22; muzzle energy (ft-lbs): 140
145	Bushwacker roundnose	3.4	1,001	primer: WSP; standard deviation (fps): 7; coefficient of variation (percent): 0.70; group (inches): 3.43; muzzle energy (ft-lbs): 145
in a CZ Model 85 A CZ Model 85 Combat with a 4.7-inch barrel and open sights was used for testing. Velocities were taken 12 feet from the muzzle with an Oehler Model 35P chronograph. Accuracy is the average of (at least) three, five-shot groups at 20 yards from a sandbag rest. Range temperatures were 58 to 74 degrees Fahrenheit. R-P, Remington-Peters; WAP, Winchester Action Pistol; WSL, Sinchester Super Lite; WSP, Winchester Small Pistol.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
147	Hornady HPBT-XTP	3.2	934	overall loaded length (inches): 1.100
147	Hornady HPBT-XTP	3.5	985	overall loaded length (inches): 1.100
147	Hornady HPBT-XTP	3.8	1029	overall loaded length (inches): 1.100
147 GR Handload Data A 5-inch barreled Kimber Model 1911 Team Match II was used to shoot all loads in Starline cases with Winchester Small Pistol primers. SAAMI minimum cartridge overall length: 1.000 inch; maximum cartridge overall length: 1.169 inches; maximum case length: .754 inch; trim to length: .744 inch.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Hornady HP-XTP	4.0	1130	overall loaded length (inches): 1.070
90	Hornady HP-XTP	5.0	1376	overall loaded length (inches): 1.070
90	Sierra JHP	4.0	1138	overall loaded length (inches): 1.010
90	Sierra JHP	5.0	1385	overall loaded length (inches): 1.010
115	Hornady HP-XTP	4.0	1129	overall loaded length (inches): 1.075
115	Hornady HP-XTP	5.0	1318	overall loaded length (inches): 1.075
115	Speer Gold Dot HP	4.0	1118	overall loaded length (inches): 1.125
115	Speer Gold Dot HP	5.0	1302	overall loaded length (inches): 1.125
90 & 115 GR Handload Data A 5-inch barreled Kimber Model 1911 Team Match II was used to shoot all loads in Starline cases with Winchester Small Pistol primers. SAAMI minimum cartridge overall length: 1.000 inch; maximum cartridge overall length: 1.169 inches; maximum case length: .754 inch; trim to length: .744 inch.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
80	Barnes TAC-XP	3.0	1015	start load; COL: 1.025"; 25,700 psi
80	Barnes TAC-XP	3.6	1174	max load; COL: 1.025"; 32,900 psi
90	Speer GDHP	4.7	1239	start load; COL: 1.010"; 25,700 cup
90	Speer GDHP	5.0	1305	max load; COL: 1.010"; 30,000 cup
95	Sierra FMJ	4.7	1241	start load; COL: 1.020"; 28,500 cup
95	Sierra FMJ	5.0	1298	max load; COL: 1.020"; 32,000 cup
100	Speer FMJ	4.7	1234	start load; COL: 1.050"; 28,300 cup
100	Speer FMJ	5.0	1289	max load; COL: 1.050"; 30,300 cup
100	SinterFire	3.6	1097	start load; COL: 1.140"; 24,700 psi
100	SinterFire	4.0	1174	max load; COL: 1.140"; 31,400 psi
115	Speer GDHP	4.5	1135	start load; COL: 1.125"; 29,500 cup
115	Speer GDHP	4.8	1158	max load; COL: 1.125"; 30,500 cup
115	Lead Round Nose	3.9	1075	start load; bullet diam.: .356"; COL: 1.100"; 25,800 cup
115	Lead Round Nose	4.3	1151	max load; bullet diam.: .356"; COL: 1.100"; 30,500 cup
124	Berry's Bullets HBRN TP	3.6	957	start load; bullet diam.: .356"; COL: 1.150"; 27,700 psi
124	Berry's Bullets HBRN TP	4.1	1057	max load; bullet diam.: .356"; COL: 1.150"; 32,700 psi
125	Lead Conical Nose	3.6	1002	start load; bullet diam.: .356"; COL: 1.125"; 22,900 cup
125	Lead Conical Nose	4.0	1096	max load; bullet diam.: .356"; COL: 1.125"; 30,400 cup
125	Hornady HAP	2.8	816	start load; bullet diam.: .356"; COL: 1.069"; 27,100 psi
125	Hornady HAP	3.2	930	max load; bullet diam.: .356"; COL: 1.069"; 33,700 psi
125	Sierra FMJ	4.1	1069	start load; COL: 1.090"; 27,300 cup
125	Sierra FMJ	4.4	1136	max load; COL: 1.090"; 30,600 cup
130	Berry's Bullets RN	3.5	895	start load; bullet diam.: .356"; COL: 1.150"; 27,400 psi
130	Berry's Bullets RN	3.9	1006	max load; bullet diam.: .356"; COL: 1.150"; 32,100 psi
147	Hornady XTP	3.2	855	start load; COL: 1.100"; 22,500 cup
147	Hornady XTP	3.6	929	max load; COL: 1.100"; 27,500 cup
Hodgdon Data Case: Winchester; twist: 1:10"; primer: CCI 500, Small Pistol; barrel length: 4"; trim length: .750"; bullet diam.: .355" (except where otherwise specified in remarks).
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Jacketed	4.7	1233	start load; min OAL: 1.010
90	Jacketed	5.0	1305	never exceed; min OAL: 1.010; 30,000 cup
95	Jacketed	4.7	1226	start load; min OAL: 1.020
95	Jacketed	5.0	1298	never exceed; min OAL: 1.020; 32,000 cup
100	Jacketed	4.7	1217	start load; min OAL: 1.050
100	Jacketed	5.0	1289	never exceed; min OAL: 1.050; 30,300 cup
115	Jacketed	4.5	1135	start load; min OAL: 1.125
115	Jacketed	4.8	1158	never exceed; min OAL: 1.125; 30,500 cup
124	Jacketed	4.1	1063	start load; min OAL: 1.090
124	Jacketed	4.4	1136	never exceed; min OAL: 1.090; 30,600 cup
147	XTP	3.2	837	start load; min OAL: 1.100
147	XTP	3.6	929	never exceed; min OAL: 1.100; 27,500 cup
130	Jacketed	4.1	1032	start load; min OAL: 1.120
130	Jacketed	4.4	1102	never exceed; min OAL: 1.120; 32,500 cup
Lee Precision Data Small pistol primer. CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
130	Sierra FMJ	3.8	1045	sugg. start load; 1.160" OAL
130	Sierra FMJ	4.2	1109	max load; 1.160" OAL
147	Speer TMJ	3.2	919	sugg. start load; 1.115" OAL
147	Speer TMJ	3.6	1028	max load; 1.115" OAL
120	Cast #356242	3.2	1105	sugg. start load; 1.065" OAL
120	Cast #356242	3.8	1174	max load; 1.065" OAL
147	Cast #356637	2.5	863	sugg. start load; 1.058" OAL
147	Cast #356637	2.8	927	max load; 1.058" OAL
Rifle Data Lyman Reloading Handbook 49th Edition cases: Federal; trim-to length: .751"; primers: CCI 500; primer size: Small Pistol; Lyman shell holder: No. 12; cast bullets used sized to .355" dia.; firearm used: Ruger Carbine, PC9; barrel length: 16 1/4"; twist: 1-10"; groove dia.: .354"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
115	Speer GDHP or TMJ RN	4.1	1061	start charge
115	Speer GDHP or TMJ RN	4.5	1121	maximum charge
124	Speer TMJ RN, UCSP or GDHP	4.0	1020	start charge
124	Speer TMJ RN, UCSP or GDHP	4.4	1095	maximum charge
Speer Reloading Manual #14 max. case length: 0.754"; trim-to length: 0.744"; max cart. OAL: 1.169"; RCBS shell holder: #16; cart. case: Speer; primer: CCI 500; test firearm: S&W M5906; barrel length: 4"; 147-grain bullets not recommended for barrels longer than 10 inches; IMPORTANT SAFETY NOTE: These loads were developed and tested for safe use in HANDGUNS. Not all loads may be suitable for use in a carbine or rifle chambered for this cartridge. If loading for a carbine or rifle, choose from among the loads developing the highest handgun velocities and load just a few rounds. Thoroughly test this small sample in your firearm in slow-fire mode, insuring that you achieve proper feeding and ejection. Be certain that all bullets exit the barrel; watching the target for each bullet strike is the best way to know that the load produces sufficient gas volume for a longer barrel. Use maximum loads with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
124	Nosler Sporting Handgun Pistol JHP	4.3	1114	max
124	Nosler Sporting Handgun Pistol JHP	3.8	1002	most accurate load tested
124	Nosler Sporting Handgun Pistol JHP	3.3	890
Using Nosler Bullets Case: Winchester; primer: Rem 1 1/2; barrel length/make: 4" Douglas; twist: 1-16"; bullets: 115 GR Nosler Sporting Handgun Pistol JHP - OACL: 1.100"; 124 GR Nosler Sporting Handgun Pistol JHP - OACL: 1.120"; maximum OACL: 1.169". Use Maximum Loads with Caution
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Cast #356242	4.3	1215	sugg. start load; 26,100 cup; 1.045" OAL
90	Cast #356242	4.8	1299	max load; 30,600 cup; 1.045" OAL
120	Cast #356242	3.2	1021	sugg. start load; 25,200 cup; 1.065" OAL
120	Cast #356242	3.8	1091	max load; 30,000 cup; 1.065" OAL
120	Cast #356402	3.3	997	sugg. start load; 24,400 cup; 1.110" OAL
120	Cast #356402	3.7	1109	max load; 32,200 cup; 1.110" OAL
147	Cast #356637	2.5	870	sugg. start load; 26,800 cup; 1.058" OAL
147	Cast #356637	2.8	943	max load; 30,300 cup; 1.058" OAL
Cast Bullet Handgun Data Lyman Reloading Handbook 49th Edition cases: Federal; trim-to length: .751"; primers: CCI 500; primer size; Small Pistol; Lyman shell holder: No. 12; cast bullets used sized to .356" dia.and all #2 Alloy; firearm used: Universal Receiver; barrel length: 4"; groove dia.: .355"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Sierra Jacketed HP	4.4	1170	sugg. start load; 24,100 cup; 1.010" OAL
90	Sierra Jacketed HP	4.9	1305	max load; 31,700 cup; 1.010" OAL
95	Sierra FMJ	4.3	1150	sugg. start load; 25,500 cup; 1.005" OAL
95	Sierra FMJ	4.8	1264	max load; 30,800 cup; 1.005" OAL
115	Hornady Jacketed HP/XTP	4.0	1046	sugg. start load; 27,100 cup; 1.090" OAL
115	Hornady Jacketed HP/XTP	4.5	1119	max load; 31,400 cup; 1.090" OAL
125	Sierra Jacketed HP	3.8	962	sugg. start load; 26,100 cup; 1.075" OAL
125	Sierra Jacketed HP	4.2	1045	max load; 31,200 cup; 1.075" OAL
147	Speer TMJ	3.2	914	sugg. start load; 27,700 cup; 1.115" OAL
147	Speer TMJ	3.6	983	max load; 31,900 cup; 1.115" OAL
Handgun Data Lyman Reloading Handbook 49th Edition cases: Federal; trim-to length: .751"; primers: CCI 500; primer size; Small Pistol; Lyman shell holder: No. 12; firearm used: Universal Receiver; barrel length: 4"; groove dia.: .355"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
115	Montana Gold FMJ	4.0	1284	Luger P08 8-inch barrel
115	Montana Gold FMJ	4.0	1211	Browning 4.63-inch barrel
120	Lyman 356242 cast RN	4.2	1354	Luger P08 8-inch barrel
120	Lyman 356242 cast RN	4.2	1258	Browning 4.63-inch barrel
124	Oregon Trail cast RN	4.0	1309	Luger P08 8-inch barrel
124	Oregon Trail cast RN	4.0	1234	Browning 4.63-inch barrel
125	Zero Bullet Company FMJ	4.0	1226	Luger P08 8-inch barrel
125	Zero Bullet Company FMJ	4.0	1177	Browning 4.63-inch barrel
Ball-Type Handloads Chronograph figures are for five rounds taken with the start screen at approximately 6 feet. All loads used Winchester Small Pistol primers. Cases were mixed brands of commercial brass and not sorted by maker. All bullets were taper crimped as a separate step in the handloading process. Bullets cast were poured of Linotype alloy, sized .357 inch and lubed with SPG.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
124	Oregon Trail cast RN	2.2	742	overall loaded length (inches): 1.045
124	Oregon Trail cast RN	2.8	930	overall loaded length (inches): 1.045
Handload Data A 5-inch barreled Kimber Model 1911 Team Match II was used to shoot all loads in Starline cases with Winchester Small Pistol primers. SAAMI minimum cartridge overall length: 1.000 inch; maximum cartridge overall length: 1.169 inches; maximum case length: .754 inch; trim to length: .744 inch.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Sierra JHP	4.6	1245	overall length (inches): 1.065; group (inches): 2.50
115	Speer Gold Dot	4.8	1189	overall length (inches): 1.250; group (inches): 2.50
147	Speer Gold Dot	3.0	865	overall length (inches): 1.140; group (inches): 1.90
147	Speer Gold Dot	3.3	890	overall length (inches): 1.140; group (inches): 2.25
147	Hornady XTP	3.3	906	overall length (inches): 1.140; group (inches): 2.00
130	Montana Gold FMJ	4.1	1111	overall length (inches): 1.142; group (inches): 2.25
122	Magnus flatnose	4.0	1128	overall length (inches): 1.142; group (inches): 2.90
122	Nat'l Bullet Company flatnose	4.1	1133	overall length (inches): 1.142; group (inches): 3.00
125	Oregon Trail lead roundnose	4.0	1125	overall length (inches): 1.142; group (inches): 3.00
in a Browning Hi-Power Accuracy is for five-shot groups at 25 yards from a solid benchrest. The group was measured from the inside of the most widely spaced bullet holes
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
115	Bushwacker SWC	3.5	1,098	primer: Federal 100; group (inches): 1.10; great load
115	Bushwacker SWC	4.3	1,212	primer: Federal 100; group (inches): 2.64
122	Bushwacker FP	3.3	1,022	primer: Federal 100; group (inches): 1.57; mild, good load
122	Bushwacker FP	3.7	1,092	primer: WSP; group (inches): 1.64
125	Bushwacker RN	3.4	1,033	primer: Federal 100; group (inches): 1.57
125	Bushwacker SWC	3.4	1,051	primer: Federal 100; group (inches): 1.02; great load
145	Bushwacker RN	3.4	1,000	primer: Federal 100; group (inches): 2.95; maximum
in an S & W Model 952-2 (Cast Bullets) A Smith & Wesson Model 952-2 PC with a 5-inch barrel and open sights was used for testing. Once-fired Federal cases were used throughout. Velocities were taken 12 feet from the muzzle with an Oehler M-35P chronograph. Accuracy is the average of three, five-shot groups at 25 yards from a sandbag rest. WSL=Winchester Super Lite; WSP=Winchester Small Pistol primer. Range temperatures were 58 to 74 degrees Fahrenheit.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
100	Speer JHP	4.5	1,234	primer: Federal 100; group (inches): 0.89; mild load, W-W cases
115	Speer Gold Dot	4.5	1,136	primer: CCI 500; group (inches): 2.20
115	Sierra JHP	4.3	1,134	primer: Federal 100; group (inches): 1.93
115	Sierra JHP	4.5	1,192	primer: CCI 500; group (inches): 2.28
124	Hornady XTP	4.2	1,111	primer: CCI 500; group (inches): 2.87
125	Sierra JHP	4.2	1,106	primer: CCI 500; group (inches): 1.08; good load
125	Sierra JHP	4.0	1,075	primer: Federal 100; group (inches): 1.54
147	Hornady XTP	3.4	907	primer: CCI 500; group (inches):
in an S&W Model 952-2 (Jacketed Bullets) A Smith & Wesson Model 952-2 PC with a 5-inch barrel and open sights was used for testing. Once-fired Federal cases were used throughout. Velocities were taken 12 feet from the muzzle with an Oehler M-35P chronograph. Accuracy is the average of three, five-shot groups at 25 yards from a sandbag rest. Range temperatures were 58 to 74 degrees Fahrenheit.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
123	RCBS 9mm-125-RN (gas check)	4.4	1045	mediocre groups, 4 inches or so
Military Model (1938 vintage) (Autoloading Pistol Loads) 4-inch barrel. Group shooting was done from a sandbag rest at 25 yards in five-shot strings. Chronographing done with an Oehler Model 35P with start screen at approximately 6 feet. All brass was Starline. All primers were CCI Small or Large Pistol as proper. All bullets cast were poured of Linotype and lubed with SPG. Sizing diameter: .357 inch; Gas checks were Lyman.

9mm Makarov

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
99	RCBS 9mm-MAK cast roundnose (sized .365 inch)	3.4	1066	good group
95	FMJ	3.4	998	very good group
Very good group is approximately 1.0 inch; good group is approximately 1.5 inches; mediocre group is between 1.5 and 2.0 inches; poor group is over approximately 2.0 inches. Velocities are for five shots taken at approximately 6 feet from the pistol muzzle using an Oehler Model 35P. All groups fired at 20 feet in five-shot strings. All loads were taper crimped. All cast bullet loads were poured of straight Linotype alloy and lubed with SPG. These loads were fired from an FEG PA63 (Hungarian made) with a 3.94-inch barrel and used Starline brass with Winchester Small Pistol primers.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Speer FP	3.3	959	starting load; COL: .970"; 19,200 psi
90	Speer FP	3.7	1053	maximum load; COL: .970"; 22,900 psi
95	Hornady XTP	3.2	926	starting load; COL: .965"; 18,500 psi
95	Hornady XTP	3.6	1022	maximum load; COL: .965"; 22,500 psi
Hodgdon Pistol Data case: Winchester; barrel length: 4"; twist: 1:10"; trim length: .708"; primer: Winchester SP; bullet diam.: .364". NEVER EXCEED MAXIMUM LOADS
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Jacketed	3.3	948	start load; min OAL: 0.970
90	Jacketed	3.7	1053	never exceed; min OAL: 0.970; 22,900 psi
95	XTP	3.2	920	start load; min OAL: 0.965
95	XTP	3.6	1022	never exceed; min OAL: 0.965; 22,500 psi
100	Jacketed	3.3	910	start load; min OAL: 0.970
100	Jacketed	3.7	1011	never exceed; min OAL: 0.970; 23,500 psi
Lee Precision Data With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Pistol primer.

9x21mm

Wt.	Bullet	Charge	Velocity (FPS)
125	Bushwacker .356-inch SWC	4.1	1,166
SD: 5 fps; CV: 0.43%; group: 1.29 inches; power factor: 146
125	Bushwacker .356-inch SWC	4.4	1,193
SD: 5 fps; CV: 0.42%; group: 1.00 inches; power factor: 149
in a CZ 75 Test gun was a custom CZ 75 converted to 9x21mm with a 5.25-inch barrel and three-port compensator. Accuracy is the average of three (or more) five-shot groups at 25 yards. Overall loaded length of all loads was 1.160 inches. Starline nickel-plated cases and Winchester Small Pistol primers were used throughout. Temperatures at time of testing were 65 to 89 degrees Fahrenheit. Average accuracy of all loads tested: 1.36 inches. CV is coefficients of variation and is the standard deviation expressed as a percent of the average velocity.
