An excellent multipurpose handgun powder with burning rate generally about like Accurate No.5 or Alliant Herco. Wide application area covers the following handgun cartridges: 9 mm Luger, 9x21 mm, .357 SIG, .38 Super Auto, .38 Special, .357 Magnum, .40 S&W, 10 mm AUTO, .44 S&W Special, .44 Remington Magnum, .45 ACP and .45 Colt.

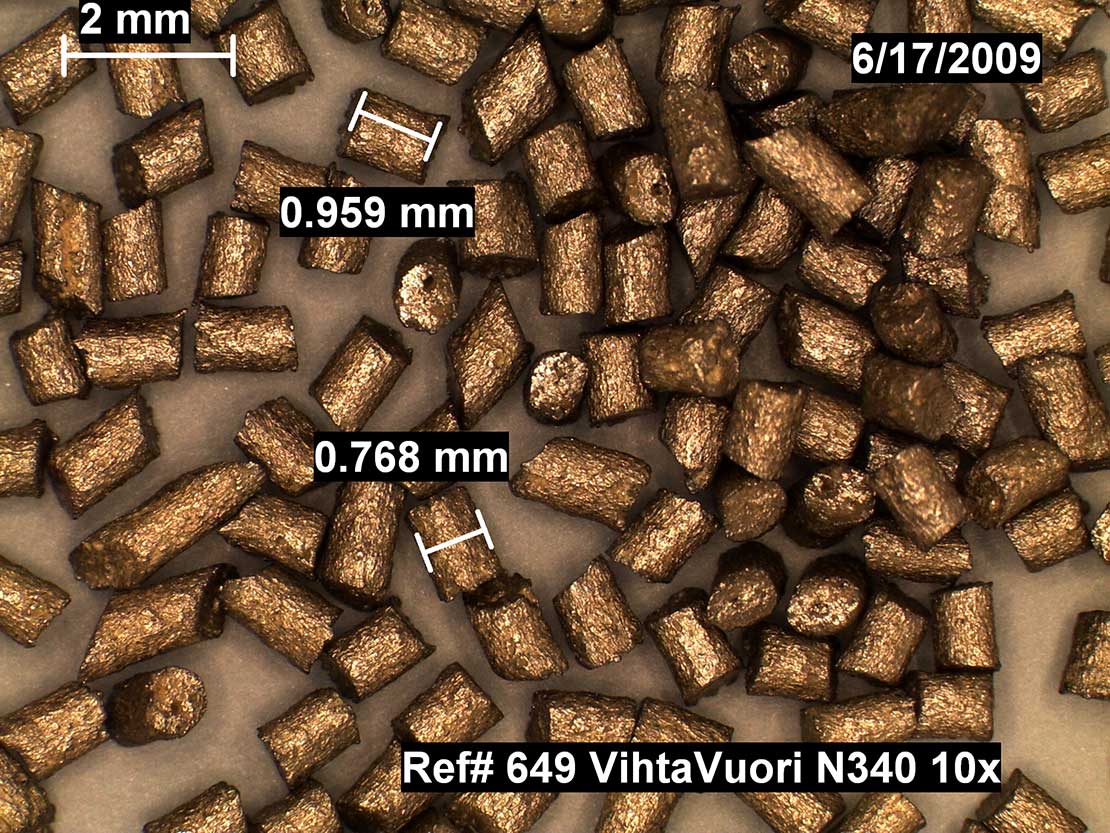

| Shape | Color | Perforation | Diameter min | Diameter max | Length/thick. min | Length/thick. max | Manufacturer |
|---|---|---|---|---|---|---|---|
| Cylinder(tubular) | Gold | Yes | 0.76 mm | 0.81 mm | 0.95 mm | 2.0 mm | Finland |
Ladedata som finnes på hjemmesidene til Evje PK er KUN ment som en veiledning! Ladedata skal alltid verifiseres mot kjente kilder (kruttprodusenter, ladebøker o.l.)
Data funnet på våre hjemmesider brukes på eget ansvar, og Evje Pistolklubb fratar seg alt ansvar for feil bruk av, eller skrivefeil i oppgitte data.
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
 | 93 | Jacketed | 3.9 | 990 | start load; min OAL: 1.169 |
| 93 | Jacketed | 4.9 | 1198 | NEVER EXCEED; min OAL: 1.169 |
| Lee Precision Data With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Pistol Primer. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 90 | Sierra JHC | 3.8 | 852 | |
| 90 | Sierra JHC | 4.0 | 898 | |
| 90 | Sierra JHC | 4.2 | 952 | |
| 90 | Sierra JHC | 4.4 | 1005 | |
| 90 | Sierra JHC | 4.5 | 1058 | |
| 90 | Sierra JHC | 4.7 | 1112 | |
| 90 | Sierra JHC | 4.9 | 1156 | |
| using Sierra bullets Warning! Gun: Ruger Single-Six Custom; Barrel Length: 6 1/2 inches; Case: Starline; Primer: Winchester Small Pistol; Bullet Diameter: .312 inch; COAL: 1.350 inches; Maximum COAL: 1.350 inches; Maximum Case Length: 1.075 inches; Trim to Length: 1.070 inches. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
 | 110 | XTP | 8.5 | 1458 | start load; min OAL: 1.575 |
| 110 | XTP | 9.4 | 1579 | never exceed; min OAL: 1.575 |
| 124 | Lead | 7.9 | 1375 | start load; min OAL: 1.614 |
| 124 | Lead | 8.8 | 1469 | never exceed; min OAL: 1.614 |
 | 125 | XTP | 7.8 | 1352 | start load; min OAL: 1.575 |
| 125 | XTP | 8.8 | 1462 | never exceed; min OAL: 1.575 |
| 140 | Jacketed | 7.6 | 1251 | start load; min OAL: 1.575 |
| 140 | Jacketed | 8.3 | 1340 | never exceed; min OAL: 1.575 |
| 145 | Lead | 6.6 | 1238 | start load; min OAL: 1.614 |
| 145 | Lead | 7.4 | 1319 | never exceed; min OAL: 1.614 |
| 158 | Jacketed | 6.7 | 1117 | start load; min OAL: 1.575 |
| 158 | Jacketed | 7.4 | 1198 | never exceed; min OAL: 1.575 |
| 160 | Lead | 6.3 | 1181 | start load; min OAL: 1.575 |
| 160 | Lead | 7.1 | 1244 | never exceed; min OAL: 1.575 |
| 180 | Jacketed | 6.3 | 972 | start load; min OAL: 1.677 |
| 180 | Jacketed | 7.1 | 1069 | never exceed; min OAL: 1.677 |
| Lee Precision Data Small Pistol Primer. With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 110 | Hornady HP/XTP | 9.2 | 1558 | starting load; OAL (in.): 1.575 |
| 110 | Hornady HP/XTP | 10.1 | 1669 | maximum load; OAL (in.): 1.575 |
| 124 | Intercast LSWC | 8.6 | 1453 | starting load; OAL (in.): 1.614; (the cartridge overall length exceeds the CIP maximum) |
| 124 | Intercast LSWC | 9.4 | 1540 | maximum load; OAL (in.): 1.614; (the cartridge overall length exceeds the CIP maximum) |
| 125 | Hornady FP/XTP | 8.7 | 1444 | starting load; OAL (in.): 1.575 |
| 125 | Hornady FP/XTP | 9.5 | 1545 | maximum load; OAL (in.): 1.575 |
| 140 | Speer HP | 8.2 | 1325 | starting load; OAL (in.): 1.575 |
| 140 | Speer HP | 8.9 | 1407 | maximum load; OAL (in.): 1.575 |
| 145 | Intercast LSWC | 7.3 | 1306 | starting load; OAL (in.): 1.614; (the cartridge overall length exceeds the CIP maximum) |
| 145 | Intercast LSWC | 7.9 | 1380 | maximum load; OAL (in.): 1.614; (the cartridge overall length exceeds the CIP maximum) |
| 158 | Speer HP | 7.3 | 1184 | starting load; OAL (in.): 1.575 |
| 158 | Speer HP | 7.8 | 1259 | maximum load; OAL (in.): 1.575 |
| 160 | Intercast LFN | 6.9 | 1234 | starting load; OAL (in.): 1.575 |
| 160 | Intercast LFN | 7.6 | 1291 | maximum load; OAL (in.): 1.575 |
| 180 | Speer TMJ | 6.9 | 1053 | starting load; OAL (in.): 1.677; (the cartridge overall length exceeds the CIP maximum) |
| 180 | Speer TMJ | 7.6 | 1142 | maximum load; OAL (in.): 1.677; (the cartridge overall length exceeds the CIP maximum) |
| Vihtavuori Reloading Guide 2006 test barrel: 7", 1 in 18 1/2" twist; primers: Small Rifles; cases: Remington, trim-to length: 1.283"; loads less than minimum charges shown are not recommended; USE MAXIMUM LOADS WITH CAUTION! | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 125 | Hornady Jacketed HP | 8.1 | 1147 | sugg. start load; 31,800 cup; 1.590" OAL |
| 125 | Hornady Jacketed HP | 9.0 | 1366 | max load; 40,800 cup; 1.590" OAL |
| 146 | Speer Jacketed HP | 7.6 | 1066 | sugg. start load; 34,600 cup; 1.590" OAL |
| 146 | Speer Jacketed HP | 8.5 | 1212 | max load; 45,000 cup; 1.590" OAL |
| Handgun Lyman Reloading Manual 49th Edition cases: Federal; trim-to length: 1.280"; primers: CCI 550; primer size: Small Pistol, Magnum; Lyman shell holder: No. 1; firearm used: Universal Receiver; barrel length: 4"; twist: 1-18 3/4"; groove dia.: .356" | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
 | 158 | Hornady SWC, RN, SWC-HP | 3.9 | 666 | COAL: 1.590" |
| 158 | Hornady SWC, RN, SWC-HP | 4.2 | 715 | COAL: 1.590" |
| 158 | Hornady SWC, RN, SWC-HP | 4.5 | 770 | COAL: 1.590" |
| 158 | Hornady SWC, RN, SWC-HP | 4.9 | 822 | COAL: 1.590" |
| 158 | Hornady SWC, RN, SWC-HP | 5.2 | 880 | COAL: 1.590" |
| 158 | Hornady SWC, RN, SWC-HP | 5.5 | 933 | maximum load; COAL: 1.590" |
| Using Hornady Bullets Gun: Ruger GP100; barrel length: 6"; case: Starline; primer: Winchester Small Pistol Magnum; bullet diameter: .357"; maximum COAL: 1.590"; maximum case length: 1.290"; trim to length: 1.280". | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 95 | Jacketed | 8.2 | 1527 | start load; min OAL: 1.201 |
| 95 | Jacketed | 9.2 | 1713 | never exceed; compressed charge; min OAL: 1.201 |
| 115 | Jacketed | 6.8 | 1325 | start load; min OAL: 1.201 |
| 115 | Jacketed | 8.0 | 1529 | never exceed; min OAL: 1.201 |
| 123 | Megashock | 6.5 | 1191 | start load; min OAL: 1.201 |
| 123 | Megashock | 7.7 | 1388 | never exceed; min OAL: 1.201 |
| 130 | Copper Plated | 6.5 | 1238 | start load; min OAL: 1.201 |
| 130 | Copper Plated | 7.4 | 1388 | never exceed; min OAL: 1.201 |
| Lee Precision Data With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Pistol primer. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 90 | Sierra Jacketed HP | 7.6 | 1288 | sugg. start load; 27,300 psi; 1.140" OAL |
| 90 | Sierra Jacketed HP | 8.5 | 1518 | max load; 38,100 psi; 1.140" OAL |
| 115 | Sierra Jacketed HP | 6.5 | 1186 | sugg. start load; 31,800 psi; 1.140" OAL |
| 115 | Sierra Jacketed HP | 7.3 | 1298 | max load; 38,200 psi; 1.140" OAL |
| 125 | Speer Gold Dot Jacketed HP | 6.4 | 1088 | sugg. start load; 30,600 psi; 1.135" OAL |
| 125 | Speer Gold Dot Jacketed HP | 7.2 | 1229 | max load; 38,100 psi; 1.135" OAL |
| Lyman Reloading Handbook 49th Edition cases: Federal; trim-to length: .860"; primers: Federal 100; primer size: Small Pistol; Lyman shell holder: No. 15; firearm used: Universal Receiver; barrel length: 4"; twist: 1-16"; groove dia.: .3553" | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 95 | Sierra FMJ | 7.8 | 1512 | starting load |
| 95 | Sierra FMJ | 8.9 | 1652 | maximum load |
| 115 | Sierra FMJ | 6.3 | 1325 | starting load |
| 115 | Sierra FMJ | 7.7 | 1473 | maximum load |
| 123 | Lapua FMJ-RN | 6.0 | 1250 | starting load |
| 123 | Lapua FMJ-RN | 7.4 | 1398 | maximum load |
| 123 | Lapua Megashock | 6.0 | 1249 | starting load |
| 123 | Lapua Megashock | 7.4 | 1400 | maximum load |
| 130 | Rainier RN B | 6.1 | 1213 | starting load |
| 130 | Rainier RN B | 7.1 | 1343 | maximum load |
| Vihtavuori Reloading Guide 6 test barrel: 5", 1 in 16" twist; primers: Small Pistol; cases: Starline, trim-to length: 0.858"; COL (in.): 1.140; loads less than minimum charges shown are not recommended; USE MAXIMUM LOADS WITH CAUTION! | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 146 | Lead | 3.5 | 755 | start load; min OAL: 1.181 |
| 146 | Lead | 3.5 | 755 | never exceed; min OAL: 1.181 |
| Lee Precision Data With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Pistol primer. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 110 | Hornady HP-XTP | 5.5 | 865 | COAL: 1.445" |
| 110 | Hornady HP-XTP | 5.9 | 919 | COAL: 1.445" |
| 110 | Hornady HP-XTP | 6.2 | 990 | COAL: 1.445" |
| 110 | Hornady HP-XTP | 6.6 | 1055 | COAL: 1.445"; +P load; maximum load |
| 140 | Hornady HP-XTP | 4.9 | 802 | COAL: 1.450" |
| 140 | Hornady HP-XTP | 5.1 | 827 | COAL: 1.450" |
| 140 | Hornady HP-XTP | 5.3 | 862 | COAL: 1.450" |
| 140 | Hornady HP-XTP | 5.6 | 890 | COAL: 1.450"; +P load; maximum load |
| 158 | Hornady HP-XTP or FP-XTP | 4.3 | 643 | COAL: 1.450" |
| 158 | Hornady HP-XTP or FP-XTP | 4.5 | 670 | COAL: 1.450" |
| 158 | Hornady HP-XTP or FP-XTP | 4.7 | 699 | COAL: 1.450" |
| 158 | Hornady HP-XTP or FP-XTP | 4.9 | 734 | COAL: 1.450" |
| 158 | Hornady HP-XTP or FP-XTP | 5.1 | 764 | COAL: 1.450"; +P load; maximum load |
| 158 | Hornady SWC-HP, SWC or LRN | 3.6 | 679 | COAL: 1.455" |
| 158 | Hornady SWC-HP, SWC or LRN | 3.9 | 719 | COAL: 1.455" |
| 158 | Hornady SWC-HP, SWC or LRN | 4.2 | 776 | COAL: 1.455" |
| 158 | Hornady SWC-HP, SWC or LRN | 4.5 | 820 | COAL: 1.455"; maximum load |
| Using Hornady Bullets Gun: Colt Trooper 38 Special; barrel length: 4-inches; case: Starline; primer: Winchester Small Pistol; bullet diameter: .357"; maximum COAL: 1.550"; maximum case length: 1.155"; trim to length: 1.145". | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 110 | Hornady HP/XTP | 6.2 | 1130 | start load; COL: 1.437" |
| 110 | Hornady HP/XTP | 6.9 | 1267 | max load; COL: 1.437" |
| 124 | Intercast LSWC | 5.7 | 1063 | start load; COL: 1.437" |
| 124 | Intercast LSWC | 6.4 | 1203 | max load; COL: 1.437" |
| 125 | Hornady FP/XTP | 5.8 | 1042 | start load; COL: 1.437" |
| 125 | Hornady FP/XTP | 6.7 | 1178 | max load; COL: 1.437" |
| 125 | Rainier FP | 5.2 | 1002 | start load; COL: 1.437" |
| 125 | Rainier FP | 6.3 | 1146 | max load; COL: 1.437" |
| 140 | Speer HP | 5.6 | 902 | start load; COL: 1.437" |
| 140 | Speer HP | 6.2 | 1079 | max load; COL: 1.437" |
| 145 | Intercast LSWC | 5.1 | 966 | start load; COL: 1.476" |
| 145 | Intercast LSWC | 5.8 | 1118 | max load; COL: 1.476" |
| 146 | Speer JHP | 4.6 | 856 | start load; COL: 1.378" |
| 146 | Speer JHP | 5.4 | 1004 | max load; COL: 1.378" |
| 148 | Sako LWC | 3.6 | 812 | start load; COL: 1.181" |
| 148 | Sako LWC | 4.1 | 926 | max load; COL: 1.181" |
| 158 | Speer HP | 4.9 | 791 | start load; COL: 1.437" |
| 158 | Speer HP | 5.6 | 983 | max load; COL: 1.437" |
| 158 | Rainier FP | 4.9 | 809 | start load; COL: 1.476" |
| 158 | Rainier FP | 5.7 | 967 | max load; COL: 1.476" |
| 160 | Intercast LFN | 5.1 | 974 | start load; COL: 1.476" |
| 160 | Intercast LFN | 5.8 | 1107 | max load; COL: 1.476" |
| Vihtavuori Reloading Guide Edition 6 test barrel: 6 1/2", 1 in 18" twist; primers: Small Pistol; cases: LAPUA, trim-to length: 1.146"; loads less than minimum charges shown are not recommended; use maximum loads with caution! | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 110 | XTP | 6.5 | 1194 | start load; min OAL: 1.437 |
| 110 | XTP | 6.7 | 1229 | never exceed; min OAL: 1.437 |
| 124 | Lead | 6.0 | 1131 | start load; min OAL: 1.437 |
| 124 | Lead | 6.2 | 1164 | never exceed; min OAL: 1.437 |
| 125 | Copper Plated | 5.7 | 1055 | start load; min OAL: 1.437 |
| 125 | Copper Plated | 6.0 | 1106 | never exceed; min OAL: 1.437 |
| 140 | Jacketed | 5.8 | 981 | start load; min OAL: 1.437 |
| 140 | Jacketed | 6.1 | 1030 | never exceed; min OAL: 1.437 |
| 145 | Lead | 5.3 | 1026 | start load; min OAL: 1.476 |
| 145 | Lead | 5.6 | 1076 | never exceed; min OAL: 1.476 |
| 146 | Jacketed | 5.0 | 927 | start load; min OAL: 1.378 |
| 146 | Jacketed | 5.2 | 963 | never exceed; min OAL: 1.378 |
| 148 | Wadcutter | 3.9 | 878 | start load; min OAL: 1.181 |
| 148 | Wadcutter | 4.0 | 895 | never exceed; min OAL: 1.181 |
| 158 | Copper Plated | 5.3 | 887 | start load; min OAL: 1.476 |
| 158 | Copper Plated | 5.5 | 923 | never exceed; min OAL: 1.476 |
| 160 | Lead | 5.4 | 1030 | start load; min OAL: 1.476 |
| 160 | Lead | 5.6 | 1070 | never exceed; min OAL: 1.476 |
| +P Lee Precision Data These hot loads may wear guns prematurely. Do not use in small frame, or aluminum frame revolvers, or in semi auto pistols. Small pistol primer. CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 110 | XTP | 5.8 | 1085 | start load; min. OAL: 1.437 |
| 110 | XTP | 6.5 | 1194 | NEVER EXCEED; min. OAL: 1.437 |
| 124 | Lead | 5.4 | 1028 | start load; min. OAL: 1.437 |
| 124 | Lead | 6.0 | 1131 | NEVER EXCEED; min. OAL: 1.437 |
| 125 | Copper Plated | 5.1 | 959 | start load; min. OAL: 1.437 |
| 125 | Copper Plated | 5.7 | 1055 | NEVER EXCEED; min. OAL: 1.437 |
| 125 | XTP | 5.5 | 983 | start load; min. OAL: 1.437 |
| 125 | XTP | 6.2 | 1102 | NEVER EXCEED; min. OAL: 1.437 |
| 140 | Jacketed | 5.2 | 891 | start load; min. OAL: 1.437 |
| 140 | Jacketed | 5.8 | 981 | NEVER EXCEED; min. OAL: 1.437 |
| 145 | Lead | 4.8 | 939 | start load; min. OAL: 1.476 |
| 145 | Lead | 5.3 | 1033 | NEVER EXCEED; min. OAL: 1.476 |
| 146 | Jacketed | 4.5 | 838 | start load; min. OAL: 1.378 |
| 146 | Jacketed | 5.0 | 922 | NEVER EXCEED; min. OAL: 1.378 |
| 148 | Wad Cutter | 3.5 | 783 | start load; min. OAL: 1.181 |
| 148 | Wad Cutter | 3.9 | 863 | NEVER EXCEED; min. OAL: 1.181 |
| 158 | Jacketed | 4.6 | 781 | start load; min. OAL: 1.437 |
| 158 | Jacketed | 5.2 | 876 | NEVER EXCEED; min. OAL: 1.437 |
| 158 | Copper Plated | 4.8 | 799 | start load; min. OAL: 1.476 |
| 158 | Copper Plated | 5.3 | 879 | NEVER EXCEED; min. OAL: 1.476 |
| 160 | Lead | 4.8 | 939 | start load; min. OAL: 1.476 |
| 160 | Lead | 5.4 | 1033 | NEVER EXCEED; min. OAL: 1.476 |
| Lee Precision Data With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Pistol Primer. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 115 | Jacketed | 6.0 | 1235 | start load; min OAL: 1.240 |
| 115 | Jacketed | 6.9 | 1398 | never exceed; min OAL: 1.240 |
| 115 | Copper Plated | 6.0 | 1253 | start load; min OAL: 1.240 |
| 115 | Copper Plated | 7.0 | 1398 | never exceed; min OAL: 1.240 |
| 115 | XTP | 6.0 | 1250 | start load; min OAL: 1.240 |
| 115 | XTP | 6.9 | 1398 | never exceed; min OAL: 1.240 |
| 124 | Jacketed | 6.0 | 1207 | start load; min OAL: 1.260 |
| 124 | Jacketed | 7.1 | 1355 | never exceed; min OAL: 1.260 |
| 124 | Lead | 5.4 | 1204 | start load; min OAL: 1.260 |
| 124 | Lead | 6.4 | 1329 | never exceed; min OAL: 1.260 |
| 130 | Jacketed | 5.5 | 1145 | start load; min OAL: 1.260 |
| 130 | Jacketed | 6.3 | 1260 | never exceed; min OAL: 1.260 |
| 130 | Copper Plated | 5.4 | 1129 | start load; min OAL: 1.260 |
| 130 | Copper Plated | 6.2 | 1230 | never exceed; min OAL: 1.260 |
| 145 | Lead | 4.3 | 1033 | start load; min OAL: 1.260 |
| 145 | Lead | 5.2 | 1148 | never exceed; min OAL: 1.260 |
| 147 | Jacketed | 4.9 | 998 | start load; min OAL: 1.260 |
| 147 | Jacketed | 5.7 | 1142 | never exceed; min OAL: 1.260 |
| 147 | Copper Plated | 5.0 | 1053 | start load; min OAL: 1.260 |
| 147 | Copper Plated | 5.7 | 1142 | never exceed; min OAL: 1.260 |
| 147 | XTP | 5.1 | 1033 | start load; min OAL: 1.260 |
| 147 | XTP | 5.9 | 1161 | never exceed; min OAL: 1.260 |
| Lee Precision Data Small Pistol Primer. DO NOT USE THESE LOADS IN 38 AUTOMATIC OR 38 ACP. CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 100 | Hornady FMJ-RN | 5.0 | 864 | |
| 100 | Hornady FMJ-RN | 5.4 | 969 | |
| 100 | Hornady FMJ-RN | 5.7 | 1078 | |
| 100 | Hornady FMJ-RN | 6.1 | 1194 | |
| 100 | Hornady FMJ-RN | 6.5 | 1315 | |
| 100 | Hornady FMJ-RN | 6.9 | 1416 | maximum load |
| Using 100 GR Hornady Bullets Gun: Kimber Model 1911; barrel length: 5 inches; case: Starline; primer: Winchester Small Pistol; bullet diameter: .355" and .357"; COAL: 1.210"; maximum COAL: 1.280"; maximum case length: .900"; trim to length: .895". | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 115 | Hornady FMJ RN or HP XTP | 5.1 | 1001 | |
| 115 | Hornady FMJ RN or HP XTP | 5.4 | 1057 | |
| 115 | Hornady FMJ RN or HP XTP | 5.7 | 1125 | |
| 115 | Hornady FMJ RN or HP XTP | 6.0 | 1193 | |
| 115 | Hornady FMJ RN or HP XTP | 6.3 | 1249 | maximum load |
| Using 115 GR Hornady Bullets Gun: Kimber Model 1911; barrel length: 5 inches; case: Starline; primer: Winchester Small Pistol; bullet diameter: .355" and .357"; COAL: 1.245"; maximum COAL: 1.280"; maximum case length: .900"; trim to length: .895". | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 125 | Hornady | 5.1 | 1083 | |
| 125 | Hornady | 5.4 | 1112 | |
| 125 | Hornady | 5.6 | 1149 | |
| 125 | Hornady | 5.8 | 1185 | |
| 125 | Hornady | 6.1 | 1213 | maximum load |
| Using 121/124/125 GR Hornady Bullets Gun: Kimber Model 1911; barrel length: 5 inches; case: Starline; primer: Winchester Small Pistol; bullet diameter: .355" and .357"; 121 GR Hornady HAP COAL: 1.210"; 124 GR FMJ-RN COAL: 1.250", 124 GR HP XTP COAL: 1.210"; 124 GR FMJ-FP COAL: 1.200"; 125 GR HAP COAL: 1.210"; 125 GR FP XTP & HP XTP COAL: 1.200"; maximum COAL: 1.280"; maximum case length: .900"; trim to length: .895". NOTE: 121 GR and 124 GR bullets can be used for all 125 GR data listed. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 90 | Hornady HP XTP | 5.5 | 922 | |
| 90 | Hornady HP XTP | 5.9 | 1022 | |
| 90 | Hornady HP XTP | 6.2 | 1144 | |
| 90 | Hornady HP XTP | 6.6 | 1266 | |
| 90 | Hornady HP XTP | 6.9 | 1365 | maximum load |
| Using 90 GR Hornady Bullets Gun: Kimber Model 1911; barrel length: 5 inches; case: Starline; primer: Winchester Small Pistol; bullet diameter: .355" and .357"; COAL: 1.220"; maximum COAL: 1.280"; maximum case length: .900"; trim to length: .895". | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 115 | Hornady HP-XTP | 6.0 | 1,255 | starting load; OAL: 1.240 in. 26,100 psi |
| 115 | Hornady HP-XTP | 7.0 | 1,401 | maximum load; OAL: 1.240 in.; 34,700 psi |
| 124 | Hornady FMJ-FP | 6.1 | 1,214 | starting load; OAL: 1.260 in.; 26,100 psi |
| 124 | Hornady FMJ-FP | 7.1 | 1,360 | maximum load; OAL: 1.260 in.; 34,700 psi |
| Vihtavuori Data primer: small pistol; max. bullet diameter: .356"; max. cartridge length: 1.280"; max. shell length: .900"; trim to .890"; test barrel: 5 1/2; 1 in 16" twist; primers; Winchester WSP; cases: Remington +P, trim-to length: .893"; use maximum loads with caution; loads less than minimum charges shown are not recommended | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 115 | Hornady HP-XTP | 6.0 | 1250 | starting load; COL (in.): 1.240 |
| 115 | Hornady HP-XTP | 6.5 | 1324 | maximum load; COL (in.): 1.240 |
| 115 | Rainier RN | 6.0 | 1253 | starting load; COL (in.): 1.240 |
| 115 | Rainier RN | 6.5 | 1325 | maximum load; COL (in.): 1.240 |
| 124 | Hornady FMJ-FP | 6.0 | 1207 | starting load; COL (in.): 1.260 |
| 124 | Hornady FMJ-FP | 6.6 | 1281 | maximum load; COL (in.): 1.260 |
| 124 | Intercast LSWC | 5.4 | 1204 | starting load; COL (in.): 1.260 |
| 124 | Intercast LSWC | 5.9 | 1266 | maximum load; COL (in.): 1.260 |
| 130 | Sierra FMJ | 5.6 | 1145 | starting load; COL (in.): 1.260 |
| 130 | Sierra FMJ | 5.9 | 1202 | maximum load; COL (in.): 1.260 |
| 130 | Rainier RN | 5.4 | 1129 | starting load; COL (in.): 1.260 |
| 130 | Rainier RN | 5.8 | 1179 | maximum load; COL (in.): 1.260 |
| 145 | Intercast LRN | 4.3 | 1033 | starting load; COL (in.): 1.260 |
| 145 | Intercast LRN | 4.7 | 1091 | maximum load; COL (in.): 1.260 |
| 147 | Hornady HP/XTP | 5.1 | 1033 | starting load; COL (in.): 1.260 |
| 147 | Hornady HP/XTP | 5.5 | 1097 | maximum load; COL (in.): 1.260 |
| 147 | Rainier RN | 4.9 | 1053 | starting load; COL (in.): 1.260 |
| 147 | Rainier RN | 5.3 | 1097 | maximum load; COL (in.): 1.260 |
| Vihtavuori Reloading Guide 6 test barrel: 5 1/2", 1 in 16" twist; primers: Small Pistol; cases: Remington +P, trim-to length: 0.893"; loads less than minimum charges shown are not recommended; USE MAXIMUM LOADS WITH CAUTION! | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 124 | Speer GDHP | 5.0 | 1072 | overall loaded length (inches): 1.260 |
| 124 | Speer GDHP | 5.5 | 1137 | overall loaded length (inches): 1.260 |
| 124 | Speer GDHP | 6.0 | 1200 | overall loaded length (inches): 1.260 |
| 124 | Speer GDHP | 6.5 | 1274 | overall loaded length (inches): 1.260 |
| 124 | Speer GDHP | 6.8 | 1310 | overall loaded length (inches): 1.260 |
| 124 | Nosler JHP | 5.0 | 1091 | overall loaded length (inches): 1.240 |
| 124 | Nosler JHP | 5.5 | 1137 | overall loaded length (inches): 1.240 |
| 124 | Nosler JHP | 6.0 | 1198 | overall loaded length (inches): 1.240 |
| 124 | Nosler JHP | 6.4 | 1267 | overall loaded length (inches): 1.240 |
| 124 | Nosler JHP | 6.6 | 1301 | overall loaded length (inches): 1.240 |
| +P A Kimber Stainless Target II with a 5-inch barrel was used to test fire these loads. Starline cases and Winchester Small Pistol primers were used throughout. Bullet diameter: .355 and .356 inch; maximum overall loaded length: 1.280 inches; maximum case length: .900 inch; and trim-to length; .895 inch. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
 | 90 | Cast #356242 | 6.4 | 1301 | sugg. start load; 22,500 cup; 1.175" OAL |
| 90 | Cast #356242 | 7.2 | 1464 | max load; 30,900 cup; 1.175" OAL |
 | 120 | Cast #356242 | 4.9 | 1106 | sugg. start load; 27,700 cup; 1.160" OAL |
| 120 | Cast #356242 | 5.5 | 1222 | max load; 31,800 cup; 1.160" OAL |
| 120 | Cast #356402 | 4.9 | 1049 | sugg. start load; 22,700 cup; 1.230" OAL |
| 120 | Cast #356402 | 5.5 | 1220 | max load; 29,700 cup; 1.230" OAL |
| Cast Bullet Handgun Data Lyman Reloading Handbook 49th Edition cases: Remington; trim-to length: .895"; primers: Winchester WSP; primer size: Small Pistol; Lyman shell holder: No. 12; cast bullets used sized to .355" dia.; firearm used: Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .355" | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 90 | Sierra Jacketed HP | 6.5 | 1354 | sugg. start load; 22,500 cup; 1.125" OAL |
| 90 | Sierra Jacketed HP | 7.3 | 1499 | max load; 32,000 cup; 1.125" OAL |
| 95 | Sierra FMJ | 6.4 | 1325 | sugg. start load; 23,600 psi; 1.175" OAL |
| 95 | Sierra FMJ | 7.2 | 1441 | max load; 31,300 psi; 1.175" OAL |
| 115 | Hornady Jacketed HP | 5.8 | 1051 | sugg. start load; 22,900 cup; 1.265" OAL |
| 115 | Hornady Jacketed HP | 6.5 | 1295 | max load; 31,600 cup; 1.265" OAL |
| 124 | Hornady FMJ/FP | 5.1 | 1009 | sugg. start load; 21,400 cup; 1.165" OAL |
| 124 | Hornady FMJ/FP | 5.7 | 1192 | max load; 29,400 cup; 1.165" OAL |
| Handgun Data Lyman Reloading Handbook 49th Edition cases: Remington; trim-to length: .895"; primers: CCI 500; primer size: Small Pistol; Lyman shell holder: No. 12; firearm used: Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .355" | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 115 | Lapua FMJ | 6.2 | 1224 | starting load; COL (in.): 1.240 |
| 115 | Lapua FMJ | 6.8 | 1330 | maximum load; COL (in.): 1.240 |
| 123 | Lapua FMJ | 6.0 | 1171 | starting load; COL (in.): 1.260 |
| 123 | Lapua FMJ | 6.7 | 1270 | maximum load; COL (in.): 1.260 |
| 130 | Sierra FMJ | 5.9 | 1138 | starting load; COL (in.): 1.260 |
| 130 | Sierra FMJ | 6.4 | 1234 | maximum load; COL (in.): 1.260 |
| Lapua Vihtavuori Reloading Guide 6 test barrel: 5 1/2", 1 in 16" twist; primers: Small Pistol; cases: Lapua, trim-to length: 0.893"; loads less than minimum charges shown are not recommended; USE MAXIMUM LOADS WITH CAUTION! | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 180 | MG 180 | 10.0 | 1,176 | group (inches): 1.5 |
| 190 | SAECO 190 | 7.0 | 782 | |
| 175 | Lyman 401043 | 7.0 | 720 | |
| 175 | Lyman 401043 | 10.0 | 1,204 | |
| Colt Peacemaker Loads All loads fired in Winchester .38 WCF brass with CCI 300 primers except where otherwise noted in remarks. SC = 3.5 inches or more. (Loading the Peacemaker - Dave Scovill) | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 155 | Copper Plated | 6.4 | 1138 | start load; min. OAL: 1.126 |
| 155 | Copper Plated | 7.3 | 1276 | NEVER EXCEED; compressed load; min. OAL 1.126 |
| 155 | XTP | 6.0 | 1103 | start load; min. OAL: 1.126 |
| 155 | XTP | 6.9 | 1250 | NEVER EXCEED; compressed charge; min. OAL: 1.126 |
| Lee Precision 155 GR Data Do not use reloads in Glock or similar guns with chambers that do not fully support the cartridge due to the intrusion of the feed ramp. CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Pistol Primer. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 170 | Jacketed | 5.3 | 1002 | start load; min. OAL: 1.126 |
| 170 | Jacketed | 6.1 | 1135 | NEVER EXCEED; min. OAL: 1.126 |
| Lee Precision 170 GR Data Do not use reloads in Glock or similar guns with chambers that do not fully support the cartridge due to the intrusion of the feed ramp. CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Pistol Primer. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 180 | Jacketed Bullet | 5.5 | 1008 | start load; min. OAL: 1.126 |
| 180 | Jacketed Bullet | 6.1 | 1109 | NEVER EXCEED; min. OAL: 1.126 |
| Lee Precision 180 GR Data Do not use reloads in Glock or similar guns with chambers that do not fully support the cartridge due to the intrusion of the feed ramp. CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Pistol Primer. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 200 | Jacketed | 4.7 | 864 | start load; min. OAL: 1.126 |
| 200 | Jacketed | 5.4 | 978 | NEVER EXCEED; min. OAL: 1.126 |
| Lee Precision 200 GR Data Do not use reloads in Glock or similar guns with chambers that do not fully support the cartridge due to the intrusion of the feed ramp. CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Pistol Primer. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 135 | Nosler JHP | 6.3 | 1020 | start load; 19,300 cup; 1.085" OAL |
| 135 | Nosler JHP | 7.0 | 1193 | max load; 23,000 cup; 1.085" OAL |
| 150 | Sierra JHP | 5.7 | 922 | start load; 18,800 cup; 1.100" OAL |
| 150 | Sierra JHP | 6.3 | 1091 | max load; 23,100 cup; 1.100" OAL |
| 155 | Winchester Jacketed Silvertip | 5.5 | 893 | start load; 19,800 cup; 1.125" OAL |
| 155 | Winchester Jacketed Silvertip | 6.2 | 993 | max load; 22,600 cup; 1.125" OAL |
| 165 | Speer TMJ | 5.5 | 873 | start load; 18,700 cup; 1.120" OAL |
| 165 | Speer TMJ | 6.1 | 997 | max load; 23,000 cup; 1.120" OAL |
| 175 | Winchester Jacketed Silvertip | 5.4 | 891 | start load; 20,600 cup; 1.125" OAL |
| 175 | Winchester Jacketed Silvertip | 6.0 | 1004 | max load; 23,000 cup; 1.125" OAL |
| 180 | Sierra JHP | 5.4 | 904 | start load; 20,800 cup; 1.115" OAL |
| 180 | Sierra JHP | 6.0 | 1014 | max load; 23,100 cup; 1.115" OAL |
| 190 | Sierra JFP | 5.0 | 773 | start load; 18,900 cup; 1.135" OAL |
| 190 | Sierra JFP | 5.6 | 870 | max load; 23,200 cup; 1.135" OAL; potentially most accurate load |
| 150 | Lyman Cast #401654 (#2 Alloy) | 5.3 | 911 | start load; 17,800 cup; 1.090" OAL |
| 150 | Lyman Cast #401654 (#2 Alloy) | 5.9 | 1057 | max load; 22,500 cup; 1.090" OAL |
| 175 | Lyman Cast #401043 (#2 Alloy) | 5.2 | 918 | start load; 18,700 cup; 1.125" OAL |
| 175 | Lyman Cast #401043 (#2 Alloy) | 5.8 | 1038 | max load; 23,000 cup; 1.125" OAL; potentially most accurate load |
| 175 | Lyman Cast #401638 (#2 Alloy) | 4.8 | 873 | start load; 18,800 cup; 1.100" OAL |
| 175 | Lyman Cast #401638 (#2 Alloy) | 5.4 | 1008 | max load; 22,400 cup; 1.100" OAL; potentially most accurate load |
| Lyman Reloading Handbook 48th Edition cases: Winchester; trim-to length: .845"; primers: Winchester WSP; primer size: Small Pistol; Lyman shell holder: No. 15; firearm used: Universal Receiver; barrel length: 4"; twist: 1-16"; groove dia.: .401"; do not reduce cases below the trim-to length; additionally do not roll crimp bullets; it is important not to seat bullets to a shorter length than listed in any handgun cartridge; but especially so in this one; pressures can be raised dramatically with deep seating | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 155 | Hornady HP-XTP | 6.1 | 1049 | |
| 155 | Hornady HP-XTP | 6.4 | 1100 | |
| 155 | Hornady HP-XTP | 6.8 | 1143 | |
| 155 | Hornady HP-XTP | 7.1 | 1198 | maximum load |
| Using Hornady Bullets Gun: Glock Model 22; barrel length: 4.35 inches; case: Starline; primer: Winchester Small Pistol; bullet diameter: .400"; COAL: 1.125"; maximum COAL: 1.135"; maximum case length: .850"; trim to length: .845". | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 135 | Sierra JHP | 6.4 | 970 | |
| 135 | Sierra JHP | 6.6 | 1004 | |
| 135 | Sierra JHP | 6.8 | 1042 | |
| 135 | Sierra JHP | 7.0 | 1084 | |
| 135 | Sierra JHP | 7.2 | 1122 | |
| 135 | Sierra JHP | 7.4 | 1160 | |
| 135 | Sierra JHP | 7.6 | 1200 | |
| 135 | Sierra JHP | 7.8 | 1240 | |
| 135 | Sierra JHP | 8.0 | 1274 | maximum load |
| 150 | Sierra JHP | 5.3 | 863 | |
| 150 | Sierra JHP | 5.6 | 904 | |
| 150 | Sierra JHP | 5.8 | 953 | |
| 150 | Sierra JHP | 6.1 | 1001 | |
| 150 | Sierra JHP | 6.4 | 1047 | |
| 150 | Sierra JHP | 6.7 | 1095 | |
| 150 | Sierra JHP | 6.9 | 1144 | |
| 150 | Sierra JHP | 7.2 | 1183 | maximum load |
| 165 | Sierra JHP | 5.3 | 928 | |
| 165 | Sierra JHP | 5.6 | 955 | |
| 165 | Sierra JHP | 5.8 | 987 | |
| 165 | Sierra JHP | 6.1 | 1018 | |
| 165 | Sierra JHP | 6.3 | 1049 | |
| 165 | Sierra JHP | 6.6 | 1081 | |
| 165 | Sierra JHP | 6.8 | 1108 | maximum load |
| 180 | Sierra JHP | 4.7 | 796 | |
| 180 | Sierra JHP | 5.0 | 844 | |
| 180 | Sierra JHP | 5.3 | 900 | |
| 180 | Sierra JHP | 5.7 | 955 | |
| 180 | Sierra JHP | 6.0 | 1010 | |
| 180 | Sierra JHP | 6.3 | 1063 | maximum load |
| using Sierra bullets Notes: Gun: Glock Model 22; barrel length: 4.35"; case: Starline; primer: Winchester Small Pistol; bullet diameter: .400"; 135 GR Sierra JHP COAL: 1.125"; 150 GR Sierra JHP COAL: 1.125"; 165 GR Sierra JHP COAL: 1.125"; 180 GR Sierra JHP COAL: 1.125"; maximum COAL: 1.135"; maximum case length: .850"; trim to length: .845". | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 135 | Hornady HP-XTP | 6.0 | 1132 | starting load |
| 135 | Hornady HP-XTP | 6.3 | 1171 | maximum load |
| 135 | Nosler HP | 7.4 | 1322 | starting load |
| 135 | Nosler HP | 7.8 | 1364 | maximum load |
| 155 | Rainier FP | 6.3 | 1155 | starting load |
| 155 | Rainier FP | 6.6 | 1195 | maximum load |
| 165 | PMC TC-FMJ | 6.3 | 1096 | starting load |
| 165 | PMC TC-FMJ | 6.6 | 1137 | maximum load |
| 170 | Hornady HP | 5.2 | 1027 | starting load |
| 170 | Hornady HP | 5.6 | 1063 | maximum load |
| 180 | Speer HP | 5.4 | 1001 | starting load |
| 180 | Speer HP | 5.7 | 1037 | maximum load |
| 180 | Fiocchi LTC | 4.6 | 948 | starting load |
| 180 | Fiocchi LTC | 5.2 | 1034 | maximum load |
| 200 | Speer TMJ | 4.6 | 876 | starting load |
| 200 | Speer TMJ | 4.9 | 910 | maximum load |
| Vihtavuori Reloading Guide 6 test barrel: 5 1/2", 1 in 16" twist; primers: Small Pistol; cases: Remington, trim-to length: 0.843"; COL (in.): 1.126; This data is intended for use in firearms with barrels which fully support the cartridge in the chamber. Use of this data in firearms which do not fully support the cartridge may result in bulged cases, ruptured cases, case head separation, or other conditions which may result in damage to the firearm and/or result in injury or death of the shooter and/or bystanders. Loads less than minimum charges shown are not recommended; USE MAXIMUM LOADS WITH CAUTION! | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 135 | jacketed hollowpoint (JHP) | 8.5 | 1,300 | starting load |
| 135 | jacketed hollowpoint (JHP) | 9.7 | 1,400 | maximum load |
Accuracy measurements are 10-shot groups fired from a Ransom Rest at 25 yards. Test firearm was a Les Baer Premier II pistol. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 180 | XTP | 12.5 | 1401 | start load; min OAL: 1.602 |
| 180 | XTP | 14.0 | 1539 | never exceed; min OAL: 1.602 |
| 200 | XTP | 11.3 | 1313 | start load; min OAL: 1.602 |
| 200 | XTP | 12.9 | 1426 | never exceed; min OAL: 1.602 |
| 220 | Jacketed | 10.7 | 1222 | start load; min OAL: 1.602 |
| 220 | Jacketed | 12.2 | 1321 | never exceed; min OAL: 1.602 |
| 240 | Jacketed | 9.9 | 1148 | start load; min OAL: 1.602 |
| 240 | Jacketed | 11.4 | 1240 | never exceed; min OAL: 1.602 |
| 250 | Jacketed | 9.6 | 1084 | start load; min OAL: 1.602 |
| 250 | Jacketed | 11.1 | 1205 | never exceed; min OAL: 1.602 |
| 267 | Lead | 10.1 | 1104 | start load; min OAL: 1.681 |
| 267 | Lead | 11.4 | 1227 | never exceed; min OAL: 1.681 |
| 300 | Jacketed | 9.1 | 944 | start load; min OAL: 1.717 |
| 300 | Jacketed | 10.1 | 1039 | never exceed; min OAL: 1.717 |
| 300 | XTP | 9.2 | 974 | start load; min OAL: 1.717 |
| 300 | XTP | 10.4 | 1055 | never exceed; min OAL: 1.717 |
| Lee Precision Data Large pistol primer. CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 180 | Hornady HP-XTP | 13.0 | 1440 | starting load; COL (in.): 1.602 |
| 180 | Hornady HP-XTP | 14.1 | 1549 | maximum load; COL (in.): 1.602 |
| 200 | Hornady HP-XTP | 11.7 | 1345 | starting load; COL (in.): 1.602 |
| 200 | Hornady HP-XTP | 13.0 | 1434 | maximum load; COL (in.): 1.602 |
| 220 | Sierra FPJ-Match | 11.1 | 1250 | starting load; COL (in.): 1.602 |
| 220 | Sierra FPJ-Match | 12.3 | 1328 | maximum load; COL (in.): 1.602 |
| 240 | Hornady JTC-SIL | 10.3 | 1175 | starting load; COL (in.): 1.602 |
| 240 | Hornady JTC-SIL | 11.5 | 1247 | maximum load; COL (in.): 1.602 |
| 250 | Sierra FPJ-Match | 10.0 | 1119 | starting load; COL (in.): 1.602 |
| 250 | Sierra FPJ-Match | 11.2 | 1213 | maximum load; COL (in.): 1.602 |
| 267 | Intercast LFN | 10.5 | 1171 | starting load; COL (in.): 1.681; the cartridge overall length exceeds the CIP maximum |
| 267 | Intercast LFN | 11.5 | 1232 | maximum load; COL (in.): 1.681; the cartridge overall length exceeds the CIP maximum |
| 267 | LFN | 5.9 | 735 | starting load; COL (in.): 1.575; Cowboy Action Shooting load |
| 267 | LFN | 7.5 | 945 | maximum load; COL (in.): 1.575; Cowboy Action Shooting load |
| 300 | Hornady HP-XTP | 9.6 | 997 | starting load; COL (in.): 1.717; the cartridge overall length exceeds the CIP maximum |
| 300 | Hornady HP-XTP | 10.5 | 1061 | maximum load; COL (in.): 1.717; the cartridge overall length exceeds the CIP maximum |
| 300 | Sierra JSP | 9.4 | 971 | starting load; COL (in.): 1.717; the cartridge overall length exceeds the CIP maximum |
| 300 | Sierra JSP | 10.2 | 1046 | maximum load; COL (in.): 1.717; the cartridge overall length exceeds the CIP maximum |
| Vihtavuori Reloading Guide 6 test barrel: 7", 1 in 20" twist; primers: Large Pistol; cases: Remington, trim-to length: 1.275"; loads less than minimum charges shown are not recommended; USE MAXIMUM LOADS WITH CAUTION! | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 180 | Hornady HP-XTP | 10.8 | 1171 | |
| 180 | Hornady HP-XTP | 12.1 | 1302 | |
| 180 | Hornady HP-XTP | 13.5 | 1432 | maximum load |
| Using 180 GR Hornady Bullets Gun: Ruger New Model Blackhawk (Bisley); barrel length: 5 1/2-inches; case: Starline; primer: Winchester Large Pistol; bullet diameter: .430"; maximum COAL: 1.610"; maximum case length: 1.285"; trim to length: 1.275"; COAL: 1.600". | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 240 | Hornady SWC-HP or SWC | 6.8 | 674 | |
| 240 | Hornady SWC-HP or SWC | 7.2 | 768 | |
| 240 | Hornady SWC-HP or SWC | 7.6 | 858 | |
| 240 | Hornady SWC-HP or SWC | 8.1 | 945 | maximum load |
| Using 240 GR Hornady Bullets Gun: Ruger New Model Blackhawk (Bisley); barrel length: 5 1/2-inches; case: Starline; primer: Winchester Large Pistol; bullet diameter: .430"; Hornady HP-XTP and CL-SIL COAL: 1.600"; SWC-HP and SWC COAL: 1.610"; maximum COAL: 1.610"; maximum case length: 1.285"; trim to length: 1.275". | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 240 | Sierra JHC | 7.7 | 1,056 | group: 1.5 inches |
| 240 | Nosler JHP | 7.7 | 1,011 | group: 2.25 inches |
| 200 | Hornady XTP | 7.7 | 1,019 | group: 2.0 inches |
| 250 | RCBS 44-250-KT | 7.7 | 1,041 | group: 1.75 inches |
| 247.5 | Lyman 424383 roundnose | 7.7 | 1,072 | group: 2.0 inches |
| 200 | RCBS 44-200-FN | 7.7 | 1,066 | group: 2.5 inches |
| 240 | Bull-X SWC | 7.7 | 1,042 | group: 2.5 inches |
| 218 | Lyman 429215 | 7.7 | 1,058 | group: 1.75 inches |
Warning! Notes Loads fired from a 4 3/4-inch barrel. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 240 | Sierra 240 JHC | 7.7 | 1,056 | group (inches): 1.5 |
| 240 | Hornady 240 XTP | 7.7 | 1,017 | group (inches): 3.0 |
| 240 | Nosler 240 JHP | 7.7 | 1,011 | group (inches): 2.25 |
| 200 | Speer 200 JHP | 7.7 | 996 | group (inches): SC |
| 200 | Hornady 200 XTP | 7.7 | 1,019 | group (inches): 2.0 |
| 4-3/4-inch barrel (Colt Peacemaker Loads) SC = 3.5 inches or more | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 250 | RCBS 44-250-KT | 7.7 | 1,041 | group (inches): 1.75 |
| 250 | Lyman 424383 RN | 7.7 | 1,072 | group (inches): 2.0 |
| 200 | RCBS 44-200-FN | 7.7 | 1,066 | group (inches): 2.5 |
| 200 | MG 200 | 7.7 | 1,025 | group (inches): 2.5 |
| 240 | Bull-X 240 SWC | 7.7 | 1,042 | group (inches): 2.5 |
| 215 | Lyman 429215 | 7.7 | 1,058 | group (inches): 1.75 |
| Colt Peacemaker Loads SC = 3.5 inches or more (Loading the Peacemaker) | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 180 | XTP | 8.8 | 1071 | start load; min OAL: 1.469 |
| 180 | XTP | 9.5 | 1145 | never exceed; min OAL: 1.469 |
| 200 | XTP | 8.3 | 978 | start load; min OAL: 1.469 |
| 200 | XTP | 9.1 | 1066 | never exceed; min OAL: 1.469 |
| 220 | Jacketed | 6.6 | 822 | start load; min OAL: 1.469 |
| 220 | Jacketed | 7.4 | 912 | never exceed; min OAL: 1.469 |
| 240 | Jacketed | 6.3 | 745 | start load; min OAL: 1.480 |
| 240 | Jacketed | 7.1 | 827 | never exceed; min OAL: 1.480 |
| 250 | Jacketed | 5.5 | 674 | start load; min OAL: 1.469 |
| 250 | Jacketed | 6.5 | 778 | never exceed; min OAL: 1.469 |
| 267 | Lead | 6.5 | 846 | start load; min OAL: 1.539 |
| 267 | Lead | 7.1 | 912 | never exceed; min OAL: 1.539 |
| Lee Precision Data CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Large Pistol Primer. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 180 | Hornady HP-XTP | 6.7 | 512 | Do Not Reduce |
| 180 | Hornady HP-XTP | 7.0 | 574 | |
| 180 | Hornady HP-XTP | 7.3 | 649 | |
| 180 | Hornady HP-XTP | 7.6 | 722 | |
| 180 | Hornady HP-XTP | 7.9 | 792 | maximum load |
| Using Hornady Bullets Gun: Smith & Wesson 624; barrel length: 4 inches; case: Starline; primer: Winchester Large Pistol; bullet diameter: 0.430"; 180 GR Hornady HP-XTP COAL: 1.480"; FP-Cowboy COAL: 1.490"; 200 GR HP-XTP COAL: 1.470"; 240 GR HP-XTP & CL-SIL COAL: 1.480"; 240 GR SWC-HP & SWC COAL: 1.490"; maximum COAL: 1.500"; maximum length: 1.160"; trim to length: 1.150". | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 180 | Hornady HP-XTP | 8.8 | 1047 | starting load; COL (in.): 1.469 |
| 180 | Hornady HP-XTP | 9.6 | 1145 | maximum load; COL (in.): 1.469 |
| 200 | Hornady HP-XTP | 8.3 | 961 | starting load; COL (in.): 1.469 |
| 200 | Hornady HP-XTP | 9.1 | 1066 | maximum load; COL (in.): 1.469 |
| 220 | Sierra FPJ-Match | 6.6 | 814 | starting load; COL (in.): 1.469 |
| 220 | Sierra FPJ-Match | 7.4 | 912 | maximum load; COL (in.): 1.469 |
| 240 | Hornady JTC-Sil | 6.3 | 728 | starting load; COL (in.): 1.480 |
| 240 | Hornady JTC-Sil | 7.1 | 827 | maximum load; COL (in.): 1.480 |
| 250 | Sierra FPJ | 5.6 | 646 | starting load; COL (in.): 1.469 |
| 250 | Sierra FPJ | 6.5 | 778 | maximum load; COL (in.): 1.469 |
| 267 | Intercast LFN | 6.5 | 840 | starting load; COL (in.): 1.539 |
| 267 | Intercast LFN | 7.1 | 912 | maximum load; COL (in.): 1.539 |
| 267 | LFN | 6.6 | 856 | starting load; COL (in.): 1.539; Cowboy Action Shooting load |
| 267 | LFN | 7.3 | 925 | maximum load; COL (in.): 1.539; Cowboy Action Shooting load |
| Vihtavuori Loading Guide 6 test barrel: 6", 1 in 18" twist; primers: Large Pistol; cases: Remington, trim-to length: 1.153"; loads less than minimum charges shown are not recommended; USE MAXIMUM LOADS WITH CAUTION! | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 200 | Speer Jacketed HP | 8.4 | 817 | sugg. start load; 1.592" OAL; 11,100 cup |
| 200 | Speer Jacketed HP | 9.4 | 946 | max load; 1.592" OAL; 12,600 cup |
| 200 | Cast #427666 | 8.1 | 870 | sugg. start load; 1.580" OAL; 11,000 cup |
| 200 | Cast #427666 | 9.0 | 924 | max load; 1.580" OAL; 11,600 cup |
| 205 | Cast #427098 | 8.1 | 870 | sugg. start load; 1.592" OAL; 10,800 cup |
| 205 | Cast #427098 | 9.0 | 950 | max load; 1.592" OAL; 12,100 cup |
| Lyman Reloading Manual 49th Edition cases: Winchester; trim-to length: 1.295"; primers: Winchester WLP; primer size: Large Pistol; Lyman shell holder: No. 14B; cast bullets used sized to .429" dia.; firearm used: Universal Receiver; barrel length: 6"; twist: 1-20"; groove dia.: .428" | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 199 | RN/FP RCBS 44-200-CM | 8.5 | 930 | |
| 205 | RN/FP Lyman 427098 | 8.5 | 1035 | |
| 205 | RN/FP Lyman 427666 | 8.5 | 926 | |
| 211 | RN/FP RCBS 44-200-FN | 8.5 | 986 | |
| in a Colt SAA Revolver All chronograph figures are for five rounds fired with the start screen at approximately 6 feet. All bullets poured of 1-20 (tin-to-lead) alloy, sized to .428 inch and lubed with SPG. All handloads used Starline brass and Winchester Large Pistol primers. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 199 | RN/FP RCBS 44-200-CM | 8.5 | 995 | |
| 205 | RN/FP Lyman 427098 | 8.5 | 1070 | |
| 205 | RN/FP Lyman 427666 | 8.5 | 944 | |
| 211 | RN/FP RCBS 44-200-FN | 8.5 | 1033 | |
| in a USFA Revolver All chronograph figures are for five rounds fired with the start screen at approximately 6 feet. All bullets poured of 1-20 (tin-to-lead) alloy, sized to .428 inch and lubed with SPG. All handloads used Starline brass and Winchester Large Pistol primers. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 205 | Hornady FP Cowboy | 6.5 | 546 | Do Not Reduce! |
| 205 | Hornady FP Cowboy | 7.0 | 634 | |
| 205 | Hornady FP Cowboy | 7.5 | 722 | maximum load |
| Using Hornady Bullets Gun: Colt Frontier Six-Shooter; barrel length: 4 3/4-inches; case: Starline; primer: Federal #150; bullet diameter for the 205 GR FP Cowboy: .427" bullet diameter for the 200 GR HP-XTP: .430"; HP-XTP COAL: 1.600"; FP Cowboy COAL: 1.570"; maximum COAL: 1.592"; maximum case length: 1.305"; trim to length: 1.295". | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 154 | Lead | 7.7 | 1156 | start load; min OAL: 1.240 |
| 154 | Lead | 8.3 | 1260 | never exceed; min OAL: 1.240 |
| 180 | Lead | 6.9 | 1050 | start load; min OAL: 1.244 |
| 180 | Lead | 7.5 | 1121 | never exceed; min OAL: 1.244 |
| 185 | Jacketed | 7.2 | 1032 | start load; min OAL: 1.268 |
| 185 | Jacketed | 7.8 | 1100 | never exceed; min OAL: 1.268 |
| 200 | Jacketed | 6.3 | 930 | start load; min OAL: 1.240 |
| 200 | Jacketed | 6.9 | 1002 | never exceed; min OAL: 1.240 |
| 200 | Lead | 6.2 | 981 | start load; min OAL: 1.240 |
| 200 | Lead | 6.7 | 1054 | never exceed; min OAL: 1.240 |
| 230 | Jacketed | 6.0 | 873 | start load; min OAL: 1.260 |
| 230 | Jacketed | 6.5 | 928 | never exceed; min OAL: 1.260 |
| Lee Precision Data Large Pistol primer; with NEVER EXCEED LOADS maintain Minimum Over All Length or longer | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 225 | Speer Jacketed HP | 6.0 | 689 | sugg. start load; 1.243" OAL; 11,700 cup |
| 225 | Speer Jacketed HP | 6.7 | 830 | max load; 1.243" OAL; 16,300 cup |
| 230 | Speer TMJ | 5.9 | 742 | sugg. start load; 1.275" OAL; 12,700 cup |
| 230 | Speer TMJ | 6.6 | 838 | max load; 1.275" OAL; 16,500 cup |
| Lyman Reloading Handbook 49th Edition cases: Remington, Federal; trim-to length: .888"; primers: Remington 2 1/2; primer size: Large Pistol; Lyman shell holder: No. 2; firearm used: Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .450" | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 200 | Speer TMJ FN, TMJ Match SWC or GDHP | 6.3 | 818 | start charge |
| 200 | Speer TMJ FN, TMJ Match SWC or GDHP | 7.0 | 953 | maximum charge |
| 230 | Speer TMJ RN | 5.5 | 760 | start charge |
| 230 | Speer TMJ RN | 6.3 | 872 | maximum charge |
| 230 | Speer GDHP SB or GDHP | 5.4 | 709 | start charge |
| 230 | Speer GDHP SB or GDHP | 6.1 | 836 | maximum charge |
| Speer Reloading Manual #14 max. case length: 0.898"; trim-to length: 0.888"; max cart. OAL: 1.275"; RCBS shell holder: #3; cart. case: Speer; primer: CCI 300; test firearm: SIG P220; barrel length: 4.4"; IMPORTANT SAFETY NOTE: These loads were developed and tested for safe use in HANDGUNS. Not all loads may be suitable for use in a carbine or rifle chambered for this cartridge. If loading for a carbine or rifle, choose from among the loads developing the highest handgun velocities and load just a few rounds. Thoroughly test this small sample in your firearm in slow-fire mode, insuring that you achieve proper feeding and ejection. Be certain that all bullets exit the barrel; watching the target for each bullet strike is the best way to know that the load produces sufficient gas volume for a longer barrel. NOTE: Do not use the 230-GR TMJ RN loads with Gold Dot HP; maximum loads should be used with CAUTION | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 154 | Intercast LSWC | 7.6 | 1129 | starting load; COL (in.): 1.240 |
| 154 | Intercast LSWC | 8.2 | 1211 | maximum load; COL (in.): 1.240 |
| 180 | Intercast LSWC | 6.8 | 1020 | starting load; COL (in.): 1.244 |
| 180 | Intercast LSWC | 7.4 | 1104 | maximum load; COL (in.): 1.244 |
 | 185 | Speer TMJ-SWC | 7.1 | 993 | starting load; COL (in.): 1.240 |
| 185 | Speer TMJ-SWC | 7.7 | 1082 | maximum load; COL (in.): 1.240 |
| 185 | Rainier FN | 7.3 | 994 | starting load; COL (in.): 1.201 |
| 185 | Rainier FN | 7.9 | 1093 | maximum load; COL (in.): 1.201 |
 | 185 | Nosler HP | 6.9 | 951 | starting load; COL (in.): 1.130 |
| 185 | Nosler HP | 7.9 | 1076 | maximum load; COL (in.): 1.130 |
| 200 | Intercast LSWC | 6.1 | 966 | starting load; COL (in.): 1.240 |
| 200 | Intercast LSWC | 6.6 | 1039 | maximum load; COL (in.): 1.240 |
| 200 | Hornady FMJ-CT | 6.2 | 906 | starting load; COL (in.): 1.240 |
| 200 | Hornady FMJ-CT | 6.8 | 986 | maximum load; COL (in.): 1.240 |
 | 230 | Hornady FMJ-RN | 5.9 | 830 | starting load; COL (in.): 1.260 |
| 230 | Hornady FMJ-RN | 6.4 | 912 | maximum load; COL (in.): 1.260 |
| Vihtavuori Reloading Guide 6 test barrel: 6", 1 in 16" twist; primers: Large Pistol; cases: Remington, trim-to length: 0.893"; loads less than minimum charges shown are not recommended; USE MAXIMUM LOADS WITH CAUTION! | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 154 | Intercast LSWC | 7.8 | 1,156 | OAL (in.): 1.240; starting load; 15,000 psi |
| 154 | Intercast LSWC | 8.5 | 1,274 | OAL (in.): 1.240; maximum load; 20,000 psi |
| 180 | Intercast LSWC | 6.9 | 1,047 | OAL (in.): 1.244; starting load; 15,000 psi |
| 180 | Intercast LSWC | 7.8 | 1,167 | OAL (in.): 1.244; maximum load; 20,000 psi |
| 185 | Speer TMJ-SWC | 7.3 | 1,022 | OAL (in.): 1.268; starting load; 15,000 psi |
| 185 | Speer TMJ-SWC | 8.1 | 1,149 | OAL (in.): 1.268; maximum load; 20,000 psi |
| 200 | Intercast SWC | 6.3 | 990 | OAL (in.): 1.240; starting load; 15,000 psi |
| 200 | Intercast SWC | 7.0 | 1,095 | OAL (in.): 1.240; maximum load; 20,000 psi |
| 200 | Hornady FMJ-CT | 6.4 | 933 | OAL (in.): 1.240; starting load; 15,000 psi |
| 200 | Hornady FMJ-CT | 7.1 | 1,048 | OAL (in.): 1.240; maximum load; 20,000 psi |
| 230 | Hornady FMJ-RN | 6.0 | 856 | OAL (in.): 1.260; starting load; 15,000 psi |
| 230 | Hornady FMJ-RN | 6.8 | 974 | OAL (in.): 1.260; maximum load; 20,000 psi |
| Vihtavuori Reloading Manual Second Edition test barrel: 6":, 1 in 16" twist, manufactured to meet CIP minimum dimensions; primers: Winchester WLP; cases: Remington, trim-to length: .893"; pressure limits based on SAAMI March 9, 1993, pressure measurement according to CIP; loads less than minimum charges shown are not recommended; use maximum loads with caution | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 215 | Saeco (Redding) #058 | 6.2 | 869 | sugg. start load; 13,600 cup |
| 215 | Saeco (Redding) #058 | 6.9 | 951 | max load; 17,600 cup |
| 230 | Lee #TL452-230-TC | 5.6 | 840 | sugg. start load; 13,700 cup |
| 230 | Lee #TL452-230-TC | 6.2 | 915 | max load; 17,800 cup |
| 215 & 230 GR Lyman Cast Bullet Data cases: Federal; trim-to length: .888"; primers: CCI 300; primer size: Large Pistol; Lyman shell holder: No. 2; cast bullets used sized to .451" dia.; firearm used: Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .450"; 215 grain OAL: 1.185"; 230 grain OAL: 1.170" (Lyman Cast Bullet Handbook 4th Edition) | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 225 | Lyman #452374 | 5.9 | 730 | sugg. start load; 10,300 cup; primer: CCI 300 |
| 225 | Lyman #452374 | 6.6 | 864 | max load; 16,300 cup; primer: CCI 300 |
| 225 GR Lyman Cast Bullet Data cases: Remington (except where otherwise specified in remarks); trim-to length: .888"; primers: Remington 2 1/2 (except where otherwise specified in remarks); primer size: Large Pistol; Lyman shell holder: No. 2; cast bullets used sized to .451" dia.; firearm used; Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .450"; OAL: 1.272" (Lyman Cast Bullet Manual 4th Edition) | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 225 | Cast #452374 | 5.9 | 730 | sugg. start load; 1.272" OAL; primer: CCI 300; 10,300 cup |
| 225 | Cast #452374 | 6.6 | 864 | max load; 1.272" OAL; primer: CCI 300; 16,300 cup |
| Cast Bullet Data Lyman Reloading Handbook 49th Edition cases: Remington (except where otherwise specified in remarks); trim-to length: .888"; primers: Remington 2 1/2 (except where otherwise specified in remarks); primer size: Large Pistol; Lyman shell holder: No. 2; cast bullets used sized to .451" dia.; firearm used: Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .450" | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 230 | Hornady FMJ-FP | 6.3 | 820 | |
| in a Kimber Custom Classic Warning! Barrel length: 5 inches. Starline brass and Federal Gold Medal 150 Match primers used throughout. Temperature during testing was 75 degrees. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 230 | Hornady FMJ-FP | 6.3 | 829 | |
| in an S&W Model 625-6 Warning! Barrel length: 4 inches. Starline brass and Federal Gold Medal 150 Match primers used throughout. Temperature during testing was 75 degrees. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 200 | Laser Cast SWC | 6.5 | 958 | overall loaded length (inches): 1.240 |
| 200 | Laser Cast SWC | 7.0 | 1049 | overall loaded length (inches): 1.240 |
| 200 | Montana/Lyman 452460 | 6.5 | 965 | overall loaded length (inches): 1.161 |
| 200 | Montana/Lyman 452460 | 7.0 | 1041 | overall loaded length (inches): 1.161 |
| 200 | Hornady FMJ-C/T | 6.3 | 782 | overall loaded length (inches): 1.245 |
| 200 | Hornady FMJ-C/T | 7.0 | 927 | overall loaded length (inches): 1.245 |
| 200 | Hornady HP/XTP | 6.3 | 829 | overall loaded length (inches): 1.230 |
| 200 | Hornady HP/XTP | 7.0 | 941 | overall loaded length (inches): 1.230 |
| 200 | Speer Gold Dot hollowpoint | 7.0 | 949 | overall loaded length (inches): 1.200 |
| 200 | Speer Jacketed HP | 6.3 | 801 | overall loaded length (inches): 1.155 |
| 200 | Speer Jacketed HP | 7.0 | 944 | overall loaded length (inches): 1.155 |
| Load Data A Kimber Model 1911 Classic Custom Target with a 5-inch barrel (1-in-16-inch twist) was used to fire all loads. Starline cases and Federal Gold Medal Match 150 primers were used throughout. Maximum case length: .898 inch; trim length: .888 inch. Maximum overall cartridge length: 1.275 inches; minimum overall cartridge length: 1.190 inches. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 185 | Sierra JHP or FPJ Match | 7.2 | 616 | Sierra JHP COAL: 1.212 inches; Sierra FPJ Match COAL: 1.155 inches |
| 185 | Sierra JHP or FPJ Match | 7.5 | 690 | Sierra JHP COAL: 1.212 inches; Sierra FPJ Match COAL: 1.155 inches |
| 185 | Sierra JHP or FPJ Match | 7.8 | 768 | Sierra JHP COAL: 1.212 inches; Sierra FPJ Match COAL: 1.155 inches |
| 185 | Sierra JHP or FPJ Match | 8.1 | 850 | Sierra JHP COAL: 1.212 inches; Sierra FPJ Match COAL: 1.155 inches |
| 185 | Sierra JHP or FPJ Match | 8.3 | 932 | Sierra JHP COAL: 1.212 inches; Sierra FPJ Match COAL: 1.155 inches |
| 185 | Sierra JHP or FPJ Match | 8.6 | 1010 | Sierra JHP COAL: 1.212 inches; Sierra FPJ Match COAL: 1.155 inches |
| 185 | Sierra JHP or FPJ Match | 8.9 | 1086 | Sierra JHP COAL: 1.212 inches; Sierra FPJ Match COAL: 1.155 inches; maximum load |
| 200 | Sierra FPJ Match | 7.1 | 844 | COAL: 1.155 inches |
| 200 | Sierra FPJ Match | 7.3 | 881 | COAL: 1.155 inches |
| 200 | Sierra FPJ Match | 7.6 | 920 | COAL: 1.155 inches |
| 200 | Sierra FPJ Match | 7.8 | 961 | COAL: 1.155 inches |
| 200 | Sierra FPJ Match | 8.1 | 1004 | COAL: 1.155 inches |
| 200 | Sierra FPJ Match | 8.3 | 1037 | COAL: 1.155 inches; maximum load |
| Revolver Handloading Data +P+ using Sierra bullets Warning! Gun: Ruger New Model Blackhawk; Barrel Length: 5.5 inches; Case: Starline; Primer: Federal 150; Bullet Diameter: .451 inch and .452 inch (Sierra bullets: .4515 inch); Maximum COAL: 1.275 inches; Maximum Case Length: .898 inch; Trim to Length: .888 inch. WARNING: Many of the maximum loads in the accompanying data (developed in the Sierra lab) exceed both of these pressure guidelines. They were developed for large frame revolvers ONLY, such as the Ruger Blackhawk and Freedom Arms Model 83, or revolvers with similar strength. As a result, these loads are rated as +P+. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 200 | Jacketed | 5.7 | 856 | start load; min OAL: 1.240 |
| 200 | Jacketed | 6.2 | 922 | never exceed; min OAL: 1.240 |
| 200 | Lead | 5.6 | 903 | start load; min OAL: 1.240 |
| 200 | Lead | 6.0 | 970 | never exceed; min OAL: 1.240 |
| Lee Precision Data CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 250 | MG 45-250 | 7.7 | 806 | group (inches): 2.25 |
| 253 | AA 504 253 | 7.7 | 831 | group (inches): 1.5 |
| 250 | Speer 250 LSWC | 7.7 | 719 | group (inches): 2.25 |
| Colt Peacemaker Loads Source: Loading the Peacemaker - Dave Scovill | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 180 | Lead | 10.3 | 1165 | start load; min. OAL: 1.594 |
| 180 | Lead | 11.1 | 1245 | never exceed; min. OAL: 1.594 |
| 200 | Lead | 10.5 | 1088 | start load; min. OAL: 1.594 |
| 200 | Lead | 11.3 | 1164 | never exceed; min. OAL: 1.594 |
| 230 | Jacketed | 9.4 | 968 | start load; min. OAL: 1.594 |
| 230 | Jacketed | 10.2 | 1045 | never exceed; min. OAL: 1.594 |
| 250 | XTP | 9.0 | 919 | start load; min. OAL: 1.634 |
| 250 | XTP | 9.6 | 973 | never exceed; min. OAL: 1.634 |
| Lee Precision Data Large Pistol primer; with NEVER EXCEED LOADS maintain Minimum Over All Length or longer | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 180 | Intercast LSWC | 10.7 | 1188 | starting load |
| 180 | Intercast LSWC | 11.5 | 1283 | maximum load |
| 185 | Hornady HP/XTP | 10.9 | 1122 | starting load |
| 185 | Hornady HP/XTP | 11.8 | 1237 | maximum load |
| 185 | Rainier FN | 11.1 | 1125 | starting load |
| 185 | Rainier FN | 12.1 | 1257 | maximum load |
| 200 | Hornady LSWC | 10.9 | 1119 | starting load |
| 200 | Hornady LSWC | 11.6 | 1194 | maximum load |
| 230 | Sierra FMJ-Match | 9.7 | 988 | starting load |
| 230 | Sierra FMJ-Match | 10.4 | 1083 | maximum load |
| 250 | Hornady HP/XTP | 9.2 | 922 | starting load |
| 250 | Hornady HP/XTP | 9.8 | 1007 | maximum load |
| Vihtavuori Reloading Guide 6 test barrel: 6", 1 in 16" twist; primers: Large Pistol; cases: Remington, trim-to length: 1.279"; COL (in.): 1.594 (except where otherwise specified in remarks); loads less than minimum charges shown are not recommended; USE MAXIMUM LOADS WITH CAUTION! | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 225 | Speer Jacketed HP | 9.0 | 901 | sugg. start load; 1.575" OAL |
| 225 | Speer Jacketed HP | 10.0 | 1078 | max load; 1.575" OAL |
| 240 | Sierra Jacketed HC | 8.8 | 870 | sugg. start load; 1.575" OAL |
| 240 | Sierra Jacketed HC | 9.8 | 982 | max load; 1.575" OAL |
| 250 | Hornady Jacketed HP/XTP | 8.5 | 850 | sugg. start load; 1.590" OAL |
| 250 | Hornady Jacketed HP/XTP | 9.6 | 969 | max load; 1.590" OAL |
| Handgun Data Lyman Reloading Handbook 49th Edition cases: Winchester; trim-to length: 1.275"; primers: Winchester WLP; primer size: Large Pistol; Lyman shell holder: No. 11; firearms used: Universal Receiver & Ruger Blackhawk; barrel length: 7 1/2"; twist: 1-16"; groove dia.: .451" | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 250 | Hornady HP-XTP | 7.2 | 622 | |
| 250 | Hornady HP-XTP | 7.5 | 649 | |
| 250 | Hornady HP-XTP | 7.7 | 677 | |
| 250 | Hornady HP-XTP | 8.0 | 707 | |
| 250 | Hornady HP-XTP | 8.3 | 738 | maximum load |
| Revolver (using 250 GR Hornady Bullets) Gun: Ruger New Model (Bisley) Blackhawk; barrel length: 5 1/2 inches; case: Starline; primer: Winchester WLP; bullet diameter: .452"; COAL: 1.595"; maximum COAL: 1.600"; maximum case length: 1.285"; trim to length: 1.275"; | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 185 | Hornady Jacketed HP | 5.9 | 863 | start load; 17,500 psi; 1.060" OAL |
| 185 | Hornady Jacketed HP | 6.6 | 1000 | max load; 22,400 psii; 1.060" OAL |
| 200 | Speer Jacketed HP | 5.3 | 753 | start load; 15,400 psi; 1.080" OAL |
| 200 | Speer Jacketed HP | 6.0 | 907 | max load; 20,900 psi; 1.080" OAL |
| 230 | Speer TMJ | 5.0 | 748 | start load; 16,900 psi; 1.135" OAL |
| 230 | Speer TMJ | 5.6 | 876 | max load; 22,400 psi; 1.135" OAL |
| 200 | Lyman Cast #452630 | 5.2 | 868 | start load; 17,000 psi; 1.080" OAL |
| 200 | Lyman Cast #452630 | 5.8 | 1007 | max load; 22,000 psi; 1.080" OAL |
| 225 | Lyman Cast #452374 | 4.7 | 821 | start load; 18,000 psi; 1.135" OAL |
| 225 | Lyman Cast #452374 | 5.3 | 928 | max load; 21,800 psi; 1.135" OAL |
| 200 | Lyman Cast #452460 | 5.1 | 898 | start load; 18,500 psi; 1.030" OAL |
| 200 | Lyman Cast #452460 | 5.7 | 986 | max load; 20,700 psi; 1.030" OAL |
| Lyman Reloading Handbook 49th Edition cases: Winchester; trim-to length: .755"; primers: Winchester WSP; primer size: Small Pistol; Lyman Shell Holder: No. 2; cast bullets sized to .451" dia.; firearm used: Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .450" | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 155 | Copper Plated | 7.2 | 1211 | start load; min OAL: 1.256 |
| 155 | Copper Plated | 8.0 | 1322 | never exceed; min OAL: 1.256 |
| 155 | XTP | 6.7 | 1165 | start load; min OAL: 1.256 |
| 155 | XTP | 7.6 | 1286 | never exceed; min OAL: 1.256 |
| 180 | Jacketed | 6.0 | 1024 | start load; min OAL: 1.256 |
| 180 | Jacketed | 6.9 | 1155 | never exceed; min OAL: 1.256 |
| 200 | Jacketed | 5.0 | 904 | start load; min OAL: 1.256 |
| 200 | Jacketed | 5.7 | 1014 | never exceed; min OAL: 1.256 |
| Lee Precision Data Large Pistol Primer. CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 145 | Lee #401-145-SWC | 6.6 | 1189 | sugg. start load; 23,600 cup |
| 145 | Lee #401-145-SWC | 7.4 | 1286 | max load; 29,400 cup |
| Lyman Cast Bullet Data Cases: Winchester; trim-to length: .982"; primers: CCI 300; primer size: Large Pistol; Lyman shell holder: No. 15; cast bullets used: (sized to .401" dia.) 145 GR Lee #401-145-SWC; firearm used: Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .400"; 1.225" OAL. (Lyman Cast Bullet Handbook 4th Edition) | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 155 | Speer TMJ FN or GDHP | 7.2 | 1034 | start charge |
| 155 | Speer TMJ FN or GDHP | 8.0 | 1180 | maximum charge |
| Speer Reloading Manual #14 max. case length: 0.992"; trim-to length: 0.982"; max cart. OAL: 1.260"; RCBS shell holder: #27; cart. case: Hornady; primer: CCI 300 (except where otherwise specified in remarks); test firearm: Smith & Wesson M1006; barrel length: 5"; maximum loads should be used with CAUTION | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 155 | Hornady HP-XTP | 7.3 | 1168 | |
| 155 | Hornady HP-XTP | 7.7 | 1220 | |
| 155 | Hornady HP-XTP | 8.1 | 1264 | maximum load |
| 180 | Hornady HAP, HP-XTP, FMJ-FP ENC | 5.9 | 959 | |
| 180 | Hornady HAP, HP-XTP, FMJ-FP ENC | 6.3 | 1005 | |
| 180 | Hornady HAP, HP-XTP, FMJ-FP ENC | 6.7 | 1060 | |
| 180 | Hornady HAP, HP-XTP, FMJ-FP ENC | 7.1 | 1121 | |
| 180 | Hornady HAP, HP-XTP, FMJ-FP ENC | 7.5 | 1165 | maximum load |
| Using Hornady Bullets Gun: Kimber Stainless Target II; barrel length: 5"; case: Starline; primer: Win. Large Pistol; bullet diameter: .400"; COAL: 1.260"; maximum COAL: 1.260"; maximum case length: .992; trim to length: .982. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 155 | Hornady HP-XTP | 6.7 | 1,177 | starting load; 26,800 psi |
| 155 | Hornady HP-XTP | 7.7 | 1,299 | maximum load; 35,700 psi |
| 180 | Speer HP | 6.1 | 1,038 | starting load; 26,800 psi |
| 180 | Speer HP | 6.9 | 1,167 | maximum load; 35,700 psi |
| 200 | Hornady FMJ/FP | 5.0 | 890 | starting load; 26,800 psi |
| 200 | Hornady FMJ/FP | 5.8 | 1,027 | maximum load; 35,700 psi |
| Vihtavuori Data - Second Edition test barrel: 5 1/2; 1 in 16" twist; manufactured to meet CIP minimum dimensions; primers: Winchester WLP; cases: Winchester; trim-to length: .988"; max. bullet diameter: .400"; max. cartridge length: 1.260"; max. shell length: .992"; trim to .985"; OAL (in.) 1.256 | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 155 | Hornady HP-XTP | 6.2 | 1165 | starting load |
| 155 | Hornady HP-XTP | 7.1 | 1225 | maximum load |
| 155 | Rainier FP | 6.9 | 1211 | starting load |
| 155 | Rainier FP | 7.6 | 1266 | maximum load |
| 180 | Speer HP | 5.6 | 1024 | starting load |
| 180 | Speer HP | 6.4 | 1089 | maximum load |
| 200 | Hornady FMJ/FP | 4.6 | 876 | starting load |
| 200 | Hornady FMJ/FP | 5.3 | 945 | maximum load |
| Vihtavuori Reloading Guide 6 test barrel: 5 1/2", 1 in 16" twist; primers: Large Pistol; cases: Remington, trim-to length: 0.988"; COL (in.): 1.256; loads less than minimum charges shown are not recommended; USE MAXIMUM LOADS WITH CAUTION! | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 150 | Cast #401654 | 6.7 | 1124 | sugg. start load; 1.240" OAL; 22,000 cup |
| 150 | Cast #401654 | 7.5 | 1233 | max load; 1.240" OAL; 28,800 cup |
| 175 | Cast #401043 | 6.4 | 1127 | sugg. start load; 1.260" OAL; 24,200 cup |
| 175 | Cast #401043 | 7.2 | 1214 | max load; 1.260" OAL; 28,300 cup |
| 175 | Cast #401638 | 6.3 | 1052 | sugg. start load; 1.253" OAL; 21,700 cup |
| 175 | Cast #401638 | 7.1 | 1190 | max load; 1.253" OAL; 29,100 cup |
| Cast Bullets Lyman Reloading Manual 49th Edition cases: Norma; trim-to length: .982"; primers: CCI 300; primer size: Large Pistol; Lyman shell holder: No. 15; cast bullets used sized to .401" dia.; firearm used: Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .400" | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 135 | Nosler Jacketed HP | 7.5 | 1177 | sugg. start load; 1.225" OAL; 19,900 cup |
| 135 | Nosler Jacketed HP | 8.4 | 1343 | max load; 1.225" OAL; 28,600 cup |
| 150 | Sierra Jacketed HP | 6.8 | 1105 | sugg. start load; 20,300 cup |
| 150 | Sierra Jacketed HP | 7.6 | 1231 | max load; 29,100 cup |
| 155 | Winchester Jacketed Silvertip | 6.8 | 1058 | sugg. start load; case: Winchester; 20,700 cup |
| 155 | Winchester Jacketed Silvertip | 7.6 | 1212 | max load; case: Winchester; 29,600 cup |
| 165 | Speer TMJ | 6.5 | 1004 | sugg. start load; case: Winchester; 17,900 cup |
| 165 | Speer TMJ | 7.3 | 1172 | max load; case: Winchester; 28,300 cup |
| 175 | Winchester Jacketed Silvertip | 6.1 | 997 | sugg. start load; case: Winchester; 23,300 cup |
| 175 | Winchester Jacketed Silvertip | 6.8 | 1096 | max load; case: Winchester; 28,800 cup |
| Handgun Lyman Reloading Handbook 49th Edition cases: Norma (except where otherwise specified in remarks); trim-to length: .982"; primers: CCI 300; primer size: Large Pistol; Lyman shell holder: No. 15; firearm used: Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .400"; 1.250" OAL (except where otherwise specified in remarks) | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 35 | Hornady Jacketed V-Max | 4.3 | 1504 | sugg. start load |
| 35 | Hornady Jacketed V-Max | 4.8 | 1675 | max load |
| 40 | Hornady Jacketed V-Max | 4.3 | 1533 | sugg. start load |
| 40 | Hornady Jacketed V-Max | 4.8 | 1731 | max load |
| Lyman Reloading Handbook 49th Edition cases: FN; trim-to length: 1.130"; primers: Remington 7 1/2; primer size: Small Rifle; Lyman shell holder: No. 35; firearm used: FN Five-seveN USG; barrel length: 4.75"; twist: 1-9.1"; groove dia.: .222" | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 60 | Speer HP | 5.9 | 1425 | starting load; COL (in.): 1.260; bullet cal.: .312" |
| 60 | Speer HP | 7.1 | 1713 | maximum load; COL (in.): 1.260; bullet cal.: .312" |
 | 71 | Sierra FMJ | 5.5 | 1345 | starting load; COL (in.): 1.299; bullet cal.: .312" |
| 71 | Sierra FMJ | 6.7 | 1569 | maximum load; COL (in.): 1.299; bullet cal.: .312" |
| 74 | Lapua FMJ | 5.5 | 1331 | starting load; COL (in.): 1.299; bullet cal.: .309" |
| 74 | Lapua FMJ | 6.6 | 1546 | maximum load; COL (in.): 1.299; bullet cal.: .309" |
| 90 | Sierra JHC | 4.5 | 1011 | starting load; COL (in.): 1.280; bullet cal.: .312" |
| 90 | Sierra JHC | 5.7 | 1329 | maximum load; COL (in.): 1.280; bullet cal.: .312" |
| 93 | Lapua FMJ | 4.7 | 1122 | starting load; COL (in.): 1.339; bullet cal.: .309" |
| 93 | Lapua FMJ | 5.9 | 1316 | maximum load; COL (in.): 1.339; bullet cal.: .309" |
| Vihtavuori Reloading Guide Edition 6 FOR FIREARMS CHAMBERED FOR THE 7.62X25 TOKAREV CARTRIDGE ONLY; test barrel: 6", 1 in 10" twist; groove calibre: .309"; primers: Large Pistol; cases: Fiocchi 7.63 Mauser, trim-to length: 0.976"; loads less than minimum charges shown are not recommended; USE MAXIMUM LOADS WITH CAUTION! | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
 | 90 | Hornady HP-XTP | 4.7 | 1052 | overall loaded length (inches): 1.070 |
| 90 | Hornady HP-XTP | 6.1 | 1395 | overall loaded length (inches): 1.070 |
| (90 & 115 GR) Handload Data A 5-inch barreled Kimber Model 1911 Team Match II was used to shoot all loads in Starline cases with Winchester Small Pistol primers. SAAMI minimum cartridge overall length: 1.000 inch; maximum cartridge overall length: 1.169 inches; maximum case length: .754 inch; trim to length: .744 inch. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 90 | XTP | 5.7 | 1411 | start load; min OAL: 1.063 |
| 90 | XTP | 6.4 | 1508 | never exceed; min OAL: 1.063 |
| 100 | Jacketed | 5.9 | 1319 | start load; min OAL: 1.083 |
| 100 | Jacketed | 6.6 | 1436 | never exceed; min OAL: 1.083 |
| 115 | Copper Plated | 5.1 | 1175 | start load; min OAL: 1.142 |
| 115 | Copper Plated | 5.6 | 1245 | never exceed; min OAL: 1.142 |
| 115 | XTP | 5.5 | 1224 | start load; min OAL: 1.142 |
| 115 | XTP | 6.1 | 1327 | never exceed; min OAL: 1.142 |
| 120 | Jacketed | 5.1 | 1155 | start load; min OAL: 1.130 |
| 120 | Jacketed | 5.7 | 1234 | never exceed; min OAL: 1.130 |
| 124 | Jacketed | 5.3 | 1158 | start load; min OAL: 1.142 |
| 124 | Jacketed | 5.8 | 1233 | never exceed; min OAL: 1.142 |
| 124 | Lead | 4.8 | 1155 | start load; min OAL: 1.142 |
| 124 | Lead | 5.3 | 1230 | never exceed; min OAL: 1.142 |
| 124 | Copper Plated | 4.7 | 1096 | start load; min OAL: 1.142 |
| 124 | Copper Plated | 5.3 | 1171 | never exceed; min OAL: 1.142 |
| 145 | Lead | 4.0 | 997 | start load; min OAL: 1.142 |
| 145 | Lead | 4.4 | 1060 | never exceed; min OAL: 1.142 |
| 147 | Copper Plated | 3.9 | 909 | start load; min OAL: 1.142 |
| 147 | Copper Plated | 4.2 | 977 | never exceed; min OAL: 1.142 |
| 147 | XTP | 4.1 | 965 | start load; min OAL: 1.142 |
| 147 | XTP | 4.4 | 1031 | never exceed; min OAL: 1.142 |
| 150 | Jacketed | 3.9 | 919 | start load; min OAL: 1.130 |
| 150 | Jacketed | 4.2 | 981 | never exceed; min OAL: 1.130 |
| 130 | Jacketed | 4.4 | 1079 | start load; min OAL: 1.142 |
| 130 | Jacketed | 4.9 | 1132 | never exceed; min OAL: min OAL: 1.142 |
| Lee Precision Data Small pistol primer. CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 90 | Hornady HP-XTP | 4.7 | 1052 | |
| 90 | Hornady HP-XTP | 5.0 | 1113 | |
| 90 | Hornady HP-XTP | 5.3 | 1186 | |
| 90 | Hornady HP-XTP | 5.5 | 1259 | |
| 90 | Hornady HP-XTP | 5.8 | 1331 | |
| 90 | Hornady HP-XTP | 6.1 | 1395 | maximum load |
| Using 90 GR Hornady Bullets Gun: Kimber 1911; barrel length: 5-inch; case: Starline; primer: Winchester Small Pistol; bullet diameter: .355"; COAL: 1.070"; maximum COAL: 1.169"; maximum case length: .754"; trim to length: .749". | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 90 | Hornady HP-XTP | 5.5 | 1387 | starting load; COL (in.): 1.063 |
| 90 | Hornady HP-XTP | 6.2 | 1483 | maximum load; COL (in.): 1.063 |
| 100 | Speer HP | 5.7 | 1290 | starting load; COL (in.): 1.083 |
| 100 | Speer HP | 6.4 | 1407 | maximum load; COL (in.): 1.083 |
| 115 | Hornady HP-XTP | 5.2 | 1198 | starting load; COL (in.): 1.142 |
| 115 | Hornady HP-XTP | 5.9 | 1301 | maximum load; COL (in.): 1.142 |
| 115 | Lapua FMJ-RN | 4.8 | 1129 | starting load; COL (in.): 1.142 |
| 115 | Lapua FMJ-RN | 5.4 | 1220 | maximum load; COL (in.): 1.142 |
| 115 | Rainier RN | 5.0 | 1157 | starting load; COL (in.): 1.142 |
| 115 | Rainier RN | 5.4 | 1228 | maximum load; COL (in.): 1.142 |
| 120 | Lapua CEPP | 4.5 | 1070 | starting load; COL (in.): 1.130 |
| 120 | Lapua CEPP | 5.2 | 1211 | maximum load; COL (in.): 1.130 |
| 124 | Intercast LSWC | 4.7 | 1136 | starting load; COL (in.): 1.142 |
| 124 | Intercast LSWC | 5.1 | 1211 | maximum load; COL (in.): 1.142 |
| 124 | Hornady FMJ/FP | 5.3 | 1139 | starting load; COL (in.): 1.142 |
| 124 | Hornady FMJ/FP | 5.7 | 1214 | maximum load; COL (in.): 1.142 |
| 124 | Rainier RN | 4.7 | 1077 | starting load; COL (in.): 1.142 |
| 124 | Rainier RN | 5.1 | 1152 | maximum load; COL (in.): 1.142 |
| 124 | Lapua FMJ-RN | 4.5 | 1086 | starting load; COL (in.): 1.142 |
| 124 | Lapua FMJ-RN | 5.1 | 1181 | maximum load; COL (in.): 1.142 |
| 124 | Lapua Megashock | 4.3 | 981 | starting load; COL (in.): 1.130 |
| 124 | Lapua Megashock | 4.9 | 1129 | maximum load; COL (in.): 1.130 |
| 130 | Sierra FMJ | 4.4 | 1066 | starting load; COL (in.): 1.142 |
| 130 | Sierra FMJ | 4.8 | 1119 | maximum load; COL (in.): 1.142 |
| 145 | Intercast LRN | 3.9 | 982 | starting load; COL (in.): 1.142 |
| 145 | Intercast LRN | 4.3 | 1044 | maximum load; COL (in.): 1.142 |
| 147 | Hornady HP/XTP | 3.9 | 948 | starting load; COL (in.): 1.142 |
| 147 | Hornady HP/XTP | 4.3 | 1015 | maximum load; COL (in.): 1.142 |
| 147 | Rainier RN | 3.8 | 892 | starting load; COL (in.): 1.142 |
| 147 | Rainier RN | 4.1 | 960 | maximum load; COL (in.): 1.142 |
| 150 | Lapua CEPP | 3.8 | 903 | starting load; COL (in.): 1.130 |
| 150 | Lapua CEPP | 4.1 | 966 | maximum load; COL (in.): 1.130 |
| Vihtavuori Reloading Guide 6 test barrel: 4", 1 in 10" twist; primers: Small Pistol; cases: Lapua, trim-to length: 0.748"; loads less than minimum charges shown are not recommended; USE MAXIMUM LOADS WITH CAUTION! | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 90 | Cast #356242 | 5.2 | 1201 | sugg. start load; 23,800 cup; 1.045" OAL |
| 90 | Cast #356242 | 5.8 | 1321 | max load; 31,400 cup; 1.045" OAL |
| 120 | Cast #356242 | 4.0 | 1047 | sugg. start load; 27,300 cup; 1.065" OAL; potentially most accurate load |
| 120 | Cast #356242 | 4.5 | 1135 | max load; 31,600 cup; 1.065" OAL |
| 120 | Cast #356402 | 4.0 | 986 | sugg. start load; 23,300 cup; 1.110" OAL; potentially most accurate load |
| 120 | Cast #356402 | 4.5 | 1098 | max load; 30,200 cup; 1.110" OAL |
| 147 | Cast #356637 | 3.4 | 894 | sugg. start load; 25,400 cup; 1.058" OAL |
| 147 | Cast #356637 | 3.8 | 954 | max load; 29,900 cup; 1.058" OAL |
| Cast Bullet Handgun Data Lyman Reloading Handbook 49th Edition cases: Federal; trim-to length: .751"; primers: CCI 500; primer size; Small Pistol; Lyman shell holder: No. 12; cast bullets used sized to .356" dia.and all #2 Alloy; firearm used: Universal Receiver; barrel length: 4"; groove dia.: .355" | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 90 | Sierra Jacketed HP | 5.2 | 1161 | sugg. start load; 24,400 cup; 1.010" OAL |
| 90 | Sierra Jacketed HP | 5.8 | 1300 | max load; 31,000 cup; 1.010" OAL |
| 95 | Sierra FMJ | 5.1 | 1162 | sugg. start load; 25,200 cup; 1.005" OAL; potentially most accurate load |
| 95 | Sierra FMJ | 5.7 | 1291 | max load; 32,400 cup; 1.005" OAL |
| 115 | Hornady Jacketed HP/XTP | 4.5 | 999 | sugg. start load; 24,300 cup; 1.090" OAL |
| 115 | Hornady Jacketed HP/XTP | 5.0 | 1124 | max load; 30,500 cup; 1.090" OAL |
| 125 | Sierra Jacketed HP | 4.0 | 937 | sugg. start load; 21,900 cup; 1.075" OAL |
| 125 | Sierra Jacketed HP | 4.6 | 1060 | max load; 31,200 cup; 1.075" OAL |
| 147 | Speer TMJ | 3.9 | 935 | sugg. start load; 28,500 cup; 1.115" OAL; potentially most accurate load |
| 147 | Speer TMJ | 4.4 | 1012 | max load; 32,200 cup; 1.115" OAL |
| Handgun Data Lyman Reloading Handbook 49th Edition cases: Federal; trim-to length: .751"; primers: CCI 500; primer size; Small Pistol; Lyman shell holder: No. 12; firearm used: Universal Receiver; barrel length: 4"; groove dia.: .355" | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 115 | Hornady XTP | 6.1 | 1348 | overall length (inches): 1.142; group (inches): 2.50 |
| 124 | Speer Gold Dot | 5.2 | 1244 | overall length (inches): 1.140; group (inches): 2.50 |
| in a Browning Hi-Power Accuracy is for five-shot groups at 25 yards from a solid benchrest. The group was measured from the inside of the most widely spaced bullet holes | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 100 | Speer HP | 5.9 | 1363 | starting load; COL (in.): 1.142 |
| 100 | Speer HP | 6.6 | 1455 | maximum load; COL (in.): 1.142 |
| 115 | Sierra FMJ | 5.3 | 1248 | starting load |
| 115 | Sierra FMJ | 5.9 | 1314 | maximum load |
| 115 | Fiocchi FMJHP | 5.3 | 1027 | starting load |
| 115 | Fiocchi FMJHP | 6.2 | 1342 | maximum load |
| 123 | Lapua FMJ | 4.7 | 1142 | starting load |
| 123 | Lapua FMJ | 5.2 | 1194 | maximum load |
| 123 | Fiocchi FMJTC | 4.9 | 1083 | starting load |
| 123 | Fiocchi FMJTC | 5.7 | 1306 | maximum load |
| Vihtavuori Reloading Guide 6 test barrel: 5 1/2", 1 in 10" twist; primers: Small Pistol; cases: Tanfoglio, trim-to length: 0.826"; COL (in.): 1.161 (except where otherwise specified in remarks); loads less than minimum charges shown are not recommended; USE MAXIMUM LOADS WITH CAUTION! | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 115 | Sierra FMJ | 6.3 | 1395 | starting load |
| 115 | Sierra FMJ | 7.2 | 1474 | maximum load |
| 123 | Lapua FMJ | 5.9 | 1261 | starting load |
| 123 | Lapua FMJ | 6.9 | 1385 | maximum load |
| 123 | Lapua Megashock | 5.7 | 1254 | starting load; COL (in.): 1.189 |
| 123 | Lapua Megashock | 6.5 | 1373 | maximum load; COL (in.): 1.189 |
| 130 | Rainier RN B | 5.7 | 1202 | starting load |
| 130 | Rainier RN B | 6.3 | 1315 | maximum load |
| Vihtavuori Reloading Guide 6 test barrel: 5", 1 in 16" twist; primers: Small Pistol; cases: Winchester, trim-to length: 0.896"; COL (in.): 1.280 (except where otherwise specified in remarks); loads less than minimum charges shown are not recommended; NOTE: This cartridge is not supported by CIP or SAAMI. The maximum loads do not exceed 300 MPa. USE MAXIMUM LOADS WITH CAUTION! | |||||
