A comparatively fast burning multipurpose handgun powder with burning rate about the same as Winchester 231 or Alliant Red Dot. Currently available reloading data for 9 mm Luger, .38 Super Auto, .38 Special, .357 Magnum, .40 S&W, .44 S&W Special, .44 Remington Magnum, .45 ACP and .45 Colt.

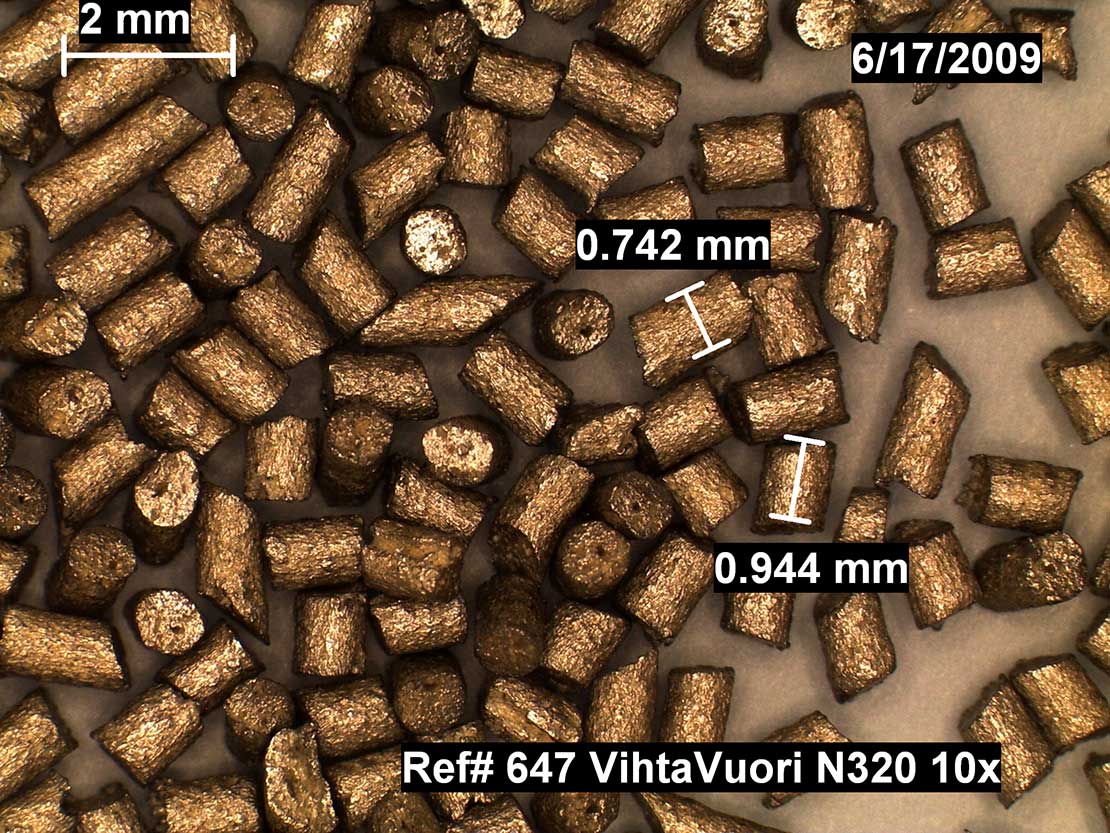

| Shape | Color | Perforation | Diameter min | Diameter max | Length/thick. min | Length/thick. max | Manufacturer |
|---|---|---|---|---|---|---|---|
| cylinder(tubular) | Gold | Yes | 0.75 mm | 0.81 mm | 0.84 mm | 2.0 mm | Finland |
Ladedata som finnes på hjemmesidene til Evje PK er KUN ment som en veiledning! Ladedata skal alltid verifiseres mot kjente kilder (kruttprodusenter, ladebøker o.l.)
Data funnet på våre hjemmesider brukes på eget ansvar, og Evje Pistolklubb fratar seg alt ansvar for feil bruk av, eller skrivefeil i oppgitte data.
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
 | 75 | Cast #311252 | 3.4 | 1048 | sugg. start load; 14,400 cup; 1.350" OAL |
| 75 | Cast #311252 | 3.8 | 1173 | max load; 19,300 cup; 1.350" OAL |
 | 85 | Cast #313249 | 3.1 | 953 | sugg. start load; 16,200 cup; 1.350" OAL |
| 85 | Cast #313249 | 3.5 | 1017 | max load; 17,300 cup; 1.350" OAL |
 | 90 | Hornady Swaged Lead HBWC | 2.7 | 936 | sugg. start load; 19,200 cup; 1.100" OAL |
| 90 | Hornady Swaged Lead HBWC | 3.0 | 983 | max load; 20,700 cup; 1.100" OAL |
| Lyman Reloading Manual 49th Edition cases: Federal; trim-to length: 1.065"; primers: Federal 100; primer size: Small Pistol; Lyman shell holder: No. 9; cast bullets used sized to .313" dia.; firearm used: Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .312" | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
 | 110 | XTP | 7.4 | 1390 | start load; min OAL: 1.575 |
| 110 | XTP | 8.0 | 1474 | never exceed; min OAL: 1.575 |
 | 125 | XTP | 6.2 | 1229 | start load; min OAL: 1.575 |
| 125 | XTP | 7.1 | 1329 | never exceed; min OAL: 1.575 |
| 145 | Lead | 5.8 | 1175 | start load; min OAL: 1.614 |
| 145 | Lead | 6.4 | 1245 | never exceed; min OAL: 1.614 |
| 158 | Jacketed | 5.7 | 1023 | start load; min OAL: 1.575 |
| 158 | Jacketed | 6.3 | 1114 | never exceed; min OAL: 1.575 |
| Lee Precision Data Small Pistol Primer. With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 110 | Hornady HP/XTP | 7.8 | 1460 | starting load; OAL (in.): 1.575 |
| 110 | Hornady HP/XTP | 8.4 | 1537 | maximum load; OAL (in.): 1.575 |
| 125 | Hornady FP/XTP | 7.0 | 1312 | starting load; OAL (in.): 1.575 |
| 125 | Hornady FP/XTP | 7.7 | 1404 | maximum load; OAL (in.): 1.575 |
| 145 | Intercast LSWC | 6.4 | 1234 | starting load; OAL (in.): 1.614; (the cartridge overall length exceeds the CIP maximum) |
| 145 | Intercast LSWC | 6.9 | 1299 | maximum load; OAL (in.): 1.614; (the cartridge overall length exceeds the CIP maximum) |
| 158 | Speer HP | 6.2 | 1099 | starting load; OAL (in.): 1.575 |
| 158 | Speer HP | 6.7 | 1183 | maximum load; OAL (in.): 1.575 |
| Vihtavuori Reloading Guide 2006 test barrel: 7", 1 in 18 1/2" twist; primers: Small Rifles; cases: Remington, trim-to length: 1.283"; loads less than minimum charges shown are not recommended; USE MAXIMUM LOADS WITH CAUTION! | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 195 | Cast #358430 | 1.5 | 520 | sugg. start load; OAL: 1.175"; 9,500 cup |
| 195 | Cast #358430 | 1.7 | 544 | max load; OAL: 1.175"; 10,900 cup |
| Cast Bullet Data Lyman Reloading Handbook 49th Edition cases: Remington; trim-to length: .765"; primers: CCI 500; primer size: Small Pistol; Lyman shell holder: No. 21; cast bullets used sized to .359" dia.; firearm used: Universal Receiver; barrel length: 5 1/2"; twist: 1-14"; groove dia.: .358" | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
 | 150 | Cast #358091 (Linotype) | 3.1 | 841 | sugg. start load; 1.317" OAL; 12,100 cup |
| 150 | Cast #358091 (Linotype) | 3.5 | 947 | max load; 1.317" OAL; 15,700 cup |
| Cast Bullet Data Lyman Reloading Handbook 49th Edition cases: Federal; trim-to length: 1.149"; primers: CCI 500; primer size: Small Pistol; Lyman shell holder: No. 1; cast bullets used sized to .358" dia.; firearm used: Universal Receiver; barrel length: 4"; twist: 1-18 3/4"; groove dia.: .357"; (+P) designates higher pressure loads | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 110 | Speer Jacketed HP | 4.6 | 742 | sugg. start load; 1.430" OAL; 9,900 cup |
| 110 | Speer Jacketed HP | 5.2 | 987 | max load; 1.430" OAL; 14,600 cup |
| 125 | Hornady Jacketed HP | 4.6 | 871 | sugg. start load; 1.470" OAL; 13,800 cup |
| 125 | Hornady Jacketed HP | 5.1 | 903 | max load; 1.470" OAL; 14,700 cup |
| Lyman Reloading Handbook 49th Edition Warning! cases: Federal; trim-to length: 1.149"; primers: CCI 500; primer size: Small Pistol; Lyman shell holder: No. 1; firearm used: Universal Receiver; barrel length: 4"; twist: 1-18 3/4"; groove dia.: .357"; (+P) designates higher pressure loads | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 110 | Hornady HP-XTP | 4.5 | 883 | COAL: 1.445" |
| 110 | Hornady HP-XTP | 4.8 | 921 | COAL: 1.445" |
| 110 | Hornady HP-XTP | 5.0 | 978 | COAL: 1.445" |
| 110 | Hornady HP-XTP | 5.2 | 1021 | COAL: 1.445"; maximum load |
 | 140 | Hornady FP-Cowboy | 3.4 | 738 | COAL: 1.450" |
| 140 | Hornady FP-Cowboy | 3.6 | 777 | COAL: 1.450" |
| 140 | Hornady FP-Cowboy | 3.9 | 821 | COAL: 1.450" |
| 140 | Hornady FP-Cowboy | 4.2 | 869 | COAL: 1.450" |
| 140 | Hornady FP-Cowboy | 4.5 | 917 | COAL: 1.450"; maximum load |
| 148 | Hornady HBWC | 2.1 | 563 | COAL: 1.180" |
| 148 | Hornady HBWC | 2.3 | 608 | COAL: 1.180" |
| 148 | Hornady HBWC | 2.5 | 669 | COAL: 1.180" |
| 148 | Hornady HBWC | 2.7 | 728 | COAL: 1.180" |
| 148 | Hornady HBWC | 3.0 | 784 | COAL: 1.180"; maximum load |
| Using Hornady Bullets Gun: Colt Trooper 38 Special; barrel length: 4-inches; case: Starline; primer: Winchester Small Pistol; bullet diameter: .357"; maximum COAL: 1.550"; maximum case length: 1.155"; trim to length: 1.145". | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 110 | Hornady HP/XTP | 5.4 | 1120 | start load; COL: 1.437" |
| 110 | Hornady HP/XTP | 6.1 | 1272 | max load; COL: 1.437" |
| 124 | Intercast LSWC | 4.5 | 1015 | start load; COL: 1.437" |
| 124 | Intercast LSWC | 5.2 | 1159 | max load; COL: 1.437" |
| 125 | Hornady FP/XTP | 4.9 | 981 | start load; COL: 1.437" |
| 125 | Hornady FP/XTP | 5.6 | 1121 | max load; COL: 1.437" |
| 125 | Rainier FP | 4.5 | 960 | start load; COL: 1.437" |
| 125 | Rainier FP | 5.2 | 1089 | max load; COL: 1.437" |
| 140 | Speer HP | 4.6 | 878 | start load; COL: 1.437" |
| 140 | Speer HP | 5.3 | 1051 | max load; COL: 1.437" |
| 145 | Intercast LSWC | 3.9 | 886 | start load; COL: 1.476" |
| 145 | Intercast LSWC | 4.6 | 1004 | max load; COL: 1.476" |
| 148 | Sako LWC | 3.0 | 776 | start load; COL: 1.181" |
| 148 | Sako LWC | 3.5 | 876 | max load; COL: 1.181" |
| 158 | Speer HP | 3.9 | 715 | start load; COL: 1.437" |
| 158 | Speer HP | 4.6 | 892 | max load; COL: 1.437" |
| 158 | LSWC/HP | 3.3 | 755 | start load; COL: 1.437"; Cowboy Action Shooting load |
| 158 | LSWC/HP | 3.8 | 840 | max load; COL: 1.437"; Cowboy Action Shooting load |
| 158 | Rainier FP | 3.9 | 776 | start load; COL: 1.476" |
| 158 | Rainier FP | 4.8 | 927 | max load; COL: 1.476" |
| Vihtavuori Reloading Guide Edition 6 test barrel: 6 1/2", 1 in 18" twist; primers: Small Pistol; cases: LAPUA, trim-to length: 1.146"; loads less than minimum charges shown are not recommended; use maximum loads with caution! | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 110 | XTP | 5.7 | 1195 | start load; min OAL: 1.437 |
| 110 | XTP | 5.9 | 1230 | never exceed; min OAL: 1.437 |
| 124 | Lead | 4.8 | 1077 | start load; min OAL: 1.437 |
| 124 | Lead | 5.0 | 1119 | never exceed; min OAL: 1.437 |
| 125 | Copper Plated | 4.7 | 993 | start load; min OAL: 1.437 |
| 125 | Copper Plated | 5.0 | 1053 | never exceed; min OAL: 1.437 |
| 140 | Jacketed | 5.0 | 984 | start load; min OAL: 1.437 |
| 140 | Jacketed | 5.1 | 1003 | never exceed; min OAL: 1.437 |
| 145 | Lead | 4.1 | 908 | start load; min OAL: 1.476 |
| 145 | Lead | 4.4 | 971 | never exceed; min OAL: 1.476 |
| 148 | Wadcutter | 3.2 | 800 | start load; min OAL: 1.181 |
| 148 | Wadcutter | 3.4 | 848 | never exceed; min OAL: 1.181 |
| 158 | Copper Plated | 4.3 | 829 | start load; min OAL: 1.476 |
| 158 | Copper Plated | 4.6 | 885 | never exceed; min OAL: 1.476 |
| +P Lee Precision Data These hot loads may wear guns prematurely. Do not use in small frame, or aluminum frame revolvers, or in semi auto pistols. Small pistol primer. CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 110 | XTP | 5.1 | 1086 | start load; min. OAL: 1.437 |
| 110 | XTP | 5.7 | 1188 | NEVER EXCEED; min. OAL: 1.437 |
| 124 | Lead | 4.3 | 979 | start load; min. OAL: 1.437 |
| 124 | Lead | 4.8 | 1077 | NEVER EXCEED; min. OAL: 1.437 |
| 125 | Copper Plated | 4.2 | 903 | start load; min. OAL: 1.437 |
| 125 | Copper Plated | 4.7 | 1017 | NEVER EXCEED; min. OAL: 1.437 |
| 125 | XTP | 4.7 | 930 | start load; min. OAL: 1.437 |
| 125 | XTP | 5.3 | 1043 | NEVER EXCEED; min. OAL: 1.437 |
| 140 | Jacketed | 4.5 | 868 | start load; min. OAL: 1.437 |
| 140 | Jacketed | 5.0 | 955 | NEVER EXCEED; min. OAL: 1.437 |
| 145 | Lead | 3.7 | 853 | start load; min. OAL: 1.476 |
| 145 | Lead | 4.1 | 938 | NEVER EXCEED; min. OAL: 1.476 |
| 148 | Wad Cutter | 2.9 | 746 | start load; min. OAL: 1.181 |
| 148 | Wad Cutter | 3.2 | 820 | NEVER EXCEED; min. OAL: 1.181 |
| 158 | Jacketed | 3.7 | 709 | start load; min. OAL: 1.437 |
| 158 | Jacketed | 4.2 | 794 | NEVER EXCEED; min. OAL: 1.437 |
| 158 | Copper Plated | 3.9 | 766 | start load; min. OAL: 1.476 |
| 158 | Copper Plated | 4.3 | 843 | NEVER EXCEED; min. OAL: 1.476 |
| Lee Precision Data With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Pistol Primer. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 115 | Jacketed | 4.8 | 1110 | start load; min OAL: 1.240 |
| 115 | Jacketed | 5.7 | 1293 | never exceed; min OAL: 1.240 |
| 115 | Copper Plated | 4.8 | 1171 | start load; min OAL: 1.240 |
| 115 | Copper Plated | 5.7 | 1293 | never exceed; min OAL: 1.240 |
| 115 | XTP | 5.1 | 1188 | start load; min OAL: 1.240 |
| 115 | XTP | 5.9 | 1319 | never exceed; min OAL: 1.240 |
| Lee Precision Data Small Pistol Primer. DO NOT USE THESE LOADS IN 38 AUTOMATIC OR 38 ACP. CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 115 | Hornady HP-XTP | 5.1 | 1,193 | starting load; OAL: 1.240 in.; 26,100 psi |
| 115 | Hornady HP-XTP | 5.9 | 1,321 | maximum load; OAL: 1.240 in.; 34,700 psi |
| Vihtavuori Data primer: small pistol; max. bullet diameter: .356"; max. cartridge length: 1.280"; max. shell length: .900"; trim to .890"; test barrel: 5 1/2; 1 in 16" twist; primers; Winchester WSP; cases: Remington +P, trim-to length: .893"; use maximum loads with caution; loads less than minimum charges shown are not recommended | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 115 | Hornady HP-XTP | 5.1 | 1188 | starting load; COL (in.): 1.240 |
| 115 | Hornady HP-XTP | 5.5 | 1253 | maximum load; COL (in.): 1.240 |
| 115 | Rainier RN | 4.8 | 1171 | starting load; COL (in.): 1.240 |
| 115 | Rainier RN | 5.2 | 1232 | maximum load; COL (in.): 1.240 |
| 124 | Hornady FMJ-FP | 4.6 | 1083 | starting load; COL (in.): 1.260 |
| 124 | Hornady FMJ-FP | 5.0 | 1142 | maximum load; COL (in.): 1.260 |
| 124 | Intercast LSWC | 4.0 | 1096 | starting load; COL (in.): 1.260 |
| 124 | Intercast LSWC | 4.5 | 1153 | maximum load; COL (in.): 1.260 |
| 130 | Sierra FMJ | 4.2 | 1040 | starting load; COL (in.): 1.260 |
| 130 | Sierra FMJ | 4.6 | 1101 | maximum load; COL (in.): 1.260 |
| 130 | Rainier RN | 4.5 | 1024 | starting load; COL (in.): 1.260 |
| 130 | Rainier RN | 4.8 | 1086 | maximum load; COL (in.): 1.260 |
| Vihtavuori Reloading Guide 6 test barrel: 5 1/2", 1 in 16" twist; primers: Small Pistol; cases: Remington +P, trim-to length: 0.893"; loads less than minimum charges shown are not recommended; USE MAXIMUM LOADS WITH CAUTION! | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 90 | Hornady HP XTP | 5.5 | 1315 | overall loaded length (inches): 1.220 |
| 90 | Hornady HP XTP | 6.0 | 1400 | overall loaded length (inches): 1.220 |
| 90 | Hornady HP XTP | 6.5 | 1502 | overall loaded length (inches): 1.220 |
| 90 | Hornady HP XTP | 6.8 | 1551 | overall loaded length (inches): 1.220 |
| +P A Kimber Stainless Target II with a 5-inch barrel was used to test fire these loads. Starline cases and Winchester Small Pistol primers were used throughout. Bullet diameter: .355 and .356 inch; maximum overall loaded length: 1.280 inches; maximum case length: .900 inch; and trim-to length; .895 inch. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 90 | Sierra Jacketed HP | 5.3 | 1274 | sugg. start load; 29,300 cup; 1.125" OAL |
| 90 | Sierra Jacketed HP | 5.9 | 1414 | max load; 31,600 cup; 1.125" OAL |
| 95 | Sierra FMJ | 5.2 | 1122 | sugg. start load; 16,500 psi; 1.175" OAL |
| 95 | Sierra FMJ | 5.8 | 1349 | max load; 29,400 psi; 1.175" OAL |
| 115 | Hornady Jacketed HP | 4.8 | 1014 | sugg. start load; 19,500 cup; 1.265" OAL |
| 115 | Hornady Jacketed HP | 5.4 | 1270 | max load; 30,800 cup; 1.265" OAL |
| Lyman Reloading Handbook 49th Edition cases: Remington; trim-to length: .895"; primers: CCI 500; primer size: Small Pistol; Lyman shell holder: No. 12; firearm used: Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .355" | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 175 | Cast #401043 | 5.6 | 817 | sugg. start load; 10,800 cup |
| 175 | Cast #401043 | 6.5 | 910 | max load; 12,700 cup |
| Lyman Reloading Handbook 49th Edition cases: Starline; trim-to length: 1.300"; primers: CCI 300; primer size: Large Pistol; Lyman shell holder: No. 14B; cast bullets used sized to .401" dia.; firearm used: Universal Receiver; barrel length: 7 1/2"; twist: 1-20"; groove dia.: .400"; 1.575" OAL | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 90 | Sierra Jacketed HC | 2.6 | 769 | sugg start load; 11,300 cup; .925" OAL |
| 90 | Sierra Jacketed HC | 2.9 | 907 | max load; 15,300 cup; .925" OAL |
| 95 | Sierra FMJ | 2.3 | 825 | sugg start load; 11,300 cup; .900" OAL |
| 95 | Sierra FMJ | 2.6 | 865 | max load; 15,200 cup; .900" OAL |
| Lyman Reloading Handbook 49th Edition cases: Federal; trim-to length: .677"; primers: Federal 100 and Winchester WSP; primer size: small pistol; Lyman shell holder: No. 26; firearm used: Universal Receiver; barrel length: 3 3/4"; twist: 1-16"; groove dia.: .355" | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 90 | Speer AUTO GDHP | 3.1 | 953 | start charge |
| 90 | Speer AUTO GDHP | 3.4 | 1044 | maximum charge |
| 95 | Speer TMJ RN | 3.0 | 893 | start charge |
| 95 | Speer TMJ RN | 3.4 | 998 | maximum charge |
| Speer Reloading Manual #14 max. case length: 0.680"; trim-to length: 0.670"; max cart. OAL: 0.984"; RCBS shell holder: #10; cart. case: Winchester; primer: CCI 500; test firearm: Walther PP; barrel length: 3.8"; maximum loads should be used with CAUTION | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
 | 90 | Hornady HP-XTP | 2.7 | 845 | |
| 90 | Hornady HP-XTP | 2.9 | 901 | |
| 90 | Hornady HP-XTP | 3.0 | 921 | maximum load |
| Using Hornady Bullets These loads were shot by Brian Pearce, Wolfe Publishing Company. Gun: Walther PPK/S; barrel length: 3 1/4 inches; case: Starline; primer: Winchester WSP; bullet diameter: .355"; maximum COAL: .980"; maximum case length: .680"; trim to length: .675"; COAL: .965". | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 90 | XTP | 3.0 | 930 | start load; min OAL: 0.980 |
| 90 | XTP | 3.5 | 1073 | never exceed; min OAL: 0.980 |
| 95 | Jacketed | 3.1 | 942 | start load; min OAL: 0.980 |
| 95 | Jacketed | 3.6 | 1066 | never exceed; min OAL: 0.980 |
| 100 | Jacketed | 2.9 | 889 | start load; min OAL: 0.980 |
| 100 | Jacketed | 3.3 | 1007 | never exceed; min OAL: 0.980 |
| Lee Precision Data CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Pistol Primer. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 155 | Copper Plated | 5.3 | 1065 | start load; min. OAL: 1.126 |
| 155 | Copper Plated | 5.9 | 1171 | NEVER EXCEED; compressed load; min. OAL 1.126 |
| 155 | XTP | 5.2 | 1063 | start load; min. OAL: 1.126 |
| 155 | XTP | 5.9 | 1191 | NEVER EXCEED; compressed charge; min. OAL: 1.126 |
| Lee Precision 155 GR Data Do not use reloads in Glock or similar guns with chambers that do not fully support the cartridge due to the intrusion of the feed ramp. CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Pistol Primer. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 135 | Sierra JHP | 5.0 | 985 | |
| 135 | Sierra JHP | 5.3 | 1024 | |
| 135 | Sierra JHP | 5.5 | 1071 | |
| 135 | Sierra JHP | 5.8 | 1117 | |
| 135 | Sierra JHP | 6.1 | 1161 | |
| 135 | Sierra JHP | 6.4 | 1207 | |
| 135 | Sierra JHP | 6.6 | 1254 | |
| 135 | Sierra JHP | 6.9 | 1295 | maximum load |
| 150 | Sierra JHP | 4.8 | 972 | |
| 150 | Sierra JHP | 5.0 | 999 | |
| 150 | Sierra JHP | 5.2 | 1031 | |
| 150 | Sierra JHP | 5.4 | 1062 | |
| 150 | Sierra JHP | 5.6 | 1093 | |
| 150 | Sierra JHP | 5.8 | 1123 | maximum load |
| 165 | Sierra JHP | 4.2 | 862 | |
| 165 | Sierra JHP | 4.5 | 907 | |
| 165 | Sierra JHP | 4.8 | 960 | |
| 165 | Sierra JHP | 5.1 | 1012 | |
| 165 | Sierra JHP | 5.4 | 1061 | maximum load |
| 180 | Sierra JHP | 4.1 | 859 | |
| 180 | Sierra JHP | 4.5 | 906 | |
| 180 | Sierra JHP | 4.8 | 953 | |
| 180 | Sierra JHP | 5.2 | 1001 | maximum load |
| Using Sierra Bullets Notes: Gun: Glock Model 22; barrel length: 4.35"; case: Starline; primer: Winchester Small Pistol; bullet diameter: .400"; 135 GR Sierra JHP COAL: 1.125"; 150 GR Sierra JHP COAL: 1.125"; 165 GR Sierra JHP COAL: 1.125"; 180 GR Sierra JHP COAL: 1.125"; maximum COAL: 1.135"; maximum case length: .850"; trim to length: .845". | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 135 | Hornady HP-XTP | 5.2 | 1106 | starting load |
| 135 | Hornady HP-XTP | 5.5 | 1134 | maximum load |
| 135 | Nosler HP | 6.0 | 1224 | starting load |
| 135 | Nosler HP | 6.2 | 1259 | maximum load |
| 155 | Rainier FP | 5.2 | 1086 | starting load |
| 155 | Rainier FP | 5.5 | 1114 | maximum load |
| 165 | PMC TC-FMJ | 4.9 | 994 | starting load |
| 165 | PMC TC-FMJ | 5.2 | 1038 | maximum load |
| 180 | Fiocchi LTC | 3.5 | 883 | starting load |
| 180 | Fiocchi LTC | 4.1 | 968 | maximum load |
| Vihtavuori Reloading Guide 6 test barrel: 5 1/2", 1 in 16" twist; primers: Small Pistol; cases: Remington, trim-to length: 0.843"; COL (in.): 1.126; This data is intended for use in firearms with barrels which fully support the cartridge in the chamber. Use of this data in firearms which do not fully support the cartridge may result in bulged cases, ruptured cases, case head separation, or other conditions which may result in damage to the firearm and/or result in injury or death of the shooter and/or bystanders. Loads less than minimum charges shown are not recommended; USE MAXIMUM LOADS WITH CAUTION! | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 180 | Speer Gold Dot HP | 4.0 | 844 | overall loaded length (inches): 1.120 |
| 180 | Speer Gold Dot HP | 4.5 | 895 | overall loaded length (inches): 1.120 |
| 180 | Speer Gold Dot HP | 5.0 | 970 | overall loaded length (inches): 1.120 |
| 180 | Speer Gold Dot HP | 5.3 | 1015 | overall loaded length (inches): 1.120 |
| Load Data A Glock Model 22 with a 4.35-inch barrel was used to test-fire all loads. Starline cases and Winchester Small Pistol primers were used throughout. Bullet diameter: .400 inch; maximum cartridge overall length: 1.135 inches; maximum case length: .850 inch; trim-to length: .845 inch. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 180 | XTP | 10.2 | 1300 | start load; min OAL: 1.602 |
| 180 | XTP | 11.7 | 1424 | never exceed; min OAL: 1.602 |
| 200 | XTP | 9.6 | 1218 | start load; min OAL: 1.602 |
| 200 | XTP | 11.2 | 1331 | never exceed; min OAL: 1.602 |
| 220 | Jacketed | 8.6 | 1118 | start load; min OAL: 1.602 |
| 220 | Jacketed | 10.3 | 1224 | never exceed; min OAL: 1.602 |
| 240 | Jacketed | 8.7 | 1059 | start load; min OAL: 1.602 |
| 240 | Jacketed | 9.7 | 1154 | never exceed; min OAL: 1.602 |
| 250 | Jacketed | 8.1 | 994 | start load; min OAL: 1.602 |
| 250 | Jacketed | 9.6 | 1121 | never exceed; min OAL: 1.602 |
| Lee Precision Data Large pistol primer. CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 180 | Hornady HP-XTP | 10.6 | 1335 | starting load; COL (in.): 1.602 |
| 180 | Hornady HP-XTP | 11.8 | 1432 | maximum load; COL (in.): 1.602 |
| 200 | Hornady HP-XTP | 10.0 | 1250 | starting load; COL (in.): 1.602 |
| 200 | Hornady HP-XTP | 11.3 | 1339 | maximum load; COL (in.): 1.602 |
| 220 | Sierra FPJ-Match | 9.1 | 1148 | starting load; COL (in.): 1.602 |
| 220 | Sierra FPJ-Match | 10.4 | 1232 | maximum load; COL (in.): 1.602 |
| 240 | Hornady JTC-SIL | 8.9 | 1086 | starting load; COL (in.): 1.602 |
| 240 | Hornady JTC-SIL | 9.7 | 1161 | maximum load; COL (in.): 1.602 |
| 248 | Gunhill LRNFP | 7.6 | 892 | starting load; COL (in.): 1.594; Cowboy Action Shooting load |
| 248 | Gunhill LRNFP | 9.6 | 1014 | maximum load; COL (in.): 1.594; Cowboy Action Shooting load |
| 250 | Sierra FPJ-Match | 8.5 | 1030 | starting load; COL (in.): 1.602 |
| 250 | Sierra FPJ-Match | 9.7 | 1130 | maximum load; COL (in.): 1.602 |
| 267 | LSWC | 7.7 | 889 | starting load; COL (in.): 1.681; Cowboy Action Shooting load |
| 267 | LSWC | 9.3 | 988 | maximum load; COL (in.): 1.681; Cowboy Action Shooting load |
| Vihtavuori Reloading Guide 6 test barrel: 7", 1 in 20" twist; primers: Large Pistol; cases: Remington, trim-to length: 1.275"; loads less than minimum charges shown are not recommended; USE MAXIMUM LOADS WITH CAUTION! | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 240 | Hornady XTP-HP | 8.7 | 1,031 | |
| Midrange Loads All Smith & Wesson Models 29, 629 and 329PD. A Smith & Wesson (pre-29) .44 Magnum revolver with a 6 1/2-inch barrel used to test loads. CCI 300 primers used throughout, along with Winchester and Starline cases. Maximum case length: 1.285 inches; trim-to length: 1.275 inches. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 240 | Hornady XTP-HP | 8.7 | 1,054 | |
| Midrange Loads in a Ruger Super The Ruger Super Blackhawk has a barrel length of 7 1/2 inches. Standard Large Pistol (CCI 300 and Federal 150) primers used throughout. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 240 | Hornady XTP-HP | 8.7 | 1,013 | |
| Midrange Loads in an S&W The Smith & Wesson Model 29-2 has a 4-inch barrel. Standard Large Pistol (CCI 300 and Federal 150) primers used throughout. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 180 | Hornady FP-Cowboy | 6.6 | 579 | |
| 180 | Hornady FP-Cowboy | 7.0 | 652 | |
| 180 | Hornady FP-Cowboy | 7.3 | 725 | |
| 180 | Hornady FP-Cowboy | 7.7 | 791 | maximum load |
| Revolver (Using 180 GR Hornady Bullets) Gun: Ruger New Model Blackhawk (Bisley); barrel length: 5 1/2-inches; case: Starline; primer: Winchester Large Pistol; bullet diameter: .430"; maximum COAL: 1.610"; maximum case length: 1.285"; trim to length: 1.275"; COAL: 1.600". | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 200 | Speer FN or CM | 3.6 | 743 | start charge |
| 200 | Speer FN or CM | 4.0 | 850 | maximum charge |
| Speer Reloading Manual #14 Cowboy Action Shooting Data; max. case length: 0.970"; trim-to length: 0.960"; max cart. OAL: 1.430"; RCBS shell holder: #18; cart. case: Starline; primer: CCI 300; test firearm: Cimarron SAA; barrel length: 5.5"; NOTE: bullets were cast in RCBS moulds; maximum loads should be used with CAUTION | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 180 | Hornady Swaged Lead FN #11058 | 3.8 | 703 | sugg. start load; 1.185" OAL; 6,900 cup |
| 180 | Hornady Swaged Lead FN #11058 | 4.3 | 836 | max load; 1.185" OAL; 11,100 cup; potentially most accurate load |
| 200 | Cast #427666 | 3.7 | 671 | sugg. start load; 1.255" OAL; 7,500 psi |
| 200 | Cast #427666 | 4.2 | 773 | max load; 1.255" OAL; 10,700 psi |
| 240 | Cast #429667 | 3.5 | 657 | sugg. start load; 1.335" OAL; 9,700 cup |
| 240 | Cast #429667 | 3.9 | 717 | max load; 1.335" OAL; 11,600 cup |
| 245 | Cast #429383 | 3.4 | 635 | sugg. start load; 1.400" OAL; 8,300 cup |
| 245 | Cast #429383 | 3.8 | 714 | max load; 1.400" OAL; 11,400 cup |
| 245 | Cast #429421 | 3.3 | 614 | sugg. start load; 1.390" OAL; 8,300 cup |
| 245 | Cast #429421 | 3.7 | 684 | max load; 1.390" OAL; 10,500 cup |
| Lyman Reloading Handbook 49th Edition cases: Starline; trim-to length: .965"; primers: Winchester WLP; primer size: Large Pistol; Lyman shell holder: No. 7; firearm used: Universal Receiver; barrel length: 6 1/2"; twist: 1-20"; groove dia.: .429" | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 200 | RCBS 44-FN | 4.0 | 733 | most accurate 200-grain load |
| 200 | RCBS 44-FN | 4.5 | 790 | |
Test gun was a Colt New Frontier with a 7 1/2-inch barrel. Starline cases and Federal 150 Large Pistol primers used throughout. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 180 | XTP | 6.8 | 948 | start load; min OAL: 1.469 |
| 180 | XTP | 7.5 | 1033 | never exceed; min OAL: 1.469 |
| 200 | XTP | 6.4 | 885 | start load; min OAL: 1.469 |
| 200 | XTP | 7.0 | 965 | never exceed; min OAL: 1.469 |
| 220 | Jacketed | 5.2 | 725 | start load; min OAL: 1.469 |
| 220 | Jacketed | 5.9 | 837 | never exceed; min OAL: 1.469 |
| 240 | Jacketed | 4.9 | 653 | start load; min OAL: 1.480 |
| 240 | Jacketed | 5.6 | 732 | never exceed; min OAL: 1.480 |
| 250 | Jacketed | 4.7 | 642 | start load; min OAL: 1.469 |
| 250 | Jacketed | 5.5 | 741 | never exceed; min OAL: 1.469 |
| Lee Precision Data CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Large Pistol Primer. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 180 | Sierra Jacketed HC | 6.0 | 820 | sugg. start load; 1.470" OAL; 8,200 cup |
| 180 | Sierra Jacketed HC | 6.7 | 915 | max load; 1.470" OAL; 12,600 cup |
| 200 | Hornady Jacketed HP/XTP | 5.4 | 703 | sugg. start load; 1.495" OAL; 8,400 cup |
| 200 | Hornady Jacketed HP/XTP | 6.0 | 815 | max load; 1.495" OAL; 13,000 cup |
| Lyman Reloading Manual 49th Edition cases: Winchester; trim-to length: 1.150"; primers: CCI 300; primer size: Large Pistol; Lyman shell holder: No. 7; firearm used: Universal Receiver; barrel length: 4" & 7 1/2"; twist: 1-20"; groove dia.: .429" | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 200 | Speer FN or CM | 5.9 | 931 | start charge |
| 200 | Speer FN or CM | 6.5 | 1022 | maximum charge |
| Speer Reloading Manual #14 max. case length: 1.160"; trim-to length: 1.150"; max cart. OAL: 1.615"; RCBS shell holder: #18; cart. case: Remington; primer: CCI 300 (except where otherwise specified in remarks); test firearm: Cimarron SAA; barrel length: 5.5"; NOTE: The 200-grain FN & CM, the 225-grain SWC GC and the 250-grain K bullets were cast in RCBS moulds. RCBS crimp-on gas checks used for the 225-grain SWC GC bullets. Maximum loads should be used with CAUTION | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 180 | Hornady FP-Cowboy | 5.0 | 561 | |
| 180 | Hornady FP-Cowboy | 5.4 | 615 | |
| 180 | Hornady FP-Cowboy | 5.8 | 680 | |
| 180 | Hornady FP-Cowboy | 6.2 | 744 | |
| 180 | Hornady FP-Cowboy | 6.6 | 803 | maximum load |
| Using Hornady Bullets Gun: Smith & Wesson 624; barrel length: 4 inches; case: Starline; primer: Winchester Large Pistol; bullet diameter: 0.430"; 180 GR Hornady HP-XTP COAL: 1.480"; FP-Cowboy COAL: 1.490"; 200 GR HP-XTP COAL: 1.470"; 240 GR HP-XTP & CL-SIL COAL: 1.480"; 240 GR SWC-HP & SWC COAL: 1.490"; maximum COAL: 1.500"; maximum length: 1.160"; trim to length: 1.150". | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 180 | Hornady HP-XTP | 6.8 | 935 | starting load; COL (in.): 1.469 |
| 180 | Hornady HP-XTP | 7.6 | 1033 | maximum load; COL (in.): 1.469 |
| 200 | Hornady HP-XTP | 6.3 | 886 | starting load; COL (in.): 1.469 |
| 200 | Hornady HP-XTP | 6.9 | 965 | maximum load; COL (in.): 1.469 |
| 220 | Sierra FPJ-Match | 5.2 | 725 | starting load; COL (in.): 1.469 |
| 220 | Sierra FPJ-Match | 6.0 | 837 | maximum load; COL (in.): 1.469 |
| 240 | Hornady JTC-Sil | 4.8 | 633 | starting load; COL (in.): 1.480 |
| 240 | Hornady JTC-Sil | 5.6 | 732 | maximum load; COL (in.): 1.480 |
| 240 | SWC/HP | 4.7 | 702 | starting load; COL (in.): 1.539; Cowboy Action Shooting load |
| 240 | SWC/HP | 5.9 | 853 | maximum load; COL (in.): 1.539; Cowboy Action Shooting load |
| 248 | Gunhill LRNFP | 5.9 | 781 | starting load; COL (in.): 1.465; Cowboy Action Shooting load |
| 248 | Gunhill LRNFP | 6.3 | 837 | maximum load; COL (in.): 1.465; Cowboy Action Shooting load |
| 250 | Sierra FPJ | 4.8 | 633 | starting load; COL (in.): 1.469 |
| 250 | Sierra FPJ | 5.6 | 741 | maximum load; COL (in.): 1.469 |
| 267 | Intercast LFN | 5.2 | 794 | starting load; COL (in.): 1.539 |
| 267 | Intercast LFN | 6.0 | 860 | maximum load; COL (in.): 1.539 |
| 267 | LFN | 3.8 | 633 | starting load; COL (in.): 1.539; Cowboy Action Shooting load |
| 267 | LFN | 5.3 | 794 | maximum load; COL (in.): 1.539; Cowboy Action Shooting load |
| Vihtavuori Loading Guide 6 test barrel: 6", 1 in 18" twist; primers: Large Pistol; cases: Remington, trim-to length: 1.153"; loads less than minimum charges shown are not recommended; USE MAXIMUM LOADS WITH CAUTION! | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 205 | Cast #427098 | 5.8 | 798 | sugg. start load; 1.537" OAL; 7,800 cup |
| 205 | Cast #427098 | 6.5 | 906 | max load; 1.537" OAL; 12,000 cup |
| 210 | Cast #429215 gas check | 4.9 | 731 | sugg. start load; 1.500" OAL; 8,800 cup |
| 210 | Cast #429215 gas check | 5.5 | 807 | max load; 1.500" OAL; 11,900 cup |
| 240 | Cast #429667 | 4.5 | 709 | sugg. start load; 1.500" OAL; 11,000 cup |
| 240 | Cast #429667 | 5.0 | 784 | max load; 1.500" OAL; 13,100 cup |
| 245 | Cast #429421 | 4.5 | 679 | sugg. start load; 1.570" OAL; 7,300 cup |
| 245 | Cast #429421 | 5.1 | 774 | max load; 1.570" OAL; 12,000 cup |
| 255 | Cast #429244 gas check | 4.5 | 652 | sugg. start load; 1.550" OAL; 9,100 cup |
| 255 | Cast #429244 gas check | 5.0 | 737 | max load; 1.550" OAL; 12,700 cup |
| Cast Bullet Data Lyman Reloading Handbook 49th Edition cases: Winchester; trim-to length: 1.150"; primers: CCI 300; primer size: Large Pistol; Lyman shell holder: No. 7; firearm used: Universal Receiver; barrel length: 4" (except where otherwise noted in remarks); twist: 1-20"; groove dia.: .429" | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 200 | RCBS 44-200-FN | 8.7 | 1,158 | group (inches): SC |
| 200 | MG 44-200 | 8.7 | 1,128 | group (inches): 2.5 |
| 190 | Bull-X 190 SWC | 8.7 | 1,188 | group (inches): 2.0 |
| 240 | Bull-X 240 SWC | 7.0 | 910 | group (inches): 3.0 |
| Colt Peacemaker Loads SC = 3.5 inches or more (Loading the Peacemaker - Dave Scovill) | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 154 | Lead | 5.9 | 1052 | start load; min OAL: 1.240 |
| 154 | Lead | 6.5 | 1168 | never exceed; min OAL: 1.240 |
| 180 | Lead | 5.5 | 974 | start load; min OAL: 1.244 |
| 180 | Lead | 6.1 | 1070 | never exceed; min OAL: 1.244 |
| 185 | Jacketed | 5.7 | 930 | start load; min OAL: 1.268 |
| 185 | Jacketed | 6.2 | 1003 | never exceed; min OAL: 1.268 |
| 200 | Jacketed | 5.0 | 866 | start load; min OAL: 1.240 |
| 200 | Jacketed | 5.5 | 942 | never exceed; min OAL: 1.240 |
| 200 | Lead | 4.8 | 902 | start load; min OAL: 1.240 |
| 200 | Lead | 5.2 | 973 | never exceed; min OAL: 1.240 |
| 230 | Jacketed | 4.9 | 801 | start load; min OAL: 1.260 |
| 230 | Jacketed | 5.3 | 863 | never exceed; min OAL: 1.260 |
| Lee Precision Data Large Pistol primer; with NEVER EXCEED LOADS maintain Minimum Over All Length or longer | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 185 | Hornady Jacketed HP/XTP | 5.7 | 812 | sugg. start load; 1.175" OAL; 10,500 cup |
| 185 | Hornady Jacketed HP/XTP | 6.4 | 988 | max load; 1.175" OAL; 17,300 cup |
| 200 | Speer Gold Dot Jacketed HP | 5.1 | 650 | sugg. start load; 1.178" OAL; 12,500 cup |
| 200 | Speer Gold Dot Jacketed HP | 5.7 | 857 | max load; 1.178" OAL; 16,200 cup |
| Lyman Reloading Handbook 49th Edition cases: Remington, Federal; trim-to length: .888"; primers: Remington 2 1/2; primer size: Large Pistol; Lyman shell holder: No. 2; firearm used: Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .450" | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 185 | Nosler Custom Competition JHP | 6.2 | 938 | max; most accurate load tested |
| 185 | Nosler Custom Competition JHP | 5.7 | 813 | |
| 185 | Nosler Custom Competition JHP | 5.2 | 688 | |
| Using Nosler Bullets Handgun; case: Winchester; primer: Fed. 150; barrel length/make: 5" Douglas; twist: 1-16"; bullets: 185 GR Nosler Custom Competition JHP or 230 GR Nosler Sporting Handgun Pistol FMJ or JHP; OACL: 1.200"; maximum OACL: 1.275". Use Maximum Loads with Caution | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 154 | Intercast LSWC | 5.9 | 1033 | starting load; COL (in.): 1.240 |
| 154 | Intercast LSWC | 6.4 | 1117 | maximum load; COL (in.): 1.240 |
| 180 | Intercast LSWC | 5.4 | 971 | starting load; COL (in.): 1.244 |
| 180 | Intercast LSWC | 6.0 | 1053 | maximum load; COL (in.): 1.244 |
 | 185 | Speer TMJ-SWC | 5.6 | 913 | starting load; COL (in.): 1.240 |
| 185 | Speer TMJ-SWC | 6.1 | 988 | maximum load; COL (in.): 1.240 |
| 185 | Rainier FN | 5.8 | 955 | starting load; COL (in.): 1.201 |
| 185 | Rainier FN | 6.3 | 1037 | maximum load; COL (in.): 1.201 |
 | 185 | Nosler HP | 5.2 | 817 | starting load; COL (in.): 1.130 |
| 185 | Nosler HP | 5.9 | 919 | maximum load; COL (in.): 1.130 |
| 200 | Intercast LSWC | 4.7 | 888 | starting load; COL (in.): 1.240 |
| 200 | Intercast LSWC | 5.1 | 958 | maximum load; COL (in.): 1.240 |
| 200 | Hornady FMJ-CT | 5.0 | 855 | starting load; COL (in.): 1.240 |
| 200 | Hornady FMJ-CT | 5.4 | 928 | maximum load; COL (in.): 1.240 |
 | 230 | Hornady FMJ-RN | 4.9 | 784 | starting load; COL (in.): 1.260 |
| 230 | Hornady FMJ-RN | 5.2 | 850 | maximum load; COL (in.): 1.260 |
| Vihtavuori Reloading Guide 6 test barrel: 6", 1 in 16" twist; primers: Large Pistol; cases: Remington, trim-to length: 0.893"; loads less than minimum charges shown are not recommended; USE MAXIMUM LOADS WITH CAUTION! | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 154 | Intercast LSWC | 6.0 | 1,059 | OAL (in.): 1.240; starting load; 15,000 psi |
| 154 | Intercast LSWC | 6.7 | 1,181 | OAL (in.): 1.240; maximum load; 20,000 psi |
| 180 | Intercast LSWC | 5.6 | 998 | OAL (in.): 1.244; starting load; 15,000 psi |
| 180 | Intercast LSWC | 6.4 | 1,116 | OAL (in.): 1.244; maximum load; 20,000 psi |
| 185 | Speer TMJ-SWC | 5.8 | 937 | OAL (in.): 1.268; starting load; 15,000 psi |
| 185 | Speer TMJ-SWC | 6.5 | 1,047 | OAL (in.): 1.268; maximum load; 20,000 psi |
| 200 | Intercast SWC | 4.8 | 912 | OAL (in.): 1.240; starting load; 15,000 psi |
| 200 | Intercast SWC | 5.5 | 1,010 | OAL (in.): 1.240; maximum load; 20,000 psi |
| 200 | Hornady FMJ-CT | 5.1 | 878 | OAL (in.): 1.240; starting load; 15,000 psi |
| 200 | Hornady FMJ-CT | 5.8 | 983 | OAL (in.): 1.240; maximum load; 20,000 psi |
| 230 | Hornady FMJ-RN | 4.9 | 807 | OAL (in.): 1.260; starting load; 15,000 psi |
| 230 | Hornady FMJ-RN | 5.5 | 898 | OAL (in.): 1.260; maximum load; 20,000 psi |
| Vihtavuori Reloading Manual Second Edition test barrel: 6":, 1 in 16" twist, manufactured to meet CIP minimum dimensions; primers: Winchester WLP; cases: Remington, trim-to length: .893"; pressure limits based on SAAMI March 9, 1993, pressure measurement according to CIP; loads less than minimum charges shown are not recommended; use maximum loads with caution | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 160 | Saeco (Redding) #063 | 6.1 | 962 | sugg. start load; 12,900 cup |
| 160 | Saeco (Redding) #063 | 6.7 | 1042 | max load; 16,100 cup |
| 170 | Saeco (Redding) #062 | 6.0 | 957 | sugg. start load; 13,200 cup; potentially most accurate load |
| 170 | Saeco (Redding) #062 | 6.6 | 1048 | max load; 17,500 cup |
| 160 & 170 GR (Lyman Cast Bullet Data) cases: Federal; trim-to length: .888"; primers: CCI 300; primer size: Large Pistol; Lyman shell holder: No. 2; cast bullets used sized to .451" dia.; firearm used: Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .450"; 160 grain OAL: 1.255"; 170 grain OAL: 1.250" (Lyman Cast Bullet Handbook 4th Edition) | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 180 | Lyman #452374 HP | 5.4 | 923 | sugg. start load; 13,000 cup |
| 180 | Lyman #452374 HP | 6.0 | 1002 | max load; 17,800 cup |
| 185 | RCBS #45-185-SWC-BB | 5.1 | 874 | sugg. start load; 13,700 cup |
| 185 | RCBS #45-185-SWC-BB | 5.6 | 939 | max load; 17,000 cup |
| 180 & 185 GR (Lyman Cast Bullet Data) cases: Federal; trim-to length: .888"; primers: CCI 300; primer size: Large Pistol; Lyman shell holder: No. 2; cast bullets used sized to .451" dia.; firearm used: Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .450"; 180 grain OAL: 1.190"; 185 grain OAL: 1.180" (Lyman Cast Bullet Handbook 4th Edition) | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 200 | Lyman #452460 | 4.6 | 774 | sugg. start load; 13,400 cup; primer: CCI 300 |
| 200 | Lyman #452460 | 5.2 | 889 | max load; 17,100 cup; primer: CCI 300 |
| 200 | Lyman #452630 | 5.1 | 746 | sugg. start load; 10,000 cup; primer: CCI 300 |
| 200 | Lyman #452630 | 5.7 | 865 | max load; 14,800 cup; primer: CCI 300 |
| 200 GR (Lyman Cast Bullet Data) cases: Remington (except where otherwise specified in remarks); trim-to length: .888"; primers: Remington 2 1/2 (except where otherwise specified in remarks); primer size: Large Pistol; Lyman shell holder: No. 2; cast bullets used sized to .451" dia.; firearm used; Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .450"; Lyman #452460 OAL: 1.161"; Lyman #452630 OAL: 1.235" (Lyman Cast Bullet Manual 4th Edition) | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 200 | Cast #452460 | 4.6 | 774 | sugg. start load; 1.161" OAL; primer: CCI 300; 13,400 cup |
| 200 | Cast #452460 | 5.2 | 889 | max load; 1.161" OAL; primer: CCI 300; 17,100 cup |
| 200 | Cast #452630 | 5.1 | 746 | sugg. start load; 1.235" OAL; primer: CCI 300; 10,000 cup |
| 200 | Cast #452630 | 5.7 | 865 | max load; 1.235" OAL; primer: CCI 300; 14,800 cup |
| Cast Bullet Data Lyman Reloading Handbook 49th Edition cases: Remington (except where otherwise specified in remarks); trim-to length: .888"; primers: Remington 2 1/2 (except where otherwise specified in remarks); primer size: Large Pistol; Lyman shell holder: No. 2; cast bullets used sized to .451" dia.; firearm used: Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .450" | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 200 | Jacketed | 4.5 | 797 | start load; min OAL: 1.240 |
| 200 | Jacketed | 4.9 | 867 | never exceed; min OAL: 1.240 |
| 200 | Lead | 4.3 | 830 | start load; min OAL: 1.240 |
| 200 | Lead | 4.7 | 895 | never exceed; min OAL: 1.240 |
| Lee Precision Data CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 180 | Lead | 8.2 | 1074 | start load; min. OAL: 1.594 |
| 180 | Lead | 9.0 | 1170 | never exceed; min. OAL: 1.594 |
| 185 | XTP | 8.5 | 1053 | start load; min. OAL: 1.594 |
| 185 | XTP | 9.3 | 1147 | never exceed; min. OAL: 1.594 |
| 200 | Jacketed | 7.7 | 990 | start load; min. OAL: 1.594 |
| 200 | Jacketed | 8.6 | 1089 | never exceed; min. OAL: 1.594 |
| 200 | Lead | 8.3 | 1020 | start load; min. OAL: 1.594 |
| 200 | Lead | 9.1 | 1111 | never exceed; min. OAL: 1.594 |
| 230 | Jacketed | 7.3 | 897 | start load; min. OAL: 1.594 |
| 230 | Jacketed | 8.0 | 978 | never exceed; min OAL: 1.594 |
| 250 | XTP | 7.0 | 824 | start load; min. OAL: 1.594 |
| 250 | XTP | 7.6 | 888 | never exceed; min. OAL: 1.594 |
| Lee Precision Data Large Pistol primer; with NEVER EXCEED LOADS maintain Minimum Over All Length or longer | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 180 | Intercast LSWC | 8.6 | 1119 | starting load |
| 180 | Intercast LSWC | 9.2 | 1204 | maximum load |
| 185 | Hornady HP/XTP | 8.7 | 1096 | starting load |
| 185 | Hornady HP/XTP | 9.6 | 1181 | maximum load |
| 185 | Rainier FN | 8.9 | 1076 | starting load |
| 185 | Rainier FN | 9.6 | 1175 | maximum load |
| 200 | Hornady FMJ-CT | 8.1 | 1040 | starting load |
| 200 | Hornady FMJ-CT | 8.9 | 1122 | maximum load |
| 200 | Hornady LSWC | 8.7 | 1070 | starting load |
| 200 | Hornady LSWC | 9.4 | 1138 | maximum load |
| 200 | LRN | 6.8 | 850 | starting load; Cowboy Action Shooting load |
| 200 | LRN | 8.7 | 1043 | maximum load; Cowboy Action Shooting load |
| 230 | Sierra FMJ-Match | 7.5 | 938 | starting load |
| 230 | Sierra FMJ-Match | 8.3 | 1004 | maximum load |
| 250 | Hornady HP/XTP | 7.3 | 843 | starting load |
| 250 | Hornady HP/XTP | 7.8 | 919 | maximum load |
| 250 | LRN | 5.6 | 751 | starting load; Cowboy Action Shooting load |
| 250 | LRN | 6.9 | 915 | maximum load; Cowboy Action Shooting load |
| 251 | Gunhill LRNFP | 8.3 | 889 | starting load; COL (in.): 1.587; Cowboy Action Shooting load |
| 251 | Gunhill LRNFP | 9.6 | 1001 | maximum load; COL (in.): 1.587; Cowboy Action Shooting load |
| Vihtavuori Reloading Guide 6 test barrel: 6", 1 in 16" twist; primers: Large Pistol; cases: Remington, trim-to length: 1.279"; COL (in.): 1.594 (except where otherwise specified in remarks); loads less than minimum charges shown are not recommended; USE MAXIMUM LOADS WITH CAUTION! | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 200 | Cast #452460 | 7.2 | 918 | sugg. start load; 1.550" OAL; 9,100 cup |
| 200 | Cast #452460 | 8.1 | 1044 | max load; 1.550" OAL; 12,700 cup |
| 250 | Cast #454190 | 6.0 | 685 | sugg. start load; 1.600" OAL |
| 250 | Cast #454190 | 6.8 | 822 | max load; 1.600" OAL |
| 250 | Cast #452664 | 6.0 | 754 | sugg. start load; 1.570" OAL |
| 250 | Cast #452664 | 6.8 | 833 | max load; 1.570" OAL |
| 255 | Cast #452424 | 5.8 | 692 | sugg. start load; 1.575" OAL |
| 255 | Cast #452424 | 6.7 | 841 | max load; 1.575" OAL |
| Cast Bullet Handgun Data Lyman Reloading Handbook 49th Edition cases: Winchester; trim-to length: 1.275"; primers: Winchester WLP; primer size: Large Pistol; Lyman shell holder: No. 11; cast bullets used sized to .452" dia.; firearm used: Universal Receiver & Ruger Blackhawk; barrel length: 7 1/2"; twist: 1-16"; groove dia.: .451" | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 185 | Sierra Jacketed HP | 8.3 | 873 | sugg. start load; 1.520" OAL |
| 185 | Sierra Jacketed HP | 9.3 | 1123 | max load; 1.520" OAL |
| 200 | Speer Jacketed HP | 7.7 | 843 | sugg. start load; 1.557" OAL |
| 200 | Speer Jacketed HP | 8.6 | 1031 | max load; 1.557" OAL |
| 225 | Speer Jacketed HP | 7.2 | 764 | sugg. start load; 1.575" OAL |
| 225 | Speer Jacketed HP | 8.0 | 862 | max load; 1.575" OAL |
| 230 | Speer Swaged Lead FN | 7.4 | 888 | sugg. start load; 1.590" OAL; 9,200 cup |
| 230 | Speer Swaged Lead FN | 8.3 | 1010 | max load; 1.590" OAL; 13,100 cup |
| Lyman Reloading Handbook 49th Edition cases: Winchester; trim-to length: 1.275"; primers: Winchester WLP; primer size: Large Pistol; Lyman shell holder: No. 11; firearms used: Universal Receiver & Ruger Blackhawk; barrel length: 7 1/2"; twist: 1-16"; groove dia.: .451" | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 200 | Hornady SWC or L-C/T | 6.3 | 763 | |
| 200 | Hornady SWC or L-C/T | 6.6 | 813 | |
| 200 | Hornady SWC or L-C/T | 7.0 | 863 | |
| 200 | Hornady SWC or L-C/T | 7.4 | 913 | |
| 200 | Hornady SWC or L-C/T | 7.8 | 963 | maximum load |
| Revolver (Using 200 GR Hornady Bullets) Gun: Ruger New Model (Bisley) Blackhawk; barrel length: 5 1/2 inches; case: Starline; primer: Winchester WLP; bullet diameter: .452"; COAL: 1.595"; maximum COAL: 1.600"; maximum case length: 1.285"; trim to length: 1.275"; | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 255 | Hornady FP Cowboy | 5.1 | 600 | |
| 255 | Hornady FP Cowboy | 5.6 | 667 | |
| 255 | Hornady FP Cowboy | 6.0 | 734 | |
| 255 | Hornady FP Cowboy | 6.5 | 800 | maximum load |
| Revolver (Using 255 GR Hornady Bullets) Gun: Ruger New Model (Bisley) Blackhawk; barrel length: 5 1/2 inches; case: Starline; primer: Winchester WLP; bullet diameter: .452"; COAL: 1.575"; maximum COAL: 1.600"; maximum case length: 1.285"; trim to length: 1.275"; | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 200 | Cast #452460 | 5.1 | 810 | sugg. start load; 1.340" OAL; 7,800 cup |
| 200 | Cast #452460 | 5.7 | 903 | max load; 1.340" OAL; 10,500 cup |
| 250 | Cast #454190 | 4.4 | 716 | sugg. start load; 1.390" OAL; 9,300 cup |
| 250 | Cast #454190 | 4.9 | 784 | max load; 1.390" OAL; 11,200 cup |
| 250 | Cast #452664 | 4.6 | 739 | sugg. start load; 1.390" OAL; 8,800 cup |
| 250 | Cast #452664 | 5.2 | 811 | max load; 1.390" OAL; 11,200 cup |
| 255 | Cast #452424 | 4.8 | 696 | sugg. start load; 1.460" OAL; 7,800 cup |
| 255 | Cast #452424 | 5.4 | 804 | max load; 1.460" OAL; 11,000 cup |
| Lyman Reloading Handbook 49th Edition cases: Starline; trim-to length: 1.095"; primers: Winchester WLP; primer size: Large Pistol; Lyman shell holder: No. 14B; cast bullets used sized to .452" dia.; firearm used: Universal Receiver; barrel length: 7 1/2"; twist: 1-16"; groove dia.: .451" | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 230 | Hornady LRN | 4.1 | 548 | |
| 230 | Hornady LRN | 4.6 | 638 | |
| 230 | Hornady LRN | 5.1 | 723 | maximum load |
| 255 | Hornady FP Cowboy | 3.4 | 482 | Do Not Reduce |
| 255 | Hornady FP Cowboy | 3.8 | 531 | |
| 255 | Hornady FP Cowboy | 4.1 | 580 | |
| 255 | Hornady FP Cowboy | 4.4 | 628 | maximum load |
| Using Hornady Bullets Gun: Ruger New Model Blackhawk (Bisley); barrel length: 5 1/2 inches; case: Starline; primer: Winchester Large Pistol; bullet diameter: .452"; 230 GR Hornady LRN COAL: 1.410"; 255 FP Cowboy COAL: 1.380"; maximum COAL: 1.410"; maximum case length: 1.109"; trim to length: 1.099". | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 86 | Hornady FMJ | 4.8 | 1178 | sugg. start load; 1.290" OAL |
| 86 | Hornady FMJ | 5.9 | 1375 | max load; 1.290" OAL |
| 93 | Hornady FMJ | 4.5 | 1074 | sugg. start load; 1.310" OAL |
| 93 | Hornady FMJ | 5.8 | 1275 | max load; 1.310" OAL |

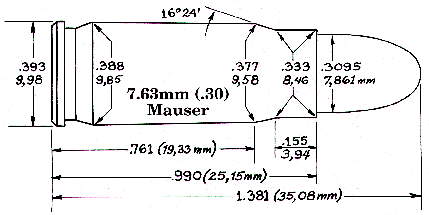

| Lyman Reloading Handbook 49th Edition The 7.62x25mm Tokarev and 30 Mauser are two different cartridges. However, their dimensions are so close that it has been common practice to use them interchangeably. Cases: Starline; trim-to length: .980"; primers: Remington 1 1/2; primer size: Small Pistol; Lyman shell holder: No. 12; cast bullets used sized to .311" dia.; firearm used: Cz52; barrel length: 4.7"; twist: 1-12 1/2"; groove dia.: .310" | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 60 | Speer HP | 4.4 | 1284 | starting load; COL (in.): 1.260; bullet cal.: .312" |
| 60 | Speer HP | 5.5 | 1574 | maximum load; COL (in.): 1.260; bullet cal.: .312" |
| Vihtavuori Reloading Guide Edition 6 FOR FIREARMS CHAMBERED FOR THE 7.62X25 TOKAREV CARTRIDGE ONLY; test barrel: 6", 1 in 10" twist; groove calibre: .309"; primers: Large Pistol; cases: Fiocchi 7.63 Mauser, trim-to length: 0.976"; loads less than minimum charges shown are not recommended; USE MAXIMUM LOADS WITH CAUTION! | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 90 | XTP | 4.9 | 1332 | start load; min OAL: 1.063 |
| 90 | XTP | 5.4 | 1397 | never exceed; min OAL: 1.063 |
| 100 | Jacketed | 4.8 | 1243 | start load; min OAL: 1.083 |
| 100 | Jacketed | 5.3 | 1328 | never exceed; min OAL: 1.083 |
| 115 | Copper Plated | 4.1 | 1086 | start load; min OAL: 1.142 |
| 115 | Copper Plated | 4.5 | 1157 | never exceed; min OAL: 1.142 |
| 115 | XTP | 4.1 | 1135 | start load; min OAL: 1.142 |
| 115 | XTP | 4.6 | 1206 | never exceed; min OAL: 1.142 |
| 120 | Jacketed | 4.0 | 1030 | start load; min OAL: 1.130 |
| 120 | Jacketed | 4.4 | 1103 | never exceed; min OAL: 1.130 |
| 124 | Jacketed | 4.0 | 1037 | start load; min OAL: 1.142 |
| 124 | Jacketed | 4.4 | 1115 | never exceed; min OAL: 1.142 |
| 124 | Lead | 3.8 | 1086 | start load; min OAL: 1.142 |
| 124 | Lead | 4.2 | 1138 | never exceed; min OAL: 1.142 |
| 124 | Copper Plated | 3.8 | 1017 | start load; min OAL: 1.142 |
| 124 | Copper Plated | 4.2 | 1086 | never exceed; min OAL: 1.142 |
| 130 | Jacketed | 3.7 | 997 | start load; min OAL: 1.142 |
| 130 | Jacketed | 4.1 | 1062 | never exceed; min OAL: 1.142 |
| Lee Precision Data Small pistol primer. CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 90 | Hornady HP-XTP | 4.8 | 1316 | starting load; COL (in.): 1.063 |
| 90 | Hornady HP-XTP | 5.3 | 1380 | maximum load; COL (in.): 1.063 |
| 100 | Speer HP | 4.7 | 1222 | starting load; COL (in.): 1.083 |
| 100 | Speer HP | 5.1 | 1307 | maximum load; COL (in.): 1.083 |
| 115 | Hornady HP-XTP | 4.0 | 1118 | starting load; COL (in.): 1.142 |
| 115 | Hornady HP-XTP | 4.5 | 1188 | maximum load; COL (in.): 1.142 |
| 115 | Lapua FMJ-RN | 3.9 | 997 | starting load; COL (in.): 1.142 |
| 115 | Lapua FMJ-RN | 4.5 | 1119 | maximum load; COL (in.): 1.142 |
| 115 | Rainier RN | 3.9 | 1068 | starting load; COL (in.): 1.142 |
| 115 | Rainier RN | 4.4 | 1139 | maximum load; COL (in.): 1.142 |
| 120 | Lapua CEPP | 3.7 | 978 | starting load; COL (in.): 1.130 |
| 120 | Lapua CEPP | 4.3 | 1083 | maximum load; COL (in.): 1.130 |
| 124 | Intercast LSWC | 3.8 | 1073 | starting load; COL (in.): 1.142 |
| 124 | Intercast LSWC | 4.1 | 1125 | maximum load; COL (in.): 1.142 |
| 124 | Hornady FMJ/FP | 3.9 | 1017 | starting load; COL (in.): 1.142 |
| 124 | Hornady FMJ/FP | 4.3 | 1096 | maximum load; COL (in.): 1.142 |
| 124 | Rainier RN | 3.8 | 1000 | starting load; COL (in.): 1.142 |
| 124 | Rainier RN | 4.1 | 1069 | maximum load; COL (in.): 1.142 |
| 124 | Lapua FMJ-RN | 3.4 | 951 | starting load; COL (in.): 1.142 |
| 124 | Lapua FMJ-RN | 4.0 | 1070 | maximum load; COL (in.): 1.142 |
| 124 | Lapua Megashock | 3.5 | 896 | starting load; COL (in.): 1.130 |
| 124 | Lapua Megashock | 4.2 | 1053 | maximum load; COL (in.): 1.130 |
| 130 | Sierra FMJ | 3.6 | 981 | starting load; COL (in.): 1.142 |
| 130 | Sierra FMJ | 4.0 | 1046 | maximum load; COL (in.): 1.142 |
| 147 | Hornady HP/XTP | 3.1 | 784 | starting load; COL (in.): 1.142 |
| 147 | Hornady HP/XTP | 3.9 | 978 | maximum load; COL (in.): 1.142 |
| Vihtavuori Reloading Guide 6 test barrel: 4", 1 in 10" twist; primers: Small Pistol; cases: Lapua, trim-to length: 0.748"; loads less than minimum charges shown are not recommended; USE MAXIMUM LOADS WITH CAUTION! | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 115 | Nosler JHP | 4.5 | 1229 | overall length (inches): 1.100; group (inches): 2.25 |
| 115 | Hornady XTP | 4.5 | 1208 | overall length (inches): 1.142; group (inches): 2.00 |
| in a Browning Hi-Power Accuracy is for five-shot groups at 25 yards from a solid benchrest. The group was measured from the inside of the most widely spaced bullet holes | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 90 | Speer Mak GDHP | 3.6 | 962 | start charge |
| 90 | Speer Mak GDHP | 4.0 | 1054 | maximum charge |
| 95 | Speer Mak TMJ RN | 3.3 | 832 | start charge |
| 95 | Speer Mak TMJ RN | 3.7 | 963 | maximum charge |
| Speer Reloading Manual #14 max. case length: 0.713"; trim-to length: 0.703"; max cart. OAL: 0.984"; RCBS shell holder: #16; cart. case: Starline; primer: CCI 500; test firearm: East German Makarov; barrel length: 3.625"; maximum loads should be used with CAUTION | |||||
