Slower burning powder for small capacity rifle cases and for lighter bullets in many .22 caliber loads. N120 needs higher pressure than N110 in order to optimize burning. Burning rate is near to Accurate 1680, IMR 4198 and Reloder 7. N120 is suitable also for 7,62x39, .30-30 Winchester and .444 Marlin.

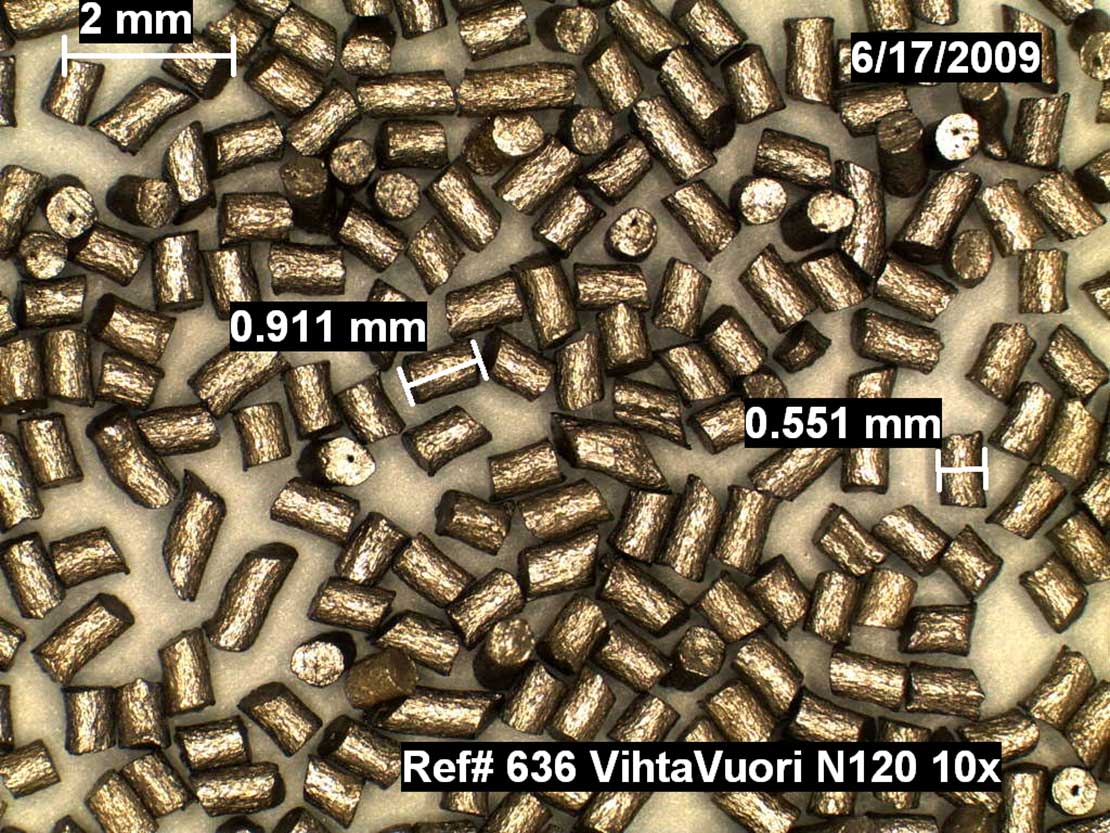

| Shape | Color | Perforation | Diameter min | Diameter max | Length/thick. min | Length/thick. max | Manufacturer |
|---|---|---|---|---|---|---|---|
| Cylinder(tubular) | Gray | Yes | 0.53 mm | 0.6 mm | 0.66 mm | 1.33 mm | Finland |
Ladedata som finnes på hjemmesidene til Evje PK er KUN ment som en veiledning! Ladedata skal alltid verifiseres mot kjente kilder (kruttprodusenter, ladebøker o.l.)
Data funnet på våre hjemmesider brukes på eget ansvar, og Evje Pistolklubb fratar seg alt ansvar for feil bruk av, eller skrivefeil i oppgitte data.
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
 | 140 | Hornady HP-XTP | 16.5 | 1034 | COAL: 1.590" |
| 140 | Hornady HP-XTP | 17.0 | 1051 | COAL: 1.590" |
| 140 | Hornady HP-XTP | 17.5 | 1055 | COAL: 1.590" |
| 140 | Hornady HP-XTP | 17.9 | 1065 | COAL: 1.590" |
| 140 | Hornady HP-XTP | 18.4 | 1082 | maximum load; COAL; 1.590" |
| 158 | Hornady HP-XTP or FP-XTP | 14.2 | 878 | COAL: 1.590" |
| 158 | Hornady HP-XTP or FP-XTP | 14.9 | 910 | COAL: 1.590" |
| 158 | Hornady HP-XTP or FP-XTP | 15.6 | 953 | COAL: 1.590" |
| 158 | Hornady HP-XTP or FP-XTP | 16.4 | 983 | maximum load; COAL; 1.590" |
| 180 | Hornady HP-XTP | 12.9 | 773 | COAL: 1.590" |
| 180 | Hornady HP-XTP | 13.4 | 790 | COAL: 1.590" |
| 180 | Hornady HP-XTP | 13.8 | 818 | COAL: 1.590" |
| 180 | Hornady HP-XTP | 14.3 | 826 | maximum load; COAL; 1.590" |
| Using Hornady Bullets Gun: Ruger GP100; barrel length: 6"; case: Starline; primer: Winchester Small Pistol Magnum; bullet diameter: .357"; maximum COAL: 1.590"; maximum case length: 1.290"; trim to length: 1.280". | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 180 | Jacketed | 20.4 | 1604 | start load; min OAL: 1.894 |
| 180 | Jacketed | 22.4 | 1752 | never exceed; min OAL: 1.894 |
| 200 | Jacketed | 18.9 | 1397 | start load; min OAL: 2.000 |
| 200 | Jacketed | 20.8 | 1573 | never exceed; min OAL: 2.000 |
| Lee Precision Data With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Pistol primer. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 140 | Speer UCHP | 23.0 | 1685 | start charge |
| 140 | Speer UCHP | 25.0 | 1883 | maximum charge; compressed load |
| 158 | Speer TMJ FN or UCHP | 22.0 | 1670 | start charge |
| 158 | Speer TMJ FN or UCHP | 24.0 | 1857 | maximum charge; compressed load |
| 170 | Speer Mag GDSP or 180-gr FNSP | 21.0 | 1477 | start charge |
| 170 | Speer Mag GDSP or 180-gr FNSP | 23.0 | 1678 | maximum charge; compressed load |
| 180 | Speer Mag Match TMJ Sil | 19.0 | 1339 | start charge |
| 180 | Speer Mag Match TMJ Sil | 21.0 | 1540 | maximum charge; compressed load |
| 220 | Speer FN SP | 18.0 | 1216 | start charge |
| 220 | Speer FN SP | 20.0 | 1445 | maximum charge; compressed load |
| Speer Reloading Manual #14 max. case length: 1.605"; trim-to length: 1.595"; max cart. OAL: 1.990"; RCBS shell holder: #6; cart. case: Remington; primer: CCI 400; test firearm: T/C Contender; barrel length: 14"; NOTE: the 180-gr FN SP and 220-gr bullet is for single-shot firearms only; maximum loads should be used with CAUTION | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 180 | Nosler Silhouette | 21.6 | 1693 | starting load; COL (in.): 1.894 |
| 180 | Nosler Silhouette | 22.5 | 1762 | maximum load; COL (in.): 1.894 |
| 200 | Speer TMJ | 20.1 | 1503 | starting load; COL (in.): 2.000; the cartridge overall length exceeds the CIP maximum |
| 200 | Speer TMJ | 20.9 | 1584 | maximum load; COL (in.): 2.000; the cartridge overall length exceeds the CIP maximum |
| Vihtavuori Reloading Guide 6 test barrel: 12", 1 in 18 1/2" twist; primers: Small Rifle; cases: Remington, trim-to length: 1.598"; loads less than minimum charges shown are not recommended; USE MAXIMUM LOADS WITH CAUTION! | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 180 | Hornady HP XTP or InterLock SP, SSP | 19.4 | 1409 | |
| 180 | Hornady HP XTP or InterLock SP, SSP | 20.0 | 1455 | |
| 180 | Hornady HP XTP or InterLock SP, SSP | 20.7 | 1516 | |
| 180 | Hornady HP XTP or InterLock SP, SSP | 21.3 | 1561 | maximum load |
| 200 | Hornady FTX, InterLock RN, InterLock SP | 20.2 | 1291 | |
| 200 | Hornady FTX, InterLock RN, InterLock SP | 21.1 | 1383 | |
| 200 | Hornady FTX, InterLock RN, InterLock SP | 21.9 | 1472 | maximum load |
| (T/C) Data Using Hornady Bullets Gun: Thompson/Center Contender; barrel length: 14 inches; case: Federal; primer: Remington 7 1/2; bullet diameter: .357" and .358"; maximum COAL: 2.250" (1.990" for Revolvers); maximum case length: 1.605"; trim to length: 1.595"; 180 GR Hornady HP XTP COAL: 1.890", InterLock SP, SSP COAL: 2.250"; 200 GR FTX or InterLock SP COAL: 2.250", InterLock RN COAL: 2.200". | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 140 | Hornady HP-XTP | 22.7 | 1273 | |
| 140 | Hornady HP-XTP | 23.4 | 1323 | |
| 140 | Hornady HP-XTP | 24.1 | 1382 | |
| 140 | Hornady HP-XTP | 24.8 | 1441 | |
| 140 | Hornady HP-XTP | 25.5 | 1496 | maximum load |
| 180 | Hornady HP-XTP | 18.6 | 1052 | |
| 180 | Hornady HP-XTP | 19.3 | 1085 | maximum load |
| Using Hornady Bullets Gun: Ruger New Model Super Blackhawk; barrel length: 7 1/2 inches; case: Federal; primer: Remington 7 1/2 Small Rifle; bullet diameter: .357"; COAL: 1.890"; maximum COAL: 1.990"; maximum case length: 1.605"; trim to length: 1.595". | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 350 | Sierra JHP | 40.7 | 1259 | COAL: 2.050 inches |
| 350 | Sierra JHP | 41.7 | 1279 | COAL: 2.050 inches |
| 350 | Sierra JHP | 42.7 | 1298 | Maximum Load; COAL: 2.050 inches |
| 400 | Sierra JSP | 40.2 | 1340 | COAL: 2.062 inches |
| 400 | Sierra JSP | 41.8 | 1373 | Maximum Load; COAL: 2.062 inches |
| using Sierra bullets Gun: Smith & Wesson Model 500; Barrel Length: 8 3/8 inches; Case: Starline "R"; Primer: Winchester Large Rifle; Bullet Diameter: .500 inches; Maximum COAL: 2.250 inches; Maximum Case Length: 1.620 inches; Trim to Length: 1.615 inches. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 350 | Hornady XTP-MAG | 40.2 | 1,400 | primer: WLPM or WLR; C.O.L.: 2.000" |
| 350 | Hornady XTP-MAG | 42.9 | 1,500 | primer: WLPM or WLR; C.O.L.: 2.000" |
| 350 | Hornady XTP-MAG | 45.6 | 1,600 | primer: WLPM or WLR; C.O.L.: 2.000" |
| 350 | Hornady XTP-MAG | 46.9 | 1,650 | maximum load; primer: WLPM or WLR; C.O.L.: 2.000" |
| 500 | Hornady JFP | 29.2 | 1,000 | primer: WLP; C.O.L.: 2.040" |
| 500 | Hornady JFP | 32.0 | 1,100 | primer: WLP; C.O.L.: 2.040" |
| 500 | Hornady JFP | 34.7 | 1,200 | primer: WLP; C.O.L.: 2.040" |
| 500 | Hornady JFP | 37.5 | 1,300 | maximum load; primer: WLP; C.O.L.: 2.040" |
| Hornady Data rifle: S&W Model 500; barrel length: 8 3/8"; case: Hornady; use maximum loads with extreme caution | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 350 | Hornady XTP Mag | 40.2 | 1293 | |
| 350 | Hornady XTP Mag | 42.9 | 1387 | |
| 350 | Hornady XTP Mag | 45.6 | 1481 | |
| 350 | Hornady XTP Mag | 46.9 | 1574 | maximum load |
| 500 | Hornady FP-XTP | 29.2 | 850 | |
| 500 | Hornady FP-XTP | 32.0 | 974 | |
| 500 | Hornady FP-XTP | 34.7 | 1098 | |
| 500 | Hornady FP-XTP | 37.5 | 1222 | maximum load |
| Using Hornady Bullets & Winchester Large Pistol Primer Gun: Smith & Wesson Model 500; barrel length: 8 3/8 inches; case: Starline; primer: Winchester Large Pistol for standard or magnum; bullet diameter: .500"; 300 GR FTX COAL: 2.195"; 350 GR XTP Mag COAL: 2.000"; 500 GR FP-XTP COAL: 2.080"; maximum COAL: 2.250"; maximum case length: 1.620"; trim to length: 1.615". | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 350 | Hornady XTP Mag | 40.2 | 1311 | |
| 350 | Hornady XTP Mag | 42.9 | 1388 | |
| 350 | Hornady XTP Mag | 45.6 | 1496 | |
| 350 | Hornady XTP Mag | 46.9 | 1611 | maximum load |
| 500 | Hornady FP-XTP | 29.2 | 937 | |
| 500 | Hornady FP-XTP | 32.0 | 1045 | |
| 500 | Hornady FP-XTP | 34.7 | 1177 | |
| 500 | Hornady FP-XTP | 37.5 | 1289 | maximum load |
| Using Hornady Bullets & Winchester Large Rifle Primer Gun: Smith & Wesson Model 500; barrel length: 8 3/8 inches; case: Starline "R"; primer: Winchester Large Rifle; bullet diameter: .500"; 300 GR FTX COAL: 2.195"; 350 GR XTP Mag COAL: 2.000"; 500 FP-XTP COAL: 2.080"; maximum COAL: 2.250"; maximum case length: 1.620"; trim to length: 1.615". | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 350 | Hornady HP/XTP | 42.6 | 1650 | starting load; COL (in.): 1.984 |
| 350 | Hornady HP/XTP | 44.7 | 1768 | maximum load; COL (in.): 1.984; full case |
| Vihtavuori Reloading Guide 6 test barrel: 11", 1 in 18" twist; primers: Large Rifle; cases: Starline, trim-to length: 1.614"; loads less than minimum charges shown are not recommended; USE MAXIMUM LOADS WITH CAUTION! | |||||
