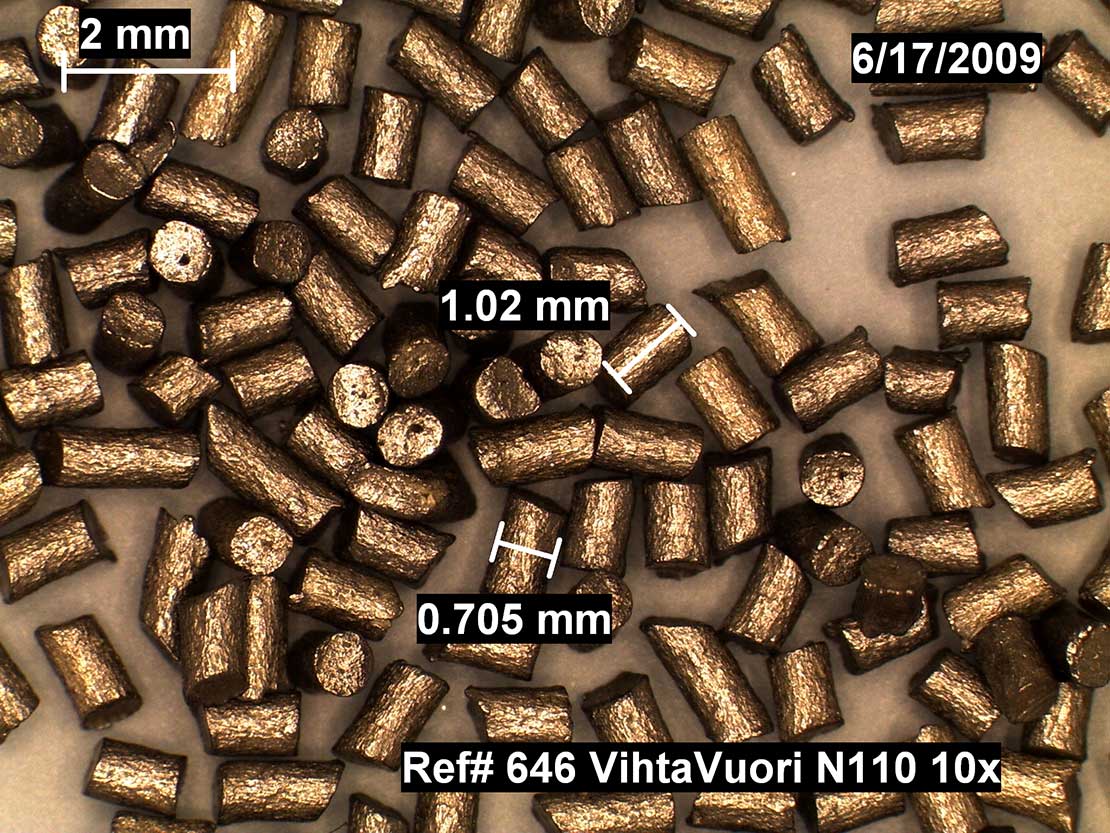

VihtaVuori N110

The fastest burning rifle powder from Vihtavuori. Similar to Hodgdon H110 and Winchester 296. N110 can be used in small rifle cases like .22 Hornet and .30 Carbine but also in magnum pistol and revolver cartridges like .357 S&W Magnum, .41 Magnum, .44 Magnum, .454 Casull and .500 S&W.

Shape	Color	Perforation	Diameter min	Diameter max	Length/thick. min	Length/thick. max	Manufacturer
Cylinder(tubular)	Gray	Yes	0.73 mm	0.8 mm	0.8 mm	1.66 mm	Finland

ADVARSEL!

Ladedata som finnes på hjemmesidene til Evje PK er KUN ment som en veiledning! Ladedata skal alltid verifiseres mot kjente kilder (kruttprodusenter, ladebøker o.l.)

Data funnet på våre hjemmesider brukes på eget ansvar, og Evje Pistolklubb fratar seg alt ansvar for feil bruk av, eller skrivefeil i oppgitte data.

.30 Carbine

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Hornady XTP	13.8	1,567	primer: WSR
90	Hornady XTP	14.5	1,644	primer: WSR
110	Speer hollowpoint	12.8	1,289	primer: WSR
110	Speer hollowpoint	13.3	1,334	primer: WSR
in a Black Hawk Test firearm was a Ruger Blackhawk with a 7 1/2-inch barrel. All cases werre Remington. Maximum case length, 1.290 inches. Temperature during testing was 75 degrees Fahrenheit.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
110	Speer JHP	12.5	1362	poor accuracy
110	Sierra JSP	12.5	1375	okay groups
in a Ruger Blackhawk Handgun fired for group at 25 yards. Ten-shot groups were fired with a Ruger Blackhawk with a 7 1/2-inch barrel from a machine rest. Chronographing was done with an Oehler Model 35P with the start screen at approximately 6 feet. All loads used CCI 400 Small Rifle primers. Winchester brass was used for cast bullet loads. All other loads used Remington brass. Cast bullets were poured of Linotype, sized .310 inch, lubed with SPG and were fitted with Lyman gas checks where needed.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
110	Speer JHP	12.5	1498	poor accuracy
110	Sierra JSP	12.5	1455	okay groups
in an AMT Handgun fired for group at 25 yards. Five-shot groups were fired with the AMT 1911 with a 6 1/2-inch barrel from sandbags. Chronographing was done with an Oehler Model 35P with the start screen at approximately 6 feet. All loads used CCI 400 Small Rifle primers. Winchester brass was used for cast bullet loads. All other loads used Remington brass. Cast bullets were poured of Linotype, sized .310 inch, lubed with SPG and were fitted with Lyman gas checks where needed.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
100	Jacketed	13.2	1948	start load; compressed charge; min OAL: 1.673
100	Jacketed	14.5	2123	NEVER EXCEED; compressed charge; min OAL: 1.673
110	Jacketed	11.9	1719	start load; min OAL: 1.673
110	Jacketed	13.3	1909	NEVER EXCEED; compressed charge; min OAL: 1.673
Lee Precision Data CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Rifle Primer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
100	Speer RN SP	12.0	1306	start charge
100	Speer RN SP	13.0	1394	max charge; compressed load
110	Speer HP or RN SP	11.5	1164	start charge
110	Speer HP or RN SP	12.5	1253	max charge
Handgun Speer Reloading Manual #14 max. case length: 1.290"; trim-to length: 1.280"; max cart. OAL: 1.690"; RCBS shell holder: #17; cart. case: IMI Commercial; primer: CCI 400 (except where otherwise specified in remarks); test firearm: Ruger Blackhawk; barrel length: 7.5"; maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Hornady HP-XTP	10.4	1162
90	Hornady HP-XTP	11.3	1270
90	Hornady HP-XTP	12.1	1400
90	Hornady HP-XTP	13.0	1528
90	Hornady HP-XTP	13.8	1651
90	Hornady HP-XTP	14.5	1665	maximum load
110	Hornady RN or FMJ	10.3	1049	Do Not Reduce
110	Hornady RN or FMJ	11.6	1207
110	Hornady RN or FMJ	12.8	1313
110	Hornady RN or FMJ	13.5	1361	maximum load
T/C & Ruger Using Hornady Bullets Gun: Ruger Blackhawk; barrel length: 7 1/2 inches; case: Hornady Frontier; primer: Winchester Small Rifle; bullet diameter: .308"; 90 GR Hornady HP-XTP COAL: 1.510"; 110 GR RN & FMJ COAL: 1.680"; maximum COAL: 1.680"; maximum case length: 1.290"; trim to length: 1.280".

.32 H&R Magnum

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
100	Speer JHP	8.1	970	starting charge; COAL tested: 1.345"
100	Speer JHP	9.0	1,080	MAXIMUM charge; COAL tested: 1.345"
Speer Reloading Manual #14 max. case length: 1.075"; trim-to length: 1.065"; max cart. OAL: 1.350"; RCBS shell holder: #23; cart. case: Federal; primer: CCI 500; test firearm: Ruger Single Six; barrel length: 5.5"; maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Sierra JHC	7.5	961
90	Sierra JHC	8.3	1065
90	Sierra JHC	9.0	1168
Using Sierra bullets Gun: Ruger Single-Six Custom; Barrel Length: 6 1/2 inches; Case: Starline; Primer: Winchester Small Pistol; Bullet Diameter: .312 inch; COAL: 1.350 inches; Maximum COAL: 1.350 inches; Maximum Case Length: 1.075 inches; Trim to Length: 1.070 inches.

.32-20 Winchester / .32 WCF

	Wt.	Bullet	Charge	Velocity (FPS)	Remarks
	116	Lyman 311316 GC	11.0	1,282	extreme spread: 57; 25-yard group: 2.0 inches
	Colt Single Action Army (30,000 CUP)

.327 Federal Magnum

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
115	Speer Gold Dot Hollow-Point	10.0	1205	start charge; compressed load
115	Speer Gold Dot Hollow-Point	11.0	1254	max charge; compressed load
100	Speer Gold Dot Hollow-Point	11.0	1357	start charge; compressed load
100	Speer Gold Dot Hollow-Point	12.0	1465	max charge; compressed load
Speer Gold Dot Data max. case length: 1.200"; trim-to length: 1.190"; COAL tested: 1.465"; max cart. OAL: 1.475"; RCBS shell holder: #23; cart. case: Federal; primer: Federal 205; test firearm: Ruger SP-101; barrel length: 3". SPECIAL NOTE REGARDING PRIMERS: Due to the high operating pressures, factory ammo for the 327 Federal uses small rifle primers to prevent primer flowback. These handloads were developed with Federal #205 small rifle primers. However, small rifle MAGNUM primers are neither required nor recommended. Maximum loads should be used with CAUTION.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
100	Hornady XTP-HP	10.5	1177	primer: CCI 550; case: Speer; OAL (inches): 1.4545
100	Hornady XTP-HP	11.0	1221	primer: CCI 550; case: Speer; OAL (inches): 1.4545
100	Hornady XTP-HP	11.5	1238	primer: CCI 550; case: Speer; OAL (inches): 1.4545
100	Speer JHP	10.0	1126	primer: CCI 550; case: Speer; OAL (inches): 1.4575
100	Speer JHP	11.0	1131	primer: CCI 550; case: Speer; OAL (inches): 1.4575
100	Speer JHP	12.0	1199	primer: CCI 550; case: Speer; OAL (inches): 1.4575
Firearm used was a Ruger SP101 with a 3 1/16-inch barrel. Federal Cartridge and Speer cases used as noted. Maximum case length: 1.200 inches.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
100	Hornady XTP	10.5	1275	overall loaded length (inches): 1.455
100	Hornady XTP	11.0	1304	overall loaded length (inches): 1.455
100	Hornady XTP	11.5	1339	overall loaded length (inches): 1.455
100	Hornady XTP	12.0	1374	overall loaded length (inches): 1.455
100	Hornady XTP	12.5	1402	overall loaded length (inches): 1.455
Handloads A Ruger Single-Seven with a 7 1/2-inch barrel was used to test fire these loads. Federal cases and CCI 500 primers were used throughout. Bullet diameter: .312 and .313 inch; maximum case length: 1.200 inches; trim to length: 1.195 inches.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
100	Hornady XTP-HP	10.5	1177	primer: CCI 550; case: Speer; overall loaded length (inches): 1.4545
100	Hornady XTP-HP	11.0	1221	primer: CCI 550; case: Speer; overall loaded length (inches): 1.4545
100	Hornady XTP-HP	11.5	1238	primer: CCI 550; case: Speer; overall loaded length (inches): 1.4545
100	Speer JHP	10.0	1126	primer: CCI 550; case: Speer; overall loaded length (inches): 1.4575
100	Speer JHP	11.0	1131	primer: CCI 550; case: Speer; overall loaded length (inches): 1.4575
100	Speer JHP	12.0	1199	primer: CCI 550; case: Speer; overall loaded length (inches): 1.4575
Loads Firearms used for testing these loads was a Ruger SP101 with a 3 1/16-inch barrel. Federal and Speer cases and CCI 500 and CCI 550 primers were used throughout. Case length: 1.200 inches; throat: .313 inch; barrel cylinder gap: .006 inch; groove diameter: .3123 inch.

.357 Magnum (Handgun)

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
110	Speer UCHP	19.0	1557	start charge
110	Speer UCHP	21.0	1693	maximum charge; compressed load
125	Speer UCSP, GDHP, UCHP or TMJ FN	16.8	1410	start charge
125	Speer UCSP, GDHP, UCHP or TMJ FN	17.8	1443	maximum charge
140	Speer UCHP	14.2	1255	start charge
140	Speer UCHP	15.2	1365	maximum charge
158	Speer TMJ FN, UCHP, GDHP or UCSP	13.5	1102	start charge
158	Speer TMJ FN, UCHP, GDHP or UCSP	15.0	1253	maximum charge
170	Speer Mag GDSP	13.2	1046	start charge
170	Speer Mag GDSP	13.8	1132	maximum charge
Speer Reloading Manual #14 max. case length: 1.290"; trim-to length: 1.280"; max cart. OAL: 1.590"; RCBS shell holder: #6; cart. case: Speer; primer: CCI 500 (except where otherwise specified in remarks); test firearm: S&W model 19; barrel length: 6"; NOTE: Do not use the 110-grain Gold Dot SB HP (#4009) in the 357 Magnum; maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
110	XTP	18.5	1716	start load; compressed; min OAL: 1.575
110	XTP	20.1	1909	never exceed; compressed; min OAL: 1.575
124	Lead	15.7	1546	start load; compressed; min OAL: 1.614
124	Lead	17.4	1699	never exceed; compressed; min OAL: 1.614
125	XTP	16.8	1625	start load; compressed; min OAL: 1.575
125	XTP	18.4	1772	never exceed; compressed; min OAL: 1.575
140	Jacketed	15.7	1499	start load; compressed; min OAL: 1.575
140	Jacketed	17.1	1647	never exceed; compressed; min OAL: 1.575
145	Lead	14.0	1475	start load; compressed; min OAL: 1.614
145	Lead	15.3	1591	never exceed; compressed; min OAL: 1.614
158	Jacketed	14.1	1368	start load; compressed; min OAL: 1.575
158	Jacketed	15.3	1502	never exceed; compressed; min OAL: 1.575
160	Lead	13.2	1404	start load; min OAL: 1.575
160	Lead	14.4	1514	never exceed; compressed; min OAL: 1.575
180	Jacketed	12.7	1253	start load; min OAL: 1.677
180	Jacketed	14.0	1394	never exceed; compressed; min OAL: 1.677
200	Jacketed	11.4	1107	start load; min OAL: 1.697
200	Jacketed	12.4	1204	never exceed; min OAL: 1.697
Lee Precision Data Small Pistol Primer. With NEVER EXCEED LOADS maintain Minimum Over All Length or longer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
110	Hornady HP/XTP	18.5	1716	starting load; OAL (in.): 1.575
110	Hornady HP/XTP	21.2	2055	maximum load; OAL (in.): 1.575
124	Intercast LSWC	17.1	1673	starting load; OAL (in.): 1.614; (the cartridge overall length exceeds the CIP maximum)
124	Intercast LSWC	18.7	1813	maximum load; OAL (in.): 1.614; (the cartridge overall length exceeds the CIP maximum)
125	Hornady FP/XTP	16.8	1601	starting load; OAL (in.): 1.575
125	Hornady FP/XTP	18.4	1772	maximum load; OAL (in.): 1.575
140	Speer HP	15.8	1499	starting load; OAL (in.): 1.575
140	Speer HP	17.1	1647	maximum load; OAL (in.): 1.575
145	Intercast LSWC	15.1	1572	starting load; OAL (in.): 1.614; (the cartridge overall length exceeds the CIP maximum)
145	Intercast LSWC	16.4	1677	maximum load; OAL (in.): 1.614; (the cartridge overall length exceeds the CIP maximum)
158	Speer HP	15.1	1480	starting load; OAL (in.): 1.575
158	Speer HP	16.3	1602	maximum load; OAL (in.): 1.575
160	Intercast LFN	14.1	1496	starting load; OAL (in.): 1.575
160	Intercast LFN	15.3	1597	maximum load; OAL (in.): 1.575
180	Speer TMJ	12.7	1253	starting load; OAL (in.): 1.677; (the cartridge overall length exceeds the CIP maximum)
180	Speer TMJ	14.0	1394	maximum load; OAL (in.): 1.677; (the cartridge overall length exceeds the CIP maximum)
200	Speer TMJ	12.1	1188	starting load; OAL (in.): 1.697; (the cartridge overall length exceeds the CIP maximum)
200	Speer TMJ	13.1	1277	maximum load; OAL (in.): 1.697; (the cartridge overall length exceeds the CIP maximum)
Vihtavuori Reloading Guide 2006 test barrel: 7", 1 in 18 1/2" twist; primers: Small Rifles; cases: Remington, trim-to length: 1.283"; loads less than minimum charges shown are not recommended; USE MAXIMUM LOADS WITH CAUTION!
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
180	Cast Performance WFNGC	13.0	1,224	overall loaded length (inches): 1.568
for S&W Models 19 & 66 Firearm used for testing was an S&W Model 19 with a 4-inch barrel. Starline cases were used throughout. No loads exceeded 30,000 psi.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
110	Speer Jacketed HP	17.8	1568	sugg. start load; 33,900 cup; 1.590" OAL; potentially most accurate load
110	Speer Jacketed HP	19.8	1693	max load; 41,300 cup; 1.590" OAL
125	Hornady Jacketed HP	14.5	1157	sugg. start load; 26,000 cup; 1.590" OAL
125	Hornady Jacketed HP	17.5	1371	max load; compressed load; 38,500 cup; 1.590" OAL
140	Speer Jacketed HP	15.3	1258	sugg. start load; 32,200 cup; 1.590" OAL
140	Speer Jacketed HP	17.1	1505	max load; 39,900 cup; 1.590" OAL
145	Winchester Jacketed Silvertip	14.8	1309	sugg. start load; 1.575" OAL; 34,300 cup; potentially most accurate load
145	Winchester Jacketed Silvertip	16.5	1434	max load; 1.575" OAL; 44,800 cup
146	Speer Jacketed HP	14.5	1075	sugg. start load; 27,700 cup; 1.590" OAL
146	Speer Jacketed HP	16.2	1358	max load; 37,200 cup; 1.590" OAL
158	Hornady Jacketed HP	11.5	851	sugg. start load; 21,800 cup; 1.590" OAL
158	Hornady Jacketed HP	14.0	1139	max load; 38,200 cup; 1.590" OAL
180	Hornady Jacketed HP	10.8	814	sugg. start load; 1.585" OAL; 26,400 cup
180	Hornady Jacketed HP	13.5	999	max load; compressed load; 1.585" OAL; 40,800 cup
Lyman Reloading Manual 49th Edition cases: Federal; trim-to length: 1.280"; primers: CCI 550; primer size: Small Pistol, Magnum; Lyman shell holder: No. 1; firearm used: Universal Receiver; barrel length: 4"; twist: 1-18 3/4"; groove dia.: .356"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
110	Hornady HP-XTP	14.7	1343	COAL: 1.590"
110	Hornady HP-XTP	15.5	1371	COAL: 1.590"
110	Hornady HP-XTP	16.4	1409	COAL: 1.590"
110	Hornady HP-XTP	17.3	1433	maximum load; COAL: 1.590"
125	Hornady HP-XTP or FP-XTP	13.3	1197	COAL: 1.590"
125	Hornady HP-XTP or FP-XTP	13.9	1221	COAL: 1.590"
125	Hornady HP-XTP or FP-XTP	14.5	1250	COAL: 1.590"
125	Hornady HP-XTP or FP-XTP	15.0	1281	COAL: 1.590"
125	Hornady HP-XTP or FP-XTP	15.6	1314	COAL: 1.590"
125	Hornady HP-XTP or FP-XTP	16.1	1335	maximum load; COAL: 1.590"
140	Hornady HP-XTP	12.7	1091	COAL: 1.590"
140	Hornady HP-XTP	13.2	1122	COAL: 1.590"
140	Hornady HP-XTP	13.7	1162	COAL: 1.590"
140	Hornady HP-XTP	14.2	1199	COAL: 1.590"
140	Hornady HP-XTP	14.8	1225	maximum load; COAL; 1.590"
158	Hornady HP-XTP or FP-XTP	11.4	946	COAL: 1.590"
158	Hornady HP-XTP or FP-XTP	11.8	992	COAL: 1.590"
158	Hornady HP-XTP or FP-XTP	12.3	1043	COAL: 1.590"
158	Hornady HP-XTP or FP-XTP	12.7	1098	COAL: 1.590"
158	Hornady HP-XTP or FP-XTP	13.1	1141	maximum load; COAL; 1.590"
180	Hornady HP-XTP	10.5	883	COAL: 1.590"
180	Hornady HP-XTP	10.8	900	COAL: 1.590"
180	Hornady HP-XTP	11.1	927	COAL: 1.590"
180	Hornady HP-XTP	11.4	953	COAL: 1.590"
180	Hornady HP-XTP	11.8	964	maximum load; COAL; 1.590"
Using Hornady Bullets Gun: Ruger GP100; barrel length: 6"; case: Starline; primer: Winchester Small Pistol Magnum; bullet diameter: .357"; maximum COAL: 1.590"; maximum case length: 1.290"; trim to length: 1.280".
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
150	Cast #358477	13.2	1152	sugg. start load; 1.510" OAL; 32,400 cup
150	Cast #358477	14.7	1374	max load; 1.510" OAL; 39,900 cup
155	Cast #358156 gas check	12.0	1074	sugg. start load; 1.590" OAL; 27,400 cup
155	Cast #358156 gas check	15.0	1299	max load; compressed load; 1.590" OAL; 41,800 cup
160	Cast #358311	12.6	1054	sugg. start load; 1.590" OAL; 26,400 cup
160	Cast #358311	14.0	1293	max load; 1.590" OAL; 39,000 cup
170	Cast #358429	12.3	1053	sugg. start load; 1.553" OAL; 33,700 cup
170	Cast #358429	13.7	1212	max load; 1.553" OAL; 40,000 cup
Cast Bullet Data Lyman Reloading Manual 49th Edition cases: Federal; trim-to length: 1.280"; primers: CCI 550"; primer size: Small Pistol, Magnum; Lyman shell holder: No. 1; cast bullets used sized to .357" dia.; firearm used: Universal Receiver; barrel length: 4"; twist: 1-18 3/4"; groove dia.: .356"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
146	Spper SWC-HP	15.0	1,435	1.55 inch group (25 yards)
180	Nosler Partition	11.7	1,167	2.10 inch group (25 yards)
in a 7 1/2 inch Ruger Bisley
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
180	Nosler Partition	11.7	1,141	primer: Winchester SPM; 6-inch barrel velocity: 1,172
in a Ruger GP100 - 4-inch Barrel
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
125	Hornady Jacketed HP/XTP	14.5	1346	sugg. start load; 1.590" OAL
125	Hornady Jacketed HP/XTP	17.5	1801	max load; 1.590" OAL
146	Speer Jacketed HP-SWC	14.5	1509	sugg. start load; 1.590" OAL
146	Speer Jacketed HP-SWC	16.0	1683	max load; 1.590" OAL
170	Cast #358429	12.3	1305	sugg. start load; 1.647" OAL
170	Cast #358429	13.7	1503	max load; 1.647" OAL
in a T/C Contender & Encore Lyman Reloading Manual 49th Edition This data was developed for use in the T/C Contender and Encore handguns. It can also be used in other single shot or bolt-action handguns such as the Remington XP-100 and Savage Striker. Do not use these loads in any other type of handgun. Do not use 357 Magnum loads in 38 Special cases as very dangerous pressure will result. Cases: Federal; trim-to length: 1.280"; primers: CCI 550; primer size: Small Pistol, Magnum; Lyman shell holder: No. 1; cast bullets used sized to .357" dia.; firearm used: Thompson/Center Contender; barrel length: 10"; twist: 1-18"; groove dia.: .356"

.357 Remington Maximum

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
158	Copper Plated	18.6	1740	start load; min OAL: 1.890
158	Copper Plated	20.2	1897	never exceed; min OAL: 1.890
158	Barnes X	17.5	1737	start load; min OAL: 1.890
158	Barnes X	19.4	1888	never exceed; min OAL: 1.890
180	Jacketed	15.5	1559	start load; min OAL: 1.894
180	Jacketed	17.2	1695	never exceed; min OAL: 1.894
200	Jacketed	14.2	1361	start load; min OAL: 2.000
200	Jacketed	16.0	1499	never exceed; min OAL: 2.000
Lee Precision Data With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Pistol primer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
125	Speer UCSP, GDHP or TMJ RN	20.5	2066	start charge
125	Speer UCSP, GDHP or TMJ RN	22.5	2224	maximum charge
140	Speer UCHP	19.0	1888	start charge
140	Speer UCHP	21.0	2029	maximum charge
Speer Reloading Manual #14 max. case length: 1.605"; trim-to length: 1.595"; max cart. OAL: 1.990"; RCBS shell holder: #6; cart. case: Remington; primer: CCI 400; test firearm: T/C Contender; barrel length: 14"; NOTE: the 180-gr FN SP and 220-gr bullet is for single-shot firearms only; maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
158	Hornady FP/XTP	18.7	1827	starting load; COL (in.): 1.890
158	Hornady FP/XTP	19.5	1898	maximum load; COL (in.): 1.890
158	Rainier FP	19.6	1834	starting load; COL (in.): 1.890
158	Rainier FP	20.3	1907	maximum load; COL (in.): 1.890
180	Nosler Silhouette	16.5	1640	starting load; COL (in.): 1.894
180	Nosler Silhouette	17.3	1704	maximum load; COL (in.): 1.894
200	Speer TMJ	15.3	1444	starting load; COL (in.): 2.000; the cartridge overall length exceeds the CIP maximum
200	Speer TMJ	16.1	1508	maximum load; COL (in.): 2.000; the cartridge overall length exceeds the CIP maximum
Vihtavuori Reloading Guide 6 test barrel: 12", 1 in 18 1/2" twist; primers: Small Rifle; cases: Remington, trim-to length: 1.598"; loads less than minimum charges shown are not recommended; USE MAXIMUM LOADS WITH CAUTION!
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
110	Hornady HP-XTP	20.2	1713
110	Hornady HP-XTP	20.8	1749
110	Hornady HP-XTP	21.5	1785
110	Hornady HP-XTP	22.2	1820	maximum load
125	Hornady FP-XTP or HP-XTP	18.7	1562
125	Hornady FP-XTP or HP-XTP	19.8	1593	maximum load
158	Hornady FP-XTP or HP-XTP	15.9	1295
158	Hornady FP-XTP or HP-XTP	16.6	1346
158	Hornady FP-XTP or HP-XTP	17.3	1397
158	Hornady FP-XTP or HP-XTP	18.0	1449	maximum load
Using Hornady Bullets Gun: Ruger New Model Super Blackhawk; barrel length: 7 1/2 inches; case: Federal; primer: Remington 7 1/2 Small Rifle; bullet diameter: .357"; COAL: 1.890"; maximum COAL: 1.990"; maximum case length: 1.605"; trim to length: 1.595".

.40-44 Woodswalker

	Wt.	Bullet	Charge	Velocity (FPS)	Remarks
	165	Speer	25.2	2,122	energy: 1,650; max. load, SSK barrels only
	This cartridge was designed by J.D. Jones at SSK Industries. Application is to Thompson/Center Encore or Contender single-shot pistols fitted with a custom SSK barrel. Typical barrel length is 10 inches. Cases are formed from empty 44 Magnum cases by simply running the case into a full-length sizing die. Neck length is rather short, which is acceptable for a cartridge used in a single-shot gun. Shoulder angle is 30 degrees. (Cartridges of the World 10th Edition)

.41 Magnum / .41 Remington Magnum

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Speer JHP-SWC	16.1	1197	start charge
200	Speer JHP-SWC	17.9	1328	maximum charge
210	Speer GDHP	17.0	1136	start charge
210	Speer GDHP	18.0	1244	maximum charge
220	Speer JSP-SWC	13.3	963	start charge
220	Speer JSP-SWC	14.8	1155	maximum charge
Speer Reloading Manual #14 max. case length: 1.290"; trim-to length: 1.280"; max cart. OAL: 1.590"; RCBS shell holder: #30; cart. case: Winchester; primer: CCI 300 (except where otherwise specified in remarks); test firearm: S&W Model 57; barrel length: 6"; maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
170	Jacketed	21.7	1654	start load; compressed; min OAL: 1.579
170	Jacketed	23.5	1795	never exceed; compressed; min OAL: 1.579
Lee Precision Data CAUTION: With NEVER EXCEED LOADS; maintain Minimum Over All Length or longer. (Modern Reloading, Second Edition - Richard Lee)
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Speer JHP-SWC	16.1	1,197
200	Speer JHP-SWC	17.9	1,328	maximum load
210	Speer JSP-SWC	13.3	963	can also be used with 220 grain bullet
210	Speer JSP-SWC	14.8	1,155	maximum load; can also be used with 220 grain bullet
Speer Reloading Manual #13 Max. Case Length: 1.290"; Trim-to Length: 1.280"; Max. Cart. Length: 1.590"; RCBS Shellholder: #30; Barrel Length: 6"; Twist: 1-18.75"; Test Firearm: Smith & Wesson Model 57; Case: W-W; Primers: CCI 350; Update: Alliant Powder Company does not recommend Blue Dot in the .41 Magnum for any bullet weights. Their new tests on recent powder samples have shown high pressure spikes that can damage personal property or injure you. For this reason we removed all Blue Dot data from .41 magnum tables.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
210	Speer GDHP	17.0	1580	start charge
210	Speer GDHP	18.0	1690	maximum charge
Speer Reloading Manual #14 max. case length: 1.290"; trim-to length: 1.280"; max cart. OAL: 1.590"; RCBS shell holder: #30; cart. case: Winchester; primer: CCI 300 (except where otherwise specified in remarks); test firearm: Marlin 1894; barrel length: 20"; maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
170	Sierra JHC	21.8	1640	starting load
170	Sierra JHC	23.2	1746	maximum load
210	Hornady HP/XTP	18.5	1430	starting load
210	Hornady HP/XTP	19.8	1529	maximum load
Vihtavuori Reloading Guide 6 test barrel: 6", 1 in 18 3/4" twist; primers: Large Pistol; cases: W-W Super, trim-to length: 1.280"; COL (in.): 1.579; loads less than minimum charges shown are not recommended; USE MAXIMUM LOADS WITH CAUTION!
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
210	Hornady HP-XTP	16.7	1162
210	Hornady HP-XTP	17.3	1195
210	Hornady HP-XTP	18.0	1239
210	Hornady HP-XTP	18.6	1282
210	Hornady HP-XTP	19.2	1325
210	Hornady HP-XTP	19.9	1360	maximum load
Revolver Using Hornady Bullets Gun: Smith & Wesson Model 57-1; barrel length: 6 inches; case: Starline; primer: Fed 150; bullet diameter: .410"; COAL: 1.580"; maximum COAL: 1.590"; maximum case length: 1.290"; trim to length: 1.280".

.44 Remington Magnum +P / .44 Magnum

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
300	Speer Plated SP	20.0	1326	primer: CCI 350; overall loaded length (inches): 1.665
300	Speer Plated SP	21.0	1354	primer: CCI 350; overall loaded length (inches): 1.665
300	Speer Plated SP	22.0	1399	primer: CCI 350; overall loaded length (inches): 1.665; heavily compressed
320	Cast Performance WLN-GC	20.0	1407	primer: CCI 350; overall loaded length (inches): 1.700
320	Cast Performance WLN-GC	21.0	1427	primer: CCI 350; overall loaded length (inches): 1.700; compressed, maximum
340	Rim Rock Bullets LWN-GC	17.5	1280	primer: CCI 350; overall loaded length (inches): 1.772
340	Rim Rock Bullets LWN-GC	18.5	1322	primer: CCI 350; overall loaded length (inches): 1.772
340	Rim Rock Bullets LWN-GC	19.0	1361	primer: CCI 350; overall loaded length (inches): 1.772; compressed, maximum
+P Handloading Data A 7 1/2-inch barreled Ruger Redhawk was used to fire all loads. Starline cases were used throughout. Temperature during testing was 20 degrees Fahrenheit.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Barnes XPB	20.0	1,476	primer: CCI 300
Barnes X-Pistol Bullets A Ruger New Model Blackhawk Bisley with 5 1/2-inch barrel used for testing the .44 Magnum loads. Hornady cases used throughout. Overall cartridge length: 1.595 inches. Temperature: 92 degrees Fahrenheit.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
225	Speer SWC GC	18.0	1278	start charge
225	Speer SWC GC	20.0	1407	maximum charge
250	Speer K	17.0	1238	start charge
250	Speer K	19.0	1346	maximum charge
200	Speer Mag JHP	22.0	1513	start charge
200	Speer Mag JHP	24.0	1662	maximum charge
210	Speer Mag GDHP	21.0	1434	start charge
210	Speer Mag GDHP	23.0	1607	maximum charge
225	Speer JHP-SWC	20.0	1471	start charge
225	Speer JHP-SWC	22.0	1557	maximum charge; compressed load
240	Speer Mag JHP, Mag GDHP, Mag GDSP or Mag JSP	18.0	1307	start charge
240	Speer Mag JHP, Mag GDHP, Mag GDSP or Mag JSP	20.0	1382	maximum charge
270	Speer Mag GDSP	16.0	1184	start charge
270	Speer Mag GDSP	18.0	1265	maximum charge
Speer Reloading Manual #14 max. case length: 1.285"; trim-to length: 1.275"; max cart. OAL: 1.610"; RCBS shell holder: #18; cart. case: Speer; primer: CCI 300 (except where otherwise specified in remarks); test firearm: Ruger Redhawk; barrel length: 7.5"; NOTE: The 225-grain SWC GC and 250-grain K bullets were cast in RCBS moulds; maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
180	XTP	24.7	1585	start load; compressed; min OAL: 1.602
180	XTP	26.2	1686	never exceed; compressed; min OAL: 1.602
200	XTP	23.7	1577	start load; compressed; min OAL: 1.602
200	XTP	26.2	1729	never exceed; compressed; min OAL: 1.602
240	Jacketed	19.8	1386	start load; compressed; min OAL: 1.602
240	Jacketed	21.9	1531	never exceed; compressed; min OAL: 1.602
267	Lead	19.8	1347	start load; compressed; min OAL: 1.620
267	Lead	21.7	1468	never exceed; compressed; min OAL: 1.681
300	Jacketed	17.3	1176	start load; min OAL: 1.717
300	Jacketed	18.9	1296	never exceed; min OAL: 1.717
300	XTP	18.1	1218	start load; min OAL: 1.717
300	XTP	20.1	1363	never exceed; compressed; min OAL: 1.717
Lee Precision Data Large pistol primer. CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
270	Belt Mountain Punch Solid	17.0	1017	primer: CCI 350
270	Belt Mountain Punch Solid	18.5	1175	primer: CCI 350
(Punch Solid) A Smith & Wesson Model 629-4 with a 6-inch barrel was used to fire the loads. Starline cases were used throughout. Maximum case length: 1.285 inches; trim-to length: 1.275 inches; cartridge length: 1.670 inches.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
270	Speer Gold Dot	17.5	1,240	primer: CCI 300
(Ruger Blackhawk Flattop) Barrel length in firearm used was 6 1/2 inches. Temperature during field tests was 88 degrees Fahrenheit.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
225	Speer JHP	19.8	1,322	group: 3.00 inches
240	Sierra JHC	20.0	1,319	group: 2.75 inches
295	BRP SWC	17.4	1,153	group: 2.50 inches
(Ruger Super Blackhawk) Handloads were fired from a 7 1/2-inch barreled Ruger Super Blackhawk.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Speer JHP	22.0	1816	start charge
200	Speer JHP	24.0	1984	maximum charge
210	Speer GDHP	21.0	1735	start charge
210	Speer GDHP	23.0	1912	maximum charge
240	Speer JHP, GDHP, GDSP or JSP	18.0	1545	start charge
240	Speer JHP, GDHP, GDSP or JSP	20.0	1647	maximum charge
270	Speer GDSP	16.0	1363	start charge
270	Speer GDSP	18.0	1472	maximum charge
Speer Reloading Manual #14 max. case length: 1.285"; trim-to length: 1.275"; max cart. OAL: 1.610"; RCBS shell holder: #18; cart. case: Winchester; primer: CCI 300 (except where otherwise specified in remarks); test firearm: Marlin M1894; barrel length: 20"; maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
180	Hornady HP-XTP	25.2	1614	starting load; COL (in.): 1.602
180	Hornady HP-XTP	27.1	1751	maximum load; COL (in.): 1.602
200	Hornady HP-XTP	24.4	1621	starting load; COL (in.): 1.602
200	Hornady HP-XTP	26.3	1740	maximum load; COL (in.): 1.602
240	Hornady JTC-SIL	20.4	1427	starting load; COL (in.): 1.602
240	Hornady JTC-SIL	22.1	1541	maximum load; COL (in.): 1.602
267	Intercast LFN	20.4	1385	starting load; COL (in.): 1.681; the cartridge overall length exceeds the CIP maximum
267	Intercast LFN	21.8	1476	maximum load; COL (in.): 1.681; the cartridge overall length exceeds the CIP maximum
300	Hornady HP-XTP	18.7	1260	starting load; COL (in.): 1.717; the cartridge overall length exceeds the CIP maximum
300	Hornady HP-XTP	20.2	1374	maximum load; COL (in.): 1.717; the cartridge overall length exceeds the CIP maximum
300	Sierra JSP	17.7	1211	starting load; COL (in.): 1.717; the cartridge overall length exceeds the CIP maximum
300	Sierra JSP	19.1	1305	maximum load; COL (in.): 1.717; the cartridge overall length exceeds the CIP maximum
Vihtavuori Reloading Guide 6 test barrel: 7", 1 in 20" twist; primers: Large Pistol; cases: Remington, trim-to length: 1.275"; loads less than minimum charges shown are not recommended; USE MAXIMUM LOADS WITH CAUTION!
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
210	Cast #429215 gas check	19.3	1180	sugg. start load; 1.645" OAL; 21,200 cup
210	Cast #429215 gas check	21.5	1413	max load; 1.645" OAL; 38,200 cup
240	Cast #429667	18.0	1064	sugg. start load; 1.645" OAL; 28,700 cup
240	Cast #429667	20.0	1283	max load; 1.645" OAL; 37,900 cup
245	Cast #429421	18.0	1034	sugg. start load; 1.710" OAL; 25,900 cup
245	Cast #429421	20.0	1300	max load; 1.710" OAL; 38,800 cup
300	Cast #429650 gas check	14.2	873	sugg. start load; 1.700" OAL; 24,300 cup
300	Cast #429650 gas check	16.0	1029	max load; 1.700" OAL; 34,800 cup
Cast Bullet Handgun Data Lyman Reloading Handbook 49th Edition cases: Remington; trim-to length: 1.275"; primers: CCI 300 (except where otherwise specified in remarks); primer size: Large Pistol, Std. & Magnum; Lyman shell holder: No. 7; cast bullets used sized to .429" dia.; firearm used: Universal Receiver; barrel length: 4"; twist: 1-20"; groove dia.: .429"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
240	Speer Jacketed Soft Point	20.0	1,341	primer: CCI 300
270	Speer Gold Dot	16.5	1,145	primer: CCI 300
Full-Power Loads All Smith & Wesson Models 29, 629 and 329PD. A Smith & Wesson (pre-29) .44 Magnum revolver with a 6 1/2-inch barrel used to test loads. Winchester and Starline cases used throughout. These loads DO NOT exceed SAAMI recommended pressure limits of 36,000 psi, but they should be used sparingly in guns produced before 1988 and avoid using jacketed bullet loads in the early four-and five-screw guns.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Hornady Jacketed HP	21.0	1142	sugg. start load; 25,500 cup
200	Hornady Jacketed HP	24.0	1381	max load; compressed powder charge; 38,700 cup
210	Winchester Jacketed Silvertip	21.3	1111	sugg. start load; 1.590" OAL; 25,700 cup
210	Winchester Jacketed Silvertip	23.7	1311	max load; compressed powder charge; 1.590" OAL; 37,500 cup
225	Speer Jacketed HP	19.0	1168	sugg. start load; 30,800 cup
225	Speer Jacketed HP	21.1	1354	max load; 38,000 cup
240	Sierra Jacketed HC	17.3	999	sugg. start load; 25,500 cup
240	Sierra Jacketed HC	19.5	1189	max load; compressed powder charge; 37,400 cup
240	Speer Jacketed HP	18.7	1052	sugg. start load; 31,000 cup
240	Speer Jacketed HP	20.8	1217	max load; 39,400 cup
265	Hornady Jacketed FP	16.6	965	sugg. start load; 29,800 cup
265	Hornady Jacketed FP	18.5	1133	max load; 38,900 cup
270	Speer Jacketed GDSP	16.2	960	sugg. start load; 1.585" OAL; 25,900 cup
270	Speer Jacketed GDSP	18.2	1125	max load; 1.585" OAL; 38,600 cup
300	Sierra Jacketed SP	16.0	870	sugg. start load; 1.720" OAL; 27,000 cup
300	Sierra Jacketed SP	17.5	965	max load; 1.720" OAL; 33,600 cup
Lyman Reloading Handbook 49th Edition cases: Remington; trim-to length: 1.275"; primers: CCI 300 (except where otherwise specified in remarks); primer size: Large Pistol, Std. & Magnum; Lyman shell holder: No. 7; firearm used: Universal Receiver; barrel length: 4"; twist: 1-20"; groove dia.: .429"; 1.610" OAL (except where otherwise specified in remarks)
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
265	Hornady Jacketed FP	16.6	1224	10" Bbl.; sugg. start load; 1.650" OAL
265	Hornady Jacketed FP	16.6	1252	14" Bbl.; sugg. start load; 1.650" OAL
265	Hornady Jacketed FP	18.5	1360	10" Bbl.; max load; 1.650" OAL
265	Hornady Jacketed FP	18.5	1398	14" Bbl.; max load; 1.650" OAL
265	Hornady Jacketed FP	16.6	1224	10" Bbl.; sugg. start load; 1.650" OAL
265	Hornady Jacketed FP	16.6	1252	14" Bbl.; sugg. start load; 1.650" OAL
265	Hornady Jacketed FP	18.5	1360	10" Bbl.; max load; 1.650" OAL
265	Hornady Jacketed FP	18.5	1398	14" Bbl.; max load; 1.650" OAL
265	Hornady Jacketed FP	16.6	1224	10" Bbl.; sugg. start load; 1.650" OAL
265	Hornady Jacketed FP	16.6	1252	14" Bbl.; sugg. start load; 1.650" OAL
265	Hornady Jacketed FP	18.5	1360	10" Bbl.; max load; 1.650" OAL
265	Hornady Jacketed FP	18.5	1398	14" Bbl.; max load; 1.650" OAL
210	Cast #429215 gas check	19.3	1398	10" Bbl.; sugg. start load; 1.645" OAL
210	Cast #429215 gas check	19.3	1542	14" Bbl.; sugg. start load; 1.645" OAL
210	Cast #429215 gas check	21.5	1552	10" Bbl.; max load; 1.645" OAL
210	Cast #429215 gas check	21.5	1681	14" Bbl.; max load; 1.645" OAL
in a T/C Contender & Encore Lyman Reloading Manual 49th Edition This data was developed for use in the T/C Contender and Encore handguns. It can also be used in other single shot or bolt-action handguns such as the Remington XP-100 and Savage Striker. Do not use these loads in any other type of handgun. Cases: Remington; trim-to length: 1.275"; primers: CCI 300 (except where otherwise specified in remarks); primer size: Large Pistol, Std. & Magnum; Lyman shell holder: No. 7; cast bullets used sized to .430" dia.; firearm used: Thompson/Center Contender; barrel length: 10" and 14"; twist: 1-22"; groove dia.: .430"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
240	Speer jacketed softpoint	20.0	1,312	primer: CCI 300; brass: Winchester
270	Speer Gold Dot	16.5	1,122	primer: CCI 300; brass: Winchester; 1 3/4-inch group
310	cast Keith Mt. Baldy	17.5	1,123	primer: Federal 150; brass: Starline
in an S&W Model 329PD Loads fired from a Smith & Wesson Model 329PD with a 4-inch barrel.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
180	Hornady HP-XTP	20.1	1066
180	Hornady HP-XTP	21.6	1190
180	Hornady HP-XTP	23.2	1334
180	Hornady HP-XTP	24.7	1477
180	Hornady HP-XTP	26.2	1615	maximum load
Revolver Using 180 GR Hornady Bullets Gun: Ruger New Model Blackhawk (Bisley); barrel length: 5 1/2-inches; case: Starline; primer: Winchester Large Pistol; bullet diameter: .430"; maximum COAL: 1.610"; maximum case length: 1.285"; trim to length: 1.275"; COAL: 1.600".
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Hornady HP-XTP	21.0	1196
200	Hornady HP-XTP	22.2	1275
200	Hornady HP-XTP	23.5	1367
200	Hornady HP-XTP	24.1	1460
200	Hornady HP-XTP	24.8	1546	maximum load
Revolver Using 200 GR Hornady Bullets Gun: Ruger New Model Blackhawk (Bisley); barrel length: 5 1/2-inches; case: Starline; primer: Winchester Large Pistol; bullet diameter: .430"; maximum COAL: 1.610"; maximum case length: 1.285"; trim to length: 1.275"; COAL: 1.600".
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
240	Hornady HP-XTP or CL-SIL	17.6	1045
240	Hornady HP-XTP or CL-SIL	18.7	1122
240	Hornady HP-XTP or CL-SIL	19.9	1215
240	Hornady HP-XTP or CL-SIL	20.5	1306
240	Hornady HP-XTP or CL-SIL	21.3	1392	maximum load
Revolver Using 240 GR Hornady Bullets Gun: Ruger New Model Blackhawk (Bisley); barrel length: 5 1/2-inches; case: Starline; primer: Winchester Large Pistol; bullet diameter: .430"; Hornady HP-XTP and CL-SIL COAL: 1.600"; SWC-HP and SWC COAL: 1.610"; maximum COAL: 1.610"; maximum case length: 1.285"; trim to length: 1.275".
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
265	Hornady FP	17.3	1098
265	Hornady FP	18.4	1185
265	Hornady FP	19.4	1272	maximum load
Revolver Using 265 GR Hornady Bullets Gun: Ruger New Model Blackhawk (Bisley); barrel length: 5 1/2-inches; case: Starline; primer: Winchester Large Pistol; bullet diameter: .430"; maximum COAL: 1.610"; maximum case length: 1.285"; trim to length: 1.275"; COAL: 1.610".
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
300	Hornady HP-XTP	14.9	1043
300	Hornady HP-XTP	15.5	1076
300	Hornady HP-XTP	16.1	1108
300	Hornady HP-XTP	16.6	1143	maximum load
Revolver Using 300 GR Hornady Bullets Gun: Ruger New Model Blackhawk (Bisley); barrel length: 5 1/2-inches; case: Starline; primer: Winchester Large Pistol; bullet diameter: .430"; maximum COAL: 1.600"; maximum case length: 1.285"; trim to length: 1.275"; COAL: 1.610".
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Hornady HP-XTP	23.3	1626
200	Hornady HP-XTP	23.8	1660
200	Hornady HP-XTP	24.4	1702
200	Hornady HP-XTP	24.9	1743
200	Hornady HP-XTP	25.5	1783	maximum load
240	Hornady HP-XTP or CL-SIL	20.7	1460
240	Hornady HP-XTP or CL-SIL	21.2	1519	maximum load
265	Hornady FP	18.4	1299
265	Hornady FP	18.9	1337
265	Hornady FP	19.3	1375	maximum load
300	Hornady HP-XTP	15.5	1119
300	Hornady HP-XTP	15.9	1152
300	Hornady HP-XTP	16.4	1185	maximum load
TC Using Hornady Bullets Gun: Thompson/Center G-2 Contender; barrel length: 10 inches; case: Starline; primer: Winchester Large Pistol; bullet diameter: .430"; 200, 240 & 300 GR Hornady HP-XTP and 240 GR CL-SIL COAL: 1.600"; 265 Hornady FP COAL: 1.610"; maximum COAL: 1.610"; maximum case length: 1.285"; trim to length: 1.275".

.45 Colt

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
225	Speer JHP	21.0	1209	start charge
225	Speer JHP	23.0	1339	maximum charge; compressed load
250	Speer Colt GDHP	18.0	1003	start charge
250	Speer Colt GDHP	20.0	1148	maximum charge
Ruger & Contender Only Speer Reloading Manual #14 max. case length: 1.285"; trim-to length: 1.275"; max cart. OAL: 1.600"; RCBS shell holder: #20; cart. case: Winchester; primer: CCI 300 (except where otherwise specified in remarks); test firearm: Ruger Blackhawk; barrel length: 7.5"; maximum loads should be used with CAUTION; NOTE: Do not use in any other make or model firearm. IMPORTANT SAFETY NOTE: Since Speer #14 Manual was published, Ruger has replaced the original Vaquero revolver with a smaller version called the New Vaquero. Ruger has advised the industry that the New Vaquero must not be fired with loads exceeding industry pressure standards (14,000 psi). If loading for a New Vaquero, use the standard pressure data in the .45 Colt Handgun Speer Data.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
260	Speer JHP	22.0	1,301	velocity spread: 26 fps; 25-yard group: 2.2 inches
+P Handloads The .45 Colt +P handloads are for Ruger, Freedom Arms and Colt Anaconda only! Test gun was a Ruger Blackhawk with a 6-inch barrel.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
255	Speer SWC	15.8	809	start charge
255	Speer SWC	16.8	914	maximum charge
230	Speer GDHP SB or GDHP or 225 JHP	16.0	778	start charge
230	Speer GDHP SB or GDHP or 225 JHP	18.0	946	maximum charge
250	Speer Colt GDHP	16.0	843	maximum charge; DO NOT REDUCE
Handgun Speer Reloading Manual #14 max. case length: 1.285"; trim-to length: 1.275"; max cart. OAL: 1.600"; RCBS shell holder: #20; cart. case: Winchester; primer: CCI 300 (except where otherwise specified in remarks); test firearm: Colt Single Action Army; barrel length: 5.5"; NOTE: the 255 SWC, 225 CAV & 230 CM bullets were cast in RCBS moulds; maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
225	Speer JHP	21.0	1093	overall loaded length (inches): 1.587
225	Speer JHP	22.0	1160	overall loaded length (inches): 1.587
in a Ruger New Model Blackhawk (+P Pressure 23,000 psi) These loads exceed SAAMI pressure limits for the .45 Colt and should only be used in Ruger New Model Blackhawk revolvers, or firearms of similar strength. Barrel length: 5 1/2 inches; Starline cases used throughout. CCI 300 primers used in all loads except with H-110 powder, where Federal 155 primers were used. Temperature during testing was 70 to 85 degrees Fahrenheit.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
285	RCBS 45-270-SAA cast	16.0	894
Load Data ( 14,000 psi) primer: CCI 300
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
300	Hornady XTP-MAG or HP-XTP	16.0	1048
300	Hornady XTP-MAG or HP-XTP	16.6	1107
300	Hornady XTP-MAG or HP-XTP	17.2	1166
300	Hornady XTP-MAG or HP-XTP	17.8	1224	maximum load
T/C & Ruger Using Hornady Bullets Gun: Thompson/Center Encore; barrel length: 12 inches; case: Starline; primer: Winchester WLP; bullet diameter: .452"; 240 and 300 GR Hornady XTP-MAG COAL: 1.655"; 250 HP-XTP COAL: 1.595"; 300 HP-XTP COAL: 1.580"; maximum COAL: 1.600"; maximum case length: 1.285"; trim to length: 1.275".

.45 Winchester Magnum

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Jacketed	24.1	1818	start load; compressed charge; min OAL: 1.516
200	Jacketed	26.3	1962	never exceed; compressed charge; min OAL: 1.516
230	Jacketed	22.8	1656	start load; compressed charge; min OAL: 1.555
230	Jacketed	25.0	1804	never exceed; compressed charge; min OAL: 1.555
250	XTP	19.8	1463	start load; min OAL: 1.504
250	XTP	22.4	1640	never exceed; min OAL: 1.504
Lee Precision Data Large Pistol primer; with NEVER EXCEED LOADS maintain Minimum Over All Length or longer (Modern Reloading - Second Edition - Richard Lee)
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Speer TMJ-SWC	22.9	1731	starting load; COL (in.): 1.516
200	Speer TMJ-SWC	25.2	1885	maximum load; COL (in.): 1.516
230	Hornady FMJ-RN	21.8	1622	starting load; COL (in.): 1.555
230	Hornady FMJ-RN	23.9	1744	maximum load; COL (in.): 1.555
250	Hornady HP/XTP	18.4	1448	starting load; COL (in.): 1.504
250	Hornady HP/XTP	21.1	1576	maximum load; COL (in.): 1.504
Vihtavuori Reloading Guide 6 test barrel: 12", 1 in 16" twist; primers: Large Pistol; cases: Winchester, trim-to length: 1.192"; loads less than minimum charges shown are not recommended; USE MAXIMUM LOADS WITH CAUTION!

.454 Casull

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
225	Jacketed	30.8	1864	start load; compressed charge; min OAL: 1.681
225	Jacketed	33.5	2005	never exceed; compressed charge; min OAL: 1.681
250	XTP	28.1	1719	start load; compressed charge; min OAL: 1.685
250	XTP	30.7	1873	never exceed; compressed charge; min OAL: 1.685
300	Jacketed	26.3	1555	start load; compressed charge; min OAL: 1.752
300	Jacketed	28.7	1686	never exceed; compressed charge; min OAL: 1.752
Lee Precision Data With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Rifle primer. NOTE: Industry standard cup pressure is 53,000. Some of the hard core bullet loads exceed this value. Use maximum loads with caution.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
225	Speer Jacketed HP	28.9	1650	sugg. start load; 1.690" OAL; 42,300 cup
225	Speer Jacketed HP	30.5	1735	max load; compressed powder charge; 1.690" OAL; 49,800 cup; potentially most accurate load
240	Hornady Jacketed HP Mag-XTP	26.8	1551	sugg. start load; 1.745" OAL; 41,100 cup
240	Hornady Jacketed HP Mag-XTP	28.3	1621	max load; 1.745" OAL; 46,500 cup
250	Barnes XPB HP	26.6	1588	sugg. start load; 1.770" OAL; 49,300 cup
250	Barnes XPB HP	28.0	1615	max load; compressed powder charge; 1.770" OAL; 53,400 cup
300	Hornady Jacketed HP Mag-XTP	23.3	1323	sugg. start load; 1.745" OAL; 43,200 cup
300	Hornady Jacketed HP Mag-XTP	24.6	1437	max load; 1.745" OAL; 48,400 cup
225	Cast #452490 gas check	26.3	1531	sugg. start load; 1.760" OAL; 42,700 cup
225	Cast #452490 gas check	27.7	1575	max load; 1.760" OAL; 44,700 cup
325	Cast #452651 gas check	20.4	1242	sugg. start load; 1.755" OAL; 30,200 cup
325	Cast #452651 gas check	22.7	1368	max load; 1.755" OAL; 42,700 cup
Lyman Reloading Handbook 49th Edition cases: Winchester; trim-to length: 1.378"; primers: CCI 450; primer size: Small Rifle, Magnum; Lyman shell holder: No. 11; firearm used: Universal Receiver; barrel length: 6"; twist: 1-24"; groove dia.: .451"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
240	Hornady XTP-MAG	28.4	1604
240	Hornady XTP-MAG	29.4	1652
240	Hornady XTP-MAG	30.4	1709
240	Hornady XTP-MAG	31.4	1744
240	Hornady XTP-MAG	32.4	1789	maximum load
300	Hornady XTP-MAG	24.4	1362
300	Hornady XTP-MAG	25.3	1401
300	Hornady XTP-MAG	26.2	1449
300	Hornady XTP-MAG	27.1	1490	maximum load
Using Hornady Bullets Gun: Freedom Arms Model 83; barrel length: 7 1/2 inches; case: Starline; primer: Fed. #205; bullet diameter: .452"; COAL: 1.745"; maximum COAL: 1.765"; maximum case length: 1.383"; trim to length: 1.373".
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
225	Speer HP	30.9	1857	starting load; COL (in.): 1.681
225	Speer HP	33.5	2014	maximum load; COL (in.): 1.681
250	Hornady HP/XTP	28.1	1716	starting load; COL (in.): 1.685
250	Hornady HP/XTP	30.7	1867	maximum load; COL (in.): 1.685
300	Speer Plated HP	26.4	1555	starting load; COL (in.): 1.752
300	Speer Plated HP	28.7	1686	maximum load; COL (in.): 1.752
Vihtavuori Reloading Guide 6 test barrel: 9 1/2", 1 in 24" twist; primers: Small Rifle; cases: Freedom Arms, trim-to length: 1.311"; loads less than minimum charges shown are not recommended; USE MAXIMUM LOADS WITH CAUTION!
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
300	Speer GDHP	25.5	1446	start charge
300	Speer GDHP	27.5	1549	maximum charge
Full Power Loads Speer Reloading Manual #14 max. case length: 1.383"; trim-to length: 1.373"; max cart. OAL: 1.765"; RCBS shell holder: #20; cart. case: Winchester; primer: CCI 400; test firearm: Freedom Arms; barrel length: 7.5"; maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
260	Nosler Partition-HG Hollow Point	28.5	1,855	maximum load; compressed load; most accurate load tested
260	Nosler Partition-HG Hollow Point	27.5	1,815	compressed load
260	Nosler Partition-HG Hollow Point	26.5	1,774	compressed load
300	Nosler Partition-HG Protected Point	25.0	1,588	maximum load; compressed load
300	Nosler Partition-HG Protected Point	24.0	1,542	compressed load; most accurate load tested
300	Nosler Partition-HG Protected Point	23.0	1,499	compressed load
Using Nosler Bullets handgun: barrel: T/C Encore, length: 12", twist: 1-16"; case: Winchester; primer: WSR; maximum SAAMI overall cartridge length: 1.765"; use maximum loads with caution
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
300	Speer UCSP	20.0	1220	start charge; case: Winchester
300	Speer UCSP	22.0	1322	maximum charge; case: Winchester
250	Speer Colt GDHP or 260 JHP	23.0	1381	start charge; case: Starline
250	Speer Colt GDHP or 260 JHP	25.0	1499	maximum charge; case: Starline
Reduced Recoil Loads Speer Reloading Manual #14 max. case length: 1.383"; trim-to length: 1.373"; max cart. OAL: 1.765"; RCBS shell holder: #20; cart. case: Winchester and Starline; primer: CCI 400; test firearm: Freedom Arms; barrel length: 7.5"; NOTE: The 270 grain SAA bullets were cast in RCBS moulds; use maximum loads with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
300	Hornady XTP-HP	27.0	1,460
in a Freedom Arms Model 83 (4 3/4-inch barrel) Freedom Arms Model 83 with barrel length of 4 3/4 inches. Remington 7 1/2 and Federal 205 (Small Rifle Magnum) primers and Starline cases used throughout. Maximum case length is 1.383 inches and trim-to length is 1.373 inches.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
300	Hornady XTP-HP	27.0	1,532
in a Freedom Arms Model 83 (7 1/2-inch barrel) Freedom Arms Model 83 with barrel length of 7 1/2 inches. Remington 7 1/2 and Federal 205 (Small Rifle Magnum) primers and Starline cases used throughout. Maximum case length is 1.383 inches and trim-to length is 1.373 inches.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
240	Hornady Mag Jacketed XTP/HP	26.8	1682	sugg. start load; 1.745" OAL; potentially most accurate load
240	Hornady Mag Jacketed XTP/HP	28.3	1771	max load; 1.745" OAL
300	Hornady Mag Jacketed XTP/HP	23.3	1473	sugg. start load; 1.745" OAL
300	Hornady Mag Jacketed XTP/HP	24.6	1521	max load; 1.745" OAL
255	Cast #452490 gas check	26.3	1696	sugg. start load; 1.760" OAL
255	Cast #452490 gas check	27.7	1783	max load; 1.760" OAL
325	Cast #452651 gas check	20.4	1363	sugg. start load; 1.755" OAL
325	Cast #452651 gas check	22.7	1497	max load; 1.755" OAL
in a T/C Contender & Encore Lyman Reloading Manual 49th Edition This data was developed for use in the T/C Contender and Encore handguns. It can also be used in other single shot or bolt-action handguns such as the Remington XP-100 and Savage Striker. Do not use these loads in any other type of handgun. Cases: Winchester; trim-to length: 1.380"; primers: CCI 450; primer size: Small Rifle, Magnum; Lyman shell holder: No. 11; cast bullets used sized to .451" dia.; firearm used: Thompson/Center Encore; barrel length: 12"; twist: 1-16"; groove dia.: .451"

.460 Smith & Wesson Magnum / .460 S&W Magnum

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
300	Hornady XTP MAG	34.0	1,608
300	Hornady XTP MAG	36.0	1,627
firearm: Smith & Wesson .460 XVR; SAAMI maximum average pressure: 65,000 psi; barrel length: 7 1/2-inches; case: Starline; primer: CCI #200; trim to case length: 1.790"; temperature: 15 degrees
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Hornady FTX	38.1	1900
200	Hornady FTX	41.1	2000
200	Hornady FTX	44.2	2100	maximum load
Hornady FTX Data rifle: S&W 460 XVR; barrel: Factory; length: 8 3/8"; twist: Gain twist 1 in 20"; primer: WLR; case: Hornady; C.O.L.: 2.275"; approach maximum loads with extreme caution
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
240	Hornady Jacketed Mag-XTP HP	39.5	2070	sugg. start load; 2.160" OAL; 46,800 psi
240	Hornady Jacketed Mag-XTP HP	44.0	2231	max load; compressed powder charge; 2.160" OAL; 57,100 psi
250	Barnes XPB	32.8	1902	sugg. start load; 2.200" OAL; 45,600 psi
250	Barnes XPB	36.5	2033	max load; compressed powder charge; 2.200" OAL; 56,400 psi
260	Nosler Partition - Jacketed HG HP	32.5	1853	sugg. start load; 2.175" OAL; 43,200 psi
260	Nosler Partition - Jacketed HG HP	36.0	1993	max load; 2.175" OAL; 54,900 psi
275	Barnes XPB	31.7	1820	sugg. start load; 2.300" OAL; 46,100 psi
275	Barnes XPB	35.3	1944	max load; 2.300" OAL; 57,400 psi; potentially most accurate load
300	Speer Gold Dot Jacketed HP	31.5	1752	sugg. start load; 2.160" OAL; 45,100 psi
300	Speer Gold Dot Jacketed HP	35.0	1876	max load; 2.160" OAL; 56,600 psi; potentially most accurate load
255	Cast #452490 gas check	27.0	1442	sugg. start load; 2.180" OAL; 19,300 psi
255	Cast #452490 gas check	31.5	1841	max load; 2.180" OAL; 37,400 psi
325	Cast #452651 gas check	26.0	1517	sugg. start load; 2.180" OAL; 31,300 cup
325	Cast #452651 gas check	33.5	1794	max load; 2.180" OAL; 53,700 cup
Lyman Reloading Handbook 49th Edition cases: Starline; trim-to length: 1.790"; primers: Winchester WLRM; primer size: Large Rifle, Magnum; Lyman shell holder: No. 7; cast bullets used sized to .452" dia.; firearm used: Universal Receiver; barrel length: 10"; twist: 1-20"; groove dia.: .451"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
250	Speer Colt GDHP or JHP	29.0	1498	start charge; reduced recoil load
250	Speer Colt GDHP or JHP	31.0	1551	max charge; reduced recoil load
300	Speer UCSP	29.0	1394	start charge; reduced recoil load
300	Speer UCSP	31.0	1458	max charge; reduced recoil load
300	Speer Casull GDHP	34.0	1563	start charge; full pressure load
300	Speer Casull GDHP	36.0	1625	max charge; full pressure load
Speer Handgun Data Reloading Manual #14 max. case length: 1.800"; trim-to length: 1.790"; max cart. OAL: 2.290"; RCBS shell holder: #14; cart. case: Hornady; primer: Federal 210; test firearm Smith & Wesson X-Frame; barrel length: 8.375"; maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Hornady FTX (460 S&W)	38.1	1834
200	Hornady FTX (460 S&W)	41.1	1949
200	Hornady FTX (460 S&W)	44.2	2063	maximum load
240	Hornady XTP Mag	30.6	1513
240	Hornady XTP Mag	35.8	1638
240	Hornady XTP Mag	41.0	1762	maximum load
300	Hornady XTP Mag	28.3	1313
300	Hornady XTP Mag	31.9	1391
300	Hornady XTP Mag	33.7	1469
300	Hornady XTP Mag	35.5	1548	maximum load
Using Hornady Bullets Gun: Smith & Wesson Model 460 XVR; barrel length: 8 3/8 inches; case: Starline; primer: Winchester Large Rifle; bullet diameter: .452"; bullets: 200 GR Hornady FTX (460 S&W) COAL: 2.275", 240 GR Hornady XTP Mag COAL: 2.160", 300 GR Hornady XTP Mag COAL: 2.165"; maximum COAL: 2.275"; maximum case length: 1.800"; trim to length: 1.790".
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
240	Hornady Mag Jacketed XTP/HP	39.5	2194	sugg. start load; 2.160" OAL
240	Hornady Mag Jacketed XTP/HP	44.0	2343	max load; compressed powder charge; 2.160" OAL
250	Barnes XPB	32.8	1965	sugg. start load; 2.200" OAL
250	Barnes XPB	36.5	2060	max load; compressed powder charge; 2.200" OAL
260	Nosler Partition Jacketed HG HP	32.5	1914	sugg. start load; 2.175" OAL
260	Nosler Partition Jacketed HG HP	36.0	2031	max load; 2.175" OAL; potentially most accurate load
275	Barnes XPB	31.7	1840	sugg. start load; 2.300" OAL
275	Barnes XPB	35.3	1987	max load; 2.300" OAL; potentially most accurate load
300	Speer Gold Dot Jacketed HP	31.5	1811	sugg. start load; 2.160" OAL
300	Speer Gold Dot Jacketed HP	35.0	1913	max load; 2.160" OAL
255	Cast #452490 gas check	27.0	1791	sugg. start load; 2.180" OAL
255	Cast #452490 gas check	31.5	1935	max load; 2.180" OAL
325	Cast #452651 gas check	26.0	1627	sugg. start load; 2.180" OAL
325	Cast #452651 gas check	33.5	1875	max load; 2.180" OAL
in a T/C Contender & Encore Lyman Reloading Manual 49th Edition This data was developed for use in the T/C Contender and Encore handguns. It can also be used in other single shot or bolt-action handguns such as the Remington XP-100 and Savage Striker. Do not use these loads in any other type of handgun. Cases: Starline; trim-to length: 1.790"; primers: Winchester WLRM; primer size: Large Rifle, Magnum; Lyman shell holder: No. 7; cast bullets used sized to .452" dia.; firearm used: Thompson/Center Encore; barrel length: 15"; twist: 1-20"; groove dia.: .451"

.475 Linebaugh

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
400	Speer Gold Dot	23.5	1,301	1.57 inches
400	Hornady XTP	23.5	1,356	1.62 inches
Freedom Arms Loads were tested at 25 yards in a Freedom Arms Model 757 with a 6-inch barrel.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
275	Barnes XPB HP	26.1	1547	sugg. start load; 1.810" OAL; 38,200 psi
275	Barnes XPB HP	29.0	1649	max load; compressed powder charge; 1.810" OAL; 48,100 psi
325	Hornady Jacketed XTP/HP	25.2	1437	sugg. start load; 36,400 psi
325	Hornady Jacketed XTP/HP	28.0	1547	max load; 48,200 psi
400	Hornady Jacketed XTP/HP	19.8	1186	sugg. start load; 37,900 psi
400	Hornady Jacketed XTP/HP	22.0	1272	max load; 49,400 psi
Lyman Reloading Handbook 49th Edition cases: Hornady; trim-to length: 1.395"; primers: CCI 350; primer size: Large Pistol, Magnum; Lyman shell holder: No. 17; 1.740" OAL (except where otherwise specified in remarks); firearm used: Universal Receiver; barrel length: 7 1/2"; twist: 1-18"; groove dia.: .475"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
325	Speer GDSP	25.5	1308	start charge
325	Speer GDSP	27.5	1412	max charge
400	Speer GDSP	21.0	1200	start charge
400	Speer GDSP	23.0	1283	max charge
Speer Handgun Data Reloading Manual #14 max. case length: 1.400"; trim-to length: 1.390"; max cart. OAL: 1.765"; RCBS shell holder: #40; cart. case: Buffalo Bore; primer: CCI 300 (except where otherwise specified in remarks); test firearm: Freedom Arms M767; barrel length: 6"; Important Safety Note: Older developed in cut-down 45-70 cases must not be used in new Buffalo Bore or Hornady cases, as high pressures will result; maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
400	Hornady XTP Mag	19.5	1051
400	Hornady XTP Mag	20.3	1090
400	Hornady XTP Mag	21.0	1137
400	Hornady XTP Mag	21.8	1183
400	Hornady XTP Mag	22.5	1226	maximum load
Using Hornady Bullets Gun: Freedom Arms Model 757; barrel length: 6 inches; case: BBA/Starline; primer: Winchester Large Pistol; bullet diameter: .475"; COAL: 1.740"; maximum COAL: 1.765"; maximum case length: 1.400"; trim to length: 1.390".
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
400	Speer Gold Dot	23.5	1,301
400	Hornady XTP-Mag	23.5	1,356
Load Data A Freedom Arms Model 757 with a 6-inch barrel was used to test fire all loads. Buffalo Bore/Starline cases used throughout. Large Pistol primers used for reduced loads; all others used Large Pistol Magnum. Maximum case length: 1.400 inches; trim-to length: 1.395 inches; overall cartridge length: 1.750 to 1.765 inches maximum. Bullet diameter: .476 inch for cast bullets, .475 inch for jacketed. Industry maximum average pressure: 50,000 psi.

.480 Ruger

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
275	Speer Jacketed HP	25.6	1530	sugg. start load; 1.650" OAL; 36,200 psi
275	Speer Jacketed HP	28.5	1665	max load; compressed powder charge; 1.650" OAL; 45,400 psi
325	Hornady Jacketed HP/XTP	21.0	1321	sugg. start load; 35,600 psi
325	Hornady Jacketed HP/XTP	23.7	1434	max load; 47,200 psi
400	Hornady Jacketed HP/XTP	16.5	1072	sugg. start load; 33,900 psi
400	Hornady Jacketed HP/XTP	18.3	1184	max load; 45,600 psi
Lyman Reloading Handbook 49th Edition cases: Hornady; trim-to length: 1.275"; primers: Winchester WLP; primer size: Large Pistol; Lyman shell holder: No. 17; 1.620" OAL (except where otherwise specified in remarks); firearm used: Universal Receiver; barrel length: 7 1/2"; twist: 1-18"; groove dia.: .475"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
275	Speer Gold Dot HP	25.5	1,461	starting load
275	Speer Gold Dot HP	27.5	1,575	MAXIMUM load
325	Speer Gold Dot SP	22.5	1,349	starting load
325	Speer Gold Dot SP	24.5	1,457	MAXIMUM load; compressed load
400	Speer Gold Dot SP	15.5	965	starting load
400	Speer Gold Dot SP	17.5	1,115	MAXIMUM load
Speer Data Case: Hornady; primer: CCI 300/350; test firearm: Ruger Redhawk; barrel: 9 1/2"; COAL tested 1.650"; use MAXIMUM loads with caution
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
275	Speer GDHP	25.5	1461	start charge
275	Speer GDHP	27.5	1575	max charge
325	Speer GDSP	22.5	1349	start charge
325	Speer GDSP	24.5	1457	max charge; compressed load
400	Speer GDSP	15.5	965	start charge
400	Speer GDSP	17.5	1115	max charge
Speer Handgun Data Reloading Manual #14 max. case length: 1.285"; trim-to length: 1.275"; max cart. OAL: 1.650"; RCBS shell holder: #40; cart. case: Hornady; primer: CCI 300 (except where otherwise noted in remarks); test firearm: Ruger Redhawk; barrel length: 9.5"; maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
325	Hornady XTP Mag	17.0	718	Do Not Reduce
325	Hornady XTP Mag	18.6	894
325	Hornady XTP Mag	20.3	1070
325	Hornady XTP Mag	21.9	1246	maximum load
400	Hornady XTP Mag	15.3	858	Do Not Reduce
400	Hornady XTP Mag	16.7	957
400	Hornady XTP Mag	17.3	1055	maximum load
Using Hornady Bullets Gun: Freedom Arms Model 757; barrel length: 6 inches; case: Hornady; primer: Winchester Large Pistol for Standard and Magnum loads; bullet diameter: .475"; 325 GR COAL: 1.620"; 400 GR COAL: 1.630"; maximum COAL: 1.650"; maximum case length: 1.285"; trim to length: 1.275".
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
275	Sierra Jacketed HP	25.6	1531	sugg. start load; 1.650" OAL
275	Sierra Jacketed HP	28.5	1721	max load; 1.650" OAL
325	Hornady Jacketed HP/XTP	21.0	1338	sugg. start load; potentially most accurate load
325	Hornady Jacketed HP/XTP	23.7	1493	max load
400	Hornady Jacketed HP/XTP	16.5	1081	sugg. start load
400	Hornady Jacketed HP/XTP	18.3	1198	max load; potentially most accurate load
in a T/C Contender & Encore Lyman Reloading Manual 49th Edition This data was developed for use in the T/C Contender and Encore handguns. It can also be used in other single shot or bolt-action handguns such as the Remington XP-100 and Savage Striker. Do not use these loads in any other type of handgun. Cases: Hornady; trim-to length: 1.275"; primers: Winchester WLP; primer size: Large Pistol; Lyman shell holder: No. 17; firearm used: Thompson/Center Encore; barrel length: 12"; twist: 1-18"; groove dia.: .475"; OAL: 1.620" (except where otherwise specified in remarks)
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
325	Hornady JHP/XTP	24.5	1,372	primer: CCI 300; most accurate 325-grain load
400	Speer Gold Dot SP	17.5	1,028	primer: CCI 300
410	Cast Performance LBT	18.0	1,131	primer: CCI 300
in an FA Model 757 Test gun was a Freedom Arms Model 757 with a 6-inch barrel. Maximum pressure was 48,000 psi. Hornady cases used throughout. Temperature during testing was 85 degrees Fahrenheit.

.50 Action Express / .50 A.E.

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
300	Speer GDHP	27.0	1305
300	Speer GDHP	27.5	1332
300	Speer GDHP	28.0	1365
300	Speer GDHP	28.5	1398
300	Speer GDHP	29.0	1423	maximum load
Gun: Magnum Research BFR; barrel length: 8 1/8 inches; case: IMI; primer: Winchester Large Pistol; bullet diameter: 500"/.501"; 300 GR Speer GDHP COAL: 1.580", 325 GR UCHP COAL: 1.575"; 325 Hunters Supply Cast FP COAL: 1.625" (1.580" for Auto Loading Pistols); maximum COAL: 1.575"; maximum case length: 1.285"; trim to length: 1.280".
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
300	Hornady XTP-MAG	24.6	1193
300	Hornady XTP-MAG	26.3	1331
300	Hornady XTP-MAG	28.0	1469	maximum load
Using Hornady Bullets Gun: Magnum Research BFR; barrel length: 8 1/8 inches; case: IMI; primer: Winchester Large Pistol; bullet diameter: 500"/.501"; 300 gr Hornady XTP-MAG COAL: 1.580"; maximum COAL: 1.575"; maximum case length: 1.285"; trim to length: 1.280".
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
300	Jacketed	25.3	1337	tart load
300	Jacketed	28.6	1499	never exceed; compressed charge
325	Jacketed	24.1	1270	start load
325	Jacketed	27.0	1460	never exceed
Lee Precision Data CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Large Pistol primer. Min. OAL: 1.575
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
300	Speer TMJ FN or GDHP	28.0	1418	start charge
300	Speer TMJ FN or GDHP	29.0	1501	maximum charge
325	Speer UCHP	25.0	1229	start charge
325	Speer UCHP	27.0	1376	maximum charge
300	Speer TMJ FN or GDHP	28.0	1445	start charge; revolver Freedom Arms M555 7.5"
300	Speer TMJ FN or GDHP	29.0	1509	maximum charge; revolver Freedom Arms M555 7.5"
325	Speer UCHP	25.0	1283	start charge; revolver Freedom Arms M555 7.5"
325	Speer UCHP	27.0	1444	maximum charge; revolver Freedom Arms M555 7.5"
340	Speer SWC	23.0	1311	start charge; revolver Freedom Arms M555 7.5"
340	Speer SWC	25.0	1446	maximum charge; revolver Freedom Arms M555 7.5"
Speer Reloading Manual #14 max. case length: 1.286"; trim-to length: 1.276"; max cart. OAL: 1.595"; RCBS shell holder: #33; cart. case: Speer; the 340 grain SWC bullets were cast in RCBS moulds; NOTE: primer, test firearm and barrel length are as follows except where otherwise noted in remarks - primer: CCI 300; test firearm: Magnum Research Desert Eagle; barrel length: 6"; maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
300	IMI JHP	25.3	1299	starting load
300	IMI JHP	28.7	1496	maximum load
325	Speer UCHP	24.1	1266	starting load
325	Speer UCHP	27.0	1434	maximum load
Vihtavuori Reloading Guide 6 test barrel: 6", 1 in 19" twist; primers: Large Pistol; cases: Speer, trim-to length: 1.280"; COL (in.): 1.575; loads less than minimum charges shown are not recommended; USE MAXIMUM LOADS WITH CAUTION!

.500 Smith & Wesson / .500 S & W Magnum

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
350	Sierra JHP	29.1	1408	COAL: 2.050 inches
350	Sierra JHP	30.9	1446	COAL: 2.050 inches
350	Sierra JHP	32.7	1492	COAL: 2.050 inches
350	Sierra JHP	34.5	1538	COAL: 2.050 inches
350	Sierra JHP	36.3	1575	Maximum Load; COAL: 2.050 inches
400	Sierra JSP	30.9	1397	COAL: 2.062 inches
400	Sierra JSP	33.4	1444	Maximum Load; COAL: 2.062 inches
Using Sierra bullets Gun: Smith & Wesson Model 500; Barrel Length: 8 3/8 inches; Case: Starline "R"; Primer: Winchester Large Rifle; Bullet Diameter: .500 inches; Maximum COAL: 2.250 inches; Maximum Case Length: 1.620 inches; Trim to Length: 1.615 inches.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
275	Barnes XPB HP	35.5	1919	sugg. start load
275	Barnes XPB HP	39.5	2111	max load; potentially most accurate load
325	Barnes XPB HP	33.7	1742	sugg. start load
325	Barnes XPB HP	37.5	1922	max load
350	Hornady Jacketed HP/XTP	32.6	1673	sugg. start load
350	Hornady Jacketed HP/XTP	36.3	1869	max load; potentially most accurate load
375	Barnes XPB HP	29.7	1580	sugg. start load
375	Barnes XPB HP	33.0	1707	max load
400	Sierra Jacketed FP	30.7	1538	sugg. start load
400	Sierra Jacketed FP	34.2	1672	max load
500	Hornady Jacketed FP	26.0	1347	sugg. start load
500	Hornady Jacketed FP	29.0	1454	max load
375	Cast #501680	29.7	1571	sugg. start load
375	Cast #501680	33.0	1735	max load; potentially most accurate load
Lyman Reloading Handbook 49th Edition Starline brass designed for large rifle primers was used to develop this data. Do not use cases designed for large pistol primers with this data. Starline brass designed for large rifle primers has "R" after "Mag" on the headstamp to designate a large rifle pocket. A heavy roll crimp should be used to allow for complete ignition of the slow burning powders used. Cases: Starline; trim-to length: 1.615"; primers: CCI 200; primer size: Large Rifle; Lyman shell holder: No. 17; firearm used: Thompson/Center Encore; barrel length: 15"; twist: 1-18"; groove dia.: .501"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
275	Barnes XPB HP	35.5	1919	sugg. start load; 2.085" OAL
275	Barnes XPB HP	39.5	2111	max load; 2.085" OAL; potentially most accurate load
325	Barnes XPB HP	33.7	1742	sugg. start load; 2.290" OAL
325	Barnes XPB HP	37.5	1922	max load; 2.290" OAL
350	Hornady Jacketed HP/XTP	32.6	1673	sugg. start load; 1.985" OAL
350	Hornady Jacketed HP/XTP	36.3	1869	max load; 1.985" OAL; potentially most accurate load
375	Barnes XPB HP	29.7	1580	sugg. start load; 2.080" OAL
375	Barnes XPB HP	33.0	1707	max load; 2.080" OAL
400	Sierra Jacketed FP	30.7	1538	sugg. start load; 2.050" OAL
400	Sierra Jacketed FP	34.2	1672	max load; 2.050" OAL
500	Hornady Jacketed FP	26.0	1347	sugg. start load; 2.065" OAL
500	Hornady Jacketed FP	29.0	1454	max load; 2.065" OAL
375	Cast #501680	29.7	1571	sugg. start load; 2.035" OAL
375	Cast #501680	33.0	1735	max load; 2.035" OAL; potentially most accurate load
in a T/C Contender & Encore Lyman Reloading Manual 49th Edition This data was developed for use in the T/C Contender and Encore handguns. It can also be used in other single shot or bolt-action handguns such as the Remington XP-100 and Savage Striker. Do not use these loads in any other type of handgun. Cases: Starline; trim-to length: 1.615"; primers: CCI 200; primer size: Large Rifle; Lyman shell holder: No. 17; firearm used: Thompson/Center Encore; barrel length: 15"; twist: 1-18"; groove dia.: .501"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
440	Cast Performance WFN GC	30.0	1,433	low extreme spread; accurate
Starline cases and Winchester Large Rifle primers used throughout. Temperature during testing was 80 degrees Fahrenheit.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
350	Hornady XTP-MAG	28.8	1,400	primer: WLPM or WLR; C.O.L.: 2.000"
350	Hornady XTP-MAG	32.0	1,500	primer: WLPM or WLR; C.O.L.: 2.000"
350	Hornady XTP-MAG	35.3	1,600	primer: WLPM or WLR; C.O.L.: 2.000"
350	Hornady XTP-MAG	37.0	1,650	maximum load; primer: WLPM or WLR; C.O.L.: 2.000"
Hornady Data rifle: S&W Model 500; barrel length: 8 3/8"; case: Hornady; use maximum loads with extreme caution
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
275	Barnes XPB HP	35.5	1863	sugg. start load; 2.085" OAL; 33,900 psi
275	Barnes XPB HP	39.5	2024	max load; 2.085" OAL; 45,900 psi
325	Barnes XPB HP	33.7	1738	sugg. start load; 2.290" OAL; 35,300 psi
325	Barnes XPB HP	37.5	1866	max load; 2.290" OAL; 47,200 psi; potentially most accurate load
350	Hornady Jacketed HP/XTP	32.6	1656	sugg. start load; 1.985" OAL; 35,800 psi
350	Hornady Jacketed HP/XTP	36.3	1779	max load; 1.985" OAL; 46,400 psi; potentially most accurate load
375	Barnes XPB HP	29.7	1561	sugg. start load; 2.280" OAL; 35,500 psi
375	Barnes XPB HP	33.0	1670	max load; 2.280" OAL; 45,200 psi; potentially most accurate load
400	Sierra Jacketed FP	30.7	1526	sugg. start load; 2.050" OAL; 35,900 psi
400	Sierra Jacketed FP	34.2	1640	max load; 2.050" OAL; 46,000 psi; potentially most accurate load
500	Hornady Jacketed FP/XTP	26.0	1308	sugg. start load; 2.065" OAL; 40,100 psi
500	Hornady Jacketed FP/XTP	29.0	1398	max load; 2.065" OAL; 49,500 psi
375	Cast #501680	29.7	1487	sugg. start load; 2.035" OAL; 25,200 psi; potentially most accurate load
375	Cast #501680	33.0	1635	max load; 2.035" OAL; 33,800 psi
Lyman Reloading Handbook 49th Edition cases: Starline; trim-to length: 1.615"; primers: CCI #200; primer size: Large Rifle; Lyman shell holder: No. 17; cast bullets used sized to .501" dia.; firearm used: Universal Receiver; barrel length: 10"; twist: 1-18"; groove dia.: .500"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
300	Hornady FTX	37.8	1700
300	Hornady FTX	40.8	1800
300	Hornady FTX	43.7	1900	maximum load
FTX Data rifle: S&W Model 500; barrel: Factory; length: 8 3/8"; primer: WLR; case: Hornady; C.O.L.: 2.195"; approach maximum loads with extreme caution
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
350	S&W UCSP	36.0	1534	start charge
350	S&W UCSP	40.0	1649	max charge
Speer Handgun Data Reloading Manual #14 max. case length: 1.625"; trim-to length: 1.615"; max cart. OAL: 2.250"; RCBS shell holder: #44; cart. case: Starline; primer: Federal 215 (Magnum); test firearm: Smith & Wesson X-Frame; barrel length: 8.875"; maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
300	Hornady FTX	37.8	1676
300	Hornady FTX	40.8	1806
300	Hornady FTX	42.0	1851	maximum load
350	Hornady XTP Mag	28.8	1272
350	Hornady XTP Mag	32.0	1380
350	Hornady XTP Mag	35.3	1488
350	Hornady XTP Mag	37.0	1596	maximum load
Using Hornady Bullets & Winchester Large Pistol Primer Gun: Smith & Wesson Model 500; barrel length: 8 3/8 inches; case: Starline; primer: Winchester Large Pistol for standard or magnum; bullet diameter: .500"; 300 GR FTX COAL: 2.195"; 350 GR XTP Mag COAL: 2.000"; 500 GR FP-XTP COAL: 2.080"; maximum COAL: 2.250"; maximum case length: 1.620"; trim to length: 1.615".
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
300	Hornady FTX	37.8	1695
300	Hornady FTX	40.8	1800
300	Hornady FTX	42.0	1874	maximum load
350	Hornady XTP Mag	28.8	1299
350	Hornady XTP Mag	32.0	1371
350	Hornady XTP Mag	35.3	1491
350	Hornady XTP Mag	37.0	1625	maximum load
Using Hornady Bullets & Winchester Large Rifle Primer Gun: Smith & Wesson Model 500; barrel length: 8 3/8 inches; case: Starline "R"; primer: Winchester Large Rifle; bullet diameter: .500"; 300 GR FTX COAL: 2.195"; 350 GR XTP Mag COAL: 2.000"; 500 FP-XTP COAL: 2.080"; maximum COAL: 2.250"; maximum case length: 1.620"; trim to length: 1.615".
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
300	Speer TMJ	40.0	1870	starting load; COL (in.): 2.008
300	Speer TMJ	45.5	2139	maximum load; COL (in.): 2.008
350	Hornady HP/XTP	33.8	1709	starting load; COL (in.): 1.984
350	Hornady HP/XTP	38.7	1883	maximum load; COL (in.): 1.984
400	Sierra JSP	32.6	1591	starting load; COL (in.): 2.051
400	Sierra JSP	37.3	1759	maximum load; COL (in.): 2.051
Vihtavuori Reloading Guide 6 test barrel: 11", 1 in 18" twist; primers: Large Rifle; cases: Starline, trim-to length: 1.614"; loads less than minimum charges shown are not recommended; USE MAXIMUM LOADS WITH CAUTION!

7.62x25mm Tokarev

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Hornady HP-XTP	9.6	1048
90	Hornady HP-XTP	10.1	1149
90	Hornady HP-XTP	10.7	1267
90	Hornady HP-XTP	11.2	1384
90	Hornady HP-XTP	11.8	1495	maximum load
Using Hornady Bullets Gun: CZ Model 52; barrel length: 4 3/4 inches; case: Starline; primer: Winchester Small Pistol; bullet diameter: .308" and .309" (.309" used throughout test); COAL: 1.320"; maximum COAL: 1.385"; maximum case length: .984"; trim to length: .974". NOTES FROM THE LAB - The 7.62mm Tokarev (aka 7.62x25mm Russian Tokarev) was adopted as the official Soviet military pistol cartridge around 1930 in the Models TT-30 and TT-33 auto-loading pistols. Surplus guns (made in several different countries) eventually began finding their way to the US in the late 1980's. Quality varied significantly; however, both guns and ammunition were inexpensive and many are currently in circulation. The test pistol used here was a CZ Model 52, one of the better quality guns offered in the chambering. Most surplus ammunition is Berdan primed and is usually corrosive. Barrel groove diameter has a rather large variance, with many pistols utilizing .311 to .312 inch bullets. To develop handload data Starline cases were used (available direct at 800-280-6660). These are intended to house .308-inch bullets and will require neck reaming if .311- to .312-inch bullets are used. The Hornady 90-grain HP-XTP currently has a .309-inch diameter, which seated correctly and functioned properly in the CZ 52. Bullets had a tendency to tilt during seating; however, with care they could be straight in the rather short case neck. A crimp was applied as a separate step using a Lee Factory Crimp Die. Some "start" loads did not produce enough pressure to reliably operate the action on the test pistol, but all maximum loads functioned flawlessly.
