This fast burning rifle powder gives outstanding performance in cartridges like the 222 Remington, 221 Fireball, 45-70, and 450 Marlin. Varmint shooters with small-bore cartridges love it. Proven metering and necessary elements were added to make it extremely insensitive to hot/cold temperatures. IMR 4198 is outstanding in cartridges like the 222 Remington, 444 Marlin and 7.62 X 39.

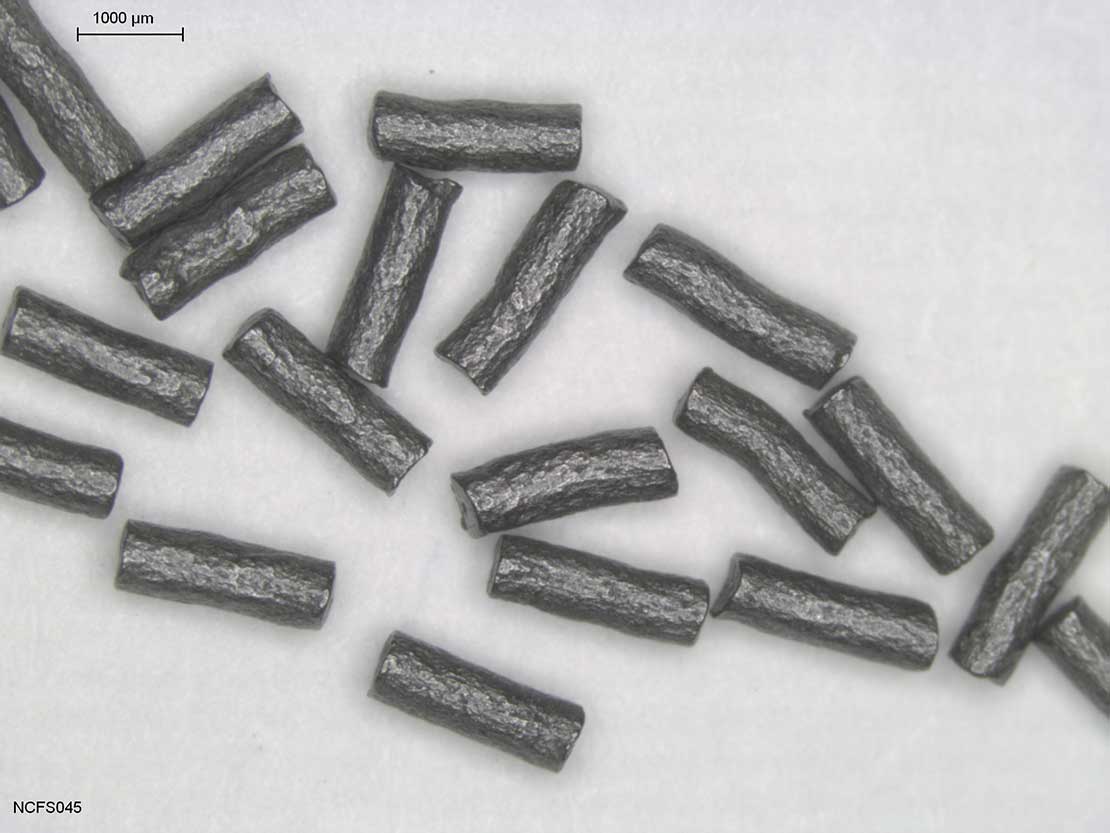

| Shape | Color | Perforation | Diameter min | Diameter max | Length/thick. min | Length/thick. max | Manufacturer |
|---|---|---|---|---|---|---|---|
| Cylinder(tubular) | Black | No | 0.6 mm | 0.8 mm | 1.9 mm | 2.2 mm | Hodgdon Powder Company |
Ladedata som finnes på hjemmesidene til Evje PK er KUN ment som en veiledning! Ladedata skal alltid verifiseres mot kjente kilder (kruttprodusenter, ladebøker o.l.)
Data funnet på våre hjemmesider brukes på eget ansvar, og Evje Pistolklubb fratar seg alt ansvar for feil bruk av, eller skrivefeil i oppgitte data.
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
 | 100 | Jacketed | 14.5 | 1530 | start load; compressed charge; min OAL: 1.760 |
| 100 | Jacketed | 14.5 | 1530 | NEVER EXCEED; compressed charge; min OAL: 1.760; 20,700 cup |
| 110 | Jacketed | 14.5 | 1495 | start load; compressed charge; min OAL: 1.680 |
| 110 | Jacketed | 14.5 | 1495 | NEVER EXCEED; compressed charge; min OAL: 1.680; 20,900 cup |
| Lee Precision Data CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Rifle Primer. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 100 | Speer RN SP | 14.5 | 1116 | start charge |
| 100 | Speer RN SP | 15.5 | 1201 | max charge; compressed load |
| 110 | Speer HP or RN SP | 14.0 | 967 | start charge |
| 110 | Speer HP or RN SP | 15.0 | 1046 | max charge |
| Handgun Speer Reloading Manual #14 max. case length: 1.290"; trim-to length: 1.280"; max cart. OAL: 1.690"; RCBS shell holder: #17; cart. case: IMI Commercial; primer: CCI 400 (except where otherwise specified in remarks); test firearm: Ruger Blackhawk; barrel length: 7.5"; maximum loads should be used with CAUTION | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 100 | Speer Jacketed HP | 11.0 | 1122 | sugg. start load; 10,100 cup; 1.560" OAL; potentially most accurate load |
| 100 | Speer Jacketed HP | 13.6 | 1388 | max load; compressed powder charge; 16,000 cup; 1.560" OAL |
| 115 | Cast #311008 | 10.0 | 1019 | sugg. start load; 8,900 cup; 1.590" OAL |
| 115 | Cast #311008 | 12.4 | 1272 | max load; 15,300 cup; 1.590" OAL |
| Lyman Reloading Manual 49th Edition cases: Winchester; trim-to length: 1.305"; primers: Winchester WSR; primer size; Small Rifle; Lyman shell holder: No. 10; cast bullets used sized to .312" dia.; firearm used: Universal Receiver; barrel length: 14"; twist: 1-20"; groove dia.: .311" | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 100 | Speer RNSP | 17.0 | 1527 | start charge |
| 100 | Speer RNSP | 18.0 | 1683 | max charge; compressed load |
| 110 | Speer HP, RNSP or Spire SP | 16.0 | 1375 | start charge |
| 110 | Speer HP, RNSP or Spire SP | 17.0 | 1576 | max charge; compressed load |
| 130 | Speer HP or FN SP | 15.0 | 1339 | start charge |
| 130 | Speer HP or FN SP | 16.0 | 1453 | max charge; compressed load |
| Contender Only Speer Reloading Manual #14 max. case length: 1.315"; trim-to length: 1.305"; RCBS shell holder: #1; cart. case: Winchester; primer: CCI 500; test firearm: T/C Contender; barrel length: 10"; NOTE: Do not substitute the .312" 100-grain JHP (#3981) for the 100-grain RNSP; maximum loads should be used with CAUTION | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 170 | Speer Mag GDSP or 180-gr FNSP | 21.0 | 1417 | start charge |
| 170 | Speer Mag GDSP or 180-gr FNSP | 23.0 | 1573 | maximum charge; compressed load |
| Speer Reloading Manual #14 max. case length: 1.605"; trim-to length: 1.595"; max cart. OAL: 1.990"; RCBS shell holder: #6; cart. case: Remington; primer: CCI 400; test firearm: T/C Contender; barrel length: 14"; NOTE: the 180-gr FN SP and 220-gr bullet is for single-shot firearms only; maximum loads should be used with CAUTION | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 325 | Swift HP | 35.0 | 1470 | starting load; dia.: .451"; COL: 2.175"; 31,200 psi |
| 325 | Swift HP | 38.0 | 1627 | maximum load; compressed load; dia.: .451"; COL: 2.175"; 38,400 psi |
| 360 | Cast Performance Bullets WLN GC | 34.0 | 1433 | starting load; dia.: .452"; COL: 2.190"; 34,600 psi |
| 360 | Cast Performance Bullets WLN GC | 37.0 | 1538 | maximum load; compressed load; dia.: .452"; COL: 2.190"; 38,800 psi |
| 395 | Cast Performance Bullets WLN GC | 32.0 | 1372 | starting load; dia.: .452"; COL: 2.185"; 35,200 psi |
| 395 | Cast Performance Bullets WLN GC | 35.0 | 1486 | maximum load; compressed load; dia.: .452"; COL: 2.185"; 41,500 psi |
| Hodgdon Pistol Data case: Starline; bbl: 10.743"; PR: Winchester LRM; twist: 1:20"; trim: 1.790" - This data was developed with Starline Brass which was designed for use with large rifle type primers. Some brands of brass were designed solely for use with large pistol primers. Check with the manufacturer of the brass for correct primer usage. Rifle primers used in a pistol primer pocket cannot be seated sufficiently deep to be below flush with the casehead, which could result in sympathetic ignition of other rounds in the cylinder during recoil. Such use may result in damage to the firearm and/or result in injury or death of the shooter and/or bystander. Never exceed loads listed. | |||||
