IMR PB is great for Trap, Skeet, and Sporting Clays where heavy 1 ounce and 1-1/8 ounce loads are needed. In pistol it yields top performance in target and plinking loads for such cartridges as the 40 S&W, 45 Auto, etc. The small extruded grains deliver metering that is always super uniform.

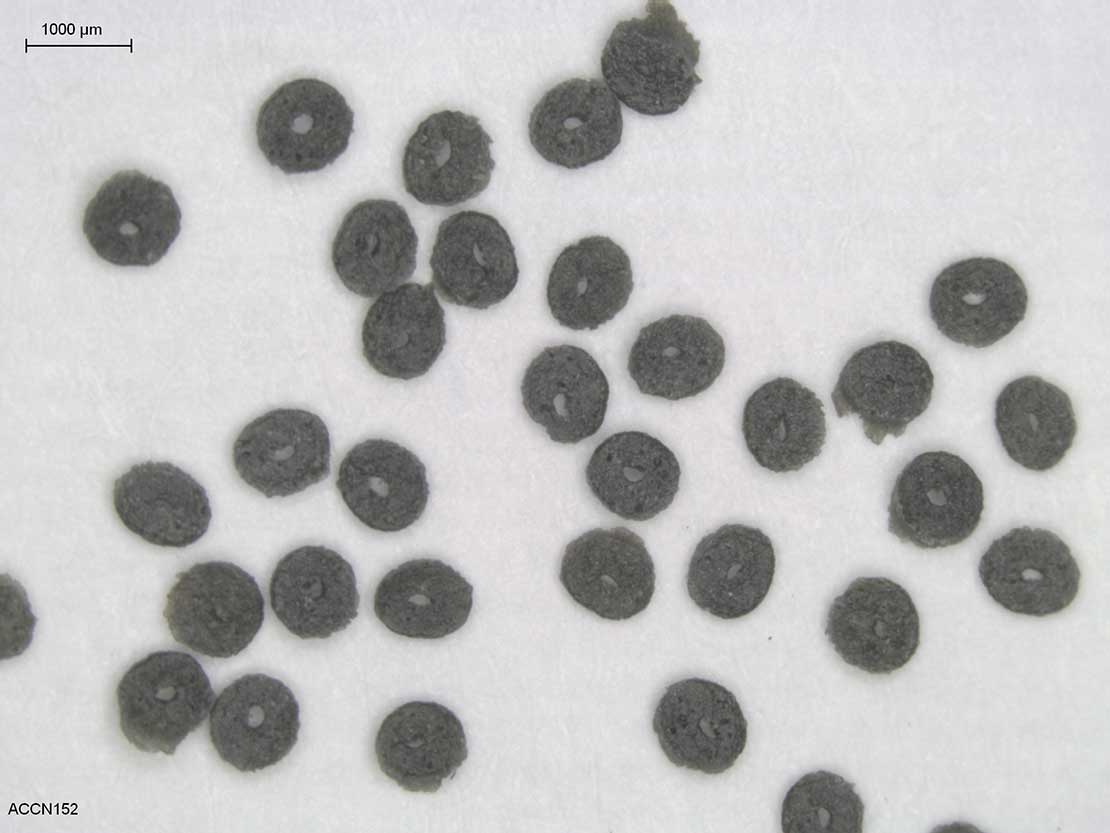

| Shape | Color | Perforation | Diameter min | Diameter max | Length/thick. min | Length/thick. max | Manufacturer |
|---|---|---|---|---|---|---|---|
| disk | Black | Yes | 0.8 mm | 1.0 mm | Canada |
Ladedata som finnes på hjemmesidene til Evje PK er KUN ment som en veiledning! Ladedata skal alltid verifiseres mot kjente kilder (kruttprodusenter, ladebøker o.l.)
Data funnet på våre hjemmesider brukes på eget ansvar, og Evje Pistolklubb fratar seg alt ansvar for feil bruk av, eller skrivefeil i oppgitte data.
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
 | 50 | Hornady FMJ | 1.1 | 740 | 17,700 cup |
| IMR Pistol Data case: Remington; barrel length: 2.0"; twist: 1:16"; trim length: .610"; primer: CCI 500; bullet diam.: .251"; COL: .900"; these are all maximum loads; NEVER EXCEED MAXIMUM LOADS | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 51 | Cast #252435 | 1.0 | 495 | sugg. start load |
| 51 | Cast #252435 | 1.4 | 680 | max load |
| Lyman Cast Bullet Handbook cases: Remington-Peters; trim-to length: .610"; primers: Winchester 1 1/2-108; primer size: Small Pistol; Lyman shell holder: RCBS No. 29; cast bullets used size to .251" dia.; firearm used: Sterling .25 Auto; barrel length: 2"; twist: 1-16"; groove diameter: .251" | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 84 | Cast #313249 | 4.0 | 1105 | sugg. start load |
| 84 | Cast #313249 | 4.5 | 1177 | max load |
| 93 | Cast #313226 | 3.9 | 1047 | sugg. start load |
| 93 | Cast #313226 | 4.4 | 1126 | max load |
| Lyman Cast Bullet Handbook cases: Remington; trim-to length: .845"; primers: Remington 1 1/2; primer size: Small Pistol; Lyman shell holder: No. 12; cast bullets used size to .309" dia.; firearm used: Walther P-38; barrel length: 4 15/16"; twist: 1-9.85"; groove diameter: .3085"; NOTE: More Lyman cast bullet data available under .30 Luger Handgun Lyman Reloading Handbook 49th Edition | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 75 | Cast #311252 | 4.3 | 1182 | sugg. start load |
| 75 | Cast #311252 | 4.8 | 1238 | max load |
 | 85 | Cast #313249 | 4.0 | 1105 | sugg. start load |
| 85 | Cast #313249 | 4.5 | 1177 | max load |
| Lyman Reloading Handbook 49th Edition cases: Remington; trim-to length: .845"; primers: Remington 1 1/2; primer size Small Pistol; Lyman shell holder: No. 12; jacketed bullets used: Hornady FMJ #1419, 93 gr.; cast bullets used sized to .309" dia.; firearm used: Walther P-38; barrel length: 4 15/16"; twist: 1-9.85"; groove dia.: .3085" | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 75 | Cast #311252 | 1.6 | 665 | sugg. start load; .975" OAL |
| 75 | Cast #311252 | 2.2 | 870 | max load; .975" OAL |
| 85 | Cast #313249 | 1.5 | 665 | sugg. start load; .984" OAL |
| 85 | Cast #313249 | 2.1 | 830 | max load; .984" OAL |
| Lyman Reloading Handbook 49th Edition cases: Remington (except where otherwise specified in remarks); trim-to length: .672"; primers: Remington 1 1/2 (except where otherwise specified in remarks); primer size Small Pistol; Lyman shell holder: No. 23; cast bullets used sized to .309 dia.; firearm used: Mauser HSc and Universal Receiver; barrel length: Mauser; 3", Universal Receiver; 3 1/4"; twist: 1-16"; groove dia.: .309" | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 77 | Cast LFP | 2.6 | 865 | start load; COL: 1.335"; 10,600 cup; bullet diam.: .314" |
| 77 | Cast LFP | 3.0 | 941 | max load; COL: 1.335"; 11,500 cup; bullet diam.: .314" |
| 83 | Berry's Bullets HBWC | 3.0 | 933 | start load; COL: 1.095"; 15,200 cup; bullet diam.: .314" |
| 83 | Berry's Bullets HBWC | 3.7 | 1090 | max load; COL: 1.095"; 20,900 cup; bullet diam.: .314" |
| 85 | Hornady HP | 3.3 | 948 | start load; COL: 1.290"; 15,600 cup; bullet diam.: .312" |
| 85 | Hornady HP | 3.8 | 1077 | max load; COL: 1.290"; 20,400 cup; bullet diam.: .312" |
| 90 | Sierra JHP | 3.0 | 861 | start load; COL: 1.340"; 12,800 cup; bullet diam.: .312" |
| 90 | Sierra JHP | 3.4 | 977 | max load; COL: 1.340"; 18,900 cup; bullet diam.: .312" |
| 90 | Hornady LSWC | 2.5 | 800 | start load; COL: 1.350"; 10,400 cup; bullet diam.: .314" |
| 90 | Hornady LSWC | 3.0 | 947 | max load; COL: 1.350"; 15,200 cup; bullet diam.: .314" |
| 100 | Speer JHP | 3.0 | 834 | start load; COL: 1.345"; 15,400 cup; bullet diam.: .312" |
| 100 | Speer JHP | 3.4 | 936 | max load; COL: 1.345"; 20,200 cup; bullet diam.: .312" |
| Hodgdon Pistol Data Case: Federal; twist: 1:16"; primer: Federal 100, Small Pistol; barrel length: 5"; trim length: 1.070". | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 98 | Speer HB-WC | 2.2 | 760 | starting charge; COAL tested: 1.075" |
| 98 | Speer HB-WC | 2.4 | 812 | MAXIMUM charge; COAL tested: 1.075" |
| Speer Reloading Manual #14 max. case length: 1.075"; trim-to length: 1.065"; max cart. OAL: 1.350"; RCBS shell holder: #23; cart. case: Federal; primer: CCI 500; test firearm: Ruger Single Six; barrel length: 5.5"; maximum loads should be used with CAUTION | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 77 | Cast #311252 | 1.4 | 523 | sugg. start load |
| 77 | Cast #311252 | 2.1 | 803 | max load |
| 84 | Cast #313249 | 1.3 | 543 | sugg. start load |
| 84 | Cast #313249 | 1.9 | 768 | max load |
| Lyman Cast Bullet Handbook cases: Remington; Norma; trim-to length: .600"; primers: Winchester 1 1/2-108; primer size: Small Pistol; Lyman shell holder: No. 9; cast bullets used size to .310" dia.; firearm used: Smith & Wesson Model 31; barrel length: 4"; twist: 1-18 3/4"; groove diameter: .312" | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 91 | Lyman 313249 | 2.5 | 831 | Case: R-P |
| 91 | Lyman 313249 | 2.6 | 845 | Case: Norma |
| 112 | Lyman 3118 | 2.3 | 798 | Case: Norma |
| 112 | Lyman 3118 | 2.5 | 840 | Case: R-P, Good load. |
| in a 6-inch barrel Test gun for all loads was a Colt Officer's Model Heavy Barrel six inch length. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 98 | Speer HBWC | 1.5 | 649 | start charge; test firearm: Walther GSP 4" |
| 98 | Speer HBWC | 1.7 | 735 | max charge; test firearm: Walther GSP 4" |
| Speer Reloading Manual #14 This is for the 32 S&W Long and 32 Colt New Police cartridges only. max. case length: 0.920"; trim-to length: 0.910"; max cart. OAL: 1.280"; RCBS shell holder: #23; cart. case: Remington; primer: CCI 500; maximum loads should be used with CAUTION | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 100 | Win. Lead | 3.3 | 704 | primer: CCI 500 |
| Revolver Loads Chronographed in S&W M&P 4-inch barrel. Velocities are instrumental at 7.5 feet. All loads in Remington brass. Chronographed on Oehler M-10 with 5-foot screen spacing. Average temperature 70 degrees. Cast bullets were sized .312; the bore of the test gun slugged .311. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 77 | Cast LFP | 4.7 | 1234 | start load; bullet diam.: .314"; COL: 1.460"; 19,600 psi |
| 77 | Cast LFP | 5.6 | 1400 | max load; bullet diam.: .314"; COL: 1.460"; 29,400 psi |
 | 90 | Cast LRNFP | 4.4 | 1157 | start load; COL: 1.460"; 24,700 psi |
| 90 | Cast LRNFP | 5.1 | 1281 | max load; COL: 1.460"; 34,600 psi |
| 90 | LHBWC | 2.0 | 717 | start load; bullet diam.: .314"; COL: 1.200"; 13,000 psi |
| 90 | LHBWC | 2.5 | 864 | max load; bullet diam.: .314"; COL: 1.200"; 14,600 psi |
| 115 | MEI LRNFP | 4.0 | 1045 | start load; COL: 1.460"; 33,800 psi |
| 115 | MEI LRNFP | 4.5 | 1142 | max load; COL: 1.460"; 42,700 psi |
| Hodgdon Data Case: Federal; barrel length: 5"; twist: 1:16"; trim length: 1.200"; primer: Federal 200; bullet diam.: .312 (except where otherwise specified in remarks). NEVER EXCEED MAXIMUM LOADS | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 110 | Jacketed | 7.6 | 1195 | start load; min OAL: 1.590 |
| 110 | Jacketed | 7.6 | 1195 | never exceed; min OAL: 1.590; 36,000 cup |
| 125 | Jacketed | 6.8 | 1060 | start load; min OAL: 1.580 |
| 125 | Jacketed | 6.8 | 1060 | never exceed; min OAL: 1.580; 35,800 cup |
| 140 | Jacketed | 6.4 | 910 | start load; min OAL: 1.590 |
| 140 | Jacketed | 6.4 | 910 | never exceed; min OAL: 1.590; 36,000 cup |
| 146 | Jacketed | 5.6 | 885 | start load; min OAL: 1.500 |
| 146 | Jacketed | 5.6 | 885 | never exceed; min OAL: 1.500; 36,000 cup |
| 148 | Wadcutter | 3.3 | 720 | start load; min OAL: 1.420 |
| 148 | Wadcutter | 5.7 | 1010 | never exceed; min OAL: 1.420; 35,400 cup |
| 150 | Jacketed | 5.1 | 766 | start load; min OAL: 1.590 |
| 150 | Jacketed | 5.9 | 875 | never exceed; min OAL: 1.590; 35,700 cup |
| 158 | Jacketed | 5.7 | 875 | start load; min OAL: 1.580 |
| 158 | Jacketed | 5.7 | 875 | never exceed; min OAL: 1.580; 36,000 cup |
| 158 | Lead | 5.9 | 985 | start load; min OAL: 1.580 |
| 158 | Lead | 5.9 | 985 | never exceed; min OAL: 1.580; 35,700 cup |
| 170 | Jacketed | 5.1 | 785 | start load; min OAL: 1.580 |
| 170 | Jacketed | 5.1 | 785 | never exceed; min OAL: 1.580; 35,600 cup |
| 200 | Lead | 4.6 | 780 | start load; min OAL: 1.590 |
| 200 | Lead | 4.6 | 780 | never exceed; min OAL: 1.590; 35,700 cup |
| Lee Precision Data Small Pistol Primer. With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 110 | Hornady XTP | 4.5 | 1087 | start load; COL: 1.590"; 15,200 psi |
| 110 | Hornady XTP | 6.5 | 1418 | max load; COL: 1.590"; 32,200 psi |
| 125 | Hornady XTP | 4.5 | 1053 | start load; COL: 1.590"; 19,600 psi |
| 125 | Hornady XTP | 5.9 | 1263 | max load; COL: 1.590"; 32,900 psi |
| 125 | MEI Cast LRNFP | 4.0 | 1034 | start load; bullet diam.: .358"; COL: 1.580"; 13,900 psi |
| 125 | MEI Cast LRNFP | 6.0 | 1325 | max load; bullet diam.: .358"; COL: 1.580"; 29,900 psi |
| 130 | MEI Cast LRNFP | 4.0 | 1028 | start load; bullet diam.: .358"; COL: 1.580"; 14,900 psi |
| 130 | MEI Cast LRNFP | 5.7 | 1268 | max load; bullet diam.: .358"; COL: 1.580"; 29,600 psi |
| 140 | Hornady XTP | 4.5 | 966 | start load; COL: 1.590"; 20,700 psi |
| 140 | Hornady XTP | 5.4 | 1122 | max load; COL: 1.590"; 29,800 psi |
| 146 | Speer JHP | 3.5 | 804 | start load; COL: 1.535"; 17,400 psi |
| 146 | Speer JHP | 4.7 | 1035 | max load; COL: 1.535"; 30,100 psi |
| 148 | Hornady LHBWC | 3.0 | 848 | start load; bullet diam.: .358"; COL: 1.290"; 17,000 psi |
| 148 | Hornady LHBWC | 3.7 | 958 | max load; bullet diam.: .358"; COL: 1.290"; 23,500 psi |
| 158 | Hornady XTP | 3.7 | 747 | start load; COL: 1.580"; 18,800 psi |
| 158 | Hornady XTP | 4.9 | 984 | max load; COL: 1.580"; 31,700 psi |
| 158 | MEI Cast LSWC | 3.5 | 845 | start load; COL: 1.620"; 12,200 psi |
| 158 | MEI Cast LSWC | 5.0 | 1098 | max load; COL: 1.620"; 28,800 psi |
| 170 | Sierra JHC | 3.5 | 670 | start load; COL: 1.580"; 17,500 psi |
| 170 | Sierra JHC | 4.6 | 920 | max load; COL: 1.580"; 32,100 psi |
| Hodgdon Data Case: Winchester; barrel length: 10"; twist: 1:18.75"; trim length: 1.285"; primer: Winchester SPM; bullet diam.: .357" (except where otherwise specified in remarks). NEVER EXCEED MAXIMUM LOADS | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 125 | Speer GD-HP | 6.7 | 1237 | COL: 1.135"; 38,700 psi |
| 147 | Speer GD-HP | 5.0 | 1012 | COL: 1.140"; 38,600 psi |
| IMR Pistol Data Maximum Loads case: Remington; barrel length: 5"; twist: 1:16"; trim length: .860"; primer: Remington 1 1/2; bullet diam.: .355"; NEVER EXCEED MAXIMUM LOADS | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 115 | Jacketed | 3.6 | 868 | start load; min OAL: 1.265 |
| 115 | Jacketed | 4.0 | 955 | never exceed; min OAL: 1.265; 22,500 cup |
| Lee Precision Data CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Pistol primer. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 121 | Cast #358242 | 2.6 | 575 | sugg. start load |
| 121 | Cast #358242 | 3.4 | 825 | max load |
| 133 | Cast #358480 | 2.6 | 670 | sugg. start load |
| 133 | Cast #358480 | 3.2 | 830 | max load |
| 141 | Cast #358495 | 1.8 | 545 | sugg. start load |
| 141 | Cast #358495 | 2.4 | 710 | max load |
 | 158 | Cast #358311 | 2.3 | 620 | sugg. start load |
| 158 | Cast #358311 | 2.8 | 730 | max load |
| Lyman Cast Bullet Handbook cases: Winchester; trim-to length: .765"; primers: Winchester 1 1/2-108; primer size: Small Pistol; Lyman shell holder: No. 21; cast bullets used size to .360" dia.; firearm used: Special Pressure test barrel; Smith & Wesson Model 33; barrel length: 4"; twist: 1-18 3/4"; groove diameter: .361" | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 158 | Hornady swaged SWC (lead) | 2.8 | 762 | case: R-P; OAL: 1.18; case expansion: normal |
| High Power Loads Warning! The loads in this table are not, UNDER ANY CIRCUMSTANCES, suitable for older American "top-break" revolvers chambered for the .38 Smith & Wesson cartridge. British top-break Webleys and Enfields are safe; cartridge designations may be .38-200, .380 Rim, or .380 Mk 1. The Smith & Wesson "Victory" model, a Military & Police variant, is safe. Solid-frame U.S. guns suitable are Smith & Wesson Regulation Police and Terrier models, Colt Police Positive, Detective Special, and Bankers Special models. Caliber designation of these guns is generally .38 Smith & Wesson, but may be .38 S&W Super Police or .38 Colt New Police. Notes: Velocities shown are instrumental taken at ten feet from the muzzle. Test gun was Ruger Service-Six revolver with four-inch barrel, chambered for the .380 Rim cartridge. Cases used were new Remington-Peters and old Peters. Peters cases had greater powder capacity. Alcan Small Pistol primers used for all loads. Oehler Model 31 Chronotach and Model 51 electronic screens used to measure bullet velocities. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 155 | Cast gas check #358156 (Linotype) | 3.0 | 584 | sugg. start load; 1.460" OAL; 8,700 cup |
| 155 | Cast gas check #358156 (Linotype) | 4.2 | 825 | max load; 1.460" OAL; 16,200 cup |
| Cast Bullet Data Lyman Reloading Handbook 49th Edition cases: Federal; trim-to length: 1.149"; primers: CCI 500; primer size: Small Pistol; Lyman shell holder: No. 1; cast bullets used sized to .358" dia.; firearm used: Universal Receiver; barrel length: 4"; twist: 1-18 3/4"; groove dia.: .357"; (+P) designates higher pressure loads | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 110 | Hornady XTP | 4.3 | 953 | start load; bullet diam.: .357"; COL: 1.455"; 14,100 psi |
| 110 | Hornady XTP | 4.8 | 1063 | max load; bullet diam.: .357"; COL: 1.455"; 16,400 psi |
| 125 | Hornady XTP | 3.6 | 810 | start load; bullet diam.: .357"; COL: 1.455"; 13,000 psi |
| 125 | Hornady XTP | 4.1 | 926 | max load; bullet diam.: .357"; COL: 1.455"; 15,700 psi |
 | 125 | Cast LRNFP | 4.0 | 959 | start load; bullet diam.: .358"; COL: 1.445"; 13,400 psi |
| 125 | Cast LRNFP | 4.5 | 1060 | max load; bullet diam.: .358"; COL: 1.445"; 16,500 psi |
| 130 | MEI Cast LRNFP | 3.9 | 887 | start load; bullet diam.: .358"; COL: 1.460"; 12,400 psi |
| 130 | MEI Cast LRNFP | 4.4 | 996 | max load; bullet diam.: .358"; COL: 1.460"; 16,500 psi |
| 140 | Hornady XTP | 3.4 | 688 | start load; bullet diam.: .357"; COL: 1.455"; 12,500 psi |
| 140 | Hornady XTP | 3.8 | 816 | max load; bullet diam.: .357"; COL: 1.455"; 16,100 psi |
| 140 | Hornady Cowboy | 4.1 | 888 | start load; bullet diam.: .358"; COL: 1.450"; 13,400 psi |
| 140 | Hornady Cowboy | 4.6 | 971 | max load; bullet diam.: .358"; COL: 1.450"; 16,100 psi |
| 146 | Speer JHP | 3.4 | 699 | start load; bullet diam.: .357"; COL: 1.370"; 12,600 psi |
| 146 | Speer JHP | 3.8 | 793 | max load; bullet diam.: .357"; COL: 1.370"; 16,500 psi |
| 148 | Hornady LHBWC | 2.6 | 745 | start load; bullet diam.: .358"; COL: 1.160"; 11,000 psi |
| 148 | Hornady LHBWC | 3.0 | 840 | max load; bullet diam.: .358"; COL: 1.160"; 16,300 psi |
| 158 | Hornady XTP | 3.5 | 688 | start load; bullet diam.: .357"; COL: 1.455"; 12,800 psi |
| 158 | Hornady XTP | 3.9 | 793 | max load; bullet diam.: .357"; COL: 1.455"; 16,500 psi |
| 158 | MEI Cast LSWC | 3.2 | 744 | start load; bullet diam.: .358"; COL: 1.475"; 12,200 psi |
| 158 | MEI Cast LSWC | 3.7 | 861 | max load; bullet diam.: .358"; COL: 1.475"; 15,500 psi |
| 170 | Sierra JHC | 3.3 | 627 | start load; bullet diam.: .357"; COL: 1.450"; 13,000 psi |
| 170 | Sierra JHC | 3.6 | 706 | max load; bullet diam.: .357"; COL: 1.450"; 16,000 psi |
| Hodgdon Pistol Data Case: Winchester; twist: 1:18.75"; primer: Winchester SP, Small Pistol; barrel length: 7.7"; trim length: 1.145". | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 158 | Cast #358156 gas check | 3.0 | 584 | sugg. start load; 8,700 cup |
| 158 | Cast #358156 gas check | 4.2 | 825 | max load; 16,200 cup |
| 158 | Cast #358311 | 3.0 | 604 | sugg. start load; 7,900 cup |
| 158 | Cast #358311 | 4.5 | 871 | max load; 16,100 cup |
| 162 | Cast #357446 | 3.4 | 646 | sugg. start load; 9,500 cup |
| 162 | Cast #357446 | 4.6 | 877 | max load; 16,300 cup |
| Lyman Cast Bullet Handbook 3rd Edition cases: Federal; trim-to length: 1.149"; primers: CCI 500; primer size: Small Pistol; Lyman shell holder: No. 1; cast bullets used size to .357" dia.; firearm used: Universal Receiver and Special Vented Barrel; barrel length: 4"; twist: 1-18 3/4"; groove diameter: .357". NOTE: More Lyman cast bullet data available under .38 Special (Cast Bullet Data Lyman Reloading Manual 49th Edition) and .38 Special (Lyman Cast Bullet Handbook 4th Edition). NOTE: Loads designated with the symbol (+P) are higher pressure loads to give greater velocities. These loads should be used only in arms recommended for (+P) type cartridges by the gun manufacturer. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 147 | Cast FN | 4.2 | 840 | maximum load |
| 147 | Cast FN | 3.7 | 761 | |
| 158 | L-SWC, L-HP, L-RN | 4.2 | 858 | maximum load |
| 158 | L-SWC, L-HP, L-RN | 3.7 | 770 | |
| 110 | JHP | 4.9 | 979 | maximum load |
| 125 | JSP, GD-HP, JHP, TMJ | 4.9 | 927 | maximum load; DO NOT REDUCE |
| Speer Reloading Manual #13 max. case length: 1.155"; trim-to length: 1.145"; max. cart. length: 1.550"; RCBS shellholder: #6; barrel length: 6"; twist: 1-18.75"; test firearm: Smith & Wesson Model 14; case: Speer; primers: CCI 500, 550; for the 147 grain cast bullets: seat to and roll-crimp into the front lube groove; use maximum loads with caution | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 147 | Speer FN | 3.7 | 761 | start charge; bullets cast in RCBS moulds |
| 147 | Speer FN | 4.2 | 840 | maximum charge; bullets cast in RCBS moulds |
| 158 | Speer LSWC, LSWC HP or LRN | 3.7 | 770 | start charge |
| 158 | Speer LSWC, LSWC HP or LRN | 4.2 | 858 | maximum charge |
| Speer Reloading Manual #14 max. case length: 1.155"; trim-to length: 1.145"; max cart. OAL: 1.550"; RCBS shell holder: #6; cart. case: Speer; primer: CCI 500; 550; test firearm: S&W Model 14; barrel length: 6"; use maximum loads with CAUTION | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 110 | Hornady XTP | 4.9 | 1103 | 17,800 psi |
| 125 | Hornady XTP | 4.4 | 985 | 17,600 psi |
| 140 | Hornady XTP | 4.1 | 874 | 18,100 psi |
| 146 | Speer JHP | 3.9 | 826 | COL: 1.370"; 17,300 psi |
| 150 | Nosler JFP | 4.0 | 814 | COL: 1.450"; 17,500 psi |
| 158 | Hornady XTP | 4.1 | 836 | 17,900 psi |
| 170 | Sierra JHC | 3.8 | 762 | COL: 1.450"; 18,000 psi |
| +P (Hodgdon Pistol Data Maximum Loads) case: Winchester; barrel length: 7.7"; twist: 1:18.75"; trim length: 1.145"; primer: Winchester SP; bullet diam.: .357"; COL: 1.455" (except where otherwise specified in remarks); NEVER EXCEED MAXIMUM LOADS | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 158 | Speer LSWC, LSWC HP or LRN | 4.2 | 858 | start charge |
| 158 | Speer LSWC, LSWC HP or LRN | 4.6 | 962 | maximum charge |
| 125 | Speer UCSP, GDHP, UCHP or TMJ FN | 4.9 | 927 | start charge |
| 125 | Speer UCSP, GDHP, UCHP or TMJ FN | 5.4 | 1021 | maximum charge |
| 135 | Speer GDHP SB | 4.7 | 936 | DO NOT REDUCE; maximum charge |
| +P Speer Reloading Manual #14 max. case length: 1.155"; trim-to length: 1.145"; max cart. OAL: 1.550"; RCBS shell holder: #6; cart. case: Speer; primer: CCI 500; test firearm: S&W Model 14; barrel length: 6"; maximum loads should be used with CAUTION | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 135 | Speer GDHP SB | 4.7 | 788 | DO NOT REDUCE; maximum charge |
| +P Short Barrel Velocities Speer Reloading Manual #14 max. case length: 1.155"; trim-to length: 1.145"; max cart. OAL: 1.550"; RCBS shell holder: #6; cart. case: Speer; primer: CCI 500; test firearm: S&W Model 15; barrel length: 2"; maximum loads should be used with CAUTION | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 95 | Jacketed | 4.9 | 1015 | start load; min. OAL: 1.470 |
| 95 | Jacketed | 5.1 | 1055 | NEVER EXCEED; 15,600 cup; min. OAL: 1.470 |
| 110 | Jacketed | 4.7 | 972 | start load; min. OAL: 1.460 |
| 110 | Jacketed | 4.8 | 990 | NEVER EXCEED; 15,200 cup; min. OAL: 1.460 |
| 125 | Jacketed | 4.4 | 841 | start load; min. OAL: 1.525 |
| 125 | Jacketed | 4.6 | 865 | NEVER EXCEED; 15,500 cup; min. OAL: 1.525 |
| 140 | Jacketed | 4.0 | 700 | start load; min. OAL: 1.455 |
| 140 | Jacketed | 4.2 | 735 | NEVER EXCEED; 15,700 cup; min. OAL: 1.455 |
| 146 | Jacketed | 3.7 | 690 | start load; min. OAL: 1.395 |
| 146 | Jacketed | 3.9 | 725 | NEVER EXCEED; 15,700 cup; min. OAL: 1.395 |
| 148 | Wad Cutter | 2.8 | 666 | start load; min. OAL: 1.295 |
| 148 | Wad Cutter | 3.8 | 855 | NEVER EXCEED; 15,800 cup; min. OAL: 1.295 |
| 150 | Jacketed | 3.8 | 723 | start load; min. OAL: 1.445 |
| 150 | Jacketed | 4.0 | 765 | NEVER EXCEED; 15,900 cup; min. OAL: 1.445 |
| 158 | Jacketed | 3.6 | 584 | start load; min. OAL: 1.465 |
| 158 | Jacketed | 3.9 | 620 | NEVER EXCEED; 16,000 cup; min. OAL: 1.465 |
| 158 | Lead | 3.4 | 672 | start load; min. OAL: 1.520 |
| 158 | Lead | 4.0 | 775 | NEVER EXCEED; 15,500 cup; min. OAL: 1.520 |
| 200 | Lead | 3.2 | 725 | start load; min. OAL: 1.500 |
| 200 | Lead | 3.4 | 760 | NEVER EXCEED; 15,800 cup; min. OAL: 1.500 |
| Lee Precision Data With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Pistol Primer. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 125 | Speer UCSP, GDHP, UCHP or TMJ FN | 4.9 | 927 | maximum charge; DO NOT REDUCE |
| Short Barrel Velocities Speer Reloading Manual #14 test firearm: S&W M15 2"; use maximum loads with CAUTION | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 148 | Precision | 2.8 | 660 | best group: 1.06 |
| 4-Inch Barrel Colt Diamondback Revolver. Precision, Speer H.B. and Hornady wadcutters were all of hollow-base design, while the Speer Standard and RCBS-Mould cast bullets were solid flat-base type. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 148 | Precision | 2.8 | 679 | Best group: 1.94 |
| 5-Inch Barrel Colt National Match Mk. III Auto. Precision, Speer H.B. and Hornady wadcutters were all of hollow-base design, while the Speer Standard and RCBS-Mould cast bullets were solid flat-base type. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 148 | Precision | 2.8 | 658 | Best group: .62 |
| 6-Inch Barrel Colt 357 Revolver. Precision, Speer H.B. and Hornady wadcutters were all of hollow-base design, while the Speer Standard and RCBS-Mould cast bullets were solid flat-base type. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 115 | Hornady XTP | 4.0 | 955 | max load; COL: 1.245"; 22,500 cup |
| Hodgdon Data Case: Remington; twist: 1:16"; primer: Remington 1 1/2, Small Pistol; barrel length: 5"; trim length: .895"; bullet diam.: .355" (except where otherwise specified in remarks). | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 115 | Hornady HP | 4.0 | 955 | 22,500 cup |
| IMR Pistol Data Maximum Loads case: Remington; barrel length: 5"; twist: 1:16"; trim length: .895"; primer: CCI 500; bullet diam.: .355"; COL: 1.265"; NEVER EXCEED MAXIMUM LOADS | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 95 | Cast #356404 | 4.9 | 1195 | sugg. start load; 20,400 cup |
| 95 | Cast #356404 | 6.7 | 1430 | max load; 31,500 cup |
| Lyman Cast Bullet Handbook cases: Remington; trim-to length: .895"; primers: Winchester 1 1/2-108; primer size: Small Pistol; Lyman shell holder: No. 12; cast bullets used size to .355" dia.; firearm used: Universal Receiver; barrel length: 5"; twist: 1-16"; groove diameter: .355". NOTE: More Lyman cast bullet data available under .38 Super Automatic Cast Bullet Handgun Data Lyman Reloading Handbook 49th Edition | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
 | 90 | Cast #356242 | 4.3 | 1009 | sugg. start load; 18,900 cup; 1.175" OAL |
| 90 | Cast #356242 | 5.7 | 1222 | max load; 30,500 cup; 1.175" OAL |
| Lyman Reloading Handbook 49th Edition cases: Remington; trim-to length: .895"; primers: Winchester WSP; primer size: Small Pistol; Lyman shell holder: No. 12; cast bullets used sized to .355" dia.; firearm used: Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .355" | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 90 | Sierra Jacketed HP | 5.5 | 1193 | sugg. start load; 20,400 cup; 1.125" OAL |
| 90 | Sierra Jacketed HP | 7.3 | 1482 | max load; 29,900 cup; 1.125" OAL |
| Lyman Reloading Handbook 49th Edition cases: Remington; trim-to length: .895"; primers: CCI 500; primer size: Small Pistol; Lyman shell holder: No. 12; firearm used: Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .355" | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 92 | Cast #358242 | 2.2 | 645 | sugg. start load; 10,300 cup |
| 92 | Cast #358242 | 2.8 | 860 | max load; 15,200 cup |
| 121 | Cast #358242 | 1.7 | 605 | sugg. start load; 10,800 cup |
| 121 | Cast #358242 | 2.2 | 750 | max load; 15,800 cup |
| Lyman Cast Bullet Handbook 3rd Edition case: Super Vel (except where otherwise specified in remarks); trim-to length: .677"; primers; Winchester 1 1/2-108; primer size: Small Pistol; Lyman shell holder: No. 26; cast bullets used sized to .355" dia.; firearm used: Universal Receiver; barrel length: 3 3/4"; twist: 1-16"; groove diameter: .355"; bullets: cast #358242 (#2 Alloy) .980" OAL | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 90 | Cast Lyman #356242 (sized to .355" dia) | 2.2 | 645 | sugg start load; 10,300 cup; .980" OAL |
| 90 | Cast Lyman #356242 (sized to .355" dia) | 2.8 | 860 | max load; 15,200 cup; .980" OAL |
 | 120 | Cast Lyman #356242 (sized to .355" dia) | 1.7 | 605 | sugg start load; 10,800 cup; .980" OAL |
| 120 | Cast Lyman #356242 (sized to .355" dia) | 2.2 | 750 | max load; 15,800 cup; .980" OAL |
| Lyman Reloading Handbook 49th Edition cases: Federal; trim-to length: .677"; primers: Federal 100 and Winchester WSP; primer size: small pistol; Lyman shell holder: No. 26; firearm used: Universal Receiver; barrel length: 3 3/4"; twist: 1-16"; groove dia.: .355" | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 90 | Hornady HP | 3.0 | 890 | COL: .970"; 15,700 cup |
| 100 | Hornady FMJ | 2.8 | 835 | COL: .980"; 15,400 cup |
| IMR Pistol Data Maximum Loads case: Remington; barrel length: 3.75"; twist: 1:16"; trim length: .675"; primer: CCI 500; bullet diam.: .355"; NEVER EXCEED MAXIMUM LOADS | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 90 | Jacketed | 2.9 | 850 | start load; min OAL: 0.970 |
| 90 | Jacketed | 3.0 | 890 | never exceed; min OAL: 0.970; 15,700 cup |
| 100 | Jacketed | 2.7 | 811 | start load; min OAL: 0.980 |
| 100 | Jacketed | 2.8 | 835 | never exceed; min OAL: 0.980; 15,400 cup |
| Lee Precision Data CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Pistol Primer. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 100 | Speer JHP | 3.1 | 757 | |
| in an OMC Back Up Loads chronographed in an OMC "Back Up" .380, 2 1/2-inch barrel; Oehler M-32 Chronotach with Model 61 Skyscreens, 10 feet instrumental converted to muzzle velocity; average temperature 50 degrees; all loads in Winchester brass with CCI 500 primers | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 125 | SinterFire | 4.8 | 1057 | start load; COL: 1.120"; 23,800 psi |
| 125 | SinterFire | 5.3 | 1127 | max load; COL: 1.120"; 26,500 psi |
| 135 | Nosler JHP | 5.7 | 1111 | start load; COL: 1.125"; 27,300 psi |
| 135 | Nosler JHP | 6.2 | 1183 | max load; COL: 1.125"; 32,500 psi |
| 150 | Nosler JHP | 5.1 | 1048 | start load; COL: 1.125"; 29,500 psi |
| 150 | Nosler JHP | 5.4 | 1090 | max load; COL: 1.125"; 32,700 psi |
| 155 | Hornady XTP | 5.2 | 1030 | start load; COL: 1.125"; 28,100 psi |
| 155 | Hornady XTP | 5.7 | 1084 | max load; COL: 1.125"; 32,400 psi |
| 155 | Berry's Bullets FP | 5.4 | 1020 | start load; COL: 1.125"; 24,900 psi |
| 155 | Berry's Bullets FP | 6.2 | 1132 | max load; COL: 1.125"; 32,300 psi |
| 165 | Sierra JHP | 4.7 | 932 | start load; COL: 1.125"; 26,400 psi |
| 165 | Sierra JHP | 5.2 | 1007 | max load; COL: 1.125"; 32,200 psi |
| 165 | Berry's Bullets FP | 5.1 | 982 | start load; COL: 1.125"; 27,000 psi |
| 165 | Berry's Bullets FP | 5.6 | 1056 | max load; COL: 1.125"; 32,800 psi |
| 180 | Berry's Bullets FP | 4.7 | 904 | start load; COL: 1.125"; 27,100 psi |
| 180 | Berry's Bullets FP | 5.1 | 979 | max load; COL: 1.125"; 32,800 psi |
| 180 | Hornady XTP | 4.1 | 851 | start load; COL: 1.125"; 26,200 psi |
| 180 | Hornady XTP | 4.5 | 917 | max load; COL: 1.125"; 30,400 psi |
| 200 | Hornady XTP | 3.4 | 714 | start load; COL: 1.125"; 26,500 psi |
| 200 | Hornady XTP | 3.7 | 782 | max load; COL: 1.125"; 32,200 psi |
| Hodgdon Data Case: Hornady; twist: 1:16"; primer: Winchester SP, Small Pistol; barrel length: 4"; trim length: .845"; bullet diam.: .400". This data is intended for use in firearms with barrels which fully support the cartridge in the chamber. Use of this data in firearms which do not fully support the cartridge, such as Glock, may result in bulged cases, ruptured cases, case head separation, or other conditions which may result in damage to the firearm and/or result in injury or death of the shooter and/or bystanders. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 135 | Jacketed | 7.0 | 1147 | start load; compressed charge; min. OAL: 1.125 |
| 135 | Jacketed | 7.5 | 1230 | NEVER EXCEED; compressed charge; min. OAL: 1.125; 31,000 psi |
| Lee Precision 135 GR Data Do not use reloads in Glock or similar guns with chambers that do not fully support the cartridge due to the intrusion of the feed ramp. CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Pistol Primer. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 150 | Jacketed | 6.0 | 1052 | start load; min. OAL: 1.125 |
| 150 | Jacketed | 6.5 | 1135 | NEVER EXCEED; compressed charge; min. OAL: 1.125; 33,500 psi |
| Lee Precision 150 GR Data Do not use reloads in Glock or similar guns with chambers that do not fully support the cartridge due to the intrusion of the feed ramp. CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Pistol Primer. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 180 | Jacketed Bullet | 4.6 | 886 | start load; min. OAL: 1.125 |
| 180 | Jacketed Bullet | 5.1 | 975 | NEVER EXCEED; min. OAL: 1.125; 34,400 psi |
| Lee Precision 180 GR Data Do not use reloads in Glock or similar guns with chambers that do not fully support the cartridge due to the intrusion of the feed ramp. CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Pistol Primer. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 170 | Jacketed | 9.9 | 1302 | start load; min OAL: 1.575 |
| 170 | Jacketed | 11.3 | 1460 | never exceed; compressed; min OAL: 1.575; 40,000 cup |
| 210 | Jacketed | 8.5 | 1128 | start load; min OAL: 1.590 |
| 210 | Jacketed | 9.7 | 1265 | never exceed; min OAL: 1.590; 40,000 cup |
| 210 | Lead | 8.1 | 1136 | start load; min OAL: 1.590 |
| 210 | Lead | 9.0 | 1250 | never exceed; min OAL: 1.590; 39,300 cup |
| Lee Precision Data CAUTION: With NEVER EXCEED LOADS; maintain Minimum Over All Length or longer. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 200 | LRNFP Cast | 5.1 | 781 | max load; COL: 1.570"; 10,700 cup |
| Hodgdon Pistol Data - IMR Powder Case: Winchester; barrel length: 8.275"; twist: 1:20"; trim length: 1.280"; primer: Remington 2 1/2; bullet diam.: .430" (except where otherwise specified in remarks). NEVER EXCEED MAXIMUM LOADS | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 200 | Jacketed | 10.6 | 1195 | start load; min OAL: 1.610 |
| 200 | Jacketed | 12.0 | 1340 | never exceed; min OAL: 1.610; 39,800 cup |
| 225 | Jacketed | 9.9 | 1110 | start load; min OAL: 1.585 |
| 225 | Jacketed | 11.2 | 1245 | never exceed; min OAL: 1.585; 39,900 cup |
| 240 | Jacketed | 9.8 | 1057 | start load; min OAL: 1.590 |
| 240 | Jacketed | 11.1 | 1185 | never exceed; min OAL: 1.590; 39,800 cup |
| 240 | Lead | 8.2 | 987 | start load; min OAL: 1.585 |
| 240 | Lead | 10.3 | 1195 | never exceed; min OAL: 1.585; 39,600 cup |
| Lee Precision Data Large pistol primer. CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 240 | Hornady LSWC | 5.7 | 750 | bullet diam.: .430"; COL: 1.470"; 14,000 cup |
| 246 | Rem LRN | 5.6 | 745 | bullet diam.: .431"; COL: 1.570"; 13,600 cup |
| IMR Pistol Data Maximum Loads case: Remington; barrel length: 6.5"; twist: 1:20"; trim length: 1.155"; primer: Remington 2 1/2; NEVER EXCEED MAXIMUM LOADS | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 185 | Cast LRNFP | 5.4 | 908 | start load; COL: 1.400"; 10,500 cup |
| 185 | Cast LRNFP | 6.1 | 1002 | max load; COL: 1.400"; 13,200 cup |
| 200 | Cast LRNFP | 5.0 | 826 | start load; COL: 1.450"; 9,000 cup |
| 200 | Cast LRNFP | 6.0 | 962 | max load; COL: 1.450"; 11,600 cup |
| 200 | Nosler JHP | 5.5 | 829 | start load; COL: 1.460"; bullet diam.: .429"; 10,800 cup |
| 200 | Nosler JHP | 6.1 | 901 | max load; COL: 1.460"; bullet diam.: .429"; 13,100 cup |
| 220 | Berry's Bullets FP | 5.3 | 789 | start load; COL: 1.460"; 8,100 cup |
| 220 | Berry's Bullets FP | 6.2 | 864 | max load; COL: 1.460"; 12,800 cup |
| 240 | Cast LSWC | 4.7 | 757 | start load; COL: 1.450"; 9,600 cup |
| 240 | Cast LSWC | 5.3 | 863 | max load; COL: 1.450"; 13,400 cup |
| Hodgdon Data Case: Starline; barrel length: 8"; twist: 1:20"; trim length: 1.155"; primer: Winchester LP; bullet diam. .430" (except where otherwise specified in remarks). NEVER EXCEED MAXIMUM LOADS | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 240 | Lead | 5.0 | 668 | start load; min OAL: 1.470 |
| 240 | Lead | 5.7 | 750 | never exceed; min OAL: 1.470; 14,000 cup |
| 246 | Lead | 5.1 | 682 | start load; min OAL: 1.570 |
| 246 | Lead | 5.6 | 745 | never exceed; min OAL: 1.570; 13,600 cup |
| Lee Precision Data CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Large Pistol Primer. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 200 | Hornady SWC | 5.5 | 878 | primer: F 150; O.A. Ctg. Lgt.: 1.225; case expansion normal |
| 230 | Speer RNL | 5.3 | 831 | primer: F 150; O.A. Ctg. Lgt.: 1.272; case expansion normal |
JHP = jacketed hollowpoint; FMJ = full metal jacket; SWC = semiwadcutter; RNL = roundnose lead. Test Guns: Colt Gold Cup National Match and Colt service automatics. Ruger Convertible revolver with 4-5/8-inch barrel used for velocity comparisons. Federal cases used throughout tests. Velocities chronographed with Oehler Model 31 Chronotach and Model 51 electronic screens; velocities taken at ten feet; screen spacing, ten feet. Accuracy Goals: (five-shot groups - sandbag rest) - one inch at fifty feet; three to four inches at fifty yards. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 155 | Cast LSWC | 5.8 | 989 | start load; COL: 1.230"; 13,600 cup |
| 155 | Cast LSWC | 6.5 | 1095 | max load; COL: 1.230"; 17,500 cup |
| 155 | SinterFire | 5.3 | 901 | start load; COL: 1.220"; 12,100 cup |
| 155 | SinterFire | 5.8 | 1016 | max load; COL: 1.220"; 16,600 cup |
| 160 | Barnes TAC-XP | 5.5 | 967 | start load; COL: 1.200"; 17,500 psi |
| 160 | Barnes TAC-XP | 5.8 | 1033 | max load; COL: 1.200"; 19,800 psi |
| 180 | LFP | 5.4 | 885 | start load; bullet diam.: .452"; COL: 1.140"; 12,900 cup |
| 180 | LFP | 6.0 | 976 | max load; bullet diam.: .452"; COL: 1.140"; 16,300 cup |
| 185 | Hornady JSWC | 5.2 | 804 | start load; COL: 1.135"; 11,400 cup |
| 185 | Hornady JSWC | 5.8 | 935 | max load COL: 1.135"; 16,200 cup |
| 200 | Speer JHP | 5.0 | 798 | start load; COL: 1.155"; 12,800 cup |
| 200 | Speer JHP | 5.5 | 873 | max load; COL: 1.155"; 16,100 cup |
| 200 | Cast LSWC | 5.2 | 831 | start load; COL: 1.225"; 12,200 cup |
| 200 | Cast LSWC | 5.7 | 915 | max load; COL: 1.225"; 15,900 cup |
| 230 | LRN | 4.2 | 736 | start load; bullet diam.: .452"; COL: 1.200"; 11,600 cup |
| 230 | LRN | 4.7 | 833 | max load; bullet diam.: .452"; COL: 1.200"; 15,900 cup |
| 230 | Hornady FMJ FP | 4.5 | 709 | start load; COL: 1.200"; 12,200 cup |
| 230 | Hornady FMJ FP | 5.0 | 807 | max load; COL: 1.200"; 16,500 cup |
| Hodgdon Data Case: Winchester; twist: 1:16"; primer: Federal 150, Large Pistol; barrel length: 5"; trim length: .893"; bullet diam.: .451" (except where otherwise specified in remarks) | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 185 | Rem MC HP | 6.1 | 855 | COL: 1.210"; 17,900 cup |
| 200 | Hornady LSWC | 5.9 | 885 | bullet diam.: .452"; COL: 1.170"; 17,900 cup |
| 200 | Speer JHP | 6.0 | 825 | COL: 1.170"; 17,200 cup |
| 230 | Rem LRN | 5.5 | 810 | COL: 1.270"; 17,900 cup |
| 230 | Rem MC | 5.5 | 750 | COL: 1.260"; 17,900 cup |
| IMR Pistol Data Maximum Loads case: Remington; barrel length: 5"; twist: 1:16"; trim length: .893"; primer: Remington 2 1/2; bullet diam.: .451" (except where otherwise specified in remarks); NEVER EXCEED MAXIMUM LOADS | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 185 | Jacketed | 5.1 | 755 | start load; min OAL: 1.150 |
| 185 | Jacketed | 5.9 | 890 | never exceed; min OAL: 1.150; 17,900 cup |
| 200 | Jacketed | 5.5 | 764 | start load; min OAL: 1.170 |
| 200 | Jacketed | 6.0 | 825 | never exceed; min OAL: 1.170; 17,200 cup |
| 200 | Lead | 5.1 | 775 | start load; min OAL: 1.170 |
| 200 | Lead | 5.9 | 885 | never exceed; min OAL: 1.170; 17,900 cup |
| 230 | Jacketed | 4.9 | 668 | start load; min OAL: 1.260 |
| 230 | Jacketed | 5.5 | 750 | never exceed; min OAL: 1.260; 17,900 cup |
| 230 | Lead | 5.2 | 772 | start load; min OAL: 1.270 |
| 230 | Lead | 5.5 | 810 | never exceed; min OAL: 1.270; 17,900 cup |
| Lee Precision Data Large Pistol primer; with NEVER EXCEED LOADS maintain Minimum Over All Length or longer | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 185 | Cast #452389 | 4.6 | 740 | sugg. start load; 8,300 cup |
| 185 | Cast #452389 | 5.5 | 920 | max load; 13,500 cup |
| 195 | Cast #452488 | 4.6 | 765 | sugg. start load; 10,100 cup |
| 195 | Cast #452488 | 5.5 | 910 | max load; 14,800 cup |
| Lyman Cast Bullet Handbook cases: Remington; trim-to length: .895"; primers: Remington 2 1/2; primer size: Large Pistol; Lyman shell holder: No. 2; cast bullets used size to .450" dia.; firearm used: Universal Receiver; barrel length: 5"; twist: 1-16"; groove diameter: .450". NOTE: More Lyman cast bullet data available under .45 ACP Cast Bullet Data Lyman Reloading Handbook 49th Edition | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 185 | Hornady Jacketed HP/XTP | 4.6 | 660 | sugg. start load; 1.175" OAL; 9,100 cup |
| 185 | Hornady Jacketed HP/XTP | 6.9 | 968 | max load; 1.175" OAL; 17,700 cup |
| Lyman Reloading Handbook 49th Edition cases: Remington, Federal; trim-to length: .888"; primers: Remington 2 1/2; primer size: Large Pistol; Lyman shell holder: No. 2; firearm used: Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .450" | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 185 | Speer TMJ Match | 5.5 | 770 | maximum load |
| 185 | Speer TMJ Match | 5.0 | 719 | |
| Speer Reloading Manual #11 gun: Colt Gov't. Model; barrel: 5"; twist: 1-16; cases: Speer; primers: CCI-300; maximum loads listed should be used with caution | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 185 | Speer TMJ Match SWC | 5.0 | 719 | start charge |
| 185 | Speer TMJ Match SWC | 5.5 | 770 | maximum charge |
| Speer Reloading Manual #14 max. case length: 0.898"; trim-to length: 0.888"; max cart. OAL: 1.275"; RCBS shell holder: #3; cart. case: Speer; primer: CCI 300; test firearm: SIG P220; barrel length: 4.4"; IMPORTANT SAFETY NOTE: These loads were developed and tested for safe use in HANDGUNS. Not all loads may be suitable for use in a carbine or rifle chambered for this cartridge. If loading for a carbine or rifle, choose from among the loads developing the highest handgun velocities and load just a few rounds. Thoroughly test this small sample in your firearm in slow-fire mode, insuring that you achieve proper feeding and ejection. Be certain that all bullets exit the barrel; watching the target for each bullet strike is the best way to know that the load produces sufficient gas volume for a longer barrel. NOTE: Do not use the 230-GR TMJ RN loads with Gold Dot HP; maximum loads should be used with CAUTION | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 200 | Hornady/L-SWC "new" | 6.3 | 986 | primer: Fed. 150; group size: 2.02; accurate; leads; note very high velocity |
| in a Browning BDA 4.4-inch barrel. Average of two or more five-shot groups for handloads. All groups shot at 25 yards from rest. All handloads in Federal brass. Oehler Model 32/61 Chronotach/Skyscreen System. Average temperature 32 degrees. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 200 | Hornady/L-SWC "new" | 6.3 | 958 | primer: Fed. 150; group size: 4.32; note very high velocity |
| in a Heckler & Koch P9S 4-inch polygonal-rifled barrel. Average of two or more five-shot groups for handloads. All groups shot at 25 yards from rest. All handloads in Federal brass. Oehler Model 32/61 Chronotach/Skyscreen System. Average temperature 32 degrees. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 200 | Jacketed | 5.0 | 703 | start load; min OAL: 1.170 |
| 200 | Jacketed | 5.4 | 759 | never exceed; min OAL: 1.170; 14,620 cup |
| Lee Precision Data CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 185 | Cast #452389 | 4.5 | 620 | sugg. start load |
| 185 | Cast #452389 | 5.8 | 855 | max load |
| 238 | Cast #452423 | 3.9 | 535 | sugg. start load |
| 238 | Cast #452423 | 4.8 | 690 | max load |
| Lyman Cast Bullet Handbook cases: Remington; trim-to length: .894"; primers: Remington 2 1/2; primer size: Large Pistol; Lyman shell holder: No. 14A; cast bullets used size to .451" dia.; firearm used: Smith & Wesson Model 25 (except where otherwise specified in remarks); barrel length: 4 1/2 and 6 1/2"; twist: 1-16"; groove diameter: .451". NOTE: More Lyman cast bullet data available under .45 Auto Rim Lyman Reloading Handbook 49th Edition | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 200 | Cast #452460 | 4.5 | 650 | sugg. start load; 1.161" OAL |
| 200 | Cast #452460 | 5.5 | 840 | max load; 1.161" OAL |
| 225 | Cast #452374 | 4.5 | 565 | sugg. start load; 1.265" OAL |
| 225 | Cast #452374 | 5.4 | 735 | max load; 1.265" OAL |
| Lyman Reloading Handbook 49th Edition cases: Remington; trim-to length: .888"; primers: Remington 2 1/2; primer size: Large Pistol; Lyman shell holder: No. 14A; cast bullets used sized to .451" dia.; firearm used: Universal Receiver, Smith & Wesson Model 25; barrel length: Universal Receiver - 4 1/2", Model 25 - 6 1/2"; twist: 1-16"; groove dia.: .451" | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 187 | Lyman 452486 | 6.0 | 818 | diameter: 0.452 in.; 3 1/2 inches at 25 yards |
| in a Colt Velocities represent five-shot averages taken ten feet from the muzzles of the test revolvers and measured on an Oehler Model 33 Chronotach. Colt Model 17 barrel, 5 1/2 inches, Webley Mark VI barrel, 6 inches. Range temperature, 87 degrees F. No wind. CCI 300 primers used with all loads. Five of every type of cast bullet used in the range tests were checked on a Saeco hardness tester. Average hardness level of alloy, 6 1/2. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 187 | Lyman 452486 | 6.0 | 799 | diameter: 0.452 in.; 3 1/2 inches at 25 yards |
| in a Webley Velocities represent five-shot averages taken ten feet from the muzzles of the test revolvers and measured on an Oehler Model 33 Chronotach. Colt Model 17 barrel, 5 1/2 inches, Webley Mark VI barrel, 6 inches. Range temperature, 87 degrees F. No wind. CCI 300 primers used with all loads. Five of every type of cast bullet used in the range tests were checked on a Saeco hardness tester. Average hardness level of alloy, 6 1/2. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 185 | Remington JHP | 6.0 | 897 | Primer: Fed. 150; ME: 329; extremely clean burning |
| 200 | Speer SWC-L | 6.3 | 919 | Primer: Fed. 150; ME: 374; second most accurate load - most powerful "target" load |
| Load Data All loads in Remington brass. Velocities taken on an Oehler M-10 Chronograph; 7 1/2 feet instrumental converted to muzzle velocity. Average temperature, 66 degrees. Test gun was an S&W M1917 with 5 1/2-inch barrel. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 160 | Cast LRNFP | 6.0 | 824 | start load; COL: 1.500"; 7,500 psi |
| 160 | Cast LRNFP | 8.1 | 1118 | max load; COL: 1.500"; 13,100 psi |
| 180 | Cast LRNFP | 6.0 | 806 | start load; COL: 1.540"; 7,900 psi |
| 180 | Cast LRNFP | 7.9 | 1041 | max load; COL; 1.540"; 12,500 psi |
| 200 | Cast LRNFP | 6.4 | 814 | start load; COL: 1.600"; 8,400 psi |
| 200 | Cast LRNFP | 8.2 | 1053 | max load; COL: 1.600"; 12,800 psi |
| 200 | Hornady XTP | 5.5 | 700 | start load; COL: 1.600"; 9,000 psi |
| 200 | Hornady XTP | 7.5 | 950 | max load; COL: 1.600"; 13,300 psi |
| 215 | Cast LRNFP | 5.8 | 749 | start load; COL: 1.650"; 8,500 psi |
| 215 | Cast LRNFP | 7.8 | 948 | max load; COL: 1.650"; 12,400 psi |
| 225 | Hornady FTX | 6.3 | 658 | start load; COL: 1.600"; 8,900 psi |
| 225 | Hornady FTX | 7.9 | 888 | max load; COL: 1.600"; 12,900 psi |
| 230 | Cast LRNFP | 5.8 | 751 | start load; COL: 1.580"; 10,000 psi |
| 230 | Cast LRNFP | 7.3 | 933 | max load; COL: 1.580"; 13,200 psi |
| 250 | Cast LRNFP | 5.8 | 746 | start load; COL: 1.600"; 10,200 psi |
| 250 | Cast LRNFP | 6.8 | 875 | max load; COL: 1.600"; 12,700 psi |
| 250 | Hornady XTP | 5.0 | 580 | start load; COL: 1.595"; 9,900 psi |
| 250 | Hornady XTP | 6.3 | 757 | max load; COL: 1.595"; 13,700 psi |
| 260 | Speer JHP | 5.0 | 552 | start load; COL: 1.595"; 9,800 psi |
| 260 | Speer JHP | 6.3 | 723 | max load; COL: 1.595"; 13,400 psi |
| Hodgdon Pistol Data Case: Winchester; barrel length: 7.25"; twist: 1:16"; trim length: 1.280"; primer: Winchester LP; bullet diam.: .452". NEVER EXCEED MAXIMUM LOADS | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 250 | Lead | 6.5 | 761 | start load; min. OAL: 1.600 |
| 250 | Lead | 7.2 | 830 | never exceed; min. OAL: 1.600; 13,600 cup |
| Lee Precision Data Large Pistol primer; with NEVER EXCEED LOADS maintain Minimum Over All Length or longer | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 200 | Cast #452460 | 7.7 | 938 | sugg. start load; 1.550" OAL; 10,700 cup |
| 200 | Cast #452460 | 8.6 | 1028 | max load; 1.550" OAL; 12,800 cup |
| 250 | Cast #454190 | 5.0 | 545 | sugg. start load; 1.600" OAL |
| 250 | Cast #454190 | 7.5 | 820 | max load; 1.600" OAL |
| 250 | Cast #452664 | 6.7 | 730 | sugg. start load; 1.570" OAL |
| 250 | Cast #452664 | 7.5 | 822 | max load; 1.570" OAL |
| 255 | Cast #452424 | 5.0 | 530 | sugg. start load; 1.575" OAL |
| 255 | Cast #452424 | 7.0 | 750 | max load; 1.575" OAL |
| Cast Bullet Handgun Data Lyman Reloading Handbook 49th Edition cases: Winchester; trim-to length: 1.275"; primers: Winchester WLP; primer size: Large Pistol; Lyman shell holder: No. 11; cast bullets used sized to .452" dia.; firearm used: Universal Receiver & Ruger Blackhawk; barrel length: 7 1/2"; twist: 1-16"; groove dia.: .451" | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 230 | Speer Swaged Lead FN | 7.6 | 848 | sugg. start load; 1.590" OAL; 9,500 cup |
| 230 | Speer Swaged Lead FN | 8.5 | 970 | max load; 1.590" OAL; 12,800 cup |
| Lyman Reloading Handbook 49th Edition cases: Winchester; trim-to length: 1.275"; primers: Winchester WLP; primer size: Large Pistol; Lyman shell holder: No. 11; firearms used: Universal Receiver & Ruger Blackhawk; barrel length: 7 1/2"; twist: 1-16"; groove dia.: .451" | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 207 | RCBS 45-200 | 7.0 | 624 | charge: plus one grain of Dacron filler; extreme spread (fps): 24; target load |
| in a 4-3/4 Ruger Blackhawk Velocities represent five-shot averages measured ten feet from the muzzle of a Ruger Blackhawk by an Oehler Model 33 Chronotach. Ruger barrel was 4-3/4 inches long. Temperature was 60 degrees F. All loads made up with Remington cases and CCI Large Pistol primers. All bullets sized 0.452 inch. Each of the above combinations grouped three inches or less, extreme spread, at twenty-five yards with the test revolvers handheld and supported by sandbags. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 250 | Oregon Trail Laser-Cast RNFP | 7.8 | 860 | |
| Traditional Handload Data All loads, fired from a 4 3/4-inch barreled USFA Pre-War SAA, produced between 850 and 870 fps average velocity and are thus listed at 860 fps to more or less duplicate traditional .45 Colt ballistics. Starline cases and CCI 300 Large Pistol primers were used throughout. Overall loaded length: 1.575 inches. Bullet diameter: .452 inch used herein (.454 inch suggested for guns with throats .454 or larger); maximum case length: 1.285 inches; trim-to case length: 1.275 inches. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 155 | Remington JHP | 7.2 | 1,235 | 35,000 psi |
| 180 | Winchester JHP | 6.4 | 1,105 | 34,900 psi |
| 200 | Hornady XTP | 5.5 | 970 | 34,300 psi |
| IMR Data - Maximum Loads case: Remington; barrel length: 5"; twist: 1:16"; trim length: .987"; primer: Remington 2 1/2; bullet diam.: .400"; COL: 1.250"; NEVER EXCEED MAXIMUM LOADS | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 155 | Jacketed | 6.8 | 1166 | start load; min OAL: 1.250 |
| 155 | Jacketed | 7.2 | 1235 | never exceed; min OAL: 1.250; 35,000 psi |
| 180 | Jacketed | 6.1 | 1055 | start load; min OAL: 1.250 |
| 180 | Jacketed | 6.4 | 1105 | never exceed; min OAL: 1.250; 34,900 psi |
| Lee Precision Data Large Pistol Primer. CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 124 | Speer TMJ RN, UCSP or GDHP | 4.2 | 882 | start charge |
| 124 | Speer TMJ RN, UCSP or GDHP | 4.6 | 990 | maximum charge |
| Speer Reloading Manual #14 max. case length: 0.905"; trim-to length: 0.900"; max cart. OAL: 1.300"; RCBS shell holder: #16; cart. case: Starline; primer: CCI 500; test firearm: Star "Super"; barrel length: 5.25"; maximum loads should be used with CAUTION | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 126 | Magma SKU-9-125 roundnose cast (sized .3560) | 3.4 | 887 | OAL (inches): 1.11; case expansion: normal; second best accuracy with Magma bullets |
| 126 | Magma SKU-9-125 roundnose cast (sized .3560) | 4.0 | 1,017 | OAL (inches): 1.11; case expansion: near max; accuracy poor |
| 125 | SAECO SWC Cast (Sized .355 inch) | 4.0 | 970 | OAL (inches): 1.09; case expansion: normal; fourth best accuracy with SAECO bullets |
| 130 | Ohaus Cast (Sized .3565 inch) | 3.5 | 943 | OAL (inches): 1.13; case expansion: normal; fifth best accuracy with Ohaus bullets |
| 124 | Hornady Swaged (Sized .355 inch) | 3.5 | 847 | OAL (inches): 1.13; case expansion: moderate; very accurate target load |
| 124 | Hornady Swaged (Sized .355 inch) | 4.0 | 948 | OAL (inches): 1.13; case expansion: normal; second best accuracy |
| 125 | Alberts Swaged (Sized .3565 inch) | 4.0 | 944 | OAL (inches): 1.11; case expansion: normal |
| in a Beretta Federal cases and Federal 100 Small Pistol primers used for all loads. Velocities are instrumental at 10 feet from the muzzle, using Oehler Model 31 chronotach and Oehler Model 51 electronic screens with 10-foot spacing. Barrel lengths of test gun: Beretta, 5-inch barrel. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 130 | Ohaus Cast (Sized .3565 inch) | 3.5 | 964 | OAL (inches): 1.13; case expansion: normal; fifth best accuracy with Ohaus bullets |
| 124 | Hornady Swaged (Sized .355 inch) | 4.0 | 955 | OAL (inches): 1.13; case expansion: normal; third best accuracy in Ruger |
| in a Ruger Federal cases and Federal 100 Small Pistol primers used for all loads. Velocities are instrumental at 10 feet from the muzzle, using Oehler Model 31 chronotach and Oehler Model 51 electronic screens with 10-foot spacing. Barrel lengths of test gun: Ruger, 4 1/2-inch barrel. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 80 | Barnes TAC-XP | 3.5 | 1053 | start load; COL: 1.025"; 26,600 psi |
| 80 | Barnes TAC-XP | 3.9 | 1180 | max load; COL: 1.025"; 32,200 psi |
| 90 | Speer GDHP | 3.9 | 1141 | start load; COL: 1.010"; 27,200 psi |
| 90 | Speer GDHP | 4.3 | 1231 | max load; COL: 1.010"; 32,200 psi |
| 95 | Sierra FMJ | 3.9 | 1075 | start load; COL: 1.020"; 25,400 psi |
| 95 | Sierra FMJ | 4.3 | 1178 | max load; COL: 1.020"; 32,700 psi |
| 100 | SinterFire | 3.8 | 1076 | start load; COL: 1.140"; 25,400 psi |
| 100 | SinterFire | 4.3 | 1155 | max load; COL: 1.140"; 28,700 psi |
| 115 | Lead Round Nose | 3.3 | 974 | start load; bullet diam.: .356"; COL: 1.100"; 26,900 psi |
| 115 | Lead Round Nose | 3.7 | 1061 | max load; bullet diam.: .356"; COL: 1.100"; 32,500 psi |
| 115 | Speer GDHP | 3.6 | 957 | start load; COL: 1.125"; 28,300 psi |
| 115 | Speer GDHP | 4.0 | 1038 | max load; COL: 1.125"; 32,000 psi |
| 124 | Berry's Bullets HBRN TP | 3.8 | 889 | start load; bullet diam.: .356"; COL: 1.150"; 26,000 psi |
| 124 | Berry's Bullets HBRN TP | 4.4 | 1023 | max load; bullet diam.: .356"; COL: 1.150"; 32,800 psi |
| 125 | Lead Conical Nose | 2.9 | 908 | start load; bullet diam.: .356"; COL: 1.125"; 25,500 psi |
| 125 | Lead Conical Nose | 3.4 | 1004 | max load; bullet diam.: .356"; COL: 1.125"; 34,000 psi |
| 125 | Sierra FMJ | 3.2 | 887 | start load; COL: 1.090"; 25,600 psi |
| 125 | Sierra FMJ | 3.6 | 974 | max load; COL: 1.090"; 33,500 psi |
| 130 | Berry's Bullets RN | 3.4 | 809 | start load; bullet diam.: .356"; COL: 1.150"; 25,800 psi |
| 130 | Berry's Bullets RN | 3.8 | 921 | max load; bullet diam.: .356"; COL: 1.150"; 32,300 psi |
| Hodgdon Data Using IMR Powder Case: Winchester; twist: 1:10"; primer: CCI 500, Small Pistol; barrel length: 4"; trim length: .750"; bullet diam.: .355" (except where otherwise specified in remarks.) | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 115 | Rem JHP | 4.8 | 1075 | COL: 1.110"; 32,500 cup |
| 124 | Rem MC | 4.9 | 1050 | compressed load; COL: 1.135"; 32,500 cup |
| 147 | Hornady XTP | 4.0 | 950 | COL: 1.130"; 32,800 cup |
| IMR Pistol Data Maximum Loads case: Remington; barrel length: 4.0"; twist: 1:10"; trim length: .750"; primer: CCI 500; bullet diam.: .355"; NEVER EXCEED MAXIMUM LOADS | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 124 | Jacketed | 4.4 | 945 | start load; min OAL: 1.135 |
| 124 | Jacketed | 4.9 | 1050 | never exceed; min OAL: 1.135; 32,500 cup |
| 147 | XTP | 3.5 | 855 | start load; min OAL: 1.130 |
| 147 | XTP | 4.0 | 950 | never exceed; min OAL: 1.130; 32,800 cup |
| 115 | Jacketed | 4.3 | 968 | start load; min OAL: 1.110 |
| 115 | Jacketed | 4.8 | 1075 | never exceed; min OAL: 1.110; 32,500 cup |
| Lee Precision Data Small pistol primer. CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 92 | Cast #358242 | 4.8 | 1115 | sugg. start load; OAL: 1.045"; 19,800 cup |
| 92 | Cast #358242 | 6.0 | 1360 | max load; OAL: 1.045"; 33,000 cup |
| 115 | Cast #358345 | 3.7 | 995 | sugg. start load; OAL: .997"; case: Win; primer: Win 1 1/2-108; 23,400 cup |
| 115 | Cast #358345 | 4.5 | 1130 | max load; OAL: .997"; case: Win; primer: Win 1 1/2-108; 32,000 cup |
| 121 | Cast #356402 | 3.4 | 915 | sugg. start load; OAL: 1.110"; case: Win; primer: Win 1 1/2-108; 20,400 cup |
| 121 | Cast #356402 | 4.3 | 1095 | max load; OAL: 1.110"; case: Win; primer: Win 1 1/2-108; 31,500 cup |
| Lyman Cast Bullet Handbook 3rd Edition The trim-to length should be adhered to closely. A short case or crimp on the mouth can cause problems with headspace. Most popular cast bullet for this caliber is #356402. Cases: Federal (except where otherwise specified in remarks); trim-to length: .751"; primers: CCI 500 (except where otherwise specified in remarks); primer size: Small Pistol; Lyman shell holder: No. 12; cast bullets used sized to .358" dia.; firearm used: Universal Receiver; barrel length: 4"; twist: 1-10"; groove diameter: .358" | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 90 | Cast #356242 | 4.8 | 1115 | sugg. start load; 19,800 cup; 1.045" OAL |
| 90 | Cast #356242 | 6.0 | 1360 | max load; 33,000 cup; 1.045" OAL |
| 120 | Cast #356242 | 3.2 | 872 | sugg. start load; 24,500 cup; 1.065" OAL |
| 120 | Cast #356242 | 4.1 | 1106 | max load; 31,400 cup; 1.065" OAL |
| Cast Bullet Handgun Data Lyman Reloading Handbook 49th Edition cases: Federal; trim-to length: .751"; primers: CCI 500; primer size; Small Pistol; Lyman shell holder: No. 12; cast bullets used sized to .356" dia.and all #2 Alloy; firearm used: Universal Receiver; barrel length: 4"; groove dia.: .355" | |||||
