Hodgdon LONGSHOT

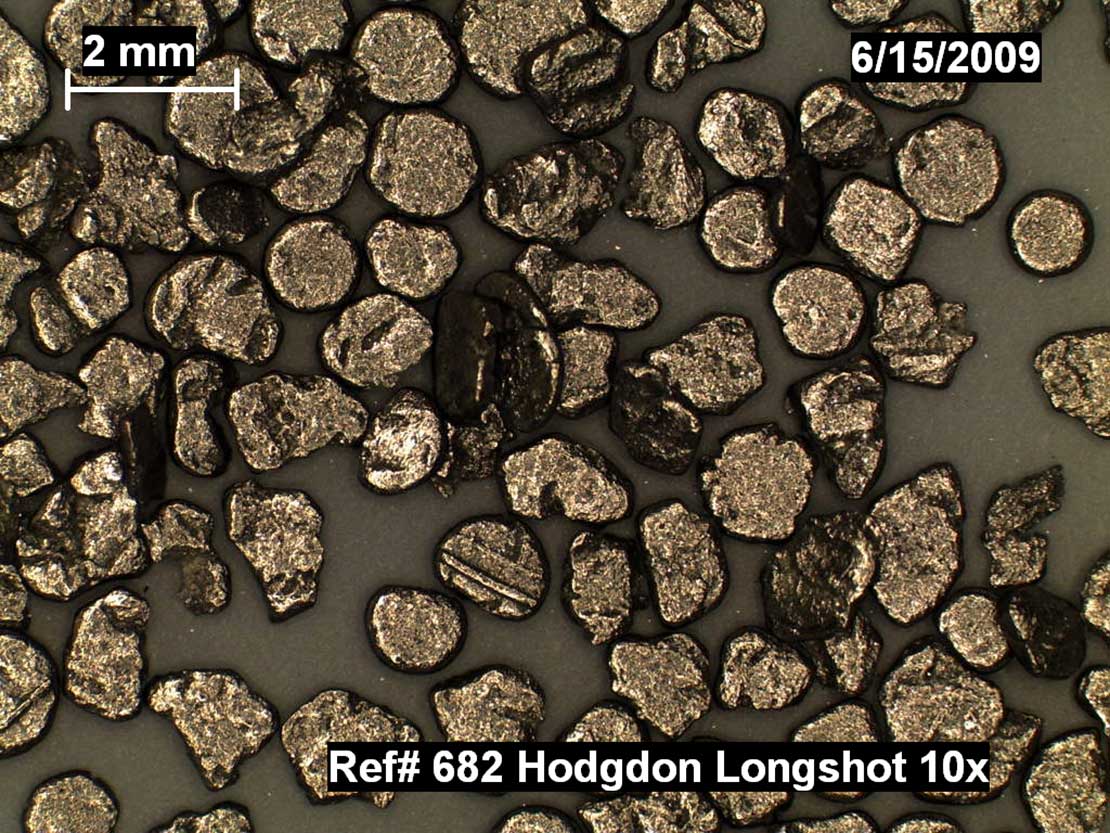

This spherical powder is the most versatile shotshell heavy field propellant Hodgdon has ever produced. Great loads in 10 ga., 12 ga., 16 ga., 20 ga., and 28 ga. are shown in Hodgdon’s Reloading Data Center. This propellant provides true magnum velocities with superb patterns. In addition, LONGSHOT is the best choice for those competitors shooting games such as "Buddy", "Annie Oakleys" and more. LONGSHOT is the high velocity pistol choice in 38 Super, 40 S&W, and 357 SIG at lower than usual operating pressures. Available in 1 lb., 4 lb. & 8 lb. containers.

ShapeColorPerforationDiameter minDiameter maxLength/thick. minLength/thick. maxManufacturer
Irregular flattened ballGrayNo1.0 mm1.33 mm0.25 mm0.25 mmHodgdon Powder Company
LONGSHOT

ADVARSEL!

.32 H&R Magnum

Bilde
Wt.BulletChargeVelocity (FPS)Remarks
Bilde83 Berry's Bullets HBWC 3.6 887start load; COL: 1.095"; 13,600 cup; bullet diam.: .314"
Bilde83 Berry's Bullets HBWC 4.4 1099max load; COL: 1.095"; 20,500 cup; bullet diam.: .314"
Bilde85 Hornady HP 4.0 948start load; COL: 1.290"; 11,500 cup; bullet diam.: .312"
Bilde85 Hornady HP 5.0 1167max load; COL: 1.290"; 20,200 cup; bullet diam.: .312"
Bilde90 Sierra JHP 4.0 945start load; COL: 1.340"; 12,100 cup; bullet diam.: .312"
Bilde90 Sierra JHP 5.0 1139max load; COL: 1.340"; 19,500 cup; bullet diam.: .312"
Bilde100 Speer JHP 4.0 903start load; COL: 1.345"; 13,900 cup; bullet diam.: .312"
Bilde100 Speer JHP 4.7 1056max load; COL: 1.345"; 19,300 cup; bullet diam.: .312"
Hodgdon Pistol Data
Case: Federal; twist: 1:16"; primer: Federal 100, Small Pistol; barrel length: 5"; trim length: 1.070".

.32 North American Arms

Bilde
Wt.BulletChargeVelocity (FPS)Remarks
Bilde60 Gold Dot Hollow Point 5.0 1,145starting load; 18,200 PSI
Bilde60 Gold Dot Hollow Point 5.4 1,220maximum load; 20,900 PSI
Bilde71 Hornady FMJ/RN 4.6 1,057starting load; 18,800 PSI
Bilde71 Hornady FMJ/RN 5.0 1,115maximum load; 21,700 PSI
Hodgdon Pistol Data
case: Corbon; barrel length: 2.5"; twist: 1:16"; trim length: .670"; primer: Winchester SP; 60 gr bullet diam.: .312"; COL: .930"; 71 gr bullet dia.: .311"; COL: .940"; NEVER EXCEED MAXIMUM LOADS

.32-20 Winchester / .32 WCF

Bilde
Wt.BulletChargeVelocity (FPS)Remarks
Bilde90 Sierra JHC 6.5 1152overall loaded length (inches): 1.555; Winchester Small Rifle primer; this load suitable only for Smith & Wesson Hand Ejector, Colt Army Specials and guns of similar strength
Bilde90 Sierra JHC 6.8 1161overall loaded length (inches): 1.555; Winchester Small Rifle primer; this load suitable only for Smith & Wesson Hand Ejector, Colt Army Specials and guns of similar strength
Bilde90 Sierra JHC 7.0 1194overall loaded length (inches): 1.555; Winchester Small Rifle primer; this load suitable only for Smith & Wesson Hand Ejector, Colt Army Specials and guns of similar strength
Bilde100 Hornady XTP-HP 6.0 1025overall loaded length (inches): 1.550; Winchester Small Rifle primer; this load suitable only for Smith & Wesson Hand Ejector, Colt Army Specials and guns of similar strength
Bilde100 Hornady XTP-HP 6.4 1078overall loaded length (inches): 1.550; Winchester Small Rifle primer
Bilde100 Hornady XTP-HP 6.7 1148overall loaded length (inches): 1.550; Winchester Small Rifle primer
Bilde116 Lyman 311316GC cast 5.5 1015overall loaded length (inches): 1.560; Winchester Small Rifle primer; this load suitable only for Smith & Wesson Hand Ejector, Colt Army Specials and guns of similar strength
Bilde116 Lyman 311316GC cast 6.0 1082overall loaded length (inches): 1.560; Winchester Small Rifle primer
Bilde116 Lyman 311316GC cast 6.5 1143overall loaded length (inches): 1.560; Winchester Small Rifle primer
(+P Pressure) Handloads
WARNING: THIS DATA SHOULD ONLY BE USED IN HANDGUNS WITH ADEQUATE STRENGTH TO HANDLE PRESSURES EXCEEDING INDUSTRY SPECIFICATIONS. A Colt Single Action Army with a 4.75-inch barrel was used to test fire these loads. Starline cases were used throughout. Bullet diameter: .312 and .313 inch. Maximum pressure: 30,000 CUP. Maximum overall loaded length: 1.592 inches; maximum case length: 1.315 inches; trim-to length: 1.305 inches.
Wt.BulletChargeVelocity (FPS)Remarks
Bilde95 Redding cast SWC 4.5 847overall loaded length (inches): 1.528
Bilde95 Redding cast SWC 5.0 922overall loaded length (inches): 1.528
Bilde100 Rim Rock RNFP cast 4.8 896overall loaded length (inches): 1.618
Bilde100 Rim Rock RNFP cast 5.0 942overall loaded length (inches): 1.618
Bilde100 Rim Rock RNFP cast 5.3 1004overall loaded length (inches): 1.618
Bilde100 Speer JHP 4.8 862overall loaded length (inches): 1.560
Bilde100 Speer JHP 5.3 896overall loaded length (inches): 1.560
Bilde115 Oregon Trail FP BB 4.5 908overall loaded length (inches): 1.560
Bilde115 Oregon Trail FP BB 4.8 959overall loaded length (inches): 1.560
Bilde115 Oregon Trail FP BB 5.0 1000overall loaded length (inches): 1.560
(Standard Pressure) Handloads
All loads were fired from a 4.75-inch barreled Colt Single Action Army. Maximum pressure for these loads is 16,000 CUP. Starline cases and Winchester Small Rifle primers were used throughout. Bullet diameter: .312 to .314 inch. Maximum overall loaded length: 1.592 inches; maximum case length: 1.315 inches; trim-to length: 1.305 inches.

.327 Federal Magnum

Bilde
Wt.BulletChargeVelocity (FPS)Remarks
Bilde85 Hornady XTP 6.5 1404start load; COL: 1.450"; 32,700 psi
Bilde85 Hornady XTP 7.2 1549max load; COL: 1.450"; 41,800 psi
Bilde90 Sierra JHC 6.6 1340start load; COL: 1.460"; 26,400 psi
Bilde90 Sierra JHC 7.3 1512max load; COL: 1.460"; 42,600 psi
Bilde100 Hornady XTP 6.0 1287start load; COL: 1.450"; 35,400 psi
Bilde100 Hornady XTP 6.7 1400max load; COL: 1.450"; 43,500 psi
Hodgdon Data
Case: Federal; barrel length: 5"; twist: 1:16"; trim length: 1.200"; primer: Federal 200; bullet diam.: .312 (except where otherwise specified in remarks). NEVER EXCEED MAXIMUM LOADS
Wt.BulletChargeVelocity (FPS)Remarks
Bilde100 Speer Gold Dot Hollow-Point 6.0 1221start charge
Bilde100 Speer Gold Dot Hollow-Point 7.0 1360max charge
Speer Gold Dot Data
max. case length: 1.200"; trim-to length: 1.190"; COAL tested: 1.465"; max cart. OAL: 1.475"; RCBS shell holder: #23; cart. case: Federal; primer: Federal 205; test firearm: Ruger SP-101; barrel length: 3". SPECIAL NOTE REGARDING PRIMERS: Due to the high operating pressures, factory ammo for the 327 Federal uses small rifle primers to prevent primer flowback. These handloads were developed with Federal #205 small rifle primers. However, small rifle MAGNUM primers are neither required nor recommended. Maximum loads should be used with CAUTION.
Wt.BulletChargeVelocity (FPS)Remarks
Bilde90 Sierra JHC 6.0 1103primer: CCI 550; case: Speer; OAL (inches): 1.4670
Bilde90 Sierra JHC 6.5 1150primer: CCI 550; case: Speer; OAL (inches): 1.4670
Bilde90 Sierra JHC 7.0 1221primer: CCI 550; case: Speer; OAL (inches): 1.4670
Bilde90 Sierra JHC 7.5 1299primer: CCI 550; case: Speer; OAL (inches): 1.4670

Firearm used was a Ruger SP101 with a 3 1/16-inch barrel. Federal Cartridge and Speer cases used as noted. Maximum case length: 1.200 inches.
Wt.BulletChargeVelocity (FPS)Remarks
Bilde85 Hornady XTP 6.5 1328overall loaded length (inches): 1.448
Bilde85 Hornady XTP 7.0 1404overall loaded length (inches): 1.448
Bilde85 Hornady XTP 7.5 1505overall loaded length (inches): 1.448
Bilde85 Hornady XTP 8.0 1580overall loaded length (inches): 1.448
Bilde90 Sierra JHC 6.0 1210overall loaded length (inches): 1.467
Bilde90 Sierra JHC 6.5 1292overall loaded length (inches): 1.467
Bilde90 Sierra JHC 7.0 1401overall loaded length (inches): 1.467
Bilde90 Sierra JHC 7.5 1484overall loaded length (inches): 1.467
Bilde100 Speer Gold Dot HP 5.5 1092overall loaded length (inches): 1.450
Bilde100 Speer Gold Dot HP 6.0 1167overall loaded length (inches): 1.450
Bilde100 Speer Gold Dot HP 6.5 1266overall loaded length (inches): 1.450
Bilde100 Speer Gold Dot HP 7.0 1340overall loaded length (inches): 1.450
Bilde100 Hornady XTP 5.5 1102overall loaded length (inches): 1.455
Bilde100 Hornady XTP 6.0 1178overall loaded length (inches): 1.455
Bilde100 Hornady XTP 6.5 1279overall loaded length (inches): 1.455
Bilde100 Hornady XTP 7.0 1353overall loaded length (inches): 1.455
Bilde115 Speer GDHP 5.0 998overall loaded length (inches): 1.450
Bilde115 Speer GDHP 5.4 1055overall loaded length (inches): 1.450
Bilde115 Speer GDHP 5.8 1124overall loaded length (inches): 1.450
Bilde115 Speer GDHP 6.2 1193overall loaded length (inches): 1.450
Bilde115 Speer GDHP 6.7 1249overall loaded length (inches): 1.450
Bilde130 Rim Rock SWC Keith 4.0 1017overall loaded length (inches): 1.436
Bilde130 Rim Rock SWC Keith 4.5 1094overall loaded length (inches): 1.436
Bilde130 Rim Rock SWC Keith 5.0 1187overall loaded length (inches): 1.436
Bilde130 Rim Rock SWC Keith 5.5 1280overall loaded length (inches): 1.436
Bilde130 Rim Rock SWC Keith 6.0 1355overall loaded length (inches): 1.436
Handloads
A Ruger Single-Seven with a 7 1/2-inch barrel was used to test fire these loads. Federal cases and CCI 500 primers were used throughout. Bullet diameter: .312 and .313 inch; maximum case length: 1.200 inches; trim to length: 1.195 inches.
Wt.BulletChargeVelocity (FPS)Remarks
Bilde90 Sierra JHC 6.0 1103primer: CCI 550; case: Speer; overall loaded length (inches): 1.4670
Bilde90 Sierra JHC 6.5 1150primer: CCI 550; case: Speer; overall loaded length (inches): 1.4670
Bilde90 Sierra JHC 7.0 1221primer: CCI 550; case: Speer; overall loaded length (inches): 1.4670
Bilde90 Sierra JHC 7.5 1299primer: CCI 550; case: Speer; overall loaded length (inches): 1.4670
Firearms used for testing these loads was a Ruger SP101 with a 3 1/16-inch barrel. Federal and Speer cases and CCI 500 and CCI 550 primers were used throughout. Case length: 1.200 inches; throat: .313 inch; barrel cylinder gap: .006 inch; groove diameter: .3123 inch.

.357 Magnum

Bilde
Wt.BulletChargeVelocity (FPS)Remarks
Bilde158 X-Treme Plated HP 7.3 915COAL: 1.540 inches
Bilde158 X-Treme Plated HP 8.0 980COAL: 1.540 inches
Bilde158 X-Treme Plated HP 8.4 1074COAL: 1.540 inches
Bilde158 Highborn Flat Point 7.5 922COAL: 1.560 inches
Bilde158 Highborn Flat Point 8.0 971COAL: 1.560 inches
Bilde158 Highborn Flat Point 8.5 1085COAL: 1.560 inches
in a Ruger GP100 6-inch Barrel
Warning! Gun: Ruger GP100; Barrel Length: 6 inches; Primer: CCI 500 (EXCEPT WHERE NOTED); Bullet Diameter: .357 inch; Maximum Case Length: 1.290 inches; Trim-to Length: 1.280 inches; Source: Handloader Magazine issue #300 - Feb/March 2016
Wt.BulletChargeVelocity (FPS)Remarks
Bilde105 Cutting Edge Raptor HP 9.0 1421
Bilde105 Cutting Edge Raptor HP 9.5 1455
Bilde105 Cutting Edge Raptor HP 10.0 1491
Bilde105 Cutting Edge Raptor HP 10.5 1544
Bilde105 Cutting Edge Raptor HP 11.0 1578
Bilde165 Cutting Edge Solid 8.0 1034
Bilde165 Cutting Edge Solid 9.0 1160
Using Cutting Edge bullets
Warning! A Ruger GP 100 with a 6-inch barrel was used to test-fire the loads. Starline cases and CCI 500 primers were used throughout, except where noted. Bullet diameter: .357 inch; maximum case length: 1.290 inches; trim-to length: 1.280 inches. Overall loaded length: 1.570 inches. Source: Handloader Magazine issue #298.
Wt.BulletChargeVelocity (FPS)Remarks
Bilde158 Hornady XTP-HP 8.2 1112
in a Ruger GP100
Warning! Barrel Length: 4 inches; Cases: Starline; Primer: CCI 500; Maximum Overall Loaded Length: 1.590 inches; Maximum Case Length: 1.290 inches; Trim-to Length: 1.280 inches; COAL: 1.580 inches. All loads have been pressure tested between 32,500 and 35,000 psi and are considered maximum. This table illustrates how faster-burning powders do not produce maximum velocities. Source: Handloader Magazine issue #299 / December 2015.
Wt.BulletChargeVelocity (FPS)Remarks
Bilde110 Hornady XTP 9.5 1676start load; COL: 1.590"; 33,700 cup
Bilde110 Hornady XTP 10.5 1800max load; COL: 1.590"; 42,400 cup
Bilde125 Hornady XTP 8.7 1529start load; COL: 1.590"; 33,000 cup
Bilde125 Hornady XTP 9.7 1647max load; COL: 1.590"; 42,000 cup
Bilde140 Hornady XTP 8.0 1396start load; COL: 1.590"; 31,300 cup
Bilde140 Hornady XTP 9.1 1534max load; COL: 1.590"; 41,000 cup
Bilde140 Hornady FTX 5.5 1091start load; COL: 1.600"; 22,000 psi
Bilde140 Hornady FTX 7.0 1358max load; COL: 1.600"; 33,800 psi
Bilde146 Speer JHP 7.5 1358start load; COL: 1.535"; 33,400 cup
Bilde146 Speer JHP 8.6 1483max load; COL: 1.535"; 42,600 cup
Bilde158 Hornady XTP 7.3 1258start load; COL: 1.580"; 31,700 cup
Bilde158 Hornady XTP 8.4 1394max load; COL: 1.580"; 43,200 cup
Bilde170 Sierra JHC 6.8 1182start load; COL: 1.580"; 32,700 cup
Bilde170 Sierra JHC 7.9 1322max load; COL: 1.580"; 42,600 cup
Bilde180 Nosler Part 6.1 1025start load; COL: 1.575"; 32,700 cup
Bilde180 Nosler Part 7.2 1167max load; COL: 1.575"; 41,700 cup
Pistol (Hodgdon Data)
Case: Winchester; barrel length: 10"; twist: 1:18.75"; trim length: 1.285"; primer: Winchester SPM; bullet diam.: .357" (except where otherwise specified in remarks). NEVER EXCEED MAXIMUM LOADS

.357 SIG

Bilde
Wt.BulletChargeVelocity (FPS)Remarks
Bilde115 Hornady XTP 9.0 1339starting load; 35,200 psi
Bilde115 Hornady XTP 10.0 1497maximum load; 37,300 psi
Bilde124 Hornady XTP 8.3 1344starting load; 33,500 psi
Bilde124 Hornady XTP 9.3 1429maximum load; 37,900 psi
Bilde135 Nosler IPSC 7.5 1230starting load; bullet diam.: .357"; 32,300 psi
Bilde135 Nosler IPSC 8.4 1316maximum load; bullet diam.: .357"; 36,900 psi
Bilde147 Hornady XTP 6.5 1158starting load; COL: 1.140"; 32,100 psi
Bilde147 Hornady XTP 7.5 1254maximum load; COL: 1.140"; 38,700 psi
Hodgdon Pistol Data
case: Federal; barrel length: 4"; twist: 1:16"; trim length: .860"; primer: Winchester SP; bullet diam.: .355" and COL: 1.135" (except where otherwise specified in remarks); NEVER EXCEED MAXIMUM LOADS
Wt.BulletChargeVelocity (FPS)Remarks
Bilde125 Speer Gold Dot Jacketed HP 7.7 1228sugg. start load; 31,600 psi; 1.135" OAL
Bilde125 Speer Gold Dot Jacketed HP 8.5 1340max load; 38,200 psi; 1.135" OAL
Bilde147 Speer TMJ 7.0 1151sugg. start load; 31,100 psi; 1.135" OAL
Bilde147 Speer TMJ 7.8 1247max load; 38,600 psi; 1.135" OAL
Lyman Reloading Handbook 49th Edition
cases: Federal; trim-to length: .860"; primers: Federal 100; primer size: Small Pistol; Lyman shell holder: No. 15; firearm used: Universal Receiver; barrel length: 4"; twist: 1-16"; groove dia.: .3553"
Wt.BulletChargeVelocity (FPS)Remarks
Bilde124 Hornady XTP 8.2 1,248group: 1.10 inches; muzzle energy: 429 ft-lbs
Bilde124 Hornady XTP 8.7 1,323group: 1.10 inches; muzzle energy: 482 ft-lbs; best 124-grain XTP load
Bilde125 Speer Gold Dot HP 8.7 1,384group: 1.20 inches; muzzle energy: 532 ft-lbs; best 125-grain Gold Dot load
Bilde147 Hornady XTP 6.6 1,125group: 1.75 inches; muzzle energy: 413 ft-lbs
Bilde147 Hornady XTP 7.0 1,128group: 1.69 inches; muzzle energy: 415 ft-lbs
in a Springfield XD
Starline cases and Winchester Small Pistol primers were used for all handloads. Springfield Armory XD pistol with a 4-inch barrel and fixed open sights was used for testing. Velocities were taken 12 feet from the muzzle with an Oehler Model 33 or Model 35P chronograph. Accuracy is the average of three, five-shot groups at 15 yards from a sandbag rest. Range temperatures were 62 to 76 degrees Fahrenheit. .355-inch jacketed bullets and .356-inch cast bullets.

.38 Special

Bilde
Wt.BulletChargeVelocity (FPS)Remarks
Bilde110 Hornady XTP 7.6 133717,700 psi
Bilde125 Hornady XTP 7.0 122818,300 psi
Bilde140 Hornady XTP 6.4 112617,700 psi
Bilde146 Speer JHP 5.7 1036COL: 1.370"; 17,400 psi
Bilde158 Hornady XTP 5.5 96517,000 psi
Bilde170 Sierra JHC 5.3 939COL: 1.450"; 17,800 psi
+P (Hodgdon Pistol Data Maximum Loads)
case: Winchester; barrel length: 7.7"; twist: 1:18.75"; trim length: 1.145"; primer: Winchester SP; bullet diam.: .357"; COL: 1.455" (except where otherwise specified in remarks); NEVER EXCEED MAXIMUM LOADS
Wt.BulletChargeVelocity (FPS)Remarks
Bilde125 Hornady HP-XTP 7.0 958overall loaded length (inches): 1.445
Bilde140 Sierra JHC 6.6 929overall loaded length (inches): 1.440
Bilde140 Speer JHP 6.6 932overall loaded length (inches): 1.450
Bilde173 Lyman cast 358429 6.0 913overall loaded length (inches): 1.530
+P Loads (Ruger LCR)
The +P Special industry pressure limit is 20,000 psi. All loads fired from a Ruger LCR with a 1.875-inch barrel. Winchester +P cases and WSP primers were used throughout. Maximum cartridge length: 1.550 inches; maximum case length: 1.155 inches; case trim-to length: 1.145 inches.
Wt.BulletChargeVelocity (FPS)Remarks
Bilde125 BBC roundnose 5.0 807group (inches): 1.93; power factor: 101; high SD
Bilde125 BBC roundnose 5.4 870group (inches): 1.65; power factor: 109
Bilde125 BBC roundnose 5.8 927group (inches): 0.83; power factor: 116; high SD
in a Custom Taurus Model 80
A custom Taurus Model 80 with a 6-inch Jarvis barrel and a Tasco PDP3 five-minute dot sight were used for all testing. Winchester +P cases and Federal No. 100 primers were used for all handloads, except for the 2.7-grain Bullseye/148-grain DEWC load, which used WSP primers and mixed cases. Accuracy is the average of at least three, five-shot groups at 25 yards, unless otherwise noted. Velocities were measured with an Oehler M-35P chronograph with the front screen 12 feet from the gun's muzzle. All shooting was done double action from a rest. Range temperatures were 58 to 69 degrees Fahrenheit.
Wt.BulletChargeVelocity (FPS)Remarks
Bilde125 Speer Gold Dot hollowpoint 7.0 851overall loaded length (inches): 1.440
Bilde135 Speer Gold Dot hollowpoint 7.0 986overall loaded length (inches): 1.447
Bilde173 Cast Lyman 358429 5.5 914overall loaded length (inches): 1.522
Bilde173 Cast Lyman 358429 6.0 995overall loaded length (inches): 1.522
in a Smith & Wesson Model 627-5
Data includes +P pressures up to 20,000 psi. Cases were +P Starline. Maximum case length: 1.155 inches; trim to length: 1.145 inches; primer: CCI 500.

.38 Super

Bilde
Wt.BulletChargeVelocity (FPS)Remarks
Bilde90 Sierra JHP 7.8 1448start load; COL: 1.180"; 27,600 cup
Bilde90 Sierra JHP 8.4 1526max load; COL: 1.180"; 32,100 cup
Bilde95 Barnes TAC-XP 6.6 1339start load; COL: 1.255"; 25,800 cup
Bilde95 Barnes TAC-XP 7.3 1454max load; COL: 1.255"; 32,000 cup
Bilde100 Speer JHP 7.2 1343start load; COL: 1.215"; 26,100 cup
Bilde100 Speer JHP 7.9 1446max load; COL: 1.215"; 32,100 cup
Bilde115 LRN 6.5 1180start load; bullet diam.: .356"; COL: 1.250"; 20,400 cup
Bilde115 LRN 7.3 1289max load; bullet diam.: .356"; COL: 1.250"; 30,900 cup
Bilde115 Hornady XTP 6.5 1214start load; COL: 1.245"; 25,500 cup
Bilde115 Hornady XTP 7.1 1301max load; COL: 1.245"; 31,600 cup
Bilde124 Berry's Bullets HBRN TP 5.9 1140start load; bullet diam.: .356"; COL: 1.250"; 22,400 cup
Bilde124 Berry's Bullets HBRN TP 6.8 1286max load; bullet diam.: .356"; COL: 1.250"; 31,300 cup
Bilde125 Hornady HAP 5.8 1170start load; bullet diam.: .356"; COL: 1.210"; 25,500 cup
Bilde125 Hornady HAP 6.6 1294max load; bullet diam.: .356"; COL: 1.210"; 32,400 cup
Bilde125 Sierra FMJ 6.0 1109start load; COL: 1.275"; 24,600 cup
Bilde125 Sierra FMJ 6.9 1247max load; COL: 1.275"; 32,600 cup
Bilde125 Cast LCN 6.0 1157start load; bullet diam.: .356"; COL: 1.230"; 25,100 cup
Bilde125 Cast LCN 6.8 1243max load; bullet diam.: .356"; COL: 1.230"; 31,200 cup
Bilde130 Berry's Bullets RN 5.5 1058start load; COL: 1.270"; 27,400 cup
Bilde130 Berry's Bullets RN 6.5 1166max load; COL: 1.270"; 32,300 cup
Bilde135 LRN 5.8 1087start load; bullet diam.: .356"; COL: 1.275"; 26,600 cup
Bilde135 LRN 6.5 1178max load; bullet diam.: .356"; COL: 1.275"; 32,200 cup
Bilde147 Hornady XTP 5.4 1042start load; COL: 1.260"; 25,300 cup
Bilde147 Hornady XTP 6.0 1119max load; COL: 1.260"; 30,900 cup
Bilde150 Sierra JFP 5.5 1040start load; bullet diam.: .356"; COL: 1.265"; 26,900 cup
Bilde150 Sierra JFP 6.0 1126max load; bullet diam.: .356"; COL: 1.265"; 31,800 cup
Bilde150 Cast LRN 5.0 1076start load; bullet diam.: .356"; COL: 1.230"; 27,200 cup
Bilde150 Cast LRN 6.2 1162max load; bullet diam.: .356"; COL: 1.230"; 32,200 cup
Hodgdon Data
Case: Remington; twist: 1:16"; primer: Remington 1 1/2, Small Pistol; barrel length: 5"; trim length: .895"; bullet diam.: .355" (except where otherwise specified in remarks).
Wt.BulletChargeVelocity (FPS)Remarks
Bilde95 Barnes TAC-XP 6.0 1153overall loaded length (inches): 1.255
Bilde95 Barnes TAC-XP 6.5 1244overall loaded length (inches): 1.255
Bilde95 Barnes TAC-XP 7.0 1358overall loaded length (inches): 1.255
Bilde95 Barnes TAC-XP 7.5 1460overall loaded length (inches): 1.255
Bilde147 Speer GDHP 5.3 992overall loaded length (inches): 1.275
Bilde147 Speer GDHP 5.8 1072overall loaded length (inches): 1.275
Bilde147 Speer GDHP 6.3 1176overall loaded length (inches): 1.275
Bilde147 Speer GDHP 6.5 1203overall loaded length (inches): 1.275
+P
A Kimber Stainless Target II with a 5-inch barrel was used to test fire these loads. Starline cases and Winchester Small Pistol primers were used throughout. Bullet diameter: .355 and .356 inch; maximum overall loaded length: 1.280 inches; maximum case length: .900 inch; and trim-to length; .895 inch.
Wt.BulletChargeVelocity (FPS)Remarks
Bilde122 Bushwacker flatnose 5.6 1,152case: R-P; primer: Federal 100; coefficient of variation (percent): 1.95; group (inches): 1.12; power factor: 140
Bilde125 Bushwacker roundnose 5.6 1,073case: R-P; primer: Federal 100; coefficient of variation (percent): 1.03; group (inches): 1.50; power factor: 134
Bilde125 Bushwacker semiwadcutter 5.5 1,079case: S-V; primer: WSP; coefficient of variation (percent): 1.02; group (inches): 1.03; power factor: 135; good load
Bilde125 Bushwacker semiwadcutter 5.6 1,131case: R-P; primer: Federal 100; coefficient of variation (percent): 1.06; group (inches): 2.20; power factor: 141
Bilde125 Bushwacker semiwadcutter 5.7 1,168case: R-P; primer: Federal 100; coefficient of variation (percent): 1.03; group (inches): 1.24; power factor: 146
Bilde125 Bushwacker semiwadcutter 6.0 1,184case: S-V; primer: WSP; coefficient of variation (percent): 0.34; group (inches): 1.44; power factor: 148
Bilde145 Bushwacker roundnose 4.1 877case: R-P; primer: Federal 100; coefficient of variation (percent): 1.48; group (inches): 0.63; power factor: 127; best 145-grain roundnose load
Bilde147 Bushwacker flatnose 4.4 1,058case: R-P; primer: Federal 100; coefficient of variation (percent): 1.13; group (inches): 0.95; power factor: 156; good load
Bilde158 Rock Hill roundnose 5.0 1,024case: R-P; primer: Federal 100; coefficient of variation (percent): 1.07; group (inches): 1.50; power factor: 162
Bilde158 Rock Hill roundnose 5.5 1,091case: R-P; primer: Federal 100; coefficient of variation (percent): 0.37; group (inches): 1.52; power factor: 172; major power factor
in a S&W Model 627PC
A Smith & Wesson Model 627PC with a 5.5-inch barrel and a Tasco PDP3 sight was used for testing. Velocities were taken 12 feet from the muzzle with an Oehler Model 35P chronograph. Accuracy is based on the average of three, five-shot groups at 25 yards from a sandbag rest. Range temperatures were 62 to 77 degrees Fahrenheit. S-L, Starline; S-V, Super Vel; R-P, Remington-Peters; WSP, Winchester Small Pistol.

.40 Smith & Wesson / .40 S&W

Bilde
Wt.BulletChargeVelocity (FPS)Remarks
Bilde135 Nosler JHP 8.5 1241start load; COL: 1.125"; 25,100 psi
Bilde135 Nosler JHP 11.5 1434max load; COL: 1.125"; 31,900 psi
Bilde140 Barnes TAC-XP 6.4 1090start load; COL: 1.135"; 25,800 psi
Bilde140 Barnes TAC-XP 7.0 1185max load; COL: 1.135"; 31,400 psi
Bilde150 Nosler JHP 7.5 1184start load; COL: 1.125"; 26,400 psi
Bilde150 Nosler JHP 9.3 1320max load; COL: 1.125"; 33,600 psi
Bilde155 Hornady XTP 7.5 1129start load; COL: 1.125"; 24,900 psi
Bilde155 Hornady XTP 9.3 1283max load; COL: 1.125"; 31,900 psi
Bilde165 Sierra JHP 7.3 1139start load; COL: 1.125"; 29,600 psi
Bilde165 Sierra JHP 7.8 1185max load; COL: 1.125"; 33,400 psi
Bilde165 Berry's Bullets FP 6.9 1091start load; COL: 1.125"; 24,500 psi
Bilde165 Berry's Bullets FP 7.8 1199max load; COL: 1.125"; 32,300 psi
Bilde180 Berry's Bullets FP 6.3 1013start load; COL: 1.125"; 26,200 psi
Bilde180 Berry's Bullets FP 7.5 1150max load; COL: 1.125"; 33,400 psi
Bilde180 Hornady XTP 6.5 1009start load; COL: 1.125"; 25,000 psi
Bilde180 Hornady XTP 8.0 1159max load; COL: 1.125"; 32,300 psi
Bilde200 Hornady XTP 5.0 836start load; COL: 1.125"; 23,900 psi
Bilde200 Hornady XTP 6.0 954max load; COL: 1.125"; 32,500 psi
Hodgdon Data
Case: Hornady; twist: 1:16"; primer: Winchester SP, Small Pistol; barrel length: 4"; trim length: .845"; bullet diam.: .400". This data is intended for use in firearms with barrels which fully support the cartridge in the chamber. Use of this data in firearms which do not fully support the cartridge, such as Glock, may result in bulged cases, ruptured cases, case head separation, or other conditions which may result in damage to the firearm and/or result in injury or death of the shooter and/or bystanders.
Wt.BulletChargeVelocity (FPS)Remarks
Bilde155 Hornady HP-XTP 6.6 1030
Bilde155 Hornady HP-XTP 7.1 1057
Bilde155 Hornady HP-XTP 7.6 1084
Bilde155 Hornady HP-XTP 8.1 1111
Bilde155 Hornady HP-XTP 9.1 1165
Bilde155 Hornady HP-XTP 9.6 1191maximum load
Bilde180 Hornady HAP or HP-XTP 4.8 776
Bilde180 Hornady HAP or HP-XTP 5.3 830
Bilde180 Hornady HAP or HP-XTP 5.9 885
Bilde180 Hornady HAP or HP-XTP 6.4 939
Bilde180 Hornady HAP or HP-XTP 6.9 990
Bilde180 Hornady HAP or HP-XTP 7.5 1041maximum load
Bilde200 Hornady HAP or HP-XTP 3.6 620
Bilde200 Hornady HAP or HP-XTP 4.1 686
Bilde200 Hornady HAP or HP-XTP 4.6 751
Bilde200 Hornady HAP or HP-XTP 5.2 815
Bilde200 Hornady HAP or HP-XTP 5.7 874maximum load
Bilde155 Hornady HP-XTP 8.6 1138
Using Hornady Bullets
Gun: Glock Model 22; barrel length: 4.35 inches; case: Starline; primer: Winchester Small Pistol; bullet diameter: .400"; COAL: 1.125"; maximum COAL: 1.135"; maximum case length: .850"; trim to length: .845". IMPORTANT: PLEASE VIEW THE SPECIAL NOTES by clicking here.
Wt.BulletChargeVelocity (FPS)Remarks
Bilde155 Barnes XPB 5.1 939minimum
Bilde155 Barnes XPB 5.6 1022maximum
Barnes Reloading Manual #4
case: Winchester; case trim length: .840"; twist rate: 1:16"; primer: WSP; barrel length: 4"; COAL: 1.135"; maximum loads should be used with caution; NOTE: Use a taper crimp on the case mouth. The Barnes #40056 140-grain and #40055 155-grain XPB bullets both have a slight taper on the base to prevent bulging of the case wall once the bullet is seated. Only a slight amount of case mouth belling is needed prior to seating these bullets in the case.
Wt.BulletChargeVelocity (FPS)Remarks
Bilde155 Hornady HP-XTP 6.6 1030overall loaded length (inches): 1.125
Bilde155 Hornady HP-XTP 7.1 1057overall loaded length (inches): 1.125
Bilde155 Hornady HP-XTP 7.6 1084overall loaded length (inches): 1.125
Bilde155 Hornady HP-XTP 8.1 1111overall loaded length (inches): 1.125
Bilde155 Hornady HP-XTP 8.6 1138overall loaded length (inches): 1.125
Bilde155 Hornady HP-XTP 9.1 1165overall loaded length (inches): 1.125
Bilde155 Hornady HP-XTP 9.6 1191overall loaded length (inches): 1.125
Load Data
A Glock Model 22 with a 4.35-inch barrel was used to test-fire all loads. Starline cases and Winchester Small Pistol primers were used throughout. Bullet diameter: .400 inch; maximum cartridge overall length: 1.135 inches; maximum case length: .850 inch; trim-to length: .845 inch.

.41 Magnum / .41 Remington Magnum

Bilde
Wt.BulletChargeVelocity (FPS)Remarks
Bilde170 Sierra JHC 11.0 1504start load; COL: 1.575"; 29,400 cup
Bilde170 Sierra JHC 12.5 1646max load; COL: 1.575"; 38,700 cup
Bilde210 Hornady XTP 10.0 1316start load; COL: 1.580"; 31,600 cup
Bilde210 Hornady XTP 11.0 1410max load; COL: 1.580"; 38,200 cup
Bilde220 Speer JSP 9.0 1208start load; COL: 1.580"; 29,300 cup
Bilde220 Speer JSP 10.1 1311max load; COL: 1.580"; 37,700 cup
Bilde245 Cast LSWC 9.0 1208start load; COL: 1.630"; 29,200 cup
Bilde245 Cast LSWC 10.0 1293max load; COL: 1.630"; 37,900 cup
Hodgdon Pistol Data
Case: Remington; twist: 1:18.75"; primer: Winchester LP; barrel length: 10.125"; trim length: 1.280"; BULLET DIAM.: .410". NEVER EXCEED MAXIMUM LOADS
Wt.BulletChargeVelocity (FPS)Remarks
Bilde180 Barnes XPB FB 10.0 1215
Bilde180 Barnes XPB FB 10.5 1266
Bilde180 Barnes XPB FB 11.0 1307
Bilde180 Barnes XPB FB 11.5 1364
Bilde180 Barnes XPB FB 12.0 1406
Using Barnes X Pistol Bullets
A 6 1/2-inch barreled Ruger Blackhawk was used to testfire the above loads. Starline cases and CCI 300 Large Pistol primers were used throughout. Bullet diameter: .410 inch; maximum cartridge length: 1.590 inches, tested at 1.580 inches; maximum case length: 1.290 inches; trim-to length: 1.280 inches.
Wt.BulletChargeVelocity (FPS)Remarks
Bilde135 Cutting Edge Raptor HP 13.5 1702
Bilde135 Cutting Edge Raptor HP 14.0 1721
Bilde180 Cutting Edge Raptor HP 11.0 1352
Bilde180 Cutting Edge Raptor HP 11.5 1371
Bilde180 Cutting Edge Raptor HP 12.0 1381
Bilde180 Cutting Edge Raptor HP 12.5 1403
Using Cutting Edge bullets
Warning! A Ruger New Model Blackhawk (stainless Bisley) with a 5 1/2-inch barrel was used to test-fire these loads. Starline cases were used throughout. CCI 300 primers were used in all loads except where indicated. Bullet diameter: .410 inch; maximum case length: 1.290 inches; trim-to length: 1.280 inches. Overall loaded length: 1.588 inches. Source: Handloader Magazine issue #298.

.44 Magnum / .44 Remington Magnum

Bilde
Wt.BulletChargeVelocity (FPS)Remarks
Bilde200 Cutting Edge Raptor HP 11.5 1275
Bilde200 Cutting Edge Raptor HP 12.0 1300
Bilde200 Cutting Edge Raptor HP 12.5 1339
Bilde200 Cutting Edge Raptor HP 13.0 1371
Bilde200 Cutting Edge Raptor HP 13.5 1394
Bilde240 Cutting Edge Solid 12.0 1202
Bilde240 Cutting Edge Solid 12.5 1203
Bilde240 Cutting Edge Solid 13.0 1237
Bilde240 Cutting Edge Solid 13.5 1255
Using Cutting Edge bullets
Warning! A Ruger New Model Blackhawk (stainless Bisley) with a 5 1/2-inch barrel was used to test-fire these loads. Starline cases were used throughout. CCI 300 primers were used in all loads, except where indicated. Bullet diameter: .430 inch; maximum case length: 1.285 inches; trim-to length: 1.275 inches. Overall loaded length: 1.610 inches. Source: Handloader Magazine issue #298.
Wt.BulletChargeVelocity (FPS)Remarks
Bilde180 Hornady XTP 13.5 1499start load; COL: 1.600"; 29,400 psi
Bilde180 Hornady XTP 14.8 1604max load; COL: 1.600"; 34,600 psi
Bilde200 Nosler JHP 13.0 1440start load; bullet diam.: .429"; COL: 1.600"; 30,000 psi
Bilde200 Nosler JHP 14.3 1534max load; bullet diam.: .429"; COL: 1.600"; 34,600 psi
Bilde210 Sierra JHC 12.0 1358start load; COL: 1.600"; 28,500 psi
Bilde210 Sierra JHC 13.3 1457max load; COL: 1.600"; 35,400 psi
Bilde220 Berry's Bullets FP 9.0 894start load; COL: 1.610"; 12,300 psi
Bilde220 Berry's Bullets FP 11.8 1189max load; COL: 1.610"; 20,300 psi
Bilde225 Speer JHP 11.2 1291start load; bullet diam.: .429"; COL: 1.575"; 29,300 psi
Bilde225 Speer JHP 12.5 1402max load; bullet diam.: .429"; COL: 1.575"; 35,200 psi
Bilde240 Nosler JHP 11.0 1249start load; bullet diam.: .429"; COL: 1.600"; 29,400 psi
Bilde240 Nosler JHP 12.1 1331max load; bullet diam.: .429"; COL: 1.600"; 34,500 psi
Bilde270 Speer GDSP 9.8 1112start load; bullet diam.: .429"; COL: 1.600"; 27,900 psi
Bilde270 Speer GDSP 11.0 1213max load; bullet diam.: .429"; COL: 1.600"; 34,100 psi
Bilde280 Swift JHP 9.8 1076start load; COL: 1.700"; 28,400 psi
Bilde280 Swift JHP 11.0 1189max load; COL: 1.700"; 34,600 psi
Bilde300 Hornady XTP 8.5 983start load; COL: 1.600"; 28,600 psi
Bilde300 Hornady XTP 9.5 1071max load; COL: 1.600"; 34,700 psi
Bilde325 Beartooth Bullets LFN GC 10.0 1069start load; COL: 1.730"; 28,500 cup
Bilde325 Beartooth Bullets LFN GC 11.8 1195max load; COL: 1.730"; 38,700 cup
Bilde330 Beartooth Bullets LFN GC 9.5 1026start load; COL: 1.730"; 27,600 cup
Bilde330 Beartooth Bullets LFN GC 11.3 1158max load; COL: 1.730"; 38,700 cup
Bilde355 Beartooth Bullets LFN GC 9.0 987start load; COL: 1.710"; 28,400 cup
Bilde355 Beartooth Bullets LFN GC 10.5 1096max load; COL: 1.710"; 37,800 cup
Hodgdon Pistol Data
Case: Winchester; barrel length: 8.275"; twist: 1:20"; trim length: 1.280"; primer: Remington 2 1/2; bullet diam.: .430" (except where otherwise specified in remarks). NEVER EXCEED MAXIMUM LOADS
Wt.BulletChargeVelocity (FPS)Remarks
Bilde240 Rocky Mountain Reloading FP 11.0 1051
Bilde240 Rocky Mountain Reloading FP 11.5 1098
Bilde240 Rocky Mountain Reloading FP 12.0 1129
in a New Model Ruger Blackhawk Bisley
Warning! Gun: New Model Ruger Blackhawk (Bisley); Barrel Length: 5 1/2 inches; Cases: Starline; Primer: CCI 300; COAL: 1.570 inches; Bullet Diameter: .430 inch; Maximum Case Length: 1.285 inches; Trim-to Length: 1.275 inches; Source: Handloader issue #300 - Feb/March 2016
Wt.BulletChargeVelocity (FPS)Remarks
Bilde247 Lyman 429244 Gas Check 9.0 905bullet cast of 3 parts lead/7 parts wheelweights, BHN 6; group (inches): 1.49
Bilde253 Lyman 429421 9.0 903bullet cast of 3 parts lead/7 parts wheelweights, BHN 6; group (inches): 1.81
Lead Cast Loads
All loads were fired through the 5.5-inch barrel of a Ruger Super Blackhawk .44 Magnum clamped in a Caldwell Handgun Accurizing Mechanical Machine Rest. Velocities were recorded 10 feet in front of the muzzle with an RCBS AmmoMaster chronograph. Remington cases and Winchester Large Pistol primers were used throughout. Accuracy is the average of two, five-shot groups fired at 25 yards.
Wt.BulletChargeVelocity (FPS)Remarks
Bilde255 Rim Rock SWC w/gc 10.5 1118overall loaded length (inches): 1.663
Bilde255 Rim Rock SWC w/gc 11.0 1165overall loaded length (inches): 1.663
Bilde255 Rim Rock SWC w/gc 11.5 1218overall loaded length (inches): 1.663
Bilde255 Rim Rock SWC w/gc 12.0 1266overall loaded length (inches): 1.663
Using Rim Rock bullets
Warning! A Smith & Wesson Model 629-1 with a 6-inch barrel was used to test-fire the above loads. Starline cases and CCI 300 primers were used throughout. Bullet diameter: .430 inch; maximum case length: 1.285 inches; trim-to length: 1.275 inches. Source: Handloader issue #298.
Wt.BulletChargeVelocity (FPS)Remarks
Bilde263 Lyman 429255GC 10.0 1003overall loaded length (inches): 1.675
Bilde263 Lyman 429255GC 11.0 1054overall loaded length (inches): 1.675
Bilde263 Lyman 429255GC 12.0 1115overall loaded length (inches): 1.675
Handloading Data
A Smith & Wesson Model 69 with a 4 1/4-inch barrel was used to test fire these loads. Starline cases were used throughout. Maximum case length: 1.285 inches; trim-to length: 1.275 inches; primer: CCI 300 (except where otherwise specified in remarks).
Wt.BulletChargeVelocity (FPS)Remarks
Bilde250 Lyman 429244 GC 9.0 905group (inches): 1.49; primer: Winchester Large Pistol

CCI 350 Magnum Pistol primers used except where otherwise specified in remarks; all loads used Federal cases and were fired through a Ruger Super Blackhawk with a 5.5-inch barrel; all groups were five shots fired at 25 yards

.44 Special

Bilde
Wt.BulletChargeVelocity (FPS)Remarks
Bilde240 Rim Rock SWC-HP w/gc 9.0 1129
Bilde240 Rim Rock SWC-HP w/gc 9.5 1180
Bilde255 Rim Rock SWC w/gc 9.0 1122
Bilde255 Rim Rock SWC w/gc 9.5 1164
+P data Using Rim Rock bullets
Warning! These handloads generate +P pressures and exceed SAAMI guidelines for the .44 Special that are currently established at 15,500 psi. These loads should ONLY BE USED IN Smith & Wesson Model 1950 Target/Model 24, Ruger New Model Blackhawk, Freedom Arms Model 97 and guns designed to handle pressures up to 25,000 psi. A Ruger Blackhawk, Clements Custom No. 5 with a 5 1/2-inch Douglas Premium barrel was used to test-fire these loads. Starline cases and CCI 300 primers were used throughout. Bullet diameter: .430 inch; maximum case length: 1.160 inches; trim-to length: 1.150 inches. Overall loaded length: 1.540 inches. Source: Handloader Magazine issue #298.

.45 ACP

Bilde
Wt.BulletChargeVelocity (FPS)Remarks
Bilde185 Barnes XPB 6.0 848minimum
Bilde185 Barnes XPB 7.0 979maximum
Barnes Reloading Manual #4
case: Winchester; case trim length: 0.888"; twist rate: 1:16"; primer: WLP; barrel length: 5"; COAL: 1.235"; maximum loads should be used with caution; NOTE: Use a taper crimp on the case mouth. The Barnes #45185 185-grain XPB bullet has a slight taper on the base to prevent bulging case wall once the bullet is seated. Only a slight amount of case mouth belling is needed prior to seating the bullet in the case.
Wt.BulletChargeVelocity (FPS)Remarks
Bilde180 LFP 6.5 788start load; bullet diam.: .452"; COL: 1.140"; 9,800 cup
Bilde180 LFP 8.0 1015max load; bullet diam.: .452"; COL: 1.140"; 16,900 cup
Bilde185 Hornady JSWC 7.2 919start load; COL: 1.135"; 11,300 cup
Bilde185 Hornady JSWC 8.2 1044max load COL: 1.135"; 17,000 cup
Bilde200 Speer JHP 7.0 918start load; COL: 1.155"; 13,300 cup
Bilde200 Speer JHP 7.8 1013max load; COL: 1.155"; 16,900 cup
Bilde230 LRN 6.0 747start load; bullet diam.: .452"; COL: 1.200"; 12,000 cup
Bilde230 LRN 6.8 875max load; bullet diam.: .452"; COL: 1.200"; 16,800 cup
Bilde230 Hornady FMJ FP 6.3 848start load; COL: 1.200"; 14,100 cup
Bilde230 Hornady FMJ FP 6.8 908max load; COL: 1.200"; 17,200 cup
Hodgdon Data
Case: Winchester; twist: 1:16"; primer: Federal 150, Large Pistol; barrel length: 5"; trim length: .893"; bullet diam.: .451" (except where otherwise specified in remarks)
Wt.BulletChargeVelocity (FPS)Remarks
Bilde230 Speer TMJ 6.4 816sugg. start load; 1.275" OAL; 12,800 cup
Bilde230 Speer TMJ 7.0 922max load; 1.275" OAL; 17,100 cup
Lyman Reloading Handbook 49th Edition
cases: Remington, Federal; trim-to length: .888"; primers: Remington 2 1/2; primer size: Large Pistol; Lyman shell holder: No. 2; firearm used: Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .450"
Wt.BulletChargeVelocity (FPS)Remarks
Bilde185 Hornady HP-XTP or FMJ SWC 7.2 771
Bilde185 Hornady HP-XTP or FMJ SWC 7.7 830
Bilde185 Hornady HP-XTP or FMJ SWC 8.2 899
Bilde185 Hornady HP-XTP or FMJ SWC 8.7 969
Bilde185 Hornady HP-XTP or FMJ SWC 9.1 1035maximum load
Using 185 GR Hornady Bullets
Gun: Ruger SR1911; barrel length: 5 inches; case: Starline; primer: Winchester Large Pistol; bullet diameter: .451"; HP-XTP COAL: 1.225"; FMJ SWC COAL: 1.135"; maximum COAL: 1.275"; maximum case length: .898"; trim to length: .888".
Wt.BulletChargeVelocity (FPS)Remarks
Bilde200 Hornady HP-XTP 6.6 756
Bilde200 Hornady HP-XTP 7.1 811
Bilde200 Hornady HP-XTP 7.6 879
Bilde200 Hornady HP-XTP 8.1 945
Bilde200 Hornady HP-XTP 8.6 1009maximum load
Using 200 GR Hornady Bullets
Gun: Ruger SR1911; barrel length: 5 inches; case: Starline; primer: Winchester Large Pistol; bullet diameter: .451"; HP-XTP COAL: 1.230"; SWC COAL: 1.200"; L-C/T COAL: 1.225"; maximum COAL: 1.275"; maximum case length: .898"; trim to length: .888".
Wt.BulletChargeVelocity (FPS)Remarks
Bilde230 Hornady HP-XTP or HAP 6.1 741
Bilde230 Hornady HP-XTP or HAP 6.4 776
Bilde230 Hornady HP-XTP or HAP 6.7 819
Bilde230 Hornady HP-XTP or HAP 7.1 861
Bilde230 Hornady HP-XTP or HAP 7.4 901maximum load
Using 230 GR Hornady Bullets
Gun: Ruger SR1911; barrel length: 5 inches; case: Starline; primer: Winchester Large Pistol; bullet diameter: .451"; HP-XTP and HAP COAL: 1.230"; LRN COAL: 1.245"; maximum COAL: 1.275"; maximum case length: .898"; trim to length: .888".
Wt.BulletChargeVelocity (FPS)Remarks
Bilde230 Nosler Sporting Handgun Pistol FMJ or JHP 6.9 896max
Bilde230 Nosler Sporting Handgun Pistol FMJ or JHP 6.4 839
Bilde230 Nosler Sporting Handgun Pistol FMJ or JHP 5.9 771most accurate load tested
Using Nosler Bullets
Handgun; case: Winchester; primer: Fed. 150; barrel length/make: 5" Douglas; twist: 1-16"; bullets: 185 GR Nosler Custom Competition JHP or 230 GR Nosler Sporting Handgun Pistol FMJ or JHP; OACL: 1.200"; maximum OACL: 1.275". Use Maximum Loads with Caution
Wt.BulletChargeVelocity (FPS)Remarks
Bilde150 Cutting Edge Raptor HP 9.0 1231
Bilde150 Cutting Edge Raptor HP 9.2 1266
+P (23,000 psi) Using Cutting Edge bullets
Warning! A Ruger SR1911 with a 5-inch barrel was used to test-fire these loads. Starline cases and Remington 2 1/2 Large Pistol primers were used throughout. Bullet diameter: .451/.452 inch; maximum case length: .898 inch; trim-to length: .893 inch. Overall loaded length: 1.215 inches. Source: Handloader Magazine issue #298.
Wt.BulletChargeVelocity (FPS)Remarks
Bilde200 Hornady XTP 7.8 909group (inches): 2.74; muzzle energy (ft-lb): 367
Bilde230 Hornady XTP 6.8 856group (inches): 1.71; muzzle energy (ft-lb): 374
Taurus Stellar Tracker
Taurus Stellar Tracker with a 4-inch barrel and open sights was used for testing. Accuracy is based on the average of three, five-shot groups at 15 yards from a benchrest.

.45 Colt

Bilde
Wt.BulletChargeVelocity (FPS)Remarks
Bilde285 RCBS cast 45-270-SAA 9.7 1107overall loaded length (inches): 1.665; This load exceeds industry pressure limits for the .45 Colt (currently established at 14,000 psi) but does not exceed 20,000 psi. Use only in modern guns designed for this pressure level.
higher pressure loads
Warning! A Browning Model 1885 Traditional Hunter with a 24-inch barrel was used to test-fire these loads. Starline cases and CCI 300 primers were used throughout. Bullet diameter: .452 inch; maximum case length: 1.285 inches; case trim-to length: 1.275 inches. Source: Rifle Single Shot Special Edition 2015.
Wt.BulletChargeVelocity (FPS)Remarks
Bilde240 Sierra JHC 12.3 1179start load; COL: 1.600"; 21,900 cup
Bilde240 Sierra JHC 13.7 1292max load; COL: 1.600"; 29,200 cup
Bilde250 Hornady XTP 12.0 1129start load; COL: 1.600"; 22,100 cup
Bilde250 Hornady XTP 13.4 1252max load; COL: 1.600"; 29,900 cup
Bilde260 Nosler Part 11.5 1068start load; bullet diam.: .451"; COL: 1.650"; 24,500 cup
Bilde260 Nosler Part 12.7 1188max load; bullet diam.: .451"; COL: 1.650"; 30,000 cup
Bilde300 Speer JFP 11.2 1005start load; bullet diam.: .451"; COL: 1.650"; 21,100 cup
Bilde300 Speer JFP 12.5 1136max load; bullet diam.: .451"; COL: 1.650"; 29,200 cup
(Ruger, Freedom Arms & T/C Only) (Hodgdon Data)
The data is intended for 45 Colt Ruger Blackhawk, Freedom Arms, and Thompson Center Contender/Encore Handguns. Max pressure, 30,000 CUP. DO NOT USE THIS DATA IN ANY OTHER MAKE OR MODEL OF FIREARM. Case: Winchester; twist: 1:16"; primer: Winchester LP; barrel length: 7.25"; trim length: 1.280"; bullet diam.: .452" (except where otherwise specified in remarks). NEVER EXCEED MAXIMUM LOADS
Wt.BulletChargeVelocity (FPS)Remarks
Bilde225 Hornady FTX 8.1 850
Bilde225 Hornady FTX 8.6 900
Bilde225 Hornady FTX 9.1 950
Bilde225 Hornady FTX 9.6 1000maximum load
Handgun (FTX Data)
max. case length: 1.230"; case trim length: 1.215"; bullet diameter: .452"; pistol: Ruger Blackhawk; barrel: 7 1/2" 1 in 16" twist; case: Starline; primer: WLP; bullet: 225 GR. FTX; maximum COL: 1.645"; sectional density: .157; ballistic coefficient: .140; use maximum loads with caution
Wt.BulletChargeVelocity (FPS)Remarks
Bilde285 RCBS 45-270-SAA cast 9.5 927
Bilde285 RCBS 45-270-SAA cast 10.0 972
Bilde285 RCBS 45-270-SAA cast 10.5 999
Bilde285 RCBS 45-270-SAA cast 11.1 1048
in a Ruger New Model Blackhawk
These loads exceed industry pressure guidelines and should be used ONLY in modern guns intended to handle pressures of 23,000 psi. All loads were fired in a Ruger New Model Blackhawk .45 (.357 Blackhawk frame) with a 5 1/2-inch barrel. Starline cases and Winchester Large Pistol primers were used throughout. Cartridge overall loaded length: 1.650 inches.
Wt.BulletChargeVelocity (FPS)Remarks
Bilde240 Sierra JHC 12.0 1007overall loaded length (inches): 1.5825
Bilde240 Sierra JHC 12.5 1072overall loaded length (inches): 1.5825
Bilde240 Hornady XTP-MAG 12.5 1066overall loaded length (inches): 1.655
Bilde250 Hornady HP-XTP 11.0 925overall loaded length (inches): 1.5975
Bilde250 Hornady HP-XTP 11.5 962overall loaded length (inches): 1.5975
Bilde250 Hornady HP-XTP 12.0 1010overall loaded length (inches): 1.5975
Bilde318 Lyman cast 454629 10.5 946overall loaded length (inches): 1.6535; potentially the most accurate powder with that bullet
Bilde318 Lyman cast 454629 11.3 1020overall loaded length (inches): 1.6535
in a Ruger New Model Blackhawk (+P Pressure 23,000 psi)
These loads exceed SAAMI pressure limits for the .45 Colt and should only be used in Ruger New Model Blackhawk revolvers, or firearms of similar strength. Barrel length: 5 1/2 inches; Starline cases used throughout. CCI 300 primers used in all loads except with H-110 powder, where Federal 155 primers were used. Temperature during testing was 70 to 85 degrees Fahrenheit.
Wt.BulletChargeVelocity (FPS)Remarks
Bilde280 RCBS cast 45-270-SAA 9.5 965overall loaded length (inches): 1.653
in a Ruger New Model Blackhawk (Std. Pressure 14,000 psi)
Loads fired in a 5 1/2-inch barrel. Starline cases and CCI 300 primers used throughout. Temperature during testing ranged from 70 to 92 degrees Fahrenheit.
Wt.BulletChargeVelocity (FPS)Remarks
Bilde225 Hornady FTX 8.1 846
Bilde225 Hornady FTX 8.6 893
Bilde225 Hornady FTX 9.1 940
Bilde225 Hornady FTX 9.6 988maximum load
Revolver Using 225 GR Hornady Bullets
Gun: Ruger New Model (Bisley) Blackhawk; barrel length: 5 1/2 inches; case: Starline; primer: Winchester WLP; bullet diameter: .452"; COAL: 1.645; maximum COAL: 1.600"; maximum case length: 1.285"; trim to length: 1.215";

.45 GAP / .45 G.A.P.

Bilde
Wt.BulletChargeVelocity (FPS)Remarks
Bilde185 Hornady Jacketed HP 6.7 919start load; 17,400 psii; 1.060" OAL
Bilde185 Hornady Jacketed HP 7.5 1031max load; 22,400 psii; 1.060" OAL
Bilde200 Speer Jacketed HP 6.2 810start load; 15,100 psi; 1.080" OAL
Bilde200 Speer Jacketed HP 7.0 951max load; 21,200 psi; 1.080" OAL
Bilde230 Speer TMJ 5.6 814start load; 17,800 psi; 1.135" OAL
Bilde230 Speer TMJ 6.3 885max load; 20,300 psi; 1.135" OAL
Bilde225 Lyman Cast #452374 5.7 845start load; 17,800 psi; 1.135" OAL
Bilde225 Lyman Cast #452374 6.4 953max load; 21,600 psi; 1.135" OAL
Lyman Reloading Handbook 49th Edition
cases: Winchester; trim-to length: .755"; primers: Winchester WSP; primer size: Small Pistol; Lyman Shell Holder: No. 2; cast bullets sized to .451" dia.; firearm used: Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .450" (Lyman 49th Reloading Handbook)
Wt.BulletChargeVelocity (FPS)Remarks
Bilde185 Hornady XTP 6.5 923starting load; psi: 16,400
Bilde185 Hornady XTP 7.5 1,075maximum load; psi: 22,500
Bilde200 Speer GDHP 6.0 892starting load; psi: 19,100
Bilde200 Speer GDHP 6.8 1,000maximum load; psi: 22,300
Hodgdon Pistol Data
Never exceed the loads listed here. case: Speer; BBL: 5 inches; PR: Winchester SP; twist: 1:16 inches; trim: .750 inch

.45 Super

Bilde
Wt.BulletChargeVelocity (FPS)Remarks
Bilde185 Hornady Jacketed Semi-Wadcutter 7.2 919starting load; dia: .451"; COL: 1.195"; 11,300 cup
Bilde185 Hornady Jacketed Semi-Wadcutter 8.4 1,120maximum load; dia: .451"; COL: 1.195"; 20,100 cup
Bilde200 Speer Jacketed Hollow Point 7.0 918starting load; dia: .451"; COL: 1.155"; 13,300 cup
Bilde200 Speer Jacketed Hollow Point 8.1 1,053maximum load; dia: .451"; COL: 1.155"; 20,100 cup
Bilde230 Hornady Full Metal Jacket Flat Point 6.3 848starting load; dia: .451"; COL: 1.200"; 14,100 cup
Bilde230 Hornady Full Metal Jacket Flat Point 7.3 959maximum load; dia: .451"; COL: 1.200"; 19,800 cup
Hodgdon Pistol Data
case: Winchester; twist: 1:16"; barrel: 5"; trim: .893"; primer: Federal 150; NEVER EXCEED MAXIMUM LOADS

.454 Casull

Bilde
Wt.BulletChargeVelocity (FPS)Remarks
Bilde240 Sierra JHC 14.0 1375start load; bullet diam.: .452"; COL: 1.680"; 23,800 cup
Bilde240 Sierra JHC 16.0 1541max load; bullet diam.: .452"; COL: 1.680"; 36,200 cup
Bilde250 Nosler JHP 14.5 1377start load; bullet diam.: .451"; COL: 1.700"; 26,400 cup
Bilde250 Nosler JHP 15.5 1492max load; bullet diam.: .451"; COL: 1.700"; 36,100 cup
Bilde260 Speer JHP 14.0 1353start load; bullet diam.: .451"; COL: 1.675"; 28,200 cup
Bilde260 Speer JHP 15.0 1443max load; bullet diam.: .451"; COL: 1.675"; 36,600 cup
Hodgdon Pistol Data
Case: Freedom Arms; twist: 1:24"; primer: Winchester SR; barrel length: 9.375"; trim length: 1.380". NEVER EXCEED MAXIMUM LOADS
Wt.BulletChargeVelocity (FPS)Remarks
Bilde240 Cutting Edge Raptor HP 18.0 1538
Bilde240 Cutting Edge Raptor HP 19.0 1553
Bilde240 Cutting Edge Raptor HP 20.0 1588
Using Cutting Edge bullets
Warning! A Freedom Arms Model 83 with a 7 1/2-inch barrel was used to test-fire these loads. Starline cases and Remington 7 1/2 Small Rifle primers were used throughout. Bullet diameter: 452 inch; maximum case length: 1.383 inches; trim-to length: 1.373 inches. Overall loaded length: 1.748 inches. Source: Handloader Magazine issue #298.

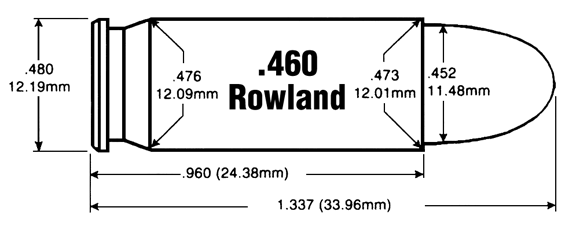

.460 Rowland

Bilde
Wt.BulletChargeVelocity (FPS)Remarks
Bilde185 Sierra Match FMJ 12.0 1,439
Bilde185 Sierra Match FMJ 13.4 1,536
Bilde185 Sierra JHP 13.0 1,443
Bilde185 Sierra JHP 13.4 1,477
Bilde200 XTP 13.0 1,369
Bilde200 XTP 13.5 1,460
Bilde200 Sierra 13.2 1,415
Bilde200 Gold Dot 13.0 1,350expands but does not penetrate as deeply as XTP
Bilde230 XTP 10.5 1,222
Be careful with AAC-7 loads.
It seems the burn rate has changed, and there appears to be more than one generation currently in the supply line. On the other hand, the powder gives excellent results and is among the best choices for the .460 Rowland. The Sierra bullet gave the best accuracy results. The XTP bullet would be the toughest for penetration on game, expanding well and holding together. The Nosler gives a bit more penetration than the Sierra but by a small margin, and the Nosler is very accurate. Begin at least 10 percent below powder charge.
Wt.BulletChargeVelocity (FPS)Remarks
Bilde185 HDY JSWC 12.0 1,413COL: 1.240"; cup: 34,700; starting load
Bilde185 HDY JSWC 13.5 1,503COL: 1.240"; cup: 38,800; maximum load
Bilde200 SPR JHP 12.0 1,372COL: 1.225"; cup: 34,300; starting load
Bilde200 SPR JHP 13.8 1,456COL: 1.225"; cup: 39,400; maximum load
Bilde230 HDY XTP 10.0 1,207COL: 1.270"; cup: 32,200; starting load
Bilde230 HDY XTP 12.0 1,336COL: 1.270"; cup: 39,200; maximum load
Hodgdon Pistol Data
case: Starline; BBL: 5"; pr: Winchester LP; twist: 1:16"; bullet diam.: .451"; NEVER Exceed the Loads Listed Here

.460 Smith & Wesson Magnum / .460 S&W Magnum

Bilde
Wt.BulletChargeVelocity (FPS)Remarks
Bilde200 Barnes XPB 20.0 1,752starting load; dia.: .451; COL: 2.320"; 30,300 psi
Bilde200 Barnes XPB 27.0 2,161maximum load; dia.: .451; COL: 2.320"; 56,500 psi
Hodgdon Pistol Data
case: Starline; bbl: 10.743"; PR: Winchester LRM; twist: 1:20"; trim: 1.790" - This data was developed with Starline Brass which was designed for use with large rifle type primers. Some brands of brass were designed solely for use with large pistol primers. Check with the manufacturer of the brass for correct primer usage. Rifle primers used in a pistol primer pocket cannot be seated sufficiently deep to be below flush with the casehead, which could result in sympathetic ignition of other rounds in the cylinder during recoil. Such use may result in damage to the firearm and/or result in injury or death of the shooter and/or bystander. Never exceed loads listed.

.480 Ruger

Bilde
Wt.BulletChargeVelocity (FPS)Remarks
Bilde325 Hornady XTP 13.0 1,217starting load; C.O.L. = 1.620 inches; 38,800 psi
Bilde325 Hornady XTP 14.5 1,330maximum load; C.O.L. = 1.620 inches; 47,000 psi
Bilde370 CPB LFP 12.0 1,162starting load; C.O.L. = 1.640 inches; 36,300 psi
Bilde370 CPB LFP 13.8 1,272maximum load; C.O.L. = 1.640 inches; 45,800 psi
Bilde400 Hornady XTP 9.5 965starting load; C.O.L. = 1.620 inches; 37,900 psi
Bilde400 Hornady XTP 11.0 1,082maximum load; C.O.L. = 1.620 inches; 46,900 psi
Bilde405 CPB (w/GCK) 10.0 1,023starting load; C.O.L. = 1.620 inches; 33,400 psi
Bilde405 CPB (w/GCK) 11.8 1,140maximum load; C.O.L. = 1.620 inches; 46,100 psi

All bullets measure .475 inch. Winchester Large Pistol primers used throughout in Hornady cases. Barrel length: 7.5 inches with one-in-18-inch twist. Trim cases to 1.275 inches.
Wt.BulletChargeVelocity (FPS)Remarks
Bilde325 Hornady XTP 13.0 1217start load; COL: 1.620"; 38,800 psi
Bilde325 Hornady XTP 14.5 1330max load; COL: 1.620"; 47,000 psi
Bilde355 Beartooth Bullets LFN GC 13.0 1221start load; bullet diam.: .476"; COL: 1.630"; 37,300 psi
Bilde355 Beartooth Bullets LFN GC 14.5 1313max load; bullet diam.: .476"; COL: 1.630"; 45,400 psi
Bilde370 Cast Performance Bullets LFP 12.0 1162start load; COL: 1.640"; 36,300 psi
Bilde370 Cast Performance Bullets LFP 13.8 1272max load; COL: 1.640"; 45,800 psi
Bilde400 Hornady XTP 9.5 965start load; COL: 1.620"; 37,900 psi
Bilde400 Hornady XTP 11.0 1082max load; COL: 1.620"; 46,900 psi
Bilde405 Cast Performance Bullets (w/GCK) 10.0 1023start load; COL: 1.620"; 33,400 psi
Bilde405 Cast Performance Bullets (w/GCK) 11.8 1140max load; COL: 1.620"; 46,100 psi
Bilde420 Beartooth Bullets LFN GC 9.8 994start load; bullet diam.: .476"; COL: 1.640"; 37,500 psi
Bilde420 Beartooth Bullets LFN GC 11.0 1080max load; bullet diam.: .476"; COL: 1.640"; 46,600 psi
Hodgdon Data
Case: Hornady; twist: 1:18"; primer: Winchester LP; barrel length: 7 1/2"; trim length: 1.275"; bullet diam.: .475" (except where otherwise specified in remarks). NEVER EXCEED MAXIMUM LOADS
Wt.BulletChargeVelocity (FPS)Remarks
Bilde325 XTP 13.0 1217start load; min OAL: 1.620
Bilde325 XTP 14.5 1330never exceed; min OAL: 1.620; 47,000 psi
Bilde370 Lead 12.0 1162start load; min OAL: 1.640
Bilde370 Lead 13.8 1272never exceed; min OAL: 1.640; 45,800 psi
Bilde400 XTP 9.5 965start load; min OAL: 1.620
Bilde400 XTP 11.0 1082never exceed; min OAL: 1.620; 46,900 psi
Lee Precision Data
CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Large Pistol primer.

.50 Action Express / .50 A.E.

Bilde
Wt.BulletChargeVelocity (FPS)Remarks
Bilde325 Hunters Supply Cast FP 15.0 1222
Bilde325 Hunters Supply Cast FP 15.5 1248
Bilde325 Hunters Supply Cast FP 16.0 1280
Bilde325 Hunters Supply Cast FP 16.5 1312
Bilde325 Hunters Supply Cast FP 17.0 1339maximum load
Gun: Magnum Research BFR; barrel length: 8 1/8 inches; case: IMI; primer: Winchester Large Pistol; bullet diameter: 500"/.501"; 300 GR Speer GDHP COAL: 1.580", 325 GR UCHP COAL: 1.575"; 325 Hunters Supply Cast FP COAL: 1.625" (1.580" for Auto Loading Pistols); maximum COAL: 1.575"; maximum case length: 1.285"; trim to length: 1.280".
Wt.BulletChargeVelocity (FPS)Remarks
Bilde300 Hornady XTP-MAG 16.0 1239
Bilde300 Hornady XTP-MAG 16.5 1269
Bilde300 Hornady XTP-MAG 17.0 1308
Bilde300 Hornady XTP-MAG 17.5 1338maximum load
Using Hornady Bullets
Gun: Magnum Research BFR; barrel length: 8 1/8 inches; case: IMI; primer: Winchester Large Pistol; bullet diameter: 500"/.501"; 300 gr Hornady XTP-MAG COAL: 1.580"; maximum COAL: 1.575"; maximum case length: 1.285"; trim to length: 1.280".

.500 Smith & Wesson

Bilde
Wt.BulletChargeVelocity (FPS)Remarks
Bilde275 Barnes XPB 20.0 1594minimum; COAL: 2.085"
Bilde275 Barnes XPB 24.5 1824maximum; COAL: 2.085"
Bilde325 Barnes XPB 22.5 1599minimum; COAL: 2.290"
Bilde325 Barnes XPB 24.5 1684maximum; COAL: 2.290"
Bilde375 Barnes XPB 18.0 1347minimum; COAL: 2.290"
Bilde375 Barnes XPB 21.0 1487maximum; COAL: 2.290"
Barnes Reloading Manual #4
case: Starline; case trim length: 1.615"; twist rate: 1:15"; primer: Federal GM210M; barrel length: 10"; maximum loads should be used with caution; NOTE: Roll crimp the case mouth into the cannelure. Brass for this cartridge has been made with both Large Pistol and Large Rifle primer pockets. Our data was developed using Large Rifle primers. The primer pockets for Large Rifle primers are the same diameter, but slightly deeper than the primer pockets designed for Large Pistol primers. Cases with the shallower primer pocket can be reamed deeper to accept Large Rifle primers.
Wt.BulletChargeVelocity (FPS)Remarks
Bilde275 Barnes XPB 20.0 1594start load; COL: 2.085"; 35,000 psi
Bilde275 Barnes XPB 24.5 1824max load; COL: 2.085"; 48,900 psi
Bilde325 Barnes XPB 22.5 1599start load; COL: 2.290"; 43,300 psi
Bilde325 Barnes XPB 24.5 1684max load; COL: 2.290"; 49,500 psi
Bilde350 Hornady XTP 21.0 1482start load; COL: 1.985"; 41,400 psi
Bilde350 Hornady XTP 23.0 1602max load; COL: 1.985"; 50,000 psi
Bilde370 Cast Performance Bullets LGC 21.5 1476start load; COL: 2.020"; 42,000 psi
Bilde370 Cast Performance Bullets LGC 23.3 1576max load; COL: 2.020"; 50,000 psi
Bilde375 Barnes XPB 18.0 1347start load; COL: 2.290"; 38,300 psi
Bilde375 Barnes XPB 21.0 1487max load; COL: 2.290"; 49,600 psi
Bilde385 Rem. HP 20.0 1398start load; COL: 2.150"; 39,900 psi
Bilde385 Rem. HP 23.0 1523max load; COL: 2.150"; 49,300 psi
Bilde400 Sierra JSP 18.0 1274start load; COL: 2.050"; 36,500 psi
Bilde400 Sierra JSP 22.0 1458max load; COL: 2.050"; 49,000 psi
Bilde440 Cast Performance Bullet LGC 18.5 1300start load; COL: 2.025"; 41,900 psi
Bilde440 Cast Performance Bullet LGC 20.7 1393max load; COL: 2.025"; 50,500 psi
Bilde500 Hornady SP 16.0 1115start load; COL: 2.065"; 39,200 psi
Bilde500 Hornady SP 18.5 1222max load; COL: 2.065"; 50,400 psi
Hodgdon Pistol Data
case: Starline; twist: 1:18"; barrel: 10"; trim: 1.615"; primer: Winchester LR; dia: .500"; NEVER EXCEED MAXIMUM LOADS

.500 Wyoming Express

Bilde
Wt.BulletChargeVelocity (FPS)Remarks
Bilde350 Hornady XTP 17.0 1,313starting load; COL: 1.740"; 39,900 PSI
Bilde350 Hornady XTP 19.0 1,423maximum load; COL: 1.740"; 47,200 PSI
Bilde370 Cast Performance Bullet LGC 17.0 1,284starting load; COL: 1.740"; 38,500 PSI
Bilde370 Cast Performance Bullet LGC 19.2 1,391maximum load; COL: 1.740"; 48,200 PSI
Bilde400 Cast Performance Bullet LGC 15.0 1,189starting load; COL: 1.750"; 36,600 PSI
Bilde400 Cast Performance Bullet LGC 17.6 1,310maximum load; COL: 1.750"; 48,600 PSI
Bilde440 Cast Performance Bullet LGC 14.0 1,119starting load; COL: 1.740"; 36,600 PSI
Bilde440 Cast Performance Bullet LGC 16.5 1,226maximum load; COL: 1.740"; 48,800 PSI
Hodgdon Pistol Data
case: Freedom Arms; barrel length: 9"; twist: 1:20"; trim length: 1.360"; primer: Federal 210; bullet diam: .500"; NEVER EXCEED MAXIMUM LOADS
Wt.BulletChargeVelocity (FPS)Remarks
Bilde370 Oregon Trail GC 15.5 11283 shots/25 yds: 5/8"
Bilde370 Cast Performance Bullet Co. GC 15.5 11263 shots/25 yds: 1 1/2"
Bilde400 Cast Performance Bullet Co. GC 15.5 11323 shots/25 yds: 5/8"
in a Freedom Arms 83 7 1/2-Inch
Freedom Arms Model 83 7 1/2"; 4X Leupold

10mm Auto

Bilde
Wt.BulletChargeVelocity (FPS)Remarks
Bilde180 Sierra JHC 8.5 1,221starting load; COL: 1.260"; 31,000 psi
Bilde180 Sierra JHC 9.5 1,287maximum load; COL: 1.260"; 34,600 psi
Bilde200 Hornady FMJ 7.0 1,034starting load; COL: 1.260"; 23,900 psi
Bilde200 Hornady FMJ 8.2 1,172maximum load; COL: 1.260"; 35,000 psi
Hodgdon Data
case: Winchester; barrel length: 5"; twist: 1:16"; trim length: .987"; primer: Winchester LP; bullet diam.: .400"; NEVER EXCEED MAXIMUM LOADS
Wt.BulletChargeVelocity (FPS)Remarks
Bilde180 Hornady HAP, HP-XTP, FMJ-FP ENC 6.4 948
Bilde180 Hornady HAP, HP-XTP, FMJ-FP ENC 6.9 1001
Bilde180 Hornady HAP, HP-XTP, FMJ-FP ENC 7.3 1060
Bilde180 Hornady HAP, HP-XTP, FMJ-FP ENC 7.8 1125
Bilde180 Hornady HAP, HP-XTP, FMJ-FP ENC 8.2 1178maximum load
Bilde200 Hornady HP-XTP or HAP 5.7 888
Bilde200 Hornady HP-XTP or HAP 6.1 930
Bilde200 Hornady HP-XTP or HAP 6.5 985
Bilde200 Hornady HP-XTP or HAP 6.9 1027
Bilde200 Hornady HP-XTP or HAP 7.3 1071maximum load
Using Hornady Bullets
Gun: Kimber Stainless Target II; barrel length: 5"; case: Starline; primer: Win. Large Pistol; bullet diameter: .400"; COAL: 1.260"; maximum COAL: 1.260"; maximum case length: .992; trim to length: .982.

9mm

Bilde
Wt.BulletChargeVelocity (FPS)Remarks
Bilde115 Speer Gold Dot 5.7 1,155primer: WSP; standard deviation (fps): 21; coefficient of variation (percent): 1.82; group (inches): 0.85; muzzle energy (ft-lbs): 341
Bilde124 Hornady XTP 5.4 1,079primer: WSP; standard deviation (fps): 25; coefficient of variation (percent); 2.32; group (inches): 1.81; muzzle energy (ft-lbs): 321
Bilde124 Hornady XTP 5.6 1,099primer: WSP; standard deviation (fps): 17; coefficient of variation (percent); 1.55; group (inches): 1.84; muzzle energy (ft-lbs): 333
Bilde147 Hornady XTP 4.5 926primer: WSP: standard deviation (fps): 29; coefficient of variation (percent): 3.13; group (inches): 2.09; muzzle energy (ft-lbs): 280; best 147-grain XTP load
Bilde125 Bushwacker semiwadcutter 5.4 1,102primer: WSP; standard deviation (fps): 14; coefficient of variation (percent): 1.27; group (inches): 1.50; muzzle energy (ft-lbs): 138; best 125-grain SWC load
in a CZ Model 85
A CZ Model 85 Combat with a 4.7-inch barrel and open sights was used for testing. Velocities were taken 12 feet from the muzzle with an Oehler Model 35P chronograph. Accuracy is the average of (at least) three, five-shot groups at 20 yards from a sandbag rest. Range temperatures were 58 to 74 degrees Fahrenheit. R-P, Remington-Peters; WAP, Winchester Action Pistol; WSL, Sinchester Super Lite; WSP, Winchester Small Pistol.

9mm Luger / 9mm Parabellum

Bilde
Wt.BulletChargeVelocity (FPS)Remarks
Bilde147 Hornady HPBT-XTP 3.5 829overall loaded length (inches): 1.100
Bilde147 Hornady HPBT-XTP 4.0 900overall loaded length (inches): 1.100
Bilde147 Hornady HPBT-XTP 4.4 979overall loaded length (inches): 1.100
Bilde147 Hornady HPBT-XTP 4.8 1049overall loaded length (inches): 1.100
Bilde147 Speer TMJ-FN 4.0 879overall loaded length (inches): 1.130
Bilde147 Speer TMJ-FN 4.4 965overall loaded length (inches): 1.130
Bilde147 Speer TMJ-FN 4.8 1036overall loaded length (inches): 1.130
(147 GR) Handload Data
A 5-inch barreled Kimber Model 1911 Team Match II was used to shoot all loads in Starline cases with Winchester Small Pistol primers. SAAMI minimum cartridge overall length: 1.000 inch; maximum cartridge overall length: 1.169 inches; maximum case length: .754 inch; trim to length: .744 inch.
Wt.BulletChargeVelocity (FPS)Remarks
Bilde90 Hornady HP-XTP 5.5 1191overall loaded length (inches): 1.070
Bilde90 Hornady HP-XTP 6.0 1271overall loaded length (inches): 1.070
Bilde90 Hornady HP-XTP 6.5 1372overall loaded length (inches): 1.070
Bilde90 Hornady HP-XTP 7.0 1459overall loaded length (inches): 1.070
Bilde90 Sierra JHP 5.5 1180overall loaded length (inches): 1.010
Bilde90 Sierra JHP 7.0 1465overall loaded length (inches): 1.010
Bilde115 Barnes XPB 4.5 1065overall loaded length (inches): 1.125
Bilde115 Barnes XPB 5.0 1141overall loaded length (inches): 1.125
Bilde115 Barnes XPB 5.5 1234overall loaded length (inches): 1.125
Bilde115 Barnes XPB 6.0 1311overall loaded length (inches): 1.125
Bilde115 Hornady HP-XTP 5.0 1119overall loaded length (inches): 1.075
Bilde115 Hornady HP-XTP 5.6 1205overall loaded length (inches): 1.075
Bilde115 Hornady HP-XTP 6.2 1292overall loaded length (inches): 1.075
Bilde115 Speer Gold Dot HP 5.0 1115overall loaded length (inches): 1.125
Bilde115 Speer Gold Dot HP 5.6 1201overall loaded length (inches): 1.125
Bilde115 Speer Gold Dot HP 6.2 1281overall loaded length (inches): 1.125
Bilde115 Nosler JHP 5.0 1122overall loaded length (inches): 1.115
Bilde115 Nosler JHP 5.6 1211overall loaded length (inches): 1.115
Bilde115 Nosler JHP 6.2 1301overall loaded length (inches): 1.115
(90 & 115 GR) Handload Data
A 5-inch barreled Kimber Model 1911 Team Match II was used to shoot all loads in Starline cases with Winchester Small Pistol primers. SAAMI minimum cartridge overall length: 1.000 inch; maximum cartridge overall length: 1.169 inches; maximum case length: .754 inch; trim to length: .744 inch.
Wt.BulletChargeVelocity (FPS)Remarks
Bilde80 Barnes TAC-XP 5.7 1239start load; COL: 1.025"; 31,100 psi
Bilde80 Barnes TAC-XP 6.6 1327max load; COL: 1.025"; 33,500 psi
Bilde90 Speer GDHP 6.0 1278start load; COL: 1.010"; 29,400 psi
Bilde90 Speer GDHP 7.0 1378max load; COL: 1.010"; 32,300 psi
Bilde95 Sierra FMJ 5.8 1192start load; COL: 1.020"; 25,800 psi
Bilde95 Sierra FMJ 6.8 1356max load; COL: 1.020"; 33,300 psi
Bilde100 Speer FMJ 5.5 1158start load; COL: 1.050"; 26,500 psi
Bilde100 Speer FMJ 6.5 1315max load; COL: 1.050"; 33,300 psi
Bilde115 Speer GDHP 5.0 1127start load; COL: 1.125"; 29,000 psi
Bilde115 Speer GDHP 6.0 1203max load; COL: 1.125"; 32,300 psi
Bilde115 Lead Round Nose 5.0 1032start load; bullet diam.: .356"; COL: 1.100"; 20,200 cup
Bilde115 Lead Round Nose 6.0 1166max load; bullet diam.: .356"; COL: 1.100"; 27,300 cup
Bilde124 Berry's Bullets HBRN TP 4.8 958start load; bullet diam.: .356"; COL: 1.150"; 23,000 psi
Bilde124 Berry's Bullets HBRN TP 5.8 1135max load; bullet diam.: .356"; COL: 1.150"; 32,300 psi
Bilde125 Lead Conical Nose 5.0 1052start load; bullet diam.: .356"; COL: 1.125"; 24,700 cup
Bilde125 Lead Conical Nose 5.7 1115max load; bullet diam.: .356"; COL: 1.125"; 28,300 cup
Bilde125 Hornady HAP 3.9 901start load; bullet diam.: .356"; COL: 1.069"; 24,700 psi
Bilde125 Hornady HAP 4.4 998max load; bullet diam.: .356"; COL: 1.069"; 32,600 psi
Bilde125 Sierra FMJ 4.7 1022start load; COL: 1.090"; 28,100 psi
Bilde125 Sierra FMJ 5.7 1162max load; COL: 1.090"; 33,400 psi
Bilde130 Berry's Bullets RN 5.2 970start load; bullet diam.: .356"; COL: 1.150"; 27,500 psi
Bilde130 Berry's Bullets RN 5.8 1115max load; bullet diam.: .356"; COL: 1.150"; 33,900 psi
Bilde147 Hornady XTP 3.8 851start load; COL: 1.100"; 25,700 psi
Bilde147 Hornady XTP 4.7 1004max load; COL: 1.100"; 33,800 psi
Hodgdon Data
Case: Winchester; twist: 1:10"; primer: CCI 500, Small Pistol; barrel length: 4"; trim length: .750"; bullet diam.: .355" (except where otherwise specified in remarks).
Wt.BulletChargeVelocity (FPS)Remarks
Bilde115 Barnes XPB 4.7 1016minimum
Bilde115 Barnes XPB 5.2 1123maximum
Barnes Reloading Manual #4
case: W-W; case trim length: .744"; twist rate: 1:10"; primer: WSP; barrel length: 4"; COAL: 1.125"; maximum loads should be used with caution; NOTE: Use a taper crimp on the case mouth.The Barnes #35515 115-grain XPB bullet has a slight taper on the base to prevent bulging of the case wall once the bullet is seated. Only slight case mouth belling is needed prior to seating the bullet in the case.
Wt.BulletChargeVelocity (FPS)Remarks
Bilde124 Hornady HP-XTP 5.0 1128overall loaded length (inches): 1.060
Bilde124 Hornady HP-XTP 5.5 1204overall loaded length (inches): 1.060
Bilde124 Hornady HP-XTP 6.0 1271overall loaded length (inches): 1.060
Bilde124 Speer Gold Dot HP 5.0 1116overall loaded length (inches): 1.120
Bilde124 Speer Gold Dot HP 5.5 1185overall loaded length (inches): 1.120
Bilde124 Speer Gold Dot HP 6.0 1263overall loaded length (inches): 1.120
Bilde125 Sierra FMJ 5.5 1193overall loaded length (inches): 1.135
Bilde125 Sierra FMJ 6.0 1259overall loaded length (inches): 1.135
Handload Data
A 5-inch barreled Kimber Model 1911 Team Match II was used to shoot all loads in Starline cases with Winchester Small Pistol primers. SAAMI minimum cartridge overall length: 1.000 inch; maximum cartridge overall length: 1.169 inches; maximum case length: .754 inch; trim to length: .744 inch.
Wt.BulletChargeVelocity (FPS)Remarks
Bilde90 Sierra JHP 6.0 1320overall length (inches): 1.065; group (inches): 3.00
Bilde115 Sierra JHP 5.0 1088overall length (inches): 1.100; group (inches): 2.25
Bilde115 Barnes X-Bullet 4.0 1066overall length (inches): 1.120; group (inches): 2.00
Bilde115 Barnes X-Bullet 4.2 1054overall length (inches): 1.120
Bilde115 Barnes X-Bullet 4.3 1135overall length (inches): 1.120; group (inches): 1.90
Bilde122 Magnus flatnose 5.0 1082overall length (inches): 1.142; group (inches): 3.60
in a Browning Hi-Power
Accuracy is for five-shot groups at 25 yards from a solid benchrest. The group was measured from the inside of the most widely spaced bullet holes
Wt.BulletChargeVelocity (FPS)Remarks
Bilde125 Bushwacker SWC 5.4 1,071primer: WSP; group (inches): 1.89
in an S & W Model 952-2 Cast Bullets
A Smith & Wesson Model 952-2 PC with a 5-inch barrel and open sights was used for testing. Once-fired Federal cases were used throughout. Velocities were taken 12 feet from the muzzle with an Oehler M-35P chronograph. Accuracy is the average of three, five-shot groups at 25 yards from a sandbag rest. WSL=Winchester Super Lite; WSP=Winchester Small Pistol primer. Range temperatures were 58 to 74 degrees Fahrenheit.
Wt.BulletChargeVelocity (FPS)Remarks
Bilde115 Speer Gold Dot 5.7 1,080primer: CCI 500; group (inches): 1.48; best 115-grain Gold Dot load
Bilde115 Sierra JHP 5.9 1,115primer: CCI 500; group (inches): 1.81
Bilde124 Hornady XTP 6.0 1,074primer: CCI 500; group (inches): 0.79; great load
Bilde125 Sierra JHP 6.0 1,052primer: CCI 500; group (inches): 2.40
Bilde125 Sierra JHP 5.6 1,054primer: Federal 100; group (inches): 0.81; seated shorter, with slight improvement in accuracy overall
Bilde147 Hornady XTP 4.5 878primer: CCI 500; group (inches): 1.18; best 147-grain XTP load
in an S&W Model 952-2 Jacketed Bullets
A Smith & Wesson Model 952-2 PC with a 5-inch barrel and open sights was used for testing. Once-fired Federal cases were used throughout. Velocities were taken 12 feet from the muzzle with an Oehler M-35P chronograph. Accuracy is the average of three, five-shot groups at 25 yards from a sandbag rest. Range temperatures were 58 to 74 degrees Fahrenheit.

9x21mm

Bilde
Wt.BulletChargeVelocity (FPS)Remarks
Bilde125 Bushwacker .356-inch SWC 5.0 1,054SD: 10 fps; CV: 0.95%; group: 1.06 inches; power factor: 132
Bilde125 Bushwacker .356-inch SWC 5.5 1,106SD: 18 fps; CV: 1.63%; group: 1.57 inches; power factor: 138
Bilde125 Bushwacker .356-inch SWC 5.8 1,147SD: 18 fps; CV: 1.57%; group: 1.49 inches; power factor: 143
in a CZ 75
Test gun was a custom CZ 75 converted to 9x21mm with a 5.25-inch barrel and three-port compensator. Accuracy is the average of three (or more) five-shot groups at 25 yards. Overall loaded length of all loads was 1.160 inches. Starline nickel-plated cases and Winchester Small Pistol primers were used throughout. Temperatures at time of testing were 65 to 89 degrees Fahrenheit. Average accuracy of all loads tested: 1.36 inches. CV is coefficients of variation and is the standard deviation expressed as a percent of the average velocity.
GrasrotAndelen
Legg oss gjerne til under grasrotandelen ved å følge denne linken:
www.norsk-tipping.no/grasrotandelen
Søk eventuellt opp Evje pistolklubb, eller bruk vårt Org. nr. 998047889
Evje Pistolklubb
Postboks 244
4734 EVJE
