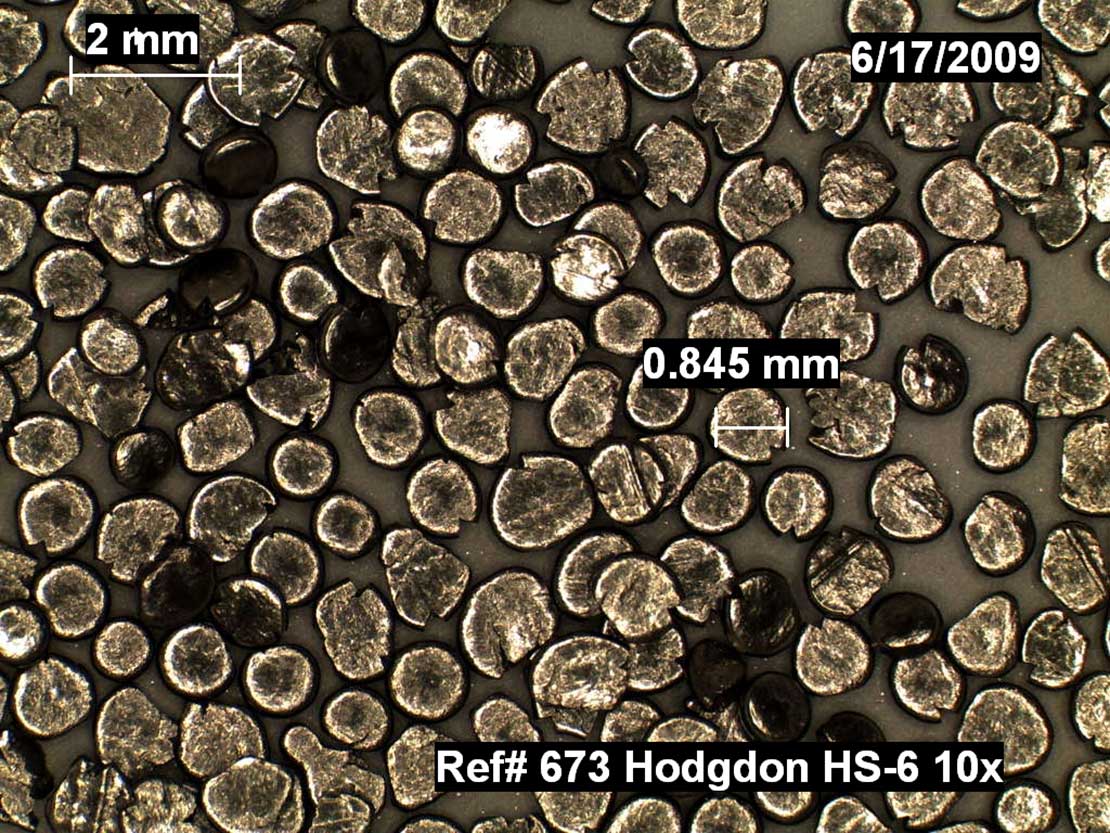

HS-6 is a fine spherical propellant that has wide application in pistol and shotshell. In pistol, 9mm, 38 Super, 40 S&W and 10mm Auto are some of the cartridges where HS-6 provides top performance. In shotshell HS-6 yields excellent heavy field loadings in 10 ga., 12 ga., 20 ga., and even the efficient and effective 28 ga. HS-6 is truly an outstanding spherical propellant. HS-6 is identical to Winchester's discontinued 540. Available in 1 lb. & 8 lb. containers.
| Shape | Color | Perforation | Diameter min | Diameter max | Length/thick. min | Length/thick. max | Manufacturer |
|---|---|---|---|---|---|---|---|
| Flattened ball | Black | No | 0.66 mm | 1.26 mm | 0.25 mm | 0.25 mm | Hodgdon Powder Company |
Ladedata som finnes på hjemmesidene til Evje PK er KUN ment som en veiledning! Ladedata skal alltid verifiseres mot kjente kilder (kruttprodusenter, ladebøker o.l.)
Data funnet på våre hjemmesider brukes på eget ansvar, og Evje Pistolklubb fratar seg alt ansvar for feil bruk av, eller skrivefeil i oppgitte data.
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
 | 83 | Berry's Bullets HBWC | 4.5 | 959 | start load; COL: 1.095"; 16,000 cup; bullet diam.: .314" |
| 83 | Berry's Bullets HBWC | 5.2 | 1104 | max load; COL: 1.095"; 20,400 cup; bullet diam.: .314" |
| 85 | Hornady HP | 5.2 | 902 | start load; COL: 1.290"; 17,100 cup; bullet diam.: .312" |
| 85 | Hornady HP | 5.6 | 1146 | max load; COL: 1.290"; 20,200 cup; bullet diam.: .312" |
| 90 | Sierra JHP | 5.4 | 1026 | start load; COL: 1.340"; 16,400 cup; bullet diam.: .312" |
| 90 | Sierra JHP | 6.0 | 1140 | max load; COL: 1.340"; 20,200 cup; bullet diam.: .312" |
| 90 | Hornady LSWC | 4.6 | 845 | start load; COL: 1.350"; 10,900 cup; bullet diam.: .314" |
| 90 | Hornady LSWC | 5.0 | 963 | max load COL: 1.350"; 14,800 cup; bullet diam.: .314" |
| 100 | Speer JHP | 4.8 | 885 | start load; COL: 1.345"; 15,800 cup; bullet diam.: .312" |
| 100 | Speer JHP | 5.4 | 1023 | max load; COL: 1.345"; 20,200 cup; bullet diam.: .312" |
| Hodgdon Pistol Data Case: Federal; twist: 1:16"; primer: Federal 100, Small Pistol; barrel length: 5"; trim length: 1.070". | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 85 | Jacketed | 5.2 | 902 | start load; OAL: 1.290 |
| 85 | Jacketed | 5.6 | 1146 | never exceed; OAL: 1.290; 20,200 cup |
| 90 | Jacketed | 5.4 | 1026 | start load; OAL: 1.340 |
| 90 | Jacketed | 6.0 | 1140 | never exceed; OAL: 1.340; 20,200 cup |
| 90 | Lead | 4.6 | 845 | start load; OAL: 1.350 |
| 90 | Lead | 5.0 | 963 | never exceed; OAL: 1.350; 14,800 cup |
| 95 | Lead | 4.7 | 937 | start load; OAL: 1.300 |
| 95 | Lead | 5.0 | 982 | never exceed; OAL: 1.300; 19,500 cup |
| 100 | Jacketed | 4.8 | 885 | start load; OAL: 1.345 |
| 100 | Jacketed | 5.4 | 1023 | never exceed; OAL: 1.345; 20,200 cup |
| Lee Precision Data With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Pistol primer. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
 | 71 | Sierra FMJ | 5.4 | 1098 | sugg. start load; 15,600 cup; 1.350" OAL |
| 71 | Sierra FMJ | 6.0 | 1310 | max load; 20,100 cup; 1.350" OAL |
| 85 | Hornady Jacketed HP/XTP | 5.0 | 897 | sugg. start load; 15,100 cup; 1.310" OAL |
| 85 | Hornady Jacketed HP/XTP | 5.6 | 1124 | max load; 20,000 cup; 1.310" OAL |
| 90 | Sierra Jacketed JHC | 5.4 | 863 | sugg. start load; 14,300 cup; 1.315" OAL |
| 90 | Sierra Jacketed JHC | 6.0 | 1016 | max load; 18,900 cup; 1.315" OAL |
| 100 | Hornady Jacketed HP/XTP | 4.9 | 754 | sugg. start load; 15,100 cup; 1.315" OAL |
| 100 | Hornady Jacketed HP/XTP | 5.4 | 911 | max load; 19,500 cup; 1.315" OAL |
| Lyman Reloading Manual 49th Edition cases: Federal; trim-to length: 1.065"; primers: Federal 100; primer size: Small Pistol; Lyman shell holder: No. 9; cast bullets used sized to .313" dia.; firearm used: Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .312" | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 115 | Flat Point | 4.9 | 928 | start load |
| 115 | Flat Point | 5.5 | 1,011 | max load |
| Oregon Trail Handgun Data test gun: Thompson Contender 10", WSP; use .308 diameter for TC Contender pistol; OAL: 1.340; never reduce stated overall lengths; do not exceed maximum loads | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 100 | Speer JHP | 5.5 | 978 | starting charge; COAL tested: 1.345" |
| 100 | Speer JHP | 6.1 | 1,088 | MAXIMUM charge; COAL tested: 1.345" |
| Speer Reloading Manual #14 max. case length: 1.075"; trim-to length: 1.065"; max cart. OAL: 1.350"; RCBS shell holder: #23; cart. case: Federal; primer: CCI 500; test firearm: Ruger Single Six; barrel length: 5.5"; maximum loads should be used with CAUTION | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 90 | Sierra JHC | 4.4 | 795 | |
| 90 | Sierra JHC | 4.7 | 844 | |
| 90 | Sierra JHC | 4.9 | 902 | |
| 90 | Sierra JHC | 5.2 | 960 | |
| 90 | Sierra JHC | 5.5 | 1018 | |
| 90 | Sierra JHC | 5.7 | 1076 | |
| 90 | Sierra JHC | 6.0 | 1122 | |
| using Sierra bullets Gun: Ruger Single-Six Custom; Barrel Length: 6 1/2 inches; Case: Starline; Primer: Winchester Small Pistol; Bullet Diameter: .312 inch; COAL: 1.350 inches; Maximum COAL: 1.350 inches; Maximum Case Length: 1.075 inches; Trim to Length: 1.070 inches. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 81 | Lyman WC 313492 | 5.8 | 1,046 | standard deviation: 35 |
| 112 | Lyman SWC GC 311316 | 5.5 | 1,015 | standard deviation: 7 |
| 85 | Hornady JHP | 6.0 | 961 | standard deviation: 30 |
| in a 4-inch Barrel All loads were below maximum in the test gun, but should be approached from .5 grain below in any other gun. Cast bullets were moulded from type metal, consequently their weights differed slightly from advertised weights. Federal cases 57-grain primed. CCI No. 500 primers. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 81 | Lyman WC 313492 | 5.8 | 1,251 | standard deviation: 16 |
| 112 | Lyman SWC GC 311316 | 5.5 | 1,086 | standard deviation: 26 |
| 85 | Hornady JHP | 6.0 | 1,135 | standard deviation: 30 |
| in a 6-inch Barrel All loads were below maximum in the test gun, but should be approached from .5 grain below in any other gun. Cast bullets were moulded from type metal, consequently their weights differed slightly from advertised weights. Federal cases 57-grain primed. CCI No. 500 primers. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 85 | Hornady HP XTP | 4.3 | 742 | |
| 85 | Hornady HP XTP | 4.9 | 853 | |
| 85 | Hornady HP XTP | 5.6 | 964 | |
| 85 | Hornady HP XTP | 6.0 | 1075 | maximum load |
| 100 | Hornady HP XTP | 4.5 | 734 | Do Not Reduce |
| 100 | Hornady HP XTP | 4.8 | 803 | |
| 100 | Hornady HP XTP | 5.0 | 868 | maximum load |
| Revolver Using Hornady Bullets Gun: Ruger Single Six; barrel length: 6 1/2 inches; case: Starline; primer: Winchester Small Pistol; bullet diameter: .312"; 85 GR Hornady HP XTP & 90 GR SWC COAL: 1.350"; 90 GR HBWC COAL: 1.100"; 100 GR HP XTP COAL: 1.315"; maximum COAL: 1.350"; maximum case length: 1.075"; trim to length: 1.065". | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 60 | Gold Dot Hollow Point | 5.5 | 1,099 | starting load; 18,300 PSI |
| 60 | Gold Dot Hollow Point | 5.9 | 1,161 | maximum load; 20,700 PSI |
| 71 | Hornady FMJ/RN | 4.9 | 983 | starting load; 18,200 PSI |
| 71 | Hornady FMJ/RN | 5.3 | 1,046 | maximum load; 20,900 PSI |
| Hodgdon Pistol Data Warning! Notes: case: Corbon; barrel length: 2.5"; twist: 1:16"; trim length: .670"; primer: Winchester SP; 60 gr bullet diam.: .312"; COL: .930"; 71 gr bullet dia.: .311"; COL: .940"; NEVER EXCEED MAXIMUM LOADS | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 100 | Speer JHP | 4.1 | 720 | max charge; DO NOT REDUCE; test firearm: S&W K32 6" |
| Speer Reloading Manual #14 This is for the 32 S&W Long and 32 Colt New Police cartridges only. max. case length: 0.920"; trim-to length: 0.910"; max cart. OAL: 1.280"; RCBS shell holder: #23; cart. case: Remington; primer: CCI 500; maximum loads should be used with CAUTION | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 85 | Jacketed | 6.2 | 1055 | start load; min OAL: 1.540 |
| 85 | Jacketed | 7.0 | 1182 | never exceed; min OAL: 1.540 |
| 90 | Jacketed | 6.0 | 964 | start load; min OAL: 1.540 |
| 90 | Jacketed | 6.8 | 1081 | never exceed; min OAL: 1.540 |
| 100 | Jacketed | 5.8 | 885 | start load; min OAL: 1.540 |
| 100 | Jacketed | 6.6 | 992 | never exceed; min OAL: 1.540 |
| 110 | Jacketed | 5.7 | 881 | start load; min OAL: 1.540 |
| 110 | Jacketed | 6.5 | 988 | never exceed; min OAL: 1.540 |
| Lee Precision Data Small rifle primer. Velocities will be 10% to 15% higher in rifles. With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 100 | Speer RNSP | 9.1 | 1606 | start charge |
| 100 | Speer RNSP | 10.1 | 1713 | max charge |
| 110 | Speer HP, RNSP or Spire SP | 8.1 | 1484 | start charge |
| 110 | Speer HP, RNSP or Spire SP | 9.1 | 1539 | max charge |
| 130 | Speer HP or FN SP | 7.6 | 1246 | start charge |
| 130 | Speer HP or FN SP | 8.6 | 1340 | max charge |
| Contender Only Speer Reloading Manual #14 max. case length: 1.315"; trim-to length: 1.305"; RCBS shell holder: #1; cart. case: Winchester; primer: CCI 500; test firearm: T/C Contender; barrel length: 10"; NOTE: Do not substitute the .312" 100-grain JHP (#3981) for the 100-grain RNSP; maximum loads should be used with CAUTION | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 85 | Hornady XTP | 7.6 | 1402 | start load; COL: 1.450"; 30,800 psi |
| 85 | Hornady XTP | 8.5 | 1561 | max load; COL: 1.450"; 41,600 psi |
| 90 | Sierra JHC | 8.0 | 1337 | start load; COL: 1.460"; 23,400 psi |
| 90 | Sierra JHC | 8.8 | 1491 | max load; COL: 1.460"; 36,400 psi |
| 100 | Hornady XTP | 7.0 | 1289 | start load; COL: 1.450"; 34,100 psi |
| 100 | Hornady XTP | 7.7 | 1384 | max load; COL: 1.450"; 42,000 psi |
| Hodgdon Data Case: Federal; barrel length: 5"; twist: 1:16"; trim length: 1.200"; primer: Federal 200; bullet diam.: .312 (except where otherwise specified in remarks). NEVER EXCEED MAXIMUM LOADS | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 85 | Hornady HP XTP | 7.3 | 1233 | |
| 85 | Hornady HP XTP | 7.6 | 1319 | |
| 85 | Hornady HP XTP | 7.9 | 1405 | |
| 85 | Hornady HP XTP | 8.3 | 1492 | maximum load |
| 100 | Hornady HP XTP | 6.6 | 1121 | |
| 100 | Hornady HP XTP | 6.9 | 1199 | |
| 100 | Hornady HP XTP | 7.3 | 1277 | |
| 100 | Hornady HP XTP | 7.6 | 1355 | maximum load |
| Using Hornady Bullets Gun: USFA Sparrow Hawk; barrel length: 7 1/2 inches; case: Federal Cartridge; primer: Federal #205; bullet diameter: .312"; COAL: 1.450"; maximum COAL: 1.475"; maximum case length: 1.200"; trim to length: 1.190". | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 85 | Hornady XTP-HP | 7.0 | 1143 | primer: CCI 550; case: Federal; OAL (inches): 1.4475 |
| 85 | Hornady XTP-HP | 8.0 | 1235 | primer: CCI 550; case: Federal; OAL (inches): 1.4475 |
| 85 | Hornady XTP-HP | 8.8 | 1360 | primer: CCI 550; case: Federal; OAL (inches): 1.4475 |
| 90 | Sierra JHC | 8.0 | 1223 | primer: CCI 550; case: Speer; OAL (inches): 1.4670 |
| 90 | Sierra JHC | 8.5 | 1290 | primer: CCI 550; case: Speer; OAL (inches): 1.4670 |
| 90 | Sierra JHC | 9.0 | 1361 | primer: CCI 550; case: Speer; OAL (inches): 1.4670 |
Firearm used was a Ruger SP101 with a 3 1/16-inch barrel. Federal Cartridge and Speer cases used as noted. Maximum case length: 1.200 inches. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 85 | Hornady XTP-HP | 7.0 | 1143 | primer: CCI 550; case: Federal; overall loaded length (inches): 1.4475 |
| 85 | Hornady XTP-HP | 8.0 | 1235 | primer: CCI 550; case: Federal; overall loaded length (inches): 1.4475 |
| 85 | Hornady XTP-HP | 8.8 | 1360 | primer: CCI 550; case: Federal; overall loaded length (inches): 1.4475 |
| 90 | Sierra JHC | 8.0 | 1223 | primer: CCI 550; case: Speer; overall loaded length (inches): 1.4670 |
| 90 | Sierra JHC | 8.5 | 1290 | primer: CCI 550; case: Speer; overall loaded length (inches): 1.4670 |
| 90 | Sierra JHC | 9.0 | 1361 | primer: CCI 550; case: Speer; overall loaded length (inches): 1.4670 |
Firearms used for testing these loads was a Ruger SP101 with a 3 1/16-inch barrel. Federal and Speer cases and CCI 500 and CCI 550 primers were used throughout. Case length: 1.200 inches; throat: .313 inch; barrel cylinder gap: .006 inch; groove diameter: .3123 inch. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 125 | Speer UCSP, GDHP, UCHP or TMJ FN | 10.0 | 1009 | start charge; primer: CCI 550 Magnum |
| 125 | Speer UCSP, GDHP, UCHP or TMJ FN | 11.3 | 1124 | maximum charge; primer: CCI 550 Magnum |
| 140 | Speer UCHP | 8.8 | 1005 | start charge; primer: CCI 550 Magnum |
| 140 | Speer UCHP | 9.8 | 1142 | maximum charge; primer: CCI 550 Magnum |
| 158 | Speer TMJ FN, UCHP, GDHP or UCSP | 8.7 | 925 | start charge; primer: CCI 550 Magnum |
| 158 | Speer TMJ FN, UCHP, GDHP or UCSP | 9.7 | 1040 | maximum charge; primer: CCI 550 Magnum |
| (Handgun) Speer Reloading Manual #14 max. case length: 1.290"; trim-to length: 1.280"; max cart. OAL: 1.590"; RCBS shell holder: #6; cart. case: Speer; primer: CCI 500 (except where otherwise specified in remarks); test firearm: S&W model 19; barrel length: 6"; NOTE: Do not use the 110-grain Gold Dot SB HP (#4009) in the 357 Magnum; maximum loads should be used with CAUTION | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
 | 110 | XTP | 10.3 | 1664 | start load; min OAL: 1.590 |
| 110 | XTP | 11.5 | 1830 | never exceed; min OAL: 1.590; 42,300 cup |
 | 125 | XTP | 9.8 | 1568 | start load; min OAL: 1.590 |
| 125 | XTP | 10.9 | 1724 | never exceed; min OAL: 1.590; 42,100 cup |
| 130 | Jacketed | 8.2 | 1208 | start load; min OAL: 1.540 |
| 130 | Jacketed | 9.8 | 1503 | never exceed; min OAL: 1.540; 33,600 cup |
| 140 | XTP | 9.5 | 1467 | start load; min OAL: 1.590 |
| 140 | XTP | 10.5 | 1613 | never exceed; min OAL: 1.590; 43,000 cup |
| 146 | Jacketed | 8.5 | 1315 | start load; min OAL: 1.535 |
| 146 | Jacketed | 9.5 | 1461 | never exceed; min OAL: 1.535; 41,800 cup |
| 150 | Jacketed | 9.0 | 1406 | start load; min OAL: 1.590 |
| 150 | Jacketed | 9.7 | 1503 | never exceed; min OAL: 1.590; 39,900 cup |
| 158 | Lead | 6.0 | 990 | start load; min OAL: 1.610 |
| 158 | Lead | 7.0 | 1106 | never exceed; min OAL: 1.610; 15,500 cup |
| 158 | XTP | 8.0 | 1225 | start load min OAL: 1.580 |
| 158 | XTP | 9.5 | 1427 | never exceed; min OAL: 1.580; 41,900 cup |
| 170 | Jacketed | 8.0 | 1258 | start load; min OAL: 1.580 |
| 170 | Jacketed | 9.2 | 1424 | never exceed; min OAL: 1.580; 42,900 cup |
| 200 | Lead | 5.2 | 822 | start load; min OAL: 1.540 |
| 200 | Lead | 6.8 | 1073 | never exceed; min OAL: 1.540; 30,600 cup |
| Lee Precision Data Small Pistol Primer. With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 140 | Speer Jacketed HP | 8.4 | 1076 | sugg. start load; 30,200 cup; 1.590" OAL |
| 140 | Speer Jacketed HP | 9.5 | 1257 | max load; 37,500 cup; 1.590" OAL |
| Lyman Reloading Manual 49th Edition cases: Federal; trim-to length: 1.280"; primers: CCI 550; primer size: Small Pistol, Magnum; Lyman shell holder: No. 1; firearm used: Universal Receiver; barrel length: 4"; twist: 1-18 3/4"; groove dia.: .356" | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
 | 120 | Cast #356242 | 11.2 | 1108 | sugg. start load; 1.585" OAL; 25,600 cup |
| 120 | Cast #356242 | 12.5 | 1376 | max load; 1.585" OAL; 40,100 cup |
| 120 | Cast #356402 | 10.8 | 1325 | sugg. start load; 1.590" OAL; 30,400 cup |
| 120 | Cast #356402 | 12.0 | 1532 | max load; 1.590" OAL; 38,400 cup |
 | 150 | Cast #358477 | 9.0 | 1103 | sugg. start load; 1.510" OAL; 32,600 cup |
| 150 | Cast #358477 | 10.0 | 1301 | max load; 1.510" OAL; 40,100 cup |
| 155 | Cast #358156 gas check | 8.8 | 1069 | sugg. start load; 1.590" OAL; 29,100 cup |
| 155 | Cast #358156 gas check | 9.7 | 1271 | max load; 1.590" OAL; 40,200 cup |
 | 160 | Cast #358311 | 8.5 | 1046 | sugg. start load; 1.590" OAL; 32,600 cup |
| 160 | Cast #358311 | 9.7 | 1225 | max load; 1.590" OAL; 41,000 cup |
| Cast Bullet Data Lyman Reloading Manual 49th Edition cases: Federal; trim-to length: 1.280"; primers: CCI 550"; primer size: Small Pistol, Magnum; Lyman shell holder: No. 1; cast bullets used sized to .357" dia.; firearm used: Universal Receiver; barrel length: 4"; twist: 1-18 3/4"; groove dia.: .356" | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 120 | Cast #356242 | 10.8 | 1376 | sugg. start load; 1.640" OAL |
| 120 | Cast #356242 | 12.0 | 1657 | max load; 1.640" OAL |
| 155 | Cast #358156 gas check | 8.8 | 1280 | sugg. start load; 1.578" OAL |
| 155 | Cast #358156 gas check | 9.7 | 1382 | max load; 1.578" OAL |
| in a T/C Contender & Encore Lyman Reloading Manual 49th Edition This data was developed for use in the T/C Contender and Encore handguns. It can also be used in other single shot or bolt-action handguns such as the Remington XP-100 and Savage Striker. Do not use these loads in any other type of handgun. Do not use 357 Magnum loads in 38 Special cases as very dangerous pressure will result. Cases: Federal; trim-to length: 1.280"; primers: CCI 550; primer size: Small Pistol, Magnum; Lyman shell holder: No. 1; cast bullets used sized to .357" dia.; firearm used: Thompson/Center Contender; barrel length: 10"; twist: 1-18"; groove dia.: .356" | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 110 | Hornady XTP | 10.3 | 1614 | start load; COL: 1.590"; 32,600 cup |
| 110 | Hornady XTP | 11.5 | 1776 | max load; COL: 1.590"; 42,300 cup |
| 125 | Hornady XTP | 9.8 | 1493 | start load; COL: 1.590"; 34,400 cup |
| 125 | Hornady XTP | 10.9 | 1629 | max load; COL: 1.590"; 42,100 cup |
| 140 | Hornady XTP | 9.5 | 1411 | start load; COL: 1.590"; 35,800 cup |
| 140 | Hornady XTP | 10.5 | 1539 | max load; COL: 1.590"; 43,000 cup |
| 140 | Hornady FTX | 6.0 | 1046 | start load; COL: 1.600"; 22,500 psi |
| 140 | Hornady FTX | 7.7 | 1326 | max load; COL: 1.600"; 33,400 psi |
| 146 | Speer JHP | 8.5 | 1330 | start load; COL: 1.535"; 32,900 cup |
| 146 | Speer JHP | 9.5 | 1461 | max load; COL: 1.535"; 41,800 cup |
 | 158 | Cast LSWC | 6.0 | 990 | start load; bullet diam.: .358"; COL: 1.610"; 12,900 cup |
| 158 | Cast LSWC | 7.0 | 1106 | max load; bullet diam.: .358"; COL: 1.610"; 15,500 cup |
| 158 | Hornady XTP | 8.0 | 1182 | start load; COL: 1.580"; 28,000 cup |
| 158 | Hornady XTP | 9.5 | 1375 | max load; COL: 1.580"; 41,900 cup |
| 170 | Sierra JHC | 8.0 | 1181 | start load; COL: 1.580"; 30,900 cup |
| 170 | Sierra JHC | 9.2 | 1321 | max load; COL: 1.580"; 42,900 cup |
| Pistol Hodgdon Data Case: Winchester; barrel length: 10"; twist: 1:18.75"; trim length: 1.285"; primer: Winchester SPM; bullet diam.: .357" (except where otherwise specified in remarks). NEVER EXCEED MAXIMUM LOADS | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 125 | Truncated Cone | 8.0 | 1,025 | starting load; minimum OAL: 1.585 |
| 125 | Truncated Cone | 9.0 | 1,168 | maximum load; minimum OAL: 1.585 |
| Pistol (Oregon Trail Handgun/Standard Loads) test gun: Smith & Wesson M-686 6", WSP; do not exceed maximum loads; never reduce stated overall lengths | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
 | 90 | Hornady XTP | 9.8 | 1484 | starting load; 28,200 psi |
| 90 | Hornady XTP | 10.8 | 1634 | maximum load; 38,700 psi |
| 115 | Hornady XTP | 8.7 | 1319 | starting load; 31,300 psi |
| 115 | Hornady XTP | 9.4 | 1412 | maximum load; 38,800 psi |
| 124 | Hornady XTP | 8.0 | 1233 | starting load; 30,300 psi |
| 124 | Hornady XTP | 9.0 | 1339 | maximum load; 38,700 psi |
| 135 | Nosler IPSC | 8.1 | 1119 | starting load; bullet diam.: .357"; 27,500 psi |
| 135 | Nosler IPSC | 9.1 | 1267 | maximum load; bullet diam.: .357"; 37,500 psi |
| 147 | Hornady XTP | 6.8 | 1069 | starting load; COL: 1.140"; 27,800 psi |
| 147 | Hornady XTP | 7.6 | 1173 | maximum load; COL: 1.140"; 36,600 psi |
| Hodgdon Pistol Data case: Federal; barrel length: 4"; twist: 1:16"; trim length: .860"; primer: Winchester SP; bullet diam.: .355" and COL: 1.135" (except where otherwise specified in remarks); NEVER EXCEED MAXIMUM LOADS | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 90 | XTP | 9.8 | 1499 | start load; min OAL: 1.135 |
| 90 | XTP | 10.8 | 1634 | never exceed; min OAL: 1.135; 38,700 psi |
| 115 | XTP | 8.7 | 1321 | start load; min OAL: 1.135 |
| 115 | XTP | 9.4 | 1412 | never exceed; min OAL: 1.135; 38,800 psi |
| 124 | XTP | 8.0 | 1205 | start load; min OAL: 1.135 |
| 124 | XTP | 9.0 | 1339 | never exceed; min OAL: 1.135; 38,700 psi |
| 147 | XTP | 6.8 | 1056 | start load; min OAL: 1.140 |
| 147 | XTP | 7.6 | 1173 | never exceed; min OAL: 1.140; 36,600 psi |
| Lee Precision Data With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Pistol primer. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 90 | Sierra Jacketed HP | 10.0 | 1289 | sugg. start load; 25,900 psi; 1.140" OAL |
| 90 | Sierra Jacketed HP | 11.0 | 1529 | max load; 35,700 psi; 1.140" OAL |
| 115 | Sierra Jacketed HP | 9.0 | 1206 | sugg. start load; 29,700 psi; 1.140" OAL |
| 115 | Sierra Jacketed HP | 10.0 | 1369 | max load; 38,600 psi; 1.140" OAL |
| 125 | Speer Gold Dot Jacketed HP | 8.2 | 1119 | sugg. start load; 28,700 psi; 1.135" OAL |
| 125 | Speer Gold Dot Jacketed HP | 9.3 | 1310 | max load; 38,300 psi; 1.135" OAL |
| 147 | Speer TMJ | 7.1 | 880 | sugg. start load; 31,500 psi; 1.135" OAL |
| 147 | Speer TMJ | 7.9 | 1080 | max load; 38,800 psi; 1.135" OAL |
| Lyman Reloading Handbook 49th Edition cases: Federal; trim-to length: .860"; primers: Federal 100; primer size: Small Pistol; Lyman shell holder: No. 15; firearm used: Universal Receiver; barrel length: 4"; twist: 1-16"; groove dia.: .3553" | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 125 | Speer GD-HP or TMJ RN | 8.6 | 1199 | start charge |
| 125 | Speer GD-HP or TMJ RN | 9.6 | 1335 | maximum charge |
| 147 | Speer GD-HP or TMJ | 7.5 | 1075 | start charge |
| 147 | Speer GD-HP or TMJ | 8.3 | 1170 | maximum charge |
| Speer Reloading Manual #14 max case length: 0.865"; trim-to length: 0.860"; max cart length: 1.140"; RCBS shellholder: #27; barrel length: 4"; twist: 1-16"; test firearm: SIG 229; case: Speer; primers: CCI 500; COL: 1.135"; bullet dia.: 355"; maximum loads should be used with caution | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 115 | Hornady HP-XTP or FMJ-RN | 8.0 | 1165 | |
| 115 | Hornady HP-XTP or FMJ-RN | 8.3 | 1215 | |
| 115 | Hornady HP-XTP or FMJ-RN | 8.7 | 1274 | |
| 115 | Hornady HP-XTP or FMJ-RN | 9.1 | 1333 | |
| 115 | Hornady HP-XTP or FMJ-RN | 9.4 | 1392 | |
| 115 | Hornady HP-XTP or FMJ-RN | 9.8 | 1443 | maximum load |
| 124 | Hornady HP-XTP | 7.8 | 1212 | |
| 124 | Hornady HP-XTP | 8.2 | 1253 | |
| 124 | Hornady HP-XTP | 8.6 | 1302 | |
| 124 | Hornady HP-XTP | 9.0 | 1350 | |
| 124 | Hornady HP-XTP | 9.5 | 1397 | maximum load |
| 147 | Hornady HP-BT-XTP | 6.3 | 1002 | |
| 147 | Hornady HP-BT-XTP | 6.6 | 1047 | |
| 147 | Hornady HP-BT-XTP | 7.0 | 1100 | |
| 147 | Hornady HP-BT-XTP | 7.4 | 1152 | |
| 147 | Hornady HP-BT-XTP | 7.8 | 1200 | maximum load |
| Using Hornady Bullets Gun: Glock Model 31; barrel length: 4.48 inch; case: Starline; primer: Winchester Small Pistol; bullet diameter: .355"; COAL: 1.140"; maximum COAL: 1.140"; maximum case length: .865"; trim to length: .860". | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 115 | Nosler Sporting Handgun JHP | 9.9 | 1355 | max |
| 115 | Nosler Sporting Handgun JHP | 9.4 | 1274 | |
| 115 | Nosler Sporting Handgun JHP | 8.9 | 1198 | most accurate load tested |
| 124 | Nosler Sporting Handgun JHP | 9.1 | 1276 | max |
| 124 | Nosler Sporting Handgun JHP | 8.6 | 1189 | |
| 124 | Nosler Sporting Handgun JHP | 8.1 | 1102 | most accurate load tested |
| Using Nosler Bullets Case: Federal; primer: WSP; barrel length/make: 3.9" Sig; twist: 1-16"; bullets: 115 GR Nosler Sporting Handgun Pistol JHP - OACL: 1.140"; 124 GR Sporting Handgun Pistol JHP - OACL: 1.120"; maximum OACL: 1.140". Contrary to the cartridge designation, the 357 Sig uses 9mm (.355") bullets. Both the 115 and 124 grain 9mm Sporting Handgun Pistol bullets are suitable for loading in the .357 Sig. Use Maximum Loads with Caution | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 124 | Speer Gold Dot hollowpoint | 8.6 | 1,199 | |
| 124 | Speer Gold Dot hollowpoint | 9.6 | 1,335 | maximum load |
| Speer Load Data CCI 500 primers and Speer cases used in all test loads. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 160 | Lyman 358156 SWC GC | 6.4 | 932 | overall loaded length (inches): 1.45 |
 | 166 | Lyman 358429 SWC | 6.0 | 861 | good accuracy; overall loaded length (inches): 1.52 |
| 166 | Lyman 358429 SWC | 6.2 | 912 | overall loaded length (inches): 1.52 |
| 125 | Hornady FP/XTP | 7.0 | 799 | overall loaded length (inches): 1.46 |
| 125 | Hornady FP/XTP | 7.8 (+P) | 940 | good accuracy; overall loaded length (inches): 1.46 |
| 140 | Hornady HP/XTP | 6.5 | 767 | good accuracy; overall loaded length (inches): 1.46 |
| 140 | Hornady HP/XTP | 7.1 (+P) | 849 | overall loaded length (inches): 1.46 |
| 158 | Hornady HP/XTP | 6.0 | 643 | good accuracy; overall loaded length (inches): 1.45 |
| 158 | Hornady HP/XTP | 6.3 (+P) | 723 | good accuracy; overall loaded length (inches): 1.45 |
| 110 | Sierra JHP | 7.5 | 771 | overall loaded length (inches): 1.45 |
| 110 | Sierra JHP | 8.3 (+P) | 895 | good accuracy; overall loaded length (inches): 1.45 |
| 125 | Sierra JSP | 7.2 | 751 | good accuracy; overall loaded length (inches): 1.45 |
| 125 | Sierra JSP | 7.7 (+P) | 844 | good accuracy; overall loaded length (inches): 1.45 |
| 140 | Sierra JHP | 6.5 | 721 | good accuracy; overall loaded length (inches): 1.45 |
| 140 | Sierra JHP | 7.0 (+P) | 765 | overall loaded length (inches): 1.45 |
| 158 | Sierra JHC | 6.4 | 705 | overall loaded length (inches): 1.45 |
Chronographed average velocities recorded with a range temperature that varied from approximately 70 to 80 degrees Fahrenheit. Accuracy testing performed from a benchrest at 25 yards. All data was safe in the test revolver. Load data is intended for use only by competent persons experienced in the proper and safe practice of handloading ammunition. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 158 | Lyman 358156 | 7.8 | 1,173 | |
| 140 | Speer 140 JHP | 7.4 | 1,050 | |
| 125 | Winchester 125 STHP | 7.8 | 1,005 | |
| 110 | Sierra 110 JHP | 7.3 | 1,062 | |
| Colt Peacemaker Loads Winchester +P cases used throughout with CCI 450 primers. (Loading the Peacemaker - Dave Scovill) | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 155 | Cast gas check #358156 (Linotype) | 4.4 | 564 | sugg. start load; 1.460" OAL; 8,000 cup |
| 155 | Cast gas check #358156 (Linotype) | 6.7 | 894 | max load; 1.460" OAL; 16,600 cup |
 | 160 | Cast #358311 (Linotype) | 4.5 | 610 | sugg. start load; 1.550" OAL; 8,200 cup |
| 160 | Cast #358311 (Linotype) | 6.7 | 901 | max load; 1.550" OAL; 16,200 cup |
| 170 | Cast #358429 (Linotype) | 5.0 | 677 | sugg. start load; 1.537" OAL; 11,000 cup |
| 170 | Cast #358429 (Linotype) | 6.4 | 856 | max load; 1.537" OAL; 16,800 cup |
| Cast Bullet Data Lyman Reloading Handbook 49th Edition cases: Federal; trim-to length: 1.149"; primers: CCI 500; primer size: Small Pistol; Lyman shell holder: No. 1; cast bullets used sized to .358" dia.; firearm used: Universal Receiver; barrel length: 4"; twist: 1-18 3/4"; groove dia.: .357"; (+P) designates higher pressure loads | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 125 | Hornady XTP | 7.2 | 1,048 | COL: 1.455"; CUP: 16,600 |
| 140 | Hornady XTP | 6.5 | 933 | COL: 1.455"; CUP: 16,000 |
| 148 | Hornady Lead Hollow Base Wadcutter | 5.2 | 943 | COL: 1.160"; CUP: 14,300 |
| 158 | Hornady XTP | 6.2 | 862 | COL: 1.455"; CUP: 16,300 |
| Hodgdon Data case: Winchester; BBL: 7.7"; PR: Winchester SP; NEVER exceed loads listed | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 110 | Hornady XTP | 7.0 | 1071 | start load; bullet diam.: .357"; COL: 1.455"; 14,500 cup |
| 110 | Hornady XTP | 7.8 | 1178 | max load; bullet diam.: .357"; COL: 1.455"; 17,000 cup |
| 125 | Hornady XTP | 6.5 | 931 | start load; bullet diam.: .357"; COL: 1.455"; 13,100 cup |
| 125 | Hornady XTP | 7.2 | 1048 | max load; bullet diam.: .357"; COL: 1.455"; 16,600 cup |
| 140 | Hornady XTP | 5.8 | 808 | start load; bullet diam.: .357"; COL: 1.455"; 11,000 cup |
| 140 | Hornady XTP | 6.5 | 933 | max load; bullet diam.: .357"; COL: 1.455"; 16,000 cup |
| 140 | Hornady Cowboy | 6.1 | 960 | start load; bullet diam.: .358"; COL: 1.450"; 13,100 psi |
| 140 | Hornady Cowboy | 6.8 | 1091 | max load; bullet diam.: .358"; COL: 1.450"; 16,300 psi |
| 146 | Speer JHP | 5.6 | 808 | start load; bullet diam.: .357"; COL: 1.370"; 11,700 cup |
| 146 | Speer JHP | 6.3 | 969 | max load; bullet diam.: .357"; COL: 1.370"; 16,100 cup |
| 148 | Hornady LHBWC | 4.5 | 816 | start load; bullet diam.: .358"; COL: 1.160"; 9,200 cup |
| 148 | Hornady LHBWC | 5.2 | 943 | max load; bullet diam.: .358"; COL: 1.160"; 14,300 cup |
| 158 | Hornady XTP | 5.6 | 761 | start load; bullet diam.: .357"; COL: 1.455"; 13,400 cup |
| 158 | Hornady XTP | 6.2 | 862 | max load; bullet diam.: .357"; COL: 1.455"; 16,300 cup |
| 158 | Cast LSWC | 5.7 | 928 | start load; bullet diam.: .358"; COL: 1.475"; 13,700 cup |
| 158 | Cast LSWC | 6.3 | 1010 | max load; bullet diam.: .358"; COL: 1.475"; 16,200 cup |
| 170 | Sierra JHC | 5.3 | 710 | start load; bullet diam.: .357"; COL: 1.450"; 12,200 cup |
| 170 | Sierra JHC | 5.9 | 832 | max load; bullet diam.: .357"; COL: 1.450"; 16,100 cup |
| Hodgdon Pistol Data Case: Winchester; twist: 1:18.75"; primer: Winchester SP, Small Pistol; barrel length: 7.7"; trim length: 1.145". | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 158 | Cast #358156 gas check | 4.4 | 564 | sugg. start load; 8,000 cup |
| 158 | Cast #358156 gas check | 6.7 | 894 | max load; 16,600 cup |
| 158 | Cast #358311 | 4.5 | 610 | sugg. start load; 8,200 cup |
| 158 | Cast #358311 | 6.7 | 901 | max load; 16,200 cup |
| 162 | Cast #357446 | 5.1 | 690 | sugg. start load; 9,600 cup |
| 162 | Cast #357446 | 6.7 | 922 | max load; 16,100 cup |
| 168 | Cast #358429 | 5.0 | 677 | sugg. start load; 11,000 cup |
| 168 | Cast #358429 | 6.4 | 856 | max load; 16,800 cup |
| Lyman Cast Bullet Handbook 3rd Edition cases: Federal; trim-to length: 1.149"; primers: CCI 500; primer size: Small Pistol; Lyman shell holder: No. 1; cast bullets used size to .357" dia.; firearm used: Universal Receiver and Special Vented Barrel; barrel length: 4"; twist: 1-18 3/4"; groove diameter: .357". NOTE: More Lyman cast bullet data available under .38 Special (Cast Bullet Data Lyman Reloading Manual 49th Edition) and .38 Special (Lyman Cast Bullet Handbook 4th Edition). NOTE: Loads designated with the symbol (+P) are higher pressure loads to give greater velocities. These loads should be used only in arms recommended for (+P) type cartridges by the gun manufacturer. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 110 | Speer Jacketed HP | 6.5 | 593 | sugg. start load; 1.430" OAL; 7,700 cup |
| 110 | Speer Jacketed HP | 9.0 | 978 | max load; 1.430" OAL; 16,200 cup |
| 110 | Speer Jacketed HP | 9.5 (+P) | 1043 | max load; 1.430" OAL; 18,000 cup |
| 140 | Speer Jacketed HP | 5.6 | 526 | sugg. start load; 1.470" OAL; 11,200 cup |
| 140 | Speer Jacketed HP | 7.2 | 777 | max load; 1.470" OAL; 16,700 cup |
| 125 | Hornady Jacketed HP | 5.6 | 600 | sugg. start load; 1.470" OAL; 9,400 cup |
| 125 | Hornady Jacketed HP | 7.4 | 862 | max load; 1.470" OAL; 16,100 cup |
| 146 | Speer Jacketed HP | 6.2 | 691 | sugg. start load; 1.408" OAL; 14,800 cup |
| 146 | Speer Jacketed HP | 6.7 | 782 | max load; 1.408" OAL; 16,000 cup |
| 158 | Hornady Jacketed HP | 5.5 | 572 | sugg. start load; 1.480" OAL; 12,400 cup |
| 158 | Hornady Jacketed HP | 6.5 | 726 | max load; 1.480" OAL; 16,600 cup |
| Lyman Reloading Handbook 49th Edition Warning! cases: Federal; trim-to length: 1.149"; primers: CCI 500; primer size: Small Pistol; Lyman shell holder: No. 1; firearm used: Universal Receiver; barrel length: 4"; twist: 1-18 3/4"; groove dia.: .357"; (+P) designates higher pressure loads | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 110 | Hornady HP-XTP | 6.8 | 880 | COAL: 1.445" |
| 110 | Hornady HP-XTP | 7.2 | 930 | COAL: 1.445" |
| 110 | Hornady HP-XTP | 7.6 | 994 | COAL: 1.445" |
| 110 | Hornady HP-XTP | 8.0 | 1022 | COAL: 1.445" |
| 110 | Hornady HP-XTP | 8.4 | 1065 | COAL: 1.445"; +P load; maximum load |
| 125 | Hornady HP-XTP or FP-XTP | 6.6 | 853 | COAL: 1.450" |
| 125 | Hornady HP-XTP or FP-XTP | 7.0 | 898 | COAL: 1.450" |
| 125 | Hornady HP-XTP or FP-XTP | 7.3 | 959 | COAL: 1.450" |
| 125 | Hornady HP-XTP or FP-XTP | 7.7 | 1003 | COAL: 1.450"; +P load |
| 125 | Hornady HP-XTP or FP-XTP | 8.1 | 1051 | COAL: 1.450"; +P load; maximum load |
| 140 | Hornady HP-XTP | 6.1 | 785 | COAL: 1.450" |
| 140 | Hornady HP-XTP | 6.4 | 827 | COAL: 1.450" |
| 140 | Hornady HP-XTP | 6.8 | 885 | COAL: 1.450" |
| 140 | Hornady HP-XTP | 7.1 | 930 | COAL: 1.450"; +P load |
| 140 | Hornady HP-XTP | 7.4 | 974 | COAL: 1.450"; +P load; maximum load |
| 158 | Hornady HP-XTP or FP-XTP | 5.1 | 648 | COAL: 1.450" |
| 158 | Hornady HP-XTP or FP-XTP | 5.4 | 691 | COAL: 1.450" |
| 158 | Hornady HP-XTP or FP-XTP | 5.8 | 741 | COAL: 1.450" |
| 158 | Hornady HP-XTP or FP-XTP | 6.2 | 794 | COAL: 1.450" |
| 158 | Hornady HP-XTP or FP-XTP | 6.5 | 846 | COAL: 1.450"; +P load; maximum load |
| Using Hornady Bullets Gun: Colt Trooper 38 Special; barrel length: 4-inches; case: Starline; primer: Winchester Small Pistol; bullet diameter: .357"; maximum COAL: 1.550"; maximum case length: 1.155"; trim to length: 1.145". | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 158 | Nosler Sporting Handgun Jacketed Hollow Point | 6.5 | 810 | maximum load; most accurate powder tested |
| 158 | Nosler Sporting Handgun Jacketed Hollow Point | 6.0 | 723 | most accurate powder teste |
| 158 | Nosler Sporting Handgun Jacketed Hollow Point | 5.5 | 644 | most accurate load tested; most accurate powder tested |
| Using Nosler Bullets Handgun; Case: Federal; primer: WSP; barrel length/make: 7.75" H-S Precision; twist: 1-16"; bullets: 158 GR Sporting Handgun Revolver JHP; OACL: 1.440"; maximum OACL: 1.550". Use Maximum Loads with Caution | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 158 | Hornady lead SWC-HP | 6.7 | 913 | |
| +P (20,000 PSI) Loads fired in a 6-inch barreled Colt Officer's Model Heavy Barrel, King Short Action. Winchester +P cases and Federal 100 primers used throughout. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 110 | Hornady XTP | 8.4 | 1268 | 19,600 cup |
| 125 | Hornady XTP | 7.8 | 1138 | 19,500 cup |
| 140 | Hornady XTP | 7.0 | 992 | 18,300 cup |
| 146 | Speer JHP | 6.7 | 1035 | COL: 1.370"; 18,400 cup |
| 158 | Hornady XTP | 6.6 | 926 | 18,700 cup |
| 170 | Sierra JHC | 6.3 | 897 | COL: 1.450"; 18,600 cup |
| +P (Hodgdon Pistol Data Maximum Loads) case: Winchester; barrel length: 7.7"; twist: 1:18.75"; trim length: 1.145"; primer: Winchester SP; bullet diam.: .357"; COL: 1.455" (except where otherwise specified in remarks); NEVER EXCEED MAXIMUM LOADS | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 158 | XTP | 6.2 | 926 | start load; min OAL: 1.455 |
| 158 | XTP | 6.6 | 926 | never exceed; min OAL: 1.455; 18,700 cup |
| 170 | Jacketed | 6.0 | 897 | start load; min OAL: 1.450 |
| 170 | Jacketed | 6.3 | 897 | never exceed; min OAL: 1.450; 18,600 cup |
| +P Lee Precision Data These hot loads may wear guns prematurely. Do not use in small frame, or aluminum frame revolvers, or in semi auto pistols. Small pistol primer. CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 135 | Speer Gold Dot HP SB | 7.3 | 905 | S&W 3-inch |
| 135 | Speer Gold Dot HP SB | 7.3 | 897 | Ruger 3 1/16-inch |
| +P (Max. Pressure Limit 20,000 psi) All loads were fired in a Smith & Wesson Model 36 and a Ruger SP101. Starline cases and CCI 500 primers were used throughout. Cartridge overall length: 1.470 inches. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 158 | Speer LSWC, LSWC HP or LRN | 6.3 | 914 | start charge |
| 158 | Speer LSWC, LSWC HP or LRN | 6.7 | 971 | maximum charge |
| 135 | Speer GDHP SB | 6.8 | 944 | start charge |
| 135 | Speer GDHP SB | 7.2 | 1027 | maximum charge |
| 140 | Speer UCHP | 6.4 | 873 | start charge |
| 140 | Speer UCHP | 7.0 | 960 | maximum charge |
| +P Speer Reloading Manual #14 max. case length: 1.155"; trim-to length: 1.145"; max cart. OAL: 1.550"; RCBS shell holder: #6; cart. case: Speer; primer: CCI 500; test firearm: S&W Model 14; barrel length: 6"; maximum loads should be used with CAUTION | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 140 | Speer JHP | 7.0 | 868 | very accurate |
| 158 | Speer lead HP-SWC | 6.7 | 914 | |
| +P 20,000 Warning! Test gun was a Smith & Wesson Model 14 with a 6-inch barrel. Federal 100 primers used throughout. Temperature during testing was 28 degrees Fahrenheit. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 140 | Speer Jacketed Hollow Point | 7.0 | 871 | |
| 158 | Speer Lead HP Semi-Wadcutter | 6.7 | 903 | |
| +P Data (20,000 psi) Data is safe in any .38 S&W Special revolver that is recommended for +P loads and is in good mechanical condition. Handgun used was a Smith & Wesson .38-44 Outdoorsman with a 6 1/2-inch barrel. Federal 100 primers and Starline cases used throughout. Temperature during testing was 46 degrees Fahrenheit. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 158 | Hornady semiwadcutter | 7.0 | 933 | |
| 158 | Hornady roundnose (lead) | 6.5 | 889 | very accurate |
| 158 | Hornady roundnose (lead) | 7.5 | 982 | maximum; do not exceed |
| 158 | Sierra jacketed hollow cavity | 7.5 | 880 | |
| 140 | Sierra jacketed hollow cavity | 7.5 | 886 | accurate |
| 140 | Sierra jacketed hollow cavity | 7.8 | 957 | maximum; very accurate |
| 125 | Sierra jacketed hollow cavity | 8.3 | 1,025 | maximum; don't exceed |
| +P Loads (Colt Official Police) .38 Special 6-inch barrel. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 158 | Hornady semiwadcutter | 7.0 | 881 | |
| 158 | Hornady roundnose (lead) | 6.5 | 808 | very accurate |
| 158 | Hornady roundnose (lead) | 7.5 | 894 | maximum; do not exceed |
| 158 | Sierra jacketed hollow cavity | 7.5 | 773 | |
| 140 | Sierra jacketed hollow cavity | 7.5 | 779 | accurate |
| 140 | Sierra jacketed hollow cavity | 7.8 | 841 | maximum; very accurate |
| 125 | Sierra jacketed hollow cavity | 8.3 | 922 | maximum; don't exceed |
| +P Loads (Colt Trooper) .38 Special 4-inch barrel. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 158 | Hornady roundnose (lead) | 6.5 | 816 | very accurate |
| 158 | Sierra jacketed hollow cavity | 7.5 | 830 | |
| +P Loads (Colt) .357 Magnum 6-inch barrel. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 158 | Hornady roundnose (lead) | 6.5 | 770 | very accurate |
| +P Loads (Model 19) .357 Magnum 4-inch barrel. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 135 | Speer GDHP SB | 6.8 | 780 | start charge |
| 135 | Speer GDHP SB | 7.2 | 856 | maximum charge |
| +P Short Barrel Velocities Speer Reloading Manual #14 max. case length: 1.155"; trim-to length: 1.145"; max cart. OAL: 1.550"; RCBS shell holder: #6; cart. case: Speer; primer: CCI 500; test firearm: S&W Model 15; barrel length: 2"; maximum loads should be used with CAUTION | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 110 | XTP | 7.0 | 1071 | start load; min. OAL: 1.455 |
| 110 | XTP | 7.8 | 1178 | NEVER EXCEED; 17,000 cup; min. OAL: 1.455 |
| 125 | XTP | 6.5 | 931 | start load; min. OAL: 1.455 |
| 125 | XTP | 7.2 | 1048 | NEVER EXCEED; 16,600 cup; min. OAL: 1.455 |
| 130 | Jacketed | 6.2 | 878 | start load; min. OAL: 1.425 |
| 130 | Jacketed | 7.2 | 1077 | NEVER EXCEED; 14,900 cup; min. OAL: 1.425 |
| 140 | XTP | 5.8 | 808 | start load; min. OAL: 1.455 |
| 140 | XTP | 6.5 | 933 | NEVER EXCEED; 16,000 cup; min. OAL: 1.455 |
| 146 | Jacketed | 5.6 | 808 | start load; min. OAL: 1.370 |
| 146 | Jacketed | 6.3 | 969 | NEVER EXCEED; 16,100 cup; min. OAL: 1.370 |
| 148 | Wad Cutter | 4.5 | 816 | start load; min. OAL: 1.160 |
| 148 | Wad Cutter | 5.2 | 943 | NEVER EXCEED; 14,300 cup; min. OAL: 1.160 |
| 150 | Jacketed | 7.0 | 1011 | start load; min. OAL: 1.425 |
| 150 | Jacketed | 7.0 | 1011 | NEVER EXCEED; 14,900 cup; min. OAL: 1.425 |
| 158 | Lead | 5.7 | 928 | start load; min. OAL: 1.475 |
| 158 | Lead | 6.3 | 1010 | NEVER EXCEED; 16,200 cup; min. OAL: 1.475 |
| 158 | XTP | 5.6 | 761 | start load; min. OAL: 1.455 |
| 158 | XTP | 6.2 | 862 | NEVER EXCEED; 16,300 cup; min. OAL: 1.455 |
| 160 | Jacketed | 6.5 | 914 | start load; min. OAL: 1.425 |
| 160 | Jacketed | 6.5 | 914 | NEVER EXCEED; 14,600 cup; min. OAL: 1.425 |
| 170 | Jacketed | 5.3 | 710 | start load; min. OAL: 1.450 |
| 170 | Jacketed | 5.9 | 832 | NEVER EXCEED; 16,100 cup; min. OAL: 1.450 |
| 200 | Lead | 4.5 | 749 | start load; min. OAL: 1.425 |
| 200 | Lead | 5.0 | 794 | NEVER EXCEED; 15,900 cup; min. OAL: 1.425 |
| Lee Precision Data With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Pistol Primer. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 160 | Cast Performance FNPB | 6.7 | 986 | |
 | 173 | Lyman 358429 cast | 6.4 | 892 | very accurate |
| 17,000 psi Test gun was a Smith & Wesson Model 14 with a 6 inch barrel. Federal 100 primers used throughout. Temperature during testing was 28 degrees Fahrenheit. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 160 | 358156 SWC | 6.5 | 938 | muzzle energy (ft-lbs): 310 |
| Alloy bullets in a 6-inch Barrel Cast bullets from wheelweight alloy: BHN 12.5. Swaged lead bullets from Speer: BHN 8.5. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 158 | Lyman 358156 semiwadcutter | 6.5 | 646 | case expansion near maximum; accuracy only fair |
| Cast Bullet Loads in a 2-inch Barrel Loads labeled "maximum" should not be exceeded! Reduce maximum loads 10% for light and alloy-framed guns. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 145 | Hensley & Gibbs No. 73 semiwadcutter | 6.0 | 713 | case expansion normal; accurate in six-inch barrel |
| Cast Bullet Loads in a 4-inch Barrel Loads labeled "maximum" should not be exceeded! Reduce maximum loads 10% for light and alloy-framed guns. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 158 | Lyman 358156 semiwadcutter | 6.5 | 860 | case expansion near maximum; accuracy only fair |
| 145 | Hensley & Gibbs No. 73 semiwadcutter | 5.5 | 624 | case expansion light |
| 145 | Hensley & Gibbs No. 73 semiwadcutter | 6.0 | 782 | case expansion normal; accurate in six-inch barrel |
| 145 | Hensley & Gibbs No. 73 semiwadcutter | 6.5 | 902 | case expansion near maximum |
| Cast Bullet Loads in a 6-inch Barrel Loads labeled "maximum" should not be exceeded! Reduce maximum loads 10% for light and alloy-framed guns. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 145 | Hensley & Gibbs No. 73 semiwadcutter | 6.0 | 819 | case expansion normal; accurate in six-inch barrel |
| Cast Bullet Loads in an 8 3/8-inch Barrel Loads labeled "maximum" should not be exceeded! Reduce maximum loads 10% for light and alloy-framed guns. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 173 | Lyman 358429 cast Keith | 6.4 | 889 | |
| Colt-King Super Target Loads fired in a 6-inch barreled Colt Officer's Model Heavy Barrel, King Short Action. Winchester +P cases and Federal 100 primers used throughout. Standard Pressures 17,000 psi) | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 158 | Nosler JHP | 7.0 | 811 | case expansion maximum; reduce to 6.7 grains |
| 158 | Sierra JHC | 6.7 | 797 | case expansion maximum; very accurate |
 | 140 | Sierra JHC | 7.3 | 890 | case expansion maximum; highest velocity w/140-grain bullets |
| 125 | Nosler JHP | 7.8 | 921 | case expansion maximum |
| Jacketed Bullet Loads in 8 3/8-inchBarrel Loads labeled "maximum" should not be exceeded! Reduce maximum loads 10% for light and alloy-framed guns. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 140 | Sierra JHC | 7.3 | 701 | case expansion maximum; highest velocity w/140-grain bullets |
| Jacketed Bullet Loads in a 2-inch Barrel Loads labeled "maximum" should not be exceeded! Reduce maximum loads 10% for light and alloy-framed guns. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 125 | Nosler JHP | 7.8 | 849 | case expansion maximum |
| Jacketed Bullet Loads in a 4-inch Barrel Loads labeled "maximum" should not be exceeded! Reduce maximum loads 10% for light and alloy-framed guns. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 158 | Nosler JHP | 7.0 | 787 | case expansion maximum; reduce to 6.7 grains |
| 158 | Sierra JHC | 6.7 | 767 | case expansion maximum |
| 140 | Sierra JHC | 7.3 | 841case expansion maximum; highest velocity w/140-grain bullets | |
| Jacketed Bullet Loads in a 6-inch Barrel Loads labeled "maximum" should not be exceeded! Reduce maximum loads 10% for light and alloy-framed guns. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 95 | Remington JHP | 9.2 | 1,244 | muzzle energy (ft-lbs): 330 |
| 146 | Speer JHP | 7.0 | 932 | muzzle energy (ft-lbs): 280 |
| Jacketed Bullets in a 6-inch Barrel | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 110 | Hornady XTP | 7.8 | 779 | case: Hornady; primer: WSP |
| 110 | Hornady XTP | 7.8 | 801 | case: Hornady; primer: CCI 550 |
| 110 | Hornady XTP (+P) | 8.4 | 883 | case: Hornady; primer: WSP |
| 110 | Hornady XTP (+P) | 8.4 | 879 | case: Hornady; primer: CCI 550 |
| 125 | Hornady XTP | 7.2 | 723 | case: Hornady; primer: WSP |
| 125 | Hornady XTP | 7.2 | 790 | case: Hornady; primer: CCI 550 |
| 125 | Hornady XTP (+P) | 7.8 | 791 | case: Hornady; primer: WSP |
| 125 | Hornady XTP (+P) | 7.8 | 797 | case: Hornady; primer: CCI 550 |
| S&W Model 36 Chiefs Special Hodgdon Data S&W Model 36 Chiefs Special, 1.875-in. barrel. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 90 | Sierra JHP | 8.5 | 1298 | start load; COL: 1.180"; 24,300 cup |
| 90 | Sierra JHP | 9.5 | 1392 | max load; COL: 1.180"; 32,000 cup |
| 95 | Barnes TAC-XP | 7.3 | 1269 | start load; COL: 1.255"; 24,500 cup |
| 95 | Barnes TAC-XP | 8.3 | 1434 | max load; COL: 1.255"; 32,000 cup |
| 100 | Speer JHP | 8.5 | 1284 | start load; COL: 1.215"; 25,500 cup |
| 100 | Speer JHP | 9.4 | 1347 | max load; COL: 1.215"; 32,500 cup |
| 115 | LRN | 7.8 | 1204 | start load; bullet diam.: .356"; COL: 1.250"; 24,700 cup |
| 115 | LRN | 8.7 | 1307 | max load; bullet diam.: .356"; COL: 1.250"; 31,100 cup |
| 115 | Hornady XTP | 7.8 | 1212 | start load; COL: 1.245"; 25,500 cup |
| 115 | Hornady XTP | 8.5 | 1314 | max load; COL: 1.245"; 31,500 cup |
| 124 | Berry's Bullets HBRN TP | 7.1 | 1160 | start load; bullet diam.: .356"; COL: 1.250"; 26,100 cup |
| 124 | Berry's Bullets HBRN TP | 8.0 | 1280 | max load; bullet diam.: .356"; COL: 1.250"; 32,500 cup |
| 125 | Hornady HAP | 6.9 | 1175 | start load; bullet diam.: .356"; COL: 1.210"; 25,700 cup |
| 125 | Hornady HAP | 7.7 | 1300 | max load; bullet diam.: .356"; COL: 1.210"; 32,300 cup |
| 125 | Sierra FMJ | 7.5 | 1158 | start load; COL: 1.275"; 24,600 cup |
| 125 | Sierra FMJ | 8.3 | 1271 | max load; COL: 1.275"; 32,100 cup |
| 125 | Cast LCN | 7.2 | 1151 | start load; bullet diam.: .356"; COL: 1.230"; 24,300 cup |
| 125 | Cast LCN | 8.1 | 1264 | max load; bullet diam.: .356"; COL: 1.230"; 31,300 cup |
| 130 | Berry's Bullets RN | 6.5 | 1010 | start load; COL: 1.270"; 26,000 cup |
| 130 | Berry's Bullets RN | 7.5 | 1127 | max load; COL: 1.270"; 31,100 cup |
| 135 | LRN | 7.2 | 1123 | start load; bullet diam.: .356"; COL: 1.275"; 27,200 cup |
| 135 | LRN | 8.0 | 1190 | max load; bullet diam.: .356"; COL: 1.275"; 32,000 cup |
| 147 | Hornady XTP | 6.3 | 997 | start load; COL: 1.260"; 24,500 cup |
| 147 | Hornady XTP | 7.0 | 1106 | max load; COL: 1.260"; 31,900 cup |
| 150 | Sierra JFP | 6.5 | 1029 | start load; bullet diam.: .356"; COL: 1.265"; 26,000 cup |
| 150 | Sierra JFP | 7.2 | 1137 | max load; bullet diam.: .356"; COL: 1.265"; 31,200 cup |
| 150 | Cast LRN | 6.4 | 1078 | start load; bullet diam.: .356"; COL: 1.230"; 25,400 cup |
| 150 | Cast LRN | 7.1 | 1175 | max load; bullet diam.: .356"; COL: 1.230"; 30,900 cup |
| Hodgdon Data Case: Remington; twist: 1:16"; primer: Remington 1 1/2, Small Pistol; barrel length: 5"; trim length: .895"; bullet diam.: .355" (except where otherwise specified in remarks). | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 90 | Jacketed | 8.5 | 1298 | start load; min OAL: 1.180 |
| 90 | Jacketed | 9.5 | 1392 | never exceed; min OAL: 1.180; 32,000 cup |
| 100 | Jacketed | 8.5 | 1284 | start load; min OAL: 1.215 |
| 100 | Jacketed | 9.4 | 1347 | never exceed; min OAL: 1.215; 32,500 cup |
| 115 | XTP | 7.8 | 1212 | start load; min OAL: 1.245 |
| 115 | XTP | 8.5 | 1314 | never exceed; min OAL: 1.245; 31,500 cup |
| 125 | Jacketed | 7.5 | 1158 | start load; min OAL: 1.275 |
| 125 | Jacketed | 8.3 | 1271 | never exceed; min OAL: 1.275; 32,100 cup |
| 125 | Lead | 7.2 | 1151 | start load; min OAL: 1.230 |
| 125 | Lead | 8.1 | 1264 | never exceed; min OAL: 1.230; 31,300 cup |
| 130 | Jacketed | 7.3 | 1089 | start load; min OAL: 1.275 |
| 130 | Jacketed | 8.2 | 1231 | never exceed; min OAL: 1.275; 32,500 cup |
| 147 | XTP | 6.3 | 997 | start load; min OAL: 1.260 |
| 147 | XTP | 7.0 | 1106 | never exceed; min OAL: 1.260; 31,900 cup |
| 150 | Jacketed | 6.5 | 1029 | start load; min OAL: 1.265 |
| 150 | Jacketed | 7.2 | 1137 | never exceed; min OAL: 1.265; 31,200 cup |
| 150 | Lead | 6.4 | 1068 | start load; min OAL: 1.230 |
| 150 | Lead | 7.1 | 1175 | never exceed; min OAL: 1.230; 30,900 cup |
| Lee Precision Data Small Pistol Primer. DO NOT USE THESE LOADS IN 38 AUTOMATIC OR 38 ACP. CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 133 | Cast #358480 | 5.9 | 1026 | sugg. start load; 18,000 cup |
| 133 | Cast #358480 | 7.8 | 1303 | max load; 30,200 cup |
| Lyman Cast Bullet Handbook cases: Remington; trim-to length: .895"; primers: Winchester 1 1/2-108; primer size: Small Pistol; Lyman shell holder: No. 12; cast bullets used size to .355" dia.; firearm used: Universal Receiver; barrel length: 5"; twist: 1-16"; groove diameter: .355". NOTE: More Lyman cast bullet data available under .38 Super Automatic Cast Bullet Handgun Data Lyman Reloading Handbook 49th Edition | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 115 | Hornady FMJ RN or HP XTP | 6.4 | 1006 | |
| 115 | Hornady FMJ RN or HP XTP | 6.8 | 1054 | |
| 115 | Hornady FMJ RN or HP XTP | 7.1 | 1105 | |
| 115 | Hornady FMJ RN or HP XTP | 7.5 | 1159 | |
| 115 | Hornady FMJ RN or HP XTP | 7.8 | 1215 | |
| 115 | Hornady FMJ RN or HP XTP | 8.2 | 1259 | maximum load |
| Using 115 GR Hornady Bullets Gun: Kimber Model 1911; barrel length: 5 inches; case: Starline; primer: Winchester Small Pistol; bullet diameter: .355" and .357"; COAL: 1.245"; maximum COAL: 1.280"; maximum case length: .900"; trim to length: .895". | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 125 | Hornady | 6.0 | 935 | |
| 125 | Hornady | 6.4 | 997 | |
| 125 | Hornady | 6.8 | 1071 | |
| 125 | Hornady | 7.1 | 1145 | |
| 125 | Hornady | 7.5 | 1205 | maximum load |
| Using 121/124/125 GR Hornady Bullets Gun: Kimber Model 1911; barrel length: 5 inches; case: Starline; primer: Winchester Small Pistol; bullet diameter: .355" and .357"; 121 GR Hornady HAP COAL: 1.210"; 124 GR FMJ-RN COAL: 1.250", 124 GR HP XTP COAL: 1.210"; 124 GR FMJ-FP COAL: 1.200"; 125 GR HAP COAL: 1.210"; 125 GR FP XTP & HP XTP COAL: 1.200"; maximum COAL: 1.280"; maximum case length: .900"; trim to length: .895". NOTE: 121 GR and 124 GR bullets can be used for all 125 GR data listed. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 135 | Round Nose | 6.6 | 1,085 | starting load; OAL: 1.255 |
| 135 | Round Nose | 7.1 | 1,180 | maximum load; OAL: 1.255 |
| +P (Oregon Trail Data) test gun: STI 5 1/2", WSP; all maximum 38 Super loads are for fully supported chambers only! do not exceed maximum loads; never reduce stated overall lengths | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 115 | Speer GDHP or TMJ RN | 8.0 | 1177 | start charge |
| 115 | Speer GDHP or TMJ RN | 8.8 | 1253 | maximum charge |
| 124 | Speer TMJ RN , UCSP or GDHP | 7.5 | 1134 | start charge |
| 124 | Speer TMJ RN , UCSP or GDHP | 8.3 | 1245 | maximum charge |
| 147 | Speer GDHP or TMJ FP | 6.4 | 948 | start charge |
| 147 | Speer GDHP or TMJ FP | 7.1 | 1048 | maximum charge |
| +P Speer Reloading Manual #14 max. case length: 0.900"; trim-to length: 0.890"; max cart. OAL: 1.280"; RCBS shell holder: #39; cart. case: Winchester; primer: CCI 500; test firearm: Colt 38 Super; barrel length: 5"; NOTE: 125-grain Speer SIG GDHP or SIG TMJ FN may also be used in the 124-grain loads; maximum loads should be used with CAUTION | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 124 | Speer Gold Dot HP | 8.3 | 1,276 | OAL: 1.280 |
| +P Loads All loads were fired in a Kimber 1911 with a 5-inch barrel. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 90 | Sierra Jacketed HP | 7.5 | 1210 | sugg. start load; 20,000 cup; 1.125" OAL |
| 90 | Sierra Jacketed HP | 9.4 | 1550 | max load; 30,500 cup; 1.125" OAL |
| 95 | Sierra FMJ | 8.3 | 1277 | sugg. start load; 22,300 psi; 1.175" OAL |
| 95 | Sierra FMJ | 9.3 | 1444 | max load; 31,400 psi; 1.175" OAL |
| 115 | Hornady Jacketed HP | 7.9 | 1020 | sugg. start load; 22,700 cup; 1.265" OAL |
| 115 | Hornady Jacketed HP | 8.8 | 1296 | max load; 30,700 cup; 1.265" OAL |
| 124 | Hornady FMJ/FP | 7.0 | 980 | sugg. start load; 26,200 cup; 1.165" OAL |
| 124 | Hornady FMJ/FP | 7.8 | 1184 | max load; 29,800 cup; 1.165" OAL |
| Handgun Data Lyman Reloading Handbook 49th Edition cases: Remington; trim-to length: .895"; primers: CCI 500; primer size: Small Pistol; Lyman shell holder: No. 12; firearm used: Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .355" | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 115 | Speer Gold Dot | 8.5 | 1,315 | jacketed bullet load; 25-yard group (inches): 2.1 |
| 124 | Speer Gold Dot | 8.0 | 1,220 | jacketed bullet load; 25-yard group (inches): 2.0 |
| 124 | Speer Gold Dot | 8.3 | 1,288 | jacketed bullet load; 25-yard group (inches): 1.6; good choice for 124-grain weight |
| 125 | Sierra JHP | 8.0 | 1,190 | revolver bullet; 25-yard group (inches): 2.5 |
| 125 | Hornady XTP | 8.2 | 1,230 | revolver bullet; 25-yard group (inches): 2.4 |
| Handloads All accuracy results obtained with Kimber pistol unless otherwise noted. A taper crimp was used on all loads. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 158 | Remington SJHP (Magnum) | 6.2 | 900 | ME, fp: 283; velocity var. fps: 12; group average, inches: 2.86; accurate and extremely consistent; can probably be increased slightly |
| in a Browning BDA All loads utilize Federal 100 primers and Winchester brass. Loads chronographed in a Browning BDA, 4.4-inch barrel; Oehler Model 32/61 Chronotach/Skyscreen system. Average temperature 85 degrees. All loads maximum except where noted. DO NOT EXCEED! Work up carefully from one grain below. These loads are definitely not intended for old (pre-1929) Colt automatics. All bullet diameters: .357. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 135 | Bull-X FMJTC | 8.7 | 1,327 | |
| in a CWC 5-inch barrel | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 135 | Bull-X FMJTC | 8.7 | 1,340 | |
| in a Wilson 5.5-inch barrel | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 150 | Bull-X SWC/LD | 6.0 | 1,093 | Level III Load |
| 150 | Bull-X SWC/LD | 6.5 | 1,140 | Load III Load |
| 115 | Nosler FMJ | 10.0 | 1,578 | Level IV Load |
| 135 | Nosler FMJ | 8.7 | 1,340 | Level IV Load |
| 150 | Bull-X SWC/LD | 7.5 | 1,227 | Level IV Load |
| Load Data Warning: Level IV loads should be used only in guns with full-support barrels. They must not be fired in standard factory barrels made by Colt and others. These loads are for modern guns in excellent condition chambered for the .38 Super cartridge and should not be fired in guns originally chambered for the .38 Auto. All loads are safe in the author's guns but all powder charges listed for Levels III and IV loads should be reduced by 10 and 20 percent, respectively, for starting loads in other guns. Remington nickel-plated cases were used in all loads. Winchester WSP primers were used in Levels I, II and III loads; Winchester WSR primers were used in Level IV loads. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 115 | Hornady Jacketed HP/XTP | 3.1 | 677 | sugg start load; 8,700 cup; .956" OAL |
| 115 | Hornady Jacketed HP/XTP | 4.5 | 945 | max load; 15,200 cup; .956" OAL |
| Lyman Reloading Handbook 49th Edition cases: Federal; trim-to length: .677"; primers: Federal 100 and Winchester WSP; primer size: small pistol; Lyman shell holder: No. 26; firearm used: Universal Receiver; barrel length: 3 3/4"; twist: 1-16"; groove dia.: .355" | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 155 | Speer TMJ FN or GDHP | 7.3 | 786 | start charge |
| 155 | Speer TMJ FN or GDHP | 9.0 | 1033 | maximum charge |
| 165 | Speer TMJ FN or GDHP | 8.0 | 1012 | start charge |
| 165 | Speer TMJ FN or GDHP | 8.5 | 1060 | maximum charge |
| 180 | Speer GDHP SB, TMJ FN or GDHP | 7.3 | 786 | start charge |
| 180 | Speer GDHP SB, TMJ FN or GDHP | 8.2 | 942 | maximum charge |
| Speer Reloading Manual #14 max. case length: 0.850"; trim-to length: 0.840"; max cart. OAL: 1.135"; RCBS shell holder: #27; cart. case: Speer; primer: CCI 500; test firearm: Smith & Wesson M4006; barrel length: 4"; IMPORTANT SAFETY NOTE: These loads were developed and tested for safe use in HANDGUNS. Not all loads may be suitable for use in a carbine or rifle chambered for this cartridge. If loading for a carbine or rifle, choose from among the loads developing the highest handgun velocities and load just a few rounds. Thoroughly test this small sample in your firearm in slow-fire mode, insuring that you achieve proper feeding and ejection. Be certain that all bullets exit the barrel; watching the target for each bullet strike is the best way to know that the load produces sufficient gas volume for a longer barrel. Use maximum loads with CAUTION. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 135 | Nosler JHP | 9.0 | 1180 | start load; COL: 1.125"; 27,400 psi |
| 135 | Nosler JHP | 10.2 | 1321 | max load; COL: 1.125"; 33,600 psi |
| 140 | Barnes TAC-XP | 6.8 | 1025 | start load; COL: 1.135"; 28,500 psi |
| 140 | Barnes TAC-XP | 7.2 | 1096 | max load; COL: 1.135"; 33,700 psi |
| 150 | Nosler JHP | 7.8 | 1076 | start load; COL: 1.125"; 25,700 psi |
| 150 | Nosler JHP | 8.7 | 1201 | max load; COL: 1.125"; 32,500 psi |
| 155 | Hornady XTP | 7.7 | 1035 | start load; COL: 1.125"; 26,500 psi |
| 155 | Hornady XTP | 8.5 | 1137 | max load; COL: 1.125"; 33,200 psi |
| 155 | Berry's Bullets FP | 7.8 | 1054 | start load; COL: 1.125"; 24,300 psi |
| 155 | Berry's Bullets FP | 8.8 | 1200 | max load; COL: 1.125"; 32,600 psi |
| 165 | Sierra JHP | 7.3 | 1013 | start load; COL: 1.125"; 28,700 psi |
| 165 | Sierra JHP | 8.0 | 1098 | max load; COL: 1.125"; 32,700 psi |
| 165 | Berry's Bullets FP | 7.4 | 1027 | start load; COL: 1.125"; 26,900 psi |
| 165 | Berry's Bullets FP | 8.1 | 1108 | max load; COL: 1.125"; 31,300 psi |
| 180 | Berry's Bullets FP | 6.6 | 924 | start load; COL: 1.125"; 25,400 psi |
| 180 | Berry's Bullets FP | 7.4 | 1041 | max load; COL: 1.125"; 31,800 psi |
| 180 | Hornady XTP | 6.1 | 876 | start load; COL: 1.125"; 25,900 psi |
| 180 | Hornady XTP | 6.9 | 976 | max load; COL: 1.125"; 32,500 psi |
| 200 | Hornady XTP | 5.5 | 810 | start load; COL: 1.125"; 27,000 psi |
| 200 | Hornady XTP | 6.3 | 900 | max load; COL: 1.125"; 32,800 psi |
| Hodgdon Data Case: Hornady; twist: 1:16"; primer: Winchester SP, Small Pistol; barrel length: 4"; trim length: .845"; bullet diam.: .400". This data is intended for use in firearms with barrels which fully support the cartridge in the chamber. Use of this data in firearms which do not fully support the cartridge, such as Glock, may result in bulged cases, ruptured cases, case head separation, or other conditions which may result in damage to the firearm and/or result in injury or death of the shooter and/or bystanders. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 135 | Jacketed | 9.0 | 1178 | start load; min. OAL: 1.125 |
| 135 | Jacketed | 10.2 | 1321 | NEVER EXCEED; compressed charge; min. OAL: 1.125; 33,600 psi |
| Lee Precision 135 GR Data Do not use reloads in Glock or similar guns with chambers that do not fully support the cartridge due to the intrusion of the feed ramp. CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Pistol Primer. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 155 | XTP | 7.7 | 1044 | start load; min. OAL: 1.125 |
| 155 | XTP | 8.5 | 1137 | NEVER EXCEED; min. OAL: 1.125; 33,200 psi |
| Lee Precision 155 GR Data Do not use reloads in Glock or similar guns with chambers that do not fully support the cartridge due to the intrusion of the feed ramp. CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Pistol Primer. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 170 | XTP | 7.0 | 989 | start load; min. OAL: 1.125 |
| 170 | XTP | 7.7 | 1078 | NEVER EXCEED; min. OAL: 1.125; 33,200 psi |
| Lee Precision 170 GR Data Do not use reloads in Glock or similar guns with chambers that do not fully support the cartridge due to the intrusion of the feed ramp. CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Pistol Primer. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 180 | XTP | 6.1 | 870 | start load; min. OAL: 1.125 |
| 180 | XTP | 6.9 | 976 | NEVER EXCEED; min. OAL: 1.125; 32,500 psi |
| Lee Precision 180 GR Data Do not use reloads in Glock or similar guns with chambers that do not fully support the cartridge due to the intrusion of the feed ramp. CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Pistol Primer. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 200 | XTP | 5.5 | 795 | start load; min. OAL: 1.125 |
| 200 | XTP | 6.3 | 900 | NEVER EXCEED; min. OAL: 1.125; 32,000 psi |
| Lee Precision 200 GR Data Do not use reloads in Glock or similar guns with chambers that do not fully support the cartridge due to the intrusion of the feed ramp. CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Pistol Primer. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 135 | Nosler JHP | 8.0 | 1022 | start load; 17,600 cup; 1.085" OAL |
| 135 | Nosler JHP | 9.0 | 1171 | max load; 22,000 cup; 1.085" OAL |
| 150 | Sierra JHP | 7.6 | 990 | start load; 17,100 cup; 1.100" OAL |
| 150 | Sierra JHP | 8.6 | 1093 | max load; 22,300 cup; 1.100" OAL |
| 155 | Winchester Jacketed Silvertip | 7.6 | 924 | start load; 18,900 cup; 1.125" OAL |
| 155 | Winchester Jacketed Silvertip | 8.5 | 1089 | max load; 22,800 cup; 1.125" OAL |
| 165 | Speer TMJ | 7.6 | 833 | start load; 17,400 cup; 1.120" OAL |
| 165 | Speer TMJ | 8.5 | 979 | max load; 22,600 cup; 1.120" OAL |
| 175 | Winchester Jacketed Silvertip | 6.9 | 843 | start load; 18,000 cup; 1.125" OAL |
| 175 | Winchester Jacketed Silvertip | 7.7 | 970 | max load; 22,500 cup; 1.125" OAL |
| 180 | Sierra JHP | 6.9 | 860 | start load; 19,600 cup; 1.115" OAL |
| 180 | Sierra JHP | 8.0 | 1048 | max load; 23,500 cup; 1.115" OAL |
| 190 | Sierra JFP | 6.4 | 594 | start load; 16,200 cup; 1.135" OAL |
| 190 | Sierra JFP | 7.2 | 734 | max load; 22,300 cup; 1.135" OAL |
| 150 | Lyman Cast #401654 (#2 Alloy) | 7.5 | 1038 | start load; 18,000 cup; 1.090" OAL |
| 150 | Lyman Cast #401654 (#2 Alloy) | 8.8 | 1224 | max load; 23,500 cup; 1.090" OAL |
| 175 | Lyman Cast #401043 (#2 Alloy) | 7.0 | 940 | start load; 17,000 cup; 1.125" OAL |
| 175 | Lyman Cast #401043 (#2 Alloy) | 8.2 | 1047 | max load; 23,300 cup; 1.125" OAL |
| 175 | Lyman Cast #401638 (#2 Alloy) | 7.0 | 976 | start load; 18,600 cup; 1.100" OAL |
| 175 | Lyman Cast #401638 (#2 Alloy) | 8.4 | 1129 | max load; 22,800 cup; 1.100" OAL |
| Lyman Reloading Handbook 48th Edition cases: Winchester; trim-to length: .845"; primers: Winchester WSP; primer size: Small Pistol; Lyman shell holder: No. 15; firearm used: Universal Receiver; barrel length: 4"; twist: 1-16"; groove dia.: .401"; do not reduce cases below the trim-to length; additionally do not roll crimp bullets; it is important not to seat bullets to a shorter length than listed in any handgun cartridge; but especially so in this one; pressures can be raised dramatically with deep seating (Lyman 48th Edition Reloading Handbook) | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 180 | Truncated Cone | 6.6 | 908 | starting load; minimum OAL: 1.130 |
| 180 | Truncated Cone | 7.1 | 973 | maximum load; minimum OAL: 1.130 |
| 180 | Round Nose Flat Point | 6.6 | 890 | starting load; minimum OAL: 1.122 |
| 180 | Round Nose Flat Point | 7.1 | 957 | maximum load; minimum OAL: 1.122 |
| 200 | Truncated Cone | 5.6 | 842 | starting load; minimum OAL: 1.135 |
| 200 | Truncated Cone | 6.1 | 915 | maximum load; minimum OAL: 1.135 |
| Oregon Trail Standard Handgun Loads test gun: Entreprise 5", WSP; CAUTION: All Glock .40 S&W pistols as of this writing have large unsupported chambers, as do other makes. Examine your barrel and know what you're dealing with before you proceed! These loads are intended for use in pistols with fully supported chambers ONLY! Do not exceed maximum loads; never reduce stated overall lengths | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 155 | Speer Gold Dot TMJ or GD-HP | 9.0 | 1033 | maximum load |
| 155 | Speer Gold Dot TMJ or GD-HP | 7.3 | 786 | |
| 165 | Speer Gold Dot TMJ or GD-HP | 8.5 | 1060 | maximum load |
| 165 | Speer Gold Dot TMJ or GD-HP | 8.0 | 1012 | |
| 180 | Speer Gold Dot TMJ or GD-HP | 8.2 | 942 | maximum load |
| 180 | Speer Gold Dot TMJ or GD-HP | 7.3 | 786 | |
| Speer Reloading Manual #13 max. case length: 0.850"; trim-to length: 0.840"; max. cart. length: 1.135"; RCBS shellholder: #27; barrel length: 4"; twist: 1-16"; test firearm: Smith & Wesson Model 4006; case: Speer; primers: CCI 500; bullet diam.: .400"; use maximum loads with caution; SAFETY NOTICE Some pistols chambered for the 40 S&W cartridge may not provide complete support of the case head. If this condition exists, normal pressure loads such as those shown here can cause the case wall to bulge or rupture at the unsupported point. Contact your firearm manufacturer to determine if your pistol completely supports the case head, or ask a gunsmith to inspect your pistol before using it with ANY ammunition. It is the gun owner's responsibility to know his firearm and its capabilities and limitations. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 155 | Hornady HP-XTP | 7.5 | 1013 | |
| 155 | Hornady HP-XTP | 7.9 | 1060 | |
| 155 | Hornady HP-XTP | 8.3 | 1114 | |
| 155 | Hornady HP-XTP | 8.7 | 1161 | maximum load |
| 180 | Hornady HAP or HP-XTP | 6.2 | 875 | |
| 180 | Hornady HAP or HP-XTP | 6.5 | 921 | |
| 180 | Hornady HAP or HP-XTP | 6.8 | 965 | |
| 180 | Hornady HAP or HP-XTP | 7.2 | 1008 | maximum load |
| 200 | Hornady HAP or HP-XTP | 4.9 | 717 | |
| 200 | Hornady HAP or HP-XTP | 5.3 | 770 | |
| 200 | Hornady HAP or HP-XTP | 5.7 | 816 | |
| 200 | Hornady HAP or HP-XTP | 6.0 | 869 | |
| 200 | Hornady HAP or HP-XTP | 6.4 | 912 | maximum load |
| Using Hornady Bullets Gun: Glock Model 22; barrel length: 4.35 inches; case: Starline; primer: Winchester Small Pistol; bullet diameter: .400"; COAL: 1.125"; maximum COAL: 1.135"; maximum case length: .850"; trim to length: .845". IMPORTANT: PLEASE VIEW THE SPECIAL NOTES by clicking here. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 135 | Sierra JHP | 7.2 | 918 | |
| 135 | Sierra JHP | 7.5 | 957 | |
| 135 | Sierra JHP | 7.9 | 1002 | |
| 135 | Sierra JHP | 8.2 | 1047 | |
| 135 | Sierra JHP | 8.5 | 1090 | |
| 135 | Sierra JHP | 8.8 | 1135 | |
| 135 | Sierra JHP | 9.2 | 1180 | |
| 135 | Sierra JHP | 9.5 | 1222 | maximum load |
| 150 | Sierra JHP | 6.9 | 869 | |
| 150 | Sierra JHP | 7.2 | 910 | |
| 150 | Sierra JHP | 7.4 | 959 | |
| 150 | Sierra JHP | 7.7 | 1007 | |
| 150 | Sierra JHP | 8.0 | 1055 | |
| 150 | Sierra JHP | 8.2 | 1104 | |
| 150 | Sierra JHP | 8.5 | 1147 | maximum load |
| 165 | Sierra JHP | 6.4 | 848 | |
| 165 | Sierra JHP | 6.7 | 886 | |
| 165 | Sierra JHP | 7.0 | 930 | |
| 165 | Sierra JHP | 7.3 | 974 | |
| 165 | Sierra JHP | 7.6 | 1018 | |
| 165 | Sierra JHP | 7.9 | 1057 | maximum load |
| 180 | Sierra JHP | 6.2 | 821 | |
| 180 | Sierra JHP | 6.6 | 871 | |
| 180 | Sierra JHP | 6.9 | 930 | |
| 180 | Sierra JHP | 7.3 | 989 | |
| 180 | Sierra JHP | 7.6 | 1045 | maximum load |
| Using Sierra Bullets Notes: Gun: Glock Model 22; barrel length: 4.35"; case: Starline; primer: Winchester Small Pistol; bullet diameter: .400"; 135 GR Sierra JHP COAL: 1.125"; 150 GR Sierra JHP COAL: 1.125"; 165 GR Sierra JHP COAL: 1.125"; 180 GR Sierra JHP COAL: 1.125"; maximum COAL: 1.135"; maximum case length: .850"; trim to length: .845". | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 150 | Nosler Sporting Handgun Jacketed Hollow Point | 9.2 | 1,137 | maximum load; most accurate load tested |
| 150 | Nosler Sporting Handgun Jacketed Hollow Point | 8.7 | 1,075 | |
| 150 | Nosler Sporting Handgun Jacketed Hollow Point | 8.2 | 1,013 | |
| 200 | Nosler Sporting Handgun Jacketed Hollow Point | 6.3 | 908 | maximum load |
| 200 | Nosler Sporting Handgun Jacketed Hollow Point | 5.8 | 853 | |
| 200 | Nosler Sporting Handgun Jacketed Hollow Point | 5.3 | 798 | most accurate load tested |
| Using Nosler Bullets Handgun; case: Winchester; primer: WSP; barrel length/make: 4" S&W; twist: 1-16"; bullets: 135 GR, 150 GR, 180 GR & 200 GR Nosler Sporting Handgun Pistol JHP; OACL: 1.125"; maximum OACL: 1.135". Use Maximum Loads with Caution | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 175 | Lyman 401043 | 6.7 | 890 | w/Federal 200 Magnum primers; lube: Thompson's Red Angel; 6 lb wheelweights: 4 lb Linotype: 2 1/2 oz pure tin; energy (ft-lbs): 308; accurate |
| 175 | Lyman 401043 | 7.1 | 950 | w/Federal 200 Magnum primers; lube: Thompson's Red Angel; 6 lb wheelweights: 4 lb Linotype: 2 1/2 oz pure tin; energy (ft-lbs): 350; very accurate |
| 175 | Lyman 401043 | 7.6 | 1,000 | w/Federal 200 Magnum primers; lube: Thompson's Red Angel; 6 lb wheelweights: 4 lb Linotype: 2 1/2 oz pure tin; energy (ft-lbs): 388; super accurate |
| S&W Model 4006 Cast Bullet Loads Except where noted, all loads used Winchester cases, and CCI 500 primers with taper (very mild) crimp. (Cast Bullet Special Edition 1992) | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 200 | Flat Point | 6.3 | 884 | starting load; OAL: 1.190 |
| 200 | Flat Point | 6.7 | 940 | maximum load; OAL: 1.190 |
| Oregon Trail Major Factor Handgun Loads Warning! Notes: test gun: Entreprise, 5" Bar-Sto, WSP; Major power factor IPSC loads. Do not exceed maximum loads; NEVER REDUCE STATED OVERALL LENGTHS. These loads should only be used in 1911-type pistols with fully supported chambers. Taper crimp at .420" | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 135 | jacketed hollowpoint (JHP) | 11.5 | 1,240 | starting load |
| 135 | jacketed hollowpoint (JHP) | 12.5 | 1,350 | maximum load |
Accuracy measurements are 10-shot groups fired from a Ransom Rest at 25 yards. Test firearm was a Les Baer Premier II pistol. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 220 | Lyman 410459 | 11.0 | 1,101 | barrel (inches): 6 1/2 |
| Cast Bullet Loads | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 170 | Sierra JHC | 12.2 | 1447 | start load; COL: 1.575"; 28,100 cup |
| 170 | Sierra JHC | 13.7 | 1597 | max load; COL: 1.575"; 37,200 cup |
| 210 | Hornady XTP | 10.6 | 1186 | start load; COL: 1.580"; 27,300 cup |
| 210 | Hornady XTP | 11.8 | 1321 | max load; COL: 1.580"; 35,700 cup |
| 220 | Speer JSP | 10.0 | 1159 | start load; COL: 1.580"; 28,800 cup |
| 220 | Speer JSP | 11.3 | 1271 | max load; COL: 1.580"; 36,700 cup |
| Hodgdon Pistol Data Case: Remington; twist: 1:18.75"; primer: Winchester LP; barrel length: 10.125"; trim length: 1.280"; BULLET DIAM.: .410". NEVER EXCEED MAXIMUM LOADS | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 220 | Lyman 410459 | 11.5 | 1,142 | primer: Federal 150 |
| in a Ruger Blackhawk Ruger Blackhawk has a barrel length of 6 1/2 inches. Starline brass used in all loads. Temperature during range tests was 28 degrees Fahrenheit. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 220 | Lyman 410459 cast | 11.5 | 1,062 | primer: Federal 150 |
| in an S&W Model 657 The Smith & Wesson Model 657 Mountain Gun has a barrel length of 4 inches. Starline brass used in all loads. Temperature during range tests was 28 degrees Fahrenheit. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 170 | Jacketed | 12.2 | 1447 | start load; min OAL: 1.575 |
| 170 | Jacketed | 13.7 | 1597 | never exceed; min OAL: 1.575; 37,200 cup |
| 210 | XTP | 10.6 | 1186 | start load; min OAL: 1.580 |
| 210 | XTP | 11.8 | 1321 | never exceed; min OAL: 1.580; 35,700 cup |
| 220 | Jacketed | 10.0 | 1159 | start load; min OAL: 1.580 |
| 220 | Jacketed | 11.3 | 1271 | never exceed; min OAL: 1.580; 36,700 cup |
| Lee Precision Data CAUTION: With NEVER EXCEED LOADS; maintain Minimum Over All Length or longer. (Modern Reloading, Second Edition - Richard Lee) | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 245 | Lyman 429383 | 9.0 | 786 | 7 1/2-inch Ruger Super Blackhawk; 25-yard group: 1.88 inches |
| 250 | Lyman 429421 | 12.0 | 1,139 | 7 1/2-inch Ruger Super Blackhawk; 25-yard group: 1.31 inches |
| 250 | Lyman 429421 | 12.0 | 1,067 | 4-inch S&W Model 29; 25-yard group: 1.43 inches |
This load data has been compiled over many years of testing and experimenting in no fewer than four guns. For a load to be included, it had to produce accuracy of 2 inches or less at 25 yards. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 250 | Lyman 429421 | 12.0 | 1,090 | barrel (inches): 4 3/4 |
| Cast Bullets | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 240 | Speer LSWC | 8.5 | 822 | start charge |
| 240 | Speer LSWC | 9.5 | 947 | maximum charge |
| 240 | Speer Mag JHP, Mag GDHP, Mag GDSP or Mag JSP | 12.3 | 1172 | start charge; primer: CCI 350 Magnum |
| 240 | Speer Mag JHP, Mag GDHP, Mag GDSP or Mag JSP | 13.7 | 1271 | maximum charge; primer: CCI 350 Magnum |
| Speer Reloading Manual #14 max. case length: 1.285"; trim-to length: 1.275"; max cart. OAL: 1.610"; RCBS shell holder: #18; cart. case: Speer; primer: CCI 300 (except where otherwise specified in remarks); test firearm: Ruger Redhawk; barrel length: 7.5"; NOTE: The 225-grain SWC GC and 250-grain K bullets were cast in RCBS moulds; maximum loads should be used with CAUTION | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 270 | H&G 326 | 10.0 | 990 | primer: CCI 300; energy (ft-lbs): 585 |
| 270 | H&G 326 | 10.5 | 1,050 | primer: CCI 300; energy (ft-lbs): 661 |
| 270 | H&G 326 | 11.0 | 1,080 | primer: CCI 300; energy (ft-lbs): 699 |
| 300 | H&G 328 | 9.0 | 900 | primer: CCI 300; energy (ft-lbs): 537 |
| 300 | H&G 328 | 9.5 | 950 | primer: CCI 300; energy (ft-lbs): 600 |
| 300 | H&G 328 | 10.0 | 990 | primer: CCI 300; energy (ft-lbs): 651 |
| Heavy Cast Bullets | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 180 | Hornady XTP | 15.0 | 1463 | start load; COL: 1.600"; 26,400 cup |
| 180 | Hornady XTP | 17.0 | 1642 | max load; COL: 1.600"; 37,700 cup |
| 200 | Nosler JHP | 15.0 | 1440 | start load; bullet diam.: .429"; COL: 1.600"; 30,300 cup |
| 200 | Nosler JHP | 16.7 | 1569 | max load; bullet diam.: .429"; COL: 1.600"; 37,700 cup |
| 210 | Sierra JHC | 13.0 | 1254 | start load; COL: 1.600"; 21,900 cup |
| 210 | Sierra JHC | 16.2 | 1538 | max load; COL: 1.600"; 37,900 cup |
| 220 | Berry's Bullets FP | 10.2 | 925 | start load; COL: 1.610"; 12,900 psi |
| 220 | Berry's Bullets FP | 13.5 | 1194 | max load; COL: 1.610"; 19,900 psi |
| 225 | Speer JHP | 11.5 | 1103 | start load; bullet diam.: .429"; COL: 1.575"; 20,100 cup |
| 225 | Speer JHP | 15.5 | 1434 | max load; bullet diam.: .429"; COL: 1.575"; 38,000 cup |
| 240 | Nosler JHP | 12.0 | 1144 | start load; bullet diam.: .429"; COL: 1.600"; 22,800 cup |
| 240 | Nosler JHP | 15.1 | 1417 | max load; bullet diam.: .429"; COL: 1.600"; 38,200 cup |
| 270 | Speer GDSP | 11.0 | 1036 | start load; bullet diam.: .429"; COL: 1.600"; 22,200 cup |
| 270 | Speer GDSP | 14.0 | 1305 | max load; bullet diam.: .429"; COL: 1.600"; 36,900 cup |
| 280 | Swift JHP | 11.0 | 1006 | start load; COL: 1.700"; 23,800 cup |
| 280 | Swift JHP | 14.0 | 1251 | max load; COL: 1.700"; 37,400 cup |
| 300 | Hornady XTP | 11.0 | 1048 | start load; COL: 1.600"; 28,400 cup |
| 300 | Hornady XTP | 13.0 | 1214 | max load; COL: 1.600"; 37,900 cup |
| 325 | Beartooth Bullets LFN GC | 13.0 | 1155 | start load; COL: 1.730"; 33,200 cup |
| 325 | Beartooth Bullets LFN GC | 14.0 | 1218 | max load; COL: 1.730"; 38,000 cup |
| 330 | Beartooth Bullets LFN GC | 12.0 | 1098 | start load; COL: 1.730"; 29,900 cup |
| 330 | Beartooth Bullets LFN GC | 13.6 | 1202 | max load; COL: 1.730"; 39,000 cup |
| 355 | Beartooth Bullets LFN GC | 11.0 | 1019 | start load; COL: 1.710"; 26,800 cup |
| 355 | Beartooth Bullets LFN GC | 12.0 | 1091 | max load; COL: 1.710"; 37,400 cup |
| Hodgdon Pistol Data Case: Winchester; barrel length: 8.275"; twist: 1:20"; trim length: 1.280"; primer: Remington 2 1/2; bullet diam.: .430" (except where otherwise specified in remarks). NEVER EXCEED MAXIMUM LOADS | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 247 | Lyman 429244 Gas Check | 10.0 | 892 | bullet cast of 3 parts lead/7 parts wheelweights, BHN 6; group (inches): 1.53 |
| 253 | Lyman 429421 | 10.0 | 839 | bullet cast of 3 parts lead/7 parts wheelweights, BHN 6; group (inches): 1.54 |
| Lead Cast Loads All loads were fired through the 5.5-inch barrel of a Ruger Super Blackhawk .44 Magnum clamped in a Caldwell Handgun Accurizing Mechanical Machine Rest. Velocities were recorded 10 feet in front of the muzzle with an RCBS AmmoMaster chronograph. Remington cases and Winchester Large Pistol primers were used throughout. Accuracy is the average of two, five-shot groups fired at 25 yards. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 180 | Jacketed | 14.0 | 1442 | start load; min OAL: 1.535 |
| 180 | Jacketed | 16.5 | 1663 | never exceed; min OAL: 1.535; 35,200 cup |
| 180 | XTP | 15.0 | 1463 | start load; min OAL: 1.600 |
| 180 | XTP | 17.0 | 1642 | never exceed; min OAL: 1.600; 37,700 cup |
| 200 | Jacketed | 15.0 | 1440 | start load; min OAL: 1.600 |
| 200 | Jacketed | 16.7 | 1569 | never exceed; min OAL: 1.600; 37,700 cup |
| 210 | Jacketed | 13.0 | 1254 | start load; min OAL: 1.600 |
| 210 | Jacketed | 16.2 | 1538 | never exceed; min OAL: 1.600; 37,900 cup |
| 215 | Lead | 11.0 | 1075 | start load; min OAL: 1.535 |
| 215 | Lead | 13.0 | 1240 | never exceed; min OAL: 1.535; 20,200 cup |
| 225 | Jacketed | 11.5 | 1103 | start load; min OAL: 1.575 |
| 225 | Jacketed | 15.5 | 1434 | never exceed; min OAL: 1.575; 38,000 cup |
| 240 | Jacketed | 12.0 | 1144 | start load; min OAL: 1.600 |
| 240 | Jacketed | 15.1 | 1417 | never exceed; min OAL: 1.600; 38,200 cup |
| 250 | Lead | 10.0 | 999 | start load; min OAL: 1.535 |
| 250 | Lead | 12.0 | 1176 | never exceed; min OAL: 1.535; 24,000 cup |
| 265 | Jacketed | 10.0 | 1004 | start load; min OAL: 1.535 |
| 265 | Jacketed | 13.5 | 1287 | never exceed; min OAL: 1.535; 33,600 cup |
| 270 | Jacketed | 11.0 | 1036 | start load; min OAL: 1.600 |
| 270 | Jacketed | 14.0 | 1305 | never exceed; min OAL: 1.600; 36,900 cup |
| 280 | Jacketed | 11.0 | 1006 | start load; min OAL: 1.700 |
| 280 | Jacketed | 14.0 | 1251 | never exceed; min OAL; 1.700; 37,400 cup |
| 300 | XTP | 11.0 | 1048 | start load; min OAL: 1.600 |
| 300 | XTP | 13.0 | 1214 | never exceed; min OAL: 1.600; 37,900 cup |
| Lee Precision Data Large pistol primer. CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 245 | Lyman cast 429383 | 9.0 | 801 | primer: CCI 300 |
| 250 | Lyman cast 429421 | 12.0 | 1,121 | primer: CCI 300 |
| Ruger Blackhawk Flattop Barrel length in firearm used was 6 1/2 inches. Temperature during field tests was 88 degrees Fahrenheit. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 210 | Cast #429215 gas check | 15.0 | 1105 | sugg. start load; 1.645" OAL; 29,700 cup |
| 210 | Cast #429215 gas check | 16.7 | 1290 | max load; 1.645" OAL; 37,400 cup |
| Cast Bullet Handgun Data Lyman Reloading Handbook 49th Edition cases: Remington; trim-to length: 1.275"; primers: CCI 300 (except where otherwise specified in remarks); primer size: Large Pistol, Std. & Magnum; Lyman shell holder: No. 7; cast bullets used sized to .429" dia.; firearm used: Universal Receiver; barrel length: 4"; twist: 1-20"; groove dia.: .429" | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 180 | Sierra JHC | 16.0 | 1,395 | case expansion near maximum; insufficient accuracy |
| 200 | Speer JHP | 15.0 | 1,251 | case expansion normal |
| 200 | Speer JHP | 16.0 | 1,359 | case expansion near maximum; insufficient accuracy |
| 210 | Sierra JHC | 14.0 | 1,153 | case expansion normal; insufficient accuracy |
| in 7 1/2 inch Revolver | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 245 | Lyman 429421 | 10.8 | 1,039 | 1.8-inch 50-yard groups; wheelweights |
| in a Model 788 Warning! strong>Notes: case: Rem; primer: CCI 300. Data was gathered with an Oehler Model 10 chronograph for the older loads, and an Oehler Model 33 for the more recent ones. Screens were set ten feet from muzzle, and spaced five feet apart. All loads are safe in the rifles they were developed for, but caution is advised in using these without first dropping back two or three grains. DO NOT USE THESE LOADS IN LEVER ACTIONS!!! (Rifle Issue #98 - March, 1985) | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 250 | Lyman 429244 GC | 10.0 | 892 | group (inches): 1.53; primer: Winchester Large Pistol |
CCI 350 Magnum Pistol primers used except where otherwise specified in remarks; all loads used Federal cases and were fired through a Ruger Super Blackhawk with a 5.5-inch barrel; all groups were five shots fired at 25 yards | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 240 | Hornady XTP-HP | 11.5 | 944 | |
| 250 | Keith-style Lyman 429421 cast | 12.0 | 1,122 | |
| Midrange Loads All Smith & Wesson Models 29, 629 and 329PD. A Smith & Wesson (pre-29) .44 Magnum revolver with a 6 1/2-inch barrel used to test loads. CCI 300 primers used throughout, along with Winchester and Starline cases. Maximum case length: 1.285 inches; trim-to length: 1.275 inches. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 240 | Hornady XTP-HP | 11.5 | 990 | |
| 245 | Lyman 429383 cast | 9.0 | 786 | |
| 250 | Lyman 429421 Keith | 12.0 | 1,139 | |
| Midrange Loads in a Ruger Super The Ruger Super Blackhawk has a barrel length of 7 1/2 inches. Standard Large Pistol (CCI 300 and Federal 150) primers used throughout. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 240 | Hornady XTP-HP | 11.5 | 908 | |
| 245 | Lyman 429383 cast | 9.0 | 728 | |
| 250 | Lyman 429421 Keith | 12.0 | 1,067 | |
| Midrange Loads in an S&W The Smith & Wesson Model 29-2 has a 4-inch barrel. Standard Large Pistol (CCI 300 and Federal 150) primers used throughout. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 240 | Semi Wad Cutter | 10.8 | 1,044 | starting load; OAL: 1.605 |
| 240 | Semi Wad Cutter | 12.0 | 1,170 | maximum load; OAL: 1.605 |
| Silhouette Loads (Oregon Trail Bullet Handgun Data) test gun: Ruger Super Red Hawk, 9 1/2", WLP; do not reduce H110 or 296 maximum loads more than 3% to start; use WLP for all 44 Magnum pistol loads; do not exceed maximum loads; never reduce stated overall lengths | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 180 | Cast #429348 | 14.2 | 1082 | sugg. start load; 1.420" OAL; 23,200 cup |
| 180 | Cast #429348 | 17.3 | 1352 | max load; 1.420" OAL; 36,400 cup |
| 200 | Cast #429303 gas check | 14.2 | 1020 | sugg. start load; 1.692" OAL; 22,000 cup |
| 200 | Cast #429303 gas check | 17.3 | 1295 | max load; 1.692" OAL; 36,900 cup |
| 215 | Cast #429215 gas check | 13.5 | 985 | sugg. start load; 1.645" OAL; 21,700 cup |
| 215 | Cast #429215 gas check | 16.5 | 1238 | max load; 1.645" OAL; 36,000 cup |
| 232 | Cast #429360 | 12.5 | 921 | sugg. start load; 1.655" OAL; 20,800 cup |
| 232 | Cast #429360 | 16.2 | 1177 | max load; 1.655" OAL; 36,600 cup |
| Pistol Data (Lyman Cast Bullet Handbook) cases: Remington; trim-to length: 1.280"; primers: CCI 300; primer size: Large Pistol; Lyman shell holder: No. 7; cast bullets used size to .429" dia.; firearm used: Universal Receiver and Special Vented Barrel; barrel length: 4"; twist: 1-20"; groove diameter: .429". Cast bullet #'s 429303, 429215, 429360, 429244, 429421 list overall lengths that exceed the maximum of 1.610" and are suitable only for the Thompson/Center Contender or similar firearms that will accept cartridges of these dimensions. The data listed for these bullets take this extra length into consideration. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 245 | Lyman 429383 cast roundnose | 9.0 | 758 | |
| Target Loads All Smith & Wesson Models 29, 629 and 329PD. A Smith & Wesson (pre-29) .44 Magnum revolver with a 6 1/2-inch barrel used to test loads. CCI 300 primers used throughout, along with Winchester and Starline cases. Maximum case length: 1.285 inches; trim-to length: 1.275 inches. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 250 | Lyman 429421 Keith | 6.0 | 770 | |
| 250 | Lyman 429421 Keith | 6.5 | 810 | modern guns only |
| 250 | Lyman 429421 Keith | 7.5 | 847 | maximum |
Test gun was a Colt New Frontier with a 7 1/2-inch barrel. Starline cases and Federal 150 Large Pistol primers used throughout. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 240 | Hornady XTP | 9.5 | 1,009 | group: 2.0 inches |
| 250 | RCBS 44-250-KT | 9.5 | 1,028 | group: 2.0 inches |
| 200 | RCBS 44-200-FN | 9.5 | 1,063 | group: 1.0 inch |
Warning! Notes Loads fired from a 4 3/4-inch barrel. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 240 | Hornady 240 XTP | 9.5 | 1,009 | group (inches): 2.0 |
| 200 | Speer 200 JHP | 9.5 | 885 | group (inches): SC |
| (4-3/4-inch barrel) (Colt Peacemaker Loads) SC = 3.5 inches or more (Loading the Peacemaker - Dave Scovill) | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 255 | Leadhead RCBS 44-Keith | 10.0 | 1,004 | barrel (inches): 5 1/2 |
| Cast Bullets For postwar Colt and Smith & Wesson revolvers only! | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 250 | RCBS 44-250-KT | 9.5 | 1,028 | group (inches): 2.0 |
| 200 | RCBS 44-200-FN | 9.5 | 1,063 | group (inches): 1.0 |
| 200 | MG 200 | 9.5 | 1,028 | group (inches): SC |
| Colt Peacemaker Loads SC = 3.5 inches or more (Loading the Peacemaker) | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 200 | Cast LRNFP | 8.0 | 856 | start load; COL: 1.450"; 7,100 cup |
| 200 | Cast LRNFP | 9.5 | 1035 | max load; COL: 1.450"; 12,400 cup |
| 200 | Nosler JHP | 8.0 | 851 | start load; COL: 1.460"; bullet diam.: .429"; 8,500 cup |
| 200 | Nosler JHP | 9.0 | 960 | max load; COL: 1.460"; bullet diam.: .429"; 12,500 cup |
| 220 | Berry's Bullets FP | 7.2 | 750 | start load; COL: 1.460"; 8,500 cup |
| 220 | Berry's Bullets FP | 8.7 | 941 | max load; COL: 1.460"; 13,700 cup |
| 240 | Cast LSWC | 6.5 | 761 | start load; COL: 1.450"; 7,500 cup |
| 240 | Cast LSWC | 8.0 | 917 | max load; COL: 1.450"; 13,000 cup |
| Hodgdon Data Case: Starline; barrel length: 8"; twist: 1:20"; trim length: 1.155"; primer: Winchester LP; bullet diam. .430" (except where otherwise specified in remarks). NEVER EXCEED MAXIMUM LOADS | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 200 | Jacketed | 8.0 | 864 | start load; min OAL: 1.460 |
| 200 | Jacketed | 9.0 | 960 | never exceed; min OAL: 1.460; 12,500 cup |
| 200 | Lead | 8.0 | 856 | start load; min OAL: 1.450 |
| 200 | Lead | 9.5 | 1035 | never exceed; min OAL: 1.450; 12,400 cup |
| 240 | Lead | 6.5 | 765 | start load; min OAL: 1.450 |
| 240 | Lead | 8.0 | 917 | never exceed; min OAL: 1.450; 13,000 cup |
| Lee Precision Data CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Large Pistol Primer.(MODERN RELOADING Second Edition - Richard Lee) | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 250 | Speer K | 8.2 | 829 | start charge; primer: CCI 350 Magnum |
| 250 | Speer K | 9.0 | 889 | maximum charge; primer: CCI 350 Magnum |
| 240 | Speer LSWC | 7.0 | 695 | start charge; primer: CCI 350 Magnum; a Taurus revolver with 3" barrel used |
| 240 | Speer LSWC | 8.0 | 815 | maximum charge; primer: CCI 350 Magnum; a Taurus revolver with 3" barrel used |
| 240 | Speer Mag JHP or Mag JSP | 8.2 | 727 | start charge; primer: CCI 350 Magnum |
| 240 | Speer Mag JHP or Mag JSP | 9.0 | 812 | maximum charge; primer: CCI 350 Magnum |
| Speer Reloading Manual #14 max. case length: 1.160"; trim-to length: 1.150"; max cart. OAL: 1.615"; RCBS shell holder: #18; cart. case: Remington; primer: CCI 300 (except where otherwise specified in remarks); test firearm: Cimarron SAA; barrel length: 5.5"; NOTE: The 200-grain FN & CM, the 225-grain SWC GC and the 250-grain K bullets were cast in RCBS moulds. RCBS crimp-on gas checks used for the 225-grain SWC GC bullets. Maximum loads should be used with CAUTION | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 180 | Hornady HP-XTP | 8.0 | 611 | Do Not Reduce |
| 180 | Hornady HP-XTP | 8.6 | 665 | |
| 180 | Hornady HP-XTP | 9.2 | 731 | |
| 180 | Hornady HP-XTP | 9.8 | 797 | |
| 180 | Hornady HP-XTP | 10.4 | 859 | maximum load |
| 200 | Hornady HP-XTP | 7.0 | 504 | Do Not Reduce |
| 200 | Hornady HP-XTP | 7.6 | 575 | |
| 200 | Hornady HP-XTP | 8.2 | 662 | |
| 200 | Hornady HP-XTP | 8.8 | 747 | |
| 200 | Hornady HP-XTP | 9.3 | 827 | maximum load |
| 240 | Hornady HP-XTP or CL-SIL | 6.4 | 589 | |
| 240 | Hornady HP-XTP or CL-SIL | 7.1 | 661 | |
| 240 | Hornady HP-XTP or CL-SIL | 7.9 | 733 | |
| 240 | Hornady HP-XTP or CL-SIL | 8.7 | 805 | maximum load |
| 240 | Hornady SWC-HP or SWC | 7.1 | 658 | |
| 240 | Hornady SWC-HP or SWC | 7.6 | 702 | |
| 240 | Hornady SWC-HP or SWC | 8.1 | 758 | |
| 240 | Hornady SWC-HP or SWC | 8.5 | 811 | |
| 240 | Hornady SWC-HP or SWC | 9.0 | 861 | maximum load |
| Using Hornady Bullets Gun: Smith & Wesson 624; barrel length: 4 inches; case: Starline; primer: Winchester Large Pistol; bullet diameter: 0.430"; 180 GR Hornady HP-XTP COAL: 1.480"; FP-Cowboy COAL: 1.490"; 200 GR HP-XTP COAL: 1.470"; 240 GR HP-XTP & CL-SIL COAL: 1.480"; 240 GR SWC-HP & SWC COAL: 1.490"; maximum COAL: 1.500"; maximum length: 1.160"; trim to length: 1.150". | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 255 | Leadheads RCBS 44-Keith | 10.0 | 971 | extreme spread: 18; group measured .70 inch |
| +P and Standard for F A Model 1997 Warning! All data is also safe for postwar Smith & Wesson N-Frame revolvers. Barrel length of Freedom Arms Model 1997 is 4 1/2. Winchester brass was used in all loads as were CCI 300 primers, except Federal 155s were used with loads containing H-110, H-4227 and IMR-4227 | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 255 | Leadhead RCBS 44-Keith | 10.0 | 998 | |
| in a Colt SAA (22,000 psi or less) A Colt Single Action Army with 7 1/2-inch barrel used to test these loads. Winchester cases and CCI 300 primers used throughout, except Federal 155 Magnums used with IMR-4227 and H-4227 powders. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 255 | Leadhead RCBS 44-Keith | 10.0 | 971 | extreme spread (fps): 18 |
| in a Freedom Arms Model 1997 (22,000 psi or less) A Freedom Arms Model 1997 with 4 1/4-inch barrel used to test fire these loads. Winchester cases and CCI 300 used in all loads, except Federal 155 Magnum used with IMR-4227 and H-4227 powders. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 240 | Semi Wad Cutter | 7.1 | 726 | starting load |
| 240 | Semi Wad Cutter | 7.6 | 797 | maximum load |
| Standard Loads (Oregon Trail Bullet Handgun Data) test gun: Smith & Wesson 6", WLP; OAL: 1.480; do not exceed maximum loads; never reduce stated overall lengths | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 200 | Speer 200 HP | 10.0 | 749 | group (inches): 2.0 |
| 200 | Speer 200 HP | 11.0 | 850 | group (inches): 1.75 |
| 200 | Nosler 200 HP | 11.0 | 910 | group (inches): 1.75 |
| 210 | Sierra 210 JHC | 11.0 | 918 | group (inches): 2.5 |
| 200 | RCBS 44-200-FN | 11.0 | 979 | group (inches): 3.0 |
| 200 | SAECO 200 | 11.0 | 990 | group (inches): 1.25 |
| 190 | Bull-X 190 SWC | 11.0 | 1,009 | group (inches): 2.25 |
| Colt Peacemaker Loads SC = 3.5 inches or more (Loading the Peacemaker - Dave Scovill) | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 200 | 7.9 | 1153 | start load; min OAL: 1.580 | |
| 200 | 9.0 | 1292 | never exceed; min OAL: 1.580 | |
| Lee Precision Data CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Large Pistol primer. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 204 | Lyman cast 4270982 | 10.5 | 820 | extreme spread (fps): 61 |
| 204 | Lyman cast 427098 | 11.0 | 865 | extreme spread (fps): 79 |
| 204 | Lyman cast 427098 | 11.5 | 901 | extreme spread (fps): 98 |
| 13,000 CUP Sixgun Loads A Colt Frontier Six Shooter with a 7 1/2-inch barrel was used in developing the load data. Winchester Large Pistol primers and Starline cases were used throughout. Temperature during testing was 40 degrees Fahrenheit. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 220 | Lyman cast 429215 GC | 12.0 | 993 | extreme spread (fps): 101 |
| 220 | Lyman cast 429215 GC | 12.5 | 1,041 | extreme spread (fps): 89 |
| 13,000 CUP+ Sixgun Loads The following .44 WCF loads exceed 13,000 CUP and are only suitable for the Ruger Vaquero, Smith & Wesson N-Frame, Colt New Service and Colt Single Action Army manufactured after 1905 or with serial numbers above 261,000. None of these loads exceed 20,000 psi. A Colt Frontier Six Shooter with a 7 1/2-inch barrel was used in developing the load data. Winchester Large Pistol primers and Starline cases were used throughout. Temperature during testing was 40 degrees Fahrenheit. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 185 | Barnes XPB | 8.5 | 964 | primer: CCI 300 |
| Barnes X-Pistol Bullets A Kimber Classic Custom 1911 with a 5-inch barrel was used for testing these loads. Starline cases used throughout. Overall cartridge length was 1.230 inches, and temperature during testing was 92 degrees Fahrenheit. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 155 | Cast LSWC | 9.0 | 988 | start load; COL: 1.230"; 12,000 cup |
| 155 | Cast LSWC | 10.0 | 1126 | max load; COL: 1.230"; 16,300 cup |
| 160 | Barnes TAC-XP | 7.6 | 951 | start load; COL: 1.200"; 17,200 psi |
| 160 | Barnes TAC-XP | 8.5 | 1048 | max load; COL: 1.200"; 20,000 psi |
| 180 | LFP | 7.8 | 805 | start load; bullet diam.: .452"; COL: 1.140"; 10,900 cup |
| 180 | LFP | 9.0 | 961 | max load; bullet diam.: .452"; COL: 1.140"; 16,600 cup |
| 185 | Hornady JSWC | 8.6 | 888 | start load; COL: 1.135"; 12,200 cup |
| 185 | Hornady JSWC | 9.5 | 996 | max load COL: 1.135"; 16,800 cup |
| 200 | Speer JHP | 8.2 | 868 | start load; COL: 1.155"; 14,000 cup |
| 200 | Speer JHP | 9.0 | 948 | max load; COL: 1.155"; 16,400 cup |
| 200 | Cast LSWC | 8.2 | 860 | start load; COL: 1.225"; 14,400 cup |
| 200 | Cast LSWC | 8.4 | 907 | max load; COL: 1.225"; 16,300 cup |
| 230 | LRN | 7.0 | 751 | start load; bullet diam.: .452"; COL: 1.200"; 12,900 cup |
| 230 | LRN | 8.0 | 859 | max load; bullet diam.: .452"; COL: 1.200"; 16,600 cup |
| 230 | Hornady FMJ FP | 8.0 | 790 | start load; COL: 1.200"; 14,400 cup |
| 230 | Hornady FMJ FP | 8.2 | 825 | max load; COL: 1.200"; 15,400 cup |
| Hodgdon Data Case: Winchester; twist: 1:16"; primer: Federal 150, Large Pistol; barrel length: 5"; trim length: .893"; bullet diam.: .451" (except where otherwise specified in remarks) | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 230 | Nosler FMJ | 8.0 | 773 | case expansion moderate |
| Jacketed | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 155 | Lead | 9.0 | 988 | start load; min OAL: 1.230 |
| 155 | Lead | 10.0 | 1126 | never exceed; min OAL: 1.230; 16,300 cup |
| 185 | Jacketed | 8.6 | 915 | start load; min OAL: 1.195 |
| 185 | Jacketed | 9.5 | 996 | never exceed; min OAL: 1.195; 16,800 cup |
| 200 | Jacketed | 8.2 | 868 | start load; min OAL: 1.155 |
| 200 | Jacketed | 9.0 | 948 | never exceed; min OAL: 1.155; 16,400 cup |
| 200 | Lead | 8.2 | 860 | start load; min OAL: 1.225 |
| 200 | Lead | 8.4 | 907 | never exceed; min OAL: 1.225; 16,300 cup |
| 220 | Lead | 8.1 | 849 | start load; min OAL: 1.190 |
| 220 | Lead | 8.3 | 885 | never exceed; min OAL: 1.190; 16,400 cup |
| 230 | Jacketed | 8.0 | 809 | start load; min OAL: 1.200 |
| 230 | Jacketed | 8.2 | 825 | never exceed; min OAL: 1.200; 15,400 cup |
| 260 | Bullet | 7.5 | 801 | start load; min OAL: 1.190 |
| 260 | Bullet | 8.0 | 849 | never exceed; min OAL: 1.190; 16,800 cup |
| Lee Precision Data Large Pistol primer; with NEVER EXCEED LOADS maintain Minimum Over All Length or longer (Modern Reloading - Second Edition - Richard Lee) | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 185 | Cast #452389 | 5.6 | 613 | sugg. start load; 7,500 cup |
| 185 | Cast #452389 | 9.1 | 1034 | max load; 17,100 cup |
| 195 | Cast #452488 | 6.1 | 652 | sugg. start load; 8,300 cup |
| 195 | Cast #452488 | 9.0 | 1027 | max load; 17,900 cup |
| Lyman Cast Bullet Handbook cases: Remington; trim-to length: .895"; primers: Remington 2 1/2; primer size: Large Pistol; Lyman shell holder: No. 2; cast bullets used size to .450" dia.; firearm used: Universal Receiver; barrel length: 5"; twist: 1-16"; groove diameter: .450". NOTE: More Lyman cast bullet data available under .45 ACP Cast Bullet Data Lyman Reloading Handbook 49th Edition | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 185 | Remington Jacketed SWC/FMJ | 6.6 | 689 | sugg. start load; 1.135" OAL; 8,000 cup |
| 185 | Remington Jacketed SWC/FMJ | 9.1 | 1038 | max load; 1.135" OAL; 18,000 cup |
| 200 | Speer Gold Dot Jacketed HP | 5.7 | 566 | sugg. start load; 1.178" OAL; 6,500 cup |
| 200 | Speer Gold Dot Jacketed HP | 9.0 | 951 | max load; 1.178" OAL; 17,600 cup |
| Lyman Reloading Handbook 49th Edition cases: Remington, Federal; trim-to length: .888"; primers: Remington 2 1/2; primer size: Large Pistol; Lyman shell holder: No. 2; firearm used: Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .450" | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 230 | Speer TMJ | 9.1 | 910 | maximum load |
| 230 | Speer TMJ | 8.1 | 801 | |
| Speer Reloading Manual #11 gun: Colt Gov't. Model; barrel: 5"; twist: 1-16; cases: Speer; primers: CCI-300; maximum loads listed should be used with caution | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 185 | Speer GDHP or TMJ FN | 8.9 | 832 | start charge |
| 185 | Speer GDHP or TMJ FN | 9.9 | 926 | maximum charge |
| 200 | Speer TMJ FN, TMJ Match SWC or GDHP | 8.5 | 823 | start charge |
| 200 | Speer TMJ FN, TMJ Match SWC or GDHP | 9.5 | 956 | maximum charge |
| 225 | Speer Colt JHP | 8.0 | 740 | start charge |
| 225 | Speer Colt JHP | 9.0 | 841 | maximum charge |
| 230 | Speer TMJ RN | 7.8 | 773 | start charge |
| 230 | Speer TMJ RN | 8.5 | 863 | maximum charge |
| 230 | Speer GDHP SB or GDHP | 7.2 | 702 | start charge |
| 230 | Speer GDHP SB or GDHP | 8.0 | 799 | maximum charge |
| Speer Reloading Manual #14 max. case length: 0.898"; trim-to length: 0.888"; max cart. OAL: 1.275"; RCBS shell holder: #3; cart. case: Speer; primer: CCI 300; test firearm: SIG P220; barrel length: 4.4"; IMPORTANT SAFETY NOTE: These loads were developed and tested for safe use in HANDGUNS. Not all loads may be suitable for use in a carbine or rifle chambered for this cartridge. If loading for a carbine or rifle, choose from among the loads developing the highest handgun velocities and load just a few rounds. Thoroughly test this small sample in your firearm in slow-fire mode, insuring that you achieve proper feeding and ejection. Be certain that all bullets exit the barrel; watching the target for each bullet strike is the best way to know that the load produces sufficient gas volume for a longer barrel. NOTE: Do not use the 230-GR TMJ RN loads with Gold Dot HP; maximum loads should be used with CAUTION | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 185 | Hornady HP-XTP or FMJ SWC | 8.7 | 850 | |
| 185 | Hornady HP-XTP or FMJ SWC | 9.2 | 896 | |
| 185 | Hornady HP-XTP or FMJ SWC | 9.6 | 942 | |
| 185 | Hornady HP-XTP or FMJ SWC | 10.1 | 987 | maximum load |
| Using 185 GR Hornady Bullets Gun: Ruger SR1911; barrel length: 5 inches; case: Starline; primer: Winchester Large Pistol; bullet diameter: .451"; HP-XTP COAL: 1.225"; FMJ SWC COAL: 1.135"; maximum COAL: 1.275"; maximum case length: .898"; trim to length: .888". | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 200 | Hornady HP-XTP | 7.8 | 731 | |
| 200 | Hornady HP-XTP | 8.3 | 790 | |
| 200 | Hornady HP-XTP | 8.8 | 849 | |
| 200 | Hornady HP-XTP | 9.3 | 908 | maximum load |
| Using 200 GR Hornady Bullets Gun: Ruger SR1911; barrel length: 5 inches; case: Starline; primer: Winchester Large Pistol; bullet diameter: .451"; HP-XTP COAL: 1.230"; SWC COAL: 1.200"; L-C/T COAL: 1.225"; maximum COAL: 1.275"; maximum case length: .898"; trim to length: .888". | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 230 | Hornady HP-XTP or HAP | 6.7 | 675 | |
| 230 | Hornady HP-XTP or HAP | 7.2 | 730 | |
| 230 | Hornady HP-XTP or HAP | 7.7 | 785 | |
| 230 | Hornady HP-XTP or HAP | 8.2 | 840 | maximum load |
| Using 230 GR Hornady Bullets Gun: Ruger SR1911; barrel length: 5 inches; case: Starline; primer: Winchester Large Pistol; bullet diameter: .451"; HP-XTP and HAP COAL: 1.230"; LRN COAL: 1.245"; maximum COAL: 1.275"; maximum case length: .898"; trim to length: .888". | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 230 | Nosler Sporting Handgun Pistol FMJ or JHP | 8.1 | 811 | max |
| 230 | Nosler Sporting Handgun Pistol FMJ or JHP | 7.6 | 773 | most accurate load tested |
| 230 | Nosler Sporting Handgun Pistol FMJ or JHP | 7.1 | 739 | |
| Using Nosler Bullets Handgun; case: Winchester; primer: Fed. 150; barrel length/make: 5" Douglas; twist: 1-16"; bullets: 185 GR Nosler Custom Competition JHP or 230 GR Nosler Sporting Handgun Pistol FMJ or JHP; OACL: 1.200"; maximum OACL: 1.275". Use Maximum Loads with Caution | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 185 | Nosler JHP | 10.0 | 1,128 | |
| 200 | Speer JHP | 9.6 | 1,033 | |
| 225 | Speer JHP | 9.4 | 1,011 | |
| 230 | Sierra FMJ | 9.2 | 1,003 | |
| 260 | Speer JHP | 8.9 | 917 | |
| +P Loads Barrel length: 3 1/2 inches. Case: Win. Primer: WLP. Developed by Hodgdon, these +P handloads first appeared in that company's No. 26 Data Manual. The use of a heavier than normal recoil spring is recommended to prevent accelerated wear caused by the frequent use of these loads in autoloading handguns. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 200 | Lyman #452460 | 6.0 | 690 | sugg. start load; 8,600 cup; case Federal |
| 200 | Lyman #452460 | 8.7 | 1016 | max load; 17,700 cup; case: Federal |
| 200 | Lyman #452630 | 8.5 | 795 | sugg. start load; 12,800 cup; primer: CCI 300 |
| 200 | Lyman #452630 | 9.5 | 912 | max load; 16,800 cup; primer: CCI 300 |
| 200 GR (Lyman Cast Bullet Data) cases: Remington (except where otherwise specified in remarks); trim-to length: .888"; primers: Remington 2 1/2 (except where otherwise specified in remarks); primer size: Large Pistol; Lyman shell holder: No. 2; cast bullets used sized to .451" dia.; firearm used; Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .450"; Lyman #452460 OAL: 1.161"; Lyman #452630 OAL: 1.235" (Lyman Cast Bullet Manual 4th Edition) | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 215 | Saeco (Redding) #058 | 8.3 | 867 | sugg. start load; 13,600 cup |
| 215 | Saeco (Redding) #058 | 9.1 | 958 | max load; 17,500 cup |
| 230 | Lee #TL452-230-TC | 7.2 | 808 | sugg. start load; 14,200 cup |
| 230 | Lee #TL452-230-TC | 8.0 | 908 | max load; 17,900 cup |
| 215 & 230 GR (Lyman Cast Bullet Data) cases: Federal; trim-to length: .888"; primers: CCI 300; primer size: Large Pistol; Lyman shell holder: No. 2; cast bullets used sized to .451" dia.; firearm used: Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .450"; 215 grain OAL: 1.185"; 230 grain OAL: 1.170" (Lyman Cast Bullet Handbook 4th Edition) | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 225 | Lyman #452374 | 6.2 | 664 | sugg. start load; 8,400 cup; case: Federal |
| 225 | Lyman #452374 | 8.6 | 921 | max load; 16,600 cup; case: Federal |
| 225 GR (Lyman Cast Bullet Data) cases: Remington (except where otherwise specified in remarks); trim-to length: .888"; primers: Remington 2 1/2 (except where otherwise specified in remarks); primer size: Large Pistol; Lyman shell holder: No. 2; cast bullets used sized to .451" dia.; firearm used; Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .450"; OAL: 1.272" (Lyman Cast Bullet Manual 4th Edition) | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 185 | Carroll SWC | 8.0 | 780 | case: W-W; primer: WLP; normal |
| 193 | Metallic #68 SWC | 8.1 | 822 | case: W-W; primer: WLP; normal; very accurate |
| 200 | Carroll SWC | 8.0 | 824 | case: W-W; primer: WLP; normal |
| 225 | Carroll FN | 7.8 | 810 | case: Speer; primer: WLP; near max |
| Cast Bullets 5" barrel. Test gun was Colt Double Eagle with five-inch barrel. All groups five shots each from sandbag rest; 20-yard indoor range. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 200 | Cast #452460 | 6.0 | 690 | sugg. start load; 1.161" OAL; case: Federal; 8,600 cup |
| 200 | Cast #452460 | 8.7 | 1016 | max load; 1.161" OAL; case: Federal 17,700 cup |
| 200 | Cast #452630 | 8.5 | 795 | sugg. start load; 1.235" OAL; primer: CCI 300; 12,800 cup |
| 200 | Cast #452630 | 9.5 | 912 | max load; 1.235" OAL; primer: CCI 300; 16,800 cup |
| 225 | Cast #452374 | 6.2 | 664 | sugg. start load; 1.272" OAL; case: Federal; 8,400 cup |
| 225 | Cast #452374 | 8.6 | 921 | max load; 1.272" OAL; case: Federal; 16,600 cup |
| Cast Bullet Data Lyman Reloading Handbook 49th Edition cases: Remington (except where otherwise specified in remarks); trim-to length: .888"; primers: Remington 2 1/2 (except where otherwise specified in remarks); primer size: Large Pistol; Lyman shell holder: No. 2; cast bullets used sized to .451" dia.; firearm used: Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .450" | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 200 | Speer Gold Dot HP | 9.5 | 967 | |
| in a Kimber Custom Classic Warning! Barrel length: 5 inches. Starline brass and Federal Gold Medal 150 Match primers used throughout. Temperature during testing was 75 degrees. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 200 | Speer Gold Dot HP | 9.5 | 941 | |
| in an S&W Model 625-6 Warning! Barrel length: 4 inches. Starline brass and Federal Gold Medal 150 Match primers used throughout. Temperature during testing was 75 degrees. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 185 | Nosler JHP | 8.9 | 1,011 | barrel length: 5 inches |
| 260 | Speer JHP | 8.0 | 860 | barrel length: 5 inches |
| Standard Loads case: Rem. primer: 300; barrel length (inches): 5 | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 155 | Lead | 8.1 | 909 | start load; min OAL: 1.230 |
| 155 | Lead | 9.0 | 1036 | never exceed; min OAL: 1.230; 13,855 cup |
| 185 | Jacketed | 7.7 | 842 | start load; min OAL: 1.195 |
| 185 | Jacketed | 8.5 | 916 | never exceed; min OAL: 1.195; 14,280 cup |
| 200 | Jacketed | 7.4 | 799 | start load; min OAL: 1.155 |
| 200 | Jacketed | 8.1 | 872 | never exceed; min OAL: 1.155; 13,940 cup |
| 200 | Lead | 7.4 | 791 | start load; min OAL: 1.225 |
| 200 | Lead | 7.6 | 834 | never exceed; min OAL: 1.225; 13,855 cup |
| 220 | Lead | 7.3 | 781 | start load; min OAL: 1.190 |
| 220 | Lead | 7.5 | 814 | never exceed; min OAL: 1.190; 13,940 cup |
| 230 | Jacketed | 7.2 | 744 | start load; min OAL: 1.200 |
| 230 | Jacketed | 7.4 | 759 | never exceed; min OAL: 1.200; 13,090 cup |
| 260 | Bullet | 6.8 | 737 | start load; min OAL: 1.190 |
| 260 | Bullet | 7.2 | 781 | never exceed; min OAL: 1.190; 14,280 cup |
| Lee Precision Data CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 185 | Cast #452389 | 5.5 | 674 | sugg. start load; 5,300 cup; special test barrel used |
| 185 | Cast #452389 | 8.8 | 1030 | max load; 14,800 cup; special test barrel used; potentially most accurate load |
| Lyman Cast Bullet Handbook cases: Remington; trim-to length: .894"; primers: Remington 2 1/2; primer size: Large Pistol; Lyman shell holder: No. 14A; cast bullets used size to .451" dia.; firearm used: Smith & Wesson Model 25 (except where otherwise specified in remarks); barrel length: 4 1/2 and 6 1/2"; twist: 1-16"; groove diameter: .451". NOTE: More Lyman cast bullet data available under .45 Auto Rim Lyman Reloading Handbook 49th Edition | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 200 | Speer Jacketed GDHP | 6.1 | 558 | sugg. start load; 1.180" OAL; 6,400 cup |
| 200 | Speer Jacketed GDHP | 8.7 | 846 | max load; 1.180" OAL; 13,600 cup |
| 225 | Speer Jacketed HP | 6.7 | 634 | sugg. start load; 1.255" OAL; 8,800 cup |
| 225 | Speer Jacketed HP | 8.3 | 812 | max load; 1.255" OAL; 13,600 cup |
| 225 | Cast #452374 | 7.3 | 799 | sugg. start load; 1.265" OAL; 9,400 cup |
| 225 | Cast #452374 | 8.6 | 922 | max load; 1.265" OAL; 13,800 cup |
| Lyman Reloading Handbook 49th Edition cases: Remington; trim-to length: .888"; primers: Remington 2 1/2; primer size: Large Pistol; Lyman shell holder: No. 14A; cast bullets used sized to .451" dia.; firearm used: Universal Receiver, Smith & Wesson Model 25; barrel length: Universal Receiver - 4 1/2", Model 25 - 6 1/2"; twist: 1-16"; groove dia.: .451" | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 230 | Speer LRN | 8.1 | 806 | start charge |
| 230 | Speer LRN | 8.6 | 872 | maximum charge |
| 250 | Speer LSWC | 7.4 | 700 | start charge |
| 250 | Speer LSWC | 7.8 | 787 | maximum charge |
| 230 | Speer GDHP, GDHP SB or 225 GR Colt JHP | 8.0 | 806 | start charge |
| 230 | Speer GDHP, GDHP SB or 225 GR Colt JHP | 8.6 | 865 | maximum charge |
| Speer Reloading Manual #14 max. case length: 0.898"; trim-to length: 0.888"; max cart. OAL: 1.275"; RCBS shell holder: #8; cart. case: Remington; primer: CCI 300; test firearm: S&W Model 25-2; barrel length: 6.5"; maximum loads should be used with CAUTION | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 250 | Round Nose Flat Point | 8.5 | 925 | OAL: 1.170 |
| 255 | Semi Wad Cutter | 8.5 | 899 | OAL: 1.200 |
| + P Pin Loads (Oregon Trail Handgun Data) test gun: Smith & Wesson 1955 6", WLP; never reduce stated overall lengths; THESE ARE MAXIMUM LOADS - DO NOT INCREASE THESE CHARGES! | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 185 | Barnes X-Pistol Bullet | 8.5 | 951 | |
| 230 | Speer Gold Dot hollowpoint | 8.2 | 815 | |
| 250 | Oregon Trail cast roundnose flatpoint | 8.0 | 828 | |
| 250 | Remington lead hollowbase | 7.8 | 728 | |
| 265 | cast RCBS 45-255-SWC | 7.5 | 763 | |
All the velocities were obtained from a Model 625-6 with a 4-inch barrel, except where noted with a 6 1/2-inch barreled S&W Model 25-2. For reference, the 4-inch barrel was commonly producing around 10 to 30 fps less velocity than the 6 1/2-inch barrel. Starline cases and Federal 150 Gold Medal primers were used throughout. Maximum case length: .898 inch; trim-to length: .888 inch. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 255 | Lyman 454190 | 11.5 | 1,020 | barrel (inches): 5 1/2 |
| 255 | Lyman 454424 | 12.0 | 1,080 | barrel (inches): 5 1/2 |
| 285 | RCBS 45-270-SAA | 11.5 | 1,054 | barrel (inches): 6 |
| Cast Bullets For postwar Colt, Ruger and S&W's only. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 250 | Lyman 454424 | 11.0 | 902 | group (inches): 3.0 |
| 246 | RCBS 45-246 | 11.0 | 919 | group (inches): 2.25 |
| 252 | SAECO No. 252 | 11.0 | 971 | group (inches): 2.0 |
| 253 | AA 504 253 | 12.0 | 1,020 | group (inches): 1.25 |
| 229 | AA 503B 229 | 13.0 | 1,073 | group (inches): 1.75 |
| 175 | AA 507 175 | 13.0 | 1,057 | group (inches): 2.0 |
| 250 | Speer 250 LSWC | 12.0 | 910 | |
| 240 | Sierra 240 JHC | 12.0 | 935 | group (inches): 3.0 |
| 200 | Speer 200 JHP | 13.0 | 1,044 | group (inches): 1.5 |
| Colt Peacemaker Loads Source: Loading the Peacemaker - Dave Scovill | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 200 | Hornady XTP | 11.7 | 994 | start load; COL: 1.600"; 9,700 cup |
| 200 | Hornady XTP | 13.0 | 1111 | max load; COL: 1.600"; 13,900 cup |
| 225 | Hornady FTX | 8.8 | 790 | start load; COL: 1.600"; 9,200 psi |
| 225 | Hornady FTX | 10.8 | 987 | max load; COL: 1.600"; 13,200 psi |
| 250 | Cast LRNFP | 9.0 | 787 | start load; COL: 1.600"; 7,800 cup |
| 250 | Cast LRNFP | 10.5 | 946 | max load; COL: 1.600"; 13,300 cup |
| 250 | Hornady XTP | 9.7 | 743 | start load; COL: 1.595"; 9,700 cup |
| 250 | Hornady XTP | 10.8 | 862 | max load; COL: 1.595"; 13,500 cup |
| 260 | Speer JHP | 9.7 | 759 | start load; COL: 1.595"; 10,600 cup |
| 260 | Speer JHP | 10.7 | 865 | max load; COL: 1.595"; 14,000 cup |
| 300 | Sierra JFP | 9.0 | 616 | start load; COL: 1.670"; 9,600 cup |
| 300 | Sierra JFP | 10.0 | 730 | max load; COL: 1.670"; 13,700 cup |
| Hodgdon Pistol Data Case: Winchester; barrel length: 7.25"; twist: 1:16"; trim length: 1.280"; primer: Winchester LP; bullet diam.: .452". NEVER EXCEED MAXIMUM LOADS | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 200 | XTP | 11.7 | 1010 | start load; min. OAL: 1.600 |
| 200 | XTP | 13.0 | 1111 | never exceed; min. OAL: 1.600; 13,900 cup |
| 250 | Lead | 9.0 | 828 | start load; min. OAL: 1.600 |
| 250 | Lead | 10.5 | 946 | never exceed; min. OAL: 1.600; 13,300 cup |
| 250 | XTP | 9.7 | 782 | start load; min. OAL: 1.595 |
| 250 | XTP | 10.8 | 862 | never exceed; min. OAL: 1.595; 13,500 cup |
| 260 | XTP | 9.7 | 793 | start load; min. OAL: 1.595 |
| 260 | XTP | 10.7 | 865 | never exceed; min. OAL: 1.595; 14,000 cup |
| 300 | Jacketed | 9.0 | 663 | start load; min. OAL: 1.670 |
| 300 | Jacketed | 10.0 | 730 | never exceed; min. OAL: 1.670; 13,700 cup |
| Lee Precision Data Large Pistol primer; with NEVER EXCEED LOADS maintain Minimum Over All Length or longer (Modern Reloading - Second Edition - Richard Lee) | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 225 | Speer JHP | 13.0 | 1146 | start charge; primer: CCI 350 Magnum |
| 225 | Speer JHP | 14.0 | 1198 | maximum charge; primer: CCI 350 Magnum |
| (Ruger & Contender Only ) Speer Reloading Manual #14 max. case length: 1.285"; trim-to length: 1.275"; max cart. OAL: 1.600"; RCBS shell holder: #20; cart. case: Winchester; primer: CCI 300 (except where otherwise specified in remarks); test firearm: Ruger Blackhawk; barrel length: 7.5"; maximum loads should be used with CAUTION; NOTE: Do not use in any other make or model firearm. IMPORTANT SAFETY NOTE: Since Speer #14 Manual was published, Ruger has replaced the original Vaquero revolver with a smaller version called the New Vaquero. Ruger has advised the industry that the New Vaquero must not be fired with loads exceeding industry pressure standards (14,000 psi). If loading for a New Vaquero, use the standard pressure data in the .45 Colt Handgun Speer Data. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 250 | Nosler Sporting Handgun Jacketed Hollow Point | 9.8 | 742 | maximum load; most accurate load tested |
| 250 | Nosler Sporting Handgun Jacketed Hollow Point | 9.3 | 677 | |
| 250 | Nosler Sporting Handgun Jacketed Hollow Point | 8.8 | 612 | |
| (Single Action Army and Replicas) - Handgun (Using Nosler Bullets) handgun: barrel: Douglas, length: 7.25", twist: 1-16"; case: Winchester; primer: Rem. 2 1/2; OACL: 1.590"; maximum SAAMI overall cartridge length: 1.600"; use maximum loads with caution | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 260 | SSK Truncated cast | 15.0 | 1,219 | velocity spread: 18 fps; 25-yard group: 2.2 inches |
| 262 | Redding 45424 Keith | 13.5 | 1,106 | velocity spread: 36 fps; 25-yard group: 1.7 inches |
| +P Handloads The .45 Colt +P handloads are for Ruger, Freedom Arms and Colt Anaconda only! Test gun was a Ruger Blackhawk with a 6-inch barrel. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 200 | Cast #452460 | 11.2 | 957 | sugg. start load; 1.550" OAL; 10,100 cup |
| 200 | Cast #452460 | 12.5 | 1070 | max load; 1.550" OAL; 12,400 cup |
| 250 | Cast #454190 | 9.5 | 748 | sugg. start load; 1.600" OAL |
| 250 | Cast #454190 | 10.5 | 851 | max load; 1.600" OAL |
| 250 | Cast #452664 | 8.5 | 640 | sugg. start load; 1.570" OAL |
| 250 | Cast #452664 | 10.5 | 859 | max load; 1.570" OAL |
| 255 | Cast #452424 | 8.8 | 676 | sugg. start load; 1.575" OAL |
| 255 | Cast #452424 | 10.3 | 838 | max load; 1.575" OAL |
| Cast Bullet Handgun Data Lyman Reloading Handbook 49th Edition cases: Winchester; trim-to length: 1.275"; primers: Winchester WLP; primer size: Large Pistol; Lyman shell holder: No. 11; cast bullets used sized to .452" dia.; firearm used: Universal Receiver & Ruger Blackhawk; barrel length: 7 1/2"; twist: 1-16"; groove dia.: .451" | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 285 | cast RCBS 45-270-SAA | 11.5 | 916 | 4 5/8-inch barrel |
| 285 | cast RCBS 45-270-SAA | 11.5 | 994 | 7 1/2-inch barrel |
| 285 | cast RCBS 45-270-SAA | 11.5 | 901 | 7 1/2-inch barrel cut to 4 5/8 inches |
| Data for Large Frame Ruger Revolvers ONLY Starline cases used throughout; CCI 300 primers used in all loads, except with Hodgdon H-110, where CCI 350 primers were used. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 255 | Lyman 454190 cast | 11.5 | 939 | |
| 285 | RCBS cast 45-270-SAA | 11.5 | 967 | |
| 338 | Lyman 452651 cast | 12.0 | 968 | large game hunting load |
| 225 | Speer Mag JHP | 13.0 | 905 | |
| 250 | Hornady XTP-HP | 12.0 | 842 | grouped one ragged hole |
| 260 | Speer Mag JHP | 13.0 | 978 | spread 15 fps; accurate |
| 300 | Hornady XTP-HP | 13.0 | 975 | |
| 300 | Hornady XTP-HP | 14.0 | 1,063 | |
| Freedom Arms Model 1997 Warning! Many loads exceed SAAMI maximum pressures for the .45 Colt. They are ONLY safe in Ruger and Freedom Arms revolvers. Notes: Barrel length: 3 1/2 inches. Starline cases and CCI 300 and 350 primers used throughout. Temperature during testing was 85 degrees Fahrenheit. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 225 | Hornady FTX | 9.7 | 850 | |
| 225 | Hornady FTX | 10.3 | 900 | |
| 225 | Hornady FTX | 10.9 | 950 | maximum load |
| Handgun (FTX Data) max. case length: 1.230"; case trim length: 1.215"; bullet diameter: .452"; pistol: Ruger Blackhawk; barrel: 7 1/2" 1 in 16" twist; case: Starline; primer: WLP; bullet: 225 GR. FTX; maximum COL: 1.645"; sectional density: .157; ballistic coefficient: .140; use maximum loads with caution | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 200 | Speer LSWC | 10.7 | 898 | start charge; firmly roll-crimp over the bullet shoulder for reliable performance |
| 200 | Speer LSWC | 12.2 | 1036 | maximum charge; firmly roll-crimp over the bullet shoulder for reliable performance |
| 250 | Speer LSWC | 11.0 | 917 | start charge; primer: CCI 350 Magnum |
| 250 | Speer LSWC | 12.0 | 945 | maximum charge; primer: CCI 350 Magnum |
| 200 | Speer GDHP | 11.0 | 945 | start charge; primer: CCI 350 Magnum |
| 200 | Speer GDHP | 12.5 | 1081 | maximum charge; primer: CCI 350 Magnum |
| 230 | Speer GDHP SB or GDHP or 225 JHP | 10.8 | 876 | start charge; primer: CCI 350 Magnum |
| 230 | Speer GDHP SB or GDHP or 225 JHP | 11.8 | 936 | maximum charge; primer: CCI 350 Magnum |
| 260 | Speer JHP | 11.5 | 925 | maximum charge; DO NOT REDUCE; primer: CCI 350 Magnum |
| Handgun Speer Reloading Manual #14 max. case length: 1.285"; trim-to length: 1.275"; max cart. OAL: 1.600"; RCBS shell holder: #20; cart. case: Winchester; primer: CCI 300 (except where otherwise specified in remarks); test firearm: Colt Single Action Army; barrel length: 5.5"; NOTE: the 255 SWC, 225 CAV & 230 CM bullets were cast in RCBS moulds; maximum loads should be used with CAUTION | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 200 | Speer Jacketed HP | 10.3 | 740 | sugg. start load; 1.557" OAL |
| 200 | Speer Jacketed HP | 13.3 | 993 | max load; 1.557" OAL |
| 225 | Speer Jacketed HP | 10.7 | 737 | sugg. start load; 1.575" OAL |
| 225 | Speer Jacketed HP | 11.9 | 874 | max load; 1.575" OAL |
| 240 | Sierra Jacketed HC | 10.0 | 705 | sugg. start load; 1.575" OAL |
| 240 | Sierra Jacketed HC | 11.0 | 875 | max load; 1.575" OAL |
| 230 | Speer Swaged Lead FN | 11.2 | 879 | sugg. start load; 1.590" OAL; 8,900 cup |
| 230 | Speer Swaged Lead FN | 12.5 | 1011 | max load; 1.590" OAL; 11,900 cup |
| Handgun Data Lyman Reloading Handbook 49th Edition cases: Winchester; trim-to length: 1.275"; primers: Winchester WLP; primer size: Large Pistol; Lyman shell holder: No. 11; firearms used: Universal Receiver & Ruger Blackhawk; barrel length: 7 1/2"; twist: 1-16"; groove dia.: .451" | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 255 | Lyman 454190 | 11.5 | 1,000 | velocity spread: 36 fps; 25-yard group: 2.8 inches |
| Handloads (14,000 psi) Starline brass used throughout with CCI 300 primers. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 285 | RCBS 45-SAA cast | 11.5 | 931 | .449-inch throat |
| 285 | RCBS 45-SAA cast | 11.5 | 916 | .453-inch throat |
| in a Bisley Vaquero 4 5/8-inch Barrel Factory throats: .449 and .450 (averages); Manson reamed throat, .453 inch. All handloads used Starline cases primed with CCI 300 and 350 primers. Data is for Ruger Blackhawk, Bisley and Redhawk Revolvers ONLY! | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 285 | RCBS 45-SAA cast | 11.5 | 1,016 | .450-inch throat |
| 285 | RCBS 45-SAA cast | 11.5 | 994 | .453-inch throat |
| in a Blackhawk Bisley 7 1/2-inch Barrel Factory throats: .449 and .450 (averages); Manson reamed throat, .453 inch. All handloads used Starline cases primed with CCI 300 and 350 primers. Data is for Ruger Blackhawk, Bisley and Redhawk Revolvers ONLY! | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 285 | RCBS 45-270-SAA cast | 11.5 | 998 | accurate, excellent hunting load |
| in a Turnbull Cowboy Classic/USFA CCI 300 primers and Starline cases used throughout. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 285 | RCBS 45-270-SAA cast | 10.5 | 893 | |
| Load Data ( 14,000 psi) primer: CCI 300 | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 280 | RCBS 45-270-SAA cast | 12.0 | 973 | |
| 280 | RCBS 45-270-SAA cast | 13.5 | 1,101 | |
| Load Data (20,000 psi) primer: CCI 300 except where specified otherwise in remarks | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 225 | Hornady FTX | 9.7 | 787 | |
| 225 | Hornady FTX | 10.3 | 875 | |
| 225 | Hornady FTX | 10.9 | 963 | maximum load |
| Revolver (using 225 GR Hornady Bullets) Gun: Ruger New Model (Bisley) Blackhawk; barrel length: 5 1/2 inches; case: Starline; primer: Winchester WLP; bullet diameter: .452"; COAL: 1.645; maximum COAL: 1.600"; maximum case length: 1.285"; trim to length: 1.215"; | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 250 | Oregon Trail Cast RNFP | 11.5 | 855 | |
| 255 | Lyman 454190 cast | 11.5 | 877 | |
| 285 | RCBS cast 45-270-SAA | 11.5 | 876 | |
| Ruger New Vaquero All loads fired from the 4 5/8-inch barrel of a Ruger New Vaquero .45 Colt. Winchester cases and Federal 150 primers used throughout. Temperature during testing was 30 degrees Fahrenheit. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 250 | Oregon Trail Laser-Cast RNFP | 11.5 | 860 | |
| Traditional Handload Data All loads, fired from a 4 3/4-inch barreled USFA Pre-War SAA, produced between 850 and 870 fps average velocity and are thus listed at 860 fps to more or less duplicate traditional .45 Colt ballistics. Starline cases and CCI 300 Large Pistol primers were used throughout. Overall loaded length: 1.575 inches. Bullet diameter: .452 inch used herein (.454 inch suggested for guns with throats .454 or larger); maximum case length: 1.285 inches; trim-to case length: 1.275 inches. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 185 | Hornady XTP | 8.0 | 890 | starting load; psi: 17,700 |
| 185 | Hornady XTP | 9.0 | 1,017 | maximum load; psi: 22,500 |
| 200 | Speer GDHP | 7.0 | 795 | starting load; psi: 17,100 |
| 200 | Speer GDHP | 8.0 | 921 | maximum load; psi: 21,200 |
| Hodgdon Pistol Data Never exceed the loads listed here. case: Speer; BBL: 5 inches; PR: Winchester SP; twist: 1:16 inches; trim: .750 inch | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 185 | Hornady Jacketed Semi-Wadcutter | 8.6 | 888 | starting load; dia: .451"; COL: 1.195"; 12,200 cup |
| 185 | Hornady Jacketed Semi-Wadcutter | 9.9 | 1,086 | maximum load; dia: .451"; COL: 1.195"; 19,500 cup |
| 200 | Speer Jacketed Hollow Point | 8.2 | 868 | starting load; dia: .451"; COL: 1.155"; 14,000 cup |
| 200 | Speer Jacketed Hollow Point | 9.5 | 1,032 | maximum load; dia: .451"; COL: 1.155"; 19,800 cup |
| 230 | Hornady Full Metal Jacket Flat Point | 8.0 | 790 | starting load; dia: .451"; COL: 1.200"; 14,400 cup |
| 230 | Hornady Full Metal Jacket Flat Point | 9.0 | 983 | maximum load; dia: .451"; COL: 1.200"; 19,500 cup |
| Hodgdon Pistol Data Warning! Notes: case: Winchester; twist: 1:16"; barrel: 5"; trim: .893"; primer: Federal 150; NEVER EXCEED MAXIMUM LOADS | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 185 | Sierra JHP | 17.0 | 1323 | starting load; COL: 1.500"; 32,600 cup |
| 185 | Sierra JHP | 18.0 | 1472 | maximum load; COL: 1.500"; 38,700 cup |
| 200 | Speer JHP | 16.0 | 1244 | starting load; COL: 1.470"; 32,400 cup |
| 200 | Speer JHP | 17.5 | 1409 | maximum load; COL: 1.470"; 37,000 cup |
| 230 | Hornady FMJ FP | 15.0 | 1137 | starting load; COL: 1.500"; 31,000 cup |
| 230 | Hornady FMJ FP | 17.0 | 1296 | maximum load; COL: 1.500"; 36,600 cup |
| 240 | Sierra JHC | 14.0 | 1077 | starting load; COL: 1.555"; 31,200 cup |
| 240 | Sierra JHC | 16.0 | 1300 | maximum load; COL: 1.555"; 38,800 cup |
| 250 | Nosler JHP | 13.5 | 1024 | starting load; COL: 1.500"; 29,900 cup |
| 250 | Nosler JHP | 15.4 | 1220 | maximum load; COL: 1.500"; 37,700 cup |
| 260 | Speer JHP | 13.0 | 1004 | starting load; COL: 1.505"; 31,100 cup |
| 260 | Speer JHP | 15.0 | 1219 | maximum load; COL: 1.505"; 37,000 cup |
| Hodgdon Pistol Data case: Winchester; barrel length: 5"; twist: 1:16"; trim length: 1.193"; primer: CCI 350; bullet diam.: .451"; NEVER EXCEED MAXIMUM LOADS | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 185 | Jacketed | 17.0 | 1390 | start load; min OAL: 1.500 |
| 185 | Jacketed | 18.0 | 1472 | never exceed; min OAL: 1.500; 38,700 cup |
| 200 | Jacketed | 16.0 | 1293 | start load; min OAL: 1.470 |
| 200 | Jacketed | 17.5 | 1409 | never exceed; min OAL: 1.470; 37,000 cup |
| 230 | Jacketed | 15.0 | 1156 | start load; min OAL: 1.500 |
| 230 | Jacketed | 17.0 | 1296 | never exceed; min OAL: 1.500; 36,600 cup |
| 240 | Jacketed | 14.0 | 1160 | start load; min OAL: 1.555 |
| 240 | Jacketed | 16.0 | 1300 | never exceed; min OAL: 1.555; 38,800 cup |
| 250 | Jacketed | 13.5 | 1088 | start load; min OAL: 1.500 |
| 250 | Jacketed | 15.4 | 1220 | never exceed; min OAL: 1.500; 37,700 cup |
| 260 | Jacketed | 13.0 | 1077 | start load; min OAL: 1.505 |
| 260 | Jacketed | 15.0 | 1219 | never exceed; min OAL: 1.505; 37,000 cup |
| Lee Precision Data Large Pistol primer; with NEVER EXCEED LOADS maintain Minimum Over All Length or longer (Modern Reloading - Second Edition - Richard Lee) | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 325 | Cast Performance LFNPB | 13.0 | 985 | barrel (inches): 4 3/4 |
| 315 | Lyman 454629 | 13.0 | 1,061 | barrel (inches): 7 1/2 |
| Cast Bullets | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 250 | Hornady XTP-HP | 17.0 | 1285 | primer: Remington 7 1/2; rounds per pound: 412 |
| 315 | Lyman 454629 cast | 13.0 | 1054 | primer: Remington 7 1/2; rounds per pound: 538 |
| 325 | Cast Performance LFNPB | 13.0 | 985 | primer: Federal 205; rounds per pound: 538 |
| Economical Midrange Loads firearm used: Freedom Arms Model 83; case: Starline; barrel length: 4 3/4" | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 240 | Sierra JHC | 15.5 | 1360 | start load; bullet diam.: .452"; COL: 1.680"; 27,100 cup |
| 240 | Sierra JHC | 17.5 | 1508 | max load; bullet diam.: .452"; COL: 1.680"; 36,600 cup |
| 250 | Nosler JHP | 15.0 | 1295 | start load; bullet diam.: .451"; COL: 1.700"; 25,400 cup |
| 250 | Nosler JHP | 17.0 | 1428 | max load; bullet diam.: .451"; COL: 1.700"; 34,600 cup |
| 260 | Speer JHP | 14.5 | 1252 | start load; bullet diam.: .451"; COL: 1.675"; 25,000 cup |
| 260 | Speer JHP | 16.8 | 1420 | max load; bullet diam.: .451"; COL: 1.675"; 36,400 cup |
| Hodgdon Pistol Data Case: Freedom Arms; twist: 1:24"; primer: Winchester SR; barrel length: 9.375"; trim length: 1.380". NEVER EXCEED MAXIMUM LOADS | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 240 | Jacketed | 15.5 | 1360 | start load; min OAL: 1.680 |
| 240 | Jacketed | 17.5 | 1508 | never exceed; min OAL: 1.680; 36,600 cup |
| 250 | Jacketed | 15.0 | 1295 | start load; min OAL: 1.700 |
| 250 | Jacketed | 17.0 | 1428 | never exceed; min OAL: 1.700; 34,600 cup |
| 260 | Jacketed | 14.5 | 1252 | start load; min OAL: 1.675 |
| 260 | Jacketed | 16.8 | 1420 | never exceed; min OAL: 1.675; 36,400 cup |
| Lee Precision Data With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Rifle primer. NOTE: Industry standard cup pressure is 53,000. Some of the hard core bullet loads exceed this value. Use maximum loads with caution. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 250 | Hornady XTP-HP | 17.0 | 1,285 | midrange .454 load (Federal 205 primer used) |
| 250 | Hornady XTP-HP | 18.0 | 1,326 | midrange .454 load (Federal 205 primer used) |
| 315 | Lyman cast 454629 | 13.0 | 1,025 | midrange .454 load (Federal 205 primer used) |
| 315 | Lyman cast 454629 | 14.0 | 1,065 | midrange .454 load (Federal 205 primer used) |
| 325 | Cast Performance LFN | 13.0 | 985 | midrange .454 load (Federal 205 primer used) |
| in a Freedom Arms Model 83 (4 3/4-inch barrel) Freedom Arms Model 83 with barrel length of 4 3/4 inches. Remington 7 1/2 and Federal 205 (Small Rifle Magnum) primers and Starline cases used throughout. Maximum case length is 1.383 inches and trim-to length is 1.373 inches. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 250 | Hornady XTP-HP | 17.0 | 1,313 | midrange .454 load (Federal 205 primer used) |
| 250 | Hornady XTP-HP | 18.0 | 1,354 | midrange .454 load (Federal 205 primer used) |
| 315 | Lyman cast 454629 | 13.0 | 1,061 | midrange .454 load (Federal 205 primer used) |
| 315 | Lyman cast 454629 | 14.0 | 1,105 | midrange .454 load (Federal 205 primer used) |
| 325 | Cast Performance LFN | 13.0 | 1,022 | midrange .454 load (Federal 205 primer used) |
| in a Freedom Arms Model 83 (7 1/2-inch barrel) Freedom Arms Model 83 with barrel length of 7 1/2 inches. Remington 7 1/2 and Federal 205 (Small Rifle Magnum) primers and Starline cases used throughout. Maximum case length is 1.383 inches and trim-to length is 1.373 inches. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 400 | Speer Gold Dot | 15.0 | 1,045 | 1.71 inches |
| 400 | Hornady XTP | 15.0 | 1,078 | 1.15 inches |
| Freedom Arms Loads were tested at 25 yards in a Freedom Arms Model 757 with a 6-inch barrel. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 400 | Cast Performance WFN | 15.0 | 1,125 | |
| 401 | Cast Performance LFN GC | 13.0 | 1,003 | |
| 401 | Cast Performance LFN GC | 14.0 | 1,068 | |
| 420 | Cast Performance LFN GC | 15.0 | 1,140 | |
| 400 | Speer Gold Dot | 15.0 | 1,045 | |
| 400 | Hornady XTP-Mag | 15.0 | 1,078 | |
| Load Data A Freedom Arms Model 757 with a 6-inch barrel was used to test fire all loads. Buffalo Bore/Starline cases used throughout. Large Pistol primers used for reduced loads; all others used Large Pistol Magnum. Maximum case length: 1.400 inches; trim-to length: 1.395 inches; overall cartridge length: 1.750 to 1.765 inches maximum. Bullet diameter: .476 inch for cast bullets, .475 inch for jacketed. Industry maximum average pressure: 50,000 psi. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 404 | LBT #512.400LFN | 14.0 | 814 | |
| 444 | NEI #420.511 | 14.0 | 840 | |
| Loads firearm: Custom Bisley Ruger 5 1/2"; brass: .500 Linebaugh; primer: CCI #350; chronograph: Oehler Model 35P (John Taffin Tests) | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 440 | Cast Performance WFN GC | 22.0 | 1,327 | excellent midrange load |
Starline cases and Winchester Large Rifle primers used throughout. Temperature during testing was 80 degrees Fahrenheit. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 380 | BRP GC | 15.0 | 1002 | 8 3/8" S&W M500 |
| 380 | BRP GC | 15.0 | 977 | 10 1/2" BFR |
| 380 | BRP GC | 15.0 | 1057 | 12" Encore |
| 370 | Cast Performance Bullet Co. GC | 15.0 | 1001 | 8 3/8" S&W M500 |
| 370 | Cast Performance Bullet Co. GC | 15.0 | 1108 | 10 1/2" BFR |
| 370 | Cast Performance Bullet Co. GC | 15.0 | 1076 | 12" Encore |
| 440 | Cast Performance Bullet Co. GC | 15.0 | 984 | 8 3/8" S&W M500 |
| 440 | Cast Performance Bullet Co. GC | 15.0 | 1062 | 10 1/2" BFR |
| 440 | Cast Performance Bullet Co. GC | 15.0 | 1038 | 12" Encore |
| John Taffin Tests Tested in 8 3/8" S&W M500, 10 1/2" BFR and 12" Encore. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 370 | Oregon Trail GC | 15.0 | 919 | 3 shots/20 yds: 1 1/8" |
| 370 | Cast Performance Bullet Co. GC | 15.0 | 934 | 3 shots/20 yds: 5/8" |
| 400 | Cast Performance Bullet Co. GC | 14.0 | 902 | 3 shots/20 yds: 3/4" |
| 440 | Cast Performance Bullet Co. GC | 14.0 | 914 | 3 shots/20 yds: 1 1/4" |
| in a Freedom Arms 83 4 3/4-Inch Warning! Notes: Freedom Arms Model 83 4 3/4" (John Taffin Tests) | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 370 | Oregon Trail GC | 15.0 | 1008 | 3 shots/25 yds: 1" |
| 400 | Cast Performance Bullet Co. GC | 14.0 | 963 | 3 shots/25 yds: 1" |
| 440 | Cast Performance Bullet Co. GC | 14.0 | 965 | 3 shots/25 yds: 5/8" |
| in a Freedom Arms 83 7 1/2-Inch Warning! Notes: Freedom Arms Model 83 7 1/2"; 4X Leupold (John Taffin Tests) | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 135 | Nosler JHP | 10.0 | 1,318 | starting load; COL: 1.250"; 31,300 psi |
| 135 | Nosler JHP | 11.2 | 1,435 | maximum load; COL: 1.250"; 36,900 psi |
| 155 | Hornady XTP | 8.8 | 1,095 | starting load; COL: 1.260"; 22,400 psi |
| 155 | Hornady XTP | 11.0 | 1,350 | maximum load; COL: 1.260"; 35,000 psi |
| 170 | Hornady XTP | 8.0 | 1,027 | starting load; COL: 1.260"; 23,800 psi |
| 170 | Hornady XTP | 9.9 | 1,246 | maximum load; COL: 1.260"; 35,000 psi |
| 180 | Sierra JHC | 7.4 | 940 | starting load; COL: 1.260"; 22,000 psi |
| 180 | Sierra JHC | 9.4 | 1,127 | maximum load; COL: 1.260"; 35,800 psi |
| 200 | Hornady FMJ | 7.5 | 957 | starting load; COL: 1.260"; 26,000 psi |
| 200 | Hornady FMJ | 8.6 | 1,089 | maximum load; COL: 1.260"; 35,900 psi |
| Hodgdon Data case: Winchester; barrel length: 5"; twist: 1:16"; trim length: .987"; primer: Winchester LP; bullet diam.: .400"; NEVER EXCEED MAXIMUM LOADS | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 135 | Jacketed | 10.0 | 1318 | start load; min OAL: 1.250 |
| 135 | Jacketed | 11.2 | 1435 | never exceed; min OAL: 1.250; 36,900 psi |
| 155 | XTP | 8.8 | 1095 | start load; min OAL: 1.260 |
| 155 | XTP | 11.0 | 1350 | never exceed; min OAL: 1.260; 35,000 psi |
| 170 | XTP | 8.0 | 1027 | start load; min OAL: 1.260 |
| 170 | XTP | 9.9 | 1246 | never exceed; min OAL: 1.260; 35,000 psi |
| 180 | Jacketed | 7.4 | 940 | start load; min OAL: 1.260 |
| 180 | Jacketed | 9.4 | 1127 | never exceed; min OAL: 1.260; 35,800 psi |
| 200 | Jacketed | 7.5 | 975 | start load; min OAL: 1.260 |
| 200 | Jacketed | 8.6 | 1089 | never exceed; min OAL: 1.260; 35,900 psi |
| Lee Precision Data Large Pistol Primer. CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. (Modern Reloading - Second Edition - Richard Lee) | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 155 | Round Nose | 9.6 | 1,263 | starting load; OAL: 1.255 |
| 155 | Round Nose | 10.6 | 1,364 | maximum load; OAL: 1.255 |
| 170 | Semi Wad Cutter | 9.0 | 1,149 | starting load; OAL: 1.250 |
| 170 | Semi Wad Cutter | 9.6 | 1,229 | maximum load; OAL: 1.250 |
 | 180 | Flat Point | 8.7 | 1,150 | starting load; OAL: 1.260 |
| 180 | Flat Point | 9.2 | 1,205 | maximum load; OAL: 1.260 |
| Oregon Trail Handgun Data - Standard Loads test gun: Entreprise 1911 frame, 5" Bar-Sto barrel, WLP; do not exceed maximum loads; never reduce stated overall lengths | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 155 | Speer TMJ FN or GDHP | 9.5 | 1095 | start charge; primer: CCI 350 Magnum |
| 155 | Speer TMJ FN or GDHP | 10.5 | 1223 | maximum charge; primer: CCI 350 Magnum |
| 165 | Speer GDHP or TMJ FN | 9.0 | 1071 | start charge; primer: CCI 350 Magnum |
| 165 | Speer GDHP or TMJ FN | 10.0 | 1185 | maximum charge; primer: CCI 350 Magnum |
| 180 | Speer TMJ FN or GDHP | 8.2 | 1001 | start charge; primer: CCI 350 Magnum |
| 180 | Speer TMJ FN or GDHP | 9.1 | 1099 | maximum charge; primer: CCI 350 Magnum |
| Speer Reloading Manual #14 max. case length: 0.992"; trim-to length: 0.982"; max cart. OAL: 1.260"; RCBS shell holder: #27; cart. case: Hornady; primer: CCI 300 (except where otherwise specified in remarks); test firearm: Smith & Wesson M1006; barrel length: 5"; maximum loads should be used with CAUTION | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 155 | Hornady HP-XTP | 9.4 | 1161 | |
| 155 | Hornady HP-XTP | 9.9 | 1220 | |
| 155 | Hornady HP-XTP | 10.3 | 1289 | |
| 155 | Hornady HP-XTP | 10.8 | 1363 | |
| 155 | Hornady HP-XTP | 11.2 | 1424 | maximum load |
| 200 | Hornady HP-XTP or HAP | 7.0 | 910 | |
| 200 | Hornady HP-XTP or HAP | 7.4 | 965 | |
| 200 | Hornady HP-XTP or HAP | 7.8 | 1031 | |
| 200 | Hornady HP-XTP or HAP | 8.3 | 1079 | maximum load |
| Using Hornady Bullets Gun: Kimber Stainless Target II; barrel length: 5"; case: Starline; primer: Win. Large Pistol; bullet diameter: .400"; COAL: 1.260"; maximum COAL: 1.260"; maximum case length: .992; trim to length: .982. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 135 | Nosler Sporting Handgun Jacketed Hollow Point | 11.0 | 1,356 | maximum load |
| 135 | Nosler Sporting Handgun Jacketed Hollow Point | 10.5 | 1,280 | |
| 135 | Nosler Sporting Handgun Jacketed Hollow Point | 10.0 | 1,205 | most accurate load tested |
| 150 | Nosler Sporting Handgun Jacketed Hollow Point | 10.5 | 1,290 | maximum load |
| 150 | Nosler Sporting Handgun Jacketed Hollow Point | 10.0 | 1,223 | |
| 150 | Nosler Sporting Handgun Jacketed Hollow Point | 9.5 | 1,156 | most accurate load tested |
| 180 | Nosler Sporting Handgun Jacketed Hollow Point | 8.6 | 1122 | maximum load; most accurate load tested |
| 180 | Nosler Sporting Handgun Jacketed Hollow Point | 8.1 | 1057 | |
| 180 | Nosler Sporting Handgun Jacketed Hollow Point | 7.6 | 992 | |
| 200 | Nosler Sporting Handgun Jacketed Hollow Point | 8.4 | 1039 | maximum load |
| 200 | Nosler Sporting Handgun Jacketed Hollow Point | 7.9 | 976 | most accurate load tested |
| Using Nosler Bullets Handgun; case: Winchester; primer: WLP; barrel length/make: 6" Omega; twist: 1-16"; bullets: 135 GR, 150 GR, 180 GR & 200 GR Nosler Sporting Handgun Pistol JHP; OACL: 1.260"; maximum OACL: 1.260". Use Maximum Loads with Caution | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 175 | Cast #401043 | 8.0 | 1071 | sugg. start load; 1.260" OAL; 20,300 cup |
| 175 | Cast #401043 | 9.4 | 1236 | max load; 1.260" OAL; 29,000 cup |
| Cast Bullets Lyman Reloading Manual 49th Edition cases: Norma; trim-to length: .982"; primers: CCI 300; primer size: Large Pistol; Lyman shell holder: No. 15; cast bullets used sized to .401" dia.; firearm used: Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .400" | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 150 | Sierra Jacketed HP | 8.3 | 959 | sugg. start load; 17,900 cup |
| 150 | Sierra Jacketed HP | 9.9 | 1278 | max load; 27,200 cup |
| 155 | Winchester Jacketed Silvertip | 9.5 | 1139 | sugg. start load; case: Winchester; 23,700 cup |
| 155 | Winchester Jacketed Silvertip | 10.6 | 1308 | max load; case: Winchester; 29,800 cup |
| 165 | Speer TMJ | 9.3 | 1098 | sugg. start load; case: Winchester; 21,500 cup |
| 165 | Speer TMJ | 10.4 | 1235 | max load; case: Winchester; 28,300 cup |
| 175 | Winchester Jacketed Silvertip | 8.6 | 1050 | sugg. start load; case: Winchester; 22,200 cup |
| 175 | Winchester Jacketed Silvertip | 9.6 | 1186 | max load; case: Winchester; 29,300 cup |
| 180 | Sierra Jacketed HP | 8.1 | 1057 | sugg. start load; 21,000 cup |
| 180 | Sierra Jacketed HP | 9.6 | 1225 | max load; 28,700 cup |
| 190 | Sierra Jacketed FP | 7.7 | 744 | sugg. start load; 20,700 cup |
| 190 | Sierra Jacketed FP | 9.2 | 1037 | max load; 30,000 cup |
| 200 | Hornady Jacketed HP | 7.5 | 987 | sugg. start load; 22,600 cup |
| 200 | Hornady Jacketed HP | 8.6 | 1126 | max load; 29,500 cup |
| Handgun Lyman Reloading Handbook 49th Edition cases: Norma (except where otherwise specified in remarks); trim-to length: .982"; primers: CCI 300; primer size: Large Pistol; Lyman shell holder: No. 15; firearm used: Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .400"; 1.250" OAL (except where otherwise specified in remarks) | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 155 | Hornady XTP-HP | 8.5 | 1027 | |
| 155 | Hornady XTP-HP | 9.5 | 1149 | |
| 155 | Hornady XTP-HP | 10.5 | 1297 | |
| 155 | Hornady XTP-HP | 11.3 | 1398 | |
| 165 | Speer Gold Dot HP | 8.5 | 996 | |
| 165 | Speer Gold Dot HP | 9.3 | 1090 | |
| 165 | Speer Gold Dot HP | 10.0 | 1196 | |
| 180 | Speer Gold Dot HP | 8.0 | 1010 | |
| 180 | Speer Gold Dot HP | 8.8 | 1095 | |
| 180 | Speer Gold Dot HP | 9.5 | 1190 | |
| 200 | Speer TMJ | 7.0 | 872 | |
| 200 | Speer TMJ | 8.6 | 1053 | |
| 180 | Oregon Trail Laser Cast | 8.0 | 1023 | |
| Handloads A Kimber Model 1911 Stainless Target II with a one-in-16-inch twist, 5-inch barrel was used for testing loads. Starline brass and CCI 300 Large Pistol primers used throughout. Maximum overall cartridge length: 1.260 inches; maximum case length: 0.992 inch; trim-to length: 0.982 inch. Maximum SAAMI pressure: 37,500 psi. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 150 | Sierra JHP | 10.0 | 1,204 | case expansion near maximum; accurate |
| 170 | Hornady JHP | 9.5 | 1,170 | case expansion near maximum |
| Pistol Jacketed Bullets Test pistol was a Colt Delta Elite with a five-inch barrel. All loads used Federal F-150 primers. Special care should be exercised to differentiate between HS-7 and AAC-7 powders! | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 115 | Speer GDHP or TMJ FN | 6.5 | 1031 | start charge |
| 115 | Speer GDHP or TMJ FN | 7.5 | 1186 | maximum charge |
| 124 | Speer TMJ RN, UCSP or GDHP | 6.4 | 965 | start charge |
| 124 | Speer TMJ RN, UCSP or GDHP | 6.9 | 1065 | maximum charge |
| Speer Reloading Manual #14 max. case length: 0.905"; trim-to length: 0.900"; max cart. OAL: 1.300"; RCBS shell holder: #16; cart. case: Starline; primer: CCI 500; test firearm: Star "Super"; barrel length: 5.25"; maximum loads should be used with CAUTION | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 147 | Hornady HPBT-XTP | 4.1 | 767 | overall loaded length (inches): 1.100 |
| 147 | Hornady HPBT-XTP | 5.3 | 1032 | overall loaded length (inches): 1.100 |
| (147 GR) Handload Data A 5-inch barreled Kimber Model 1911 Team Match II was used to shoot all loads in Starline cases with Winchester Small Pistol primers. SAAMI minimum cartridge overall length: 1.000 inch; maximum cartridge overall length: 1.169 inches; maximum case length: .754 inch; trim to length: .744 inch. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 90 | Hornady HP-XTP | 6.5 | 1228 | overall loaded length (inches): 1.070 |
| 90 | Hornady HP-XTP | 7.2 | 1364 | overall loaded length (inches): 1.070 |
| 115 | Hornady HP-XTP | 5.7 | 1066 | overall loaded length (inches): 1.075 |
| 115 | Hornady HP-XTP | 6.4 | 1207 | overall loaded length (inches): 1.075 |
| (90 & 115 GR) Handload Data A 5-inch barreled Kimber Model 1911 Team Match II was used to shoot all loads in Starline cases with Winchester Small Pistol primers. SAAMI minimum cartridge overall length: 1.000 inch; maximum cartridge overall length: 1.169 inches; maximum case length: .754 inch; trim to length: .744 inch. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 88 | Speer JHP | 8.0 | 1,323 | OAL (inches): 1.04; case expansion: near max |
| 100 | Speer JHP | 7.8 | 1,313 | OAL (inches): 1.075; case expansion: near max |
| 115 | Nosler FMJ | 7.8 | 1,242 | OAL (inches): 1.10; case expansion: near max |
| 115 | Sierra JHP | 7.6 | 1,214 | OAL (inches): 1.08; case expansion: normal |
| 115 | Hornady JHP | 7.0 | 1,100 | OAL (inches): 1.11; case expansion: moderate |
| 115 | Speer JHP | 7.5 | 1,210 | OAL (inches): 1.11; case expansion: normal; fourth best accuracy; best with Speer |
| 124 | Hornady FMJ-FP | 7.0 | 1,074 | OAL (inches): 1.12; case expansion: near max; accurate |
| 130 | Sierra FMJ-RN | 6.8 | 1,074 | OAL (inches): 1.12; case expansion: near max |
| (Jacketed) in a Beretta Beretta 92-F, 5 inches. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 88 | Speer JHP | 8.2 | 1,364 | OAL (inches): 1.04; case expansion: maximum |
| 100 | Speer JHP | 7.8 | 1,330 | OAL (inches): 1.075; case expansion: near max |
| 115 | Nosler FMJ | 7.8 | 1,270 | OAL (inches): 1.10; case expansion: near max |
| 115 | Sierra JHP | 7.6 | 1,276 | OAL (inches): 1.08; case expansion: normal |
| 115 | Hornady JHP | 7.3 | 1,174 | OAL (inches): 1.11; case expansion: normal |
| 115 | Speer JHP | 7.5 | 1,215 | OAL (inches): 1.11; case expansion: normal; fourth best accuracy; best with Speer |
| 124 | Hornady FMJ-FP | 7.2 | 1,157 | OAL (inches): 1.12; case expansion: maximum; good load |
| 130 | Sierra FMJ-RN | 7.0 | 1,147 | OAL (inches): 1.12; case expansion: maximum |
| (Jacketed) in a Ruger Ruger P-85, 4 1/2 inches. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 126 | Magma SKU-9-125 roundnose cast (sized .3560) | 5.0 | 812 | OAL (inches): 1.11; case expansion: moderate; accurate |
| 126 | Magma SKU-9-125 roundnose cast (sized .3560) | 5.7 | 979 | OAL (inches): 1.11; case expansion: normal |
| 126 | Magma SKU-9-125 roundnose cast (sized .3560) | 6.4 | 1,085 | OAL (inches): 1.11; case expansion: near max |
| 130 | Ohaus Cast (Sized .3565 inch) | 5.4 | 938 | OAL (inches): 1.13; case expansion: normal; second best accuracy with Ohaus bullets |
| 124 | Hornady Swaged (Sized .355 inch) | 6.0 | 947 | OAL (inches): 1.13; case expansion: normal |
| 125 | Alberts Swaged (Sized .3565 inch) | 5.4 | 857 | OAL (inches): 1.11; case expansion: moderate |
| in a Beretta Federal cases and Federal 100 Small Pistol primers used for all loads. Velocities are instrumental at 10 feet from the muzzle, using Oehler Model 31 chronotach and Oehler Model 51 electronic screens with 10-foot spacing. Barrel lengths of test gun: Beretta, 5-inch barrel. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 80 | Barnes TAC-XP | 5.4 | 1102 | start load; COL: 1.025"; 28,000 psi |
| 80 | Barnes TAC-XP | 5.7 | 1167 | max load; COL: 1.025"; 32,100 psi |
| 90 | Speer GDHP | 7.9 | 1361 | start load; COL: 1.010"; 27,400 cup |
| 90 | Speer GDHP | 8.2 | 1413 | max load; COL: 1.010"; 30,900 cup |
| 95 | Sierra FMJ | 7.3 | 1232 | start load; COL: 1.020"; 26,500 cup |
| 95 | Sierra FMJ | 7.8 | 1339 | max load; COL: 1.020"; 31,300 cup |
| 100 | Speer FMJ | 7.2 | 1270 | start load; COL: 1.050"; 23,900 cup |
| 100 | Speer FMJ | 7.5 | 1313 | max load; COL: 1.050"; 28,600 cup |
| 115 | Speer GDHP | 6.7 | 1171 | start load; COL: 1.125"; 26,700 cup |
| 115 | Speer GDHP | 7.0 | 1234 | max load; COL: 1.125"; 29,400 cup |
| 115 | Lead Round Nose | 6.4 | 1117 | start load; bullet diam.: .356"; COL: 1.100"; 27,900 cup |
| 115 | Lead Round Nose | 6.9 | 1170 | max load; bullet diam.: .356"; COL: 1.100"; 32,200 cup |
| 124 | Berry's Bullets HBRN TP | 6.0 | 1016 | start load; bullet diam.: .356"; COL: 1.150"; 28,200 psi |
| 124 | Berry's Bullets HBRN TP | 6.6 | 1116 | max load; bullet diam.: .356"; COL: 1.150"; 32,400 psi |
| 125 | Lead Conical Nose | 5.9 | 1023 | start load; bullet diam.: .356"; COL: 1.125"; 24,400 cup |
| 125 | Lead Conical Nose | 6.6 | 1124 | max load; bullet diam.: .356"; COL: 1.125"; 30,700 cup |
| 125 | Hornady HAP | 4.5 | 865 | start load; bullet diam.: .356"; COL: 1.069"; 25,700 psi |
| 125 | Hornady HAP | 5.1 | 971 | max load; bullet diam.: .356"; COL: 1.069"; 33,100 psi |
| 125 | Sierra FMJ | 6.4 | 1131 | start load; COL: 1.090"; 25,600 cup |
| 125 | Sierra FMJ | 6.8 | 1169 | max load; COL: 1.090"; 27,100 cup |
| 130 | Berry's Bullets RN | 5.9 | 970 | start load; bullet diam.: .356"; COL: 1.150"; 28,300 psi |
| 130 | Berry's Bullets RN | 6.5 | 1097 | max load; bullet diam.: .356"; COL: 1.150"; 31,800 psi |
| 147 | Hornady XTP | 4.3 | 773 | start load; COL: 1.100"; 20,200 cup |
| 147 | Hornady XTP | 5.0 | 885 | max load; COL: 1.100"; 27,900 cup |
| Hodgdon Data Case: Winchester; twist: 1:10"; primer: CCI 500, Small Pistol; barrel length: 4"; trim length: .750"; bullet diam.: .355" (except where otherwise specified in remarks). | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 90 | Jacketed | 7.9 | 1361 | start load; min OAL: 1.010 |
| 90 | Jacketed | 8.2 | 1413 | never exceed; min OAL: 1.010; 30,900 cup |
| 95 | Jacketed | 7.3 | 1265 | start load; min OAL: 1.020 |
| 95 | Jacketed | 7.8 | 1339 | never exceed; min OAL: 1.020; 31,300 cup |
| 100 | Jacketed | 7.2 | 1265 | start load; min OAL: 1.050 |
| 100 | Jacketed | 7.5 | 1313 | never exceed; min OAL: 1.050; 28,600 cup |
| 115 | Jacketed | 6.7 | 1188 | start load; min OAL: 1.125 |
| 115 | Jacketed | 7.0 | 1234 | never exceed; min OAL: 1.125; 29,400 cup |
| 124 | Jacketed | 6.4 | 1103 | start load; min OAL: 1.090 |
| 124 | Jacketed | 6.8 | 1169 | never exceed; min OAL: 1.090; 27,100 cup |
| 147 | XTP | 4.3 | 775 | start load; min OAL: 1.100 |
| 147 | XTP | 5.0 | 885 | never exceed; min OAL: 1.100; 27,900 cup |
| 130 | Jacketed | 6.3 | 1040 | start load; min OAL: 1.120 |
| 130 | Jacketed | 6.6 | 1090 | never exceed; min OAL: 1.120; 26,900 cup |
| Lee Precision Data Small pistol primer. CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer.(MODERN RELOADING Second Edition - Richard Lee) | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 115 | Speer GDHP or TMJ RN | 6.6 | 1048 | start charge |
| 115 | Speer GDHP or TMJ RN | 7.4 | 1178 | maximum charge |
| 124 | Speer TMJ RN, UCSP or GDHP | 6.0 | 951 | start charge |
| 124 | Speer TMJ RN, UCSP or GDHP | 6.7 | 1059 | maximum charge |
| 147 | Speer GDHP or TMJ FN | 5.0 | 845 | start charge |
| 147 | Speer GDHP or TMJ FN | 5.5 | 956 | maximum charge |
| Speer Reloading Manual #14 max. case length: 0.754"; trim-to length: 0.744"; max cart. OAL: 1.169"; RCBS shell holder: #16; cart. case: Speer; primer: CCI 500; test firearm: S&W M5906; barrel length: 4"; 147-grain bullets not recommended for barrels longer than 10 inches; IMPORTANT SAFETY NOTE: These loads were developed and tested for safe use in HANDGUNS. Not all loads may be suitable for use in a carbine or rifle chambered for this cartridge. If loading for a carbine or rifle, choose from among the loads developing the highest handgun velocities and load just a few rounds. Thoroughly test this small sample in your firearm in slow-fire mode, insuring that you achieve proper feeding and ejection. Be certain that all bullets exit the barrel; watching the target for each bullet strike is the best way to know that the load produces sufficient gas volume for a longer barrel. Use maximum loads with CAUTION | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 115 | Hornady HP-XTP or FMJ-RN | 5.7 | 1066 | |
| 115 | Hornady HP-XTP or FMJ-RN | 5.9 | 1113 | |
| 115 | Hornady HP-XTP or FMJ-RN | 6.2 | 1160 | |
| 115 | Hornady HP-XTP or FMJ-RN | 6.4 | 1207 | maximum load |
| Using 115 GR Hornady Bullets Gun: Kimber 1911; barrel length: 5-inch; case: Starline; primer: Winchester Small Pistol; bullet diameter: .355"; HP-XTP COAL: 1.075"; FMJ-RN COAL: 1.100"; maximum COAL: 1.169"; maximum case length: .754"; trim to length: .749". | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 124 | Hornady HP-XTP | 5.1 | 947 | |
| 124 | Hornady HP-XTP | 5.4 | 1001 | |
| 124 | Hornady HP-XTP | 5.6 | 1055 | |
| 124 | Hornady HP-XTP | 5.9 | 1109 | maximum load |
| Using 124 GR Hornady Bullets Gun: Kimber 1911; barrel length: 5-inch; case: Starline; primer: Winchester Small Pistol; bullet diameter: .355"; COAL: 1.060"; maximum COAL: 1.169"; maximum case length: .754"; trim to length: .749". | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 147 | Hornady HP-BT-XTP | 4.1 | 767 | |
| 147 | Hornady HP-BT-XTP | 4.4 | 825 | |
| 147 | Hornady HP-BT-XTP | 4.7 | 895 | |
| 147 | Hornady HP-BT-XTP | 5.0 | 965 | |
| 147 | Hornady HP-BT-XTP | 5.3 | 1032 | maximum load |
| Using 147 GR Hornady Bullets Gun: Kimber 1911; barrel length: 5-inch; case: Starline; primer: Winchester Small Pistol; bullet diameter: .355"; COAL: 1.100"; maximum COAL: 1.169"; maximum case length: .754"; trim to length: .749". | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 90 | Hornady HP-XTP | 6.5 | 1228 | |
| 90 | Hornady HP-XTP | 6.9 | 1296 | |
| 90 | Hornady HP-XTP | 7.2 | 1364 | maximum load |
| Using 90 GR Hornady Bullets Gun: Kimber 1911; barrel length: 5-inch; case: Starline; primer: Winchester Small Pistol; bullet diameter: .355"; COAL: 1.070"; maximum COAL: 1.169"; maximum case length: .754"; trim to length: .749". | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 115 | Nosler Sporting Handgun Pistol JHP | 7.1 | 990 | max; most accurate load tested |
| 115 | Nosler Sporting Handgun Pistol JHP | 6.6 | 880 | |
| 115 | Nosler Sporting Handgun Pistol JHP | 6.1 | 770 | |
| Using Nosler Bullets Case: Winchester; primer: Rem 1 1/2; barrel length/make: 4" Douglas; twist: 1-16"; bullets: 115 GR Nosler Sporting Handgun Pistol JHP - OACL: 1.100"; 124 GR Nosler Sporting Handgun Pistol JHP - OACL: 1.120"; maximum OACL: 1.169". Use Maximum Loads with Caution | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
 | 90 | Cast #356242 | 5.8 | 1011 | sugg. start load; 19,500 cup; 1.045" OAL |
| 90 | Cast #356242 | 7.2 | 1356 | max load; 29,800 cup; 1.045" OAL |
| 120 | Cast #356242 | 5.0 | 904 | sugg. start load; 23,000 cup; 1.065" OAL |
| 120 | Cast #356242 | 6.3 | 1182 | max load; 31,700 cup; 1.065" OAL |
| 120 | Cast #356402 | 5.0 | 910 | sugg. start load; 20,000 cup; 1.110" OAL |
| 120 | Cast #356402 | 6.2 | 1163 | max load; 29,300 cup; 1.110" OAL |
| 147 | Cast #356637 | 4.4 | 846 | sugg. start load; 26,700 cup; 1.058" OAL |
| 147 | Cast #356637 | 5.0 | 968 | max load; 31,900 cup; 1.058" OAL |
| Cast Bullet Handgun Data Lyman Reloading Handbook 49th Edition cases: Federal; trim-to length: .751"; primers: CCI 500; primer size; Small Pistol; Lyman shell holder: No. 12; cast bullets used sized to .356" dia.and all #2 Alloy; firearm used: Universal Receiver; barrel length: 4"; groove dia.: .355" | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 90 | Sierra Jacketed HP | 5.9 | 858 | sugg. start load; 20,200 cup; 1.010" OAL |
| 90 | Sierra Jacketed HP | 7.4 | 1333 | max load; 31,800 cup; 1.010" OAL |
| 95 | Sierra FMJ | 5.8 | 952 | sugg. start load; 20,100 cup; 1.005" OAL |
| 95 | Sierra FMJ | 7.0 | 1315 | max load; 29,600 cup; 1.005" OAL |
| 115 | Hornady Jacketed HP/XTP | 5.7 | 956 | sugg. start load; 17,400 cup; 1.090" OAL |
| 115 | Hornady Jacketed HP/XTP | 7.2 | 1193 | max load; 30,400 cup; 1.090" OAL |
| 125 | Sierra Jacketed HP | 5.8 | 949 | sugg. start load; 23,800 cup; 1.075" OAL |
| 125 | Sierra Jacketed HP | 6.6 | 1080 | max load; 30,400 cup; 1.075" OAL |
| 147 | Speer TMJ | 4.8 | 866 | sugg. start load; 22,000 cup; 1.115" OAL |
| 147 | Speer TMJ | 5.8 | 1046 | max load; 30,600 cup; 1.115" OAL |
| Handgun Data Lyman Reloading Handbook 49th Edition cases: Federal; trim-to length: .751"; primers: CCI 500; primer size; Small Pistol; Lyman shell holder: No. 12; firearm used: Universal Receiver; barrel length: 4"; groove dia.: .355" | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 124 | Hornady HP-XTP | 5.1 | 947 | overall loaded length (inches): 1.060 |
| 124 | Hornady HP-XTP | 5.9 | 1109 | overall loaded length (inches): 1.060 |
| Handload Data A 5-inch barreled Kimber Model 1911 Team Match II was used to shoot all loads in Starline cases with Winchester Small Pistol primers. SAAMI minimum cartridge overall length: 1.000 inch; maximum cartridge overall length: 1.169 inches; maximum case length: .754 inch; trim to length: .744 inch. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 90 | Hornady JHP | 7.5 | 1,258 | length (inches): 1.045; expansion: normal; accuracy class: B |
| 90 | Hornady JHP | 8.0 | 1,330 | length (inches): 1.045; expansion: maximum; accuracy class: B+; combines accuracy, high velocity |
| 115 | Hornady JHP | 7.0 | 1,090 | length (inches): 1.110; expansion: normal; accuracy class: A; accurate |
| 115 | Hornady JHP | 7.5 | 1,174 | length (inches): 1.110; expansion: maximum; accuracy class: B |
| 115 | Sierra JHC | 7.0 | 1,142 | length (inches): 1.070; expansion: normal; accuracy class: B |
| 125 | Sierra FMJ | 7.0 | 1,069 | length (inches): 1.150; expansion: normal; accuracy class: A; accurate |
| in a 4-inch Barrel Test gun: S&W Model 39-2; R-P cases; Alcan SP primers. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 125 | Sierra FMJ | 7.0 | 1,124 | length (inches): 1.150; expansion: normal; accuracy class: A; accurate |
| in a 5-inch Barrel Test gun Walther P-38; R-P cases; Alcan SP primers. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 90 | Hornady XTP | 8.0 | 1392 | overall length (inches): 1.063; group (inches): 2.90 |
| 90 | Sierra JHP | 7.8 | 1377 | overall length (inches): 1.065; group (inches): 2.80 |
| 115 | Sierra JHP | 6.5 | 1150 | overall length (inches): 1.100; group (inches): 2.50 |
| 115 | Speer Gold Dot | 7.0 | 1252 | overall length (inches): 1.250; group (inches): 2.00 |
| 147 | Speer Gold Dot | 6.0 | 992 | overall length (inches): 1.140; group (inches): 2.50 |
| in a Browning Hi-Power Accuracy is for five-shot groups at 25 yards from a solid benchrest. The group was measured from the inside of the most widely spaced bullet holes | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 90 | Speer Mak GDHP | 5.8 | 891 | start charge |
| 90 | Speer Mak GDHP | 6.5 | 1048 | maximum charge |
| 95 | Speer Mak TMJ RN | 5.6 | 828 | start charge |
| 95 | Speer Mak TMJ RN | 6.3 | 1010 | maximum charge |
| Speer Reloading Manual #14 max. case length: 0.713"; trim-to length: 0.703"; max cart. OAL: 0.984"; RCBS shell holder: #16; cart. case: Starline; primer: CCI 500; test firearm: East German Makarov; barrel length: 3.625"; maximum loads should be used with CAUTION | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 90 | Sierra Jacketed HP | 7.7 | 1274 | sugg. start load; 23,800 cup; 1.063" OAL |
| 90 | Sierra Jacketed HP | 9.0 | 1411 | max load; 31,700 cup; 1.063" OAL |
| 115 | Sierra Jacketed HP | 6.8 | 1048 | sugg. start load; 24,400 cup; 1.063" OAL |
| 115 | Sierra Jacketed HP | 8.1 | 1305 | max load; 31,300 cup; 1.063" OAL |
| 124 | Hornady FMJ/FP | 6.5 | 937 | sugg. start load; 21,500 cup; 1.090" OAL |
| 124 | Hornady FMJ/FP | 7.8 | 1289 | max load; 31,700 cup; 1.090" OAL |
| 147 | Speer TMJ | 5.9 | 785 | sugg. start load; 24,400 cup; 1.169" OAL |
| 147 | Speer TMJ | 7.4 | 1159 | max load; 33,000 cup; 1.169" OAL |
| 120 | Cast #356402 | 6.1 | 934 | sugg. start load; 20,500 cup; 1.169" OAL |
| 120 | Cast #356402 | 7.4 | 1287 | max load; 31,800 cup; 1.169" OAL |
| 147 | Cast #356637 | 4.6 | 683 | sugg. start load; 22,200 cup; 1.119" OAL; potentially most accurate load |
| 147 | Cast #356637 | 6.0 | 1040 | max load; 31,500 cup; 1.119" OAL |
| Lyman Reloading Handbook 49th Edition cases: Geco; trim-to length: .830"; primers: Winchester WSP; primer size: Small Pistol; Lyman shell holder: No. 12; cast bullets used sized to .355" dia.; firearm used: Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .355" | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 122 | Flat Point | 8.0 | 1,389 | starting load; OAL: 1.200 |
| 122 | Flat Point | 8.5 | 1,470 | maximum load; OAL: 1.200 |
| 135 | Round Nose | 7.2 | 1,240 | starting load; OAL: 1.255 |
| 135 | Round Nose | 7.7 | 1,330 | maximum load; OAL: 1.255 |
| High Velocity Loads/Oregon Trail Handgun Data test gun: Colt Government 5"; WSR; do not exceed maximum loads; never reduce stated overall lengths | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 9x23mm Winchester | ||||
| 124 | Speer Gold Dot hollowpoint | 9.4 | 1,448 | energy: 577 (ft-lbs); accuracy: 1.62 inches |
| 150 | Bull-X lead SWC | 7.3 | 1,218 | energy: 494 (ft-lbs); accuracy: 1.82 inches |
| Full-Power Loads The loads identified as "full-power" were developed for modern guns chambered for the 9x23mm Winchester and should not be fired in guns chambered for any other cartridge. Reduce those powder charges by 10 percent for starting loads. Loads identified as "light target" should be safe to use in guns chambered for the 9x23mm Largo as well, but only if they are tight and in excellent condition and only if Winchester 9x23mm cases are used. Winchester cases and Winchester WSR primers were used in all full-power loads. | |||||
