This Extreme Extruded propellant has gone through some changes since its inception, all the time maintaining the same important burning speed of the past. The kernels were shortened for improved metering and necessary elements were added to make it extremely insensitive to hot/cold temperatures. H4198 is outstanding in cartridges like the 222 Remington, 444 Marlin and the 7.62 X 39. Available in 1 lb. & 8 lb. containers.

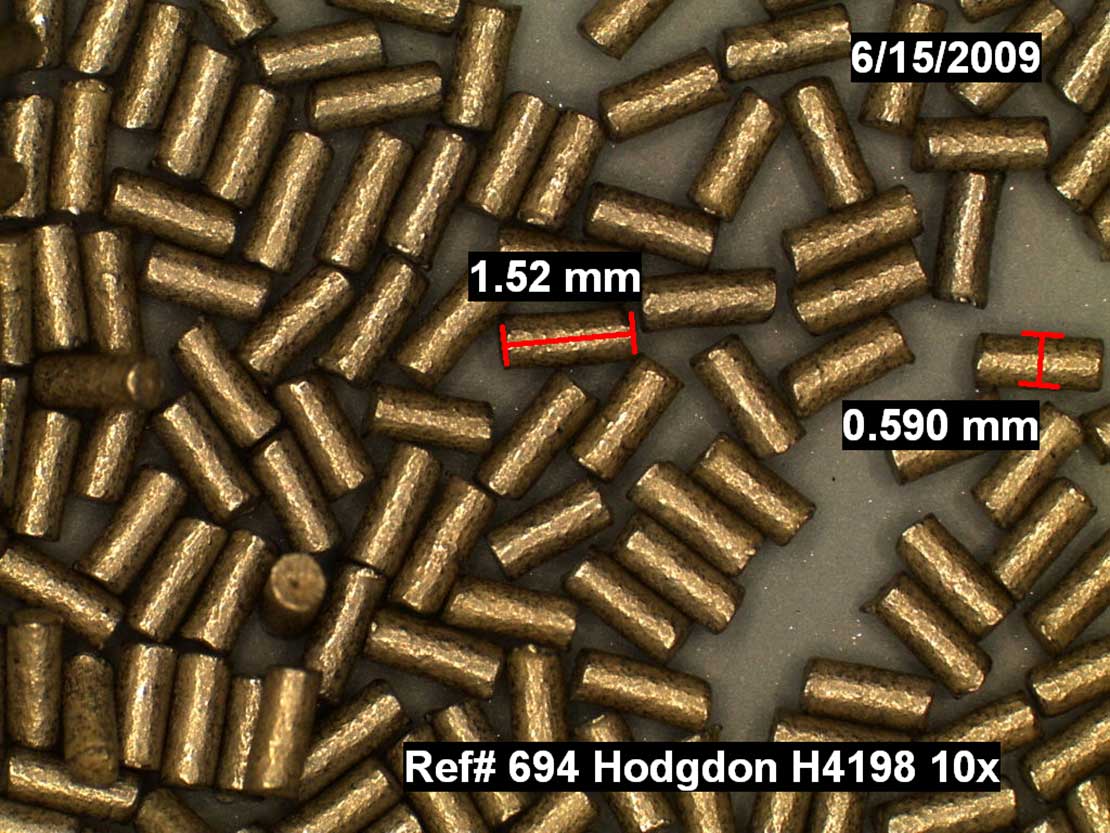

| Shape | Color | Perforation | Diameter min | Diameter max | Length/thick. min | Length/thick. max | Manufacturer |
|---|---|---|---|---|---|---|---|
| Cylinder(tubular) | Gold | Yes | 0.59 mm | 0.66 mm | 1.55 mm | 1.55 mm | Hodgdon Powder Company |
Ladedata som finnes på hjemmesidene til Evje PK er KUN ment som en veiledning! Ladedata skal alltid verifiseres mot kjente kilder (kruttprodusenter, ladebøker o.l.)
Data funnet på våre hjemmesider brukes på eget ansvar, og Evje Pistolklubb fratar seg alt ansvar for feil bruk av, eller skrivefeil i oppgitte data.
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
 | 200 | Hornady RN | 28.0 | 1,656 | primer: CCI 400 |
| 10-Inch Barrel Muzzle velocities taken at 10 feet, not corrected to muzzle. All data the result of a single, representative 10-shot group unless otherwise noted. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 360 | Oregon Trail WNFP GC | 40.0 | 1,431 | |
firearm: Smith & Wesson .460 XVR; SAAMI maximum average pressure: 65,000 psi; barrel length: 7 1/2-inches; case: Starline; primer: CCI #200; trim to case length: 1.790"; temperature: 15 degrees | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 325 | Swift HP | 37.0 | 1,556 | starting load; dia.: .451; COL: 2.175"; 36,200 psi |
| 325 | Swift HP | 41.0 | 1,695 | maximum load; compressed load; dia.: .451; COL: 2.175"; 42,500 psi |
| 360 | Cast Performance Bullets WLN GC | 37.0 | 1,531 | starting load; dia.: .452; COL: 2.190"; 38,200 psi |
| 360 | Cast Performance Bullets WLN GC | 40.0 | 1,644 | maximum load; compressed load; dia.: .452; COL: 2.190"; 43,200 psi |
| 395 | Cast Performance Bullets WLN GC | 35.0 | 1,484 | starting load; dia.: .452; COL: 2.185"; 40,000 psi |
| 395 | Cast Performance Bullets WLN GC | 38.0 | 1,596 | maximum load; compressed load; dia.: .452; COL: 2.185"; 46,600 psi |
| Hodgdon Pistol Data case: Starline; bbl: 10.743"; PR: Winchester LRM; twist: 1:20"; trim: 1.790" - This data was developed with Starline Brass which was designed for use with large rifle type primers. Some brands of brass were designed solely for use with large pistol primers. Check with the manufacturer of the brass for correct primer usage. Rifle primers used in a pistol primer pocket cannot be seated sufficiently deep to be below flush with the casehead, which could result in sympathetic ignition of other rounds in the cylinder during recoil. Such use may result in damage to the firearm and/or result in injury or death of the shooter and/or bystander. Never exceed loads listed. | |||||
