Hodgdon H110

H110 is the spherical powder that screams "no wimps, please!" It delivers top velocities with top accuracy in the 44 Magnum, 454 Casull, 475 Linebaugh and the 460 and 500 S&W magnums. Silhouette shooters claim it is the most accurate 44 powder they have ever used. In addition, H110 is "the" choice for 410 Bore shotgun, especially among top competitive skeet and sporting clays shooters. It handles all 2 1/2", 1/2 oz. loads, as well as all 11/16 oz. loads for the 3" version. Available in 1 lb., 4 lb. & 8 lb. containers.

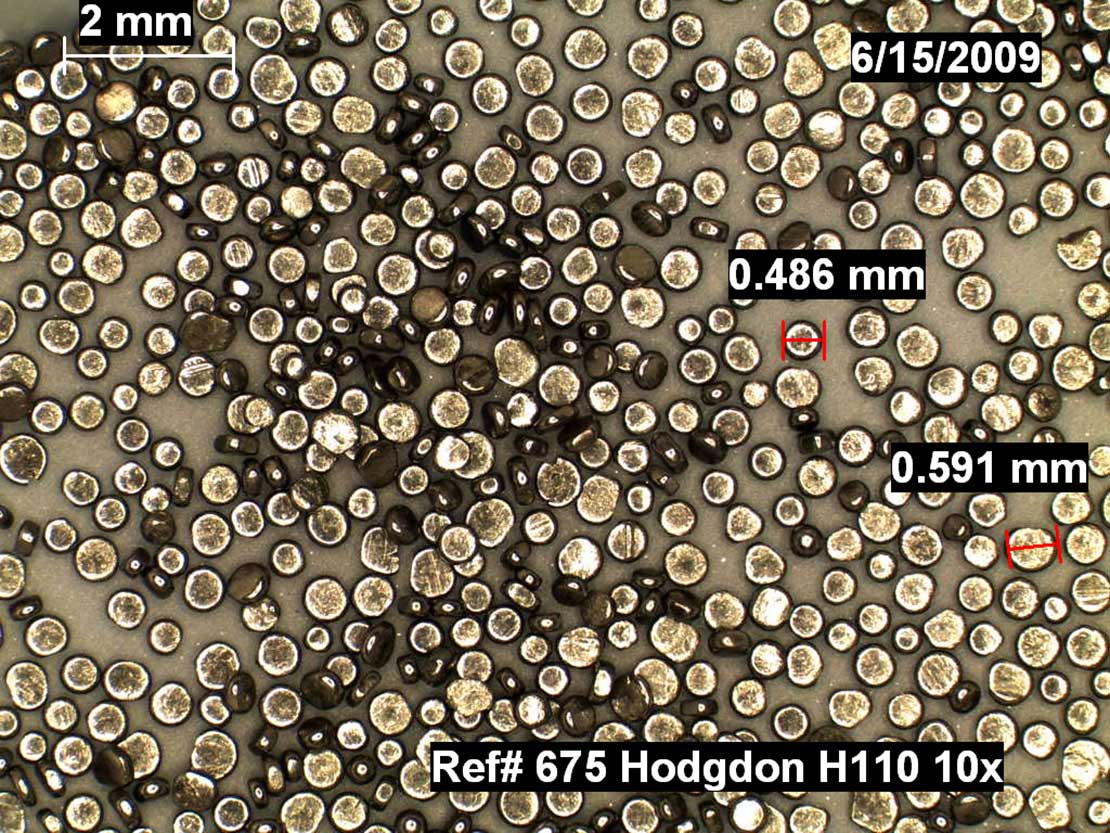

Shape	Color	Perforation	Diameter min	Diameter max	Length/thick. min	Length/thick. max	Manufacturer
Flattened ball	Black	No	0.48 mm	0.59 mm			Olin / Primex Technologies

ADVARSEL!

Ladedata som finnes på hjemmesidene til Evje PK er KUN ment som en veiledning! Ladedata skal alltid verifiseres mot kjente kilder (kruttprodusenter, ladebøker o.l.)

Data funnet på våre hjemmesider brukes på eget ansvar, og Evje Pistolklubb fratar seg alt ansvar for feil bruk av, eller skrivefeil i oppgitte data.

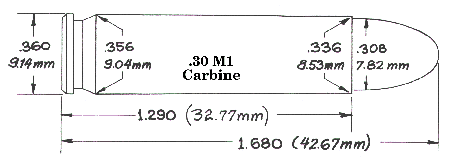

.30 Carbine

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
85	Sierra RN	16.5	1834	starting load; COL: 1.625"; 26,000 cup
85	Sierra RN	17.5	1966	maximum load; COL: 1.625"; 34,800 cup
100	Speer SP	14.5	1660	starting load; COL: 1.625"; 28,200 cup
100	Speer SP	15.5	1762	maximum load; COL: 1.625"; 36,100 cup
110	Hornady JRN	14.0	1605	starting load; COL: 1.680"; 32,000 cup
110	Hornady JRN	15.0	1685	maximum load; COL: 1.680"; 36,500 cup
Hodgdon Pistol Data case: Winchester; barrel length: 7"; twist: 1:20"; trim length: 1.286"; primer: CCI 400; bullet diam.: .308"; NEVER EXCEED MAXIMUM LOADS
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
110	Hornady RN-SP	15.0	1,560
110	Sierra HP	16.0	1,792
Blackhawk 7 1/2 inch Most of these loads are maximum, and should be approached with caution. Bullets will usually feed properly if a GI or factory round is used to set the seating die, if the seating punch corresponds to the standard bullet configuration. Bullets must not be crimped, since the case headspaces on the mouth.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Hornady XTP	15.5	1,504	primer: WSR
90	Hornady XTP	16.0	1,579	primer: WSR
100	Speer Plinker	15.0	1,498	primer: WSR
100	Speer Plinker	15.5	1,551	primer: WSR
110	Speer TMJ roundnose	14.3	1,321	primer: WSR
110	Speer TMJ roundnose	14.8	1,378	primer: WSR
in a Black Hawk Test firearm was a Ruger Blackhawk with a 7 1/2-inch barrel. All cases werre Remington. Maximum case length, 1.290 inches. Temperature during testing was 75 degrees Fahrenheit.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
110	Sierra JSP	14.5	1452	okay groups
in a Ruger Blackhawk Handgun fired for group at 25 yards. Ten-shot groups were fired with a Ruger Blackhawk with a 7 1/2-inch barrel from a machine rest. Chronographing was done with an Oehler Model 35P with the start screen at approximately 6 feet. All loads used CCI 400 Small Rifle primers. Winchester brass was used for cast bullet loads. All other loads used Remington brass. Cast bullets were poured of Linotype, sized .310 inch, lubed with SPG and were fitted with Lyman gas checks where needed.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
110	Sierra JSP	14.5	1521	okay groups
in an AMT Handgun fired for group at 25 yards. Five-shot groups were fired with the AMT 1911 with a 6 1/2-inch barrel from sandbags. Chronographing was done with an Oehler Model 35P with the start screen at approximately 6 feet. All loads used CCI 400 Small Rifle primers. Winchester brass was used for cast bullet loads. All other loads used Remington brass. Cast bullets were poured of Linotype, sized .310 inch, lubed with SPG and were fitted with Lyman gas checks where needed.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
100	Speer RN SP	14.5	1475	start charge; primer: CCI 450 Magnum
100	Speer RN SP	15.5	1589	max charge; primer: CCI 450 Magnum
110	Speer HP or RN SP	13.7	1315	start charge; primer: CCI 450 Magnum
110	Speer HP or RN SP	14.7	1418	max charge; primer: CCI 450 Magnum
Handgun Speer Reloading Manual #14 max. case length: 1.290"; trim-to length: 1.280"; max cart. OAL: 1.690"; RCBS shell holder: #17; cart. case: IMI Commercial; primer: CCI 400 (except where otherwise specified in remarks); test firearm: Ruger Blackhawk; barrel length: 7.5"; maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
120	Cast #311359 gas check	10.0	1055	sugg. start load
120	Cast #311359 gas check	13.5	1358	max load
123	Cast #311576 gas check	10.0	1037	sugg. start load
123	Cast #311576 gas check	13.5	1420	max load
130	Cast #311410	9.0	979	sugg. start load
130	Cast #311410	12.5	1350	max load
Revolver Lyman Cast Bullet Handbook cases: Federal; trim-to length: 1.286"; primers: Remington 6 1/2; primer size: Small Rifle Magnum and Small Rifle; Lyman shell holder: No. 19; cast bullets used size to .308" dia.; firearm used: Ruger Blackhawk; barrel length: 7 1/2"; twist: 1-20"; groove diameter: .308"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Hornady HP-XTP	11.8	1266
90	Hornady HP-XTP	12.8	1334
90	Hornady HP-XTP	13.8	1415
90	Hornady HP-XTP	14.9	1497
90	Hornady HP-XTP	15.9	1573	maximum load
110	Hornady RN or FMJ	11.9	1184
110	Hornady RN or FMJ	13.0	1269
110	Hornady RN or FMJ	14.0	1365
110	Hornady RN or FMJ	15.0	1451	maximum load
T/C & Ruger Using Hornady Bullets Gun: Ruger Blackhawk; barrel length: 7 1/2 inches; case: Hornady Frontier; primer: Winchester Small Rifle; bullet diameter: .308"; 90 GR Hornady HP-XTP COAL: 1.510"; 110 GR RN & FMJ COAL: 1.680"; maximum COAL: 1.680"; maximum case length: 1.290"; trim to length: 1.280".

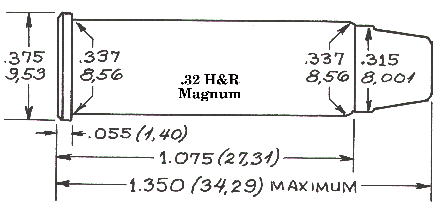

.32 H&R Magnum

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
115	Flat Point	8.6	879	start load; use small pistol magnum primer
115	Flat Point	9.5	1,027	max load; use small pistol magnum primer
Oregon Trail Handgun Data test gun: Thompson Contender 10", WSP; use .308 diameter for TC Contender pistol; OAL: 1.340; never reduce stated overall lengths; do not exceed maximum loads
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
100	Hornady XTP-HP	11.8	1279	maximum
Ruger and Smith & Wesson Revolvers ONLY A 6 1/2-inch barreled Ruger Single-Six Custom was used to fire all loads. Starline cases and Federal 100 primers used throughout. Case length: 1.075 inches.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
100	Speer JHP	9.5	1,039	starting charge; COAL tested: 1.345"
100	Speer JHP	10.5	1,140	MAXIMUM charge; COAL tested: 1.345"
Speer Reloading Manual #14 max. case length: 1.075"; trim-to length: 1.065"; max cart. OAL: 1.350"; RCBS shell holder: #23; cart. case: Federal; primer: CCI 500; test firearm: Ruger Single Six; barrel length: 5.5"; maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Sierra HC	11.0	1,523	primer: FC 100; group (50 yds): 1.9 inches
in a 10-inch Contender For Contender with 10-inch barrel, .308 bore diameter, using .308 bullets. The Hornady 85-grain HC and Sierra 90-grain HC are .312-inch diameter, but loads listed for them were OK in the author's .308-inch Contender. All other jacketed bullets were .308 and cast bullets were sized .308. Consult reloading manuals for data for .32 H&R Magnums in revolvers. Federal cases used for all loads.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
115	Lyman 311316 GC	11.0	1,231	Extreme Spread:16; 1.00 (25-yard group)
Ruger Single-Six Loads

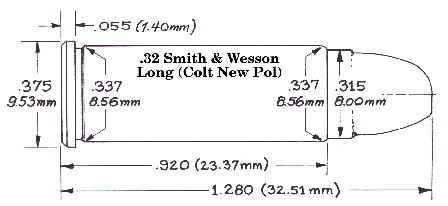

.32 Smith & Wesson Long / .32 S&W Long

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
100	Speer JHP	6.3	629	start charge; test firearm: S&W K32 6"
100	Speer JHP	7.0	769	max charge; test firearm: S&W K32 6"
Speer Reloading Manual #14 This is for the 32 S&W Long and 32 Colt New Police cartridges only. max. case length: 0.920"; trim-to length: 0.910"; max cart. OAL: 1.280"; RCBS shell holder: #23; cart. case: Remington; primer: CCI 500; maximum loads should be used with CAUTION

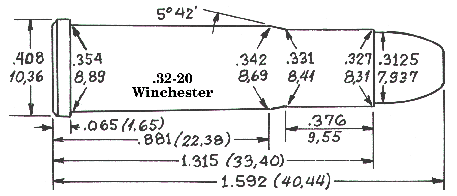

.32-20 Winchester / .32 WCF

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
100	Hornady XTP-HP	12.5	1216	overall loaded length (inches): 1.550; Remington 7 1/2 primer used
100	Hornady XTP-HP	13.0	1262	overall loaded length (inches): 1.550; Remington 7 1/2 primer used
100	Hornady XTP-HP	13.5	1334	overall loaded length (inches): 1.550; Remington 7 1/2 primer used
(+P Pressure) Handloads WARNING: THIS DATA SHOULD ONLY BE USED IN HANDGUNS WITH ADEQUATE STRENGTH TO HANDLE PRESSURES EXCEEDING INDUSTRY SPECIFICATIONS. A Colt Single Action Army with a 4.75-inch barrel was used to test fire these loads. Starline cases were used throughout. Bullet diameter: .312 and .313 inch. Maximum pressure: 30,000 CUP. Maximum overall loaded length: 1.592 inches; maximum case length: 1.315 inches; trim-to length: 1.305 inches.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
100	Speer JHP	13.5	1,349	extreme spread: 56; 25-yard group: 1.7 inches
118	Cast Performance flatnose	11.0	1,231	extreme spread: 33; 25-yard group: 1.3 inches
Colt Single Action Army (30,000 CUP)
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
100	Remington jacketed soft-point	8.5	893	case: Win.; primer: CCI 550; expansion: near max; erratic combustion
100	Remington jacketed soft-point	9.0	922	case: Win.; primer: CCI 550; expansion: maximum; erratic; poor load
Revolver Velocities instrumental at nine feet from muzzle of Smith & Wesson Model 1905 with six-inch barrel.

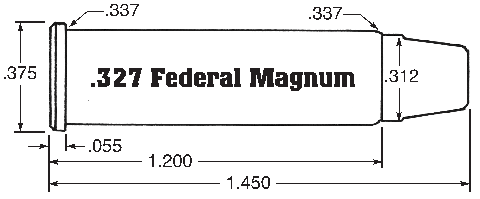

.327 Federal Magnum

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
100	Hornady XTP	12.2	1419	start load; COL: 1.450"; 31,400 psi
100	Hornady XTP	13.2	1525	max load; COL: 1.450"; 38,500 psi
Hodgdon Data Case: Federal; barrel length: 5"; twist: 1:16"; trim length: 1.200"; primer: Federal 200; bullet diam.: .312 (except where otherwise specified in remarks). NEVER EXCEED MAXIMUM LOADS
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
115	Speer Gold Dot Hollow-Point	12.0	1225	start charge
115	Speer Gold Dot Hollow-Point	13.0	1378	max charge; compressed load
100	Speer Gold Dot Hollow-Point	13.0	1377	start charge
100	Speer Gold Dot Hollow-Point	14.0	1502	max charge; compressed load
Speer Gold Dot Data max. case length: 1.200"; trim-to length: 1.190"; COAL tested: 1.465"; max cart. OAL: 1.475"; RCBS shell holder: #23; cart. case: Federal; primer: Federal 205; test firearm: Ruger SP-101; barrel length: 3". SPECIAL NOTE REGARDING PRIMERS: Due to the high operating pressures, factory ammo for the 327 Federal uses small rifle primers to prevent primer flowback. These handloads were developed with Federal #205 small rifle primers. However, small rifle MAGNUM primers are neither required nor recommended. Maximum loads should be used with CAUTION.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Sierra JHC	12.0	1203	primer: CCI 550; case: Federal; OAL (inches): 1.4670
90	Sierra JHC	13.0	1261	primer: CCI 550; case: Federal; OAL (inches): 1.4670
90	Sierra JHC	14.0	1338	primer: CCI 550; case: Federal; OAL (inches): 1.4670; load gave notable accuracy
97	NEI cast Keith SWC	11.5	1274	primer: CCI 550; case: Federal; OAL (inches): 1.4475
97	NEI cast Keith SWC	12.5	1331	primer: CCI 550; case: Federal; OAL (inches): 1.4475
97	NEI cast Keith SWC	13.5	1391	primer: CCI 550; case: Federal; OAL (inches): 1.4475
100	Hornady XTP-HP	12.0	1284	primer: CCI 550; case: Speer; OAL (inches): 1.4545
100	Hornady XTP-HP	13.2	1326	primer: CCI 550; case: Speer; OAL (inches): 1.4545; load gave notable accuracy
115	Speer Gold Dot HP	11.5	1171	primer: CCI 550; case: Speer; OAL (inches): 1.4570
115	Speer Gold Dot HP	12.0	1204	primer: CCI 550; case: Speer; OAL (inches): 1.4570
115	Speer Gold Dot HP	12.5	1263	primer: CCI 550; case: Speer; OAL (inches): 1.4570; load gave notable accuracy
116	Lyman 311316 cast gas check	12.0	1299	primer: CCI 500; case: Federal; OAL (inches): 1.5100; load gave notable accuracy
Data Firearm used was a Ruger SP101 with a 3 1/16-inch barrel. Federal Cartridge and Speer cases used as noted. Maximum case length: 1.200 inches.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
85	Hornady XTP	12.0	1238	overall loaded length (inches): 1.448
85	Hornady XTP	12.5	1267	overall loaded length (inches): 1.448
85	Hornady XTP	13.0	1300	overall loaded length (inches): 1.448
85	Hornady XTP	13.5	1334	overall loaded length (inches): 1.448
85	Hornady XTP	14.0	1369	overall loaded length (inches): 1.448
85	Hornady XTP	14.5	1398	overall loaded length (inches): 1.448
90	Sierra JHC	12.0	1205	overall loaded length (inches): 1.467
90	Sierra JHC	12.5	1233	overall loaded length (inches): 1.467
90	Sierra JHC	13.0	1267	overall loaded length (inches): 1.467
90	Sierra JHC	13.5	1301	overall loaded length (inches): 1.467
90	Sierra JHC	14.0	1329	overall loaded length (inches): 1.467
115	Speer GDHP	12.0	1132	overall loaded length (inches): 1.450
115	Speer GDHP	12.5	1170	overall loaded length (inches): 1.450
115	Speer GDHP	13.0	1221	overall loaded length (inches): 1.450
115	Speer GDHP	13.5	1257	overall loaded length (inches): 1.450
Handloads A Ruger Single-Seven with a 7 1/2-inch barrel was used to test fire these loads. Federal cases and CCI 500 primers were used throughout. Bullet diameter: .312 and .313 inch; maximum case length: 1.200 inches; trim to length: 1.195 inches.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
115	Speer Gold Dot HP	12.5	1335	primer: CCI 550
in a USFA Sparrow Hawk Loads were fired from a 7 1/2-inch barreled USFA Sparrow Hawk in Federal cases. Case length: 1.200 inches.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
125	Rim Rock Keith-style SWC	11.5	1382
125	Rim Rock Keith-style SWC	12.0	1422
Load Data A 7 1/2-inch barreled USFA Sparrow Hawk was used to test loads. Speer cases and Remington 5 1/2 Small Pistol primers used throughout.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Sierra JHC	12.0	1203	primer: CCI 550; case: Federal; overall loaded length (inches): 1.4670
90	Sierra JHC	13.0	1261	primer: CCI 550; case: Federal; overall loaded length (inches): 1.4670
90	Sierra JHC	14.0	1338	primer: CCI 550; case: Federal; overall loaded length (inches): 1.4670
97	NEI cast SWC-Keith	11.5	1274	primer: CCI 550; case: Federal; overall loaded length (inches): 1.4475
97	NEI cast SWC-Keith	12.5	1331	primer: CCI 550; case: Federal; overall loaded length (inches): 1.4475
97	NEI cast SWC-Keith	13.5	1391	primer: CCI 550; case: Federal; overall loaded length (inches): 1.4475
100	Hornady XTP-HP	12.0	1284	primer: CCI 550; case: Speer; overall loaded length (inches): 1.4545
100	Hornady XTP-HP	13.2	1326	primer: CCI 550; case: Speer; overall loaded length (inches): 1.4545
115	Speer Gold Dot HP	11.5	1171	primer: CCI 550; case: Speer; overall loaded length (inches): 1.4570
115	Speer Gold Dot HP	12.0	1204	primer: CCI 550; case: Speer; overall loaded length (inches): 1.4570
115	Speer Gold Dot HP	12.5	1263	primer: CCI 550; case: Speer; overall loaded length (inches): 1.4570
Loads Firearms used for testing these loads was a Ruger SP101 with a 3 1/16-inch barrel. Federal and Speer cases and CCI 500 and CCI 550 primers were used throughout. Case length: 1.200 inches; throat: .313 inch; barrel cylinder gap: .006 inch; groove diameter: .3123 inch.

.357 Auto Mag

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
137	JSP	26.0	1,943	load 2; primer: CCI 350; 49,000 c.u.p.
137	JSP	27.0	1,930	load 3; primer: CCI 350; 48,000 c.u.p.
These loads were developed with cases formed from .44 AMP brass; cases formed from rifle brass may have less capacity, requiring a reduction in charges to maintain equal pressures. Loads 5, 7, 8 and 11 will not produce reliable gun cycling and may be increased from .5 to one grain to do so. They are included to show the relatively high pressure and velocity levels which are essential with the AMP pistol; it doesn't like light loads. Loads two and three are the most versatile of the lot, and are the standard loads adopted by many owners of .357 AMP pistols. Zeroed at 100 yards, these loads drop roughly 8 inches at 200 yards, with standard open sights.

.357 Magnum

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
125	Sierra JSP	18.5	1,266	case: Nor.; primer: CCI 550; case expansion moderate; 6" barrel
146	Speer JHP	14.0	1,003	case: S-X; primer: S-V; case expansion moderate; accurate low velocity load; 6" barrel
146	Speer JHP	15.0	1,142	case: S-X; primer: S-V; case expansion moderate; 6" barrel
150	Sierra JHC	15.5	1,194	case: Nor.; primer: CCI 550; case expansion normal; 6" barrel
158	Hornady JHP	15.0	1,181	case: W-W; primer: CCI 550; case expansion normal; 6" barrel
Colt "357" Revolver with six-inch barrel used for all accuracy and velocity testing. Velocities are Instrumental (IV) taken at ten feet from muzzle. Temperature 60 degrees F. Chronograph set-up: Oehler Model 31 Chronotach with Oehler Model 51 electronic screens; screen spacing ten feet. Update: Alliant Powder Company does not recommend Blue Dot in the .357 magnum using 125-grain bullets. Recipes for heavier bullet weights are acceptable. Their new tests on recent powder samples have shown high pressure spikes that can damage personal property or injure you. For this reason we removed all 125-grain Blue Dot data from .357 magnum tables.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
140	Barnes XPB	15.5	1,245	primer: CCI 550
140	Barnes XPB	16.0	1,260	primer: CCI 550
Barnes X-Pistol Bullets Loads were fired using a Smith & Wesson Model 28 with a 6-inch barrel. Starline cases used throughout. Overall cartridge length: 1.580 inches. Temperature during testing was 92 degrees Fahrenheit.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
135	Speer GDHP SB	17.5	1128	start charge; primer: CCI 550 Magnum
135	Speer GDHP SB	18.5	1205	maximum charge; primer: CCI 550 Magnum
(Handgun Short Barrel Velocities) Speer Reloading Manual #14 max. case length: 1.290"; trim-to length: 1.280"; max cart. OAL: 1.590"; RCBS shell holder: #6; cart. case: Speer; primer: CCI 500 (except where otherwise specified in remarks); test firearm: S&W Model 19; barrel length: 2.5"; maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
125	Speer UCSP, GDHP, UCHP or TMJ FN	18.0	1154	start charge; primer: CCI 550 Magnum
125	Speer UCSP, GDHP, UCHP or TMJ FN	20.0	1282	maximum charge; primer: CCI 550 Magnum
135	Speer GDHP SB	17.5	1313	start charge; primer: CCI 550 Magnum
135	Speer GDHP SB	18.5	1387	maximum charge; primer: CCI 550 Magnum
140	Speer UCHP	16.2	1323	start charge; primer: CCI 550 Magnum
140	Speer UCHP	17.2	1352	maximum charge; primer: CCI 550 Magnum
158	Speer TMJ FN, UCHP, GDHP or UCSP	13.9	1151	start charge; primer: CCI 550 Magnum
158	Speer TMJ FN, UCHP, GDHP or UCSP	15.5	1217	maximum charge; primer: CCI 550 Magnum
170	Speer Mag GDSP	14.4	1024	start charge; primer: CCI 550 Magnum
170	Speer Mag GDSP	15.2	1076	maximum charge; primer: CCI 550 Magnum
(Handgun) Speer Reloading Manual #14 max. case length: 1.290"; trim-to length: 1.280"; max cart. OAL: 1.590"; RCBS shell holder: #6; cart. case: Speer; primer: CCI 500 (except where otherwise specified in remarks); test firearm: S&W model 19; barrel length: 6"; NOTE: Do not use the 110-grain Gold Dot SB HP (#4009) in the 357 Magnum; maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
158	X-Treme Plated HP	15.0	1013	Primer: CCI 550; COAL: 1.540 inches
158	X-Treme Plated HP	15.5	1044	Primer: CCI 550; COAL: 1.540 inches
158	X-Treme Plated HP	16.0	1127	Primer: CCI 550; COAL: 1.540 inches
158	X-Treme Plated HP	16.5	1167	Primer: CCI 550; COAL: 1.540 inches
(in a Ruger GP100 6-inch Barrel) Warning! Gun: Ruger GP100; Barrel Length: 6 inches; Primer: CCI 500 (EXCEPT WHERE NOTED); Bullet Diameter: .357 inch; Maximum Case Length: 1.290 inches; Trim-to Length: 1.280 inches.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
110	XTP	22.0	2308	start load; compressed; min OAL: 1.590
110	XTP	23.0	2398	never exceed; compressed; min OAL: 1.590; 37,200 cup
125	XTP	21.0	1881	start load; compressed; min OAL: 1.590
125	XTP	22.0	1966	never exceed; compressed; min OAL: 1.590; 41,400 cup
130	Jacketed	18.5	1759	start load; compressed; min OAL: 1.540
130	Jacketed	18.5	1759	never exceed; compressed; min OAL: 1.540; 33,600 cup
140	XTP	17.1	1815	start load; min OAL: 1.590
140	XTP	19.0	1997	never exceed; compressed; min OAL: 1.590; 40,900 cup
146	Jacketed	15.5	1537	start load; min OAL: 1.535
146	Jacketed	17.2	1691	never exceed; min OAL: 1.535; 42,600 cup
150	Jacketed	16.0	1706	start load; min OAL: 1.590
150	Jacketed	17.0	1807	never exceed; min OAL: 1.590; 28,900 cup
158	XTP	15.0	1597	start load; min OAL: 1.580
158	XTP	16.7	1757	never exceed; min OAL: 1.580; 40,700 cup
170	Jacketed	14.0	1511	start load; min OAL: 1.580
170	Jacketed	15.5	1662	never exceed; min OAL: 1.580; 40,800 cup
180	Jacketed	13.0	1344	start load; min OAL: 1.575
180	Jacketed	13.5	1396	never exceed; min OAL: 1.575; 39,100 cup
200	Lead	11.5	1212	start load; min OAL: 1.540
200	Lead	11.5	1212	never exceed; min OAL: 1.540; 31,200 cup
Lee Precision Data Small Pistol Primer. With NEVER EXCEED LOADS maintain Minimum Over All Length or longer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
158	Nosler Sporting Handgun Jacketed Hollow Point	15.9	1,490	maximum load; most accurate load tested
158	Nosler Sporting Handgun Jacketed Hollow Point	15.4	1,470
158	Nosler Sporting Handgun Jacketed Hollow Point	14.9	1,460
(Using 158 GR Nosler Bullets) Handgun; Case: Federal; primer: WSPM; barrel length/make: 8.3" H-S Precision; twist: 1-16"; bullets: 158 GR Sporting Handgun Revolver JHP; OACL: 1.585"; maximum OACL: 1.590". Use Maximum Loads with Caution
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
165	Cutting Edge Solid	15.5	1076	do not reduce; CCI 550 primer was used
165	Cutting Edge Solid	16.0	1162	CCI 550 primer was used
(using Cutting Edge bullets) Warning! A Ruger GP 100 with a 6-inch barrel was used to test-fire the loads. Starline cases and CCI 500 primers were used throughout, except where noted. Bullet diameter: .357 inch; maximum case length: 1.290 inches; trim-to length: 1.280 inches. Overall loaded length: 1.570 inches. Source: Handloader Magazine issue #298.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
146	SWC-HP Lyman 358156HP	17.5	1,309	group (inches): 1.6
151	SWC RCBS 38-150KT	17.5	1,291	group (inches): 1.4
174	SWC Lyman 358429	15.0	1,119	group (inches): 1.3
174	SWC Lyman 358429	15.5	1,151	group (inches): 1.6
Cast In An S&W Model 19 All groups fired at 25 yards with revolver mounted in a machine rest. Five shots per group. All handloads used Browning brass and Winchester Small Pistol primers. All bullets crimped heavily. These 14 groups represent only those of 28 tested that grouped five shots into 1.75 inches or less. Six-inch barrel.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
158	Lyman 358156 cast HP GC	13.5	1,154	overall loaded length (inches): 1.655; primer: CCI 550
for S&W Models 19 & 66 Firearm used for testing was an S&W Model 19 with a 4-inch barrel. Starline cases were used throughout. No loads exceeded 30,000 psi.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
150	Cast #358477	12.4	1075	sugg. start load; 17,300 cup
150	Cast #358477	17.7	1459	max load; 41,200 cup
155	Cast #358156 gas check	11.6	1037	sugg. start load; 21,800 cup
155	Cast #358156 gas check	15.7	1363	max load; 40,300 cup
158	Cast #358311	13.0	1115	sugg. start load; 19,100 cup
158	Cast #358311	18.3	1460	max load; 40,100 cup
168	Cast #358429	11.8	1037	sugg. start load; 18,900 cup; potentially most accurate load
168	Cast #358429	15.7	1318	max load; 39,800 cup
Handgun Lyman Cast Bullet Handbook cases: Federal; trim-to length: 1.285"; primers: CCI 550; primer size: Small Pistol Magnum; Lyman shell holder: No. 1; cast bullets used size to .357" dia.; firearm used: Universal Receiver and Special Vented Barrel; barrel length: 4"; twist: 1-18 3/4"; groove diameter: .356"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
125	Hornady Jacketed HP	21.0	1357	sugg. start load; 33,500 cup; 1.590" OAL
125	Hornady Jacketed HP	22.0	1506	max load; compressed load; 42,600 cup; 1.590" OAL
140	Speer Jacketed HP	17.3	1287	sugg. start load; 31,600 cup; 1.590" OAL
140	Speer Jacketed HP	18.0	1324	max load; 35,700 cup; 1.590" OAL
145	Winchester Jacketed Silvertip	16.4	1279	sugg. start load; 1.575" OAL; 37,800 cup
145	Winchester Jacketed Silvertip	17.0	1352	max load; 1.575" OAL; 40,400 cup
146	Speer Jacketed HP	16.3	1336	sugg. start load; 36,000 cup; 1.590" OAL
146	Speer Jacketed HP	17.0	1380	max load; 41,900 cup; 1.590" OAL
158	Hornady Jacketed HP	16.3	1178	sugg. start load; 31,700 cup; 1.590" OAL
158	Hornady Jacketed HP	17.0	1309	max load; 38,400 cup; 1.590" OAL
180	Hornady Jacketed HP	13.9	947	sugg. start load; 1.585" OAL; 30,300 cup
180	Hornady Jacketed HP	14.5	1101	max load; 1.585" OAL; 38,100 cup; potentially most accurate load
Handgun Lyman Reloading Manual 49th Edition cases: Federal; trim-to length: 1.280"; primers: CCI 550; primer size: Small Pistol, Magnum; Lyman shell holder: No. 1; firearm used: Universal Receiver; barrel length: 4"; twist: 1-18 3/4"; groove dia.: .356"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
125	Hornady HP-XTP or FP-XTP	17.4	1400	COAL: 1.590"
125	Hornady HP-XTP or FP-XTP	17.9	1418	COAL: 1.590"
125	Hornady HP-XTP or FP-XTP	18.4	1440	COAL: 1.590"
125	Hornady HP-XTP or FP-XTP	18.9	1461	COAL: 1.590"
125	Hornady HP-XTP or FP-XTP	19.4	1489	COAL: 1.590"
125	Hornady HP-XTP or FP-XTP	19.9	1505	maximum load; COAL: 1.590"
140	Hornady HP-XTP	15.7	1260	COAL: 1.590"
140	Hornady HP-XTP	16.2	1277	COAL: 1.590"
140	Hornady HP-XTP	16.8	1295	COAL: 1.590"
140	Hornady HP-XTP	17.3	1315	COAL: 1.590"
140	Hornady HP-XTP	17.9	1335	COAL: 1.590"
140	Hornady HP-XTP	18.4	1348	maximum load; COAL; 1.590"
158	Hornady HP-XTP or FP-XTP	12.7	1016	COAL: 1.590"
158	Hornady HP-XTP or FP-XTP	13.3	1047	COAL: 1.590"
158	Hornady HP-XTP or FP-XTP	13.9	1082	COAL: 1.590"
158	Hornady HP-XTP or FP-XTP	14.4	1121	COAL: 1.590"
158	Hornady HP-XTP or FP-XTP	15.0	1166	COAL: 1.590"
158	Hornady HP-XTP or FP-XTP	15.6	1197	maximum load; COAL; 1.590"
180	Hornady HP-XTP	11.3	835	COAL: 1.590"
180	Hornady HP-XTP	11.9	903	COAL: 1.590"
180	Hornady HP-XTP	12.5	985	COAL: 1.590"
180	Hornady HP-XTP	13.1	1051	maximum load; COAL; 1.590"
Handgun Using Hornady Bullets Gun: Ruger GP100; barrel length: 6"; case: Starline; primer: Winchester Small Pistol Magnum; bullet diameter: .357"; maximum COAL: 1.590"; maximum case length: 1.290"; trim to length: 1.280".
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
150	Cast #358477	16.3	1245	sugg. start load; 1.510" OAL; 31,300 cup
150	Cast #358477	17.0	1351	max load; 1.510" OAL; 39,900 cup
155	Cast #358156 gas check	15.0	1310	sugg. start load; 1.590" OAL; 35,800 cup
155	Cast #358156 gas check	15.7	1363	max load; 1.590" OAL; 40,300 cup
160	Cast #358311	15.8	1343	sugg. start load; 1.590" OAL; 34,500 cup
160	Cast #358311	16.5	1463	max load; 1.590" OAL; 40,300 cup
170	Cast #358429	14.4	1172	sugg. start load; 1.553" OAL; 33,500 cup
170	Cast #358429	15.0	1285	max load; 1.553" OAL; 40,900 cup; potentially most accurate load
Handgun Cast Bullet Data Lyman Reloading Manual 49th Edition cases: Federal; trim-to length: 1.280"; primers: CCI 550"; primer size: Small Pistol, Magnum; Lyman shell holder: No. 1; cast bullets used sized to .357" dia.; firearm used: Universal Receiver; barrel length: 4"; twist: 1-18 3/4"; groove dia.: .356"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
170	Sierra Jacketed Hollow Cavity	15.0	1094	primer: CCI 550 Small Pistol; overall loaded length (inches): 1.585; group (inches): 3.05
180	Hornady CL-SIL	13.1	1051	primer: CCI 550 Small Pistol; overall loaded length (inches): 1.590; group (inches): 2.80
195	LBT 358 200 FN cast	13.0	955	primer: CCI 550 Small Pistol; overall loaded length (inches): 1.620; group (inches): 4.00
Heavy Bullet Loads Group sizes are the average of five shots fired at 25 yards. Velocities were recorded 10 feet in front of the muzzle of a Smith & Wesson 686 Plus with a 4-inch barrel using Remington cases and Winchester Small Pistol primers (except where noted otherwise in remarks). The revolver was held by hand over a rest to shoot the groups.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
173	Lyman 358429	15.5	1,390	1.50 inch group (25 yards)
125	Hornady XTP	20.0	1,465	1.85 inch group (25 yards)
180	Nosler Partition	13.5	1,194	1.80 inch group (25 yards)
in a 7 1/2 inch Ruger Bisley
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
180	Hornady HP-XTP	13.8	1112	overall loaded length (inches): 1.590
in a Colt Python A Colt Python .357 with a 6-inch barrel was used to test-fire the loads. Starline cases and CCI 500 primers were used throughout. Bullet diameter: .357 inch; maximum case length: 1.290 inches; trim-to length: 1.280 inches.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
158	Hornady XTP-HP	16.8	1213
in a Ruger GP100 Barrel Length: 4 inches; Cases: Starline; Primer: CCI 500; Maximum Overall Loaded Length: 1.590 inches; Maximum Case Length: 1.290 inches; Trim-to Length: 1.280 inches; COAL: 1.580 inches. All loads have been pressure tested between 32,500 and 35,000 psi and are considered maximum. This table illustrates how faster-burning powders do not produce maximum velocities.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
140	Sierra JHC	18.0	1,364	primer: Winchester SPM; 6-inch barrel velocity: 1,398
in a Ruger GP100 - 4-inch Barrel
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
145	Winchester Silvertip hollowpoint	16.5	1243	primer: WSPM; overall loaded length (inches): 1.560
145	Winchester Silvertip hollowpoint	17.5	1208	primer: WSPM; overall loaded length (inches): 1.560
158	Hornady FP-XTP	15.7	1223	primer: WSPM; overall loaded length (inches): 1.580
158	Hornady FP-XTP	16.7	1180	primer: WSPM; overall loaded length (inches): 1.580
in a Smith & Wesson Model 627-5 Starline cases were used throughout. Maximum case length: 1.290 inches; trim-to length: 1.280 inches.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
125	Hornady Jacketed HP/XTP	21.0	1907	sugg. start load; 1.590" OAL
125	Hornady Jacketed HP/XTP	22.0	2019	max load; 1.590" OAL
158	Sierra Jacketed SP	16.3	1522	sugg. start load; 1.590" OAL
158	Sierra Jacketed SP	16.7	1540	max load; 1.590" OAL
180	Hornady Jacketed HP	13.9	1305	sugg. start load; 1.585" OAL
180	Hornady Jacketed HP	14.5	1389	max load; 1.585" OAL
155	Cast #358156 gas check	15.0	1485	sugg. start load; 1.578" OAL
155	Cast #358156 gas check	15.7	1508	max load; 1.578" OAL
170	Cast #358429	14.4	1368	sugg. start load; 1.647" OAL
170	Cast #358429	15.0	1469	max load; 1.647" OAL
204	Cast #358315 gas check	15.8	1442	sugg. start load; 1.880" OAL
204	Cast #358315 gas check	16.5	1515	max load; 1.880" OAL; potentially most accurate load
in a T/C Contender & Encore Lyman Reloading Manual 49th Edition This data was developed for use in the T/C Contender and Encore handguns. It can also be used in other single shot or bolt-action handguns such as the Remington XP-100 and Savage Striker. Do not use these loads in any other type of handgun. Do not use 357 Magnum loads in 38 Special cases as very dangerous pressure will result. Cases: Federal; trim-to length: 1.280"; primers: CCI 550; primer size: Small Pistol, Magnum; Lyman shell holder: No. 1; cast bullets used sized to .357" dia.; firearm used: Thompson/Center Contender; barrel length: 10"; twist: 1-18"; groove dia.: .356"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
158	Hornady XTP-HP	16.5	1,377	firearm: Ruger Bisley; barrel length: 7 1/2"
180	Nosler Partition	14.0	1,269	firearm: Ruger Bisley; barrel length: 7 1/2"
173	Lyman 358429 cast	15.5	1,390	firearm: Ruger Bisley; barrel length: 7 1/2"
Load Data
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
125	Hornady XTP	18.0	1,416
140	Hornady XTP	16.6	1,347
158	Hornady XTP	13.5	1,206
Loads (revolver) 4 3/4-inch revolver. Overall length for all cartridges: 1.590 inches. Federal 205 rifle primers used with all jacketed bullets. CCI 500 pistol primers used with all cast bullets. Velocities instrumental at 8 feet using Oehler M35P. All data average of five, five-shot strings.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
125	Hornady XTP-HP	20.0	1,385	primer: CCI 550
173	Lyman 358429 cast	15.5	1,337	primer: CCI 550; cases cut to 1.250 inches
New Ruger Model Blackhawk Flat Top Starline cases used throughout.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
110	Hornady XTP	22.0	1992	start load; COL: 1.590"; 32,400 cup
110	Hornady XTP	23.0	2078	max load; COL: 1.590"; 37,200 cup
125	Hornady XTP	21.0	1881	start load; COL: 1.590"; 38,400 cup
125	Hornady XTP	22.0	1966	max load; COL: 1.590"; 41,400 cup
140	Hornady XTP	17.1	1597	start load; COL: 1.590"; 28,400 cup
140	Hornady XTP	19.0	1762	max load; COL: 1.590"; 40,900 cup
140	Hornady FTX	12.0	1405	start load; COL: 1.600"; 27,800 psi
140	Hornady FTX	14.5	1607	max load; COL: 1.600"; 31,100 psi
146	Speer JHP	15.5	1512	start load; COL: 1.535"; 29,200 cup
146	Speer JHP	17.2	1691	max load; COL: 1.535"; 42,600 cup
158	Hornady XTP	15.0	1418	start load; COL: 1.580"; 28,600 cup
158	Hornady XTP	16.7	1591	max load; COL: 1.580"; 40,700 cup
170	Sierra JHC	14.0	1328	start load; COL: 1.580"; 25,900 cup
170	Sierra JHC	15.5	1497	max load; COL: 1.580"; 40,800 cup
180	Nosler Part	13.0	1352	start load; COL: 1.575"; 36,800 cup
180	Nosler Part	13.5	1396	max load; COL: 1.575"; 39,100 cup
Pistol Hodgdon Data Case: Winchester; barrel length: 10"; twist: 1:18.75"; trim length: 1.285"; primer: Winchester SPM; bullet diam.: .357" (except where otherwise specified in remarks). NEVER EXCEED MAXIMUM LOADS
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
180	Flat Point	12.4	1,000	starting load; requires magnum pistol primers; do not reduce load below start charge shown
180	Flat Point	13.4	1,169	maximum load; requires magnum pistol primers; do not reduce load below start charge shown
Pistol (Oregon Trail Handgun/Metallic Silhouette Loads) test gun: Smith & Wesson M-686 6", WSP; do not exceed maximum loads; minimum OAL: 1.580; never reduce stated overall lengths
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
158	Round Nose Flat Point/Semi Wad Cutter/Round Nose	13.8	1,225	starting load; minimum OAL: 1.570; requires magnum pistol primers; do not reduce load below start charge shown
158	Round Nose Flat Point/Semi Wad Cutter/Round Nose	14.5	1,296	maximum load; minimum OAL: 1.570; requires magnum pistol primers; do not reduce load below start charge shown
Pistol (Oregon Trail Handgun/Standard Loads) test gun: Smith & Wesson M-686 6", WSP; do not exceed maximum loads; never reduce stated overall lengths
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
125	Hornady XTP	20.0	2,116	rifle load; primer: Win SPM; extreme spread (fps): 56
125	Hornady XTP	20.0	1,463	revolver load; primer: Win SPM; extreme spread (fps): 39
Rifle & Revolver Handloads The .357 Magnum rifle loads were shot using a Marlin 1894CS with an 18 1/2-inch barrel. Revolver loads were from a Smith & Wesson 586 with a 6-inch barrel.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
180	Speer Mag Match TMJ Sil	14.5	1396	start charge; primer: CCI 550 Magnum
180	Speer Mag Match TMJ Sil	16.1	1528	maximum charge; primer: CCI 550 Magnum
Silhouette Speer Reloading Manual #14 max. case length: 1.290"; trim-to length: 1.275"; RCBS shell holder: #6; cart. case: Speer; primer: CCI 500 (except where otherwise specified in remarks); test firearm: T/C Contender; barrel length: 10"; NOTE: A revolver must have a total cylinder length of at least 1.625 inches (not counting rim recesses, if present) to benefit from this specialty bullet. All cases must be trimmed to 1.275 inches and bullets seated so that the case mouth covers almost all the crimping groove. Apply a very firm crimp to prevent bullet jump during recoil. Make a dummy round (no powder or primer) using the above technique and try it in your cylinder. For proper and safe function the bullet tip must be below - not flush with - the face of the cylinder. Use these loads only in single-shot pistols and heavy-frame revolvers. Maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
110	Sierra JHC	18.0		satisfactory
110	Sierra JHC	19.5		satisfactory
110	Sierra JHC	20.4		satisfactory
125	Sierra JHC	17.0		satisfactory
125	Sierra JHC	18.0		pressure signs
125	Sierra JHC	19.0		satisfactory
125	Sierra JHC	19.8		satisfactory
Snub-gun Loads 2 1/2-inch S&W Model 19; approach all maximum loads with caution; all loads used CCI 550 primers; no velocities provided in this table except where noted from "Speer Reloading Manual #8"

.357 Maximum

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
110	Hornady XTP	29.0	2101	starting load; COL: 1.910"
110	Hornady XTP	30.0	2242	maximum load; COL: 1.910"
125	Speer JSP	27.5	2014	starting load; COL: 1.885"
125	Speer JSP	28.5	2163	maximum load; COL: 1.885"
140	Speer JHP	24.0	1836	starting load; COL: 1.890"
140	Speer JHP	26.0	2001	maximum load; COL: 1.890"
150	Nosler SP	23.0	1724	starting load; COL: 1.890"
150	Nosler SP	25.0	1947	maximum load; COL: 1.890"
160	Hornady JTC SIL	22.0	1643	starting load; COL: 1.890"
160	Hornady JTC SIL	24.0	1886	maximum load; COL: 1.890"
170	Sierra JHC	20.0	1690	starting load; COL: 1.880"
170	Sierra JHC	22.0	1784	maximum load; COL: 1.880"
180	Speer TMJ SIL	19.0	1544	starting load; COL: 1.990"
180	Speer TMJ SIL	21.0	1694	maximum load; COL: 1.990"
200	Speer TMJ SIL	18.0	1411	starting load; COL: 1.990"
200	Speer TMJ SIL	20.0	1604	maximum load; COL: 1.990"
Hodgdon Pistol Data case: Remington; barrel length: 10"; twist: 1:18.75"; trim length: 1.600"; primer: Remington 7 1/2; bullet diam.: .357" (except where otherwise specified in remarks); NEVER EXCEED MAXIMUM LOADS
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
110	XTP	29.0	2179	start load; compressed charge; min OAL: 1.910
110	XTP	30.0	2242	never exceed; compressed charge; min OAL: 1.910
125	Jacketed	27.5	2082	start load; compressed charge; min OAL: 1.885
125	Jacketed	28.5	2163	never exceed; compressed charge; min OAL: 1.885
140	Jacketed	24.0	1854	start load; min OAL: 1.890
140	Jacketed	26.0	2001	never exceed; min OAL: 1.890
150	Jacketed	23.0	1805	start load; min OAL: 1.890
150	Jacketed	25.0	1947	never exceed; min OAL: 1.890
160	Jacketed	22.0	1747	start load; min OAL: 1.890
160	Jacketed	24.0	1886	never exceed; min OAL: 1.890
170	Jacketed	20.0	1637	start load; min OAL: 1.880
170	Jacketed	22.0	1784	never exceed; min OAL: 1.880
180	Jacketed	19.0	1540	start load; min OAL: 1.990
180	Jacketed	21.0	1694	never exceed; min OAL: 1.990
200	Jacketed	18.0	1458	start load; min OAL: 1.990
200	Jacketed	20.0	1604	never exceed; min OAL: 1.990
Lee Precision Data With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Pistol primer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
125	Speer UCSP, GDHP or TMJ RN	27.0	2205	start charge
125	Speer UCSP, GDHP or TMJ RN	29.0	2432	maximum charge; compressed load
140	Speer UCHP	25.0	2095	start charge
140	Speer UCHP	27.0	2283	maximum charge; compressed load
158	Speer TMJ FN or UCHP	22.0	1896	start charge
158	Speer TMJ FN or UCHP	24.0	2058	maximum charge
170	Speer Mag GDSP or 180-gr FNSP	20.5	1662	start charge
170	Speer Mag GDSP or 180-gr FNSP	22.5	1820	maximum charge
180	Speer Mag Match TMJ Sil	18.5	1546	start charge
180	Speer Mag Match TMJ Sil	20.5	1699	maximum charge
220	Speer FN SP	16.5	1339	start charge
220	Speer FN SP	18.5	1541	maximum charge
Speer Reloading Manual #14 max. case length: 1.605"; trim-to length: 1.595"; max cart. OAL: 1.990"; RCBS shell holder: #6; cart. case: Remington; primer: CCI 400; test firearm: T/C Contender; barrel length: 14"; NOTE: the 180-gr FN SP and 220-gr bullet is for single-shot firearms only; maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
180	Hornady full-metal-jacket	21	1,513	compressed charge
158	Hornady jacketed hollow-point	23	1,559	compressed charge
140	Sierra jacketed hollow-cavity	25	1,671	compressed charge
125	Speer jacketed hollow-point	28	1,789	compressed charge
110	Speer jacketed hollow-point	29	1,824	compressed charge
in Ruger Blackhawk 7 1/2 inch barrel All loads were maximum in the 7 1/2-inch-barreled Ruger Blackhawk, and should not be used unless charges one and two grains lighter produce no sign of excessive pressure. R-P cases, CCI BR-4 primers.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
158	Sierra JSP	26.0	1,565	accuracy: 5 1/4 inches
158	Sierra JSP	26.5	1,562	accuracy: 6 inches; near maximum
180	Hornady JTCSIL	22.5	1,104	accuracy: 4 inches
180	Hornady JTCSIL	23.0	1,150	accuracy: 4 3/8 inches
180	Hornady JTCSIL	23.5	1,554	accuracy: 2 3/4 inches
180	Sierra FPJ	24.0	1,503	accuracy: 3 1/8 inches
180	Sierra FPJ	24.5	1,550	accuracy: 3 inches
190	Cast FN	23.5	1,549	accuracy: 2 7/8 inches
190	Cast FN	24.0	1,566	accuracy: 5 3/4 inches
190	Cast FN	24.5	1,544	accuracy: 2 inches
190	Cast FN	25.0	1,576	accuracy: 3 3/4 inches
190	Cast FN	25.5	1,678	accuracy: 3 inches
in USA Seville
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
180	Speer FNFMJ	20.5	1,425	accuracy: 3 1/8 inches. (A very heavy crimp must be used with this bullet. If the bullet is allowed to "walk," even to the end of the cannelure, it will jam the gun.)
180	Speer FNFMJ	21.0	1,406	accuracy: 3 3/8 inches. (A very heavy crimp must be used with this bullet. If the bullet is allowed to "walk," even to the end of the cannelure, it will jam the gun.)
180	Speer FNFMJ	21.5	1,410	accuracy: 2 3/4 inches. (A very heavy crimp must be used with this bullet. If the bullet is allowed to "walk," even to the end of the cannelure, it will jam the gun.)
180	Speer FNFMJ	22.0	1,471	accuracy: 2 1/2 inches. (A very heavy crimp must be used with this bullet. If the bullet is allowed to "walk," even to the end of the cannelure, it will jam the gun.)
180	Speer FNFMJ	22.5	1,554	accuracy: 2 1/2 inches. (A very heavy crimp must be used with this bullet. If the bullet is allowed to "walk," even to the end of the cannelure, it will jam the gun.)
180	Speer FNFMJ	23.0	1,537	accuracy: 3 inches. (A very heavy crimp must be used with this bullet. If the bullet is allowed to "walk," even to the end of the cannelure, it will jam the gun.)
180	Speer FNFMJ	23.5		accuracy: 3 inches. (A very heavy crimp must be used with this bullet. If the bullet is allowed to "walk," even to the end of the cannelure, it will jam the gun.)
180	Speer FNFMJ	24.0	1,525	accuracy: 5 inches. (A very heavy crimp must be used with this bullet. If the bullet is allowed to "walk," even to the end of the cannelure, it will jam the gun.)
180	Speer FNFMJ	24.5	1,615	accuracy: 3 1/8 inches; near maximum. (A very heavy crimp must be used with this bullet. If the bullet is allowed to "walk," even to the end of the cannelure, it will jam the gun.)
Loads in Ruger
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
180	Hornady FMJ	19.0	1,535	primer: CCI 400; pressure (CUP): 23,390; group: 1 15/16 inches; mild
180	Hornady FMJ	21.5	1,690	primer: CCI 400; pressure (CUP): 33,705; group: 2 1/4 inches
Pressure Barrel Data 14-inch pressure test barrel; groups fired at 50 yards. Manufacturers of arms chambered for the .357 Maximum caution against firing loads exceeding 45,000 CUP. Loads listed here giving pressures over 40,000 CUP are for reference only and are not recommended.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
158	Nosler Sporting Handgun Jacketed Hollow Point	23.5	1940	maximum load
158	Nosler Sporting Handgun Jacketed Hollow Point	23.0	1900
158	Nosler Sporting Handgun Jacketed Hollow Point	22.5	1860	most accurate load tested
(Using 158 GR Nosler Bullets) Handgun; case: Federal; primer: Fed 205; barrel length/make: 10.5" H-S Precision; twist: 1-18.75"; bullets: 158 GR Nosler Sporting Handgun Revolver JHP; maximum OACL: 1.990". Use Maximum Loads with Caution
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
110	Hornady HP-XTP	26.4	1822
110	Hornady HP-XTP	27.0	1880
110	Hornady HP-XTP	27.5	1938
110	Hornady HP-XTP	28.1	1995	maximum load
125	Hornady FP-XTP or HP-XTP	22.7	1734
125	Hornady FP-XTP or HP-XTP	23.4	1751
125	Hornady FP-XTP or HP-XTP	24.0	1771
125	Hornady FP-XTP or HP-XTP	24.7	1791
125	Hornady FP-XTP or HP-XTP	25.4	1811
125	Hornady FP-XTP or HP-XTP	26.0	1831	maximum load
140	Hornady HP-XTP	20.7	1635
140	Hornady HP-XTP	21.3	1642
140	Hornady HP-XTP	21.9	1650
140	Hornady HP-XTP	22.5	1659
140	Hornady HP-XTP	23.1	1667	maximum load
158	Hornady FP-XTP or HP-XTP	18.2	1282
158	Hornady FP-XTP or HP-XTP	18.7	1305
158	Hornady FP-XTP or HP-XTP	19.2	1332
158	Hornady FP-XTP or HP-XTP	19.6	1360
158	Hornady FP-XTP or HP-XTP	20.1	1388
158	Hornady FP-XTP or HP-XTP	20.6	1412	maximum load
180	Hornady HP-XTP	16.6	1350
180	Hornady HP-XTP	17.0	1358
180	Hornady HP-XTP	17.5	1367
180	Hornady HP-XTP	18.0	1377
180	Hornady HP-XTP	18.5	1386	maximum load
Using Hornady Bullets Gun: Ruger New Model Super Blackhawk; barrel length: 7 1/2 inches; case: Federal; primer: Remington 7 1/2 Small Rifle; bullet diameter: .357"; COAL: 1.890"; maximum COAL: 1.990"; maximum case length: 1.605"; trim to length: 1.595".
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
158	Hornady Jacketed HP	17.0	1519	10" Bbl.; sugg. start load; 1.910" OAL
158	Hornady Jacketed HP	17.0	1635	14" Bbl.; sugg. start load; 1.910" OAL
158	Hornady Jacketed HP	20.5	1715	10" Bbl.; max load; 1.910" OAL
158	Hornady Jacketed HP	20.5	1769	14" Bbl.; max load; 1.910" OAL
170	Sierra Jacketed SIL FMJ	16.0	1503	10" Bbl.; sugg. start load; 1.905" OAL
170	Sierra Jacketed SIL FMJ	16.0	1542	14" Bbl.; sugg. start load; 1.905" OAL
170	Sierra Jacketed SIL FMJ	19.0	1675	10" Bbl.; max load; 1.905" OAL; potentially most accurate load
170	Sierra Jacketed SIL FMJ	19.0	1736	14" Bbl.; max load; 1.905" OAL; potentially most accurate load
180	Hornady Jacketed JTC SIL	15.0	1377	10" Bbl.; sugg. start load; 1.890" OAL
180	Hornady Jacketed JTC SIL	15.0	1411	14" Bbl.; sugg. start load; 1.890" OAL
180	Hornady Jacketed JTC SIL	18.0	1495	10" Bbl.; max load; 1.890" OAL
180	Hornady Jacketed JTC SIL	18.0	1560	14" Bbl.; max load; 1.890" OAL
155	Cast #358156 gas check	16.0	1489	10" Bbl.; primer: CCI 450; sugg. start load; 1.895" OAL
155	Cast #358156 gas check	16.0	1603	14" Bbl.; primer: CCI 450; sugg. start load; 1.895" OAL
155	Cast #358156 gas check	19.0	1598	10" Bbl.; primer: CCI 450; max load; 1.895" OAL
155	Cast #358156 gas check	19.0	1714	14" Bbl.; primer: CCI 450; max load; 1.895" OAL
168	Cast #358429	16.0	1498	10" Bbl.; primer: CCI 450; sugg. start load 1.965" OAL
168	Cast #358429	16.0	1631	14" Bbl.; primer: CCI 450; sugg. start load; 1.965" OAL
168	Cast #358429	18.7	1575	10" Bbl.; primer: CCI 450; max load; 1.965" OAL
168	Cast #358429	18.7	1690	14" Bbl.; primer: CCI 450; max load; 1.965" OAL
in a T/C Contender & Encore Lyman Reloading Manual 49th Edition This data was developed for use in the T/C Contender and Encore handguns. It can also be used in other single shot or bolt-action handguns such as the Remington XP-100 and Savage Striker. Do not use these loads in any other type of handgun. Do not use 357 Remington Maximum loads in 357 Magnum cases as very dangerous pressure will result. Cases: Remington; trim-to length: 1.600"; primers: Remington 6 1/2 (except where otherwise specified in remarks); primer size: Small Rifle; Small Rifle Magnum; Lyman shell holder: No. 1; cast bullets used sized to .357" dia.; firearm used: Thompson/Center Contender; barrel length: 10" and 14"; twist: 1-14"; groove dia.: .357"

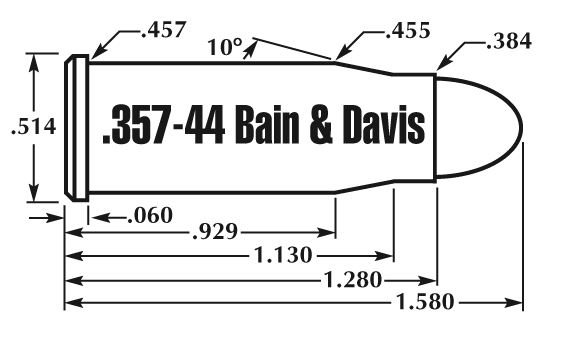

.357-44 Bain & Davis

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
110	Jacketed	24.0	1746	start load; min OAL: 1.580
110	Jacketed	25.0	1810	never exceed; min OAL: 1.580
125	Jacketed	23.0	1703	start load; min OAL: 1.580
125	Jacketed	24.0	1769	never exceed; min OAL: 1.580
140	Jacketed	22.0	1636	start load; min OAL: 1.580
140	Jacketed	23.0	1700	never exceed; min OAL: 1.580
150	Jacketed	21.0	1610	start load; min OAL: 1.580
150	Jacketed	22.0	1689	never exceed; min OAL: 1.580
158	XTP	20.0	1529	start load; min OAL: 1.580
158	XTP	21.0	1604	never exceed; min OAL: 1.580
Lee Precision Data CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Large Pistol primer. (MODERN RELOADING Second Edition - Richard Lee
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
110	Hornady Jacketed Hollow Point	24.0	1,746	starting load
110	Hornady Jacketed Hollow Point	25.0	1,810	maximum load
125	Sierra Jacketed Soft Point	23.0	1,698	starting load
125	Sierra Jacketed Soft Point	24.0	1,769	maximum load
140	Speer Jacketed Hollow Point	22.0	1,611	starting load
140	Speer Jacketed Hollow Point	23.0	1,700	maximum load
150	Nosler SP	21.0	1,592	starting load
150	Nosler SP	22.0	1,689	maximum load
158	Hornady XTP	20.0	1,499	starting load
158	Hornady XTP	21.0	1,604	maximum load
Pistol Hodgdon Data case: Federal (REF); barrel length: 10"; twist: 1:14"; trim length: 1.270"; primer: Federal 150; bullet diam.: .357"; COL: 1.580"; NEVER EXCEED MAXIMUM LOADS

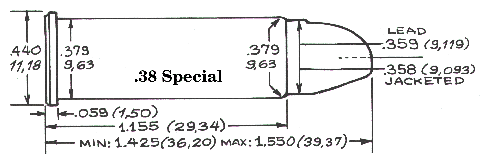

.38 Special (.38-44 High Velocity)

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
165	Lyman 358439	11.0	1,082
Colt Peacemaker Loads Winchester +P cases used throughout with CCI 450 primers. (Loading the Peacemaker - Dave Scovill)
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
140	Sierra JHC	10.0	862	case expansion maximum
Jacketed Bullet Loads in 8 3/8-inchBarrel Loads labeled "maximum" should not be exceeded! Reduce maximum loads 10% for light and alloy-framed guns.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
158	Hornady JHP	9.5	625	case expansion maximum
Jacketed Bullet Loads in a 2-inch Barrel Loads labeled "maximum" should not be exceeded! Reduce maximum loads 10% for light and alloy-framed guns.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
158	Hornady JHP	9.5	797	case expansion maximum
Jacketed Bullet Loads in a 6-inch Barrel Loads labeled "maximum" should not be exceeded! Reduce maximum loads 10% for light and alloy-framed guns.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
160	Speer HJSP	10.5	929	muzzle energy (ft-lbs): 310
Jacketed Bullets in a 6-inch Barrel

.38 Super

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
115	Sierra JHC	13.0	1,115	case: SV; length (in.): 1.24; expansion: normal
115	Sierra JHC	13.5	1,290	case: SV; length (in.): 1.24; expansion: near max
125	Sierra FMJ	12.5	1,093	case: W-W; length (in.): 1.28; expansion: normal
in a 5-inch Barrel Test gun Colt .38 Super Automatic with five-inch Colt barrel; Winchester 108 Small Pistol primers; velocities chronographed ten feet from muzzle.

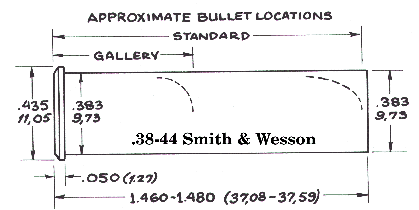

.38-44

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
140	Sierra JHC	15.0	1,187	primer: CCI 550; don't reduce charge
156	RCBS 38-150-SWC cast	14.5	1,253	primer: CCI 550
173	Lyman 358429 cast	14.0	1,207	primer: CCI 550
High-Velocity Loads THE FOLLOWING LOADS EXCEED SAAMI PRESSURE LIMITS FOR THE .38 SPECIAL. They should ONLY be used in .38 Special revolvers with a ".44" or ".45" frame such as the Colt SAA, New Service, Smith & Wesson N-Frame "Heavy Duty" and "Outdoorsman" revolvers. Pressures approach those common with the .357 Magnum and should only be used in the above revolvers that are in good condition. Use with caution. A Smith & Wesson .38-44 Outdoorsman with a 6 1/2-inch barrel was used to test loads. Starline cases used throughout. Temperature during testing was 46 degrees Fahrenheit.

.41 Magnum / .41 Remington Magnum

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
170	Sierra jacketed hollow cavity	24.5	1,375	group size: .75 inch
180	Speer Gold Dot	22.0	1,261	group size: 1.00 inch
200	Speer hollowpoint	21.0	1,256	group size: 1.00 inch
210	Hornady hollowpoint	22.0	1,258	group size: 1.00 inch
210	Hornady	22.0	1,339	group size: .75 inch
210	Sierra jacketed hollow cavity	20.0	1,227	group size: 1.00 inch
220	Speer softpoint	20.0	1,284	group size: .75 inch
Update: Alliant Powder Company does not recommend Blue Dot in the .41 Magnum for any bullet weights. Their new tests on recent powder samples have shown high pressure spikes that can damage personal property or injure you. For this reason we removed all Blue Dot data from .41 magnum tables. (Handloader Issue #191 - February/March, 1998)
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Speer JHP-SWC	20.0	1290	start charge; primer: CCI 350 Magnum
200	Speer JHP-SWC	22.0	1412	maximum charge; primer: CCI 350 Magnum
210	Speer GDHP	20.5	1237	start charge; primer: CCI 350 Magnum
210	Speer GDHP	21.5	1265	maximum charge; primer: CCI 350 Magnum
220	Speer JSP-SWC	18.5	1235	start charge; primer: CCI 350 Magnum
220	Speer JSP-SWC	20.5	1352	maximum charge; primer: CCI 350 Magnum
(Handgun) Speer Reloading Manual #14 max. case length: 1.290"; trim-to length: 1.280"; max cart. OAL: 1.590"; RCBS shell holder: #30; cart. case: Winchester; primer: CCI 300 (except where otherwise specified in remarks); test firearm: S&W Model 57; barrel length: 6"; maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
170	Sierra JHC	23.5	1669	start load; COL: 1.575"; 21,400 cup
170	Sierra JHC	26.5	1887	max load; COL: 1.575"; 37,400 cup
210	Hornady XTP	19.8	1465	start load; COL: 1.580"; 25,600 cup
210	Hornady XTP	22.0	1631	max load; COL: 1.580"; 36,400 cup
220	Speer JSP	18.0	1352	start load; COL: 1.580"; 23,000 cup
220	Speer JSP	20.0	1529	max load; COL: 1.580"; 34,000 cup
245	Cast LSWC	18.5	1372	start load; COL: 1.630"; 22,800 cup
245	Cast LSWC	21.0	1563	max load; COL: 1.630"; 37,400 cup
250	WFNGC	17.4	1391	start load; COL: 1.540"; 29,400 cup
250	WFNGC	18.5	1479	max load; COL: 1.540"; 38,700 cup
255	WFNGC	18.0	1327	start load; COL: 1.660"; 21,000 cup
255	WFNGC	19.5	1491	max load; COL: 1.660"; 37,200 cup
265	WLNGC	19.5	1410	start load; COL: 1.710"; 24,400 cup
265	WLNGC	20.8	1540	max load; COL: 1.710"; 37,600 cup
Hodgdon Pistol Data Case: Remington; twist: 1:18.75"; primer: Winchester LP; barrel length: 10.125"; trim length: 1.280"; BULLET DIAM.: .410". NEVER EXCEED MAXIMUM LOADS
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
215	Lyman 410610	20.0	1,392
223	Saeco 290411	18.0	1,219
(in a 4-inch S&W) All Remington cases, CCI No. 350 large pistol magnum primers, bullets cast of linotype metal, sized .410.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
215	Lyman 410610	20.0	1,486
223	Saeco 290411	18.0	1,303
(in a 6 1/2-inch Ruger) All Remington cases, CCI No. 350 large pistol magnum primers, bullets cast of linotype metal, sized .410.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
215	Lyman 410610	20.0	1,451
223	Saeco 290411	18.0	1,311
(in a 6-inch S&W) All Remington cases, CCI No. 350 large pistol magnum primers, bullets cast of linotype metal, sized .410.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
170	Sierra JHP	25.5	1,522	primer: Federal 155
200	Speer JHP-SWC	22.0	1,330	primer: Federal 155
210	Hornady XTP-HP	22.5	1,354	primer: Federal 155
220	Lyman 410459	21.0	1,320	primer: Federal 155
255	Cast Performance WFNGC	19.5	1,217	primer: Federal 155
(in a Ruger Blackhawk) Ruger Blackhawk has a barrel length of 6 1/2 inches. Starline brass used in all loads. Temperature during range tests was 28 degrees Fahrenheit.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
170	Sierra JHC	25.5	1522	primer: Federal 155; overall loaded length (inches): 1.568
200	Speer JHP-SWC	22.0	1330	primer: Federal 155; overall loaded length (inches): 1.600
210	Hornady HP-XTP	22.0	1338	primer: Federal 155; overall loaded length (inches): 1.575
221	Lyman 410459	21.0	1320	primer: Federal 155; overall loaded length (inches): 1.695
255	Cast Performance WFNGC	19.5	1217	primer: Federal 155; overall loaded length (inches): 1.655
(in a Ruger Blackhawk, 6 1/2-inch barrel) Ruger Blackhawk, 6 1/2-inch barrel. Starline brass used for all loads. SAAMI maximum overall loaded length is 1.590 inches. Maximum case length: 1.290 inches; trim-to length: 1.280 inches. Bullets cast from Lyman mould 410459 will vary in weight from 216 to 221 grains, depending on the individual mould, alloy and or lubricant used.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
210	Hornady HP-XTP	20.5	1166	primer: CCI 350; overall loaded length (inches): 1.575
210	Hornady HP-XTP	21.0	1199	primer: CCI 350; overall loaded length (inches): 1.575
210	Hornady HP-XTP	21.5	1243	primer: CCI 350; overall loaded length (inches): 1.575
210	Hornady HP-XTP	22.0	1305	primer: CCI 350; overall loaded length (inches): 1.575
220	Speer JSP SWC	21.0	1261	primer: CCI 350; overall loaded length (inches): 1.600
223	Hensley & Gibbs 258 cast	21.5	1278	primer: CCI 350; overall loaded length (inches): 1.698
223	Hensley & Gibbs 258 cast	22.0	1330	primer: CCI 350; overall loaded length (inches): 1.698
(in a Ruger New Model Blackhawk Bisley) Ruger New Model Blackhawk Bisley (stainless), 5 1/2-inch barrel. Starline brass used for all loads. SAAMI maximum overall loaded length is 1.590 inches. Maximum case length: 1.290 inches; trim-to length: 1.280 inches. Bullets cast from Lyman mould 410459 will vary in weight from 216 to 221 grains, depending on the individual mould, alloy and or lubricant used.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
210	Hornady HP-XTP	20.5	1155	primer: CCI 350; overall loaded length (inches): 1.575
210	Hornady HP-XTP	21.0	1170	primer: CCI 350; overall loaded length (inches): 1.575
210	Hornady HP-XTP	21.5	1212	primer: CCI 350; overall loaded length (inches): 1.575
223	Hensley & Gibbs 258 cast	21.5	1257	primer: CCI 350; overall loaded length (inches): 1.698
(in a Smith & Wesson Model 57) Smith & Wesson Model 57, 4-inch barrel. Starline brass used for all loads. SAAMI maximum overall loaded length is 1.590 inches. Maximum case length: 1.290 inches; trim-to length: 1.280 inches. Bullets cast from Lyman mould 410459 will vary in weight from 216 to 221 grains, depending on the individual mould, alloy and or lubricant used.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
170	Sierra JHC	25.5	1447	primer: Federal 155; overall loaded length (inches): 1.568
200	Speer JHP-SWC	22.0	1262	primer: Federal 155; overall loaded length (inches): 1.600
210	Hornady HP-XTP	22.5	1288	primer: Federal 155; overall loaded length (inches): 1.575
221	Lyman 410459	21.0	1253	primer: Federal 155; overall loaded length (inches): 1.695
221	Lyman 410459	22.0	1322	primer: Federal 155; overall loaded length (inches): 1.695
255	Cast Performance WFNGC	19.5	1145	primer: Federal 155; overall loaded length (inches): 1.655
(in a Smith & Wesson Model 657 Mountain Gun) Smith & Wesson Model 657 Mountain Gun, 4-inch barrel. Starline brass used for all loads. SAAMI maximum overall loaded length is 1.590 inches. Maximum case length: 1.290 inches; trim-to length: 1.280 inches. Bullets cast from Lyman mould 410459 will vary in weight from 216 to 221 grains, depending on the individual mould, alloy and or lubricant used.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
170	Sierra JHP	25.5	1,447	primer: Federal 155
200	Speer JHP-SWC	22.0	1,262	primer: Federal 155
210	Hornady XTP-HP	22.5	1,288	primer: Federal 155
220	Lyman 410459 cast	21.0	1,253	primer: Federal 155
255	Cast Performance WFNGC	19.5	1,145	primer: Federal 155
(in an S&W Model 657) The Smith & Wesson Model 657 Mountain Gun has a barrel length of 4 inches. Starline brass used in all loads. Temperature during range tests was 28 degrees Fahrenheit.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
170	Jacketed	23.5	1669	start load; compressed; min OAL: 1.575
170	Jacketed	26.5	1887	never exceed; compressed; min OAL: 1.575; 37,400 cup
210	XTP	19.8	1465	start load; min OAL: 1.580
210	XTP	22.0	1631	never exceed; compressed; min OAL: 1.580; 36,400 cup
220	Jacketed	18.0	1352	start load; min OAL: 1.580
220	Jacketed	20.0	1529	never exceed; min OAL: 1.580; 34,000 cup
245	Lead	18.5	1372	start load; min OAL: 1.630
245	Lead	21.0	1563	never exceed; compressed; min OAL: 1.630; 37,400 cup
250	Lead	18.5	1219	start load; min OAL: 1.540
250	Lead	20.5	1342	never exceed; min OAL: 1.540
300	Lead	17.1	1152	start load; min OAL: 1.540
300	Lead	19.0	1267	never exceed; min OAL: 1.540
Lee Precision Data CAUTION: With NEVER EXCEED LOADS; maintain Minimum Over All Length or longer. (Modern Reloading, Second Edition - Richard Lee)
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
170	Sierra Jacketed HC	24.1	1582	sugg. start load; 1.580" OAL; 29,900 cup
170	Sierra Jacketed HC	25.2	1700	max load; 1.580" OAL; 36,800 cup
200	Speer Jacketed HP	20.0	1314	sugg. start load; 1.590" OAL; 32,400 cup
200	Speer Jacketed HP	21.0	1533	max load; 1.590" OAL; 37,600 cup
210	Hornady Jacketed HP/XTP	20.5	1387	sugg. start load; 1.585" OAL; 35,400 cup
210	Hornady Jacketed HP/XTP	21.5	1473	max load; 1.585" OAL; 37,000 cup
220	Speer Jacketed SP	18.6	1268	sugg. start load; 1.590" OAL; 33,500 cup
220	Speer Jacketed SP	19.4	1397	max load; 1.590" OAL; 39,100 cup
Lyman Reloading Handbook 49th Edition cases: Winchester; trim-to length: 1.280"; primers: Winchester WLP; primer size: Large Pistol; Lyman shell holder: No. 30; firearm used: Universal Receiver; barrel length: 4"; twist: 1-18 3/4"; groove dia.: .409"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
265	TrueShot WNFP-GC	19.0	1231	primer: CCI 350
265	TrueShot WNFP-GC	19.5	1261	primer: CCI 350
Oregon Trail Cast Bullet Loads Ruger Blackhawk; 6 1/2-inch barrel; case: Starline; overall loaded length (inches): 1.715; maximum case length: 1.290 inches; trim-to length: 1.280 inches.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
210	W-W Lead SWC	17.0	1,132	case: R-P; primer: R 2 1/2; O.A. Ctg. Lgt.: 1.66; case expansion: moderate
207	Lyman 410610 G.C.	18.0	1,282	case: R-P; primer: R 2 1/2; O.A. Ctg. Lgt.: 1.57; case expansion: moderate; very accurate
222	Ohaus 41-210K SWC	17.5	1,307	case: R-P; primer: R 2 1/2; O.A. Ctg. Lgt.: 1.58; case expansion: normal; note high velocity due to increased bullet resistance
210	R-P JSP	18.0	1,164	case: R-P; primer: CCI 350; O.A. Ctg. Lgt.: 1.58; case expansion: moderate; one of two most accurate loads tested
210	W-W JSP	18.0	1,163	case: R-P; primer: CCI 350; O.A. Ctg. Lgt.: 1.58; case expansion: moderate; very accurate
200	Speer JHP	18.5	1,322	case: R-P; primer: CCI 350; O.A. Ctg. Lgt.: 1.60; case expansion: moderate; best all-around jacketed bullet load; also, one of two most accurate
210	Hornady JHP	18.5	1,316	case: R-P; primer: CCI 350; O.A. Ctg. Lgt.: 1.58; case expansion: normal; excellent hunting load
170	Sierra JHC	19.5	1,501	case: R-P; primer: CCI 350; O.A. Ctg. Lgt.: 1.575; case expansion: normal; highest velocity load tested; very accurate
220	Speer JSP	18.5	1,298	case: R-P; primer: CCI 350; O.A. Ctg. Lgt.: 1.605; case expansion: normal; extremely accurate
200	Harvey J-J	19.0	1,419	case: R-P; primer: CCI 350; O.A. Ctg. Lgt.: 1.62; case expansion: near max.; heavy recoil and flash
Pet Loads All loads chronographed from 6 1/2-inch barrel Ruger Blackhawk. Oehler Model 31 Chronotach, Oehler Model 51 Electronic screens, spaced 10 feet apart; I.V. = Instrumental Velocity at 10 feet from muzzle. Update: Alliant Powder Company does not recommend Blue Dot in the .41 Magnum for any bullet weights. Their new tests on recent powder samples have shown high pressure spikes that can damage personal property or injure you. For this reason we removed all Blue Dot data from .41 magnum tables.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Speer JHP-SWC	20.0	1,290	CCI Magnum Primer used with this powder
200	Speer JHP-SWC	22.0	1,412	maximum load; CCI Magnum Primer used with this powder
210	Speer JSP-SWC	18.5	1,235	can also be used with 220 gr bullet; CCI Magnum Primer used with this powder
210	Speer JSP-SWC	20.5	1,352	maximum load; can also be used with 220 gr bullet; CCI Magnum Primer used with this powder
Speer Reloading Manual #13 Max. Case Length: 1.290"; Trim-to Length: 1.280"; Max. Cart. Length: 1.590"; RCBS Shellholder: #30; Barrel Length: 6"; Twist: 1-18.75"; Test Firearm: Smith & Wesson Model 57; Case: W-W; Primers: CCI 350; Update: Alliant Powder Company does not recommend Blue Dot in the .41 Magnum for any bullet weights. Their new tests on recent powder samples have shown high pressure spikes that can damage personal property or injure you. For this reason we removed all Blue Dot data from .41 magnum tables.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
210	Speer GDHP	20.5	1704	start charge; primer: CCI 350 Magnum
210	Speer GDHP	21.5	1776	maximum charge; primer: CCI 350 Magnum
Speer Reloading Manual #14 max. case length: 1.290"; trim-to length: 1.280"; max cart. OAL: 1.590"; RCBS shell holder: #30; cart. case: Winchester; primer: CCI 300 (except where otherwise specified in remarks); test firearm: Marlin 1894; barrel length: 20"; maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
220	Cutting Edge Solid	18.0	1063	CCI 350 primer used
220	Cutting Edge Solid	19.0	1151	CCI 350 primer used
220	Cutting Edge Solid	20.0	1246	CCI 350 primer used
using Cutting Edge bullets Warning! A Ruger New Model Blackhawk (stainless Bisley) with a 5 1/2-inch barrel was used to test-fire these loads. Starline cases were used throughout. CCI 300 primers were used in all loads except where indicated. Bullet diameter: .410 inch; maximum case length: 1.290 inches; trim-to length: 1.280 inches. Overall loaded length: 1.588 inches.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
210	Nosler Sporting Handgun Jacketed Hollow Point	20.9	1,650	maximum load; compressed load
210	Nosler Sporting Handgun Jacketed Hollow Point	20.4	1,620	compressed load; compressed load
210	Nosler Sporting Handgun Jacketed Hollow Point	19.9	1,590	most accurate load tested
Handgun Using Nosler Bullets Handgun; case: Federal; primer: Fed 150; barrel length/make: 10" Douglas; twist: 1-14"; bullets: 210 GR Sporting Handgun Revolver JHP; OACL: 1.585"; maximum OACL: 1.590". Use Maximum Loads with Caution
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
215	Semi Wad Cutter	21.0	1,306	magnum load; DO NOT REDUCE MORE THAN 3%; never exceed; OAL: 1.595
Pistol (Oregon Trail Bullet Co Data) test gun: S&W M-57 6 1/2" except where otherwise noted in remarks; primer: WLP except where otherwise noted in remarks; do not exceed maximum loads; never reduce stated overall lengths
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
210	Hornady HP-XTP	19.5	1189
210	Hornady HP-XTP	20.0	1220
210	Hornady HP-XTP	20.6	1259
210	Hornady HP-XTP	21.1	1297
210	Hornady HP-XTP	21.7	1333
210	Hornady HP-XTP	22.2	1371
210	Hornady HP-XTP	22.7	1405	maximum load
Revolver Using Hornady Bullets Gun: Smith & Wesson Model 57-1; barrel length: 6 inches; case: Starline; primer: Fed 150; bullet diameter: .410"; COAL: 1.580"; maximum COAL: 1.590"; maximum case length: 1.290"; trim to length: 1.280".

.41-.44 CL

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
170	Sierra JHC	32.0	1,487	muzzle energy (ft-lb): 835
170	Sierra JHC	33.0	1,554	muzzle energy (ft-lb): 911
170	Sierra JHC	34.0	1,654	muzzle energy (ft-lb): 1,032
170	Sierra JHC	35.0	1,768	muzzle energy (ft-lb): 1,180
210	Sierra JHC	30.0	1,502	muzzle energy (ft-lb): 1,052
210	Sierra JHC	31.0	1,546	muzzle energy (ft-lb): 1,113
210	Sierra JHC	32.0	1,653	muzzle energy (ft-lb): 1,273
220	Sierra silhouette	29.0	1,491	muzzle energy (ft-lb): 1,087
220	Sierra silhouette	30.0	1,524	muzzle energy (ft-lb): 1,133
220	Sierra silhouette	31.0	1,573	muzzle energy (ft-lb): 1,208
Test gun: Smith & Wesson Model 57 with cylinder replaced by a Model 29 cylinder; cylinder-barrel gap 0.006 inch. Velocities are instrumental from the Oehler Model 33 with skyscreens five feet from the muzzle. Averages are listed from at least four firings of two separate series.

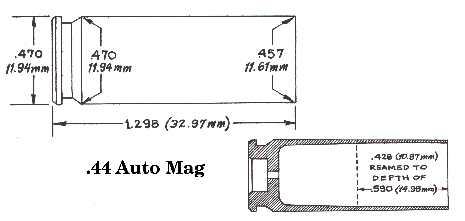

.44 Auto Mag

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
180	SV	30.0	1,890	Pressure (CUP): 50,000
all loads were assembled with CDM cases and CCI 350 primers. All loads are full-charge and have produced proper cycling in a large number of guns. Loads four and five may be increased slightly, by perhaps one full grain without exceeding safe pressures, but the velocity gain will be relatively small. * Caution: Load three is only for current-production H-110 powder, H-110 lots of several years ago are hotter and will produce excessive pressures with this charge weight. If in doubt, cut back five grains to start.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
180	Sierra JHC	25.0	1483	starting load; bullet diam.: .430"; COL: 1.610"
180	Sierra JHC	27.0	1564	maximum load; bullet diam.: .430"; COL: 1.610"
200	Hornady XTP	23.0	1415	starting load; bullet diam.: .430"; COL: 1.610"
200	Hornady XTP	25.0	1485	maximum load; bullet diam.: .430"; COL: 1.610"
225	Speer JHP SWC	19.0	1243	starting load; bullet diam.: .429"; COL: 1.595"
225	Speer JHP SWC	22.0	1358	maximum load; bullet diam.: .429"; COL: 1.595"
240	Nosler HP	19.0	1182	starting load; bullet diam.: .429"; COL: 1.600"
240	Nosler HP	21.0	1241	maximum load; bullet diam.: .429"; COL: 1.600"
Hodgdon Pistol Data case: Federal (REF); barrel length: 6"; twist: 1:18"; trim length: 1.293"; primer: CCI 350; NEVER EXCEED MAXIMUM LOADS

.44 Magnum / .44 Remington Magnum

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
240	Cutting Edge Solid	21.0	1195	CCI 350 primer used
240	Cutting Edge Solid	22.0	1240	CCI 350 primer used
240	Cutting Edge Solid	23.0	1310	CCI 350 primer used
using Cutting Edge bullets Warning! A Ruger New Model Blackhawk (stainless Bisley) with a 5 1/2-inch barrel was used to test-fire these loads. Starline cases were used throughout. CCI 300 primers were used in all loads, except where indicated. Bullet diameter: .430 inch; maximum case length: 1.285 inches; trim-to length: 1.275 inches. Overall loaded length: 1.610 inches.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
225	Hornady FTX	22.0	1284
225	Hornady FTX	23.0	1358
225	Hornady FTX	24.0	1431	maximum
225	Hornady FTX	24.5	1447	Exceeds MAP/Redhawk ONLY
Revolver Part 2 using 225 GR Hornady FTX Bullets Caliber: .44 Magnum; gun: Ruger New Model Blackhawk (Bisley); barrel: 5 1/2-inches; case: Starline; case length: 1.275 to 1.285 inches; cartridge overall length (except where noted otherwise): 1.670 inches; primer: Winchester Large Pistol.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
270	Belt Mountain Punch Solid	24.0	1511	primer: CCI 350; overall loaded length (inches): 1.670
300	Belt Mountain Punch Solid	22.0	1348	primer: CCI 350; overall loaded length (inches): 1.775
300	Speer Plated SP	22.5	1352	primer: CCI 350; overall loaded length (inches): 1.665
300	Speer Plated SP	23.5	1379	primer: CCI 350; overall loaded length (inches): 1.665
300	Speer Plated SP	24.0	1390	primer: CCI 350; overall loaded length (inches): 1.665
300	Hornady HP-XTP	22.5	1325	primer: CCI 350; overall loaded length (inches): 1.734
300	Hornady HP-XTP	23.5	1366	primer: CCI 350; overall loaded length (inches): 1.734
300	Hornady HP-XTP	24.0	1389	primer: CCI 350; overall loaded length (inches): 1.734
300	Sierra JSP	22.0	1289	primer: CCI 350; overall loaded length (inches): 1.735
300	Sierra JSP	23.0	1344	primer: CCI 350; overall loaded length (inches): 1.735
300	Sierra JSP	24.0	1394	primer: CCI 350; overall loaded length (inches): 1.735
310	Oregon Trail True Shot WNFP-GC	21.5	1437	primer: CCI 350; overall loaded length (inches): 1.645
310	Oregon Trail True Shot WNFP-GC	22.5	1474	primer: CCI 350; overall loaded length (inches): 1.645
310	Oregon Trail True Shot WNFP-GC	23.0	1495	primer: CCI 350; overall loaded length (inches): 1.645
340	Rim Rock Bullets LWN-GC	19.0	1260	primer: CCI 350; overall loaded length (inches): 1.772
340	Rim Rock Bullets LWN-GC	20.0	1298	primer: CCI 350; overall loaded length (inches): 1.772
340	Rim Rock Bullets LWN-GC	21.0	1344	primer: CCI 350; overall loaded length (inches): 1.772
340	Rim Rock Bullets LWN-GC	21.5	1392	primer: CCI 350; overall loaded length (inches): 1.772; maximum
+P Handloading Data A 7 1/2-inch barreled Ruger Redhawk was used to fire all loads. Starline cases were used throughout. Temperature during testing was 20 degrees Fahrenheit.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
220	Lyman 429215	26.0	1,505	7 1/2 inch Ruger Super Blackhawk; 25-yard group: 1.57 inches
250	Lyman 429421	24.5	1,393	7 1/2-inch Ruger Super Blackhawk; 25-yard group: .75 inch
255	Lyman 429244	25.0	1,431	7 1/2-inch Ruger Super Blackhawk; 25-yard group: 1.14 inches
260	LBT WFNGC	24.0	1,384	7 1/2-inch Ruger Super Blackhawk; 25-yard group: 1.38 inches
275	LBT WFNPB	23.0	1,342	7 1/2-inch Ruger Super Blackhawk; 25-yard group: 1.36 inches
300	RCBS 44-SWC	20.0	1,233	7 1/2-inch Ruger Super Blackhawk; 25-yard group: 1.02 inches
300	RCBS 44-SWC	22.0	1,365	7 1/2-inch Ruger Super Blackhawk; 25-yard group: 1.10 inches
320	LBT LFNGC	21.0	1,258	7 1/2-inch Ruger Super Blackhawk; 25-yard group: 1.83 inches
220	Lyman 429215	26.0	1,418	4-inch S&W Model 2925-yard group: 1.72 inches
250	Lyman 429421	24.5	1,328	4-inch S&W model 29; 25-yard group: 1.13 inches
255	Lyman 429244	25.0	1,352	4-inch S&W Model 29; 25-yard group: 1.32 inches
260	LBT WFNGC	24.0	1,271	4-inch S&W model 29; 25-yard group: .98 inch
275	LBT WFNPB	23.0	1,244	NA
300	RCBS 44-SWC	20	1,150	7 1/2-inch Ruger Super Blackhawk; .25-yard group: .74 inch
300	RCBS 44-SWC	22.0	1,023	7 1/2-inch Ruger Super Blackhawk; 25-yard group: .95 inch
This load data has been compiled over many years of testing and experimenting in no fewer than four guns. For a load to be included, it had to produce accuracy of 2 inches or less at 25 yards.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks

240	Barnes Solid	20.0	1289	start load
240	Barnes Solid	22.5	1461	maximum load
250	Barnes Original	20.5	1317	start load
250	Barnes Original	22.5	1445	maximum load
265	Barnes Solid	19.0	1235	start load
265	Barnes Solid	21.5	1395	maximum load
275	Barnes Original	19.0	1220	start load
275	Barnes Original	21.0	1348	maximum load
300	Barnes Original	18.0	1180	start load
300	Barnes Original	20.0	1324	maximum load
Contender - Barnes Reloading Manual #1 COAL: 1.604"; primers: WLP; brass: Midway USA
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Barnes XPB	24.0	1,528	primer: CCI 350
225	Barnes XPB	21.5	1,402	primer: CCI 350
Barnes X-Pistol Bullets A Ruger New Model Blackhawk Bisley with 5 1/2-inch barrel used for testing the .44 Magnum loads. Hornady cases used throughout. Overall cartridge length: 1.595 inches. Temperature: 92 degrees Fahrenheit.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
310	RCBS 44-300-SWC cast	21.0	1290	primer: Federal 155; rounds per pound: 333
Economical Midrange Loads firearm used: Ruger Super Blackhawk; primer: CCI 300 (except where otherwise specified in remarks); case: W-W; barrel length: 7 1/2"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
225	Speer SWC GC	22.0	1379	start charge; primer: CCI 350 Magnum
225	Speer SWC GC	24.0	1512	maximum charge; primer: CCI 350 Magnum
250	Speer K	21.0	1356	start charge; primer: CCI 350 Magnum
250	Speer K	23.0	1435	maximum charge; primer: CCI 350 Magnum
200	Speer Mag JHP	26.5	1590	start charge; primer: CCI 350 Magnum
200	Speer Mag JHP	28.5	1688	maximum charge; primer: CCI 350 Magnum
210	Speer Mag GDHP	25.5	1533	start charge; primer: CCI 350 Magnum
210	Speer Mag GDHP	27.5	1645	maximum charge; primer: CCI 350 Magnum
225	Speer JHP-SWC	22.5	1450	start charge; primer: CCI 350 Magnum
225	Speer JHP-SWC	24.5	1544	maximum charge; primer: CCI 350 Magnum
240	Speer Mag JHP, Mag GDHP, Mag GDSP or Mag JSP	22.0	1362	start charge; primer: CCI 350 Magnum
240	Speer Mag JHP, Mag GDHP, Mag GDSP or Mag JSP	24.0	1451	maximum charge; primer: CCI 350 Magnum
270	Speer Mag GDSP	19.0	1205	start charge; primer: CCI 350 Magnum
270	Speer Mag GDSP	21.0	1309	maximum charge; primer: CCI 350 Magnum
300	Speer Mag UCSP	20.2	1040	start charge; primer: CCI 350 Magnum; for revolvers only; crimp in rear cannelure
300	Speer Mag UCSP	22.5	1187	maximum charge; primer: CCI 350 Magnum; for revolvers only; crimp in rear cannelure
(Handgun) Speer Reloading Manual #14 max. case length: 1.285"; trim-to length: 1.275"; max cart. OAL: 1.610"; RCBS shell holder: #18; cart. case: Speer; primer: CCI 300 (except where otherwise specified in remarks); test firearm: Ruger Redhawk; barrel length: 7.5"; NOTE: The 225-grain SWC GC and 250-grain K bullets were cast in RCBS moulds; maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
270	H&G 326	22.9	1,380	primer: CCI 350 Mag.; energy (ft-lbs): 1,139
270	H&G 326	23.3	1,410	primer: CCI 350 Mag.; energy (ft-lbs): 1,190
270	H&G 326	23.7	1,430	primer: CCI 350 Mag.; energy (ft-lbs): 1,225
300	H&G 328	20.9	1,310	primer: CCI 350 Mag.; energy (ft-lbs): 1,143
300	H&G 328	21.3	1,335	primer: CCI 350 Mag.; energy (ft-lbs): 1,184
Heavy Cast Bullets
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
180	Hornady XTP	29.0	1714	start load; COL: 1.600"; 21,800 cup
180	Hornady XTP	31.5	1896	max load; COL: 1.600"; 29,900 cup
200	Nosler JHP	27.5	1708	start load; bullet diam.: .429"; COL: 1.600"; 29,000 cup
200	Nosler JHP	28.5	1806	max load; bullet diam.: .429"; COL: 1.600"; 37,800 cup
210	Sierra JHC	26.0	1615	start load; COL: 1.600"; 29,900 cup
210	Sierra JHC	27.0	1665	max load; COL: 1.600"; 31,100 cup
225	Speer JHP	23.0	1468	start load; bullet diam.: .429"; COL: 1.575"; 25,600 cup
225	Speer JHP	25.0	1617	max load; bullet diam.: .429"; COL: 1.575"; 36,300 cup
240	Nosler JHP	23.0	1413	start load; bullet diam.: .429"; COL: 1.600"; 25,200 cup
240	Nosler JHP	24.0	1522	max load; bullet diam.: .429"; COL: 1.600"; 36,200 cup
270	Speer GDSP	19.5	1295	start load; bullet diam.: .429"; COL: 1.600"; 29,300 cup
270	Speer GDSP	21.5	1421	max load; bullet diam.: .429"; COL: 1.600"; 37,700 cup
280	Swift JHP	18.5	1214	start load; COL: 1.700"; 27,000 cup
280	Swift JHP	20.5	1342	max load; COL: 1.700"; 36,100 cup
300	Hornady XTP	18.0	1266	start load; COL: 1.600"; 35,100 cup
300	Hornady XTP	19.0	1325	max load; COL: 1.600"; 38,800 cup
325	Beartooth Bullets LFN GC	20.0	1264	start load; COL: 1.730"; 30,800 cup
325	Beartooth Bullets LFN GC	22.0	1368	max load; COL: 1.730"; 38,100 cup
330	Beartooth Bullets LFN GC	19.0	1239	start load; COL: 1.730"; 30,200 cup
330	Beartooth Bullets LFN GC	20.8	1350	max load; COL: 1.730"; 38,800 cup
355	Beartooth Bullets LFN GC	17.5	1168	start load; COL: 1.710"; 29,300 cup
355	Beartooth Bullets LFN GC	18.8	1245	max load; COL: 1.710"; 38,000 cup
Hodgdon Pistol Data Case: Winchester; barrel length: 8.275"; twist: 1:20"; trim length: 1.280"; primer: Remington 2 1/2; bullet diam.: .430" (except where otherwise specified in remarks). NEVER EXCEED MAXIMUM LOADS
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
240	Rocky Mountain Reloading FP	23.0	1198
240	Rocky Mountain Reloading FP	24.0	1268
in a New Model Ruger Blackhawk Bisley Warning! Gun: New Model Ruger Blackhawk (Bisley); Barrel Length: 5 1/2 inches; Cases: Starline; Primer: CCI 300; COAL: 1.570 inches; Bullet Diameter: .430 inch; Maximum Case Length: 1.285 inches; Trim-to Length: 1.275 inches.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	SAECO RNFP	27.5	1329	bullet cast of wheelweights + 2% tin, BHN 10; group (inches): 2.11
255	RCBS 44-250-KT	23.0	1235	bullet cast of 3 parts lead/7 parts wheelweights, BHN 6; group (inches): 1.95
253	RCBS 44-250-KT	23.0	1230	bullet cast of wheelweights + 2% tin added, BHN 10; group (inches): 3.12
252	RCBS 44-250-KT	23.0	1222	bullet cast of 1/2 Linotype/1/2 lead (2% tin, 6% antimony, 92% lead), BHN 16; group (inches): 1.72
Lead Cast Loads All loads were fired through the 5.5-inch barrel of a Ruger Super Blackhawk .44 Magnum clamped in a Caldwell Handgun Accurizing Mechanical Machine Rest. Velocities were recorded 10 feet in front of the muzzle with an RCBS AmmoMaster chronograph. Remington cases and Winchester Large Pistol primers were used throughout. Accuracy is the average of two, five-shot groups fired at 25 yards.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
180	XTP	29.0	1714	start load; compressed; min OAL: 1.600
180	XTP	31.5	1896	never exceed; compressed; min OAL: 1.600; 29,900 cup
200	Jacketed	27.5	1708	start load; compressed; min OAL: 1.600
200	Jacketed	28.5	1806	never exceed; compressed; min OAL: 1.600; 37,800 cup
210	Jacketed	26.0	1615	start load; compressed; min OAL: 1.600
210	Jacketed	27.0	1665	never exceed; compressed; min OAL: 1.600; 31,100 cup
215	Lead	26.0	1630	start load; compressed; min OAL: 1.535
215	Lead	26.0	1630	never exceed; compressed; min OAL: 1.535; 33,300 cup
225	Jacketed	23.0	1468	start load; min OAL: 1.575
225	Jacketed	25.0	1617	never exceed; compressed; min OAL: 1.575; 36,300 cup
240	Jacketed	23.0	1413	start load; min OAL: 1.600
240	Jacketed	24.0	1522	never exceed; min OAL: 1.600; 36,200 cup
250	Lead	23.0	1602	start load; min OAL: 1.535
250	Lead	23.0	1602	never exceed; min OAL: 1.535; 35,000 cup
270	Jacketed	19.5	1295	start load; min OAL: 1.600
270	Jacketed	21.5	1421	never exceed; min OAL: 1.600; 37,700 cup
275	Jacketed	20.5	1341	start load; min OAL: 1.535
275	Jacketed	20.5	1341	never exceed; min OAL: 1.535; 34,800 cup
280	Jacketed	18.5	1214	start load; min OAL: 1.700
280	Jacketed	20.5	1342	never exceed; min OAL; 1.700; 36,100 cup
300	XTP	18.0	1266	start load; min OAL: 1.600
300	XTP	19.0	1325	never exceed; min OAL: 1.600; 38,800 cup
Lee Precision Data Large pistol primer. CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
310	TrueShot WNFP-GC	20.5	1322	primer: CCI 350
310	TrueShot WNFP-GC	21.0	1335	primer: CCI 350
310	TrueShot WNFP-GC	21.5	1376	primer: CCI 350
Oregon Trail Cast Bullet Loads Ruger New Model Blackhawk Bisley; 5 1/2-inch barrel; case: Starline; overall loaded length (inches): 1.630; maximum case length: 1.285 inches; trim-to length: 1.275 inches.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Barnes XPB	23.0	1,429	recommended powder
200	Barnes XPB	24.0	1,634	maximum load; recommended powder
225	Barnes XPB	20.0	1,341	not for use in 1:38 twist barrels; recommended powder
225	Barnes XPB	21.0	1,548	not for use in 1:38 twist barrels; maximum load; recommended powder
(Pistol) (Barnes Reloading Manual #3) case: Remington; parent case: none; primer: Win Large Pistol; trim to: 1.275"; barrel: 10"; XLC Coated X-Bullet data cannot be used with other bullets, including non-coated X-Bullets; maximum loads should be used with caution - Always Start With Minimum Loads
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
270	Belt Mountain Punch Solid	19.0	1103	primer: CCI 350
270	Belt Mountain Punch Solid	20.5	1185	primer: CCI 350
270	Belt Mountain Punch Solid	21.5	1230	primer: CCI 350
270	Belt Mountain Punch Solid	22.0	1279	primer: CCI 350
Punch Solid A Smith & Wesson Model 629-4 with a 6-inch barrel was used to fire the loads. Starline cases were used throughout. Maximum case length: 1.285 inches; trim-to length: 1.275 inches; cartridge length: 1.670 inches.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
240	Barnes Solid	20.0	1172	start load
240	Barnes Solid	22.5	1318	maximum load
250	Barnes Original	20.5	1137	start load
250	Barnes Original	22.5	1305	maximum load
265	Barnes Solid	19.0	1114	start load
265	Barnes Solid	21.5	1303	maximum load
275	Barnes Original	19.0	1105	start load
275	Barnes Original	21.0	1252	maximum load
300	Barnes Original	18.0	1128	start load
300	Barnes Original	20.0	1285	maximum load
Revolver - Barnes Reloading Manual #1 COAL: 1.604"; primers: WLP; brass: Midway USA
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
270	Speer Gold Dot	21.0	1,288	primer: Federal 155
220	Lyman cast 429215	26.0	1,490	primer: Federal 155
255	Lyman cast 429244	25.0	1,401	primer: Federal 155
307	RCBS cast 44-300-SWC	21.0	1,310	primer: Federal 155
Ruger Blackhawk Flattop Barrel length in firearm used was 6 1/2 inches. Temperature during field tests was 88 degrees Fahrenheit.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
240	Hornady XTP	23.0	1,396	group: 1.75 inches
250	RCBS 250K	23.0	1,562	group: 2.00 inches
295	BRP SWC	21.5	1,380	group: 1.25 inches
300	Speer JSP	21.5	1,290	group: 1.30 inches
Ruger Super Blackhawk Handloads were fired from a 7 1/2-inch barreled Ruger Super Blackhawk.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Speer JHP	26.5	1985	start charge; primer: CCI 350 Magnum
200	Speer JHP	28.5	2116	maximum charge; primer: CCI 350 Magnum
210	Speer GDHP	25.5	1879	start charge; primer: CCI 350 Magnum
210	Speer GDHP	27.5	2015	maximum charge; primer: CCI 350 Magnum
240	Speer JHP, GDHP, GDSP or JSP	22.0	1674	start charge; primer: CCI 350 Magnum
240	Speer JHP, GDHP, GDSP or JSP	24.0	1788	maximum charge; primer: CCI 350 Magnum
270	Speer GDSP	19.0	1468	start charge; primer: CCI 350 Magnum
270	Speer GDSP	21.0	1573	maximum charge; primer: CCI 350 Magnum
300	Speer UCSP	18.5	1347	start charge; primer: CCI 350 Magnum; seat to front cannelure for rifles
300	Speer UCSP	20.5	1503	maximum charge; primer: CCI 350 Magnum; seat to front cannelure for rifles
Speer Reloading Manual #14 max. case length: 1.285"; trim-to length: 1.275"; max cart. OAL: 1.610"; RCBS shell holder: #18; cart. case: Winchester; primer: CCI 300 (except where otherwise specified in remarks); test firearm: Marlin M1894; barrel length: 20"; maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
240	Swift A-Frame	23.3	1768	starting load
240	Swift A-Frame	25.0	1897	maximum load
280	Swift A-Frame	18.9	1463	starting load
280	Swift A-Frame	20.3	1582	maximum load
300	Swift A-Frame	18.1	1408	starting load
300	Swift A-Frame	19.5	1500	maximum load
Swift Data bullet diameter: 0.430"; maximum cartridge OAL: 1.610"; maximum case length: 1.285"; trim length: 1.275"; case: Remington; primer: Remington 2 1/2; test barrel: Shilen; barrel length: 20"; barrel twist: 1-20"; loads less than minimum charges shown are not recommended; NEVER EXCEED MAXIMUM LOAD!
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Nosler Sporting Handgun Jacketed Hollow Point	28.0	1,798	compressed load; maximum load
200	Nosler Sporting Handgun Jacketed Hollow Point	27.5	1,749	compressed load; most accurate load tested
200	Nosler Sporting Handgun Jacketed Hollow Point	27.0	1,699	compressed load
Handgun (Using 200 GR Nosler Bullets) Handgun; case: Winchester; primer: WLP; barrel length/make: 8.25" Douglas; twist: 1-20"; bullets: 200 GR Nosler Sporting Handgun Revolver JHP; OACL: 1.580"; maximum OACL: 1.610". Use Maximum Loads with Caution
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
240	Nosler Sporting Handgun Revolver JHP or JSP	23.8	1472	max; compressed load; most accurate powder tested
240	Nosler Sporting Handgun Revolver JHP or JSP	23.3	1442	compressed load; most accurate powder tested
240	Nosler Sporting Handgun Revolver JHP or JSP	22.8	1412	compressed load; most accurate load tested; most accurate powder tested
Handgun Using 240 GR Nosler Bullets Handgun; case: Winchester; primer: WLP; barrel length/make: 8.25" Douglas; twist: 1-20"; bullets: 240 GR Nosler Sporting Handgun Revolver JHP or JSP; OACL: 1.580"; maximum OACL: 1.610". Use Maximum Loads with Caution
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
300	Nosler Sporting Handgun Revolver JHP	20.5	1423	max; compressed load; most accurate load tested
300	Nosler Sporting Handgun Revolver JHP	20.0	1402	compressed load
300	Nosler Sporting Handgun Revolver JHP	19.5	1380	compressed load
Handgun Using 300 GR Nosler Bullets Handgun; case: Winchester; primer: WLP; barrel length/make: 8.25" Douglas; twist: 1-20"; bullets: 300 GR Nosler Sporting Handgun Revolver JHP; OACL: 1.580"; maximum OACL: 1.610". Use Maximum Loads with Caution
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
240	Nosler	23.8	1,472	maximum load; compressed load; most accurate powder tested
240	Nosler	23.3	1,442	compressed load; most accurate powder tested
240	Nosler	22.8	1,412	compressed load; most accurate load tested; most accurate powder tested
240 Grain - Handgun Using Nosler Bullets handgun: barrel: Douglas, length: 8.25", twist: 1-20"; case: Winchester; primer: Win. WLP; maximum SAAMI overall cartridge length: 1.610"; bullets: Nosler Sporting Handgun Jacketed Hollow Point or Sporting Handgun Jacketed Soft Point; use maximum loads with caution
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
210	Cast #429215 gas check	26.4	1298	sugg. start load; 1.645" OAL; primer: CCI 350 Magnum; 27,500 cup
210	Cast #429215 gas check	27.5	1447	max load; compressed powder charge; primer: CCI 350 Magnum; 33,800 cup; 1.645 OAL
240	Cast #429667	22.5	1204	sugg. start load; 1.645" OAL; primer: CCI 350 Magnum; 31,800 cup
240	Cast #429667	23.5	1266	max load; 1.645" OAL; primer: CCI 350 Magnum; 35,700 cup
245	Cast #429421	24.0	1218	sugg. start load; 1.710" OAL; primer: CCI 350 Magnum; 31,900 cup
245	Cast #429421	25.0	1301	max load; 1.710" OAL; primer: CCI 350 Magnum; 35,300 cup
255	Cast #429244 gas check	21.8	1097	sugg. start load; 1.680" OAL; primer: CCI 350 Magnum; 31,500 cup
255	Cast #429244 gas check	22.8	1186	max load; 1.680" OAL; primer: CCI 350 Magnum; 36,400 cup
300	Cast #429650 gas check	17.7	976	sugg. start load; 1.700" OAL; primer: CCI 350 Magnum; 34,300 cup
300	Cast #429650 gas check	18.5	1036	max load; 1.700" OAL; primer: CCI 350 Magnum; 37,900 cup
Cast Bullet Handgun Data (Lyman Reloading Handbook 49th Edition) cases: Remington; trim-to length: 1.275"; primers: CCI 300 (except where otherwise specified in remarks); primer size: Large Pistol, Std. & Magnum; Lyman shell holder: No. 7; cast bullets used sized to .429" dia.; firearm used: Universal Receiver; barrel length: 4"; twist: 1-20"; groove dia.: .429"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Hornady XTP	28.0	1,598	primer: Federal 155
240	Speer Gold Dot	24.0	1,360	primer: Federal 155
270	Speer Gold Dot	21.0	1,243	primer: Federal 155
300	Speer Plated Soft Point	22.5	1,097	primer: Federal 155
220	Lyman 429215 cast gas check	26.0	1,472	primer: Federal 155
250	Keith-style Lyman 429421	24.5	1,368	primer: Federal 155
255	Keith RCBS 44-250-K cast	23.5	1,335	primer: Federal 155
255	Lyman 429244 cast gas check	25.0	1,399	primer: Federal 155
260	Cast Performance WFN	24.0	1,366	primer: Federal 155
275	Cast Performance WFN	23.0	1,296	primer: Federal 155
310	RCBS 44-SWC-300 cast	20.0	1,192	primer: Federal 155
310	RCBS 44-SWC-300 cast	21.0	1,263	primer: Federal 155
320	Cast Performance LFN	20.0	1,191	primer: Federal 155
Full-Power Loads All Smith & Wesson Models 29, 629 and 329PD. A Smith & Wesson (pre-29) .44 Magnum revolver with a 6 1/2-inch barrel used to test loads. Winchester and Starline cases used throughout. These loads DO NOT exceed SAAMI recommended pressure limits of 36,000 psi, but they should be used sparingly in guns produced before 1988 and avoid using jacketed bullet loads in the early four-and five-screw guns.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
180	Sierra Jacketed HC	29.0	1541	sugg. start load; primer: CCI 350 Magnum; 31,700 cup
180	Sierra Jacketed HC	30.0	1587	max load; primer: CCI 350 Magnum; 34,400 cup
200	Hornady Jacketed HP	27.7	1444	sugg. start load; primer: CCI 350 Magnum; 34,600 cup
200	Hornady Jacketed HP	28.8	1492	max load; primer: CCI 350 Magnum; 39,800 cup
210	Winchester Jacketed Silvertip	26.6	1280	sugg. start load; 1.590" OAL; primer: CCI 350 Magnum; 26,700 cup
210	Winchester Jacketed Silvertip	27.5	1358	max load; 1.590" OAL; primer: CCI 350 Magnum; 38,100 cup
225	Speer Jacketed HP	25.0	1348	sugg. start load; primer: CCI 350 Magnum; 34,100 cup
225	Speer Jacketed HP	26.0	1415	max load; primer: CCI 350 Magnum 39,300 cup
240	Sierra Jacketed HC	22.5	1169	sugg. start load; primer: CCI 350 Magnum; 34,200 cup
240	Sierra Jacketed HC	23.5	1271	max load; primer: CCI 350 Magnum; 38,800 cup
240	Speer Jacketed HP	23.5	1196	sugg. start load; primer: CCI 350 Magnum; 35,900 cup
240	Speer Jacketed HP	24.5	1233	max load; primer: CCI 350 Magnum; 37,400 cup
265	Hornady Jacketed FP	20.6	1036	sugg. start load; primer: CCI 350 Magnum; 33,200 cup
265	Hornady Jacketed FP	21.5	1140	max load; primer: CCI 350 Magnum; 38,400 cup
270	Speer Jacketed GDSP	20.4	1056	sugg. start load; 1.585" OAL; primer: CCI 350 Magnum; 27,500 cup
270	Speer Jacketed GDSP	21.1	1124	max load; 1.585" OAL; primer: CCI 350 Magnum; 37,500 cup
300	Sierra Jacketed SP	19.6	909	sugg. start load; 1.720" OAL; primer: CCI 350 Magnum; 34,500 cup
300	Sierra Jacketed SP	20.5	982	max load; 1.720" OAL; primer: CCI 350 Magnum; 38,300 cup
Handgun (Lyman Reloading Handbook 49th Edition) cases: Remington; trim-to length: 1.275"; primers: CCI 300 (except where otherwise specified in remarks); primer size: Large Pistol, Std. & Magnum; Lyman shell holder: No. 7; firearm used: Universal Receiver; barrel length: 4"; twist: 1-20"; groove dia.: .429"; 1.610" OAL (except where otherwise specified in remarks)
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
240	Hornady HP-XTP	23.0	1070	overall loaded length (inches): 1.605
240	Hornady HP-XTP	24.0	1107	overall loaded length (inches): 1.605
240	Hornady HP-XTP	24.5	1135	overall loaded length (inches): 1.605
300	Hornady HP-XTP	18.0	955	primer: Federal 155; overall loaded length (inches): 1.590
300	Hornady HP-XTP	19.0	990	primer: Federal 155; overall loaded length (inches): 1.590
300	Hornady HP-XTP	19.5	1033	primer: Federal 155; overall loaded length (inches): 1.590
300	Barnes Buster FN FB	19.0	1003	primer: Federal 155; overall loaded length (inches): 1.585
300	Barnes Buster FN FB	19.5	1045	primer: Federal 155; overall loaded length (inches): 1.585
250	Lyman/Keith 429421	21.5	1082	primer: Federal 155; overall loaded length (inches): 1.695
250	Lyman/Keith 429421	22.5	1118	primer: Federal 155; overall loaded length (inches): 1.695
250	Lyman/Keith 429421	23.5	1161	primer: Federal 155; overall loaded length (inches): 1.695
300	Cast Performance WFNGC	17.0	938	primer: Federal 155; overall loaded length (inches): 1.590
300	Cast Performance WFNGC	18.0	986	primer: Federal 155; overall loaded length (inches): 1.590
300	Cast Performance WFNGC	19.0	1026	primer: Federal 155; overall loaded length (inches): 1.590
Handloading Data A Smith & Wesson Model 69 with a 4 1/4-inch barrel was used to test fire these loads. Starline cases were used throughout. Maximum case length: 1.285 inches; trim-to length: 1.275 inches; primer: CCI 300 (except where otherwise specified in remarks).
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
220	Sierra FPJ	24.5	1428	overall loaded length (inches): 1.595; group (inches): 1.00
240	Speer JSP	23.5	1425	overall loaded length (inches): 1.600; group (inches): 2.00
Handloads CCI 350 primers. All ammunition was tested in five-shot groups at 25 yards with the handgun in a Ransom Rest. Loads used Remington cases. Velocities tracked with an Oehler Model 35P chronograph with an air temperature of approximately 50 degrees.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
180	Sierra JHC	27.0	1,640	case expansion maximum
200	Speer JHP	26.0	1,540	case expansion near maximum; accurate
210	Sierra JHC	25.0	1,510	case expansion near maximum; accurate
220	Sierra FN (silhouette)	25.0	1,520	case expansion maximum; best all-around revolver load
240	Hornady JHP	23.0	1,401	case expansion near maximum; third most accurate in carbine
240	Speer Magnum HP	24.0	1,435	case expansion maximum; accurate in carbine
in 7 1/2 inch Revolver
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
180	Sierra	30.0	1,917
200	Speer	27.5	1,858
225	Speer	26.0	1,735
240	Hornady	25.5	1,655
240	Lyman 429421	25.5	1,684
252	Lee 429255	24.0	1,590
265	Hornady	23.5	1,550
in a 10-inch Barrel Contender, 10-inch barrel; Norma cases; CCI 250 primers; temperature ninety-two degrees Fahrenheit; humidity eighty-seven percent; Oehler Model 33 Chronotach; velocity instrumental at fifteen feet, converted to muzzle velocity.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
180	Sierra	30.0	1,444
200	Speer	27.5	1,399
225	Speer	26.0	1,411
240	Hornady	25.5	1,326
240	Lyman 429421	25.5	1,337
252	Lee 429255	24.0	1,178
265	Hornady	23.5	1,247
in a 4-inch Barrel Smith & Wesson Model 29 4-inch barrel; Norma cases; CCI 250 primers; temperature ninety-two degrees Fahrenheit; humidity eighty-seven percent; Oehler Model 33 Chronotach; velocity instrumental at fifteen feet, converted to muzzle velocity.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
180	Super Vel	28.7	2,188	2.4-inch 100-yard groups
240	Speer JHP	24.0	1,923	2.4-inch 100-yard groups
240	Remington	24.0	1,208	1.6-inch 100-yard groups
in a Model 788 Warning! strong>Notes: case: Rem; primer: CCI 300. Data was gathered with an Oehler Model 10 chronograph for the older loads, and an Oehler Model 33 for the more recent ones. Screens were set ten feet from muzzle, and spaced five feet apart. All loads are safe in the rifles they were developed for, but caution is advised in using these without first dropping back two or three grains. DO NOT USE THESE LOADS IN LEVER ACTIONS!!!
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
250	Lyman/Keith 429421 (1970's era)	24.0	1354	overall loaded length (inches): 1.698
250	Lyman/Keith 429421 (1970's era)	25.0	1420	overall loaded length (inches): 1.698
in a Ruger Blackhawk (Flattop) Ruger Blackhawk (Flattop), 7 1/2-inch barrel. Starline cases used for all loads. CCI 350 Magnum primers used only with H-110 powder. All other loads used CCI 300 primers.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
250	Lyman/Keith 429421 (1970's era)	24.0	1322	overall loaded length (inches): 1.698
250	Lyman/Keith 429421 (1970's era)	25.0	1388	overall loaded length (inches): 1.698
in a Smith & Wesson Model 29-5 Smith & Wesson Model 29-5, 6-inch barrel. Starline cases used for all loads. CCI 350 Magnum primers used only with H-110 powder. All other loads used CCI 300 primers.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
180	Sierra Jacketed HC	29.0	1719	10" Bbl.; primer: CCI 350; sugg. start load; 1.610" OAL
180	Sierra Jacketed HC	29.0	1859	14" Bbl.; primer: CCI 350; sugg. start load; 1.610" OAL
180	Sierra Jacketed HC	30.0	1952	10" Bbl.; primer: CCI 350; compressed powder charge; max load; 1.610" OAL; potentially most accurate load
180	Sierra Jacketed HC	30.0	2098	14" Bbl.; primer: CCI 350; compressed powder charge; max load; 1.610" OAL; potentially most accurate load
200	Hornady Jacketed HP/XTP	27.7	1807	10" Bbl.; primer: CCI 350; sugg. start load; 1.610" OAL
200	Hornady Jacketed HP/XTP	27.7	1894	14" Bbl.; primer: CCI 350; sugg. start load; 1.610" OAL
200	Hornady Jacketed HP/XTP	28.8	1876	10" Bbl.; primer: CCI 350; max load; 1.610" OAL
200	Hornady Jacketed HP/XTP	28.8	1991	14" Bbl.; primer: CCI 350; max load; 1.610" OAL
240	Sierra Jacketed HC	22.5	1509	10" Bbl.; primer: CCI 350; sugg. start load; 1.610" OAL
240	Sierra Jacketed HC	22.5	1561	14" Bbl.; primer: CCI 350; sugg. start load; 1.610" OAL
240	Sierra Jacketed HC	23.5	1554	10" Bbl.; primer: CCI 350; max load; 1.610" OAL
240	Sierra Jacketed HC	23.5	1644	14" Bbl.; primer: CCI 350; max load; 1.610" OAL
265	Hornady Jacketed FP	20.5	1368	10" Bbl.; primer: CCI 350; sugg. start load; 1.650" OAL; potentially most accurate load
265	Hornady Jacketed FP	20.5	1413	14" Bbl.; primer: CCI 350; sugg. start load; 1.650" OAL; potentially most accurate load
265	Hornady Jacketed FP	21.5	1439	10" Bbl.; primer: CCI 350; max load; 1.650" OAL
265	Hornady Jacketed FP	21.5	1478	14" Bbl.; primer: CCI 350; max load; 1.650" OAL
265	Hornady Jacketed FP	20.5	1368	10" Bbl.; primer: CCI 350; sugg. start load; 1.650" OAL; potentially most accurate load
265	Hornady Jacketed FP	20.5	1413	14" Bbl.; primer: CCI 350; sugg. start load; 1.650" OAL; potentially most accurate load
265	Hornady Jacketed FP	21.5	1439	10" Bbl.; primer: CCI 350; max load; 1.650" OAL
265	Hornady Jacketed FP	21.5	1478	14" Bbl.; primer: CCI 350; max load; 1.650" OAL
265	Hornady Jacketed FP	20.5	1368	10" Bbl.; primer: CCI 350; sugg. start load; 1.650" OAL; potentially most accurate load
265	Hornady Jacketed FP	20.5	1413	14" Bbl.; primer: CCI 350; sugg. start load; 1.650" OAL; potentially most accurate load
265	Hornady Jacketed FP	21.5	1439	10" Bbl.; primer: CCI 350; max load; 1.650" OAL
265	Hornady Jacketed FP	21.5	1478	14" Bbl.; primer: CCI 350; max load; 1.650" OAL
300	Sierra Jacketed SP	19.5	1293	10" Bbl.; primer: CCI 350; sugg. start load; 1.720" OAL
300	Sierra Jacketed SP	19.5	1298	14" Bbl.; primer: CCI 350; sugg. start load; 1.720" OAL
300	Sierra Jacketed SP	20.5	1361	10" Bbl.; primer: CCI 350; max load; 1.720" OAL
300	Sierra Jacketed SP	20.5	1395	14" Bbl.; primer: CCI 350; max load; 1.720" OAL
255	Cast #429244 gas check	21.8	1408	10" Bbl.; primer: CCI 350; sugg. start load; 1.680" OAL
255	Cast #429244 gas check	21.8	1545	14" Bbl.; primer: CCI 350; sugg. start load; 1.680" OAL
255	Cast #429244 gas check	22.8	1478	10" Bbl.; primer: CCI 350; max load; 1.680" OAL
255	Cast #429244 gas check	22.8	1594	14" Bbl.; primer: CCI 350; max load; 1.680" OAL
in a T/C Contender & Encore Lyman Reloading Manual 49th Edition This data was developed for use in the T/C Contender and Encore handguns. It can also be used in other single shot or bolt-action handguns such as the Remington XP-100 and Savage Striker. Do not use these loads in any other type of handgun. Cases: Remington; trim-to length: 1.275"; primers: CCI 300 (except where otherwise specified in remarks); primer size: Large Pistol, Std. & Magnum; Lyman shell holder: No. 7; cast bullets used sized to .430" dia.; firearm used: Thompson/Center Contender; barrel length: 10" and 14"; twist: 1-22"; groove dia.: .430"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
310	cast Keith Mt. Baldy	20.0	1,132	primer: CCI 350; brass: Starline
in an S&W Model 329PD Loads fired from a Smith & Wesson Model 329PD with a 4-inch barrel.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Hornady HP-XTP	28.5	1447	group (inches): 1.70; 4 in 1.28
250	RCBS 44-250-K	23.0	1267	group (inches): 2.31
270	Speer Gold Dot softpoint	21.0	1143	group (inches): 1.62
300	Speer softpoint	22.5	1169	group (inches): 1.54
Load Data CCI 350 Magnum Pistol primers used except where otherwise specified in remarks; all loads used Federal cases and were fired through a Ruger Super Blackhawk with a 5.5-inch barrel; all groups were five shots fired at 25 yards
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
205	Ideal 429303 GC	26.0	1,600
225	Speer HP H-J	23.0	1,520
240	Speer H-J	23.0	1,470
240	Hornady S-J	22.0	1,445
246	Ideal 429421	16.0	1,220
246	Ideal 429421	23.0	1,595
Loads .
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
240	Harvey Jugular Jacketed	18.0	1,470	rifle
225	Speer Jacketed H.P.	21.0	1,600	rifle
225	Speer Jacketed H.P.	21.0	1,235	revolver
225	Speer Jacketed H.P.	23.0	1,815	rifle
225	Speer Jacketed H.P.	23.0	1,450	revolver
240	Norma Jacketed S.P.	21.5	1,593	rifle
240	Norma Jacketed S.P.	21.5	1,185	revolver
240	Norma Jacketed S.P.	23.0	1,704	rifle
240	Norma Jacketed S.P.	23.0	1,430	revolver
Pet Loads heavily crimp all .44 Mag cases on bullets to prevent slugs from moving forward under the effects of recoil; cases should be kept trimmed to a uniform length between 1.280" and 1.285"; suggest Large Pistol primers for all reloads, or rifle primers in loads for the carbine, and pistol primers for handgun;
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
240	Semi Wad Cutter	23.4	1,423	starting load; OAL: 1.605
240	Semi Wad Cutter	24.0	1,469	maximum load; OAL: 1.605
300	Flat Point	20.0	1,333	maximum load; OAL: 1.610
Pistol - Silhouette Loads (Oregon Trail Bullet Handgun Data) test gun: Ruger Super Red Hawk, 9 1/2", WLP; do not reduce H110 or 296 maximum loads more than 3% to start; use WLP for all 44 Magnum pistol loads; do not exceed maximum loads; never reduce stated overall lengths
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Hornady HP-XTP	25.8	1306
200	Hornady HP-XTP	27.3	1396
200	Hornady HP-XTP	28.7	1486	maximum load
Revolver Using 200 GR Hornady Bullets Gun: Ruger New Model Blackhawk (Bisley); barrel length: 5 1/2-inches; case: Starline; primer: Winchester Large Pistol; bullet diameter: .430"; maximum COAL: 1.610"; maximum case length: 1.285"; trim to length: 1.275"; COAL: 1.600".
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
240	Hornady HP-XTP or CL-SIL	20.7	1143
240	Hornady HP-XTP or CL-SIL	22.1	1195
240	Hornady HP-XTP or CL-SIL	23.5	1256
240	Hornady HP-XTP or CL-SIL	24.1	1317
240	Hornady HP-XTP or CL-SIL	24.8	1375	maximum load
Revolver Using 240 GR Hornady Bullets Gun: Ruger New Model Blackhawk (Bisley); barrel length: 5 1/2-inches; case: Starline; primer: Winchester Large Pistol; bullet diameter: .430"; Hornady HP-XTP and CL-SIL COAL: 1.600"; SWC-HP and SWC COAL: 1.610"; maximum COAL: 1.610"; maximum case length: 1.285"; trim to length: 1.275".
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
265	Hornady FP	18.7	1046
265	Hornady FP	20.5	1139
265	Hornady FP	22.4	1232
265	Hornady FP	23.3	1325	maximum load
Revolver (Using 265 GR Hornady Bullets) Gun: Ruger New Model Blackhawk (Bisley); barrel length: 5 1/2-inches; case: Starline; primer: Winchester Large Pistol; bullet diameter: .430"; maximum COAL: 1.610"; maximum case length: 1.285"; trim to length: 1.275"; COAL: 1.610".
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
300	Hornady HP-XTP	17.5	1050	Do Not Reduce
300	Hornady HP-XTP	18.2	1072
300	Hornady HP-XTP	18.8	1104
300	Hornady HP-XTP	19.5	1134
300	Hornady HP-XTP	20.1	1161	maximum load
Revolver Using 300 GR Hornady Bullets Gun: Ruger New Model Blackhawk (Bisley); barrel length: 5 1/2-inches; case: Starline; primer: Winchester Large Pistol; bullet diameter: .430"; maximum COAL: 1.600"; maximum case length: 1.285"; trim to length: 1.275"; COAL: 1.610".
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
225	Hornady FTX	19.9	1110
225	Hornady FTX	20.7	1193	maximum load
Revolver using 225 GR Hornady FTX Bullets Gun: Ruger New Model Blackhawk (Bisley); barrel length: 5 1/2-inches; case: Starline; primer: Winchester Large Pistol; bullet diameter: .430"; COAL: 1.645"; case trim to length: 1.255".
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
240	Hornady JTC	24.5	1,481	group (inches): 1
Ruger Super Redhawk Loads All groups fired from a Ransom Rest at 25 yards. Velocities clocked on a Shooting Chrony chronograph.Handloads were tested with temperatures around 70 degrees.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Hornady HP-XTP	26.3	1513
200	Hornady HP-XTP	27.0	1554
200	Hornady HP-XTP	27.6	1604
200	Hornady HP-XTP	28.2	1654
200	Hornady HP-XTP	28.9	1704
200	Hornady HP-XTP	29.5	1750	maximum load
240	Hornady HP-XTP or CL-SIL	23.6	1415
240	Hornady HP-XTP or CL-SIL	24.2	1455
240	Hornady HP-XTP or CL-SIL	24.8	1502
240	Hornady HP-XTP or CL-SIL	25.3	1550
240	Hornady HP-XTP or CL-SIL	25.9	1596	maximum load
265	Hornady FP	20.7	1258
265	Hornady FP	21.2	1292
265	Hornady FP	21.7	1334
265	Hornady FP	22.3	1375
265	Hornady FP	22.8	1416
265	Hornady FP	23.3	1455	maximum load
300	Hornady HP-XTP	17.5	1062
300	Hornady HP-XTP	17.9	1097
300	Hornady HP-XTP	18.4	1140
300	Hornady HP-XTP	18.9	1182
300	Hornady HP-XTP	19.3	1225
300	Hornady HP-XTP	19.8	1262	maximum load
TC Using Hornady Bullets Gun: Thompson/Center G-2 Contender; barrel length: 10 inches; case: Starline; primer: Winchester Large Pistol; bullet diameter: .430"; 200, 240 & 300 GR Hornady HP-XTP and 240 GR CL-SIL COAL: 1.600"; 265 Hornady FP COAL: 1.610"; maximum COAL: 1.610"; maximum case length: 1.285"; trim to length: 1.275".

.44 Special

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
180	Sierra 180 JHC	15.8	1,212	group (inches): 2.0
Colt Peacemaker Loads SC = 3.5 inches or more (Loading the Peacemaker)
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
240	Speer SP H-J	14.5	1,185
240	Speer SP H-J	15.0	1,240
Full Power Loads Only to be used in guns in good condition and made after World War II. These full power loads range in pressure to the same limit as .44 Magnum loads - up to 40,000 psi. Treat all top loads with caution. Never fire these loads in guns not designed for these pressures. Loads were chronographed in solid head brass from 6 1/2-inch revolver barrels.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Speer Gold Dot HP	22.0	1304	primer: Federal 155
240	Hornady XTP-HP	18.5	1128	primer: Federal 155
+P (25,000 psi or less) A 6 1/2-inch barreled Smith & Wesson Model 24-6 was used for testing these loads. Winchester cases were used throughout. Bullet diameter: .429 and .430 inch; maximum case length: 1.16 inches; trim-to length: 1.15 inches.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
240	Hornady XTP-HP	18.5	1,112	extreme spread: 22
255	Lyman 429244 GC	19.0	1,177	extreme spread: 66
307	Dry Creek cast SWC	15.5	1,057	extreme spread: 20; good big game load
+P and Standard for F A Model 1997 Warning! All data is also safe for postwar Smith & Wesson N-Frame revolvers. Barrel length of Freedom Arms Model 1997 is 4 1/2. Winchester brass was used in all loads as were CCI 300 primers, except Federal 155s were used with loads containing H-110, H-4227 and IMR-4227
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
240	Sierra JHC	11.5	885	CCI 350 primer; overall loaded length (inches): 1.465; group (inches): 1.25
Handloads All ammunition was tested in five-shot groups at 25 yards with the handgun in a Ransom Rest. Loads used Winchester-Western cases. Velocities tracked with an Oehler Model 35P chronograph with an air temperature of approximately 50 degrees.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Speer Gold Dot HP	22.0	1,289
240	Hornady XTP-HP	18.5	1,112
250	Sierra Silhouette FPJ	18.0	1,111
250	Sierra Silhouette FPJ	19.0	1,188
255	Lyman 429244 GC	19.0	1,177
307	Dry Creek cast SWC	15.5	1,057
in a Freedom Arms 1997 (25,000 psi or less) A Freedom Arms Model 1997 with 4 1/4-inch barrel to fire these loads. Winchester cases and CCI 300 primers used throughout except Federal 155 Magnum primers used with H-110 powder.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Speer Gold Dot HP	22.0	1,282
240	Hornady XTP-HP	18.5	1,114
250	Sierra Silhouette FPJ	18.0	1,119
250	Sierra Silhouette FPJ	19.0	1,188
255	Lyman 429244 GC	19.0	1,189
307	Dry Creek cast SWC	15.5	1,059
in an S&W Model 24-3 (25,000 psi or less) A Smith & Wesson Model 24-3 with a 6 1/2-inch barrel used to fire these loads. Winchester cases and CCI 300 primers used throughout, except Federal 155 Magnum primers used with H-110 powder.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Speer Gold Dot HP	22.0	1301	primer: Federal 155; 1.5-inch group
240	Hornady XTP-HP	19.0	1189	primer: Federal 155; regularly under 1 inch
in the Ruger New Model Blackhawk Loads fired from a 5 1/2-inch barreled Ruger New Model Blackhawk .44 Special. Starline cases used for all loads. Temperature during testing was 30 degrees Fahrenheit. WARNING: Some of these handloads develop up to 25,000 psi and are only suitable for the New Model Ruger Blackhawk .44 Special or revolvers of similar strength.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
240	JSP	14.5	1,192	barrel length: 7.5 inches; test gun: U.R.; pressure: 14,600 CUP
250	Lyman 429244	16.0	1,202	barrel length: 7.5 inches; test gun: U.R.; pressure: 13,200 CUP
Load Data Loads are for modern, six-shot, heavy-duty revolvers - Colt 2nd and 3rd generation and Smith & Wesson Model 1950 and Model 24. Five-shot revolvers should only use factory loads or handloads that do not exceed factory pressures. All listed loads for six-shot .44 Special should be reduced by 20 percent for starting. These loads may be used in all revolvers chambered for the .44 Magnum. U.R. - Universal Test Receiver; C.A. - Charter Arms five-shot revolver.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
205	Ideal 429303 GC	15.0	1,100
Moderate Pressure CAUTION - Although the author has termed these "moderate pressure loads", some of these will run in the 20,000 psi range. They are safe in the author's guns but may be excessive in others. Start 15% below listed maximums.

.44 WCF / .44-40 Winchester

Wt.	Bullet	Charge	Velocity (FPS)
250	Lead	16.0	1,175
240	SP	16.0	1,150
Loading Data (Pistol)

.44-06

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
223	Ohaus No. 44-215-S GC	21.0	1,283	energy (fp): 815; fair accuracy
240	Lyman No. 429250 GC	20.0	1,257	energy (fp): 842; accurate
240	Sierra JHP	20.0	1,264	energy (fp): 852; most accurate load (overall)
Load Data Velocities are five feet, instrumental, as measured from muzzle to midpoint of screens. Temperature - 65 to 75 degrees F. Chronograph used was Model 200 Chronograph Specialists. Primers were CCI 350 Large Pistol Magnum. Cast bullet weight given is sized, lubed, and with gas check. Bullets cast of linotype metal and sized to .430 inch. These loads were safe in writer's revolver but may not be in another gun. Approach maximum loads with caution.

.445 Super Mag / .445 Super Magnum

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
240	JHP	31.7	1,400	energy: 1,045
300	SP	28.2	1,300	energy: 1,125
Taken from Cartridges Of The World 9th Edition
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
240	Barnes Solid	30.0	1,643
240	Barnes Solid	32.0	1,731	maximum load
250	Barnes	28.0	1,530
250	Barnes	31.0	1,698	maximum load
265	Barnes Solid	28.0	1,452
265	Barnes Solid	30.5	1,594	maximum load
275	Barnes	27.0	1,429
275	Barnes	30.0	1,568	maximum load
300	Barnes	26.0	1,328
300	Barnes	29.0	1,435	maximum load
Barnes Reloading Manual #1
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
180	Sierra JHC	34.5	1695	starting load
180	Sierra JHC	38.9	1907	maximum load
200	Barnes X	33.5	1707	starting load
200	Barnes X	36.0	1855	maximum load
225	Barnes X	29.5	1701	starting load
225	Barnes X	32.5	1831	maximum load
240	Hornady XTP	29.0	1640	starting load
240	Hornady XTP	33.0	1798	maximum load
Hodgdon Pistol Data case: Starline; barrel length: 10"; twist: 1:20"; trim length: 1.590"; primer: Federal 210; bullet diam.: .430"; COL: 1.925"; NEVER EXCEED MAXIMUM LOADS
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
240	JHP	31.7	1,400	energy: 1,045
300	SP	28.2	1,300	energy: 1,125
Data Work up to maximum loads with care. (Cartridges of the World 10th Edition)

.45 ACP

	Wt.	Bullet	Charge	Velocity (FPS)	Remarks
	305	Lyman No. 457196 HB	9.0	584	Magnum Primer; spread: 78 fps.; not recommended
	Heavy Bullet Loads case: Commercial .45 ACP, full-length resized in tungsten carbide die, taper-crimped; Unique powder not to be used with this bullet

.45 Colt

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
225	Barnes XPB	24.5	1,494	primer: CCI 350
250	Barnes XPB .454 Casull	21.5	1,254	primer: CCI 350
250	Barnes XPB .454 Casull	22.5	1,328	primer: CCI 350
Barnes X-Pistol Bullets Some of this data is approaching 30,000 psi and is ONLY safe in heavy-frame Ruger Blackhawks and other modern guns designed to handle loads with this level of pressure. A Ruger New Model Blackhawk Bisley with 7 1/2-inch barrel used to test-fire loads. Starline cases used throughout. Overall cartridge length for the 225-grain loads was 1.575 inches. Overall cartridge length for the 250-grain loads was 1.670 inches. Temperature: 92 degrees Fahrenheit.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
250	Speer Colt GDHP	19.0	1091	start charge; primer: CCI 350 Magnum
250	Speer Colt GDHP	21.0	1200	maximum charge; primer: CCI 350 Magnum
260	Speer JHP	18.5	1042	start charge; primer: CCI 350 Magnum
260	Speer JHP	20.0	1151	maximum charge; primer: CCI 350 Magnum
300	Speer UCSP	21.1	974	start charge; primer: CCI 350 Magnum; seat bullet to REAR cannelure and use a neckdown crimp
300	Speer UCSP	23.5	1156	maximum charge; primer: CCI 350 Magnum; seat bullet to REAR cannelure and use a neckdown crimp
(Ruger & Contender Only ) Speer Reloading Manual #14 max. case length: 1.285"; trim-to length: 1.275"; max cart. OAL: 1.600"; RCBS shell holder: #20; cart. case: Winchester; primer: CCI 300 (except where otherwise specified in remarks); test firearm: Ruger Blackhawk; barrel length: 7.5"; maximum loads should be used with CAUTION; NOTE: Do not use in any other make or model firearm. IMPORTANT SAFETY NOTE: Since Speer #14 Manual was published, Ruger has replaced the original Vaquero revolver with a smaller version called the New Vaquero. Ruger has advised the industry that the New Vaquero must not be fired with loads exceeding industry pressure standards (14,000 psi). If loading for a New Vaquero, use the standard pressure data in the .45 Colt Handgun Speer Data.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
240	Jacketed	27.2	1489	start load; min OAL: 1.600
240	Jacketed	28.0	1532	never exceed; min OAL: 1.600; 30,000 cup
250	XTP	25.7	1413	start load; min OAL: 1.600
250	XTP	26.5	1455	never exceed; min OAL: 1.600; 29,800 cup
260	Jacketed	23.5	1348	start load; min OAL: 1.650
260	Jacketed	24.0	1374	never exceed; min OAL: 1.650; 30,100 cup
300	Jacketed	21.8	1176	start load; min OAL: 1.650
300	Jacketed	22.2	1198	never exceed; min OAL: 1.650; 30,100 cup
(Ruger & T/C Only) Lee Precision Data These loads must not be used in old or reproduction firearms. Large Pistol primer; with NEVER EXCEED LOADS maintain Minimum Over All Length or longer (Modern Reloading - Second Edition - Richard Lee)
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
240	Sierra JHC	27.2	1483	start load; COL: 1.600"; 27,900 cup
240	Sierra JHC	28.0	1532	max load; COL: 1.600"; 30,000 cup
250	Hornady XTP	25.7	1398	start load; COL: 1.600"; 27,000 cup
250	Hornady XTP	26.5	1455	max load; COL: 1.600"; 29,800 cup
260	Nosler Part	23.5	1351	start load; bullet diam.: .451"; COL: 1.650"; 27,700 cup
260	Nosler Part	24.0	1374	max load; bullet diam.: .451"; COL: 1.650"; 30,100 cup
300	Speer JFP	21.8	1191	start load; bullet diam.: .451"; COL: 1.650"; 26,700 cup
300	Speer JFP	22.2	1198	max load; bullet diam.: .451"; COL: 1.650"; 30,100 cup
325	Cast Performance LFN PB	21.0	1109	start load; COL: 1.680"; 18,100 cup
325	Cast Performance LFN PB	24.0	1266	max load; COL: 1.680"; 27,400 cup
335	Cast Performance LFN PB GC	20.5	1109	start load; COL: 1.680"; 19,200 cup
335	Cast Performance LFN PB GC	23.5	1240	max load; COL: 1.680; 28,000 cup
360	Cast Performance LFN PB GC	18.0	1012	start load; COL: 1.680"; 20,200 cup
360	Cast Performance LFN PB GC	21.0	1151	max load; COL: 1.680"; 28,300 cup
(Ruger, Freedom Arms & T/C Only) Hodgdon Data The data is intended for 45 Colt Ruger Blackhawk, Freedom Arms, and Thompson Center Contender/Encore Handguns. Max pressure, 30,000 CUP. DO NOT USE THIS DATA IN ANY OTHER MAKE OR MODEL OF FIREARM. Case: Winchester; twist: 1:16"; primer: Winchester LP; barrel length: 7.25"; trim length: 1.280"; bullet diam.: .452" (except where otherwise specified in remarks). NEVER EXCEED MAXIMUM LOADS
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
260	RCBS SWC	26.0	1,189	Starline brass; no crimp
260	RCBS SWC	26.0	1,245	Starline brass; modest crimp
260	RCBS SWC	26.0	1,280	Starline brass; maximum crimp
260	RCBS SWC	26.0	1,145	Remington brass; no crimp
260	RCBS SWC	26.0	1,195	Remington brass; modest crimp
260	RBCS SWC	26.0	1,252	Remington brass; maximum crimp
328	Lyman 452651	22.0	1,176	Starline brass; no crimp
328	Lyman 452651	22.0	1,200	Starline brass; modest crimp
328	Lyman 452651	22.0	1,225	Starline brass; maximum crimp
328	Lyman 452651	22.0	1,160	Remington brass; no crimp
328	Lyman 452651	22.0	1,174	Remington brass; modest crimp
328	Lyman 452651	22.0	1,185	Remington brass; maximum crimp
300	Speer PSP	23.0	1,122	Starline brass; no crimp
300	Speer PSP	23.0	1,145	Starline brass; modest crimp
300	Speer PSP	23.0	1,165	Starline brass; maximum crimp
300	Speer PSP	23.0	1,119	Remington brass; no crimp
300	Speer PSP	23.0	1,125	Remington brass; modest crimp
300	Speer PSP	23.0	1,132	Remington brass; maximum crimp
262	Redding 45424 Keith	27.0	1,457	velocity spread: 44 fps; 25-yard group: 1.5 inches
328	Lyman 452651 GC	23.0	1,245	velocity spread: 21 fps; 25-yard group: 2.5 inches
+P Handloads The .45 Colt +P handloads are for Ruger, Freedom Arms and Colt Anaconda only! Test gun was a Ruger Blackhawk with a 6-inch barrel.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
260	RCBS SWC cast	27.0	1,942	rifle load; primer: Federal 155; extreme spread (fps): 29
260	RCBS SWC cast	27.0	1,468	revolver load; primer: Federal 155; extreme spread (fps): 41
310	NEI SWC Keith	25.0	1,820	rifle load; primer: CCI 350; extreme spread (fps): 22
310	NEI SWC Keith	25.0	1,391	revolver load; primer: CCI 350; extreme spread (fps): 27
+P Rifle & Revolver Handloads The .45 Colt +P loads were shot in a Winchester Model 94 with a 20-inch barrel and a Ruger Blackhawk with a 6-inch barrel. For modern Marlin, Winchester and Browning leverguns and Ruger and Freedom Arms revolvers only!
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Speer JSP	34.5	1,855	ES: 31; 7/16; compressed charge
225	Speer JHP	32.0	1,825	ES: 5; 9/16; compressed charge
240	Sierra JHP	29.5	1,697	ES: 31; NT; compressed charge
260	Speer JHP	28.0	1,635	ES: 11; 1 5/16; compressed charge
240	Sierra JHP in Federal cases	29.5	1,709	ES: 4; 1 15/16; compressed charge
240	Sierra JHP in Federal cases	30.5	1,757	ES: 37; 5/8; compressed charge
Contender loads Warning! Under NO CIRCUMSTANCES should these loads be used in any gun other than the Contender. Notes: .45 Colt, Contender 10-in. barrel; W-W cases; CCI 350 magnum primers; Oehler 34/50 chronograph system; velocity instrumental at 15 ft converted to muzzle velocity; temperature - 70 degrees. None of the loads with W-W cases shows as much pressure as the .45 WM loads, and the heaviest loads with Federal cases are about at same level as the .45 WM loads. NT - not tried for accuracy. All groups fired at 22 yards.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
310	RCBS 45-SWC-300 GC	25.0	1,271	old .458-inch cylinder; group (inches): 2 to 5
310	RCBS 45-SWC-300 GC	25.0	1,328	new .452-inch cylinder; group (inches): .70
Data for Colt Anaconda barrel length: 4 inches, Starline brass used throughout. CCI 300 primers used, except CCI 350s used with H-110 and W-296.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
325	Cast Performance LFNPB	24.5	1346	4 5/8-inch barrel
325	Cast Performance LFNPB	24.5	1441	7 1/2-inch barrel
325	Cast Performance LFNPB	24.5	1359	7 1/2-inch barrel cut to 4 5/8 inches
Data for Large Frame Ruger Revolvers ONLY Starline cases used throughout; CCI 300 primers used in all loads, except with Hodgdon H-110, where CCI 350 primers were used.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
255	Semi Wad Cutter	19.2	932	maximum load; DO NOT REDUCE; OAL: 1.595
300	Flat Point	16.5	865	maximum load; OAL: 1.570
For Ruger (Oregon Trail Handgun Data) silhouette loads; test gun: Vaquero 4 3/4", WLP; Do not exceed maximum loads. Never reduce stated overall lengths. All 300 Flat Point are maximum loads; reduce 300 charges 3% to start; CAUTION The 300 grain loads are intended for Ruger revolvers and T/C pistols only!; These loads will produce higher velocities when fired in long-barreled revolvers and pistols for which they are intended.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
335	Cast Performance WLN-GC	24.0	1366	overall loaded length (inches): 1.665
335	Cast Performance WLN-GC	25.0	1424	overall loaded length (inches): 1.665
335	Cast Performance WLN-GC	26.0	1485	overall loaded length (inches): 1.665
335	Cast Performance WLN-GC	26.5	1511	overall loaded length (inches): 1.665
360	Oregon Trail TrueShot WNFP-GC	21.0	1270	overall loaded length (inches): 1.675
360	Oregon Trail TrueShot WNFP-GC	22.0	1311	overall loaded length (inches): 1.675
360	Oregon Trail TrueShot WNFP-GC	23.0	1347	overall loaded length (inches): 1.675
360	Oregon Trail TrueShot WNFP-GC	24.0	1397	overall loaded length (inches): 1.675
400	WLN-GC Custom	20.0	1183	overall loaded length (inches): 1.720
400	WLN-GC Custom	21.0	1239	overall loaded length (inches): 1.720
400	WLN-GC Custom	22.0	1291	overall loaded length (inches): 1.720
400	WLN-GC Custom	22.5	1314	overall loaded length (inches): 1.720
for Ruger Redhawk Revolvers ONLY A Ruger Redhawk .45 Colt with a one-in-16-inch twist. 7 1/2-inch barrel was used to test-fire these loads. Starline cases and CCI 350 Large Pistol Magnum primers were used throughout. Loads approach 50,000 psi.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
300	Speer Plated SP	22.0	1,140	fine big game hunting load
Freedom Arms Model 1997 Warning! Many loads exceed SAAMI maximum pressures for the .45 Colt. They are ONLY safe in Ruger and Freedom Arms revolvers. Notes: Barrel length: 3 1/2 inches. Starline cases and CCI 300 and 350 primers used throughout. Temperature during testing was 85 degrees Fahrenheit.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
325	Cast Perf LFNPB	24.5	1,361	.449-inch throat
325	Cast Perf LFNPB	24.5	1,346	.453-inch throat
250	Hornady XTP-HP	26.0	1,369	.449-inch throat
250	Hornady XTP-HP	26.0	1,340	.453-inch throat
in a Bisley Vaquero 4 5/8-inch Barrel Factory throats: .449 and .450 (averages); Manson reamed throat, .453 inch. All handloads used Starline cases primed with CCI 300 and 350 primers. Data is for Ruger Blackhawk, Bisley and Redhawk Revolvers ONLY!
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
325	Cast Perf LFNPB	24.5	1,465	.450-inch throat
325	Cast Perf LFNPB	24.5	1,441	.453-inch throat
250	Hornady XTP-HP	26.0	1,282	.450-inch throat
250	Hornady XTP-HP	26.0	1,333	.453-inch throat
in a Blackhawk Bisley 7 1/2-inch Barrel Factory throats: .449 and .450 (averages); Manson reamed throat, .453 inch. All handloads used Starline cases primed with CCI 300 and 350 primers. Data is for Ruger Blackhawk, Bisley and Redhawk Revolvers ONLY!
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
318	Lyman cast 454629	20.5	1039	overall loaded length (inches): 1.6535
318	Lyman cast 454629	21.5	1070	overall loaded length (inches): 1.6535; excellent hunting load
in a Ruger New Model Blackhawk (+P Pressure 23,000 psi) These loads exceed SAAMI pressure limits for the .45 Colt and should only be used in Ruger New Model Blackhawk revolvers, or firearms of similar strength. Barrel length: 5 1/2 inches; Starline cases used throughout. CCI 300 primers used in all loads except with H-110 powder, where Federal 155 primers were used. Temperature during testing was 70 to 85 degrees Fahrenheit.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
280	RCBS 45-270-SAA	24.0	1,327	primer: CCI 350
280	RCBS 45-270-SAA	25.0	1,387	primer: CCI 350
Load Data (32,000 cup)
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
360	TrueShot WNFP-GC	22.0	1219	primer: CCI 350
360	TrueShot WNFP-GC	23.0	1267	primer: CCI 350
Ruger +P (32,000 CUP) (Oregon Trail Cast Bullet Loads) (For "44 Frame" Blackhawks and Redhawks only); Ruger New Model Blackhawk Bisley; 5 1/2-inch barrel; case: Starline; overall loaded length (inches): 1.675; maximum case length: 1.285 inches; trim-to length: 1.275 inches.

.45 Winchester Magnum

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
225	JHP	26.0	1,500	energy: 1,124
Cartridges of the World All loads were developed in a Thompson/Center Contender pistol with a 10-inch barrel. These loads are not recommended for any other handgun. The 45 Winchester Magnum develops 72 percent higher velocity and 200 percent greater muzzle energy than the standard 45 Automatic and is in the same class as the 44 Magnum revolver cartridge. With its rimless case, it is a natural for use in a semi-automatic rifle. Having made this suggestion, if this ever happens, this author can claim that it was all his idea. The Wildey 45 Magnum, along with the 44 Auto Mag, the Desert Eagle and the LAR Grizzly are the only automatic pistols that truly qualify as big game handguns. The potential is there for a fine combination silhouette and hunting pistol. The price is high, and for strictly silhouette shooting, the much lower-priced Thompson/Center Contender in the same chambering might appeal to many potential buyers. The availability of commercial ammunition with hunting-type bullets would also be a factor, although there is a good variety of such bullets available to the handloader. (Cartridges of the World 9th Edition)
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
230	Hornady FMJ FP	27.5	1356	starting load; COL: 1.500"; 27,700 cup
230	Hornady FMJ FP	28.0	1410	maximum load; COL: 1.500"; 29,000 cup
240	Sierra JHC	26.5	1359	starting load; COL: 1.555"; 35,500 cup
240	Sierra JHC	27.0	1411	maximum load; COL: 1.555"; 37,400 cup
250	Nosler JHP	25.5	1344	starting load; COL: 1.500"; 35,700 cup
250	Nosler JHP	26.0	1380	maximum load; COL: 1.500"; 37,400 cup
260	Speer JHP	24.5	1290	starting load; COL: 1.505"; 34,900 cup
260	Speer JHP	25.0	1339	maximum load; COL: 1.505"; 37,400 cup
Hodgdon Pistol Data case: Winchester; barrel length: 5"; twist: 1:16"; trim length: 1.193"; primer: CCI 350; bullet diam.: .451"; NEVER EXCEED MAXIMUM LOADS
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
230	Jacketed	28.0	1384	start load; min OAL: 1.500
230	Jacketed	28.0	1410	never exceed; min OAL: 1.500; 29,000 cup
240	Jacketed	25.4	1385	start load; min OAL: 1.555
240	Jacketed	27.0	1411	never exceed; min OAL: 1.555; 37,400 cup
250	Jacketed	24.5	1354	start load; min OAL: 1.500
250	Jacketed	26.0	1380	never exceed; min OAL: 1.500; 37,400 cup
260	Jacketed	23.5	1313	start load; min OAL: 1.505
260	Jacketed	25.0	1339	never exceed; min OAL: 1.505; 37,400 cup
Lee Precision Data Large Pistol primer; with NEVER EXCEED LOADS maintain Minimum Over All Length or longer (Modern Reloading - Second Edition - Richard Lee)
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
250	Hornady HP-XTP	22.0	1373
250	Hornady HP-XTP	22.6	1406
250	Hornady HP-XTP	23.1	1445
250	Hornady HP-XTP	23.7	1484
250	Hornady HP-XTP	24.3	1523
250	Hornady HP-XTP	24.8	1556	maximum load
300	Hornady HP-XTP	17.1	1098
300	Hornady HP-XTP	17.6	1129
300	Hornady HP-XTP	18.1	1164
300	Hornady HP-XTP	18.6	1200
300	Hornady HP-XTP	19.1	1236
300	Hornady HP-XTP	19.6	1268	maximum load
Using Hornady Bullets Gun: Thompson/Center Contender; barrel length: 10 inches; case: Starline; primer: Winchester Large Pistol; bullet diameter: .451"; 200 GR FMJ-C/T COAL: 1.500"; 200 GR HP-XTP COAL: 1.495"; 250 & 300 GR HP-XTP COAL: 1.480"; maximum COAL: 1.575"; maximum case length: 1.198"; trim to length: 1.193".
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
225	RCBS 45-225-RN	27	1,856	averaged 3 1/2 inches at 100 yd
250	Speer	24	1,711	hard-hitting and accurate at 150 yd
cast-bullet loads Velocities represent five-shot averages, measured 10 feet from the muzzle by an Oehler Model 33 chronograph. All handloads were assembled with Winchester cases and CCI Large Pistol primers. All powder charges were weighed. Temperature 50 degrees F.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Speer JSP	32.5	1,991	compressed
225	Speer JHP	30	1,801	5/16; compressed
240	Sierra JHP	27.5	1,749	1/2; compressed
250	Speer swaged	27	1,714	15/16; compressed
260	Speer JHP	26	1,677	compressed
Contender loads THESE LOADS ARE NOT FOR USE IN ANY OTHER GUN EXCEPT THE CONTENDER. None was maximum in the test barrel, but are based on pressure used in W-W factory ammunition. All groups in three-shot strings with scope from bench over sandbag rest. .45 Winchester Magnum, Contender 10-in. barrel; W-W cases; CCI 350 magnum primers; Oehler 34/50 chronograph system; velocity instrumental at 15 ft converted to muzzle velocity; temperature 70 degrees.

.450 Extreme - Pistol

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
240	Hornady XTP-Mag.	33.7	1,869	starting load; bullet diam.: .452"; COL: 1.725"; 40,000 PSI
240	Hornady XTP-Mag.	35.5	1,955	maximum load; bullet diam.: .452"; COL: 1.725"; 44,500 PSI
260	Hornady XTP-Mag.	32.0	1,766	starting load; bullet diam.: .452"; COL: 1.725"; 40,100 PSI
260	Hornady XTP-Mag.	33.0	1,827	maximum load; bullet diam.: .452"; COL: 1.725"; 44,000 PSI
265	Cast Performance Bullet LFP/GC	32.0	1,773	starting load; bullet diam.: .453"; COL: 1.670"; 39,800 PSI
265	Cast Performance Bullet LFP/GC	33.0	1,833	maximum load; bullet diam.: .453"; COL: 1.670"; 44,200 PSI
300	Hornady XTP-Mag.	26.8	1,556	starting load; bullet diam.: .452"; COL: 1.725"; 38,700 PSI
300	Hornady XTP-Mag.	28.0	1,627	maximum load; bullet diam.: .452"; COL: 1.725"; 44,000 PSI
Hodgdon Pistol Data

.454 Casull

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
260	FA-JSP	35.0	1,832	extreme spread: 10.4 fps; group: 1.2 inches
. .
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
260	Speer JHP	37.0	1,771
300	Speer JSP	34.0	1,527
240	Freedom Arms JHP	39.0	2,076
260	Freedom Arms JFP	35.0	1,819
300	Freedom Arms JFP	31.5	1,762
305	BRP Cast Gas Check	33.0	1,787
(7.5-Inch Barrel) Test firearm was a Freedom Arms Premier Grade revolver with a 7 1/2-inch barrel. CCI 400 primers used throughout the test.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
250	Barnes XPB	27.5	1,708
250	Barnes XPB	28.5	1,798	maximum load
(Barnes Reloading Manual #3) case: Freedom Arms; parent case: .45 Colt; primer: CCI 500; trim to: 1.380"; barrel: 15"; XLC Coated X-Bullet data cannot be used with other bullets, including non-coated X-Bullets; maximum loads should be used with caution - Always Start With Minimum Loads
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
250	Barnes XPB	32.0	1,724	primer: Remington 7 1/2; heavily compressed
(Barnes X-Pistol Bullets) Firearm used was a Freedom Arms Model 83 with a 7 1/2-inch barrel. Winchester cases used throughout. Overall cartridge length: 1.765 inches. Temperature: 92 degrees Fahrenheit.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
240	Freedom Arms JHP	36.0	1923	start load; bullet diam.: .452"; COL: 1.765"; 38,800 cup
240	Freedom Arms JHP	38.2	2065	max load; bullet diam.: .452"; COL: 1.765"; 51,300 cup
250	Barnes X	27.5	1725	start load; bullet diam.: .451"; COL: 1.780"; 45,100 cup
250	Barnes X	28.5	1785	max load; bullet diam.: .451"; COL: 1.780"; 52,300 cup
260	Freedom Arms JFP	34.0	1817	start load; bullet diam.: .452"; COL: 1.765"; 37,100 cup
260	Freedom Arms JFP	36.0	1954	max load; bullet diam.: .452"; COL: 1.765"; 51,600 cup
300	Freedom Arms JFP	28.5	1618	start load; bullet diam.: .452"; COL: 1.775"; 44,200 cup
300	Freedom Arms JFP	30.0	1716	max load; bullet diam.: .452"; COL: 1.775"; 53,700 cup
325	Cast Performance LFN PB	25.2	1345	start load; bullet diam.: .452"; COL: 1.760"; 19,700 cup
325	Cast Performance LFN PB	26.0	1511	max load; bullet diam.: .452"; COL: 1.760"; 34,300 cup
325	Swift HP	23.0	1379	start load; bullet diam.: .451"; COL: 1.750"; 36,800 cup
325	Swift HP	26.0	1545	max load; bullet diam.: .451"; COL: 1.750"; 52,600 cup
335	Cast Performance LFN GC	23.0	1321	start load; bullet diam.: .452"; COL: 1.770"; 22,200 cup
335	Cast Performance LFN GC	26.0	1531	max load; bullet diam.: .452"; COL: 1.770"; 41,600 cup
360	Cast Performance LFN GC	21.0	1265	start load; bullet diam.: .452"; COL: 1.760"; 24,000 cup
360	Cast Performance LFN GC	24.0	1447	max load; bullet diam.: .452"; COL: 1.760"; 43,400 cup
395	Cast Performance LFN GC	18.5	1169	start load; bullet diam.: .452"; COL: 1.770"; 27,200 cup
395	Cast Performance LFN GC	21.0	1309	max load; bullet diam.: .452"; COL: 1.770"; 43,200 cup
Hodgdon Pistol Data Case: Freedom Arms; twist: 1:24"; primer: Winchester SR; barrel length: 9.375"; trim length: 1.380". NEVER EXCEED MAXIMUM LOADS
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
240	Hard Core Freedom Arms	36.0	1923	start load; compressed charge; min OAL: 1.765
240	Hard Core Freedom Arms	38.2	2065	never exceed; compressed charge; min OAL: 1.765; 51,300 cup
250	Barnes X	27.5	1725	start load; min OAL: 1.780
250	Barnes X	28.5	1785	never exceed; min OAL: 1.780; 52,300 cup
260	Hard Core Freedom Arms	34.0	1817	start load; compressed charge; min OAL: 1.765
260	Hard Core Freedom Arms	36.0	1954	never exceed; compressed charge; min OAL: 1.765; 51,600 cup
300	Hard Core Freedom Arms	28.5	1618	start load; min OAL: 1.775
300	Hard Core Freedom Arms	30.0	1716	never exceed; min OAL: 1.775; 53,700 cup
Lee Precision Data With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Rifle primer. NOTE: Industry standard cup pressure is 53,000. Some of the hard core bullet loads exceed this value. Use maximum loads with caution.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
225	Speer Jacketed HP	33.9	1657	sugg. start load; 1.690" OAL; 37,600 cup
225	Speer Jacketed HP	35.0	1751	max load; 1.690" OAL; 45,000 cup
300	Hornady Jacketed HP Mag-XTP	27.8	1457	sugg. start load; 1.745" OAL; 46,100 cup
300	Hornady Jacketed HP Mag-XTP	28.7	1476	max load; 1.745" OAL; 48,500 cup
225	Cast #452490 gas check	33.9	1587	sugg. start load; 1.760" OAL; 35,700 cup
225	Cast #452490 gas check	35.0	1653	max load; compressed powder charge; 1.760" OAL; 42,000 cup
325	Cast #452651 gas check	25.4	1307	sugg. start load; 1.755" OAL; 32,600 cup
325	Cast #452651 gas check	26.2	1363	max load; 1.755" OAL; 39,400 cup
(Lyman Reloading Handbook 49th Edition) cases: Winchester; trim-to length: 1.378"; primers: CCI 450; primer size: Small Rifle, Magnum; Lyman shell holder: No. 11; firearm used: Universal Receiver; barrel length: 6"; twist: 1-24"; groove dia.: .451"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
360	TrueShot WNFP-GC	26.0	1451
(Oregon Trail Cast Bullet Loads) Freedom Arms Model 83; 7 1/2-inch barrel; primer: Remington 7 1/2 BR; case: Starline; overall loaded length (inches): 1.760; maximum case length: 1.383 inches; trim-to length: 1.373 inches.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
265	Swift A-Frame	34.7	2141	starting load
265	Swift A-Frame	37.3	2282	maximum load
300	Swift A-Frame	29.9	1878	starting load
300	Swift A-Frame	32.2	1992	maximum load
325	Swift A-Frame	26.7	1680	starting load
325	Swift A-Frame	28.7	1812	maximum load
Swift Data bullet diameter: 0.452"; maximum cartridge OAL: 1.765"; maximum case length: 1.383"; trim length: 1.373"; case: Starline; primer: CCI-400; test barrel: Shilen; barrel length: 20"; barrel twist: 1-14"; loads less than minimum charges shown are not recommended; NEVER EXCEED MAXIMUM LOAD!
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
240	Cutting Edge Raptor HP	26.0	1258
240	Cutting Edge Raptor HP	27.0	1344
240	Cutting Edge Raptor HP	28.0	1474
240	Cutting Edge Raptor HP	29.0	1582
240	Cutting Edge Raptor HP	30.0	1671
using Cutting Edge bullets Warning! A Freedom Arms Model 83 with a 7 1/2-inch barrel was used to test-fire these loads. Starline cases and Remington 7 1/2 Small Rifle primers were used throughout. Bullet diameter: 452 inch; maximum case length: 1.383 inches; trim-to length: 1.373 inches. Overall loaded length: 1.748 inches.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
240	Hornady XTP-MAG	34.1	1654
240	Hornady XTP-MAG	34.6	1683
240	Hornady XTP-MAG	35.2	1720
240	Hornady XTP-MAG	35.8	1752
240	Hornady XTP-MAG	36.3	1794
240	Hornady XTP-MAG	36.9	1826	maximum load
300	Hornady XTP-MAG	28.2	1441
300	Hornady XTP-MAG	29.0	1480
300	Hornady XTP-MAG	29.8	1520
300	Hornady XTP-MAG	30.6	1560
300	Hornady XTP-MAG	31.4	1590	maximum load
Using Hornady Bullets Gun: Freedom Arms Model 83; barrel length: 7 1/2 inches; case: Starline; primer: Fed. #205; bullet diameter: .452"; COAL: 1.745"; maximum COAL: 1.765"; maximum case length: 1.383"; trim to length: 1.373".
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
300	Speer GDHP	29.5	1506	start charge
300	Speer GDHP	31.5	1630	maximum charge; compressed load
Full Power Loads Speer Reloading Manual #14 max. case length: 1.383"; trim-to length: 1.373"; max cart. OAL: 1.765"; RCBS shell holder: #20; cart. case: Winchester; primer: CCI 400; test firearm: Freedom Arms; barrel length: 7.5"; maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
260	Nosler Partition-HG Hollow Point	32.0	1,942	maximum load; compressed load; most accurate powder tested
260	Nosler Partition-HG Hollow Point	31.0	1,898	compressed load; most accurate powder tested
260	Nosler Partition-HG Hollow Point	30.0	1,854	compressed load; most accurate load tested; most accurate powder tested
300	Nosler Partition-HG Protected Point	26.0	1,643	maximum load; most accurate load tested
300	Nosler Partition-HG Protected Point	25.0	1,572
300	Nosler Partition-HG Protected Point	24.0	1,495
Handgun Using Nosler Bullets handgun: barrel: T/C Encore, length: 12", twist: 1-16"; case: Winchester; primer: WSR; maximum SAAMI overall cartridge length: 1.765"; use maximum loads with caution
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
300	Speer UCSP	26.5	1328	start charge; case: Winchester
300	Speer UCSP	28.5	1452	maximum charge; case: Winchester
Reduced Recoil Loads Speer Reloading Manual #14 max. case length: 1.383"; trim-to length: 1.373"; max cart. OAL: 1.765"; RCBS shell holder: #20; cart. case: Winchester and Starline; primer: CCI 400; test firearm: Freedom Arms; barrel length: 7.5"; NOTE: The 270 grain SAA bullets were cast in RCBS moulds; use maximum loads with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
300	Speer Plated Soft Point	31.0	1,521
300	Speer Plated Soft Point	32.5	1,602
300	Freedom Arms JFP	34.0	1,589
315	Lyman cast 454629 gas check	30.5	1,588
315	Lyman cast 454629 gas check	31.5	1,629
340	SSK Truncated FN	27.0	1,401
360	Oregon Trail Laser Cast WNFP	26.0	1,394
in a Freedom Arms Model 83 (4 3/4-inch barrel) Freedom Arms Model 83 with barrel length of 4 3/4 inches. Remington 7 1/2 and Federal 205 (Small Rifle Magnum) primers and Starline cases used throughout. Maximum case length is 1.383 inches and trim-to length is 1.373 inches.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
300	Speer Plated Soft Point	31.0	1,539
300	Speer Plated Soft Point	32.5	1,661
300	Freedom Arms JFP	34.0	1,649
315	Lyman cast 454629 gas check	30.5	1,647
315	Lyman cast 454629 gas check	31.5	1,680
340	SSK Truncated FN	27.0	1,458
360	Oregon Trail Laser Cast WNFP	26.0	1,451
in a Freedom Arms Model 83 (7 1/2-inch barrel) Freedom Arms Model 83 with barrel length of 7 1/2 inches. Remington 7 1/2 and Federal 205 (Small Rifle Magnum) primers and Starline cases used throughout. Maximum case length is 1.383 inches and trim-to length is 1.373 inches.

.460 Smith & Wesson Magnum / .460 S&W Magnum

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
225	Barnes X-Bullet	39.0	1,635
225	Barnes X-Bullet	42.0	1,749
240	Hornady XTP MAG	43.0	1,673
240	Hornady XTP MAG	46.0	1,739
240	Hornady XTP MAG	49.0	1,837
260	Nosler Partition	46.0	1,807
300	Speer 454 GDHP	36.0	1,361
300	Speer 454 GDHP	39.0	1,451
300	Speer 454 GDHP	42.0	1,582
310	Mt. Baldy Cast Keith	42.0	1,689	leading
335	Cast Perf WLN GC	34.0	1,546
335	Cast Perf WLN GC	41.0	1,655
395	Cast Perf WLN GC	34.0	1,448
firearm: Smith & Wesson .460 XVR; SAAMI maximum average pressure: 65,000 psi; barrel length: 7 1/2-inches; case: Starline; primer: CCI #200; trim to case length: 1.790"; temperature: 15 degrees
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
260	Nosler Partition	41.0	1,959	starting load; dia.: .451; COL: 2.175"; 41,600 psi
260	Nosler Partition	46.0	2,178	maximum load; dia.: .451; COL: 2.175"; 54,000 psi
300	Hornady XTP Mag	38.0	1,825	starting load; dia.: .452; COL: 2.160"; 43,200 psi
300	Hornady XTP Mag	42.5	2,034	maximum load; dia.: .452; COL: 2.160"; 56,100 psi
225	Barnes X	39.0	2,045	starting load; dia.: .451; COL: 2.110"; 39,400 psi
225	Barnes X	42.0	2,243	maximum load; dia.: .451; COL: 2.110"; 51,800 psi
240	Hornady XTP Mag	45.0	2,084	starting load; dia.: .452; COL: 2.160"; 43,600 psi
240	Hornady XTP Mag	48.5	2,254	maximum load; dia.: .452; COL: 2.160"; 52,100 psi
250	Barnes X	39.0	1,985	starting load; dia.: .451; COL: 2.200"; 43,500 psi
250	Barnes X	41.5	2,133	maximum load; dia.: .451; COL: 2.200"; 56,800 psi
265	Swift HP	41.0	1,932	starting load; dia.: .451; COL: 2.180"; 43,300 psi
265	Swift HP	46.5	2,183	maximum load; dia.: .451; COL: 2.180"; 56,400 psi
325	Cast Performance Bullets LFN PB	38.0	1,810	starting load; dia.: .452; COL: 2.200"; 45,300 psi
325	Cast Performance Bullets LFN PB	42.0	1,953	maximum load; dia.: .452; COL: 2.200"; 54,900 psi
325	Swift HP	35.0	1,749	starting load; dia.: .451; COL: 2.175"; 46,300 psi
325	Swift HP	39.0	1,907	maximum load; dia.: .451; COL: 2.175"; 56,800 psi
335	Cast Performance Bullets WLN GC	38.0	1,790	starting load; dia.: .452; COL: 2.180"; 46,100 psi
335	Cast Performance Bullets WLN GC	41.0	1,917	maximum load; dia.: .452; COL: 2.180"; 55,800 psi
360	Cast Performance Bullets WLN GC	35.0	1,713	starting load; dia.: .452; COL: 2.190"; 47,600 psi
360	Cast Performance Bullets WLN GC	38.0	1,836	maximum load; dia.: .452; COL: 2.190"; 56,900 psi
395	Cast Performance Bullets WLN GC	30.0	1,553	starting load; dia.: .452; COL: 2.185"; 45,300 psi
395	Cast Performance Bullets WLN GC	34.0	1,693	maximum load; dia.: .452; COL: 2.185"; 55,700 psi
200	Barnes XPB	45.0	2,237	starting load; dia.: .451; COL: 2.320"; 38,500 psi
200	Barnes XPB	46.5	2,315	maximum load; dia.: .451; COL: 2.320"; 42,900 psi
Hodgdon Pistol Data case: Starline; bbl: 10.743"; PR: Winchester LRM; twist: 1:20"; trim: 1.790" - This data was developed with Starline Brass which was designed for use with large rifle type primers. Some brands of brass were designed solely for use with large pistol primers. Check with the manufacturer of the brass for correct primer usage. Rifle primers used in a pistol primer pocket cannot be seated sufficiently deep to be below flush with the casehead, which could result in sympathetic ignition of other rounds in the cylinder during recoil. Such use may result in damage to the firearm and/or result in injury or death of the shooter and/or bystander. Never exceed loads listed.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Hornady FTX	44.6	1900
200	Hornady FTX	46.9	2000
200	Hornady FTX	49.2	2100
200	Hornady FTX	51.5	2200
200	Hornady FTX	52.7	2250	maximum load
Hornady FTX Data rifle: S&W 460 XVR; barrel: Factory; length: 8 3/8"; twist: Gain twist 1 in 20"; primer: WLR; case: Hornady; C.O.L.: 2.275"; approach maximum loads with extreme caution
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
240	Hornady Jacketed Mag-XTP HP	43.5	2246	sugg. start load; 2.160" OAL; 52,200 psi
240	Hornady Jacketed Mag-XTP HP	48.0	2331	max load; 2.160" OAL; 57,400 psi
250	Barnes XPB	36.5	2016	sugg. start load; 2.200" OAL; 46,700 psi
250	Barnes XPB	38.5	2123	max load; 2.200" OAL; 56,000 psi
260	Nosler Partition - Jacketed HG HP	38.0	2042	sugg. start load; 2.175" OAL; 51,900 psi; potentially most accurate load
260	Nosler Partition - Jacketed HG HP	40.0	2115	max load; 2.175" OAL; 56,700 psi
275	Barnes XPB	36.0	1965	sugg. start load; 2.300" OAL; 48,600 psi
275	Barnes XPB	38.2	2029	max load; 2.300" OAL; 54,400 psi
300	Speer Gold Dot Jacketed HP	34.0	1798	sugg. start load; 2.160" OAL; 43,800 psi
300	Speer Gold Dot Jacketed HP	38.0	1966	max load; 2.160" OAL; 55,900 psi
325	Cast #452651 gas check	29.5	1498	sugg. start load; 2.180" OAL; 28,900 cup
325	Cast #452651 gas check	35.0	1812	max load; 2.180" OAL; 50,100 cup
Lyman Reloading Handbook 49th Edition cases: Starline; trim-to length: 1.790"; primers: Winchester WLRM; primer size: Large Rifle, Magnum; Lyman shell holder: No. 7; cast bullets used sized to .452" dia.; firearm used: Universal Receiver; barrel length: 10"; twist: 1-20"; groove dia.: .451"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
300	Speer UCSP	29.0	1406	start charge; reduced recoil load
300	Speer UCSP	31.0	1475	max charge; reduced recoil load
300	Speer Casull GDHP	34.0	1581	start charge; full pressure load
300	Speer Casull GDHP	36.0	1645	max charge; full pressure load
Speer Handgun Data Reloading Manual #14 max. case length: 1.800"; trim-to length: 1.790"; max cart. OAL: 2.290"; RCBS shell holder: #14; cart. case: Hornady; primer: Federal 210; test firearm Smith & Wesson X-Frame; barrel length: 8.375"; maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Hornady FTX (460 S&W)	44.6	1837
200	Hornady FTX (460 S&W)	46.9	1903
200	Hornady FTX (460 S&W)	49.2	1980
200	Hornady FTX (460 S&W)	51.5	2056
200	Hornady FTX (460 S&W)	52.7	2130	maximum load
240	Hornady XTP Mag	41.0	1501
240	Hornady XTP Mag	43.8	1614
240	Hornady XTP Mag	46.6	1727
240	Hornady XTP Mag	49.5	1840	maximum load
300	Hornady XTP Mag	33.4	1284
300	Hornady XTP Mag	37.2	1386
300	Hornady XTP Mag	39.2	1487	maximum load
Using Hornady Bullets Gun: Smith & Wesson Model 460 XVR; barrel length: 8 3/8 inches; case: Starline; primer: Winchester Large Rifle; bullet diameter: .452"; bullets: 200 GR Hornady FTX (460 S&W) COAL: 2.275", 240 GR Hornady XTP Mag COAL: 2.160", 300 GR Hornady XTP Mag COAL: 2.165"; maximum COAL: 2.275"; maximum case length: 1.800"; trim to length: 1.790".
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
240	Hornady Mag Jacketed XTP/HP	43.5	2200	sugg. start load; 2.160" OAL; potentially most accurate load
240	Hornady Mag Jacketed XTP/HP	48.0	2386	max load; 2.160" OAL
250	Barnes XPB	36.5	2012	sugg. start load; 2.200" OAL
250	Barnes XPB	38.5	2083	max load; 2.200" OAL; potentially most accurate load
260	Nosler Partition Jacketed HG HP	38.0	1986	sugg. start load; 2.175" OAL
260	Nosler Partition Jacketed HG HP	40.0	2046	max load; 2.175" OAL
275	Barnes XPB	36.0	1928	sugg. start load; 2.300" OAL
275	Barnes XPB	38.2	1996	max load; 2.300" OAL
300	Speer Gold Dot Jacketed HP	34.0	1871	sugg. start load; 2.160" OAL
300	Speer Gold Dot Jacketed HP	38.0	1962	max load; 2.160" OAL
325	Cast #452651 gas check	29.5	1747	sugg. start load; 2.180" OAL
325	Cast #452651 gas check	35.0	1842	max load; 2.180" OAL
in a T/C Contender & Encore Lyman Reloading Manual 49th Edition This data was developed for use in the T/C Contender and Encore handguns. It can also be used in other single shot or bolt-action handguns such as the Remington XP-100 and Savage Striker. Do not use these loads in any other type of handgun. Cases: Starline; trim-to length: 1.790"; primers: Winchester WLRM; primer size: Large Rifle, Magnum; Lyman shell holder: No. 7; cast bullets used sized to .452" dia.; firearm used: Thompson/Center Encore; barrel length: 15"; twist: 1-20"; groove dia.: .451"

.475 Linebaugh

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
400	Speer Gold Dot	26.0	1,272	1.00 inches
400	Hornady XTP	26.0	1,319	.78 inches
Freedom Arms Loads were tested at 25 yards in a Freedom Arms Model 757 with a 6-inch barrel.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
325	Hornady XTP	31.0	1480	start load; COL: 1.740"; 36,300 psi
325	Hornady XTP	33.5	1626	max load; COL: 1.740"; 47,400 psi
370	CPB LFP	27.0	1328	start load; COL: 1.770"; 31,000 psi
370	CPB LFP	29.5	1476	max load; COL: 1.770"; 45,200 psi
400	Hornady XTP	23.0	1139	start load; COL: 1.740"; 30,200 psi
400	Hornady XTP	25.5	1330	max load; COL: 1.740"; 43,900 psi
405	CPB LFP GC	24.5	1301	start load; COL: 1.745"; 40,000 psi
405	CPB LFP GC	26.5	1393	max load; COL: 1.745"; 48,500 psi
Hodgdon Pistol Data Case: Hornady; twist: 1:20"; primer: Winchester LP; barrel length: 8"; trim length: 1.390"; bullet diam.: .475"; NEVER EXCEED MAXIMUM LOADS
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
385	Lead	27.0	1435	start load
385	Lead	30.0	1566	never exceed; 55,000 psi
420	Jacketed	25.0	1304	start load
420	Jacketed	27.0	1424	never exceed; 49,600 psi
Lee Precision Data CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Large Pistol primer. Min. OAL: 1.810
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
275	Barnes XPB HP	31.5	1643	sugg. start load; 1.810" OAL; 41,800 psi
275	Barnes XPB HP	32.5	1681	max load; 1.810" OAL; 48,300 psi
325	Hornady Jacketed XTP/HP	31.0	1592	sugg. start load; 41,000 psi
325	Hornady Jacketed XTP/HP	32.0	1661	max load; 48,800 psi
400	Hornady Jacketed XTP/HP	24.2	1332	sugg. start load; 44,900 psi
400	Hornady Jacketed XTP/HP	25.0	1374	max load; 50,000 psi; potentially most accurate load
Lyman Reloading Handbook 49th Edition cases: Hornady; trim-to length: 1.395"; primers: CCI 350; primer size: Large Pistol, Magnum; Lyman shell holder: No. 17; 1.740" OAL (except where otherwise specified in remarks); firearm used: Universal Receiver; barrel length: 7 1/2"; twist: 1-18"; groove dia.: .475"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
355	TrueShot WNFP-GC	29.0	1376	primer: CCI 350
355	TrueShot WNFP-GC	30.0	1400	primer: CCI 350
355	TrueShot WNFP-GC	31.0	1456	primer: CCI 350
355	TrueShot WNFP-GC	32.0	1512	primer: CCI 350
355	TrueShot WNFP-GC	33.0	1557	primer: CCI 350
Oregon Trail Cast Bullet Loads Ruger Blackhawk Bisley Linebaugh Custom; 5 1/2-inch barrel; case: Buffalo Bore/Starline; overall loaded length (inches): 1.777; maximum case length: 1.400 inches; trim-to length: 1.390 inches.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
400	Speer GDSP	23.0	1126	start charge; primer: CCI 350 Magnum
400	Speer GDSP	25.0	1212	max charge; primer: CCI 350 Magnum
Speer Handgun Data Reloading Manual #14 max. case length: 1.400"; trim-to length: 1.390"; max cart. OAL: 1.765"; RCBS shell holder: #40; cart. case: Buffalo Bore; primer: CCI 300 (except where otherwise specified in remarks); test firearm: Freedom Arms M767; barrel length: 6"; Important Safety Note: Older developed in cut-down 45-70 cases must not be used in new Buffalo Bore or Hornady cases, as high pressures will result; maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
325	Hornady XTP Mag	27.8	1235
325	Hornady XTP Mag	29.8	1301
325	Hornady XTP Mag	30.8	1367
325	Hornady XTP Mag	31.8	1432	maximum load
400	Hornady XTP Mag	20.0	887
400	Hornady XTP Mag	21.4	957
400	Hornady XTP Mag	22.8	1039
400	Hornady XTP Mag	24.2	1121
400	Hornady XTP Mag	25.6	1198	maximum load
Using Hornady Bullets Gun: Freedom Arms Model 757; barrel length: 6 inches; case: BBA/Starline; primer: Winchester Large Pistol; bullet diameter: .475"; COAL: 1.740"; maximum COAL: 1.765"; maximum case length: 1.400"; trim to length: 1.390".
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
395	Cast Performance LFN	26.0	1,301
395	Cast Performance LFN	27.0	1,374
395	Cast Performance LFN	27.5	1,429
400	Cast Performance WFN	27.5	1,380
401	Cast Performance LFN GC	28.0	1,420
445	Cast Performance LFN	24.5	1,310
400	Speer Gold Dot	26.0	1,272
400	Hawk SP	26.0	1,288
Load Data A Freedom Arms Model 757 with a 6-inch barrel was used to test fire all loads. Buffalo Bore/Starline cases used throughout. Large Pistol primers used for reduced loads; all others used Large Pistol Magnum. Maximum case length: 1.400 inches; trim-to length: 1.395 inches; overall cartridge length: 1.750 to 1.765 inches maximum. Bullet diameter: .476 inch for cast bullets, .475 inch for jacketed. Industry maximum average pressure: 50,000 psi.

.480 Ruger

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
325	Hornady XTP	25.0	1,416	starting load; C.O.L. = 1.620 inches; 37,300 psi
325	Hornady XTP	27.0	1,518	maximum load; C.O.L. = 1.620 inches; 44,900 psi
370	CPB LFP	24.0	1,348	starting load; C.O.L. = 1.640 inches; 33,400 psi
370	CPB LFP	26.0	1,454	maximum load; C.O.L. = 1.640 inches; 41,500 psi
400	Hornady XTP	18.0	1,115	starting load; C.O.L. = 1.620 inches; 34,400 psi
400	Hornady XTP	20.5	1,258	maximum load; C.O.L. = 1.620 inches; 46,600 psi
405	CPB (w/GCK)	20.0	1,213	starting load; C.O.L. = 1.620 inches; 35,500 psi
405	CPB (w/GCK)	22.3	1,328	maximum load; C.O.L. = 1.620 inches; 45,200 psi
All bullets measure .475 inch. Winchester Large Pistol primers used throughout in Hornady cases. Barrel length: 7.5 inches with one-in-18-inch twist. Trim cases to 1.275 inches.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
325	Hornady XTP	25.0	1416	start load; COL: 1.620"; 37,300 psi
325	Hornady XTP	27.0	1518	max load; COL: 1.620"; 44,900 psi
355	Beartooth Bullets LFN GC	26.0	1415	start load; bullet diam.: .476"; COL: 1.630"; 34,700 psi
355	Beartooth Bullets LFN GC	27.0	1464	max load; bullet diam.: .476"; COL: 1.630"; 38,400 psi
370	Cast Performance Bullets LFP	24.0	1348	start load; COL: 1.640"; 33,400 psi
370	Cast Performance Bullets LFP	26.0	1454	max load; COL: 1.640"; 41,500 psi
400	Hornady XTP	18.0	1115	start load; COL: 1.620"; 34,400 psi
400	Hornady XTP	20.5	1258	max load; COL: 1.620"; 46,600 psi
405	Cast Performance Bullets (w/GCK)	20.0	1213	start load; COL: 1.620"; 35,500 psi
405	Cast Performance Bullets (w/GCK)	22.3	1328	max load; COL: 1.620"; 45,200 psi
420	Beartooth Bullets LFN GC	19.0	1145	start load; bullet diam.: .476"; COL: 1.640"; 34,200 psi
420	Beartooth Bullets LFN GC	20.0	1203	max load; bullet diam.: .476"; COL: 1.640"; 38,700 psi
Hodgdon Data Case: Hornady; twist: 1:18"; primer: Winchester LP; barrel length: 7 1/2"; trim length: 1.275"; bullet diam.: .475" (except where otherwise specified in remarks). NEVER EXCEED MAXIMUM LOADS
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
325	XTP	25.0	1416	start load; min OAL: 1.620
325	XTP	27.0	1518	never exceed; min OAL: 1.620; 44,900 psi
370	Lead	24.0	1348	start load; min OAL: 1.640
370	Lead	26.0	1454	never exceed; min OAL: 1.640; 41,500 psi
400	XTP	18.0	1115	start load; min OAL: 1.620
400	XTP	20.5	1258	never exceed; min OAL: 1.620; 46,600 psi
405	Lead	20.0	1213	start load; min OAL: 1.620
405	Lead	22.3	1328	never exceed; min OAL: 1.620; 45,200 psi
Lee Precision Data CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Large Pistol primer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
275	Speer Jacketed HP	30.0	1662	sugg. start load; 1.650" OAL; 42,800 psi
275	Speer Jacketed HP	31.0	1715	max load; compressed powder charge; 1.650" OAL; 45,100 psi
325	Hornady Jacketed HP/XTP	26.1	1448	sugg. start load; 40,500 psi
325	Hornady Jacketed HP/XTP	27.0	1506	max load; 44,300 psi
400	Hornady Jacketed HP/XTP	20.1	1204	sugg. start load; 40,500 psi
400	Hornady Jacketed HP/XTP	20.8	1255	max load; 44,900 psi
Lyman Reloading Handbook 49th Edition cases: Hornady; trim-to length: 1.275"; primers: Winchester WLP; primer size: Large Pistol; Lyman shell holder: No. 17; 1.620" OAL (except where otherwise specified in remarks); firearm used: Universal Receiver; barrel length: 7 1/2"; twist: 1-18"; groove dia.: .475"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
355	TrueShot WNFP-GC	23.5	1233	primer: CCI 350
Oregon Trail Cast Bullet Loads Freedom Arms Model 757; 6-inch barrel; case: Hornady; overall loaded length (inches): 1.665; maximum case length: 1.285 inches; trim-to length: 1.275 inches.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
275	Speer Gold Dot HP	32.0	1,554	starting load; CCI Magnum primer used with this propellant
275	Speer Gold Dot HP	34.0	1,663	MAXIMUM load; CCI Magnum primer used with this propellant
325	Speer Gold Dot SP	26.0	1,368	starting load; CCI Magnum primer used with this propellant
325	Speer Gold Dot SP	28.0	1,445	MAXIMUM load; CCI Magnum primer used with this propellant
400	Speer Gold Dot SP	19.5	1,100	starting load; CCI Magnum primer used with this propellant
400	Speer Gold Dot SP	21.5	1,188	MAXIMUM load; CCI Magnum primer used with this propellant
Speer Data case: Hornady; primer: CCI 300/350; test firearm: Ruger Redhawk; barrel: 9 1/2"; COAL tested 1.650"; use MAXIMUM loads with caution
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
275	Speer GDHP	32.0	1554	start charge; primer: CCI 350 Magnum;
275	Speer GDHP	34.0	1663	max charge; primer: CCI 350 Magnum
325	Speer GDSP	26.0	1368	start charge; primer: CCI 350 Magnum
325	Speer GDSP	28.0	1445	max charge; primer: CCI 350 Magnum
400	Speer GDSP	19.5	1100	start charge; primer: CCI 350 Magnum
400	Speer GDSP	21.5	1188	max charge; primer: CCI 350 Magnum
Speer Handgun Data Reloading Manual #14 max. case length: 1.285"; trim-to length: 1.275"; max cart. OAL: 1.650"; RCBS shell holder: #40; cart. case: Hornady; primer: CCI 300 (except where otherwise noted in remarks); test firearm: Ruger Redhawk; barrel length: 9.5"; maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
325	Hornady XTP Mag	19.8	880
325	Hornady XTP Mag	21.7	954
325	Hornady XTP Mag	23.6	1040
325	Hornady XTP Mag	25.5	1126
325	Hornady XTP Mag	26.4	1212
325	Hornady XTP Mag	27.3	1291	maximum load
400	Hornady XTP Mag	17.4	875
400	Hornady XTP Mag	19.2	936
400	Hornady XTP Mag	20.1	997
400	Hornady XTP Mag	21.0	1057	maximum load
Using Hornady Bullets Gun: Freedom Arms Model 757; barrel length: 6 inches; case: Hornady; primer: Winchester Large Pistol for Standard and Magnum loads; bullet diameter: .475"; 325 GR COAL: 1.620"; 400 GR COAL: 1.630"; maximum COAL: 1.650"; maximum case length: 1.285"; trim to length: 1.275".
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
275	Sierra Jacketed HP	30.0	1578	sugg. start load; 1.650" OAL
275	Sierra Jacketed HP	31.0	1689	max load; 1.650" OAL
325	Hornady Jacketed HP/XTP	26.1	1495	sugg. start load
325	Hornady Jacketed HP/XTP	27.0	1561	max load
400	Hornady Jacketed HP/XTP	20.1	1225	sugg. start load
400	Hornady Jacketed HP/XTP	20.8	1250	max load
in a T/C Contender & Encore Lyman Reloading Manual 49th Edition This data was developed for use in the T/C Contender and Encore handguns. It can also be used in other single shot or bolt-action handguns such as the Remington XP-100 and Savage Striker. Do not use these loads in any other type of handgun. Cases: Hornady; trim-to length: 1.275"; primers: Winchester WLP; primer size: Large Pistol; Lyman shell holder: No. 17; firearm used: Thompson/Center Encore; barrel length: 12"; twist: 1-18"; groove dia.: .475"; OAL: 1.620" (except where otherwise specified in remarks)
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
300	Hawk JHP	29.0	1,409	primer: CCI 350
325	Hornady JHP/XTP	28.0	1,434	primer: CCI 350; maximum
400	Hawk jacketed FP	21.5	1,139	primer: CCI 350
355	Oregon Trail True Shot	23.5	1,233	primer: CCI 350
370	Cast Performance LBT	23.0	1,246	primer: CCI 350
405	RCBS cast SWC	22.5	1,279	primer: CCI 350
420	LBT cast LFN GC	21.0	1,236	primer: CCI 350; maximum, best large game load
in an FA Model 757 Test gun was a Freedom Arms Model 757 with a 6-inch barrel. Maximum pressure was 48,000 psi. Hornady cases used throughout. Temperature during testing was 85 degrees Fahrenheit.

.50 Action Express / .50 AE

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
325	Speer AE UCHP	29.0	1,250	Starting Load
325	Speer AE UCHP	32.5	1,431	Maximum Load
Hodgdon Pistol Data Case: Speer; Twist: 1:19 inches; Barrel: 6 inches; Trim: 1.280 inches; Primer: CCI 350; bullet diam.: .500"; COL: 1.575"; NEVER EXCEED MAXIMUM LOADS
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
300	Speer GDHP	32.0	1341
300	Speer GDHP	33.0	1410
300	Speer GDHP	34.0	1465
300	Speer GDHP	35.0	1472	maximum load
325	Speer UCHP	30.0	1299
325	Speer UCHP	30.5	1323
325	Speer UCHP	31.0	1348
325	Speer UCHP	31.5	1374
325	Speer UCHP	32.0	1400
325	Speer UCHP	32.5	1425
325	Speer UCHP	33.0	1451	maximum load
325	Hunters Supply Cast FP	30.0	1234
325	Hunters Supply Cast FP	30.5	1252
325	Hunters Supply Cast FP	31.0	1270
325	Hunters Supply Cast FP	31.5	1287
325	Hunters Supply Cast FP	32.0	1304	maximum load
Gun: Magnum Research BFR; barrel length: 8 1/8 inches; case: IMI; primer: Winchester Large Pistol; bullet diameter: 500"/.501"; 300 GR Speer GDHP COAL: 1.580", 325 GR UCHP COAL: 1.575"; 325 Hunters Supply Cast FP COAL: 1.625" (1.580" for Auto Loading Pistols); maximum COAL: 1.575"; maximum case length: 1.285"; trim to length: 1.280".
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
300	Hornady XTP-MAG	32.5	1381
300	Hornady XTP-MAG	33.7	1464	maximum load
Using Hornady Bullets Gun: Magnum Research BFR; barrel length: 8 1/8 inches; case: IMI; primer: Winchester Large Pistol; bullet diameter: 500"/.501"; 300 gr Hornady XTP-MAG COAL: 1.580"; maximum COAL: 1.575"; maximum case length: 1.285"; trim to length: 1.280".
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
325	Speer RNHP	29	1,213	.40 group
325	Speer RNHP	30.0	1,219	.50 group
325	Speer RNHP	31.0	1,281	.40 group
325	Speer RNHP	32.0	1,318	1.25 group
350	Hawk FN	30.0	1,338	.88 group
350	Hawk FN	31.0	1,286	.75 group
350	Hawk FN	32.0	1,415	.25 group
350	Hawk FN	32.5	1,440	.50 group
346	BRP SWC	30.0	1,305	2.00 group
346	BRP SWC	31.0	1,337	1.75 group
346	BRP SWC	32.0	1,382	1.50 group
346	BRP SWC	32.5	1,391	1.50 group
380	BRP SWC	27.0	1,288	1.75 group
380	BRP SWC	28.0	1,296	1.50 group
380	BRP SWC	29.0	1,310	1.50 group
380	BRP SWC	30.0	1,365	1.50 group
Do not use cast bullets in the Desert Eagle.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
275	Barnes XPB	31.5	1,693	SINGLESHOT AND REVOLVERS ONLY; NOT FOR USE IN SEMI-AUTOMATICS
275	Barnes XPB	32.5	1,782	SINGLESHOT AND REVOLVERS ONLY; NOT FOR USE IN SEMI-AUTOMATICS; maximum load
Barnes Reloading Manual #3 case: Speer; parent case: none; primer: Win Large Pistol; trim to: 1.275"; barrel: 15"; Coated X-Bullet data cannot be used with other bullets, including non-coated X-Bullets; maximum loads should be used with caution - Always Start With Minimum Loads
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
325	Jacketed	29.0	1289	start load
325	Jacketed	32.5	1431	never exceed
Lee Precision Data CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Large Pistol primer. Min. OAL: 1.575
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
300	Hornady Jacketed XTP/HP	29.7	1284	sugg. start load; 1.580" OAL
300	Hornady Jacketed XTP/HP	33.0	1398	max load; 1.580" OAL
325	Speer Jacketed HP	31.2	1300	sugg. start load; 1.575" OAL
325	Speer Jacketed HP	32.5	1372	max load; 1.575" OAL
Lyman Reloading Handbook 49th Edition cases: Speer; trim-to length: 1.280"; primers: CCI 350; primer size: Large Pistol, Magnum; Lyman shell holder: No. 7; firearm used: Desert Eagle; barrel length: 6"; twist: 1-19"; goove dia.: .501"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
300	Speer TMJ FN or GDHP	33.5	1482	start charge; primer: CCI 350 Magnum
300	Speer TMJ FN or GDHP	34.5	1510	maximum charge; primer: CCI 350 Magnum
325	Speer UCHP	29.4	1298	start charge; primer: CCI 350 Magnum
325	Speer UCHP	32.6	1437	maximum charge; primer: CCI 350 Magnum
300	Speer TMJ FN or GDHP	33.5	1448	start charge; primer: CCI 350 Magnum; revolver Freedom Arms M555 7.5"
300	Speer TMJ FN or GDHP	34.5	1505	maximum charge; primer: CCI 350 Magnum; revolver Freedom Arms M555 7.5"
325	Speer UCHP	29.4	1324	start charge; primer: CCI 350 Magnum; revolver Freedom Arms M555 7.5"
325	Speer UCHP	32.6	1475	maximum charge; primer: CCI 350 Magnum; revolver Freedom Arms M555 7.5"
340	Speer SWC	28.0	1372	start charge; primer: CCI 350 Magnum; revolver Freedom Arms M555 7.5"
340	Speer SWC	30.0	1445	maximum charge; compressed load; primer: CCI 350 Magnum; revolver Freedom Arms M555 7.5"
Speer Reloading Manual #14 max. case length: 1.286"; trim-to length: 1.276"; max cart. OAL: 1.595"; RCBS shell holder: #33; cart. case: Speer; the 340 grain SWC bullets were cast in RCBS moulds; NOTE: primer, test firearm and barrel length are as follows except where otherwise noted in remarks - primer: CCI 300; test firearm: Magnum Research Desert Eagle; barrel length: 6"; maximum loads should be used with CAUTION

.500 Linebaugh

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
410	LFP	34.0	1383	start load; 30,700 psi
410	LFP	35.5	1458	max load; 35,500 psi
425	LFP (w/GCK)	31.5	1331	start load; 29,100 psi
425	LFP (w/GCK)	33.0	1421	max load; 35,200 psi
468	LFP	30.0	1298	start load; 31,700 psi
468	LFP	31.5	1354	max load; 35,100 psi
Hodgdon Pistol Data Case: Starline; twist: 1:20"; primer: CCI 350; barrel length: 8"; trim length: 1.400"; bullet diam.: .511" (except where otherwise specified in remarks); COL: 1.800" (except where otherwise specified in remarks); NEVER EXCEED MAXIMUM LOADS
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
400	Cast	27.0	1,200	energy: 1,280
410	SP	29.0	1,250	energy: 1,425
410	SP	31.0	1,320	energy: 1,590
Source: Cartridges of the World 10th Edition/John Linebaugh data

.500 Smith & Wesson

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
275	Barnes XPB	42.0	1965	minimum; COAL: 2.085"
275	Barnes XPB	45.0	2082	maximum; COAL: 2.085"
325	Barnes XPB	42.0	1813	minimum; COAL: 2.290"
325	Barnes XPB	45.3	1951	maximum; COAL: 2.290"
Barnes Reloading Manual #4 case: Starline; case trim length: 1.615"; twist rate: 1:15"; primer: Federal GM210M; barrel length: 10"; maximum loads should be used with caution; NOTE: Roll crimp the case mouth into the cannelure. Brass for this cartridge has been made with both Large Pistol and Large Rifle primer pockets. Our data was developed using Large Rifle primers. The primer pockets for Large Rifle primers are the same diameter, but slightly deeper than the primer pockets designed for Large Pistol primers. Cases with the shallower primer pocket can be reamed deeper to accept Large Rifle primers.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
350	Sierra JHP	39.0	1470	COAL: 2.050 inches
350	Sierra JHP	41.2	1639	Maximum Load; COAL: 2.050 inches
using Sierra bullets Gun: Smith & Wesson Model 500; Barrel Length: 8 3/8 inches; Case: Starline "R"; Primer: Winchester Large Rifle; Bullet Diameter: .500 inches; Maximum COAL: 2.250 inches; Maximum Case Length: 1.620 inches; Trim to Length: 1.615 inches.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
275	Barnes XPB HP	42.6	1905	sugg. start load
275	Barnes XPB HP	44.0	1966	max load
325	Barnes XPB HP	40.7	1814	sugg. start load
325	Barnes XPB HP	42.0	1873	max load
350	Hornady Jacketed HP/XTP	38.8	1777	sugg. start load
350	Hornady Jacketed HP/XTP	40.0	1821	max load
375	Barnes XPB HP	33.9	1582	sugg. start load
375	Barnes XPB HP	35.0	1639	max load
400	Sierra Jacketed FP	35.8	1619	sugg. start load
400	Sierra Jacketed FP	37.0	1656	max load; potentially most accurate load
500	Hornady Jacketed FP	29.4	1358	sugg. start load
500	Hornady Jacketed FP	31.0	1464	max load
375	Cast #501680	32.0	1582	sugg. start load
375	Cast #501680	35.5	1652	max load
Lyman Reloading Handbook 49th Edition Starline brass designed for large rifle primers was used to develop this data. Do not use cases designed for large pistol primers with this data. Starline brass designed for large rifle primers has "R" after "Mag" on the headstamp to designate a large rifle pocket. A heavy roll crimp should be used to allow for complete ignition of the slow burning powders used. Cases: Starline; trim-to length: 1.615"; primers: CCI 200; primer size: Large Rifle; Lyman shell holder: No. 17; firearm used: Thompson/Center Encore; barrel length: 15"; twist: 1-18"; groove dia.: .501"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
275	Barnes XPB HP	42.6	1905	sugg. start load; 2.085" OAL
275	Barnes XPB HP	44.0	1966	max load; 2.085" OAL
325	Barnes XPB HP	40.7	1814	sugg. start load; 2.290" OAL
325	Barnes XPB HP	42.0	1873	max load; 2.290" OAL
350	Hornady Jacketed HP/XTP	38.8	1777	sugg. start load; 1.985" OAL
350	Hornady Jacketed HP/XTP	40.0	1821	max load; 1.985" OAL
375	Barnes XPB HP	33.9	1592	sugg. start load; 2.080" OAL
375	Barnes XPB HP	35.0	1639	max load; 2.080" OAL
400	Sierra Jacketed FP	35.8	1619	sugg. start load; 2.050" OAL
400	Sierra Jacketed FP	37.0	1656	max load; 2.050" OAL; potentially most accurate load
500	Hornady Jacketed FP	29.4	1358	sugg. start load; 2.065" OAL
500	Hornady Jacketed FP	31.0	1464	max load; 2.065" OAL
375	Cast #501680	32.0	1582	sugg. start load; 2.035" OAL
375	Cast #501680	35.5	1652	max load; 2.035" OAL
in a T/C Contender & Encore Lyman Reloading Manual 49th Edition This data was developed for use in the T/C Contender and Encore handguns. It can also be used in other single shot or bolt-action handguns such as the Remington XP-100 and Savage Striker. Do not use these loads in any other type of handgun. Cases: Starline; trim-to length: 1.615"; primers: CCI 200; primer size: Large Rifle; Lyman shell holder: No. 17; firearm used: Thompson/Center Encore; barrel length: 15"; twist: 1-18"; groove dia.: .501"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
275	Barnes	45.0	1,836
350	Hornady	43.0	1,733
400	Sierra	40.0	1,546
400	Sierra	41.0	1,604	factory duplication load; maximum
440	Cast Performance WFN GC	39.0	1,618	factory duplication load
Starline cases and Winchester Large Rifle primers used throughout. Temperature during testing was 80 degrees Fahrenheit.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
350	Hornady XTP-MAG	35.4	1,400	primer: WLPM or WLR; C.O.L.: 2.000"
350	Hornady XTP-MAG	37.7	1,500	primer: WLPM or WLR; C.O.L.: 2.000"
350	Hornady XTP-MAG	39.9	1,600	primer: WLPM or WLR; C.O.L.: 2.000"
350	Hornady XTP-MAG	41.0	1,650	primer: WLPM or WLR; C.O.L.: 2.000"
350	Hornady XTP-MAG	42.2	1,700	primer: WLPM or WLR; C.O.L.: 2.000"
350	Hornady XTP-MAG	43.3	1,750	maximum load; primer: WLPM or WLR; C.O.L.: 2.000"
500	Hornady JFP	23.8	1,000	primer: WLP; C.O.L.: 2.040"
500	Hornady JFP	26.7	1,100	primer: WLP; C.O.L.: 2.040"
500	Hornady JFP	29.6	1,200	primer: WLP; C.O.L.: 2.040"
500	Hornady JFP	32.5	1,300	maximum load; primer: WLP; C.O.L.: 2.040"
Hornady Data rifle: S&W Model 500; barrel length: 8 3/8"; case: Hornady; use maximum loads with extreme caution
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
275	Barnes XPB HP	42.6	2012	sugg. start load; 2.085" OAL; 41,500 psi
275	Barnes XPB HP	44.0	2054	max load; 2.085" OAL; 44,700 psi
325	Barnes XPB HP	40.7	1834	sugg. start load; 2.290" OAL; 41,800 psi
325	Barnes XPB HP	42.0	1896	max load; 2.290" OAL; 46,500 psi
350	Hornady Jacketed HP/XTP	38.8	1780	sugg. start load; 1.985" OAL; 40,400 psi
350	Hornady Jacketed HP/XTP	40.0	1844	max load; 1.985" OAL; 45,100 psi
375	Barnes XPB HP	33.9	1599	sugg. start load; 2.280" OAL; 38,600 psi
375	Barnes XPB HP	35.0	1645	max load; 2.280" OAL; 45,600 psi
400	Sierra Jacketed FP	35.8	1607	sugg. start load; 2.050" OAL; 39,900 psi
400	Sierra Jacketed FP	37.0	1668	max load; 2.050" OAL; 44,200 psi
500	Hornady Jacketed FP/XTP	29.4	1394	sugg. start load; 2.065" OAL; 46,400 psi
500	Hornady Jacketed FP/XTP	31.0	1450	max load; 2.065" OAL; 49,800 psi
375	Cast #501680	32.0	1460	sugg. start load; 2.035" OAL; 22,600 psi
375	Cast #501680	35.5	1650	max load; 2.035" OAL; 32,900 psi
Lyman Reloading Handbook 49th Edition cases: Starline; trim-to length: 1.615"; primers: CCI #200; primer size: Large Rifle; Lyman shell holder: No. 17; cast bullets used sized to .501" dia.; firearm used: Universal Receiver; barrel length: 10"; twist: 1-18"; groove dia.: .500"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
275	Barnes XPB	45.0	1,836	primer: WLR
Barnes X-Pistol Bullets A Smith & Wesson Model 500 with an 8 3/8-inch barrel used for test-firing loads. Starline cases used throughout. Temperature: 80 degrees Fahrenheit.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
300	Hornady FTX	43.6	1700
300	Hornady FTX	46.2	1800
300	Hornady FTX	48.8	1900
300	Hornady FTX	50.1	1950
300	Hornady FTX	51.4	2000	maximum load
FTX Data rifle: S&W Model 500; barrel: Factory; length: 8 3/8"; primer: WLR; case: Hornady; C.O.L.: 2.195"; approach maximum loads with extreme caution
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
275	Barnes XPB	42.0	1965	start load; COL: 2.085"; 43,900 psi
275	Barnes XPB	45.0	2082	max load; COL: 2.085"; 49,300 psi
325	Barnes XPB	42.0	1813	start load; COL: 2.290"; 40,000 psi
325	Barnes XPB	45.3	1951	max load; COL: 2.290"; 48,900 psi
350	Hornady XTP	39.0	1712	start load; COL: 1.985"; 41,500 psi
350	Hornady XTP	43.0	1877	max load; COL: 1.985"; 50,600 psi
370	Cast Performance Bullets LGC	44.5	1801	start load; COL: 2.020"; 42,800 psi
370	Cast Performance Bullets LGC	47.0	1909	max load; COL: 2.020"; 49,900 psi
385	Rem. HP	39.0	1648	start load; COL: 2.150"; 38,700 psi
385	Rem. HP	42.5	1794	max load; COL: 2.150"; 47,300 psi
400	Sierra JSP	34.0	1514	start load; COL: 2.050"; 38,000 psi
400	Sierra JSP	40.0	1721	max load; COL: 2.050"; 49,700 psi
440	Cast Performance Bullet LGC	34.0	1509	start load; COL: 2.025"; 40,700 psi
440	Cast Performance Bullet LGC	38.0	1654	max load; COL: 2.025"; 49,900 psi
500	Hornady SP	31.0	1400	start load; COL: 2.065"; 34,400 psi
500	Hornady SP	33.0	1482	max load; COL: 2.065"; 51,900 psi
Hodgdon Pistol Data case: Starline; twist: 1:18"; barrel: 10"; trim: 1.615"; primer: Winchester LR; dia: .500"; NEVER EXCEED MAXIMUM LOADS
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
370	Cast Performance Bullet Co. GC	34.0	1480	8 3/8" S&W M500
370	Cast Performance Bullet Co. GC	34.0	1642	10 1/2" BFR
370	Cast Performance Bullet Co. GC	34.0	1542	12" Encore
370	Cast Performance Bullet Co. GC	36.0	1575	8 3/8" S&W M500
370	Cast Performance Bullet Co. GC	36.0	1676	10 1/2" BFR
370	Cast Performance Bullet Co. GC	36.0	1624	12" Encore
370	Cast Performance Bullet Co. GC	38.0	1604	8 3/8" S&W M500
370	Cast Performance Bullet Co. GC	38.0	1690	10 1/2" BFR
370	Cast Performance Bullet Co. GC	38.0	1693	12" Encore
440	Cast Performance Bullet Co. GC	33.0	1428	8 3/8" S&W M500
440	Cast Performance Bullet Co. GC	33.0	1539	10 1/2" BFR
440	Cast Performance Bullet Co. GC	33.0	1561	12" Encore
440	Cast Performance Bullet Co. GC	35.0	1466	8 3/8" S&W M500
440	Cast Performance Bullet Co. GC	35.0	1633	10 1/2" BFR
440	Cast Performance Bullet Co. GC	35.0	1608	12" Encore
440	Cast Performance Bullet Co. GC	37.0	1525	8 3/8" S&W M500
440	Cast Performance Bullet Co. GC	37.0	1712	10 1/2" BFR
440	Cast Performance Bullet Co. GC	37.0	1687	12" Encore
440	Cast Performance Bullet Co. GC	39.0	1641	8 3/8" S&W M500
440	Cast Performance Bullet Co. GC	39.0	1775	10 1/2" BFR
440	Cast Performance Bullet Co. GC	39.0	1743	12" Encore
John Taffin Tests Tested in 8 3/8" S&W M500, 10 1/2" BFR and 12" Encore.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
370	TrueShot WNFP-GC	47.5	1881
Oregon Trail Cast Bullet Loads Smith & Wesson Model 500; 8 3/8-inch barrel; primer: Winchester Large Rifle; case: Starline R; overall loaded length (inches): 2.000; maximum case length: 1.625 inches; trim-to length: 1.615 inches.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
350	S&W UCSP	44.0	1598	start charge
350	S&W UCSP	46.0	1631	max charge
Speer Handgun Data Reloading Manual #14 max. case length: 1.625"; trim-to length: 1.615"; max cart. OAL: 2.250"; RCBS shell holder: #44; cart. case: Starline; primer: Federal 215 (Magnum); test firearm: Smith & Wesson X-Frame; barrel length: 8.875"; maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
300	Hornady FTX	43.6	1606
300	Hornady FTX	46.2	1684
300	Hornady FTX	48.8	1776
300	Hornady FTX	50.1	1867
300	Hornady FTX	51.4	1952	maximum load
350	Hornady XTP Mag	39.9	1427
350	Hornady XTP Mag	41.0	1507
350	Hornady XTP Mag	42.2	1591
350	Hornady XTP Mag	43.3	1657	maximum load
500	Hornady FP-XTP	23.8	844
500	Hornady FP-XTP	26.7	955
500	Hornady FP-XTP	29.6	1066
500	Hornady FP-XTP	32.5	1176	maximum load
Using Hornady Bullets & Winchester Large Pistol Primer Gun: Smith & Wesson Model 500; barrel length: 8 3/8 inches; case: Starline; primer: Winchester Large Pistol for standard or magnum; bullet diameter: .500"; 300 GR FTX COAL: 2.195"; 350 GR XTP Mag COAL: 2.000"; 500 GR FP-XTP COAL: 2.080"; maximum COAL: 2.250"; maximum case length: 1.620"; trim to length: 1.615".
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
300	Hornady FTX	43.6	1643
300	Hornady FTX	46.2	1721
300	Hornady FTX	48.8	1798
300	Hornady FTX	50.1	1893
300	Hornady FTX	51.4	1933	maximum load
350	Hornady XTP Mag	37.7	1370	Do Not Reduce
350	Hornady XTP Mag	39.9	1455
350	Hornady XTP Mag	41.0	1497
350	Hornady XTP Mag	42.2	1625
350	Hornady XTP Mag	43.3	1688	maximum load
500	Hornady FP-XTP	23.8	934
500	Hornady FP-XTP	26.7	1031
500	Hornady FP-XTP	29.6	1149
500	Hornady FP-XTP	32.5	1255	maximum load
Using Hornady Bullets & Winchester Large Rifle Primer Gun: Smith & Wesson Model 500; barrel length: 8 3/8 inches; case: Starline "R"; primer: Winchester Large Rifle; bullet diameter: .500"; 300 GR FTX COAL: 2.195"; 350 GR XTP Mag COAL: 2.000"; 500 FP-XTP COAL: 2.080"; maximum COAL: 2.250"; maximum case length: 1.620"; trim to length: 1.615".

.500 Wyoming Express

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
350	Hornady XTP	32.0	1,486	starting load; COL: 1.740"; 34,600 PSI
350	Hornady XTP	35.0	1,629	maximum load; COL: 1.740"; 43,100 PSI
370	Cast Performance Bullet LGC	34.0	1,527	starting load; COL: 1.740"; 37,500 PSI
370	Cast Performance Bullet LGC	36.0	1,607	maximum load; COL: 1.740"; 41,800 PSI
400	Cast Performance Bullet LGC	32.0	1,497	starting load; COL: 1.750"; 39,800 PSI
400	Cast Performance Bullet LGC	34.5	1,589	maximum load; COL: 1.750"; 47,900 PSI
420	BLT MTN PB	24.0	1,175	starting load; COL: 1.765"; 29,700 PSI
420	BLT MTN PB	27.5	1,363	maximum load; COL: 1.765"; 45,100 PSI
440	Cast Performance Bullet LGC	27.0	1,302	starting load; COL: 1.740"; 34,000 PSI
440	Cast Performance Bullet LGC	29.5	1,415	maximum load; COL: 1.740"; 44,200 PSI
Hodgdon Pistol Data case: Freedom Arms; barrel length: 9"; twist: 1:20"; trim length: 1.360"; primer: Federal 210; bullet diam: .500"; NEVER EXCEED MAXIMUM LOADS

7.62x25mm Tokarev

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Hornady HP-XTP	10.3	951
90	Hornady HP-XTP	11.2	1053
90	Hornady HP-XTP	12.0	1174
90	Hornady HP-XTP	12.9	1293
90	Hornady HP-XTP	13.7	1412
90	Hornady HP-XTP	14.2	1521	maximum load
Using Hornady Bullets Gun: CZ Model 52; barrel length: 4 3/4 inches; case: Starline; primer: Winchester Small Pistol; bullet diameter: .308" and .309" (.309" used throughout test); COAL: 1.320"; maximum COAL: 1.385"; maximum case length: .984"; trim to length: .974". NOTES FROM THE LAB - The 7.62mm Tokarev (aka 7.62x25mm Russian Tokarev) was adopted as the official Soviet military pistol cartridge around 1930 in the Models TT-30 and TT-33 auto-loading pistols. Surplus guns (made in several different countries) eventually began finding their way to the US in the late 1980's. Quality varied significantly; however, both guns and ammunition were inexpensive and many are currently in circulation. The test pistol used here was a CZ Model 52, one of the better quality guns offered in the chambering. Most surplus ammunition is Berdan primed and is usually corrosive. Barrel groove diameter has a rather large variance, with many pistols utilizing .311 to .312 inch bullets. To develop handload data Starline cases were used (available direct at 800-280-6660). These are intended to house .308-inch bullets and will require neck reaming if .311- to .312-inch bullets are used. The Hornady 90-grain HP-XTP currently has a .309-inch diameter, which seated correctly and functioned properly in the CZ 52. Bullets had a tendency to tilt during seating; however, with care they could be straight in the rather short case neck. A crimp was applied as a separate step using a Lee Factory Crimp Die. Some "start" loads did not produce enough pressure to reliably operate the action on the test pistol, but all maximum loads functioned flawlessly.
