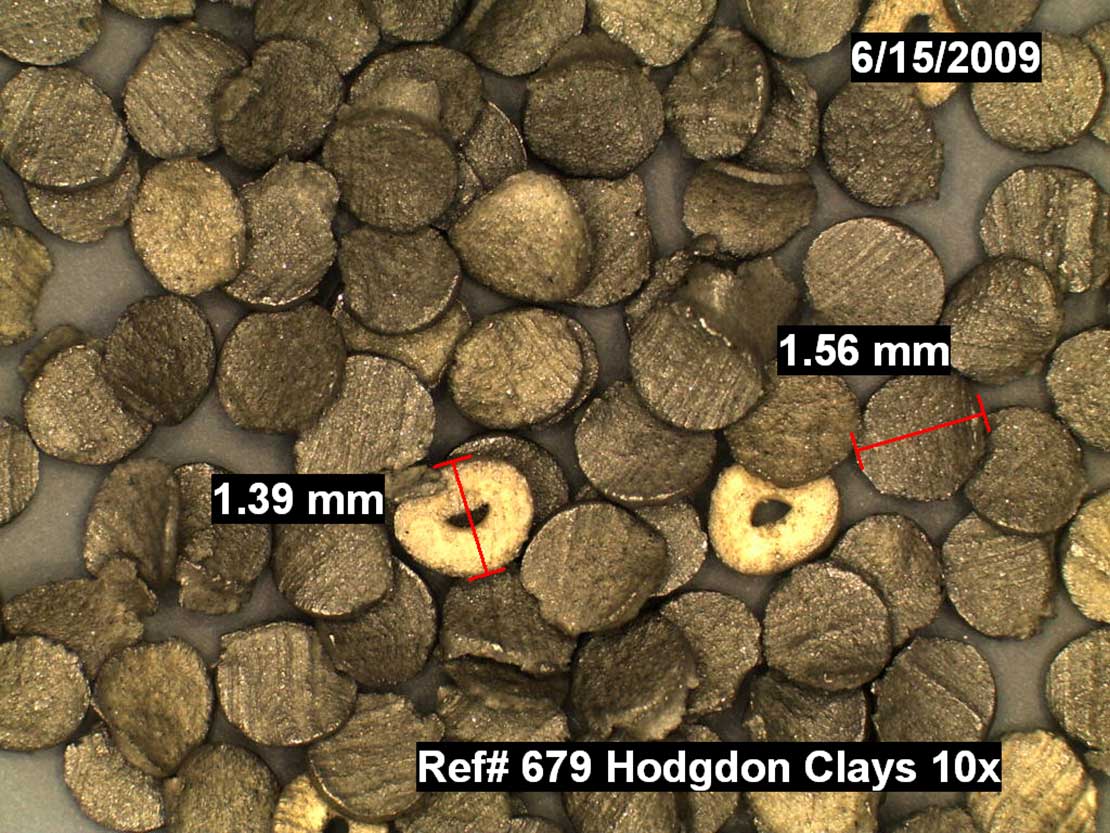

Introduced in January, 1992, CLAYS gunpowder has "taken the clay target world by storm". It is the cleanest burning , most consistent 12 ga. 7/8., 1 oz. and 1 1/8 oz. powder available today, the preferred choice of competitive target shooters.. The superb burning characteristics of this powder produce soft, smooth recoil and excellent patterns. These features transfer directly to handgun applications where target shooting is the main goal. 45 ACP and 38 Special are only two of the cartridges where CLAYS gunpowder provides "tack driving" target accuracy with flawless functioning. Available in 14 oz., 4 lb. & 8 lb. containers.
| Shape | Color | Perforation | Diameter min | Diameter max | Length/thick. min | Length/thick. max | Manufacturer |
|---|---|---|---|---|---|---|---|
| disk | Gray | No | 1.56 mm | 1.56 mm | 0.2 mm | 0.2 mm | ADI / Australia |
Ladedata som finnes på hjemmesidene til Evje PK er KUN ment som en veiledning! Ladedata skal alltid verifiseres mot kjente kilder (kruttprodusenter, ladebøker o.l.)
Data funnet på våre hjemmesider brukes på eget ansvar, og Evje Pistolklubb fratar seg alt ansvar for feil bruk av, eller skrivefeil i oppgitte data.
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
 | 60 | Hornady HP-XTP | 2.0 | 801 | |
| 60 | Hornady HP-XTP | 2.2 | 917 | |
| 60 | Hornady HP-XTP | 2.3 | 955 | Remarks: maximum load |
| 60 | Hornady HP-XTP | 3.0 | 789 | |
| 60 | Hornady HP-XTP | 3.2 | 824 | Remarks: maximum load |
| Using Hornady Bullets This data was shot by Brian Pearce, Wolfe Publishing Company. Gun: Kel Tec P-32; barrel length: 2.5 inches; case: Remington; primer: Winchester Small Pistol; bullet diameter: .311 to .312 inch (.311 used herein); COAL: .925 inch; maximum COAL: .984 inch; maximum case length: .680 inch; trim to length: .670 inch; NOTE: All loads functioned (extracted, ejected and fed) reliably in two pistols: a Kel Tec P-32 and a Walther PP. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
 | 71 | Sierra FMJ | 1.5 | 745 | Remarks: starting load; 11,700 cup |
| 71 | Sierra FMJ | 1.7 | 830 | Remarks: maximum load; 15,000 cup |
| Hodgdon Pistol Data Winchester; barrel length: 4"; twist: 1:16"; trim length: .675"; primer: Federal 100M; bullet diam.: .312"; COL: .978"; NEVER EXCEED MAXIMUM LOADS | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
 | 71 | Jacketed | 1.5 | 740 | Remarks: start load; OAL: 0.978 |
| 71 | Jacketed | 1.7 | 830 | Remarks: never exceed; OAL: 0.978; 15,000 cup |
| Hodgdon Pistol Data With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Pistol primer. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
 | 140 | Sierra JHC | 7.0 | 1087 | Remarks: barrel length: 4"; rounds per pound: 1,000 |
| Economical Midrange Loads A variety of firearms were used. primer: CCI 500 (except where otherwise specified in remarks); case: Starline | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
 | 125 | Lead | 3.5 | 910 | Remarks: start load; min OAL: 1.580 |
| 125 | Lead | 5.3 | 1260 | Remarks: never exceed; min OAL: 1.580; 33,000 cup |
| 135 | Lead | 3.4 | 881 | Remarks: start load; min OAL: 1.580 |
| 135 | Lead | 5.1 | 1207 | Remarks: never exceed; min OAL: 1.580; 30,200 cup |
| 158 | Lead | 3.2 | 811 | Remarks: start load; min OAL: 1.610 |
| 158 | Lead | 4.6 | 1079 | Remarks: never exceed; min OAL: 1.610; 33,600 cup |
| Lee Precision Data Small Pistol Primer. With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 140 | Sierra JHC | 7.0 | 1,087 | Remarks: overall loaded length (inches): 1.581; primer: CCI 500 |
 | 173 | Lyman 358429 cast | 7.0 | 1,130 | Remarks: overall loaded length (inches): 1.667; primer: CCI 500 |
| For S&W Models 19 & 66 Firearm used for testing was an S&W Model 19 with a 4-inch barrel. Starline cases were used throughout. No loads exceeded 30,000 psi. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
 | 140 | Hornady FP-Cowboy | 2.3 | 555 | Remarks: COAL: 1.550" |
| 140 | Hornady FP-Cowboy | 2.9 | 677 | Remarks: COAL: 1.550" |
| 140 | Hornady FP-Cowboy | 3.5 | 799 | Remarks: COAL: 1.550" |
| 140 | Hornady FP-Cowboy | 4.2 | 922 | Remarks: maximum load; COAL: 1.550" |
 | 158 | Hornady SWC, RN, SWC-HP | 2.5 | 638 | Remarks: COAL: 1.590" |
| 158 | Hornady SWC, RN, SWC-HP | 2.9 | 690 | Remarks: COAL: 1.590" |
| 158 | Hornady SWC, RN, SWC-HP | 3.3 | 766 | Remarks: COAL: 1.590" |
| 158 | Hornady SWC, RN, SWC-HP | 3.6 | 810 | Remarks: COAL: 1.590" |
| 158 | Hornady SWC, RN, SWC-HP | 4.0 | 871 | Remarks: COAL: 1.590" |
| 158 | Hornady SWC, RN, SWC-HP | 4.4 | 923 | Remarks: maximum load; COAL: 1.590" |
| Using Hornady Bullets This data was shot by Brian Pearce, Wolfe Publishing Company. Gun: Ruger GP100; barrel length: 6"; case: Starline; primer: Winchester Small Pistol Magnum; bullet diameter: .357"; maximum COAL: 1.590"; maximum case length: 1.290"; trim to length: 1.280". | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
 | 90 | Cast LRNFP | 2.7 | 780 | Remarks: start load; bullet diam.: .359"; COL: 1.560"; 6,000 cup |
| 90 | Cast LRNFP | 3.5 | 1106 | Remarks: max load; bullet diam.: .359"; COL: 1.560"; 12,500 cup |
 | 125 | Cast LRNFP | 3.5 | 984 | Remarks: start load; bullet diam.: .358"; COL: 1.580"; 11,900 cup |
| 125 | Cast LRNFP | 5.3 | 1260 | Remarks: max load; bullet diam.: .358"; COL: 1.580"; 33,000 cup |
 | 135 | Cast LRNFP | 3.4 | 914 | Remarks: start load; bullet diam.: .358"; COL: 1.580"; 12,200 cup |
| 135 | Cast LRNFP | 5.1 | 1207 | Remarks: max load; bullet diam.: .358"; COL: 1.580"; 30,200 cup |
 | 158 | Cast LSWC | 3.2 | 867 | Remarks: start load; bullet diam.: .358"; COL: 1.610"; 14,400 cup |
| 158 | Cast LSWC | 4.6 | 1079 | Remarks: max load; bullet diam.: .358"; COL: 1.610"; 33,600 cup |
| Hodgdon Data Case: Winchester; barrel length: 10"; twist: 1:18.75"; trim length: 1.285"; primer: Winchester SPM; bullet diam.: .357" (except where otherwise specified in remarks). NEVER EXCEED MAXIMUM LOADS | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
 | 180 | Flat Point | 3.2 | 741 | Remarks: maximum load; minimum OAL: 1.580 |
| Oregon Trail Handgun/Cowboy Loads test gun: Smith & Wesson M-686 6", WSP; do not exceed maximum loads; never reduce stated overall lengths | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
 | 125 | LRN | 2.0 | 631 | Remarks: starting load; COL: 1.400" |
| 125 | LRN | 2.5 | 765 | Remarks: maximum load; COL: 1.400" |
 | 150 | LRN | 2.0 | 624 | Remarks: starting load; COL: 1.390" |
| 150 | LRN | 2.6 | 744 | Remarks: maximum load; COL: 1.390" |
| Hodgdon Pistol Data Starline; barrel length: 7 1/2"; twist: 1:16"; trim length: 1.012"; primer: Federal 100M; bullet diam.: .358"; NEVER EXCEED MAXIMUM LOADS | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 93 | AA206 LRN | 1.8 | 634 | Remarks: starting load; bullet diam.: .359"; COL: 1.005"; 7,000 cup |
| 93 | AA206 LRN | 2.1 | 778 | Remarks: maximum load; bullet diam.: .359"; COL: 1.005"; 7,300 cup |
| 135 | AA202 LFP | 1.8 | 648 | Remarks: starting load; bullet diam.: .358"; COL: 1.135" |
| 135 | AA202 LFP | 2.1 | 731 | Remarks: maximum load; bullet diam.: .358"; COL: 1.135" |
| Hodgdon Pistol Data case: Starline; barrel length: 7 1/2"; twist: 1:16"; trim length: 7.55"; primer: Federal 100M; NEVER EXCEED MAXIMUM LOADS | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 110 | Speer JHP | 6.0 | 1012 | Remarks: rounds per pound: 1,167 |
| Economical Midrange Loads firearm used: Smith & Wesson Model 14; primer: Federal 100; case: Starline: barrel length: 6" | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
 | 90 | Cast #356242 (Linotype) | 4.5 | 1101 | Remarks: sugg. start load; 1.456" OAL; 10,400 cup |
| 90 | Cast #356242 (Linotype) | 5.0 | 1235 | Remarks: max load; 1.456" OAL; 14,500 cup |
 | 120 | Cast #356242 (Linotype) | 2.9 | 860 | Remarks: sugg. start load; 1.450" OAL; 10,600 cup |
| 120 | Cast #356242 (Linotype) | 3.3 | 954 | Remarks: max load; 1.450" OAL; 15,300 cup |
 | 150 | Cast #358091 (Linotype) | 2.7 | 843 | Remarks: sugg. start load; 1.317" OAL; 12,400 cup |
| 150 | Cast #358091 (Linotype) | 3.0 | 948 | Remarks: max load; 1.317" OAL; 16,400 cup |
 | 158 | Cast #358665 (Linotype) | 2.6 | 783 | Remarks: sugg. start load; 1.445" OAL; 11,900 cup |
| 158 | Cast #358665 (Linotype) | 2.9 | 856 | Remarks: max load; 1.445" OAL; 16,400 cup |
 | 160 | Cast #358311 (Linotype) | 2.7 | 776 | Remarks: sugg. start load; 1.550" OAL; 12,200 cup |
| 160 | Cast #358311 (Linotype) | 3.0 | 854 | Remarks: max load; 1.550" OAL; 15,800 cup |
 | 170 | Cast #358429 (Linotype) | 2.3 | 722 | Remarks: sugg. start load; 1.537" OAL; 11,500 cup |
| 170 | Cast #358429 (Linotype) | 2.9 | 824 | Remarks: max load; 1.537" OAL; 15,900 cup |
| Cast Bullet Data Lyman Reloading Handbook 49th Edition cases: Federal; trim-to length: 1.149"; primers: CCI 500; primer size: Small Pistol; Lyman shell holder: No. 1; cast bullets used sized to .358" dia.; firearm used: Universal Receiver; barrel length: 4"; twist: 1-18 3/4"; groove dia.: .357"; (+P) designates higher pressure loads | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 125 | Hornady XTP | 3.9 | 937 | Remarks: COL: 1.455"; CUP: 16,100 |
| 140 | Hornady XTP | 3.7 | 869 | Remarks: COL: 1.455"; CUP: 16,700 |
| 148 | Hornady Lead Hollow Base Wadcutter | 2.5 | 836 | Remarks: COL: 1.160"; CUP: 13,200 |
| 158 | Hornady XTP | 3.1 | 721 | Remarks: COL: 1.455"; CUP: 16,600 |
| Hodgdon Data Winchester; BBL: 7.7"; PR: Winchester SP; NEVER exceed loads listed | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 90 | Cast LRNFP | 2.5 | 705 | Remarks: start load; bullet diam.: .359"; COL: 1.325"; 7,900 psi |
| 90 | Cast LRNFP | 3.0 | 938 | Remarks: max load; bullet diam.: .359"; COL: 1.325"; 11,400 psi |
| 110 | Hornady XTP | 4.0 | 1002 | Remarks: start load; bullet diam.: .357"; COL: 1.455"; 14,400 cup |
| 110 | Hornady XTP | 4.2 | 1073 | Remarks: max load; bullet diam.: .357"; COL: 1.455"; 17,000 cup |
| 125 | Hornady XTP | 3.5 | 843 | Remarks: start load; bullet diam.: .357"; COL: 1.455"; 12,400 cup |
| 125 | Hornady XTP | 3.9 | 937 | Remarks: max load; bullet diam.: .357"; COL: 1.455"; 16,100 cup |
| 125 | Cast LRNFP | 2.5 | 810 | Remarks: start load; bullet diam.: .358"; COL: 1.445"; 8,400 cup |
| 125 | Cast LRNFP | 3.5 | 978 | Remarks: max load; bullet diam.: .358"; COL: 1.445"; 16,900 cup |
| 130 | MEI Cast LRNFP | 3.0 | 828 | Remarks: start load; bullet diam.: .358"; COL: 1.460"; 12,500 psi |
| 130 | MEI Cast LRNFP | 3.5 | 924 | Remarks: max load; bullet diam.: .358"; COL: 1.460"; 16,100 psi |
| 135 | Cast LRNFP | 2.6 | 767 | Remarks: start load; bullet diam.: .358"; COL: 1.418"; 11,400 cup |
| 135 | Cast LRNFP | 3.3 | 910 | Remarks: max load; bullet diam.: .358"; COL: 1.418"; 16,200 cup |
| 140 | Hornady XTP | 3.0 | 703 | Remarks: start load; bullet diam.: .357"; COL: 1.455"; 13,400 cup |
| 140 | Hornady XTP | 3.7 | 869 | Remarks: max load; bullet diam.: .357"; COL: 1.455"; 16,700 cup |
| 140 | Hornady Cowboy | 2.5 | 706 | Remarks: start load; bullet diam.: .358"; COL: 1.450"; 10,700 psi |
| 140 | Hornady Cowboy | 3.4 | 862 | Remarks: max load; bullet diam.: .358"; COL: 1.450"; 16,200 psi |
| 148 | Hornady LHBWC | 2.3 | 784 | Remarks: start load; bullet diam.: .358"; COL: 1.160"; 10,900 cup |
| 148 | Hornady LHBWC | 2.5 | 836 | Remarks: max load; bullet diam.: .358"; COL: 1.160"; 13,200 cup |
| 158 | Hornady XTP | 3.0 | 633 | Remarks: start load; bullet diam.: .357"; COL: 1.455"; 13,400 cup |
| 158 | Hornady XTP | 3.1 | 721 | Remarks: max load; bullet diam.: .357"; COL: 1.455"; 16,600 cup |
| 158 | Cast LSWC | 2.8 | 812 | Remarks: start load; bullet diam.: .358"; COL: 1.475"; 12,900 cup |
| 158 | Cast LSWC | 3.1 | 871 | Remarks: max load; bullet diam.: .358"; COL: 1.475"; 15,100 cup |
| Hodgdon Pistol Data Winchester; twist: 1:18.75"; primer: Winchester SP, Small Pistol; barrel length: 7.7"; trim length: 1.145". | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 105 | Lee #358-105-SWC | 3.0 | 868 | Remarks: sugg. start load; 12,700 psi |
| 105 | Lee #358-105-SWC | 3.7 | 984 | Remarks: max load; 16,600 psi |
| Lyman Cast Bullet Handbook 4th Edition cases: Federal; trim-to length: 1.149"; primer: CCI 500; primer size: Small Pistol; Lyman shell holder: No. 1; cast bullets used sized to .358" dia.; firearm used: Universal Receiver; barrel length: 4"; twist: 1-18 3/4"; groove dia.: .357"; 1.450" OAL. NOTE: Loads designated with a +P symbol are higher pressure loads and must not be used in standard 38 Special revolvers unless the manufacturer has specifically stated that the use of such ammunition is acceptable in the particular firearm. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 125 | Hornady Jacketed HP | 3.2 | 719 | Remarks: sugg. start load; 1.470" OAL; 11,800 cup |
| 125 | Hornady Jacketed HP | 3.8 | 870 | Remarks: max load; 1.470" OAL; 15,900 cup |
| 158 | Hornady Jacketed HP | 2.8 | 648 | Remarks: sugg. start load; 1.480" OAL; 14,500 cup |
| 158 | Hornady Jacketed HP | 3.2 | 712 | Remarks: max load; 1.480" OAL; 16,600 cup |
| Lyman Reloading Handbook 49th Edition cases: Federal; trim-to length: 1.149"; primers: CCI 500; primer size: Small Pistol; Lyman shell holder: No. 1; firearm used: Universal Receiver; barrel length: 4"; twist: 1-18 3/4"; groove dia.: .357"; (+P) designates higher pressure loads | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 125 | Hornady HP-XTP or FP-XTP | 4.8 | 776 | Remarks: COAL: 1.450" |
| 125 | Hornady HP-XTP or FP-XTP | 5.0 | 830 | Remarks: COAL: 1.450" |
| 125 | Hornady HP-XTP or FP-XTP | 5.3 | 895 | Remarks: COAL: 1.450" |
| 125 | Hornady HP-XTP or FP-XTP | 5.5 | 963 | Remarks: COAL: 1.450" |
| 125 | Hornady HP-XTP or FP-XTP | 5.8 | 1010 | Remarks: COAL: 1.450"; +P load; maximum load |
| 140 | Hornady HP-XTP | 4.6 | 790 | Remarks: COAL: 1.450" |
| 140 | Hornady HP-XTP | 4.9 | 824 | Remarks: COAL: 1.450" |
| 140 | Hornady HP-XTP | 5.1 | 861 | Remarks: COAL: 1.450" |
| 140 | Hornady HP-XTP | 5.3 | 896 | Remarks: COAL: 1.450"; +P load; maximum load |
| 158 | Hornady HP-XTP or FP-XTP | 4.1 | 580 | Remarks: COAL: 1.450" |
| 158 | Hornady HP-XTP or FP-XTP | 4.3 | 619 | Remarks: COAL: 1.450" |
| 158 | Hornady HP-XTP or FP-XTP | 4.4 | 660 | Remarks: COAL: 1.450" |
| 158 | Hornady HP-XTP or FP-XTP | 4.6 | 710 | Remarks: COAL: 1.450" |
| 158 | Hornady HP-XTP or FP-XTP | 4.8 | 750 | Remarks: COAL: 1.450"; +P load; maximum load |
| 140 | Hornady FP-Cowboy | 4.0 | 692 | Remarks: COAL: 1.450" |
| 140 | Hornady FP-Cowboy | 4.2 | 740 | Remarks: COAL: 1.450" |
| 140 | Hornady FP-Cowboy | 4.5 | 800 | Remarks: COAL: 1.450" |
| 140 | Hornady FP-Cowboy | 4.7 | 865 | Remarks: COAL: 1.450" |
| 140 | Hornady FP-Cowboy | 4.9 | 921 | Remarks: COAL: 1.450" |
| 140 | Hornady FP-Cowboy | 5.2 | 979 | Remarks: COAL: 1.450"; maximum load |
| 148 | Hornady HBWC | 2.6 | 572 | Remarks: COAL: 1.180" |
| 148 | Hornady HBWC | 2.8 | 620 | Remarks: COAL: 1.180" |
| 148 | Hornady HBWC | 3.0 | 670 | Remarks: COAL: 1.180" |
| 148 | Hornady HBWC | 3.2 | 750 | Remarks: COAL: 1.180" |
| 148 | Hornady HBWC | 3.4 | 780 | Remarks: COAL: 1.180" |
| 148 | Hornady HBWC | 3.6 | 834 | Remarks: COAL: 1.180"; maximum load |
| 158 | Hornady SWC-HP, SWC or LRN | 3.4 | 661 | Remarks: COAL: 1.455" |
| 158 | Hornady SWC-HP, SWC or LRN | 3.7 | 713 | Remarks: COAL: 1.455" |
| 158 | Hornady SWC-HP, SWC or LRN | 3.9 | 793 | Remarks: COAL: 1.455" |
| 158 | Hornady SWC-HP, SWC or LRN | 4.2 | 829 | Remarks: COAL: 1.455" |
| 158 | Hornady SWC-HP, SWC or LRN | 4.4 | 887 | Remarks: COAL: 1.455"; maximum load |
| Using Hornady Bullets This data was shot by Brian Pearce, Wolfe Publishing Company. Gun: Colt Trooper 38 Special; barrel length: 4-inches; case: Starline; primer: Winchester Small Pistol; bullet diameter: .357"; maximum COAL: 1.550"; maximum case length: 1.155"; trim to length: 1.145". | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 135 | Speer Gold Dot HP SB | 5.4 | 935 | Remarks: S&W 3-inch |
| 135 | Speer Gold Dot HP SB | 5.4 | 929 | Remarks: Ruger 3 1/16-inch |
| +P (Max. Pressure Limit 20,000 psi) All loads were fired in a Smith & Wesson Model 36 and a Ruger SP101. Starline cases and CCI 500 primers were used throughout. Cartridge overall length: 1.470 inches. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
 | 110 | XTP | 4.0 | 1002 | Remarks: start load; min. OAL: 1.455 |
| 110 | XTP | 4.2 | 1073 | Remarks: NEVER EXCEED; 17,000 cup; min. OAL: 1.455 |
| 125 | Lead | 2.5 | 810 | Remarks: start load; min. OAL: 1.445 |
| 125 | Lead | 3.5 | 978 | Remarks: NEVER EXCEED; 16,900 cup; min. OAL: 1.445 |
 | 125 | XTP | 3.5 | 843 | Remarks: start load; min. OAL: 1.455 |
| 125 | XTP | 3.9 | 937 | Remarks: NEVER EXCEED; 16,100 cup; min. OAL: 1.455 |
| 135 | Lead | 2.6 | 767 | Remarks: start load; min. OAL: 1.418 |
| 135 | Lead | 3.3 | 910 | Remarks: NEVER EXCEED; 16,200 cup; min. OAL: 1.418 |
| 140 | XTP | 3.0 | 703 | Remarks: start load; min. OAL: 1.455 |
| 140 | XTP | 3.7 | 869 | Remarks: NEVER EXCEED; 16,700 cup; min. OAL: 1.455 |
| 148 | Wad Cutter | 2.3 | 784 | Remarks: start load; min. OAL: 1.160 |
| 148 | Wad Cutter | 2.5 | 836 | Remarks: NEVER EXCEED; min. OAL: 1.160 |
| 158 | Lead | 2.8 | 812 | Remarks: start load; min. OAL: 1.475 |
| 158 | Lead | 3.1 | 871 | Remarks: NEVER EXCEED; 15,100 cup; min. OAL: 1.475 |
| 158 | XTP | 3.0 | 633 | Remarks: start load; min. OAL: 1.455 |
| 158 | XTP | 3.1 | 721 | Remarks: NEVER EXCEED; 16,600 cup; min. OAL: 1.455 |
| 160 | Lead | 2.8 | 812 | Remarks: start load; min. OAL: 1.425 |
| 160 | Lead | 3.5 | 911 | Remarks: NEVER EXCEED; 16,400 cup; min. OAL: 1.425 |
| Lee Precision Data With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Pistol Primer. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 158 | BBC roundnose | 3.1 | 833 | Remarks: group (inches): 0.94; power factor: 132 |
| In a Custom Taurus Model 80 A custom Taurus Model 80 with a 6-inch Jarvis barrel and a Tasco PDP3 five-minute dot sight were used for all testing. Winchester +P cases and Federal No. 100 primers were used for all handloads, except for the 2.7-grain Bullseye/148-grain DEWC load, which used WSP primers and mixed cases. Accuracy is the average of at least three, five-shot groups at 25 yards, unless otherwise noted. Velocities were measured with an Oehler M-35P chronograph with the front screen 12 feet from the gun's muzzle. All shooting was done double action from a rest. Range temperatures were 58 to 69 degrees Fahrenheit. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 158 | Hornady lead SWC-HP | 4.5 | 850 | Remarks: overall loaded length (inches): 1.420 |
| 158 | Hornady lead SWC-HP | 5.0 | 961 | Remarks: overall loaded length (inches): 1.420 |
| In a Smith & Wesson Model 627-5 Data includes +P pressures up to 20,000 psi. Cases were +P Starline. Maximum case length: 1.155 inches; trim to length: 1.145 inches; primer: CCI 500. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 148 | Double Base Wad Cutter | 2.2 | 644 | Remarks: starting load |
| 148 | Double Base Wad Cutter | 2.5 | 734 | Remarks: maximum load |
| Oregon Trail Handgun/PPC Loads test gun: Smith & Wesson 686 6", WSP; do not exceed maximum loads; minimum OAL: 1.175; never reduce stated overall lengths | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 110 | Hornady XTP | 4.2 | 759 | Remarks: case: Hornady; primer: WSP |
| 125 | Hornady XTP | 3.9 | 701 | Remarks: case: Hornady; primer: WSP |
| S&W Model 36 Chiefs Special (Hodgdon Data) | S&W Model 36 Chiefs Special, 1.875-in. barrel. | |||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 158 | roundnose flatpoint | 3.0 | 660 | Remarks: group (inches): 2.75 |
| Colt Officer's Match for Plated Bullets All results were the average of five, five-shot strings at 25 yards with the handguns rested on sandbags. OAL: 1.365 inches. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 95 | Barnes TAC-XP | 3.5 | 1072 | Remarks: start load; COL: 1.255"; 27,100 cup |
| 95 | Barnes TAC-XP | 4.6 | 1287 | Remarks: max load; COL: 1.255"; 32,200 cup |
| 115 | LRN | 4.0 | 1046 | Remarks: start load; bullet diam.: .356"; COL: 1.250"; 28,600 cup |
| 115 | LRN | 4.6 | 1104 | Remarks: max load; bullet diam.: .356"; COL: 1.250"; 31,600 cup |
| 124 | Berry's Bullets HBRN TP | 3.8 | 1000 | Remarks: start load; bullet diam.: .356"; COL: 1.250"; 26,700 cup |
| 124 | Berry's Bullets HBRN TP | 4.4 | 1126 | Remarks: max load; bullet diam.: .356"; COL: 1.250"; 31,900 cup |
| 125 | Hornady HAP | 3.6 | 1034 | Remarks: start load; bullet diam.: .356"; COL: 1.210"; 25,900 cup |
| 125 | Hornady HAP | 4.2 | 1132 | Remarks: max load; bullet diam.: .356"; COL: 1.210"; 32,100 cup |
| 125 | Cast LCN | 3.9 | 1014 | Remarks: start load; bullet diam.: .356"; COL: 1.230"; 27,300 cup |
| 125 | Cast LCN | 4.4 | 1063 | Remarks: max load; bullet diam.: .356"; COL: 1.230"; 31,600 cup |
| 135 | LRN | 3.5 | 928 | Remarks: start load; bullet diam.: .356"; COL: 1.275"; 25,600 cup |
| 135 | LRN | 4.2 | 998 | Remarks: max load; bullet diam.: .356"; COL: 1.275"; 32,500 cup |
| Hodgdon Data Case: Remington; twist: 1:16"; primer: Remington 1 1/2, Small Pistol; barrel length: 5"; trim length: .895"; bullet diam.: .355" (except where otherwise specified in remarks). | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 115 | Nosler Sporting Handgun H.P. Practical Pistol | 6.0 | 1,282 | Remarks: maximum load |
| 115 | Nosler Sporting Handgun H.P. Practical Pistol | 5.5 | 1,144 | |
| 115 | Nosler Sporting Handgun H.P. Practical Pistol | 5.0 | 1,006 | Remarks: most accurate load tested |
| 135 | Nosler Sporting Handgun Practical Pistol | 5.5 | 1,157 | Remarks: maximum load |
| 135 | Nosler Sporting Handgun Practical Pistol | 5.0 | 1,022 | |
| 135 | Nosler Sporting Handgun Practical Pistol | 4.5 | 888 | Remarks: most accurate load tested |
| Handgun Data (Using Nosler Bullets) handgun: barrel: Springfield 1911-A1; length: 5"; twist: 1-16"; case: Winchester; primer: Win. WSP; maximum SAAMI overall cartridge length: 1.220" min., 1.280" max.; use maximum loads with caution | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 150 | Bull-X SWC/LD | 3.5 | 982 | Remarks: Level I Load |
| Load Data Warning: Level IV loads should be used only in guns with full-support barrels. They must not be fired in standard factory barrels made by Colt and others. These loads are for modern guns in excellent condition chambered for the .38 Super cartridge and should not be fired in guns originally chambered for the .38 Auto. All loads are safe in the author's guns but all powder charges listed for Levels III and IV loads should be reduced by 10 and 20 percent, respectively, for starting loads in other guns. Remington nickel-plated cases were used in all loads. Winchester WSP primers were used in Levels I, II and III loads; Winchester WSR primers were used in Level IV loads. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
 | 90 | Hornady HP-XTP | 3.4 | 905 | |
| 90 | Hornady HP-XTP | 3.6 | 964 | |
| 90 | Hornady HP-XTP | 3.7 | 1001 | |
| 90 | Hornady HP-XTP | 3.8 | 1045 | Remarks: maximum load |
| Using Hornady Bullets These loads were shot by Brian Pearce, Wolfe Publishing Company. Gun: Walther PPK/S; barrel length: 3 1/4 inches; case: Starline; primer: Winchester WSP; bullet diameter: .355"; maximum COAL: .980"; maximum case length: .680"; trim to length: .675"; COAL: .965". | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 135 | Nosler JHP | 4.0 | 940 | Remarks: start load; COL: 1.125"; 22,600 psi |
| 135 | Nosler JHP | 4.5 | 1071 | Remarks: max load; COL: 1.125"; 32,900 psi |
| 140 | Barnes TAC-XP | 2.6 | 713 | Remarks: start load; COL: 1.135"; 24,800 psi |
| 140 | Barnes TAC-XP | 3.0 | 783 | Remarks: max load; COL: 1.135"; 31,900 psi |
| 150 | Nosler JHP | 3.8 | 923 | Remarks: start load; COL: 1.125"; 28,400 psi |
| 150 | Nosler JHP | 4.0 | 960 | Remarks: max load; COL: 1.125"; 31,700 psi |
| 155 | Hornady XTP | 3.6 | 854 | Remarks: start load; COL: 1.125"; 23,300 psi |
| 155 | Hornady XTP | 4.0 | 942 | Remarks: max load; COL: 1.125"; 30,900 psi |
| 155 | Berry's Bullets FP | 3.7 | 879 | Remarks: start load; COL: 1.125"; 23,500 psi |
| 155 | Berry's Bullets FP | 4.1 | 959 | Remarks: max load; COL: 1.125"; 31,300 psi |
| 165 | Sierra JHP | 3.5 | 851 | Remarks: start load; COL: 1.125"; 29,900 psi |
| 165 | Sierra JHP | 3.9 | 897 | Remarks: max load; COL: 1.125"; 33,300 psi |
| 165 | Berry's Bullets FP | 3.4 | 829 | Remarks: start load; COL: 1.125"; 27,500 psi |
| 165 | Berry's Bullets FP | 3.7 | 888 | Remarks: max load; COL: 1.125"; 32,000 psi |
| 180 | Berry's Bullets FP | 3.0 | 732 | Remarks: start load; COL: 1.125"; 25,400 psi |
| 180 | Berry's Bullets FP | 3.4 | 809 | Remarks: max load; COL: 1.125"; 32,100 psi |
| 180 | Hornady XTP | 3.0 | 727 | Remarks: start load; COL: 1.125"; 26,000 psi |
| 180 | Hornady XTP | 3.5 | 847 | Remarks: max load; COL: 1.125"; 34,300 psi |
| Hodgdon Data Case: Hornady; twist: 1:16"; primer: Winchester SP, Small Pistol; barrel length: 4"; trim length: .845"; bullet diam.: .400". This data is intended for use in firearms with barrels which fully support the cartridge in the chamber. Use of this data in firearms which do not fully support the cartridge, such as Glock, may result in bulged cases, ruptured cases, case head separation, or other conditions which may result in damage to the firearm and/or result in injury or death of the shooter and/or bystanders. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 180 | XTP | 3.0 | 741 | Remarks: start load; min. OAL: 1.125 |
| 180 | XTP | 3.5 | 847 | Remarks: NEVER EXCEED; min. OAL: 1.125; 34,300 psi |
| Lee Precision 180 GR Data Do not use reloads in Glock or similar guns with chambers that do not fully support the cartridge due to the intrusion of the feed ramp. CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Pistol Primer. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 150 | Sierra JHP | 3.5 | 858 | Remarks: start load; 17,100 cup; 1.100" OAL |
| 150 | Sierra JHP | 4.4 | 1025 | Remarks: max load; 21,600 cup; 1.100" OAL |
| 180 | Sierra JHP | 3.4 | 551 | Remarks: start load; 17,900 cup; 1.115" OAL |
| 180 | Sierra JHP | 4.0 | 912 | Remarks: max load; 21,900 cup; 1.115" OAL |
| 175 | Lyman Cast #401638 (#2 Alloy) | 3.3 | 641 | Remarks: start load; 17,800 cup; 1.100" OAL |
| 175 | Lyman Cast #401638 (#2 Alloy) | 4.0 | 992 | Remarks: max load; 20,900 cup; 1.100" OAL |
| Lyman Reloading Handbook 48th Edition cases: Winchester; trim-to length: .845"; primers: Winchester WSP; primer size: Small Pistol; Lyman shell holder: No. 15; firearm used: Universal Receiver; barrel length: 4"; twist: 1-16"; groove dia.: .401"; do not reduce cases below the trim-to length; additionally do not roll crimp bullets; it is important not to seat bullets to a shorter length than listed in any handgun cartridge; but especially so in this one; pressures can be raised dramatically with deep seating | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 180 | Truncated Cone | 3.2 | 848 | Remarks: starting load; minimum OAL: 1.130 |
| 180 | Truncated Cone | 3.4 | 880 | Remarks: maximum load; minimum OAL: 1.130 |
| Oregon Trail Standard Handgun Loads test gun: Entreprise 5", WSP; CAUTION: All Glock .40 S&W pistols as of this writing have large unsupported chambers, as do other makes. Examine your barrel and know what you're dealing with before you proceed! These loads are intended for use in pistols with fully supported chambers ONLY! Do not exceed maximum loads; never reduce stated overall lengths | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 135 | Sierra JHP | 4.0 | 934 | |
| 135 | Sierra JHP | 4.4 | 985 | |
| 135 | Sierra JHP | 4.8 | 1043 | |
| 135 | Sierra JHP | 5.3 | 1102 | |
| 135 | Sierra JHP | 5.7 | 1161 | |
| 135 | Sierra JHP | 6.1 | 1219 | |
| 135 | Sierra JHP | 6.5 | 1268 | Remarks: maximum load |
| 150 | Sierra JHP | 3.6 | 882 | |
| 150 | Sierra JHP | 4.0 | 925 | |
| 150 | Sierra JHP | 4.4 | 976 | |
| 150 | Sierra JHP | 4.7 | 1026 | |
| 150 | Sierra JHP | 5.1 | 1076 | |
| 150 | Sierra JHP | 5.5 | 1123 | Remarks: maximum load |
| 165 | Sierra JHP | 3.4 | 820 | |
| 165 | Sierra JHP | 3.9 | 870 | |
| 165 | Sierra JHP | 4.3 | 930 | |
| 165 | Sierra JHP | 4.8 | 988 | |
| 165 | Sierra JHP | 5.2 | 1045 | Remarks: maximum load |
| 180 | Sierra JHP | 3.4 | 808 | |
| 180 | Sierra JHP | 3.8 | 850 | |
| 180 | Sierra JHP | 4.2 | 900 | |
| 180 | Sierra JHP | 4.6 | 949 | |
| 180 | Sierra JHP | 5.0 | 995 | Remarks: maximum load |
| Using Sierra Bullets | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 155 | Round Nose/Semi Wad Cutter | 4.0 | 1,000 | Remarks: OAL: 1.165 |
| 170 | Semi Wad Cutter | 3.5 | 887 | Remarks: OAL: 1.170 |
| Oregon Trail Minor Factor Handgun Loads test gun: Entreprise, 5" Bar-Sto, WSP; CAUTION: use only in pistols with fully supported chambers! do not exceed maximum loads; never reduce stated overall lengths | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 220 | Lyman 410459 | 7.0 | 1,041 | Remarks: barrel (inches): 6 1/2 |
| Cast Bullet Loads | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 215 | Oregon Trail SWC | 6.5 | 977 | Remarks: primer: Federal 150; rounds per pound: 1,077 |
| 223 | Hensley & Gibbs 258 cast | 7.0 | 1052 | Remarks: primer: CCI 300; rounds per pound; 1,000 |
| Economical Midrange Loads firearm used: Ruger Blackhawk; case: Starline; barrel length: 6 1/2" | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 200 | Cast LFP | 4.0 | 854 | Remarks: start load; COL: 1.550"; 13,400 cup |
| 200 | Cast LFP | 5.2 | 997 | Remarks: max load; COL: 1.550"; 21,200 cup |
| 215 | Cast LFP | 4.0 | 825 | Remarks: start load; COL: 1.585"; 24,600 cup |
| 215 | Cast LFP | 5.2 | 979 | Remarks: max load; COL: 1.585"; 26,700 cup |
| Hodgdon Pistol Data Case: Remington; twist: 1:18.75"; primer: Winchester LP; barrel length: 10.125"; trim length: 1.280"; BULLET DIAM.: .410". NEVER EXCEED MAXIMUM LOADS | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 165 | Lead RNFP | 3.0 | 705 | Remarks: starting load; COL: 1.310"; 6,600 cup |
| 165 | Lead RNFP | 4.2 | 944 | Remarks: max load; COL: 1.310"; 9,000 cup |
| 185 | Lead RNFP | 3.0 | 692 | Remarks: starting load; COL: 1.350"; 5,800 cup |
| 185 | Lead RNFP | 4.2 | 893 | Remarks: max load; COL: 1.350"; 9,600 cup |
| 200 | Lead RNFP | 3.2 | 710 | Remarks: starting load; COL: 1.370"; 6,100 cup |
| 200 | Lead RNFP | 3.9 | 831 | Remarks: max load; COL: 1.370"; 10,000 cup |
| 240 | Lead RNFP | 4.0 | 706 | Remarks: starting load; COL: 1.380"; 6,800 cup |
| 240 | Lead RNFP | 4.7 | 818 | Remarks: max load; COL: 1.380"; 9,500 cup |
| Hodgdon Pistol Data case: Starline; twist: 1:20"; barrel: 8"; trim: 1.09"; primer: Federal 150M; dia: .430"; NEVER EXCEED MAXIMUM LOADS | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 165 | LRNFP Cast | 4.4 | 910 | Remarks: start load; COL: 1.500"; 8,500 cup |
| 165 | LRNFP Cast | 5.5 | 1064 | Remarks: max load; COL: 1.500"; 15,500 cup |
| 185 | LRNFP Cast | 4.2 | 839 | Remarks: start load; COL: 1.540"; 8,900 cup |
| 185 | LRNFP Cast | 6.0 | 1043 | Remarks: max load; COL: 1.540"; 18,400 cup |
| 200 | LRNFP Cast | 4.2 | 785 | Remarks: start load; COL: 1.570"; 8,500 cup |
| 200 | LRNFP Cast | 6.4 | 1028 | Remarks: max load; COL: 1.570"; 20,200 cup |
| 240 | LSWC Cast | 4.3 | 759 | Remarks: start load; COL: 1.620"; 14,000 cup |
| 240 | LSWC Cast | 6.2 | 940 | Remarks: max load; COL: 1.620"; 21,800 cup |
| Hodgdon Pistol Data Case: Winchester; barrel length: 8.275"; twist: 1:20"; trim length: 1.280"; primer: Remington 2 1/2; bullet diam.: .430" (except where otherwise specified in remarks). NEVER EXCEED MAXIMUM LOADS | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 165 | Lead | 4.4 | 910 | Remarks: start load; min OAL: 1.500 |
| 165 | Lead | 5.5 | 1064 | Remarks: never exceed; min OAL: 1.500; 15,500 cup |
| 185 | Lead | 4.2 | 839 | Remarks: start load; min OAL: 1.540 |
| 185 | Lead | 6.0 | 1043 | Remarks: never exceed; min OAL: 1.540; 18,400 cup |
| 200 | Lead | 4.2 | 785 | Remarks: start load; min OAL: 1.570 |
| 200 | Lead | 6.4 | 1028 | Remarks: never exceed; min OAL: 1.570; 20,200 cup |
| 240 | Lead | 4.3 | 759 | Remarks: start load; min OAL: 1.620 |
| 240 | Lead | 6.2 | 940 | Remarks: never exceed; min OAL: 1.620; 21,800 cup |
| Lee Precision Data Large pistol primer. CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 240 | Sierra JHC | 10.8 | 1,210 | Remarks: group: 3.00 inches |
| 240 | Lyman 429421 | 8.5 | 941 | Remarks: group: 1.50 inches |
| Ruger Super Blackhawk Handloads were fired from a 7 1/2-inch barreled Ruger Super Blackhawk. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 200 | Rim Rock standard cast DEWC FB | 4.0 | 679 | Remarks: case: Remington; overall loaded length (inches): 1.400; group (inches): 2.52 |
| 200 | Rim Rock Cowboy hard cast RNFP | 4.5 | 648 | Remarks: case: Federal; overall loaded length (inches): 1.573; group (inches): 2.95 |
| Lightweight Loads Velocities were recorded 10 feet in front of the muzzle of the 4-inch barrel of a Smith & Wesson 329PD revolver. CCI 300 primers were used with all loads. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 240 | Hornady SWC | 6.5 | 902 | Remarks: group (inches): 2.15; primer: Winchester Large Pistol |
| Load Data CCI 350 Magnum Pistol primers used except where otherwise specified in remarks; all loads used Federal cases and were fired through a Ruger Super Blackhawk with a 5.5-inch barrel; all groups were five shots fired at 25 yards | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 240 | Speer Gold Dot HP | 9.0 | 1,007 | |
| Midrange Loads All Smith & Wesson Models 29, 629 and 329PD. A Smith & Wesson (pre-29) .44 Magnum revolver with a 6 1/2-inch barrel used to test loads. CCI 300 primers used throughout, along with Winchester and Starline cases. Maximum case length: 1.285 inches; trim-to length: 1.275 inches. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 240 | Speer Gold Dot HP | 9.0 | 1,068 | |
| Midrange Loads in a Ruger Super The Ruger Super Blackhawk has a barrel length of 7 1/2 inches. Standard Large Pistol (CCI 300 and Federal 150) primers used throughout. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 240 | Speer Gold Dot HP | 9.0 | 979 | |
| Midrange Loads in an S&W The Smith & Wesson Model 29-2 has a 4-inch barrel. Standard Large Pistol (CCI 300 and Federal 150) primers used throughout. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 200 | Round Nose Flat Point | 4.3 | 690 | Remarks: starting load |
| 200 | Round Nose Flat Point | 6.4 | 972 | Remarks: maximum load |
| 225 | Round Nose Flat Point | 4.3 | 667 | Remarks: starting load |
| 225 | Round Nose Flat Point | 6.4 | 939 | Remarks: maximum load |
| Cowboy Loads (Oregon Trail Bullet Handgun Data) test gun: Ruger 7 1/2", WLP; OAL: 1.560; do not exceed maximum loads; never reduce stated overall lengths | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 165 | LRNFP | 3.0 | 776 | Remarks: starting load; COL: 1.165"; 7,300 cup |
| 165 | LRNFP | 4.0 | 979 | Remarks: max load; COL: 1.165"; 11,100 cup |
| 200 | LRNFP | 3.2 | 747 | Remarks: starting load; COL: 1.245"; 8,000 cup |
| 200 | LRNFP | 3.7 | 837 | Remarks: max load; COL: 1.245"; 11,100 cup |
| 240 | LRNFP | 3.0 | 711 | Remarks: starting load; COL: 1.275"; 9,400 cup |
| 240 | LRNFP | 3.5 | 769 | Remarks: max load; COL: 1.275"; 10,700 cup |
| Hodgdon Pistol Data case: Starline; barrel: 5"; trim: .960"; twist: 1:20"; primer: Winchester LP; dia.: .430"; NEVER EXCEED MAXIMUM LOADS | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 200 | Round Nose Flat Point | 3.2 | 661 | Remarks: starting load |
| 200 | Round Nose Flat Point | 3.7 | 745 | Remarks: maximum load |
| 225 | Round Nose Flat Point | 3.0 | 661 | Remarks: starting load |
| 225 | Round Nose Flat Point | 3.5 | 712 | Remarks: maximum load |
| Oregon Trail Handgun Data test gun: Smith & Wesson 1950, 6 1/2"; WLP; minimum OAL: 1.230; never reduce stated overall lengths; DO NOT EXCEED THESE LOADS! Use only in modern 44 Special/Magnum revolvers or Smith & Wesson Schofield reproductions in excellent condition. Original Smith & Wesson Top-Break revolvers should never be fired with smokeless powder loads! | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 200 | Oregon Trail RNFP | 5.0 | 734 | |
| 200 | Oregon Trail RNFP | 5.5 | 801 | |
| 245 | Lyman 429383 RN | 4.5 | 748 | Remarks: factory duplication; accurate |
| 245 | Lyman 429383 RN | 5.0 | 803 | |
| Test gun was a Colt New Frontier with a 7 1/2-inch barrel. Starline cases and Federal 150 Large Pistol primers used throughout. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 165 | Lead | 3.0 | 776 | Remarks: start load; min OAL: 1.250 |
| 165 | Lead | 4.0 | 977 | Remarks: never exceed; min OAL: 1.250; 11,100 cup |
| 200 | Lead | 3.2 | 747 | Remarks: start load; min OAL: 1.250 |
| 200 | Lead | 3.7 | 837 | Remarks: never exceed; min OAL: 1.250; 11,100 cup |
| 240 | Lead | 3.0 | 711 | Remarks: start load; min OAL: 1.300 |
| 240 | Lead | 3.5 | 769 | Remarks: never exceed; min OAL: 1.300; 10,700 cup |
| Lee Precision Data With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Large Pistol primer. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 225 | Speer JSWC | 7.5 | 1,050 | Remarks: group: 1.25 inches |
| 250 | RCBS 44-250-KT | 7.5 | 1,011 | Remarks: group: 3.0 inches |
| 247.5 | Lyman 424383 roundnose | 7.5 | 1,022 | Remarks: group: 3.0 inches |
| 230 | Lyman 429434 | 7.5 | 1,038 | Remarks: group: 2.0 inches |
| Loads fired from a 4 3/4-inch barrel. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 225 | Speer 225 JSWC | 7.5 | 1,050 | Remarks: group (inches): 1.25 |
| 4-3/4-inch barrel (Colt Peacemaker Loads) SC = 3.5 inches or more (Loading the Peacemaker - Dave Scovill) | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 250 | Lyman 429421 | 8.0 | 1,033 | Remarks: barrel (inches): 4 1/4 |
| Cast Bullets For postwar Colt and Smith & Wesson revolvers only! | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 250 | RCBS 44-250-KT | 6.5 | 874 | Remarks: group (inches): 2.5 |
| 250 | RCBS 44-250-KT | 7.5 | 1,011 | Remarks: group (inches): 3.0 |
| 250 | Lyman 424383 RN | 7.5 | 1,022 | Remarks: group (inches): 3.0 |
| 215 | Lyman 429434 | 7.5 | 1,038 | Remarks: group (inches): 2.0 |
| 240 | Bull-X 240 SWC | 7.5 | 1,040 | |
| Colt Peacemaker Loads SC = 3.5 inches or more (Loading the Peacemaker) | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 250 | Lyman 42942 cast SWC | 6.7 | 875 | Remarks: rounds per pound: 1,045 |
| Economical Midrange Loads firearm used: Smith & Wesson New Century (Triple Lock) Target; safe in all revolvers; primer: CCI 300; case: Winchester; barrel length: 6 1/2" | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 165 | Cast LRNFP | 3.6 | 836 | Remarks: start load; COL: 1.365"; 6,000 cup |
| 165 | Cast LRNFP | 4.6 | 1009 | Remarks: max load; COL: 1.365"; 13,400 cup |
| 185 | Cast LRNFP | 3.5 | 810 | Remarks: start load; COL: 1.400"; 7,800 cup |
| 185 | Cast LRNFP | 4.2 | 930 | Remarks: max load; COL: 1.400"; 13,200 cup |
| 200 | Cast LRNFP | 3.5 | 748 | Remarks: start load; COL: 1.450"; 7,800 cup |
| 200 | Cast LRNFP | 4.5 | 891 | Remarks: max load; COL: 1.450"; 14,000 cup |
| 220 | Berry's Bullets FP | 3.7 | 638 | Remarks: start load; COL: 1.460"; 7,800 cup |
| 220 | Berry's Bullets FP | 4.4 | 774 | Remarks: max load; COL: 1.460"; 13,600 cup |
| 240 | Cast LSWC | 3.2 | 669 | Remarks: start load; COL: 1.450"; 9,000 cup |
| 240 | Cast LSWC | 4.0 | 771 | Remarks: max load; COL: 1.450"; 13,500 cup |
| Hodgdon Data Case: Starline; barrel length: 8"; twist: 1:20"; trim length: 1.155"; primer: Winchester LP; bullet diam. .430" (except where otherwise specified in remarks). NEVER EXCEED MAXIMUM LOADS | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 165 | Lead | 3.6 | 819 | Remarks: start load; min OAL: 1.365 |
| 165 | Lead | 4.6 | 1009 | Remarks: never exceed; min OAL: 1.365; 13,400 cup |
| 185 | Lead | 3.5 | 790 | Remarks: start load; min OAL: 1.400 |
| 185 | Lead | 4.2 | 930 | Remarks: never exceed; min OAL: 1.400; 13,200 cup |
| 200 | Lead | 3.5 | 724 | Remarks: start load; min OAL: 1.450 |
| 200 | Lead | 4.5 | 891 | Remarks: never exceed; min OAL: 1.450; 14,000 cup |
| 240 | Lead | 3.2 | 638 | Remarks: start load; min OAL: 1.450 |
| 240 | Lead | 4.0 | 771 | Remarks: never exceed; min OAL: 1.450; 13,500 cup |
| Lee Precision Data CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Large Pistol Primer. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 200 | Speer Gold Dot HP | 9.5 | 1,142 | Remarks: extreme spread: 28 |
| 225 | Speer SWC-HP | 8.0 | 1,079 | Remarks: extreme spread: 19 |
| 250 | Lyman 429421 Keith | 8.0 | 1,042 | Remarks: extreme spread: 20; most accurate KT bullet load |
| +P and Standard for F A Model 1997 All data is also safe for postwar Smith & Wesson N-Frame revolvers. Barrel length of Freedom Arms Model 1997 is 4 1/2. Winchester brass was used in all loads as were CCI 300 primers, except Federal 155s were used with loads containing H-110, H-4227 and IMR-4227 | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 200 | Speer Gold Dot HP | 9.5 | 1,184 | |
| 225 | Speer SWC-HP | 8.0 | 1,130 | |
| 250 | Lyman 429421 Keith | 8.0 | 1,056 | |
| In a Colt SAA (22,000 psi or less) A Colt Single Action Army with 7 1/2-inch barrel used to test these loads. Winchester cases and CCI 300 primers used throughout, except Federal 155 Magnums used with IMR-4227 and H-4227 powders. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 200 | Speer Gold Dot HP | 9.5 | 1,142 | Remarks: extreme spread (fps): 28 |
| 225 | Speer SWC-HP | 8.0 | 1,079 | Remarks: extreme spread (fps): 19 |
| 250 | Lyman 429421 Keith | 8.0 | 1,042 | Remarks: extreme spread (fps): 20 |
| In a Freedom Arms Model 1997 (22,000 psi or less) A Freedom Arms Model 1997 with 4 1/4-inch barrel used to test fire these loads. Winchester cases and CCI 300 used in all loads, except Federal 155 Magnum used with IMR-4227 and H-4227 powders. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 200 | RCBS 44-200-FN cast | 8.0 | 1,055 | Remarks: extreme spread (fps): 29 |
| 250 | Lyman 429421 Keith | 6.0 | 779 | Remarks: extreme spread (fps): 23 |
| 250 | Lyman 429421 Keith | 6.7 | 875 | Remarks: extreme spread (fps): 21 |
| In an S&W New Century (15,500 psi or less) A Smith & Wesson New Century (Triple Lock) Target revolver with a 6 1/2-inch barrel was used to fire these loads. Winchester cases and CCI 300 primers used throughout. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 200 | Rim Rock standard cast DEWC FB | 3.0 | 517 | Remarks: case: Remington; overall loaded length (inches): 1.256; group (inches): 2.05 |
| Lightweight Loads Velocities were recorded 10 feet in front of the muzzle of the 4-inch barrel of a Smith & Wesson 329PD revolver. CCI 300 primers were used with all loads. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 200 | Round Nose Flat Point | 3.5 | 660 | Remarks: starting load |
| 200 | Round Nose Flat Point | 4.1 | 755 | Remarks: maximum load |
| 225 | Round Nose Flat Point | 3.3 | 650 | Remarks: starting load |
| 225 | Round Nose Flat Point | 3.8 | 704 | Remarks: maximum load |
| Cowboy Loads (Oregon Trail Bullet Handgun Data) test gun: Smith & Wesson 6", WLP; OAL: 1.425; do not exceed maximum loads; never reduce stated overall lengths | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 155 | Cast LSWC | 4.9 | 1040 | Remarks: start load; COL: 1.230"; 16,100 cup |
| 155 | Cast LSWC | 5.2 | 1082 | Remarks: max load; COL: 1.230"; 17,700 cup |
| 160 | Barnes TAC-XP | 3.4 | 833 | Remarks: start load; COL: 1.200"; 17,100 psi |
| 160 | Barnes TAC-XP | 3.9 | 906 | Remarks: max load; COL: 1.200"; 20,000 psi |
| 180 | LFP | 3.8 | 783 | Remarks: start load; bullet diam.: .452"; COL: 1.140"; 11,600 cup |
| 180 | LFP | 4.5 | 910 | Remarks: max load; bullet diam.: .452"; COL: 1.140"; 16,700 cup |
| 185 | Hornady JSWC | 4.5 | 855 | Remarks: start load; COL: 1.135"; 14,500 cup |
| 185 | Hornady JSWC | 4.9 | 981 | Remarks: max load COL: 1.135"; 17,400 cup |
| 200 | Speer JHP | 3.9 | 714 | Remarks: start load; COL: 1.155"; 15,200 cup |
| 200 | Speer JHP | 4.3 | 785 | Remarks: max load; COL: 1.155"; 17,700 cup |
| 200 | Cast LSWC | 3.6 | 759 | Remarks: start load; COL: 1.225"; 11,800 cup |
| 200 | Cast LSWC | 4.3 | 888 | Remarks: max load; COL: 1.225"; 17,000 cup |
| 230 | LRN | 3.5 | 716 | Remarks: start load; bullet diam.: .452"; COL: 1.200"; 13,700 cup |
| 230 | LRN | 4.0 | 793 | Remarks: max load; bullet diam.: .452"; COL: 1.200"; 16,800 cup |
| 230 | Hornady FMJ FP | 3.7 | 670 | Remarks: start load; COL: 1.200"; 15,900 cup |
| 230 | Hornady FMJ FP | 4.0 | 732 | Remarks: max load; COL: 1.200"; 17,000 cup |
| Hodgdon Data Case: Winchester; twist: 1:16"; primer: Federal 150, Large Pistol; barrel length: 5"; trim length: .893"; bullet diam.: .451" (except where otherwise specified in remarks) | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 155 | Lead | 4.9 | 1022 | Remarks: start load; min OAL: 1.230 |
| 155 | Lead | 5.2 | 1082 | Remarks: never exceed; min OAL: 1.230; 17,700 cup |
| 185 | Jacketed | 4.5 | 909 | Remarks: start load; min OAL: 1.195 |
| 185 | Jacketed | 4.9 | 981 | Remarks: never exceed; min OAL: 1.195; 17,400 cup |
| 200 | Jacketed | 3.9 | 714 | Remarks: start load; min OAL: 1.155 |
| 200 | Jacketed | 4.3 | 785 | Remarks: never exceed; min OAL: 1.155; 17,700 cup |
| 200 | Lead | 3.6 | 763 | Remarks: start load; min OAL: 1.225 |
| 200 | Lead | 4.3 | 888 | Remarks: never exceed; min OAL: 1.225; 17,000 cup |
| 230 | Jacketed | 3.7 | 683 | Remarks: start load; min OAL: 1.200 |
| 230 | Jacketed | 4.0 | 732 | Remarks: never exceed; min OAL: 1.200; 17,000 cup |
| Lee Precision Data Large Pistol primer; with NEVER EXCEED LOADS maintain Minimum Over All Length or longer | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 185 | Hornady Jacketed HP/XTP | 4.1 | 766 | Remarks: sugg. start load; 1.175" OAL; 13,500 cup |
| 185 | Hornady Jacketed HP/XTP | 4.6 | 841 | Remarks: max load; 1.175" OAL; 16,600 cup |
| 200 | Speer Gold Dot Jacketed HP | 3.9 | 713 | Remarks: sugg. start load; 1.178" OAL; 13,100 cup |
| 200 | Speer Gold Dot Jacketed HP | 4.4 | 790 | Remarks: max load; 1.178" OAL; 16,500 cup |
| Lyman Reloading Handbook 49th Edition cases: Remington, Federal; trim-to length: .888"; primers: Remington 2 1/2; primer size: Large Pistol; Lyman shell holder: No. 2; firearm used: Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .450" | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 200 | Lyman #452630 | 3.9 | 701 | Remarks: sugg. start load; 10,200 cup |
| 200 | Lyman #452630 | 4.4 | 839 | Remarks: max load; 15,500 cup |
| 200 GR (Lyman Cast Bullet Data) cases: Remington (except where otherwise specified in remarks); trim-to length: .888"; primers: Remington 2 1/2 (except where otherwise specified in remarks); primer size: Large Pistol; Lyman shell holder: No. 2; cast bullets used sized to .451" dia.; firearm used; Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .450"; Lyman #452460 OAL: 1.161"; Lyman #452630 OAL: 1.235" | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 225 | Lyman #452374 | 3.6 | 683 | Remarks: sugg. start load; 10,600 cup; case: Federal |
| 225 | Lyman #452374 | 4.3 | 818 | Remarks: max load; 17,100 cup; case: Federal |
| 225 GR (Lyman Cast Bullet Data) cases: Remington (except where otherwise specified in remarks); trim-to length: .888"; primers: Remington 2 1/2 (except where otherwise specified in remarks); primer size: Large Pistol; Lyman shell holder: No. 2; cast bullets used sized to .451" dia.; firearm used; Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .450"; OAL: 1.272" | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 250 | Round Nose Flat Point | 3.3 | 700 | |
| IPSC Heavy-Bullet Major Loads + P (Oregon Trail Handgun Data) test gun: Entreprise 1911 frame, 5" Bar-Sto barrel, WLP; OAL: 1.168; use these loads exactly as listed; these are MAXIMUM loads - do not exceed charges, or shorten overall lengths; do not fire these loads in pre-1950 revolvers; for use in pistols with fully supported chambers only | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 200 | Cast #452630 | 3.9 | 701 | Remarks: sugg. start load; 1.235" OAL; 10,200 cup |
| 200 | Cast #452630 | 4.4 | 839 | Remarks: max load; 1.235" OAL; 15,500 cup |
| 225 | Cast #452374 | 3.6 | 683 | Remarks: sugg. start load; 1.272" OAL; case: Federal; 10,600 cup |
| 225 | Cast #452374 | 4.3 | 818 | Remarks: max load; 1.272" OAL; case: Federal; 17,100 cup |
| Cast Bullet Data (Lyman Reloading Handbook 49th Edition) cases: Remington (except where otherwise specified in remarks); trim-to length: .888"; primers: Remington 2 1/2 (except where otherwise specified in remarks); primer size: Large Pistol; Lyman shell holder: No. 2; cast bullets used sized to .451" dia.; firearm used: Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .450" | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 185 | Hornady Target SWC | 6.5 | 845 | Remarks: overall loaded length (inches): 1.20; 1 1/2-inch average |
| Field Loads Groups were fired at 25 yards. All velocities were measured on an Oehler Model 35P chronograph 10 feet from the muzzle. Remington cases and Remington 2 1/2 primers used in all loads. Ambient temperature: 80 degrees Fahrenheit. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 185 | Speer SWC/TMJ | 4.0 | 773 | Remarks: case: Win.; primer: WLP |
| Light Target Loads These loads were developed in a custom Colt Gold Cup with a Heinie 5-inch barrel. They usually require that a lighter than standard recoil spring be used for reliable functioning of various autoloading pistols. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 200 | Laser Cast SWC | 5.5 | 898 | Remarks: overall loaded length (inches): 1.240 |
| 200 | Laser Cast SWC | 6.0 | 968 | Remarks: overall loaded length (inches): 1.240 |
| 200 | Laser Cast SWC | 6.5 | 1054 | Remarks: overall loaded length (inches): 1.240 |
| 200 | Montana/RCBS 45-201-SWC | 5.5 | 902 | Remarks: overall loaded length (inches): 1.239 |
| 200 | Montana/RCBS 45-201-SWC | 6.5 | 1061 | Remarks: overall loaded length (inches): 1.239 |
| 200 | Montana LBT-RFN | 5.5 | 705 | Remarks: overall loaded length (inches): 1.241 |
| 200 | Montana LBT-RFN | 6.5 | 920 | Remarks: overall loaded length (inches): 1.241 |
| 200 | Hornady FMJ-C/T | 6.5 | 969 | Remarks: overall loaded length (inches): 1.245 |
| 200 | Hornady FMJ-C/T | 7.3 | 1083 | Remarks: overall loaded length (inches): 1.245 |
| 200 | Sierra FPJ Match | 6.5 | 946 | Remarks: overall loaded length (inches): 1.155 |
| 200 | Sierra FPJ Match | 7.3 | 1057 | Remarks: overall loaded length (inches): 1.155 |
| Load Data A Kimber Model 1911 Classic Custom Target with a 5-inch barrel (1-in-16-inch twist) was used to fire all loads. Starline cases and Federal Gold Medal Match 150 primers were used throughout. Maximum case length: .898 inch; trim length: .888 inch. Maximum overall cartridge length: 1.275 inches; minimum overall cartridge length: 1.190 inches. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 200 | roundnose | 3.4 | 733 | Remarks: group (inches): 2.42; power factor: 147; good load |
| Taurus Stellar Tracker Taurus Stellar Tracker with a 4-inch barrel and open sights was used for testing. Accuracy is based on the average of three, five-shot groups at 15 yards from a benchrest. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
 | 200 | Bull-X SWC | 4.9 | 908 | Remarks: case: Rem. primer: WLP |
| USPSA/IPSC Major-Power Match Loads Bullets in all are cast. Handgun used was a custom Para-Ordnance with a 5-inch Wilson barrel. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 185 | Jacketed | 4.0 | 836 | Remarks: start load; min OAL: 1.195 |
| 185 | Jacketed | 4.4 | 903 | Remarks: never exceed; min OAL: 1.195; 14,790 cup |
| 200 | Lead | 3.2 | 702 | Remarks: start load; min OAL: 1.225 |
| 200 | Lead | 3.9 | 817 | Remarks: never exceed; min OAL: 1.225; 14,450 cup |
| 230 | Jacketed | 3.3 | 628 | Remarks: start load; min OAL: 1.200 |
| 230 | Jacketed | 3.6 | 673 | Remarks: never exceed; min OAL: 1.200; 14,450 cup |
| Lee Precision Data CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 240 | Hensley & Gibbs Keith semiwadcutter | 6.8 | 972 | |
| 255 | Hornady swaged lead | 6.0 | 909 | |
| 280 | cast RCBS 45-270-SAA | 5.0 | 738 | |
| 280 | cast RCBS 45-270-SAA | 5.7 | 868 | |
| 280 | cast RCBS 45-270-SAA | 6.0 | 921 | Remarks: maximum |
| Data All the velocities were obtained from a Model 625-6 with a 4-inch barrel, except where noted with a 6 1/2-inch barreled S&W Model 25-2. For reference, the 4-inch barrel was commonly producing around 10 to 30 fps less velocity than the 6 1/2-inch barrel. Starline cases and Federal 150 Gold Medal primers were used throughout. Maximum case length: .898 inch; trim-to length: .888 inch. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 250 | Lyman 454424 | 9.3 | 991 | Remarks: group (inches): 1.75 |
| 246 | RCBS 45-246 | 9.5 | 1,002 | Remarks: group (inches): 3.0 |
| 230 | NEI .45-230 HB | 9.3 | 1,066 | Remarks: group (inches): 1.75 |
| 253 | AA 504 253 | 9.3 | 1,013 | Remarks: group (inches): 2.0 |
| Colt Peacemaker Loads Source: Loading the Peacemaker - Dave Scovill | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 285 | RCBS 45-270-SAA | 8.0 | 915 | Remarks: barrel length: 5 1/2"; rounds per pound: 875 |
| Economical Midrange Loads firearm used: Ruger Blackhawk; suitable for all smokeless-era revolvers; primer: CCI 300; case: Starline; barrel length: 6" (except where otherwise specified in remarks) | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 160 | Cast LRNFP | 5.0 | 907 | Remarks: start load; COL: 1.500"; 7,500 cup |
| 160 | Cast LRNFP | 6.4 | 1083 | Remarks: max load; COL: 1.500"; 13,500 cup |
| 180 | Cast LRNFP | 4.8 | 840 | Remarks: start load; COL: 1.540"; 7,900 cup |
| 180 | Cast LRNFP | 6.0 | 1016 | Remarks: max load; COL: 1.540"; 13,800 cup |
| 200 | Cast LRNFP | 4.6 | 777 | Remarks: start load; COL: 1.600"; 5,900 cup |
| 200 | Cast LRNFP | 5.9 | 931 | Remarks: max load; COL: 1.600"; 13,100 cup |
| 215 | Cast LRNFP | 4.6 | 754 | Remarks: start load; COL: 1.650"; 6,400 cup |
| 215 | Cast LRNFP | 5.7 | 889 | Remarks: max load; COL: 1.650"; 13,400 cup |
| 225 | Hornady FTX | 4.4 | 538 | Remarks: start load; COL: 1.600"; 9,400 psi |
| 225 | Hornady FTX | 5.5 | 761 | Remarks: max load; COL: 1.600"; 13,600 psi |
| 230 | Cast LRNFP | 4.4 | 734 | Remarks: start load; COL: 1.580"; 7,600 cup |
| 230 | Cast LRNFP | 5.4 | 865 | Remarks: max load; COL: 1.580"; 13,900 cup |
| 250 | Cast LRNFP | 4.2 | 713 | Remarks: start load; COL: 1.600"; 8,500 cup |
| 250 | Cast LRNFP | 5.1 | 817 | Remarks: max load; COL: 1.600"; 13,400 cup |
| Hodgdon Pistol Data Case: Winchester; barrel length: 7.25"; twist: 1:16"; trim length: 1.280"; primer: Winchester LP; bullet diam.: .452". NEVER EXCEED MAXIMUM LOADS | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 160 | Lead | 5.0 | 878 | Remarks: start load; min. OAL: 1.480 |
| 160 | Lead | 6.4 | 1083 | Remarks: never exceed; OAL: 1.480; 13,500 cup |
| 180 | Lead | 4.8 | 840 | Remarks: start load; min. OAL: 1.540 |
| 180 | Lead | 6.0 | 1016 | Remarks: never exceed; min. OAL: 1.540; 13,800 cup |
| 200 | Lead | 4.6 | 754 | Remarks: start load; min. OAL: 1.600 |
| 200 | Lead | 5.9 | 931 | Remarks: never exceed; min. OAL: 1.600; 13,100 cup |
| 215 | Lead | 4.6 | 743 | Remarks: start load; min. OAL: 1.650 |
| 215 | Lead | 5.7 | 889 | Remarks: never exceed; min. OAL: 1.650; 13,400 cup |
| 230 | Lead | 4.4 | 722 | Remarks: start load; min. OAL: 1.580 |
| 230 | Lead | 5.4 | 865 | Remarks: never exceed; min. OAL: 1.580; 13,900 cup |
| 250 | Lead | 4.2 | 687 | Remarks: start load; min. OAL: 1.600 |
| 250 | Lead | 5.1 | 817 | Remarks: never exceed; min. OAL: 1.600; 13,400 cup |
| Lee Precision Data Large Pistol primer; with NEVER EXCEED LOADS maintain Minimum Over All Length or longer | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 200 | Round Nose Flat Point | 4.7 | 661 | Remarks: starting load |
| 200 | Round Nose Flat Point | 5.9 | 805 | Remarks: maximum load |
| Oregon Trail Handgun Data test gun: Vaquero 4 3/4", WLP; standard velocity/cowboy loads; these loads are safe for use in Colt SAA and clones; 200 grain OAL: 1.575; 250 grain OAL: 1.580; never reduce stated overall lengths; do not exceed maximum loads | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 200 | Cast #452460 | 5.6 | 837 | Remarks: sugg. start load; 1.550" OAL; 8,400 cup |
| 200 | Cast #452460 | 6.3 | 985 | Remarks: max load; 1.550" OAL; 12,200 cup |
| 250 | Cast #454190 | 4.7 | 762 | Remarks: sugg. start load; 1.600" OAL; 9,700 cup |
| 250 | Cast #454190 | 5.3 | 857 | Remarks: max load; 1.600" OAL; 13,400 cup |
| 250 | Cast #452664 | 4.9 | 769 | Remarks: sugg. start load; 1.570" OAL; 10,000 cup |
| 250 | Cast #452664 | 5.5 | 869 | Remarks: max load; 1.570" OAL; 12,800 cup |
| 255 | Cast #452424 | 4.6 | 750 | Remarks: sugg. start load; 1.575" OAL; 8,700 cup |
| 255 | Cast #452424 | 5.2 | 846 | Remarks: max load; 1.575" OAL; 12,100 cup |
| Cast Bullet Handgun Data (Lyman Reloading Handbook 49th Edition) cases: Winchester; trim-to length: 1.275"; primers: Winchester WLP; primer size: Large Pistol; Lyman shell holder: No. 11; cast bullets used sized to .452" dia.; firearm used: Universal Receiver & Ruger Blackhawk; barrel length: 7 1/2"; twist: 1-16"; groove dia.: .451" | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 240 | Sierra JHC | 8.5 | 762.8 | Remarks: primer: Federal 150 |
| 240 | Sierra JHC | 8.5 | 792.0 | Remarks: primer: Federal 150 |
| 240 | Sierra JHC | 8.5 | 803.9 | Remarks: primer: Federal 150 |
| 240 | Sierra JHC | 8.5 | 809.2 | Remarks: primer: Federal 150; 791.9 fps |
| 250 | Bull-X | 8.8 | 944.6 | Remarks: primer: Federal 150 |
| 250 | Bull-X | 8.8 | 954.6 | Remarks: primer: Federal 150; 949.6 fps |
| 250 | Bull-X | 8.8 | 842.3 | Remarks: primer: Federal 150 |
| 250 | Bull-X | 8.8 | 818.0 | Remarks: primer: Federal 150 |
| 250 | Bull-X | 8.8 | 915.3 | Remarks: primer: Federal 150 |
| 250 | Bull-X | 8.8 | 911.7 | Remarks: primer: Federal 150 |
| 250 | Bull-X | 8.8 | 877.3 | Remarks: primer: Federal 150 |
| 250 | Bull-X | 8.8 | 890.5 | Remarks: primer: Federal 150 |
| 250 | Bull-X | 8.8 | 897.4 | Remarks: primer: Federal 150; 891.8 fps |
| 250 | MG | 8.8 | 793.6 | Remarks: primer: Federal 150 |
| 250 | MG | 8.8 | 794.6 | Remarks: primer: Federal 150 |
| 250 | MG | 8.8 | 869.8 | Remarks: primer: Federal 150 |
| 250 | MG | 8.8 | 848.1 | Remarks: primer: Federal 150; 826.5 fps |
| 250 | MG | 8.6 | 944.3 | Remarks: primer: Federal 150 |
| 250 | MG | 8.6 | 963.8 | Remarks: primer: Federal 150 |
| 250 | MG | 8.6 | 956.5 | Remarks: primer: Federal 150; 954.9 fps |
| 250 | MG | 8.6 | 959.8 | Remarks: primer: Federal 150 |
| 250 | MG | 8.6 | 949.0 | Remarks: primer: Federal 150 |
| 250 | MG | 8.6 | 963.7 | Remarks: primer: Federal 150 |
| 250 | MG | 8.6 | 950.7 | Remarks: primer: Federal 150; 955.8 fps |
| Cimarron Source: Handloader | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 250 | Oregon Trail RNFP | 9.0 | 956 | |
| 230 | Speer Gold Dot HP | 9.3 | 916 | Remarks: 111 fps spreads; vertical spread |
| In a Turnbull Cowboy Classic/USFA CCI 300 primers and Starline cases used throughout. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 285 | RCBS 45-270-SAA cast | 8.0 | 915 | |
| Load Data ( 14,000 psi) primer: CCI 300 | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 280 | RCBS 45-270-SAA cast | 9.0 | 997 | |
| 280 | RCBS 45-270-SAA cast | 10.0 | 1,076 | |
| Load Data (20,000 psi) primer: CCI 300 except where specified otherwise in remarks | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 225 | Speer JHP | 9.3 | 844 | |
| 250 | Oregon Trail Cast RNFP | 9.0 | 956 | |
| Ruger New Vaquero All loads fired from the 4 5/8-inch barrel of a Ruger New Vaquero .45 Colt. Winchester cases and Federal 150 primers used throughout. Temperature during testing was 30 degrees Fahrenheit. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 230 | Speer Gold Dot | 9.0 | 1,234.8 | |
| 250 | RCBS cast | 9.0 | 1,188.9 | |
| With 24-inch barrel This is an average of three shots fired over a chronograph with skyscreens placed 10 feet from the muzzle. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 250 | RCBS cast | 10.0 | 920.1 | |
| 230 | Speer Gold Dot | 9.0 | 840.0 | |
| 250 | RCBS cast | 9.0 | 854.2 | |
| With 3-inch barrel This is an average of three shots fired over a chronograph with skyscreens placed 10 feet from the muzzle. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 250 | RCBS cast | 10.0 | 1,027.1 | |
| 250 | Speer swaged lead | 10.0 | 1,073.1 | |
| 230 | Speer Gold Dot | 9.0 | 991.8 | |
| 250 | RCBS cast | 9.0 | 935.7 | |
| With 4.75-inch barrel This is an average of three shots fired over a chronograph with skyscreens placed 10 feet from the muzzle. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 250 | RCBS cast | 10.0 | 1,069.5 | |
| 230 | Speer Gold Dot | 9.0 | 946.0 | |
| 250 | RCBS cast | 9.0 | 964.3 | |
| With 5-inch barrel This is an average of three shots fired over a chronograph with skyscreens placed 10 feet from the muzzle. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 250 | RCBS cast | 10.0 | 1,031.5 | |
| 250 | Speer swaged lead | 10.0 | 1,082.0 | |
| 230 | Speer Gold Dot | 9.0 | 945.4 | |
| 250 | RCBS cast | 9.0 | 980.0 | |
| With 5.5-inch barrel This is an average of three shots fired over a chronograph with skyscreens placed 10 feet from the muzzle. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 250 | RCBS cast | 10.0 | 1,122.7 | |
| 250 | Speer swaged lead | 10.0 | 1,043.0 | |
| 230 | Speer Gold Dot | 9.0 | 965.9 | |
| 250 | RCBS cast | 9.0 | 996.1 | |
| With 7.5-inch barrel This is an average of three shots fired over a chronograph with skyscreens placed 10 feet from the muzzle. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 185 | Hornady Jacketed HP | 3.7 | 809 | Remarks: start load; 12,000 psi; 1.060" OAL |
| 185 | Hornady Jacketed HP | 4.2 | 895 | Remarks: max load; 22,300 psii; 1.060" OAL |
| 200 | Speer Jacketed HP | 3.4 | 745 | Remarks: start load; 18,200 psi; 1.080" OAL |
| 200 | Speer Jacketed HP | 3.8 | 812 | Remarks: max load; 21,000 psi; 1.080" OAL |
| 200 | Lyman Cast #452630 | 3.5 | 890 | Remarks: start load; 20,200 psi; 1.080" OAL; potentially most accurate load |
| 200 | Lyman Cast #452630 | 4.0 | 967 | Remarks: max load; 22,700 psi; 1.080" OAL |
| 200 | Lyman Cast #452460 | 3.5 | 908 | Remarks: start load; 21,200 psi; 1.030" OAL |
| 200 | Lyman Cast #452460 | 4.0 | 966 | Remarks: max load; 22,400 psi; 1.030" OAL |
| Lyman Reloading Handbook 49th Edition cases: Winchester; trim-to length: .755"; primers: Winchester WSP; primer size: Small Pistol; Lyman Shell Holder: No. 2; cast bullets sized to .451" dia.; firearm used: Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .450" | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 155 | LSWC Cast | 3.9 | 974 | Remarks: starting load; psi: 18,000 |
| 155 | LSWC Cast | 4.4 | 1,047 | Remarks: maximum load; psi: 22,300 |
| 185 | Hornady XTP | 3.7 | 816 | Remarks: starting load; psi: 18,800 |
| 185 | Hornady XTP | 4.1 | 881 | Remarks: maximum load; psi: 21,400 |
| 200 | Speer GDHP | 3.3 | 718 | Remarks: starting load; psi: 17,300 |
| 200 | Speer GDHP | 3.7 | 796 | Remarks: maximum load; psi: 20,400 |
| Hodgdon Pistol Data Never exceed the loads listed here. case: Speer; BBL: 5 inches; PR: Winchester SP; twist: 1:16 inches; trim: .750 inch | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 200 | LRNFP | 4.0 | 733 | Remarks: starting load; 8,300 cup |
| 200 | LRNFP | 5.0 | 845 | Remarks: maximum load; 13,100 cup |
| 230 | LRNFP | 4.0 | 697 | Remarks: starting load; 9,400 cup |
| 230 | LRNFP | 4.7 | 783 | Remarks: maximum load; 13,600 cup |
| 250 | LRNFP | 4.0 | 674 | Remarks: starting load; 11,000 cup |
| 250 | LRNFP | 4.2 | 710 | Remarks: maximum load; 12,500 cup |
| case: Starline; barrel length: 5"; twist: 1:16"; trim length: 1.095"; primer: Winchester LP; bullet diam.: .452"; COL: 1.430"; NEVER EXCEED MAXIMUM LOADS | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 200 | Lead Round Nose Flat Point | 4.0 | 733 | Remarks: starting load; 8,300 cup |
| 200 | Lead Round Nose Flat Point | 5.0 | 845 | Remarks: maximum load; 13,100 cup |
| 230 | Lead Round Nose Flat Point | 4.0 | 697 | Remarks: starting load; 9,400 cup |
| 230 | Lead Round Nose Flat Point | 4.7 | 783 | Remarks: maximum load; 13,600 cup |
| 250 | Lead Round Nose Flat Point | 4.0 | 674 | Remarks: starting load; 11,000 cup |
| 250 | Lead Round Nose Flat Point | 4.2 | 710 | Remarks: maximum load; 12,500 cup |
| Hodgdon Cowboy Action Data NEVER exceed maximum loads | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 200 | Lead | 4.0 | 730 | Remarks: start load; min OAL: 1.300 |
| 200 | Lead | 5.0 | 845 | Remarks: never exceed; min OAL: 1.300; 13,100 cup |
| 230 | Lead | 4.0 | 697 | Remarks: start load; min OAL: 1.300 |
| 230 | Lead | 4.7 | 783 | Remarks: never exceed; min OAL: 1.300; 13,600 cup |
| 250 | Lead | 4.0 | 674 | Remarks: start load; min OAL: 1.350 |
| 250 | Lead | 4.2 | 710 | Remarks: never exceed; min OAL: 1.350; 12,500 cup |
| Lee Precision Data Large Pistol primer; with NEVER EXCEED LOADS maintain Minimum Over All Length or longer | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 200 | Cast #452460 | 4.0 | 747 | Remarks: sugg. start load; 1.340" OAL; 7,000 cup |
| 200 | Cast #452460 | 4.5 | 853 | Remarks: max load; 1.340" OAL; 10,300 cup |
| 250 | Cast #454190 | 3.6 | 690 | Remarks: sugg. start load; 1.390" OAL; 8,200 cup |
| 250 | Cast #454190 | 4.0 | 749 | Remarks: max load; 1.390" OAL; 11,200 cup |
| 250 | Cast #452664 | 3.8 | 703 | Remarks: sugg. start load; 1.390" OAL; 8,200 cup |
| 250 | Cast #452664 | 4.3 | 770 | Remarks: max load; 1.390" OAL; 10,900 cup |
| 255 | Cast #452424 | 3.8 | 675 | Remarks: sugg. start load; 1.460" OAL; 6,500 cup |
| 255 | Cast #452424 | 4.3 | 776 | Remarks: max load; 1.460" OAL; 10,800 cup |
| Lyman Reloading Handbook 49th Edition cases: Starline; trim-to length: 1.095"; primers: Winchester WLP; primer size: Large Pistol; Lyman shell holder: No. 14B; cast bullets used sized to .452" dia.; firearm used: Universal Receiver; barrel length: 7 1/2"; twist: 1-16"; groove dia.: .451" | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 200 | Round Nose Flat Point | 4.9 | 767 | |
| Cowboy Loads (Oregon Trail Handgun Data) test gun: Smith & Wesson 6", WLP; OAL: 1.39; never reduce stated overall lengths; DO NOT EXCEED THESE LOADS! Use only in modern .45 Colt revolvers or S&W Schofield reproductions in excellent condition. Original S&W top break revolvers should never be fired with smokeless powder loads! | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 325 | Cast Performance LFNPB | 10.0 | 1,020 | Remarks: barrel (inches): 4 3/4 |
| Cast Bullets | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 325 | Cast Performance LFNPB | 10.0 | 1020 | Remarks: primer: Federal 205; rounds per pound: 700 |
| Economical Midrange Loads firearm used: Freedom Arms Model 83; case: Starline; barrel length: 4 3/4" | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 325 | Cast Performance LFN | 10.0 | 1,020 | Remarks: midrange .454 load (Federal 205 primer used) |
| In a Freedom Arms Model 83 (4 3/4-inch barrel) Freedom Arms Model 83 with barrel length of 4 3/4 inches. Remington 7 1/2 and Federal 205 (Small Rifle Magnum) primers and Starline cases used throughout. Maximum case length is 1.383 inches and trim-to length is 1.373 inches. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 325 | Cast Performance LFN | 10.0 | 1,061 | Remarks: midrange .454 load (Federal 205 primer used) |
| In a Freedom Arms Model 83 (7 1/2-inch barrel) Freedom Arms Model 83 with barrel length of 7 1/2 inches. Remington 7 1/2 and Federal 205 (Small Rifle Magnum) primers and Starline cases used throughout. Maximum case length is 1.383 inches and trim-to length is 1.373 inches. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 155 | Hornady XTP-HP | 7.0 | 1228 | Remarks: rounds per pound: 1,000 |
| 180 | Hornady XTP-HP | 7.5 | 1248 | Remarks: rounds per pound: 933 |
| 180 | Oregon Trail Laser Cast | 6.5 | 1179 | Remarks: rounds per pound: 1,077 |
| Economical Midrange Loads firearm used: Kimber Model 1911 Stainless Target II; primer: CCI 300; case: Starline; barrel length: 5" | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 155 | Round Nose | 4.4 | 1,017 | |
| Oregon Trail Handgun Data Reduced Action Loads test gun: Entreprise 1911 frame, 5" Bar-Sto barrel, WLP; OAL: 1.255; do not exceed maximum loads; never reduce stated overall lengths | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 190 | Sierra Jacketed FP | 4.3 | 878 | Remarks: sugg. start load; 22,900 cup |
| 190 | Sierra Jacketed FP | 5.6 | 1071 | Remarks: max load; 29,800 cup |
| Lyman Reloading Handbook 49th Edition cases: Norma (except where otherwise specified in remarks); trim-to length: .982"; primers: CCI 300; primer size: Large Pistol; Lyman shell holder: No. 15; firearm used: Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .400"; 1.250" OAL (except where otherwise specified in remarks) | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 155 | Hornady XTP-HP | 6.5 | 1166 | |
| 155 | Hornady XTP-HP | 7.5 | 1309 | |
| 165 | Sierra JHP | 6.5 | 1141 | |
| 165 | Sierra JHP | 7.7 | 1307 | |
| 180 | Hornady XTP/HP | 6.5 | 1150 | |
| 180 | Hornady XTP/HP | 7.0 | 1195 | |
| 180 | Hornady XTP/HP | 7.5 | 1248 | |
| 180 | Oregon Trail Laser Cast | 6.5 | 1179 | |
| Handloads A Kimber Model 1911 Stainless Target II with a one-in-16-inch twist, 5-inch barrel was used for testing loads. Starline brass and CCI 300 Large Pistol primers used throughout. Maximum overall cartridge length: 1.260 inches; maximum case length: 0.992 inch; trim-to length: 0.982 inch. Maximum SAAMI pressure: 37,500 psi. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 115 | Speer GDHP | 3.7 | 1066 | Remarks: start load; COL: 1.125"; 30,900 cup |
| 115 | Speer GDHP | 3.9 | 1095 | Remarks: max load; COL: 1.125"; 32,600 cup |
| 115 | Lead Round Nose | 3.0 | 954 | Remarks: start load; bullet diam.: .356"; COL: 1.100"; 25,300 cup |
| 115 | Lead Round Nose | 3.4 | 1039 | Remarks: max load; bullet diam.: .356"; COL: 1.100"; 31,000 cup |
| 124 | Berry's Bullets HBRN TP | 2.7 | 791 | Remarks: start load; bullet diam.: .356"; COL: 1.150"; 27,900 psi |
| 124 | Berry's Bullets HBRN TP | 3.0 | 857 | Remarks: max load; bullet diam.: .356"; COL: 1.150"; 31,200 psi |
| 125 | Lead Conical Nose | 2.9 | 899 | Remarks: start load; bullet diam.: .356"; COL: 1.125"; 22,700 cup |
| 125 | Lead Conical Nose | 3.3 | 993 | Remarks: max load; bullet diam.: .356"; COL: 1.125"; 30,900 cup |
| 125 | Sierra FMJ | 3.5 | 1010 | Remarks: start load; COL: 1.090"; 28,000 cup |
| 125 | Sierra FMJ | 3.7 | 1056 | Remarks: max load; COL: 1.090"; 32,500 cup |
| 130 | Berry's Bullets RN | 2.7 | 755 | Remarks: start load; bullet diam.: .356"; COL: 1.150"; 27,400 psi |
| 130 | Berry's Bullets RN | 3.0 | 853 | Remarks: max load; bullet diam.: .356"; COL: 1.150"; 31,700 psi |
| Hodgdon Data Case: Winchester; twist: 1:10"; primer: CCI 500, Small Pistol; barrel length: 4"; trim length: .750"; bullet diam.: .355" (except where otherwise specified in remarks). | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 115 | Round Nose | 3.4 | 1,055 | Remarks: start load; OAL: 1.10 |
| 115 | Round Nose | 3.6 | 1,088 | Remarks: max load; OAL: 1.10 |
| 122 | Flat Point | 3.2 | 1,017 | Remarks: max load; OAL: 1.070 |
| 124 | Round Nose | 3.2 | 1,010 | Remarks: max load; OAL: 1.130 |
| Oregon Trail Handgun Data test gun: P-35, 4.5" barrel, WSP; never reduce stated overall lengths; do not exceed maximum loads | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 147 | Cast #356637 | 1.9 | 669 | Remarks: sugg. start load; 21,000 cup; 1.058" OAL |
| 147 | Cast #356637 | 2.8 | 873 | Remarks: max load; compressed powder charge; 31,700 cup; 1.058" OAL |
| Cast Bullet Handgun Data Lyman Reloading Handbook 49th Edition cases: Federal; trim-to length: .751"; primers: CCI 500; primer size; Small Pistol; Lyman shell holder: No. 12; cast bullets used sized to .356" dia.and all #2 Alloy; firearm used: Universal Receiver; barrel length: 4"; groove dia.: .355" | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 90 | Sierra Jacketed HP | 3.0 | 982 | Remarks: sugg. start load; 22,000 cup; 1.010" OAL |
| 90 | Sierra Jacketed HP | 3.7 | 1213 | Remarks: max load; 30,800 cup; 1.010" OAL |
| 125 | Sierra Jacketed HP | 3.1 | 872 | Remarks: sugg. start load; 26,700 cup; 1.075" OAL |
| 125 | Sierra Jacketed HP | 3.6 | 960 | Remarks: max load; 31,700 cup; 1.075" OAL |
| Handgun Data Lyman Reloading Handbook 49th Edition cases: Federal; trim-to length: .751"; primers: CCI 500; primer size; Small Pistol; Lyman shell holder: No. 12; firearm used: Universal Receiver; barrel length: 4"; groove dia.: .355" | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 115 | Bushwacker SWC | 3.4 | 1,069 | Remarks: primer: Federal 100; group (inches): 1.93 |
| 125 | Bushwacker RN | 3.2 | 1,028 | Remarks: primer: Federal 100; group (inches): 2.05; mild |
| 125 | Bushwacker SWC | 3.2 | 1,005 | Remarks: primer: Federal 100; group (inches): 2.68; mild |
| 145 | Bushwacker RN | 3.0 | 914 | Remarks: primer: Federal 100; group (inches): 1.26; best 145-grain RN load |
| In an S & W Model 952-2 (Cast Bullets) A Smith & Wesson Model 952-2 PC with a 5-inch barrel and open sights was used for testing. Once-fired Federal cases were used throughout. Velocities were taken 12 feet from the muzzle with an Oehler M-35P chronograph. Accuracy is the average of three, five-shot groups at 25 yards from a sandbag rest. WSL=Winchester Super Lite; WSP=Winchester Small Pistol primer. Range temperatures were 58 to 74 degrees Fahrenheit. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 147 | E&E .357 inch | 5.6 | 1,189 | Remarks: group: 1.73 inches; good load |
| 147 | E&E .357 inch | 5.8 | 1,213 | Remarks: group: 2.03 inches; maximum |
| 150 | Sierra .356 inch | 5.8 | 1,177 | Remarks: group: 2.28 inches; maximum; best FPJ load |
| Model 1911 Colt 01923E All loads were fired in a Colt Model 01923E pistol with a 5-inch barrel and a groove diameter of .356 inch. All handloads used Starline 9mm Super Comp cases, Winchester Small Pistol primers, and overall loaded length was 1.206 inches. Group sizes are the average of at least three, five-shot groups at 25 yards (except where noted). | |||||
