Alliant Blue Dot

Smokeless magnum shotshell and handgun powder
The powder of choice for magnum lead shotshell loads 10, 12, 16 and 20 gauge. Consistent and accurate. Doubles as magnum handgun load.
- Consistent
- Accurate
Principal Purpose: Magnum shotshell loads, 10, 12, 16, 20 and 28 ga.
Secondary Uses: Magnum handgun loads

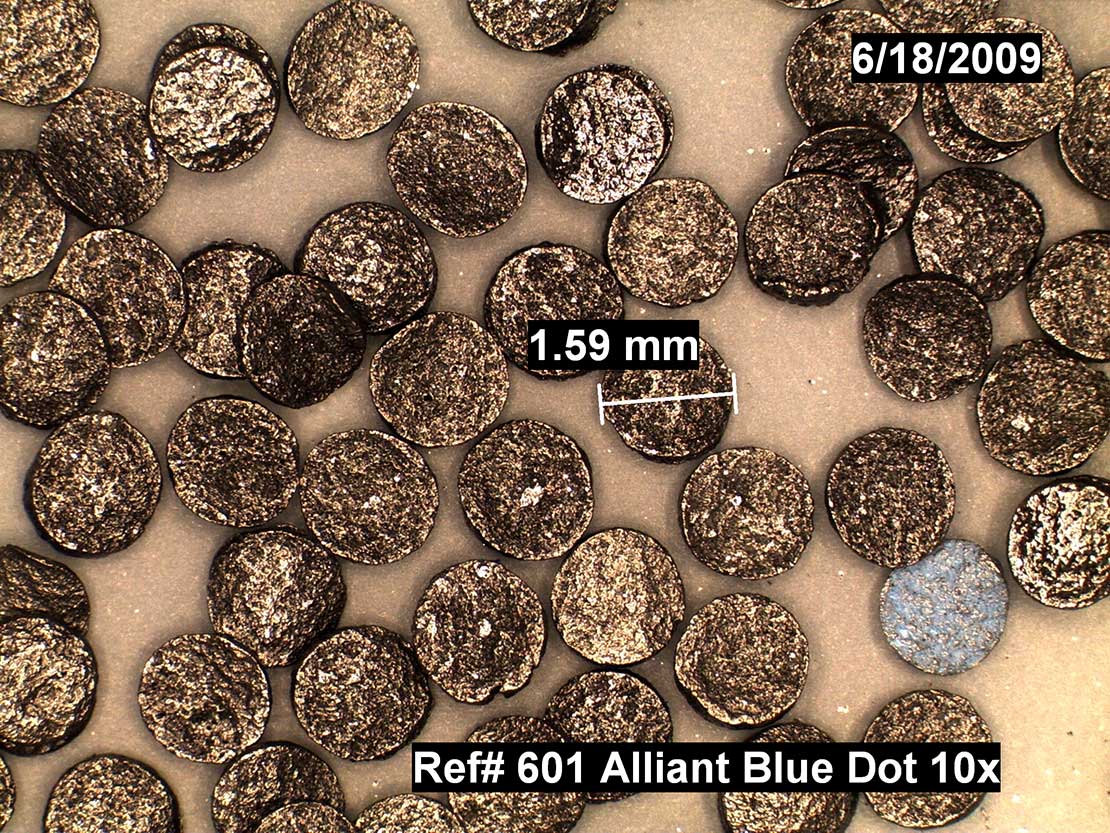

Shape	Color	Perforation	Diameter min	Diameter max	Length/thick. min	Length/thick. max	Manufacturer
Disk	Black	No	1.52 mm	1.59 mm	0.23 mm	0.23 mm	Alliant Powder

ADVARSEL!

Ladedata som finnes på hjemmesidene til Evje PK er KUN ment som en veiledning! Ladedata skal alltid verifiseres mot kjente kilder (kruttprodusenter, ladebøker o.l.)

Data funnet på våre hjemmesider brukes på eget ansvar, og Evje Pistolklubb fratar seg alt ansvar for feil bruk av, eller skrivefeil i oppgitte data.

.257 Magnum

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
67	cast	6.0	1,312	inaccurate
60	Speer	6.7	1,323	inaccurate
revolver Velocities represent five-shot averages taken fifteen feet from the muzzle of the converted S&W Model 15 revolver with an Oehler Model 10 chronograph. Temperature averaged fifty degrees. Group size represents distance between centers of the widest-spaced shots.

.30 Luger / 7.65 Parabellum

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
85	Hornady XTP	7.5	1,297	barrel: 4 inches
85	Hornady XTP	7.5	1,490	barrel: 6 inches
85	Hornady XTP	7.5	1,297	barrel: 4 inches
85	Hornady XTP	7.5	1,490	barrel: 6 inches
All loads used Remington Small Pistol primers. Loads were test fired at 25 yards from a Ransom Pistol Rest. Groups averaged less than 1.25 inches overall.

.30 M1 Carbine Revolver

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
120	Cast #311359 gas check	6.8	1066	sugg. start load
120	Cast #311359 gas check	8.8	1339	max load
123	Cast #311576 gas check	6.5	997	sugg. start load
123	Cast #311576 gas check	8.8	1290	max load
130	Cast #311410	6.3	971	sugg. start load
130	Cast #311410	8.2	1249	max load
Lyman Cast Bullet Handbook cases: Federal; trim-to length: 1.286"; primers: Remington 6 1/2; primer size: Small Rifle Magnum and Small Rifle; Lyman shell holder: No. 19; cast bullets used size to .308" dia.; firearm used: Ruger Blackhawk; barrel length: 7 1/2"; twist: 1-20"; groove diameter: .308"

.32 H&R Magnum

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
85	JHP	6.6	1,100	min. OAL (inches): 1.32; bbl length: 5; psi x1000: 19.0
90	LWC	5.1	1,150	min. OAL (inches): 1.18; bbl length: 5; psi x1000: 20.3
90	LWC (target)	3.7	805	min. OAL (inches): 1.1; bbl length 5; psi x1000: 7.8
Alliant Pistol/Revolver Data Primer: Fed. 100. Power charge weights listed are maximum. Maximum powder charge should be reduced by 10% to establish a minimum or starting charge.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
85	Jacketed	6.4	1070	start load; OAL: 1.320
85	Jacketed	6.6	1100	never exceed; OAL: 1.320; 19,000 psi
90	Wad Cutter	4.6	1055	start load; OAL: 1.180
90	Wad Cutter	5.1	1150	never exceed; OAL: 1.180; 20,300 psi
Lee Precision Data With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Pistol primer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
71	Sierra FMJ	6.5	936	sugg. start load; 14,300 cup; 1.350" OAL
71	Sierra FMJ	7.8	1188	max load; 20,600 cup; 1.350" OAL
85	Hornady Jacketed HP/XTP	5.5	798	sugg. start load; 12,700 cup; 1.310" OAL
85	Hornady Jacketed HP/XTP	6.7	1044	max load; 19,200 cup; 1.310" OAL
90	Sierra Jacketed JHC	5.0	719	sugg. start load; 11,800 cup; 1.315" OAL
90	Sierra Jacketed JHC	6.5	1014	max load; 19,700 cup; 1.315" OAL
100	Hornady Jacketed HP/XTP	5.1	711	sugg. start load; 14,300 cup; 1.315" OAL
100	Hornady Jacketed HP/XTP	5.7	935	max load; 20,100 cup; 1.315" OAL
75	Cast #311252	6.0	1045	sugg. start load; 14,300 cup; 1.350" OAL
75	Cast #311252	6.7	1170	max load; 18,300 cup; 1.350" OAL
85	Cast #313249	5.0	824	sugg. start load; 12,700 cup; 1.350" OAL
85	Cast #313249	6.5	1105	max load; 19,000 cup; 1.350" OAL
Lyman Reloading Manual 49th Edition cases: Federal; trim-to length: 1.065"; primers: Federal 100; primer size: Small Pistol; Lyman shell holder: No. 9; cast bullets used sized to .313" dia.; firearm used: Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .312"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Sierra JHC	5.0	794
90	Sierra JHC	5.3	852
90	Sierra JHC	5.6	921
90	Sierra JHC	5.8	989
90	Sierra JHC	6.1	1057
90	Sierra JHC	6.4	1119
Using Sierra bullets Gun: Ruger Single-Six Custom; Barrel Length: 6 1/2 inches; Case: Starline; Primer: Winchester Small Pistol; Bullet Diameter: .312 inch; COAL: 1.350 inches; Maximum COAL: 1.350 inches; Maximum Case Length: 1.075 inches; Trim to Length: 1.070 inches.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Sierra HC	8.0	1,619	primer: FC 100; group (50 yds): .88 inch
100	Speer PLK	7.0	1,492	primer: FC 100; group (50 yds): 1.15 inches; maximum load for Contender
110	Sierra RN	5.2	1,005	primer: FC 100; group (50 yds): 1.9 inches
110	Sierra HC	7.0	1,387	primer: FC 100; group (50 yds): 1.9 inches
110	Speer HC	7.4	1,467	primer: FC 100; group (50 yds): 1.25 inches; maximum load for Contender
110	Speer SP	7.4	1,452	primer: FC 100; group (50 yds): 1.4 inches; maximum load for Contender
125	Sierra SP	7.0	1,263	primer: FC 100; group (50 yds): 2.6 inches; maximum load for Contender
in a 10-inch Contender For Contender with 10-inch barrel, .308 bore diameter, using .308 bullets. The Hornady 85-grain HC and Sierra 90-grain HC are .312-inch diameter, but loads listed for them were OK in the author's .308-inch Contender. All other jacketed bullets were .308 and cast bullets were sized .308. Consult reloading manuals for data for .32 H&R Magnums in revolvers. Federal cases used for all loads.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Hornady SWC (swaged alloy)	6.0	896	case expansion: normal; accuracy class (Ruger): A; accurate
90	Hornady SWC (swaged alloy)	6.5	1,003	case expansion: near max; accuracy class (Ruger): C
116	Lyman 3118 Cast alloy)	5.2	777	case expansion: moderate; accuracy class (Ruger): B
116	Lyman 3118 Cast alloy)	6.0	956	case expansion: near max; accuracy class (Ruger): C
85	Hornady JHP	6.8	1,055	case expansion: near max; accuracy class (Ruger): C
in a 6 1/2 Inch Barrel Ruger Bisley. Federal cases and Federal 100 primers used in all loads. All loads chronographed 10 feet from the muzzle with an Oehler Model 33 chronotach. Overall cartridge length refers to seating for Ruger; all loads for H&R had 1.33-inch OAL. Accuracy rating schedule: A+ = under 1-inch (at 20 yards); A = 1 to 1 1/4 inches; B = 1 1/4 + to 1 1/2 inches; C = 1 1/2 + to 2 inches; D = over 2 inches
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Sierra JHP	6.5	1,170	CFVentures soft gas checks used
in a Charter Arms Police Undercover
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Sierra JHP	6.5	1,112	CFVentures soft gas checks used
in a Colt Detective
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Sierra JHP	6.5	1,090	CFVentures soft gas checks used
in an NEF Model R73
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
85	Hornady HP XTP	5.0	793	Do Not Reduce
85	Hornady HP XTP	5.7	924
85	Hornady HP XTP	6.0	1054	maximum load
100	Hornady HP XTP	4.6	756	Do Not Reduce
100	Hornady HP XTP	4.8	820
100	Hornady HP XTP	5.0	884
100	Hornady HP XTP	5.2	943	maximum load
Revolver Using Hornady Bullets Gun: Ruger Single Six; barrel length: 6 1/2 inches; case: Starline; primer: Winchester Small Pistol; bullet diameter: .312"; 85 GR Hornady HP XTP & 90 GR SWC COAL: 1.350"; 90 GR HBWC COAL: 1.100"; 100 GR HP XTP COAL: 1.315"; maximum COAL: 1.350"; maximum case length: 1.075"; trim to length: 1.065".
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
118	Cast Performance PB	5.7	1,034	Extreme Spread:10; 1.35 (25-yard group)
Ruger Single-Six Loads

.32 Smith & Wesson Long / .32 S&W Long

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
77	RCBS 32-77RN	3.7	691	81 energy (ft-lb); group (in): 1.40
84	RCBS 32-84WC	3.7	730	99 energy (ft-lb); group (in): 1.60
84	RCBS 32-84RN	3.6	712	86 energy (ft-lb); group (in): 0.88
84	RCBS 32-84RN	3.5	636	75 energy (ft-lb); group (in): 1.30
84	RCBS 32-84RN	4.1	820	125 energy (ft-lb); group (in): 1.35
84	RCBS 32-84RN	3.7	673	84 energy (ft-lb); group (in): 1.50
84	RCBS 32-84RN	4.0	790	116 energy (ft-lb); group (in): 1.70
84	RCBS 32-84RN	3.7	771	87 energy (ft-lb); group (in): 1.75
115	RCBS 115-FN	4.1	890	202 energy (ft-lb); group (in): 0.84
115	RCBS 115-FN	3.7	772	152 energy (ft-lb); group (in): 1.53
in the Contender Cast Bullets
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
100	Speer Plinker	3.7	648	93 :energy (ft-lb); group (in):2.2
110	Speer Varminter	3.7	646	102 :energy (ft-lb); group (in):1.07
in the Contender Jacketed Bullets

.32-20 Winchester / .32 WCF

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
113	Lyman 3118	6.5	705	case: Win.; primer: R 1 1/2; expansion: moderate
115	Markell Golden Arrow	6.5	786	case: R-P; primer: F 100; expansion: normal
100	Remington jacketed soft-point	6.5	676	case: Win.; primer: F 100; expansion: moderate
100	Remington jacketed soft-point	7.0	739	case: Win.; primer: CCI 550; expansion: moderate
100	Remington jacketed soft-point	7.0	932	case: Win.; primer: CCI 550; expansion: near max; kapok wad over powder
Revolver Velocities instrumental at nine feet from muzzle of Smith & Wesson Model 1905 with six-inch barrel.

.357 Magnum

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
110	Speer JHP	14.0	1,592	case: W-W; primer: F 100; case expansion normal; 6" barrel
110	Speer JHP	14.3	1,620	case: W-W; primer: F 100; case expansion near maximum; highest velocity load of series; 6" barrel
110	Hornady JHP	14.0	1,463	case: R-P; primer: F 100; case expansion normal; 6" barrel
146	Speer JHP	11.0	1,199	case: S-X; primer: S-V; case expansion normal; 6" barrel
150	Sierra JHC	11.0	1,221	case: S-X; primer: F 100; case expansion normal; 6" barrel
150	Sierra JHC	12.0	1,325	case: S-X; primer: F 100; case expansion near maximum; highest velocity 150-grain load; 6" barrel
158	Speer JSP	11.5	1,195	case: W-W; primer: F 100; case expansion near maximum; very accurate; 6" barrel
158	Hornady JHP	10.5	1,092	case: S-X; primer: S-V; case expansion normal; very accurate; 6" barrel
158	Hornady JHP	11.0	1,178	case: S-X; primer: S-V; case expansion normal; second most accurate load tested; 6" barrel
Colt "357" Revolver with six-inch barrel used for all accuracy and velocity testing. Velocities are Instrumental (IV) taken at ten feet from muzzle. Temperature 60 degrees F. Chronograph set-up: Oehler Model 31 Chronotach with Oehler Model 51 electronic screens; screen spacing ten feet. Update: Alliant Powder Company does not recommend Blue Dot in the .357 magnum using 125-grain bullets. Recipes for heavier bullet weights are acceptable. Their new tests on recent powder samples have shown high pressure spikes that can damage personal property or injure you. For this reason we removed all 125-grain Blue Dot data from .357 magnum tables.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	lead round nose	8.2	1,225	primer: Fed. 200; min. OAL (inches): 1.575; bbl length: 5.6; psi: 33,900
Alliant Pistol and Revolver Data Do not exceed powder weight shown.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
110	Speer UCHP	16.0	1680	OAL: 1.575"
140	Speer UCHP	11.5	1324	OAL: 1.560"
158	Speer GDHP	10.2	1188	OAL: 1.575"
170	Speer GDSP	9.4	1002	OAL: 1.590"
Alliant Reloaders Guide - Pistol/Revolver primer: CCI 500; case: Speer; NOTE: All loads are maximum. Reduce by 10% to establish a starting charge weight.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
110	Speer UCHP	14.0	1548	start charge
110	Speer UCHP	16.0	1680	maximum charge
140	Speer UCHP	10.3	1234	start charge
140	Speer UCHP	11.5	1324	maximum charge
158	Speer TMJ FN, UCHP, GDHP or UCSP	9.0	1049	start charge
158	Speer TMJ FN, UCHP, GDHP or UCSP	10.2	1188	maximum charge
170	Speer Mag GDSP	8.8	978	start charge
170	Speer Mag GDSP	9.4	1002	maximum charge
(Handgun) Speer Reloading Manual #14 max. case length: 1.290"; trim-to length: 1.280"; max cart. OAL: 1.590"; RCBS shell holder: #6; cart. case: Speer; primer: CCI 500 (except where otherwise specified in remarks); test firearm: S&W model 19; barrel length: 6"; NOTE: Do not use the 110-grain Gold Dot SB HP (#4009) in the 357 Magnum; maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
158	Lead	9.4	1381	start load; min OAL: 1.580
158	Lead	10.3	1490	never exceed; min OAL: 1.580; 33,600 psi
170	Jacketed	8.8	1202	start load; min OAL: 1.585
170	Jacketed	9.7	1310	never exceed; min OAL: 1.585; 33,800 psi
180	Jacketed	9.0	1167	start load; min OAL: 1.580
180	Jacketed	9.7	1260	never exceed; min OAL: 1.580; 33,300 psi
200	Lead	7.5	1124	start load; min OAL: 1.575
200	Lead	8.2	1225	never exceed; min OAL: 1.575; 33,900 psi
158	Jacketed	9.9	1316	start load; min OAL: 1.580
158	Jacketed	10.7	1420	never exceed; min OAL: 1.580; 33,300 psi
Lee Precision Data Small Pistol Primer. With NEVER EXCEED LOADS maintain Minimum Over All Length or longer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
158	Nosler Sporting Handgun Jacketed Hollow Point	10.4	1211	maximum load
158	Nosler Sporting Handgun Jacketed Hollow Point	9.9	1153	most accurate load tested
158	Nosler Sporting Handgun Jacketed Hollow Point	9.4	1095
Using 158 GR Nosler Bullets Handgun; Case: Federal; primer: WSPM; barrel length/make: 8.3" H-S Precision; twist: 1-16"; bullets: 158 GR Sporting Handgun Revolver JHP; OACL: 1.585"; maximum OACL: 1.590". Use Maximum Loads with Caution
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
110	Sierra JHP	15.0	1,931	case: W-W; primer: Federal 100; 50-yard group: inaccurate
10-inch Contender Barrel All loads crimped in crimping groove or cannelure provided. All data the result of a single representative 10-round group, fired from a sandbag rest. Velocities were measured 10 feet from the muzzle with an Oehler Model 33 chronograph. All cases .357 unless otherwise noted. Update: Alliant Powder Company does not recommend Blue Dot in the .357 magnum using 125-grain bullets. Recipes for heavier bullet weights are acceptable. Their new tests on recent powder samples have shown high pressure spikes that can damage personal property or injure you. For this reason we removed all 125-grain Blue Dot data from .357 magnum tables.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
110	Speer JHP	14.3	2,062	highest velocity; poor accuracy; primer: Fed 100
140	Sierra JHC	12.0	1,667	primer: Rem 1 1/2
158	Hornady JHP`	11.0	1,581	primer: Win 116
Carbine Update: Alliant Powder Company does not recommend Blue Dot in the .357 magnum using 125-grain bullets. Recipes for heavier bullet weights are acceptable. Their new tests on recent powder samples have shown high pressure spikes that can damage personal property or injure you. For this reason we removed all 125-grain Blue Dot data from .357 magnum tables. Taken from Handloader Issue 100
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
174	SWC Lyman 358429	10.5	1,225	group (inches): 1.3
Cast In An S&W Model 19 All groups fired at 25 yards with revolver mounted in a machine rest. Five shots per group. All handloads used Browning brass and Winchester Small Pistol primers. All bullets crimped heavily. These 14 groups represent only those of 28 tested that grouped five shots into 1.75 inches or less. Six-inch barrel.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
115	Cast #358345	9.4	1134	sugg. start load; 20,400 cup
115	Cast #358345	12.8	1586	max load; 41,200 cup
121	Cast #356402	10.8	1156	sugg. start load; 17,000 cup
121	Cast #356402	13.0	1564	max load; 41,400 cup
133	Cast #358480	10.0	1162	sugg. start load; 18,800 cup
133	Cast #358480	11.6	1426	max load; 41,000 cup
141	Cast #358495	9.6	1134	sugg. start load; 21,800 cup
141	Cast #358495	11.2	1382	max load; 40,600 cup
150	Cast #358477	8.2	950	sugg. start load; 13,000 cup
150	Cast #358477	10.8	1356	max load; 41,200 cup
155	Cast #358156 gas check	8.5	975	sugg. start load; 21,500 cup
155	Cast #358156 gas check	10.5	1277	max load; 40,800 cup
158	Cast #358311	8.2	888	sugg. start load; 11,600 cup
158	Cast #358311	10.9	1316	max load; 39,200 cup
168	Cast #358429	8.3	970	sugg. start load; 18,400 cup
168	Cast #358429	10.0	1233	max load; 39,200 cup
Handgun Lyman Cast Bullet Handbook cases: Federal; trim-to length: 1.285"; primers: CCI 550; primer size: Small Pistol Magnum; Lyman shell holder: No. 1; cast bullets used size to .357" dia.; firearm used: Universal Receiver and Special Vented Barrel; barrel length: 4"; twist: 1-18 3/4"; groove diameter: .356"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
110	Speer Jacketed HP	10.0	930	sugg. start load; 12,400 cup; 1.590" OAL
110	Speer Jacketed HP	14.6	1545	max load; 39,400 cup; 1.590" OAL
140	Speer Jacketed HP	9.2	917	sugg. start load; 17,900 cup; 1.590" OAL
140	Speer Jacketed HP	11.9	1272	max load; 35,200 cup; 1.590" OAL
145	Winchester Jacketed Silvertip	9.9	1142	sugg. start load; 1.575" OAL; 29,200 cup
145	Winchester Jacketed Silvertip	11.1	1352	max load; 1.575" OAL; 41,400 cup
146	Speer Jacketed HP	9.0	943	sugg. start load; 21,300 cup; 1.590" OAL
146	Speer Jacketed HP	11.5	1273	max load; 39,700 cup; 1.590" OAL
158	Hornady Jacketed HP	9.6	929	sugg. start load; 27,600 cup; 1.590" OAL
158	Hornady Jacketed HP	10.7	1158	max load; 39,800 cup; 1.590" OAL
180	Hornady Jacketed HP	8.4	782	sugg. start load; 1.585" OAL; 27,300 cup; 1.585" OAL
180	Hornady Jacketed HP	9.4	970	max load; 1.585" OAL; 39,100 cup
Handgun Lyman Reloading Manual 49th Edition cases: Federal; trim-to length: 1.280"; primers: CCI 550; primer size: Small Pistol, Magnum; Lyman shell holder: No. 1; firearm used: Universal Receiver; barrel length: 4"; twist: 1-18 3/4"; groove dia.: .356"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
120	Cast #356402	10.8	1156	sugg. start load; 1.590" OAL; 17,000 cup
120	Cast #356402	13.0	1564	max load; 1.590" OAL; 41,400 cup
150	Cast #358477	8.2	950	sugg. start load; 1.510" OAL; 13,000 cup
150	Cast #358477	10.8	1356	max load; 1.510" OAL; 41,200 cup
155	Cast #358156 gas check	8.5	975	sugg. start load; 1.590" OAL; 21,500 cup
155	Cast #358156 gas check	10.5	1277	max load; 1.590" OAL; 40,800 cup
160	Cast #358311	8.2	888	sugg. start load; 1.590" OAL; 11,600 cup
160	Cast #358311	10.9	1316	max load; 1.590" OAL; 39,200 cup
170	Cast #358429	8.3	970	sugg. start load; 1.553" OAL; 18,400 cup
170	Cast #358429	10.0	1233	max load; 1.553" OAL; 39,200 cup
Handgun Cast Bullet Data Lyman Reloading Manual 49th Edition cases: Federal; trim-to length: 1.280"; primers: CCI 550"; primer size: Small Pistol, Magnum; Lyman shell holder: No. 1; cast bullets used sized to .357" dia.; firearm used: Universal Receiver; barrel length: 4"; twist: 1-18 3/4"; groove dia.: .356"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
170	Sierra Jacketed Hollow Cavity	10.3	1154	primer: CCI 550 Small Pistol; overall loaded length (inches): 1.585; group (inches): 3.60
Heavy Bullet Loads Group sizes are the average of five shots fired at 25 yards. Velocities were recorded 10 feet in front of the muzzle of a Smith & Wesson 686 Plus with a 4-inch barrel using Remington cases and Winchester Small Pistol primers (except where noted otherwise in remarks). The revolver was held by hand over a rest to shoot the groups.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
155	Lyman 358156 hollowpoint	10.5	1,279	1.60 inch group (25 yards)
146	Speer SWC-HP	11.0	1,285	1.90 inch group (25 yards)
in a 7 1/2 inch Ruger Bisley
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
110	Hornady Jacketed HP/XTP	10.0	1342	sugg. start load; 1.590" OAL
110	Hornady Jacketed HP/XTP	14.6	1968	max load; 1.590" OAL
146	Speer Jacketed HP-SWC	9.5	1335	sugg. start load; 1.590" OAL
146	Speer Jacketed HP-SWC	11.5	1580	max load; 1.590" OAL
158	Sierra Jacketed SP	9.6	1283	sugg. start load; 1.590" OAL
158	Sierra Jacketed SP	10.7	1441	max load; 1.590" OAL
180	Hornady Jacketed HP	8.4	1140	sugg. start load; 1.585" OAL
180	Hornady Jacketed HP	9.4	1316	max load; 1.585" OAL
155	Cast #358156 gas check	8.5	1187	sugg. start load; 1.578" OAL
155	Cast #358156 gas check	10.5	1443	max load; 1.578" OAL
170	Cast #358429	8.3	11417	sugg. start load; 1.647" OAL
170	Cast #358429	10.0	1368	max load; 1.647" OAL
204	Cast #358315 gas check	9.0	1225	sugg. start load; 1.880" OAL
204	Cast #358315 gas check	11.0	1410	max load; 1.880" OAL
in a T/C Contender & Encore Lyman Reloading Manual 49th Edition This data was developed for use in the T/C Contender and Encore handguns. It can also be used in other single shot or bolt-action handguns such as the Remington XP-100 and Savage Striker. Do not use these loads in any other type of handgun. Do not use 357 Magnum loads in 38 Special cases as very dangerous pressure will result. Cases: Federal; trim-to length: 1.280"; primers: CCI 550; primer size: Small Pistol, Magnum; Lyman shell holder: No. 1; cast bullets used sized to .357" dia.; firearm used: Thompson/Center Contender; barrel length: 10"; twist: 1-18"; groove dia.: .356"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
110	Hornady XTP	11.0	1,369
140	Hornady XTP	10.0	1,277
158	Hornady XTP	10.0	1,278
160	Lyman 358665	6.0	814
Loads (revolver) 4 3/4-inch revolver. Overall length for all cartridges: 1.590 inches. Federal 205 rifle primers used with all jacketed bullets. CCI 500 pistol primers used with all cast bullets. Velocities instrumental at 8 feet using Oehler M35P. All data average of five, five-shot strings.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
180	Flat Point	8.9	1,214	starting load
180	Flat Point	9.3	1,252	maximum load
Pistol (Oregon Trail Handgun/Metallic Silhouette Loads) test gun: Smith & Wesson M-686 6", WSP; do not exceed maximum loads; minimum OAL: 1.580; never reduce stated overall lengths
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
180	Speer Mag Match TMJ Sil	10.1	1245	start charge
180	Speer Mag Match TMJ Sil	11.2	1371	maximum charge
Silhouette Speer Reloading Manual #14 max. case length: 1.290"; trim-to length: 1.275"; RCBS shell holder: #6; cart. case: Speer; primer: CCI 500 (except where otherwise specified in remarks); test firearm: T/C Contender; barrel length: 10"; NOTE: A revolver must have a total cylinder length of at least 1.625 inches (not counting rim recesses, if present) to benefit from this specialty bullet. All cases must be trimmed to 1.275 inches and bullets seated so that the case mouth covers almost all the crimping groove. Apply a very firm crimp to prevent bullet jump during recoil. Make a dummy round (no powder or primer) using the above technique and try it in your cylinder. For proper and safe function the bullet tip must be below - not flush with - the face of the cylinder. Use these loads only in single-shot pistols and heavy-frame revolvers. Maximum loads should be used with CAUTION

.357 Remington Maximum

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
155	Cast #358156 gas check	10.0	1261	10" Bbl.; sugg. start load; 1.895" OAL
155	Cast #358156 gas check	10.0	1400	14" Bbl.; sugg. start load; 1.895" OAL
155	Cast #358156 gas check	13.0	1598	10" Bbl.; max load; 1.895" OAL
155	Cast #358156 gas check	13.0	1733	14" Bbl.; max load; 1.895" OAL
168	Cast #358429	11.0	1390	10" Bbl.; sugg. start load 1.965" OAL
168	Cast #358429	11.0	1527	14" Bbl.; sugg. start load; 1.965" OAL
168	Cast #358429	13.7	1642	10" Bbl.; max load; 1.965" OAL
168	Cast #358429	13.7	1742	14" Bbl.; max load; 1.965" OAL
in a T/C Contender & Encore Lyman Reloading Manual 49th Edition This data was developed for use in the T/C Contender and Encore handguns. It can also be used in other single shot or bolt-action handguns such as the Remington XP-100 and Savage Striker. Do not use these loads in any other type of handgun. Do not use 357 Remington Maximum loads in 357 Magnum cases as very dangerous pressure will result. Cases: Remington; trim-to length: 1.600"; primers: Remington 6 1/2 (except where otherwise specified in remarks); primer size: Small Rifle; Small Rifle Magnum; Lyman shell holder: No. 1; cast bullets used sized to .357" dia.; firearm used: Thompson/Center Contender; barrel length: 10" and 14"; twist: 1-14"; groove dia.: .357"

.357 SIG

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
147	Speer GDHP	8.8	1218
Alliant Reloaders Guide 2008 primer: CCI 500; case: Speer; OAL: 1.135"; NOTE: All loads are maximum. Reduce by 10% to establish a starting charge weight. Alliant Pistol/Revolver Load Data
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Jacketed	12.8	1690	start load; compressed charge; min OAL: 1.090
90	Jacketed	12.8	1690	never exceed; compressed charge; min OAL: 1.090; 35,300 psi
115	Jacketed	10.6	1411	start load; compressed charge; min OAL: 1.140
115	Jacketed	11.3	1495	never exceed; compressed charge; min OAL: 1.140; 37,400 psi
124	Jacketed	10.1	1340	start load; min OAL: 1.120
124	Jacketed	10.6	1405	never exceed; compressed charge; min OAL: 1.120; 36,900 psi
125	Jacketed	10.1	1323	start load; min OAL: 1.140
125	Jacketed	10.5	1375	never exceed; compressed charge; min OAL: 1.140; 36,700 psi
147	Barnes X	8.1	1183	start load; min OAL: 1.138
147	Barnes X	8.2	1205	never exceed; min OAL: 1.138; 35,800 psi
Lee Precision Data With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Pistol primer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
115	Sierra Jacketed HP	9.2	1235	sugg. start load; 31,000 psi; 1.140" OAL
115	Sierra Jacketed HP	10.3	1384	max load; 38,500 psi; 1.140" OAL
125	Speer Gold Dot Jacketed HP	8.9	1160	sugg. start load; 30,900 psi; 1.135" OAL
125	Speer Gold Dot Jacketed HP	9.9	1314	max load; 38,600 psi; 1.135" OAL
147	Speer TMJ	6.8	948	sugg. start load; 33,200 psi; 1.135" OAL
147	Speer TMJ	7.6	1086	max load; 37,200 psi; 1.135" OAL
Lyman Reloading Handbook 49th Edition cases: Federal; trim-to length: .860"; primers: Federal 100; primer size: Small Pistol; Lyman shell holder: No. 15; firearm used: Universal Receiver; barrel length: 4"; twist: 1-16"; groove dia.: .3553"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
147	Speer GD-HP or TMJ	7.9	1130	start charge
147	Speer GD-HP or TMJ	8.8	1218	maximum charge
125	Speer GD-HP or TMJ RN	9.9	1293	start charge
125	Speer GD-HP or TMJ RN	11.0	1416	maximum charge; compressed load

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
115	Hornady HP-XTP or FMJ-RN	8.1	1065
115	Hornady HP-XTP or FMJ-RN	8.6	1148
115	Hornady HP-XTP or FMJ-RN	9.2	1246
115	Hornady HP-XTP or FMJ-RN	9.7	1344
115	Hornady HP-XTP or FMJ-RN	10.3	1442
115	Hornady HP-XTP or FMJ-RN	10.8	1530	maximum load
124	Hornady HP-XTP	8.3	1190
124	Hornady HP-XTP	8.8	1246
124	Hornady HP-XTP	9.2	1311
124	Hornady HP-XTP	9.7	1376
124	Hornady HP-XTP	10.1	1441
124	Hornady HP-XTP	10.5	1499	maximum load
147	Hornady HP-BT-XTP	5.6	896
147	Hornady HP-BT-XTP	6.1	957
147	Hornady HP-BT-XTP	6.6	1029
147	Hornady HP-BT-XTP	7.2	1100
147	Hornady HP-BT-XTP	7.7	1171
147	Hornady HP-BT-XTP	8.2	1235	maximum load
Using Hornady Bullets Gun: Glock Model 31; barrel length: 4.48 inch; case: Starline; primer: Winchester Small Pistol; bullet diameter: .355"; COAL: 1.140"; maximum COAL: 1.140"; maximum case length: .865"; trim to length: .860".
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
115	Nosler Sporting Handgun JHP	10.8	1368	max; most accurate load tested
115	Nosler Sporting Handgun JHP	10.3	1311
115	Nosler Sporting Handgun JHP	9.8	1262
124	Nosler Sporting Handgun JHP	10.1	1345	max
124	Nosler Sporting Handgun JHP	9.6	1268	most accurate load tested
124	Nosler Sporting Handgun JHP	9.1	1191
Using Nosler Bullets Case: Federal; primer: WSP; barrel length/make: 3.9" Sig; twist: 1-16"; bullets: 115 GR Nosler Sporting Handgun Pistol JHP - OACL: 1.140"; 124 GR Sporting Handgun Pistol JHP - OACL: 1.120"; maximum OACL: 1.140". Contrary to the cartridge designation, the 357 Sig uses 9mm (.355") bullets. Both the 115 and 124 grain 9mm Sporting Handgun Pistol bullets are suitable for loading in the .357 Sig. Use Maximum Loads with Caution
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
100	Speer JHP	10.2	1,235	group: 2.28 inches; muzzle energy: 339 ft-lbs
124	Hornady XTP	9.5	1,194	group: .92 inch; muzzle energy: 393 ft-lbs
124	Hornady XTP	10.0	1,291	group: 1.18 inches; muzzle energy: 459 ft-lbs
147	Hornady XTP	8.3	1,141	group: 1.38 inches; muzzle energy: 425 ft-lbs
in a Springfield XD Starline cases and Winchester Small Pistol primers were used for all handloads. Springfield Armory XD pistol with a 4-inch barrel and fixed open sights was used for testing. Velocities were taken 12 feet from the muzzle with an Oehler Model 33 or Model 35P chronograph. Accuracy is the average of three, five-shot groups at 15 yards from a sandbag rest. Range temperatures were 62 to 76 degrees Fahrenheit. .355-inch jacketed bullets and .356-inch cast bullets.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
124	Hornady XTP	8.4	1,106	group: 2.52 inches; muzzle energy: 337 ft-lbs
124	Hornady XTP	9.5	1,186	group: 3.23 inches; muzzle energy: 387 ft-lbs
147	Hornady XTP	6.9	929	group: 2.68 inches; muzzle energy: 282 ft-lbs; too light
147	Hornady XTP	7.7	1,050	group: 1.36 inches; muzzle energy: 360 ft-lbs; mild
in an S&W 4006 Smith & Wesson Model 4006 with a custom Bar-Sto 4-inch barrel and Millett adjustable open sights was used for testing. Starline cases and Winchester Small Pistol primers (WSP) were used for all handloads. Velocities were taken 12 feet from the gun's muzzle with an Oehler Model 33 or Model 35P chronograph. Accuracy is the average of three, five-shot groups at 15 yards from a sandbag rest. Range temperatures wer 58 to 74 degrees Fahrenheit. .355-inch jacketed and .356-inch cast bullets.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
124	Speer Gold Dot hollowpoint	9.9	1,293
124	Speer Gold Dot hollowpoint	11.0	1,416	maximum and compressed load
Speer Load Data CCI 500 primers and Speer cases used in all test loads.

.38 Automatic / .38 Auto / .38 ACP

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
130	Jacketed	7.5	1000	start load; min OAL: 1.260
130	Jacketed	7.5	1000	never exceed; min OAL: 1.260; 19,400 cup
Lee Precision Data CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Pistol primer.

.38 S&W / .38 Smith & Wesson

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
92	Cast #358242	5.4	778	sugg. start load; Special Pressure Test Barrel; 6,600 cup
92	Cast #358242	6.7	958	max load; Special Pressure Test Barrel; 10,800 cup
Lyman Cast Bullet Handbook cases: Winchester; trim-to length: .765"; primers: Winchester 1 1/2-108; primer size: Small Pistol; Lyman shell holder: No. 21; cast bullets used size to .360" dia.; firearm used: Special Pressure test barrel; Smith & Wesson Model 33; barrel length: 4"; twist: 1-18 3/4"; groove diameter: .361"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
158	Hornady swaged SWC (lead)	5.0	710	case: R-P; OAL: 1.19; case expansion: normal
200	Markell cast (lead)	5.2	845	case: R-P; OAL: 1.19; case expansion: near max.; insufficient accuracy
200	Markell cast (lead)	5.5	885	case: R-P; OAL: 1.19; case expansion: maximum; more accurate than 5.2-grain load
High Power Loads Warning! The loads in this table are not, UNDER ANY CIRCUMSTANCES, suitable for older American "top-break" revolvers chambered for the .38 Smith & Wesson cartridge. British top-break Webleys and Enfields are safe; cartridge designations may be .38-200, .380 Rim, or .380 Mk 1. The Smith & Wesson "Victory" model, a Military & Police variant, is safe. Solid-frame U.S. guns suitable are Smith & Wesson Regulation Police and Terrier models, Colt Police Positive, Detective Special, and Bankers Special models. Caliber designation of these guns is generally .38 Smith & Wesson, but may be .38 S&W Super Police or .38 Colt New Police. Notes: Velocities shown are instrumental taken at ten feet from the muzzle. Test gun was Ruger Service-Six revolver with four-inch barrel, chambered for the .380 Rim cartridge. Cases used were new Remington-Peters and old Peters. Peters cases had greater powder capacity. Alcan Small Pistol primers used for all loads. Oehler Model 31 Chronotach and Model 51 electronic screens used to measure bullet velocities.

.38 Special

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
165	Lyman 358439	7.6	944
158	Lyman 358156	8.8	1,000
150	Bull-X 150	11.2	1,193
146	Speer 146 SWC	8.0	1,115
140	Speer 140 JHP	7.4	1,053
140	Speer 140 JHP	8.0	1,042
125	Winchester 125 STHP	8.5	1,075
110	Sierra 110 JHP	8.3	1,237
(.38-44 High Velocity) (Colt Peacemaker Loads) Winchester +P cases used throughout with CCI 450 primers. (Loading the Peacemaker - Dave Scovill)
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
110	JHP	7.8	1,170	15,700 psi
125	JSP	7.3	1,035	15,600 psi
148	LWC	5.3	810	13,600 psi
158	LSWC	6.1	955	15,600 psi
200	LRN	5.3	850	16,000 psi
160	JSP	6.2	845	15,800 psi
Alliant Data Bbl Length: 5.6; primer: Fed. 100 except where otherwise noted in "remarks"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
155	Cast gas check #358156 (Linotype)	6.0	686	sugg. start load; 1.460" OAL; 10,400 cup
155	Cast gas check #358156 (Linotype)	7.2	867	max load; 1.460" OAL; 15,700 cup
158	Cast #358665 (Linotype)	5.9	765	sugg. start load; 1.445" OAL; 12,200 cup
158	Cast #358665 (Linotype)	6.6	855	max load; 1.445" OAL; 15,700 cup
160	Cast #358311 (Linotype)	6.3	809	sugg. start load; 1.550" OAL; 13,200 cup
160	Cast #358311 (Linotype)	7.0	883	max load; 1.550" OAL; 15,800 cup
170	Cast #358429 (Linotype)	6.0	780	sugg. start load; 1.537" OAL; 12,700 cup
170	Cast #358429 (Linotype)	6.7	851	max load; 1.537" OAL; 15,000 cup
Cast Bullet Data Lyman Reloading Handbook 49th Edition cases: Federal; trim-to length: 1.149"; primers: CCI 500; primer size: Small Pistol; Lyman shell holder: No. 1; cast bullets used sized to .358" dia.; firearm used: Universal Receiver; barrel length: 4"; twist: 1-18 3/4"; groove dia.: .357"; (+P) designates higher pressure loads
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
158	Cast #358156 gas check	6.0	686	sugg. start load; 10,400 cup
158	Cast #358156 gas check	7.2	867	max load; 15,700 cup
158	Cast #358311	5.9	673	sugg. start load; 9,100 cup
158	Cast #358311	7.8	919	max load; 16,400 cup
162	Cast #357446	5.8	675	sugg. start load; 9,500 cup
162	Cast #357446	7.7	948	max load; 16,500 cup
168	Cast #358429	5.5	647	sugg. start load; 10,000 cup
168	Cast #358429	7.3	869	max load; 16,500 cup
Lyman Cast Bullet Handbook 3rd Edition cases: Federal; trim-to length: 1.149"; primers: CCI 500; primer size: Small Pistol; Lyman shell holder: No. 1; cast bullets used size to .357" dia.; firearm used: Universal Receiver and Special Vented Barrel; barrel length: 4"; twist: 1-18 3/4"; groove diameter: .357". NOTE: More Lyman cast bullet data available under .38 Special Cast Bullet Data Lyman Reloading Manual 49th Edition) and .38 Special (Lyman Cast Bullet Handbook 4th Edition). NOTE: Loads designated with the symbol (+P) are higher pressure loads to give greater velocities. These loads should be used only in arms recommended for (+P) type cartridges by the gun manufacturer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
110	Speer Jacketed HP	7.9	822	sugg. start load; 1.430" OAL; 12,400 cup
110	Speer Jacketed HP	8.8	938	max load; 1.430" OAL; 14,900 cup
140	Speer Jacketed HP	7.2	688	sugg. start load; 1.470" OAL; 13,600 cup
140	Speer Jacketed HP	8.0	838	max load; 1.470" OAL; 16,300 cup
125	Hornady Jacketed HP	7.6	718	sugg. start load; 1.470" OAL; 11,400 cup
125	Hornady Jacketed HP	8.5	876	max load; 1.470" OAL; 15,400 cup
146	Speer Jacketed HP	6.7	595	sugg. start load; 1.408" OAL; 12,500 cup
146	Speer Jacketed HP	7.4	772	max load; 1.408" OAL; 16,600 cup
158	Hornady Jacketed HP	6.0	607	sugg. start load; 1.480" OAL; 13,500 cup
158	Hornady Jacketed HP	6.7	711	max load; 1.480" OAL; 15,700 cup
Lyman Reloading Handbook 49th Edition Warning! cases: Federal; trim-to length: 1.149"; primers: CCI 500; primer size: Small Pistol; Lyman shell holder: No. 1; firearm used: Universal Receiver; barrel length: 4"; twist: 1-18 3/4"; groove dia.: .357"; (+P) designates higher pressure loads
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
146	JHP-SWC	7.1	1000	OAL: 1.370"
+P (Alliant Reloaders Guide) primer: CCI 500; case: Speer; NOTE: All loads are maximum. Reduce by 10% to establish a starting charge weight. Alliant Pistol/Revolver Load Data
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Jacketed	8.8	1294	start load; min OAL: 1.410
90	Jacketed	9.1	1345	never exceed; min OAL: 1.410; 16,900 psi
110	Jacketed	7.9	1172	start load; min OAL: 1.430
110	Jacketed	8.2	1205	never exceed; min OAL: 1.430; 16,800 psi
125	Jacketed	7.2	1025	start load; min OAL: 1.440
125	Jacketed	7.5	1065	never exceed; min OAL: 1.440; 16,900 psi
158	Lead	6.0	959	start load; min OAL: 1.420
158	Lead	6.3	995	never exceed; min OAL: 1.420; 17,000 psi
160	Jacketed	5.9	855	start load; min OAL: 1.430
160	Jacketed	6.3	905	never exceed; min OAL: 1.430; 17,400 psi
+P Lee Precision Data These hot loads may wear guns prematurely. Do not use in small frame, or aluminum frame revolvers, or in semi auto pistols. Small pistol primer. CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
140	Speer UCHP	7.1	1024	start charge
140	Speer UCHP	7.4	1053	maximum charge
146	Speer JHP-SWC	6.7	971	start charge
146	Speer JHP-SWC	7.1	1000	maximum charge
+P Speer Reloading Manual #14 max. case length: 1.155"; trim-to length: 1.145"; max cart. OAL: 1.550"; RCBS shell holder: #6; cart. case: Speer; primer: CCI 500; test firearm: S&W Model 14; barrel length: 6"; maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
110	Speer JHP	8.5	1,049
146	Speer JHP-SWC	7.2	878
+P 20,000 Warning! Test gun was a Smith & Wesson Model 14 with a 6-inch barrel. Federal 100 primers used throughout. Temperature during testing was 28 degrees Fahrenheit.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
110	Speer Jacketed Hollow Point	8.5	1,061
146	Speer Jacketed Hollow Point Semi-wadcutter	7.2	878
+P Data (20,000 psi) Data is safe in any .38 S&W Special revolver that is recommended for +P loads and is in good mechanical condition. Handgun used was a Smith & Wesson .38-44 Outdoorsman with a 6 1/2-inch barrel. Federal 100 primers and Starline cases used throughout. Temperature during testing was 46 degrees Fahrenheit.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
158	Hornady semiwadcutter	7.5	972
158	Hornady roundnose (lead)	7.0	942
158	Hornady roundnose (lead)	8.0	1,102	maximum; standard primers only
158	Sierra jacketed hollow cavity	7.0	827	accurate
158	Sierra jacketed hollow cavity	7.5	905	good load in 6-inch barrel
158	Sierra jacketed hollow cavity	8.0	1,025	maximum; very accurate, but don't exceed
140	Sierra jacketed hollow cavity	7.5	903
140	Sierra jacketed hollow cavity	8.0	999	maximum; accurate
125	Nosler jacketed hollowpoint	8.3	997	maximum; very accurate
+P Loads (Colt Official Police) .38 Special 6-inch barrel.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
158	Hornady semiwadcutter	7.5	922
158	Hornady roundnose (lead)	7.0	846
158	Hornady roundnose (lead)	8.0	951	maximum; standard primers only
158	Sierra jacketed hollow cavity	7.0	707	accurate
158	Sierra jacketed hollow cavity	7.5	775
158	Sierra jacketed hollow cavity	8.0	876	maximum; very accurate, but don't exceed
140	Sierra jacketed hollow cavity	7.5	774
140	Sierra jacketed hollow cavity	8.0	860	maximum; accurate
125	Nosler jacketed hollowpoint	8.3	920	maximum; very accurate
+P Loads (Colt Trooper) .38 Special 4-inch barrel.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
158	Sierra jacketed hollow cavity	8.0	845	maximum; very accurate, but don't exceed
+P Loads (Colt) .357 Magnum 6-inch barrel.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
158	Hornady roundnose (lead)	8.0	898	maximum; standard primers only
+P Loads (Model 19) .357 Magnum 4-inch barrel.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
110	Jacketed	7.4	1115	start load; min OAL: 1.430
110	Jacketed	7.8	1170	NEVER EXCEED; 15,700 psi; min. OAL: 1.430
125	Jacketed	7.0	995	start load; min. OAL: 1.440
125	Jacketed	7.3	1035	NEVER EXCEED; 15,600 psi; min. OAL: 1.440
148	Wad Cutter	5.3	810	start load; min. OAL: 1.180
148	Wad Cutter	5.3	810	NEVER EXCEED;13,600 psi; min. OAL: 1.180
158	Lead	5.8	919	start load; min. OAL: 1.420
158	Lead	6.1	955	NEVER EXCEED; 15,600 psi; min. OAL: 1.420
160	Jacketed	5.9	805	start load; min. OAL: 1.435
160	Jacketed	6.2	845	NEVER EXCEED; 15,800 psi; min. OAL: 1.435
200	Lead	5.0	802	start load; min. OAL: 1.540
200	Lead	5.3	850	NEVER EXCEED; 16,000 psi; min. OAL: 1.540
Lee Precision Data With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Pistol Primer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
134	358480 SWC	7.0	1,121	muzzle energy (ft-lbs): 370
158	SP 158 SWCL	6.5	948	muzzle energy (ft-lbs): 317
160	358156 SWC	7.0	922	muzzle energy (ft-lbs): 306
Alloy bullets in a 6-inch Barrel Cast bullets from wheelweight alloy: BHN 12.5. Swaged lead bullets from Speer: BHN 8.5.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
145	Hensley & Gibbs No. 73 semiwadcutter	7.5	707	case expansion near maximum
Cast Bullet Loads in a 2-inch Barrel Loads labeled "maximum" should not be exceeded! Reduce maximum loads 10% for light and alloy-framed guns.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
145	Hensley & Gibbs No. 73 semiwadcutter	6.8	742	case expansion normal; fine load
Cast Bullet Loads in a 4-inch Barrel Loads labeled "maximum" should not be exceeded! Reduce maximum loads 10% for light and alloy-framed guns.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
158	Lyman 358156 semiwadcutter	7.0	813	case expansion near maximum
145	Hensley & Gibbs No. 73 semiwadcutter	6.0	587	case expansion light
145	Hensley & Gibbs No. 73 semiwadcutter	6.8	815	case expansion normal; fine load
145	Hensley & Gibbs No. 73 semiwadcutter	7.5	914	case expansion near maximum
Cast Bullet Loads in a 6-inch Barrel Loads labeled "maximum" should not be exceeded! Reduce maximum loads 10% for light and alloy-framed guns.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
150	RCBS .38-.357 Keith semiwadcutter	6.8	814	case expansion normal
145	Hensley & Gibbs No. 73 semiwadcutter	6.8	855	case expansion normal; fine load
145	Hensley & Gibbs No. 73 semiwadcutter	7.5	936	case expansion near maximum
Cast Bullet Loads in an 8 3/8-inch Barrel Loads labeled "maximum" should not be exceeded! Reduce maximum loads 10% for light and alloy-framed guns.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
158	Nosler JHP	7.5	824	case expansion maximum; reduce to 7.3 grains
140	Sierra JHC	7.5	777	case expansion near maximum
Jacketed Bullet Loads in 8 3/8-inchBarrel Loads labeled "maximum" should not be exceeded! Reduce maximum loads 10% for light and alloy-framed guns.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
158	Nosler JHP	7.5	688	case expansion maximum; reduce to 7.3 grains
Jacketed Bullet Loads in a 4-inch Barrel Loads labeled "maximum" should not be exceeded! Reduce maximum loads 10% for light and alloy-framed guns.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
158	Nosler JHP	7.5	779	case expansion maximum; reduce to 7.3 grains
140	Sierra JHC	7.5	724	case expansion near maximum
Jacketed Bullet Loads in a 6-inch Barrel Loads labeled "maximum" should not be exceeded! Reduce maximum loads 10% for light and alloy-framed guns.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
110	Speer JHP	8.5	1,156	muzzle energy (ft-lbs): 325
125	Speer JHP	8.2	1,030	muzzle energy (ft-lbs): 292
Jacketed Bullets in a 6-inch Barrel

.38 Super

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
147	Bull-X TCFN	8.0	1,215	Warner gun
150	Bull-X SWC	8.2	1,238	Warner gun
150	Bull-X SWC	8.4	1,222	Wilson gun
155	Bull-X SWC	7.8	1,216	Warner gun
160	CS RN	7.9	1,155	Warner gun; Competition Specialties bullet
Cast Bullets These loads are for modern pistols built specifically for the .38 Super cartridge and should not be used in guns built for the older .38 Colt Auto. All powder charges should be reduced by 20 percent for starting loads in other .38 Super guns. Muzzle velocities are averages of 20 rounds clocked 12 feet from the muzzles of the Caspian and Wilson 5 1/2-inch barrels. Remington+P nickel-plated cases and CCI BR-4 Small Rifle primers were used in all loads. Overall cartridge length with all bullets was 1.280 inches. For the approximate performance of these loads in 5-inch Government Model and 4 1/4-inch Commander barrels, deduct 25 and 100 fps, respectively, from the velocities shown.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
147	Speer TMJ	8.2	1,228	Warner gun
150	Nosler IPSC	8.2	1,223	Warner gun
150	Nosler IPSC	8.5	1,217	Wilson gun
158	Speer TMJ	8.0	1,163	Warner gun
160	Hornady FMJ	7.9	1,138	Wilson gun
170	Sierra FMJ	7.8	1,062	Warner gun
180	Nosler NEFN	7.6	1,031	Warner gun
Jacketed Bullets
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
115	Jacketed	9.9	1321	start load; min OAL: 1.255
115	Jacketed	10.2	1360	never exceed; min OAL: 1.255; 33,000 psi
130	Jacketed	9.0	1253	start load; min OAL: 1.260
130	Jacketed	9.1	1265	never exceed; min OAL: 1.260; 32,500 psi
147	XTP	8.1	1164	start load; min OAL: 1.275
147	XTP	8.6	1220	never exceed; min OAL: 1.275; 33,900 psi
158	Lead	7.9	1135	start load; min OAL: 1.275
158	Lead	8.3	1190	never exceed; min OAL: 1.275; 33,900 psi
Lee Precision Data Small Pistol Primer. DO NOT USE THESE LOADS IN 38 AUTOMATIC OR 38 ACP. CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
133	Cast #358480	6.8	1042	sugg. start load; 18,500 cup
133	Cast #358480	8.9	1346	max load; 30,100 cup
Lyman Cast Bullet Handbook cases: Remington; trim-to length: .895"; primers: Winchester 1 1/2-108; primer size: Small Pistol; Lyman shell holder: No. 12; cast bullets used size to .355" dia.; firearm used: Universal Receiver; barrel length: 5"; twist: 1-16"; groove diameter: .355". NOTE: More Lyman cast bullet data available under .38 Super Automatic Cast Bullet Handgun Data Lyman Reloading Handbook 49th Edition
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
125	Hornady	6.2	914
125	Hornady	6.6	977
125	Hornady	7.0	1054
125	Hornady	7.4	1131
125	Hornady	7.9	1192	maximum load
Using 121/124/125 GR Hornady Bullets Gun: Kimber Model 1911; barrel length: 5 inches; case: Starline; primer: Winchester Small Pistol; bullet diameter: .355" and .357"; 121 GR Hornady HAP COAL: 1.210"; 124 GR FMJ-RN COAL: 1.250", 124 GR HP XTP COAL: 1.210"; 124 GR FMJ-FP COAL: 1.200"; 125 GR HAP COAL: 1.210"; 125 GR FP XTP & HP XTP COAL: 1.200"; maximum COAL: 1.280"; maximum case length: .900"; trim to length: .895". NOTE: 121 GR and 124 GR bullets can be used for all 125 GR data listed.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
147	Hornady FMJ-RN-BT or HP XTP	5.8	864
147	Hornady FMJ-RN-BT or HP XTP	6.2	915
147	Hornady FMJ-RN-BT or HP XTP	6.6	976
147	Hornady FMJ-RN-BT or HP XTP	6.9	1037
147	Hornady FMJ-RN-BT or HP XTP	7.3	1086	maximum load
Using 147 GR Hornady Bullets Gun: Kimber Model 1911; barrel length: 5 inches; case: Starline; primer: Winchester Small Pistol; bullet diameter: .355" and .357"; COAL: 1.260"; maximum COAL: 1.280"; maximum case length: .900"; trim to length: .895".
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
115	Speer GDHP	10.0	1362	compressed charge
124	Speer GDHP	9.2	1312
+P (Alliant Reloaders Guide 2008) primer: CCI 500; case: Winchester; OAL: 1.260; NOTE: All loads are maximum. Reduce by 10% to establish a starting charge weight. Alliant Pistol/Revolver Load Data
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
124	Hornady HP XTP	6.2	914	overall loaded length (inches): 1.210
124	Hornady HP XTP	6.6	977	overall loaded length (inches): 1.210
124	Hornady HP XTP	7.0	1054	overall loaded length (inches): 1.210
124	Hornady HP XTP	7.4	1131	overall loaded length (inches): 1.210
124	Hornady HP XTP	7.9	1192	overall loaded length (inches): 1.210
+P A Kimber Stainless Target II with a 5-inch barrel was used to test fire these loads. Starline cases and Winchester Small Pistol primers were used throughout. Bullet diameter: .355 and .356 inch; maximum overall loaded length: 1.280 inches; maximum case length: .900 inch; and trim-to length; .895 inch.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
115	Speer GDHP or TMJ RN	9.0	1265	start charge
115	Speer GDHP or TMJ RN	10.0	1362	maximum charge; compressed load
124	Speer TMJ RN , UCSP or GDHP	8.3	1182	start charge
124	Speer TMJ RN , UCSP or GDHP	9.2	1312	maximum charge
+P Speer Reloading Manual #14 max. case length: 0.900"; trim-to length: 0.890"; max cart. OAL: 1.280"; RCBS shell holder: #39; cart. case: Winchester; primer: CCI 500; test firearm: Colt 38 Super; barrel length: 5"; NOTE: 125-grain Speer SIG GDHP or SIG TMJ FN may also be used in the 124-grain loads; maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
124	Speer Gold Dot HP	9.2	1,293	OAL: 1.260
+P Loads All loads were fired in a Kimber 1911 with a 5-inch barrel.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
147	Cast #356637	6.6	869	sugg. start load; 24,000 cup; 1.224" OAL
147	Cast #356637	7.6	1061	max load; 31,200 cup; 1.224" OAL
158	Cast #358311	6.5	987	sugg. start load; 20,900 cup; 1.245" OAL
158	Cast #358311	7.6	1133	max load; 28,400 cup; 1.245" OAL
Cast Bullet Handgun Data Lyman Reloading Handbook 49th Edition cases: Remington; trim-to length: .895"; primers: Winchester WSP; primer size: Small Pistol; Lyman shell holder: No. 12; cast bullets used sized to .355" dia.; firearm used: Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .355"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
124	Hornady FMJ/FP	6.5	904	sugg. start load; 20,400 cup; 1.165" OAL
124	Hornady FMJ/FP	8.3	1248	max load; 31,800 cup; 1.165" OAL
147	Speer TMJ	7.0	1051	sugg. start load; 24,900 cup; 1.280" OAL
147	Speer TMJ	7.8	1134	max load; 28,900 cup; 1.280" OAL
Handgun Data Lyman Reloading Handbook 49th Edition cases: Remington; trim-to length: .895"; primers: CCI 500; primer size: Small Pistol; Lyman shell holder: No. 12; firearm used: Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .355"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
115	Nosler Sporting Handgun H.P. Practical Pistol	10.0	1,410	maximum load
115	Nosler Sporting Handgun H.P. Practical Pistol	9.5	1,355
115	Nosler Sporting Handgun H.P. Practical Pistol	9.0	1,300	most accurate load tested
135	Nosler Sporting Handgun Practical Pistol	9.0	1,325	maximum load
135	Nosler Sporting Handgun Practical Pistol	8.5	1,246
135	Nosler Sporting Handgun Practical Pistol	8.0	1,167	most accurate load tested
Handgun Data Using Nosler Bullets handgun: barrel: Springfield 1911-A1; length: 5"; twist: 1-16"; case: Winchester; primer: Win. WSP; maximum SAAMI overall cartridge length: 1.220" min., 1.280" max.; use maximum loads with caution
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
115	Nosler JHP	10.0	1,330	jacketed bullet load; 25-yard group (inches): 2.3
115	Sierra JHP	10.2	1,370	see note #3; jacketed bullet load; 25-yard group (inches): 2.0
147	Hornady XTP	8.5	1,189	jacketed bullet load; 25-yard group (inches): 2.4
147	Speer Gold Dot	8.6	1,230	jacketed bullet load; 25-yard group (inches): 1.6
Handloads All accuracy results obtained with Kimber pistol unless otherwise noted. A taper crimp was used on all loads.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Sierra JHP	11.5	1,460	case: S-V; length (in.): 1.20; expansion: near max; very accurate
115	Hornady JHP	9.5	1,085	case: W-W; length (in.): 1.24; expansion: moderate
115	Hornady JHP	10.5	1,268	case: W-W; length (in.): 1.24; expansion: maximum; very accurate
115	Sierra JHC	10.2	1,262	case: SV; length (in.): 1.24; expansion: near max
125	Speer JSP	9.5	1,127	case: W-W; length (in.): 1.28; expansion: near max
125	Sierra FMJ	10.0	1,182	case: W-W; length (in.): 1.28; expansion: maximum; highest velocity with 125-gr
in a 5-inch Barrel Test gun Colt .38 Super Automatic with five-inch Colt barrel; Winchester 108 Small Pistol primers; velocities chronographed ten feet from muzzle.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
125	Hornady JHP	10.0	1,261	ME, fp: 440; velocity var. fps: 79; group average, inches: 2.85; second most powerful load; accurate
in a Browning BDA All loads utilize Federal 100 primers and Winchester brass. Loads chronographed in a Browning BDA, 4.4-inch barrel; Oehler Model 32/61 Chronotach/Skyscreen system. Average temperature 85 degrees. All loads maximum except where noted. DO NOT EXCEED! Work up carefully from one grain below. These loads are definitely not intended for old (pre-1929) Colt automatics. All bullet diameters: .357.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
135	Bull-X FMJTC	10.0	1,328
in a CWC 5-inch barrel
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
124	Hornady FP	7.2	910	overall loaded length: 1.230 inches; group: 1 inch
124	Hornady FP	8.7	1,146	overall loaded length: 1.230 inches; group: 3/4 inch
in a Kimber Distance was 20 yards with a Ransom Rest. Remington factory brass and CCI 500 primers used. Outside temperature was 55 degrees Fahrenheit, wind from the shooter
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
125	Bushwacker semiwadcutter	8.0	1,224	case: R-P; primer: Federal 100; coefficient of variation (percent): 1.88; group (inches): 1.54; power factor: 153
125	Bushwacker semiwadcutter	8.5	1,285	case: R-P; primer: Federal 100; coefficient of variation (percent): 1.17; group (inches): 1.77; power factor: 161
158	Rock Hill roundnose	7.7	1,210	case: R-P; primer: Federal 100; coefficient of variation (percent): 1.57; group (inches): 0.98; power factor: 191; major power factor; good heavy load
158	Rock Hill roundnose	8.1	1,271	case: R-P; primer: Federal 100; coefficient of variation (percent): 1.65; group (inches): 2.03; power factor: 201; major power factor; maximum
in a S&W Model 627PC A Smith & Wesson Model 627PC with a 5.5-inch barrel and a Tasco PDP3 sight was used for testing. Velocities were taken 12 feet from the muzzle with an Oehler Model 35P chronograph. Accuracy is based on the average of three, five-shot groups at 25 yards from a sandbag rest. Range temperatures were 62 to 77 degrees Fahrenheit. S-L, Starline; S-V, Super Vel; R-P, Remington-Peters; WSP, Winchester Small Pistol.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
135	Bull-X FMJTC	10.0	1,347
in a Wilson 5.5-inch barrel
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
124	Remington MC	7.5	1012	overall loaded length (inches): 1.250; group (inches): 1.180
124	Remington MC	8.7	1293	overall loaded length (inches): 1.250; group (inches): .630
Les Baer Loading Data All groups are five shots fired from a Ransom Rest with the targets at 25 yards. Wind was calm; temperature was 55 degrees Fahrenheit. Velocities were measured 10 feet from the muzzle with an Oehler Model 35P Chronograph. Remington nickel cases and CCI 500 primers were used throughout.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
135	Nosler FMJ	10.0	1,347	Level IV Load
160	Hornady FMJ	7.9	1,138	Level IV Load
170	Sierra FMJ	7.8	1,062	Level IV Load
Load Data Warning: Level IV loads should be used only in guns with full-support barrels. They must not be fired in standard factory barrels made by Colt and others. These loads are for modern guns in excellent condition chambered for the .38 Super cartridge and should not be fired in guns originally chambered for the .38 Auto. All loads are safe in the author's guns but all powder charges listed for Levels III and IV loads should be reduced by 10 and 20 percent, respectively, for starting loads in other guns. Remington nickel-plated cases were used in all loads. Winchester WSP primers were used in Levels I, II and III loads; Winchester WSR primers were used in Level IV loads.

.38-40 Winchester / .38-40 WCF

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
150	Sierra JHP	11.8	1,020	13,100 psi
180	Sierra JHP	10.3	875	13,200 psi
200	Hornady FMJ/FP	9.9	840	13,500 psi
Alliant Data primer: Rem. 2.5; min. OAL (inches): 1.585; bbl length: 5.6
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
180	MG 180	12.0	1,173	group (inches): 1.75
190	SAECO 190	12.0	1,020	group (inches): 2.25
175	Lyman 401043	12.0	1,176
175	Lyman 401638 HP	12.0	1,186	group (inches): SC
Colt Peacemaker Loads All loads fired in Winchester .38 WCF brass with CCI 300 primers except where otherwise noted in remarks. SC = 3.5 inches or more. (Loading the Peacemaker - Dave Scovill)
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
150	Jacketed	11.1	963	start load; min OAL: 1.585
150	Jacketed	11.8	1020	never exceed; min OAL: 1.585; 13,100 psi
180	Jacketed	9.6	819	start load; min OAL: 1.585
180	Jacketed	10.3	875	never exceed; min OAL: 1.585; 13,200 psi
200	Jacketed	9.0	770	start load; min OAL: 1.585
200	Jacketed	9.9	840	never exceed; min OAL: 1.585; 13,500 psi
Lee Precision Data CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Large Pistol primer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
178	Lyman 40143 (as-cast .400 inch)	10.0	834	OAL: 1.60 inches; case expansion: light; accurate
178	Lyman 40143 (as-cast .400 inch)	11.0	898	OAL: 1.60 inches; case expansion: normal; very accurate
178	Lyman 40143 (as-cast .400 inch)	12.0	1,004	OAL: 1.60 inches; case expansion: near maximum; very accurate
Ruger Instrumental from Ruger-Buckeye Blackhawk with 6.5-inch barrel.

.380 Auto / .380 ACP (9mm Corto & 9mm Short)

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
92	Cast #358242	4.0	667	sugg. start load; case: Federal; 7,000 cup
92	Cast #358242	5.5	961	max load; case: Federal; 14,600 cup
121	Cast #358242	3.7	732	sugg. start load; case: Federal; 9,000 cup
121	Cast #358242	5.3	948	max load; case: Federal; 15,900 cup
Lyman Cast Bullet Handbook 3rd Edition case: Super Vel (except where otherwise specified in remarks); trim-to length: .677"; primers; Winchester 1 1/2-108; primer size: Small Pistol; Lyman shell holder: No. 26; cast bullets used sized to .355" dia.; firearm used: Universal Receiver; barrel length: 3 3/4"; twist: 1-16"; groove diameter: .355"; bullets: cast #358242 (#2 Alloy) .980" OAL
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Cast Lyman #356242 (sized to .355" dia)	4.0	667	sugg start load; 7,000 cup; .980" OAL
90	Cast Lyman #356242 (sized to .355" dia)	5.5	961	max load; 14,600 cup; .980" OAL
120	Cast Lyman #356242 (sized to .355" dia)	3.7	732	sugg start load; 9,000 cup; .980" OAL
120	Cast Lyman #356242 (sized to .355" dia)	5.3	948	max load; 15,900 cup; .980" OAL
Lyman Reloading Handbook 49th Edition cases: Federal; trim-to length: .677"; primers: Federal 100 and Winchester WSP; primer size: small pistol; Lyman shell holder: No. 26; firearm used: Universal Receiver; barrel length: 3 3/4"; twist: 1-16"; groove dia.: .355"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
88	Jacketed	6.0	1000	start load; compressed charge; min OAL: 0.960
88	Jacketed	6.0	1000	never exceed; compressed charge; min OAL: 0.960; 14,700 psi
90	Jacketed	6.0	980	start load; compressed charge; min OAL: 0.960
90	Jacketed	6.0	980	never exceed; compressed charge; min OAL: 0.960; 14,800 psi
95	Jacketed	6.5	910	start load; compressed charge; min OAL: 0.975
95	Jacketed	6.5	910	never exceed; compressed charge; min OAL: 0.975; 14,200 psi
Lee Precision Data CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Pistol Primer.

.40 Smith & Wesson / .40 S&W

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
150	JHP	11.5	1,285	min.OAL (inches): 1.105; 34,000 psi
170	XTP	9.8	1,170	min. OAL (inches): 1.124; 33,900 psi
180	JHP	8.8	1,065	min. OAL (inches): 1.125; 34,000 psi
190	JHP	8.7	1,040	min. OAL (inches): 1.130; 33,800 psi
200	FMJ	7.9	960	min. OAL (inches): 1.130; 33,800 psi
Alliant Data primer: Win. 1 1/2-108; bbl length: 4.0; do not exceed the powder weight shown, start with 10% less powder than shown, work up gradually, watching for signs of high pressure
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
155	Speer GDHP	11.0	1221
180	Speer GDHP	8.9	1018
Alliant Reloaders Manual primer: CCI 500; case: Speer; OAL: 1.120"; NOTE: All loads are maximum. Reduce by 10% to establish a starting charge weight. NEVER EXCEED POWDER CHARGE
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
155	Speer TMJ FN or GDHP	10.0	1113	start charge
155	Speer TMJ FN or GDHP	11.0	1221	maximum charge
180	Speer GDHP SB, TMJ FN or GDHP	8.0	922	start charge
180	Speer GDHP SB, TMJ FN or GDHP	8.9	1018	maximum charge
(Handgun) Speer Reloading Manual #14 max. case length: 0.850"; trim-to length: 0.840"; max cart. OAL: 1.135"; RCBS shell holder: #27; cart. case: Speer; primer: CCI 500; test firearm: Smith & Wesson M4006; barrel length: 4"; IMPORTANT SAFETY NOTE: These loads were developed and tested for safe use in HANDGUNS. Not all loads may be suitable for use in a carbine or rifle chambered for this cartridge. If loading for a carbine or rifle, choose from among the loads developing the highest handgun velocities and load just a few rounds. Thoroughly test this small sample in your firearm in slow-fire mode, insuring that you achieve proper feeding and ejection. Be certain that all bullets exit the barrel; watching the target for each bullet strike is the best way to know that the load produces sufficient gas volume for a longer barrel. Use maximum loads with CAUTION.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
150	Jacketed	10.4	1179	start load; compressed charge; min. OAL: 1.105
150	Jacketed	11.5	1285	NEVER EXCEED; compressed charge; min. OAL: 1.105; 34,000 psi
Lee Precision 150 GR Data Do not use reloads in Glock or similar guns with chambers that do not fully support the cartridge due to the intrusion of the feed ramp. CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Pistol Primer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
170	XTP	8.9	1074	start load;compressed load; min. OAL: 1.124
170	XTP	9.8	1170	NEVER EXCEED;compressed load; min. OAL: 1.124; 33,900 psi
Lee Precision 170 GR Data Do not use reloads in Glock or similar guns with chambers that do not fully support the cartridge due to the intrusion of the feed ramp. CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Pistol Primer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
180	Jacketed Bullet	8.0	977	start load; compressed charge; min. OAL: 1.125; 34,000 psi
180	Jacketed Bullet	8.8	1065	NEVER EXCEED; compressed charge; min. OAL: 1.125; 34,000 psi
Lee Precision 180 GR Data Do not use reloads in Glock or similar guns with chambers that do not fully support the cartridge due to the intrusion of the feed ramp. CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Pistol Primer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
135	Nosler JHP	9.0	1058	start load; 19,500 cup; 1.085" OAL
135	Nosler JHP	10.3	1162	max load; 23,100 cup; 1.085" OAL
150	Sierra JHP	8.6	999	start load; 18,800 cup; 1.100" OAL
150	Sierra JHP	10.0	1140	max load; 23,100 cup; 1.100" OAL
155	Winchester Jacketed Silvertip	8.2	881	start load; 18,800 cup; 1.125" OAL
155	Winchester Jacketed Silvertip	9.2	1010	max load; 22,100 cup; 1.125" OAL
165	Speer TMJ	8.3	922	start load; 19,900 cup; 1.120" OAL
165	Speer TMJ	9.2	1018	max load; 22,400 cup; 1.120" OAL
175	Winchester Jacketed Silvertip	7.9	952	start load; 19,500 cup; 1.125" OAL
175	Winchester Jacketed Silvertip	8.8	1057	max load; 22,400 cup; 1.125" OAL
180	Sierra JHP	7.3	754	start load; 18,000 cup; 1.115" OAL
180	Sierra JHP	8.8	990	max load; 23,300 cup; 1.115" OAL
190	Sierra JFP	6.7	567	start load; 16,800 cup; 1.135" OAL
190	Sierra JFP	8.1	724	max load; 22,600 cup; 1.135" OAL
150	Lyman Cast #401654 (#2 Alloy)	8.3	1033	start load; 18,400 cup; 1.090" OAL
150	Lyman Cast #401654 (#2 Alloy)	9.6	1171	max load; 22,800 cup; 1.090" OAL
175	Lyman Cast #401043 (#2 Alloy)	7.3	897	start load; 17,900 cup; 1.125" OAL
175	Lyman Cast #401043 (#2 Alloy)	9.0	1123	max load; 23,500 cup; 1.125" OAL
175	Lyman Cast #401638 (#2 Alloy)	6.9	979	start load; 18,100 cup; 1.100" OAL
175	Lyman Cast #401638 (#2 Alloy)	8.6	1059	max load; 23,200 cup; 1.100" OAL
Lyman Reloading Handbook 48th Edition cases: Winchester; trim-to length: .845"; primers: Winchester WSP; primer size: Small Pistol; Lyman shell holder: No. 15; firearm used: Universal Receiver; barrel length: 4"; twist: 1-16"; groove dia.: .401"; do not reduce cases below the trim-to length; additionally do not roll crimp bullets; it is important not to seat bullets to a shorter length than listed in any handgun cartridge; but especially so in this one; pressures can be raised dramatically with deep seating (Lyman 48th Edition Reloading Handbook)
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
190	Jacketed	7.9	954	start load; min OAL: 1.130
190	Jacketed	8.7	1040	never exceed; compressed load; min OAL: 1.130; 33,800 psi
Lee Precision 190 GR Data Do not use reloads in Glock or similar guns with chambers that do not fully support the cartridge due to the intrusion of the feed ramp. CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Pistol Primer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Jacketed	7.2	880	start load; min. OAL: 1.130
200	Jacketed	7.9	960	NEVER EXCEED; min. OAL: 1.130; 33,800 psi
Lee Precision 200 GR Data Do not use reloads in Glock or similar guns with chambers that do not fully support the cartridge due to the intrusion of the feed ramp. CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Pistol Primer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
135	Nosler JHP	9.0	1058	start load; 19,500 cup; 1.085" OAL
135	Nosler JHP	10.3	1162	max load; 23,100 cup; 1.085" OAL
150	Sierra JHP	8.6	999	start load; 18,800 cup; 1.100" OAL
150	Sierra JHP	10.0	1140	max load; 23,100 cup; 1.100" OAL
155	Winchester Jacketed Silvertip	8.2	881	start load; 18,800 cup; 1.125" OAL
155	Winchester Jacketed Silvertip	9.2	1010	max load; 22,100 cup; 1.125" OAL
165	Speer TMJ	8.3	922	start load; 19,900 cup; 1.120" OAL
165	Speer TMJ	9.2	1018	max load; 22,400 cup; 1.120" OAL
175	Winchester Jacketed Silvertip	7.9	952	start load; 19,500 cup; 1.125" OAL
175	Winchester Jacketed Silvertip	8.8	1057	max load; 22,400 cup; 1.125" OAL
180	Sierra JHP	7.3	754	start load; 18,000 cup; 1.115" OAL
180	Sierra JHP	8.8	990	max load; 23,300 cup; 1.115" OAL
190	Sierra JFP	6.7	567	start load; 16,800 cup; 1.135" OAL
190	Sierra JFP	8.1	724	max load; 22,600 cup; 1.135" OAL
150	Lyman Cast #401654 (#2 Alloy)	8.3	1033	start load; 18,400 cup; 1.090" OAL
150	Lyman Cast #401654 (#2 Alloy)	9.6	1171	max load; 22,800 cup; 1.090" OAL
175	Lyman Cast #401043 (#2 Alloy)	7.3	897	start load; 17,900 cup; 1.125" OAL
175	Lyman Cast #401043 (#2 Alloy)	9.0	1123	max load; 23,500 cup; 1.125" OAL
175	Lyman Cast #401638 (#2 Alloy)	6.9	979	start load; 18,100 cup; 1.100" OAL
175	Lyman Cast #401638 (#2 Alloy)	8.6	1059	max load; 23,200 cup; 1.100" OAL
Lyman Reloading Handbook 48th Edition cases: Winchester; trim-to length: .845"; primers: Winchester WSP; primer size: Small Pistol; Lyman shell holder: No. 15; firearm used: Universal Receiver; barrel length: 4"; twist: 1-16"; groove dia.: .401"; do not reduce cases below the trim-to length; additionally do not roll crimp bullets; it is important not to seat bullets to a shorter length than listed in any handgun cartridge; but especially so in this one; pressures can be raised dramatically with deep seating (Lyman 48th Edition Reloading Handbook)
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
155	Speer Gold Dot TMJ or GD-HP	11.0	1221	maximum load
155	Speer Gold Dot TMJ or GD-HP	10.0	1113
180	Speer Gold Dot TMJ or GD-HP	8.9	1018	maximum load
180	Speer Gold Dot TMJ or GD-HP	8.0	922
Speer Reloading Manual #13 max. case length: 0.850"; trim-to length: 0.840"; max. cart. length: 1.135"; RCBS shellholder: #27; barrel length: 4"; twist: 1-16"; test firearm: Smith & Wesson Model 4006; case: Speer; primers: CCI 500; bullet diam.: .400"; use maximum loads with caution; SAFETY NOTICE Some pistols chambered for the 40 S&W cartridge may not provide complete support of the case head. If this condition exists, normal pressure loads such as those shown here can cause the case wall to bulge or rupture at the unsupported point. Contact your firearm manufacturer to determine if your pistol completely supports the case head, or ask a gunsmith to inspect your pistol before using it with ANY ammunition. It is the gun owner's responsibility to know his firearm and its capabilities and limitations.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
155	Hornady HP-XTP	8.2	940
155	Hornady HP-XTP	8.7	1007
155	Hornady HP-XTP	9.2	1070
155	Hornady HP-XTP	9.7	1149
155	Hornady HP-XTP	10.2	1214	maximum load
180	Hornady HAP or HP-XTP	6.4	805
180	Hornady HAP or HP-XTP	6.9	867
180	Hornady HAP or HP-XTP	7.3	925
180	Hornady HAP or HP-XTP	7.8	980
180	Hornady HAP or HP-XTP	8.3	1036	maximum load
200	Hornady HAP or HP-XTP	5.3	663
200	Hornady HAP or HP-XTP	5.7	717
200	Hornady HAP or HP-XTP	6.0	770
200	Hornady HAP or HP-XTP	6.4	821
200	Hornady HAP or HP-XTP	6.8	871	maximum load
Using Hornady Bullets Gun: Glock Model 22; barrel length: 4.35 inches; case: Starline; primer: Winchester Small Pistol; bullet diameter: .400"; COAL: 1.125"; maximum COAL: 1.135"; maximum case length: .850"; trim to length: .845". IMPORTANT: PLEASE VIEW THE SPECIAL NOTES by clicking here.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
135	Nosler Sporting Handgun Jacketed Hollow Point	12.0	1,320	maximum load; compressed load; most accurate load tested; most accurate powder tested
135	Nosler Sporting Handgun Jacketed Hollow Point	11.5	1,265	compressed load; most accurate powder tested
135	Nosler Sporting Handgun Jacketed Hollow Point	11.0	1,210	compressed load; most accurate powder tested
Handgun Data Using Nosler Bullets Handgun; case: Winchester; primer: WSP; barrel length/make: 4" S&W; twist: 1-16"; bullets: 135 GR, 150 GR, 180 GR & 200 GR Nosler Sporting Handgun Pistol JHP; OACL: 1.125"; maximum OACL: 1.135". Use Maximum Loads with Caution

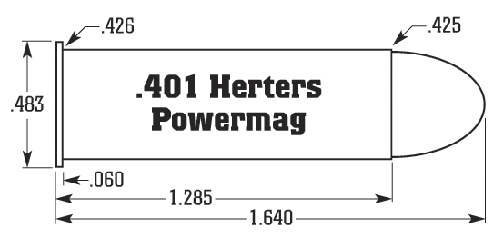

.401 Herter Powermag

	Wt.	Bullet	Charge	Velocity (FPS)	Remarks
	200	JSP	13.0	1280	energy: 735
	Historical Notes The .401 Powermag was chambered in the Herter Powermag single-action revolver. The cartridge is very similar to the .41 Remington Magnum, but the two are not interchangeable. The case of the .41 Remington Magnum is 0.005-inch larger in diameter and 0.009-inch longer than the .401 Powermag. It is also similar to the .401 and the .41 Magnums, so it is difficult to decide who influenced whom. Ammunition and loading components for the .401 Powermag are no longer available. General Comments - The .401 Powermag is an excellent self-defense or field cartridge. It is capable of doing anything the .41 Magnum can do. It has been used successfully on everything from small game and varmints on up to deer and black bear. (Cartridges of the World 12th Edition)

.41 Avenger

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
170	Sierra JHC	10.0	980	CCI No. 200 primers
170	Sierra JHC	10.5	1024	CCI No. 200 primers
170	Sierra JHC	11.0	1068	CCI No. 200 primers
170	Sierra JHC	11.5	1133	CCI No. 200 primers
170	Sierra JHC	12.0	1167	CCI No. 200 primers
170	Sierra JHC	12.5	1301	MAX., slight cratering; CCI No. 200 primers
210	Sierra JHC	9.5	1052	.45 Win. Mag.-type; CCI No. 200 primers
210	Sierra JHC	10.0	1107	.45 Win. Mag.-type; CCI No. 200 primers
210	Sierra JHC	10.5	1145	MAX.; .45 Win. Mag.-type; CCI No. 200 primers
210	Sierra JHC	11.0	1183	too hot; .45 Win. Mag.-type; CCI No. 200 primers
210	Sierra JHC	9.5	1016	.45 ACP-type; CCI No. 200 primers
210	Sierra JHC	10.0	1099	.45 ACP-type; CCI No. 200 primers
210	Sierra JHC	10.5	1151	.45 ACP-type; CCI No. 200 primers
210	Sierra JHC	11.0	1163	MAX.; .45 ACP-type; CCI No. 200 primers
.45 ACP-based brass used (except where otherwise specified in remarks); Lee machine rest.

.41 Magnum / .41 Remington Magnum

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
170	Sierra Jacketed HC	13.7	1113	sugg. start load; 1.580" OAL; 24,700 cup
170	Sierra Jacketed HC	15.3	1534	max load; 1.580" OAL; 37,500 cup
200	Speer Jacketed HP	11.7	1024	sugg. start load; 1.590" OAL; 28,300 cup
200	Speer Jacketed HP	13.0	1296	max load; 1.590" OAL; 38,700 cup
210	Hornady Jacketed HP/XTP	11.9	952	sugg. start load; 1.585" OAL; 25,900 cup
210	Hornady Jacketed HP/XTP	13.3	1207	max load; 1.585" OAL; 37,000 cup
220	Speer Jacketed SP	10.8	929	sugg. start load; 1.590" OAL; 27,800 cup
220	Speer Jacketed SP	12.0	1111	max load; 1.590" OAL; 36,500 cup
Lyman Reloading Handbook 49th Edition cases: Winchester; trim-to length: 1.280"; primers: Winchester WLP; primer size: Large Pistol; Lyman shell holder: No. 30; firearm used: Universal Receiver; barrel length: 4"; twist: 1-18 3/4"; groove dia.: .409"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
210	Hornady HP-XTP	10.1	803
210	Hornady HP-XTP	11.0	882
210	Hornady HP-XTP	11.8	978
210	Hornady HP-XTP	12.6	1073
210	Hornady HP-XTP	13.5	1167
210	Hornady HP-XTP	14.3	1254	maximum load
Revolver Using Hornady Bullets Gun: Smith & Wesson Model 57-1; barrel length: 6 inches; case: Starline; primer: Fed 150; bullet diameter: .410"; COAL: 1.580"; maximum COAL: 1.590"; maximum case length: 1.290"; trim to length: 1.280".

.44 Remington Magnum / .44 Magnum

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
250	Lyman 429421	16.0	1,358	7 1/2-inch Ruger Super Blackhawk; 25-yard group: .83 inch
250	Lyman 429421	16.0	1,290	4-inch S&W Model 29; 25-yard group: 1.81 inches
This load data has been compiled over many years of testing and experimenting in no fewer than four guns. For a load to be included, it had to produce accuracy of 2 inches or less at 25 yards.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
250	Barnes Original	13.0	1129	start load
250	Barnes Original	15.5	1346	maximum load
275	Barnes Original	11.0	975	start load
275	Barnes Original	13.5	1173	maximum load
Contender - Barnes Reloading Manual #1 COAL: 1.604"; primers: WLP; brass: Midway USA
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Speer Mag JHP	16.0	1495	OAL: 1.590"
240	Speer GDHP	13.7	1285	OAL: 1.575"
Alliant Reloaders Guide primer: CCI 300; case: Speer. NOTE: All loads are maximum. Reduce by 10% to establish a starting charge weight. Alliant Pistol/Revolver Load Data
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Speer Mag JHP	14.4	1402	start charge
200	Speer Mag JHP	16.0	1495	maximum charge
240	Speer Mag JHP, Mag GDHP, Mag GDSP or Mag JSP	12.3	1186	start charge
240	Speer Mag JHP, Mag GDHP, Mag GDSP or Mag JSP	13.7	1285	maximum charge
(Handgun) Speer Reloading Manual #14 max. case length: 1.285"; trim-to length: 1.275"; max cart. OAL: 1.610"; RCBS shell holder: #18; cart. case: Speer; primer: CCI 300 (except where otherwise specified in remarks); test firearm: Ruger Redhawk; barrel length: 7.5"; NOTE: The 225-grain SWC GC and 250-grain K bullets were cast in RCBS moulds; maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
180	Jacketed	17.7	1614	start load; min OAL: 1.585
180	Jacketed	19.0	1725	never exceed; compressed; min OAL: 1.585; 34,000 psi
200	Jacketed	16.1	1492	start load; min OAL: 1.575
200	Jacketed	17.0	1565	never exceed; min OAL: 1.575; 33,400 psi
225	Jacketed	13.8	1326	start load; min OAL: 1.575
225	Jacketed	15.2	1445	never exceed; min OAL: 1.575; 34,900 psi
240	Jacketed	13.1	1267	start load; min OAL: 1.585
240	Jacketed	14.4	1380	never exceed; min OAL: 1.585; 34,800 psi
240	Lead	15.2	1354	start load; min OAL: 1.600
240	Lead	16.6	1475	never exceed; min OAL: 1.600; 34,700 psi
265	Jacketed	11.6	1158	start load; min OAL: 1.620
265	Jacketed	12.7	1250	never exceed; min OAL: 1.620; 34,600 psi
300	XTP	10.8	1035	start load; min OAL: 1.600
300	XTP	11.7	1105	never exceed; min OAL: 1.600; 34,200 psi
310	Lead	9.7	1019	start load; min OAL: 1.600
310	Lead	10.7	1110	never exceed; min OAL: 1.600; 34,900 psi
Lee Precision Data Large pistol primer. CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Barnes XPB	13.0	1,284
200	Barnes XPB	15.0	1,516	maximum load
225	Barnes XPB	13.0	1,220	not for use in 1:38 twist barrels
225	Barnes XPB	15.0	1,405	not for use in 1:38 twist barrels; maximum load
(Pistol) Barnes Reloading Manual #3 case: Remington; parent case: none; primer: Win Large Pistol; trim to: 1.275"; barrel: 10"; XLC Coated X-Bullet data cannot be used with other bullets, including non-coated X-Bullets; maximum loads should be used with caution - Always Start With Minimum Loads
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
250	Barnes Original	13.0	1020	start load
250	Barnes Original	15.5	1202	maximum load
275	Barnes Original	11.0	810	start load
275	Barnes Original	13.5	1074	maximum load
300	Barnes Original	10.0	1056	start load
300	Barnes Original	11.5	1216	maximum load
Revolver - Barnes Reloading Manual #1 COAL: 1.604"; primers: WLP; brass: Midway USA
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Nosler Sporting Handgun Jacketed Hollow Point	17.0	1,524	maximum load; most accurate load tested
200	Nosler Sporting Handgun Jacketed Hollow Point	16.5	1,495
200	Nosler Sporting Handgun Jacketed Hollow Point	16.0	1,466
Handgun Using 200 GR Nosler Bullets Handgun; case: Winchester; primer: WLP; barrel length/make: 8.25" Douglas; twist: 1-20"; bullets: 200 GR Nosler Sporting Handgun Revolver JHP; OACL: 1.580"; maximum OACL: 1.610". Use Maximum Loads with Caution
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
240	Nosler Sporting Handgun Revolver JHP or JSP	15.0	1390	max
240	Nosler Sporting Handgun Revolver JHP or JSP	14.5	1350
240	Nosler Sporting Handgun Revolver JHP or JSP	14.0	1310	most accurate load tested
Handgun Using 240 GR Nosler Bullets Handgun; case: Winchester; primer: WLP; barrel length/make: 8.25" Douglas; twist: 1-20"; bullets: 240 GR Nosler Sporting Handgun Revolver JHP or JSP; OACL: 1.580"; maximum OACL: 1.610". Use Maximum Loads with Caution
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
300	Nosler Sporting Handgun Revolver JHP	12.0	1123	max
300	Nosler Sporting Handgun Revolver JHP	11.5	1082
300	Nosler Sporting Handgun Revolver JHP	11.0	1039	most accurate load tested
Handgun Using 300 GR Nosler Bullets Handgun; case: Winchester; primer: WLP; barrel length/make: 8.25" Douglas; twist: 1-20"; bullets: 300 GR Nosler Sporting Handgun Revolver JHP; OACL: 1.580"; maximum OACL: 1.610". Use Maximum Loads with Caution
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
240	Nosler	15.0	1,390	maximum load
240	Nosler	14.5	1,350
240	Nosler	14.0	1,310	most accurate load tested
240 Grain - Handgun Using Nosler Bullets handgun: barrel: Douglas, length: 8.25", twist: 1-20"; case: Winchester; primer: Win. WLP; maximum SAAMI overall cartridge length: 1.610"; bullets: Nosler Sporting Handgun Jacketed Hollow Point or Sporting Handgun Jacketed Soft Point; use maximum loads with caution
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
210	Cast #429215 gas check	14.9	1036	sugg. start load; 1.645" OAL; 26,700 cup
210	Cast #429215 gas check	16.6	1324	max load; 1.645" OAL; 38,500 cup
240	Cast #429667	14.0	933	sugg. start load; 1.645" OAL; 24,500 cup
240	Cast #429667	15.5	1159	max load; 1.645" OAL; 36,000 cup
245	Cast #429421	14.5	1034	sugg. start load; 1.710" OAL; 29,800 cup
245	Cast #429421	16.0	1194	max load; 1.710" OAL; 36,600 cup
255	Cast #429244 gas check	14.0	911	sugg. start load; 1.680" OAL; 20,300 cup
255	Cast #429244 gas check	17.4	1160	max load; 1.680" OAL; 34,800 cup
300	Cast #429650 gas check	10.5	761	sugg. start load; 1.700" OAL; 22,400 cup
300	Cast #429650 gas check	11.7	895	max load; 1.700" OAL; 33,200 cup
Cast Bullet Handgun Data Lyman Reloading Handbook 49th Edition cases: Remington; trim-to length: 1.275"; primers: CCI 300 (except where otherwise specified in remarks); primer size: Large Pistol, Std. & Magnum; Lyman shell holder: No. 7; cast bullets used sized to .429" dia.; firearm used: Universal Receiver; barrel length: 4"; twist: 1-20"; groove dia.: .429"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
250	Keith-style Lyman 429421	16.0	1,323	primer: CCI 300
Full-Power Loads All Smith & Wesson Models 29, 629 and 329PD. A Smith & Wesson (pre-29) .44 Magnum revolver with a 6 1/2-inch barrel used to test loads. Winchester and Starline cases used throughout. These loads DO NOT exceed SAAMI recommended pressure limits of 36,000 psi, but they should be used sparingly in guns produced before 1988 and avoid using jacketed bullet loads in the early four-and five-screw guns.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
180	Sierra Jacketed HC	17.8	1126	sugg. start load; 25,800 cup
180	Sierra Jacketed HC	20.2	1404	max load; 36,400 cup
200	Hornady Jacketed HP	15.7	942	sugg. start load; 19,600 cup
200	Hornady Jacketed HP	18.7	1245	max load; 35,100 cup
210	Winchester Jacketed Silvertip	15.4	1076	sugg. start load; 1.590" OAL; 28,100 cup
210	Winchester Jacketed Silvertip	17.2	1240	max load; 1.590" OAL; 38,200 cup; potentially most accurate load
225	Speer Jacketed HP	14.0	982	sugg. start load; 28,700 cup
225	Speer Jacketed HP	15.7	1264	max load; 37,500 cup
240	Sierra Jacketed HC	13.4	939	sugg. start load; 29,300 cup
240	Sierra Jacketed HC	14.9	1155	max load; 38,600 cup
240	Speer Jacketed HP	14.4	960	sugg. start load; 29,000 cup
240	Speer Jacketed HP	16.0	1160	max load; 38,400 cup
265	Hornady Jacketed FP	12.6	883	sugg. start load; 29,500 cup
265	Hornady Jacketed FP	14.0	1051	max load; 38,600 cup
270	Speer Jacketed GDSP	12.7	914	sugg. start load; 1.585" OAL; 28,700 cup
270	Speer Jacketed GDSP	14.2	1050	max load; 1.585" OAL; 38,400 cup
300	Sierra Jacketed SP	12.4	765	sugg. start load; 1.720" OAL; 26,800 cup
300	Sierra Jacketed SP	13.5	923	max load; 1.720" OAL; 36,800 cup
Lyman Reloading Handbook 49th Edition cases: Remington; trim-to length: 1.275"; primers: CCI 300 (except where otherwise specified in remarks); primer size: Large Pistol, Std. & Magnum; Lyman shell holder: No. 7; firearm used: Universal Receiver; barrel length: 4"; twist: 1-20"; groove dia.: .429"; 1.610" OAL (except where otherwise specified in remarks)
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
180	Sierra JHC	17.0	1,454	case expansion near maximum
180	Sierra JHC	18.0	1,512	case expansion maximum
200	Speer JHP	18.0	1,508	case expansion maximum; insufficient accuracy
210	Sierra JHC	17.0	1,395	case expansion normal
in 7 1/2 inch Revolver
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
180	Sierra Jacketed HC	17.8	1570	10" Bbl.; sugg. start load; 1.610" OAL
180	Sierra Jacketed HC	17.8	1639	14" Bbl.; sugg. start load; 1.610" OAL
180	Sierra Jacketed HC	20.2	1770	10" Bbl.; max load; 1.610" OAL
180	Sierra Jacketed HC	20.2	1823	14" Bbl.; max load; 1.610" OAL
200	Hornady Jacketed HP/XTP	15.7	1388	10" Bbl.; sugg. start load; 1.610" OAL
200	Hornady Jacketed HP/XTP	15.7	1421	14" Bbl.; sugg. start load; 1.610" OAL
200	Hornady Jacketed HP/XTP	18.7	1608	10" Bbl.; max load; 1.610" OAL
200	Hornady Jacketed HP/XTP	18.7	1691	14" Bbl.; max load; 1.610" OAL
240	Sierra Jacketed HC	13.4	1248	10" Bbl.; sugg. start load; 1.610" OAL
240	Sierra Jacketed HC	13.4	1287	14" Bbl.; sugg. start load; 1.610" OAL
240	Sierra Jacketed HC	14.9	1400	10" Bbl.; max load; 1.610" OAL
240	Sierra Jacketed HC	14.9	1466	14" Bbl.; max load; 1.610" OAL
265	Hornady Jacketed FP	12.6	1151	10" Bbl.; sugg. start load; 1.650" OAL
265	Hornady Jacketed FP	12.6	1172	14" Bbl.; sugg. start load; 1.650" OAL
265	Hornady Jacketed FP	14.0	1290	10" Bbl.; max load; 1.650" OAL
265	Hornady Jacketed FP	14.0	1313	14" Bbl.; max load; 1.650" OAL
265	Hornady Jacketed FP	12.6	1151	10" Bbl.; sugg. start load; 1.650" OAL
265	Hornady Jacketed FP	12.6	1172	14" Bbl.; sugg. start load; 1.650" OAL
265	Hornady Jacketed FP	14.0	1290	10" Bbl.; max load; 1.650" OAL
265	Hornady Jacketed FP	14.0	1313	14" Bbl.; max load; 1.650" OAL
265	Hornady Jacketed FP	12.6	1151	10" Bbl.; sugg. start load; 1.650" OAL
265	Hornady Jacketed FP	12.6	1172	14" Bbl.; sugg. start load; 1.650" OAL
265	Hornady Jacketed FP	14.0	1290	10" Bbl.; max load; 1.650" OAL
265	Hornady Jacketed FP	14.0	1313	14" Bbl.; max load; 1.650" OAL
300	Sierra Jacketed SP	12.4	1103	10" Bbl.; sugg. start load; 1.720" OAL
300	Sierra Jacketed SP	12.4	1067	14" Bbl.; sugg. start load; 1.720" OAL
300	Sierra Jacketed SP	13.5	1226	10" Bbl.; max load; 1.720" OAL
300	Sierra Jacketed SP	13.5	1231	14" Bbl.; max load; 1.720" OAL
210	Cast #429215 gas check	14.9	1372	10" Bbl.; sugg. start load; 1.645" OAL
210	Cast #429215 gas check	14.9	1443	14" Bbl.; sugg. start load; 1.645" OAL
210	Cast #429215 gas check	16.6	1553	10" Bbl.; max load; 1.645" OAL
210	Cast #429215 gas check	16.6	1679	14" Bbl.; max load; 1.645" OAL
255	Cast #429244 gas check	14.0	1255	10" Bbl.; sugg. start load; 1.680" OAL
255	Cast #429244 gas check	14.0	1304	14" Bbl.; sugg. start load; 1.680" OAL
255	Cast #429244 gas check	17.4	1494	10" Bbl.; max load; 1.680" OAL
255	Cast #429244 gas check	17.4	1575	14" Bbl.; max load; 1.680" OAL
300	Cast #429650 gas check	10.5	1032	10" Bbl.; sugg. start load; 1.700" OAL
300	Cast #429650 gas check	10.5	1089	14" Bbl.; sugg. start load; 1.700" OAL
300	Cast #429650 gas check	11.7	1128	10" Bbl.; max load; 1.700" OAL
300	Cast #429650 gas check	11.7	1201	14" Bbl.; max load; 1.700" OAL
in a T/C Contender & Encore Lyman Reloading Manual 49th Edition This data was developed for use in the T/C Contender and Encore handguns. It can also be used in other single shot or bolt-action handguns such as the Remington XP-100 and Savage Striker. Do not use these loads in any other type of handgun. Cases: Remington; trim-to length: 1.275"; primers: CCI 300 (except where otherwise specified in remarks); primer size: Large Pistol, Std. & Magnum; Lyman shell holder: No. 7; cast bullets used sized to .430" dia.; firearm used: Thompson/Center Contender; barrel length: 10" and 14"; twist: 1-22"; groove dia.: .430"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Hornady Hollow Point-XTP	16.0	1093	case: Remington; overall loaded length (inches): 1.600; group (inches): 2.46
Lightweight Loads Velocities were recorded 10 feet in front of the muzzle of the 4-inch barrel of a Smith & Wesson 329PD revolver. CCI 300 primers were used with all loads.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
180	Cast #429348	16.1	1110	sugg. start load; 1.420" OAL; 22,600 cup
180	Cast #429348	20.4	1408	max load; 1.420" OAL; 35,800 cup
200	Cast #429303 gas check	15.8	1062	sugg. start load; 1.692" OAL; 22,800 cup
200	Cast #429303 gas check	19.8	1363	max load; 1.692" OAL; 36,800 cup
215	Cast #429215 gas check	15.7	1032	sugg. start load; 1.645" OAL; 23,500 cup
215	Cast #429215 gas check	19.5	1314	max load; 1.645" OAL; 37,000 cup
232	Cast #429360	14.4	952	sugg. start load; 1.655" OAL; 20,400 cup
232	Cast #429360	18.2	1240	max load; 1.655" OAL; 36,300 cup
245	Cast #429421	15.0	941	sugg. start load; 1.710" OAL; 20,000 cup
245	Cast #429421	18.4	1196	max load; 1.710" OAL; 35,300 cup
245	Cast #429244 gas check	14.0	911	sugg. start load; 1.680" OAL; 20,300 cup
245	Cast #429244 gas check	17.4	1160	max load; 1.680" OAL; 34,800 cup
Pistol Data Lyman Cast Bullet Handbook cases: Remington; trim-to length: 1.280"; primers: CCI 300; primer size: Large Pistol; Lyman shell holder: No. 7; cast bullets used size to .429" dia.; firearm used: Universal Receiver and Special Vented Barrel; barrel length: 4"; twist: 1-20"; groove diameter: .429". Cast bullet #'s 429303, 429215, 429360, 429244, 429421 list overall lengths that exceed the maximum of 1.610" and are suitable only for the Thompson/Center Contender or similar firearms that will accept cartridges of these dimensions. The data listed for these bullets take this extra length into consideration.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
180	Hornady HP-XTP	12.7	1013
180	Hornady HP-XTP	14.3	1162
180	Hornady HP-XTP	15.8	1311
180	Hornady HP-XTP	17.3	1460	maximum load
Revolver Using 180 GR Hornady Bullets Gun: Ruger New Model Blackhawk (Bisley); barrel length: 5 1/2-inches; case: Starline; primer: Winchester Large Pistol; bullet diameter: .430"; maximum COAL: 1.610"; maximum case length: 1.285"; trim to length: 1.275"; COAL: 1.600".
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Hornady HP-XTP	13.8	1170
200	Hornady HP-XTP	15.1	1245
200	Hornady HP-XTP	16.4	1320
200	Hornady HP-XTP	17.1	1396	maximum load
Revolver Using 200 GR Hornady Bullets Gun: Ruger New Model Blackhawk (Bisley); barrel length: 5 1/2-inches; case: Starline; primer: Winchester Large Pistol; bullet diameter: .430"; maximum COAL: 1.610"; maximum case length: 1.285"; trim to length: 1.275"; COAL: 1.600".
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
240	Hornady HP-XTP or CL-SIL	11.8	982
240	Hornady HP-XTP or CL-SIL	13.0	1068
240	Hornady HP-XTP or CL-SIL	14.3	1154
240	Hornady HP-XTP or CL-SIL	15.0	1240	maximum load
Revolver Using 240 GR Hornady Bullets Gun: Ruger New Model Blackhawk (Bisley); barrel length: 5 1/2-inches; case: Starline; primer: Winchester Large Pistol; bullet diameter: .430"; Hornady HP-XTP and CL-SIL COAL: 1.600"; SWC-HP and SWC COAL: 1.610"; maximum COAL: 1.610"; maximum case length: 1.285"; trim to length: 1.275".
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
265	Hornady FP	11.8	1017
265	Hornady FP	13.2	1142	maximum load
Revolver Using 265 GR Hornady Bullets Gun: Ruger New Model Blackhawk (Bisley); barrel length: 5 1/2-inches; case: Starline; primer: Winchester Large Pistol; bullet diameter: .430"; maximum COAL: 1.610"; maximum case length: 1.285"; trim to length: 1.275"; COAL: 1.610".
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
300	Hornady HP-XTP	10.8	965
300	Hornady HP-XTP	11.4	1001
300	Hornady HP-XTP	12.0	1036	maximum load
Revolver Using 300 GR Hornady Bullets Gun: Ruger New Model Blackhawk (Bisley); barrel length: 5 1/2-inches; case: Starline; primer: Winchester Large Pistol; bullet diameter: .430"; maximum COAL: 1.600"; maximum case length: 1.285"; trim to length: 1.275"; COAL: 1.610".

.44 Smith & Wesson / .44 S&W Special

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
238	Lyman 429421	10.5	788	case expansion normal
230	Taurus SWC HP	12.0	802	case expansion near maximum; good load
240	Hornady SWC	10.0	742	case expansion normal +
180	Sierra HP	14.0	1,109	case expansion near maximum; very accurate
180	Sierra HP	14.5	1,168	case expansion maximum; second highest velocity; sharp recoil
200	Speer HP	12.5	890	case expansion normal +; most accurate load; may be best load for light-frame guns
200	Speer HP	13.5	1,052	case expansion near maximum; erratic
240	Speer Magnum HP	13.0	1,055	case expansion maximum; third most accurate; best all-around load in strong guns
240	Sierra HP	12.0	866	case expansion near maximum; unburned powder; poor accuracy
Loads designated maximum or near maximum must not be used in old or light-frame revolvers!
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	SAECO 62944 wadcutter	11.0	1120	group (inches): 2.23; 4 in 1.25
Load Data Remington cases and Winchester Large Pistol primers used. All groups were five shots fired at 25 yards.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
240	Nosler JHP	13.0	1,237	group: 3.0 inches
250	RCBS 44-250-KT	13.0	1,273	group: 1.25 inches
230	Lyman 429434	12.0	1,156	group: 2.0 inches
Warning! Notes Loads fired from a 4 3/4-inch barrel.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
240	Speer 240 JHP	13.0	1,218	group (inches): 2.0
240	Nosler 240 JHP	13.0	1,237	group (inches): 3.0
(4-3/4-inch barrel) (Colt Peacemaker Loads) SC = 3.5 inches or more (Loading the Peacemaker - Dave Scovill)
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
240	Speer JHP	10.2	871	OAL: 1.465"
Alliant Reloaders Guide 2008 - Pistol/Revolver primer: CCI 300; case: Remington; NOTE: All loads are maximum. Reduce by 10% to establish a starting charge weight.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
180	Hornady 180 XTP	14.0	1,291	group (inches): 3+
250	RCBS 44-250-KT	13.0	1,273	group (inches): 1.25
215	Lyman 429434	12.0	1,156	group (inches): 2.0
Colt Peacemaker Loads SC = 3.5 inches or more (Loading the Peacemaker)
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
180	Sierra hollow-point	14.0	1,109	case: W-W; primer: R 2 1/2; expansion: near max; very accurate
180	Sierra hollow-point	14.5	1,168	case: W-W; primer: R 2 1/2; expansion: maximum; second highest velocity; sharp recoil
200	Speer hollow-point	12.5	890	case: W-W; primer: R 2 1/2; expansion: normal +; most accurate load; may be best load for light-frame guns
200	Speer hollow-point	13.5	1,052	case: W-W; primer: R 2 1/2; expansion: near max; erratic
240	Speer magnum hollow-point	13.0	1,055	case: W-W; primer: R 2 1/2; expansion: maximum; third most accurate; best all-around load in strong guns
240	Sierra hollow-point	12.0	866	case: W-W; primer: R 2 1/2; expansion: near max; unburned powder; poor accuracy
Jacketed Bullets Loads designated maximum or near max must not be used in old or light-frame revolvers!
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
238	Lyman 429421	10.5	788	case: W-W; primer: R 2 1/2; expansion: normal
230	Taurus semiwadcutter hollow-point	12.0	802	case: W-W; primer: R 2 1/2; expansion: near max; good load
240	Hornady semiwadcutter	10.0	742	case: W-W; primer: R 2 1/2; expansion: normal +
Lead Bullets Loads designated maximum or near max must not be used in old or light-frame revolvers!
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
180	Jacketed	13.5	1020	start load; min OAL: 1.600
180	Jacketed	13.5	1020	never exceed; min OAL: 1.600; 11,900 cup
246	Lead	9.2	845	start load; min OAL: 1.590
246	Lead	9.2	845	never exceed; min OAL: 1.590; 12,300 cup
Lee Precision Data CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Large Pistol Primer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
205	Cast #42798	10.5	747	sugg. start load; 10,000 cup
205	Cast #42798	12.0	855	max load; 13,300 cup
232	Cast #429360	9.0	646	sugg. start load; 10,300 cup
232	Cast #429360	10.0	751	max load; 13,100 cup
245	Cast #429421	9.0	710	sugg. start load; 10,800 cup
245	Cast #429421	10.0	807	max load; 13,200 cup
Lyman Cast Bullet Handbook cases: Winchester; trim-to length: 1.152"; primers: CCI 300; primer size: Large Pistol; Lyman shell holder: No. 7; cast bullets used size to .429" dia.; firearm used: Universal Receiver and Special Vented Barrel; barrel length: 4"; twist: 1-20"; groove diameter: .429". NOTE: More Lyman cast bullet data available under .44 Smith & Wesson Special / .44 S&W Cast Bullet Data Lyman Reloading Handbook 49th Edition.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
240	Speer Mag JHP or Mag JSP	9.2	775	start charge
240	Speer Mag JHP or Mag JSP	10.2	871	maximum charge
Speer Reloading Manual #14 max. case length: 1.160"; trim-to length: 1.150"; max cart. OAL: 1.615"; RCBS shell holder: #18; cart. case: Remington; primer: CCI 300 (except where otherwise specified in remarks); test firearm: Cimarron SAA; barrel length: 5.5"; NOTE: The 200-grain FN & CM, the 225-grain SWC GC and the 250-grain K bullets were cast in RCBS moulds. RCBS crimp-on gas checks used for the 225-grain SWC GC bullets. Maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Hornady HP-XTP	7.6	515
200	Hornady HP-XTP	8.1	570
200	Hornady HP-XTP	8.7	637
200	Hornady HP-XTP	9.2	701
200	Hornady HP-XTP	9.7	767
200	Hornady HP-XTP	10.3	827	maximum load
240	Hornady HP-XTP or CL-SIL	7.4	530	Do Not Reduce
240	Hornady HP-XTP or CL-SIL	7.9	610
240	Hornady HP-XTP or CL-SIL	8.4	687
240	Hornady HP-XTP or CL-SIL	9.0	762	maximum load
240	Hornady SWC-HP or SWC	6.7	511
240	Hornady SWC-HP or SWC	7.2	550
240	Hornady SWC-HP or SWC	7.7	602
240	Hornady SWC-HP or SWC	8.2	652
240	Hornady SWC-HP or SWC	8.7	702
240	Hornady SWC-HP or SWC	9.1	747	maximum load
Using Hornady Bullets Gun: Smith & Wesson 624; barrel length: 4 inches; case: Starline; primer: Winchester Large Pistol; bullet diameter: 0.430"; 180 GR Hornady HP-XTP COAL: 1.480"; FP-Cowboy COAL: 1.490"; 200 GR HP-XTP COAL: 1.470"; 240 GR HP-XTP & CL-SIL COAL: 1.480"; 240 GR SWC-HP & SWC COAL: 1.490"; maximum COAL: 1.500"; maximum length: 1.160"; trim to length: 1.150".
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
225	Speer SWC-HP	12.5	1,098	extreme spread: 74
240	Nosler JSP	11.0	933	extreme spread: 39
255	Leadheads RCBS 44-Keith	11.5	1,029	extreme spread: 46
255	Lyman 429244 GC	12.5	1,101	extreme spread: 23
+P and Standard for F A Model 1997 Warning! All data is also safe for postwar Smith & Wesson N-Frame revolvers. Barrel length of Freedom Arms Model 1997 is 4 1/2. Winchester brass was used in all loads as were CCI 300 primers, except Federal 155s were used with loads containing H-110, H-4227 and IMR-4227
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
240	Nosler Sporting Handgun Jktd HP and Jktd Soft Pt	9.0	758	maximum load; most accurate load tested; most accurate powder tested
240	Nosler Sporting Handgun Jktd HP and Jktd Soft Pt	8.5	693	most accurate powder tested
240	Nosler Sporting Handgun Jktd HP and Jktd Soft Pt	8.0	628	most accurate powder tested
Handgun Using Nosler Bullets handgun: barrel: Douglas, length: 8.2", twist: 1-20"; case: Remington; primer: Rem. 2 1/2; bullets: 200 GR & 240 GR Sporting Handgun Revolver JHP; OACL: 1.455"; maximum SAAMI overall cartridge length: 1.615"; Use Maximum Loads with Caution
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
205	Cast #427098	10.5	747	sugg. start load; 1.537" OAL; 10,000 cup
205	Cast #427098	12.0	855	max load; 1.537" OAL; 13,300 cup
210	Cast #429215 gas check	9.5	689	sugg. start load; 1.500" OAL; 8,800 cup
210	Cast #429215 gas check	11.0	885	max load; 1.500" OAL; 13,400 cup
Cast Bullet Data Lyman Reloading Handbook 49th Edition cases: Winchester; trim-to length: 1.150"; primers: CCI 300; primer size: Large Pistol; Lyman shell holder: No. 7; firearm used: Universal Receiver; barrel length: 4" (except where otherwise noted in remarks); twist: 1-20"; groove dia.: .429"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
225	Speer SWC-HP	12.5	1,142
240	Nosler jacketed SP	11.0	984
255	Leadhead RCBS 44-Keith	11.5	1,066
in a Colt SAA (22,000 psi or less) A Colt Single Action Army with 7 1/2-inch barrel used to test these loads. Winchester cases and CCI 300 primers used throughout, except Federal 155 Magnums used with IMR-4227 and H-4227 powders.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
255	Lyman 429244 GC	12.5	1,101
in a Freedom Arms 1997 (25,000 psi or less) A Freedom Arms Model 1997 with 4 1/4-inch barrel to fire these loads. Winchester cases and CCI 300 primers used throughout except Federal 155 Magnum primers used with H-110 powder.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
225	Speer SWC-HP	12.5	1,098	extreme spread (fps): 74
240	Nosler jacketed SP	11.0	933	extreme spread (fps): 39
255	Leadhead RCBS 44-Keith	11.5	1,029	extreme spread (fps): 46
in a Freedom Arms Model 1997 (22,000 psi or less) A Freedom Arms Model 1997 with 4 1/4-inch barrel used to test fire these loads. Winchester cases and CCI 300 used in all loads, except Federal 155 Magnum used with IMR-4227 and H-4227 powders.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
255	Lyman 429244 GC	12.5	1,109
in an S&W Model 24-3 (25,000 psi or less) A Smith & Wesson Model 24-3 with a 6 1/2-inch barrel used to fire these loads. Winchester cases and CCI 300 primers used throughout, except Federal 155 Magnum primers used with H-110 powder.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
246	LRN	9.2	845	test gun: U.R.; pressure: 12,300 CUP
Load Data Loads are for modern, six-shot, heavy-duty revolvers - Colt 2nd and 3rd generation and Smith & Wesson Model 1950 and Model 24. Five-shot revolvers should only use factory loads or handloads that do not exceed factory pressures. All listed loads for six-shot .44 Special should be reduced by 20 percent for starting. These loads may be used in all revolvers chambered for the .44 Magnum. U.R. - Universal Test Receiver; C.A. - Charter Arms five-shot revolver.

.44 WCF / .44-40 Winchester

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Speer 200 HP	13.0	930	group (inches): 2.5
200	Nosler 200 HP	13.0	915	group (inches): SC
200	Remington 200 FN (427)	13.0	996	group (inches): 2.5
200	MG 44-200	13.0	1,104	group (inches): 1.75
190	Bull-X 190 SWC	13.0	1,058	group (inches): 2.0
180	Sierra 180 JHC	14.0	956	group (inches): 2.0
230	RHV 230 SWC	13.0	936	group (inches): 1.75
Colt Peacemaker Loads SC = 3.5 inches or more (Loading the Peacemaker - Dave Scovill)
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Jacketed	11.0	1135	start load; min OAL: 1.590
200	Jacketed	12.0	1225	never exceed; min OAL: 1.590; 12,500 cup
240	Lead	9.1	1043	start load; min OAL: 1.580
240	Lead	9.9	1125	never exceed; min OAL: 1.580; 12,500 cup
Lee Precision Data CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Large Pistol primer.

.45 ACP

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
185	Hornady JHP	11.5	975	primer: F 150; O.A. Ctg. Lgt.: 1.23; case expansion near maximum; 11.0 grains maximum in target pistols
185	Hornady JHP	12.0	1,016	primer: F 150; O.A. Ctg. Lgt.: 1.23; case expansion maximum; do not use in target pistols
185	Sierra JHP	10.5	850	primer: F 150; O.A. Ctg. Lgt.: 1.18; case expansion normal; second most accurate jacketed load
200	Speer JHP	10.0	827	primer: F 150; O.A. Ctg. Lgt.: 1.18; case expansion normal; very accurate
200	Speer JHP	11.0	898	primer: F 150; O.A. Ctg. Lgt.: 1.18; case expansion near maximum; maximum for target pistols
200	Speer JHP	11.5	933	primer: F 150; O.A. Ctg. Lgt.: 1.18; case expansion maximum; do not use in target pistols
225	Speer JHP	10.0	825	primer: F 150; O.A. Ctg. Lgt.: 1.215; case expansion normal; insufficient accuracy at 50 yards
230	FMJ	10.0	857	primer: F 150; O.A. Ctg. Lgt.: 1.26; case expansion maximum
190	Shur-X SWC	10.5	995	primer: F 150; O.A. Ctg. Lgt.: 1.25; case expansion normal; not sufficiently accurate
200	Hornady SWC	9.7	908	primer: F 150; O.A. Ctg. Lgt.: 1.225; case expansion normal
230	Speer RNL	10.0	862	primer: F 150; O.A. Ctg. Lgt.: 1.272; case expansion near maximum; very fine accuracy at 50 feet and 50 yards
230	Speer RNL	10.5	944	primer: F 150; O.A. Ctg. Lgt.: 1.272; case expansion maximum; excellent accuracy
JHP = jacketed hollowpoint; FMJ = full metal jacket; SWC = semiwadcutter; RNL = roundnose lead. Test Guns: Colt Gold Cup National Match and Colt service automatics. Ruger Convertible revolver with 4-5/8-inch barrel used for velocity comparisons. Federal cases used throughout tests. Velocities chronographed with Oehler Model 31 Chronotach and Model 51 electronic screens; velocities taken at ten feet; screen spacing, ten feet. Accuracy Goals: (five-shot groups - sandbag rest) - one inch at fifty feet; three to four inches at fifty yards.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
180	LWC	9.0	920	min. OAL (inches): 1.190; 13,600 psi
200	JHP	10.6	1,000	min. OAL (inches): 1.175; 19,500 psi
230	JHP	9.8	915	min. OAL (inches): 1.230; 19,300 psi
230	FMC	8.5	900	min. OAL (inches): 1.190; 16,200 psi
240	JHP	8.3	865	min. OAL (inches): 1.210; 19,300 psi
260	JHP	8.3	780	min. OAL (inches): 1.210; 19,000 psi
Alliant Pistol & Revolver Data primer: Federal 150; bbl length: 5.0; do not exceed powder weight shown
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Speer GDHP	10.5	1010	OAL: 1.200"
Alliant Reloaders Guide 2008 primer: CCI 300; case: Speer (except where otherwise specified in remarks); NOTE: All loads are maximum. Reduce by 10% to establish a starting charge weight. Alliant Pistol/Revolver Load Data
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
185	Nosler JHP	10.5	1,035	case expansion maximum; highest velocity and 2nd best accuracy, reduce to 10.0 grains in summer
200	Speer JHP	10.0	937	case expansion maximum; accurate
230	Nosler FMJ	9.0	811	case expansion normal; most accurate load and best heavy bullet load
Jacketed
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
180	Lead	9.0	920	start load; min OAL: 1.190
180	Lead	9.0	920	never exceed; min OAL: 1.190; 13,600 psi
200	Jacketed	10.0	954	start load; min OAL: 1.175
200	Jacketed	10.6	1000	never exceed; min OAL: 1.175; 19,500 psi
230	Jacketed	8.5	900	start load; min OAL: 1.190
230	Jacketed	8.5	900	never exceed; min OAL: 1.190; 16,200 psi
240	Jacketed	7.9	833	start load; min OAL: 1.210
240	Jacketed	8.3	865	never exceed; min OAL: 1.210; 19,300 psi
260	Jacketed	8.1	759	start load; min OAL: 1.210
260	Jacketed	8.3	780	never exceed; min OAL: 1.210; 19,000 psi
Lee Precision Data Large Pistol primer; with NEVER EXCEED LOADS maintain Minimum Over All Length or longer (Modern Reloading - Second Edition - Richard Lee)
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
185	Cast #452389	7.0	636	sugg. start load; 7,600 cup
185	Cast #452389	9.2	844	max load; compressed powder charge; 13,200 cup
195	Cast #452488	7.0	646	sugg. start load; 8,200 cup
195	Cast #452488	10.7	1033	max load; 17,900 cup
Lyman Cast Bullet Handbook cases: Remington; trim-to length: .895"; primers: Remington 2 1/2; primer size: Large Pistol; Lyman shell holder: No. 2; cast bullets used size to .450" dia.; firearm used: Universal Receiver; barrel length: 5"; twist: 1-16"; groove diameter: .450". NOTE: More Lyman cast bullet data available under .45 ACP Cast Bullet Data Lyman Reloading Handbook 49th Edition
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
185	Remington Jacketed SWC/FMJ	7.3	666	sugg. start load; 1.135" OAL; 8,000 cup
185	Remington Jacketed SWC/FMJ	10.2	1015	max load; 1.135" OAL; 17,800 cup
200	Speer Gold Dot Jacketed HP	8.7	747	sugg. start load; 1.178" OAL; 10,400 cup
200	Speer Gold Dot Jacketed HP	9.7	899	max load; 1.178" OAL; 15,800 cup
230	Speer TMJ	8.3	684	sugg. start load; 1.275" OAL; 11,000 cup
230	Speer TMJ	9.2	806	max load; 1.275" OAL; 15,100 cup
Lyman Reloading Handbook 49th Edition cases: Remington, Federal; trim-to length: .888"; primers: Remington 2 1/2; primer size: Large Pistol; Lyman shell holder: No. 2; firearm used: Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .450"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Speer Hollow Point	10.6	997	maximum load
200	Speer Hollow Point	9.7	877
225	Speer Hollow Point	10.0	914	maximum load
225	Speer Hollow Point	9.0	813
Speer Reloading Manual #11 gun: Colt Gov't. Model; barrel: 5"; twist: 1-16; cases: Speer; primers: CCI-300; maximum loads listed should be used with caution
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Speer TMJ FN, TMJ Match SWC or GDHP	9.4	877	start charge
200	Speer TMJ FN, TMJ Match SWC or GDHP	10.5	1010	maximum charge
225	Speer Colt JHP	9.0	814	start charge
225	Speer Colt JHP	10.0	935	maximum charge
230	Speer GDHP SB or GDHP	8.1	796	start charge
230	Speer GDHP SB or GDHP	9.0	893	maximum charge
Speer Reloading Manual #14 max. case length: 0.898"; trim-to length: 0.888"; max cart. OAL: 1.275"; RCBS shell holder: #3; cart. case: Speer; primer: CCI 300; test firearm: SIG P220; barrel length: 4.4"; IMPORTANT SAFETY NOTE: These loads were developed and tested for safe use in HANDGUNS. Not all loads may be suitable for use in a carbine or rifle chambered for this cartridge. If loading for a carbine or rifle, choose from among the loads developing the highest handgun velocities and load just a few rounds. Thoroughly test this small sample in your firearm in slow-fire mode, insuring that you achieve proper feeding and ejection. Be certain that all bullets exit the barrel; watching the target for each bullet strike is the best way to know that the load produces sufficient gas volume for a longer barrel. NOTE: Do not use the 230-GR TMJ RN loads with Gold Dot HP; maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Lyman #452460	7.1	701	sugg. start load; 8,900 cup; case: Federal
200	Lyman #452460	10.6	1012	max load; 17,200 cup; case Federal
200	Lyman #452630	8.5	679	sugg. start load; 9,800 cup
200	Lyman #452630	10.6	972	max load; 17,300 cup
200 GR (Lyman Cast Bullet Data) cases: Remington (except where otherwise specified in remarks); trim-to length: .888"; primers: Remington 2 1/2 (except where otherwise specified in remarks); primer size: Large Pistol; Lyman shell holder: No. 2; cast bullets used sized to .451" dia.; firearm used; Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .450"; Lyman #452460 OAL: 1.161"; Lyman #452630 OAL: 1.235" (Lyman Cast Bullet Manual 4th Edition)
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
215	Saeco (Redding) #058	8.8	870	sugg. start load; 13,700 cup
215	Saeco (Redding) #058	9.7	966	max load; 17,900 cup
230	Lee #TL452-230-TC	7.7	824	sugg. start load; 13,700 cup
230	Lee #TL452-230-TC	8.5	908	max load; 17,700 cup
215 & 230 GR (Lyman Cast Bullet Data) cases: Federal; trim-to length: .888"; primers: CCI 300; primer size: Large Pistol; Lyman shell holder: No. 2; cast bullets used sized to .451" dia.; firearm used: Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .450"; 215 grain OAL: 1.185"; 230 grain OAL: 1.170" (Lyman Cast Bullet Handbook 4th Edition)
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
225	Lyman #452374	7.5	660	sugg. start load; 8,600 cup; case: Federal
225	Lyman #452374	10.7	964	max load; 17,300 cup; case: Federal
225 GR (Lyman Cast Bullet Data) cases: Remington (except where otherwise specified in remarks); trim-to length: .888"; primers: Remington 2 1/2 (except where otherwise specified in remarks); primer size: Large Pistol; Lyman shell holder: No. 2; cast bullets used sized to .451" dia.; firearm used; Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .450"; OAL: 1.272" (Lyman Cast Bullet Manual 4th Edition)
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
185	Carroll SWC	8.7	803	case: W-W; primer: WLP; normal; very accurate
193	Metallic #68 SWC	9.5	892	case: W-W; primer: WLP; near max
200	Carroll SWC	8.5	743	case: W-W; primer: WLP; moderate; very accurate
200	Carroll SWC	9.0	829	case: W-W; primer: WLP; normal
225	Carroll FN	8.6	822	case: Speer; primer: WLP; near max; very accurate
225	Carroll FN	9.0	878	case: Speer; primer: WLP; maximum; accurate
230	Bull-X FN	8.5	785	case: W-W; primer: WLP; normal
230	Bull-X FN	9.0	881	case: W-W; primer: WLP; near max
230	Carroll RN	8.5	820	case: Speer; primer: WLP; normal; very accurate
230	Carroll RN	9.0	895	case: Speer; primer: WLP; maximum
Cast Bullets 5" barrel. Test gun was Colt Double Eagle with five-inch barrel. All groups five shots each from sandbag rest; 20-yard indoor range.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Cast #452460	7.1	701	sugg. start load; 1.161" OAL; case: Federal; 8,900 cup
200	Cast #452460	10.6	1012	max load; 1.161" OAL; case: Federal; 17,200 cup
200	Cast #452630	8.5	679	sugg. start load; 1.235" OAL; 9,800 cup
200	Cast #452630	10.6	972	max load; 1.235" OAL; 17,300 cup
225	Cast #452374	7.5	660	sugg. start load; 1.272" OAL; case: Federal; 8,600 cup
225	Cast #452374	10.7	964	max load; 1.272" OAL; case: Federal; 17,300 cup
Cast Bullet Data Lyman Reloading Handbook 49th Edition cases: Remington (except where otherwise specified in remarks); trim-to length: .888"; primers: Remington 2 1/2 (except where otherwise specified in remarks); primer size: Large Pistol; Lyman shell holder: No. 2; cast bullets used sized to .451" dia.; firearm used: Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .450"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Speer JHP	10.8	945	primer: CCI 350; group size: 2.41
in a Browning BDA 4.4-inch barrel. Average of two or more five-shot groups for handloads. All groups shot at 25 yards from rest. All handloads in Federal brass. Oehler Model 32/61 Chronotach/Skyscreen System. Average temperature 32 degrees.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Speer JHP	10.8	906	primer: CCI 350; group size: 4.04
in a Heckler & Koch P9S 4-inch polygonal-rifled barrel. Average of two or more five-shot groups for handloads. All groups shot at 25 yards from rest. All handloads in Federal brass. Oehler Model 32/61 Chronotach/Skyscreen System. Average temperature 32 degrees.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Hornady XTP	10.2	951	group (inches): 2.02; muzzle energy (ft-lb): 402
230	Hornady XTP	9.2	888	group (inches): 1.73; muzzle energy (ft-lb): 403; best 230-grain load
230	Hornady XTP	9.5	911	group (inches): 2.58; muzzle energy (ft-lb): 424
Taurus Stellar Tracker Taurus Stellar Tracker with a 4-inch barrel and open sights was used for testing. Accuracy is based on the average of three, five-shot groups at 15 yards from a benchrest.

.45 Auto Rim

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
180	Lead	8.1	846	start load; min OAL: 1.190
180	Lead	8.1	846	never exceed; min OAL: 1.190; 11,560 cup
230	Jacketed	7.6	828	start load; min OAL: 1.190
230	Jacketed	7.6	828	never exceed; min OAL: 1.190; 13,770 cup
Lee Precision Data CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
238	Cast #452423	6.5	654	sugg. start load; 8,100 cup; special test barrel used
238	Cast #452423	8.5	855	max load; 13,300 cup; special test barrel used
Lyman Cast Bullet Handbook cases: Remington; trim-to length: .894"; primers: Remington 2 1/2; primer size: Large Pistol; Lyman shell holder: No. 14A; cast bullets used size to .451" dia.; firearm used: Smith & Wesson Model 25 (except where otherwise specified in remarks); barrel length: 4 1/2 and 6 1/2"; twist: 1-16"; groove diameter: .451". NOTE: More Lyman cast bullet data available under .45 Auto Rim Lyman Reloading Handbook 49th Edition
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
225	Speer Jacketed HP	8.5	718	sugg. start load; 1.255" OAL; 10,200 cup
225	Speer Jacketed HP	10.0	864	max load; 1.255" OAL; 14,500 cup
Lyman Reloading Handbook 49th Edition cases: Remington; trim-to length: .888"; primers: Remington 2 1/2; primer size: Large Pistol; Lyman shell holder: No. 14A; cast bullets used sized to .451" dia.; firearm used: Universal Receiver, Smith & Wesson Model 25; barrel length: Universal Receiver - 4 1/2", Model 25 - 6 1/2"; twist: 1-16"; groove dia.: .451"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
250	Speer LSWC	8.6	789	start charge
250	Speer LSWC	9.0	824	maximum charge
Speer Reloading Manual #14 max. case length: 0.898"; trim-to length: 0.888"; max cart. OAL: 1.275"; RCBS shell holder: #8; cart. case: Remington; primer: CCI 300; test firearm: S&W Model 25-2; barrel length: 6.5"; maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
250	Round Nose Flat Point	8.9	895	OAL: 1.170
255	Semi Wad Cutter	8.9	915	OAL: 1.200
+ P Pin Loads (Oregon Trail Handgun Data) test gun: Smith & Wesson 1955 6", WLP; never reduce stated overall lengths; THESE ARE MAXIMUM LOADS - DO NOT INCREASE THESE CHARGES!
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
250	Hornady jacketed hollow point	8.5	694	diameter: 0.452 in.; 3 1/2 inches at 25 yards
in a Colt Velocities represent five-shot averages taken ten feet from the muzzles of the test revolvers and measured on an Oehler Model 33 Chronotach. Colt Model 17 barrel, 5 1/2 inches, Webley Mark VI barrel, 6 inches. Range temperature, 87 degrees F. No wind. CCI 300 primers used with all loads. Five of every type of cast bullet used in the range tests were checked on a Saeco hardness tester. Average hardness level of alloy, 6 1/2.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
250	Hornady jacketed hollow point	8.5	663	diameter: 0.452 in.; 3 1/2 inches at 25 yards
in a Webley Velocities represent five-shot averages taken ten feet from the muzzles of the test revolvers and measured on an Oehler Model 33 Chronotach. Colt Model 17 barrel, 5 1/2 inches, Webley Mark VI barrel, 6 inches. Range temperature, 87 degrees F. No wind. CCI 300 primers used with all loads. Five of every type of cast bullet used in the range tests were checked on a Saeco hardness tester. Average hardness level of alloy, 6 1/2.

.45 Colt

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	JMHP	13.0	925	min. OAL (inches): 1.55; cup x1000: 11.8
250	L	11.5	890	min. OAL (inches): 1.55; cup x1000: 12.2
300	HP/XTP	10.0	730	min. OAL (inches): 1.58; cup x1000: 12.3
Alliant Data Primer: Win WLP. Bbl length: 7.3. Powder charge weights listed are maximum. Maximum powder charge should be reduced by 10% to establish a minimum or starting powder charge.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
250	Speer LSWC	12.9	1028	OAL: 1.600"
230	Speer GDHP	13.0	1036	OAL: 1.600"
260	Speer JHP	13.0	941	OAL: 1.590"
Alliant Reloaders Guide 2008 - Pistol/Revolver primer: CCI 300; case: Winchester; NOTE: All loads are maximum. Reduce by 10% to establish a starting charge weight.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Jacketed	13.0	925	start load; min. OAL: 1.550
200	Jacketed	13.0	925	never exceed; min. OAL: 1.550; 12,500 cup; 11,800 cup
250	Lead	11.5	890	start load; min. OAL: 1.550
250	Lead	11.5	890	never exceed; min. OAL: 1.550; 12,200 cup
300	XTP	9.0	663	start load; min. OAL: 1.580
300	XTP	10.0	730	never exceed; min. OAL: 1.580; 12,300 cup
Lee Precision Data Large Pistol primer; with NEVER EXCEED LOADS maintain Minimum Over All Length or longer (Modern Reloading - Second Edition - Richard Lee)
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
225	Speer JHP	14.0	1216	start charge
225	Speer JHP	16.0	1343	maximum charge
(Ruger & Contender Only ) Speer Reloading Manual #14 max. case length: 1.285"; trim-to length: 1.275"; max cart. OAL: 1.600"; RCBS shell holder: #20; cart. case: Winchester; primer: CCI 300 (except where otherwise specified in remarks); test firearm: Ruger Blackhawk; barrel length: 7.5"; maximum loads should be used with CAUTION; NOTE: Do not use in any other make or model firearm. IMPORTANT SAFETY NOTE: Since Speer #14 Manual was published, Ruger has replaced the original Vaquero revolver with a smaller version called the New Vaquero. Ruger has advised the industry that the New Vaquero must not be fired with loads exceeding industry pressure standards (14,000 psi). If loading for a New Vaquero, use the standard pressure data in the .45 Colt Handgun Speer Data.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
250	Nosler Sporting Handgun Jacketed Hollow Point	11.4	800	maximum load
250	Nosler Sporting Handgun Jacketed Hollow Point	10.9	750
250	Nosler Sporting Handgun Jacketed Hollow Point	10.4	700	most accurate load tested
(Single Action Army and Replicas) - Handgun Using Nosler Bullets handgun: barrel: Douglas, length: 7.25", twist: 1-16"; case: Winchester; primer: Rem. 2 1/2; OACL: 1.590"; maximum SAAMI overall cartridge length: 1.600"; use maximum loads with caution
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
225	Speer JHP	22.5	1,707	ES: 65; 3/8
240	Sierra JHP	20.0	1,510	ES: 36; NT
260	Speer JHP	19.5	1,473	ES: 33; 1 13/16
240	Sierra JHP in Federal cases	20.0	1,557	ES: 71; NT
Contender loads Warning! Under NO CIRCUMSTANCES should these loads be used in any gun other than the Contender. Notes: .45 Colt, Contender 10-in. barrel; W-W cases; CCI 350 magnum primers; Oehler 34/50 chronograph system; velocity instrumental at 15 ft converted to muzzle velocity; temperature - 70 degrees. None of the loads with W-W cases shows as much pressure as the .45 WM loads, and the heaviest loads with Federal cases are about at same level as the .45 WM loads. NT - not tried for accuracy. All groups fired at 22 yards.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
250	Hornady XTP	13.0	933	Starline brass; no crimp Ruger Blackhawk 6-inch barrel
250	Hornady XTP	13.0	940	Starline brass; modest crimp Ruger Blackhawk 6-inch barrel
250	Hornady XTP	13.0	980	Starline brass; maximum crimp Ruger Blackhawk 6-inch barrel
250	Hornady XTP	13.0	901	Remington brass; no crimp Ruger Blackhawk 6-inch barrel
250	Hornady XTP	13.0	932	Remington brass; modest crimp Ruger Blackhawk 6-inch barrel
250	Hornady XTP	13.0	942	Remington brass; maximum crimp Ruger Blackhawk 6-inch barrel
for Modern Revolvers Warning! Notes:Test gun was a Ruger New Model Blackhawk with a 6-inch barrel. All data is within SAAMI pressure limits of 14,000 psi. During testing temperature was 72 degrees Fahrenheit. An Oehler Model 35P with skyscreens set 10 feet from muzzle was used. CCI 300 primers were used throughout.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
225	Hornady FTX	11.3	850
225	Hornady FTX	11.7	900
225	Hornady FTX	12.0	950	maximum load
Handgun (FTX Data) max. case length: 1.230"; case trim length: 1.215"; bullet diameter: .452"; pistol: Ruger Blackhawk; barrel: 7 1/2" 1 in 16" twist; case: Starline; primer: WLP; bullet: 225 GR. FTX; maximum COL: 1.645"; sectional density: .157; ballistic coefficient: .140; use maximum loads with caution
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
250	Speer LSWC	11.9	912	start charge
250	Speer LSWC	12.9	1028	maximum charge
230	Speer GDHP SB or GDHP or 225 JHP	12.0	967	start charge
230	Speer GDHP SB or GDHP or 225 JHP	13.0	1036	maximum charge
260	Speer JHP	13.0	941	maximum charge; DO NOT REDUCE
Handgun Speer Reloading Manual #14 max. case length: 1.285"; trim-to length: 1.275"; max cart. OAL: 1.600"; RCBS shell holder: #20; cart. case: Winchester; primer: CCI 300 (except where otherwise specified in remarks); test firearm: Colt Single Action Army; barrel length: 5.5"; NOTE: the 255 SWC, 225 CAV & 230 CM bullets were cast in RCBS moulds; maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
185	Sierra Jacketed HP	12.0	692	sugg. start load; 1.520" OAL
185	Sierra Jacketed HP	13.5	826	max load; 1.520" OAL
200	Speer Jacketed HP	11.6	560	sugg. start load; 1.557" OAL
200	Speer Jacketed HP	12.8	835	max load; 1.557" OAL
225	Speer Jacketed HP	11.7	756	sugg. start load; 1.575" OAL
225	Speer Jacketed HP	13.0	888	max load; 1.575" OAL
Handgun Data Lyman Reloading Handbook 49th Edition cases: Winchester; trim-to length: 1.275"; primers: Winchester WLP; primer size: Large Pistol; Lyman shell holder: No. 11; firearms used: Universal Receiver & Ruger Blackhawk; barrel length: 7 1/2"; twist: 1-16"; groove dia.: .451"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
250	Hornady XTP	13.0	972	velocity spread: 58 fps; 25-yard group: 2.1 inches
Handloads (14,000 psi) Starline brass used throughout with CCI 300 primers.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
210	Taurus alloy SWC	13.0	909	extreme spread (fps): 94; small-game load
in a 4-3/4 Ruger Blackhawk Velocities represent five-shot averages measured ten feet from the muzzle of a Ruger Blackhawk by an Oehler Model 33 Chronotach. Ruger barrel was 4-3/4 inches long. Temperature was 60 degrees F. All loads made up with Remington cases and CCI Large Pistol primers. All bullets sized 0.452 inch. Each of the above combinations grouped three inches or less, extreme spread, at twenty-five yards with the test revolvers handheld and supported by sandbags.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
225	Speer HP	15.5	1,299	primer: F155
250	Nosler HP	15.0	1,183	primer: F150
in a Dan Wesson Model 45 (hunting and silhouette loads) Dan Wesson Model 45 eight-inch barrel. All loads chronographed with an Oehler Model 33 Chronotach. Instrumental velocities corrected to muzzle velocities, fired at 30 to 50 degrees Fahrenheit. All groups fired in five-shot strings at 25 yards converted to minutes of angle. Federal cases used in all loads. None of the loads listed showed any signs of excessive pressures in the test revolver. The Hunting and Silhouette loads should not be fired in weaker revolvers like the Colt or Smith & Wesson. Use them only in the Thompson/Center Contender, the Ruger Blackhawk or the Dan Wesson Model 45.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
225	Speer HP	15.5	1,138	primer: F155; extreme spread (fps): 64; 11 MOA
250	Hornady HP	15.0	1,080	primer: F155; extreme spread (fps): 52; 7 MOA
in a Ruger Blackhawk Ruger Blackhawk with 4 5/8-inch barrel. All loads chronographed on an Oehler Model 33 Chronotach with Skyscreens III. Instrumental velocities corrected to muzzle velocities at 20 to 40 degrees Fahrenheit. All groups fired in five-shot strings at 25 yards and converted to minutes of angle (one inch equals approximately one MOA at 100 yards). Federal cases used in all loads.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Speer Gold Dot Jacketed HP	12.8	1030	10" Bbl.; sugg. start load; 1.580" OAL
200	Speer Gold Dot Jacketed HP	12.8	855	15" Bbl.; sugg. start load; 1.580" OAL
200	Speer Gold Dot Jacketed HP	15.8	1305	10" Bbl.; max load; 1.580" OAL
200	Speer Gold Dot Jacketed HP	15.8	1087	15" Bbl.; max load; 1.580" OAL
240	Sierra Jacketed HC	11.8	973	10" Bbl.; sugg. start load; 1.580" OAL
240	Sierra Jacketed HC	11.8	754	15" Bbl.; sugg. start load; 1.580" OAL
240	Sierra Jacketed HC	14.8	1214	10" Bbl.; max load; 1.580" OAL
240	Sierra Jacketed HC	14.8	1127	15" Bbl.; max load; 1.580" OAL
250	Hornady Jacketed HP/XTP	12.0	946	10" Bbl.; sugg. start load; 1.590" OAL
250	Hornady Jacketed HP/XTP	12.0	796	15" Bbl.; sugg. start load; 1.590" OAL
250	Hornady Jacketed HP/XTP	14.5	1154	10" Bbl.; max load; 1.590" OAL
250	Hornady Jacketed HP/XTP	14.5	1016	15" Bbl.; max load; 1.590" OAL
in a T/C Contender & Encore Lyman Reloading Handbook 49th Edition This data was developed for use in the T/C Contender and Encore handguns. It can also be used in other single shot or bolt-action handguns such as the Remington XP-100 and Savage Striker. Do not use these loads in any other type of handgun. Shooters using the 15-inch 45 Colt/410 barrel must remove the internal choke before firing 45 Colt ammunition. Cases: Winchester; trim-to length: 1.275"; primers: Winchester WLP; primer size: Large Pistol; Lyman shell holder: No. 11; cast bullets used sized to .452" dia.; firearm used: Thompson/Center Contender and Encore; barrel length: 10" Contender and 15" Encore; twist: 1-24" Contender and 1-16" Encore; groove dia.: .452"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
285	RCBS 45-270-SAA cast	12.5	966
Load Data ( 14,000 psi) primer: CCI 300
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
225	Hornady FTX	11.3	839
225	Hornady FTX	11.7	861
225	Hornady FTX	12.0	882	maximum load
Revolver Using 225 GR Hornady Bullets Gun: Ruger New Model (Bisley) Blackhawk; barrel length: 5 1/2 inches; case: Starline; primer: Winchester WLP; bullet diameter: .452"; COAL: 1.645; maximum COAL: 1.600"; maximum case length: 1.285"; trim to length: 1.215";

.45 GAP / .45 G.A.P.

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
185	Hornady Jacketed HP	8.2	896	start load; 19,800 psii; 1.060" OAL
185	Hornady Jacketed HP	9.2	1020	max load; 22,600 psii; 1.060" OAL
200	Speer Jacketed HP	7.9	858	start load; 18,100 psi; 1.080" OAL
200	Speer Jacketed HP	8.8	969	max load; 22,300 psi; 1.080" OAL
230	Speer TMJ	7.2	771	start load; 17,100 psi; 1.135" OAL
230	Speer TMJ	8.0	896	max load; 22,000 psi; 1.135" OAL
200	Lyman Cast #452630	7.5	942	start load; 18,600 ps; 1.080" OAL
200	Lyman Cast #452630	8.4	1035	max load; 21,800 psi; 1.080" OAL
225	Lyman Cast #452374	7.0	885	start load; 19,300 psi; 1.135" OAL
225	Lyman Cast #452374	8.0	972	max load; 22,600 psi; 1.135" OAL
200	Lyman Cast #452460	7.6	947	start load; 18,700 psi; 1.030" OAL
200	Lyman Cast #452460	8.5	1078	max load; 21,700 psi; 1.030" OAL
Lyman Reloading Handbook 49th Edition cases: Winchester; trim-to length: .755"; primers: Winchester WSP; primer size: Small Pistol; Lyman Shell Holder: No. 2; cast bullets sized to .451" dia.; firearm used: Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .450" (Lyman 49th Reloading Handbook)

.45 Winchester Magnum

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
185	JHP	20.0	1,850	energy: 1,406
230	FMJ	17.0	1,550	energy: 1,227
Cartridges of the World All loads were developed in a Thompson/Center Contender pistol with a 10-inch barrel. These loads are not recommended for any other handgun. The 45 Winchester Magnum develops 72 percent higher velocity and 200 percent greater muzzle energy than the standard 45 Automatic and is in the same class as the 44 Magnum revolver cartridge. With its rimless case, it is a natural for use in a semi-automatic rifle. Having made this suggestion, if this ever happens, this author can claim that it was all his idea. The Wildey 45 Magnum, along with the 44 Auto Mag, the Desert Eagle and the LAR Grizzly are the only automatic pistols that truly qualify as big game handguns. The potential is there for a fine combination silhouette and hunting pistol. The price is high, and for strictly silhouette shooting, the much lower-priced Thompson/Center Contender in the same chambering might appeal to many potential buyers. The availability of commercial ammunition with hunting-type bullets would also be a factor, although there is a good variety of such bullets available to the handloader. (Cartridges of the World 9th Edition)
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Hornady FMJ-C/T or HP-XTP	16.1	1479
200	Hornady FMJ-C/T or HP-XTP	17.0	1550
200	Hornady FMJ-C/T or HP-XTP	18.0	1633
200	Hornady FMJ-C/T or HP-XTP	19.0	1716
200	Hornady FMJ-C/T or HP-XTP	19.9	1799
200	Hornady FMJ-C/T or HP-XTP	20.9	1872	maximum load
250	Hornady HP-XTP	14.5	1292
250	Hornady HP-XTP	15.1	1352
250	Hornady HP-XTP	15.8	1412
250	Hornady HP-XTP	16.4	1473	maximum load
Using Hornady Bullets Gun: Thompson/Center Contender; barrel length: 10 inches; case: Starline; primer: Winchester Large Pistol; bullet diameter: .451"; 200 GR FMJ-C/T COAL: 1.500"; 200 GR HP-XTP COAL: 1.495"; 250 & 300 GR HP-XTP COAL: 1.480"; maximum COAL: 1.575"; maximum case length: 1.198"; trim to length: 1.193".
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Speer JSP	21.5	1,821
225	Speer JHP	21	1,759
240	Sierra JHP	18.5	1,566	1 1/2
250	Speer swaged	18.5	1,597
260	Speer JHP	18	1,552
Contender loads THESE LOADS ARE NOT FOR USE IN ANY OTHER GUN EXCEPT THE CONTENDER. None was maximum in the test barrel, but are based on pressure used in W-W factory ammunition. All groups in three-shot strings with scope from bench over sandbag rest. .45 Winchester Magnum, Contender 10-in. barrel; W-W cases; CCI 350 magnum primers; Oehler 34/50 chronograph system; velocity instrumental at 15 ft converted to muzzle velocity; temperature 70 degrees.

.454 Casull

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
265	Swift A-Frame	24.2	1919	starting load
265	Swift A-Frame	26.0	2028	maximum load
300	Swift A-Frame	20.9	1688	starting load
300	Swift A-Frame	22.5	1796	maximum load
325	Swift A-Frame	19.5	1572	starting load
325	Swift A-Frame	21.0	1679	maximum load
Swift Data bullet diameter: 0.452"; maximum cartridge OAL: 1.765"; maximum case length: 1.383"; trim length: 1.373"; case: Starline; primer: CCI-400; test barrel: Shilen; barrel length: 20"; barrel twist: 1-14"; loads less than minimum charges shown are not recommended; NEVER EXCEED MAXIMUM LOAD!

.455 Colt-Eley

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
250	Remington Lead RN	8.0	561	case expansion: moderate; accuracy class: B; erratic velocities
250	Remington Lead RN	9.0	647	case expansion: normal; accuracy class: A; accurate load
Test revolver was Colt New Service with 5 1/2-inch barrel. All loads employed Dominion (Canadian) .455 Colt cases. Federal No. 150 Large Pistol primers used in all handloads. Oehler Model 31 Chronograph and Model 51 screens used to measure velocities. Velocities are instrumental, measured 8 feet from muzzle (not corrected to muzzle velocity). Lyman 3-die reloading set used to resize cases and seat bullets. The following accuracy classification system was used in these tests: A+ = 1-inch or less at 20 yards; A = 1 1/16 - 1 1/2 inches; B = 1 9/16 - 2 inches; C = 2 1/16 - 2 1/2 inches; D = Over 2 1/2 inches.

.460 Smith & Wesson Magnum / .460 S&W Magnum

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Hornady FTX	28.0	1900
200	Hornady FTX	31.9	2000
200	Hornady FTX	35.8	2100	maximum load
Hornady FTX Data rifle: S&W 460 XVR; barrel: Factory; length: 8 3/8"; twist: Gain twist 1 in 20"; primer: WLR; case: Hornady; C.O.L.: 2.275"; approach maximum loads with extreme caution
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Hornady FTX (460 S&W)	25.0	1612
200	Hornady FTX (460 S&W)	31.9	1824
200	Hornady FTX (460 S&W)	35.8	2036	maximum load
Using Hornady Bullets Gun: Smith & Wesson Model 460 XVR; barrel length: 8 3/8 inches; case: Starline; primer: Winchester Large Rifle; bullet diameter: .452"; bullets: 200 GR Hornady FTX (460 S&W) COAL: 2.275", 240 GR Hornady XTP Mag COAL: 2.160", 300 GR Hornady XTP Mag COAL: 2.165"; maximum COAL: 2.275"; maximum case length: 1.800"; trim to length: 1.790".

.475 Linebaugh

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
380	NEI #390.477	18.0	1171
380	NEI #390.477	19.5	1269
380	NEI #390.477	21.0	1310
410	LBT #476.420LFN	18.0	1190
410	LBT #476.420LFN	20.0	1285
410	LBT #476.420LFN	19.0	1241
440	LBT #476.440LFN	17.0	1198
440	LBT #476.440LFN	18.0	1216
440	LBT #476.440LFN	19.0	1253
350	LBT #476.370LFN	19.5	1257
350	LBT #476.370LFN	20.5	1314
350	LBT #476.370LFN	21.5	1358
firearm: Custom Bisley Ruger 5-1/2"; brass: .45-70 trimmed to 1.410"; primer: CCI #350; chronograph: Oehler Model 35P; temperature: 35-45 degrees
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
400	Speer Gold Dot	16.0	1,080	1.12 inches
400	Hornady XTP	16.0	1,118	.95 inches
Freedom Arms Loads were tested at 25 yards in a Freedom Arms Model 757 with a 6-inch barrel.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
325	Speer GDSP	18.0	1159	start charge
325	Speer GDSP	20.0	1324	max charge
Speer Handgun Data Reloading Manual #14 max. case length: 1.400"; trim-to length: 1.390"; max cart. OAL: 1.765"; RCBS shell holder: #40; cart. case: Buffalo Bore; primer: CCI 300 (except where otherwise specified in remarks); test firearm: Freedom Arms M767; barrel length: 6"; Important Safety Note: Older developed in cut-down 45-70 cases must not be used in new Buffalo Bore or Hornady cases, as high pressures will result; maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
400	Speer Gold Dot	16.0	1,080
400	Hornady XTP-Mag	16.0	1,118
Load Data A Freedom Arms Model 757 with a 6-inch barrel was used to test fire all loads. Buffalo Bore/Starline cases used throughout. Large Pistol primers used for reduced loads; all others used Large Pistol Magnum. Maximum case length: 1.400 inches; trim-to length: 1.395 inches; overall cartridge length: 1.750 to 1.765 inches maximum. Bullet diameter: .476 inch for cast bullets, .475 inch for jacketed. Industry maximum average pressure: 50,000 psi.

.475 Maximum / .475 Linebaugh Long

Wt.	Bullet	Charge	Velocity (FPS)
380	LBT #476.370	20.0	1285
380	LBT #476.370	22.0	1385
410	LBT #476.420	20.0	1239
410	LBT #476.420	22.0	1296
410	LBT #476.420	24.0	1391
430	LBT #476.440	18.0	1155
430	LBT #476.440	20.0	1201
430	LBT #476.440	22.0	1344
firearm: Linebaugh Custom Bisley; caliber: .475 Linebaugh Long; brass: WW .45/70 @ 1.600"; primer: Federal #210; chronograph: Oehler Model 35P; temperature: 75 degrees

.475 Wildey Magnum

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
250	SP	21.0	1,850	energy: 1,900
300	SP	18.0	1,610	energy: 1,727
The Wildey is a very heavy handgun designed to handle breech pressures exceeding 48,000 psi. Due to its size and weight, usefulness will most likely be limited to hunting and some sport shooting. Accuracy has proven to be outstanding. Five-shot, 25-yard groups consistently average less than 1 inch. Ballistics are also impressive, with 100-yard remaining energies exceeding 44 Magnum muzzle energy. Load data from Wildey indicates that 18 grains of Blue Dot powder should be used with a 300-grain jacketed bullet. With that load, a 300-grain Barnes JSP gives an impressive muzzle velocity of 1,610 fps with a muzzle energy of 1,727 foot-pounds. (Cartridges of the World 10th Edition)

.50 Special

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
350	LBT	15.0	935	SD: 17.2; group: 1.5 inches
350	LBT	16.0	990	SD: 20.9; group: 1.5 inches
350	LBT	17.0	1,051	SD: 14.3; group: 1.75 inches
350	LBT	18.0	1,107	SD: 21.0; group: 1.75 inches
350	LBT	19.0	1,142	SD: 17.2; group: 1.75 inches
Cast bullets sized to .512. Federal standard Large Pistol primers used for testing. All testing done at 25 yards from a Ransom Rest.

.500 Linebaugh Loads

Wt.	Bullet	Charge	Velocity (FPS)
445	LBT #512.440 LFN	18.0	1037
445	LBT #512.440 LFN	19.0	1073
445	LBT #512.440 LFN	20.0	1123
firearm: Custom Bisley Ruger 5 1/2"; brass: .500 Linebaugh; primer: CCI #350; chronograph: Oehler Model 35P

.500 Maximum / .500 Linebaugh Long

Wt.	Bullet	Charge	Velocity (FPS)
407	LBT 512.400	20.0	1171
407	LBT 512.400	21.0	1186
407	LBT 512.400	22.0	1196
420	LBT 512.440	20.0	1141
420	LBT 512.440	21.0	1160
420	LBT 512.440	22.0	1172
425	NEI 440.512KT	20.0	1164
425	NEI 440.512KT	21.0	1190
425	NEI 440.512KT	22.0	1238
Cast Bullet Loads firearm: Linebaugh custom Bisley; caliber: .500 Linebaugh Long; brass: WW .348 Winchester @1.600"; primer: Federal #210; chronograph: Oehler Model 35P; temperature: 65-80 degrees

.500 Smith & Wesson / .500 S & W Magnum

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
350	Sierra JHP	25.8	1474	COAL: 2.050 inches
350	Sierra JHP	27.2	1506	COAL: 2.050 inches
350	Sierra JHP	28.6	1544	COAL: 2.050 inches
350	Sierra JHP	30.0	1582	COAL: 2.050 inches
350	Sierra JHP	31.4	1614	Maximum Load; COAL: 2.050 inches
400	Sierra JSP	25.9	1417	COAL: 2.062 inches
400	Sierra JSP	26.9	1427	COAL: 2.062 inches
400	Sierra JSP	27.9	1436	Maximum Load; COAL: 2.062 inches
Using Sierra bullets Gun: Smith & Wesson Model 500; Barrel Length: 8 3/8 inches; Case: Starline "R"; Primer: Winchester Large Rifle; Bullet Diameter: .500 inches; Maximum COAL: 2.250 inches; Maximum Case Length: 1.620 inches; Trim to Length: 1.615 inches.

.500 Wyoming Express

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
370	Oregon Trail GC	19.0	1047	3 shots/20 yds: 1 1/2"
370	Cast Performance Bullet Co. GC	19.0	1060	3 shots/20 yds: 1 1/2"
440	Cast Performance Bullet Co. GC	16.0	983	3 shots/20 yds: 1"
440	Cast Performance Bullet Co. GC	19.0	1143	3 shots/20 yds: 7/8"
in a Freedom Arms 83 4 3/4-Inch
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
370	Oregon Trail GC	19.0	1228	3 shots/25 yds: 7/8"
370	Cast Performance Bullet Co. GC	19.0	1153	3 shots/25 yds: 3/8"
400	Cast Performance Bullet Co. GC	19.0	1184	3 shots/25 yds: 7/8"
440	Cast Performance Bullet Co. GC	16.0	1074	3 shots/25 yds: 1/2"
440	Cast Performance Bullet Co. GC	17.0	1086	3 shots/25 yds: 3/4"
440	Cast Performance Bullet Co. GC	18.0	1156	3 shots/25 yds: 3/8"
440	Cast Performance Bullet Co. GC	19.0	1201	3 shots/25 yds: 1"
370	Cast Performance Bullet Co. GC	19.0	1153	3 shots/50 yds: 2 5/8"
400	Cast Performance Bullet Co. GC	19.0	1184	3 shots/50 yds: 1 3/4"
440	Cast Performance Bullet Co. GC	18.0	1156	3 shots/50 yds: 1 3/8"
370	Cast Performance Bullet Co. GC	19.0	1153	3 shots/100 yds: 2 5/8"
in a Freedom Arms Model 83 7 1/2"; 4X Leupold

10mm Auto

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
155	Speer GDHP	12.0	1291	OAL: 1.250"
165	Speer GDHP	11.5	1273	OAL: 1.255"
180	Speer GDHP	11.0	1295	OAL: 1.250"
Alliant Reloaders Manual 2008 primer: CCI 300; case: Hornady; NOTE: All loads are maximum. Reduce by 10% to establish a starting charge weight. Alliant Pistol/Revolver Load Data
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
155	Jacketed	11.1	1302	start load; compressed; min OAL: 1.250
155	Jacketed	11.5	1340	never exceed; compressed; min OAL: 1.250; 34,100 psi
170	Jacketed	9.9	1169	start load; min OAL: 1.250
170	Jacketed	10.1	1180	never exceed; min OAL: 1.250; 33,500 psi
180	Jacketed	9.6	1131	start load; min OAL: 1.250
180	Jacketed	10.4	1220	never exceed; min OAL: 1.250; 35,800 psi
190	Jacketed	9.2	1097	start load; min OAL: 1.250
190	Jacketed	10.0	1185	never exceed; min OAL: 1.250; 36,000 psi
200	Jacketed	8.7	1089	start load; min OAL: 1.260
200	Jacketed	8.9	1110	never exceed; min OAL: 1.260; 33,800 psi
Lee Precision Data Large Pistol Primer. CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. (Modern Reloading - Second Edition - Richard Lee)
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
145	Lee #401-145-SWC	10.0	1249	sugg. start load; 24,100 cup
145	Lee #401-145-SWC	11.3	1365	max load; compressed; 28,800 cup
Lyman Cast Bullet Data Cases: Winchester; trim-to length: .982"; primers: CCI 300; primer size: Large Pistol; Lyman shell holder: No. 15; cast bullets used: (sized to .401" dia.) 145 GR Lee #401-145-SWC; firearm used: Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .400"; 1.225" OAL. (Lyman Cast Bullet Handbook 4th Edition)
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
155	Speer TMJ FN or GDHP	11.0	1164	start charge
155	Speer TMJ FN or GDHP	12.0	1291	maximum charge
165	Speer GDHP or TMJ FN	10.5	1181	start charge
165	Speer GDHP or TMJ FN	11.5	1273	maximum charge
180	Speer TMJ FN or GDHP	10.0	1105	start charge
180	Speer TMJ FN or GDHP	11.0	1295	maximum charge
Speer Reloading Manual #14 max. case length: 0.992"; trim-to length: 0.982"; max cart. OAL: 1.260"; RCBS shell holder: #27; cart. case: Hornady; primer: CCI 300 (except where otherwise specified in remarks); test firearm: Smith & Wesson M1006; barrel length: 5"; maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
155	Hornady HP-XTP	10.2	1095
155	Hornady HP-XTP	10.7	1151
155	Hornady HP-XTP	11.1	1210
155	Hornady HP-XTP	11.5	1266
155	Hornady HP-XTP	12.0	1324
155	Hornady HP-XTP	12.4	1375
155	Hornady HP-XTP	12.9	1431	maximum load
180	Hornady HAP, HP-XTP, FMJ-FP ENC	7.5	817
180	Hornady HAP, HP-XTP, FMJ-FP ENC	8.1	879
180	Hornady HAP, HP-XTP, FMJ-FP ENC	8.6	950
180	Hornady HAP, HP-XTP, FMJ-FP ENC	9.1	1020
180	Hornady HAP, HP-XTP, FMJ-FP ENC	9.6	1077
180	Hornady HAP, HP-XTP, FMJ-FP ENC	10.2	1151
180	Hornady HAP, HP-XTP, FMJ-FP ENC	10.7	1212	maximum load
200	Hornady HP-XTP or HAP	6.9	767
200	Hornady HP-XTP or HAP	7.3	820
200	Hornady HP-XTP or HAP	7.8	872
200	Hornady HP-XTP or HAP	8.2	939
200	Hornady HP-XTP or HAP	8.6	990
200	Hornady HP-XTP or HAP	9.0	1055
200	Hornady HP-XTP or HAP	9.4	1103	maximum load
Using Hornady Bullets Gun: Kimber Stainless Target II; barrel length: 5"; case: Starline; primer: Win. Large Pistol; bullet diameter: .400"; COAL: 1.260"; maximum COAL: 1.260"; maximum case length: .992; trim to length: .982.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
135	Nosler Sporting Handgun Jacketed Hollow Point	12.5	1,459	maximum load; most accurate powder tested
135	Nosler Sporting Handgun Jacketed Hollow Point	12.0	1,383	most accurate powder tested
135	Nosler Sporting Handgun Jacketed Hollow Point	11.5	1,308	most accurate load tested; most accurate powder tested
150	Nosler Sporting Handgun Jacketed Hollow Point	11.2	1,292	maximum load
150	Nosler Sporting Handgun Jacketed Hollow Point	10.7	1,220
150	Nosler Sporting Handgun Jacketed Hollow Point	10.2	1,148	most accurate load tested
180	Nosler Sporting Handgun Jacketed Hollow Point	10.2	1190	maximum load
180	Nosler Sporting Handgun Jacketed Hollow Point	9.7	1130
180	Nosler Sporting Handgun Jacketed Hollow Point	9.2	1070	most accurate load tested
200	Nosler Sporting Handgun Jacketed Hollow Point	9.3	1137	maximum load; most accurate load tested; most accurate powder tested
200	Nosler Sporting Handgun Jacketed Hollow Point	8.8	1094	most accurate powder tested
200	Nosler Sporting Handgun Jacketed Hollow Point	8.3	1053	most accurate powder tested
Using Nosler Bullets Handgun; case: Winchester; primer: WLP; barrel length/make: 6" Omega; twist: 1-16"; bullets: 135 GR, 150 GR, 180 GR & 200 GR Nosler Sporting Handgun Pistol JHP; OACL: 1.260"; maximum OACL: 1.260". Use Maximum Loads with Caution
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
150	Cast #401654	9.7	1218	sugg. start load; 1.240" OAL; 23,600 cup
150	Cast #401654	11.0	1369	max load; 1.240" OAL; 29,400 cup
175	Cast #401043	9.0	1100	sugg. start load; 1.260" OAL; 21,100 cup
175	Cast #401043	10.4	1245	max load; 1.260" OAL; 28,100 cup
175	Cast #401638	9.3	1175	sugg. start load; 1.253" OAL; 23,800 cup
175	Cast #401638	10.4	1275	max load; 1.253" OAL; 29,900 cup
Cast Bullets Lyman Reloading Manual 49th Edition cases: Norma; trim-to length: .982"; primers: CCI 300; primer size: Large Pistol; Lyman shell holder: No. 15; cast bullets used sized to .401" dia.; firearm used: Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .400"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
155	Winchester Jacketed Silvertip	9.7	1158	sugg. start load; case: Winchester; 23,500 cup
155	Winchester Jacketed Silvertip	10.8	1303	max load; case: Winchester; 29,700 cup
165	Speer TMJ	9.1	1087	sugg. start load; case: Winchester; 20,900 cup
165	Speer TMJ	10.2	1230	max load; case: Winchester; 27,400 cup
175	Winchester Jacketed Silvertip	8.7	1048	sugg. start load; case: Winchester; 21,400 cup
175	Winchester Jacketed Silvertip	9.7	1162	max load; case: Winchester; 27,300 cup
180	Sierra Jacketed HP	8.1	939	sugg. start load; 18,000 cup
180	Sierra Jacketed HP	10.3	1133	max load; 30,000 cup
190	Sierra Jacketed FP	8.3	968	sugg. start load; 19,200 cup
190	Sierra Jacketed FP	9.9	1175	max load; 28,600 cup
200	Hornady Jacketed HP	8.0	1015	sugg. start load; 22,900 cup
200	Hornady Jacketed HP	9.6	1148	max load; 29,900 cup
Handgun Lyman Reloading Handbook 49th Edition cases: Norma (except where otherwise specified in remarks); trim-to length: .982"; primers: CCI 300; primer size: Large Pistol; Lyman shell holder: No. 15; firearm used: Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .400"; 1.250" OAL (except where otherwise specified in remarks)
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
135	Nosler hollowpoint	12.5	1301
155	Speer Gold Dot HP	10.5	1170
155	Speer Gold Dot HP	11.5	1241
155	Speer Gold Dot HP	12.5	1336
180	Speer Gold Dot HP	9.5	1079
180	Speer Gold Dot HP	10.0	1139
180	Speer Gold Dot HP	10.5	1204
180	Speer Gold Dot HP	11.0	1267
200	Speer TMJ	7.0	799
200	Speer TMJ	8.2	948
200	Speer TMJ	9.5	1112
Handloads A Kimber Model 1911 Stainless Target II with a one-in-16-inch twist, 5-inch barrel was used for testing loads. Starline brass and CCI 300 Large Pistol primers used throughout. Maximum overall cartridge length: 1.260 inches; maximum case length: 0.992 inch; trim-to length: 0.982 inch. Maximum SAAMI pressure: 37,500 psi.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
185	Ohaus #40170F	7.5	929	case expansion normal; accurate
185	Ohaus #40170F	8.5	1,108	case expansion near maximum; accurate
Pistol Cast Bullets Test pistol was a Colt Delta Elite with a five-inch barrel. All loads used Federal F-150 primers. Special care should be exercised to differentiate between HS-7 and AAC-7 powders!
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
155	Hornady JHP	10.5	1,243	case expansion normal
150	Sierra JHP	10.5	1,265	case expansion normal
150	Sierra JHP	11.0	1,307	case expansion near maximum
170	Nosler JHP	10.5	1,239	case expansion near maximum
170	Hornady JHP	10.5	1,251	case expansion normal
170	Hornady JHP	11.0	1,320	case expansion near maximum
180	Sierra JHP	9.5	1,142	case expansion near maximum
190	Sierra FPJ	9.0	1,094	case expansion normal; accuracy poor
190	Sierra FPJ	9.5	1,140	case expansion near maximum; accuracy poor
200	Hornady FMJ	8.5	1,055	case expansion near maximum
Pistol Jacketed Bullets Test pistol was a Colt Delta Elite with a five-inch barrel. All loads used Federal F-150 primers. Special care should be exercised to differentiate between HS-7 and AAC-7 powders!

5.7x28 FN / 5.7x28mm FN

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
40	Hornady Jacketed V-Max	5.8	1638	sugg. start load
40	Hornady Jacketed V-Max	6.5	1726	max load
45	Sierra Jacketed SP	5.8	1454	sugg. start load
45	Sierra Jacketed SP	6.5	1541	max load
Lyman Reloading Handbook 49th Edition cases: FN; trim-to length: 1.130"; primers: Remington 7 1/2; primer size: Small Rifle; Lyman shell holder: No. 35; firearm used: FN Five-seveN USG; barrel length: 4.75"; twist: 1-9.1"; groove dia.: .222"

7.62x25mm Tokarev

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Hornady HP-XTP	6.4	876
90	Hornady HP-XTP	6.8	1013
90	Hornady HP-XTP	7.3	1150	maximum load
Using Hornady Bullets Gun: CZ Model 52; barrel length: 4 3/4 inches; case: Starline; primer: Winchester Small Pistol; bullet diameter: .308" and .309" (.309" used throughout test); COAL: 1.320"; maximum COAL: 1.385"; maximum case length: .984"; trim to length: .974". NOTES FROM THE LAB - The 7.62mm Tokarev (aka 7.62x25mm Russian Tokarev) was adopted as the official Soviet military pistol cartridge around 1930 in the Models TT-30 and TT-33 auto-loading pistols. Surplus guns (made in several different countries) eventually began finding their way to the US in the late 1980's. Quality varied significantly; however, both guns and ammunition were inexpensive and many are currently in circulation. The test pistol used here was a CZ Model 52, one of the better quality guns offered in the chambering. Most surplus ammunition is Berdan primed and is usually corrosive. Barrel groove diameter has a rather large variance, with many pistols utilizing .311 to .312 inch bullets. To develop handload data Starline cases were used (available direct at 800-280-6660). These are intended to house .308-inch bullets and will require neck reaming if .311- to .312-inch bullets are used. The Hornady 90-grain HP-XTP currently has a .309-inch diameter, which seated correctly and functioned properly in the CZ 52. Bullets had a tendency to tilt during seating; however, with care they could be straight in the rather short case neck. A crimp was applied as a separate step using a Lee Factory Crimp Die. Some "start" loads did not produce enough pressure to reliably operate the action on the test pistol, but all maximum loads functioned flawlessly.

9mm Luger / 9mm Parabellum (9x19)

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
147	Hornady HPBT-XTP	4.2	753	overall loaded length (inches): 1.100
147	Hornady HPBT-XTP	5.7	1027	overall loaded length (inches): 1.100
147	Speer TMJ-FN	5.0	944	overall loaded length (inches): 1.130
147	Speer TMJ-FN	6.0	1077	overall loaded length (inches): 1.130
147	Speer TMJ-FN	5.0	940	overall loaded length (inches): 1.130
147	Speer TMJ-FN	6.0	1081	overall loaded length (inches): 1.130
(147 GR) Handload Data A 5-inch barreled Kimber Model 1911 Team Match II was used to shoot all loads in Starline cases with Winchester Small Pistol primers. SAAMI minimum cartridge overall length: 1.000 inch; maximum cartridge overall length: 1.169 inches; maximum case length: .754 inch; trim to length: .744 inch.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
115	Hornady HP-XTP	7.7	1326	overall loaded length (inches): 1.075
115	Hornady HP-XTP	8.7	1426	overall loaded length (inches): 1.075
115	Speer Gold Dot HP	7.7	1333	overall loaded length (inches): 1.125
115	Speer Gold Dot HP	8.7	1414	overall loaded length (inches): 1.125
115	Nosler JHP	7.7	1339	overall loaded length (inches): 1.115
115	Nosler JHP	8.2	1395	overall loaded length (inches): 1.115
115	Nosler JHP	8.7	1422	overall loaded length (inches): 1.115
(90 & 115 GR) Handload Data A 5-inch barreled Kimber Model 1911 Team Match II was used to shoot all loads in Starline cases with Winchester Small Pistol primers. SAAMI minimum cartridge overall length: 1.000 inch; maximum cartridge overall length: 1.169 inches; maximum case length: .754 inch; trim to length: .744 inch.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
115	Nosler FMJ	9.0	1,257	OAL (inches): 1.10; case expansion: near max
115	Sierra JHP	8.5	1,224	OAL (inches): 1.08; case expansion: moderate; accurate; good load
115	Hornady JHP	8.8	1,252	OAL (inches): 1.11; case expansion: normal; good load
115	Speer JHP	8.6	1,230	OAL (inches): 1.11; case expansion: normal; good load
124	Hornady FMJ-FP	8.5	1,192	OAL (inches): 1.12; case expansion: maximum
130	Sierra FMJ-RN	8.0	1,107	OAL (inches): 1.12; case expansion: near max; accurate; good load
Jacketed in a Beretta Beretta 92-F, 5 inches.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
100	Speer JHP	9.0	1,250	OAL (inches): 1.075; case expansion: normal
115	Nosler FMJ	9.0	1,267	OAL (inches): 1.10; case expansion: near max; accuracy poor
115	Sierra JHP	8.5	1,254	OAL (inches): 1.08; case expansion: moderate; accurate; good load
115	Hornady JHP	8.8	1,261	OAL (inches): 1.11; case expansion: normal; good load
115	Speer JHP	8.6	1,261	OAL (inches): 1.11; case expansion: normal; good load
124	Hornady FMJ-FP	8.3	1,189	OAL (inches): 1.12; case expansion: near max
130	Sierra FMJ-RN	8.0	1,130	OAL (inches): 1.12; case expansion: near max; accurate; good load
Jacketed in a Ruger Ruger P-85, 4 1/2 inches.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
126	Magma SKU-9-125 roundnose cast (sized .3560)	6.0	895	OAL (inches): 1.11; case expansion: moderate
126	Magma SKU-9-125 roundnose cast (sized .3560)	7.0	1,012	OAL (inches): 1.11; case expansion: normal; third best accuracy with Magma bullets
126	Magma SKU-9-125 roundnose cast (sized .3560)	7.5	1,067	OAL (inches): 1.11; case expansion: near max
125	SAECO SWC Cast (Sized .355 inch)	7.5	1,101	OAL (inches): 1.09; case expansion: near max
130	Ohaus Cast (Sized .3565 inch)	7.0	1,045	OAL (inches): 1.13; case expansion: normal
124	Hornady Swaged (Sized .355 inch)	7.0	997	OAL (inches): 1.13; case expansion: normal
124	Hornady Swaged (Sized .355 inch)	7.5	1,062	OAL (inches): 1.13; case expansion: near max; fine load
125	Alberts Swaged (Sized .3565 inch)	7.2	1,071	OAL (inches): 1.11; case expansion: normal; best accuracy with Alberts bullets
in a Beretta Federal cases and Federal 100 Small Pistol primers used for all loads. Velocities are instrumental at 10 feet from the muzzle, using Oehler Model 31 chronotach and Oehler Model 51 electronic screens with 10-foot spacing. Barrel lengths of test gun: Beretta, 5-inch barrel.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
126	Magma SKU-9-125 roundnose cast (sized .3560)	7.0	1,028	OAL (inches): 1.11; case expansion: normal; third best accuracy with Magma bullets
125	Alberts Swaged (Sized .3565 inch)	7.2	1,098	OAL (inches): 1.11; case expansion: normal; best accuracy with Alberts bullets
in a Ruger Federal cases and Federal 100 Small Pistol primers used for all loads. Velocities are instrumental at 10 feet from the muzzle, using Oehler Model 31 chronotach and Oehler Model 51 electronic screens with 10-foot spacing. Barrel lengths of test gun: Ruger, 4 1/2-inch barrel.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
95	FMJ	8.3	1180	min OAL (inches): 1.055; 22,000 psi
115	FMJ	8.0	1190	min OAL (inches): 1.12; 29,200 psi
125	FMJ	8.2	1170	min OAL (inches): 1.15; 29,900 psi
125	Lead	8.2	1190	min OAL (inches): 1.15; 29,700 psi
147	XTP	6.2	1050	min OAL (inches): 1.14; 30,200 psi
Alliant Reloaders Guide 2004 primer: Win. WSP; barrel length: 4"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
115	Speer GDHP	8.5	1258	OAL: 1.125"
124	Speer GDHP	7.9	1238	OAL: 1.120"
147	Speer GDHP	5.8	1001	OAL: 1.130
Alliant Reloaders Guide 2008 primer: CCI 500; case: Speer; NOTE: All loads are maximum. Reduce by 10% to establish a starting charge weight. Alliant Pistol/Revolver Load Data
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
95	Jacketed	8.3	1180	start load; min OAL: 1.055
95	Jacketed	8.3	1180	never exceed; min OAL: 1.055; 22,000 psi
115	Jacketed	8.0	1190	start load; min OAL: 1.120
115	Jacketed	8.0	1190	never exceed; min OAL: 1.120; 29,200 psi
125	Jacketed	8.2	1170	start load; min OAL: 1.150
125	Jacketed	8.2	1170	never exceed; min OAL: 1.150; 29,900 psi
125	Lead	8.2	1190	start load; min OAL: 1.150
125	Lead	8.2	1190	never exceed; min OAL: 1.150; 29,700 psi
147	XTP	6.2	1050	start load; min OAL: 1.140
147	XTP	6.2	1050	never exceed; min OAL: 1.140; 30,200 psi
Lee Precision Data Small pistol primer. CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
115	Cast #358345	5.8	983	sugg. start load; OAL: .997"; 16,800 cup
115	Cast #358345	8.4	1339	max load; OAL: .997"; 32,300 cup
121	Cast #356402	5.9	973	sugg. start load; OAL: 1.110"; 18,200 cup
121	Cast #356402	8.0	1253	max load; OAL: 1.110; 31,600 cup
Lyman Cast Bullet Handbook 3rd Edition The trim-to length should be adhered to closely. A short case or crimp on the mouth can cause problems with headspace. Most popular cast bullet for this caliber is #356402. Cases: Federal (except where otherwise specified in remarks); trim-to length: .751"; primers: CCI 500 (except where otherwise specified in remarks); primer size: Small Pistol; Lyman shell holder: No. 12; cast bullets used sized to .358" dia.; firearm used: Universal Receiver; barrel length: 4"; twist: 1-10"; groove diameter: .358"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
115	Hornady Jacketed HP	6.8	1207	sugg. start load; 1.090" OAL
115	Hornady Jacketed HP	7.6	1375	max load; compressed powder charge; 1.090" OAL
147	Speer TMJ	5.9	1071	sugg. start load; 1.115" OAL
147	Speer TMJ	6.6	1132	max load; 1.115" OAL
Rifle Data Lyman Reloading Handbook 49th Edition cases: Federal; trim-to length: .751"; primers: CCI 500; primer size: Small Pistol; Lyman shell holder: No. 12; cast bullets used sized to .355" dia.; firearm used: Ruger Carbine, PC9; barrel length: 16 1/4"; twist: 1-10"; groove dia.: .354"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
115	Speer GDHP or TMJ RN	7.7	1161	start charge
115	Speer GDHP or TMJ RN	8.5	1258	maximum charge
124	Speer TMJ RN, UCSP or GDHP	7.1	1121	start charge
124	Speer TMJ RN, UCSP or GDHP	7.9	1238	maximum charge
147	Speer GDHP or TMJ FN	5.1	900	start charge
147	Speer GDHP or TMJ FN	5.8	1001	maximum charge
Speer Reloading Manual #14 max. case length: 0.754"; trim-to length: 0.744"; max cart. OAL: 1.169"; RCBS shell holder: #16; cart. case: Speer; primer: CCI 500; test firearm: S&W M5906; barrel length: 4"; 147-grain bullets not recommended for barrels longer than 10 inches; IMPORTANT SAFETY NOTE: These loads were developed and tested for safe use in HANDGUNS. Not all loads may be suitable for use in a carbine or rifle chambered for this cartridge. If loading for a carbine or rifle, choose from among the loads developing the highest handgun velocities and load just a few rounds. Thoroughly test this small sample in your firearm in slow-fire mode, insuring that you achieve proper feeding and ejection. Be certain that all bullets exit the barrel; watching the target for each bullet strike is the best way to know that the load produces sufficient gas volume for a longer barrel. Use maximum loads with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
124	Hornady HP-XTP	4.8	840
124	Hornady HP-XTP	5.2	904
124	Hornady HP-XTP	5.7	985
124	Hornady HP-XTP	6.1	1069
124	Hornady HP-XTP	6.6	1140	maximum load
Using 124 GR Hornady Bullets Gun: Kimber 1911; barrel length: 5-inch; case: Starline; primer: Winchester Small Pistol; bullet diameter: .355"; COAL: 1.060"; maximum COAL: 1.169"; maximum case length: .754"; trim to length: .749".
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
147	Hornady HP-BT-XTP	4.2	753
147	Hornady HP-BT-XTP	4.5	800
147	Hornady HP-BT-XTP	4.8	858
147	Hornady HP-BT-XTP	5.1	918
147	Hornady HP-BT-XTP	5.4	975
147	Hornady HP-BT-XTP	5.7	1027	maximum load
Using 147 GR Hornady Bullets Gun: Kimber 1911; barrel length: 5-inch; case: Starline; primer: Winchester Small Pistol; bullet diameter: .355"; COAL: 1.100"; maximum COAL: 1.169"; maximum case length: .754"; trim to length: .749".
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
115	Nosler Sporting Handgun Pistol JHP	8.5	1130	max; compressed load
115	Nosler Sporting Handgun Pistol JHP	8.0	1080	compressed load
115	Nosler Sporting Handgun Pistol JHP	7.5	1030	most accurate load tested
Using Nosler Bullets Case: Winchester; primer: Rem 1 1/2; barrel length/make: 4" Douglas; twist: 1-16"; bullets: 115 GR Nosler Sporting Handgun Pistol JHP - OACL: 1.100"; 124 GR Nosler Sporting Handgun Pistol JHP - OACL: 1.120"; maximum OACL: 1.169". Use Maximum Loads with Caution
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
147	Cast #356637	5.1	864	sugg. start load; 26,700 cup; 1.058" OAL
147	Cast #356637	5.9	980	max load; 31,200 cup; 1.058" OAL
Cast Bullet Handgun Data Lyman Reloading Handbook 49th Edition cases: Federal; trim-to length: .751"; primers: CCI 500; primer size; Small Pistol; Lyman shell holder: No. 12; cast bullets used sized to .356" dia.and all #2 Alloy; firearm used: Universal Receiver; barrel length: 4"; groove dia.: .355"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Sierra Jacketed HP	7.0	1072	sugg. start load; 24,800 cup; 1.010" OAL
90	Sierra Jacketed HP	8.9	1341	max load; 31,500 cup; 1.010" OAL
95	Sierra FMJ	6.8	1101	sugg. start load; 22,900 cup; 1.005" OAL
95	Sierra FMJ	8.9	1457	max load; compressed powder charge; 32,300 cup; 1.005" OAL
115	Hornady Jacketed HP/XTP	6.8	1110	sugg. start load; 27,300 cup; 1.090" OAL
115	Hornady Jacketed HP/XTP	7.6	1189	max load; compressed powder charge; 32,300 cup; 1.090" OAL
125	Sierra Jacketed HP	6.3	1049	sugg. start load; 27,400 cup; 1.075" OAL
125	Sierra Jacketed HP	7.1	1163	max load; compressed powder charge; 32,400 cup; 1.075" OAL
147	Speer TMJ	5.3	864	sugg. start load; 19,000 cup; 1.115" OAL
147	Speer TMJ	6.6	1052	max load; 28,600 cup; 1.115" OAL
Handgun Data Lyman Reloading Handbook 49th Edition cases: Federal; trim-to length: .751"; primers: CCI 500; primer size; Small Pistol; Lyman shell holder: No. 12; firearm used: Universal Receiver; barrel length: 4"; groove dia.: .355"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
147	Redding/SAECO 929 semiwadcutter	5.5	945	OAL (inches): 1.16
147	Redding/SAECO 929 semiwadcutter	6.0	1,010	OAL (inches): 1.16
147	Lyman 358212 roundnose	5.5		OAL (inches): 1.17
147	Lyman 358212 roundnose	5.8		OAL (inches): 1.17
153	Redding/SAECO 910 roundnose	5.5	915	OAL (inches): 1.16
153	Redding/SAECO 910 roundnose	6.0	995	OAL (inches): 1.16
157	Lyman 356637 flatnose	5.5		OAL (inches): 1.15
157	Lyman 356637 flatnose	5.8	895	OAL (inches): 1.15; maximum
Cast Bullet Loads Reduce initial charge by 10% before working up. If the overall cartridge length is either increased or decreased, further reduce initial powder charges.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
124	Hornady HP-XTP	4.8	840	overall loaded length (inches): 1.060
124	Hornady HP-XTP	6.1	1069	overall loaded length (inches): 1.060
124	Hornady HP-XTP	8.0	1337	overall loaded length (inches): 1.060
Handload Data A 5-inch barreled Kimber Model 1911 Team Match II was used to shoot all loads in Starline cases with Winchester Small Pistol primers. SAAMI minimum cartridge overall length: 1.000 inch; maximum cartridge overall length: 1.169 inches; maximum case length: .754 inch; trim to length: .744 inch.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Hornady JHP	9.0	1,283	length (inches): 1.045; expansion: normal; accuracy class: C
90	Hornady JHP	9.5	1,337	length (inches): 1.045; expansion: maximum; accuracy class: D; compressed; poor accuracy
115	Hornady JHP	8.8	1,271	length (inches): 1.110; expansion: near max; accuracy class: C
115	Sierra JHC	9.0	1,296	length (inches): 1.070; expansion: maximum; accuracy class: A+; compressed; second most accurate; do not exceed
125	Sierra FMJ	8.0	1,149	length (inches): 1.150; expansion: maximum; accuracy class: B
in a 4-inch Barrel Test gun: S&W Model 39-2; R-P cases; Alcan SP primers.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
115	Sierra JHC	9.0	1,370	length (inches): 1.070; expansion: maximum; accuracy class: A+; compressed; most accurate; do not exceed
125	Speer JSP	8.0	1,208	length (inches): 1.130; expansion: maximum; accuracy class: B; accurate
in a 5-inch Barrel Test gun Walther P-38; R-P cases; Alcan SP primers.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
147	Hornady XTP	5.7	919	primer: CCI 500; group (inches): 1.81
in an S&W Model 952-2 Jacketed Bullets A Smith & Wesson Model 952-2 PC with a 5-inch barrel and open sights was used for testing. Once-fired Federal cases were used throughout. Velocities were taken 12 feet from the muzzle with an Oehler M-35P chronograph. Accuracy is the average of three, five-shot groups at 25 yards from a sandbag rest. Range temperatures were 58 to 74 degrees Fahrenheit.

9x21mm

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Sierra Jacketed HP	8.7	1349	sugg. start load; 24,900 cup; 1.063" OAL
90	Sierra Jacketed HP	10.2	1482	max load; compressed powder charge; 28,600 cup; 1.063" OAL
115	Sierra Jacketed HP	8.0	1180	sugg. start load; 25,100 cup; 1.063" OAL
115	Sierra Jacketed HP	9.3	1333	max load; compressed powder charge; 29,400 cup; 1.063" OAL; potentially most accurate load
124	Hornady FMJ/FP	7.3	1066	sugg. start load; 24,100 cup; 1.090" OAL
124	Hornady FMJ/FP	8.7	1291	max load; 30,400 cup; compressed powder charge; 1.090" OAL
147	Speer TMJ	5.7	642	sugg. start load; 20,000 cup; 1.169" OAL
147	Speer TMJ	7.8	1100	max load; 31,400 cup; 1.169" OAL
120	Cast #356402	7.0	1031	sugg. start load; 23,200 cup; 1.169" OAL
120	Cast #356402	8.4	1279	max load; compressed powder charge; 29,500 cup; 1.169" OAL
147	Cast #356637	5.1	775	sugg. start load; 18,900 cup; 1.119" OAL
147	Cast #356637	7.0	1037	max load; 29,300 cup; 1.119" OAL
Lyman Reloading Handbook 49th Edition cases: Geco; trim-to length: .830"; primers: Winchester WSP; primer size: Small Pistol; Lyman shell holder: No. 12; cast bullets used sized to .355" dia.; firearm used: Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .355"
