IMR SR-7625

SR7625 covers the wide range of shotshells from 10 gauge to 28 gauge in both target and field loadings. This versatile powder is equally useful in a large array of handgun cartridges for target, self-defense and hunting loads.

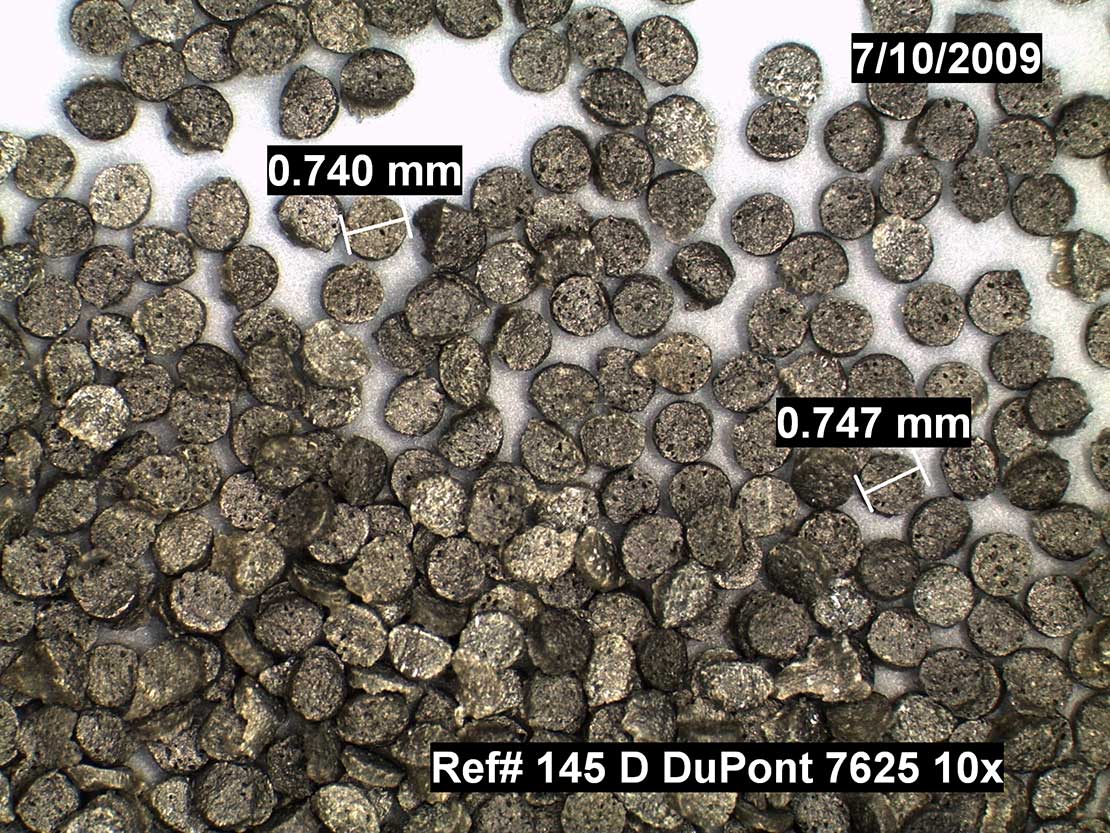

Shape	Color	Perforation	Diameter min	Diameter max	Length/thick. min	Length/thick. max	Manufacturer
disk	Gray	No	0.74 mm	0.75 mm	0.23 mm	0.23 mm	Canada

ADVARSEL!

Ladedata som finnes på hjemmesidene til Evje PK er KUN ment som en veiledning! Ladedata skal alltid verifiseres mot kjente kilder (kruttprodusenter, ladebøker o.l.)

Data funnet på våre hjemmesider brukes på eget ansvar, og Evje Pistolklubb fratar seg alt ansvar for feil bruk av, eller skrivefeil i oppgitte data.

.25 Automatic / .25 ACP

	Wt.	Bullet	Charge	Velocity (FPS)	Remarks
	50	Hornady FMJ	1.2	755	17,900 cup
	IMR Pistol Data case: Remington; barrel length: 2.0"; twist: 1:16"; trim length: .610"; primer: CCI 500; bullet diam.: .251"; COL: .900"; these are all maximum loads; NEVER EXCEED MAXIMUM LOADS

.32 Auto / .32 ACP

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
75	Cast #311252	1.7	675	sugg. start load; .975" OAL
75	Cast #311252	2.3	860	max load; .975" OAL
85	Cast #313249	1.7	675	sugg. start load; .984" OAL
85	Cast #313249	2.2	860	max load; .984" OAL
Lyman Reloading Handbook 49th Edition cases: Remington (except where otherwise specified in remarks); trim-to length: .672"; primers: Remington 1 1/2 (except where otherwise specified in remarks); primer size Small Pistol; Lyman shell holder: No. 23; cast bullets used sized to .309 dia.; firearm used: Mauser HSc and Universal Receiver; barrel length: Mauser; 3", Universal Receiver; 3 1/4"; twist: 1-16"; groove dia.: .309"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
71	Sierra FMJ	2.3	807	accuracy class: A+; case expansion: near max, 4th best accuracy
71	Sierra FMJ	2.4	848	accuracy class: B; case expansion: maximum
100	Rem. Lead	2.1	815	accuracy class: D; case expansion: near max; Leaded bore
in a Mauser 1914 Warning! Test pistol was Mauser Model 1914 with 3 1/2" barrel. CCI 500 small pistol primers used with all loads shown. Those loads shown as giving unreliable function or poor accuracy have been included to show velocities and provide an indication of those areas of loading which should not be attempted. Accuracy class (for five shots at 20 yards): A. 1 1/2 inch or less; B. 1 1/2 to 2 1/4 inches; C. 2 1/4 to 3 inches; D. over 3 inches. Plus-sign added indicates the top of that class.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
91	Lyman 313249	2.2	774	accuracy class: A+; case expansion: normal; Most accurate cast bullet load
in a Mauser 1914 (cast bullets) Warning! Test pistol was a Mauser Model 1914 with 3 1/2" barrel. CCI 500 small pistol primers used with all loads shown. Those loads shown as giving unreliable function or poor accuracy have been included to show velocities and provide an indication of those areas of loading which should not be attempted. Accuracy class (for five shots at 20 yards): A. 1 1/2 inch or less; B. 1 1/2 to 2 1/4 inches; C. 2 1/4 to 3 inches; D. over 3 inches. Plus-sign added indicates the top of that class.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
71	Hornady FMJ	2.3	875	accuracy class: C; case expansion: near max
71	Sierra FMJ	2.3	825	accuracy class: A+; case expansion: near max; 4th best accuracy
in a Walther Warning! Test pistol was a Walther Model "PP" with 3 3/4" barrel. CCI 500 small pistol primers used with all loads shown. Those loads shown as giving unreliable function or poor accuracy have been included to show velocities and provide an indication of those areas of loading which should not be attempted. Accuracy class (for five shots at 20 yards): A. 1 1/2 inch or less; B. 1 1/2 to 2 1/4 inches; C. 2 1/4 to 3 inches; D. over 3 inches. Plus-sign added indicates the top of that class.

.32 H&R Magnum

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
77	Cast LFP	3.4	912	start load; COL: 1.335"; 11,000 cup; bullet diam.: .314"
77	Cast LFP	3.8	1017	max load; COL: 1.335"; 13,900 cup; bullet diam.: .314"
83	Berry's Bullets HBWC	3.4	941	start load; COL: 1.095"; 15,500 cup; bullet diam.: .314"
83	Berry's Bullets HBWC	3.9	1069	max load; COL: 1.095"; 20,200 cup; bullet diam.: .314"
85	Hornady HP	4.0	975	start load; COL: 1.290"; 14,900 cup; bullet diam.: .312"
85	Hornady HP	4.5	1097	max load; COL: 1.290"; 19,400 cup; bullet diam.: .312"
90	Sierra JHP	3.7	880	start load; COL: 1.340"; 12,900 cup; bullet diam.: .312"
90	Sierra JHP	4.2	1060	max load; COL: 1.340"; 20,200 cup; bullet diam.: .312"
90	Hornady LSWC	3.0	836	start load; COL: 1.350"; 10,300 cup; bullet diam.: .314"
90	Hornady LSWC	3.6	949	max load; COL: 1.350"; 15,000 cup; bullet diam.: .314"
100	Speer JHP	3.5	831	start load; COL: 1.345"; 14,600 cup; bullet diam.: .312"
100	Speer JHP	4.0	973	max load; COL: 1.345"; 20,300 cup; bullet diam.: .312"
Hodgdon Pistol Data Case: Federal; twist: 1:16"; primer: Federal 100, Small Pistol; barrel length: 5"; trim length: 1.070".
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
75	Cast #311252	4.3	1076	sugg. start load; 14,700 cup; 1.350" OAL
75	Cast #311252	4.8	1204	max load; 20,400 cup; 1.350" OAL
85	Cast #313249	2.7	709	sugg. start load; 9,700 cup; 1.350" OAL
85	Cast #313249	4.3	1083	max load; 19,800 cup; 1.350" OAL
Lyman Reloading Manual 49th Edition cases: Federal; trim-to length: 1.065"; primers: Federal 100; primer size: Small Pistol; Lyman shell holder: No. 9; cast bullets used sized to .313" dia.; firearm used: Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .312"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Hornady SWC (swaged alloy)	3.6	666	case expansion: moderate
in a 3 Inch Barrel H&R Model 504. Federal cases and Federal 100 primers used in all loads. All loads chronographed 10 feet from the muzzle with an Oehler Model 33 chronotach. Overall cartridge length refers to seating for Ruger; all loads for H&R had 1.33-inch OAL.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Hornady SWC (swaged alloy)	3.6	863	case expansion: moderate; accuracy class (Ruger): A+; 2nd best accuracy with alloy bullet
90	Hornady SWC (swaged alloy)	4.0	974	case expansion: normal; accuracy class (Ruger): B
116	Lyman 3118 (cast alloy)	3.5	851	case expansion: normal; accuracy class (Ruger): B
85	Hornady JHP	4.5	1,093	case expansion: maximum; accuracy class (Ruger): A; accurate; do NOT exceed!
in a 6 1/2 Inch Barrel Ruger Bisley. Federal cases and Federal 100 primers used in all loads. All loads chronographed 10 feet from the muzzle with an Oehler Model 33 chronotach. Overall cartridge length refers to seating for Ruger; all loads for H&R had 1.33-inch OAL. Accuracy rating schedule: A+ = under 1-inch (at 20 yards); A = 1 to 1 1/4 inches; B = 1 1/4 + to 1 1/2 inches; C = 1 1/2 + to 2 inches; D = over 2 inches
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
98	Speer LHBWC	3.0	1,095	CFVentures soft gas checks used
in a Charter Arms Police Undercover
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
98	Speer LHBWC	3.0	1,071	CFVentures soft gas checks used
in a Colt Detective

.32 Smith & Wesson Long / .32 S&W Long

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
91	Lyman 313249	3.2	791	Case: Remington
in a 2-inch barrel Warning! Test gun for 2 inch barrel loads was a S&W Model 30 Hand Ejector. All cartridges (handloaded) in both two and six-inch barrel test guns primed with CCI 500 Small Pistol primers. All handloading performed with Lyman No. 310 tong tool. 91-grain Lyman No. 313249 bullets were sized .3125 inch. 112-grain Lyman 3118 bullets were sized .3130 inch.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
91	Lyman 313249	3.0	865	Case: R-P, Second most accurate load.
91	Lyman 313249	3.2	977	Case: Norma
112	Lyman 3118	2.7	807	Case: Remington, Most accurate load tested.
112	Lyman 3118	3.0	912	Case: R-P, Well balanced load.
in a 6-inch barrel Test gun for all loads was a Colt Officer's Model Heavy Barrel six inch length.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
93	Cast #313226	2.2	553	sugg. start load
93	Cast #313226	3.3	953	max load
115	Cast #3118	1.9	538	sugg. start load
115	Cast #3118	3.0	863	max load
Lyman Cast Bullet Handbook cases: Remington; trim-to length: .915"; primers: Remington 1 1/2; primer size: Small Pistol; Lyman shell holder: No. 9; cast bullets used size to .312" dia.; firearm used: Smith & Wesson Model 31; barrel length: 4"; twist: 1-18 3/4"; groove diameter: .312"; NOTE: More Lyman cast bullet data available under .32 Smith & Wesson Long / .32 S&W Long Lyman Reloading Handbook 49th Edition
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
75	Cast #311252	2.4	583	sugg. start load; 1.115" OAL
75	Cast #311252	3.6	988	max load; 1.115" OAL
85	Cast #313249	3.0	714	sugg. start load; 1.210" OAL
85	Cast #313249	3.6	806	max load; 1.210" OAL
Lyman Reloading Handbook 49th Edition cases: Remington; trim-to length: .910"; primers: Remington 1 1/2; primer size: Small Pistol; Lyman shell holder: No. 9; cast bullets used sized to .312" dia.; firearm used: Smith & Wesson Model 31; barrel length: 4"; twist: 1-18 3/4"; groove dia.: .312"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
77	RCBS 32-77RN	3.0	874	131 energy (ft-lb); group (in): 1.90
84	RCBS 32-84WC	2.2	649	79 energy (ft-lb); group (in): 1.60
84	RCBS 32-84RN	3.0	881	144 energy (ft-lb); group (in): 1.90
115	RCBS 115-FN	2.7	828	175 energy (ft-lb); group (in): 1.09
115	RCBS 115-FN	3.0	944	227 energy (ft-lb); group (in): 1.83
in the Contender (Cast Bullets)
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
100	Speer Plinker	2.7	670	99 :energy (ft-lb); group (in):2.2
100	Speer Plinker	3.0	727	117 :energy (ft-lb); group (in):2.3
in the Contender (Jacketed Bullets)

.32 Smith & Wesson Short / .32 S&W Short

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Lyman 313249	1.7	525	bullet: sized .311 inch; OAL: .940 inch; case expansion: maximum for Class I; accurate
for Class I Guns Principal test gun, S&W Model 31 Regulation Police with 3-inch barrel. Winchester-Western cases used in all loads. CCI 500 Small Pistol primers used in all loads. Oehler Model 35P Chronograph recorded velocities at 8 feet.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Lyman 313249	2.1	657	bullet: sized .311 inch; OAL: .940 inch; case expansion: near maximum
90	Hornady	1.8	659	bullet: .314 inch; OAL: .975 inch; case expansion: normal; best accuracy in 2-inch barrel
100	Lyman 313226	1.7	632	bullet: sized .312 inch; OAL: .950 inch; case expansion: normal; most accurate load and best all-around for Class II
for Class II Guns Principal test gun, S&W Model 31 Regulation Police with 3-inch barrel. Winchester-Western cases used in all loads. CCI 500 Small Pistol primers used in all loads. Oehler Model 35P Chronograph recorded velocities at 8 feet.

.32-20 Winchester / .32 WCF Handgun

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
85	Hornady Jacketed HP/XTP	3.3	703	sugg start load; 1.535" OAL
85	Hornady Jacketed HP/XTP	4.7	987	max load; 1.535" OAL
90	Sierra Jacketed HC	3.7	716	sugg. start load; 1.535" OAL
90	Sierra Jacketed HC	4.5	845	max load; 1.535" OAL
100	Speer Jacketed HP	4.2	591	sugg. start load; 8,600 cup; 1.560" OAL
100	Speer Jacketed HP	4.7	770	max load; 13,700 cup; 1.560" OAL
115	Cast #311008	3.2	642	sugg. start load; 1.530" OAL
115	Cast #311008	4.0	837	max load; 1.530" OAL
Lyman Reloading Handbook 49th Edition cases: Winchester; trim-to length: 1.305"; primers: Winchester WSP; primer size: Small Pistol; Lyman shell holder: No. 10; cast bullets used sized to .313" dia.; firearm used: Ruger Blackhawk and Universal Receiver; barrel length: 6 1/2"; twist: 1-16"; groove dia.: .312"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
100	Remington lead	4.5	752	case: R-P; primer: R 1 1/2; expansion: moderate; accurate
100	Remington lead	5.0	935	case: R-P; primer: R 1 1/2; expansion: near max; poor accuracy
113	Lyman 3118	4.5	820	case: Win.; primer: R 1 1/2; expansion: normal
115	Markell Golden Arrow	4.5	929	case: R-P; primer: F 100; expansion: near max; accurate
Revolver Velocities instrumental at nine feet from muzzle of Smith & Wesson Model 1905 with six-inch barrel.

.327 Federal Magnum

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
77	Cast LFP	5.5	1249	start load; bullet diam.: .314"; COL: 1.460"; 18,500 psi
77	Cast LFP	6.3	1410	max load; bullet diam.: .314"; COL: 1.460"; 25,600 psi
90	Cast LRNFP	4.8	1163	start load; COL: 1.460"; 21,700 psi
90	Cast LRNFP	5.8	1326	max load; COL: 1.460"; 32,500 psi
115	MEI LRNFP	4.7	1105	start load; COL: 1.460"; 30,400 psi
115	MEI LRNFP	5.5	1209	max load; COL: 1.460"; 38,300 psi
Hodgdon Data Case: Federal; barrel length: 5"; twist: 1:16"; trim length: 1.200"; primer: Federal 200; bullet diam.: .312 (except where otherwise specified in remarks). NEVER EXCEED MAXIMUM LOADS

.357 Magnum

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
158	Speer LSWC or LSWC HP	4.8	926	start charge; does not reach maximum pressure
158	Speer LSWC or LSWC HP	5.3	1021	maximum charge; does not reach maximum pressure
Speer Reloading Manual #14 max. case length: 1.290"; trim-to length: 1.280"; max cart. OAL: 1.590"; RCBS shell holder: #6; cart. case: Speer; primer: CCI 500 (except where otherwise specified in remarks); test firearm: S&W model 19; barrel length: 6"; NOTE: Do not use the 110-grain Gold Dot SB HP (#4009) in the 357 Magnum; maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
110	Jacketed	7.9	1230	start load; min OAL: 1.590
110	Jacketed	7.9	1230	never exceed; min OAL: 1.590; 35,600 cup
125	Jacketed	7.4	1100	start load; min OAL: 1.580
125	Jacketed	7.4	1100	never exceed; min OAL: 1.580; 35,800 cup
140	Jacketed	7.0	955	start load; min OAL: 1.590
140	Jacketed	7.0	955	never exceed; min OAL: 1.590; 36,000 cup
146	Jacketed	6.2	945	start load; min OAL: 1.500
146	Jacketed	6.2	945	never exceed; min OAL: 1.500; 35,600 cup
148	Wadcutter	6.0	1030	start load; min OAL: 1.420
148	Wadcutter	6.0	1030	never exceed; min OAL: 1.420; 35,600 cup
150	Jacketed	5.5	809	start load; min OAL: 1.590
150	Jacketed	6.4	925	never exceed; min OAL: 1.590; 35,800 cup
158	Jacketed	6.2	855	start load; min OAL: 1.580
158	Jacketed	6.2	855	never exceed; min OAL: 1.580; 35,700 cup
158	Lead	6.5	1020	start load; min OAL: 1.580
158	Lead	6.5	1020	never exceed; min OAL: 1.580; 35,800 cup
170	Jacketed	5.6	815	start load; min OAL: 1.580
170	Jacketed	5.6	815	never exceed; min OAL: 1.580; 35,600 cup
200	Lead	5.1	795	start load; min OAL: 1.580
200	Lead	5.1	795	never exceed; min OAL: 1.580; 35,700 cup
Lee Precision Data Small Pistol Primer. With NEVER EXCEED LOADS maintain Minimum Over All Length or longer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
92	Cast #358242	7.5	1262	sugg. start load; 20,700 cup
92	Cast #358242	9.8	1613	max load; 40,900 cup
115	Cast #358345	5.4	1036	sugg. start load; 17,600 cup
115	Cast #358345	8.3	1446	max load; 41,900 cup; potentially most accurate load
121	Cast #358242	5.5	974	sugg. start load; 17,500 cup
121	Cast #358242	8.0	1335	max load; 41,100 cup
121	Cast #356402	7.0	1205	sugg. start load; 23,000 cup
121	Cast #356402	8.8	1429	max load; 41,600 cup; potentially most accurate load
Lyman Cast Bullet Handbook cases: Federal; trim-to length: 1.285"; primers: CCI 550; primer size: Small Pistol Magnum; Lyman shell holder: No. 1; cast bullets used size to .357" dia.; firearm used: Universal Receiver and Special Vented Barrel; barrel length: 4"; twist: 1-18 3/4"; groove diameter: .356"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Cast #356242	7.5	1262	sugg. start load; 1.585" OAL; 20,700 cup
90	Cast #356242	9.8	1613	max load; 1.585" OAL; 40,900 cup
120	Cast #356242	5.5	974	sugg. start load; 1.585" OAL; 17,500 cup
120	Cast #356242	8.0	1335	max load; 1.585" OAL; 41,100 cup
120	Cast #356402	7.0	1205	sugg. start load; 1.590" OAL; 23,000 cup
120	Cast #356402	8.8	1429	max load; 1.590" OAL; 41,600 cup
Cast Bullet Data (Lyman Reloading Manual 49th Edition) cases: Federal; trim-to length: 1.280"; primers: CCI 550"; primer size: Small Pistol, Magnum; Lyman shell holder: No. 1; cast bullets used sized to .357" dia.; firearm used: Universal Receiver; barrel length: 4"; twist: 1-18 3/4"; groove dia.: .356"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
110	Hornady XTP	6.0	1272	start load; COL: 1.590"; 18,800 psi
110	Hornady XTP	8.2	1544	max load; COL: 1.590"; 33,600 psi
125	Hornady XTP	5.8	1178	start load; COL: 1.590"; 19,900 psi
125	Hornady XTP	7.5	1401	max load; COL: 1.590"; 33,800 psi
125	MEI Cast LRNFP	5.0	1110	start load; bullet diam.: .358"; COL: 1.580"; 15,000 psi
125	MEI Cast LRNFP	6.5	1339	max load; bullet diam.: .358"; COL: 1.580"; 24,000 psi
130	MEI Cast LRNFP	4.8	1075	start load; bullet diam.: .358"; COL: 1.580"; 14,000 psi
130	MEI Cast LRNFP	6.3	1301	max load; bullet diam.: .358"; COL: 1.580"; 25,300 psi
140	Hornady XTP	5.5	1079	start load; COL: 1.590"; 21,700 psi
140	Hornady XTP	6.7	1249	max load; COL: 1.590"; 31,300 psi
146	Speer JHP	4.0	841	start load; COL: 1.535"; 14,400 psi
146	Speer JHP	6.0	1183	max load; COL: 1.535"; 30,000 psi
148	Hornady LHBWC	3.5	868	start load; bullet diam.: .358"; COL: 1.290"; 14,800 psi
148	Hornady LHBWC	4.1	976	max load; bullet diam.: .358"; COL: 1.290"; 20,400 psi
158	Hornady XTP	4.3	812	start load; COL: 1.580"; 16,700 psi
158	Hornady XTP	5.8	1075	max load; COL: 1.580"; 29,600 psi
158	MEI Cast LSWC	4.5	965	start load; COL: 1.620"; 15,400 psi
158	MEI Cast LSWC	6.1	1186	max load; COL: 1.620"; 28,400 psi
170	Sierra JHC	4.5	808	start load; COL: 1.580"; 19,400 psi
170	Sierra JHC	5.6	1027	max load; COL: 1.580"; 31,500 psi
180	Nosler Part	4.1	611	start load; COL: 1.575"; 22,300 psi
180	Nosler Part	5.1	838	max load; COL: 1.575"; 33,200 psi
Hodgdon Data Case: Winchester; barrel length: 10"; twist: 1:18.75"; trim length: 1.285"; primer: Winchester SPM; bullet diam.: .357" (except where otherwise specified in remarks). NEVER EXCEED MAXIMUM LOADS

.357 SIG

	Wt.	Bullet	Charge	Velocity (FPS)	Remarks
	125	Speer GD-HP	7.9	1304	COL: 1.135"; 37,100 psi
	IMR Pistol Data Maximum Loads case: Remington; barrel length: 5"; twist: 1:16"; trim length: .860"; primer: Remington 1 1/2; bullet diam.: .355"; NEVER EXCEED MAXIMUM LOADS

.38 Automatic / .38 Auto / .38 ACP

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
115	Jacketed	4.2	892	start load; min OAL: 1.265
115	Jacketed	4.5	955	never exceed; min OAL: 1.265; 21,800 cup
Lee Precision Data CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Pistol primer.

.38 S&W / .38 Smith & Wesson

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
110	Speer GDHP SB	3.5	826	start charge
110	Speer GDHP SB	3.8	909	maximum charge
125	Speer UCSP or USHP	3.2	748	start charge
125	Speer UCSP or USHP	3.5	826	maximum charge
158	Speer LSWC, LSWC HP or LRN	2.6	683	start charge
158	Speer LSWC, LSWC HP or LRN	2.9	752	maximum charge
Speer Reloading Manual #14 max. case length: 0.775"; trim-to length: 0.765"; max cart. OAL: 1.240"; RCBS shell holder: #6; cart. case: Winchester; primer: CCI 500; test firearm: S&W Model 33; barrel length: 4"; maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
121	Cast #358242	2.7	580	sugg. start load
121	Cast #358242	3.5	830	max load
133	Cast #358480	2.7	675	sugg. start load
133	Cast #358480	3.3	850	max load
141	Cast #358495	1.9	535	sugg. start load
141	Cast #358495	2.5	725	max load
158	Cast #358311	2.4	660	sugg. start load
158	Cast #358311	2.9	770	max load
Lyman Cast Bullet Handbook cases: Winchester; trim-to length: .765"; primers: Winchester 1 1/2-108; primer size: Small Pistol; Lyman shell holder: No. 21; cast bullets used size to .360" dia.; firearm used: Special Pressure test barrel; Smith & Wesson Model 33; barrel length: 4"; twist: 1-18 3/4"; groove diameter: .361"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
150	Cast #358477	2.5	634	sugg. start load; OAL: 1.070"; 8,700 cup
150	Cast #358477	2.8	713	max load; OAL: 1.070"; 12,800 cup
160	Cast #358311	2.4	622	sugg. start load; OAL: 1.150"; 8,500 cup
160	Cast #358311	2.7	704	max load; OAL: 1.150"; 12,400 cup
195	Cast #358430	1.9	493	sugg. start load; OAL: 1.175"; 8,800 cup
195	Cast #358430	2.2	542	max load; OAL: 1.175"; 10,500 cup
Cast Bullet Data Lyman Reloading Handbook 49th Edition cases: Remington; trim-to length: .765"; primers: CCI 500; primer size: Small Pistol; Lyman shell holder: No. 21; cast bullets used sized to .359" dia.; firearm used: Universal Receiver; barrel length: 5 1/2"; twist: 1-14"; groove dia.: .358"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
150	Magma 38-158 RNFP	2.6	722	group: 2 1/4 inches
Colt Police Positive Test gun was a Colt Police Positive with a 4-inch barrel. These loads duplicate the standard factory load with a 150-grain bullet at 695 fps.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
148.5	Rapine 358150	2.7	748	group: 3 inches
Smith & Wesson Model 33 Test gun was an S&W Model 33 with a 4-inch barrel. These loads duplicate the standard factory load with a 148-grain bullet at 745 fps.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Lyman 358430	2.3	641	group: 3 inches
Victory Model Test gun was an S&W Victory Model with a 5-inch barrel. These loads duplicate the 200-grain Super Police or .380 Revolver Mk I loads with a 200-grain bullet at 650 fps from a 5-inch barrel and 630 fps from a 4-inch barrel.

.38 Special

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
120	Cast #356242 (Linotype)	4.0	788	sugg. start load; 1.450" OAL; 10,600 cup
120	Cast #356242 (Linotype)	5.0	988	max load; 1.450" OAL; 16,200 cup
170	Cast #358429 (Linotype)	3.4	621	sugg. start load; 1.537" OAL; 9,700 cup
170	Cast #358429 (Linotype)	4.6	821	max load; 1.537" OAL; 16,300 cup
Cast Bullet Data Lyman Reloading Handbook 49th Edition cases: Federal; trim-to length: 1.149"; primers: CCI 500; primer size: Small Pistol; Lyman shell holder: No. 1; cast bullets used sized to .358" dia.; firearm used: Universal Receiver; barrel length: 4"; twist: 1-18 3/4"; groove dia.: .357"; (+P) designates higher pressure loads
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
110	Hornady XTP	4.9	929	start load; bullet diam.: .357"; COL: 1.455"; 13,400 psi
110	Hornady XTP	5.5	1092	max load; bullet diam.: .357"; COL: 1.455"; 16,500 psi
125	Hornady XTP	4.5	875	start load; bullet diam.: .357"; COL: 1.455"; 13,800 psi
125	Hornady XTP	5.1	999	max load; bullet diam.: .357"; COL: 1.455"; 16,300 psi
125	Cast LRNFP	4.6	966	start load; bullet diam.: .358"; COL: 1.445"; 13,700 psi
125	Cast LRNFP	5.2	1075	max load; bullet diam.: .358"; COL: 1.445"; 16,700 psi
130	MEI Cast LRNFP	4.6	925	start load; bullet diam.: .358"; COL: 1.460"; 13,700 psi
130	MEI Cast LRNFP	5.2	1055	max load; bullet diam.: .358"; COL: 1.460"; 16,800 psi
140	Hornady XTP	4.2	751	start load; bullet diam.: .357"; COL: 1.455"; 13,500 psi
140	Hornady XTP	4.7	872	max load; bullet diam.: .357"; COL: 1.455"; 16,100 psi
140	Hornady Cowboy	4.5	877	start load; bullet diam.: .358"; COL: 1.450"; 12,600 psi
140	Hornady Cowboy	5.1	985	max load; bullet diam.: .358"; COL: 1.450"; 15,200 psi
146	Speer JHP	3.7	640	start load; bullet diam.: .357"; COL: 1.370"; 11,700 psi
146	Speer JHP	4.2	810	max load; bullet diam.: .357"; COL: 1.370"; 16,400 psi
148	Hornady LHBWC	2.5	650	start load; bullet diam.: .358"; COL: 1.160"; 8,700 psi
148	Hornady LHBWC	3.0	767	max load; bullet diam.: .358"; COL: 1.160"; 13,600 psi
158	Hornady XTP	4.0	692	start load; bullet diam.: .357"; COL: 1.455"; 12,100 psi
158	Hornady XTP	4.5	825	max load; bullet diam.: .357"; COL: 1.455"; 16,300 psi
158	MEI Cast LSWC	3.7	790	start load; bullet diam.: .358"; COL: 1.475"; 12,500 psi
158	MEI Cast LSWC	4.2	894	max load; bullet diam.: .358"; COL: 1.475"; 16,100 psi
170	Sierra JHC	4.0	654	start load; bullet diam.: .357"; COL: 1.450"; 12,900 psi
170	Sierra JHC	4.4	766	max load; bullet diam.: .357"; COL: 1.450"; 16,100 psi
Hodgdon Pistol Data Case: Winchester; twist: 1:18.75"; primer: Winchester SP, Small Pistol; barrel length: 7.7"; trim length: 1.145".
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
121	Cast #358242	4.0	788	sugg. start load; 10,600 cup
121	Cast #358242	5.0	988	max load; 16,200 cup
121	Cast #356402	4.0	725	sugg. start load; 8,500 cup
121	Cast #356402	5.3	1003	max load; 16,400 cup
141	Cast #358495	3.1	683	sugg. start load; 9,100 cup
141	Cast #358495	4.3	905	max load; 15,600 cup
146	Cast #358212	3.5	594	sugg. start load; 6,900 cup
146	Cast #358212	5.0	899	max load; 16,100 cup
148	Cast #35863	2.8	674	sugg. start load; 8,700 cup
148	Cast #35863	4.0	928	max load; 15,800 cup
148	Cast #35891	2.8	517	sugg. start load; 5,800 cup
148	Cast #35891	4.7	958	max load; 16,500 cup
168	Cast #358429	3.4	621	sugg. start load; 9,700 cup
168	Cast #358429	4.6	821	max load; 16,300 cup
Lyman Cast Bullet Handbook 3rd Edition cases: Federal; trim-to length: 1.149"; primers: CCI 500; primer size: Small Pistol; Lyman shell holder: No. 1; cast bullets used size to .357" dia.; firearm used: Universal Receiver and Special Vented Barrel; barrel length: 4"; twist: 1-18 3/4"; groove diameter: .357". NOTE: More Lyman cast bullet data available under .38 Special (Cast Bullet Data Lyman Reloading Manual 49th Edition) and .38 Special (Lyman Cast Bullet Handbook 4th Edition). NOTE: Loads designated with the symbol (+P) are higher pressure loads to give greater velocities. These loads should be used only in arms recommended for (+P) type cartridges by the gun manufacturer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
140	Speer Jacketed HP	4.2	505	sugg. start load; 1.470" OAL; 10,800 cup
140	Speer Jacketed HP	5.1	715	max load; 1.470" OAL; 16,100 cup
Lyman Reloading Handbook 49th Edition Warning! cases: Federal; trim-to length: 1.149"; primers: CCI 500; primer size: Small Pistol; Lyman shell holder: No. 1; firearm used: Universal Receiver; barrel length: 4"; twist: 1-18 3/4"; groove dia.: .357"; (+P) designates higher pressure loads
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
148	BB-WC	4.3	931	maximum load
148	BB-WC	3.7	813
Speer Reloading Manual #13 max. case length: 1.155"; trim-to length: 1.145"; max. cart. length: 1.550"; RCBS shellholder: #6; barrel length: 6"; twist: 1-18.75"; test firearm: Smith & Wesson Model 14; case: Speer; primers: CCI 500, 550; for the 147 grain cast bullets: seat to and roll-crimp into the front lube groove; use maximum loads with caution
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
110	Hornady XTP	5.8	1142	18,200 psi
125	Hornady XTP	5.2	1043	18,500 psi
140	Hornady XTP	4.8	935	18,300 psi
146	Speer JHP	4.5	871	COL: 1.370"; 17,600 psi
150	Nosler JFP	4.9	904	COL: 1.450"; 17,900 psi
158	Hornady XTP	4.7	881	17,800 psi
170	Sierra JHC	4.6	802	COL: 1.450"; 17,100 psi
+P (Hodgdon Pistol Data Maximum Loads) case: Winchester; barrel length: 7.7"; twist: 1:18.75"; trim length: 1.145"; primer: Winchester SP; bullet diam.: .357"; COL: 1.455" (except where otherwise specified in remarks); NEVER EXCEED MAXIMUM LOADS
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
110	Hornady XTP	5.8	1142	18,200 psi
125	Hornady XTP	5.2	1043	18,500 psi
140	Hornady XTP	4.8	935	18,300 psi
146	Speer JHP	4.5	871	COL: 1.370"; 17,600 psi
150	Nosler JFP	4.9	904	COL: 1.450"; 17,900 psi
158	Hornady XTP	4.7	881	17,800 psi
170	Sierra JHC	4.6	802	COL: 1.450"; 17,100 psi
+P (Hodgdon Pistol Data Maximum Loads) case: Winchester; barrel length: 7.7"; twist: 1:18.75"; trim length: 1.145"; primer: Winchester SP; bullet diam.: .357"; COL: 1.455" (except where otherwise specified in remarks); NEVER EXCEED MAXIMUM LOADS
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
95	Jacketed	5.3	1015	start load; min. OAL: 1.470
95	Jacketed	5.6	1065	NEVER EXCEED; 15,700 cup; min. OAL: 1.470
110	Jacketed	5.3	1030	start load; min. OAL: 1.460
110	Jacketed	5.5	1060	NEVER EXCEED; 15,400 cup; min. OAL: 1.460
125	Jacketed	5.0	882	start load; min. OAL: 1.525
125	Jacketed	5.3	935	NEVER EXCEED; 15,900 cup; min. OAL: 1.525
140	Jacketed	4.4	745	start load; min. OAL: 1.455
140	Jacketed	4.6	780	NEVER EXCEED; 15,800 cup; min. OAL: 1.455
146	Jacketed	4.0	712	start load; min. OAL: 1.395
146	Jacketed	4.2	740	NEVER EXCEED; 15,600 cup; min. OAL: 1.395
148	Wad Cutter	3.2	696	start load; min. OAL: 1.295
148	Wad Cutter	4.2	875	NEVER EXCEED; 16,000 cup; min. OAL: 1.295
150	Jacketed	4.1	735	start load; min. OAL: 1.445
150	Jacketed	4.3	770	NEVER EXCEED; 15,700 cup; min. OAL: 1.445
158	Jacketed	4.1	630	start load; min. OAL: 1.465
158	Jacketed	4.3	660	NEVER EXCEED; 15,700 cup; min. OAL: 1.465
158	Lead	3.7	691	start load; min. OAL: 1.520
158	Lead	4.3	790	NEVER EXCEED; 15,200 cup; min. OAL: 1.520
200	Lead	3.3	720	start load; min. OAL: 1.500
200	Lead	3.5	755	NEVER EXCEED; 15,800 cup; min. OAL: 1.500
Lee Precision Data With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Pistol Primer.

.38 Special Wadcutter

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
148	Speer HB	3.0	588	Best group: 1.37
5-Inch Barrel Colt National Match Mk. III Auto. Precision, Speer H.B. and Hornady wadcutters were all of hollow-base design, while the Speer Standard and RCBS-Mould cast bullets were solid flat-base type.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
148	Precision	3.0	575	Best group: .75
148	Speer HB	3.0	537	Best group 1.50
6-Inch Barrel Colt 357 Revolver. Precision, Speer H.B. and Hornady wadcutters were all of hollow-base design, while the Speer Standard and RCBS-Mould cast bullets were solid flat-base type.

.38 Super

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
115	Hornady XTP	4.5	955	max load; COL: 1.245"; 21,800 cup
Hodgdon Data Case: Remington; twist: 1:16"; primer: Remington 1 1/2, Small Pistol; barrel length: 5"; trim length: .895"; bullet diam.: .355" (except where otherwise specified in remarks).
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
115	Hornady HP	4.5	955	21,800 cup
IMR Pistol Data Maximum Loads case: Remington; barrel length: 5"; twist: 1:16"; trim length: .895"; primer: CCI 500; bullet diam.: .355"; COL: 1.265"; NEVER EXCEED MAXIMUM LOADS
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
95	Cast #356404	5.4	1197	sugg. start load; 20,000 cup
95	Cast #356404	6.7	1429	max load; 31,100 cup
Lyman Cast Bullet Handbook cases: Remington; trim-to length: .895"; primers: Winchester 1 1/2-108; primer size: Small Pistol; Lyman shell holder: No. 12; cast bullets used size to .355" dia.; firearm used: Universal Receiver; barrel length: 5"; twist: 1-16"; groove diameter: .355". NOTE: More Lyman cast bullet data available under .38 Super Automatic Cast Bullet Handgun Data Lyman Reloading Handbook 49th Edition
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
120	Cast #356242	4.2	978	sugg. start load; 18,100 cup; 1.160" OAL
120	Cast #356242	5.8	1230	max load; 29,300 cup; 1.160" OAL
120	Cast #356402	5.1	1099	sugg. start load; 20,600 cup; 1.230" OAL
120	Cast #356402	6.6	1274	max load; 29,900 cup; 1.230" OAL
Cast Bullet Handgun Data Lyman Reloading Handbook 49th Edition cases: Remington; trim-to length: .895"; primers: Winchester WSP; primer size: Small Pistol; Lyman shell holder: No. 12; cast bullets used sized to .355" dia.; firearm used: Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .355"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Sierra Jacketed HP	6.0	1203	sugg. start load; 21,200 cup; 1.125" OAL
90	Sierra Jacketed HP	7.8	1515	max load; 30,600 cup; 1.125" OAL
115	Hornady Jacketed HP	5.3	1042	sugg. start load; 19,200 cup; 1.265" OAL
115	Hornady Jacketed HP	6.6	1195	max load; 31,900 cup; 1.265" OAL
Lyman Reloading Handbook 49th Edition cases: Remington; trim-to length: .895"; primers: CCI 500; primer size: Small Pistol; Lyman shell holder: No. 12; firearm used: Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .355"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
115	Sierra JHC	6.0	1,167	case: W-W; length (in.): 1.24; expansion: maximum
in a 5-inch Barrel Test gun Colt .38 Super Automatic with five-inch Colt barrel; Winchester 108 Small Pistol primers; velocities chronographed ten feet from muzzle.

.38-40 Winchester / .38-40 WCF

Wt.	Bullet	Charge	Velocity (FPS)
180	MG 180	10.0
175	Lyman 401043	10.0	1,258
Colt Peacemaker Loads All loads fired in Winchester .38 WCF brass with CCI 300 primers except where otherwise noted in remarks. SC = 3.5 inches or more. (Loading the Peacemaker - Dave Scovill)

.380 Auto / .380 ACP (9mm Kurz)

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Sierra Jacketed HC	2.2	583	sugg start load; 8,100 cup; .925" OAL
90	Sierra Jacketed HC	3.1	941	max load; 15,200 cup; .925" OAL
95	Sierra FMJ	2.9	769	sugg start load; 11,300 cup; .900" OAL
95	Sierra FMJ	3.3	899	max load; 15,400 cup; .900" OAL
115	Hornady Jacketed HP/XTP	2.2	667	sugg start load; 8,700 cup; .956" OAL
115	Hornady Jacketed HP/XTP	3.1	928	max load; 15,800 cup; .956" OAL
Lyman Reloading Handbook 49th Edition cases: Federal; trim-to length: .677"; primers: Federal 100 and Winchester WSP; primer size: small pistol; Lyman shell holder: No. 26; firearm used: Universal Receiver; barrel length: 3 3/4"; twist: 1-16"; groove dia.: .355"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Hornady HP	3.2	880	COL: .970"; 14,700 cup
100	Hornady FMJ	3.0	855	COL: .980"; 15,500 cup
IMR Pistol Data Maximum Loads case: Remington; barrel length: 3.75"; twist: 1:16"; trim length: .675"; primer: CCI 500; bullet diam.: .355"; NEVER EXCEED MAXIMUM LOADS
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
115	Nosler Sporting Handgun Jacketed Hollow Point	3.1	832	maximum load; compressed load
115	Nosler Sporting Handgun Jacketed Hollow Point	2.6	747
115	Nosler Sporting Handgun Jacketed Hollow Point	2.1	662	most accurate load tested
Using Nosler Bullets Case: Remington; primer: WSP; barrel length/make: 2 1/4" Colt Mk. IV; twist: 1-16"; bullets: 115 GR Sporting Handgun Pistol JHP; OACL: .975"; maximum OACL: .984". Use Maximum Loads with Caution
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Jacketed	3.2	880	start load; min OAL: 0.970
90	Jacketed	3.2	880	never exceed; min OAL: 0.970; 14,700 cup
100	Jacketed	2.9	831	start load; min OAL: 0.980
100	Jacketed	3.0	855	never exceed; min OAL: 0.980; 15,500 cup
Lee Precision Data CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Pistol Primer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Sierra JHC	4.1	1,072	most potent in Back Up; best overall load
in a 2 1/2-inch barrel All handloads utilize Federal brass and CCI 500 primers.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Sierra JHC	4.1	1,112	most potent in Back Up; best overall load
in a 3.3-inch barrel All handloads utilize Federal brass and CCI 500 primers.

.40 Smith & Wesson / .40 S&W

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
180	Speer GDHP SB, TMJ FN or GDHP	5.4	884	start charge
180	Speer GDHP SB, TMJ FN or GDHP	6.0	981	maximum charge
Speer Reloading Manual #14 max. case length: 0.850"; trim-to length: 0.840"; max cart. OAL: 1.135"; RCBS shell holder: #27; cart. case: Speer; primer: CCI 500; test firearm: Smith & Wesson M4006; barrel length: 4"; IMPORTANT SAFETY NOTE: These loads were developed and tested for safe use in HANDGUNS. Not all loads may be suitable for use in a carbine or rifle chambered for this cartridge. If loading for a carbine or rifle, choose from among the loads developing the highest handgun velocities and load just a few rounds. Thoroughly test this small sample in your firearm in slow-fire mode, insuring that you achieve proper feeding and ejection. Be certain that all bullets exit the barrel; watching the target for each bullet strike is the best way to know that the load produces sufficient gas volume for a longer barrel. Use maximum loads with CAUTION.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
135	Nosler JHP	7.1	1173	start load; COL: 1.125"; 26,500 psi
135	Nosler JHP	7.8	1273	max load; COL: 1.125"; 32,000 psi
140	Barnes TAC-XP	4.6	912	start load; COL: 1.135"; 28,900 psi
140	Barnes TAC-XP	5.0	972	max load; COL: 1.135"; 32,700 psi
150	Nosler JHP	6.1	1083	start load; COL: 1.125"; 26,800 psi
150	Nosler JHP	6.5	1159	max load; COL: 1.125"; 31,700 psi
155	Hornady XTP	6.4	1087	start load; COL: 1.125"; 26,800 psi
155	Hornady XTP	7.0	1153	max load; COL: 1.125"; 30,800 psi
155	Berry's Bullets FP	6.3	1082	start load; COL: 1.125"; 27,300 psi
155	Berry's Bullets FP	7.0	1183	max load; COL: 1.125"; 33,000 psi
165	Sierra JHP	5.9	1020	start load; COL: 1.125"; 27,400 psi
165	Sierra JHP	6.5	1097	max load; COL: 1.125"; 32,100 psi
165	Berry's Bullets FP	5.8	1010	start load; COL: 1.125"; 27,200 psi
165	Berry's Bullets FP	6.4	1103	max load; COL: 1.125"; 33,000 psi
180	Berry's Bullets FP	5.2	937	start load; COL: 1.125"; 26,900 psi
180	Berry's Bullets FP	5.8	1018	max load; COL: 1.125"; 33,000 psi
180	Hornady XTP	5.2	935	start load; COL: 1.125"; 27,900 psi
180	Hornady XTP	5.7	999	max load; COL: 1.125"; 31,700 psi
200	Hornady XTP	4.2	787	start load; COL: 1.125"; 27,700 psi
200	Hornady XTP	4.8	872	max load; COL: 1.125"; 32,800 psi
Hodgdon Data Case: Hornady; twist: 1:16"; primer: Winchester SP, Small Pistol; barrel length: 4"; trim length: .845"; bullet diam.: .400". This data is intended for use in firearms with barrels which fully support the cartridge in the chamber. Use of this data in firearms which do not fully support the cartridge, such as Glock, may result in bulged cases, ruptured cases, case head separation, or other conditions which may result in damage to the firearm and/or result in injury or death of the shooter and/or bystanders.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
135	Jacketed	7.8	1250	start load; compressed charge; min. OAL: 1.125
135	Jacketed	7.8	1250	NEVER EXCEED; min. OAL: 1.125; 30,200 psi
Lee Precision 135 GR Data Do not use reloads in Glock or similar guns with chambers that do not fully support the cartridge due to the intrusion of the feed ramp. CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Pistol Primer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
150	Jacketed	6.8	1110	start load; compressed charge; min. OAL: 1.125
150	Jacketed	7.2	1165	NEVER EXCEED; compressed charge; min. OAL: 1.125; 32,500 psi
Lee Precision 150 GR Data Do not use reloads in Glock or similar guns with chambers that do not fully support the cartridge due to the intrusion of the feed ramp. CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Pistol Primer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
180	Jacketed Bullet	5.3	918	start load; min. OAL: 1.125
180	Jacketed Bullet	5.7	990	NEVER EXCEED; min. OAL: 1.125; 33,300 psi
Lee Precision 180 GR Data Do not use reloads in Glock or similar guns with chambers that do not fully support the cartridge due to the intrusion of the feed ramp. CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Pistol Primer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
180	Speer Gold Dot TMJ or GD-HP	6.0	981	maximum load
180	Speer Gold Dot TMJ or GD-HP	5.4	884
Speer Reloading Manual #13 max. case length: 0.850"; trim-to length: 0.840"; max. cart. length: 1.135"; RCBS shellholder: #27; barrel length: 4"; twist: 1-16"; test firearm: Smith & Wesson Model 4006; case: Speer; primers: CCI 500; bullet diam.: .400"; use maximum loads with caution; SAFETY NOTICE Some pistols chambered for the 40 S&W cartridge may not provide complete support of the case head. If this condition exists, normal pressure loads such as those shown here can cause the case wall to bulge or rupture at the unsupported point. Contact your firearm manufacturer to determine if your pistol completely supports the case head, or ask a gunsmith to inspect your pistol before using it with ANY ammunition. It is the gun owner's responsibility to know his firearm and its capabilities and limitations.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
135	Sierra JHP	6.4	1078
135	Sierra JHP	6.7	1113
135	Sierra JHP	7.0	1154
135	Sierra JHP	7.3	1195
135	Sierra JHP	7.6	1234
135	Sierra JHP	7.9	1273
135	Sierra JHP	8.2	1314
135	Sierra JHP	8.5	1355
135	Sierra JHP	8.8	1392	maximum load
150	Sierra JHP	5.7	1001
150	Sierra JHP	6.0	1034
150	Sierra JHP	6.3	1073
150	Sierra JHP	6.6	1112
150	Sierra JHP	7.0	1149
150	Sierra JHP	7.3	1188
150	Sierra JHP	7.6	1227
150	Sierra JHP	7.9	1263	maximum load
165	Sierra JHP	5.4	941
165	Sierra JHP	5.7	977
165	Sierra JHP	6.0	1019
165	Sierra JHP	6.4	1061
165	Sierra JHP	6.7	1103
165	Sierra JHP	7.0	1145
165	Sierra JHP	7.3	1182	maximum load
180	Sierra JHP	4.8	880
180	Sierra JHP	5.2	918
180	Sierra JHP	5.5	962
180	Sierra JHP	5.9	1006
180	Sierra JHP	6.2	1050
180	Sierra JHP	6.6	1089	maximum load
Using Sierra Bullets Notes: Gun: Glock Model 22; barrel length: 4.35"; case: Starline; primer: Winchester Small Pistol; bullet diameter: .400"; 135 GR Sierra JHP COAL: 1.125"; 150 GR Sierra JHP COAL: 1.125"; 165 GR Sierra JHP COAL: 1.125"; 180 GR Sierra JHP COAL: 1.125"; maximum COAL: 1.135"; maximum case length: .850"; trim to length: .845".
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
135	Nosler JHP	6.0	1023	overall loaded length (inches): 1.125
135	Nosler JHP	6.5	1085	overall loaded length (inches): 1.125
135	Nosler JHP	7.0	1141	overall loaded length (inches): 1.125
135	Nosler JHP	7.5	1223	overall loaded length (inches): 1.125
135	Nosler JHP	8.0	1289	overall loaded length (inches): 1.125
135	Nosler JHP	8.5	1351	overall loaded length (inches): 1.125
135	Nosler JHP	8.8	1385	overall loaded length (inches): 1.125
150	Sierra JHP	5.5	982	overall loaded length (inches): 1.125
150	Sierra JHP	6.0	1038	overall loaded length (inches): 1.125
150	Sierra JHP	6.5	1098	overall loaded length (inches): 1.125
150	Sierra JHP	7.0	1140	overall loaded length (inches): 1.125
150	Sierra JHP	7.5	1213	overall loaded length (inches): 1.125
150	Sierra JHP	8.0	1271	overall loaded length (inches): 1.125
180	Sierra JHP	4.8	880	overall loaded length (inches): 1.125
180	Sierra JHP	5.2	918	overall loaded length (inches): 1.125
180	Sierra JHP	5.5	962	overall loaded length (inches): 1.125
180	Sierra JHP	5.9	1006	overall loaded length (inches): 1.125
180	Sierra JHP	6.2	1050	overall loaded length (inches): 1.125
180	Sierra JHP	6.6	1089	overall loaded length (inches): 1.125
Load Data A Glock Model 22 with a 4.35-inch barrel was used to test-fire all loads. Starline cases and Winchester Small Pistol primers were used throughout. Bullet diameter: .400 inch; maximum cartridge overall length: 1.135 inches; maximum case length: .850 inch; trim-to length: .845 inch.

.41 Magnum / .41 Remington Magnum

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
210	Hornady XTP	9.1	1245	max load; COL: 1.580"; 39,700 cup
Hodgdon Pistol Data Case: Remington; twist: 1:18.75"; primer: Winchester LP; barrel length: 10.125"; trim length: 1.280"; BULLET DIAM.: .410". NEVER EXCEED MAXIMUM LOADS
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
170	Jacketed	9.6	1337	start load; min OAL: 1.575
170	Jacketed	10.8	1485	never exceed; min OAL: 1.575; 39,400 cup
210	Jacketed	8.1	1121	start load; min OAL: 1.590
210	Jacketed	9.1	1245	never exceed; min OAL: 1.590; 39,700 cup
210	Lead	8.0	1130	start load; min OAL: 1.590
210	Lead	9.0	1255	never exceed; min OAL: 1.590; 39,500 cup
Lee Precision Data CAUTION: With NEVER EXCEED LOADS; maintain Minimum Over All Length or longer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
210	Hornady JHP	8.5	1,036	case: R-P; primer: F 150; O.A. Ctg. Lgt.: 1.58; case expansion: normal
Pet Loads All loads chronographed from 6 1/2-inch barrel Ruger Blackhawk. Oehler Model 31 Chronotach, Oehler Model 51 Electronic screens, spaced 10 feet apart; I.V. = Instrumental Velocity at 10 feet from muzzle. Update: Alliant Powder Company does not recommend Blue Dot in the .41 Magnum for any bullet weights. Their new tests on recent powder samples have shown high pressure spikes that can damage personal property or injure you. For this reason we removed all Blue Dot data from .41 magnum tables.

.44 Remington Magnum / .44 Magnum

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
240	Speer LSWC	6.0	834	start charge
240	Speer LSWC	7.0	912	maximum charge
Speer Reloading Manual #14 max. case length: 1.285"; trim-to length: 1.275"; max cart. OAL: 1.610"; RCBS shell holder: #18; cart. case: Speer; primer: CCI 300 (except where otherwise specified in remarks); test firearm: Ruger Redhawk; barrel length: 7.5"; NOTE: The 225-grain SWC GC and 250-grain K bullets were cast in RCBS moulds; maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	LRNFP Cast	5.9	812	max load; COL: 1.570"; 11,100 cup
200	Nosler JHP	12.1	1350	max load; bullet diam.: .429; COL: 1.600"; 39,700 cup
220	Berry's Bullets FP	6.8	754	start load; COL: 1.610"; 10,900 psi
220	Berry's Bullets FP	10.0	1112	max load; COL: 1.610"; 21,300 psi
225	Speer JHP	11.7	1260	max load; bullet diam.: .429"; COL: 1.575"; 39,900 cup
240	LSWC Cast	10.7	1190	max load; COL: 1.620"; 39,700 cup
Hodgdon Pistol Data - IMR Powder Case: Winchester; barrel length: 8.275"; twist: 1:20"; trim length: 1.280"; primer: Remington 2 1/2; bullet diam.: .430" (except where otherwise specified in remarks). NEVER EXCEED MAXIMUM LOADS
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Jacketed	10.7	1215	start load; min OAL: 1.610
200	Jacketed	12.1	1350	never exceed; min OAL: 1.610; 39,700 cup
225	Jacketed	10.3	1123	start load; min OAL: 1.585
225	Jacketed	11.7	1260	never exceed; min OAL: 1.585; 39,900 cup
240	Jacketed	10.2	1062	start load; min OAL: 1.590
240	Jacketed	11.6	1190	never exceed; min OAL: 1.590; 39,900 cup
240	Lead	9.5	1072	start load; min OAL: 1.585
240	Lead	10.7	1190	never exceed; min OAL: 1.585; 39,700 cup
Lee Precision Data Large pistol primer. CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer.

.44 Special.44 Smith & Wesson / .44 S&W

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
240	Hornady LSWC	6.2	770	bullet diam.: .430"; COL: 1.470"; 13,800 cup
246	Rem LRN	6.2	780	bullet diam.: .431"; COL: 1.570"; 14,000 cup
IMR Pistol Data Maximum Loads case: Remington; barrel length: 6.5"; twist: 1:20"; trim length: 1.155"; primer: Remington 2 1/2; NEVER EXCEED MAXIMUM LOADS
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
185	Cast LRNFP	6.4	953	start load; COL: 1.400"; 11,300 cup
185	Cast LRNFP	7.2	1043	max load; COL: 1.400"; 13,600 cup
200	Cast LRNFP	6.0	839	start load; COL: 1.450"; 8,900 cup
200	Cast LRNFP	7.2	989	max load; COL: 1.450"; 13,400 cup
200	Nosler JHP	6.3	813	start load; COL: 1.460"; bullet diam.: .429"; 9,900 cup
200	Nosler JHP	7.0	913	max load; COL: 1.460"; bullet diam.: .429"; 13,200 cup
220	Berry's Bullets FP	6.1	781	start load; COL: 1.460"; 9,800 cup
220	Berry's Bullets FP	6.9	898	max load; COL: 1.460"; 13,600 cup
240	Cast LSWC	6.0	827	start load; COL: 1.450"; 11,400 cup
240	Cast LSWC	6.5	892	max load; COL: 1.450"; 13,400 cup
Hodgdon Data Case: Starline; barrel length: 8"; twist: 1:20"; trim length: 1.155"; primer: Winchester LP; bullet diam. .430" (except where otherwise specified in remarks). NEVER EXCEED MAXIMUM LOADS
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
240	Lead	5.5	693	start load; min OAL: 1.470
240	Lead	6.2	770	never exceed; min OAL: 1.470; 13,800 cup
246	Lead	5.5	696	start load; min OAL: 1.570
246	Lead	6.2	780	never exceed; min OAL: 1.570; 14,000 cup
Lee Precision Data CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Large Pistol Primer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
205	Cast #42798	6.8	761	sugg. start load; 9,700 cup
205	Cast #42798	7.7	838	max load; 12,600 cup
215	Cast #429215 gas check	6.2	732	sugg. start load; 10,900 cup
215	Cast #429215 gas check	6.8	801	max load; 13,500 cup
Lyman Cast Bullet Handbook cases: Winchester; trim-to length: 1.152"; primers: CCI 300; primer size: Large Pistol; Lyman shell holder: No. 7; cast bullets used size to .429" dia.; firearm used: Universal Receiver and Special Vented Barrel; barrel length: 4"; twist: 1-20"; groove diameter: .429". NOTE: More Lyman cast bullet data available under .44 Smith & Wesson Special / .44 S&W Cast Bullet Data Lyman Reloading Handbook 49th Edition.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
240	Speer Mag JHP or Mag JSP	6.9	764	maximum charge; DO NOT REDUCE
Speer Reloading Manual #14 max. case length: 1.160"; trim-to length: 1.150"; max cart. OAL: 1.615"; RCBS shell holder: #18; cart. case: Remington; primer: CCI 300 (except where otherwise specified in remarks); test firearm: Cimarron SAA; barrel length: 5.5"; NOTE: The 200-grain FN & CM, the 225-grain SWC GC and the 250-grain K bullets were cast in RCBS moulds. RCBS crimp-on gas checks used for the 225-grain SWC GC bullets. Maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
240	Nosler Sporting Handgun Jktd HP and Jktd Soft Pt	6.1	680	maximum load; most accurate load tested
240	Nosler Sporting Handgun Jktd HP and Jktd Soft Pt	5.6	600
240	Nosler Sporting Handgun Jktd HP and Jktd Soft Pt	5.1	520
Using Nosler Bullets handgun: barrel: Douglas, length: 8.2", twist: 1-20"; case: Remington; primer: Rem. 2 1/2; bullets: 200 GR & 240 GR Sporting Handgun Revolver JHP; OACL: 1.455"; maximum SAAMI overall cartridge length: 1.615"; Use Maximum Loads with Caution
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
205	Cast #427098	6.8	761	sugg. start load; 1.537" OAL; 9,700 cup
205	Cast #427098	7.7	838	max load; 1.537" OAL; 12,600 cup
210	Cast #429215 gas check	6.2	732	sugg. start load; 1.500" OAL; 10,900 cup
210	Cast #429215 gas check	6.8	801	max load; 1.500" OAL; 13,500 cup
Cast Bullet Data Lyman Reloading Handbook 49th Edition cases: Winchester; trim-to length: 1.150"; primers: CCI 300; primer size: Large Pistol; Lyman shell holder: No. 7; firearm used: Universal Receiver; barrel length: 4" (except where otherwise noted in remarks); twist: 1-20"; groove dia.: .429"

.44 WCF / .44-40 Winchester

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Cast LRNFP	7.8	857	starting load; 9,300 cup
200	Cast LRNFP	8.5	947	maximum load; 12,900 cup
Hodgdon Pistol Data case: Winchester; barrel length: 6"; twist: 1:36"; trim length: 1.295"; primer: Winchester LP; bullet diam.: .430"; COL: 1.600"; NEVER EXCEED MAXIMUM LOADS
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
205	Cast #42798	8.0	1090	sugg. start load
205	Cast #42798	9.5	1285	max load
220	Cast #429434 gas check	7.8	1065	sugg. start load
220	Cast #429434 gas check	9.0	1210	max load
Lyman Cast Bullet Handbook cases: Remington Peters; trim-to length: 1.300"; primers: Remington 2 1/2; primer size: Large Pistol; Lyman shell holder: No. 14B; cast bullets used size to .430" dia.; firearm used: Marlin Model 94; barrel length: 24"; twist: 1-36"; groove diameter: .436". NOTE: More cast bullet data available under .44 WCF / .44-40 Winchester (Lyman Reloading Manual 49th Edition)

.45 ACP

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
185	Sierra JHP	6.2	857	primer: F 150; O.A. Ctg. Lgt.: 1.18; case expansion normal
200	Speer JHP	6.0	799	primer: F 150; O.A. Ctg. Lgt.: 1.18; case expansion moderate; not sufficiently accurate
185	Speer SWC	5.7	761	primer: F 150; O.A. Ctg. Lgt.: 1.135; case expansion moderate
200	Hornady SWC	5.8	770	primer: F 150; O.A. Ctg. Lgt.: 1.225; case expansion normal
200	Hornady SWC	6.2	943	primer: F 150; O.A. Ctg. Lgt.: 1.225; case expansion normal
JHP = jacketed hollowpoint; FMJ = full metal jacket; SWC = semiwadcutter; RNL = roundnose lead. Test Guns: Colt Gold Cup National Match and Colt service automatics. Ruger Convertible revolver with 4-5/8-inch barrel used for velocity comparisons. Federal cases used throughout tests. Velocities chronographed with Oehler Model 31 Chronotach and Model 51 electronic screens; velocities taken at ten feet; screen spacing, ten feet. Accuracy Goals: (five-shot groups - sandbag rest) - one inch at fifty feet; three to four inches at fifty yards. (Handloader Issue 76)
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
155	Cast LSWC	7.0	941	start load; COL: 1.230"; 11,800 cup
155	Cast LSWC	7.7	1056	max load; COL: 1.230"; 16,100 cup
160	Barnes TAC-XP	6.1	971	start load; COL: 1.200"; 17,300 psi
160	Barnes TAC-XP	6.5	1047	max load; COL: 1.200"; 20,100 psi
180	LFP	6.7	928	start load; bullet diam.: .452"; COL: 1.140"; 14,100 cup
180	LFP	7.4	1024	max load; bullet diam.: .452"; COL: 1.140"; 17,800 cup
185	Hornady JSWC	6.8	890	start load; COL: 1.135"; 14,800 cup
185	Hornady JSWC	7.3	970	max load COL: 1.135"; 16,500 cup
200	Speer JHP	6.0	861	start load; COL: 1.155"; 13,600 cup
200	Speer JHP	6.6	941	max load; COL: 1.155"; 17,100 cup
200	Cast LSWC	6.2	836	start load; COL: 1.225"; 13,000 cup
200	Cast LSWC	6.9	952	max load; COL: 1.225"; 17,200 cup
230	LRN	5.5	828	start load; bullet diam.: .452"; COL: 1.200"; 15,100 cup
230	LRN	6.0	897	max load; bullet diam.: .452"; COL: 1.200"; 17,300 cup
230	Hornady FMJ FP	5.4	745	start load; COL: 1.200"; 12,200 cup
230	Hornady FMJ FP	6.0	848	max load; COL: 1.200"; 16,600 cup
Hodgdon Data Case: Winchester; twist: 1:16"; primer: Federal 150, Large Pistol; barrel length: 5"; trim length: .893"; bullet diam.: .451" (except where otherwise specified in remarks)
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
185	Rem MC HP	6.9	890	COL: 1.210"; 18,000 cup
200	Hornady LSWC	6.5	900	bullet diam.: .452"; COL: 1.170"; 18,000 cup
200	Speer JHP	6.4	825	COL: 1.170"; 17,200 cup
230	Rem LRN	6.2	825	COL: 1.270"; 17,700 cup
230	Rem MC	6.0	745	COL: 1.260"; 17,400 cup
IMR Pistol Data Maximum Loads case: Remington; barrel length: 5"; twist: 1:16"; trim length: .893"; primer: Remington 2 1/2; bullet diam.: .451" (except where otherwise specified in remarks); NEVER EXCEED MAXIMUM LOADS
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
185	Jacketed	5.7	760	start load; min OAL: 1.150
185	Jacketed	6.5	895	never exceed; min OAL: 1.150; 17,700 cup
200	Jacketed	5.9	764	start load; min OAL: 1.170
200	Jacketed	6.4	825	never exceed; min OAL: 1.170; 17,200 cup
200	Lead	5.6	787	start load; min OAL: 1.170
200	Lead	6.5	900	never exceed; min OAL: 1.170; 18,000 cup
230	Jacketed	5.5	682	start load; min OAL: 1.260
230	Jacketed	6.0	745	never exceed; min OAL: 1.260; 17,400 cup
230	Lead	5.8	778	start load; min OAL: 1.270
230	Lead	6.2	825	never exceed; load; min OAL: 1.270; 17,700 cup
Lee Precision Data Large Pistol primer; with NEVER EXCEED LOADS maintain Minimum Over All Length or longer
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
185	Cast #452389	5.5	825	sugg. start load; 9,800 cup
185	Cast #452389	6.5	1030	max load; 17,400 cup
195	Cast #452488	5.0	780	sugg. start load; 10,300 cup
195	Cast #452488	6.2	945	max load; 16,200 cup
Lyman Cast Bullet Handbook cases: Remington; trim-to length: .895"; primers: Remington 2 1/2; primer size: Large Pistol; Lyman shell holder: No. 2; cast bullets used size to .450" dia.; firearm used: Universal Receiver; barrel length: 5"; twist: 1-16"; groove diameter: .450". NOTE: More Lyman cast bullet data available under .45 ACP Cast Bullet Data Lyman Reloading Handbook 49th Edition
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
185	Remington Jacketed SWC/FMJ	4.4	706	sugg. start load; 1.135" OAL; 9,100 cup
185	Remington Jacketed SWC/FMJ	6.5	972	max load; 1.135" OAL; 16,800 cup
185	Hornady Jacketed HP/XTP	4.9	633	sugg. start load; 1.175" OAL; 7,100 cup
185	Hornady Jacketed HP/XTP	7.0	960	max load; 1.175" OAL; 17,900 cup
200	Speer Gold Dot Jacketed HP	4.5	601	sugg. start load; 1.178" OAL; 7,300 cup
200	Speer Gold Dot Jacketed HP	6.7	935	max load; 1.178" OAL; 17,400 cup
225	Speer Jacketed HP	4.4	587	sugg. start load; 1.243" OAL; 7,400 cup
225	Speer Jacketed HP	6.3	844	max load; 1.243" OAL; 17,400 cup
230	Speer TMJ	4.9	678	sugg. start load; 1.275" OAL; 10,800 cup
230	Speer TMJ	5.9	838	max load; 1.275" OAL; 15,800 cup
Lyman Reloading Handbook 49th Edition cases: Remington, Federal; trim-to length: .888"; primers: Remington 2 1/2; primer size: Large Pistol; Lyman shell holder: No. 2; firearm used: Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .450"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Speer Semi-wadcutter	5.2	811	maximum load
200	Speer Semi-wadcutter	4.7	726
185	Speer TMJ Match	5.6	793	maximum load
185	Speer TMJ Match	5.1	705
200	Speer Hollow Point	6.2	939	maximum load
200	Speer Hollow Point	5.6	846
230	Speer TMJ	6.1	900	maximum load
230	Speer TMJ	5.5	801
260	Speer Hollow Point	5.6	802	maximum load
260	Speer Hollow Point	5.1	733
Speer Reloading Manual #11 gun: Colt Gov't. Model; barrel: 5"; twist: 1-16; cases: Speer; primers: CCI-300; maximum loads listed should be used with caution
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Speer LSWC	4.7	726	start charge
200	Speer LSWC	5.2	811	maximum charge
185	Speer TMJ Match SWC	5.1	705	start charge
185	Speer TMJ Match SWC	5.6	793	maximum charge
185	Speer GDHP or TMJ FN	7.0	810	start charge
185	Speer GDHP or TMJ FN	7.8	981	maximum charge
230	Speer GDHP SB or GDHP	5.4	664	start charge
230	Speer GDHP SB or GDHP	6.0	796	maximum charge
Speer Reloading Manual #14 max. case length: 0.898"; trim-to length: 0.888"; max cart. OAL: 1.275"; RCBS shell holder: #3; cart. case: Speer; primer: CCI 300; test firearm: SIG P220; barrel length: 4.4"; IMPORTANT SAFETY NOTE: These loads were developed and tested for safe use in HANDGUNS. Not all loads may be suitable for use in a carbine or rifle chambered for this cartridge. If loading for a carbine or rifle, choose from among the loads developing the highest handgun velocities and load just a few rounds. Thoroughly test this small sample in your firearm in slow-fire mode, insuring that you achieve proper feeding and ejection. Be certain that all bullets exit the barrel; watching the target for each bullet strike is the best way to know that the load produces sufficient gas volume for a longer barrel. NOTE: Do not use the 230-GR TMJ RN loads with Gold Dot HP; maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
185	Nosler Custom Competition JHP	6.9	888	max; most accurate load tested
185	Nosler Custom Competition JHP	6.4	823
185	Nosler Custom Competition JHP	5.9	758
Using Nosler Bullets Handgun; case: Winchester; primer: Fed. 150; barrel length/make: 5" Douglas; twist: 1-16"; bullets: 185 GR Nosler Custom Competition JHP or 230 GR Nosler Sporting Handgun Pistol FMJ or JHP; OACL: 1.200"; maximum OACL: 1.275". Use Maximum Loads with Caution
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Lyman #452460	5.0	735	sugg. start load; 9,000 cup
200	Lyman #452460	6.2	945	max load; 17,000 cup
200	Lyman #452630	5.4	653	sugg. start load; 8,600 cup
200	Lyman #452630	6.7	900	max load; 16,800 cup
200 GR (Lyman Cast Bullet Data) cases: Remington (except where otherwise specified in remarks); trim-to length: .888"; primers: Remington 2 1/2 (except where otherwise specified in remarks); primer size: Large Pistol; Lyman shell holder: No. 2; cast bullets used sized to .451" dia.; firearm used; Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .450"; Lyman #452460 OAL: 1.161"; Lyman #452630 OAL: 1.235" (Lyman Cast Bullet Manual 4th Edition)
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
225	Lyman #452374	5.0	675	sugg. start load; 9,000 cup
225	Lyman #452374	6.0	850	max load; 15,200 cup
225 GR (Lyman Cast Bullet Data) cases: Remington (except where otherwise specified in remarks); trim-to length: .888"; primers: Remington 2 1/2 (except where otherwise specified in remarks); primer size: Large Pistol; Lyman shell holder: No. 2; cast bullets used sized to .451" dia.; firearm used; Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .450"; OAL: 1.272" (Lyman Cast Bullet Manual 4th Edition)
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Cast #452460	5.0	735	sugg. start load; 1.161" OAL; 9,000 cup
200	Cast #452460	6.2	945	max load; 1.161" OAL; 17,000 cup
200	Cast #452630	5.4	653	sugg. start load; 1.235" OAL; 8,600 cup
200	Cast #452630	6.7	900	max load; 1.235" OAL; 16,800 cup
225	Cast #452374	5.0	675	sugg. start load; 1.272" OAL; 9,000 cup
225	Cast #452374	6.0	850	max load; 1.272" OAL; 15,200 cup
Cast Bullet Data Lyman Reloading Handbook 49th Edition cases: Remington (except where otherwise specified in remarks); trim-to length: .888"; primers: Remington 2 1/2 (except where otherwise specified in remarks); primer size: Large Pistol; Lyman shell holder: No. 2; cast bullets used sized to .451" dia.; firearm used: Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .450"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
185	Federal/ Sierra JHP	7.1	1,003	primer: CCI 300; group size: 1.89; very accurate; high velocity and energy
in a Browning BDA 4.4-inch barrel. Average of two or more five-shot groups for handloads. All groups shot at 25 yards from rest. All handloads in Federal brass. Oehler Model 32/61 Chronotach/Skyscreen System. Average temperature 32 degrees.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
185	Federal/ Sierra JHP	7.1	984	primer: CCI 300; group size: 3.30; very accurate; high velocity and energy
in a Heckler & Koch P9S 4-inch polygonal-rifled barrel. Average of two or more five-shot groups for handloads. All groups shot at 25 yards from rest. All handloads in Federal brass. Oehler Model 32/61 Chronotach/Skyscreen System. Average temperature 32 degrees.

.45 Auto Rim

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Jacketed	5.3	703	start load; min OAL: 1.170
200	Jacketed	5.8	759	never exceed; min OAL: 1.170; 14,620 cup
230	Jacketed	4.9	627	start load; min OAL: 1.260
230	Jacketed	5.4	685	never exceed; min OAL: 1.260; 14,790 cup
Lee Precision Data CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
185	Cast #452389	5.0	615	sugg. start load
185	Cast #452389	6.3	810	max load
238	Cast #452423	4.1	505	sugg. start load
238	Cast #452423	4.9	655	max load
Lyman Cast Bullet Handbook cases: Remington; trim-to length: .894"; primers: Remington 2 1/2; primer size: Large Pistol; Lyman shell holder: No. 14A; cast bullets used size to .451" dia.; firearm used: Smith & Wesson Model 25 (except where otherwise specified in remarks); barrel length: 4 1/2 and 6 1/2"; twist: 1-16"; groove diameter: .451". NOTE: More Lyman cast bullet data available under .45 Auto Rim Lyman Reloading Handbook 49th Edition
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
185	Hornady Jacketed HP/XTP	6.0	709	sugg. start load; 1.236" OAL; 7,500 cup
185	Hornady Jacketed HP/XTP	7.2	849	max load; 1.236" OAL; 13,700 cup
200	Speer Jacketed GDHP	4.8	608	sugg. start load; 1.180" OAL; 7,200 cup
200	Speer Jacketed GDHP	6.0	809	max load; 1.180" OAL; 12,400 cup
225	Speer Jacketed HP	4.4	518	sugg. start load; 1.255" OAL; 6,100 cup
225	Speer Jacketed HP	6.2	812	max load; 1.255" OAL; 14,900 cup
200	Cast #452460	5.0	660	sugg. start load; 1.161" OAL
200	Cast #452460	6.1	850	max load; 1.161" OAL
225	Cast #452374	5.0	560	sugg. start load; 1.265" OAL
225	Cast #452374	5.9	750	max load; 1.265" OAL
Lyman Reloading Handbook 49th Edition cases: Remington; trim-to length: .888"; primers: Remington 2 1/2; primer size: Large Pistol; Lyman shell holder: No. 14A; cast bullets used sized to .451" dia.; firearm used: Universal Receiver, Smith & Wesson Model 25; barrel length: Universal Receiver - 4 1/2", Model 25 - 6 1/2"; twist: 1-16"; groove dia.: .451"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Speer LSWC	4.7	659	start charge
200	Speer LSWC	5.2	735	maximum charge
230	Speer GDHP, GDHP SB or 225 GR Colt JHP	5.4	791	start charge
230	Speer GDHP, GDHP SB or 225 GR Colt JHP	5.9	866	maximum charge
Speer Reloading Manual #14 max. case length: 0.898"; trim-to length: 0.888"; max cart. OAL: 1.275"; RCBS shell holder: #8; cart. case: Remington; primer: CCI 300; test firearm: S&W Model 25-2; barrel length: 6.5"; maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
185	Remington JHP	6.6	973	Primer: Fed. 150; ME: 387; duplicates .45 ACP Remington factory load
All loads in Remington brass. Velocities taken on an Oehler M-10 Chronograph; 7 1/2 feet instrumental converted to muzzle velocity. Average temperature, 66 degrees. Test gun was an S&W M1917 with 5 1/2-inch barrel.

.45 Colt

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
160	Cast LRNFP	7.0	850	start load; COL: 1.500"; 7,000 psi
160	Cast LRNFP	9.5	1157	max load; COL: 1.500"; 13,300 psi
180	Cast LRNFP	7.0	807	start load; COL: 1.540"; 7,800 psi
180	Cast LRNFP	9.1	1044	max load; COL: 1.540"; 12,600 psi
200	Cast LRNFP	7.0	796	start load; COL: 1.600"; 8,700 psi
200	Cast LRNFP	9.1	996	max load; COL: 1.600"; 12,800 psi
200	Hornady XTP	6.6	740	start load; COL: 1.600"; 8,400 psi
200	Hornady XTP	8.6	972	max load; COL: 1.600"; 13,200 psi
215	Cast LRNFP	7.2	797	start load; COL: 1.650"; 9,300 psi
215	Cast LRNFP	9.0	951	max load; COL: 1.650"; 12,600 psi
225	Hornady FTX	7.0	743	start load; COL: 1.600"; 9,200 psi
225	Hornady FTX	8.7	925	max load; COL: 1.600"; 13,500 psi
230	Cast LRNFP	7.0	770	start load; COL: 1.580"; 9,600 psi
230	Cast LRNFP	8.8	959	max load; COL: 1.580"; 13,000 psi
250	Cast LRNFP	7.0	768	start load; COL: 1.600"; 9,600 psi
250	Cast LRNFP	8.2	890	max load; COL: 1.600"; 13,000 psi
250	Hornady XTP	6.0	630	start load; COL: 1.595"; 10,300 psi
250	Hornady XTP	7.5	796	max load; COL: 1.595"; 13,700 psi
260	Speer JHP	6.0	608	start load; COL: 1.595"; 9,800 psi
260	Speer JHP	7.5	759	max load; COL: 1.595"; 13,500 psi
Hodgdon Pistol Data Case: Winchester; barrel length: 7.25"; twist: 1:16"; trim length: 1.280"; primer: Winchester LP; bullet diam.: .452". NEVER EXCEED MAXIMUM LOADS
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
250	Lead	7.7	806	start load; min. OAL: 1.600
250	Lead	8.7	895	never exceed; min. OAL: 1.600; 13,900 cup
Lee Precision Data Large Pistol primer; with NEVER EXCEED LOADS maintain Minimum Over All Length or longer
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Cast #452460	9.0	941	sugg. start load; 1.550" OAL; 10,100 cup
200	Cast #452460	10.0	1036	max load; 1.550" OAL; 12,900 cup; potentially most accurate load
250	Cast #454190	6.0	555	sugg. start load; 1.600" OAL
250	Cast #454190	8.5	890	max load; 1.600" OAL
250	Cast #452664	7.0	721	sugg. start load; 1.570" OAL
250	Cast #452664	8.5	897	max load; 1.570" OAL
255	Cast #452424	6.0	555	sugg. start load; 1.575" OAL
255	Cast #452424	8.0	835	max load; 1.575" OAL
Cast Bullet Handgun Data Lyman Reloading Handbook 49th Edition cases: Winchester; trim-to length: 1.275"; primers: Winchester WLP; primer size: Large Pistol; Lyman shell holder: No. 11; cast bullets used sized to .452" dia.; firearm used: Universal Receiver & Ruger Blackhawk; barrel length: 7 1/2"; twist: 1-16"; groove dia.: .451"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Speer LSWC	7.1	860	start charge; firmly roll-crimp over the bullet shoulder for reliable performance
200	Speer LSWC	8.1	959	maximum charge; firmly roll-crimp over the bullet shoulder for reliable performance
200	Speer GDHP	7.7	880	start charge
200	Speer GDHP	8.7	1002	maximum charge
Speer Reloading Manual #14 max. case length: 1.285"; trim-to length: 1.275"; max cart. OAL: 1.600"; RCBS shell holder: #20; cart. case: Winchester; primer: CCI 300 (except where otherwise specified in remarks); test firearm: Colt Single Action Army; barrel length: 5.5"; NOTE: the 255 SWC, 225 CAV & 230 CM bullets were cast in RCBS moulds; maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Speer Jacketed HP	7.0	581	sugg. start load; 1.557" OAL
200	Speer Jacketed HP	9.5	894	max load; 1.557" OAL
225	Speer Jacketed HP	8.4	777	sugg. start load; 1.575" OAL
225	Speer Jacketed HP	9.3	899	max load; 1.575" OAL
230	Speer Swaged Lead FN	9.0	890	sugg. start load; 1.590" OAL; 9,800 cup
230	Speer Swaged Lead FN	10.0	999	max load; 1.590" OAL; 13,200 cup
Lyman Reloading Handbook 49th Edition cases: Winchester; trim-to length: 1.275"; primers: Winchester WLP; primer size: Large Pistol; Lyman shell holder: No. 11; firearms used: Universal Receiver & Ruger Blackhawk; barrel length: 7 1/2"; twist: 1-16"; groove dia.: .451"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
255	Cast #452424	8.0	984	10" Bbl.; sugg. start load; 1.630" OAL
255	Cast #452424	8.0	804	15" Bbl.; sugg. start load; 1.630" OAL
255	Cast #452424	9.7	1153	10" Bbl.; max load; 1.630" OAL
255	Cast #452424	9.7	938	15" Bbl.; max load; 1.630" OAL
325	Cast #452651 gas check	7.0	722	10" Bbl.; sugg. start load; 1.585" OAL
325	Cast #452651 gas check	7.0	781	15" Bbl.; sugg. start load; 1.585" OAL
325	Cast #452651 gas check	8.2	841	10" Bbl.; max load; 1.585" OAL
325	Cast #452651 gas check	8.2	895	15" Bbl.; max load; 1.585" OAL
in a T/C Contender & Encore Lyman Reloading Handbook 49th Edition This data was developed for use in the T/C Contender and Encore handguns. It can also be used in other single shot or bolt-action handguns such as the Remington XP-100 and Savage Striker. Do not use these loads in any other type of handgun. Shooters using the 15-inch 45 Colt/410 barrel must remove the internal choke before firing 45 Colt ammunition. Cases: Winchester; trim-to length: 1.275"; primers: Winchester WLP; primer size: Large Pistol; Lyman shell holder: No. 11; cast bullets used sized to .452" dia.; firearm used: Thompson/Center Contender and Encore; barrel length: 10" Contender and 15" Encore; twist: 1-24" Contender and 1-16" Encore; groove dia.: .452"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
250	Oregon Trail Laser-Cast RNFP	8.6	860
Traditional Handload Data All loads, fired from a 4 3/4-inch barreled USFA Pre-War SAA, produced between 850 and 870 fps average velocity and are thus listed at 860 fps to more or less duplicate traditional .45 Colt ballistics. Starline cases and CCI 300 Large Pistol primers were used throughout. Overall loaded length: 1.575 inches. Bullet diameter: .452 inch used herein (.454 inch suggested for guns with throats .454 or larger); maximum case length: 1.285 inches; trim-to case length: 1.275 inches.

.455 Colt-Eley

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
250	Remington Lead RN	6.0	583	case expansion: moderate; accuracy class: C
250	Remington Lead RN	7.0	700	case expansion: maximum; accuracy class: A+; 2nd best accuracy
Test revolver was Colt New Service with 5 1/2-inch barrel. All loads employed Dominion (Canadian) .455 Colt cases. Federal No. 150 Large Pistol primers used in all handloads. Oehler Model 31 Chronograph and Model 51 screens used to measure velocities. Velocities are instrumental, measured 8 feet from muzzle (not corrected to muzzle velocity). Lyman 3-die reloading set used to resize cases and seat bullets. The following accuracy classification system was used in these tests: A+ = 1-inch or less at 20 yards; A = 1 1/16 - 1 1/2 inches; B = 1 9/16 - 2 inches; C = 2 1/16 - 2 1/2 inches; D = Over 2 1/2 inches.

10mm Auto

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
155	Remington JHP	7.8	1,275	34,300 psi
180	Winchester JHP	7.0	1,140	35,100 psi
200	Hornady XTP	6.2	1,040	35,700 psi
IMR Data - Maximum Loads case: Remington; barrel length: 5"; twist: 1:16"; trim length: .987"; primer: Remington 2 1/2; bullet diam.: .400"; COL: 1.250"; NEVER EXCEED MAXIMUM LOADS
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
155	Jacketed	7.5	1227	start load; min OAL: 1.250
155	Jacketed	7.8	1275	never exceed; min OAL: 1.250; 34,300 psi
180	Jacketed	6.6	1076	start load; min OAL: 1.250
180	Jacketed	7.0	1140	never exceed; min OAL: 1.250; 35,100 psi
200	Jacketed	5.7	963	start load; min OAL: 1.250
200	Jacketed	6.2	1040	never exceed; min OAL: 1.250; 35,700 psi
Lee Precision Data Large Pistol Primer. CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
155	Hornady JHP	6.5	1,128	case expansion normal; best accuracy with 155-grain Hornady
155	Hornady JHP	7.5	1,238	case expansion near maximum; accurate
150	Sierra JHP	7.0	1,210	case expansion normal
Jacketed Bullets Test pistol was a Colt Delta Elite with a five-inch barrel. All loads used Federal F-150 primers. Special care should be exercised to differentiate between HS-7 and AAC-7 powders!

9mm Luger / 9mm Parabellum (9x19)

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
88	Speer JHP	6.0	1,386	OAL (inches): 1.04; case expansion: near max; best accuracy with 88-grain bullets
90	Sierra JHP	5.8	1,356	OAL (inches): 1.03; case expansion: normal; best accuracy with 90-grain bullets
100	Speer JHP	5.7	1,302	OAL (inches): 1.075; case expansion: normal; accurate
115	Nosler FMJ	5.5	1,221	OAL (inches): 1.10; case expansion: maximum; accurate; best load with this bullet
115	Sierra JHP	5.4	1,210	OAL (inches): 1.08; case expansion: near max; very accurate
115	Hornady JHP	5.2	1,167	OAL (inches): 1.11; case expansion: normal; best load with 115 Hornady
115	Speer JHP	5.3	1,208	OAL (inches): 1.11; case expansion: near max; good load
124	Hornady FMJ-FP	5.3	1,154	OAL (inches): 1.12; case expansion: maximum
130	Sierra FMJ-RN	5.1	1,131	OAL (inches): 1.12; case expansion: maximum
(Jacketed) in a Beretta Beretta 92-F, 5 inches.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
88	Speer JHP	6.0	1,414	OAL (inches): 1.04; case expansion: near max; best accuracy with 88-grain bullets
90	Sierra JHP	5.8	1,369	OAL (inches): 1.03; case expansion: normal; best accuracy with 90-grain bullets
100	Speer JHP	5.7	1,305	OAL (inches): 1.075; case expansion: normal; accurate
115	Nosler FMJ	5.5	1,226	OAL (inches): 1.10; case expansion: maximum; accurate; best load with this bullet
115	Sierra JHP	5.4	1,247	OAL (inches): 1.08; case expansion: near max
115	Hornady JHP	5.2	1,177	OAL (inches): 1.11; case expansion: normal; best load with 115 Hornady
115	Speer JHP	5.3	1,232	OAL (inches): 1.11; case expansion: near max; good load
124	Hornady FMJ-FP	5.2	1,166	OAL (inches): 1.12; case expansion: near max; good load
130	Sierra FMJ-RN	5.1	1,173	OAL (inches): 1.12; case expansion: maximum
(Jacketed) in a Ruger Ruger P-85, 4 1/2 inches.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
126	Magma SKU-9-125 roundnose cast (sized .3560)	3.7	919	OAL (inches): 1.11; case expansion: moderate; fourth best accuracy with Magma bullets
126	Magma SKU-9-125 roundnose cast (sized .3560)	4.0	1,023	OAL (inches): 1.11; case expansion: normal; accurate
126	Magma SKU-9-125 roundnose cast (sized .3560)	4.3	1,063	OAL (inches): 1.11; case expansion: maximum
125	SAECO SWC Cast (Sized .355 inch)	4.0	977	OAL (inches): 1.09; case expansion: normal; second best accuracy with SAECO bullets
130	Ohaus Cast (Sized .3565 inch)	3.7	972	OAL (inches): 1.13; case expansion: normal; 966 fps when taper-crimped
130	Ohaus Cast (Sized .3565 inch)	4.0	1,011	OAL (inches): 1.13; case expansion: near max; third best accuracy with Ohaus bullets
124	Hornady Swaged (Sized .355 inch)	3.7	895	OAL (inches): 1.13; case expansion: moderate
124	Hornady Swaged (Sized .355 inch)	4.2	1,007	OAL (inches): 1.13; case expansion: normal; accurate
125	Alberts Swaged (Sized .3565 inch)	4.2	948	OAL (inches): 1.11; case expansion: normal
in a Beretta Federal cases and Federal 100 Small Pistol primers used for all loads. Velocities are instrumental at 10 feet from the muzzle, using Oehler Model 31 chronotach and Oehler Model 51 electronic screens with 10-foot spacing. Barrel lengths of test gun: Beretta, 5-inch barrel.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
126	Magma SKU-9-125 roundnose cast (sized .3560)	3.7	920	OAL (inches): 1.11; case expansion: moderate; fourth best accuracy with Magma bullets
130	Ohaus Cast (Sized .3565 inch)	4.0	1,012	OAL (inches): 1.13; case expansion: near max; third best accuracy with Ohaus bullets
in a Ruger Federal cases and Federal 100 Small Pistol primers used for all loads. Velocities are instrumental at 10 feet from the muzzle, using Oehler Model 31 chronotach and Oehler Model 51 electronic screens with 10-foot spacing. Barrel lengths of test gun: Ruger, 4 1/2-inch barrel.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
80	Barnes TAC-XP	3.6	1006	start load; COL: 1.025"; 24,900 psi
80	Barnes TAC-XP	4.6	1200	max load; COL: 1.025"; 33,100 psi
90	Speer GDHP	4.9	1216	start load; COL: 1.010"; 27,300 psi
90	Speer GDHP	5.5	1292	max load; COL: 1.010"; 30,600 psi
95	Sierra FMJ	4.9	1172	start load; COL: 1.020"; 27,800 psi
95	Sierra FMJ	5.4	1259	max load; COL: 1.020"; 32,500 psi
115	Speer GDHP	4.5	1031	start load; COL: 1.125"; 28,000 psi
115	Speer GDHP	4.9	1113	max load; COL: 1.125"; 32,300 psi
124	Berry's Bullets HBRN TP	4.3	900	start load; bullet diam.: .356"; COL: 1.150"; 25,100 psi
124	Berry's Bullets HBRN TP	4.9	1054	max load; bullet diam.: .356"; COL: 1.150"; 31,800 psi
125	Lead Conical Nose	3.6	933	start load; bullet diam.: .356"; COL: 1.125"; 24,600 psi
125	Lead Conical Nose	4.1	1035	max load; bullet diam.: .356"; COL: 1.125"; 31,200 psi
125	Hornady HAP	3.3	804	start load; bullet diam.: .356"; COL: 1.069"; 25,600 psi
125	Hornady HAP	3.8	914	max load; bullet diam.: .356"; COL: 1.069"; 32,000 psi
125	Sierra FMJ	4.1	996	start load; COL: 1.090"; 28,900 psi
125	Sierra FMJ	4.6	1074	max load; COL: 1.090"; 33,700 psi
130	Berry's Bullets RN	4.2	918	start load; bullet diam.: .356"; COL: 1.150"; 28,200 psi
130	Berry's Bullets RN	4.7	1026	max load; bullet diam.: .356"; COL: 1.150"; 32,000 psi
147	Hornady XTP	2.8	707	start load; COL: 1.100"; 24,000 psi
147	Hornady XTP	3.3	844	max load; COL: 1.100"; 32,900 psi
Hodgdon Data Using IMR Powder Case: Winchester; twist: 1:10"; primer: CCI 500, Small Pistol; barrel length: 4"; trim length: .750"; bullet diam.: .355" (except where otherwise specified in remarks.)
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
115	Rem JHP	5.1	1095	COL: 1.110"; 32,400 cup
124	Rem MC	4.9	1040	COL: 1.135"; 32,300 cup
147	Hornady XTP	4.3	950	COL: 1.130"; 32,900 cup
IMR Pistol Data Maximum Loads case: Remington; barrel length: 4.0"; twist: 1:10"; trim length: .750"; primer: CCI 500; bullet diam.: .355"; NEVER EXCEED MAXIMUM LOADS
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
124	Jacketed	4.4	945	start load; min OAL: 1.135
124	Jacketed	4.9	1040	never exceed; min OAL: 1.135; 32,300 cup
147	XTP	3.9	871	start load; min OAL: 1.130
147	XTP	4.3	950	never exceed; min OAL: 1.130; 32,900 cup
115	Jacketed	4.6	995	start load; min OAL: 1.110
115	Jacketed	5.1	1095	never exceed; min OAL: 1.110; 32,400 cup
Lee Precision Data Small pistol primer. CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
92	Cast #358242	5.0	1180	sugg. start load; OAL: 1.045"; 23,400 cup
92	Cast #358242	5.9	1310	max load; OAL: 1.045"; 30,500 cup
115	Cast #358345	3.8	1005	sugg. start load; OAL: .997"; case: Win; primer: Win 1 1/2-108; 24,000 cup
115	Cast #358345	4.5	1130	max load; OAL: .997"; case: Win; primer: Win 1 1/2-108; 31,000 cup
121	Cast #356402	3.5	935	sugg. start load; OAL: 1.110"; case: Win; primer: Win 1 1/2-108; 21,000 cup
121	Cast #356402	4.3	1080	max load; OAL: 1.110"; case: Win; primer: Win 1 1/2-108; 31,500 cup
Lyman Cast Bullet Handbook 3rd Edition The trim-to length should be adhered to closely. A short case or crimp on the mouth can cause problems with headspace. Most popular cast bullet for this caliber is #356402. Cases: Federal (except where otherwise specified in remarks); trim-to length: .751"; primers: CCI 500 (except where otherwise specified in remarks); primer size: Small Pistol; Lyman shell holder: No. 12; cast bullets used sized to .358" dia.; firearm used: Universal Receiver; barrel length: 4"; twist: 1-10"; groove diameter: .358"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	JHP	5.5	1,401	energy: 392; psi: 30,000
Super Vel Data 5 inch Pressure Barrel
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Cast #356242	5.0	1180	sugg. start load; 23,400 cup; 1.045" OAL
90	Cast #356242	5.9	1310	max load; 30,500 cup; 1.045" OAL
120	Cast #356242	3.0	852	sugg. start load; 21,400 cup; 1.065" OAL
120	Cast #356242	3.9	1095	max load; 31,300 cup; 1.065" OAL
Cast Bullet Handgun Data Lyman Reloading Handbook 49th Edition cases: Federal; trim-to length: .751"; primers: CCI 500; primer size; Small Pistol; Lyman shell holder: No. 12; cast bullets used sized to .356" dia.and all #2 Alloy; firearm used: Universal Receiver; barrel length: 4"; groove dia.: .355"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Sierra JHC	5.5	1,344	very accurate with high velocity; OAL: .980"
4" Barrel Overall cartridge length must be carefully controlled to insure reliable feeding. Cartridges must lie parallel to magazine follower. (These notes especially apply to the Luger.)
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
141	H&G 12B semiwadcutter	3.8	930	OAL (inches): 1.13
141	H&G 12B semiwadcutter	4.0	990	OAL (inches): 1.13
147	Redding/SAECO 929 semiwadcutter	3.5	910	OAL (inches): 1.16; poor accuracy
147	Redding/SAECO 929 semiwadcutter	3.8	945	OAL (inches): 1.16; poor accuracy
147	Lyman 358212 roundnose	3.5	900	OAL (inches): 1.17
147	Lyman 358212 roundnose	4.0	975	OAL (inches): 1.17
157	Lyman 356637 flatnose	3.5	875	OAL (inches): 1.15
Cast Bullet Loads Reduce initial charge by 10% before working up. If the overall cartridge length is either increased or decreased, further reduce initial powder charges.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Hornady JHP	5.0	1,159	length (inches): 1.045; expansion: moderate; accuracy class: A+; most accurate load
90	Hornady JHP	5.8	1,263	length (inches): 1.045; expansion: normal; accuracy class: B
115	Hornady JHP	5.2	1,109	length (inches): 1.110; expansion: normal; accuracy class: B
115	Hornady JHP	5.5	1,148	length (inches): 1.110; expansion: maximum; accuracy class: B
125	Sierra FMJ	5.0	1,101	length (inches): 1.150; expansion: maximum; accuracy class: C+
125	Speer JSP	5.2	1,101	length (inches): 1.130; expansion: normal; accuracy class: D; poor load
in a 4-inch Barrel Test gun: S&W Model 39-2; R-P cases; Alcan SP primers.
